Efficient Copper-bisisoquinoline-based Catalysts for Selective Aerobic Oxidation of Alcohols to Aldehydes and Ketones

1
Biological and Chemical Engineering School, Ningbo Institute of Technology, Zhejiang University; 1st Qianhu Nan Road, 315100, Ningbo, Zhejiang, P. R. China
2
Analysis and Testing Center, Ningbo Institute of Technology, Zhejiang University; 1st Qianhu Nan Road, 315100, Ningbo, Zhejiang, P. R. China
3
Institute of Chemical and Engineering Sciences (ICES) 1 Pesek Road, Jurong Island, 627833, Singapore
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2007, 8(6), 505-512; https://doi.org/10.3390/i8060505
Submission received: 14 December 2006 / Revised: 23 April 2007 / Accepted: 25 May 2007 / Published: 6 June 2007
(This article belongs to the Special Issue Ionic Liquids)

Abstract

:
The selective oxidation of alcohols with molecular oxygen was efficiently completed in high conversion and selectivity using copper-bisisoquinoline-based catalysts under mild reaction condition. The effects of various parameters such as reaction temperature, reaction time, oxidant, ligands, etc, were studied. Solvent effect has been as well studied in ionic liquids [bmim]PF6, [omim]BF4 and [hmim]BF4, comparing to traditional volatile organic solvent. The use of ionic liquids was found to enhance the catalytic properties of the catalysts used.

1. Introduction

The oxidation of alcohols into corresponding aldehydes and ketones is a crucial transformation in organic chemistry, both with academic and industry relevance [14]. Traditionally, this reaction is realized by using inorganic oxidants (e.g. Cr(VI) reagents). These reagents are needed in stochiometric amounts and are usually toxic or hazardous and hard to be separated from products, which are not environmental friendly and economically. Moreover, most of them are not effective with a broad range of alcohols, especially those in the presence of other oxidizable functional groups such as olefinic group and heteroatoms [5]. Recently, more and more efforts have been put in high valuable catalytic oxidizing process. Among these, protocols based on O2, air or H2O2 [69] are particularly attractive because of cheap and readily available oxidants and with H2O as the only byproduct. Successful examples include both homogeneous catalysts (e.g. Ru-, Pd-, Cu- complexes; bi-metallic complexes systems) and heterogeneous catalysts (e.g. metal catalysts and supported catalysts, including mesoporous materials, zeolites, etc.) [10].
Room-temperature ionic liquids [11] are finding growing applications as alternative reaction media for separations [12] and organic transformations [1321]. Recent examples of such organic transformations include hydrogenations [13], Friedel-Crafts reactions [14], Diels-Alder reactions [15], Heck reactions [16], Bischler-Napieralsky reactions [17], olefin dimerizations [18], cross-couplings [19], hydroformylations [20] and alkylations [21]. The desirable advantages of ionic liquids such as low vapor pressure, wide liquid range and thermal stability have made them exceptional reaction media. Accordingly, they are emerging as novel replacements for volatile organic compounds, mainly used as solvents in organic transformations. Ionic liquids have already been used as solvents for oxidation of alcohols with hypervalent iodine reagents, Cu(ClO4)2/acetamido-TEMPO/DMAP catalytic system, tetravalent cerium salts as oxidizing agents, and manganese dioxide, etc. [22].
In pursuing economical and environmentally friendly processes for the production of the selective oxidation of alcohols with molecular oxygen is particularly desirable. In this work, we report effective copper-bisisoquinoline-based catalysts for this purpose. The chose of copper-bisisoquinoline-based catalysts is based on the fact that copper chloride can mediate oxidation of alcohols very efficiently, in the presence of a nitrogen-contained ligand. However, the studies on copper-bisisoquinoline-based catalysts for selective oxidation of alcohols under air conditions using ionic liquid solvent system has not yet reported. The effects of some important variables, like oxidants and some additives, such as base or solid support are investigated. Solvent effect has been as well studied in ionic liquids [bmim]PF6 (IL1), [omim]BF4 (IL2) and [hmim]BF4 (IL3) (Figure 1), comparing to traditional volatile organic solvent. The present work revealed that copper-bisisoquinoline-based catalysts has potential applications in the oxidation of alcohols into corresponding aldehydes and ketones with excellent conversion and good selectivity. The use of ionic liquids was found to enhance the catalytic properties of the catalysts used.

2. Results and Discussion

8 substrates with a wide range of primary, secondary, allylic, and benzylic alcohols can be smoothly oxidized to the corresponding aldehydes or ketones with good conversions. The results were listed in Table 1. The selectivity of the catalytic products of the 8 studied substrates at different experimental conditions was conducted by GC-MS. All the studied alcohols were able to be selected converted to corresponding aldehydes at selectivity higher than 80 %.
For the effects of the ligands, although the difference between L1 and L2 is only on the C-C (in L1) and C=C (in L2) bond in the nitrogen ring, the conversion of the alcohols are investigated higher in the catalytic system containing L2 than that of L1. This may be due to the results of L2 has a better conjugated structure, which may stabilize the Cu-L complex system for better catalytic properties.
Air can be conveniently used instead of oxygen without affecting the efficiency of the process. However, the use of air requires slightly longer reaction times.
Remarkably, catalyst deactivation is not observed during these extended reaction times. The catalyst shows excellent tolerance for a broad range of alcohol substrates and is notably not deactivated by nitrogen- and sulfur-containing compounds. Sensitive aldehydes, are not isomerized under the reaction conditions. The active catalyst appears to be heterogeneous and adsorbed on the insoluble K2CO3. Besides its role as a solid support, the carbonate also acts as a base, initiating the addition of the alcohol, or DBADH2 (ditert-butylazodicarboxylate), or both to the copper complex, and as a water scavenger. K2CO3 could be replaced by a nonoxidizable base such as KOH or KOBut, with slightly effects on the conversion and selectively.
The reaction solvent, toluene, can be replaced by Ionic liquids [bmim]PF6 (IL1), [omim]BF4 (IL2) and [hmim]BF4 (IL3) used in this study. 2 ml of ionic liquids are needed for the reactions, with at least 1 % improvement of the conversion of alcohols. Not much effect on the conversion of alcohols was observed with the variation of the anion of the Ils, or the side chain length of the imidazole cation part of the ILs. The reaction can be carried out with high conversion and selectivity without base (Table 1 e-g ), while base strictly necessary when toluene is used as solvent.
In this work, we have discovered an efficient catalytic system that oxidizes a wide range of alcohols into the corresponding aldehydes or ketones under mild conditions and that uses O2 as the oxidant. The present work revealed that copper-bisisoquinoline-based catalysts has potential applications in the oxidation of alcohols into corresponding aldehydes and ketones with excellent conversion and good selectivity. Higher catalytic activity was investigated when L2 was applied; which may be due to the aromatic ring can make the Cu-L complex more stable. For different substrates, the present catalytic system was more effective to the aromatic alcohols than the aliphatic ones; Primer alcohols were observed more active than the secondary ones in the present system. The use of ionic liquids was found to enhance the catalytic properties of the catalysts used. Further studies are needed to delineate the intimate mechanistic steps and expand the scope of this oxidation process.

3. Experimental Section

3.1. Materials

Ionic liquids [bmim]PF6 (IL1), [omim]BF4 (IL2) and [hmim]BF4 (IL3) were purchased from Solvent-Innovation GmbH and purified by washing with ethyl acetate, and diethyl ether, and dried in vacuum. All the studied alcohols, light petroleum, dichlormethene, and hexane were purchased from Fluka with purity higher than 99% and used as received.
The preparation of bisisoquinoline ligands were reported elsewhere [23]. The structure of the bisisoquinoline ligands (L1 and L2) were shown in Figure 2.

3.2. Catalytic reaction

The experimental procedure of the studied 8 substrates with a wide range of primary, secondary, allylic, and benzylic alcohols were similar. The oxidation of cinnamyl alcohol carried out in toluene was taken as an example.
Typical experimental procedure was carried out as follows: In a 100 ml two-necked flask, CuCl (0.05 g, 0.5 mmol) and L1 or L2 (0.19 g, 0.5 mmol) were dissolved in toluene (20 ml). Then, K2CO3 (2.75 g, 0.02 mol) were added and the mixture was stirred for 30 min at room temperature. DBADH2 (ditert-butylazodicarboxylate) (0.115 g, 0.5 mmol) and Cinnamyl alcohol (0.134 g, 0.01 mol) were added successively, and the mixture was heated for 1.5 hours on an oil-bath at 80 °C while O2 was gently bubbled through the reaction mixture. After cooling down to room temperature, the mixture was diluted by addition of Et2O and filtered through a pad of silica gel. The solution was washed successively with water, 1 M HCl, and saturated aqueous NaCl solution, dried over MgSO4, and distilled out all the organic portions.
For the reactions carried out in ionic liquids, no K2CO3 or other base was needed. The reactions can be realized at room temperature (20 °C). The rest procedures were similar to the ones carried out in toluene.
In order to monitor the reaction, samples were taken at intervals, treated with passing through a silica gel pad and diluted with toluene before injecting in GC. Qualitative analyses were conducted with a HP 6890N/5973N GC-MS with chemstation containing a NIST Mass Spectral Database. Quantitative analyses were conducted with a HP 6890 GC equipped with a FID detector. The conversion was measured by gas chromatography. An HP-5 capillary column containing crossed linked 5%-phenyl 95%-dimethylsiloxane copolymer was used for GC seperation.

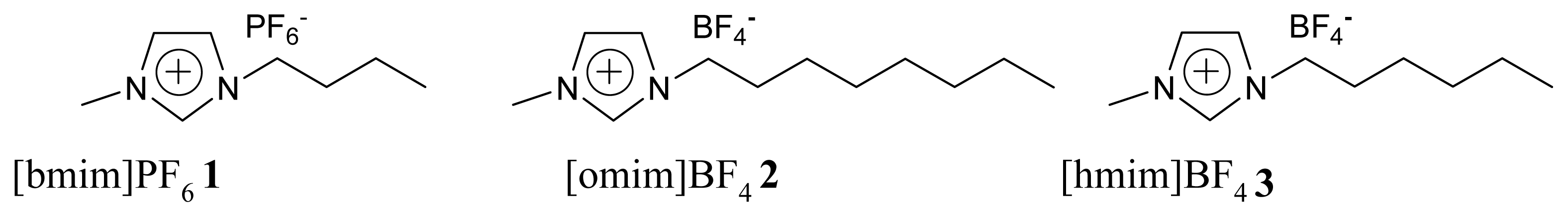

Figure 1. Structure of ionic liquids 1–3.
Figure 1. Structure of ionic liquids 1–3.
Ijms 08 00505f1

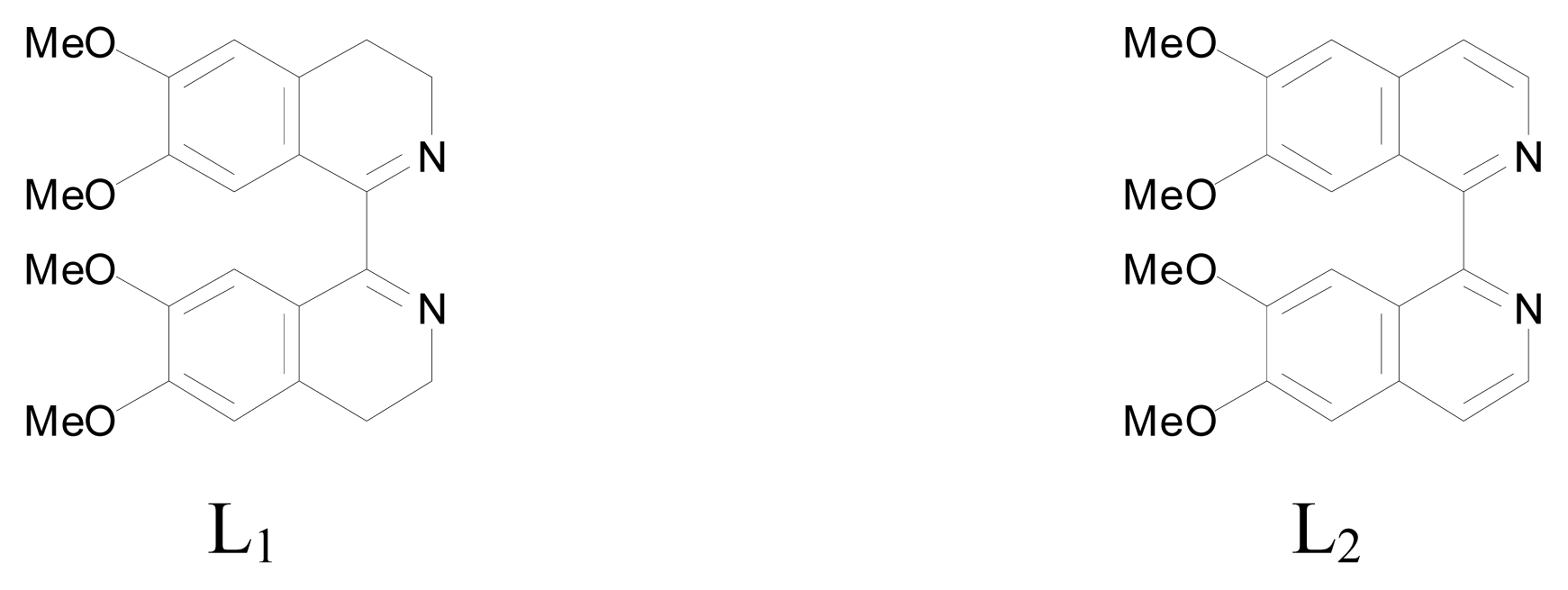

Figure 2. Structures of ligand L1 and L2.
Figure 2. Structures of ligand L1 and L2.
Ijms 08 00505f2

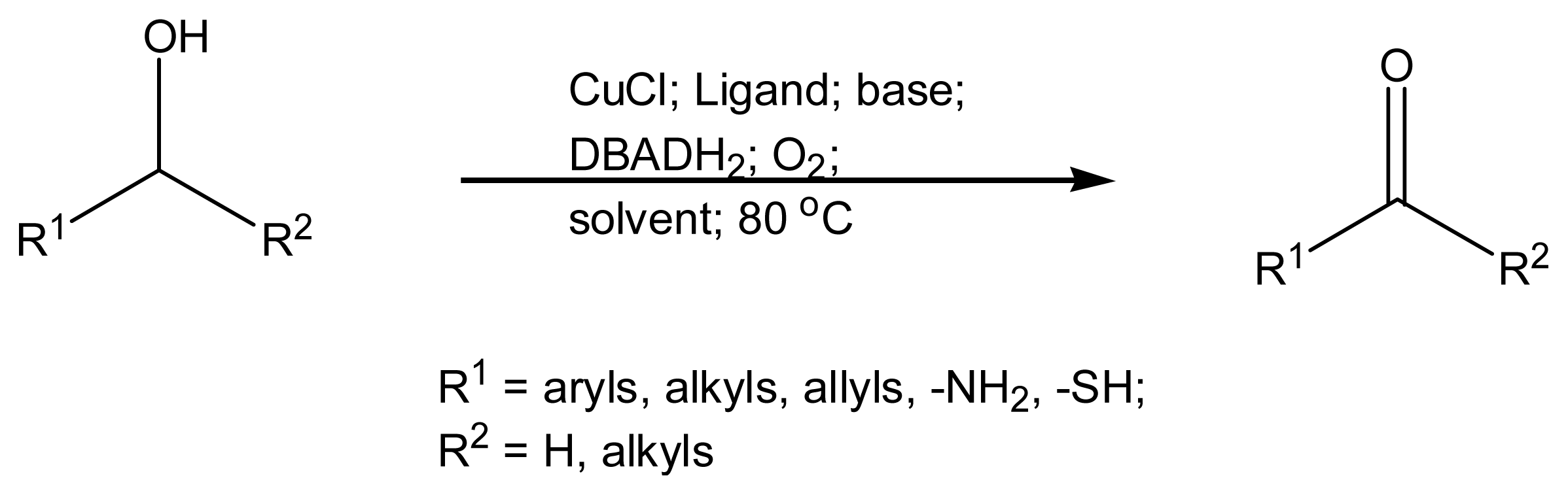

Table 1. Oxidation of alcohols catalyzed by Cu-bisisoquinoline catalytic systems.
Table 1. Oxidation of alcohols catalyzed by Cu-bisisoquinoline catalytic systems.
Ijms 08 00505f3

entrysubstrateproductTime (h)Conversion * (%)

Selectivity(%)

(a)(b)(c )(d)(e)(f)(g)

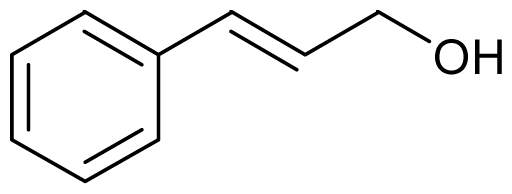

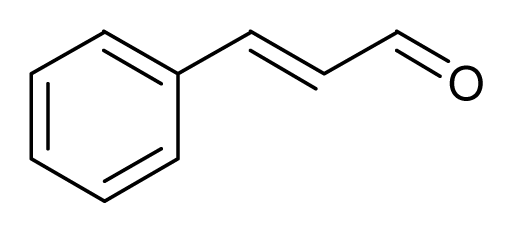

1Ijms 08 00505f4Ijms 08 00505f51.593969595979696

93969896989798

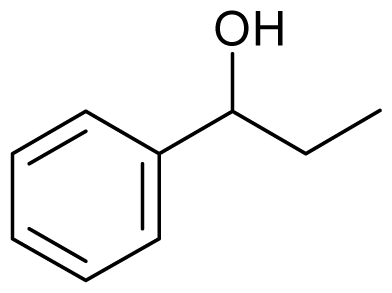

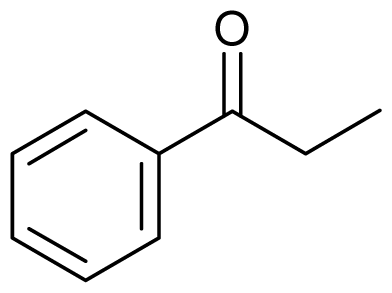

2Ijms 08 00505f6Ijms 08 00505f7191979797989899

92939295959392

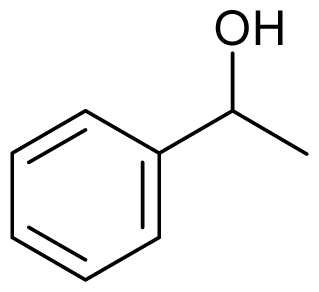

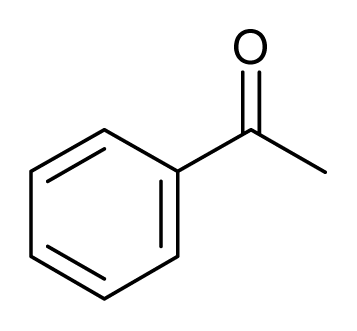

3Ijms 08 00505f8Ijms 08 00505f9193999898999999

90919294959394
4Ijms 08 00505f10Ijms 08 00505f112.594979697979897

88899288909190

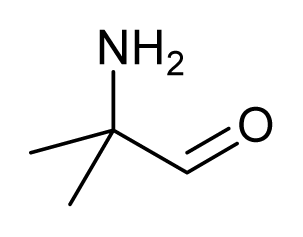

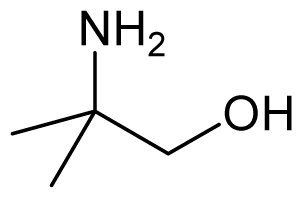

5Ijms 08 00505f12Ijms 08 00505f132.585888888909191

80818280858584

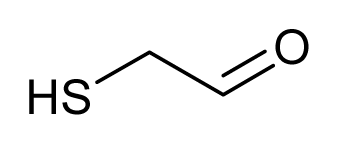

6Ijms 08 00505f14Ijms 08 00505f152.581838282899090

80828280828383

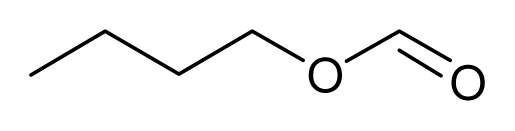

7Ijms 08 00505f16Ijms 08 00505f172.586898888919192

82848381858485

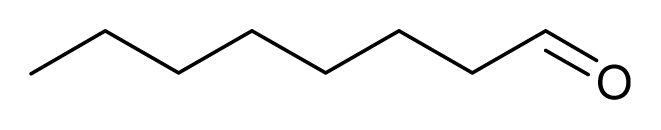

8Ijms 08 00505f18Ijms 08 00505f19396999999999999

92949596969495
*(a) L = L1, base = K2CO3, reaction carried out in toluene; (b) L = L2, base = K2CO3, reaction carried out in toluene; (c) L = L2, base = KOH, reaction carried out in toluene; (d) L = L2, base = KOBut, reaction carried out in toluene; (e) L = L2, without base, reaction carried out in IL1, at 20 °C; (f) L = L2, without base, reaction carried out in IL2, at 20 °C; (g) L = L2, without base, reaction carried out in IL3; at 20 °C

Acknowledgements

We would like to thank the Agency for Science, Technology and Research (A*STAR) and the Foundation of Ningbo Institute of Technology, Zhejiang University for financial support.

References and Notes

  1. Larock, R.C. Comprehensive Organic Transformations; VCH Publishers: New York, 1989; p. 604. [Google Scholar]
  2. Procter, G. Ley, S. V., Ed.; Comprehensive Organic Synthesis; Volume 7, Pergamon: Oxford, 1991; p. 305. [Google Scholar]
  3. Ley, S.V.; Madin, A. Trost, B.M., Fleming, I., Eds.; Comprehensive Organic Synthesis; Volume 7, Pergamon: Oxford, 1991; p. 119. [Google Scholar]
  4. Lee, T.V. Trost, B. M., Fleming, I., Eds.; Comprehensive Organic, Synthesis; Volume 7, Pergamon: Oxford, 1991; p. 251. [Google Scholar]
  5. Sheldon, R.A.; Kochi, J.K. Metal-Catalyzed Oxidations of Organic Compounds; Academic Press: New York, 1981; p. 121. [Google Scholar]
  6. Sheldon, R.A. Simandi, L.L., Ed.; Dioxygen Activation and Homogeneous Catalytic Oxidation; Elsevier: Amsterdam, 1991; p. 573. [Google Scholar]
  7. Strukul, G. Catalytic Oxidations with Hydrogen Peroxide as Oxidant; Kluwer Academic Publishers: London, 1992; p. 45. [Google Scholar]
  8. Sato, K.; Takagi, J.; Aoki, M.; Noyori, R. Hydrogen Peroxide Oxidation of Benzylic Alcohols to Benzaldehydes and Benzoic Acids Under Halide-Free Conditions. Tetrahedron Lett. 1998, 39, 7549–7552. [Google Scholar]
  9. Sato, K.; Aoki, M.; Noyori, R. A. “Green” Route to Adipic Acid: Direct Oxidation of Cyclohexenes with 30 Percent Hydrogen Peroxide. Science 1998, 281, 1646–1647. [Google Scholar]
  10. For selected recent examples of catalytic aerobic oxidations, see: ten Brink, G.J.; Arends, I.W.C.E.; Sheldon, R.A. Green, Catalytic Oxidation of Alcohols in Water. Science 2000, 287, 1636–1639. [Google Scholar]Chaudhuri, P.; Hess, M.; Weyhermüller, T.; Wieghardt, K. Aerobic Oxidation of Primary Alcohols by a New Mononuclear CuII-Radical Catalyst. Angew. Chem. Int. Ed. Engl. 1999, 38, 1095–1098. [Google Scholar]Dijkman, A.; Arens, I.W.C.E.; Sheldon, R.A. Efficient ruthenium– TEMPO-catalysed aerobic oxidation of aliphatic alcohols into aldehydes and ketones. Chem. Commun. 1999, 1591–1592. [Google Scholar]Markó, I.E.; Giles, P.R.; Tsukazaki, M.; Brown, S.M.; Urch, C.J. Copper-Catalyzed Oxidation of Alcohols to Aldehydes and Ketones: An Efficient, Aerobic Alternative. Science 1996, 274, 2044–2045. [Google Scholar]Markó, I.E.; Giles, P.R.; Tsukazaki, M.; Chellé-Regnaut, I.; Urch, C.J.; Brown, S.M. Efficient, Aerobic, Ruthenium-Catalyzed Oxidation of Alcohols into Aldehydes and Ketones. J. Am. Chem. Soc. 1997, 119, 12661–12662. [Google Scholar]
  11. Welton, T. Room-Temperature Ionic Liquids. Solvents for Synthesis and Catalysis. Chem. Rev. 1999, 99, 2071–2083. [Google Scholar]Wasserscheid, P.; Keim, W. Ionic Liquids - New Solutions for Transition Metal Catalysis. Angew. Chem. Int. Ed. 2000, 39, 3772–3789. [Google Scholar]Seddon, R. Catalytic reactions in ionic liquids. Chem. Commun. 2001, 2399–2407. [Google Scholar]
  12. Blanchard, L.A.; Brennecke, J.F. Recovery of Organic Products from Ionic Liquids Using Supercritical Carbon Dioxide. Ind. Eng. Chem. Res. 2001, 40, 287–292. [Google Scholar]Huddleston, J.G.; Willauer, H.D.; Swatloski, R.P.; Visser, A.E.; Rogers, R.D. Room temperature ionic liquids as novel media for clean liquid–liquid extraction. Chem. Commun. 1998, 1765–1766. [Google Scholar]Dai, S.; Ju, Y.H.; Barnes, C.E. Solvent extraction of strontium nitrate by a crown ether using room-temperature ionic liquids. J. Chem. Soc., Dalton Trans. 1999, 1201–1202. [Google Scholar]Visser, A.E.; Swatloski, R.P.; Reichert, W.M.; Griffin, S.T.; Rogers, R.D. Traditional Extractants in Nontraditional Solvents: Groups 1 and 2 Extraction by Crown Ethers in Room-Temperature Ionic Liquids. Ind. Eng. Chem. Res. 2000, 39, 3596–3604. [Google Scholar]
  13. Dyson, P.J.; Ellis, D.J.; Parker, D.G.; Welton, T. Arene hydrogenation in a room-temperature ionic liquid using a ruthenium cluster catalyst. Chem. Commun. 1999, 25–26. [Google Scholar]
  14. Stark, A.; MacLean, B.L.; Singer, R.D. 1-Ethyl-3-methylimidazolium halogenoaluminate ionic liquids as solvents for Friedel–Crafts acylation reactions of ferrocene. J. Chem. Soc., Dalton Trans. 1999, 63–66. [Google Scholar]
  15. Fisher, T.; Sethi, A.; Welton, T.; Woolf, J. Diels-Alder Reactions in Room-Temperature Ionic Liquids. Tetrahedron Lett. 1999, 40, 793–796. [Google Scholar]
  16. Böhm, V.P.W.; Herrmann, W.A. Coordination Chemistry and Mechanisms of Metal-Catalyzed C-C Coupling Reactions, Part 12 Nonaqueous Ionic Liquids: Superior Reaction Media for the Catalytic Heck-Vinylation of Chloroarenes. Chem. Eur. J. 2000, 6, 1017–1025. [Google Scholar]Carmichael, A.J.; Earle, M.J.; Holbrey, J.D.; McCormac, P.B.; Seddon, K.R. The Heck Reaction in Ionic Liquids: A Multiphasic Catalyst System. Org. Lett. 1999, 1, 997–1000. [Google Scholar]Xu, L.; Chen, W.; Xiao, J. Heck Reaction in Ionic Liquids and the in Situ Identification of N-Heterocyclic Carbene Complexes of Palladium. Organometallics 2000, 19, 1123–1127. [Google Scholar]Herrmann, W.A.; Böhm, V.P.W. Heck reaction catalyzed by phospha-palladacycles in non-aqueous ionic liquids. J. Organomet. Chem. 1999, 572, 141–145. [Google Scholar]
  17. Judeh, Z.M.A.; Ching, C.B.; Bu, J.; McCluskey, A. The first Bischler–Napieralski cyclization in a room temperature ionic liquid. Tetrahedron Lett. 2002, 43, 5089–5091. [Google Scholar]Judeh, Z.M.A.; Shen, H.Y.; Ching, C.B.; Feng, L.C.; Selvasothi, S. A facile and efficient nucleophilic displacement reaction at room temperature in ionic liquids. Tetrahedron Lett. 2002, 43, 9381–9384. [Google Scholar]
  18. Ellis, B.; Keim, W.; Wasserscheid, P. Linear dimerisation of but-1-ene in biphasic mode using buffered chloroaluminate ionic liquid solvents. Chem. Commun. 1999, 336–337. [Google Scholar]
  19. Miyaura, N.; Suzuki, A. Palladium-Catalyzed Cross-Coupling Reactions of Organoboron Compounds. Chem. Rev. 1995, 95, 2457–2483, references cited therein. [Google Scholar]
  20. Olivier, H. Recent developments in the use of non-aqueous ionic liquids for two-phase catalysis. J. Mol. Catal. A: Chem. 1999, 146(1–2), 285–289. [Google Scholar]
  21. Shen, H.Y.; Judeh, Z.M.A.; Ching, C.B. Selective alkylation of phenol with tert-butyl alcohol catalyzed by [bmim]PF6. Tetrahedron Lett. 2003, 44, 981–983. [Google Scholar]Shen, H.Y.; Judeh, Z.M.A.; Ching, C.B.; Xia, Q.H. Comparative studies on alkylation of phenol with tert-butyl alcohol in the presence of liquid or solid acid catalysts in ionic liquids. J. Mol. Cat. A. 2004, 212, 301–308. [Google Scholar]
  22. Yadav, J.S.; Reddy, B.V.S.; Basak, A.K.; Narsaiah, A.V. Recyclable 2nd generation ionic liquids as green solvents for the oxidation of alcohols with hypervalent iodine reagents. Tetrahedron 2004, 60, 2131–2135. [Google Scholar]Jiang, N.; Ragauskas, A.J. Cu(II)-catalyzed selective aerobic oxidation of alcohols under mild conditions. J. Org. Chem. 2006, 71, 7087–7090. [Google Scholar]Jiang, N.; Ragauskas, A.J. Copper(II)-Catalyzed Aerobic Oxidation of Primary Alcohols to Aldehydes in Ionic Liquid [bmpy]PF6. Org. Lett. 2005, 7, 3689–3692. [Google Scholar]Mehdi, H.; Bodor, A.; Lantos, D.; Horvath, I.T.; De Vos, D.E.; Binnemans, K. Imidazolium Ionic Liquids as Solvents for Cerium(IV)-Mediated Oxidation Reactions. J. Org. Chem. 2007, 72, 517–524. [Google Scholar]Hemeon, I.; Barnett, N.W.; Gathergood, N.; Scammells, P.J.; Singer, R.D. Manganese Dioxide Allylic and Benzylic Oxidation Reactions in Ionic Liquids. Aust. J. Chem. 2004, 57, 125–128. [Google Scholar]
  23. Busato, S.; Craig, D.C.; Judeh, Z.M.A.; Read, R.W. New N-acyl, N-alkyl, and N-bridged derivatives of rac-6,6′,7,7′-tetramethoxy-1,1′,2,2′,3,3′,4,4′-octahydro-1,1′-bisisoquinoline. Tetrahedron 2003, 59, 461–472. [Google Scholar]Siegfried, M.A.; Hilpert, H.; Rey, M.; Dreiding, A.S. Oxydative Aryl-Aryl-Verknüpfung von 6,6′,7,7′-Tetramethoxy-1,1′,2,2′,3,3′,4,4′-octahydro-1,1′-biisochinolin-Derivaten. Helv. Chim. Acta 1980, 63, 938–861. [Google Scholar]
