Inclusion Compounds of Dehydrocholic Acid with Solvents

Abstract

The host-guest inclusion of various organic solvents within dehydrocholic acid has been studied and the selectivity of enclathration determined by competition experiments.

1. Introduction

The process of selective enclathration has been studied in a variety of host-guest systems and bile acids have shown a particular ability in the inclusion of organic guest molecules as aliphatic and aromatic hydrocarbons, alcohols, ketones, esters, nitriles, epoxides, amides etc [1]. In most cases, as for example for cholic, deoxycholic, chenodeoxycholic, amide derivatives and norbile acids, the inclusion aptitude of host molecules has been confirmed in the crystalline state [1]. In recent years we have studied the inclusion ability of dehydrocholic acid 1 for the resolution of organic racemates [2] of aryl methyl sulfoxides [3] and cyclic amides [4], including the precise definition of the different structures involving the sole host or the host-guest assemblies [5].

In this frame, it was found that dehydrocholic acid may be obtained in two polymorphic forms, α and β, the latter being thermodynamically more stable [6]. The α-form crystallizes in such a way that two independent molecules are linked in dimers by two hydrogen bonds between the carboxylic acid groups at C-24, whereas in the β form two hydrogen bonds are formed between the carboxylic acid functionality and the carbonyl group at C-3.

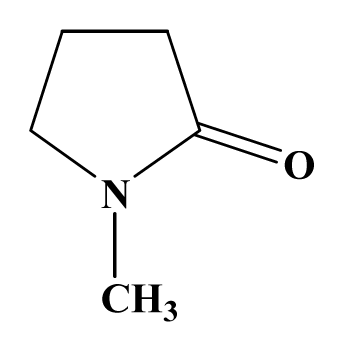

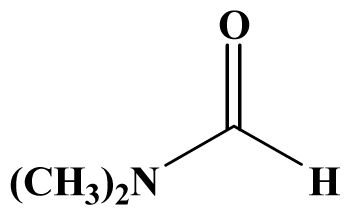

We now present the results of the inclusion process occurring between dehydrocholic acid 1 in its α-form and different solvent molecules i.e acetone (AC), dimethylsulfoxide (DMSO), dimethylformamide (DMF), N-methyl-2-pyrrolidinone (NMP). Competition between couples of these guests with 1 and the related selectivities have been determined [7].

2. Results and Discussion

2.1 Inclusion compounds

The host compound 1 was prepared by oxidation of cholic acid with the Jones reagent [8], followed by crystallization from acetone. The host prepared in this way contains ordered acetone molecules in a ratio 1:acetone of 2:1, as obtained by ¹H NMR analysis. The guest acetone could be quantitatively removed from the structure by heating under vacuum at 140 °C to form 1 in the polymorphic α-form. The X-ray structure previously obtained for 1 put in evidence the absence of channels which characterize the crystal structure of many steroid compounds [5a,b]; consequently this form of 1 must have high flexibility to alter its structure to accommodate guest species. Following these findings we have prepared inclusion compounds of dehydrocholic acid with a variety of organic solvents, that accommodate within 1 in assemblies of variable host:guest ratio as shown in

Table 1. Guests, inclusion ratio and selected resonances for inclusion in dehydrocholic acid 1.

Guest		Host :guest ratio	Selected 1H NMR resonancesa
	AC	2 : 1	δ 1.09 (s, 3H, 18-H3); 2.19 (s, 6H, COCH3)
	DMSO	1 : 1	δ: 1.08 (s, 3H, 18-H3); 2.68 (s, 3H, SCH3)
	DMF	1.2 : 1	δ 1.08 (s, 3H, 18-H3); 3.00 (s, 3H, NCH3)
	NMP	1.1 : 1	δ 1.08 (s, 3H, 18-H3); 3.44 (dd, J= 7.1 Hz, 2H, NCH2)

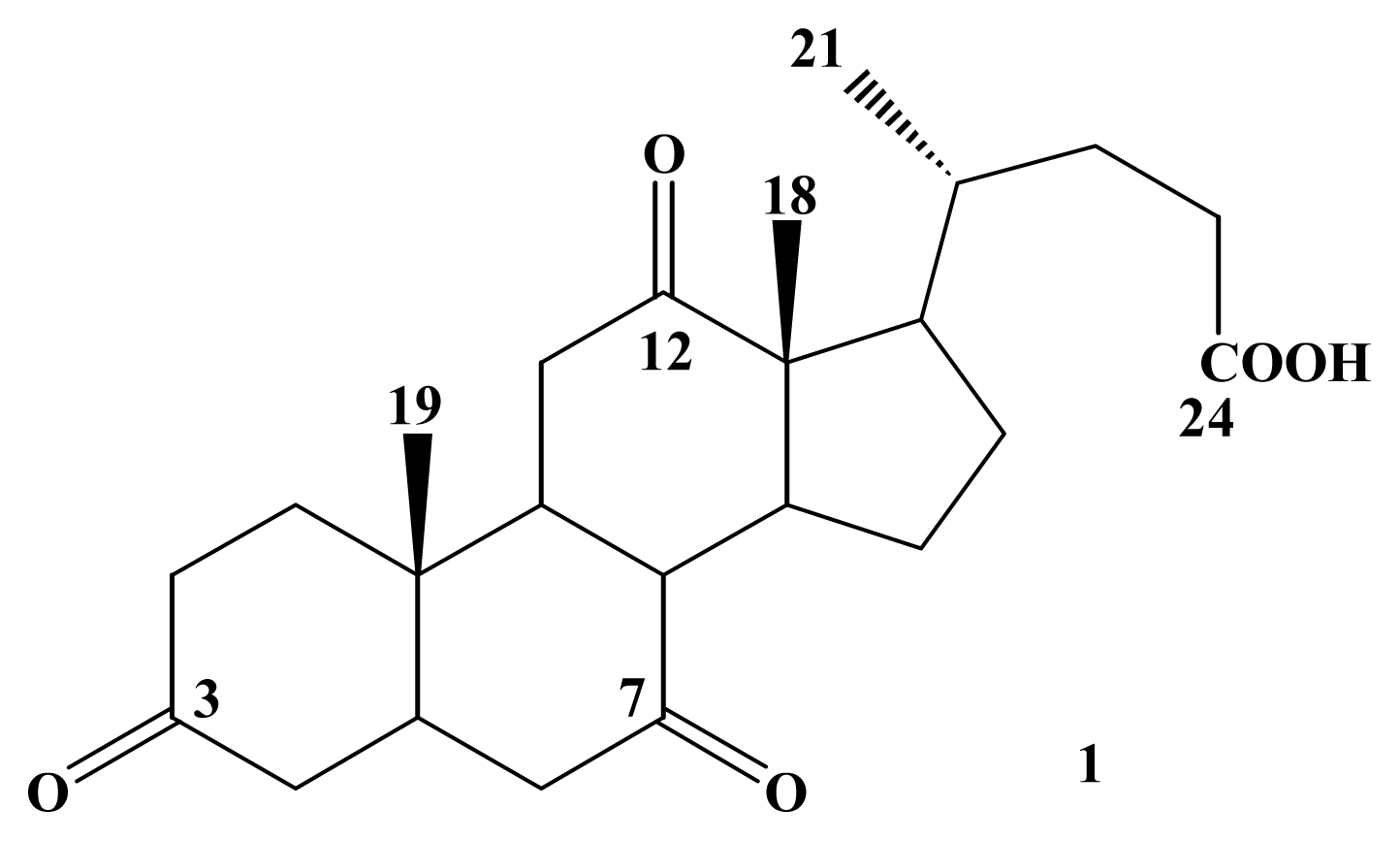

^aresonances used to determine the host:guest ratio, for numbering see structure 1.

.

Worthy of note in all cases the inclusion is reversible and the empty powder obtained after evacuation under vacuum of the various guests exhibits a X-ray powder diffraction (XRPD) pattern with peak positions and intensity identical to that of the original structure of 1 α-form [5a], indicating that the inclusion process and consequently the structural change are fully reversible, equation (1) for the DMSO case. The inclusion compounds are formed by direct absorption of the guest in solution into the crystal lattice of solid dehydrocholic acid.

$$\mathbf{1}\hspace{0.17em}(s,\mathbf{\alpha })+\mathbf{DMSO}\hspace{0.17em}(l)\underset{170°\text{C}}{\overset{\text{r}.\text{t}.}{\rightleftarrows }}\mathbf{1}•\mathbf{DMSO}\hspace{0.17em}(s,{\mathbf{\alpha }}^{\prime })$$

(1)

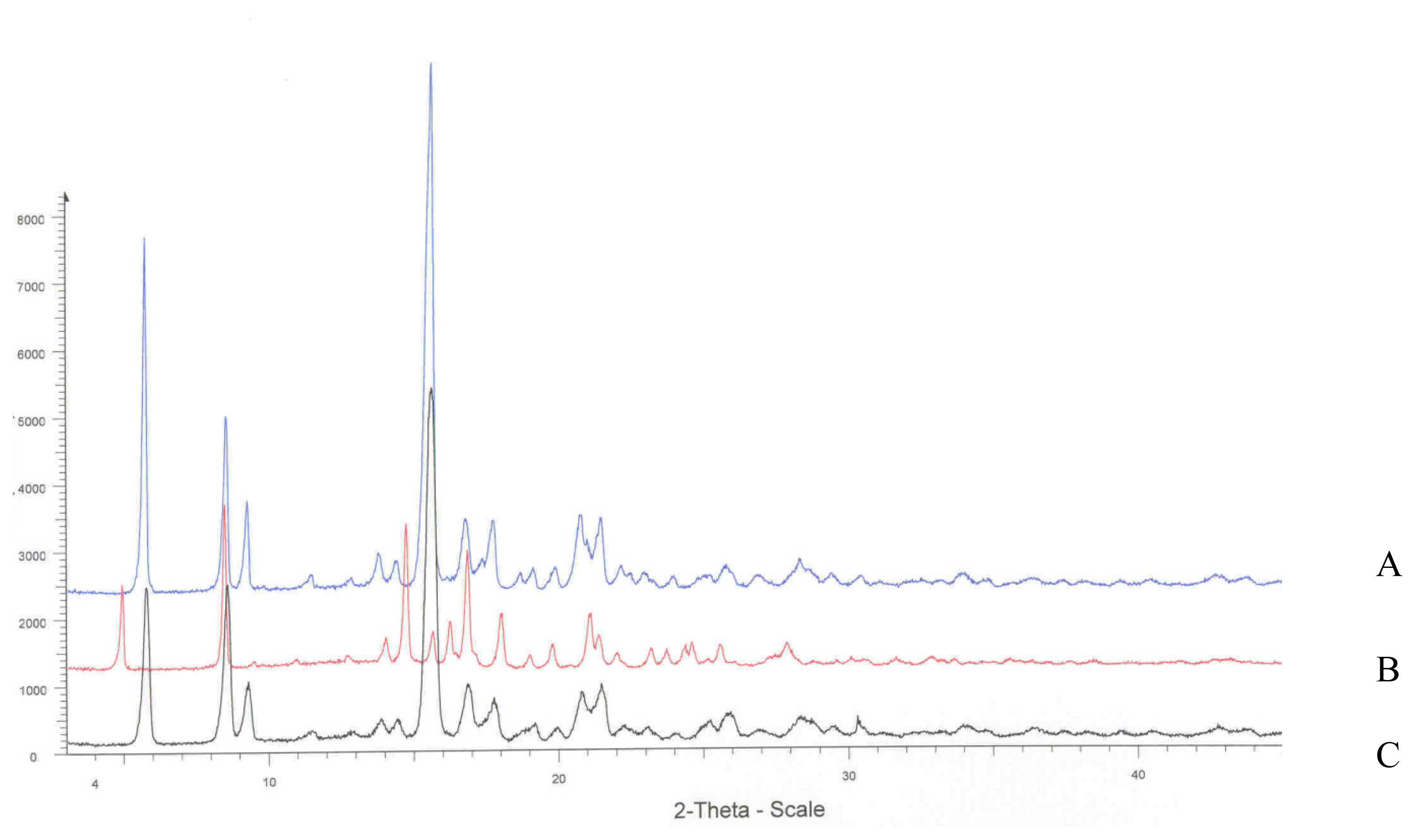

In Figure 1 are reported the XRPD of 1 with and without DMSO. In particular, pattern A refers to 1 α-form [5a], pattern B to the 1·DMSO inclusion derivative which shows a different but well-defined chlathrate α′-phase compared to A, and pattern C obtained upon heating at 170 °C at 12 mmHg for 4h.

The reversibility of the process is confirmed and these studies demonstrated that the XRPD patterns in the presence and absence of the guest are an effective means of monitoring structural changes that may be occurring upon guest absorption-desorption [9].

2.2 IR analysis

The IR analysis of the inclusion derivatives, obtained in KBr pellets, evidenced a shift in the characteristic vibrational modes of the sulfoxide and carbonyl groups of the different solvents, upon complexation, significantly moved to lower wavenumbers with respect to free SO and CO absorptions,

Table 2. Assignment and wavenumbers of the vibrational bands (KBr) of free dehydrocholic acid 1, DMSO, DMF, NMP and the related inclusion compounds.

Compound	Guest νXO (cm−1)	1 νCO (cm−1)
1		1707
DMSO	1040 νSO
1 · DMSO	1025 νSO	1707
DMF	1666 νCO
1 · DMF	1649 νCO	1719, 1700
NMP	1667 νCO
1 · NMP	1650 νCO	1719, 1705

.

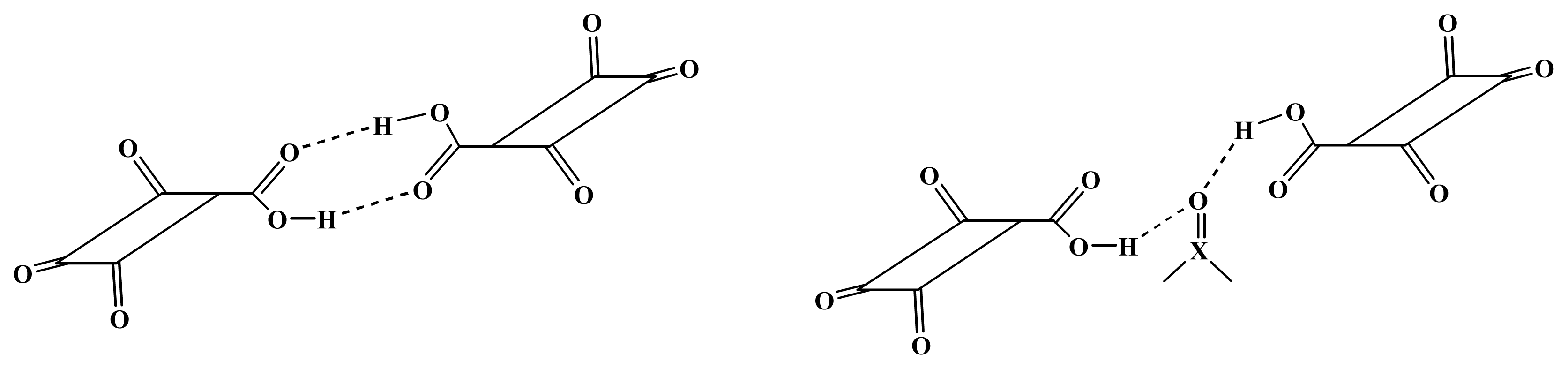

In agreement with previous interpretations [10] the lowering of the wavenumber of the sulfoxide and carbonyl moieties absorption upon inclusion is a clear indication that coordination within the bile acid host occurs, also for these new complexes, through the sulfoxide or carbonyl groups (guest)O····H-O(host) hydrogen bonds, following a weakening of the XO bond strength, as depicted in Figure 2.

2.3 Thermal analysis

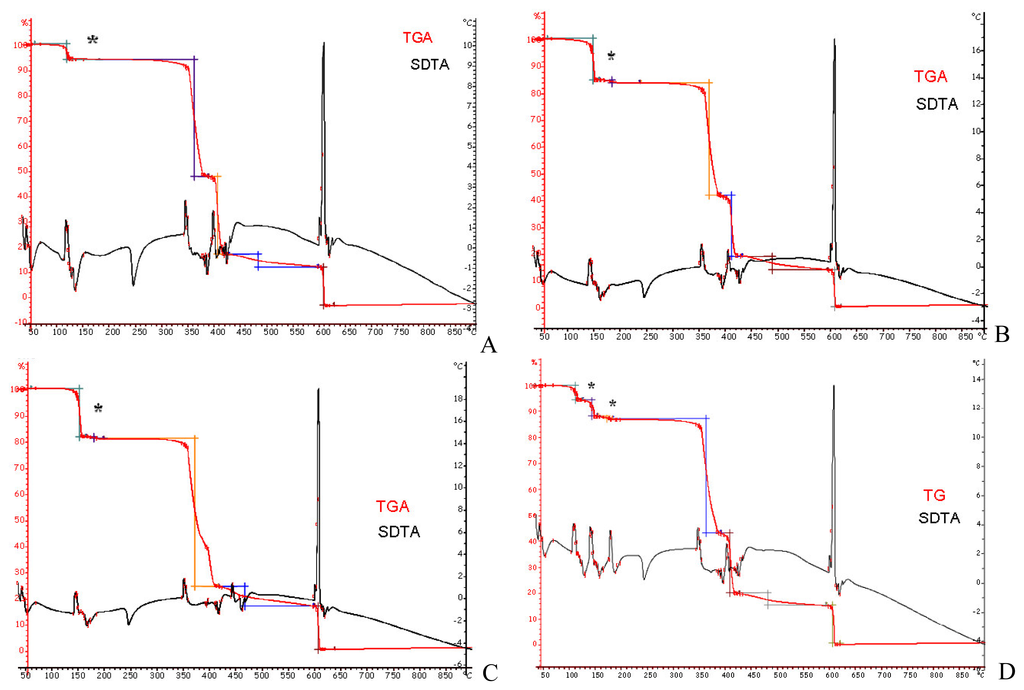

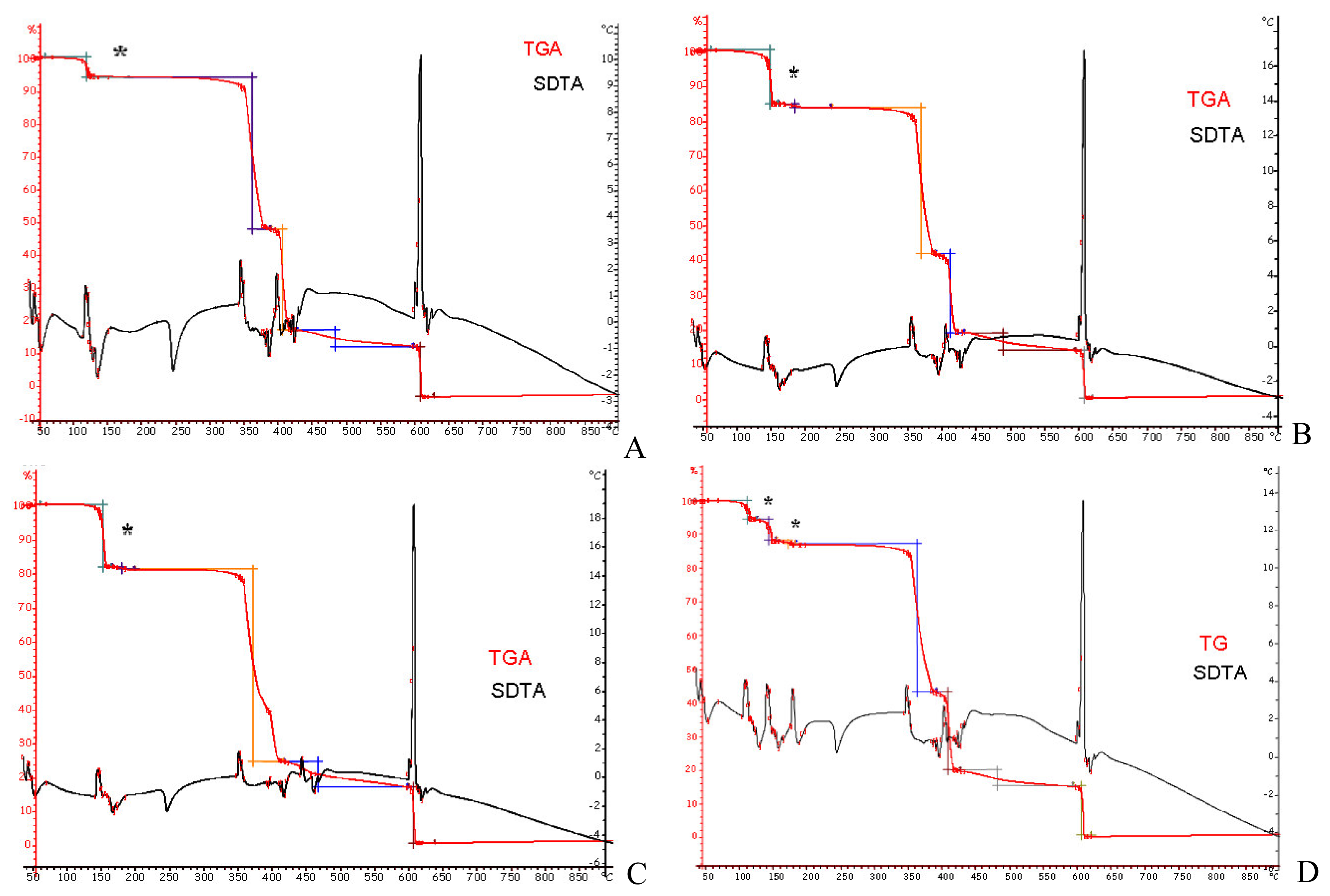

Thermal analysis (TG) and simultaneous thermal differential analysis calorimetry (STDA) were carried out on a Mettler Toledo TGA/STDA 851. The pertinent results, collected for the inclusion compounds: 1·0.5 AC (clathrate A); 1·DMSO (clathrate B); 1·0.9 NMP (clathrate C); 1·0.83 DMF (clathrate D) are shown in Figure 3. The related curves indicate that inclusion compounds 1·0.5 AC, 1·DMSO and 1·0.9 NMP decompose in a single step in the mass loss curve (TG), whereas the STDA analysis showed a first endothermic signal due to guest loss, followed by a endothermic signal due to the melt of the host, Figures 3A-C.

Calculated (NMR), observed mass losses and onset temperatures for guest release (T_on) as well as the difference between T_on, the boiling point of pure guest (T_b) and the melting point (T_m) of host for each inclusion compound are given in

Table 3. Thermal analysis result for the inclusion compounds.

Inclusion compounds	Obs. weight loss from TG (%)	Calc.weight loss from NMR (%)	Guest release Ton °C	Host melting Tm °C	Bp of pure guest Tb °C	Ton-Tb
1·0.5 AC (clathrate A)	6.0	6.7	86.2	244	56	30.2
1·DMSO (clathrate B)	15.5	16	155	243	189	−34
1·0.9 NMP (clathrate C);	18.5	18.3	160	243	202	−42
1·0.83 DMF (clathrate D)	5.44	13.1	122	244	153	−31
	6.48		146			−7
	1.06		184			31

[11]. The decomposition of 1·0.83 DMF (clathrate D) is more complex compared with previous cases. The TG curve in fact has three distinct steps but the mass losses do not correspond to a simple stoichiometry and STDA shows three distinct endothermic signals for the guest loss as well as one for the host melt. To note that in the first three cases the observed mass losses from TG traces are in good agreement with the calculated value for that particular host:guest ratio.

2.4 Competition experiments

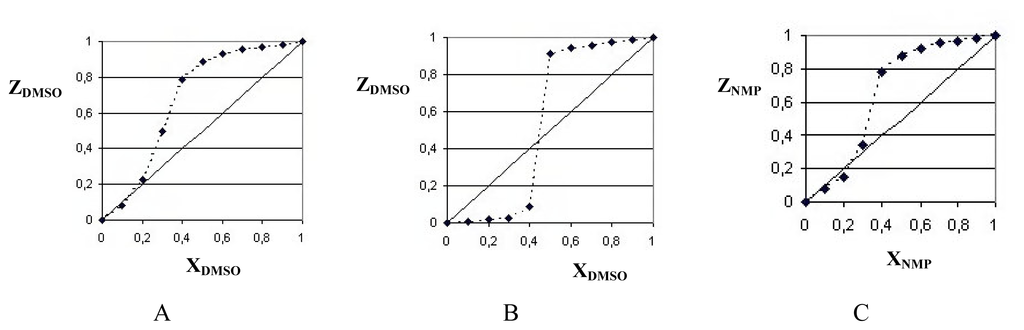

Here we described the competition experiments between NMP and DMF, DMSO and DMF, DMSO and NMP for the host dehydrocholic acid. These experiments were carried out in solid-liquid biphasic system as follows. A series of 11 vials was made up with mixture of two guest, dissolved in a mixture diethyl ether/ethyl acetate 80/20, such that the mole fraction of a given guest varied from 0 to 1. The insoluble host was added to each mixture keeping the total guest : host ratio at 20 : 1. The vials were sealed and left at room temperature for 24 hours; the inclusion compounds were filtered off, washed with diethyl ether and dissolved in chloroform. These solutions, as well as the mother liquors, were analysed by gas chromatography. The results are shown in Figure 4A-C, in which X represents the mole fraction of a given guest in the liquid mixture and Z that of same guest entrapped in the crystals [12]. The diagonal line represent zero selectivity.

The results of Figure 4A show that DMSO is preferentially enclathrated over DMF when its mole fraction X_DMSO is > 0.2; before this value the selectivity is close to zero. Similarly, Figure 4C, NMP is preferentially enclathrated over DMF when its mole fraction X_NMP is > 0,3. The competition experiments carried out between DMSO and NMP showed a different behaviour, Figure 4B, being the selectivity dependent on the concentration of the guest. The coordination of DMSO is, in fact, strongly favoured when its mole fraction is ≥ 0,5, while enclathration of NMP is preferred below this limit.

In summary, a multiple technique approach applied to organic inclusion compounds confirmed to be particularly useful for the study of complex systems. In the present case XRPD, IR, TG and STDA analysis were used to investigate the inclusion process occurring between dehydrocholic acid 1 in its α-form and different solvent molecules i.e acetone (AC), dimethyl sulfoxide (DMSO), dimethylformamide (DMF), N-methyl-2-pyrrolidinone (NMP). Dehydrocholic acid has a remarkable ability to reversibly bind guest molecules from solid-liquid biphase. Competition between couples of these guests with 1 and the related selectivities have been determined.

3. Experimental Section

¹H NMR spectra were recorded in CDCl₃ solution with a Varian Gemini 300 spectrometer operating at 300 MHz, with TMS as external standard. IR spectra, were run with a Nicolet 510P spectrometer operating in Fourier transform mode. X-ray powder diffraction analyses were recorded with Bruker D8 advance diffractometer. Thermal analyses were carried out on a Mettler Thermo-gravimetry and on a Toledo TGA/STDA 851. GC was performed with Fisons 9000 series instrument, equipped with a capillary Megadex DETTBS column. AC, DMSO, DMF, NMP were p.a. quality and used as obtained from the supplier.

Preparation of inclusion compounds by absorption method. Crystals of 1 (100 mg, 0.25 mmol) were dipped in a solution (2mL) of appropriate guest (5 mmol) in diethyl ether/ethyl acetate (80/20) at room temperature. After 24 h the solid was collected by filtration, washed with diethyl ether (5 mL), dried in air and analyzed for the presence of respective guest by ¹H NMR analysis.

Competition experiments were carried out between pairs of guests as follows: 50 mg (0.125 mmol) of 1 was added to each solution of a series of 11 vials made up with mixture of two guest in diethyl ether/ethyl acetate 80/20 such that the mole fraction of a given guest varied from 0 to 1. The total guest-host ratio was kept at 20:1 in each case. The vials were sealed and solid-liquid mixtures left at room temperature for 24 hours. The inclusion compounds were filtered off, washed with diethyl ether and dried at room temperature. About 5 mg of crystals of various inclusion were dissolved in chloroform (2 mL); the solutions were analyzed by gas chromatography. The ratio of the guest compounds are calculated from the integration of the peaks after calibration.
