Article

Aflatoxin B1 Degradation by Stenotrophomonas Maltophilia and Other Microbes Selected Using Coumarin Medium

1
National Key Laboratory of Animal Nutrition, China Agricultural University, Beijing 100094, China
2
Guelph Food Research Center, Agriculture and Agri-Food Canada, Guelph N1G 5C9, Canada
3
College of Food Science and Nutritional Engineering, China Agricultural University, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2008, 9(8), 1489-1503; https://doi.org/10.3390/ijms9081489
Submission received: 13 May 2008 / Revised: 18 July 2008 / Accepted: 18 July 2008 / Published: 22 August 2008

Abstract

:
Aflatoxin B1 (AFB1) is one of the most harmful mycotoxins in animal production and food industry. A safe, effective and environmentally sound detoxification method is needed for controlling this toxin. In this study, 65 samples were screened from various sources with vast microbial populations using a newly developed medium containing coumarin as the sole carbon source. Twenty five single-colony bacterial isolates showing AFB1 reduction activity in a liquid culture medium were selected from the screen. Isolate 35-3, obtained from tapir feces and identified to be Stenotrophomonas maltophilia, reduced AFB1 by 82.5% after incubation in the liquid medium at 37 °C for 72 h. The culture supernatant of isolate 35-3 was able to degrade AFB1 effectively, whereas the viable cells and cell extracts were far less effective. Factors influencing AFB1 degradation by the culture supernatant were investigated. Activity was reduced to 60.8% and 63.5% at 20 °C and 30 °C, respectively, from 78.7% at 37 °C. The highest degradation rate was 84.8% at pH 8 and the lowest was only 14.3% at pH 4.0. Ions Mg2+ and Cu2+ were activators for AFB1 degradation, however ion Zn2+ was a strong inhibitor. Treatments with proteinase K, proteinase K plus SDS and heating significantly reduced or eradicated the degradation activity of the culture supernatant. The results indicated that the degradation of AFB1 by S. maltophilia 35-3 was enzymatic and could have a great potential in industrial applications.

1. Introduction

Aflatoxins are a group of structurally related difuranocoumarin derivatives produced mainly by Aspergillus flavus and Aspergillus parasiticus [1]. Aflatoxin B1 (AFB1), one of the most hazardous mycotoxins, is extremely toxic, mutagenic and carcinogenic [2, 3]. It poses a severe threat to both livestock productivity and human health and thus, brings huge worldwide economic losses each year [4].
Various physical and chemical methods have been developed and tested for controlling AFB1. However, disadvantages of these methods, such as nutritional loss, sensory quality reduction and high cost of equipment, have limited their practical applications [59]. It is expected that progress in the control of mycotoxin contamination will depend on the introduction of technologies for specific, efficient, and environmentally sound detoxification. The utilization of microorganisms and/or their enzymatic products to detoxify mycotoxins in contaminated food and feed can be a choice of such technology [10, 11].
Recently, interests in biological detoxification of AFB1 have greatly increased. Several fungal species have been found to be able to transform AFB1 into less toxic metabolites; such fungi include Pleurotus ostreatus [12], Trametes versicolor [13], Rhizopus sp., Mucor sp.[14], and a few yeasts such as Trichosporon mycotoxinivorans [15], Saccharomyces cerevisiae [16], Trichoderma strains [17], and Armillariella tabescens [18]. The degradation activities of these fungi were mainly in their cell extracts. However, practical applications of these fungi may be limited by factors, such as long incubation time, e.g. more than 120 h, required for the detoxification and complicated procedures needed for obtaining the active extracts. Reduction of AFB1 by bacteria has also been reported; most of the published studies focused on lactic acid bacteria, such as strains belonging to Lactobacillus [19, 20], Bifidobacterium [21, 22], Propionibacterium [23] and Lactococcus [24]. However, the AFB1 reduction by these bacteria was proven to be mainly by cell binding rather than metabolism or degradation. Most importantly, this kind of binding seems to be reversible, which means that AFB1 can hardly be removed completely from contaminated media. Apart from this, bacteria effective in AFB1 degradation were limited to Rhodococcus erythropolis [25], Mycobacterium fluoranthenivorans [26, 27] and Nocardia corynebacterioides (formerly Flavobacterium aurantiacum) [2831].
The current research is aimed at searching for new AFB1 degradation bacteria. An effective screening method was developed, which was used to screen for microbes capable of degrading AFB1 in samples collected from various natural sources. One of the obtained bacterial isolates, 35-3, exhibited strong degradation activity thus was further identified and characterized. Factors affecting degradation efficiency of the isolate were also investigated.

2. Results and Discussion

2.1. Screening for AFB1 degradation microbes

Twenty five single-colony bacterial isolates were obtained from 65 samples collected from various sources (Table 1). All these isolates were able to reduce concentrations of AFB1 in the liquid medium tested after 72 h incubation at 37 °C with various degrees of effectiveness. Sixteen isolates reduced AFB1 in the medium by over 50%. Isolate 35-3 was the most effective and reduced AFB1 by 82.5% (Table 1).
Volkl et al. [32] has proposed that biological degradation of mycotoxins occurs in nature since many mycotoxins are chemically stable but do not appear to accumulate in natural environments. Therefore, environmental samples rich in microorganisms, such as animal feces, decayed barks, soils and cereal grains, were chosen as sources for selection of microorganisms that degrade AFB1.
To identify active isolates from the vast microbial populations of environmental samples, an effective selection method is very much needed. In this study, a medium containing coumarin (CM) as the sole carbon source was developed for the first time and was used for the microbial selection. The microorganisms grew slowly and only very few colonies appeared on the medium. Single colonies were picked up after incubation of 3–7 days and transferred to fresh CM plates three times sequentially. Only 25 single colonies were selected out of huge populations with great diversities in the collected samples, and none was false positive. The results clearly indicated that this newly developed method was not only extremely selective but also accurate.
Aflatoxins are a group of bisfuranocoumarin derivatives and the lactone ring in the common coumarin structure plays an important role in its toxicity and mutagenicity [33]. Coumarin is the basic molecular structure of all aflatoxins (Figure 1) [34, 35]. Therefore, microorganisms that could utilize coumarin as their carbon source might also be able to use aflatoxins, in this case, AFB1. The metabolizing processes should result in degradation of the mycotoxin. Coumarin is a phytochemical, which is widely used in flavor industry for sour. Compared with AFB1, it is much safer for users, easier to obtain and cheaper to buy. The developed coumarin method provided an inexpensive, feasible and effective tool for selecting AFB1 degradation microorganisms. The method should also be useful in research targeting other aflatoxins.

2.2. Identification of isolate 35-3

Isolate 35-3 appeared on nutrient agar as round straw yellow colored colonies. It is a gram-negative bacterium. The isolate grew well at 37 °C, but not at 10 °C or 55 °C. It was able to use most single sugars including glucose, maltose and sucrose as a sole carbon source. The isolate could hydrolyze gelatin and Tween 80 but not amylum (Table 2). Determination of the 16S rRNA gene sequence revealed that the isolate belonged to genus Stenotrophomonas (Figure 2). The closest relationship (99% sequence similarity) obtained with the type of a described species was Stenotrophomonas maltophilia U62646, which is an aerobic gram-negative bacterium. It has been reported that isolates from this genus possess function in degradation of polycyclic aromatic hydrocarbons (PAHs) and enzymes are involved in these processes [3638]. However, this is the first report indicating that a bacterium in this genus possesses function in mycotoxin degradation.

2.3. AFB1 degradation by S. maltophilia 35-3

Culture supernatant of S. maltophilia 35-3 showed strong AFB1 degrading activity and it was more effective (P<0.05) than viable cells and cell extracts (Figure 3). Culture supernatant was able to degrade 78.7% AFB1 after 72 h incubation compared to 17.5% and 9.6% by viable cells and cell extracts, respectively.
Culture supernatant of Rhodococcus erythropolis degraded AFB1 with 33.2% residual after 72 h incubation, and the degradation was proved to be enzymatic by using proteinase K and SDS treatments [25]. Similarly, the original culture supernatant of Flavobacterium aurantiacum degraded 74.5% of AFB1 in 24 h and it could only degrade 34.5% of AFB1 after being treated with proteinase K (0.1 mg/mL) [28]. The active ingredient in the culture supernatant was considered to be a protein or perhaps an enzyme [25, 28]. In this study, the activity of AFB1 degradation was mainly in the culture supernatant of S. maltophilia 35-3 rather than its cells or cell extracts. Degradation of AFB1 by the culture supernatant produced without pre-exposure to AFB1 indicated that the degradation was achieved during the normal growth of the bacterium, suggesting that the degradation was a constitutive activity of S. maltophilia 35-3. Culture supernatant treated with proteinase K displayed significantly reduced degradation ability (23.8%). When culture supernatant was treated with proteinase K plus SDS and heat (boiling water bath for 10 min), respectively, no degradation activity was observed. All these results implied that a protein or enzyme might be involved in the degradation by S. maltophilia 35-3.
Degradation of AFB1 by the culture supernatant of S. maltophilia 35-3 was a relatively rapid and continues process, with 46.3% AFB1 degraded in the first 12 h and 78.7% degraded after 72 h (Figure 4). Similar results were obtained elsewhere. Alberts et al. [25] reported a 66.8% reduction of AFB1 from 0 to 72 h when incubated with culture supernatant of R. erythropolis; Hormisch et al. [26] indicated that liquid cultures of Mycobacterium strain FA4 could reduce AFB1 level by 70 to 80% within 36 h and completely degrade AFB1 in 72 h. In comparison, most of the lactic acid bacteria that were able to bind AFB1 could rapidly remove the toxin from liquid; however, they would release AFB1 to some extent in the prolonged incubation period [19, 22]. The continuous increase in detoxification by S. maltophilia 35-3 with time indicated that binding might not play important role in the AFB1 reduction.
AFB1 degradation was strongly affected by metal ions (Figure 5). Ions Mg2+ and Cu2+ showed effect on stimulating AFB1 degradation at the concentration of 10 mM compared with control (78.7%). Their degradation rates were 85.4% and 85.0%, respectively. However, Li+ ions at 10 mM reduced the degradation to 53.3% and Zn2+ ions inhibited the activity even more significantly, with only 1.4% of AFB1 degraded after 72 h. These results agreed with studies of D'Souza and Brackett [29] in effects of Mg2+ on AFB1 degradation by F. aurantiacum. Additions of 0.1, 1 and 10 mM Mg2+ increased AFB1 degradation after 48 h incubation. The explanation could be that Mg2+ might stabilize membranes, maintain structural integrity of proteins and act as enzyme activator. Also, AFB1 degradation by F. aurantiacum was significantly inhibited (P<0.05) after incubation with 10 mM Zn2+ for 4, 24 and 48 h [30], which was similar to that was noticed in our study. Zn2+ might be able to alter the enzyme system by causing a conformational change in the enzymes to a form with lower affinity for AFB1 degradation, or by inactivating the enzyme [30]. The effects of ions on activity of S. maltophilia 35-3 further supported the enzyme involvement in AFB1 degradation by the isolate.
AFB1 degradation by the culture supernatant was pH sensitive (Figure 6). The highest degradation (84.8%) was observed at pH 8.0 and it decreased gradually as the pH value went down, to the lowest at pH 4.0 (14.3%). However, the culture supernatant maintained its degradation ability (76.9%) in basic condition at pH 9.0. No degradation was detected in controls with different pH values. The effect of pH on degradation of AFB1 by cell extracts of F. aurantiacum showed a similar trend [31]. The degradation of AFB1 was approximately 25% at pH 5, increased to 50% at pH 6 and 70% at pH 7, and decreased to 50% at pH 8. The correlation of AFB1 degradation with pH values is typical for enzymatic reactions. Enzymes have an optimal pH range for maximal activities. At pH values outside of the optimum, enzymatic activity decreases due to the ionization of a critical amino acid residue within the catalytic site [39]. The maximal AFB1 degradation by S. maltophilia 35-3 in this study was observed at a basic pH (pH 8), indicating the enzyme produced by the isolate had a higher optimal pH compared to enzyme in cell extracts of F. aurantiacum [31].
The AFB1 degradation by S. maltophilia 35-3 culture supernatant varied under different temperatures (Figure 7). The degradation was lower at 20 °C (60.8%) and 30 °C (63.5%) than at 37 °C (78.7%) (P<0.05). The isolate 35-3 was originated from feces of South American tapir; temperature at 37 °C should be more suitable for the survival and growth of the bacterium, thus optimal for its enzyme system. Teniola et al. [27] reported that AFB1 degradation by cell extracts of R. erythropolis and M. fluoranthenivorans were about the same in between 10–40 °C (> 90%). They proposed either that the enzymes in the extracts had a wide temperature range of activity or that other factors were involved in the degradation.

3. Experimental Section

3.1. Culture media

Each liter of coumarin medium (CM) contained 10.0 g coumarin (Beijing Chemical Inc., China), 0.25 g KH2PO4, 1.0 g NH4NO3, 1.0 g CaCl2, 0.25 g MgSO4.7H2O, 1.0 mg FeSO4, and 15.0 g agar. The pH of the medium was adjusted to 7.0. Nutrient broth (NB) consisted of 3.0 g yeast extract, 5.0 g peptone, 6.0 g glucose, 10.0 g NaCl per liter (pH=7.0). Nutrient agar (NA), which was NB plus 15 g agar, was used for preserving microbial isolates.

3.2. Isolation of microorganisms

3.2.1. Samples

Sixty-five samples were screened for AFB1 degradation activity. The samples consisted of thirty nine feces of wild animals collected from Beijing Zoo, Beijing, China; nineteen cereal grains, obtained from Beijing Huilongguan foodstuff market; five soil samples and two decayed tree bark samples collected from farmland in China Agricultural University, Beijing, China. All these samples were air-dried at room temperature.

3.2.2. Isolation

Samples (0.5 g) were ground with 5.0×105 IU nystatin (Beijing Chemical Inc., China) before being homogenized in sterilized distilled water (9.0 mL). After incubation at room temperature on a rotary shaker for 12 h, the supernatant was serially diluted with sterilized distilled water to 10−1, 10−2, 10−3, 10−4, 10−5 folds. Diluted aliquots (0.2 mL) were plated on plates of CM medium, which were incubated at 37 °C for 3–7 days until visible colonies appeared. Single colonies were isolated and subsequencially transferred to fresh CM plates for three times. Colonies that were able to grow on the medium were selected and preserved as pure isolates on NA, and tested for AFB1 degradation.

3.3. Tests of AFB1 degradation

Degradation of AFB1 by the selected isolates was carried out in liquid cultures. The microbial isolates were cultured in NB. For inoculation, 12 h culture broth (2.5 mL) was transferred to NB (50 mL) in a 300 mL flask. The microbes were grown at 37 °C with agitation at 140 g for 24 h in a Gyrotary shaker incubator (Haerbin Donglian Electronic Equipment Inc., China). AFB1 standard solution (Sigma Chemical Co., Bellefonte, USA) was diluted with methanol (Beijing Chemical Inc., Beijing, China) to a stock solution of 500 ppb, of which 0.2 mL was added to microbial cultures of 0.8 mL for a final concentration of 100 ppb. The degradation tests were conducted in the dark at 37 °C without shaking for 72 h. After incubation, cells of microbes were removed by centrifugation at 10,000 g for 10 min (Beijing Medical Centrifugator Inc., China). Sterile NB was used to substitute microbial culture in the control.
For AFB1 analysis, the HPLC procedure by AOAC [40] was used with slight modifications. The reaction mixtures were extracted three times with chloroform. The chloroform extracts were evaporated under nitrogen at room temperature, the residue were dissolved in 50% methanol in water (1:1, v/v) and analyzed by HPLC. HPLC analysis was performed using a LiChroCART RP-C18 (250-4 Hypersil ODS (5 μm), Merck) column with a guard column (LiChroCART 4-4 RP-C18 (5 μm), Merck). The mobile phase was methanol: water (1:1, v/v) isocratic at a flow rate of 1 mL/min. AFB1 was derived by a photochemical reactor (AURA, USA) and measured by a fluorescence detector. The excitation and detection wavelengths were set at 360 and 440 nm, respectively. The percentage of AFB1 degradation was calculated using the following formula:
( 1 AFB 1 peak area in treatment  /  AFB 1 peak area in control ) × 100 %

3.4. Characterization of S.maltophilia 35-3

3.4.1. Physiological and biochemical tests

Physiological and biochemical tests were carried out following the method of Holt et al. [41].

3.4.2. Determination of 16S rRNA gene sequence

DNA extraction was done by using TIANamp Bacterial DNA Kit (Beijing TIANGen Biotech, China) according to the manufacturer’s instructions. PCR–mediated amplification of the 16S rDNA, purification and sequencing of the PCR products were done by Beijing Genomics Institute. The primers used for amplifying and sequencing were: 27f (5’-GAGAGTTTGATCCTGGCTCAG-3’), 530f (5’-GTGCCAGCAGCC GCGG-3’) and 1541r (5’-AAGGAGGTGATCCAGCCGCA-3’).

3.4.3. Phylogenetic analyses

The generated DNA sequences and sequences derived from GenBank were aligned using the ClustalX program [42]. Neighbour joining analysis and calculation of bootstrap values were done according to the MEGA program [43].

3.5. Degradation of AFB1 by S. maltophilia 35-3

Stenotrophomonas maltophilia isolate 35-3 was selected for further study owing to its high degradation efficiency. Unless specifically indicated, all degradation experiments were conducted under 37 °C for 72 h with aeration.

3.5.1. Degradation of AFB1 by S. maltophilia 35-3 cells

Fresh NB was inoculated with 12 h pre-cultured isolate 35-3 at 37 °C, agitation at 140 g for 24 h in a Gyrotary shaker incubator. Cells were pelleted using a refrigerated high-speed centrifuge (GL-20G-II centrifugator, Shanghai Anting Instrument Inc., China) at 10,000 g, 4 °C for 10 min. The pellets were washed twice with phosphate buffer (50 mM; pH 7.0) before resuspension in the phosphate buffer (5 mL) [19]. The AFB1 degradation tests were performed as described in 3.3. Phosphate buffer was used to substitute bacterial cell suspensions in the control samples.

3.5.2. Degradation of AFB1 by S. maltophilia 35-3 intracellular cell extracts

Cell pellets were prepared as described previously (3.5.1). Pellets were suspended in phosphate buffer (pH 7.0; 3 mL buffer per gram cell mass). The suspension was disintegrated twice (work every other 5 s for 33 min) by using ultrasonic cell disintegrator on ice (Ningbo Xinzhi Instruments Inc., China). The disintegrated cell suspension was centrifuged at 12,000 g for 20 min at 4 °C. The cell extracts were collected by filtering the supernatant aseptically using 0.2 μm pore size sterile cellulose pyrogen free filters (Beijing Biotech Inc., China). The AFB1 degradation tests were performed as described in 3.3. Phosphate buffer solution was used to substitute intracellular cell extracts in the control.

3.5.3. Effects of incubation period, temperature, pH, metal ions and proteinase K treatment on AFB1 degradation by S. maltophilia 35-3 supernatant

Isolate 35-3 grown in NB for 24 h was centrifuged with 10,000 g at 4 °C for 20 min, and the resulting culture supernatant was tested for AFB1 degradation. AFB1 methanol stock solution (0.2 mL) was added to 0.8 mL culture supernatant in a 7 mL tube. The reaction mixture was incubated in the dark at 37 °C without shaking for 1, 12, 24, 48, 72 and 90 h, respectively. To determine the effect of temperature, the mixtures were incubated at 20, 30 and 37 °C, respectively for 72 h. Controls were set at the above temperatures by using NB medium.
In the pH tests, initial pH value was obtained by adjusting pH to 4.0, 5.0 and 6.0 with citrate acid buffer, and to 7.0, 8.0 and 9.0 by sodium phosphate buffer. Controls were set by adjusting NB medium to different pH values.
The effects of different metal ions on degradation were determined by adding Mg2+, Zn2+, Cu2+, Mn2+ and Li+ (in the form of MgCl2, ZnSO4, CuSO4, MnCl2 and LiCl, respectively) to the reaction mixture respectively resulting in a final ion concentration of 10 mM. NB was used to substitute culture supernatant in the control.
The effect of protease treatment was determined by exposing the culture supernatant to 1 mg/mL proteinase K (Roche Diagnostics, Basel, Switzerland; specific activity ≥30 U/mg) for 1 h at 37°C; 1 mg/mL proteinase K plus 1% SDS for 6 h at 37 °C. The effect of heat treatment was determined by dipping the culture supernatant in boiling water bath for 10 min. The untreated culture supernatant was used as control.

3.6. Statistical analyses

Data was analyzed as a completely randomized single factor design by ANOVA using the general linear models procedure in SAS. Significant F tests at the 0.05 levels of probability are reported. When a significant F-value was detected, Duncan’s Multiple Range Test was used to determine significant differences among means.

4. Conclusions

An innovative method with coumarin as a selective agent was developed and used to search for AFB1 degradation microorganisms in this study. The results have proven that the method is effective and accurate; the method is also safe, practical and economical. Twenty-five purified isolates were obtained using this method and all were able to degrade AFB1. Isolate 35-3, a bacterium belonging to Stenotrophomonas maltophilia, was identified for the first time to have the function of degrading AFB1. Enzyme(s) in the culture supernatant of the isolate might be responsible for the degradation although further confirmation is needed. Research is underway to purify the effective enzyme(s) and to identify metabolites produced during the degradation processes. The AFB1 degradation enzymes, once identified, may be mass-produced by the bacterial isolates and used to treat materials contaminated with AFB1. Furthermore, identification of genes responsible for AFB1 degradation can provide potential for AFB1 control with genetically modified microbes and crop cultivars.

Acknowledgments

Financial support by the National Natural Science Foundation of China (Contract number: 30571353) is gratefully acknowledged.
  • #Supported by the National Natural Science Foundation of China (Contract number: 30571353)

References

  1. Bhatnagar, D; Ehrlich, KC; Cleveland, TE. Molecular genetic analysis and regulation of aflatoxin biosynthesis. Appl. Microbiol. Biotechnol 2003, 61, 83–93. [Google Scholar]
  2. Eaton, DL; Groopman, JD. The toxicology of aflatoxins: human health, veterinary and agricultural significance; Academic Press: San Diego, CA, 1994. [Google Scholar]
  3. Richard, JL; Payne, GA. Mycotoxins: risks in plant, animal, and human systems. Task Force Report No. 139; Council for Agricultural Science and Technology: Ames, Iowa, 2003. [Google Scholar]
  4. Diaz, DE. The mycotoxin blue book; Nottingham University Press: Nottingham, England, 2005. [Google Scholar]
  5. Fanelli, C; Taddei, F; Nisini, PT; Jestoi, M; Ricelli, A; Visconti, A; Fabbri, AA. Use of resveratrol and BHA to control fungal growth and mycotoxin production in wheat and maize seeds. Aspect Appl. Biol 2003, 68, 63–71. [Google Scholar]
  6. Piva, FP; Galvano, RD; Pietri, AP; Piva, RD. Detoxification methods of aflatoxins. Nutr. Res 1995, 15, 767–776. [Google Scholar]
  7. Yazdanpanah, H; Mohammadi, T; Abouhossain, G; Cheraghali, AM. Effect of roasting on degradation of aflatoxins in contaminated pistachio nuts. Food Chem. Toxicol 2005, 43, 1135–1139. [Google Scholar]
  8. Albores, AM; Villa, GA; Pina, MGFL; Tostado, EC; Martínez, EM. Safety and efficacy evaluation of aqueous citric acid to degrade B-aflatoxins in maize. Food Chem. Toxicol 2005, 43, 233–238. [Google Scholar]
  9. Gowda, NKS; Suganthi, RU; Malathi, V; Raghavendra, A. Efficacy of heat treatment and sun drying of aflatoxin-contaminated feed for reducing the harmful biological effects in sheep. Animal Feed Sci. Tech 2007, 133, 167–175. [Google Scholar]
  10. Mishra, HN; Das, C. A review on biological control and metabolism of aflatoxin. Crit. Rev. Food Sci 2003, 43, 245–264. [Google Scholar]
  11. Zhou, T; He, J; Gong, J. Microbial transformation of trichothecene mycotoxins. World Mycotoxin Journal 2008, 1, 23–30. [Google Scholar]
  12. Motomura, M; Toyomasu, T; Mizuno, K; Shinozawa, T. Purification and characterization of an aflatoxin degradation enzyme from Pleurotus ostreatus. Microbiol. Res 2003, 158, 237–242. [Google Scholar]
  13. Zjalic, S; Reverberi, M; Ricelli, A; Granito, VM; Fanelli, C; Fabbri, AA. Trametes versicolor: A possible tool for aflatoxin control. Int. J. Food Microbiol 2006, 107, 243–249. [Google Scholar]
  14. Varga, J; Peteri, Z; Tabori, K; Teren, J; Vagvolgyi, C. Degradation of ochratoxin A and other mycotoxins by Rhizopus isolates. Int. J. Food Microbiol 2005, 99, 321–328. [Google Scholar]
  15. Molnar, O; Schatzmayr, G; Elisabeth, F; Prillinger, H. Trichosporon mycotoxinivorans sp. nov., A new yeast species useful in biological detoxification of various mycotoxins. System. Appl. Microbiol 2004, 27, 661–671. [Google Scholar]
  16. Shetty, PH; Jespersen, L. Saccharomyces cerevisiae and lactic acid bacteria as potential mycotoxin decontaminating agents. Trends Food Sci. Tech 2006, 17, 48–55. [Google Scholar]
  17. Shantha, T. Fungal degradation of aflatoxin B1. Nat. Toxins 1999, 7, 175–178. [Google Scholar]
  18. Liu, DL; Yao, DS; Liang, R; Ma, L; Cheng, WQ; Gu, LQ. Detoxification of aflatoxin B1 by enzymes isolated from Armillariella tabescens. Food Chem. Toxicol 1998, 36, 563–574. [Google Scholar]
  19. El-Nezami, H; Kankaanpaa, P; Salminen, S; Ahokas, J. Ability of dairy strains of lactic acid bacteria to bind a common food carcinogen, aflatoxin B1. Food Chem. Toxicol 1998, 36, 321–326. [Google Scholar]
  20. Gratz, S; Mykkanen, H; El-Nezami, H. Aflatoxin B1 binding by a mixture of Lactobacillus and Propionibacterium: in vitro versus ex vivo. J Food Prot 2005, 68, 2470–2474. [Google Scholar]
  21. Peltonen, K; El-Nezami, H; Haskard, C; Ahokas, J; Salminen, S. Aflatoxin B1 binding by dairy strains of lactic acid bacteria and bifidobacteria. J. Dairy Sci 2001, 84, 2152–2156. [Google Scholar]
  22. Peltonen, K; El-Nezami, H; Salminen, S; Ahokas, J. Binding of aflatoxin B1 by probiotic bacteria. J. Sci. Food Agric 2000, 80, 1942–1945. [Google Scholar]
  23. El-Nezami, H; Mykkanen, H; Kankaanpaa, P; Salminen, S; Ahokas, J. Ability of Lactobacillus and Propionibacterium strains to remove aflatoxin B1 from the chicken duodenum. J Food Prot 2000, 63, 549–552. [Google Scholar]
  24. Pierides, M; El-nezami, H; Peltonen, K; Salminen, S; Ahokas, J. Ability of dairy strains of lactic acid bacteria to bind aflatoxin M1 in a food model. J Food Prot 2000, 63, 645–650. [Google Scholar]
  25. Alberts, JF; Engelbrecht, Y; Steyn, PS; Holzapfel, WH; Vanzyl, WH. Biological degradation of aflatoxin B1 by Rhodococcus erythropolis cultures. Int. J. Food Microbiol 2006, 109, 121–126. [Google Scholar]
  26. Hormisch, D; Brost, I; Kohring, GW; Giffhorn, F; Kroppensted, RM; Stackebrandt, E; Färber, P; Holzapfel, WH. Mycobacterium fluoranthenivorans sp. nov., a fluoranthene and aflatoxin B1 degrading bacterium from contaminated soil of a former coal gas plant. System. Appl. Microbiol 2004, 27, 653–660. [Google Scholar]
  27. Teniola, OD; Addo, PA; Brost, IM; Farber, P; Jany, KD; Alberts, JF; Vanzyl, WH; Steyn, PS; Holzapfel, WH. Degradation of aflatoxin B1 by cell-free extracts of Rhodococcus erythropolis and Mycobacterium fluoranthenivorans sp. nov. DSM 44556T. Int. J. Food Microbiol 2005, 105, 111–117. [Google Scholar]
  28. D'Souza, DH; Brackett, RE. The role of trace metal ions in aflatoxin B1 degradation by Flavobacterium aurantiacum. J Food Prot 1998, 61, 1666–1669. [Google Scholar]
  29. D'Souza, DH; Brackett, RE. The influence of divalent cations and chelators on aflatoxin B1 degradation by Flavobacterium aurantiacum. J Food Prot 2000, 63, 102–105. [Google Scholar]
  30. D'Souza, DH; Brackett, RE. Aflatoxin B1 degradation by Flavobacterium aurantiacum in the presence of reducing conditions and seryl and sulfhydryl group inhibitors. J Food Prot 2001, 64, 268–271. [Google Scholar]
  31. Smiley, RD; Draughon, FA. Preliminary evidence that degradation of aflatoxin B1 by Flavobacterium aurantiacum is enzymatic. J. Food Prot 2000, 63, 415–418. [Google Scholar]
  32. Volkl, A; Vogler, B; Schollenberger, M; Karlovsky, P. Microbial detoxification of mycotoxin deoxynivalenol. J. Basic Microbiol 2004, 44, 147–156. [Google Scholar]
  33. Lee, LS; Dunn, JJ; De Lucca, AJ; Ciegler, A. Role of lactone ring of aflatoxin B1 in toxicity and mutagenicity. Experientia 1981, 37, 16–17. [Google Scholar]
  34. Bergot, BJ; Stanley, WL; Masri, MS. Reaction of coumarin with aqua ammonia. Implications in detoxification of aflatoxin. J. Agr. Food Chem 1977, 25, 965–966. [Google Scholar]
  35. Grove, MD; Plattner, RD; Weisleder, D. Ammoniation products of an aflatoxin model coumarin. J. Agr. Food Chem 1981, 29, 1161–1164. [Google Scholar]
  36. Juhasz, AL; Stanley, GA; Britz, ML. Microbial degradation and detoxification of high molecular weight polycyclic aromatic hydrocarbons by Stenotrophomonas maltophilia strain VUN 10,003. Lett. Appl. Microbiol 2000, 30, 396–401. [Google Scholar]
  37. Binks, PR; Nicklin, S; Bruce, NC. Degradation of hexahydo-1, 3, 5-trinitor-1, 3, 5-triazine (RDX) by Stenotrophomonas maltophilia PB1. Appl. Environ. Microbiol 1995, 61, 1318–1322. [Google Scholar]
  38. Kim, JD; Kang, KH. Analysis of enzymes of Stenotrophomonas maltophilia LK-24 associated with phenol degradation. Kor. J. Microbiol. Biotechnol 2004, 32, 37–46. [Google Scholar]
  39. Lehninger, AL; Nelson, DL; Cox, MM. Principles of biochemistry; Worth Publishers: New York, 1993. [Google Scholar]
  40. AOAC. Method 2003.02. Official methods of AFB1 analysis in Cattle Feed; Association of Official Analytical Chemists: Washington, DC, 2005. [Google Scholar]
  41. Holt, JG; Krieg, NR; Sneath, PHA. Bergey’s manual of determinative bacteriology, 9th edition; Williams & Witkins Baltimore: Maryland, USA, 1994. [Google Scholar]
  42. Thompson, JD; Gibson, TJ; Plewniak, F; Jeanmougin, F; Higgins, DG. The Clustal X windows interface: flexible strategies for multilple sequence alignments aided by quality analysis tools. Nucl. Acids Res 1997, 24, 4874–4882. [Google Scholar]
  43. Kumar, S; Tamura, K; Nei, M. Moleculor evolutionary genetic analysis version 3.1 1993.

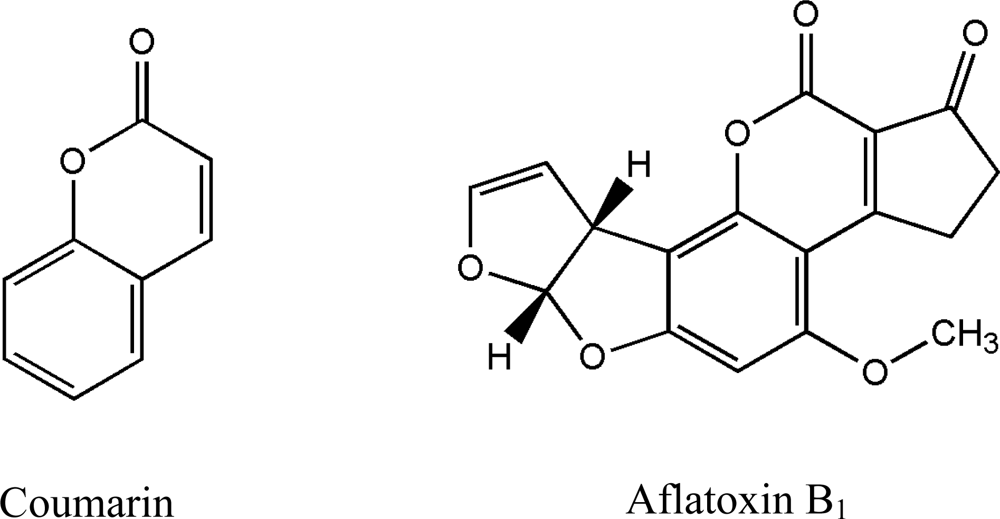

Figure 1. Molecular structures of coumarin and aflatoxin B1.
Figure 1. Molecular structures of coumarin and aflatoxin B1.
Ijms 09 01489f1

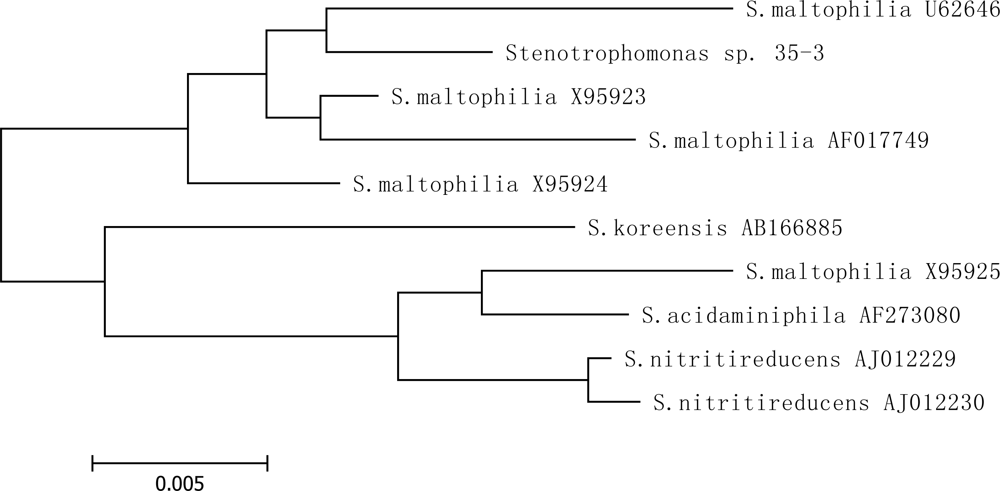

Figure 2. Phylogenetic tree based on 16S rRNA gene sequences of isolate 35-3 and related taxa.
Figure 2. Phylogenetic tree based on 16S rRNA gene sequences of isolate 35-3 and related taxa.
Ijms 09 01489f2

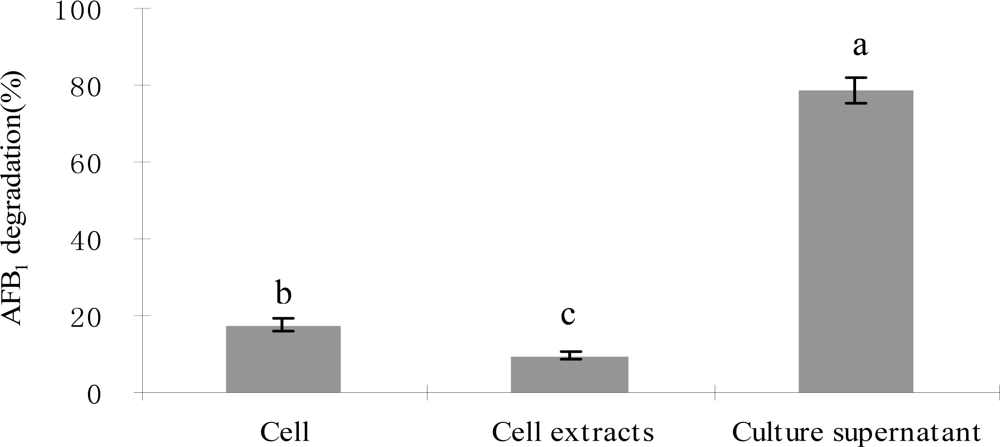

Figure 3. AFB1 degradation by cell, cell extracts and culture supernatant of S. maltophilia 35-3 after 72 h incubation. The values are means of three replicates and their standard errors. Means with different letters are significantly different according to Duncan’s Multiple Range Test (P <0.05).
Figure 3. AFB1 degradation by cell, cell extracts and culture supernatant of S. maltophilia 35-3 after 72 h incubation. The values are means of three replicates and their standard errors. Means with different letters are significantly different according to Duncan’s Multiple Range Test (P <0.05).
Ijms 09 01489f3

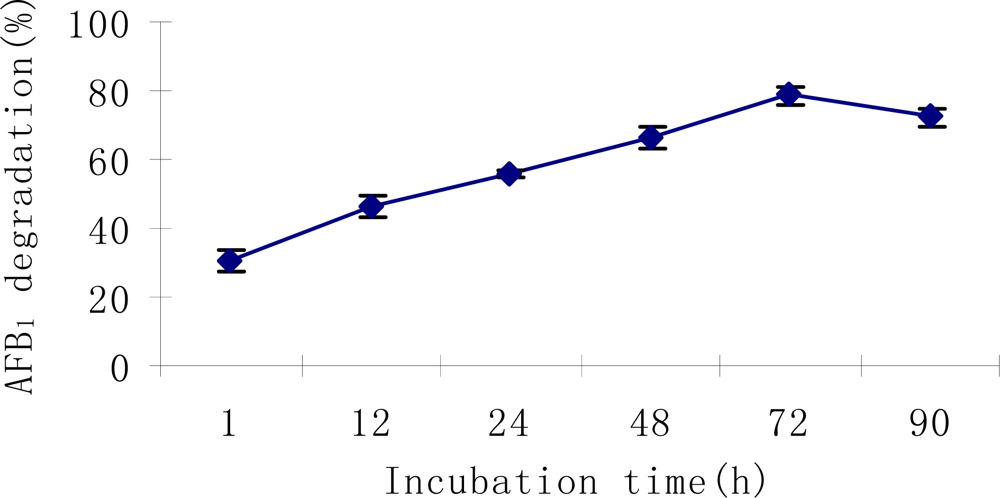

Figure 4. Dynamics of AFB1 degradation by S. maltophilia 35-3 culture supernatant with time.
Figure 4. Dynamics of AFB1 degradation by S. maltophilia 35-3 culture supernatant with time.
Ijms 09 01489f4

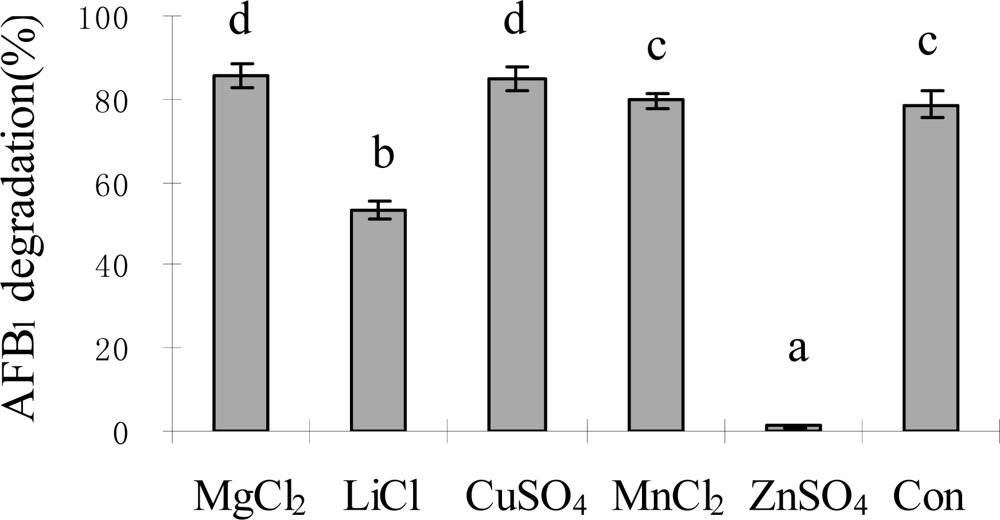

Figure 5. Effects of ions on AFB1 degradation by culture supernatant of S. maltophilia 35-3. Nutrient broth (NB) was used to substitute culture supernatant as a control. The values are means of three replicates and their standard errors. Means with different letters are significantly different according to Duncan’s Multiple Range Test (P <0.05).
Figure 5. Effects of ions on AFB1 degradation by culture supernatant of S. maltophilia 35-3. Nutrient broth (NB) was used to substitute culture supernatant as a control. The values are means of three replicates and their standard errors. Means with different letters are significantly different according to Duncan’s Multiple Range Test (P <0.05).
Ijms 09 01489f5

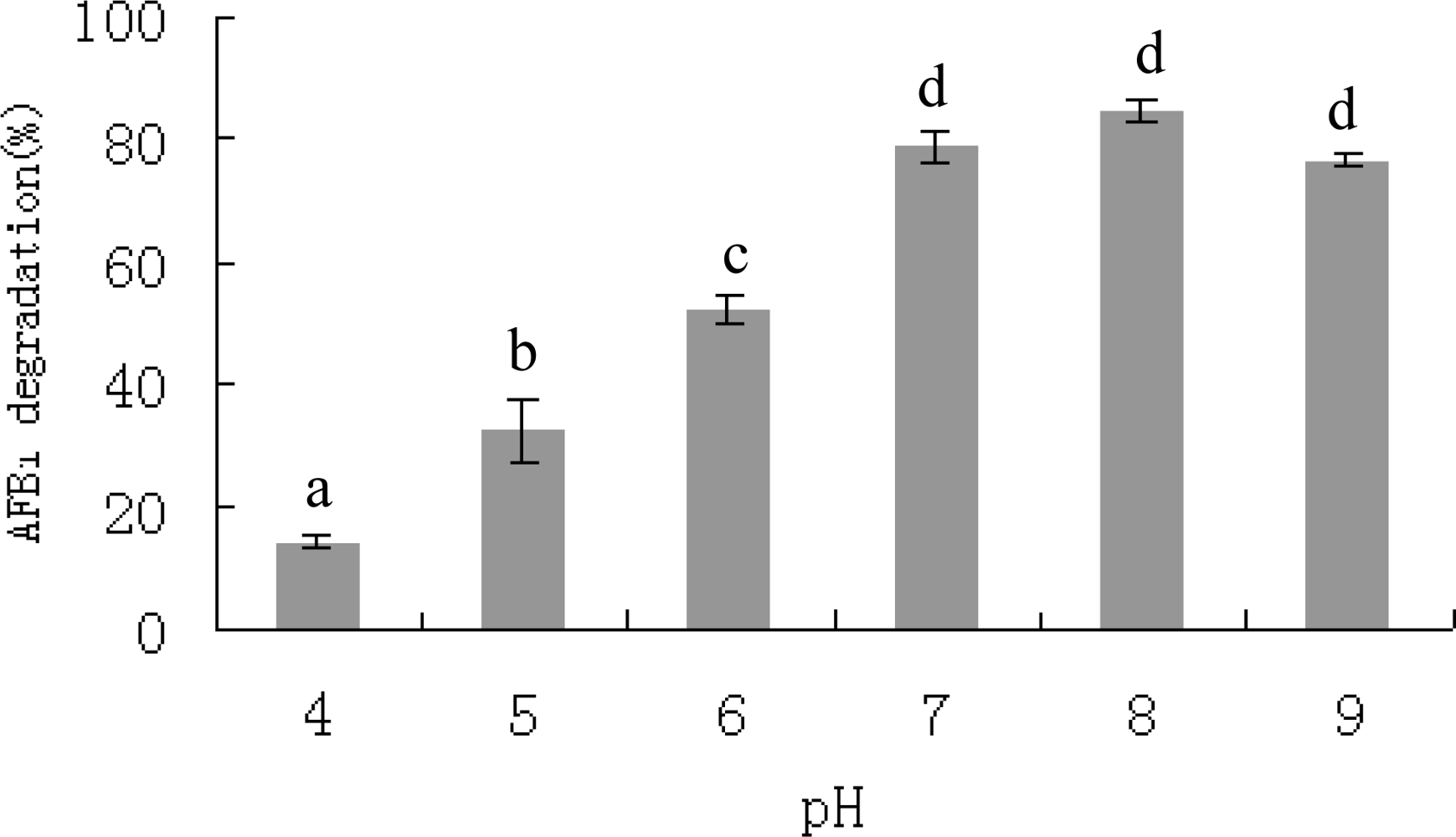

Figure 6. Effect of pH on AFB1 degradation by culture supernatant of S. maltophilia 35-3. The values are means of three replicates and their standard errors. Means with different letters are significantly different according to Duncan’s Multiple Range Test (P <0.05).
Figure 6. Effect of pH on AFB1 degradation by culture supernatant of S. maltophilia 35-3. The values are means of three replicates and their standard errors. Means with different letters are significantly different according to Duncan’s Multiple Range Test (P <0.05).
Ijms 09 01489f6

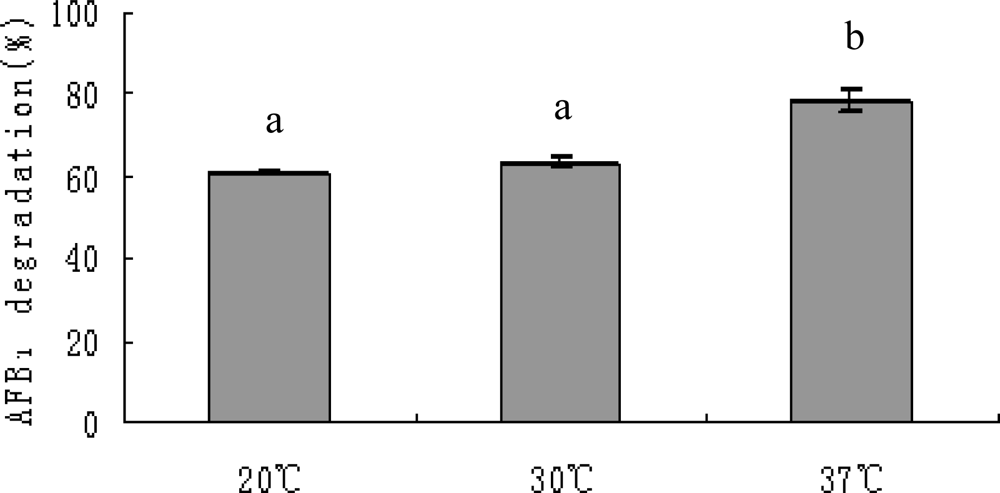

Figure 7. Effect of temperature on AFB1 degradation by culture supernatant of S. maltophilia 35-3. The values are means of three replicates and their standard errors. Means with different letters are significantly different according to Duncan’s Multiple Range Test (P <0.05).
Figure 7. Effect of temperature on AFB1 degradation by culture supernatant of S. maltophilia 35-3. The values are means of three replicates and their standard errors. Means with different letters are significantly different according to Duncan’s Multiple Range Test (P <0.05).
Ijms 09 01489f7
Table 1. AFB1 degradation by individual microbial isolates selected using coumarin medium.
Table 1. AFB1 degradation by individual microbial isolates selected using coumarin medium.
Isolate1SourceDegradation (%) ± SE2
Stenotrophomonas maltophilia (35-3)South American tapir feces82.50 ± 3.20a
Bacillus sp.Hog deer feces80.93 ± 2.65ab
Brevundimonas sp.Yellow cheek feces78.10 ± 4.48bc
Bacillus sp.Farm soil77.80 ± 1.63bcd
Klebsiella sp.Rabbit feces77.57 ± 4.36cd
Brevundimonas sp.Goral feces76.83 ± 0.72cd
Enterobacter sp.Hog deer feces75.92 ± 3.44cd
Brachybacterium sp.Rabbit feces74.83 ± 2.47cd
Rhodococcus sp.Ostrich feces73.92 ± 5.48cd
Cellulosimicrobium sp.Farm soil73.75 ± 3.60d
32-2Goral feces67.64 ± 1.72e
K2Deer feces67.64 ± 0.75e
41-4Zebra feces64.81 ± 4.84e
K3Deer feces64.23 ± 1.44e
I1Francois monkey feces58.76 ± 2.48f
N1Farm soil51.50 ± 0.57g
23-5Goral feces48.69 ± 3.18gh
G3Zebra feces46.39 ± 1.25h
42-1Compound feed45.18 ± 1.30h
J1Red goral feces30.88 ± 2.82i
39-3White cheek feces28.08 ± 1.25i
37-1Leopard feces18.71 ± 0.87j
H1Farm soil13.94 ± 1.01k
31-3Compound feed11.91 ± 2.01k
C1Grey leaf monkey feces9.18 ± 1.54k
1AFB1 degradation in liquid medium following 72 h of incubation with individual microbial isolates appeared on medium with coumarin as the sole carbon source.
2The values are means of three replicates and their standard errors. Means with different letters are significantly different according to Duncan’s Multiple Range Test (P <0.05).
Table 2. Biochemical and physiological characteristics of Stenotrophomonas maltophilia 35-3.
Table 2. Biochemical and physiological characteristics of Stenotrophomonas maltophilia 35-3.
ItemResult1ItemResult1ItemResult1
Carbon utilization:L-Glutamic acid+Casein+
Glucose+Nitrogen utilization:Oxidase
D(+)-Cellobiose+Ammonium oxalateDegradation of:
Sorbitolw(NH4)2SO4Sodium alga acid
L- ArginineNH4H2PO4Cellulose
L-PhenylalanineGlutamic acidlignan xylan
Maltose+ProlineLecithin
Mannitol+NaNO2Yeast cell+
D- Fructose+NH4NO4+Utilisation of acid:
Galactose+Ammonium citrateCitric acid+
Amylum+Growth at: 10 °C/ 55 °CBenzoic acid+
D-Raffinose+Growth on:Tartaric acid+
Mannosew0% / 2% NaCl+Succinic acid+
Glycine+5% / 7% / 10% NaClAcetic acid
L- CysteineHydrolysis of:Other tests:
L-TyrosineGelatin+Congo red tolerance+
D- Xylose+OleinV-P test
Sucrose+Tween 80+Methyl red test
A-Lactose+AmylumMethylene blue trihydrate reduction+
1‘+’ positive response; ‘−’ negative response; ‘w’ weak positive response.
