Short Note

New bis-tridentate Nitrogen Ligand: N,N,N',N'-tetra-(3-carbomethoxy-5-methylpyrazol-1-ylmethyl)p-phenylenediamine

1
Laboratoire de Chimie Organique, Faculté des Sciences Dhar El Mehraz, 50000 Fès, Morocco
2
Laboratoire d’Activation Moléculaire, Faculté des Sciences, 60000 Oujda, Morocco
*
Author to whom correspondence should be addressed.
Molbank 2005, 2005(6), M449; https://doi.org/10.3390/M449
Submission received: 15 July 2005 / Accepted: 18 July 2005 / Published: 12 December 2005

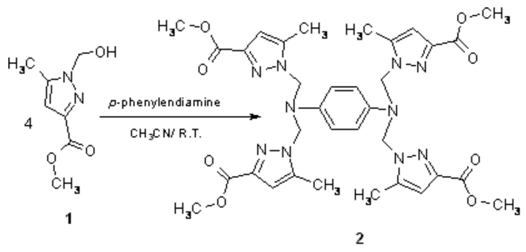

Molbank 2005 m449 i001
The product 2 was prepared by the addition of p-phenylendiamine (NH2C6H4NH2) to 1 [1] according to the reported procedure [2]. To a solution of 1 (3.4 g, 20 mmol) in acetonitrile (45 ml) was added p-phenylendiamine (0.54 g, 5 mmol) and the mixture was stirred. The stirring was continued at room temperature for a week. The residue was precipitated by addition of cold water, purified and dried by hexane and under vacuum, to afford 2.63 g (74% yield) 2 as a white solid.
Melting Point: 197 °C.
IR (KBr, cm–1): 3140 (=CH); 2990 (CH); 1730 (C=O); 1540 (C=C); 1480 (-C=N); 1450; 1410.
1H-NMR (400 MHz, CDCl3): δ= 7.25 (s, 4H, Ph); 6.5 (s, 4H, Pyrazol); 5.6 (s, 8H, N-CH2-N); 4 (s, 12H, O-CH3); 2.2 (s, 12H, CH3).
MS (m/z): 739 [M + Na+]; 716 [M]+; 613; 585; 460.

Supplementary materials

Supplementary File 1Supplementary File 2Supplementary File 3

Acknowledgment

We are indebted to the "Programme Thématique d'Appui à la Recherche Scientifique PROTARS N° P1T2/27", and the "Wylaya d'Oujda" for financial support.

References

  1. Dvoretzky, I.; Richter, G.H. J.Org.Chem. 1950, 15, 1285. [CrossRef]
  2. Sheu, S-C.; Tien, M-J.; Cheng, M-C.; Ho, T-I.; Peng, S-M.; Lin, Y-C. J. Chem. Soc. Dalton Trans. 1995, 3503–3510.
