Short Note

1-Acetyl-17-{2-hydroxy-3-[4-(2-methoxyphenyl)piperazin-1-yl]propyl}-17-azapentacyclo[6.6.5.02,7.09,14.015,19]nonadeca-2,4,6,9,11,13-hexaene-16,18-dione

Chair and Department of Medical Chemistry, 1st Faculty of Medicine, Medical University of Warsaw, 3 Oczki Street, 02-007 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Molbank 2010, 2010(3), M697; https://doi.org/10.3390/M697
Submission received: 5 August 2010 / Accepted: 14 September 2010 / Published: 17 September 2010

Abstract

:
The title compound was synthesized by condensation of an oxiran imide derivative with an appropriate amine and its IR, 1H NMR, 13C NMR and mass spectroscopic data are reported. The synthesized compound was evaluated for its cytotoxicity and anti-HIV-1 activity in MT-4 cells.

Graphical Abstract

Introduction

Currently available drugs for the treatment of HIV infections are based on combination of two types of anti-HIV-1 agents: nucleoside reverse transcriptase inhibitors (RTIs) and protease inhibitors [1]. The RTIs can be divided into nucleoside (NI) and non-nucleoside RT inhibitors (NNRTI). Several non-nucleoside inhibitors have been described, including nevirapine, thiobenzimidazolone (TIBO) derivatives, pyridinone derivatives and the bis(heteroaryl)piperazines (BHAPs), such as delavirdine and atevirdine [2]. Another arylpiperazine, vicriviroc, is currently under phase II of clinical investigation [3]. Therefore, the discovery of new BHAP analogs is actively pursued [4,5].
1-Acetyl-17-(oxiran-2-ylmethyl)-17-azapentacyclo[6.6.5.02,7.09,14.015,19]nonadeca-2,4,6,9,11,13-hexaene-16,18-dione 1 was used as a starting material. It was obtained from the reaction of imide 1-acetyl-17-azapentacyclo[6.6.5.02,7.09,14.015,19]nonadeca-2,4,6,9,11,13-hexaene-16,18-dione with 2-(chloromethyl)oxirane [6]. Next, it was subjected to the reaction with an amine to give the appropriate amino alcohol 2 (Scheme 1).
The synthesized compound was evaluated for its cytotoxicity and anti-HIV-1 activity in MT-4 cells [7]. The obtained compound 1 does not show activity against HIV-1. Compound concentation (µM) required to reduce the viability of mock-infected MT-4 cells by 50% is 45 (CC50). Compound concentration (µM) required to achieve 50% protection of MT-4 cells from the HIV-1 induced cytopathogeneticy is 45 or less (EC50).

Experimental Section

Chemistry

Synthesis of 1-acetyl-17-{2-hydroxy-3-[4-(2-methoxyphenyl)piperazin-1-yl]propyl}-17-azapentacyclo- [6.6.5.02,7.09,14.015,19]nonadeca-2,4,6,9,11,13-hexaene-16,18-dione hydrochloride (2)
A mixture of 1-acetyl-17-(oxiran-2-ylmethyl)-17-azapentacyclo[6.6.5.02,7.09,14.015,19]nonadeca-2,4,6,9,11,13-hexaene-16,18-dione (1) (0.5 g, 0.0013 mol) and (1-(2-methoxyphenyl)piperazine (0.43 g, 0.0019 mol in water/methanol (1:40) was refluxed for 50 h. The liquid was distilled off, the oily residue was purified by column chromatography (chloroform:methanol; 100:0.5 vol.). The dried residue was dissolved in methanol, and then 10 drops of HCl saturated methanol were added. The mixture was kept for 12 h at 6 °C and after that time the solvent was distilled off.
White crystals, yield 70%.
Melting point: 192 °C.
1H NMR (400 MHz, CDCl3) δ (ppm): 11.72 (s, 1H, NH+); 7.67–7.65 (m, 2H, CHarom.); 7.43–4.40 (m, 2H, CHarom.); 7.24–6.97 (m, 8H, CHarom.); 4.35–4.20 (m, 2H, CH); 4.02–3.87 (m, 2H, CH2); 3.96 (s, 3H, OCH3); 3.71–3.40 (m, 6H, CH2); 3.24–2.94 (m, 4H, CH2); 2.82 (d, 3H, CH3, J = 3.2 Hz).
13C-NMR (100 MHz, CDCl3) δ (ppm): 177.05, 177.02, 176.73, 141,52, 141,47, 140.14, 140.15, 138.62, 138.58, 137.27, 127.98, 127,78, 127.69, 127.59, 127.15, 125.51, 125.39, 125.32, 125.22, 124.74, 123.92, 123.32, 121.98, 64.03, 61.51, 60.77, 56.38, 50.95, 49.22, 48.57, 48.46, 46.20, 46.15, 42.5.
ESI MS: m/z = 566.12 [M]+ (100%).
Elemental Analysis: Calculated for C34H36ClN3O5 x 2H2O (638.15): C, 63.99%; H, 6.32%; N, 6.58%;. Found: C, 64.02%; H 6.30%; N, 6.55%.

Antiviral Assay Procedures

The antiviral investigations of the compound were performed in Dipartamento di Scienze e Tecnologie Biomediche, Universita di Cagliari, Monserato, Italy.
The compound was solubilized in DMSO at 200 mM and then diluted into a culture medium.

Cells and Viruses

Cell lines were purchased from American Type Culture Collection (ATCC). The absence of mycoplasma contamination was checked periodically by the Hoechst staining method. Cell lines supporting the multiplication of RNA viruses were the following: CD4+ human T-cells containing an integrated HTLV-1 genome (MT-4).

Cytotoxicity Assays

For cytotoxicity evaluations, exponentially growing cells derived from human haematological tumors [CD4+ human T-cells containing an integrated HTLV-1 genome (MT-4)] were seeded at an initial density of 1 × 105 cells/mL in 96 well plates in RPMI-1640 medium supplemented with 10% fetal calf serum (FCS), 100 units/mL penicillin G and 100 µg/mL streptomycin. Cell cultures were then incubated at 37 °C in a humidified, 5% CO2 atmosphere in the absence or presence of serial dilutions of test compounds. Cell viability was determined after 96 h at 37 °C by the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-tetrazolium bromide (MTT) method [7].

Antiviral Assay

Activity of the compound against Human Immunodeficiency Virus type-1 (HIV-1) was based on inhibition of virus-induced cytopathogenicity in MT-4 cells acutely infected with a multiplicity of infection (m.o.i.) of 0.01. Briefly, 50 μL of RPMI containing 2 × 104 MT-4 were added to each well of flat-bottom microtitre trays containing 50 μL of RPMI, without or with serial dilutions of the test compound. Then, 20 μL of an HIV-1 suspension containing 100 CCID50 were added. After a 4-day incubation, cell viability was determined by the MTT method.

Supplementary materials

Supplementary File 1Supplementary File 2Supplementary File 3

References

  1. Carpenter, C.C.; Fischl, M.A.; Hammer, S.M.; Hirsch, M.S.; Jacobsen, D.M.; Katzenstein, D.A.; Montaner, J.S.; Richman, D.D.; Saag, M.S.; Schooley, R.T.; Thompson, M.A.; Vella, S.; Yeni, P.G.; Volberding, P.A. Antiretroviral therapy for HIV infection in 1998: Updated recommendations of the International AIDS Society-USA Panel. J. Am. Med. Assoc. 1998, 280, 78–86. [Google Scholar] [CrossRef]
  2. Romero, D.L.; Morge, R.A.; Genin, M.J.; Biles, C.; Busso, M.; Resnick, L.; Althaus, I.W.; Reusser, F.; Thomas, R.C.; Tarpley, W.G. Bis(heteroaryl)piperazine (BHAP) reverse transcriptase inhibitors: Structure-activity relationships of novel substituted indole analogues and the identification of 1-[(5-methanesulfonamido-1H-indol-2-yl)-carbonyl]-4-[3- [(1-methylethyl)amino]-pyridinyl]piperazine monomethanesulfonate (U-90152S), a second-generation clinical candidate. J. Med. Chem. 1993, 36, 1505–1508. [Google Scholar] [PubMed]
  3. Gulick, R.M.; Su, Z.; Flexner, C.; Hughes, M.D.; Skolnik, P.R.; Wilkin, T.J.; Gross, R.; Krambrink, A.; Coakley, E.; Greaves, W.L.; Zolopa, A.; Reichman, R.; Godfrey, C.; Hirsch, M.; Kuritzkes, D.R. Phase 2 study of the safety and efficacy of vicriviroc, a CCR5 inhibitor, in HIV-1-Infected, treatment-experienced patients: AIDS clinical trials group 5211. J. Infect. Dis. 2007, 196, 304–312. [Google Scholar] [CrossRef] [PubMed]
  4. Pinna, G.A.; Loriga, G.; Murineddu, G.; Grella, G.; Mura, M.; Vargiu, L.; Murgioni, C.; La Colla, P. Synthesis and anti-HIV-1 activity of new delavirdine analogues carrying arylpyrrole moieties. Chem. Pharm. Bull. 2001, 49, 1406–1411. [Google Scholar] [CrossRef] [PubMed]
  5. Tagat, J.R.; McCombie, S.W.; Nazareno, D.; Labroli, M.A.; Xiao, Y.; Steensma, R.W.; Strizki, J.M.; Baroudy, B.M.; Cox, K.; Lachowicz, J.; Varty, G.; Watkins, R. Piperazine-based CCR5 antagonists as HIV-1 inhibitors. IV. Discovery of 1-[(4,6-dimethyl-5-pyrimidinyl)carbonyl]-4-[4-[2-methoxy-1(R)-4-(trifluoromethyl)phenyl]ethyl-3(S)-methyl-1-piperazinyl]-4-methylpiperidine (Sch-417690/Sch-D), a potent, highly selective, and orally bioavailable CCR5 antagonist. J. Med. Chem. 2004, 47, 2405–2408. [Google Scholar]
  6. Kossakowski, J.; Szczepek, W.; Pakosińska-Parys, M. Synthesis of new n-substituted cyclic imides with expected anxiolytic activity. XXI. Derivatives of 1-acetyldibenzo-[e.h]-bicyclo[2.2.2]-octane-2,3-dicarboximide. Acta Pol. Pharm. 2002, 59, 418–423. [Google Scholar] [PubMed]
  7. Pauwels, R.; Balzarini, J.; Baba, M.; Snoeck, R.; Schols, D.; Herdewijn, P.; Desmyster, J.; De Clercq, E. Rapid and automated tetrazolium-based colorimetric assay for the detection of anti-HIV compounds. J. Virol. Methods 1998, 20, 309–321. [Google Scholar] [CrossRef]

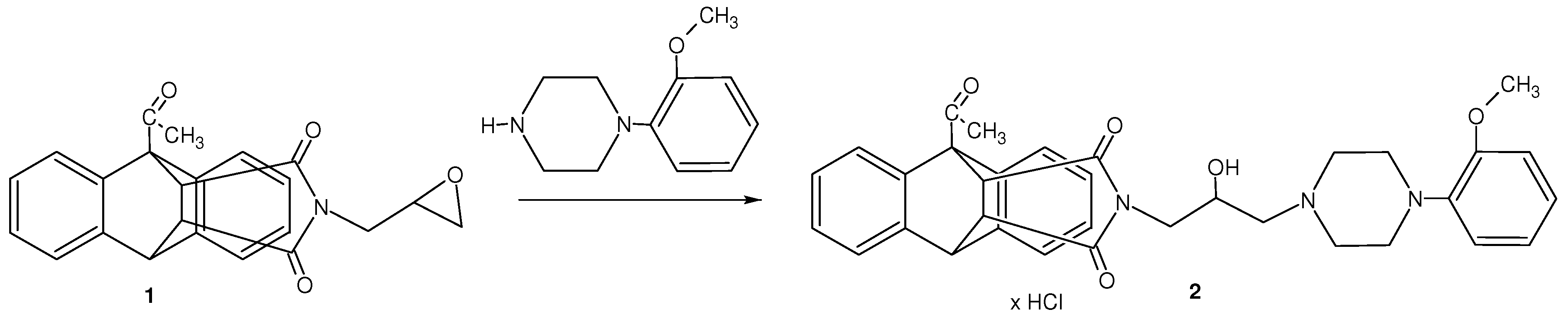

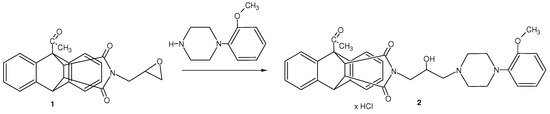

Scheme 1. Synthesis of 4-amino-2-hydoxypropyl derivatives.
Scheme 1. Synthesis of 4-amino-2-hydoxypropyl derivatives.
Molbank 2010 m697 sch001
