Short Note

1,3,1′,3′-(Dinaphthalene-1,8-diyl)bisthiourea

Department of Chemistry, Canakkale Onsekiz Mart University, 17100 Canakkale, Turkey
Molbank 2016, 2016(4), M917; https://doi.org/10.3390/M917
Submission received: 12 October 2016 / Revised: 7 November 2016 / Accepted: 15 November 2016 / Published: 28 November 2016
(This article belongs to the Section Organic Synthesis)

Abstract

:
A new bisthiourea compound, 1,3,1′,3′-(dinaphthalene-1,8-diyl)bisthiourea, was synthesized. Its structure was characterized by elemental analysis, FT-IR and 1H-, 13C-NMR and MS spectroscopic techniques. The compound was found to selectively recognize fluoride anions among other halides as demonstrated by means of UV-vis absorption spectroscopic date and the naked eye.

Graphical Abstract

1. Introduction

Thioureas are a class of the organic compounds containing sulfur with the general formula Ar > N-C(S)-N < Ar) or R > N-C(S)-N < R). These may be mono-thiourea or bis-thiourea derivatives depending the extent of the primary or secondary amines as well as mono- or diamines [1,2]. Some thiourea derivatives are widely used in many fields including the pharmaceutical industry due to their biological properties such as antimicrobial, antibacterial, antifungal, anticancer activity, etc. [3,4,5,6,7,8,9]. Recently, compounds of thiourea in coordination with metal complexes have been reported by many researchers, including nonlinear optical (NLO) materials [10,11]. Urea or thiourea derivatives connected with a series of chromogenic and fluorogenic substituents proved to be very efficient for anion sensors. Therefore, a variety of receptors containing one or more urea/thiourea subunits have been designed and tested for anion recognition and sensing over the past years [12,13,14].
In this paper, a new bisthiourea compound named 1,3,1′,3′-(dinaphthalene-1,8-diyl)bisthiourea was synthesized and its structure was characterized by elemental analysis, FT-IR and 1H-, 13C-NMR and MS spectroscopic techniques (Scheme 1). A colorimetric sensor, which could selectively detect F based on the distinct color change among other halide anions, was investigated in DMSO solution.

2. Results

The title compound, 1,3,1′,3′-(dinaphthalene-1,8-diyl)bisthiourea, was synthesized and characterized by elemental analysis, IR and 1H- and 13C-NMR spectroscopic analysis. The FT-IR data of the compound showed two N-H stretching bands at 3411 and 3326 cm−1. The peaks at 3030, 2968 cm−1 and 1508 cm−1 in the IR data were confirmed as the aromatic C-H and C=C stretching bands, respectively. The strong peak at 1599 cm−1 was assigned to the N-H bending band. In addition, the strong band at 1353 cm−1 was confirmed in presence of the amido (=C-N-) stretching vibration. The very intense peak at 768 cm−1 showed C-N asymmetric stretching. The strong bands observed at 1299 and 716 cm−1 were assigned to thioureido N-C=S and C=S stretching vibrations, respectively (Figure S1). In 1H-NMR spectrum, the compound exhibited broad signals at 11.39 ppm (1H, s) which were assigned to the NH-C(S) protons. Generally, the NMR signals of NH protons for thioamides are observed in the range of 9–10 ppm. The chemical shifts of protons on the symmetric naphthalene ring were observed at 7.23 (q, 3,6,3′,6′-positions), 7.17 (dd, 4,5, 4′,5′-positions) and 6.63 (dd, 2,7, 2′,7′-positions) ppm, because the compound consists of two naphthalene units (Figures S2 and S3). In the 13C-NMR signals, chemical shifts for the naphthalene ring carbons were observed at 105(C2), 116(C6), 119(C4), 128(C3), 134(C5) and 135(C1) ppm. The carbon atoms of thiocarbonyl (C=S) in the symmetric thiourea structure appeared at 173 ppm (Figures S4 and S5) (Scheme 2) (see Supplementary Material).
The binding behavior of the compound as a receptor with halide ions such as F, Cl, Br and I was first monitored by visual observation in DMSO. Upon the addition of F to receptor, a prominent change was observed in the UV-Vis absorption spectra. In contrast, the addition of an excess of tetrabutylammonium salt of Cl, Br and I did not cause any notable spectrum changes (Figure 1a). While a color change in the presence of F was observed, which also could be dedected by the naked eye, an insignificant change in color was observed in the presence of Cl, Br and I (Figure 1b).

3. Experimental Section

3.1. Materials and Measurements

All reagents for synthesis were obtained commercially and were used without further purification. The 1H- and 13C-NMR spectra were recorded in DMSO-d6 at 25 °C on a Bruker NMR spectrometer (Bruker, Mainz, Germany) operating at 400 and 101.6 MHz. Infrared absorption spectra was obtained by a Perkin Elmer BX II spectrometer (PerkinElmer Inc. Waltham, MA, USA) and reported in cm−1 units and UV-vis absorption spectra was obtained Lambda-25 (double-beam) spectrometer (PerkinElmer Inc.). MS spectra was recorded using an Agilent 5973 Inert Mass Selective Detector (Agilent Technologies, Santa Clara, CA, USA) equipped with Direct Insertion Probe. Melting point (m.p.) was measured in an Electro Thermal IA 9100 instrument (Electrothermal, UK) using a capillary tube. Thin-layer chromatography was carried out on Merck aluminium sheets (Merck, Darmstadt, Germany) coated with silica gel 60 F254.

3.2. Synthesis of 1,3,1′,3′-(Dinaphthalene-1,8-diyl)bisthiourea 3

A solution of carbon disulfide (1.0 g, 0.8 mL, 1.2 mmol) in absolute ethyl alcohol (20 mL) was placed in a 250 mL round-bottomed flask provided with an efficient double surface condenser and a solution of 1,8-diaminonaphthalene (1.58 g, 10 mmol) in absolute ethyl alcohol (20 mL) was added dropwise to the reaction flask. After the absorption apparatus connected to the top of the condenser was placed in the fume cupboard, the reaction mixture was heated under reflux. The progress of the reaction was monitored by TLC analysis. After the completion of the reaction, for 4 h, the excess of carbon disulfide and alcohol was removed by distillation by using a rotary evaporator. The crude grey product was washed several times with dilute hydrochloric acid (1:10) to remove any amine. Precipitate was collected by filtration, after drying, it was purified by recrystallized from acetone/tetrahydrofuran mixture (1:1). The product was obtained as colorless crystals, yield: 2.98 g, 74%; 212–214 °C (dec.), FT-IR (ATR): 3411, 3326, 3030, 2968, 1599, 1508, 1353, 1299, 768 and 716 cm−1. 1H-NMR (400 MHz, DMSO-d6) δ (ppm): 7.23 (q, 1H, C-H), 7.17 (dd, 1H), 6.63 (dd, 1H), 11.39 (s, 1H); 13C-NMR (100 MHz, DMSO-d6) δ(ppm): 105, 116, 119, 128, 134, 135, 173; MS (EI): (m/z) = 400.1 (M + 1); Anal. Calc. For C22H16N4S2: C, 65.97; H, 4.03; N, 13.99; S, 16.01 Found: C, 66.31; H, 4.26; N, 13.16; S, 16.27.

Supplementary Materials

The following are available online at www.mdpi.com/1422-8599/2016/4/M917, Figures S1–S5 (FT-IR,1H-NMR, 13C-NMR spectrums of compound 3).
Supplementary File 1Supplementary File 2Supplementary File 3Supplementary File 4

Acknowledgments

Support for this research was provided by grant Project Number: 2010/57 from Canakkale Onsekiz Mart University Research Fund-TURKEY.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Katritzky, A.R.; Kirichenko, N.; Rogovoy, B.V. Synthesis of mono- and N,N-disubstitutedureas. Arkivoc 2003, viii, 8–14. [Google Scholar]
  2. Biaolin, Y.; Zhaogui, L.; Mingjun, Y.; Jiancun, Z. An efficient method for the synthesis of disubstitutedthioureas via the reaction of N,N′-di-Boc-substituted with alkyl and aryl amines under mild conditions. Tetrahedron Lett. 2008, 49, 3687–3690. [Google Scholar]
  3. Silvio, C.; Fernando, C.M., Jr.; Giselle, A.N.C.; Manoel, T.R., Jr.; Rosival, B.V.V.; Lourdes, C.S.N.; Ivo, V.; Carlito, L.; Fernando, P.S. Antimicrobial activity and structural study of disubstitutedthiourea derivatives. Mon. Chem. 2007, 138, 511–516. [Google Scholar]
  4. Khalid, M.K.; Farzana, N.; Muhammad, T.; Ajmal, K.; Shahnaz, P.; Muhammad, I.C.; Wolfgang, V. Synthesis and in vitro urease inhibitory activity of N,N′-disubstitutedthioureas. Eur. J. Med. Chem. 2014, 74, 314–323. [Google Scholar]
  5. Azeem, S.; Ataf, A.A.; Ashfaq, M.Q.; Amin, B. Thiourea derivatives in drug design and medicinal chemistry: A short review. J. Drug Des. Med. Chem. 2016, 2, 10–20. [Google Scholar]
  6. Truong, P.; Thai, K.-M.; Nguyen Thi, V.H.; Huynh Thi, N.P. Synthesis and antifungal activities of phenylenedithioureas. Bioorg. Med. Chem. Lett. 2004, 14, 653–656. [Google Scholar]
  7. Jennifer, C.S.; Jae, W.C.; Robert, C.; Mark, A.S.; Jann, N.S.; Abdul, F.; Richard, J.B. A novel synthetic 1,3-phenyl bis-thiourea compound targets microtubule polymerization to cause cancer cell death. Cancer Biol. Ther. 2014, 15, 895–905. [Google Scholar]
  8. Gary, M.C.; Robert, E.D.; James, B.E.; Dennis, S.F.; James, R.P., Jr. 1-Hydroxyalkyl-3-phenylthioureas as novel HDL-elevating agents. Bioorg. Med. Chem. Lett. 2005, 15, 809–812. [Google Scholar]
  9. Bianca, K.V.; Jandali, N.; Janette, S.; Shiy, K.S.; Ross, J.B.; Patrick, M.W.; Lyn-Marie, B. Discovery of novel alkylated (bis)urea and (bis)thiourea polyamine analogues with potent anti-malarial activities. J. Med. Chem. 2011, 54, 6624–6633. [Google Scholar]
  10. Muthu, K.; Meenatchi, V.; Rajasekar, M.; Aditya, P.; Meena, K.; Agilandeshwari, R.; Kanagarajan, V.; Meenakshisundaram, S.P. Combined theoretical and experimental studies on the molecular structure, spectral and hirshfeld surface studies of NLO tris(thiourea)zinc(II) sulfate crystals. J. Mol. Struct. 2015, 1091, 210–221. [Google Scholar] [CrossRef]
  11. Sivakumar, N.; Kanagathara, N.; Varghese, B.; Bhagavannarayana, G.; Gunasekaran, S.; Anbalagan, G. Structure, crystal growth, optical and mechanical studies of poly bis(thiourea) silver (I) nitrate single crystal: A new semi organic NLO material. Spectrochim. Acta A 2014, 118, 603–613. [Google Scholar] [CrossRef] [PubMed]
  12. Jose, D.A.; Kumar, D.K.; Ganguly, B.; Das, A. Efficient and simple colorimetric fluoride ion sensor based on receptors having urea and thiourea binding sites. Org. Lett. 2004, 6, 3445–3448. [Google Scholar] [CrossRef] [PubMed]
  13. Watts, A.S.; Gavalas, V.G.; Cammers, A.; Andrada, P.S.; Alajarin, M.; Bachas, L.G. Nitrate-selective electrode based on a cyclic bis-thiourea ionophore. Sens. Actuators B 2007, 121, 200–207. [Google Scholar] [CrossRef]
  14. Aydin, F.; Tunoglu, N.; Aykac, D.; Arslan, N.B.; Kazak, C. Synthesis and structural X-ray analysis of 1,1′-(naphthalene-1,8-diyl)-3,3′-dibenzoyl-bisthiourea and its use as anion-binding receptor. Turk. J. Chem. 2012, 36, 764–777. [Google Scholar]

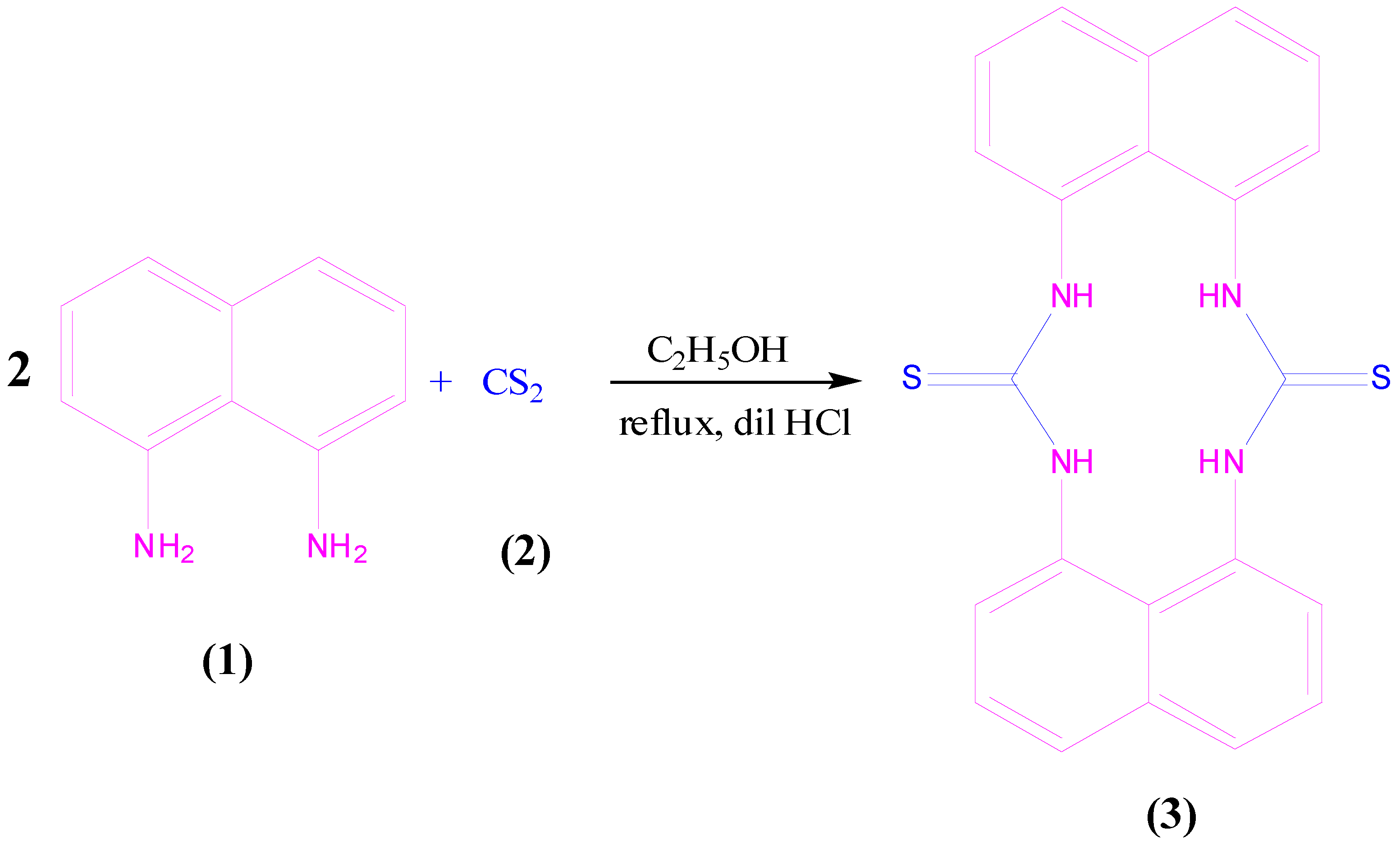

Scheme 1. Synthesis of 1,3,1′,3′-(dinaphthalene-1,8-diyl)bisthiourea.
Scheme 1. Synthesis of 1,3,1′,3′-(dinaphthalene-1,8-diyl)bisthiourea.
Molbank 2016 m917 sch001

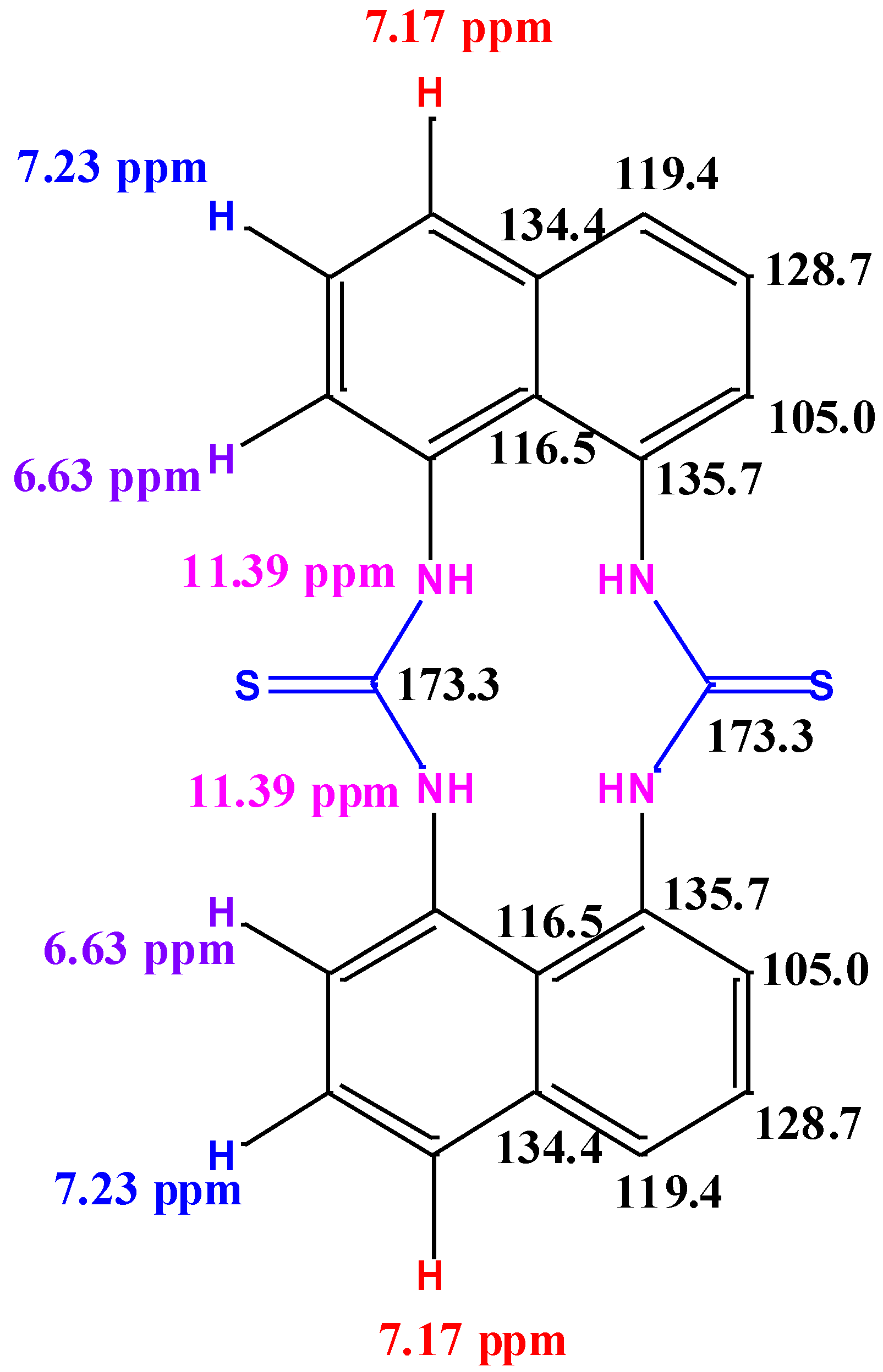

Scheme 2. 1H and 13C-NMR chemical shift of the title compound in DMSO-d6.
Scheme 2. 1H and 13C-NMR chemical shift of the title compound in DMSO-d6.
Molbank 2016 m917 sch002

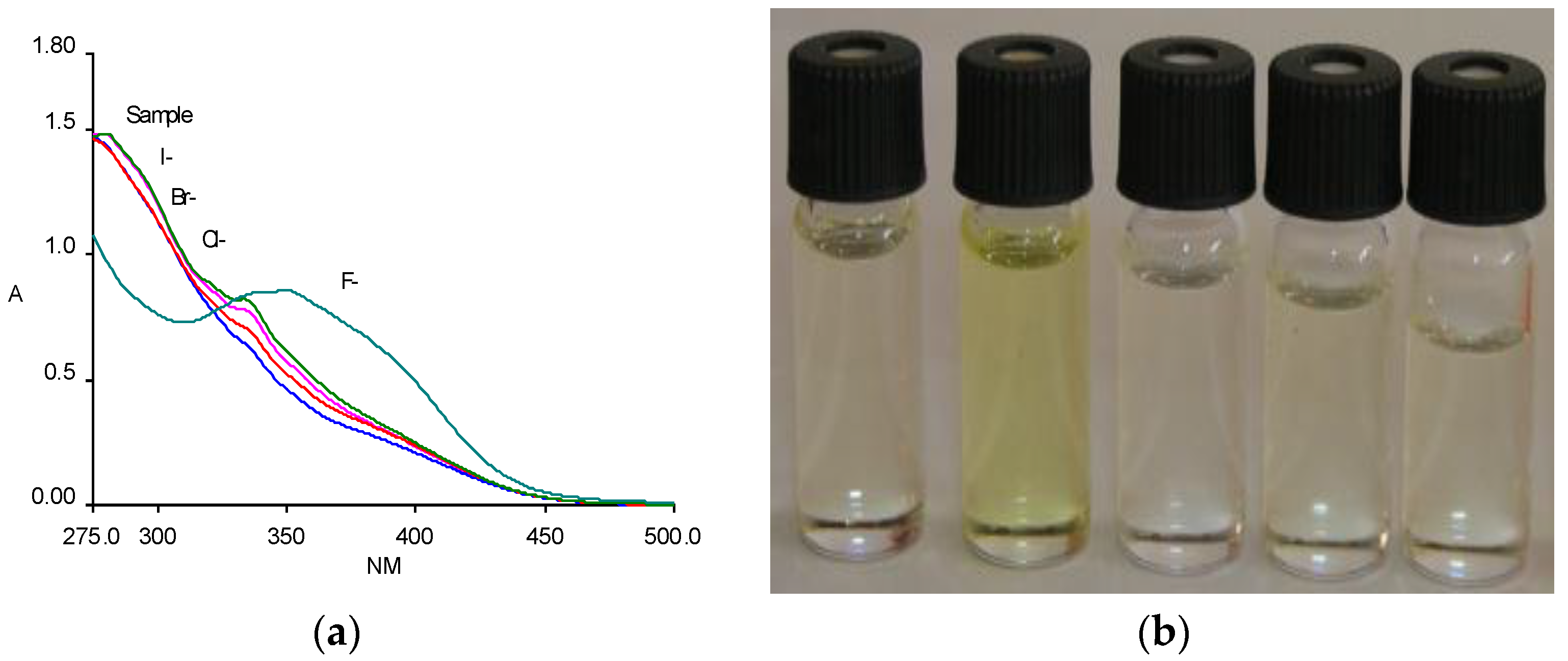

Figure 1. (a) UV-vis absorption changes of compound 3 (0.01 mM) upon addition of tetrabutylammonium salt of halides in DMSO; (b) The color changes of compound (3) in DMSO solution (0.01 mM), from left to right, upon addition of 1 equiv. of tetrabutylammonium ions; free, F, Cl, Br and I.
Figure 1. (a) UV-vis absorption changes of compound 3 (0.01 mM) upon addition of tetrabutylammonium salt of halides in DMSO; (b) The color changes of compound (3) in DMSO solution (0.01 mM), from left to right, upon addition of 1 equiv. of tetrabutylammonium ions; free, F, Cl, Br and I.
Molbank 2016 m917 g001
