Review

Large Lateral Photovoltaic Effect in Metal-(Oxide-)Semiconductor Structures

Department of Physics, The State Key Laboratory on Fiber Optic Local Area Communication Networks and Advanced Optical Communication Systems, Key Laboratory for Thin Film and Microfabrication Technology of the Ministry of Education, Shanghai Jiao Tong University, 800 Dongchuan Road, Shanghai 200240, China
*
Author to whom correspondence should be addressed.
Sensors 2010, 10(11), 10155-10180; https://doi.org/10.3390/s101110155
Submission received: 26 September 2010 / Revised: 14 October 2010 / Accepted: 25 October 2010 / Published: 11 November 2010
(This article belongs to the Special Issue Photodetectors and Imaging Technologies)

Abstract

: The lateral photovoltaic effect (LPE) can be used in position-sensitive detectors to detect very small displacements due to its output of lateral photovoltage changing linearly with light spot position. In this review, we will summarize some of our recent works regarding LPE in metal-semiconductor and metal-oxide-semiconductor structures, and give a theoretical model of LPE in these two structures.
Classification::
PACS 72.40.+w; 73.40.Ns; 73.40.Qv

1. Introduction

The lateral photovoltaic effect (LPE) is an attributive character of some semiconductor structures. Since the LPE effect was first discovered by Schottky [1] and later in 1957 expanded upon by Wallmark in floating Ge p-n junctions [2], it was boosted very quickly in many different semiconductor systems, such as Ti/Si amorphous superlattices [36], modulation-doped AlGaAs/GaAs heterostructures [7], hydrogenated amorphous silicon Schottky barrier structures [813], organic semiconducting polymers [14,15], perovskite materials [1619], and two-dimensional electron systems (2DES) [20]. Noticeable advances were achieved also by fabricating these devices on flexible substrates [21], such as a heterojunction of amorphous silicon (a-Si:H)/ZnO:Al.

Due to the fact its output of lateral photovoltage (LPV) changes linearly with light spot position, this effect can be used in position-sensitive detectors (PSDs) which can detect very small displacements [2235]. The main area of application of PSDs is in precision optical alignment, such as biomedical applications, robotics, process control, medical instrumentation, and position information systems [3639]. Other attractive applications include surface profiling, rotation monitoring, telephone information systems, angle measurements, triangulation-based distance sensors, guidance systems and roles where precise automated control is required [4043]. PSDs based on the LPE can provide continuous optical information over large areas with no internal discontinuities, which is the major advantage over arrayed discrete devices such as charge coupled devices and photodiodes.

In judging whether a particular device works well, the two main criteria are the linearity and the sensitivity. Early works concerning LPE only mentioned their LPV sensitivities of less than 10 mV/mm [35], and later many works with larger LPV sensitivities have been reported. For example, Jin’s and Lu’s group have reported their results of 10–60 mV/mm of LPV sensitivities in perovskite-based p-n junctions [1619], and Henry’s group have reported their results of 5–25 mV/mm of LPV sensitivities in Schottky barrier structures [812].

In this paper, we will give a brief review about our recent works which deal with LPE in metal-semiconductor (MS) and metal-oxide-semiconductor (MOS) structures [4457] (Figure 1 shows the device structure), including a theoretical explanation of LPE in these structures. In fact, MS and MOS structures are versatile materials and have been treated as solar cells for many decades [5863], but they serve as LPE materials is pretty new, in particular their large LPE can be directly obtained or measured on the metal side.

2. Experimental Results

2.1. Fabrication and Measurement

All the metal films and oxide layers with different thickness were fabricated on n-type single crystal Si (111) substrates at room temperature by dc magnetron reactive sputtering. The thickness of the wafers is around 0.3 mm and the resistivity of the wafers is in the range of 50–80□Ωcm at room temperature. The Si substrate was covered with a thin native 1.2 nm SiO2 layer that was been confirmed by high-resolution transmission electron microscopy (TEM), as shown in Figure 2(a). The base pressure of the vacuum system prior to deposition was better than 5.0 × 10−5 Pa. Many high purity metal targets were used. The deposition rates (or growth rates), determined by a stylus profile meter on thick calibration samples, were mostly less than 0.5 Ås−1. All the thicknesses of fabricated films were determined by calculating deposition time multiplying deposition rates. The low deposition rate ensures the accuracy of determining film thickness, even for a very thin film. Figure 2 shows a TEM image of one of our samples of Ti(6.2 nm)/SiO2(1.2 nm)/Si by sputtering.

The samples were cut into rectangles and scanned with a laser focused into a roughly 50 μm diameter spot at the surface and without any spurious illumination (e.g., background light) reaching the samples. All the contacts (less than 1 mm in diameter) to the films were formed by alloying indium and showed no measurable rectifying behaviour. Experimental details are similar with our recently published papers [4648].

2.2. LPE in MS Structure

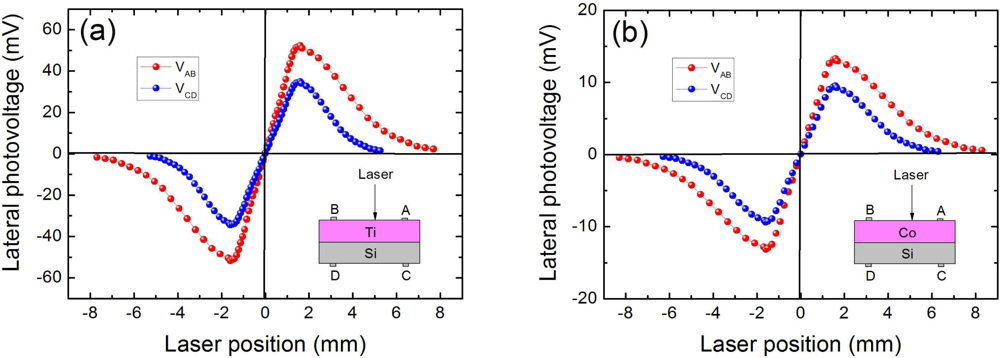

Figure 3 shows our experimentally observed LPEs in two kinds of MS structures of Ti(6.2 nm)/Si and Co(6.2 nm)/Si (experimentally there is no LPE in Ti or Co metal films deposited on a glass because the metal films give rise to an almost equipotential and they are not photosensitive). To give a better comparison of LPE between them, Ti and Co are prepared with a same thickness. Please note the thin native SiO2 layer cover on Si substrate here was removed before fabrication. As shown in Figure 3, both the metal side LPE (VAB) and the semiconductor side LPE (VCD) in the two structures are obvious. Since only the linear dependence of LPV between two contacts is useful for PSDs, we concentrate on the results obtained between two contacts for our MS devices in the following discussion. Clearly, we can see from Figure 3 that all the LPVs show a good linear characteristic response to the laser position. The nonlinearity, also known as position-detection error, is defined [64,65] as:

Nonlinearity δ 2 × rms deviation Measured full scale

According to Equation (1), the nonlinearities of LPVs on the metal side are 4.8% for Ti/Si and 3.9% for Co/Si, and those on the semiconductor side are 8.3% for Ti/Si and 6.2% for Co/Si, respectively. This means the linearity in these MS structures are pretty good.

Another important key for LPE is the sensitivity of LPV response to the laser position. As shown in Figure 3, the LPV sensitivities on the metal side is 40.0 mV/mm for Ti/Si and 31.2 mV/mm for Co/Si, which are relatively higher than the 27.2 mV/mm for Ti/Si and 21.8 mV/mm for Co/Si on the semiconductor side. These results demonstrate that the metal side LPEs are quite obvious, and (in this case) have better LPV sensitivities than those in semiconductor side. We must stress here the LPEs in early studies were mostly observed in semiconductor side, and the metal side LPEs were always negligibly small. This is because the metal side LPE is very sensitive to metal film thickness. If the thickness is outside an appropriate range, the metal side LPE can hardly be observed. Only when the metal film thickness is reduced to several nanometers, then the metal side LPE can become obvious (will be discussed further in Sections 2.4 and 3.5).

Interestingly, with a same metal thickness, Ti/Si structure presents a much higher LPV sensitivity than that in Co/Si structure no matter it is measured on metal side or on semiconductor side. This relates with the properties of metal materials, and will be interpreted in Section 3.7.

2.3. LPE in MOS Structure

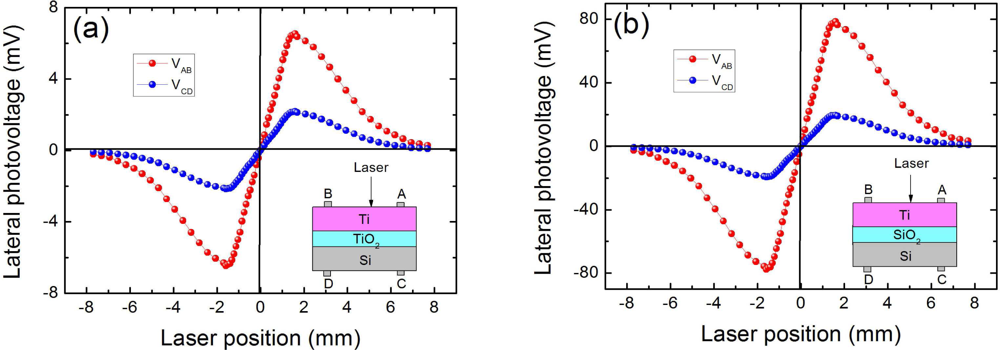

Figure 4 shows our experimentally observed LPEs in two kinds of MOS structures of Ti(6.2 nm)/TiO2(1.2 nm)/Si and Ti(6.2 nm)/SiO2(1.2 nm)/Si. Please note the TiO2 oxide layer in Ti/TiO2/Si structure is fabricated by sputtering and the native SiO2 layer cover on Si substrate had been removed before fabrication (the SiO2 oxide layer in Ti/SiO2/Si structure is native). Obviously, Ti/SiO2/Si presents a much higher LPV sensitivity of 48.6 mV/mm in metal side and 12.1 mV/mm in semiconductor side. However, Ti/TiO2/Si only presents a relatively low LPV sensitivity of 4.0 mV/mm in metal side and 1.4 mV/mm in semiconductor side. Compared with the LPE in Ti/Si (see Figure 3(a)), the LPE sensitivity in Ti/SiO2/Si structure is increased, but reduced in the Ti/TiO2/Si structure. This is because for the Ti/TiO2/Si structure, the TiO2 oxide layer serves as a higher barrier compared with that of Ti/Si, and this barrier will reduce more of laser-excited electrons tunneling from semiconductor to metal, and thus results in a relatively small LPE. However, for Ti/SiO2/Si structure, though SiO2 oxide layer also serves as a barrier, some interface states will exist within the forbidden band of the semiconductor due to the formation of SiO2-Si junction in this MOS structure [66]. This will increase the density of laser-excited electrons, thus results in an enhancement of LPE.

2.4. Metal Thickness Effect

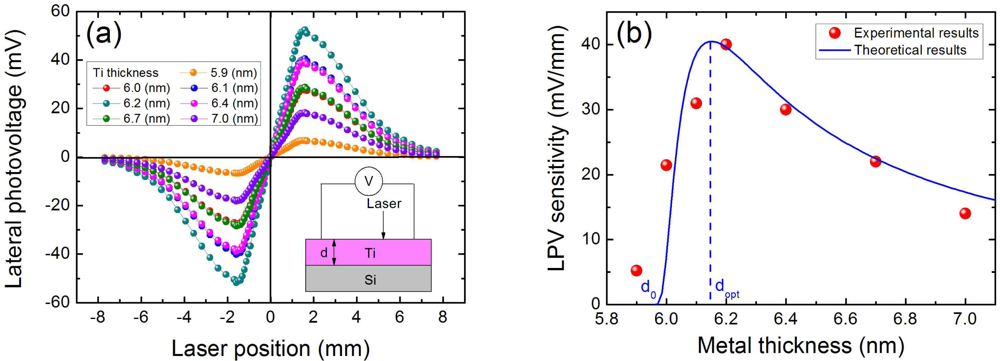

To further investigate the thickness effect of metal film on LPE in MS structure, we measured the LPE with different Ti thickness in Ti/Si structures, as shown in Figure 5(a). We can clearly see from Figure 5(b) that the position sensitivity of LPV in Ti/Si structure will decrease when the thickness of Ti is away from the optimum value of 6.2 nm. This is why we choose the Ti(6.2 nm)/Si as a control sample in 2.2 because, at this thickness, Ti/Si structure has the strongest LPE. Therefore, in order to obtain a large LPV in MS structure, an appropriate metal thickness is crucial. In addition, it is also seen from Figure 5(b) that a threshold thickness of 5.9 nm exists in this thickness effect. Only when the Ti thickness is larger than this threshold value, LPE can occur in Ti/Si structures.

2.5. Oxide Thickness Effect

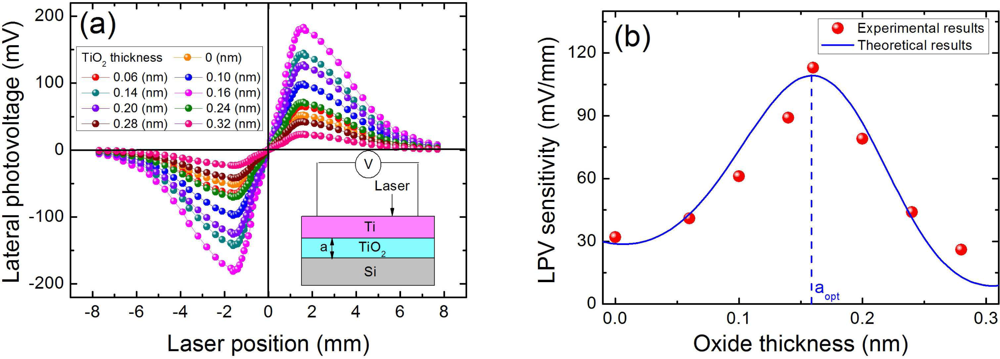

It can be seen from Section 2.3 [Figure 4(a)] that the TiO2 oxide layer in Ti/TiO2/Si structure will deteriorate the LPE because the TiO2 barrier will reduce the electrons tunneling from semiconductor to metal. To further investigate the thickness effect of oxide layer on LPE in MOS structure, we measured the LPE with different TiO2 thickness in Ti(6.2 nm)/TiO2/Si structures, as shown in Figure 6(a). We can find from Figure 6(b) that the LPV sensitivity will decrease with the increase in oxide thickness. This is because the increase in oxide thickness will increase the barrier’s width, thus lead to the electrons tunneling from semiconductor to metal becoming more difficult.

Interestingly, as this oxide layer is reduced to 0.16 nm, the LPE in Ti(6.2 nm)/TiO2/Si structure will be greatly enhanced. As shown in Figure 7(a), the LPV sensitivity in Ti(6.2 nm)/TiO2(0.16 nm)/Si structure can attain 113 mV/mm, which is much larger than the 4.0 mV/mm in Ti(6.2 nm)/TiO2(1.2 nm)/Si [see Figure 4(a)] and even larger than the 40.0 mV/mm in Ti(6.2 nm)/Si [see Figure 3(a)]. This means the super-thin oxide layer in this situation no longer serves as a high barrier which deteriorates the LPE. To fully investigate this LPE enhancement effect, we measured the LPEs with many different super-thin thicknesses of oxide layer varying from 0.06 nm to 0.32 nm, as shown in Figure 7(a). Figure 7(b) clearly shows that an appropriate oxide thickness (0.16 nm) is crucial for obtaining a strongest LPE in MOS structure. In fact, the oxide layer in this case is less than one monolayer, which means the oxide molecules cannot fully cover or dust the semiconductor substrate. The mechanism will be discussed in 3.6.

2.6. The Influence of Laser Power and Wavelength on LPE

It was found that laser power and wavelength have an influence on the LPE [46]. Figure 8(a) shows the LPE as a function of light power at different wavelengths in Co(3.5 nm)/Si structure. It is clear that, for each wavelength, the LPV sensitivities are always proportional to the light power as the applied power is low, and then slowly become saturated as the power is increased. For different light wavelength, the saturate value is different.

To better understand the LPE responding to light wavelength, we further measured the LPE as a function of light wavelength at a fixed light power of 5 mW. As shown in Figure 8(b), we find there exists an optimum wavelength that can produce the largest LPE. For Co(3.5 nm)/Si structure, the optimum wavelength is at 832 nm. In fact, this optimum wavelength can be modulated by the metal thickness in MS structure [46].

2.7. Contacts' Distance Effect

As we have mentioned in the Introduction, the two main criteria for LPE are the LPV sensitivity and LPV linearity. To obtain a perfect LPE, a large sensitivity with a small nonlinearity is necessary. In fact, these two criteria strongly depend on the contacts’ distance [50]. Figure 9(a) shows LPE in MS structure of Ti(6.2 nm)/Si with different contacts’ distance. Clearly, the increase in the contacts’ distance will decrease the linearity of LPV. As shown in Figure 9(b), when the contacts’ distance is less than 5.0 mm, the nonlinearity will be less than the acceptable value of 15% [64]. But when the contact’s distance becomes larger, the nonlinearity will accordingly become (e.g., 18.2% for 6.0 mm) larger than 15%. If we define an effective contacts’ distance, within which the LPV nonlinearity is less than the acceptable value, in this case, it should be 5.0 mm.

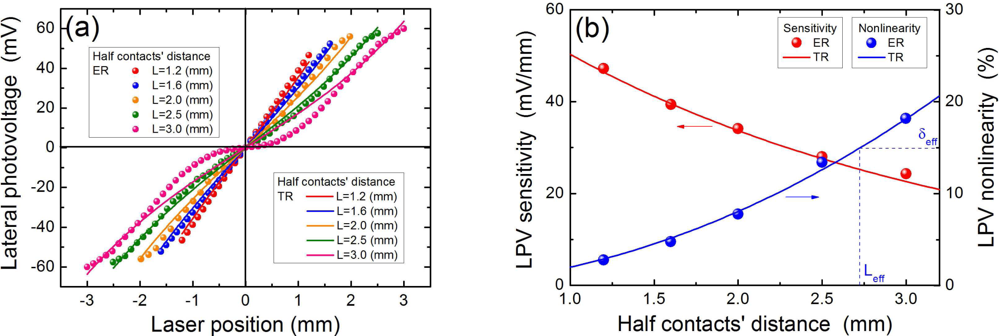

Figure 9(b) shows the increase in the contacts’ distance will decrease the LPV sensitivity. For example, when the contacts’ distance is at 2.4 mm, the LPV sensitivity can obtain a large value of 47.2 mV/mm, but when the contacts’ distance is extended to 6.0 mm, the LPV sensitivity will be decreased to a small value of 24.3 mV/mm. Therefore, a smaller contacts’ distance can not only achieve a larger LPV sensitivity but also obtain a higher linearity.

2.8. Vertical Offset Effect

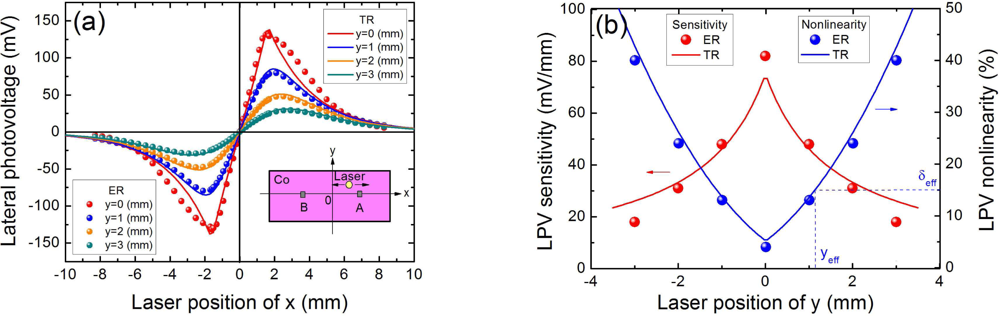

All the above experiments are focus on the LPE measurement within the line between two contacts. Figure 10(a) shows the LPE in Co(3.5 nm)/Si structure with different vertical distance of y. Please note all the LPVs with different y are measured in x direction. We can see that, when the vertical distance is increased, the linearity of LPV will be gradually decreased. As shown in Figure 10(b), when the vertical distance is 3.0 mm, the nonlinearity will become 20.1% which is larger than the acceptable value 15%. Similarly to the effective contacts’ distance discussed in 2.7, if we define an effective vertical distance as a y position at which the LPV nonlinearity is less than the acceptable value, in this case, it should be 2.0 mm. Further, from Figure 10(b), the increase in the vertical distance will decrease the LPV sensitivity. Therefore, a smaller vertical offset can achieve not only a larger LPV sensitivity but also a higher linearity.

3. Theoretical Models

3.1. Electron Transition

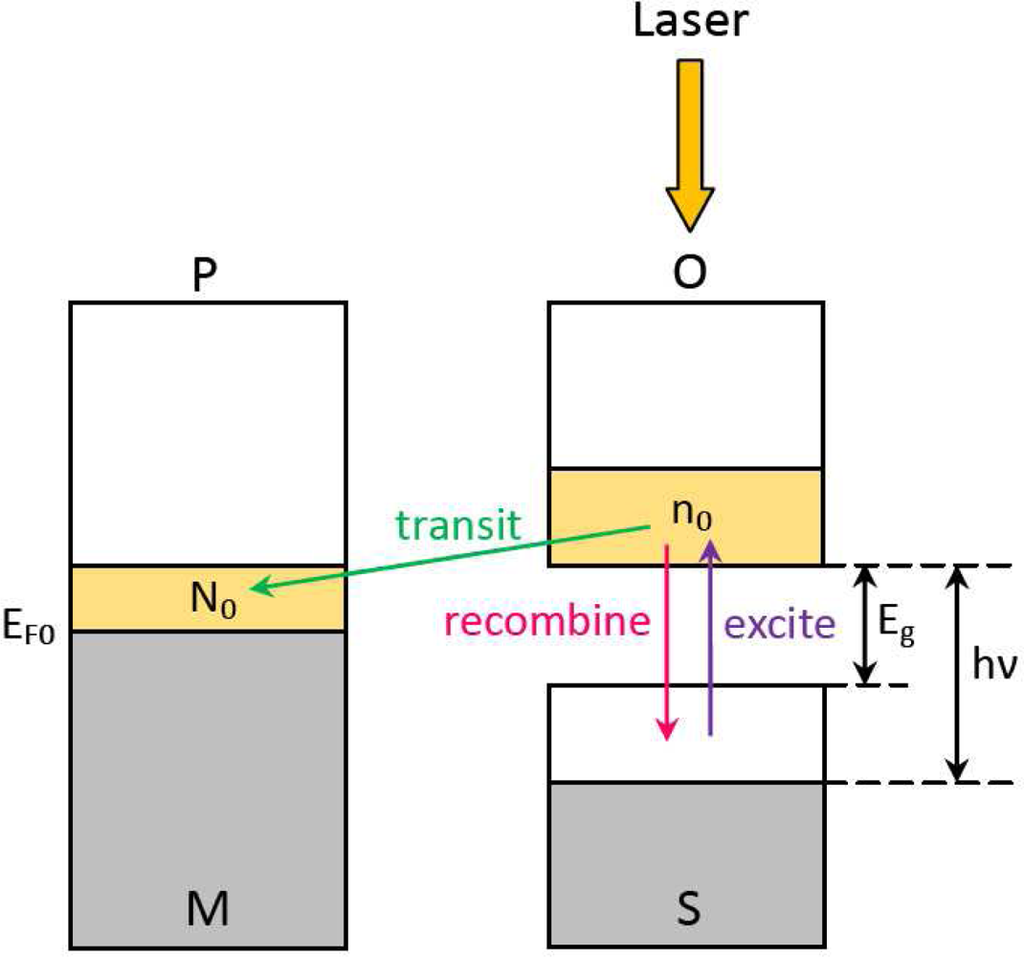

To explain the mechanism behind the LPE in MS (or MOS) structure, we propose the following model. As shown in Figure 11, when a laser with frequency ν and power p illuminates on the MS (or MOS) structure, electron-hole pairs are generated inside the semiconductor at light position. According to the absorption theory [67], the density of light-excited electrons can be written as:

n 0 = K ( hv E g ) α
where Eg is the energy gap of the semiconductor, K is a proportional coefficient, and α is an exponential coefficient.

These excited electrons will thus have a possibility (1 – P) to transit from the semiconductor into the metallic film through the Schottky barrier due to the non-equilibrium state, and meanwhile have a possibility (P) to recombine with the holes [46], as shown in Figure 11. Please note, here 0 ≤ P ≤ 1 is related with the Schottky barrier height. Generally, a laser with a larger power will result in more electrons transiting from semiconductor to metal because the recombined electrons have more opportunity to be re-excited by photons. Statistically, each electron among n0 can be re-excited τp/n0 times averagely, where τ is a time-related coefficient. Thus the transition electrons from semiconductor to metal at light position can be written as:

N 0 = n 0 [ 1 P ( τ p / n 0 ) ]

3.2. Carrier Diffusion

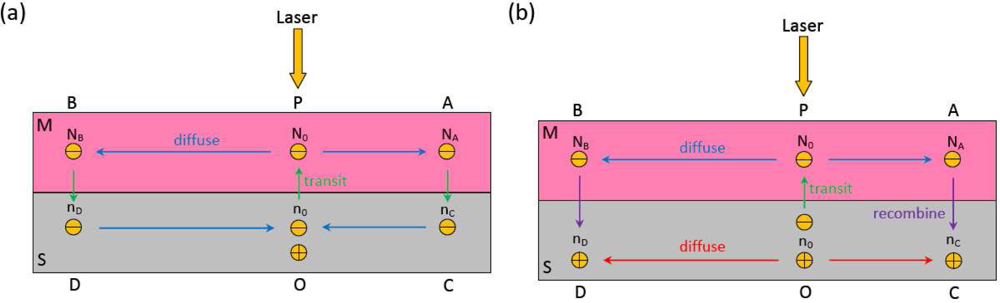

Based on above discussion, the light-induced excess electrons in metal will thus generate a gradient laterally between the illuminated and the non-illuminated zones, resulting in excess electrons diffusing laterally along the metal away from the illuminated spot (at position P) toward two sides (at position A and B), as shown in Figure 12(a). To finish a circulation, these light-induced electrons in the metal will transit back to the semiconductor at non-illumination zones (at position C and D), and then go back to their starting spot (at position O). If a light keeps illuminating, the circulation will continue and a stable distribution of density of light-induced electrons will be kept, as shown in Figure 13.

The above discussion involves only the diffusion of electrons, and the diffusion of holes in semiconductor can be treated as the “electron diffusion” in an inverse direction. In fact, this diffusion model can also be interpreted by view of electron-hole different from above view of only electron being involved. Based on this view, as shown in Figure 12(b), the light-induced excess electrons in metal and holes in semiconductor will thus generate a gradient laterally between the illuminated and the non-illuminated zones, resulting in excess electrons (or holes) diffusing laterally along the metal□(or semiconductor) away from the illuminated spot. To finish a circulation, these light-induced electrons in the metal and holes in semiconductor will recombine at non-illumination zones. Please note, the carrier’s drift in the structure caused by the diffusion potential due to carriers’ diffusion can be neglected because of the low diffusion potential (regarded as the lateral photovoltage).

According to diffusion equation of D m d 2 N ( r ) d r 2 = N ( r ) τ m, the density of electrons in the metal at position r can be written as:

N ( r ) = N 0 exp ( | x r | λ m )
here x is the laser spot position. D m = k B T N F 0 e 2 ρ is the diffusion constant of the metal, where N F 0 = 8 π 3 ( 2 m e E F 0 2 ) 3 2 is the electron density below Fermi level of EF0 at equilibrium state in the metal and ρ is the resistivity of the metal. τm is the life time of diffusion electrons in the metal. λ m = D m τ m is the electron diffusion length in the metal. Please note, here we only consider the one-dimensional situation in x direction, and the two-dimensional situation will be discussed in Section 3.9.

Similarly, if we suppose the electron diffusion length in the semiconductor to be λ s = D s τ s where Ds is the diffusion constant of the semiconductor and τs is the life time of diffusion electrons in the semiconductor, then the density of diffusion electrons in the semiconductor at position r can be written as:

n ( r ) = n 0 exp ( | x r | λ s )

Equation (4) and Equation (5) tell us that the electron density in metal and semiconductor will both form an exponential distribution, as shown in Figure 13.

3.3. Energy Band Profile

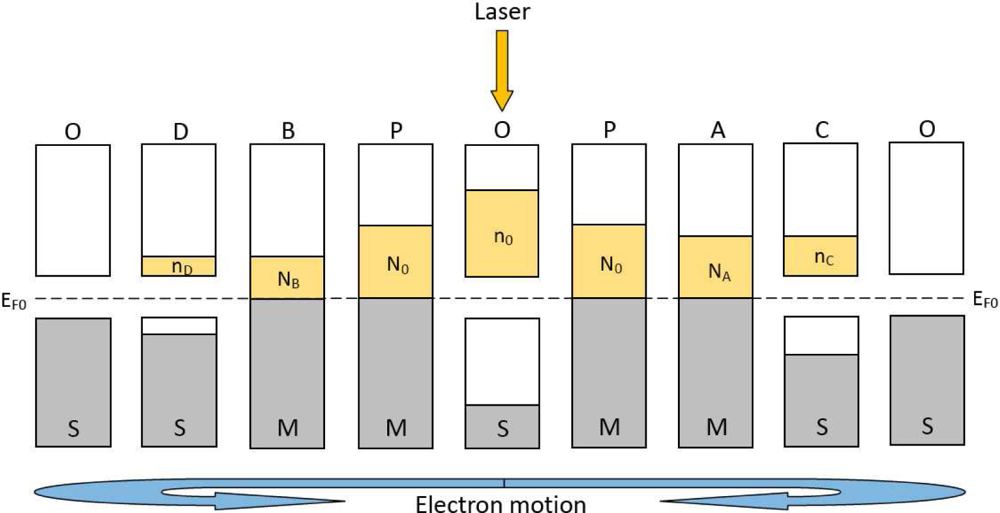

Figure 14 shows the schematic energy band profile in MS structure illuminated by a laser. Due to the increase in the electron density induced by laser-illumination, the Fermi level in both the metal and the semiconductor will be increased. Thus, the new Fermi level in the metal and the semiconductor at position r can be respectively calculated as:

E Fm ( r ) = E F 0 + 1 4 π ( 2 2 m e ) 3 2 E F 0 1 2 N ( r )
E Fs ( r ) = E F 0 + k B T n T n ( r )
where n T = 2 ( 2 π m e k B T ) 3 2 h 3 exp ( E c E F 0 k B T ) is the electron density in conduction band of the semiconductor due to temperature fluctuation.

If the lateral distance of the laser spot from each contact is different, then the electron density at two contacts is different. This will result in the difference in the Fermi level at two contacts and thus generates a LPV. The LPV in the metal side and semiconductor side can be respectively presented as:

V m V AB = E Fm ( L ) E Fm ( L ) e = K m N 0 [ exp ( | L x | λ m ) exp ( | L + x | λ m ) ]
V s V CD = E Fs ( L ) E Fs ( L ) e = K s n 0 [ exp ( | L x | λ s ) exp ( | L + x | λ s ) ]
here L and –L are the positions of two contacts. K m = 1 4 π e ( 2 2 m e ) 3 2 E F 0 1 2 and K s = k B T en T are two proportional coefficients. If we suppose L << λm and L << λs [50], then the LPV (according to Equation (8) and Equation (9)) by the laser position of x within [−L, L] can be idealized as:
V m i = 2 K m N 0 λ m exp ( L λ m ) x
V s i = 2 K s n 0 λ s exp ( L λ s ) x

Clearly, Equation (10) and Equation (11) give the linear relationship between LPV and laser position, which is the most significant characteristic of LPE.

3.4 LPV Sensitivity and Nonlinearity

According to Equation (10) and Equation (11), the LPV sensitivity in metal side and semiconductor side can be respectively written as:

κ m = 2 K m N 0 λ m exp ( L λ m )
κ s = 2 K s n 0 λ s exp ( L λ s )

It has been clear that the LPV sensitivity relates with the physical properties of both metal and semiconductor materials, and this will result in many effects of LPE, such as thickness effect and so on. This will be discussed later.

According to Equation (1), the LPV nonlinearity in metal side and semiconductor side can be calculated as:

δ m = 2 { L L [ V m ( x ) V m i ( x ) ] 2 d x } / 2 L V m i ( L ) = 1 3 7 ( L λ m ) 2
δ s = 2 { L L [ V s ( x ) V s i ( x ) ] 2 d x } / 2 L V s i ( L ) = 1 3 7 ( L λ s ) 2

If L << λm and L << λs, then the nonlinearity will become very small. This means the LPV will show a very linear characteristic response to the laser position. This is consistent with the condition of Equation (10) and Equation (11).

3.5. Metal Thickness Effect

We have discussed in Section 2.4 (see Figure 5) that the LPE in MS structure has a great bearing on the metal thickness. In order to obtain the largest LPV sensitivity, an optimum metal thickness is crucial. The mechanism behind this metal thickness effect can be interpreted by Figure 15. If the metal film is very thick, as shown in Figure 15(b), then the electrons can easily diffuse from the light spot position toward two contacts because of the small resistivity, thus the density of electrons at two contacts are both high, resulting in a small difference of metallic potential between them (see yellow part), i.e., a small LPV. Similarly, if the metal film is very thin, as shown in Figure 15(c), then the electrons can hardly diffuse because of the large resistivity, thus the density of electrons at two contacts are both low, also resulting a small difference of metallic potential between them, ie a small LPV. Therefore, in order to obtain a large difference of metallic potential between two contacts, an appropriate metal thickness is needed, as illustrated in Figure 15(a).

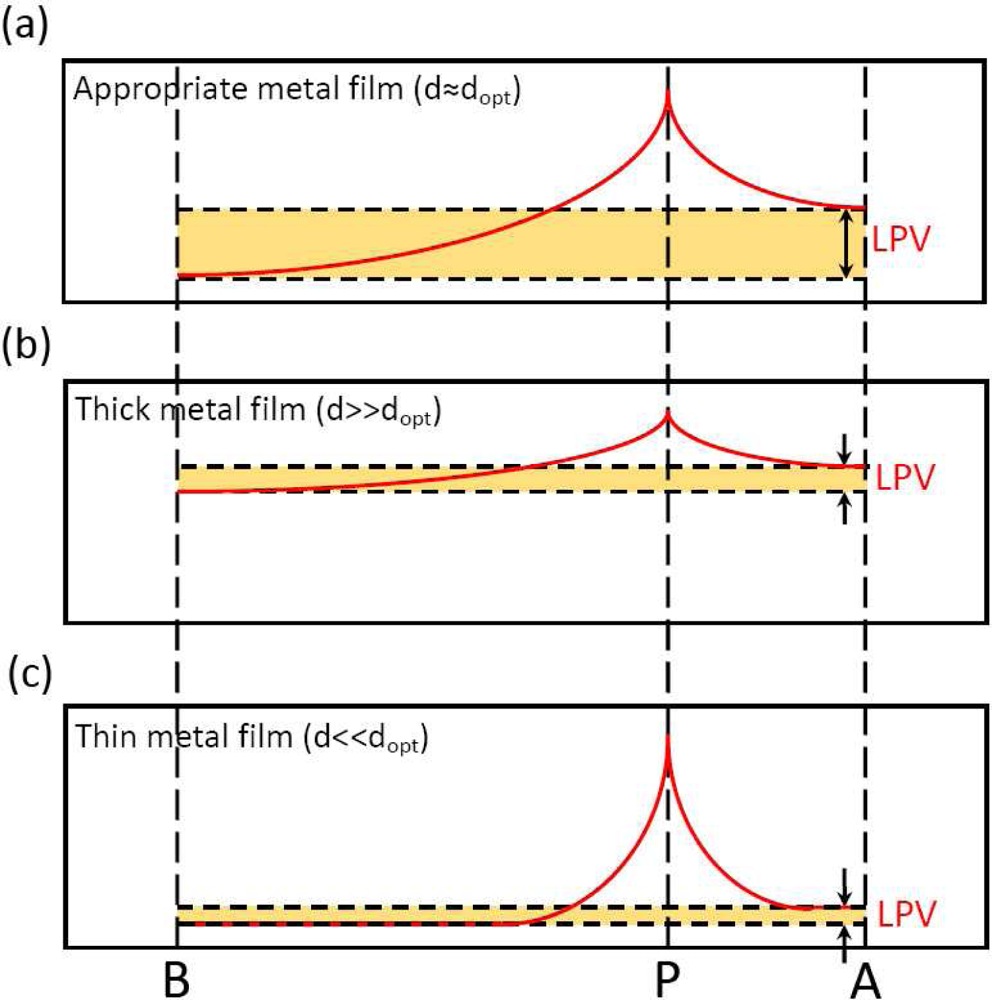

Equation (12) has told that the LPV sensitivity is closely linked with the electron diffusion length. According to Ref. [50], for a very thin metal film, the electron diffusion length has a linear relationship with the metal thickness, which can be presented as:

λ m = α m ( d d 0 )
where d is the metal thickness, αm is a proportional coefficient, and is the threshold thickness. Thus substituting Equation (16) into Equation (12), the LPV sensitivity can be written as:
κ m ( d ) = 2 K m N 0 α m ( d d 0 ) exp [ L α m ( d d 0 ) ]

The theoretical result according to Equation (17) is well consistent with the experimental results, as shown in Figure 5(b).

3.6. Oxide Thickness Effect

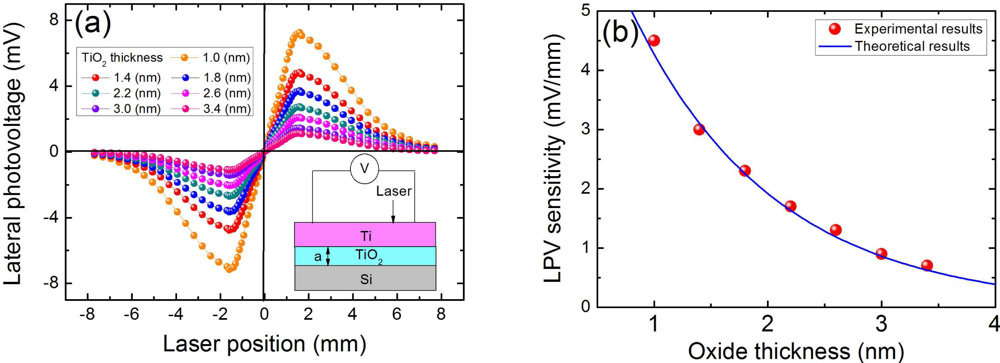

As that interpreted in Section 2.5, the LPE in MOS structure is closely related with the oxide thickness. Due to the existence of oxide layer which serves as a relatively high barrier, the LPE in MOS structure always shows a smaller LPV sensitivity than that in MS structure [as shown in Figure (6)]. With the increase in the oxide thickness, the LPV sensitivity will decrease. However, as shown in Figure 7, when the oxide thickness becomes very thin, the LPE in MOS structure shows a larger LPV sensitivity than that in MS structure. Besides, there also exists an optimum thickness at which the LPV sensitivity has the largest value.

In order to explore the mechanism behind this oxide thickness effect, we give the following explanation based on electrons interference, as shown in Figure 16. Generally, the oxide layer at interface always decreases the possibility of the tunneling of electrons from semiconductor to metal, thus deteriorates the formation of LPV in MOS structure, as shown in Figure 16(a). However, when the thickness of an oxide layer becomes very thin and even less than one monolayer, the oxide molecules cannot fully cover or dust the semiconductor substrate, as shown in Figure 16(b). In this case, the tunneling behavior of electrons will become quite different compared with that in a fully covered MOS structures. Thus we define a β = a a 0 (a < a0) to describe this situation, where α is the nominal thickness of oxide layer and α0 is the thickness of one complete monolayer. So there will be β% of the region [hereafter we call it the “wall”, see Figure 16(b)] that is occupied by the oxide molecules and another part of (1 − β)% that is empty (hereafter we call it the “window”). Thus, when electrons transit from semiconductor to metal near the light position, they can either pass through the “windows” directly or tunnel through the “walls”, as shown in Figure 16(c). Therefore, as shown in Figure 16(b), the final wavefunction of electrons after superposition at light position can be written as:

Ψ = { 1 β ϕ ( r ) + β ϕ ( r ) e a 0 a t ( 0 < a < a 0 ) r ϕ ( r ) e a a t d r ( a a 0 )
here αt is the electron tunneling length in the oxide layer, and ϕ ( r ) = ϕ 0 ( r ) × e i φ ( r ) = ( n 0 e r / 2 λ s 2 λ s ) 1 2 × e i 2 π P e h r is sub-wavefunction passing through oxide layer at lateral position r from light position, where ϕ0(r) is the amplitude and φ(r) is the phase, n0 is the density of light-excited electrons at light position in the semiconductor, λs is the electron diffusion length in semiconductor, and pe is the average momentum of transiting electrons. Thus the density of light-excited electrons at light position in the metal after tunneling can be written as:
N 0 = Ψ * Ψ

Because the metal side LPV is proportional to the electron density at light position, which can be presented as VAB = KmN0, thus the LPV can be calculated as:

V AB = { A × [ B 2 + C 2 e 2 D ( 1 β ) 2 BC e D ( 1 β ) cos ( 2 π β ) ] 2 ( 0 < a < a 0 ) A ( 1 C ) 3 × ( 1 e D ) 4 e a / a t ( a a 0 )
here A = K m n 0 [ 2 λ s D 2 4 λ s 2 + D 2 ] 2 [ 1 + exp ( D ) 1 exp ( D ) ] 4, B = 1−ea0/atD, C = 1−ea0/at, and D = 1 4 p e λ s. We can see from Figure 6(b) and Figure 7(b) that the theoretical results according to Equation (20) is well consistent with the experimental results.

It is interesting why an un-fully covered oxide layer at interface of MOS structure can cause such a huge LPV. This can be explained from the viewpoint of electrons interference. In fact, as we have mentioned above, the thickness change of an un-fully covered layer modulates the occupancy β of oxide molecules, which greatly affects the superposition of all sub-wavefunctions at light position in metal. For a proper β (a crucial parameter that determines the scale of “walls” and “windows” which are considered to array periodically), all the sub-wavefunctions with positive phase (defined as (2, 2 + π), k = 0,1,2···) can directly pass through 1 − β “windows” and all the sub-wavefunctions with negative phase (defined as (2 + π, 2 + 2π), k = 0,1,2···), will be obstructed by β “walls”, resulting in an enhancement of interference, as shown in Figure 16(b). This quite likes the phenomenon of interference enhancement as a light goes through a Fresnel zone plate.

3.7. Selection of Materials

The properties of the metal and semiconductor materials play an important role on the metal side LPE in MS structure. The selection of an appropriate metal material or a suitable semiconductor material is important for obtaining a large LPV sensitivity and a good linearity. Substituting Equation (2), Equation (3) and the expression of λm into Equation (12) and Equation (14), the LPV sensitivity and nonlinearity can be obtained as:

κ m = [ K ( 2 2 m e ) 3 4 ( 2 3 π k B T ) 1 2 ] C × [ ( hv E g ) α ] S × [ E F 0 1 4 ρ 1 2 τ m 1 2 ] M
δ m = [ 8 π e 2 L 2 9 7 k B T ( 2 m e 2 ) 3 2 ] C × [ E F 0 3 2 ρ τ m 1 ] M
here we have supposed the contacts’ distance is small enough (L << λm) and the laser power is strong enough ( p > > n 0 τ). The coefficients in the square brackets with a subscript of “C”, “S” and “M” represent the “constant”, “semiconductor-related” and “metal-related” coefficients, respectively.

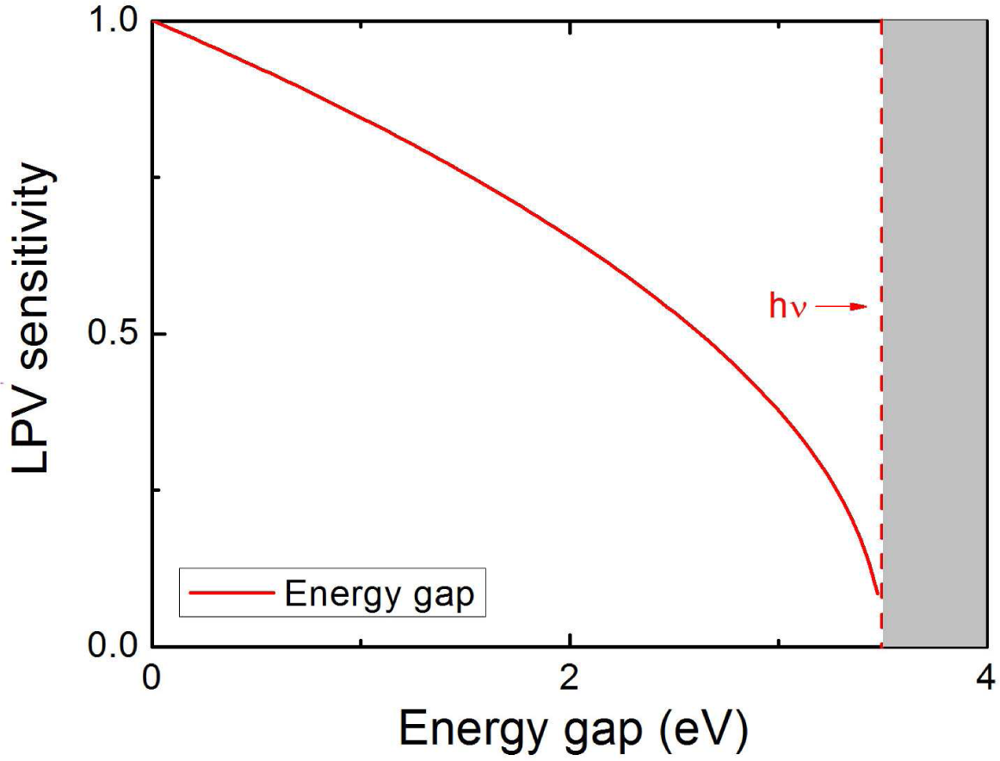

Figure 17 shows the metal side LPV sensitivity responding to the energy gap of semiconductor materials. Obviously, the semiconductors with a smaller energy gap can often obtain a larger LPV sensitivity. This is because, with a small energy gap, more electrons, which participate in the LPV formation, can be excited from valence band to conduction band in the semiconductor. It must be stressed here that the nature of semiconductor materials doesn’t affect the LPV nonlinearity in metal side.

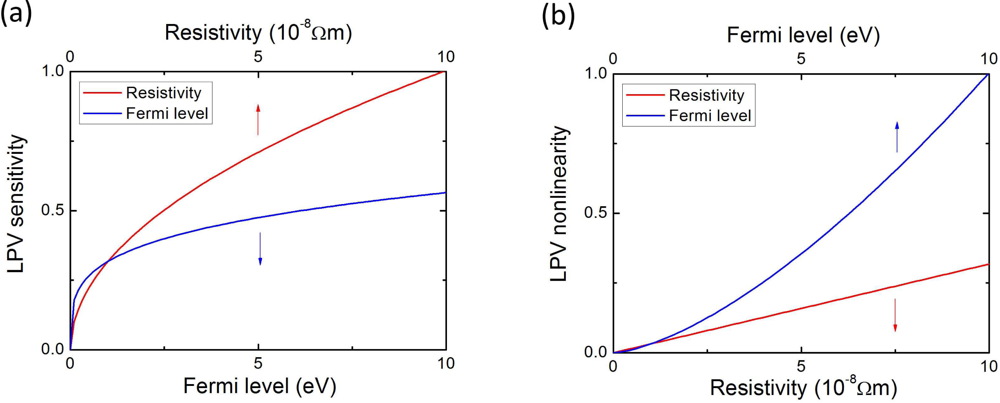

Figure 18 shows the LPV sensitivity and nonlinearity responding to the Fermi level and resistivity of metal materials. Here we have supposed the τm keeps unchanged for different metal materials. The results show that the resistivity and the Fermi level are the two crucial factors for metal side LPE. The metal with higher resistivity and higher Fermi level can produce a higher LPV sensitivity, but results in a larger nonlinearity. In order to obtain a large LPV sensitivity with a small nonlieanrity, choosing a metal material with appropriate Fermi level and resistivity is necessary.

3.8. The Influence of Laser Power and Wavelength on LPE

We have discussed in experiments in Section 2.6 that the LPV sensitivity in MS structure has a relationship with the laser power as well as its wavelength. A laser with large power can easily saturate the sensitivity, while the optimum wavelength is also needed for obtaining the largest sensitivity. Substituting Equation (3) into Equation (12), we get:

κ m ( p ) = 2 K m n 0 e L / λ m λ m [ 1 P ( τ p / n 0 ) ]

According to Equation (23), if the light power is large enough, then the LPV sensitivity will be saturated. This is consistent with the above experimental results [see Figure 8(a)].

It is easy to understand that the electrons with a larger rest energy of (hvEg) after transition in semiconductor possess a longer diffusion length in metal, which can be written as λm = K′(hvEg)β, where K′ is a proportional coefficient and β is an exponential coefficient. Thus substituting Equation (2) into Equation (23) and supposing the light power is large enough, then the LPV sensitivity can be written as:

κ m ( v ) = 2 KK m K ( hv E g ) α β exp [ L K ( hv E g ) β ]

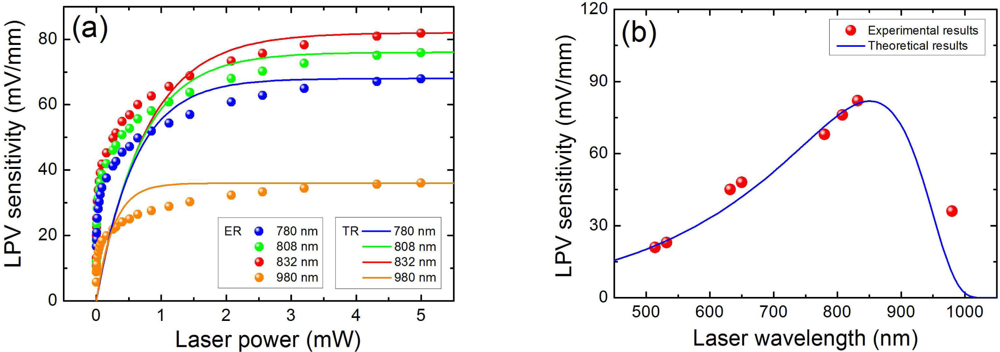

Figure 8(b) shows a comparison of theoretical results and experimental results of LPV sensitivity vs. laser wavelength, and we find they are consistent well with each other.

3.9. Effective Linear Area

We have seen in Section 2.7 that the LPV linearity depends on two contacts’ distance. When the contacts’ distance is small, the LPV shows a good linearity vs. laser position, but when the contacts’ distance becomes large, the linearity will be decreased, as shown in Figure 9. This result can also be interpreted by the theoretical model. Equation (8) gives the relationship between LPV and laser position, and we can see that they are not proportional with each other. Only when the condition of L << λm is satisfied, a linear characteristic can be achieved, as shown in Equation (10). This is why a larger contacts’ distance will deteriorate the linearity.

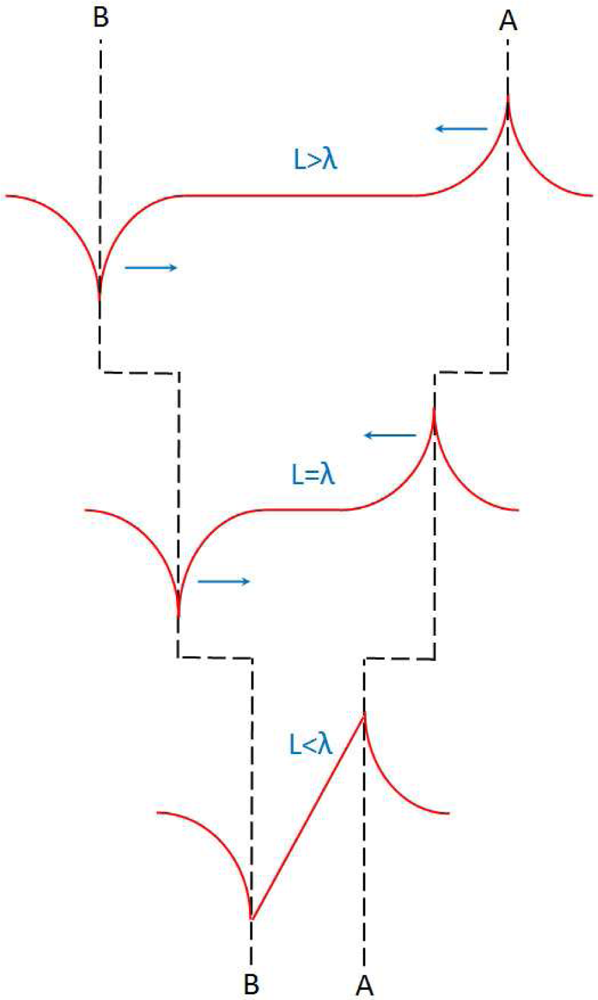

Figure 19 gives a simple picture regarding the contacts’ distance effect. When two contacts’ distance is very large (compared with the diffusion length), electron density at one contact (which is close to the laser spot) can only be affected by the change of laser position, and the electron density at other end cannot be affected because this contact point is far away from the laser spot (exceeds the diffusion length).

So the LPV, i.e., the difference of electron density between two contacts, is only related with the electron density at one contact. Thus the LPV only shows an exponential relationship with laser position (according to Equation (4) and Equation (6)). But when the contacts’ distance becomes small (compared with the diffusion length), the electron density at two contacts can be both affected by the change of laser position. Therefore, in this case, two exponential relationships should both be considered, and according to the Taylor expansion, the zero and the second order factors will be eliminated by subtraction between them, and only the first (i.e., the linear) order factor will be kept. Thus the LPV shows a linear relationship with laser position. As discussed in Section 2.7 [see Figure 9(b)], if we define an effective contacts’ distance as a region within which the LPV nonlinearity is less than the acceptable value, then according to Equation (14), this effective contacts’ distance can be written as:

2 L eff = [ 12 7 δ eff ] 1 2 λ m
where δeff is the acceptable value of nonlinearity.

We also know from 2.8 that the increase in the vertical distance of y will both decrease the LPV sensitivity and linearity, as shown in Figure 10(b). In fact, if the vertical distance is not zero, the Equation (8) should be written as:

V AB = K m N 0 { exp [ ( L x ) 2 + y 2 λ m ] exp [ ( L + x ) 2 + y 2 λ m ] }

Based on Equation (26), the LPV sensitivity and the nonlinearity [see Equation (12) and Equation (14)] can be recalculated as:

κ m ( y ) = 2 K m N 0 λ m exp ( L λ m ) × ( L L + y )
δ m ( y ) = 1 3 7 ( L + y λ m ) 2

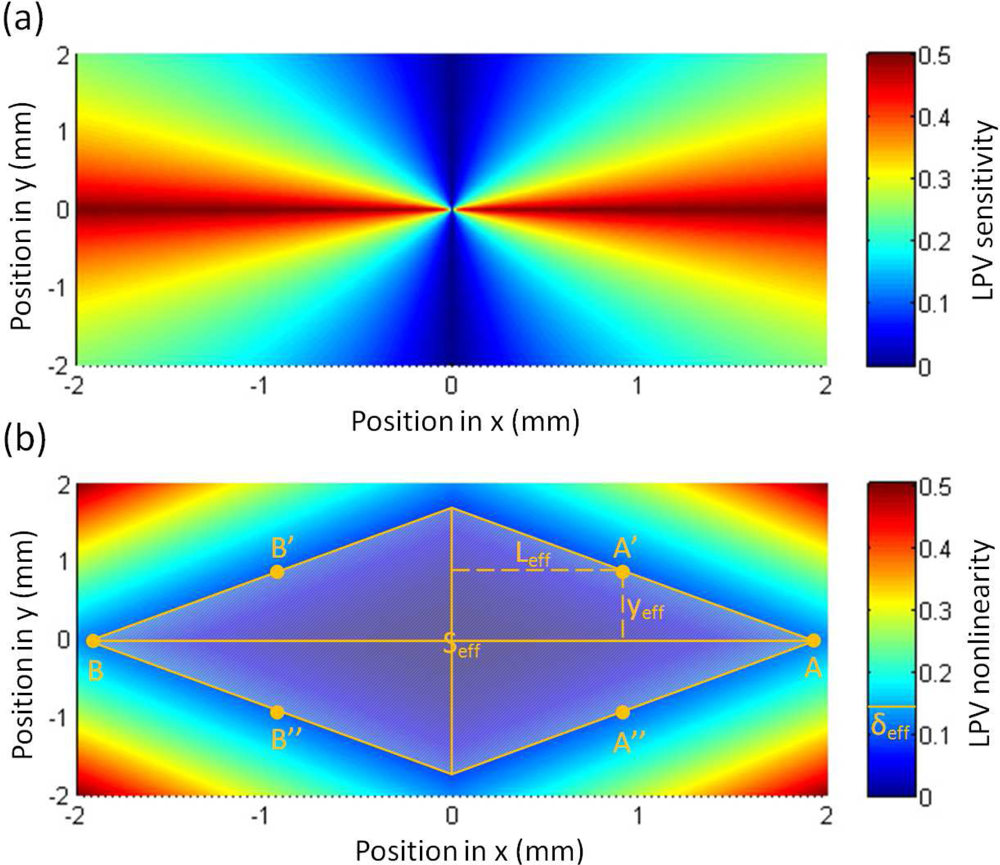

Figure 20 shows the LPV sensitivity and nonlinearity responding to both contacts’ distance and vertical offset distance. A larger sensitivity with a smaller nonlinearity can be obtained in case of smaller contacts’ distance and smaller vertical offset distance. This is why we always put laser spot at the line between two contacts and minimize two contacts’ distance as small as possible. Similarly to the definition of effective contacts’ distance, we can define an effective vertical offset distance of yeff [see Figure 10(b)], at which the LPV nonlinearity is less than the acceptable value of δeff, according to Equation (28), this effective vertical offset distance can be written as:

y eff = [ 3 7 δ eff ] 1 2 λ m L eff

Equation (29) indicates, to keep the nonlinearity within an acceptable range, any increase in the vertical offset distance should be compensated by the decrease in the effective contacts’ distance. Therefore, we can define an effective linear area (in the surface of the device), within which the LPV nonlinearity is less than the acceptable value of δeff. According to Equation (29), this effective linear area [see Figure 20(b)] can be calculated as:

S eff = 6 7 δ eff λ m 2

4. Conclusions

This review deals with some of our recent works on LPE in MS and MOS structures. Large LPVs with good linearities were achieved in these structures. Some important factors which greatly affect the LPE were analyzed, such as thickness effect, contacts’ distance effect, vertical offset effect, material selection, and influence of laser power and wavelength. A concise model regarding LPE in MS and MOS structures was also given, showing a good consistency with the experimental observations. Moreover, our recent studies show these structures can also present a novel bipolar-resistance effect (BRE) [68,69], indicating MS (MOS) structure a great potential for the development of future versatile photoelectric devices.

Acknowledgments

We acknowledge the financial support of National Nature Science Foundation (Grant Nos. 60776035, 10974135 and 60378028) and the Foundation of Shanghai Science and Technology Committee (Grant Nos. 0252nm105 and 04DZ14001), and support of National Minister of Education Program for Changjiang Scholars and Innovative Research Team in University (PCSIRT).

References

  1. Schottky, W. Ueber den entstehungsort der photoelektronen in kupfer-kupferoxydul-photozellen. Phys. Z 1930, 31, 913. [Google Scholar]
  2. Wallmark, JT. A new semiconductor photocell using lateral photoeffect. Proc. IRE 1957, 45, 474–483. [Google Scholar]
  3. Willens, RH. Photoelectronic and electronic properties of Ti/Si amorphous superlattices. Appl. Phys. Lett 1986, 49, 663–665. [Google Scholar]
  4. Levine, BF; Willens, RH; Bethea, CG; Brasen, D. Lateral photoeffect in thin amorphous superlattice films of Si and Ti grown on a Si substrate. Appl. Phys. Lett 1986, 49, 1537–1539. [Google Scholar]
  5. Levine, BF; Willens, RH; Bethea, CG; Brasen, D. Wavelength dependence of the lateral photovoltage in amorphous superlattice films of Si and Ti. Appl. Phys. Lett 1986, 49, 1608–1610. [Google Scholar]
  6. Levine, BF; Willens, RH; Bethea, CG; Brasen, D. High resolution photovoltaic position sensing with Ti/Si superlattices. Appl. Phys. Lett 1986, 49, 1647–1648. [Google Scholar]
  7. Tabatabaie, N; Meynadier, MH; Nahory, RE; Harbison, JP; Florez, LT. Large lateral photovoltaic effect in modulation-doped AlGaAs/GaAs heterostructures. Appl. Phys. Lett 1989, 55, 792. [Google Scholar]
  8. Henry, J; Livingstone, J. Thin-film amorphous silicon position-sensitive detectors. Adv. Mater 2001, 13, 1023–1026. [Google Scholar]
  9. Henry, J; Livingstone, J. Optimizing the response of Schottky barrier position sensitive detectors. J. Phys. D Appl. Phys 2004, 37, 3180–3184. [Google Scholar]
  10. Henry, J; Livingstone, J. Improved position sensitive detectors using high resistivity substrates. J. Phys. D Appl. Phys 2008, 41, 165106. [Google Scholar]
  11. Henry, J; Livingstone, J. A Comparative study of position-sensitive detectors based on Schottky barrier crystalline and amorphous silicon structures J. Mater. Sci. Mater. Electron 2001, 12, 387–393. [Google Scholar]
  12. Henry, J; Livingstone, J. A comparison of layered metal-semiconductor optical position sensitive detectors. IEEE Sens. J 2002, 2, 372. [Google Scholar]
  13. Martins, R; Fortunato, E. Dark current–voltage characteristics of transverse asymmetric hydrogenated amorphous silicon diodes. J. Appl. Phys 1995, 78, 3481–3487. [Google Scholar]
  14. Kabra, D; Singh, ThB; Narayan, KS. Semiconducting-polymer-based position-sensitive detectors. Appl. Phys. Lett 2004, 85, 5073–5075. [Google Scholar]
  15. Kabra, D; Shriram, S; Vidhyadhiraja, NS; Narayan, KS. Charge carrier dynamics in organic semiconductors by position dependent optical probing. J. Appl. Phys 2007, 101, 064510. [Google Scholar]
  16. Jin, KJ; Zhao, K; Lu, HB; Liao, L; Yang, GZ. Dember effect induced photovoltage in perovskite p-n heterojunctions. Appl. Phys. Lett 2007, 91, 081906. [Google Scholar]
  17. Zhao, K; Jin, KJ; Lu, HB; Huang, YH; Zhou, QL; He, M; Chen, ZH; Zhou, YL; Yang, GZ. Transient lateral photovoltaic effect in p-n heterojunctions of La0.7Sr0.3MnO3 and Si. Appl. Phys. Lett 2006, 88, 141914. [Google Scholar]
  18. Jin, KJ; Lu, HB; Zhao, K; Ge, C; He, M; Yang, GZ. Novel multifunctional properties induced by interface effects in perovskite oxide heterostructures. Adv. Mater 2009, 21, 4636–4640. [Google Scholar]
  19. Xing, J; Jin, KJ; He, M; Lu, HB; Liu, GZ; Yang, GZ. Ultrafast and high-sensitivity photovoltaic effects in TiN/Si Schottky junction. J. Phys. D Appl. Phys 2008, 41, 195103. [Google Scholar]
  20. van Zalinge, H; Ozyilmaz, B; Bohm, A; van der Heijden, RW; Wolter, JH; Wyder, P. Observation of the screening signature in the lateral photovoltage of electrons in the quantum Hall regime. Phys. Rev. B 2001, 64, 235303. [Google Scholar]
  21. Fortunato, E; Pereira, L; Aguas, H; Ferreira, I; Martins, R. Flexible a-Si: H position sensitive detectors. Proc. IEEE 2005, 93, 1281. [Google Scholar]
  22. Martins, R; Teodoro, P; Soares, F; Ferreiral, I; Guimaraes, N; Fortunato, E; Borges, J; Jose, G; Groth, A; Schultze, L; Berndt, D; Reichel, F; Stam, F. Application of amorphous silicon thin-film position-sensitive detector to optical rules. Adv. Eng. Mater 2001, 3, 174–177. [Google Scholar]
  23. Aguas, H; Pereira, L; Raniero, L; Costa, D; Fortunato, E; Martins, R. Investigation of a-Si: H 1D MIS position sensitive detectors for application in 3D sensors. J. Non-Cryst. Solids 2006, 352, 1787–1791. [Google Scholar]
  24. Martins, R; Fortunato, E. Role of the resistive layer on the performances of 2D a-Si: H thin film position sensitive detectors. Thin Solid Films 1999, 337, 158–162. [Google Scholar]
  25. Pereira, L; Brida, D; Fortunato, E; Ferreira, I; Aguas, H; Silva, V; Costa, MFM; Teixeira, V; Martins, R. A-Si:H interface optimisation for thin film position sensitive detectors produced on polymeric substrates. J. Non-Cryst. Solids 2002, 299, 1289. [Google Scholar]
  26. Cabrita, A; Figueiredo, J; Pereira, L; Aguas, H; Silva, V; Brida, D; Ferreira, I; Fortunato, E; Martins, R. Thin film position sensitive detectors based on amorphous silicon carbide structures. Appl. Surf. Sci 2001, 184, 443. [Google Scholar]
  27. Fortunato, E; Martins, R. Thin film position sensitive detectors based on a-Si:H devices. Solid State Phenom 1995, 44, 883. [Google Scholar]
  28. Fortunato, E; Brida, D; Pereira, L; Águas, H; Silva, V; Ferreira, I; Costa, MFM; Teixeira, V; Martins, R. Dependence of the strains and residual mechanical stresses on the performances presented by a-Si :H thin film position sensors. Adv. Eng. Mater 2002, 4, 612–616. [Google Scholar]
  29. Fortunato, E; Ferreira, I; Giuliani, F; Wurmsdobler, P; Martins, R. New ultra-light flexible large area thin film position sensitive detector based on amorphous silicon. J. Non-Cryst. Solids 2000, 266, 1213–1217. [Google Scholar]
  30. Martins, R; Fortunato, E. Thin film position sensitive detectors: From 1-D to 3-D applications. Technol. Appl. Amorph. Silicon 2000, 8, 342–409. [Google Scholar]
  31. Aguas, H; Pereira, L; Costa, D; Fortunato, E; Martins, R. Linearity and sensitivity of MIS position sensitive detectors. J. Mater. Sci 2005, 40, 1377–1381. [Google Scholar]
  32. Martins, R; Raniero, L; Pereira, L; Costa, D; Aguas, H; Pereira, S; Silva, L; Goncalves, A; Ferreira, I; Fortunato, E. Nanostructured silicon and its application to solar cells, position sensors and thin film transistors. Phil. Mag 2009, 89, 2699–2721. [Google Scholar]
  33. Cabrita, A; Figueiredo, J; Pereira, L; Silva, V; Brida, D; Fortunato, E; Martins, R. Performance of a-Six:C1-x:H Schottky barrier and pin diodes used as position sensitive detectors. J. Non-Cryst. Solids 2002, 299, 1277–1282. [Google Scholar]
  34. Contreras, J; Baptista, C; Ferreira, I; Costa, D; Pereira, S; Aguas, H; Fortunato, E; Martins, R; Wierzbicki, R; Heerlein, H. Amorphous silicon position sensitive detectors applied to micropositioning. J. Non-Cryst. Solids 2006, 352, 1792–1796. [Google Scholar]
  35. Aguas, H; Pereira, L; Costa, D; Fortunato, E; Martins, R. Super linear position sensitive detectors using MIS structures. Opt. Mater 2005, 27, 1088–1092. [Google Scholar]
  36. Buhler, DW; Oxland, TR; Nolte, LP. Design and evaluation of a device for measuring three dimensional micromotions of press-fit femoral stem prostheses. Med. Eng. Phys 1997, 19, 187–199. [Google Scholar]
  37. Kim, J; Kim, M; Bae, JH; Kwon, JH; Lee, H; Jeong, S. Gap measurement by position-sensitive detectors. Appl. Opt 2000, 39, 2584–2591. [Google Scholar]
  38. Kaufmann, KJ. Position-sensitive detectors develop into high-tech tailors. Photon. Spectra 1997, 31, 167. [Google Scholar]
  39. Park, WS; Cho, HS. Measurement of fine 6-degrees-of-freedom displacement of rigid bodies through splitting a laser beam: Experimental investigation. Opt. Eng 2002, 41, 860–871. [Google Scholar]
  40. Takeda, T. Amorphous and Microcrystalline Semiconductor Devices: Optoelectronic Devices; Artech House Publishers: Norwood, UK, 1991. [Google Scholar]
  41. Makynen, A; Kostamovaara, J; Myllyla, R. Engineering Systems with Intelligence: Concepts, Tools and Applications; Kluwer: Dordrecht, the Netherlands, 1992; pp. 275–284. [Google Scholar]
  42. Makynen, A; Kostamovaara, J; Rahkonen, T. CMOS photodetectors for industrial position sensing. IEEE Trans. Instrum. Meas 1994, 43, 489. [Google Scholar]
  43. Makynen, A; Benten, H; Rahkonen, T; Kostamovaara, J. CMOS position-sensitive photodetectors (PSDs) for integrated sensor systems. J. Proc. SPIE 1997, 3100, 89. [Google Scholar]
  44. Yu, CQ; Wang, H. Tunable oscillating lateral photovoltaic effect in surface-patterned metal-semiconductor structures. Opt. Express 2010, 18, 21777. [Google Scholar]
  45. Yu, CQ; Wang, H. Precise detection of two-dimensional displacement based on nonlinear lateral photovoltaic effect. Opt. Lett 2010, 35, 2514–2516. [Google Scholar]
  46. Yu, CQ; Wang, H. Large near-infrared lateral photovoltaic effect observed in Co/Si metal-semiconductor structures. Appl. Phys. Lett 2010, 96, 171102. [Google Scholar]
  47. Yu, CQ; Wang, H; Xia, YX. Enhanced lateral photovoltaic effect in an improved oxide-metal-semiconductor structure of TiO2/Ti/Si. Appl. Phys. Lett 2009, 95, 263506. [Google Scholar]
  48. Yu, CQ; Wang, H; Xia, YX. Giant lateral photovoltaic effect observed in TiO2 dusted metal-semiconductor structure of Ti/TiO2/Si. Appl. Phys. Lett 2009, 95, 141112. [Google Scholar]
  49. Yu, CQ; Wang, H. Improved metal-semiconductor position detector with oscillating lateral photovoltaic effect. Opt. Lett 2009, 34, 3770–3772. [Google Scholar]
  50. Yu, CQ; Wang, H; Xiao, SQ; Xia, YX. Direct observation of lateral photovoltaic effect in nano-metal-films. Opt. Express 2009, 17, 21712. [Google Scholar]
  51. Wang, H; Xiao, SQ; Yu, CQ; Xia, YX; Jin, QY; Wang, ZH. Correlation of magnetoresistance and lateral photovoltage in Co3Mn2O/SiO2/Si metal-oxide-semiconductor structure. N. J. Phys 2008, 10, 093006. [Google Scholar]
  52. Xiao, SQ; Wang, H; Yu, CQ; Xia, YX; Lu, JJ; Jin, QY; Wang, ZH. A novel position-sensitive detector based on metal-oxide-semiconductor structures of Co-SiO2-Si. N. J. Phys 2008, 10, 033018. [Google Scholar]
  53. Du, L; Wang, H. Infrared laser induced lateral photovoltaic effect observed in Cu2O nanoscale film. Opt. Express 2010, 18, 9113–9118. [Google Scholar]
  54. Kong, LZ; Wang, H; Xiao, SQ; Lu, JJ; Xia, YX; Hu, GJ; Dai, N; Wang, ZH. Integrated properties of large lateral photovoltage and positive magnetoresistance in Co/Mn/Co/c-Si structures. J. Phys. D Appl. Phys 2008, 41, 052003. [Google Scholar]
  55. Xiao, SQ; Wang, H; Zhao, ZC; Gu, YZ; Xia, YX; Wang, ZH. The Co-film-thickness dependent lateral photoeffect in Co-SiO2-Si metal-oxide-semiconductor structures. Opt. Express 2008, 16, 3798. [Google Scholar]
  56. Xiao, SQ; Wang, H; Zhao, ZC; Gu, YZ; Xia, YX; Wang, ZH. Lateral photovoltaic effect and magnetoresistance observed in Co-SiO2-Si metal-oxide-semiconductor structures. J. Phys. D Appl. Phys 2007, 40, 6926–6929. [Google Scholar]
  57. Xiao, SQ; Wang, H; Zhao, ZC; Xia, YX. Large lateral photoeffect observed in metal-semiconductor junctions of CoxMnyO films and Si. J. Phys. D Appl. Phys 2007, 40, 5580–5583. [Google Scholar]
  58. Card, HC; Rhoderick, EH. Studies of tunnel MOS diodes I. Interface effects in silicon Schottky diodes. J. Phys. D Appl. Phys 1971, 4, 1589–1601. [Google Scholar]
  59. Charlson, EJ; Lien, JC. An Al p-silicon MOS photovoltaic cell. J. Appl. Phys 1975, 46, 3982–3987. [Google Scholar]
  60. Lillington, DR; Townsend, WG. Effects of interfacial oxide layers on the performance of silicon Schottky-barrier solar cells. Appl. Phys. Lett 1976, 28, 97–98. [Google Scholar]
  61. Godfrey, RB; Green, MA. 655 mV open-circuit voltage, 17.6% efficient silicon MIS solar cells. Appl. Phys. Lett 1979, 34, 790–793. [Google Scholar]
  62. Srivastava, AK; Guha, S; Arora, BW. Mechanism of open-circuit voltage enhancement in metalinsulator-semiconductor GaAs solar cells. Appl. Phys. Lett 1982, 40, 43–45. [Google Scholar]
  63. Kumar, A; Rosenblum, MD; Gilmore, DL; Tufts, BJ; Rosenbluth, ML; Lewis, NS. Fabrication of minority-carrier-limited n-Si/insulator/metal diodes. Appl. Phys. Lett 1990, 56, 1919–1921. [Google Scholar]
  64. Fortunato, E; Lavareda, G; Martins, R; Soares, F; Fernandes, L. Large-area 1D thin-film position sensitive detector with high detection resolution. Sens. Actuat. A 1996, 51, 135–142. [Google Scholar]
  65. Fortunato, E; Lavareda, G; Vieira, M; Martins, R. Thin film position sensitive detector based on amorphous silicon p-i-n diode. Rev. Sci. Instrum 1994, 65, 3784–3786. [Google Scholar]
  66. Brown, DM; Gray, PV. Si-SiO2 fast interface state measurements. J. Electrochem. Soc 1968, 115, 760–766. [Google Scholar]
  67. Pankowe, JI. Optical Processes in Semiconductors; Prentice-Hall: Englewood Cliffs, NJ, USA, 1971. [Google Scholar]
  68. Yu, CQ; Wang, H. Light-induced bipolar-resistance effect based on metal-oxide-semiconductor structures of Ti/SiO2/Si. Adv. Mater 2010, 22, 966–970. [Google Scholar]
  69. Yu, CQ; Wang, H. Bias-induced offset effect overlapped on bipolar-resistance effect based on Co/SiO2/Si structure. Appl. Phys. Lett 2010, 97, 041105. [Google Scholar]

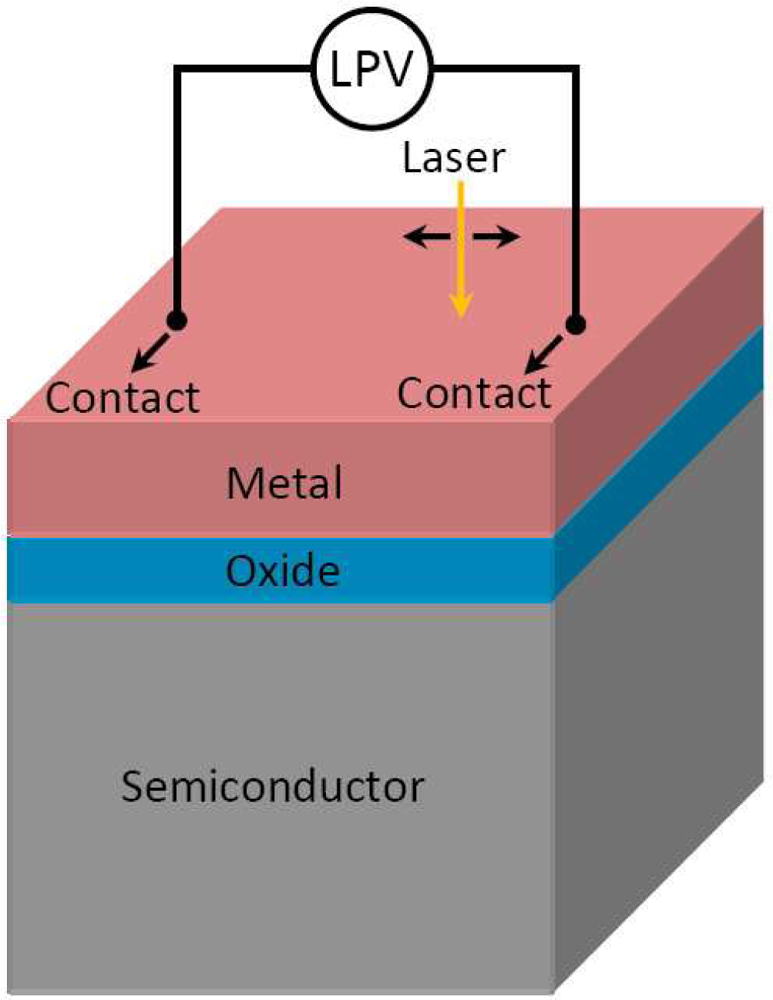

Figure 1. Diagram of LPV measurement in a MOS structure on metal side.
Figure 1. Diagram of LPV measurement in a MOS structure on metal side.
Sensors 10 10155f1 1024
Figure 2. (a) A cross-section TEM image of the calibration MOS structure of Ti(6.2 nm)/SiO2(1.2 nm)/Si. (b) TEM planar-view image of the top polycrystalline Ti film of the structure.
Figure 2. (a) A cross-section TEM image of the calibration MOS structure of Ti(6.2 nm)/SiO2(1.2 nm)/Si. (b) TEM planar-view image of the top polycrystalline Ti film of the structure.
Sensors 10 10155f2 1024
Figure 3. (a) LPV measurement on both metal and semiconductor sides in MS structure of Ti(6.2 nm)/Si. (b) LPV measurement on both metal and semiconductor sides in MS structure of Co(6.2 nm)/Si. Here the contacts’ distance is 3.2 mm, and the laser wavelength and power are 632 nm and 3 mW, respectively.
Figure 3. (a) LPV measurement on both metal and semiconductor sides in MS structure of Ti(6.2 nm)/Si. (b) LPV measurement on both metal and semiconductor sides in MS structure of Co(6.2 nm)/Si. Here the contacts’ distance is 3.2 mm, and the laser wavelength and power are 632 nm and 3 mW, respectively.
Sensors 10 10155f3 1024
Figure 4. (a) LPV measurement on both metal and semiconductor sides in MOS structure of Ti(6.2 nm)/TiO2(1.2 nm)/Si. (b) LPV measurement on both metal and semiconductor sides in MOS structure of Ti(6.2 nm)/SiO2(1.2 nm)/Si. Here the contacts’ distance is 3.2 mm, and the laser wavelength and power are 632 nm and 3 mW respectively.
Figure 4. (a) LPV measurement on both metal and semiconductor sides in MOS structure of Ti(6.2 nm)/TiO2(1.2 nm)/Si. (b) LPV measurement on both metal and semiconductor sides in MOS structure of Ti(6.2 nm)/SiO2(1.2 nm)/Si. Here the contacts’ distance is 3.2 mm, and the laser wavelength and power are 632 nm and 3 mW respectively.
Sensors 10 10155f4 1024
Figure 5. (a) LPV measurement in MS structures of Ti/Si with different Ti thickness. (b) LPV sensitivities as a function of Ti thickness in Ti/Si structures. Here the contacts’ distance is 3.2 mm, and the laser wavelength and power are 632 nm and 3 mW respectively. Solid line is the plot of Equation (17), where the parameters are chosen as αm = 5 × 106 and d0 = 5.95 (nm).
Figure 5. (a) LPV measurement in MS structures of Ti/Si with different Ti thickness. (b) LPV sensitivities as a function of Ti thickness in Ti/Si structures. Here the contacts’ distance is 3.2 mm, and the laser wavelength and power are 632 nm and 3 mW respectively. Solid line is the plot of Equation (17), where the parameters are chosen as αm = 5 × 106 and d0 = 5.95 (nm).
Sensors 10 10155f5 1024
Figure 6. (a) LPV measurement in MOS structures of Ti(6.2 nm)/TiO2/Si with different TiO2 thickness. (b) LPV sensitivities as a function of TiO2 thickness in Ti(6.2 nm)/TiO2/Si structures. Here the contacts’ distance is 3.2 mm, and the laser wavelength and power are 632 nm and 3 mW respectively. Solid line is the plot of Equation (20), where the parameters are chosen as α0 = 0.3 (nm) and αt = 1.25 (nm).
Figure 6. (a) LPV measurement in MOS structures of Ti(6.2 nm)/TiO2/Si with different TiO2 thickness. (b) LPV sensitivities as a function of TiO2 thickness in Ti(6.2 nm)/TiO2/Si structures. Here the contacts’ distance is 3.2 mm, and the laser wavelength and power are 632 nm and 3 mW respectively. Solid line is the plot of Equation (20), where the parameters are chosen as α0 = 0.3 (nm) and αt = 1.25 (nm).
Sensors 10 10155f6 1024
Figure 7. (a) LPV measurement in MOS structures of Ti(6.2 nm)/TiO2/Si with different super-thin Ti thickness. (b) LPV sensitivities as a function of super-thin TiO2 thickness in Ti(6.2 nm)/TiO2/Si structures. Here the contacts’ distance is 3.2 mm, and the laser wavelength and power are 632 nm and 3 mW respectively. Solid line is the plot of Equation (20), where the parameters are chosen as α0 = 0.3 (nm) and αt = 1.25 (nm).
Figure 7. (a) LPV measurement in MOS structures of Ti(6.2 nm)/TiO2/Si with different super-thin Ti thickness. (b) LPV sensitivities as a function of super-thin TiO2 thickness in Ti(6.2 nm)/TiO2/Si structures. Here the contacts’ distance is 3.2 mm, and the laser wavelength and power are 632 nm and 3 mW respectively. Solid line is the plot of Equation (20), where the parameters are chosen as α0 = 0.3 (nm) and αt = 1.25 (nm).
Sensors 10 10155f7 1024
Figure 8. (a) LPV measurement in MS structure of Co(3.5 nm)/Si as a function of laser power with different light wavelength, where “ER” and “TR” represent the experimental results and theoretical results, respectively. (b) LPV measurement in MS structure of Co(3.5 nm)/Si as a function of light wavelength in Co(3.5 nm)/Si structure, where the light power is 5 mW. Here the contacts’ distance is 3.2 mm. Solid lines are the plots of Equation (23) and Equation (24), where the parameters are chosen as Eg = 1.12 (eV), d0 = 2.9 (nm), α = 0.5, β = 2 and P = 0.5.
Figure 8. (a) LPV measurement in MS structure of Co(3.5 nm)/Si as a function of laser power with different light wavelength, where “ER” and “TR” represent the experimental results and theoretical results, respectively. (b) LPV measurement in MS structure of Co(3.5 nm)/Si as a function of light wavelength in Co(3.5 nm)/Si structure, where the light power is 5 mW. Here the contacts’ distance is 3.2 mm. Solid lines are the plots of Equation (23) and Equation (24), where the parameters are chosen as Eg = 1.12 (eV), d0 = 2.9 (nm), α = 0.5, β = 2 and P = 0.5.
Sensors 10 10155f8 1024
Figure 9. (a) LPV measurement in MS structure of Ti(6.2 nm)/Si with different contacts’ distance. Solid lines are the plots of Equation (8), where the parameters are chosen as λm = 2.5 (nm). (b) LPV sensitivity and nonlinearity in MS structure of Co(3.5 nm)/Si as a function of half contacts’ distance. Solid lines are the plots of Equation (12) and Equation (14), where the parameters are chosen as λm = 2.5 (nm). Here “ER” and “TR” represent the experimental results and theoretical results, respectively. The laser wavelength and power are 632 nm and 3 mW.
Figure 9. (a) LPV measurement in MS structure of Ti(6.2 nm)/Si with different contacts’ distance. Solid lines are the plots of Equation (8), where the parameters are chosen as λm = 2.5 (nm). (b) LPV sensitivity and nonlinearity in MS structure of Co(3.5 nm)/Si as a function of half contacts’ distance. Solid lines are the plots of Equation (12) and Equation (14), where the parameters are chosen as λm = 2.5 (nm). Here “ER” and “TR” represent the experimental results and theoretical results, respectively. The laser wavelength and power are 632 nm and 3 mW.
Sensors 10 10155f9 1024
Figure 10. (a) LPV measurement in MS structure of Co(3.5 nm)/Si with different vertical distance of y. Solid lines are the plots of Equation (26), where the parameters are chosen as λm = 2.5 (mm). (b) LPV sensitivity and nonlinearity in MS structure of Co(3.5 nm)/Si as a function of vertical distance of y. Solid lines are the plots of Equation (27) and Equation (28), where the parameters are chosen as λm = 2.5 (nm). Here “ER” and “TR” represent the experimental results and theoretical results, respectively. The contacts’ distance is 3.2 mm, and the laser wavelength and power are 832 nm and 5 mW.
Figure 10. (a) LPV measurement in MS structure of Co(3.5 nm)/Si with different vertical distance of y. Solid lines are the plots of Equation (26), where the parameters are chosen as λm = 2.5 (mm). (b) LPV sensitivity and nonlinearity in MS structure of Co(3.5 nm)/Si as a function of vertical distance of y. Solid lines are the plots of Equation (27) and Equation (28), where the parameters are chosen as λm = 2.5 (nm). Here “ER” and “TR” represent the experimental results and theoretical results, respectively. The contacts’ distance is 3.2 mm, and the laser wavelength and power are 832 nm and 5 mW.
Sensors 10 10155f10 1024
Figure 11. Diagram of electron transition from semiconductor to metal induced by laser illumination. The gray parts and the yellow parts represent the original equilibrium electrons and the laser-induced non-equilibrium electrons, respectively.
Figure 11. Diagram of electron transition from semiconductor to metal induced by laser illumination. The gray parts and the yellow parts represent the original equilibrium electrons and the laser-induced non-equilibrium electrons, respectively.
Sensors 10 10155f11 1024
Figure 12. Diagram of carrier diffusion in MS structure induced by laser illumination. (a) Pure-electron picture of diffusion model. (b) Electron-hole picture of diffusion model.
Figure 12. Diagram of carrier diffusion in MS structure induced by laser illumination. (a) Pure-electron picture of diffusion model. (b) Electron-hole picture of diffusion model.
Sensors 10 10155f12 1024
Figure 13. Diagram of laser-induced stable distribution of electron density in MS structure. The yellow part represents the distribution of density of laser-induced electrons.
Figure 13. Diagram of laser-induced stable distribution of electron density in MS structure. The yellow part represents the distribution of density of laser-induced electrons.
Sensors 10 10155f13 1024
Figure 14. Diagram of energy band in MS structure illuminated by a laser. The gray parts and the yellow parts represent the original equilibrium electrons and the laser-induced non-equilibrium electrons, respectively.
Figure 14. Diagram of energy band in MS structure illuminated by a laser. The gray parts and the yellow parts represent the original equilibrium electrons and the laser-induced non-equilibrium electrons, respectively.
Sensors 10 10155f14 1024
Figure 15. Diagram of metal thickness effect of LPE in MS structure. The red curves represent the distribution of density of laser-induced electrons. (a–c) shows the situations with three different metal thickness.
Figure 15. Diagram of metal thickness effect of LPE in MS structure. The red curves represent the distribution of density of laser-induced electrons. (a–c) shows the situations with three different metal thickness.
Sensors 10 10155f15 1024
Figure 16. Diagram of oxide thickness effect of LPE in MOS structure. (a) LPE mechanism in MOS structure with a fully covered oxide layer. (b) Electronic interference based on un-fully covered oxide layer when excited electrons transit from semiconductor to metal. The red (or blue) arrows represent the electrons tunneling through the walls (or passing through the windows) from semiconductor to metal. (c) Band models of electrons as tunneling through the walls (red part) and passing through the windows (blue part) from semiconductor to metal.
Figure 16. Diagram of oxide thickness effect of LPE in MOS structure. (a) LPE mechanism in MOS structure with a fully covered oxide layer. (b) Electronic interference based on un-fully covered oxide layer when excited electrons transit from semiconductor to metal. The red (or blue) arrows represent the electrons tunneling through the walls (or passing through the windows) from semiconductor to metal. (c) Band models of electrons as tunneling through the walls (red part) and passing through the windows (blue part) from semiconductor to metal.
Sensors 10 10155f16 1024
Figure 17. Calculation of normalized LPV sensitivity responding to the energy gap of semiconductor materials in MS structure according to Equation (21), where the parameters are chosen as ν = 3.5 (eV)/h and α = 0.5.
Figure 17. Calculation of normalized LPV sensitivity responding to the energy gap of semiconductor materials in MS structure according to Equation (21), where the parameters are chosen as ν = 3.5 (eV)/h and α = 0.5.
Sensors 10 10155f17 1024
Figure 18. Calculation of normalized (a) LPV sensitivity and (b) nonlinearity responding to metal Fermi level and metal resistivity in MS structure according to Equation (21) and Equation (22).
Figure 18. Calculation of normalized (a) LPV sensitivity and (b) nonlinearity responding to metal Fermi level and metal resistivity in MS structure according to Equation (21) and Equation (22).
Sensors 10 10155f18 1024
Figure 19. Diagram of LPV responding to laser position (see red curves) with different contacts’ distance.
Figure 19. Diagram of LPV responding to laser position (see red curves) with different contacts’ distance.
Sensors 10 10155f19 1024
Figure 20. Calculation of normalized (a) LPV sensitivity and (b) nonlinearity vs. both contacts’ distance and vertical offset distance according to Equation (27) and Equation (28), where the parameters are chosen as λm = 2 (mm).
Figure 20. Calculation of normalized (a) LPV sensitivity and (b) nonlinearity vs. both contacts’ distance and vertical offset distance according to Equation (27) and Equation (28), where the parameters are chosen as λm = 2 (mm).
Sensors 10 10155f20 1024

Share and Cite

MDPI and ACS Style

Yu, C.; Wang, H. Large Lateral Photovoltaic Effect in Metal-(Oxide-)Semiconductor Structures. Sensors 2010, 10, 10155-10180. https://doi.org/10.3390/s101110155

AMA Style

Yu C, Wang H. Large Lateral Photovoltaic Effect in Metal-(Oxide-)Semiconductor Structures. Sensors. 2010; 10(11):10155-10180. https://doi.org/10.3390/s101110155

Chicago/Turabian Style

Yu, Chongqi, and Hui Wang. 2010. "Large Lateral Photovoltaic Effect in Metal-(Oxide-)Semiconductor Structures" Sensors 10, no. 11: 10155-10180. https://doi.org/10.3390/s101110155

Article Metrics

Back to TopTop
