Direct Electrochemistry and Electrocatalysis of Hemoglobin at Mesoporous Carbon Modified Electrode

by
Supeng Pei
1,
Song Qu
2,* and
Yongming Zhang
1,*
1
School of Chemistry and Chemical Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
2
College of Science, University of Shanghai for Science and Technology, Shanghai 200093, ChinaCollege of Science, University of Shanghai for Science and Technology, Shanghai 200093, China
*
Authors to whom correspondence should be addressed.
Sensors 2010, 10(2), 1279-1290; https://doi.org/10.3390/s100201279
Submission received: 30 November 2009 / Revised: 30 December 2009 / Accepted: 18 January 2010 / Published: 3 February 2010
(This article belongs to the Section Biosensors)
Browse Figures
Versions Notes

Abstract

:
The novel highly ordered mesoporous carbon (known as FDU-15), prepared by the organic-organic self-assembly method was been used for first time for the immobilization of hemoglobin (Hb) and its bioelectrochemical properties were studied. The resulting Hb/FDU-15 film provided a favorable microenvironment for Hb to perform direct electron transfers at the electrode. The immobilized Hb also displayed its good electrocatalytic activity for the reduction of hydrogen peroxide. The results demonstrate that mesoporous carbon FDU-15 can improve the Hb loading with retention of its bioactivity and greatly promote the direct electron transfer, which can be attributed to its high specific surface area, uniform ordered porous structure, suitable pore size and biocompatibility. Our present study may provide an alternative way for the construction of nanostructure biofunctional surfaces and pave the way for its application to biosensors.

1. Introduction

The realization of direct electron transfer between the native redox protein and the underlying electrode is significantly important because it not only provides models for studying the mechanism of biological electron transport, but also enables construction of mediator-free biosensors and bioreactors [1,2]. Hemoglobin (Hb) is a heme protein which can store and transport oxygen in the blood in vertebrates. Because of its commercial availability and well-documented structure, Hb is an ideal model molecule for the study of direct electron transfer reactions and electrocatalysis of heme proteins. However, because of its large structure, it is difficult for Hb to directly exchange electrons with an electrode surface. Therefore, developing suitable materials and methods for effective Hb immobilization on electrode surface is important for achieving their direct electrochemical reactions and retaining their bioactivities. During the past two decades, great efforts have been made to increase the electron transfer kinetics of Hb [3–10].
Mesoporous materials offer new possibilities for immobilization of proteins because they are porous materials with extremely high surface areas and uniform pores [6,11–13]. Mesoporous carbon materials with ordered pore structure, high pore volume, high specific surface area, and tunable pore diameters have been widely investigated in various areas such as catalyst supports, electrode materials, molecular separation and so on [14–17]. In particular, the order mesoporous carbon materials also have been widely applied in electrochemical biosensors [18–20].
The ordered mesoporous carbon materials have been usually prepared by the nanocasting method using hard-templates [21]. Recently, a direct synthesis of ordered mesoporous carbons through an organic–organic self-assembly method was applied to prepare some ordered mesoporous carbon materials [22–24]. The pore wall structures of these carbons are different from those of mesoporous carbon prepared from nanocasting method using hard templates. For example, a two dimensional (2-D) hexagonal mesostructured carbon FDU-15 prepared by Zhao et al. possess continuous and open frameworks with ultrahigh thermal stability in inert atmospheres, which arises from the covalently bonded construction, amorphous carbon components and thick pore walls [22]. These carbonaceous materials possess high surface area, large pore volumes and uniform pore structure. Considering their especial properties, the ordered mesostructured FDU-15 carbons could be used as attractive materials for protein immobilization.
In this report, the highly ordered mesoporous carbon FDU-15 was used for Hb immobilization and then its bioelectrochemical properties were studied. The direct electron transfer of Hb was observed on the Hb/FDU-15 modified electrode. The resulting film provided a desirable microenvironment to retain the bioactivity of Hb. The electrocatalytic reduction of H2O2 at the modified electrode was also investigated. It represents a general method for the construction of biosensor and can be applied to other biosystems.

2. Experimental

2.1. Reagents

Pluronic F127 triblock poly(ethyleneoxide)-b-poly(propylene oxide)-b-poly(ethylene oxide) copolymer (MW = 12,600, EO106PO70EO106) was purchased from Acros Corp. Hb (MW 66,000, from bovine blood) was purchased from Shanghai Biochemical Reagent and used without further purification. Other chemicals were purchased from Shanghai Chemical Company. All these chemicals were used of analytical grade or higher and used as received. All the solutions were prepared with doubly distilled water.

2.2. Syntheses of mesoporous carbon FDU-15

Mesoporous carbon FDU-15 with 2-D hexagonal structures was synthesized through an organic–organic self-assembly method, according to the literature [22]. Briefly, 1.0 g of F127 block copolymer was dissolved in 20.0 g of ethanol. Then 5.0 g of the resol precursors in ethanol solution containing 0.60 g of phenol and 0.45 g of formaldehyde were added under stirring. The homogeneous solution was poured into several dishes to evaporate ethanol at room temperature for 8 h and then heated at 100 °C for 24 h. The as-prepared products were calcined in a tubular furnace under a high purity N2 atmosphere at 900 °C for 3 h.

2.3. Electrode modification

One mg of mesoporous carbon FDU-15 was dispersed in 1 mL dimethylformamide (DMF) with the aid of ultrasonic agitation to give a 1 mg mL−1 black suspension. 5 mg mL−1 Hb solution was prepared by dissolving Hb in 0.10 M phosphate buffer solution (PBS) at pH 7.0. Prior to modification, the bare glassy carbon (GC) electrode was polished with 0.05 μm alumina slurry and then ultrasonically cleaned in ethanol and water, followed by thoroughly rinsing with water. Then 10 μL of the suspension was spread on the pretreated GCE surface and allowed to dry under an infrared lamp. The mesoporous carbon FDU-15 electrode obtained was thoroughly rinsed with water and immersed in a 5 mg mL−1 Hb solution for 24 h to give the Hb/FDU-15 modified electrode.

2.4. Apparatus and measurements

Transmission electron microscopy (TEM) micrographs of samples were taken using a JEM-2011 electron microscope (JEOL, Japan), with an accelerating voltage of 200 kV. Small-angle X-ray scattering (SAXS) measurements were taken on a Nanostar U smallangle X-ray scattering system (Bruker, Germany) using Cu Ka radiation (40 mV, 35 mA). N2 adsorption was measured using a Micromeritics Tristar 3000 automatic physisorption instrument at 77 K. The specific surface area was determined by the BET method. The BJH model was used to determine the pore size distribution.The UV-Vis spectras were measured with a JASCO UV550 UV–Vis absorption spectrometer.
Electrochemical experiments were performed on a CHI 660 electrochemical workstation (CHI, USA) with conventional three-electrode system. The working electrode was a modified GC electrode. A saturated calomel electrode (SCE) and a platinum electrode were used as the reference and the auxiliary electrode, respectively. A 0.10 M PBS was used as the supporting electrolyte. All experimental solutions were deoxygenated by purging pure N2 into the solution for about 15 min, and N2 gas was kept flowing over the solution during the electrochemical measurements.

3. Results and Discussion

3.1. Characterization of FDU-15

Transmission electron microscopy (TEM) images of mesoporous carbon FDU-15 (Figure 1) show well ordered stripe-like and hexagonally arranged patterns that are similar to mesoporous silica SBA-15, further confirming a 2D ordered hexagonal mesostructure [25]. The wall thickness is estimated to be 4.0 nm.
SAXS patterns (Figure 2) show that the two-dimensional (2D) hexagonal structure (p6 mm) with three distinct reflection peaks indexed to10, 11 and 20 respectively. The N2 sorption isotherms (shown as circles in Figure 3) of the mesoporous carbon FDU-15 yield a type-IV curve with a sharp capillary condensation step at P/P0 = 0.4 – 0.6 and an H1-type hysteresis loop which is typical of large-pore mesoporous materials with cylindrical channels, according to the International Union of Pure and Applied Chemistry(IUPAC) nomenclature[26]. These results suggest that mesoporous carbon FDU-15 has uniform cylindrical mesoporous channels. The BET surface area and the total pore volume are calculated to be 960 m2 g−1 and 0.55 cm3 g−1, respectively. The pore diameter is about 3.4 nm with a narrow distribution.

3.2. Direct electrochemistry of Hb on Hb/FDU-15 electrode

Cyclic voltammetry was employed to investigate the Hb/FDU-15 film over the potential range from 0 to −0.6 V. Figure 4 shows the cyclic voltammograms of mesoporous carbon FDU-15/GC and Hb/FDU-15 electrodes at a scan rate of 100 mV s−1, respectively. As compared to GC electrode (not shown), the electrochemical response current at the FDU-15/GC modified electrode is much larger. It can be attributed to the electrode surface area of FDU-15/GC modified electrode is significant increment. The similar phenomenon could be also observed at CNTs modified electrode [27].
No peak was observed at mesoporous carbon FDU-15 (curve a) modified electrode, which showed mesoporous carbon FDU-15 was electroinactive within the potential window. However, a pair of well-defined, nearly symmetrical redox peaks is observed at the Hb/FDU-15 electrode (curve b). The anodic peak potential (Epa) and cathodic peak potential (Epc) are located at −0.304 and −0.357 V, respectively. The formal potential (E0’), estimated as the average of Epa and Epc, is −0.33 V. The peak-to-peak separation (ΔEp) of 53 mV is observed, which indicates a fast direct electron transfer of Hb in the film. This is in accordance with the characteristic of Fe(III)/Fe(II) redox couples of heme proteins.
The direct electrochemistry of Hb indicates that the ordered mesoporous carbon FDU-15 film has good affinity for proteins. Hb has been adsorbed or entrapped by the film for the film porosity. Moreover, the film could greatly facilitate the electrode reaction kinetics of Hb, and provide a favorable microenvironment for electron transfer between Hb and electrode.
Figure 5 shows the UV-Vis spectrum of the Hb/FDU-15 film. It can be observed that the Soret band of the native Hb is located at 403 nm (Figure 5b). After Hb is immobilized, the Soret band is still appeared at 403 nm and the wavelength has no obvious shifted (Figure 5a). The absorption peak at 403 nm is the characteristic Soret-band absorbance of the heme of Hb [28], indicating that the FDU-15 can provide a microenvironment for Hb to retain its native structure.
The influence of scan rate on the response of immobilized Hb in the film was investigated (Figure 6). The linear regression equations of peak current with scan rate is: Ipa(uA) = 0.038 + 0.033 v (mV s−1) Ipc(uA) = 0.012 + 0.037 v (mV s−1).
Both the anodic and cathodic peak currents increase linearly with the scan rates (from 100 mV s−1 to 250 mV s−1), indicating that the reaction is a surface controlled electrochemical process. According to the slope of the Ip–v curve of Ip = n2F2vΓA/4RT [29], the average surface coverage (Γ) of Hb was estimated to be 7.17 × 10−11 mol cm−2, which is higher than that of the theoretical monolayer coverage(1.89 × 10−11 mol cm−2) [30]. The high loading of Hb is attributed to the porous structure of the ordered mesoporous carbon FDU-15 with its large specific surface area.
When the scan rates increase, the Epa and Epc shift slightly to the positive and the negative directions, respectively. The electrode reaction becomes irreversible at higher scan rates. Using Laviron’s equation [31,32], the heterogeneous electron transfer rate constant k of Hb can be calculated as 1.8 s−1.
The effect of pH on the peak potential of Hb immobilized in the film was investigated in different buffer solutions. The dependence of E0’ on the pH at the Hb/FDU-15 electrode is shown in Figure 7. It can be observed that the peak potential is obviously dependent on the pH value in the range of 4.0–9.0. The E0’ of Hb shifts linearly to the negative direction with increasing pH value with a slope of −53 mV pH−1. The slope of the E0’–pH plots are consistent with the mechanism in which a proton and an electron are transferred per heme group in the electrode reaction.

3.3. Electrocatalysis of H2O2 on Hb/FDU-15 electrode

Hb has the ability to catalyze the reduction of H2O2. Figure 8 shows the cyclic voltammograms of the FDU-15 (curve b) and Hb/FDU-15 (curve c) electrode in 0.1 M PBS (pH 7.0) in the presence of H2O2.
As for Hb/FDU-15 electrode, in the absence of H2O2, a pair of the redox peaks of Hb is observed (curve a). However, in the presence of H2O2, the voltammetric behavior changes drastically. A large cathodic current for the reduction of H2O2 appears while the anodic peak decreases till disappears completely. Compared with that, at FDU-15 electrode, no voltammatry response is observed in the same condition. The results indicate that H2O2 exhibits excellent reactivity in the electrocatalysis on the Hb/FDU-15 electrode. The porous structure of mesoporous carbon FDU-15 can provide sufficient space to immobilize Hb and give the immobilized Hb a suitable micro-environment to keep their biological activity.
An attractive feature of the Hb/FDU-15 electrode is the highly stable amperometric response to H2O2. Figure 9 shows the typical steady-state current responses of the modified electrode by the successive addition of 10 μM H2O2 at −0.3 V.
The current responses to the addition of H2O2 quickly and sensitively and reaches a steady state in 4 s. Such a fast response can be attributed to the fast diffusion process and a high activity of the Hb in this system. The current is linear with the H2O2 concentration from 2 × 10−6 M to 3 × 10−4 M with the detection limit of 8 × 10−7 M (S/N = 3). Compared with other CNTs-based H2O2 biosensors [33,34], the linear range of our proposed biosensor is broader by about one order of magnitude of H2O2 concentration with a markedly lower detection limit. That indicates the hydrogen peroxide biosensor based on Hb/FDU-15 would exhibit more advantageous analytical performance. This improved analytical performance is because FDU-15 has the ability to promote the electron transfer between proteins and electrode.
When the concentration of H2O2 is higher than 5 × 10−4 M, a response plateau is observed, showing the characteristics of the Michaelis–Menten kinetic mechanism. The apparent Michaelis–Menten constant (Km), which is an indication of the enzyme–substrate kinetics, can be calculated using the Lineweaver–Burk equation(1) [35]:
1 i = 1 I max + K m app I max ⋅ 1 C H 2 O 2
Accordingly, the Km value for the Hb/FDU-15 modified electrode is estimated to be 1.38 mM. This value is smaller than that of Hb/CNTs modified electrode [36]. The low value of Km indicates that Hb immobilized in FDU-15 films retains its bioactivity and has a high biological affinity to H2O2 with a low diffusion barrier.
The repeatability and stability of the proposed electrode were studied. The relative standard deviation (RSD) is 3.6% for ten successive measurements of 10 μM H2O2, showing the proposed electrode possesses a good reproducibility. On the other hand, the storage stability of the proposed electrode was also studied. The response current of the electrode decreased to 90% after stored 30 days at 4 °C in a refrigerator. The good long-term stability demonstrated that the FDU-15 film was suitable matrix for immobilization of Hb to retain its activity and prevent it from leaking out of the film.

4. Conclusions

An application of mesoporous carbon FDU-15 in bioelectrochemical research has been studied. Mesoporous carbon FDU-15 possesses high specific surface, ordered pore structure, high pore volume. Thus mesoporous carbon FDU-15 could be used as an attractive materials for protein immobilization. Hb immobilized in the Hb/FDU-15 film has performed direct electrochemistry and retained high electrocatalytic efficiency toward H2O2. The Hb/FDU-15 electrode exhibited good analytical performance feuatures, such as a wide determination range and low detection limit for H2O2 determination. Thus, mesoporous carbon FDU-15 as support for redox protein immobilization has potential applications in the fabrication of third-generation biosensors.

Acknowledgments

This work was financially supported by the National High Technology Research and Development Program (“863” Program, No. 2006AA03Z216) and the “11th 5-year” National Key Technologies R&D Program (No. 2006BAE02A00). This work was also supported by Shanghai Municipal Education Commission (No. slg08019).

References

  1. Kong, J.; Lu, Z.; Lvov, Y.M.; Desamero, R.Z.A.; Frank, H.A.; Rusling, J.F. Direct electrochemistry of cofactor redox sites in a bacterial photosynthetic reaction center protein. J. Am. Chem. Soc 1998, 120, 7371–7372. [Google Scholar]
  2. Willner, I.; Katz, E. Integration of layered redox proteins and conductive supports for bioelectronic applications. Angew. Chem. Int. Ed 2000, 39, 1180–1218. [Google Scholar]
  3. Sun, H.; Hu, N.; Ma, H. Direct electrochemistry of hemoglobin in polyacrylamide hydrogel films on pyrolytic graphite electrodes. Electroanalysis 2000, 12, 1064–1070. [Google Scholar]
  4. Li, Q.; Luo, G.; Feng, J. Direct electron transfer for heme proteins assembled on nanocrystalline TiO2 film. Electroanalysis 2001, 13, 359–363. [Google Scholar]
  5. Han, X.; Huang, W.; Jia, J.; Dong, S.; Wang, E. Direct electrochemistry of hemoglobin in egg-phosphatidylcholine films and its catalysis to H2O2. Biosens. Bioelectron 2002, 17, 741–746. [Google Scholar]
  6. Dai, Z.; Liu, S.Q.; Ju, H.X.; Chen, H.Y. Direct electron transfer and enzymatic activity of hemoglobin in a hexagonal mesoporous silica matrix. Biosens. Bioelectron 2004, 19, 861–867. [Google Scholar]
  7. Liu, J.Q.; Chou, A.; Rahmat, W.; Paddon-Row, M.N.; Gooding, J.J. Achieving direct electrical connection to glucose oxidase using aligned single walled carbon nanotube arrays. Electroanalysis 2005, 17, 38–46. [Google Scholar]
  8. Zhao, Y.D.; Bi, Y.H.; Zhang, W.D.; Luo, Q.M. The interface behavior of hemoglobin at carbon nanotube and the detection for H2O2. Talanta 2005, 65, 489–494. [Google Scholar]
  9. Krajewska, A.; Radecki, J.; Radecka, H. A voltammetric biosensor based on glassy carbon electrodes modified with single-walled carbon nanotubes/hemoglobin for detection of acrylamide in water extracts from potato crisps. Sensors 2008, 8, 5832–5844. [Google Scholar]
  10. Li, H.H.; Liu, S.Q.; Dai, Z.H.; Bao, J.C.; Yang, X.D. Applications of nanomaterials in electrochemical enzyme biosensors. Sensors 2009, 9, 8547–8561. [Google Scholar]
  11. Zhang, L.; Zhang, Q.; Li, J.H. Direct electrochemistry and electrocatalysis of hemoglobin immobilized in bimodal mesoporous silica and chitosan inorganic-organic hybrid film. Electrochem. Commun 2007, 9, 1530–1535. [Google Scholar]
  12. Chen, C.C.; Do, J.S.; Gu, Y.S. Immobilization of HRP in mesoporous silica and its application for the construction of polyaniline modified hydrogen peroxide biosensor. Sensors 2009, 9, 4635–4648. [Google Scholar]
  13. Lei, C.H.; Valenta, M.M.; Sparipalli, K.P.; Ackerman, E.J. Biosensing paraoxon in simulated environmental samples by immobilized organophosphorus hydrolase in functionalized mesoporous silica. J. Environ. Qual 2007, 36, 233–238. [Google Scholar]
  14. Subramoney, S. Novel nanocarbons-structure, properties, and potential applications. Adv. Mater 1998, 10, 1157–1171. [Google Scholar]
  15. Shiflett, M.B.; Foley, H.C. Ultrasonic Deposition of high-selectivity nanoporous carbon membranes. Science 1999, 285, 1902–1905. [Google Scholar]
  16. Flandrois, S.; Simon, B. Carbon materials for lithium ion rechargeable batteries. Carbon 1999, 37, 165–180. [Google Scholar]
  17. Chai, G.S.; Shin, I.S.; Yu, J.S. Synthesis of ordered, uniform, macroporous carbons with mesoporous walls templated by aggregates of polystyrene spheres and silica particles for use as catalyst supports in direct methanol fuel cells. Adv. Mater 2004, 16, 2057–2061. [Google Scholar]
  18. Zhou, M.; Shang, L.; Li, B.L.; Huang, L.J.; Dong, S.J. Highly ordered mesoporous carbons as electrode material for the construction of electmchemical dehydrogenase- and oxidase-based biosensors. Biosens. Bioelectron 2008, 24, 442–447. [Google Scholar]
  19. Zhu, L.D.; Tian, C.Y.; Zhu, D.X.; Yang, R.L. Ordered mesopomus carbon paste electrodes for electrochemical sensing and biosensing. Electroanalysis 2008, 20, 1128–1134. [Google Scholar]
  20. Lu, X.B.; Xiao, Y.; Lei, Z.B.; Chen, J.P.; Zhang, H.J.; Ni, Y.W.; Zhang, Q. A promising electrochemical biosensing platform based on graphitized ordered mesoporous carbon. J. Mater. Chem 2009, 19, 4707–4714. [Google Scholar]
  21. Ryoo, R.; Joo, S.H.; Jun, S. Synthesis of highly ordered carbonmolecular sieves via template-mediated structuraltransformation. J. Phys. Chem. B 1999, 103, 7743–7746. [Google Scholar]
  22. Meng, Y.; Gu, D.; Zhang, F.Q.; Shi, Y.F.; Yang, H.F.; Li, Z.; Yu, C.Z.; Tu, B.; Zhao, D.Y. Ordered mesoporous polymers and homologous carbon frameworks: amphiphilic surfactant templating and direct transformation. Angew. Chem. Int. Edit 2005, 44, 7053–7059. [Google Scholar]
  23. Zhang, F.Q.; Meng, Y.; Gu, D.; Yan, Y.; Yu, C.Z.; Tu, B.; Zhao, D.Y. A facile aqueous route to synthesize highly ordered mesoporous polymer and carbon frameworks with Ia-3d bicontinuous cubic structure. J. Am. Chem. Soc 2005, 127, 13508–13509. [Google Scholar]
  24. Tanaka, S.; Nishiyama, N.; Egashira, Y.; Ueyama, K. Synthesis of ordered mesoporous carbons with channel structure from an organic-organic nanocomposite. Chem. Commun 2005, 16, 2125–2127. [Google Scholar]
  25. Zhao, D.Y.; Feng, J.L.; Huo, Q.S.; Melosh, N.; Fredirckson, G.H.; Chemlka, B.F.; Stucky, G.D. Triblock Copolymer Syntheses of mesoporous silica with periodic 50 to 300 angstrom pores. Science 1998, 279, 548–552. [Google Scholar]
  26. Sing, K.S.W.; Everett, D.H.; Haul, R.A.W.; Moscow, L.; Pierotti, R.A.; Rouquerol, T.; Siemienewska, T. Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity. Pure Appl. Chem. 1985, 57, 603–619. [Google Scholar]
  27. Wang, J.X.; Li, M.X.; Shi, Z.J.; Li, N.Q.; Gu, Z.N. Direct electrochemistry of cytochrome c at a glassy carbon electrode modified with single-wall carbon nanotubes. Anal. Chem 2002, 74, 1993–1997. [Google Scholar]
  28. Liu, S.; Chen, A. Coadsorption of horseradish peroxidase with thionine on TiO2 nanotubes for biosensing. Langmuir 2005, 21, 8409–8413. [Google Scholar]
  29. Zhao, G.; Feng, J.; Xu, J.; Chen, H.Y. Direct electrochemistry and electrocatalysis of heme proteins immobilized on self-assembled ZrO2 film. Electrochem. Commun 2005, 7, 724–729. [Google Scholar]
  30. Xian, Y.Z.; Xian, Y.; Zhou, L.H.; Wu, F.H.; Ling, Y.; Jin, L.T. Encapsulation hemoglobin in ordered mesoporous silicas: Influence factors for immobilization and bioelectrochemistry. Electrochem. Commun 2007, 9, 142–148. [Google Scholar]
  31. Laviron, E. The use of linear potential sweep voltammetry and of a.c. voltammetry for the study of the surface electrochemical reaction of strongly adsorbed systems and of redox modified electrodes. J. Electroanal. Chem 1979, 100, 263–270. [Google Scholar]
  32. Laviron, E. General expression of the linear potential sweep voltammogram for a surface redox reaction with interactions between the adsorbed molecules: Applications to modified electrodes. J. Electroanal. Chem 1980, 115, 65–74. [Google Scholar]
  33. Zhao, Y.D.; Bi, Y.H.; Zhang, W.D.; Luo, Q.M. The interface behavior of hemoglobin at carbon nanotube and the detection for H2O2. Talanta 2005, 65, 489–494. [Google Scholar]
  34. Zhao, G.C.; Yin, Z.Z.; Zhang, L.; Wei, X.W. Direct electrochemistry of cytochrome c on a multi-walled carbon nanotubes modified electrode and its electrocatalytic activity for the reduction of H2O2. Electrochem. Commun 2005, 7, 256–260. [Google Scholar]
  35. Kamin, R.A.; Wilson, G.S. Rotating ring-disk enzyme electrode for biocatalysis kinetic studies and characterization of the immobilized enzyme layer. Anal. Chem 1980, 52, 1198–1205. [Google Scholar]
  36. Cai, X.; Chen, J. Direct electron transfer and bioelectrocatalysis of hemoglobin at a carbon nanotube electrode. Anal. Biochem 2004, 325, 285–292. [Google Scholar]
Sensors 10 01279f1 1024
Figure 1. TEM images of the mesoporous carbon FDU-15.
Figure 1. TEM images of the mesoporous carbon FDU-15.
Sensors 10 01279f1
Sensors 10 01279f2 1024

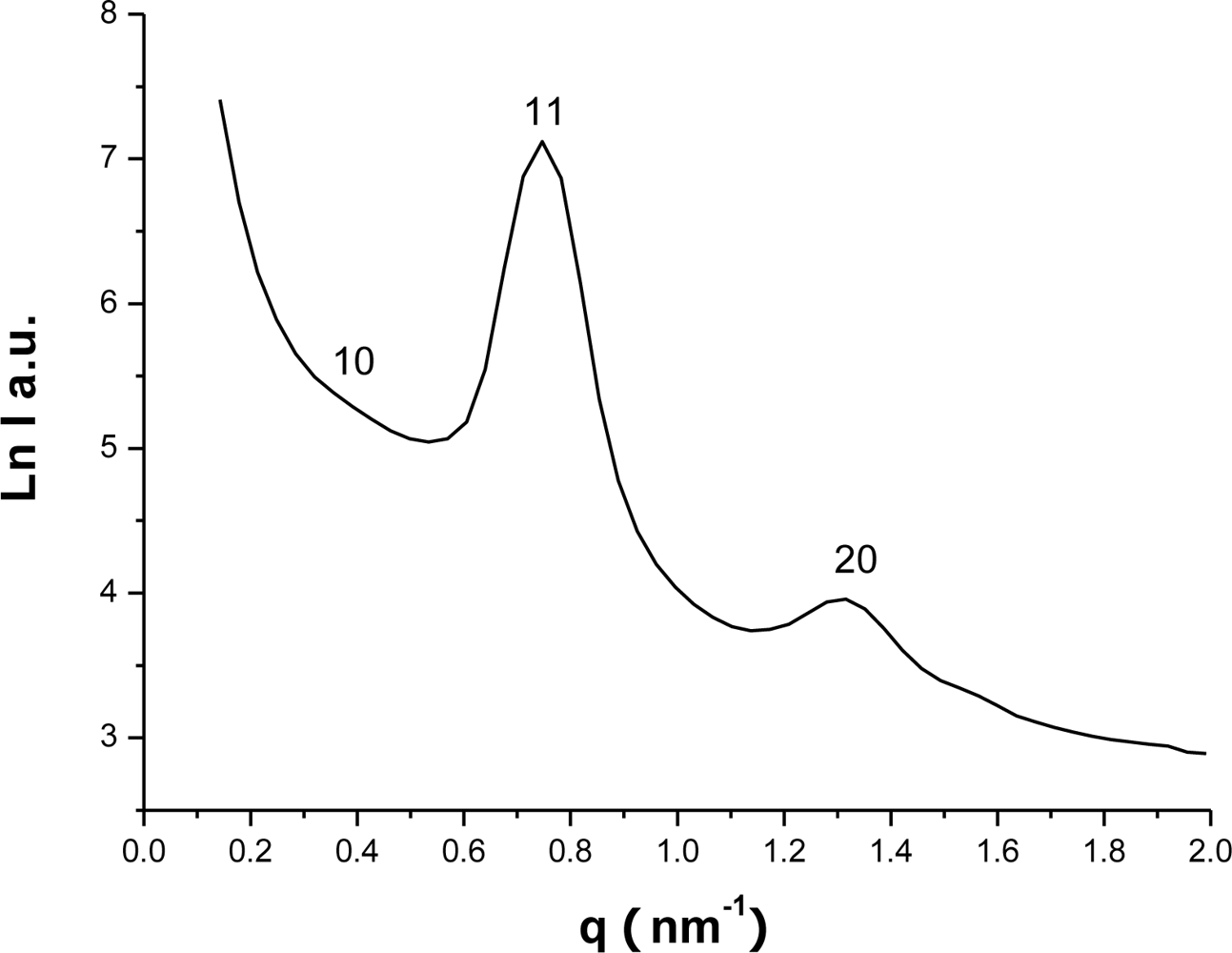

Figure 2. SASX patterns of the mesoporous carbon FDU-15.
Figure 2. SASX patterns of the mesoporous carbon FDU-15.
Sensors 10 01279f2
Sensors 10 01279f3 1024

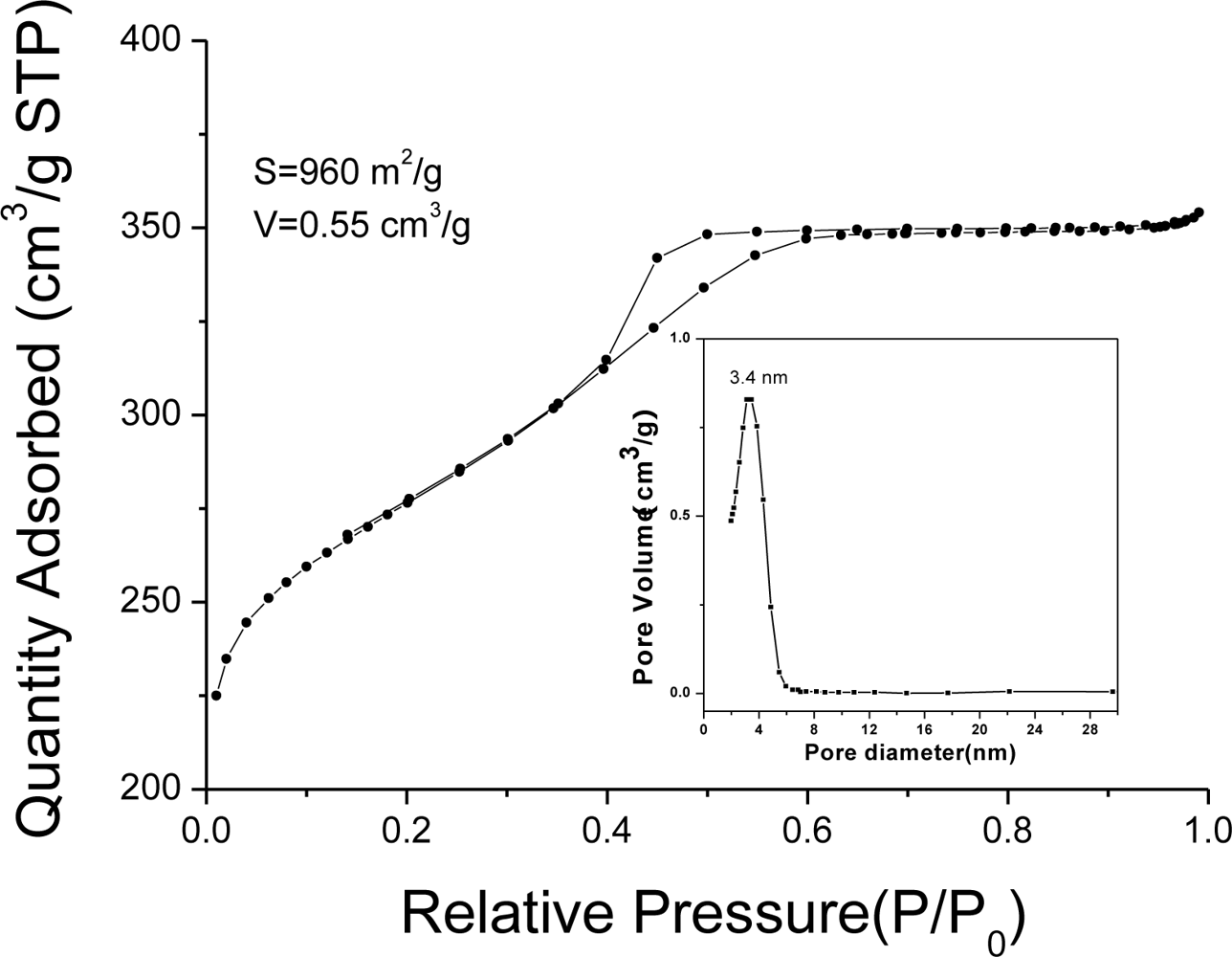

Figure 3. N2 adsorption curves of the mesoporous carbon FDU-15.
Figure 3. N2 adsorption curves of the mesoporous carbon FDU-15.
Sensors 10 01279f3
Sensors 10 01279f4 1024

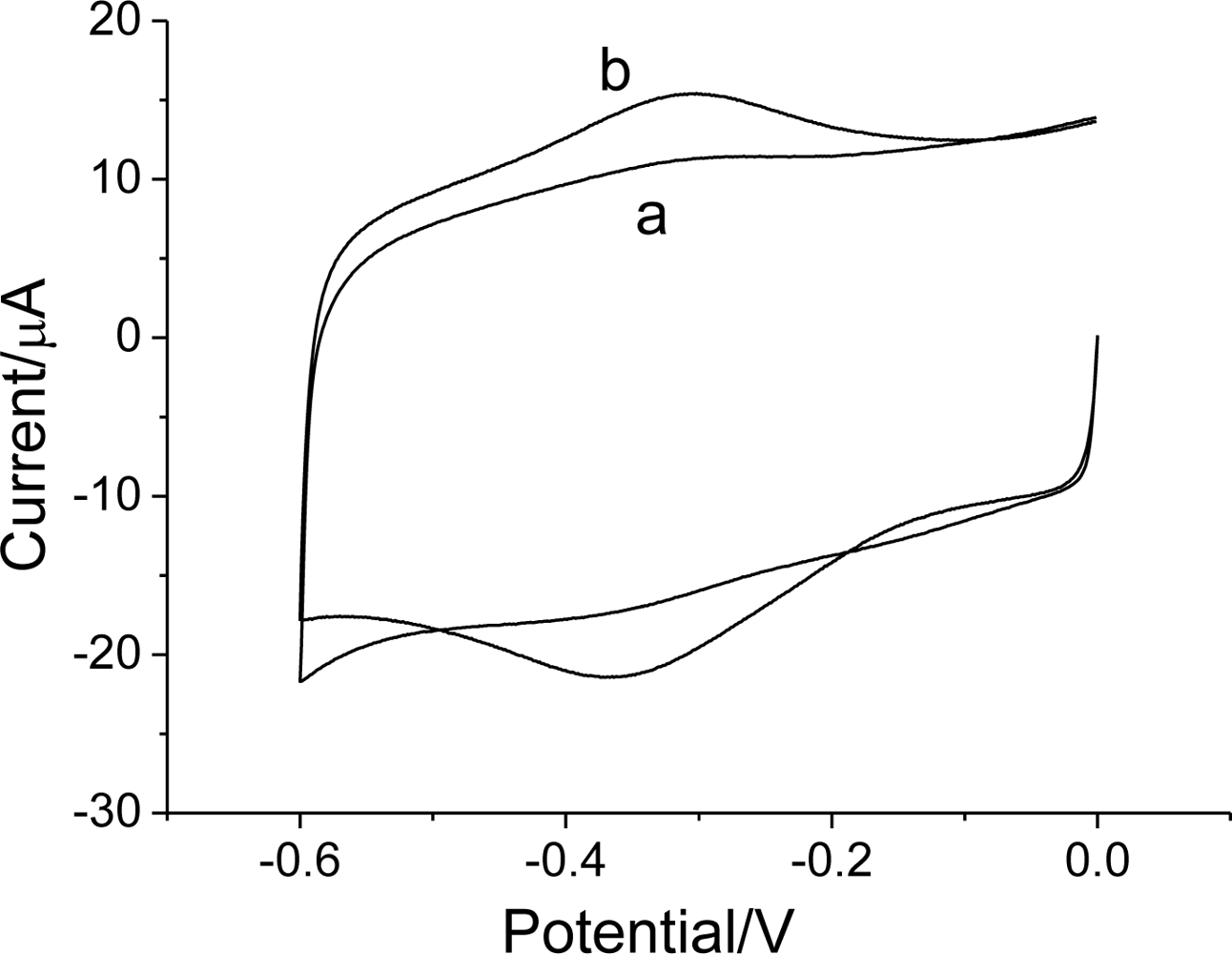

Figure 4. Cyclic voltammograms of (a) FDU-15 and (b) Hb/FDU-15 electrodes in pH 7.0 PBS; scan rate: 100 mV s−1.
Figure 4. Cyclic voltammograms of (a) FDU-15 and (b) Hb/FDU-15 electrodes in pH 7.0 PBS; scan rate: 100 mV s−1.
Sensors 10 01279f4
Sensors 10 01279f5 1024

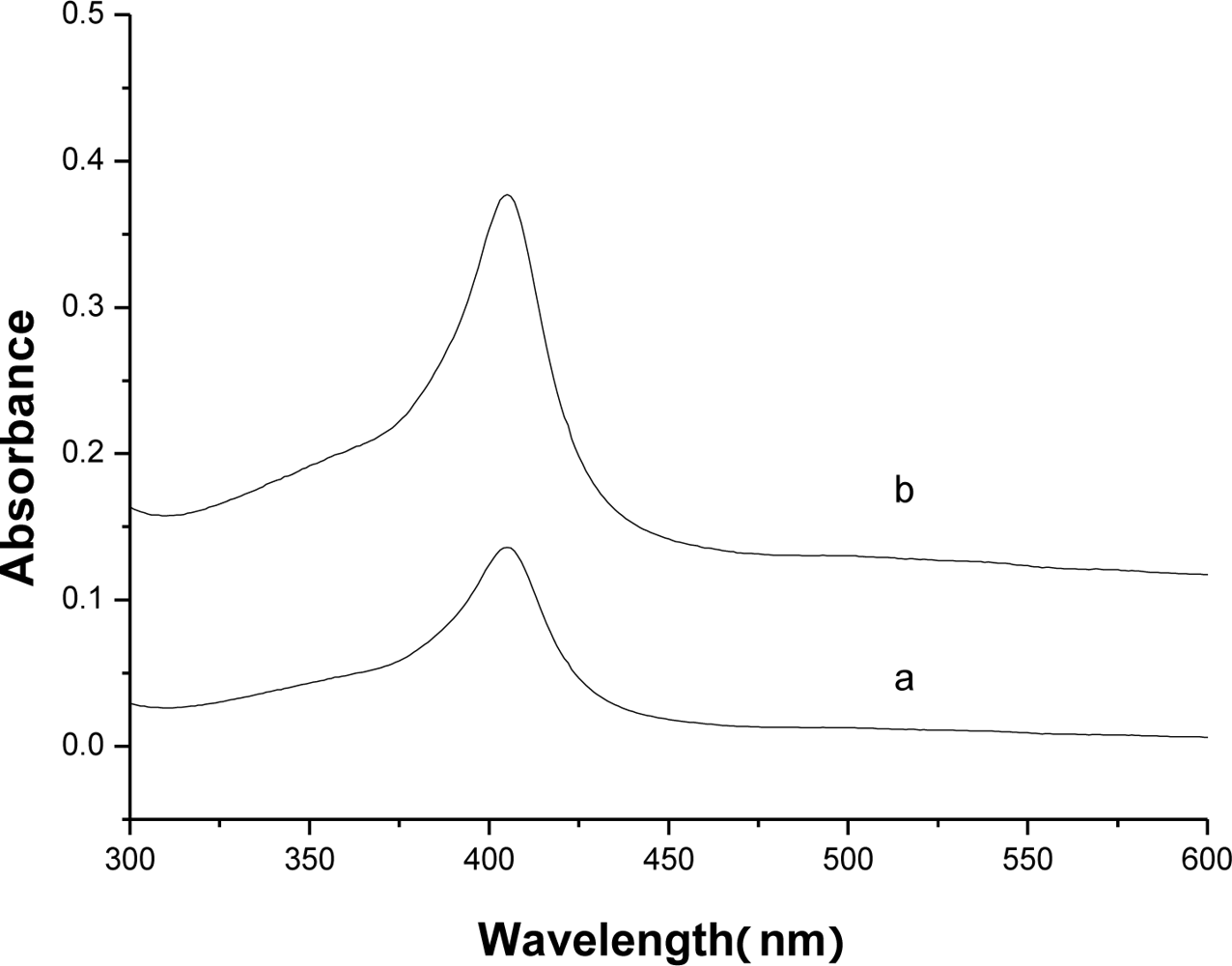

Figure 5. UV-Vis spectroscopy of (a)Hb/FDU-15 film and (b)Hb in pH 7.0 PBS.
Figure 5. UV-Vis spectroscopy of (a)Hb/FDU-15 film and (b)Hb in pH 7.0 PBS.
Sensors 10 01279f5
Sensors 10 01279f6 1024

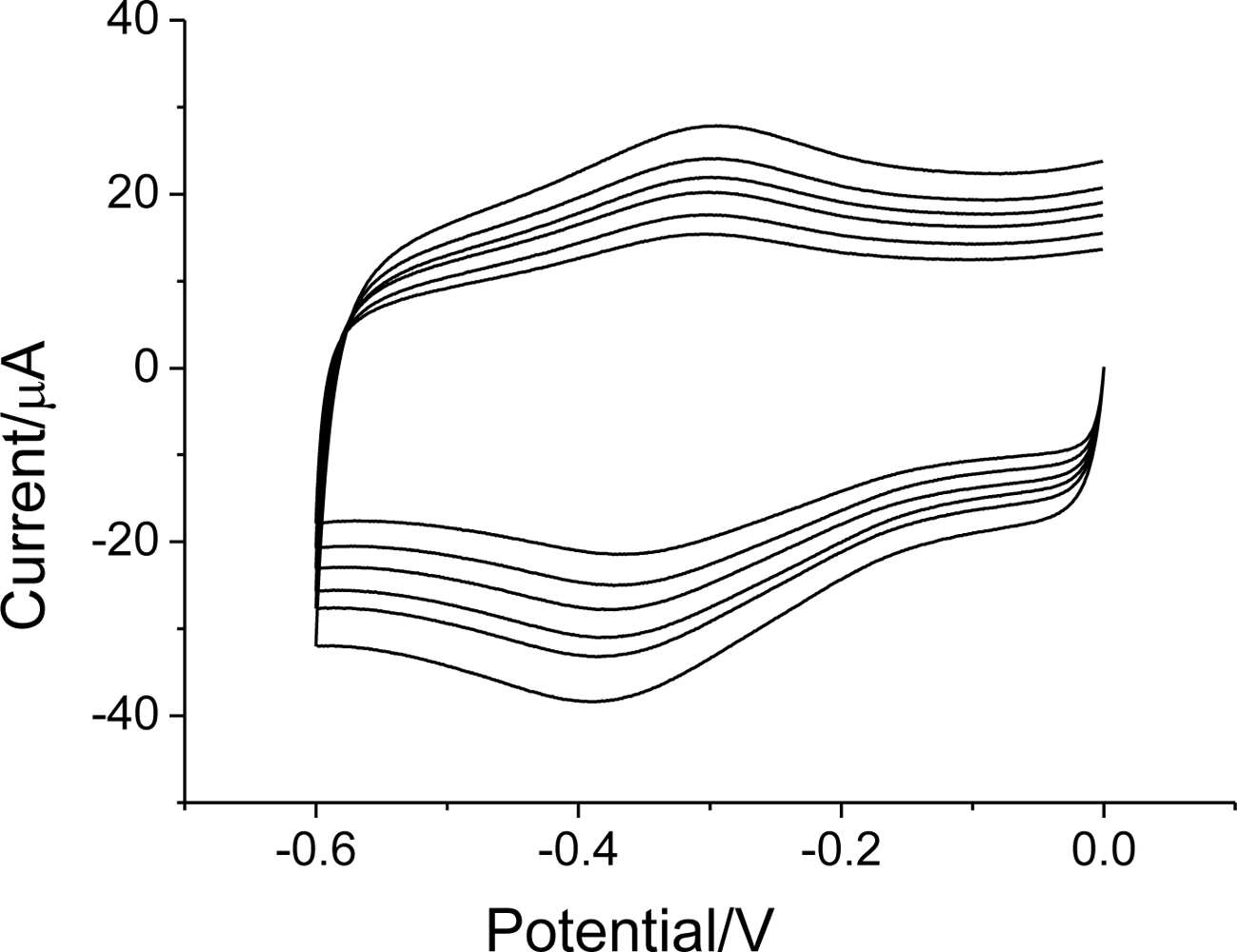

Figure 6. Cyclic voltammograms of Hb/FDU-15 modified electrode in pH 7.0 PBS at scan rate of 100, 125, 150, 175, 200 and 250 mV s−1.
Figure 6. Cyclic voltammograms of Hb/FDU-15 modified electrode in pH 7.0 PBS at scan rate of 100, 125, 150, 175, 200 and 250 mV s−1.
Sensors 10 01279f6
Sensors 10 01279f7 1024

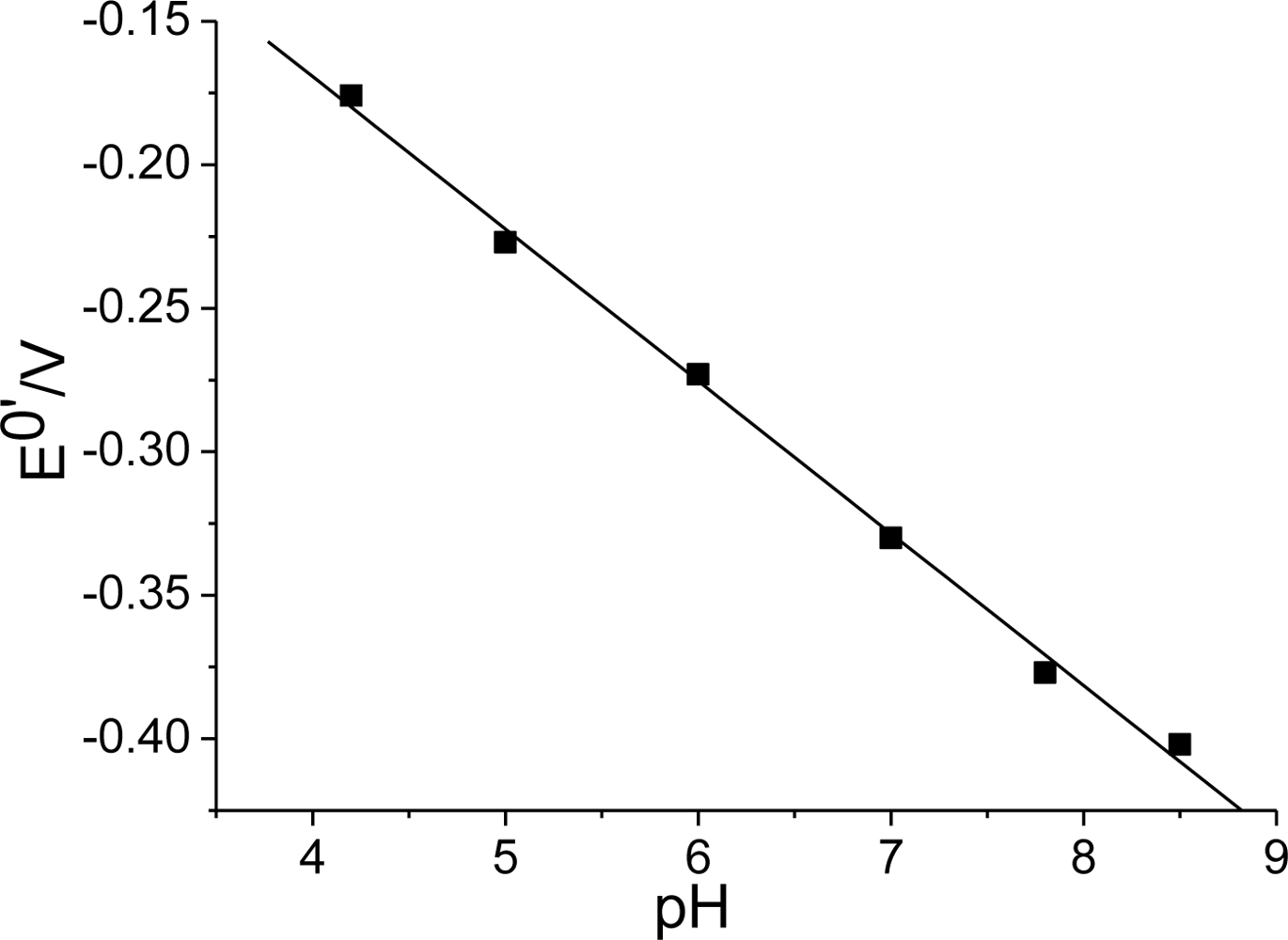

Figure 7. The dependence of E0’ of the Hb/FDU-15 electrode on the solution pH.
Figure 7. The dependence of E0’ of the Hb/FDU-15 electrode on the solution pH.
Sensors 10 01279f7
Sensors 10 01279f8 1024

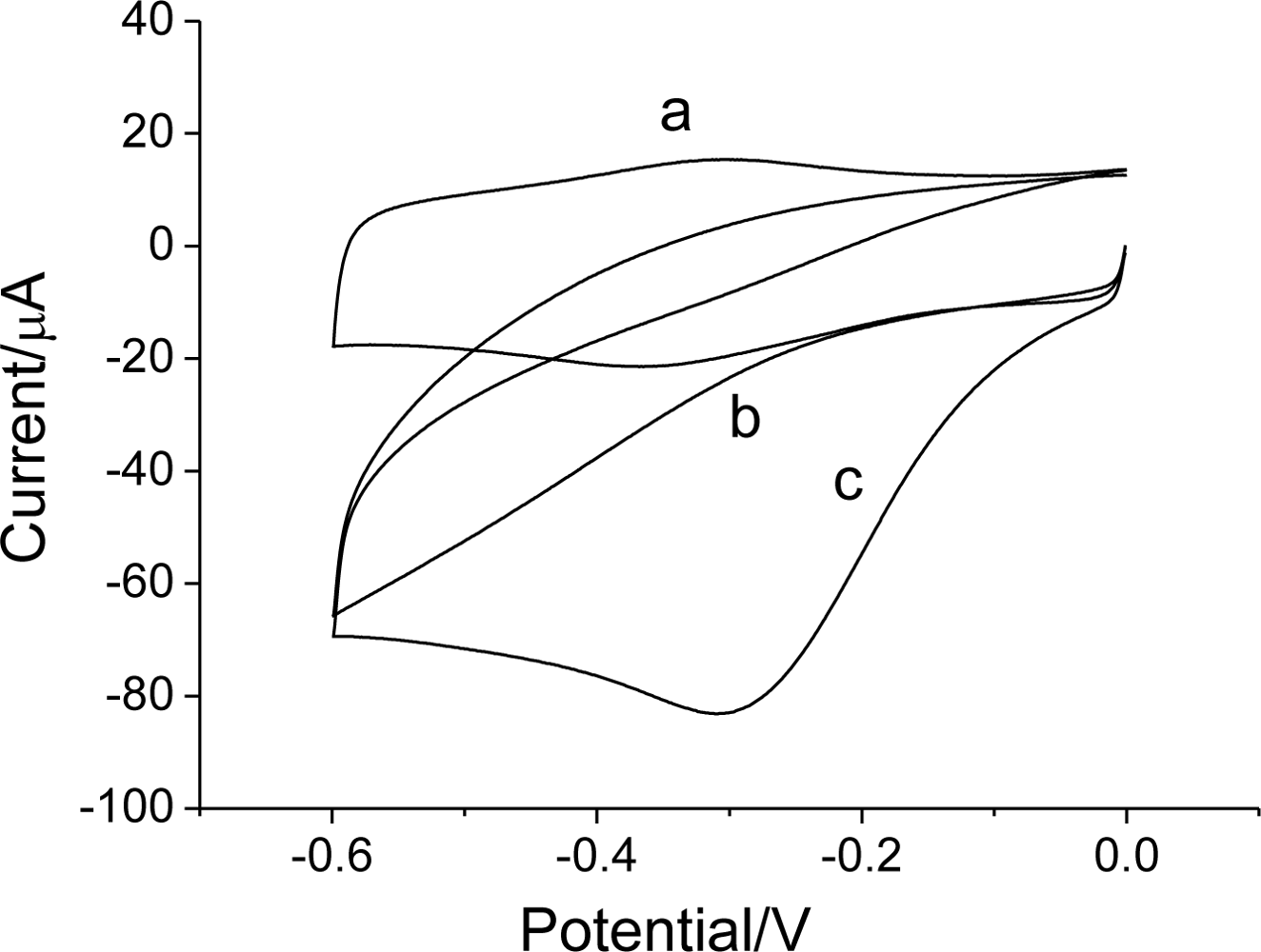

Figure 8. Cyclic voltammograms of the Hb/FDU-15 electrode in 0.1 M PBS (pH 7.0) (curve a); the FDU-15 electrode (b) and the Hb/FDU-15 electrode (c) in the presence of 0.5 mM H2O2. Scan rate: 100 mV s−1.
Figure 8. Cyclic voltammograms of the Hb/FDU-15 electrode in 0.1 M PBS (pH 7.0) (curve a); the FDU-15 electrode (b) and the Hb/FDU-15 electrode (c) in the presence of 0.5 mM H2O2. Scan rate: 100 mV s−1.
Sensors 10 01279f8
Sensors 10 01279f9 1024

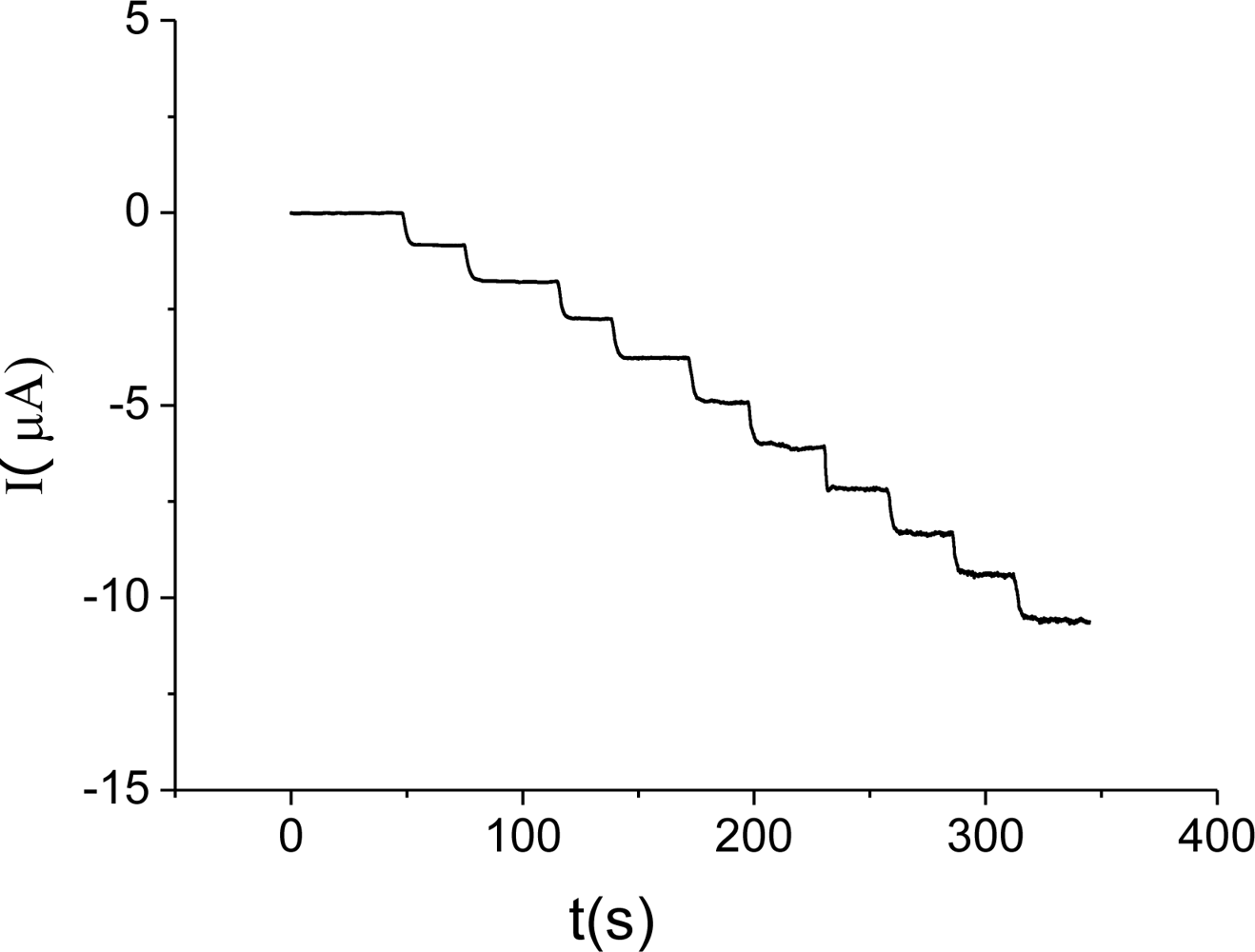

Figure 9. Typical steady-state current responses of the Hb/FDU-15 electrode on successive addition of 10 μM H2O2. Applied potential: −0.3 V.
Figure 9. Typical steady-state current responses of the Hb/FDU-15 electrode on successive addition of 10 μM H2O2. Applied potential: −0.3 V.
Sensors 10 01279f9
