Metal Oxide Semi-Conductor Gas Sensors in Environmental Monitoring

Department of Chemistry, University College London, 20 Gordon Street, London WC1H 0AJ, UK
*
Author to whom correspondence should be addressed.
Sensors 2010, 10(6), 5469-5502; https://doi.org/10.3390/s100605469
Submission received: 30 March 2010 / Revised: 10 May 2010 / Accepted: 20 May 2010 / Published: 1 June 2010
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in the UK)

Abstract

:
Metal oxide semiconductor gas sensors are utilised in a variety of different roles and industries. They are relatively inexpensive compared to other sensing technologies, robust, lightweight, long lasting and benefit from high material sensitivity and quick response times. They have been used extensively to measure and monitor trace amounts of environmentally important gases such as carbon monoxide and nitrogen dioxide. In this review the nature of the gas response and how it is fundamentally linked to surface structure is explored. Synthetic routes to metal oxide semiconductor gas sensors are also discussed and related to their affect on surface structure. An overview of important contributions and recent advances are discussed for the use of metal oxide semiconductor sensors for the detection of a variety of gases—CO, NOx, NH3 and the particularly challenging case of CO2. Finally a description of recent advances in work completed at University College London is presented including the use of selective zeolites layers, new perovskite type materials and an innovative chemical vapour deposition approach to film deposition.

1. Introduction

Since 1962 it has been known that absorption or desorption of a gas on the surface of a metal oxide changes the conductivity of the material, this phenomenon being first demonstrated using zinc oxide thin film layers [1]. The sensitivity of a surface to a gas can be as low as parts per billion (ppb) [25]. It is highly desirable that metal oxide semiconductor sensors have a large surface area, so as to adsorb as much of the target analyte as possible on the surface, giving a stronger and more measurable response (especially at low concentrations). Advances in fabrication methods have enabled the production of low-cost sensors with improved sensitivity and reliability compared to those formed using previous methods [6]. Production costs are kept low due to the simplicity of metal oxide semiconductor sensor devices. Their ability to be produced quickly and on a large scale with easily controllable processes makes them a desirable technology to exploit. This paper aims to: (i) introduce the fundamental reasons for sensing gases, (ii) discuss sensor response mechanisms in metal oxide semiconductor sensors, and (iii) show how non-target gases can interfere with the response of such a sensor. The review will then present a summary of recent advances on sensors that have been developed for specific gases such as carbon dioxide and carbon monoxide, and in the final section discuss new approaches developed in our labs at University College London such as the ways in which zeolites can be used to increase specifity, selectivity and efficiency of sensors.

1.1. Basic Theory

1.1.1. Band Theory

Band theory states that within a lattice there exists a valence band and a conduction band. The separation between these two bands is a function of energy, particularly the Fermi level, defined as the highest available electron energy levels at a temperature [7]. There are three main classes of material in band theory (see Figure 1).

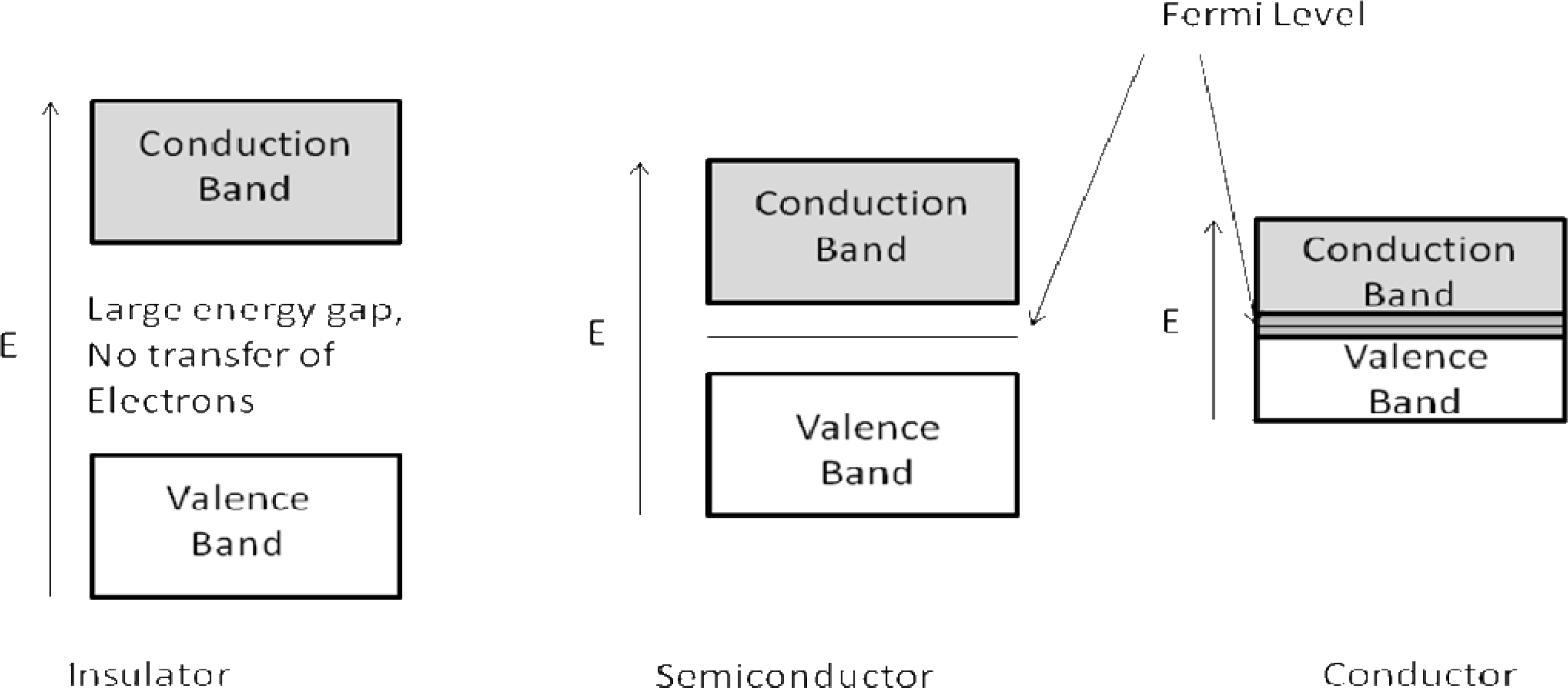

Insulators have a large gap between the valence and conduction band (typically taken to be 10 eV or more), as such a lot of energy is required to promote the electron in to the conduction band and so electronic conduction does not occur. The Fermi level is the highest occupied state at T = 0 [8]. Semiconductors have a sufficiently large energy gap (in the region of 0.5–5.0 eV) so that at energies below the Fermi level, conduction is not observed. Above the Fermi level, electrons can begin to occupy the conduction band, resulting in an increase in conductivity. Conductors have the Fermi level lying within the conduction band.

1.1.2. Band Theory Applied to Sensors

Band theory as applied to gas sensors has been the subject of intense study for a number of years [911]. The target gas interacts with the surface of the metal oxide film (generally through surface adsorbed oxygen ions), which results in a change in charge carrier concentration of the material. This change in charge carrier concentration serves to alter the conductivity (or resistivity,) of the material. An n-type semiconductor is one where the majority charge carriers are electrons, and upon interaction with a reducing gas an increase in conductivity occurs. Conversely, an oxidising gas serves to deplete the sensing layer of charge carrying electrons, resulting in a decrease in conductivity. A p-type semiconductor is a material that conducts with positive holes being the majority charge carriers; hence, the opposite effects are observed with the material and showing an increase in conductivity in the presence of an oxidising gas (where the gas has increased the number of positive holes). A resistance increase with a reducing gas is observed, where the negative charge introduced in to the material reduces the positive (hole) charge carrier concentration. A summary of the response is provided in Table 1.

1.2. A Model for Gas Interaction

1.2.1. A p-Type Sensor Response

A simple model for the response of a p-type sensor is demonstrated by Equations 1 and 2; showing the adsorption of an oxygen atom to the surface of the material, causing ionisation of the atom and yielding a positive hole (p+), demonstrated by (1). The positive hole and the ion can then react with a reducing gas such as carbon monoxide, forming carbon dioxide (k2) or be removed through interaction with each other (k–1) [12] (2) The difference in charge carrier concentration (in this case the positive hole) is manifest in a resistance change between the sensor’s electrodes and read by the measurement circuitry:
1 / 2   O 2 k 1 k 1 O + p +
p + + O + CO k 2 CO 2

1.2.2. The Equivalent Circuit Model

The response model, as described by Naisbitt [13] et al., which includes the influence of sensor microstructure is a refinement of the conventional response model that is found to apply of over a limited range of examples only, and assumes that the absorbed species on the surface of the metal oxide is the O2− species; a species that is unlikely to be included as it is energetically unfavourable (Equation 3). Describes a relationship where the change in resistance is proportional to the concentration of the gas (in this example carbon monoxide, CO) and a sensitivity parameter A (the sensitivity parameter is constant for a given material at a given temperature) where R is the resistance after exposure to analyte gas and R0 the baseline resistance (Equation 4):
1 / 2   O 2 k 4 k 4 O 2 + 2 P +
R / R 0 = 1 + A [ CO ]
Instead, Naisbitt et al. propose that Equation (1) is more likely, but to account for non-linear responses, there must be other factors influencing the response. First, the assumption is made that the only parts of the material that exhibit a response to the target gas, are the areas where the gas can reside and interact at the surface.

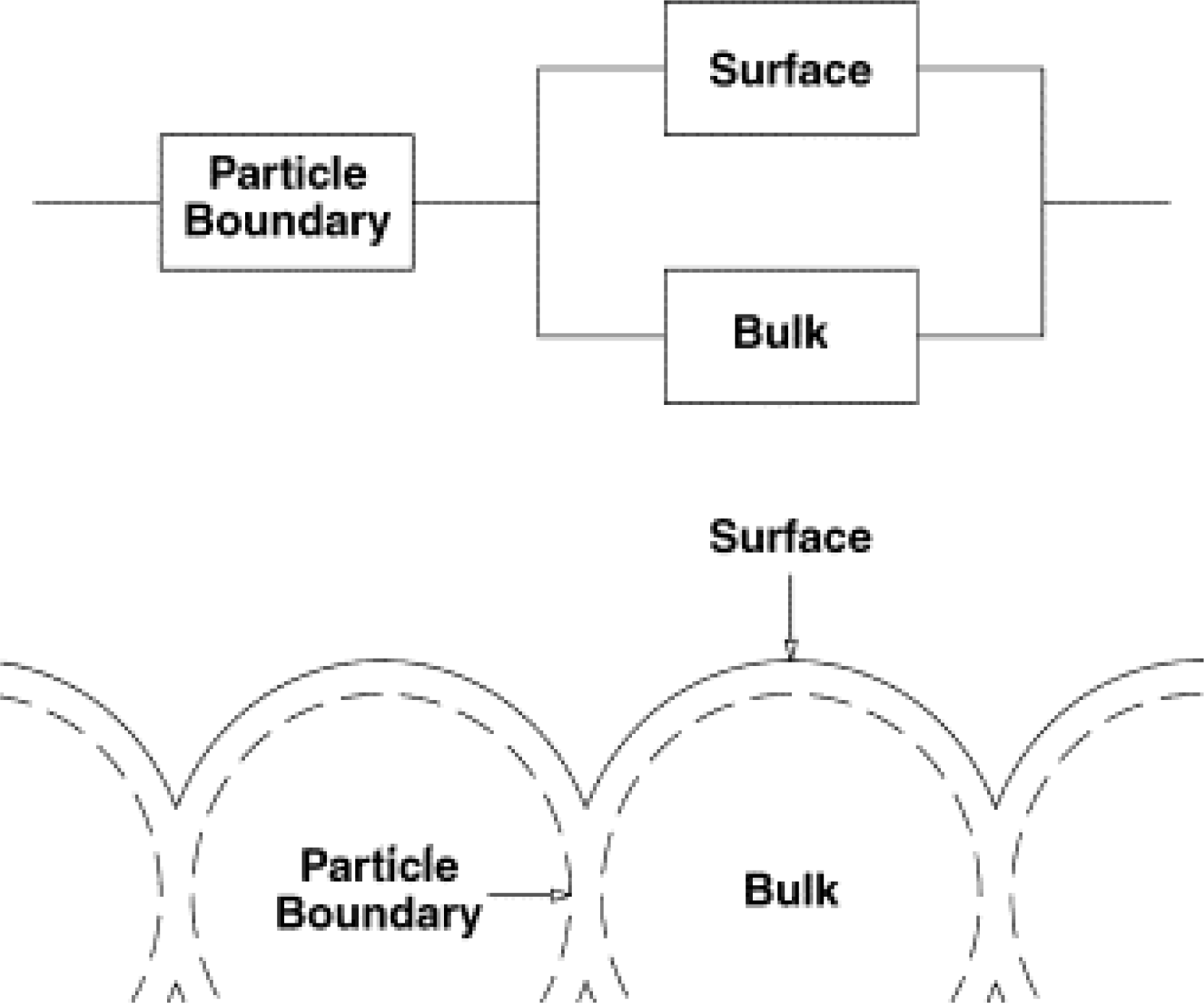

Thus, the material is split into three regions (Figure 2): (i) the surface, (ii) the bulk (inaccessible to the target gas), and (iii) the neck or particle boundary (below this boundary, the material is no longer defined as a surface). The distance between the surface and the particle boundary is called the Debye length; the distance at which charge separation can occur. The Equation for the response in this model is found to be Equation (5):
G T = γ PB ( 1 + A [ CO ] ) + 1 / [ ( 1 / γ B ) + ( 1 / γ S ( 1 + A [ CO ] )
where GT is the response (GT= RT/RT,0), RT is the total sensor resistance RT,0 is the baseline resistance in clean, dry air and each γx = Rx,0/RT,0 gives (x denotes particle boundary, PB; bulk, B; or surface, S. So, γ is the ratio of the baseline of x to the total baseline of sensor resistance [7].

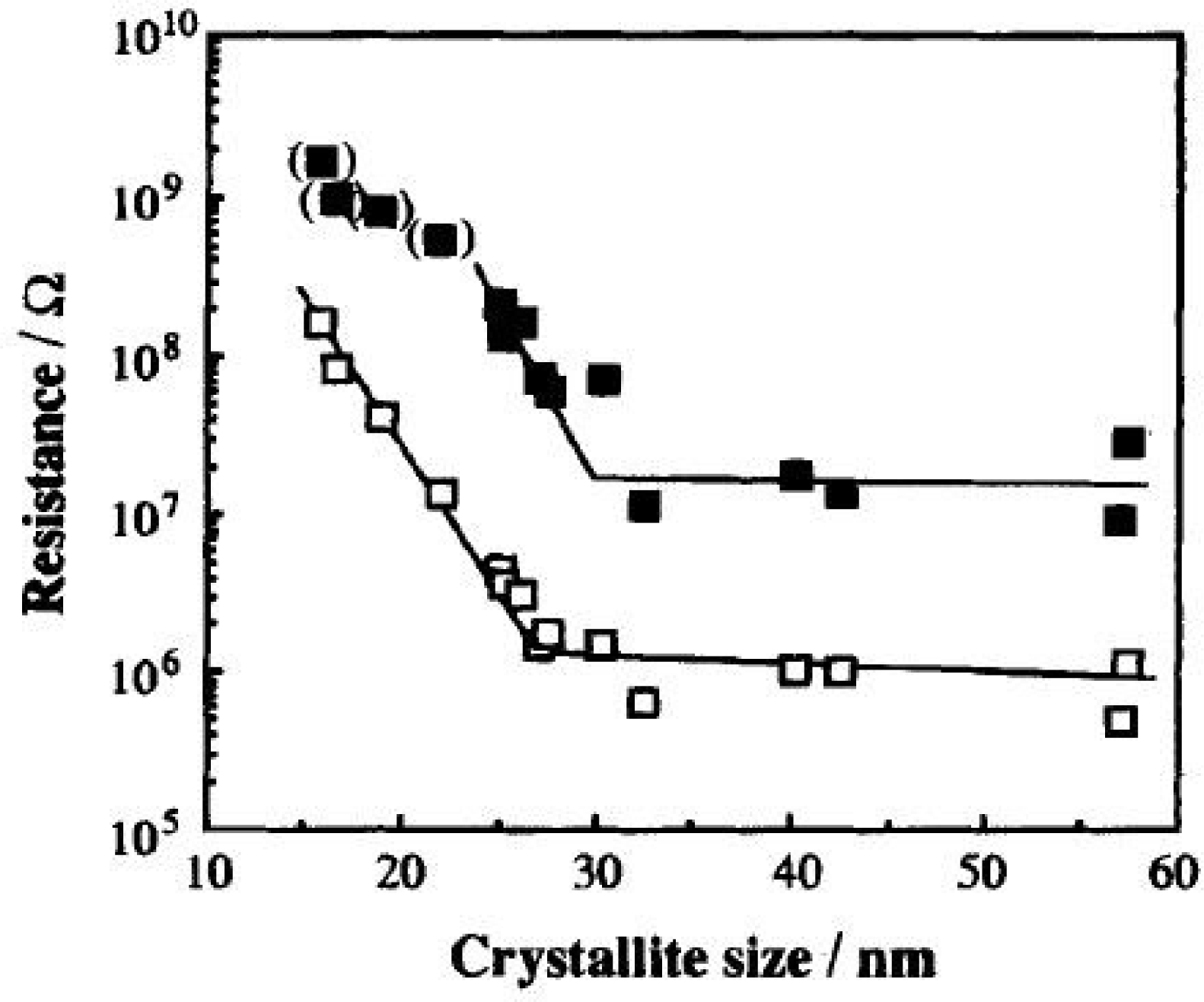

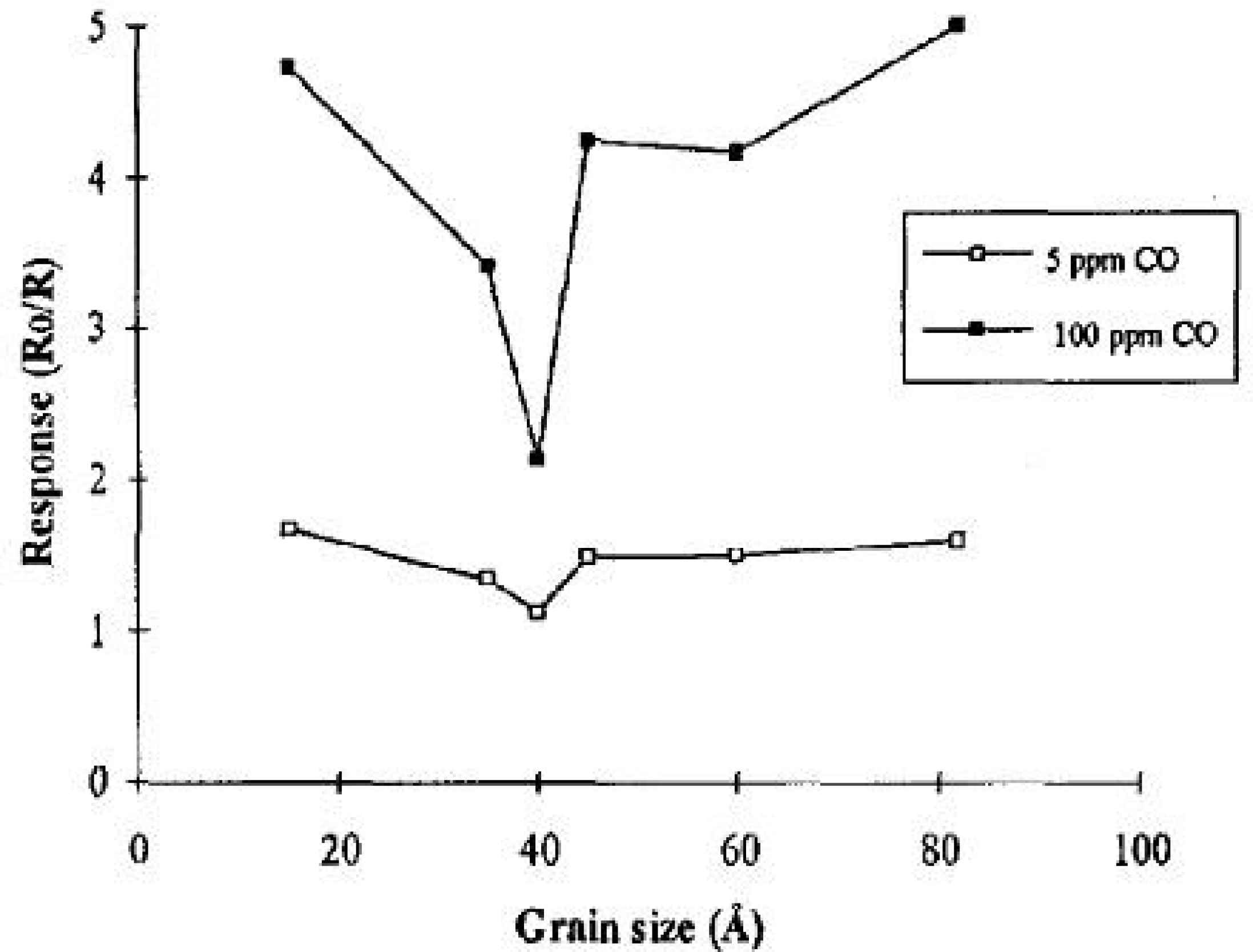

This work shows that the response time is directly related to the grain size and the size of the particle boundary in the material. The response model is different for n-type and p-type semiconductors. In forming the baseline resistance, oxygen is adsorbed on to the surface and abstracts electrons from the material; hence, this process will determine R0. The resistivity of the p-type decreases relative to the bulk, and will increase for the n-type. The relative contributions from the three resistors in the model then differ. For very small grain sizes, the grain can be considered to contain no bulk area at all (so the whole grain is considered to contribute to the surface area) in this instance, the simpler model and Equation (4) is an adequate model for the response. If one considers the other extreme, where the grains are so large the contribution to the resistance or conductivity is negligible, the surface can be deemed to have a constant resistance. This model is expected to be generally applicable to both p and n-type sensors.

1.3. Sensor Response Disruption

The presence of other gases in the sensor headspace is important. The measurement of conductivity should ideally be only for the target analyte. If a contribution to the charge carrier concentration (whether this be an increase or decrease) comes from another gas, the sensor reading will be inaccurate, providing a false measurement. Some of the important disrupting gases are listed below.

1.3.1. Ozone

Oliver et al. showed that when the concentration of oxygen vacancies is high, the concentration of electrons is high on the surface [14] (5). This would elevate conductivity (for n-type material), but upon the introduction of ozone on the surface it is reduced, filling the vacancies (considered as negative holes) and lowering the conductivity (6). (Equations 6 and 7 in Kröger-Vink notation) [6].
W w W w x + e
O 3 + 2 W w + V o ¨ 2 W w + O o x + O 2
If ozone is present in significant concentrations, the response of the material will be altered, leading to misleading figures as to the presence or concentration of the target gas.

1.3.2. Water

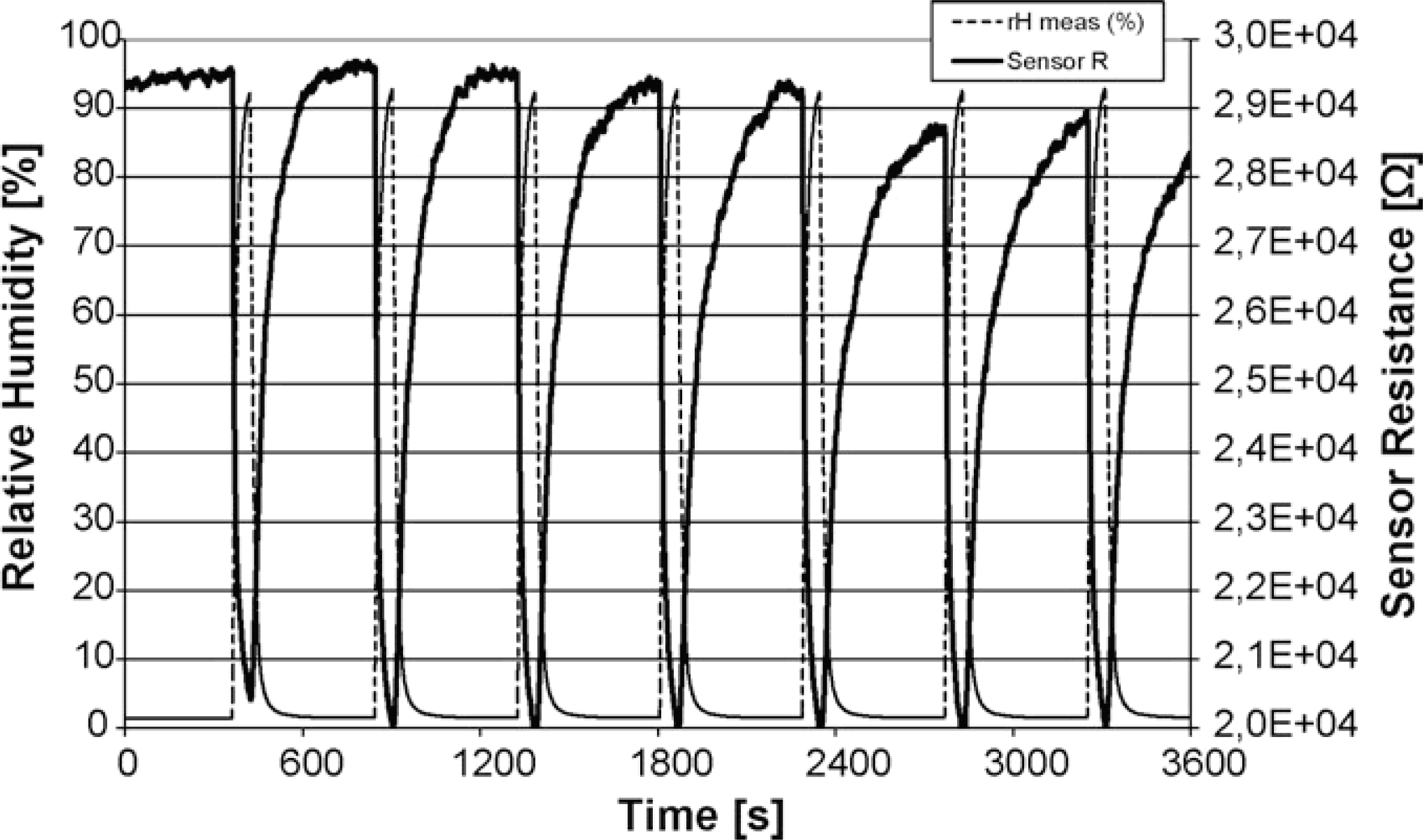

Water is thought to interact with the metal oxide, altering the conductivity of the film [15]. Water molecules form hydroxyl (OH) ions on the surface, directly introducing electrons that increase the conductivity of an n-type sensor (having little affect on a p-type sensor). The remaining hydrogen atoms react with the surface oxygen atoms, forming negative holes and increasing conductivity. Work by Korotcenkov et al. [16] investigated the effect of humidity on the response of a SnO2 film, with the film demonstrating a decreased response time and larger responses in the presence of water. The authors suggest that the effect of water should be taken in to account when detecting reducing gases.

1.3.3. Volatile Organic Compounds

Research has demonstrated the indiscriminate response of SnO2 films to varying hydrocarbons. Wang et al. [17] demonstrated that a metal oxide semiconductor sensor responds to methyl, ethyl, isopropyl and butyl alcohol. Indium tin oxide has been shown to respond to methanol, ethanol, butanol, and acetone by Vaishanv et al. [18]. Selectivity and control of sensor response is a major challenge in gas sensing using metal oxide semiconductor devices; trace levels of volatile organic compounds are present in virtually all environments.

1.4. Factors Influencing Sensor Design

Many factors must be addressed when designing a new metal oxide semiconductor gas sensor; such as the material’s sensitivity and specificity to the gas in question or if the sensitivity of the material is appropriate for the application. The same gas sensor may not be appropriate in two different environments: a carbon dioxide sensor for the inside of a car exhaust should be designed for high concentrations, whereas one car cabin air quality should be far more sensitive to carbon dioxide at lower concentrations. The sensor would not be accurate enough to register concentration changes of 10 ppm if its sensitive range is 1,000–10,000 ppm. The surrounding pollutant gases will also affect the sensor gas response. As mentioned above (Section 1.3), certain gases will change the charge carrier concentration despite them not being the target analyte. A sensor in a photocopying room for example, might show unexpected results because the concentration of ozone is elevated; the ozone gas may interact with the film, nullifying or increasing a response. In this case, selecting a material that does not respond to ozone, altering the surface of the film or employing a suitable external filter to inhibit ozone interacting with the surface is necessary.

1.5. Techniques for Sensor Fabrication

Many fabrication methods have been used in the production of metal oxide semiconductor sensors. Factors that must be considered when selecting the production technique include; expense (if the films are expensive, the demand will be low and will have only limited applications), purity, porosity (if the material is highly porous, the surface area available to the gas for interaction will be far higher, giving a higher sensitivity), reliability and reproducibility [1]. Common techniques for making the metal oxide films for gas sensors are mainly chemical vapour deposition (CVD), screen-printing of ceramic powders, sol-gel techniques and physical vapour deposition (PVD).

1.5.1. Screen Printing

Screen-printing is widely used in industry and the most widely used method for producing metal oxide semiconductor gas sensors commercially [8,18]. Screen-printing involves pushing an ink through a porous layer or mesh, which is suitably masked to produce the required layout on the substrate. The ink essentially contains the material to be deposited, dispersed in a viscous vehicle and is printed on of the substrate. Once the ink is has been deposited, the print can be heated to remove the vehicle, leaving a solid material on the specific target area. Figure 3 indicates the general form of commercial metal oxide semiconductor gas sensors.

1.5.2. Chemical Vapour Deposition (CVD)

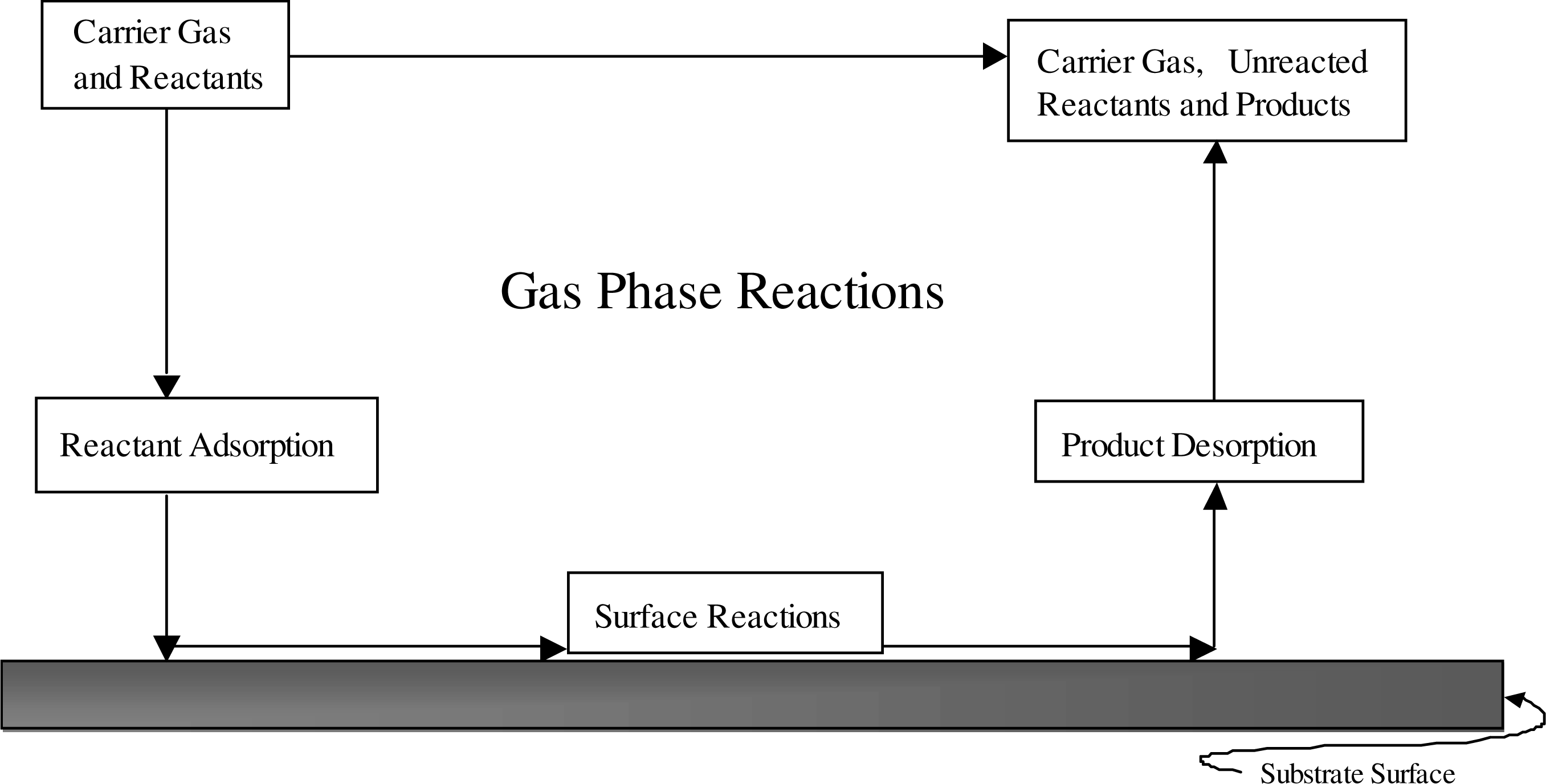

In CVD [19], a heated substrate is exposed to a precursor or controlled mixture of precursors in the vapour phase. The vapour(s) then react or decompose on the heated substrate forming a film of the desired material (Figure 4). Examples of different CVD techniques include atmospheric pressure CVD (APCVD), aerosol assisted CVD (AACVD); where non-volatile precursors have to be made in to an aerosol before deposition [20,21], or rapid thermal CVD where the substrate is heated, not the surroundings, avoiding unwanted reactions when the precursors are in the air. CVD gives control over important aspects of gas sensing materials; properties such as porosity, grain size and thickness can all be well controlled using CVD [3]. The speed of film growth is an advantage of the technique, with a rate of up to 1 μm a minute for processes that occur at atmospheric pressure. The problem of reactions in the gas phase in CVD can be addressed by reducing precursor concentration, though in doing so, the film growth rate is also reduced. Suitable precursors can also be an issue in CVD. Precursors must be volatile enough in order to allow successful delivery to the heated substrate, but gas phase reaction and decomposition must be minimal, while having a structure that is thermodynamically able to decompose on the substrate giving the desired product is an area of significant research in producing any viable film.
APCVD has been used to deposit films of tungsten oxide for use as gas sensors by Binions et al. [23]. The gas sensors were shown to give a good response in the presence of ethanol. Williams et al. [24,25] have used CVD methodologies to produce films of WO3 and chromium titanium oxide. This work demonstrated that the desirable high porosity of the gas sensitive film is obtainable via CVD routes. The suitability for the material as a gas sensor was not tested, but the author suggested the properties might be suitable for gas sensing.
Blackman et al. [2628] have used AACVD to produce high surface area, nanostructured tungsten oxide films with various precursors, with their gas sensing properties investigated. Choy [29] observes that AACVD is a useful technique when forming oxides and the aerosol is readily surrounded by oxygen, for larger scale applications, it could be favoured as it is a relatively low-cost technique. The area of AACVD is promising, but in industry it is proving difficult to produce a repeatable and controlled aerosol. A solution has not been found to tackle this problem. While the advantageous capabilities that this process has in producing good films has been demonstrated in the lab, the process has yet to successfully adapted by industry.

1.5.3. Spray Pyrolysis

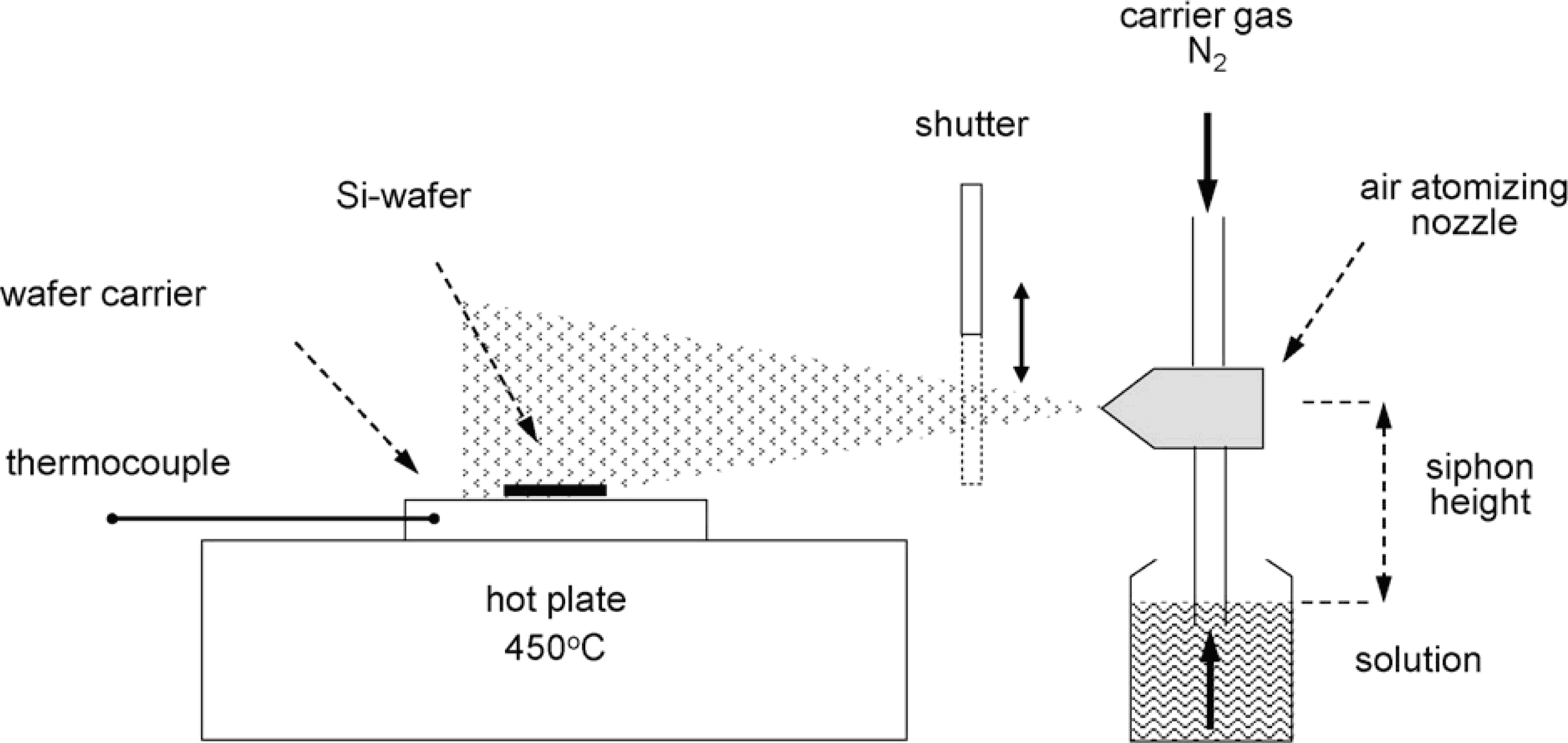

Spray pyrolysis (Figure 5) is a technique where the reactants for the film are sprayed on to the target substrate. The deposited droplets then react on the surface when the substrate is heated, forming the desired film [30].

1.5.4. Sol-Gel

Sol-gel has been utilised for making gas sensitive films [14,31,32]. A recent report by Khun et al. uses the sol-gel method to synthesise SnO2 particles, which then demonstrated a response in the presence of Ammonia. The sol-gel process involves the formation of a solution (sol)—a colloidal suspension of solid particles. The sol can then undergo gelation (gel—where cross linking between particles occurs), this can give new materials with other properties. In the case of ceramic film formation, the sol then undergoes evaporation, giving a highly porous xerogel film. Upon heating, the film then forms a dense ceramic glass on the surface.

1.5.5. Physical Vapour Deposition (PVD)

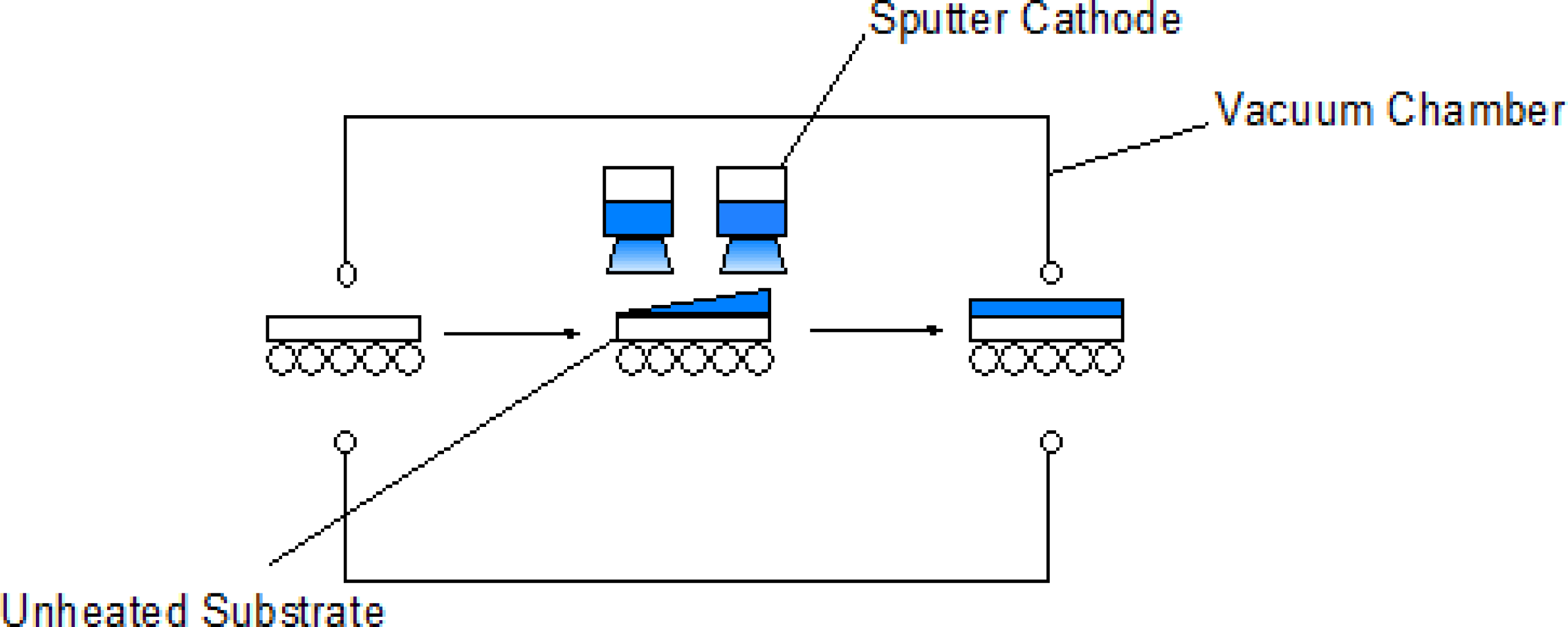

In PVD techniques (Figure 6) the material to be deposited is put into the gas phase by either evaporation through heating or by sputtering (bombardment of the material by ions) [33,34]. A reactive gas is introduced, where the gas atoms react with the metal vapour, forming a compound, which is then deposited on the substrate, giving a process where there is control over the overall property of the coating. The resultant film is well bound to the substrate. Michel et al. used magnetron sputtering to produce SnO2 films [35]. The films were shown to have a level of conductivity, and upon exposure to hydrogen, the conductivity was shown to increase. Gupta et al. [36] produced a film of tin oxide by magnetron sputtering that demonstrated sensitivity to liquid petroleum gas. PVD is performed under vacuum; on large scale this can be an expensive technique. Growth rates, around 10 nm an hour makes this technique less suitable for high throughput for industrial applications.

1.5.6. Drop Coating

Drop coating is a process by where a paste is made of the desired metal oxide powder and a suitable solvent; the paste is then deposited onto a substrate surface (in this case a gas sensor substrate) usually by controlled injection using a pipette. The deposited layer is subsequently fired to remove the solvent and attempt to improve adherence to the substrate [37]. The composition of the paste and nature of the dropping has a large influence on the film microstructure and subsequent sensor performance [38].

1.5.7. Comparison of Synthetic Techniques

The advantages and disadvantages of each synthetic technique for the production of metal oxide semiconductor gas sensors will be discussed. Physical vapour deposition techniques require vacuum or reduced pressure conditions, which are time-consuming to achieve and maintain, and expensive evaporation/sputtering/ablation equipment, which increases production costs. Therefore, economic factors restrict the commercial applications of PVD. However, this does allow for the more efficient use of precursors and facilitates the production of ultra thin films, in comparison to CVD. PVD may operate at lower temperatures; hence, is compatible with a variety of substrates. Given that no chemical reaction takes place in PVD, as opposed to CVD, careful precursor selection is not a main concern. However, the purity of the target is required to deposit non-contaminated thin films. A variety of target can be incorporated into the system without difficulty, developing multilayer arrays.
Sol-gel methods are straightforward to operate, but the time required to establish the sol is important for obtaining the desired product, thus can be a slow multi-step process. Full coverage of the substrate with moderately even thickness can be achieved (which can be tricky to control over larger substrates), by using readily available precursors, although these are often expensive. Dopants may be easily introduced and the sol-gel process has low processing temperatures.
CVD is a non-line-of-sight process (unlike PVD) with high deposition rates at relatively low temperatures, thus depositing films with good conformal coverage and enables the synthesis of pure and uniform thin films, which generally exhibit good adhesion. CVD produces dense films which is a disadvantage for gas sensors as the contribution from the bulk resistance is substantially increased (Figure 2). However, a wide variety of growth morphologies are possible including nanowires and nanoparticles, which may lower this bulk contribution and increase surface area.
Binions et al. [39] compared CVD and screen-printing using gallium, antimony and tin oxides. It was found that sensors produced using CVD responded best to reducing gases at lower temperatures (450 °C), screen-printed films showed a larger response at higher temperatures (500 °C).
Drop coating has been shown to be a highly versatile process that is simple to perform that can widely influence sensor properties [38]; as such it finds use in some commercial devices. Screen-printing is also an industry standard technique. This is not surprising as it is found that the production of thick films leads to much more reliable sensor devices than thin film types [39]. Thin film devices are often more sensitive, although not necessarily more selective, but suffer from high baseline resistance due to a lower overall number of charge carriers whether in the bulk or on the surface of the material.

2. Carbon Monoxide Sensors

2.1. Reasons for Detecting Carbon Monoxide

Carbon monoxide (CO) is a colourless gas, with no odour, making it undetectable to humans. It is the leading cause of poisoning in the United States and may account for more than 50% of fatal poisonings reported in many industrial countries (Table 2) [4043]. The gas has been shown to bind irreversibly to the iron centre of haemoglobin, the oxygen transport molecule in blood. The irreversible binding means that oxygen can no longer be absorbed, and at high levels of exposure this results in death. The maximum time weighted average exposure value ascribed by the United States National Institute of Occupational Safety and Health is 35 ppm over an 8 h period [44]. The gas is mainly a product of poorly combusted organic material, such as petrol, oil or gas. Carbon monoxide is constantly in the public eye, largely because the home is such a susceptible place for carbon monoxide poisoning; usually from a faulty gas powered boilers that lead to annual deaths. Carbon monoxide concentrations are particularly high in areas of industry, where fossil fuels are combusted for energy purposes, and in cities where there are high levels of traffic. Existing sensors are used in homes as a warning system to the otherwise undetectable carbon monoxide. Sensors fall in to two main types; ‘blob’ sensors, and electrical sensors: ‘Blob’ sensors are essentially a patch of metal oxide salts that upon interaction with the monoxide reduce the salt, forming carbon dioxide. The salt turns black when it is reduced, the colour change being the feature alerting the observer. Though cheap, the alerting system requires the vigilance of the observer in order to recognise the change in concentration. Given that at high concentration carbon monoxide causes dizziness and confusion, the occupant may be in no condition to readily observe this change. Electronic carbon monoxide sensors come in two main types: thermistor type metal-oxide detectors; detecting a change in heat when carbon monoxide lands on the oxide and reacts, (the change in temperature raising the alarm), and an electrolytic detector that works by sensing the change in charge carriers in an electrolyte solution when carbon monoxide interacts with an electrode of the device.
Carbon monoxide gas sensors have a myriad of applications, not just for home safety, also in measuring atmospheric concentrations, in the exhaust of cars, and for process monitoring in industrial plants.

2.2. Advances in Carbon Monoxide Sensors

Sensors have been utilised by researchers to actively measure the varying concentration of CO in the environment. Wiegleb and Heitbaum [45] reported the use of metal oxide gas sensors as detectors for monitoring NO and CO gas concentrations in cars, studying the variation in concentration over an extended period. SnO2 was used to detect the change in concentration of CO and In2O to detect the concentration of NO. The sensor was used to measure the concentration of monoxide at varying stages of the journey; metal oxides were used due to their fast response to the change in concentration. These responses were compared with an infrared gas analyser (BINOS 1, Leybold-Heraeus GmbH) (Figure 7). The responses are comparable although the IR analyser has a greater dynamic range the MOS device had a greater response at low concentrations.
Barbi et al. [46] developed SnO2 based sensor that showed a response to the presence of CO gas from concentrations of 10 ppm and above. The ideal operating temperature was shown to be 250 °C, with the response (R0/R) showing 2.2 at 20 ppm, and 4.1 at 100 ppm, giving a steady increase with concentration.

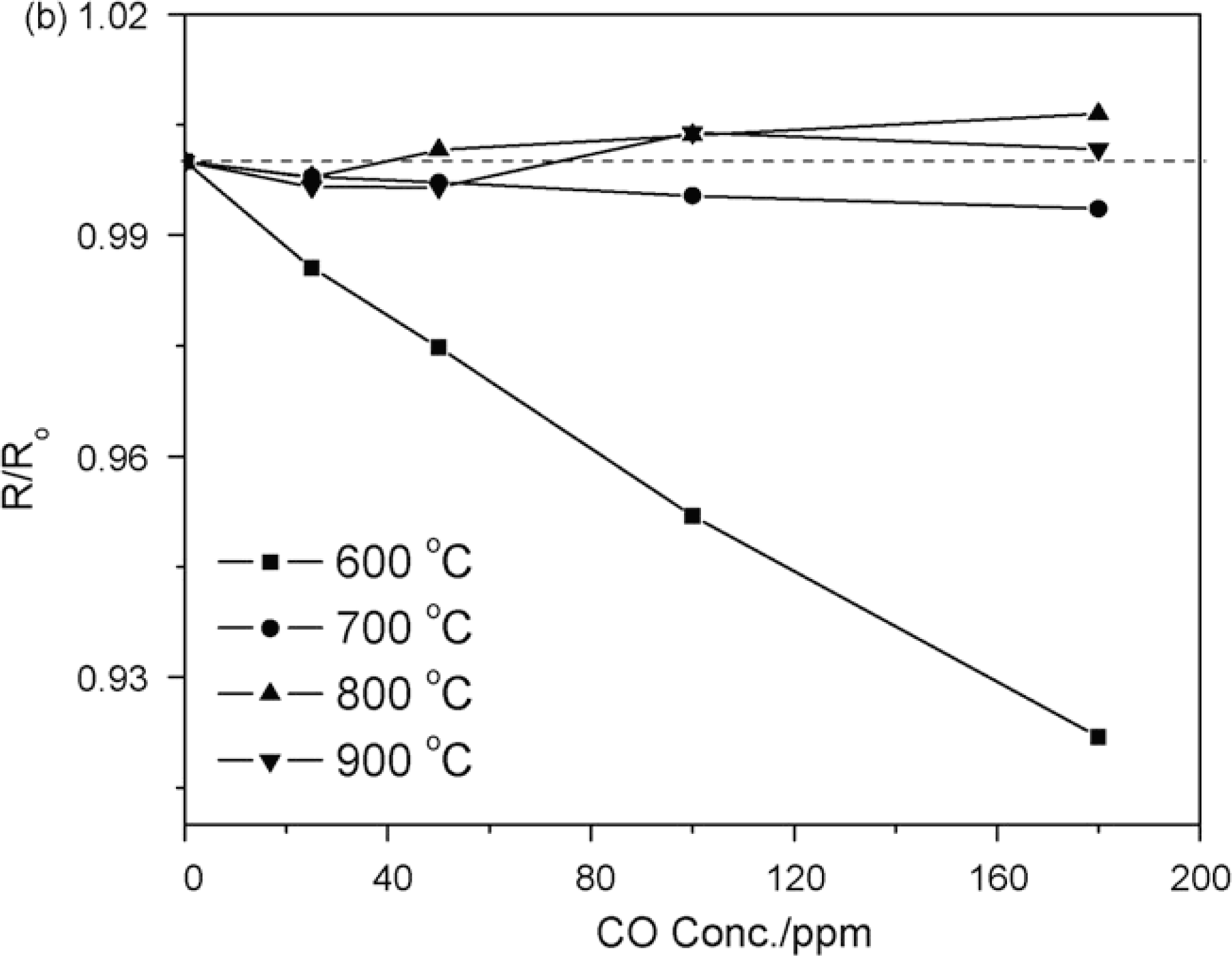

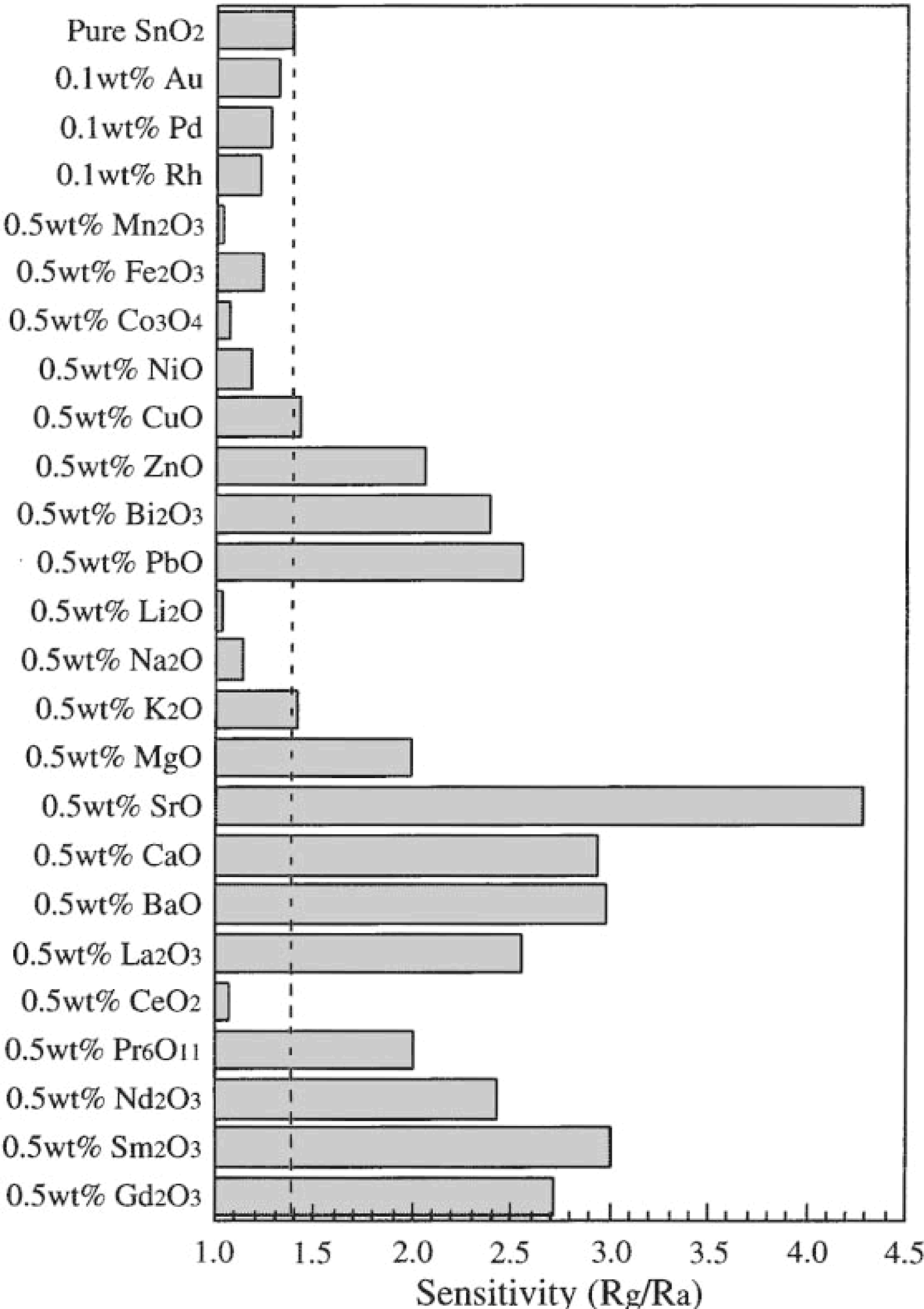

Doping the material with platinum gave a change in the structure, and in general the platinum decreased the sensitivity and a slower response time compared to the pure tin oxide material. The authors [30] also demonstrated the advantages of control over grain size (Figure 8). The largest responses to the gas were found at grain sizes of 20 angstroms, a result of the whole grain behaving like a surface and at 80 angstroms, attributed to areas between grains that retain charge in the structure as seen in the equivalent circuit model.
Riviere et al. [47] used screen printing to produce a tin oxide film, varying the composition of the precursor ink. The materials demonstrated a strong response to the presence of carbon monoxide, showing an increase of approximately 1 log Ohm−1 CO at 300 ppm, and a temperature of 500 °C, though it should be noted that the CO was only introduced after an hour in the presence of air, as the conductance had to be at an appropriate level.

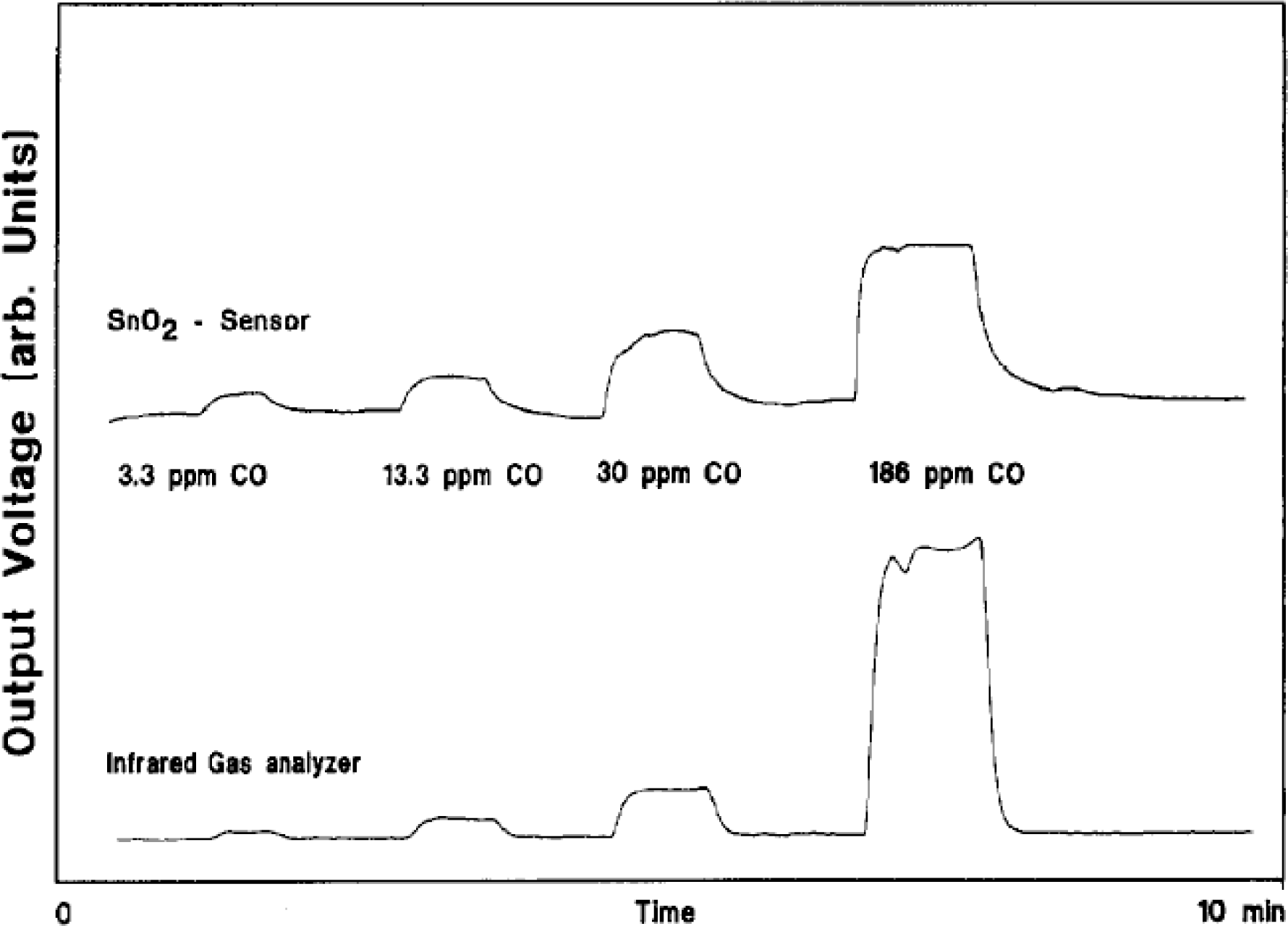

Tischner, in 2008 [30] announced the development of a SnO2 thin film (50–100 nm) deposited by a spray pyrolysis method. The films were found to operate best in the region of 250–400 °C, and sensed CO concentrations at concentrations of 5 ppm, concentrations expected in a normal home. When tested, the film showed a temperature dependence on the response: At 250 °C, the film showed good responses between 0–40 ppm, at 400 °C, the film increased its response range to between 0 and 100 ppm. The film was also found to be extremely sensitive to humidity (Figure 9), a problem for applications in the field, where variable humidity is expected. The authors suggest thinner films might be more sensitive, due to the grain boundary effects mentioned in the introduction (Figure 2).
Li et al. [48] compared different phases of titanium oxide (TiO2) films. Anatase TiO2 was found to show an n type response to the presence of CO. The rutile film exhibits n and p type responses depending on the temperature (Figure 10) at which the readings were taken, and the concentrations of both oxygen, and carbon monoxide. This demonstrates that the phase of the material produced when making a metal oxide semiconductor sensor is important, and must be taken in to account when choosing the deposition method and conditions.
Izu et al. [49] studied the response of cerium oxide films after they had been sintered at varying temperatures (between 800 and 1,030 °C). The film formed after sintering at 950 °C showed the best response to the presence of CO at a temperature of 450 °C, and a concentration of CO at 5,000 ppm. Other cerium oxide films have also been developed using electron beam evaporation, and then annealing at 500 °C (Durrani et al. [50]). The optimum operating temperature of the films was found to be 390 °C, with the best response showing when CO was at a concentration of 500 ppm. The response times were slow with this material however, taking 45 s to respond to the CO, and 25 s for the film to recover in the absence of the target gas.

2.3. Outlook for MOS Carbon Monoxide Sensors

As things currently stand the best metal oxide semiconductor material for the detection of carbon monoxide is SnO2. Others, such as CeO2 and TiO2, have been investigated but are yet to match the performance of SnO2 systems having poor responses at low CO concentrations. Such sensors have been demonstrated to have higher responses to carbon monoxide at low concentrations than an infrared gas analyser [51] and as a result show great promise for cheaper air quality measurement. The use of operating temperatures around 250 °C helps to lower power requirements, although it is still desirable to minimise these further, as this remains the single largest stumbling block to the use of MOS technology. The use of small particles sizes, around 2 nm, has been shown to increase gas response, although material processing in device fabrication has yet to be optimised in this instance. The investigation of nanomaterials provides a potential way forward for future research into lowering device power consumption and increasing gas response.

3. Carbon Dioxide Sensors

3.1. Reasons for Detecting Carbon Dioxide

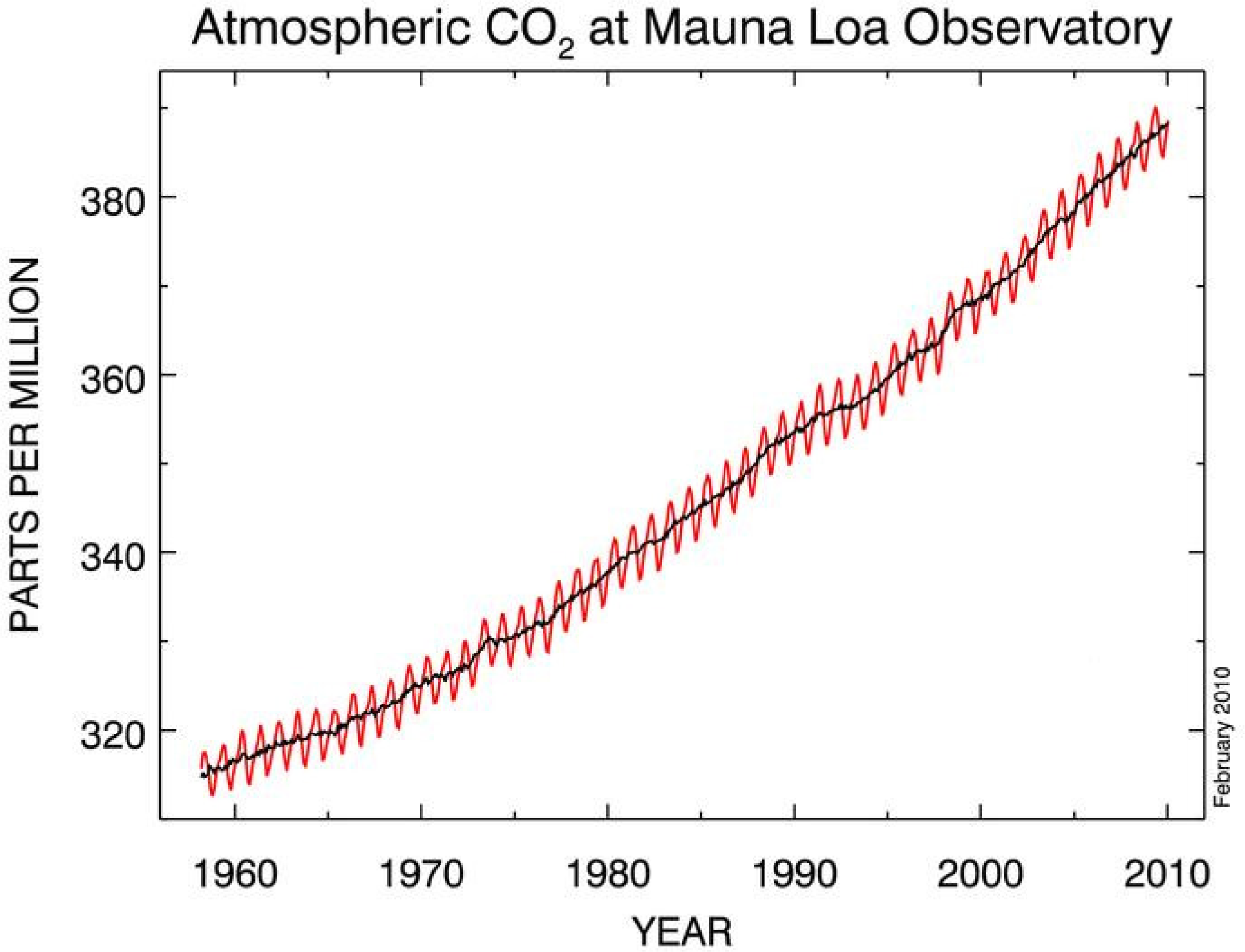

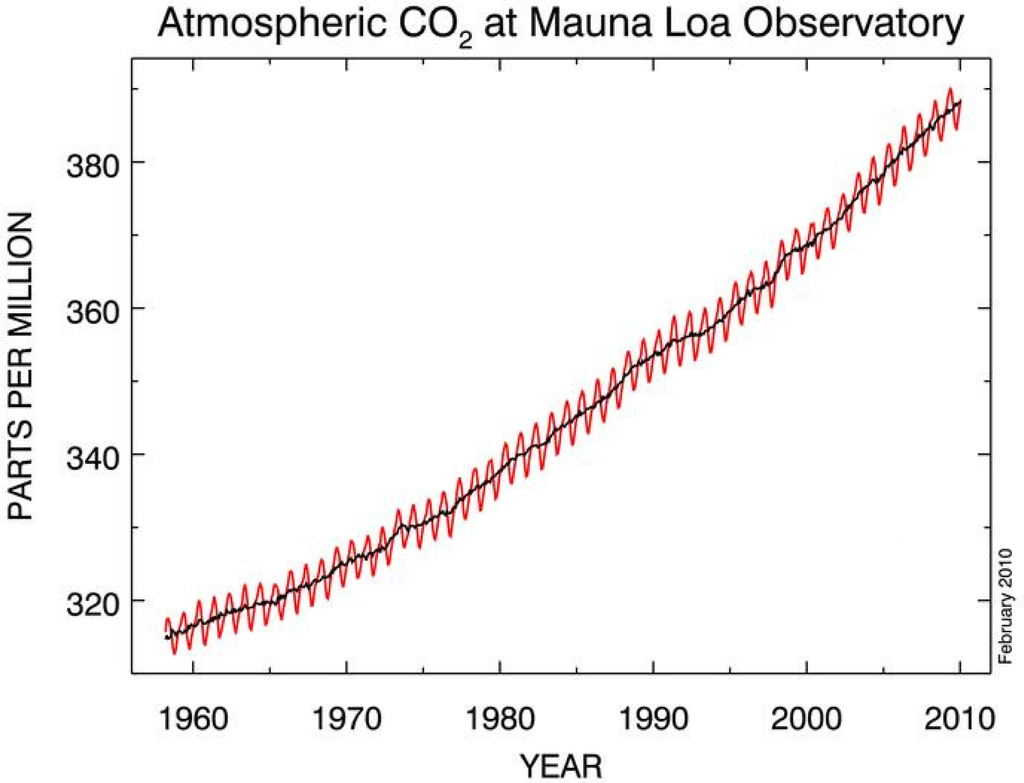

Carbon dioxide is present in air at concentrations (as of January 2010) of 388 ppm in the Earth’s atmosphere [52]. Carbon dioxide has many uses: carbonating drinks, pneumatic applications, fire extinguishers, photosynthesis; it is an essential ingredient for the process to take place, lasers and refrigerants are just some examples where carbon dioxide has found a use, by nature and by humans.
Carbon dioxide is also a greenhouse gas. In the atmosphere, it absorbs infra-red energy, and vibrates, a process which then passes heat to its surroundings, increasing the ambient temperature. If the concentration of carbon dioxide increases in the atmosphere, the temperature increases too. Thus, accurate, reliable sensors with an appropriate temperature range could be used to measure the change in concentration. The recent increase in the concentration of carbon dioxide through human activity (the combustion of hydrocarbons and other carbon containing fuels such as coal, methane, petrol and kerosene with an appropriate amount of oxygen yields carbon dioxide and water) is leading to concern about whether humans are causing global warming. Sensors can measure the output of CO2 during combustion, thus giving important real-time information as to the amount of carbon dioxide being produced by the activity. Atmospheric carbon dioxide concentrations have risen steadily since 1958, and are expected to carry on rising as long as man satisfies its thirst for combusting fossil fuels (Figure 11).
Carbon dioxide can cause substantial negative health affects to humans (Table 3) including drowsiness and at high enough concentrations suffocation.
The maximum time averaged exposure recommended by the United States Occupational Safety and Health Administration is 5,000 ppm over eight hours [53]. As such it is highly desirable to be able to measure carbon dioxide in order to control indoor air quality.

3.2. Advances in Carbon Dioxide Sensors

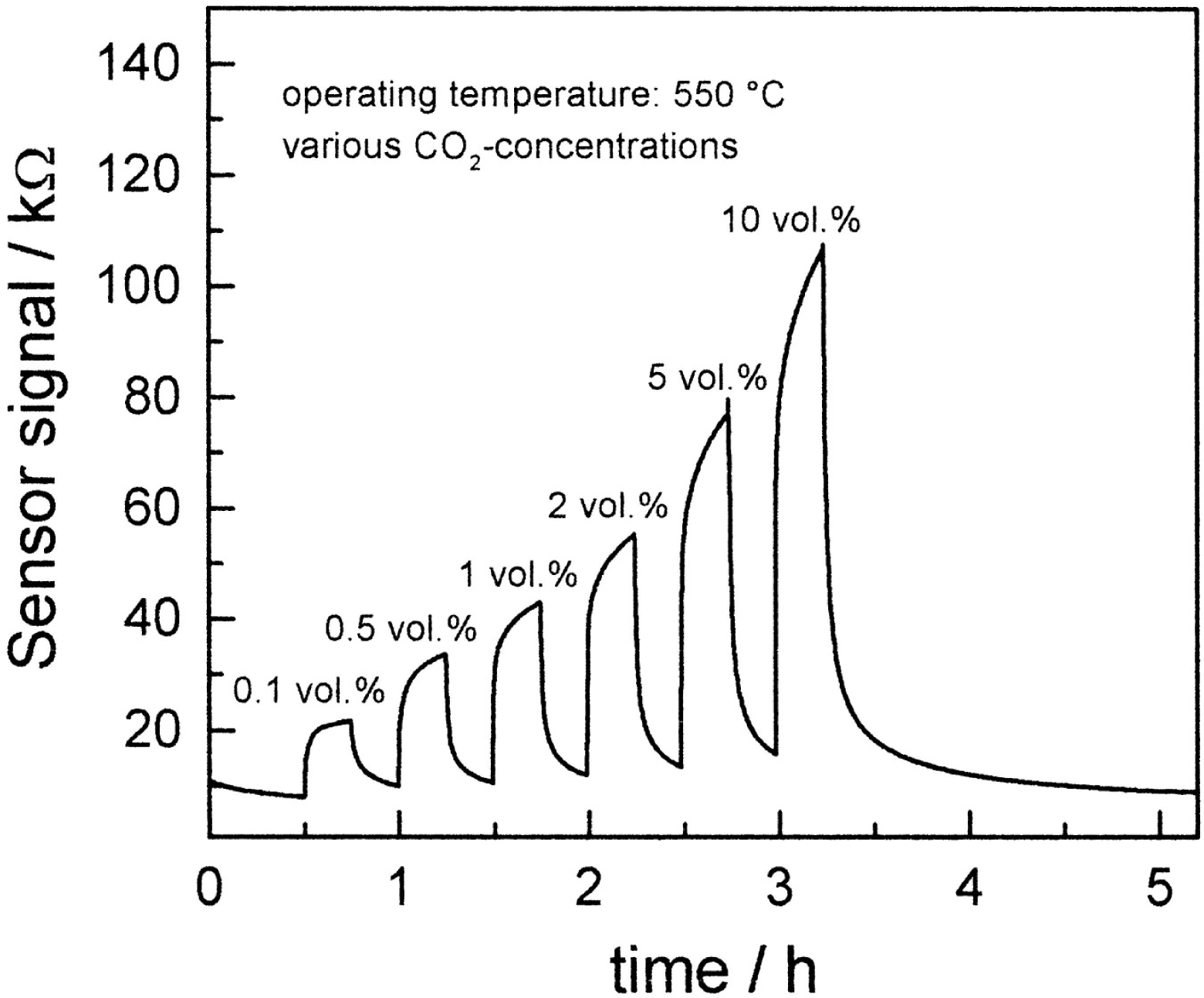

Patel et al. [55] fabricated a indium tin oxide (ITO) sensor demonstrating a sensitivity to carbon dioxide. The 150 nm films were made by thermal evaporation of precursors containing tin and indium. The material was annealed in humid air, at 700 K for 1 h. The response to carbon dioxide was tested while varying the temperature. The responsivity was proportional to the working temperature and the concentration of the target gas. Concentrations of carbon dioxide tested were 200 ppm, 500 ppm and 1,000 ppm, with the ideal working temperature found to be at 573 K.
Hoefer et al. [56] reported the development of a sensor film based on SnO2. The sensor showed a marked response at a concentration range of 1,000–10,000 ppm range at 270 °C. The sensor material starts showing significant responses above CO2 concentrations of 5,000 ppm: between 2,000 and 5,000 ppm the material is most responsive. Between 5,000 and 10,000 ppm there is only a small change in response (1–2 ohms); and likewise between 1,000–2,000 ppm the sensors show a similar change. The sensor is responsive across a large range of CO2 concentrations (Figure 12), but can only effectively differentiate between large concentrations (thousands of parts per million), and as such has only limited application.
Kim et al. [57] studied the precursor LaCl3·7H2O by heating the material at a range of temperatures (400–1,200 °C), creating different compositions. Kim found that the material adopted a composition of LaOCl when heated to 400 °C, at 800 °C the La2O3 composition was created. The material was heated in this range, and thus deposited on top of a SnO2 thick film. The sensitivity of the film was investigated, against the temperature at which the film was treated. Heat treatment at 400 °C yielded little or no response to the target gas, but at 800 °C there was a large change in the response, with a value of 1.3, heating at 1,000 °C was found to give the film with the highest sensitivity to carbon dioxide (a response value of 1.37). The responsivity showed a linear trend between responses (R/R0) at concentrations of 0–2,500 ppm (Figure 13). The sensor developed demonstrates the response properties of LaOCl, though investigations as to responses to other gases have not been made. It was found that the sensor film needed to be heated to 1,000 °C in order to be effective; such high temperatures may not be compatible with some sensor substrates.
Lee et al. [58] produced microcrystalline films with thicknesses of 2–5 μm made from doped BaTiO3 that showed extremely good sensitivity to the presence of CO2. A paste was screen printed on to a sensor surface, dried at 80 °C, then heated at 750 °C for 23 minutes. After testing a range of doped materials in air with 1% CO2 content, the most sensitive material was found to be BaTiO3-LaCl3 (10% wt). The sensors signal was found to increase with CO2 concentration at 550 °C (20 kΩ for 0.1% vol, 32 kΩ for 0.2% vol to 110 kΩ for 10% vol). Along with the sensitivity to concentration, the sensor demonstrated a rapid response to the presence of the target gas at 550 °C (Figure 14).
Marsal et al. [59] demonstrated the response of La (under varying amounts) doped tin oxide (SnO2) films after they were annealed at 450 °C under N2 for 25 min. The un-doped tin oxide showed a good response to carbon dioxide at 100 °C, other doped materials showed better responses, but at higher operating temperatures (400 °C). The largest response of the doped materials was the tin doped with BaTiO3-CuO-La2O3, which responded at 550 °C. The percentage of lanthanum in the films was found to be critical in optimising the gas response (Figure 15).
Marsal et al. [60] also reported a sensor based on LaOCl that showed an ability to detect CO2. screen-printing produced a film that showed a response of 3.4 to 2,000 ppm CO2. The sensor gave this optimum response at a temperature of 260 °C. The authors also tested the response to CO, this screen printed sensor was far more responsive to CO2 than CO (a response difference of around 2.5–3). The authors conclude by saying the sensitivity of the material and the lower operating temperatures needed for the material to function make the LaOCl material the best yet produced for detecting CO2.

3.3. Outlook for MOS Carbon Dioxide Sensors

A number of different metal oxide semiconductor materials have been investigated for the detection of carbon dioxide including ITO, SnO2, BaTiO3 and LaOCl. Of these LaOCl has the best performance. CO2 detection is problematic because the standard theory of surface interaction affecting the band structure and charge carrier concentration of the material appears to be insufficient as a guide to improving the gas response. As such the working range reported in the literature typically covers the range 2,000–10,000 ppm. Developing the ability to reliably measure concentrations in the 500–2,000 ppm is the biggest challenge facing MOS sensors for carbon dioxide detection at the current time. Given that traditional approaches such as doping seem to be ineffective in improving sensor performance; new materials need to be developed in order to meet this challenge and more work understanding the sensing mechanism for CO2 needs to be conducted to aid materials discovery. The development of LaOCl goes someway to meeting this challenge but ultimately there is still a long way to go.

4. Nitrogen Oxide (NOx) Sensors

4.1. Reasons for Detecting Nitrous Oxides

NOx are a varied group of gases, the simplest form being nitric oxide; NO, then nitrogen dioxide; NO2, nitrous oxide; N2O, dinitrogen trioxide; N2O3, dinitrogen tetroxide; N2O4 and dinitrogen pentoxide; N2O5. The gases are principally formed from the combustion of fossil fuels in internal combustion engines, where the energy of the combustion reaction helps combine nitrogen gas (N2) and oxygen gas (O2). Nitric oxide is a known component of photochemical smog, combining with hydrocarbons and oxygen to form a thick cloud over heavily industrialised areas. Photochemical smog, apart from the haze it produces, is irritating to the eyes, and also damages plant life in the affected areas. The monitoring of the concentrations of NO in the air can be particularly useful, as environmental agencies can use it to predict how likely smog is to form, thus being able to alert the public at times of significant risk.
Nitrogen dioxide is toxic upon inhalation, but unlike carbon monoxide, it is easily detected by smell, one complicating factor of this is that exposure to the gas at 4 ppm anaesthetises the nose creating the possibility that increased concentrations in an environment may go unnoticed, causing potential health risks. The main risks of nitrogen dioxide appear to be their effect on the lungs. People with bronchitis or asthma are particularly sensitive to the gas, and lungs may become inflamed, leading to breathing difficulties. Animal subjects subjected to long-term exposure of NO2 were found to have damaged lungs [61,62]. Studies have linked the concentration of NO2 and SO2 to the exacerbation of conditions such as chronic bronchitis and emphysema [63]. The monitoring of the gas in environments where NO2 is at particularly high risk concentrations is desirable as one would like to reduce the risks to human health as much as possible.

4.2. Advances in Nitrous Oxide sensors

Akiyama et al. [64] produced a sintered film of WO3 which was found to be very sensitive to both NO and NO2 gases. The authors found that the film was most responsive to the presence of 200 ppm NO gas at 200 °C. When sensing NO2 gas, the sensor showed a large response at 300 °C, with the sensor dropping its response back down to pre-gas introduction levels at a very fast rate. When testing the material in the presence of other gases such as CO, hydrogen and methane, the sensor showed an extremely low response, showing that these sensors were able to discriminate between gases.
Tamaki et al. [65] observed the effects of grain size of WO3 on the response of a WO3 sensor. The crystallite sizes ranged between 16 and 57 nm. In varying the size of the grains the response of the material to the target gases varied (Figure 16). The grains were most sensitive to both NO and NO2 at sizes of 25 nm, the sensitivity increasing with concentration of the target gas.
Cantalini et al. [66] produced films of WO3 of 150 nm thickness. The films were deposited, and then annealed at temperatures of 400, 500 and 600 °C for 1 h. The largest responses to NO2 gas were found at working temperatures of 200 °C using the film annealed at 500 °C. Varying the concentration of the NO2 gas at 350 °C demonstrated sensitivity to concentrations between 0.2 and 5.0 ppm. When testing the responses of the materials in the presence of other gases, the presence of CO and methane showed no change in response, however, the presence of ethanol and water vapour did alter the response. The effect of annealing temperatures is shown to have an effect on the properties of the film, and matching these temperatures to the requirements of the film is an important consideration.
Chung et al. [67] made thick-film sensors made of WO3 using a screen printing method, the paste having been formed from ball milling WO3 powder with ethanol for a day. The sensors were dried and fired for 1 h under 600, 700 and 800 °C, achieving films of about 30 μm. Films performing under the operating temperature of 100 °C, having been fired at 700 °C showed fast response times, good sensitivity and good recovery times. At 800 °C, the resistance of the film increases, interaction with the target gas no longer has an effect on the conductivity of the film; this can be attributed to a change of phase in the material due to the increase in deposition temperature (Figure 17). Heat treatment in 40–50 % oxygen atmospheres gave the highest sensitivity, control of oxygen content in the film was important in sensitivity control for WO3. The low operating temperatures and high sensitivity of the material produced in this paper supports screen-printing as an effective deposition method for WO3 film formation.
Lee et al. [68] investigated the effects of adding TiO2 in to a WO3 film. Three films were investigated: the un-doped WO3 film, a film of WO3 doped with 4% TiO2; denoted as TW and a film of (WTi)O3; denoted as NTW. The responses of the material to the presence of NO2 varied according to film type. NTW showed the largest sensitivity to NO2, exhibiting a response at 175 °C, with the sensitivity peaking at 225 °C. TW showed a lower sensitivity at all temperature ranges, peaking at 270 °C. The un-doped WO3 film exhibited very low sensitivity comparatively, and showed little temperature dependence. The sensor could be used to monitor NO2 gas levels in exhausts at ppm concentrations.
Comini et al. [69] showed a film formed by magnetron sputtering of tin oxide to be sensitive to nitrogen dioxide. The deposition occurred on a silicon wafer, in an inert argon atmosphere, at low pressures (0.007 mbar), the films had a high porosity. The films were annealed, but the temperature is not reported. Upon the introduction of NO2, the sensor showed a significant decrease in current in response to the gas. The responses are obvious at just 1ppm and are large at 5 ppm and 10 ppm. The investigations in to the response were carried out at 300 °C. The film does show a response time of 2–6 mins, a relatively slow response time for metal oxide semiconductor gas sensing film.
Kanazawa et al. [70] used a large range of metal oxide semiconductor sensors to investigate the detection of N2O for medical purposes (Figure 18). The authors first tested the varying pure oxides on their own, most oxides showing little or no response. The best responses were found with SnO2, WO3, and ZnO all at a temperature of 450 °C. The authors then doped SnO2, the best material with varying metal oxides, and found that the material doped with 0.5 (by mass) SrO gave a material with an increased response of 4.25, compared to the original 1.66 (both calculated.using R/R0).
Shieh et al. [71] produced WTiO and WO3 films using sol-gel dip coating. The sensing films were on an alumina substrate, after four coatings, the samples were calcined at 400 °C for 1 h. The sensitivities of the two films were compared. WO3 at 10 ppm NO2, with a temperature at 200 °C showed a sensitivity of 82%, compared to a sensitivity of 1,786% for the WTiO film. The large difference in sensitivity is attributed to the reduction in grain size of the material and a change in the debye length of the grain. Changing the physical properties of the film by doping with a metal such as Titanium shows an effective approach to increasing sensitivity.
Tomchenko et al. [72] investigated the use of several metal oxides working together with a view to monitoring the concentrations of certain gases in an environment, in particular an exhaust. SnO, ZnO, WO3, In2O3 and CuO were investigated. Materials demonstrated different responses to NO and NO2, and also had markedly different responses at different temperatures. At 200 °C, the In2O3 showed the highest response, with CuO showing no response at all, and ZnO showing a very poor response. At 400 °C, the response changes, ZnO shows the largest response and CuO still demonstrating no response to the presence of the gas. The response times for 200 °C were about 10–30 s. The researchers argue that identifying the responses could lead to the incorporation of materials to monitor gases in a number of environments, possibly in an electronic nose.
The development of a sensor for ozone (O3) and nitrogen dioxide (NO2) with sensitivities at less that 10 ppb was reported by Williams et al [73]. The sensor is based on a film of tungsten oxide (WO3) of ∼90 μm thickness, screen-printed on to gold electrodes. The authors reported that the sensitivity is strongly related to the operating temperature of the sensor, and the temperature was very closely monitored and controlled. Though the response times were short for the film, the sensor exhibited a linear response between gas concentration and resistance, with an error of ±2 ppb, the reference detector being a chemiluminescence sensor instrument. The responsivity of the tungsten sensor was tracked with the reference sensor over monthly periods, showing no change in response and matching the readings from the reference sensor. Williams then compared the results between the chemiluminescence sensor and the tungsten sensor, finding the sensors to be virtually equal in response. The equality suggests that metal oxide sensors could be preferred, as the sensors are far cheaper than their chemiluminescence analogues with similar response patterns (Figure 19).

4.3. Outlook for MOS Nitrous Oxide Sensors

WO3 is the most widely used material for the detection of nitrous oxides—typically NO2 and NO. It provides the largest response to NO2 of all MOS materials with minimal cross sensitivity (except in the case of ozone) and it finds use in many commercial products. New approaches have looked to improve the performance of WO3 based devices further; tailoring grain size and film thickness have both shown improvements in gas response whilst careful control of oxygen content and operating temperature have helped to optimise material sensitivity. Currently WO3 MOS sensors are capable of measuring accurately in the 10 ppb range, well within the safe limit for human exposure.
Other nitrous oxides have had less attention devoted to them, understandably as these gases are less common and of less concern than NO2 and NO, although promising work has been conducted on the detection of N2O where doping studies have clearly shown that doping SnO2 with 0.5 wt.% SrO leads to a large enhancement in response although no information on cross sensitivity is reported for this system. The further use of mixed metal oxides shows promise for the development of nitrous oxide sensors.

5. Ammonia Sensors

5.1. Reasons for Detecting Ammonia

Ammonia, NH3 is a caustic and hazardous colourless gas with a characteristic pungent odour. The worldwide production of ammonia in 2007 was estimated at almost 140 million tonnes, a rise from approximately 2 million tonnes in 1945 [74]. 83% of the world’s ammonia was used in the fertilization of crops in 2003 (global production was around 115 million tonnes) [74]. Ammonia is a source of nitrogen to living organisms, nitrogen being present in vital biological molecules such as amino acids (the building blocks of proteins).
Ammonia is present in animal waste, and in particularly high concentrations in chicken faeces. In agricultural environments, where animals can live in unventilated environments, ammonia concentrations can become high enough to kill the animals. An ability to monitor and control these environments is highly desirable.

5.2. Advances in Ammonia Sensors

Nanto [75] reported a zinc oxide thin film sensor prepared by sputtering. The material was doped with aluminium, gallium and indium; the response of these materials was compared with the un-doped film. Large negative responses are reported in reaction to the presence of ammonia, with positive responses to other gases depending on the material (Table 4).
The large negative response of the material to the ammonia gas, coupled with positive responses in the presence of other gases is encouraging. The authors do not test effect of water vapour on the response of the material, one of the most important disruptors of response. Though the large negative readings are good, the effect of the other gases on the sensor response indicates this sensor is highly cross sensitive and therefore has limited use.
Wang et al. [76] investigated the effects of incorporating 1% weight amounts of varying metal oxides in to the WO3 structure, and the resulting response to the presence of NO and NH3 gas were investigated. The preparation method involved calcining a pre-prepared WO3 powder on a sensor fitted with Pt electrodes for 1 hour at 600 °C. The response testing compared 30 ppm NH3 and 40 ppm NO. The most effective dopants were found to be magnesium, zinc, molybdenum and rhenium; molybdenum giving the highest reading. The authors also demonstrated that some dopants made the material specific to one gas or the other. Materials doped with chromium, lanthanum, promethium, samarium, gadolinium, europium, thulium and ytterbium showed little or no response to the presence of NO but responses to NH3.
TiO2 films on silicon prepared by magnetron sputtering were shown by Karunagaran et al. [77] to increase their conductance in the presence of ammonia gas. The initially deposited film showed no response to the target gas. The authors annealed the film at 600 °C and the films then showed a sensitivity range at 500–1,000 ppm (this was the testing range at the films optimum temperature, 250 °C, there is no data outside this range). A response time of 90 s was reported.
Wagh et al. [78] used screen-printing to make pure and RuO2-doped ZnO thick films (Figure 20), the thickness of the films was not reported. The materials were fired between 500 and 700 °C at 50 degree intervals, the most sensitive films were fired at 650 °C. The un-doped films showed little response to the target gas. All the doped films tested showed good responses at operating temperatures between 100 and 350 °C, the higher the operating temperature, the better the response to the gas, though the low temperature response at 100 °C is promising. The optimum doping amount was seen to be 0.3% wt, with the doped materials showing the largest response at 250 °C.

5.3. Outlook for MOS Ammonia Sensors

A variety of materials have been investigated for the detection of ammonia gas including ZnO, WO3 and TiO2. None of the materials are clearly ahead of the others in terms of performance. Doping studies have been conducted with some success in improving gas response and lowering operating temperature. Future studies on the effects of grain size ought to take place to improve sensor response further and in the case of WO3 based sensors doping studies expanded to improve selectivity toward ammonia and limit cross sensitivity to NO and NO2.

6. Recent Work Conducted at University College London

6.1. Zeolite Modified Sensors

Zeolites are porous aluminosilicate structures that are able to accommodate cations such as Na+, Mg+, Mg2+ and small molecules such as ethanol etc. These cations / molecules are contained within a large 3-dimensional framework, with external pore sizes typically ranging from 4–12 Å. The oxygen atoms in the zeolites structure may be negatively charged due to aluminium substitution of silicon; this charge can be used to attract other species, commonly a cation such as Na+ or H+. As a result zeolites may behave as selective catalysts and are capable of discriminating between gas molecules on the basis of size and shape, allowing some gases through their structure, whilst not admitting others. A schematic of sensor fabrication is given in Figure 21.
Further to this the zeolites can behave in a chromatographic manner through variable diffusion characteristics. A mixture of gas may enter the zeolites pores, but different binding strengths to the zeolite interior leads to a difference in diffusion speed through the zeolites. Finally the zeolites may perform a catalytic reaction involving the target gas, this may lead to the production of one or more molecules that the sensor element may be more or less sensitive too. In the ideal case, this catalytic reaction will be specific to a particular analyte and lead to the production of multiple species that the sensor element is more sensitive too, leading to a large enhancement in response signal for a given analyte with no chance of cross sensitivity. Limited amounts of work have been conducted on the use of zeolites in this fashion [7982] indicating a differential response as a result of zeolite layer incorporation.

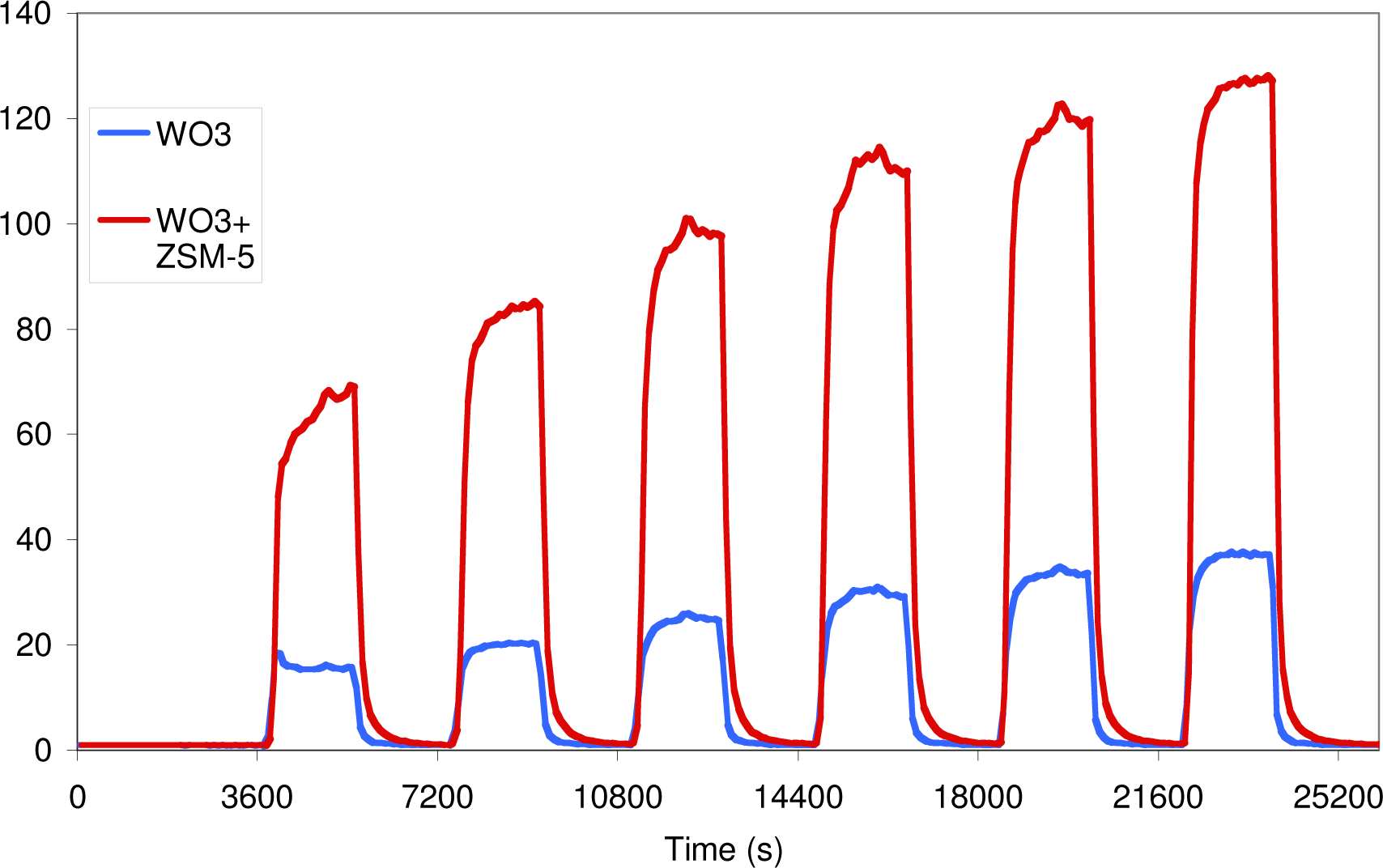

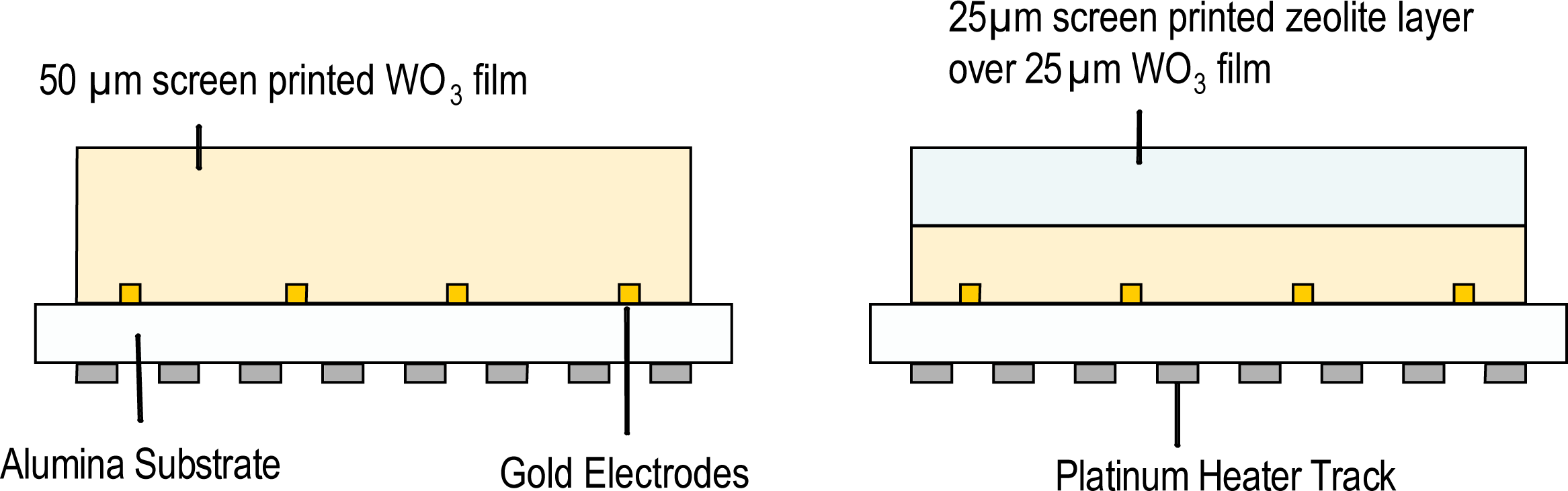

Recent work conducted at UCL [12,8385] suggests that it is possible to utilise zeolites as transformation layers to improve both the gas response and selectivity of metal oxide semiconductor gas sensors. Figure 22, gives an example gas response to nitrogen dioxide for a standard screen-printed tungsten oxide sensor and a sensor that has been modified with an over-layer of H-zeolite B. As can be seen from the figure the modified sensor gives a considerably larger gas response than the unmodified sensor due to a catalytic reaction taking place within the zeolites pores. The sensor also proves to be more selective as the zeolite layer also acts as a size and shape selective filter for the sensing element, essentially excluding potential interferents such as larger hydrocarbon molecules, branched alcohols etc., from reaching the sensor element and disrupting the nitrogen dioxide response.

6.2. Carbon Dioxide Sensors

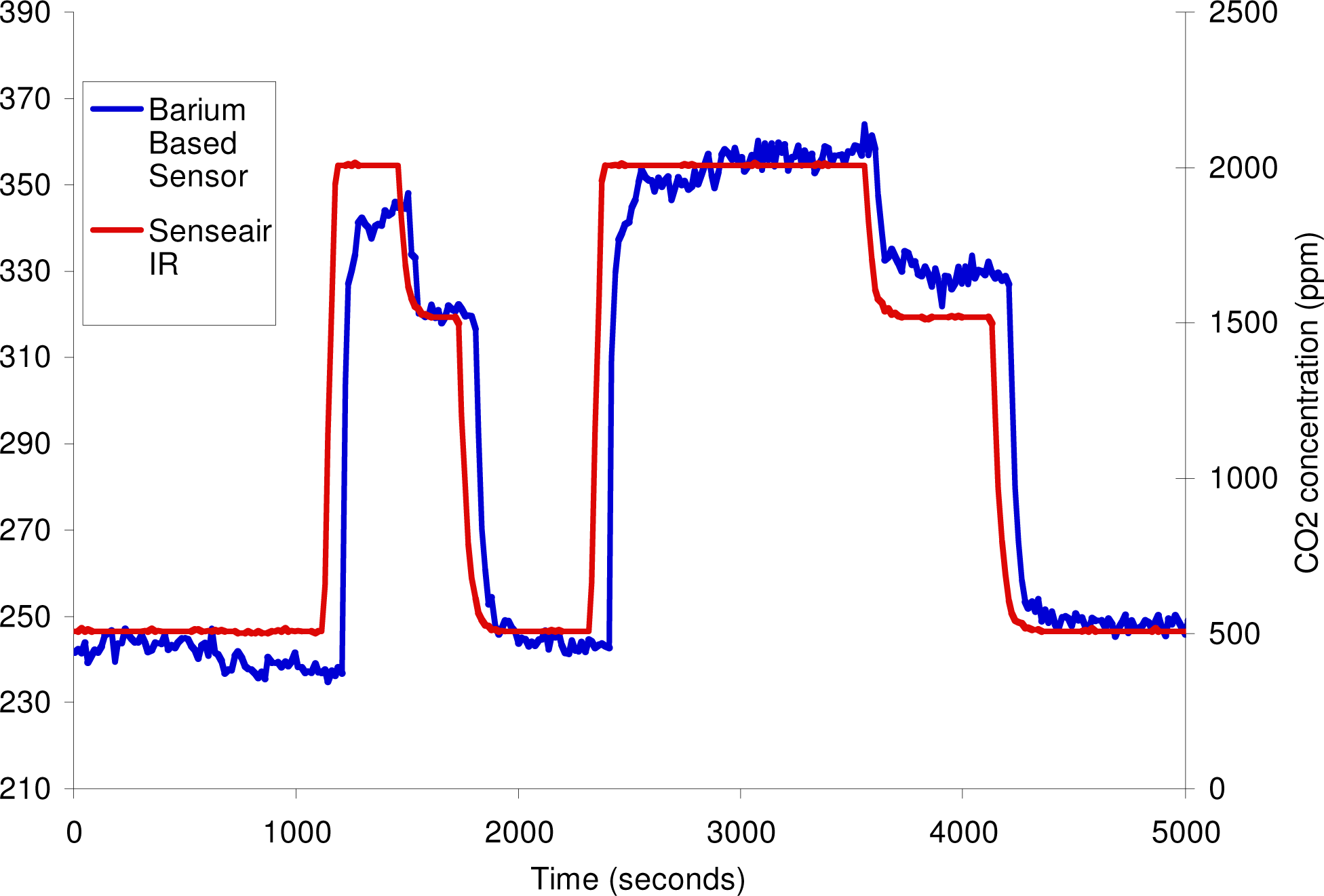

Perovskite compounds such as BaTiO3 and BaSnO3 [58] have been investigated for their capacitive gas response to carbon dioxide. These sensors had drawbacks as they experience a large cross sensitivity to water. In our labs at UCL we have developed a new barium based material by traditional ceramic powder processing methods and the devices are prepared using conventional screen-printing techniques. Sensors made with this material gave a significant chemiresistive response to carbon dioxide with minimal signal disruption from humidity that is comparable to the response of a commercial optical sensor from Senseair (model number: K30) (Figure 23).

6.3. Electric Fields and Chemical Vapour Deposition (ElFi CVD)

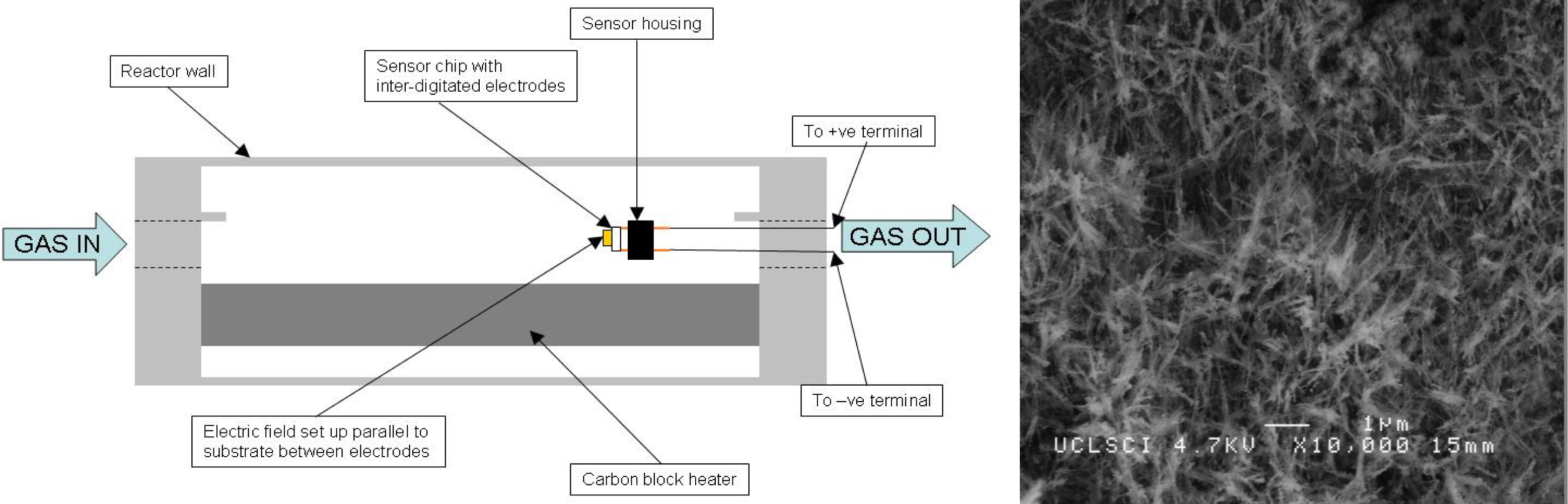

The gas sensor substrates to be used have inter-digitated electrodes, which allow CVD reactions with an electric field parallel to the substrate to be set up. The electrode array comprises of gold electrode “fingers” 100 microns wide and 10 microns thick. Typically the electrode gap is 40 microns though a variety of substrates with different electrode gaps have been used (40, 80 and 150 microns). The sensor substrates can easily be incorporated into pre-existing deposition equipment (Figure 24 left). This technique has led to the production of fibrous growth and high surface area morphologies (Figure 24 right). This indicates the suitability of this method for the preparation of next generation metal oxide semiconductor devices.

7. Conclusions

The development of semiconducting metal oxides as gas sensors has accelerated over the past 20 years. Increasingly (as we have briefly shown) these sensors are being used increasingly in the monitoring of environmentally important gases. Metal oxide semiconductor sensors have been shown to be sensitive to a large range of gases, with responses varying with target gas concentration and device operating temperature. These properties can be tailored the specific environment in which the sensor is to be used, by understanding the material science involved. Advances have been made in the understanding of materials chemistry and materials processing such as doping, deposition temperatures, and annealing temperatures. These have been shown to have a profound effect on the material structure and subsequently the gas sensing properties of the sensors. Modification of the surface by selective and catalytic materials such as zeolites is an important development, and shows a further way in which the materials’ science can be used to further improve the specificity and response to a target gas, whilst making sure the response of the film is not disrupted by a competing gas, or humidity. New materials and techniques continue to be developed to push the abilities and properties of gas sensors. Currently metal oxide semiconductor sensors find limited commercial use; other types of sensor are still favoured for many applications. However, with recent advances in understanding of materials chemistry and synthetic techniques, their properties, coupled with their relative low cost could lead to them becoming ever more important tools in environmental monitoring.

References

  1. Seiyama, T.; Kato, A.; Fujiishi, K.; Nagatani, M. A new detector for gaseous components using semiconductive thin films. Anal. Chem 1962, 34, 1502–1503. [Google Scholar]
  2. Elmi, I.; Zampolli, S.; Cozzani, E.; Mancarella, F.; Cardinali, G.C. Development of ultra-low-power consumption MOX sensors with ppb-level VOC detection capabilities for emerging applications. Sens. Actuat. B-Chem 2008, 135, 342–351. [Google Scholar]
  3. Guo, Y.; Zhang, X.W.; Han, G.R. Investigation of structure and properties of N-doped TiO2 thin films grown by APCVD. Mater. Sci. Eng.: B 2006, 135, 83–87. [Google Scholar]
  4. Gurlo, A.; Bârsan, N.; Ivanovskaya, M.; Weimar, U.; Göpel, W. In2O3 and MoO3–In2O3 thin film semiconductor sensors: interaction with NO2 and O3. Sens. Actuat. B-Chem 1998, 47, 92–99. [Google Scholar]
  5. Kida, T.; Nishiyama, A.; Yuasa, M.; Shimanoe, K.; Yamazoe, N. Highly sensitive NO2 sensors using lamellar-structured WO3 particles prepared by an acidification method. Sens. Actuat. B-Chem 2009, 135, 568–574. [Google Scholar]
  6. Williams, D.E. Semiconducting oxides as gas-sensitive resistors. Sens. Actuat. B-Chem 1999, 57, 1–19. [Google Scholar]
  7. Martin, R. Electronic Structure: Basic Theory and Practical Methods; Cambridge University Press: Cambridge, UK, 2004. [Google Scholar]
  8. Shriver, A. Inorganic Chemistry; Oxford University Press: Oxford, UK, 2006. [Google Scholar]
  9. Yamazoe, N.; Fuchigami, J.; Kishikawa, M.; Seiyama, T. Interactions of tin oxide surface with O2, H2O and H2. Surf. Sci 1979, 86, 335–344. [Google Scholar]
  10. Barsan, N.; Schweizer-Berberich, M.; Göpel, W. Fundamental and practical aspects in the design of nanoscaled SnO2 gas sensors: a status report. Fresenius J. Anal. Chem 1999, 365, 287–304. [Google Scholar]
  11. Barsan, N.; Weimar, U. Understanding the fundamental principles of metal oxide based gas sensors; the example of CO sensing with SnO2 sensors in the presence of humidity. J. Phys. Cond. Matt 2003, 15, R813. [Google Scholar]
  12. Binions, R.; Davies, H.; Afonja, A.; Dungey, S.; Lewis, D.; Williams, D.E.; Parkin, I.P. Zeolite modified discriminating gas sensors. J. Electrochem. Soc 2009, 156, J46–J51. [Google Scholar]
  13. Naisbitt, S.C.; Pratt, K.F.E.; Williams, D.E.; Parkin, I.P. A microstructural model of semiconducting gas sensor response: The effects of sintering temperature on the response of chromium titanate (CTO) to carbon monoxide. Sens. Actuat. B-Chem 2006, 114, 969–977. [Google Scholar]
  14. Vincenzi, D.; Butturi, M.A.; Guidi, V.; Carotta, M.C.; Martinelli, G.; Guarnieri, V.; Brida, S.; Margesin, B.; Giacomozzi, F.; Zen, M.; Giusti, D.; Soncini, G.; Vasiliev, A.A.; Pisliakov, A.V. Gas-sensing device implemented on a micromachined membrane: A combination of thick-film and very large scale integrated technologies. J. Vac. Sci. Technol. B 2000, 18, 2441–2445. [Google Scholar]
  15. Patel, N.G.; Patel, P.D.; Vaishnav, V.S. Indium tin oxide (ITO) thin film gas sensor for detection of methanol at room temperature. Sens. Actuat. B-Chem 2003, 96, 180–189. [Google Scholar]
  16. Korotcenkov, G.; Blinov, I.; Brinzari, V.; Stetter, J.R. Effect of air humidity on gas response of SnO2 thin film ozone sensors. Sens. Actuat. B-Chem 2007, 122, 519–526. [Google Scholar]
  17. Wang, Z.; Hu, X. Fabrication and electrochromic properties of spin-coated TiO2 thin films from peroxo-polytitanic acid. Thin Solid Films 1999, 352, 62–65. [Google Scholar]
  18. Vaishanv, V.S.; Patel, P.D.; Patel, N.G. Indium tin oxide thin-film sensor for detection of Volatile Organic Compounds (VOCs). Mater. Manufact. Proces 2006, 21, 257–261. [Google Scholar]
  19. Binions, R.; Kanu, S.S. Thin films for solar control applications. Proc. Royal Soc. Lon. A 2010, 466, 19–44. [Google Scholar]
  20. Binions, R.; Carmalt, C.J.; Parkin, I.P. Aerosol-assisted chemical vapour deposition of sodium fluoride thin films. Thin Solid Films 2004, 469–470, 416–419. [Google Scholar]
  21. Cross, W.B.; Parkin, I.P. Aerosol assisted chemical vapour deposition of tungsten oxide films from polyoxotungstate precursors: active photocatalyst. Chem. Comm 2003, 9, 1696–1697. [Google Scholar]
  22. Parkin, I.P.; Binions, R.; Piccirillo, C.; Blackman, C.S.; Manning, T.D. thermochromic coatings for intelligent architectural glazing. J. Nano Res 2008, 2, 1–20. [Google Scholar]
  23. Ashraf, S.; Binions, R.; Blackman, C.S.; Parkin, I.P. The APCVD of tungsten oxide thin films from reaction of WCl6 with ethanol and results on their gas-sensing properties. Polyhedron 2007, 26, 1493–1498. [Google Scholar]
  24. Shaw, G.; Parkin, I.P.; Pratt, K.F.E.; Williams, D.E. Control of semiconducting oxide gas-sensor microstructure by application of an electric field during aerosol-assisted chemical vapour deposition. J. Mater. Chem 2005, 15, 149–154. [Google Scholar]
  25. Shaw, G.A.; Parkin, I.P.; Williams, D.E. Control of semiconducting oxide gas-sensor microstructure by application of an electric field during aerosol-assisted chemical vapour deposition. J. Mater. Chem 2005, 15, 149–154. [Google Scholar]
  26. Blackman, C.S.; Parkin, I.P. Atmospheric pressure chemical vapor deposition of crystalline monoclinic WO3 and WO3-x thin films from reaction of WCl6 with O-containing solvents and their photochromic and electrochromic properties. Chem. Mater 2005, 17, 1583–1590. [Google Scholar]
  27. Ashraf, S.; Blackman, C.S.; Palgrave, R.G.; Naisbitt, S.C.; Parkin, I.P. Aerosol assisted chemical vapour deposition of WO3 thin films from tungsten hexacarbonyl and their gas sensing properties. J. Mater Chem 2007, 17, 3708–3713. [Google Scholar]
  28. Ashraf, S.; Blackman, C.S.; Naisbitt, S.C.; Parkin, I.P. The gas-sensing properties of WO3-x thin films deposited via the atmospheric pressure chemical vapour deposition (APCVD) of WCl6 with ethanol. Mes. Sci. Technol 2008, 19, 025203. [Google Scholar]
  29. Choy, K.L. Chemical vapour deposition of coatings. Prog. Mater. Sci 2003, 48, 57–170. [Google Scholar]
  30. Tischner, A.; Maier, T.; Stepper, C.; Köck, A. Ultrathin SnO2 gas sensors fabricated by spray pyrolysis for the detection of humidity and carbon monoxide. Sens. Actuat. B-Chem 2008, 134, 796–802. [Google Scholar]
  31. Goldberg, H.D.; Brown, R.B.; Liu, D.P.; Meyerhoff, M.E. Screen printing: a technology for the batch fabrication of integrated chemical-sensor arrays. Sens. Actuat. B-Chem 1994, 21, 171–183. [Google Scholar]
  32. Yadava, L.; Verma, R.; Dwivedi, R. Sensing properties of CdS-doped tin oxide thick film gas sensor. Sens. Actuat. B-Chem 2009, 144, 37–42. [Google Scholar]
  33. Alhomoudi, I.A.; Newaz, G. Residual stresses and Raman shift relation in anatase TiO2 thin film. Thin Solid Films 2009, 517, 4372–4378. [Google Scholar]
  34. Boulmani, R.; Bendahan, M.; Lambert-Mauriat, C.; Gillet, M.; Aguir, K. Correlation between rf-sputtering parameters and WO3 sensor response towards ozone. Sens. Actuat. B-Chem 2007, 125, 622–627. [Google Scholar]
  35. Michel, H.J.; Leiste, H.; Halbritter, J. Structural and electrical characterization of PVD-deposited SnO2 films for gas-sensor application. Sens. Actuat. B-Chem 1995, 25, 568–572. [Google Scholar]
  36. Gupta, S.; Roy, R.K.; Chowdhury, M.P.; Pal, A.K. Synthesis of SnO2/Pd composite films by PVD route for a liquid petroleum gas sensor. Vacuum 2004, 75, 111–119. [Google Scholar]
  37. Cerdà, J.; Cirere, A.; Vilà, A.; Cornet, A.; Morante, J.R. Deposition on micromachined silicon substrates of gas sensitive layers obtained by a wet chemical route: a CO/CH4 high performance sensor. Thin Solid Films 2001, 391, 265–269. [Google Scholar]
  38. Brezmes, J.; Llobet, E.; Vilanova, X.; Saiz, G.; Correig, X. Fruit ripeness monitoring using an Electronic Nose. Sens. Actuat. B-Chem 2000, 69, 223–229. [Google Scholar]
  39. Binions, R.; Parkin, I.P. A comparison of the gas sensing properties of solid state metal oxide semiconductor gas sensors produced by atmospheric pressure chemical vapour deposition and screen printing. Mes. Sci. Technol 2007, 18, 190–200. [Google Scholar]
  40. Cobb, C.; Cetzel, C.R. Unintentional carbon monoxide—Related deaths in the United States, 1979 through 1988. J. Am. Med. Assoc 1991, 266, 659–663. [Google Scholar]
  41. Meredith, C.T. Correction: Comroe and Dripps revisited. Brit. Med. J 1988, 296, 110. [Google Scholar]
  42. Runyan, C.C.; Johnson, C.; Yang, J.; Waller, A.; Perkis, D.; Marshall, S. Risk and protective factors for fires, burns, and carbon monoxide poisoning in U.S. households. Am. J. Prev. Med 2005, 28, 102–108. [Google Scholar]
  43. Varon, J.; Marik, P.E.; Fromm, R.E., Jr.; Gueler, A. Carbon monoxide poisoning: A review for clinicians. J. Emer. Med 1999, 17, 87–93. [Google Scholar]
  44. Recommendations for Occupational Safety and Health: Compendium of Policy Documents and Statements; U.S. Department of Health and Human Services, Public Health Service, Centers for Disease Control, National Institute for Occupational Safety and Health, DHHS (NIOSH): Cincinnati, OH, USA, 1992; Publication No. 92–100.
  45. Wiegleb, G.; Heitbaum, J. Semiconductor gas sensor for detecting NO and CO traces in ambient air of road traffic. Sens. Actuat. B-Chem 1994, 17, 93–99. [Google Scholar]
  46. Barbi, G.B.; Santos, J.P.; Serrini, P.; Gibson, P.N.; Horrillo, M.C.; Manes, L. Ultrafine grain-size tin-oxide films for carbon monoxide monitoring in urban environments. Sens. Actuat. B-Chem 1995, 25, 559–563. [Google Scholar]
  47. Riviere, B.; Viricelle, J.P.; Pijolat, C. Development of tin oxide material by screen-printing technology for micro-machined gas sensors. Sens. Actuat. B-Chem 2003, 93, 531–537. [Google Scholar]
  48. Li, X.; Ramasamy, R.; Dutta, P.K. Study of the resistance behavior of anatase and rutile thick films towards carbon monoxide and oxygen at high temperatures and possibilities for sensing applications. Sens. Actuat. B-Chem 2009, 143, 308–315. [Google Scholar]
  49. Izu, N.; Nishizaki, S.; Itoh, T.; Nishibori, M.; Shin, W.; Matsubara, I. Gas response, response time and selectivity of a resistive CO sensor based on two connected CeO2 thick films with various particle sizes. Sens. Actuat. B-Chem 2009, 136, 364–370. [Google Scholar]
  50. Durrani, S.M.A.; Al-Kuhaili, M.F.; Bakhtiari, I.A. Carbon monoxide gas-sensing properties of electron-beam deposited cerium oxide thin films. Sens. Actuat. B-Chem 2008, 134, 934–939. [Google Scholar]
  51. Wiegleb, G.; Heitbaum, J. Semiconductor gas sensor for detecting NO and CO traces in ambient air of road traffic. Sens. Actuat. B-Chem 1994, 17, 93–99. [Google Scholar]
  52. NOAA ESRL Data. Available online: ftp://ftp.cmdl.noaa.gov/ccg/co2/trends/co2_mm_mlo.txt (accessed on 18 March 2010).
  53. Code of Federal Regualtions; The Superintendent of Documents, U.S. Government Printing Office: Washington, DC, USA, 1994.
  54. Trends in Atmospheric Carbon Dioxide. Available online: http://www.esrl.noaa.gov/gmd/ccgg/trends/ (accessed on 16 March 2010).
  55. Patel, N.G.; Makhija, K.K.; Panchal, C.J. Fabrication of carbon dioxide gas sensor and its alarm system using Indium Tin Oxide (ITO) thin films. Sens. Actuat. B-Chem 1994, 21, 193–197. [Google Scholar]
  56. Hoefer, U.; Kühner, G.; Schweizer, W.; Sulz, G.; Steiner, K. CO and CO2 thin-film SnO2 gas sensors on Si substrates. Sens. Actuat. B-Chem 1994, 22, 115–119. [Google Scholar]
  57. Kim, D.H.; Yoon, J.Y.; Park, H.C.; Kim, K.H. CO2-sensing characteristics of SnO2 thick film by coating lanthanum oxide. Sens. Actuat. B-Chem 2000, 62, 61–66. [Google Scholar]
  58. Lee, M.S.; Meyer, J.U. A new process for fabricating CO2-sensing layers based on BaTiO3 and additives. Sens. Actuat. B-Chem 2000, 68, 293–299. [Google Scholar]
  59. Marsal, A.; Dezanneau, G.; Cornet, A.; Morante, J.R. A new CO2 gas sensing material. Sens. Actuat. B-Chem 2003, 95, 266–270. [Google Scholar]
  60. Marsal, A.; Cornet, A.; Morante, J.R. Study of the CO and humidity interference in La doped tin oxide CO2 gas sensor. Sens. Actuat. B-Chem 2003, 94, 324–329. [Google Scholar]
  61. Barth, P.J.; Muller, B.; Wagner, U.; Bittinger, A. Quantitative analysis of parenchymal and vascular alterations in NO2-induced lung injury in rats. Eur. Resp. J 1995, 8, 1115–1121. [Google Scholar]
  62. Wegmann, M.; Fehrenbach, A.; Heimann, S.; Fehrenbach, H.; Renz, H.; Garn, H.; Herz, U. NO2-induced airway inflammation is associated with progressive airflow limitation and development of emphysema-like lesions in C57BL/6 mice. Expt. Tox. Path 2005, 56, 341–350. [Google Scholar]
  63. Ponka, A.; Virtanen, M. Chronic bronchitis, emphysema, and low-level air pollution in Helsinki, 1987–1989. Env. Res 1994, 65, 207–217. [Google Scholar]
  64. Akiyama, M.; Tamaki, J.; Miura, N.; Yamazoe, N. Tungsten oxide-based semiconductor sensor highly sensitive to NO and NO2. Chem. Lett 1991, 20, 1611–1614. [Google Scholar]
  65. Tamaki, J.; Zhang, Z.; Fujimori, K.; Akiyama, M.; Harada, T.; Miura, N.; Yamazoe, N. Grain-size effects in tungsten oxide-based sensor for nitrogen oxides. J. Electrochem. Soc 1994, 141, 2207–2210. [Google Scholar]
  66. Cantalini, C.; Pelino, M.; Sun, H.T.; Faccio, M.; Santucci, S.; Lozzi, L.; Passacantando, M. Cross sensitivity and stability of NO2 sensors from WO3 thin film. Sens. Actuat. B-Chem 1996, 35, 112–118. [Google Scholar]
  67. Chung, Y.K.; Kim, M.H.; Um, W.S.; Lee, H.S.; Song, J.K.; Choi, S.C.; Yi, K.M.; Lee, M.J.; Chung, K.W. Gas sensing properties of WO3 thick film for NO2 gas dependent on process condition. Sens. Actuat. B-Chem 1999, 60, 49–56. [Google Scholar]
  68. Lee, D.S.; Han, S.D.; Huh, J.S.; Lee, D.D. Nitrogen oxides-sensing characteristics of WO3-based nanocrystalline thick film gas sensor. Sens. Actuat. B-Chem 1999, 60, 57–63. [Google Scholar]
  69. Comini, E.; Sberveglieri, G.; Ferroni, M.; Guidi, V.; Martinelli, G. NO2 monitoring with a novel p-type material: TiO. Sens. Actuat. B-Chem 2000, 68, 175–183. [Google Scholar]
  70. Kanazawa, E.; Sakai, G.; Shimanoe, K.; Kanmura, Y.; Teraoka, Y.; Miura, N.; Yamazoe, N. Metal oxide semiconductor N2O sensor for medical use. Sens. Actuat. B-Chem 2001, 77, 72–77. [Google Scholar]
  71. Shieh, J.; Feng, H.M.; Hon, M.H.; Juang, H.Y. WO3 and W---Ti---O thin-film gas sensors prepared by sol–gel dip-coating. Sens. Actuat. B-Chem 2002, 86, 75–80. [Google Scholar]
  72. Tomchenko, A.A.; Harmer, G.P.; Marquis, B.T.; Allen, J.W. Semiconducting metal oxide sensor array for the selective detection of combustion gases. Sens. Actuat. B-Chem 2003, 93, 126–134. [Google Scholar]
  73. Williams, D.E.; Salmond, J.; Yung, Y.F.; Akali, J.; Wright, B.; Wilson, J.; Henshaw, G.S.; Wells, D.B.; Ding, G.; Wagner, J.; Laing, G. Development of low-cost ozone and nitrogen dioxide measurement instruments suitable for use in an air quality monitoring network. Proceedings of the 215th ECS Meeting, San Francisco, CA, USA, May 24–29, 2009; pp. 251–254.
  74. Ammonia, in Ullmann’s Encyclopedia of Industrial Chemistry; Appl, M. (Ed.) Wiley-VCH: Weinheim, Germany, 2006.
  75. Nanto, H.; Minami, T.; Takata, S. Zinc□oxide thin□film ammonia gas sensors with high sensitivity and excellent selectivity. J. Appl. Phys 1986, 60, 482–485. [Google Scholar]
  76. Wang, X.; Miura, N.; Yamazoe, N. Study of WO3-based sensing materials for NH3 and NO detection. Sens. Actuat. B-Chem 2000, 66, 74–76. [Google Scholar]
  77. Karunagaran, B.; Uthirakumar, P.; Chung, S.J.; Velumani, S.; Suh, E.K. TiO2 thin film gas sensor for monitoring ammonia. Mater. Charact 2007, 58, 680–684. [Google Scholar]
  78. Wagh, M.S.; Jain, G.H.; Patil, D.R.; Patil, S.A.; Patil, L.A. Modified zinc oxide thick film resistors as NH3 gas sensor. Sens. Actuat. B-Chem 2006, 115, 128–133. [Google Scholar]
  79. Hagen, G.; Dubbe, A.; Rettig, F.; Jerger, A.; Birkhofer, T.; Müller, R.; Plog, C.; Moos, R. Selective impedance based gas sensors for hydrocarbons using ZSM-5 zeolite films with chromium(III)oxide interface. Sens. Actuat. B-Chem 2006, 119, 441–448. [Google Scholar]
  80. Vilaseca, M.; Coronas, J.; Cirera, A.; Cornet, A.; Morante, J.; Santamarià, J. Use of zeolite films to improve the selectivity of reactive gas sensors. Catal. Today 2003, 82, 179–185. [Google Scholar]
  81. Hugon, O.; Sauvan, M.; Benech, P.; Pijolat, C.; Lefebvre, F. Gas separation with a zeolite filter, application to the selectivity enhancement of chemical sensors. Sens. Actuat. B-Chem 2000, 67, 235–243. [Google Scholar]
  82. Sahner, K.; Schönauer, D.; Kuchinke, P.; Moos, R. Zeolite cover layer for selectivity enhancement of p-type semiconducting hydrocarbon sensors. Sens. Actuat. B-Chem 2008, 133, 502–508. [Google Scholar]
  83. Afonja, A.; Dungey, S.; Binions, R.; Parkin, I.; Lewis, D.; Williams, D. Gas sensing properties of composite tungsten trioxide—Zeolite thick films. Electrochem. Soc. Trans 2009, 16, 77–84. [Google Scholar]
  84. Binions, R.; Davis, H.; Afonja, A.; Dungey, S.; Lewis, D.; Williams, D.; Parkin, I. Zeolite modified gas sensors. Electrochem. Soc. Trans 2008, 16, 275–286. [Google Scholar]
  85. Binions, R.; Afonja, A.; Dungey, S.; Lewis, D.; Parkin, I.; Williams, D.E. Zeolite moidification: towards discriminating gas sensors. Electrochem. Soc. Trans 2009, 19, 241–250. [Google Scholar]
Figure 1. Schematic band diagrams of an insulator, semi-conductor and conductor—Note the small gap in the semiconductor, where electrons with sufficient energy can cross and the overlapping of the bands in the conductor.
Figure 1. Schematic band diagrams of an insulator, semi-conductor and conductor—Note the small gap in the semiconductor, where electrons with sufficient energy can cross and the overlapping of the bands in the conductor.
Sensors 10 05469f1
Figure 2. Demonstrating the structure of the materials, and the positions of the surface, bulk and particle boundary. Figure adapted with permission from Naisbitt et al. [13].The model assumes the gas sensitivities of the surface and particle boundary are the same.
Figure 2. Demonstrating the structure of the materials, and the positions of the surface, bulk and particle boundary. Figure adapted with permission from Naisbitt et al. [13].The model assumes the gas sensitivities of the surface and particle boundary are the same.
Sensors 10 05469f2

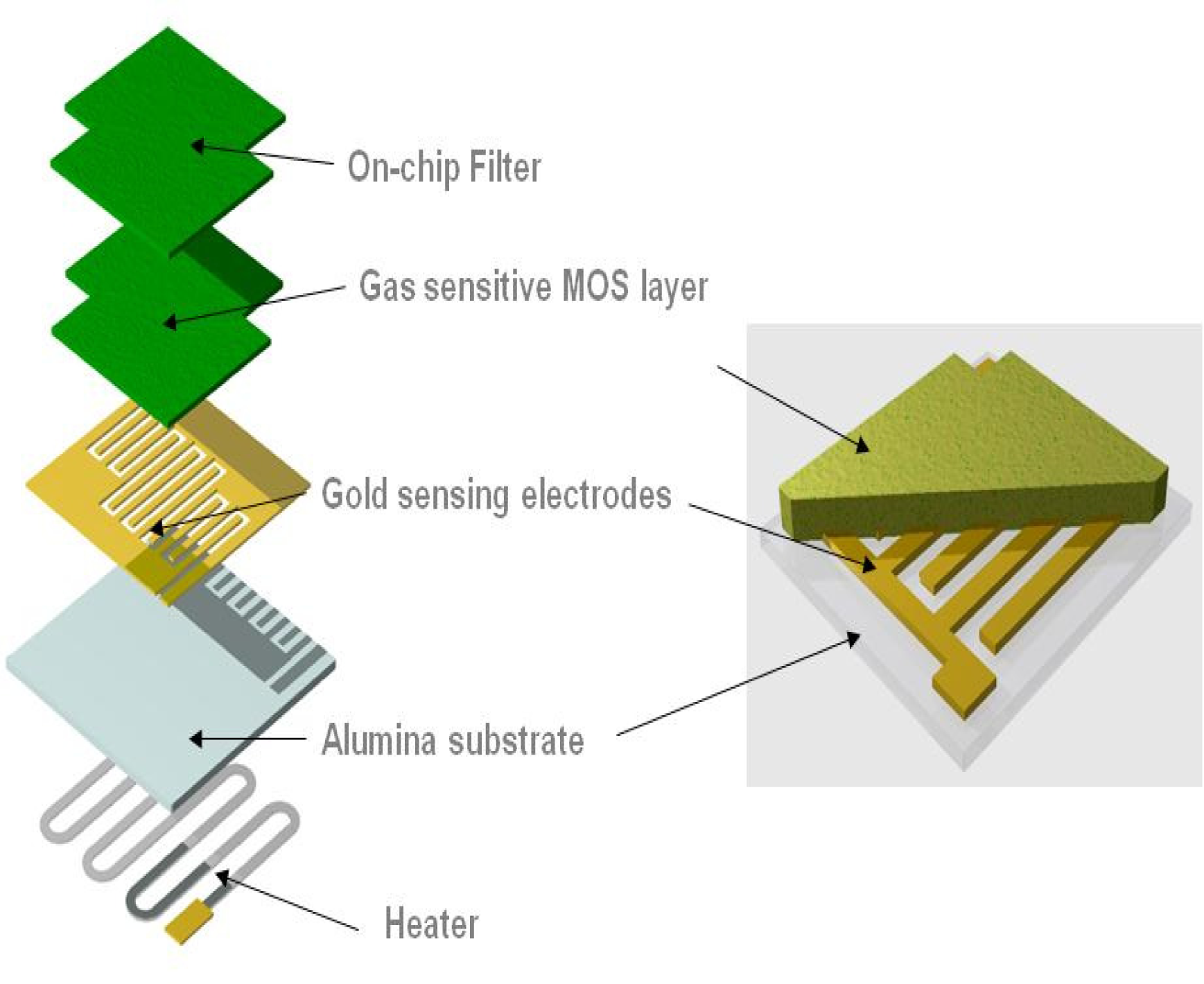

Figure 3. Demonstrating the production of a gas sensitive film on a sensor substrate (diagram courtesy of Capteur Sensors and Analysers).
Figure 3. Demonstrating the production of a gas sensitive film on a sensor substrate (diagram courtesy of Capteur Sensors and Analysers).
Sensors 10 05469f3
Figure 4. A basic outline of the CVD method, depositing a film on to the substrate surface. Figure adapted with permission from [22].
Figure 4. A basic outline of the CVD method, depositing a film on to the substrate surface. Figure adapted with permission from [22].
Sensors 10 05469f4
Figure 5. Demonstrating the spray pyrolysis technique for depositing thin films. Figure adapted with permission from Tischner et al. [30].
Figure 5. Demonstrating the spray pyrolysis technique for depositing thin films. Figure adapted with permission from Tischner et al. [30].
Sensors 10 05469f5
Figure 6. Schematic of the PVD process, adapted with permission from Kanu et al. [19].
Figure 6. Schematic of the PVD process, adapted with permission from Kanu et al. [19].
Sensors 10 05469f6
Figure 7. Showing the sensor response to varying concentrations of carbon monoxide for both a SnO2 sensor and an IR gas analyser. Figure adapted with permission from [45].
Figure 7. Showing the sensor response to varying concentrations of carbon monoxide for both a SnO2 sensor and an IR gas analyser. Figure adapted with permission from [45].
Sensors 10 05469f7
Figure 8. The effect of grain size on the size of response to the carbon monoxide target gas. Figure adapted with permission from [46].
Figure 8. The effect of grain size on the size of response to the carbon monoxide target gas. Figure adapted with permission from [46].
Sensors 10 05469f8
Figure 9. Demonstrating the response of the sensor to humidity. Note the decrease in baseline response over time and successive introductions. Figure adapted with permission from [30].
Figure 9. Demonstrating the response of the sensor to humidity. Note the decrease in baseline response over time and successive introductions. Figure adapted with permission from [30].
Sensors 10 05469f9
Figure 10. The response of rutile film to carbon monoxide at various temperatures. Figure adapted with permission from [48].
Figure 10. The response of rutile film to carbon monoxide at various temperatures. Figure adapted with permission from [48].
Sensors 10 05469f10
Figure 11. A graph depicting the steady increase in CO2 concentrations since 1958 at the Mauna Loa Observatory. Figure adapted from [52].
Figure 11. A graph depicting the steady increase in CO2 concentrations since 1958 at the Mauna Loa Observatory. Figure adapted from [52].
Sensors 10 05469f11
Figure 12. response of the SnO2 film developed by Hoefer et al. to CO2 gas in synthetic air at 270 °C. Figure adapted with permission from [56].
Figure 12. response of the SnO2 film developed by Hoefer et al. to CO2 gas in synthetic air at 270 °C. Figure adapted with permission from [56].
Sensors 10 05469f12

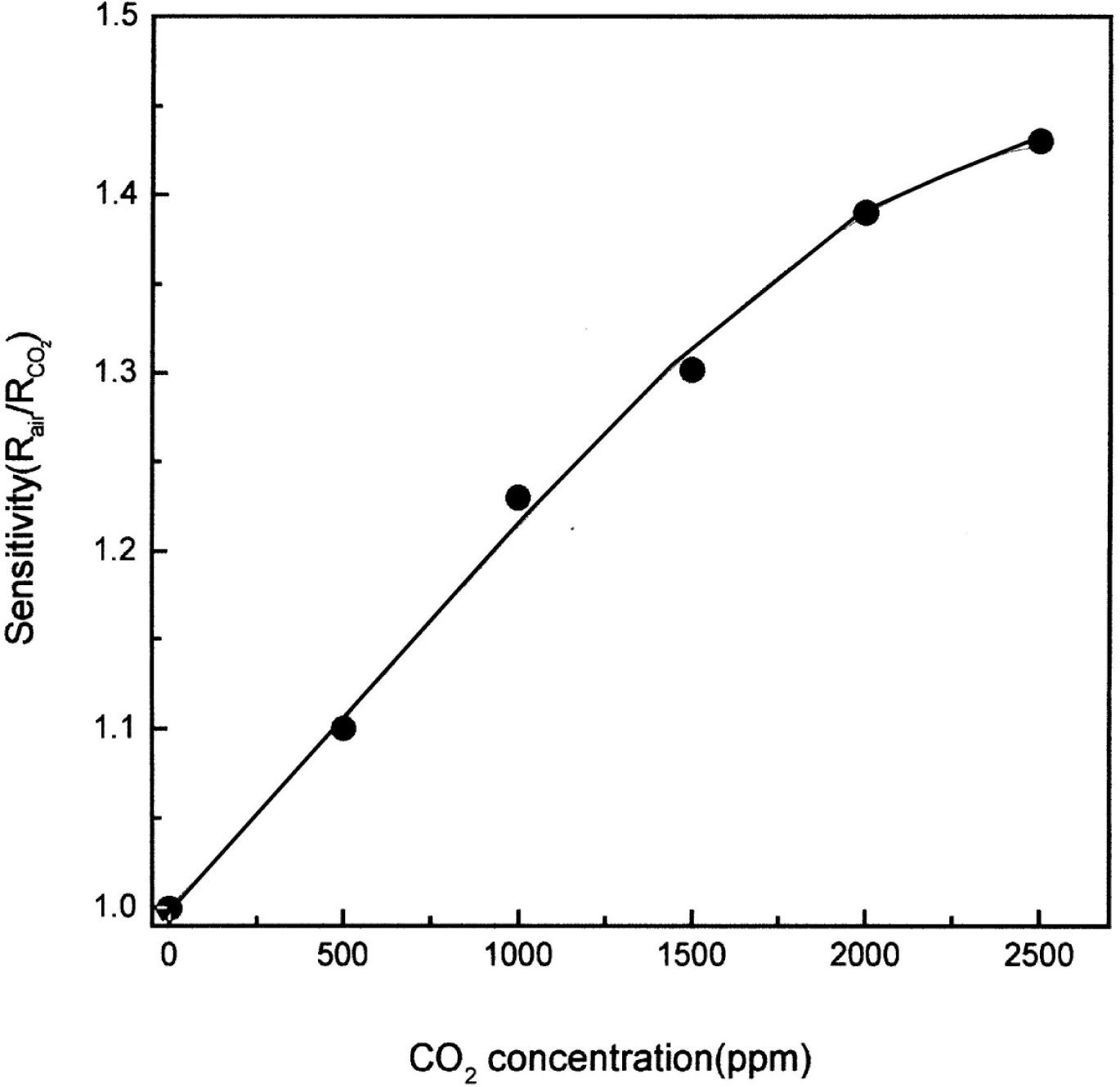

Figure 13. The responsivity change of the Lanthanum film to carbon dioxide upon increasing concentration (temperature unreported). Figure adapted with permissions from [57].
Figure 13. The responsivity change of the Lanthanum film to carbon dioxide upon increasing concentration (temperature unreported). Figure adapted with permissions from [57].
Sensors 10 05469f13
Figure 14. The effect of varying CO2 concentration on the signal of the BaTiO3 sensing material (note the baseline increase over time). Figure adapted with permission from [58].
Figure 14. The effect of varying CO2 concentration on the signal of the BaTiO3 sensing material (note the baseline increase over time). Figure adapted with permission from [58].
Sensors 10 05469f14

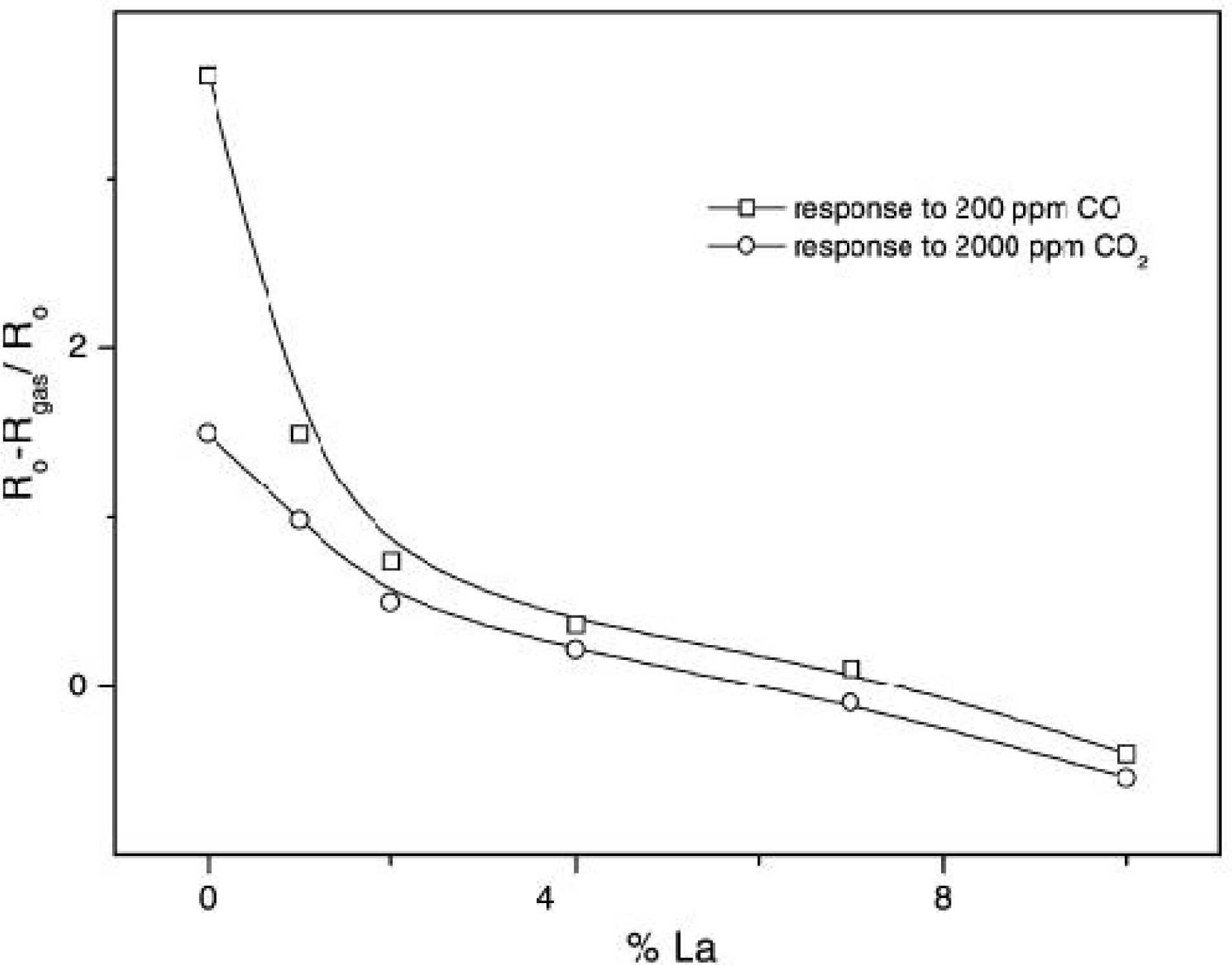

Figure 15. Results demonstrating the effect in changing La concentration on the responsivity of the SnO2 film, also showing poor discrimination between carbon monoxide and carbon dioxide. Figure adapted with permission from [59].
Figure 15. Results demonstrating the effect in changing La concentration on the responsivity of the SnO2 film, also showing poor discrimination between carbon monoxide and carbon dioxide. Figure adapted with permission from [59].
Sensors 10 05469f15
Figure 16. The variation in resistance according to WO3 crystallite size for; □ air, and ▪5 ppm NO2 in air at 300 °C. Figure adapted with permission from [65].
Figure 16. The variation in resistance according to WO3 crystallite size for; □ air, and ▪5 ppm NO2 in air at 300 °C. Figure adapted with permission from [65].
Sensors 10 05469f16

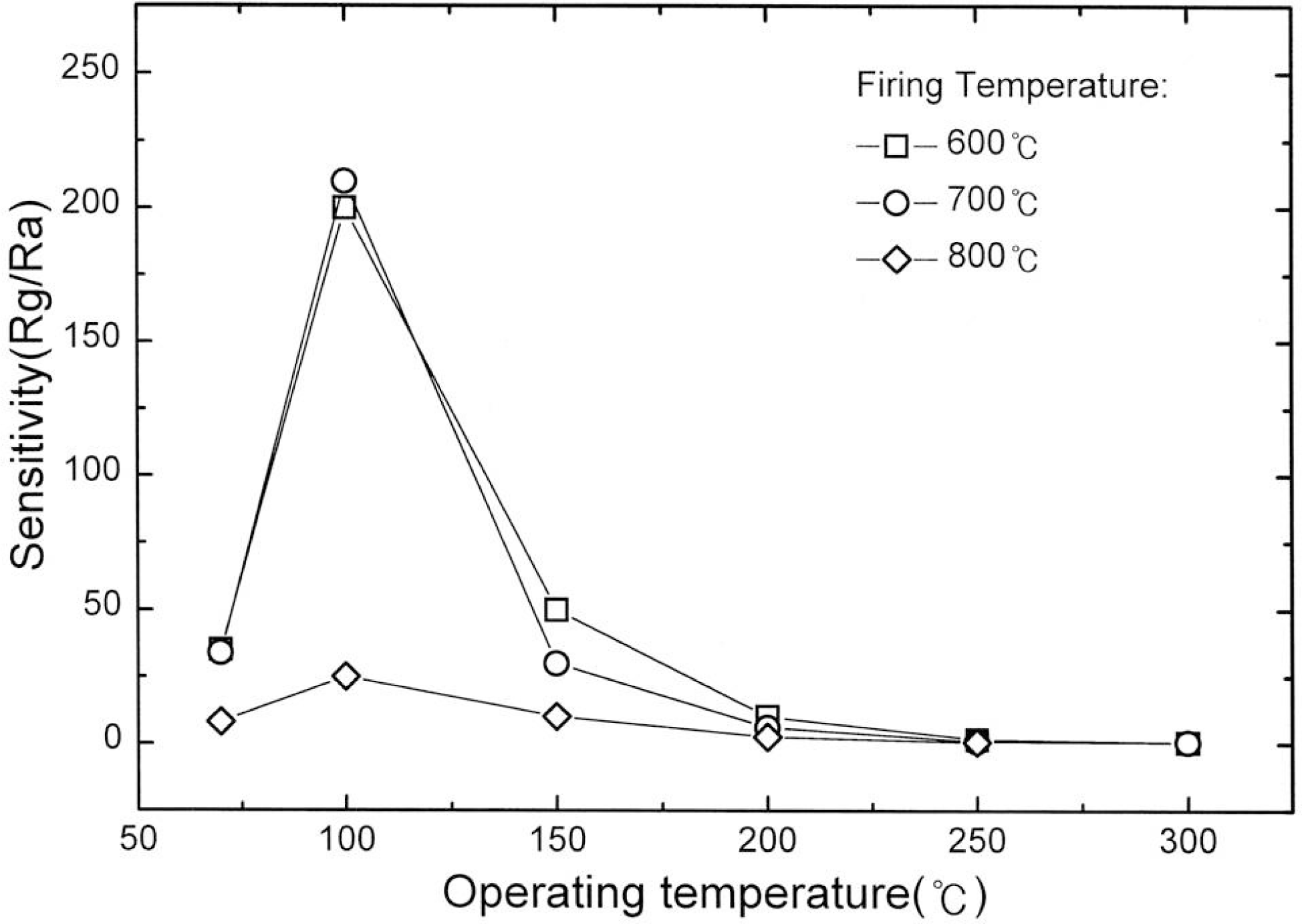

Figure 17. Demonstrating the effect of firing temperature on the responsivity of the WO3 film. Figure adapted with permission from [67].
Figure 17. Demonstrating the effect of firing temperature on the responsivity of the WO3 film. Figure adapted with permission from [67].
Sensors 10 05469f17
Figure 18. The effect of doping the material with various oxides on the responsivity of SnO2 to N2O gas. Figure adapted with permission from [70].
Figure 18. The effect of doping the material with various oxides on the responsivity of SnO2 to N2O gas. Figure adapted with permission from [70].
Sensors 10 05469f18

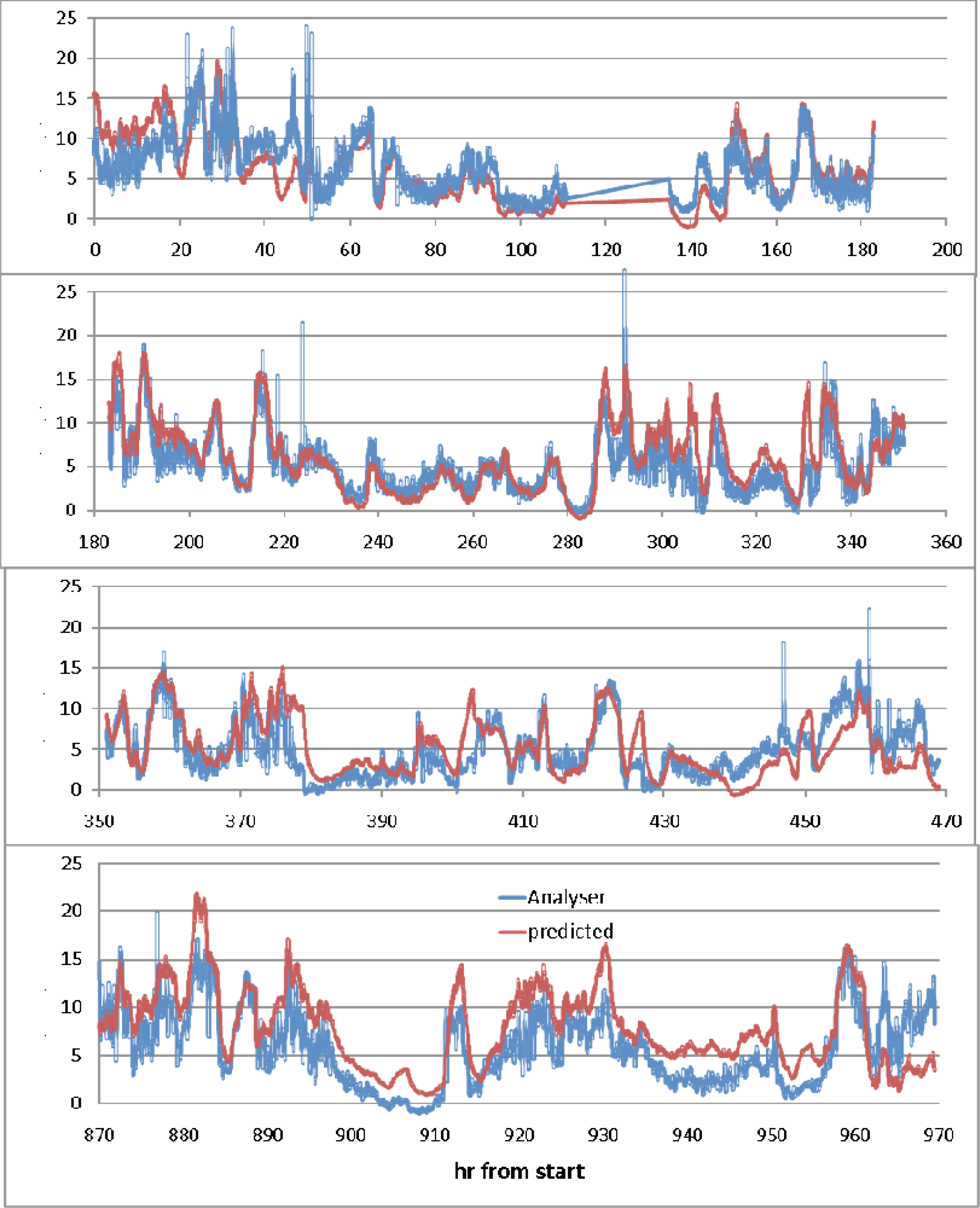

Figure 19. Graph comparing the responses of chemiluminescence and semiconductor sensors. Measurements were simultaneous and made every minute. X-axis indicates hours since experiment start and y-axis ppb concentration of NO2. Figure adapted with permission from [73].
Figure 19. Graph comparing the responses of chemiluminescence and semiconductor sensors. Measurements were simultaneous and made every minute. X-axis indicates hours since experiment start and y-axis ppb concentration of NO2. Figure adapted with permission from [73].
Sensors 10 05469f19

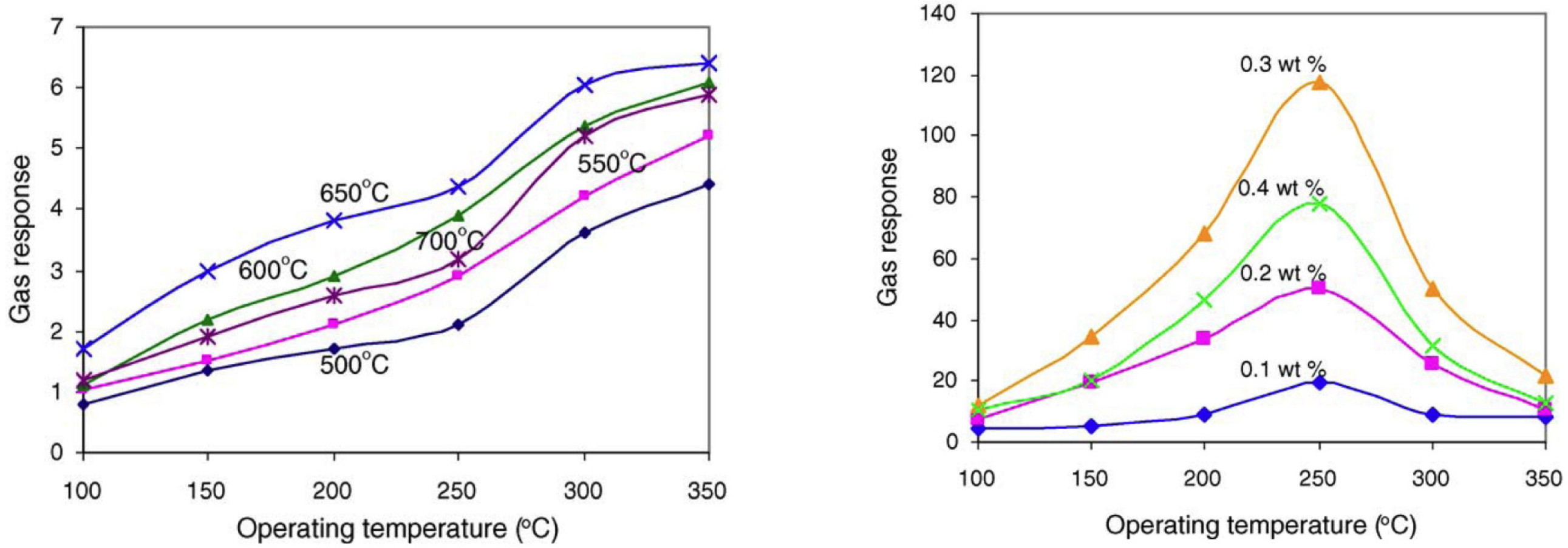

Figure 20. Left, The responses (as %) of pure ZnO thick films fired at varying temperatures to 1,000 ppm of ammonia. Right, showing the optimum operating temperature for ZnO films for sensing 1,000 ppm ammonia with RuO2 doping. Figure adapted with permission from [78].
Figure 20. Left, The responses (as %) of pure ZnO thick films fired at varying temperatures to 1,000 ppm of ammonia. Right, showing the optimum operating temperature for ZnO films for sensing 1,000 ppm ammonia with RuO2 doping. Figure adapted with permission from [78].
Sensors 10 05469f20
Figure 21. Schematic of sensor fabrication, Left a standard screen-printed sensor, Right a sensor modified with a zeolites over-layer.
Figure 21. Schematic of sensor fabrication, Left a standard screen-printed sensor, Right a sensor modified with a zeolites over-layer.
Sensors 10 05469f21
Figure 22. Gas responses of tungsten oxide and zeolites modified tungsten oxide sensors to 100, 120, 140, 160, 180, 200 ppb NO2 in dry air at 350 °C.
Figure 22. Gas responses of tungsten oxide and zeolites modified tungsten oxide sensors to 100, 120, 140, 160, 180, 200 ppb NO2 in dry air at 350 °C.
Sensors 10 05469f22
Figure 23. Comparison of CO2 Sensor Technologies: Commercial Senseair Infra-red device versus a barium based metal oxide semiconductor sensor developed at UCL. CO2 concentration indicated by the K30 is plotted on right hand axis and the UCL sensor response is on left hand axis, showing a change in resistance in the MOhm region.
Figure 23. Comparison of CO2 Sensor Technologies: Commercial Senseair Infra-red device versus a barium based metal oxide semiconductor sensor developed at UCL. CO2 concentration indicated by the K30 is plotted on right hand axis and the UCL sensor response is on left hand axis, showing a change in resistance in the MOhm region.
Sensors 10 05469f23
Figure 24. (Left) Schematic illustrates the CVD reactor design used in the production of sensors using ElFi CVD. (Right) Example morphology of vanadium dioxide thin films grown on sensor substrates from the ElFi CVD reaction of vanadyl acetylacetonate at 525 °C with an applied AC electric field.
Figure 24. (Left) Schematic illustrates the CVD reactor design used in the production of sensors using ElFi CVD. (Right) Example morphology of vanadium dioxide thin films grown on sensor substrates from the ElFi CVD reaction of vanadyl acetylacetonate at 525 °C with an applied AC electric field.
Sensors 10 05469f24
Table 1. Sign of resistance change (increase or decrease) to change in gas atmosphere [6].
Table 1. Sign of resistance change (increase or decrease) to change in gas atmosphere [6].
ClassificationOxidising GasesReducing Gases
n-typeResistance increaseResistance decrease
p-typeResistance decreaseResistance increase
Table 2. Demonstrating the effects of certain concentrations of carbon monoxide on human health. COHb is the percentage of carbon monoxide in the blood. Typical concentrations in the home are 0.5–5 ppm (united states environmental protection agency).
Table 2. Demonstrating the effects of certain concentrations of carbon monoxide on human health. COHb is the percentage of carbon monoxide in the blood. Typical concentrations in the home are 0.5–5 ppm (united states environmental protection agency).
Carbon Monoxide Concentration (ppm)COHb Level (%)Signs and Symptoms
35<10Headache and dizziness within 6 to 8 hours of exposure
100>10Slight headache in 2 to 3 hours
20020Slight headache within 2 to 3 hours; loss of judgement
40025Frontal headache within 1 to 2 hours
80030Dizziness, nausea and convulsions within 45 minutes, insensible within 2 hours
1,60040Headache, tachycardia, dizziness and nausea within 20 minutes; death within 30 minutes
3,20050Headache dizziness and nausea in 5 to 10 minutes; death within 30 minutes
6,40060Headache and dizziness in 1 to 2 minutes; convulsions, respiratory arrest, and death in less than 20 minutes
12,800>70Death in less than 3 minutes
Table 3. Detailing the effects of concentration and exposure time of CO2 on human health Taken from occupational health and safety website in Canada [54].
Table 3. Detailing the effects of concentration and exposure time of CO2 on human health Taken from occupational health and safety website in Canada [54].
CO2 Concentration and Exposure timeEffect on Health (symptoms)
0.035%Approximate atmospheric concentration, no noticeable effect.
3.3–5.4% for 15 minsIncreased depth of breathing
7.5% for 15 minsFeeling of an inability to breathe, increased pulse rate, headache, dizziness, sweating, restlessness, disorientation, and visual distortion.
3%, for over 15 hoursDecreased night vision, colour sensitivity
10%, 1.5 minsEye flickering, increased muscle activity, twitching
10+%Difficulty in breathing, impaired hearing, nausea, vomiting, a strangling sensation, sweating, after 15 minutes a loss of consciousness.
30%Unconsciousness, convulsions. Several deaths attributed to CO2 at concentrations of more than 20%
Table 4. Showing the resistance change of different forms of ZnO (doped and un-doped) in the presence of different gases. Taken from H. Nanto [75].
Table 4. Showing the resistance change of different forms of ZnO (doped and un-doped) in the presence of different gases. Taken from H. Nanto [75].
Gas SpeciesΔR for ZnOΔR Al-doped ZnO (2% wt)ΔR In-doped ZnO (2% wt)ΔR Ga-doped ZnO (2% wt)
Ammonia−72−94−88−82
Hydrogen35131549
Butane21002
Methane0000
Ethyl Alcohol69543940
Acetone89846268

Share and Cite

MDPI and ACS Style

Fine, G.F.; Cavanagh, L.M.; Afonja, A.; Binions, R. Metal Oxide Semi-Conductor Gas Sensors in Environmental Monitoring. Sensors 2010, 10, 5469-5502. https://doi.org/10.3390/s100605469

AMA Style

Fine GF, Cavanagh LM, Afonja A, Binions R. Metal Oxide Semi-Conductor Gas Sensors in Environmental Monitoring. Sensors. 2010; 10(6):5469-5502. https://doi.org/10.3390/s100605469

Chicago/Turabian Style

Fine, George F., Leon M. Cavanagh, Ayo Afonja, and Russell Binions. 2010. "Metal Oxide Semi-Conductor Gas Sensors in Environmental Monitoring" Sensors 10, no. 6: 5469-5502. https://doi.org/10.3390/s100605469

Article Metrics

Back to TopTop
