A Non-Invasive Thermal Drift Compensation Technique Applied to a Spin-Valve Magnetoresistive Current Sensor

1
Department of Electronic Engineering, University of Valencia, C/ Doctor Moliner, 50, 46100-Burjassot, Spain
2
Instituto de Sistemas e Computadores—Microsistemas e Nanotecnologias (INESC-MN) and Institute for Nanosciences and Nanotechnologies, R. Alves Redol 9, 1000-029 Lisbon, Portugal
*
Author to whom correspondence should be addressed.
Sensors 2011, 11(3), 2447-2458; https://doi.org/10.3390/s110302447
Submission received: 10 January 2011 / Revised: 10 February 2011 / Accepted: 11 February 2011 / Published: 25 February 2011
(This article belongs to the Section Physical Sensors)

Abstract

: A compensation method for the sensitivity drift of a magnetoresistive (MR) Wheatstone bridge current sensor is proposed. The technique was carried out by placing a ruthenium temperature sensor and the MR sensor to be compensated inside a generalized impedance converter circuit (GIC). No internal modification of the sensor bridge arms is required so that the circuit is capable of compensating practical industrial sensors. The method is based on the temperature modulation of the current supplied to the bridge, which improves previous solutions based on constant current compensation. Experimental results are shown using a microfabricated spin-valve MR current sensor. The temperature compensation has been solved in the interval from 0 °C to 70 °C measuring currents from −10 A to +10 A.

Graphical Abstract

1. Introduction

Advances in the solid-state sensor manufacturing industries have allowed a significant improvement in the miniaturization, consumption and cost of instrumentation and measurement systems. The above benefits have been reached using semiconductors and transition metals as reference materials. However, the temperature dependence of their physical properties demands the use of specific compensation techniques, especially where the measurand of interest will not be the temperature (pressure, vibration, electrical current, etc.). In this way there are various and different efforts that have been dedicated to the reduction of the sensors temperature dependence. There are two main groups in which the temperature compensation techniques could be classified: hardware compensation and digital processing compensation methods. In [1] different hardware thermal compensation methods dedicated to a piezoresistive sensor are presented. Particularly, it is required to have complete accessibility to the sensor Wheatstone bridge terminals or the use of active components (like bipolar transistors). The temperature compensation of the fluid to be measured is of special relevance in a well-done flowmeter design. Following this goal, various solutions are proposed in [2,3] where some mathematical conditions must be satisfied or where two Wheatstone bridges were needed. In the power electronics field the techniques described in [4,5] are interesting. In [4], current sensing was done by temperature compensation of the inaccuracy caused by the inductor parasitic ohmic resistance temperature dependence. The compensation was successful but complex to satisfy in its mathematical requirements. The work described in [5] was based in a frequency domain compensation procedure and was used in a low voltage power supply situation.

Digital processing algorithms have been applied reducing the thermal dependence in piezoresistive sensors [6], load cells [7] or in pressure capacitive sensors [8]. These techniques require an additional processing hardware based in digital intelligence (computer, microcontroller or digital signal processor) and dedicated software. All of them are, in a large number of industrial situations, difficult to apply.

In this work the thermal drift of a microfabricated current sensor is reduced by the use of a simple hardware compensation method. This represents an improvement of a technique that was first developed in [9]. The sensor is a Wheatstone bridge implemented by four magnetoresistances of the spin-valve type [10]. The compensation is solved using a resistive temperature sensor by means of a simple procedure because no equilibrium Wheatstone bridge condition is needed, nor two bridge units or full access to the bridge terminals are required. The magnetoresistive current sensing technology has been successfully applied in power converters [11] or in instrumentation and measurement area (current probes design) [12]. In the present work the temperature compensation has been solved in the temperature interval from 0 °C to 70 °C measuring currents from −10 A to +10 A.

2. Compensation Method

A constant current driven Wheatstone bridge sensor is used to apply the compensation method (Figure 1). The driving sensor current source was described in [13,14] and is based in a Generalized Impedance Converter circuit (GIC). The choice of a constant current source as the sensor bridge power supply was based on previous works that show a remarkable reduction in the temperature coefficient of the bridge sensitivity [1518].

If a current sensor is considered, its non-compensated output, vo,nc could be given by:

v o , nc   ( t ) = S ( t ) i + v o , off
being i the current to be sensed (measured in amps), vo,off the sensor output at zero input current (in mV), t the temperature (in °C) and S(t), the sensor sensitivity (in mV/A). The output offset could not be considered if this has been compensated previously by calibration. As equation (1) shows, a change in temperature will produce a change in the sensor sensitivity generating an output sensor variation, but without any change in the current i to be measured.

Let S ¯ S v B , nc be the sensor sensitivity normalized to bridge voltage, vB,nc. If the sensor bridge is driven by a constant current iB,nc the voltage drop across it will be:

v B , nc   ( t ) = i B , nc R B   ( t ) = n o i ref R B   ( t )
where RB is the equivalent bridge resistance. The constant current iB,nc in equation (2) is supplied by the GIC circuit and it is equal to the product of the constant no times the GIC input reference current iref, [13,14]. As a consequence, the non-compensated sensor bridge output vo,nc will be given by:
v o , nc   ( t ) = S ¯ ( t ) v B , nc   ( t ) i = S ¯ ( t ) i B , nc R B   ( t ) i = S ¯ ( t ) n o i ref R B   ( t ) t

Equation (3) shows that the temperature drift of the sensor output will be provided by both normalized sensitivity and bridge equivalent resistance temperature dependences. It is assumed that before compensation iref is a good reference current and it is not affected by the temperature.

The main purpose of the compensation method is to place enough temperature dependence in iref to compensate the drift in vo,nc(t) caused by (t) and RB(t). As a result the compensated sensor output, vo,c(t) will have no temperature dependence:

dv o , c   ( t ) dt = 0.

Figure 2 depicts how a practical GIC circuit supplies to the bridge sensor a current iB proportional to a 100 μA reference current iref. The gain factor no depends on GIC resistances R1 to R4, a proper replacement of one of them by a series association of a temperature sensor Rs(t) and a constant resistance R will lead to accomplish equation (4). The final objective of the compensation method will be to find a properly selected R resistance value.

The gain factor is given by:

n o R 1 R 3 R 2 R 4
and four possibilities could be considered to enter a temperature dependence on it depending on whether the series association is placed [equations (6) to (9)]:
R 1 = R + R s   ( t ) n ( t ) = [ R + R s   ( t ) ] R 3 R 2 R 4
R 3 = R + R s   ( t ) n ( t ) = R 1 [ R + R s   ( t ) ] R 2 R 4
R 2 = R + R s   ( t ) n ( t ) = R 1 R 3 [ R + R s   ( t ) ] R 4
R 4 = R + R s   ( t ) n ( t ) = R 1 R 3 R 2 [ R + R s   ( t ) ]

With a temperature dependence in the gain factor n(t), from equation (3) the compensated bridge output voltage can be rewritten as:

v o , c   ( t ) = S ¯ ( t ) n ( t ) i ref R B   ( t ) i = S ( t ) n o i ref R B   ( t ) n ( t ) i ref R B   ( t ) i

As a consequence of this, in order to compensate the bridge output voltage vo,c(t) only the sensor sensitivity temperature coefficient, S(t) is needed:

v o , c   ( t ) = S ( t ) n ( t ) n o i

Equation (11) states how the temperature drift in sensitivity could be modulated by the gain factor drift to obtain an effective compensation in the sensor output voltage. Applying natural logarithms in both terms of equation (11), differentiating and taking derivatives with respect to the temperature it is possible to obtain:

dv o , c   ( t ) / dt v o , c   ( t ) = dS ( t ) / dt S ( t ) + dn ( t ) / dt n ( t )
and in a more compact form:
TC ( v o , c ) = TC ( S ) + TC ( n )
where TC denotes temperature coefficient of the quantity to be considered. In order to have TC(vo,c) = 0, the value of the resistance R will be obtained from the equation:
TC ( n ) = TC ( S )

Depending on the position of the temperature sensor Rs(t) inside the GIC circuit two different expressions for resistance R could be obtained. If series association Rs(t)+R plays the role of the resistances R1 or R3 [equations (6) or (7)] the equation (14) could be rewritten as:

1 1 + R R s   ( t ) TC ( R s ) = TC   ( S )

On the other hand, if the association Rs(t)+R is placed in resistances R2 or R4 [equations (8) or (9)] equation (14) will give to:

1 1 + R R s   ( t ) TC ( R s ) = TC   ( S )

From equations (15) and (16) two expressions of resistance R could be obtained:

if { R 1 or R 3 } = R + R s   ( t ) R = R so ( TC ( R s ) TC ( S ) + 1 )
if { R 2 or R 4 } = R + R s   ( t ) R = R so ( TC ( R s ) TC ( S ) 1 )
where Rso is the value of the resistance sensor Rs(t) at the temperature to where the compensation is specified. Defining the compensation factor m in the form of m≡TC(Rs)/TC(S) different conclusions could be considered:

As a consequence of this and considering only passive resistances, the compensation method will be possible and effective if:

TC ( R s ) > TC ( S )       or       TC ( R s ) < TC ( S )

The above expressions mean that │TC(Rs)│>│TC(S)│ independently of the relationship between the sign of the temperature coefficients.

Table I summarizes the resistance selection criteria to obtain the proper temperature drift compensation of the sensor bridge.

3. Experimental Results

In this section a MR electrical current sensor is compensated with a ruthenium based temperature sensor. Both sensors were fully microfabricated in the same substrate at the INESC-MN facilities (Lisbon). The temperature compensation sensor was integrated in the same microfabrication process as the spin-valve MR current sensor. This fact allows a close temperature matching between both sensors. Ruthenium is more useful than platinum as the material to implement the temperature sensor because its fabrication process is more compatible with spin-valve processes, as the material is often used in the spin-valve stack by several groups in synthetic antiferromagnetic layers, see for example [19]. The ruthenium target is included in the same deposition tool used for spin valve deposition and does not require the change of the deposition infrastructure configuration needed by the platinum. In spite of its lower sensitivity (0.16 %/°C) compared to platinum (0.36 %/°C) both materials belong to the same group of metals sharing good temperature linearity. Additionally ruthenium has lower fabrication costs than platinum.

The electrical current sensor is configured as a full Wheatstone bridge. Four active 3 μm × 100 μm spin-valve sensors were deposited by ion beam deposition [20] with the structure (thickness in Å): Si/Al2O3 (500)//Ta (20)/NiFe (30)/MnIr (60)/CoFe (30)/Cu (19)/CoFe (25)/NiFe (25)/Cu (10)/Ta (20)/TiWN (50), [21], where CoFe, NiFe, MnIr and TiWN stand for Co80Fe20, Ni80Fe20, Mn77Ir23 and Ti10W90N in atomic %. Free and pinned layers easy-axis are 90° oriented to get a linear characteristic. Each single spin-valve sensor element was magnetically characterized providing a minimum resistance Rmin equal to 740.2 Ω ± 1.7 Ω and a maximum resistance Rmax equal to 801.1 Ω ± 2.1 Ω, this mean a MR effect of 8% according to Rmax−Rmin/Rmin.

The electrical current that generates the magnetic field to be measured circulated through an external copper conductor as it can be seen in Figure 3(a) (dimensions in mm). The chip layout could be shown in Figure 3(b) where the external conductor has been put on top.

Following the method described in Section 2, the MR Wheatstone sensor was biased by a constant current of 1 mA using the GIC circuit shown in Figure 2. A constant gain factor of n = 100 was designed for a reference input current of 100 μA given by the integrated circuit REF200. So the resistance values were: R1 = 2 kΩ, R2 = 1 kΩ, R3 = 5 kΩ, R4 = 1 kΩ.

The MR current sensor was placed inside a climate chamber (model CH-600 from Angelantoni) that generated a controllable and stable temperature (with an accuracy of ±0.3 °C). The experimental sensitivity of the sensor was determined collecting the voltage output of the MR current sensor responding to steps of 1 A of the electrical input current that was selected within the range of ±10 A. An electrical current sweep was done at a temperature included in the interval from 0 °C to 70 °C and with increments of 10 °C. The results of these measurements corresponding to the extreme temperature values of the interval are shown in Figure 4, it could be noticed the decrease in the sensor sensitivity as the temperature increases. Taking the value 0 °C as temperature reference to the thermal coefficient sensitivity was TC(S) = −0.152 %/°C. The equivalent resistance of the bridge was also measured, note that it is linear temperature dependent with opposite sign with respect to TC(S) (Figure 5).

The sensitivity of the ruthenium thermoresistive sensor was obtained based on measurements taken with a Keithley K2700 digital multimeter. The results are depicted in Figure 6 showing the ruthenium resistance value as a function of the temperature. A linear least-squares fit was applied to the collected data in order to estimate the characteristic parameters of the Ru sensor. The main parameters obtained were a 0 °C reference resistor value of 904 Ω, a temperature sensitivity of 1.46 Ω/°C and a positive temperature coefficient TC(Rs) of 0.161 %/°C. The experimental correlation coefficient was 0.998 showing the good linearity offered by the ruthenium resistance temperature detector (Figure 6).

The GIC circuit was redesigned considering the criteria established in Table I. An obtained value of the compensation factor m of −1.1 will give that the series association of Rs(t) and R will be placed in R1 or R3. In the present work the resistance R3 was replaced by the compensation network implemented by the ruthenium sensor in series with the calculated compensation resistor R = 91.3 Ω. Selecting resistances R1 = R2 = 2 kΩ, and R4 = 100 Ω, the gain factor n(t) at 0 °C was 9.94. Figure 7 shows the current driven by the GIC circuit. It could be notice that the current source is temperature dependent and its varying level modulates, in an opposite way, the temperature variation of the bridge sensitivity. This is the fundamental purpose of the proposed method. As in [22], the objective will be to bias the bridge with a current across it that increases with temperature. This would be done biasing the bridge by a NTC resistor, a negative impedance converter (NIC) or a temperature dependent-current source as proposed. The experimental temperature coefficient of the gain factor n was TC(n) = 0.158 %/°C, in concordance with the theoretical value expected by equation (14) for a properly designed temperature compensation.

The MR current sensor was biased with the new temperature modulated current. The comparison between Figures 4 and 8 shows that the suggested method reduces the error due to temperature drift.

Using temperature compensation the discrepancy between the sensor output voltage for minimum and maximum temperatures are one order of magnitude smaller than the non-compensation discrepancy (Figure 9).

The new temperature coefficient of the sensitivity was calculated obtaining the value of TC(S) = 0.007 %/°C. Figure 10 verifies the performance of the compensation method demonstrating how the proposed technique is effective reducing the temperature sensitivity dependence. As it can be observed, the evolution of the compensated sensitivity is almost flat and close to the value of the sensitivity at 0 °C reference for all the analyzed temperature range. The non-compensated sensitivity was affected by temperature drift, decreasing its value as temperature rises.

4. Conclusions

In the present work an improved compensation method has been applied to compensate the sensitivity drift temperature coefficient of a MR current sensor. The temperature compensation has been solved in the interval from 0 °C to 70 °C measuring currents from −10 A to +10 A. The compensation technique described is useful for commercial sensors where the accessibility to its internal structure is not possible. To solve the compensation, the only requirement is that the compensation sensor must have a temperature coefficient higher than that of the sensor to compensate for. This condition is easy to find when comparing the temperature coefficient of a resistance temperature sensor with the target sensor temperature drift.

The temperature compensation sensor was integrated in the same microfabrication process as the spin-valve MR current sensor. This fact allows a close temperature matching between both sensors. Ruthenium is more useful than platinum as the material used to implement the temperature sensor because its fabrication process is more compatible with existing spin-valves processes. Ruthenium is a material used in some spin-valves fabrication processes and does not require any changes to the deposition infrastructure configuration as needed by platinum.

The proposed technique has been applied to a magnetoresistive current sensor that finds application in industrial switched-mode power supplies, power converters or electrical drives. The current source designed by the GIC circuit improves the other classical constant current sources like the Howland circuit because it does not need good matching between resistances involved in the circuit and without requiring positive feedback in the GIC circuit as it occurs in the Howland current source.

Acknowledgments

This work was supported in part by the Spanish Ministry of Science and Innovation, the European Regional Development Fund under the ENE2008-06588-C04-04 project and by the Generalitat Valenciana ACOMP/2010/231 project.

References

  1. Guo, T; Shi, Y; Zhang, W. Study on the temperature compensation method of piezoresistance silicon film sensor. Proceedings of the 6th International Symposium on Test and Measurement (ISTM/2005), Dalian, China, 1–4 June 2005; pp. 137–139.
  2. Nam, T; Kim, S; Kim, S; Park, S. The temperature compensation of a thermal flow sensor with a mathematical method. Digest of the 12th International Conference on Solid-State Sensors, Actuators and Microsystems (TRANSDUCERS 03), Boston, MA, USA, 8–12 June 2003; pp. 1586–1589.
  3. Sosna, C; Buchner, R; Lang, W. A temperature compensation circuit for thermal flow sensors operated in constant-temperature-difference mode. IEEE Trans. Instrum. Meas 2010, 59, 1715–1721. [Google Scholar]
  4. Tsang, KM; Chan, WL. Temperature compensated high efficiency inductor current sensor. Sensor. Actuator. A 2009, 154, 16–22. [Google Scholar]
  5. Dallago, E; Passoni, M; Sassone, G. Lossless current sensing in low-voltage high-current dc/dc modular supplies. IEEE Trans. Ind. Electron 2000, 42, 1249–1252. [Google Scholar]
  6. Snook, RD; Zaft, PE. Fourier-analysis method for temperature compensation of a microcomputer-controlled piezoelectric crystal sulfur-dioxide sensor. Analyst 1989, 114, 149–153. [Google Scholar]
  7. Matsuzaki, T; Kohashi, T. Thermal error compensation method for weighing sensor. Proceedings of the SICE 2003 Annual Conference, Fukui, Japan, August 2003; pp. 2528–2532.
  8. Wang, W. Non-linearity Estimation and Temperature Compensation of Capacitor Pressure Sensors Using Least Square Support Vector Regression. Proceedings of the IEEE Intern. Symp. on Knowledge Acquisition and Modeling, Wuhan, China, December 2008; pp. 1161–1164.
  9. Ramírez Muñoz, D; Sánchez Moreno, J; Casans Berga, S; Reig Escrivà, C; Navarro Antón, AE. Temperature compensation of Wheatstone bridge magnetoresistive sensors based on generalized impedance converter with input reference current. Rev. Sci. Instrum 2006, 77, 1–6. [Google Scholar]
  10. Freitas, PP; Silva, F; Oliveira, NJ; Melo, LV; Costa, L; Almeida, N. Spin valve sensors. Sensor. Actuator. A 2000, 81, 2–8. [Google Scholar]
  11. Pelegrí, J; Ramírez, D; Sanchis, E; Navarro, AE; Casans, S. Giant magnetoresistive sensor in conductance control of switching regulators. IEEE Trans. Magn 2000, 36, 3578–3580. [Google Scholar]
  12. Sánchez-Moreno, J; Ramírez, D; Casans, S; Cubells, MªD; Reig, C; Navarro, AE. Extending magnetoresistive AC transfer characteristic for current measurement. Proceedings of the IEEE Instrumentation and Measurement Technology Conference, (I2MTC 2008),. Victoria, Canada, May 2008; pp. 305–308.
  13. Ramírez-Muñoz, D; Blat González, A; Sánchez Moreno, J; Casans Berga, S; Reig, C; Navarro Antón, AE. Series Sensor Current Loop from a Generalized Impedance Converter Circuit with Reference Current Input. Proceedings of the IEEE Instrumentation and Measurement Technology Conference, (I2MTC 2006),. Sorrento, Italy, April 2006; pp. 2265–2270.
  14. Ramírez-Muñoz, D; Casans-Berga, S; Reig, C. Current loop generated from a generalized impedance converter: a new sensor signal conditioning circuit. Rev. Sci. Instrum 2005, 76, 066103. [Google Scholar]
  15. Petersen, A. The magnetoresistive sensor. A sensitive device for detecting magnetic field variations. Electron. Compon. Appl 1986, 8, 222–239. [Google Scholar]
  16. Gakkestad, J; Ohlekers, P; Halbo, L. Compensation of sensitivity shift in piezoresistive preassure sensors using linear voltage excitation. Sensor. Actuator. A 1995, 49, 11–15. [Google Scholar]
  17. Philips Components. Data Handbook SC17; Philips: Eindhoven, The Netherlands, 1989. [Google Scholar]
  18. Smith, CH; Schneider, RW. The growing role of solid-state magnetic sensing. Proceedings of Sensors Expo, Detroit, MI, USA, 1997; pp. 139–149.
  19. Veloso, A; Freitas, PP. Spin valve sensors with synthetic free and pinned layers. J. Appl. Phys 2000, 87, 5744–5746. [Google Scholar]
  20. Gehanno, V; Freitas, PP; Veloso, A; Ferrira, J; Almeida, B; Soasa, JB; Kling, A; Soares, JC; da Silva, MF. Ion beam deposition of Mn-Ir spin valves. IEEE Trans. Magn 1999, 35, 4361–4367. [Google Scholar]
  21. Veloso, A; Freitas, PP; Wei, P; Barradas, NP; Soares, JC; Almeida, B; Sousa, JB. Magnetoresistance enhancement in specular, bottompinned, MnIr spin valves with nano-oxide layers. Appl. Phys. Lett 2000, 77, 1020–1022. [Google Scholar]
  22. López-Martín, AJ; Osa, JI; Zuza, M; Carlosena, A. Analysis of a Negative Impedance Converter as a Temperature Compensator for Bridge Sensors. IEEE Trans. Instrum. Meas 2003, 52, 1068–1072. [Google Scholar]

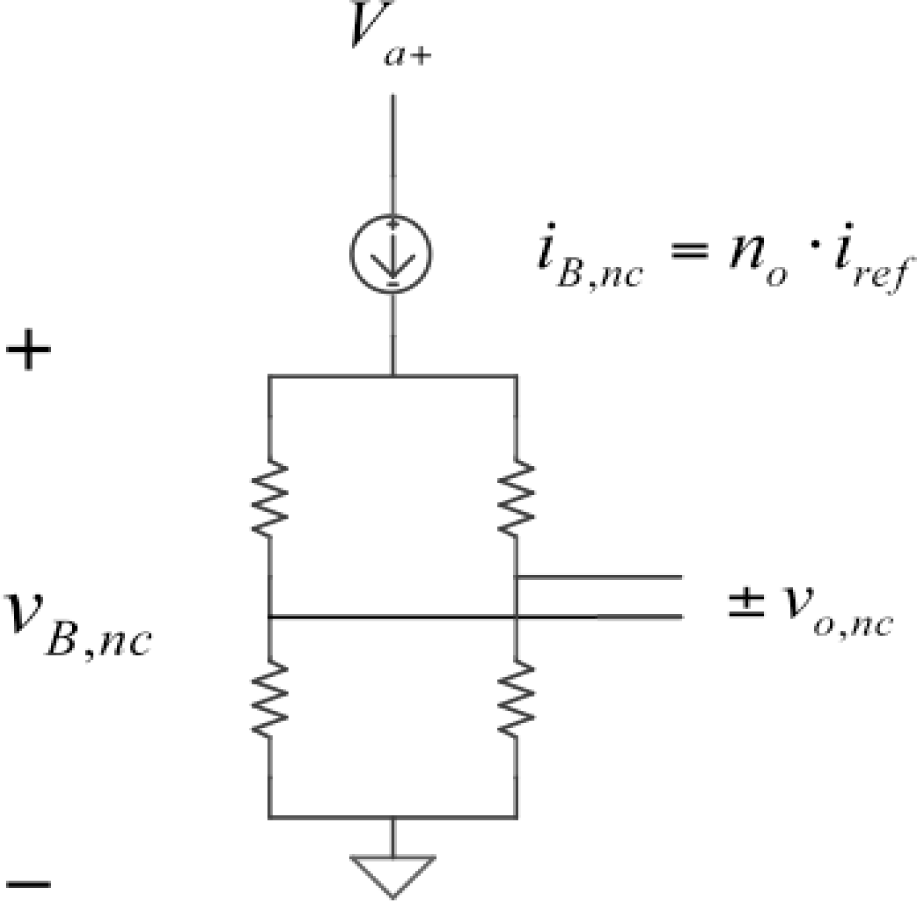

Figure 1. Variables definition in the Wheatstone bridge before compensation.
Figure 1. Variables definition in the Wheatstone bridge before compensation.
Sensors 11 02447f1 1024

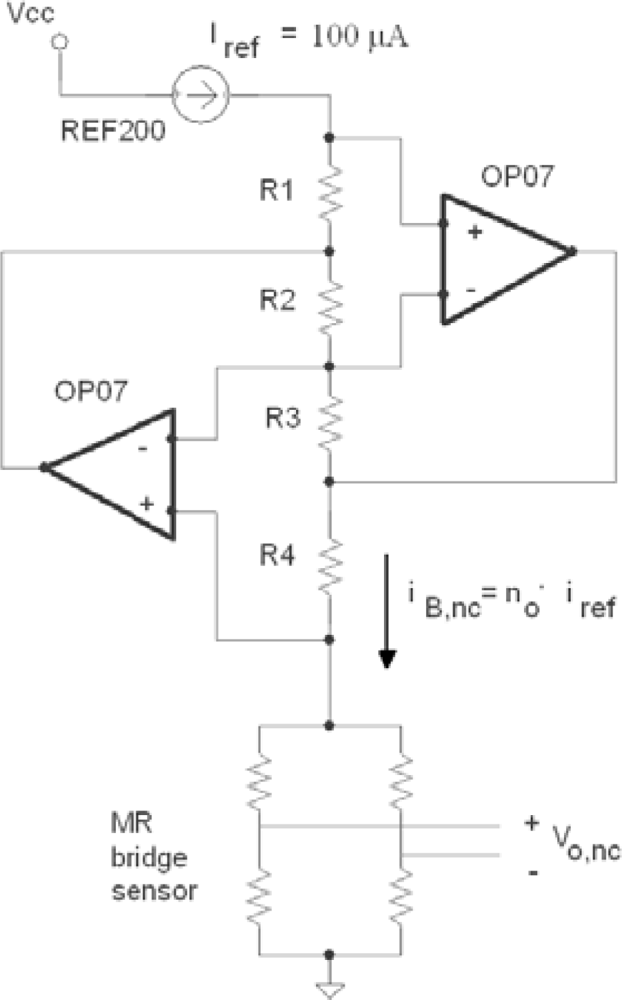

Figure 2. Driving the MR current sensor by a constant current source using a GIC circuit.
Figure 2. Driving the MR current sensor by a constant current source using a GIC circuit.
Sensors 11 02447f2 1024

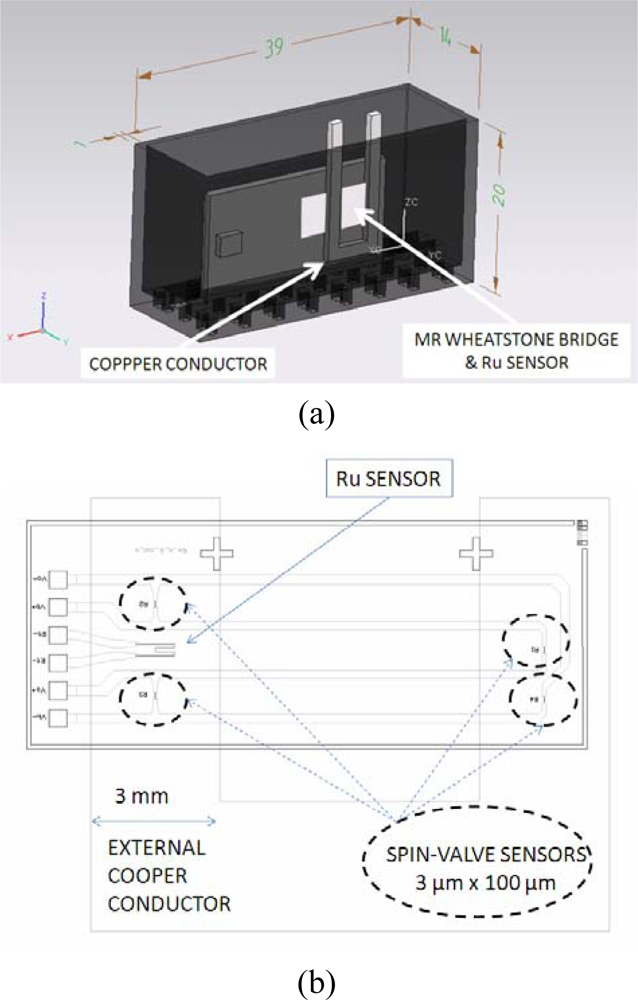

Figure 3. (a) MR electrical current sensor arrangement. (b) Chip layout.
Figure 3. (a) MR electrical current sensor arrangement. (b) Chip layout.
Sensors 11 02447f3 1024

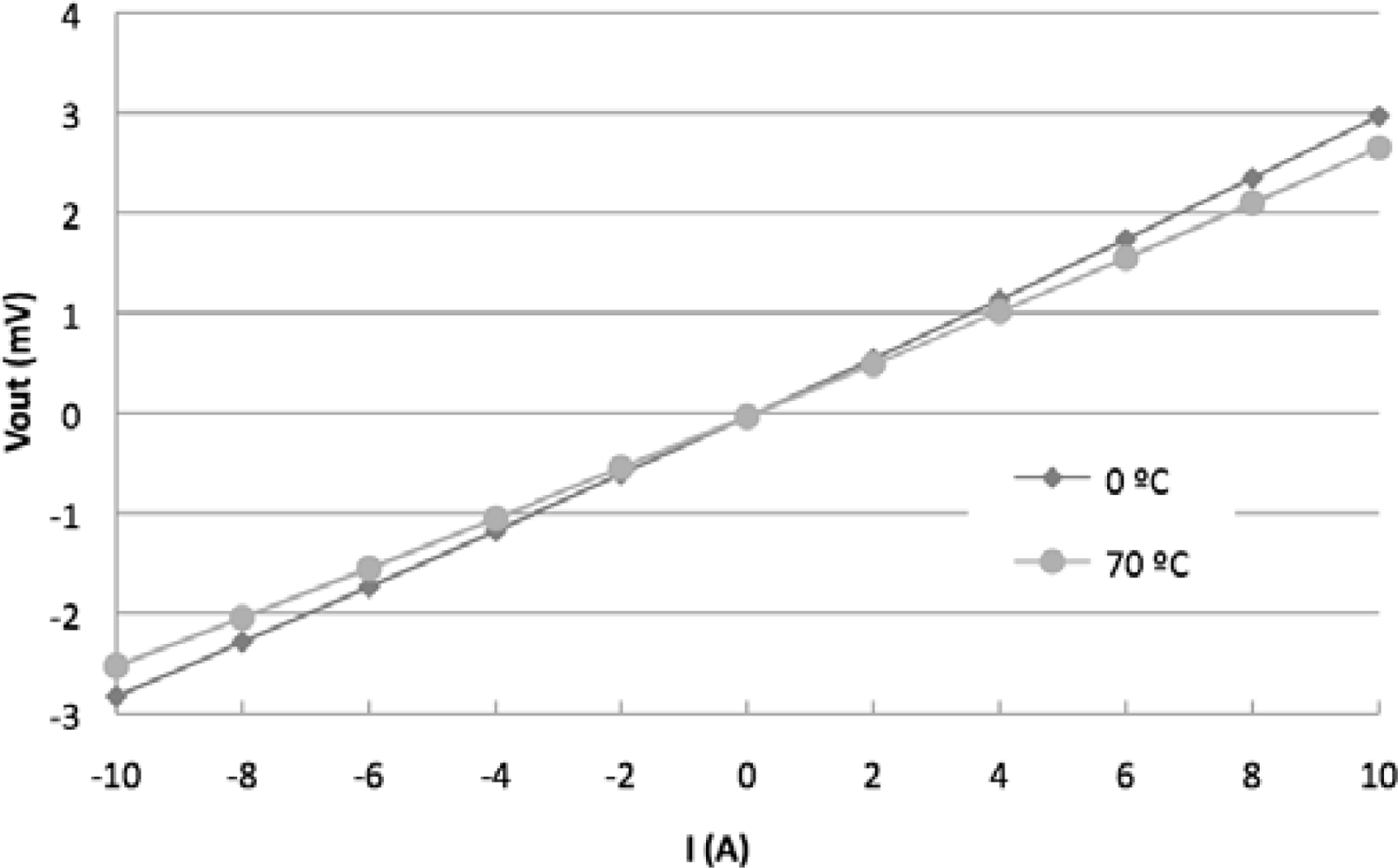

Figure 4. MR current sensor voltage output for a ±10 A current sweep in the extreme temperatures of the interval (1 mA bridge supply current).
Figure 4. MR current sensor voltage output for a ±10 A current sweep in the extreme temperatures of the interval (1 mA bridge supply current).
Sensors 11 02447f4 1024

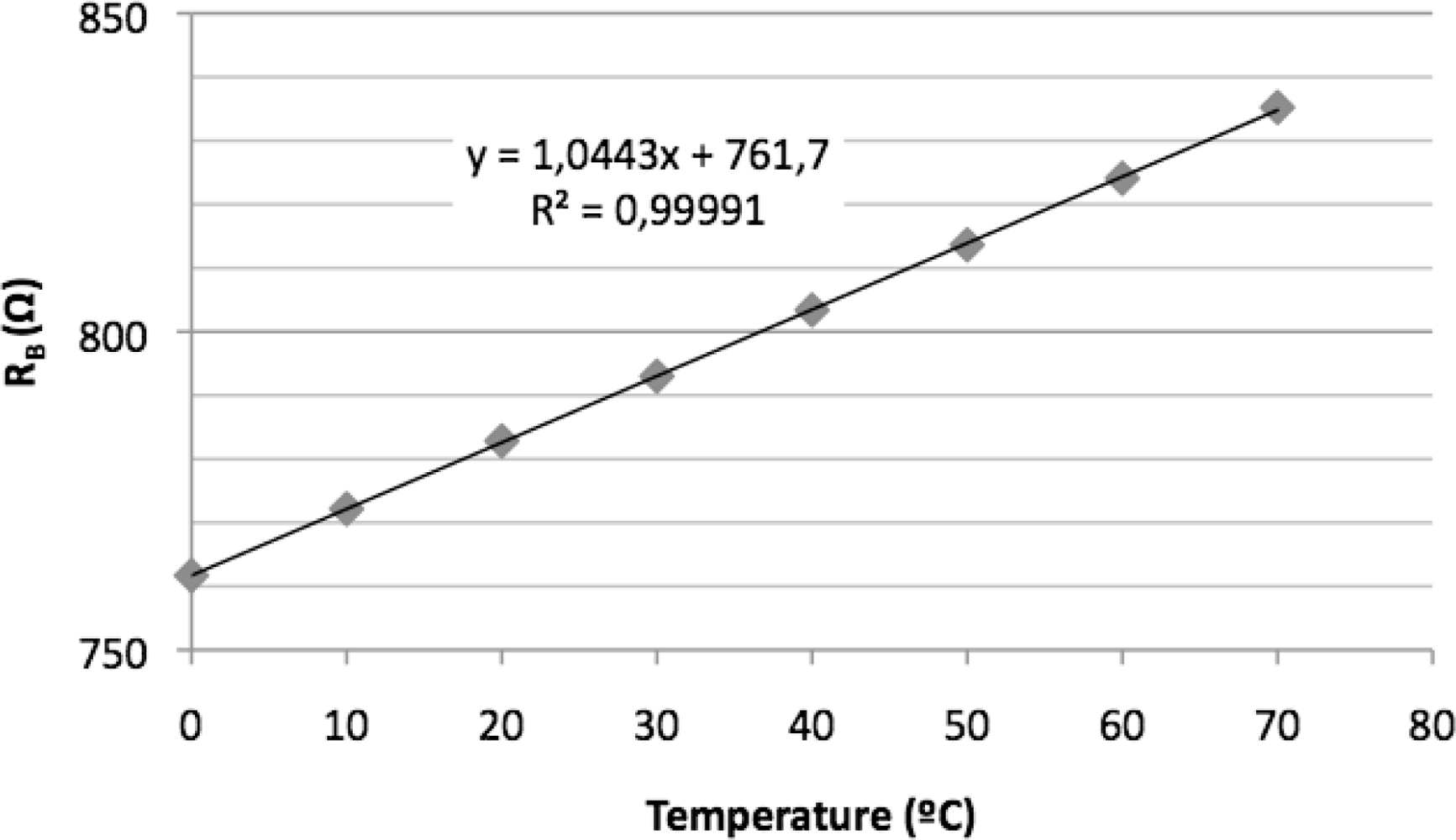

Figure 5. Equivalent bridge resistance value as a function of the temperature.
Figure 5. Equivalent bridge resistance value as a function of the temperature.
Sensors 11 02447f5 1024

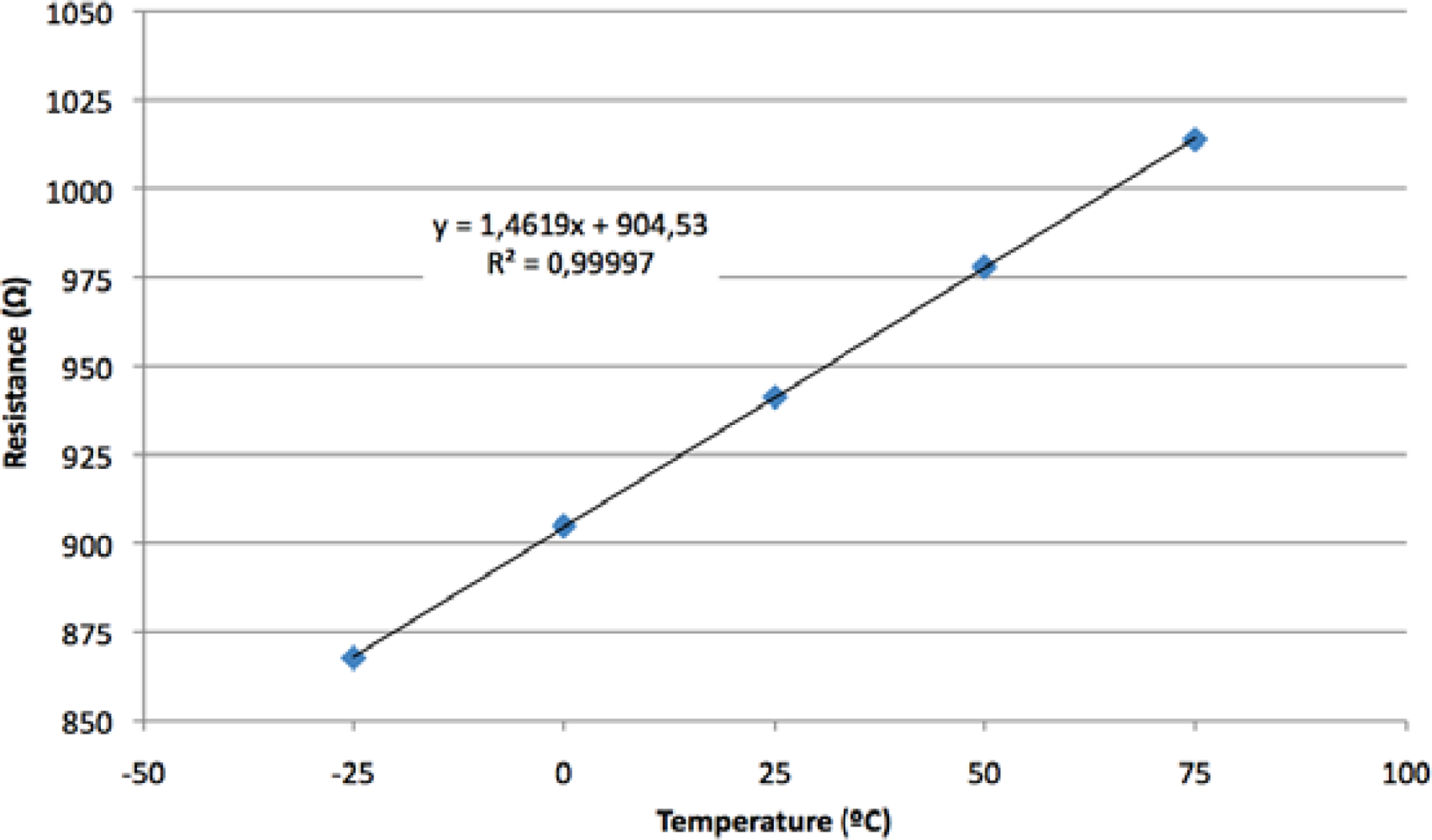

Figure 6. Thin film ruthenium resistance as a function of the temperature.
Figure 6. Thin film ruthenium resistance as a function of the temperature.
Sensors 11 02447f6 1024

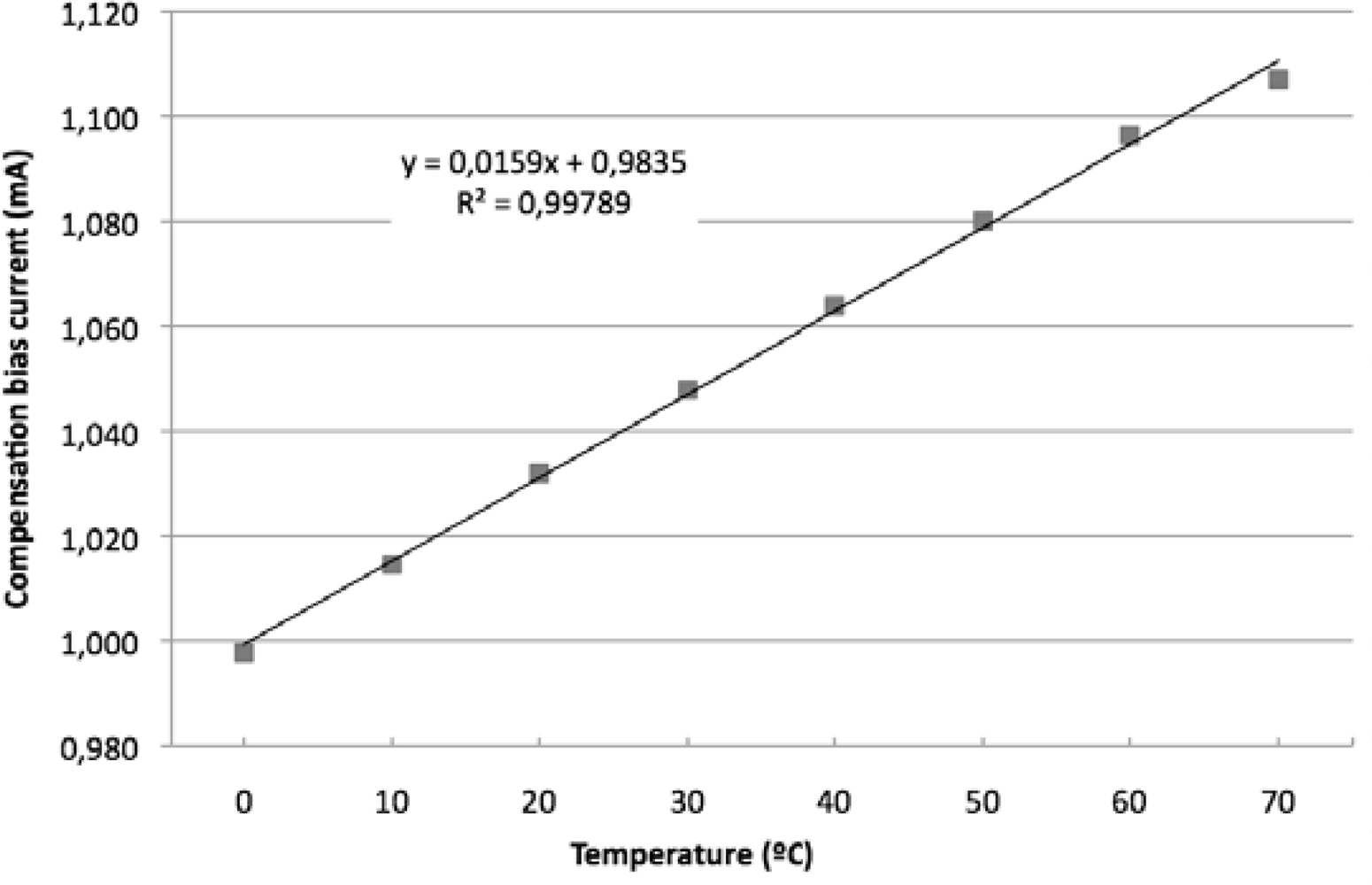

Figure 7. Temperature dependence of the experimental compensation current.
Figure 7. Temperature dependence of the experimental compensation current.
Sensors 11 02447f7 1024

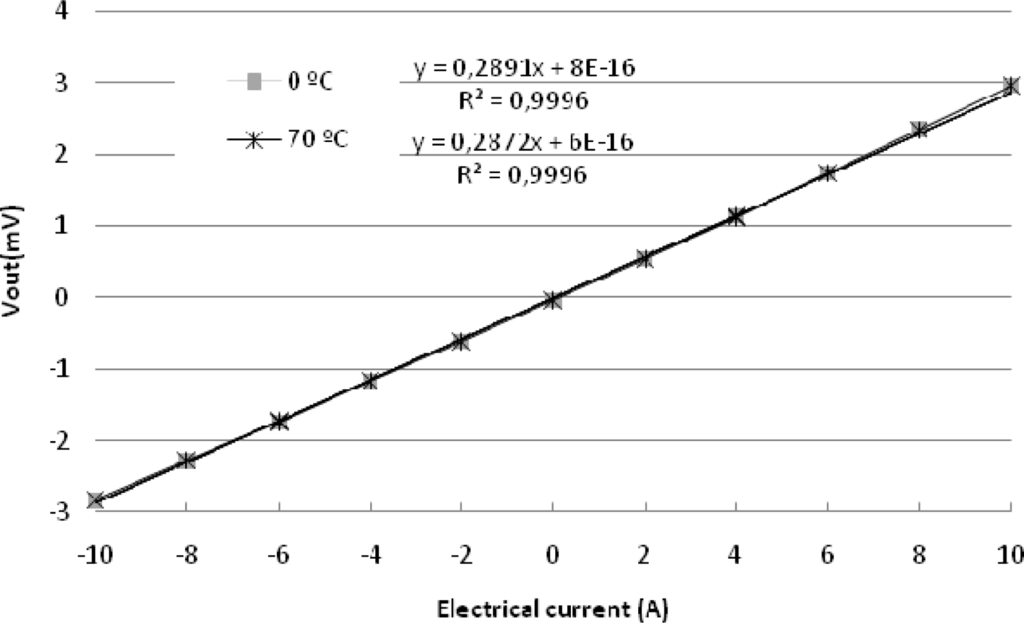

Figure 8. Compensated current sensor output voltage as a function of the input current under different environment temperatures.
Figure 8. Compensated current sensor output voltage as a function of the input current under different environment temperatures.
Sensors 11 02447f8 1024

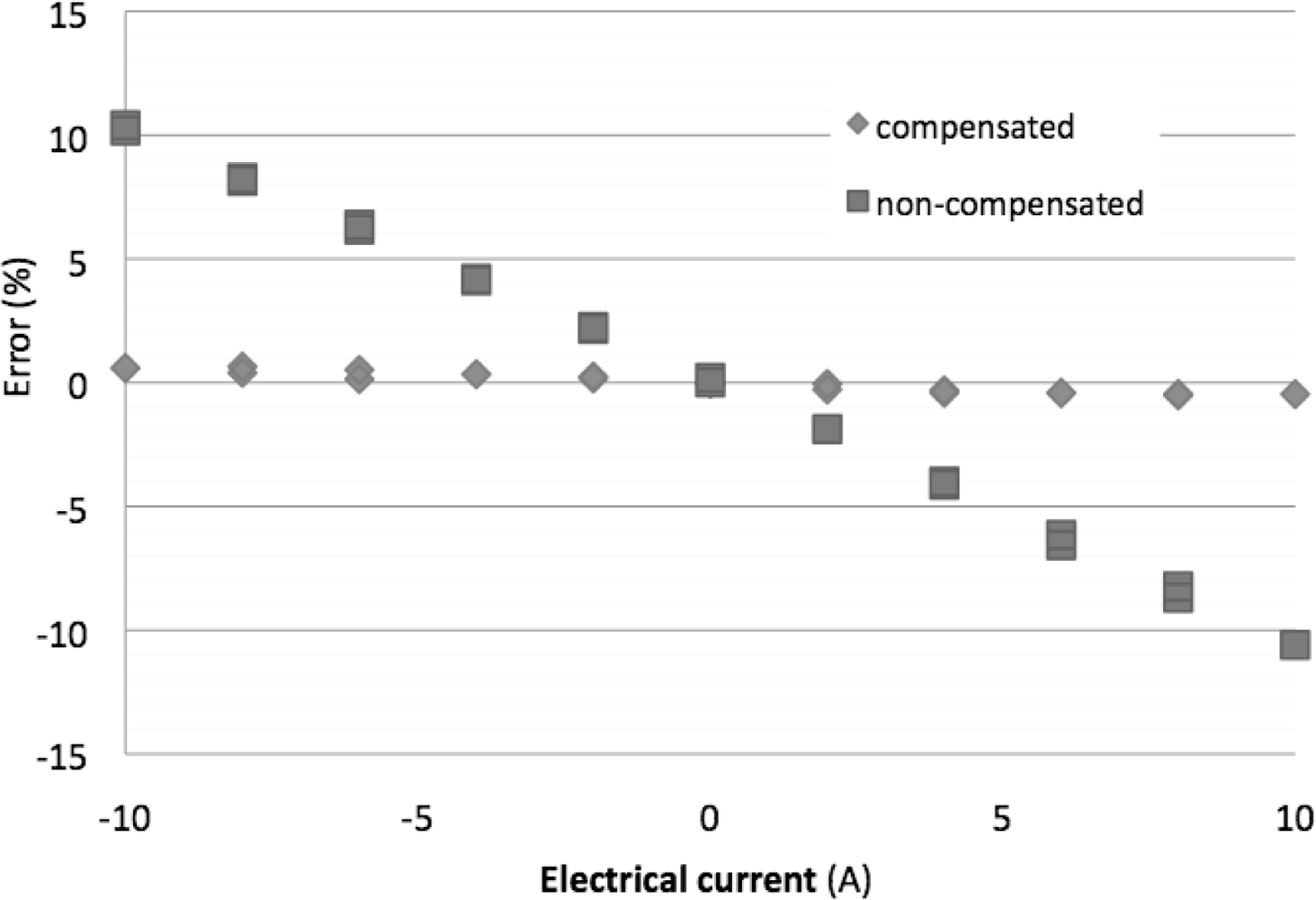

Figure 9. Sensor output maximum difference corresponding to the extreme temperatures (0 and 70 °C) with and without compensation.
Figure 9. Sensor output maximum difference corresponding to the extreme temperatures (0 and 70 °C) with and without compensation.
Sensors 11 02447f9 1024

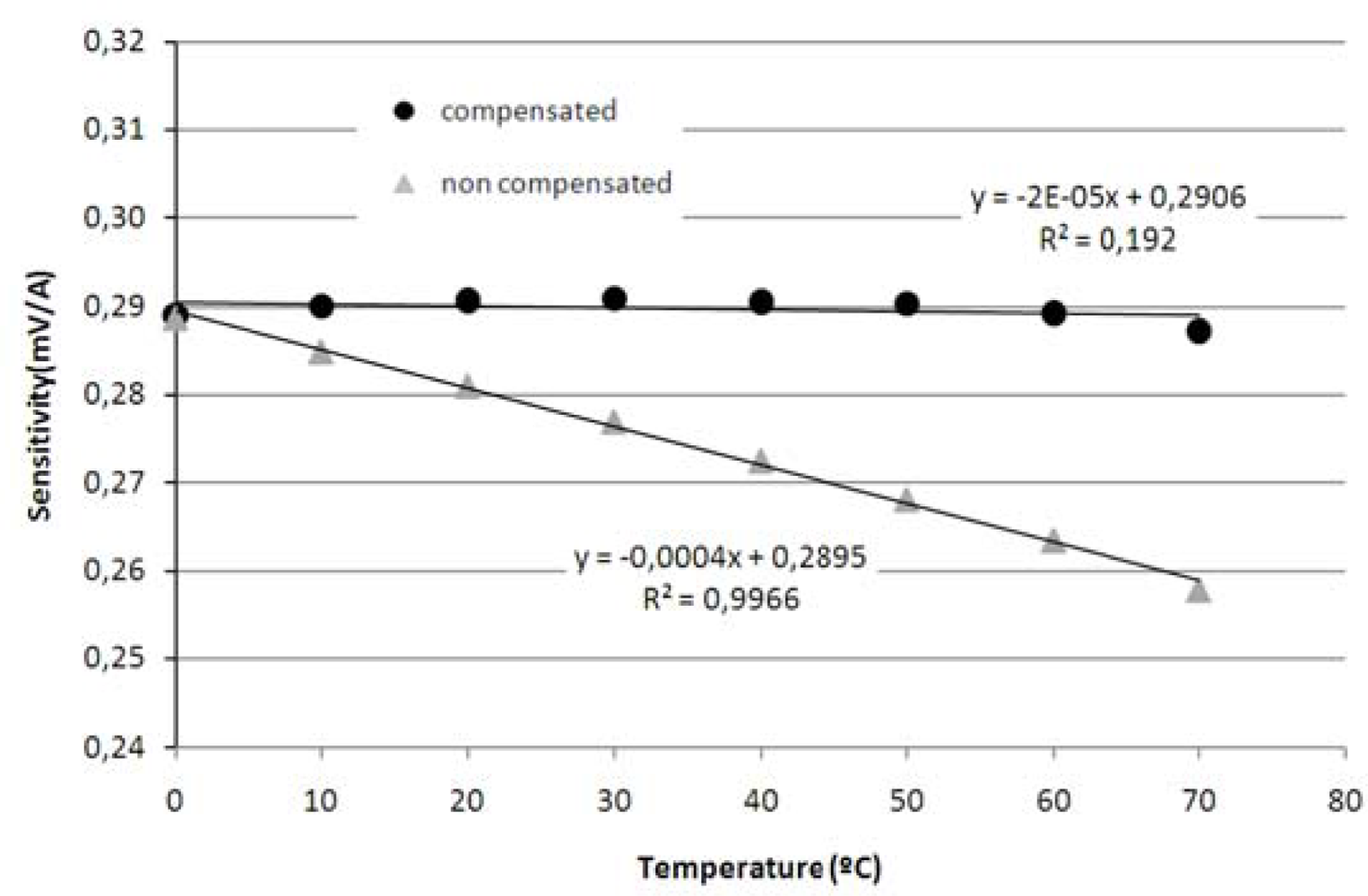

Figure 10. Sensitivity evolution of the non-compensated and compensated MR current sensor.
Figure 10. Sensitivity evolution of the non-compensated and compensated MR current sensor.
Sensors 11 02447f10 1024
Table 1. Resistance selection criteria to obtain the proper temperature drift compensation of the sensor bridge.
Table 1. Resistance selection criteria to obtain the proper temperature drift compensation of the sensor bridge.
Compensation Factor, m
m≤1m>1
Compensation sensorRs(t)R1 or R3R2 or R4
Compensation resistanceRRso · [m + 1]Rso · [m − 1]
