Design and Application of a Field Sensing System for Ground Anchors in Slopes

1
Department of Architectural Engineering, Yonsei University, Seoul 120-749, Korea
2
Dasumtek Incorporated, Seoul 222-22, Korea
*
Author to whom correspondence should be addressed.
Received: 16 February 2013 / Revised: 13 March 2013 / Accepted: 14 March 2013 / Published: 18 March 2013
(This article belongs to the Section Sensor Networks)
View Full-Text   |   Download PDF [745 KB, 21 June 2014; original version 21 June 2014]   |

Abstract

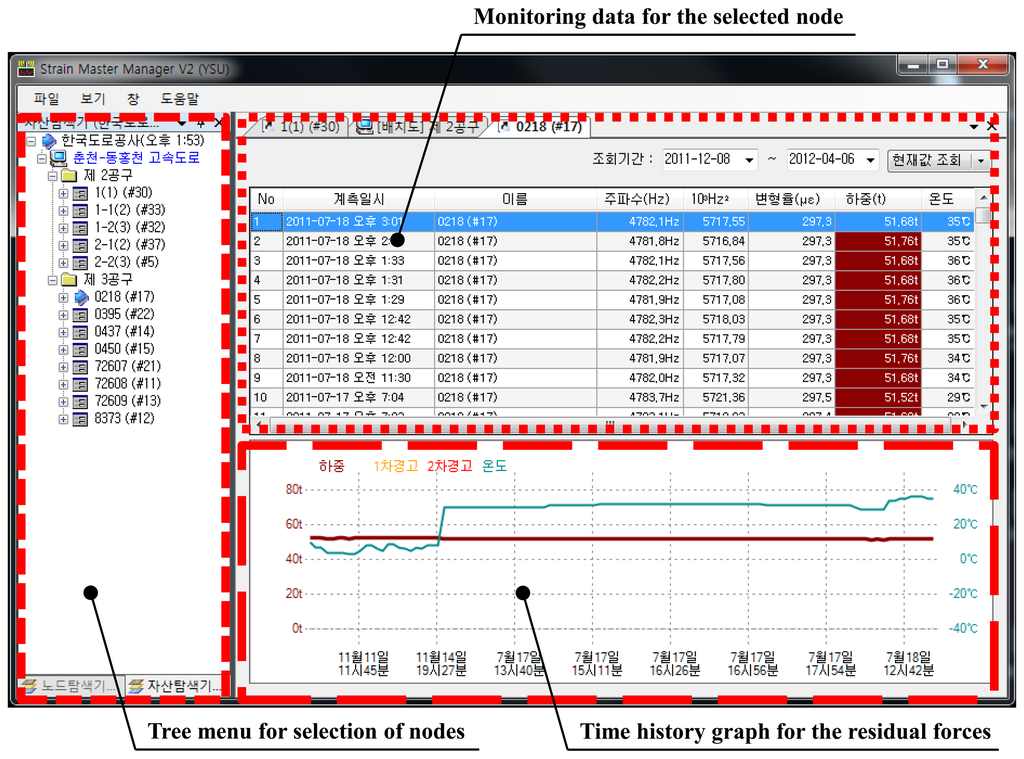

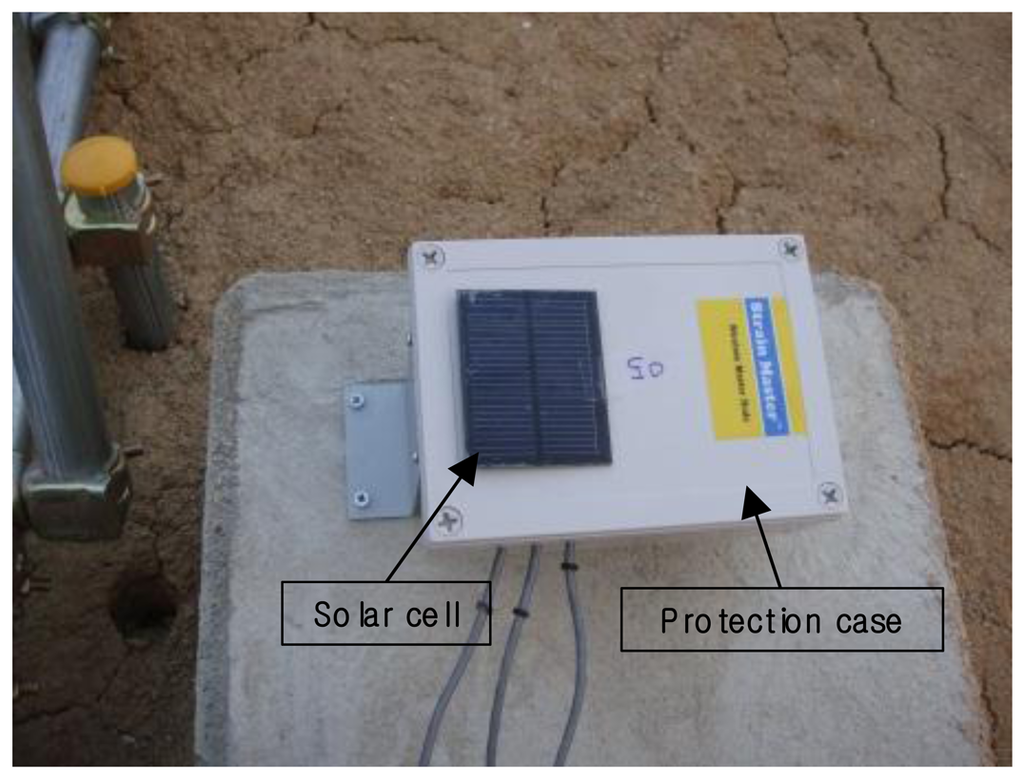

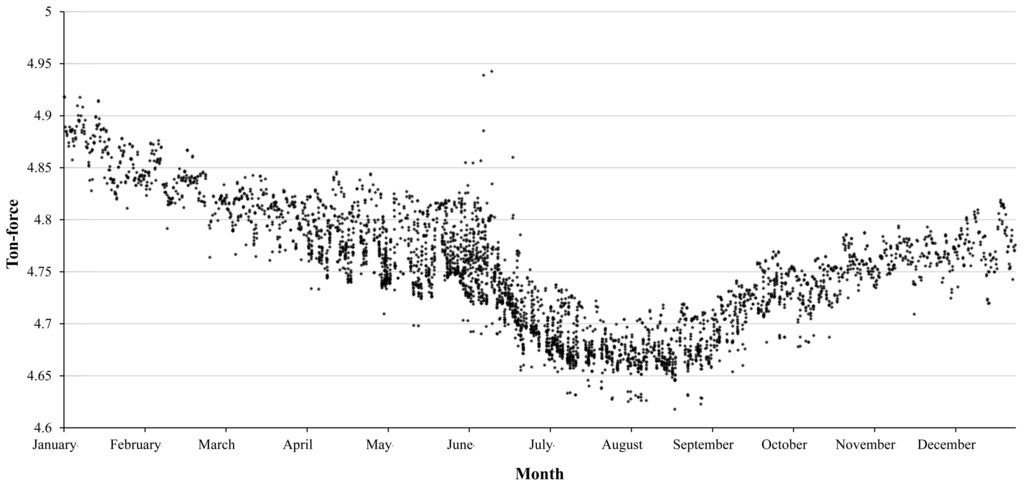

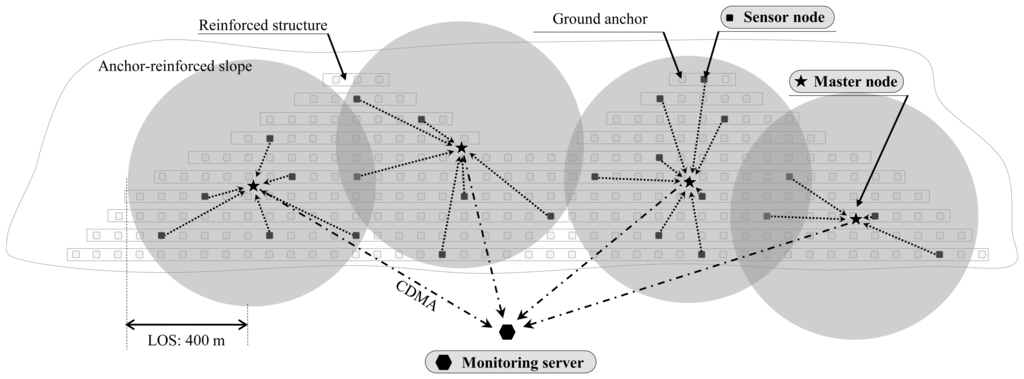

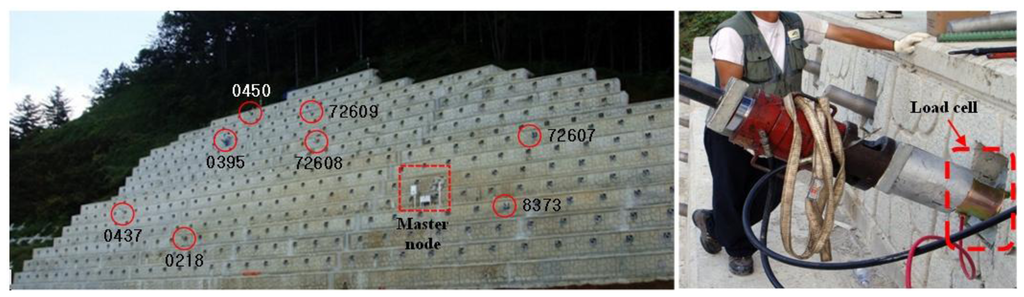

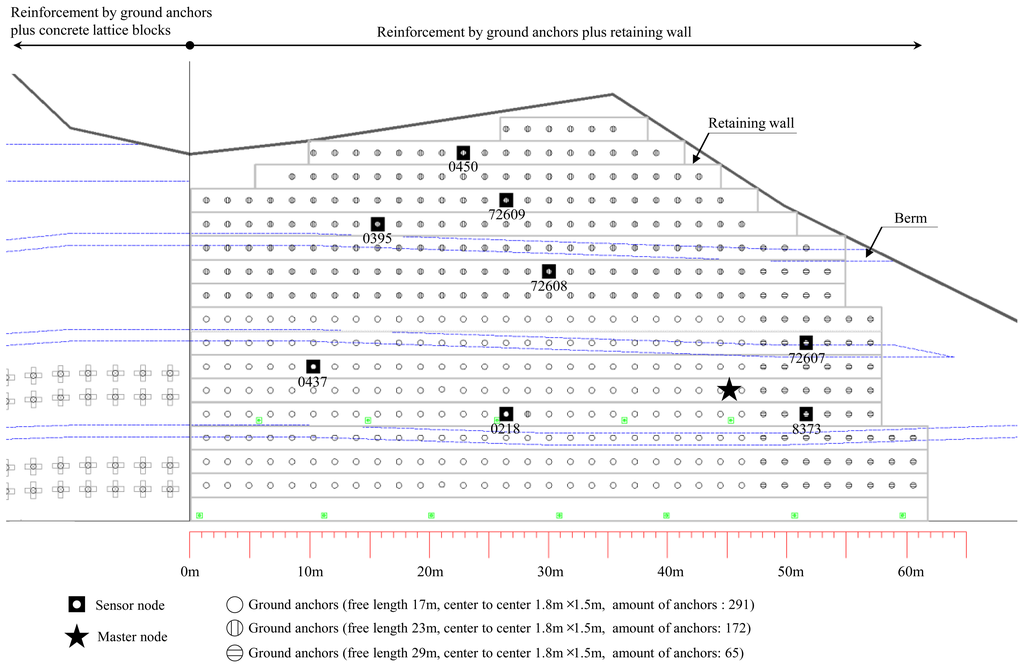

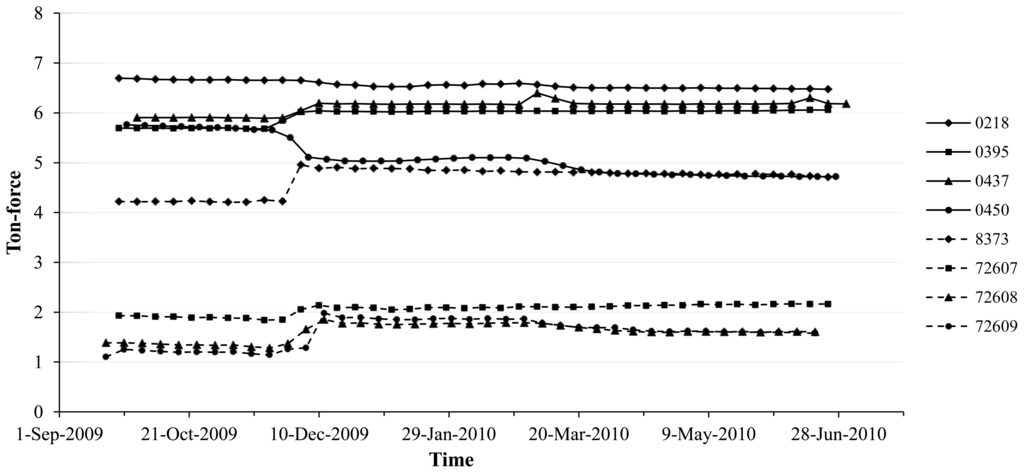

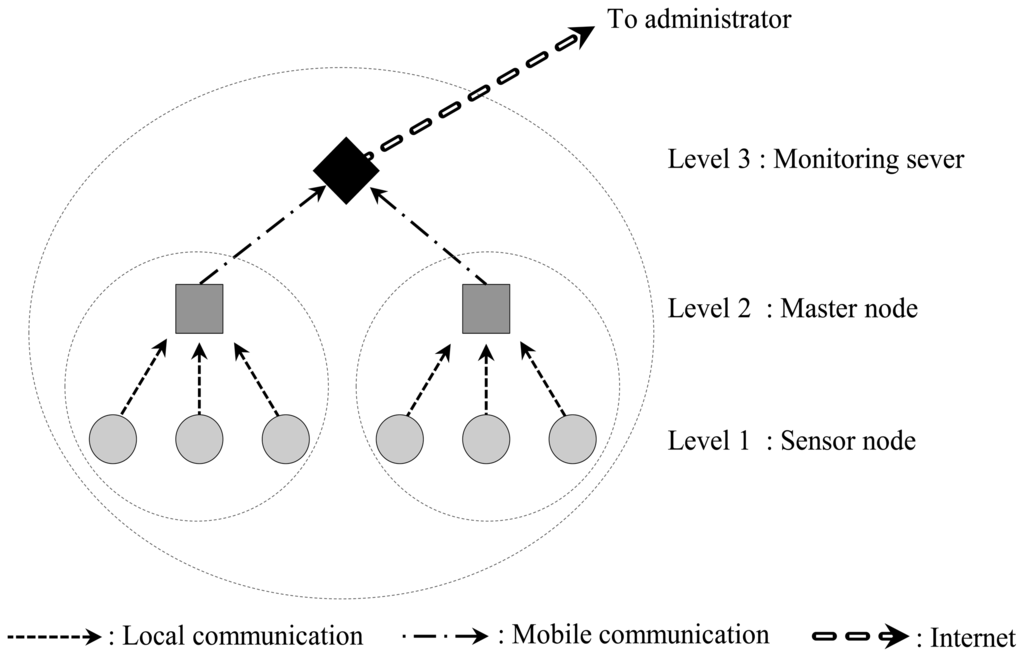

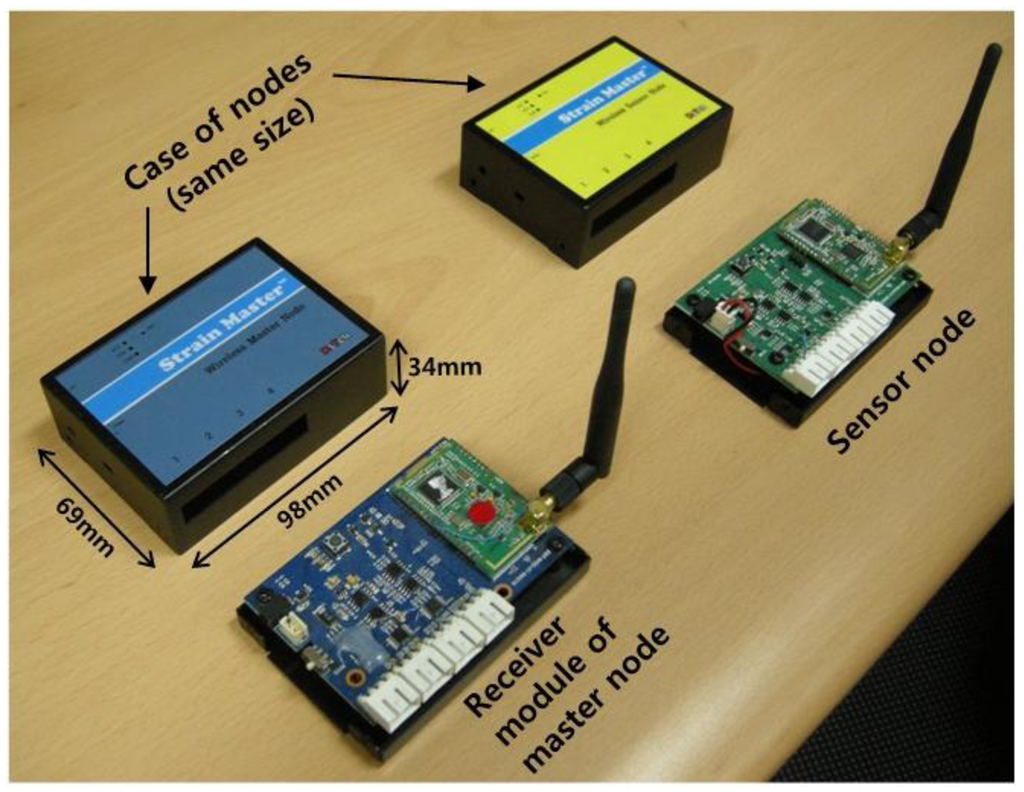

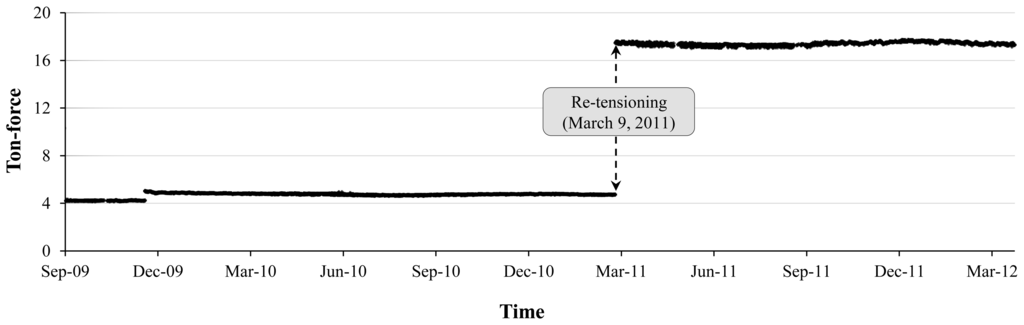

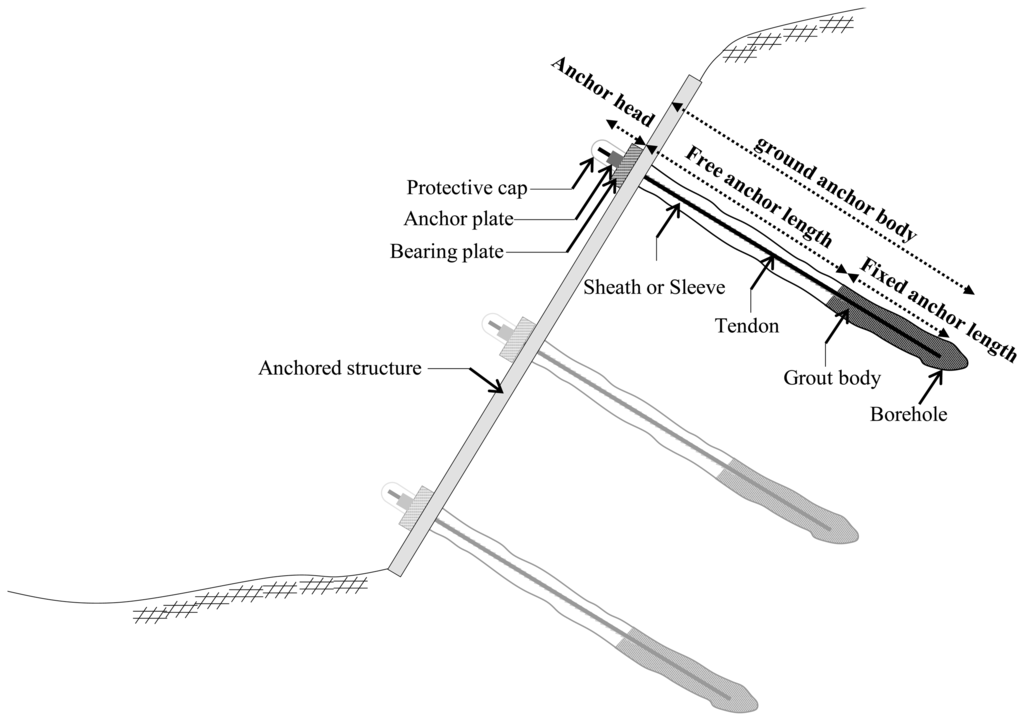

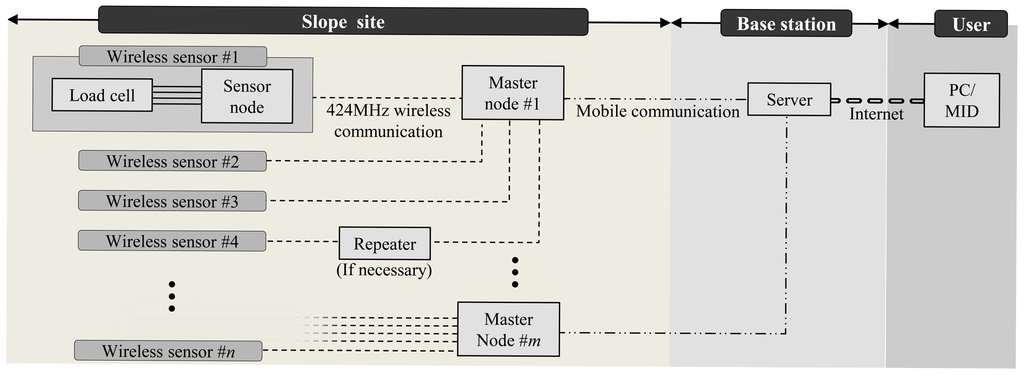

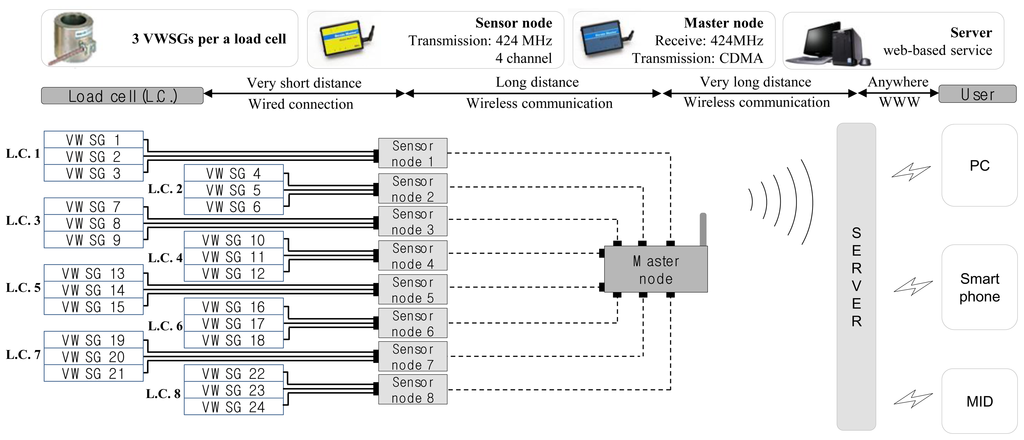

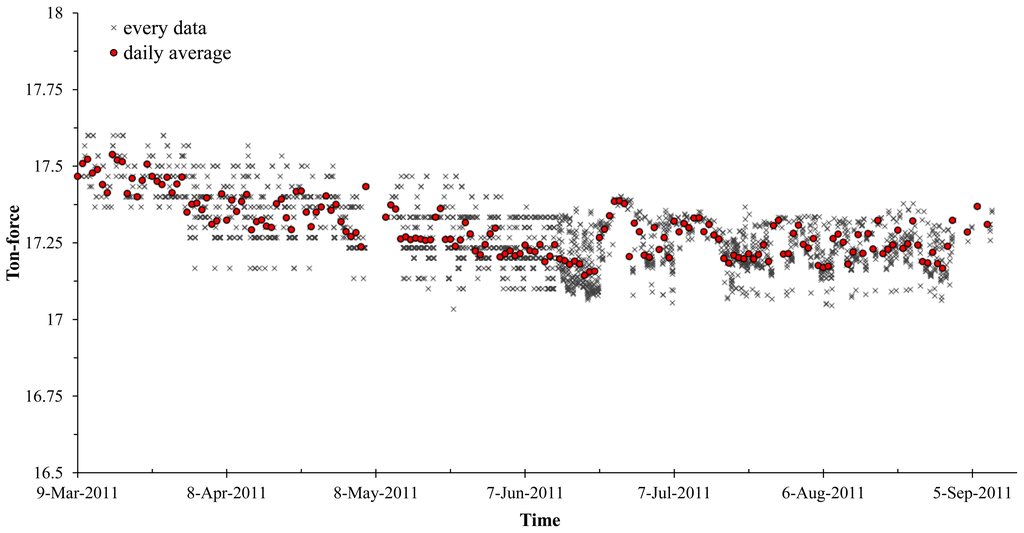

In a ground anchor system, cables or tendons connected to a bearing plate are used for stabilization of slopes. Then, the stability of a slope is dependent on maintaining the tension levels in the cables. So far, no research on a strain-based field sensing system for ground anchors has been reported. Therefore, in this study, a practical monitoring system for long-term sensing of tension levels in tendons for anchor-reinforced slopes is proposed. The system for anchor-reinforced slopes is composed of: (1) load cells based on vibrating wire strain gauges (VWSGs), (2) wireless sensor nodes which receive and process the signals from load cells and then transmit the result to a master node through local area communication, (3) master nodes which transmit the data sent from sensor nodes to the server through mobile communication, and (4) a server located at the base station. The system was applied to field sensing of ground anchors in the 62 m-long and 26 m-high slope at the side of the highway. Based on the long-term monitoring, the safety of the anchor-reinforced slope can be secured by the timely applications of re-tensioning processes in tendons. View Full-Text
Keywords: strain sensing; wireless sensor node; residual tensile force; ground anchor strain sensing; wireless sensor node; residual tensile force; ground anchor
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
