A Study on N2O Measurement Characteristics Using Photoacoustic Spectroscopy (PAS)

1
Cooperate Course for Climate Change, Sejong University, Seoul 143-747, Korea
2
Environment & Energy Institute, Sejong University, Seoul 143-747, Korea
3
Department of Environment & Energy, Sejong University, Seoul 143-747, Korea
*
Author to whom correspondence should be addressed.
Sensors 2014, 14(8), 14399-14410; https://doi.org/10.3390/s140814399
Submission received: 14 May 2014 / Revised: 18 July 2014 / Accepted: 23 July 2014 / Published: 7 August 2014
(This article belongs to the Special Issue Modern Technologies for Sensing Pollution in Air, Water, and Soil)

Abstract

: N2O, which is emitted mainly from nitrogen decomposition via bacteria, livestock manure, agricultural fertilizer use, fossil fuel combustion and waste incineration, is classified as a substance that causes significant destruction of the ozone layer. The N2O measurement methods for these emission sources may be divided into chromatography, optical, and electrical current measurements. Chromatography has been widely utilized for analyzing N2O. However, up until now, few studies have been conducted on N2O using photoacoustic spectroscopy. Therefore, this study aimed to evaluate performance of photoacoustic spectroscopy in this regard based on laboratory and field test results. The repeatability of photoacoustic spectroscopy was measured at 1.12%, which is lower than the repeatability of 3.0% suggested by the ISO 1564 standard, so, it has shown an excellent repeatability. The detection limit was determined to be 0.025 ppm, and the response time was confirmed to be 3 min and 26 s. The results of comparison between these measurements and GC show that the latter has superior accuracy, but mobility and convenience are superior for PAS. On the contrary, GC has a continuous measurement limitation, but PAS makes it possible to conduct continuous measurements. Therefore, PAS can be extremely useful to confirm the characteristics of N2O emissions and to quantify their amount.

1. Introduction

As the severity of environmental problems (including abnormal changes in weather and atmospheric pollution caused by climatic change) continues to increase, countries worldwide are undertaking various endeavors to establish goals for greenhouse gas reduction in order to resolve the problems associated with climatic change. The Korean Government has established and announced a voluntary reduction goal of 30% compared to the anticipated Business As Usual (BAU) greenhouse gas emissions by 2020, and now is implementing a Target Management Scheme (TMS) for greenhouse gas emissions and a Renewable Portfolio Standard (RPS) to attain the goal.

In 2010, the total emission of greenhouse gases in the world was 50.1 Gt CO2eq, which is an increase of 4.4% compared with the approximate 48 Gt CO2eq recorded for 2009. Among these pollutants it was surveyed that N2O accounts for 6.3%, which is smaller than the amount of CO2 emission that represents 83% of greenhouse gas emissions. However, N2O is classified as a substance that causes significant destruction of the ozone layer [13]. Its atmospheric concentration has increased by approximately 20% since The Industrial Revolution [4] and the amount has increased more quickly than that of other greenhouse gases. The Global Warming Potential (GWP) of N2O is 310 times higher than that of CO2, which suggests that the effect of reduction effect would be larger than for other greenhouse gases, so it is judged to require systematic measurement and control [57].

N2O is mainly emitted by nitrogen decomposition caused by bacteria, livestock manure, agricultural fertilizer use, fossil fuels, and waste combustion [8]. N2O levels from these emission sources are measured using Photoacoustic Spectroscopy (PAS), Quartz-enhanced Photoacoustic Spectroscopy (QEPAS), Non-Dispersive Infrared (NDIR), Gas Chromatography (GC), etc. PAS, QEPAS and NDIR are mainly utilized to continuously monitor emission concentrations from emitting sources, and GC is used as a discontinuous method that allows the analysis of exhaust gas samples collected from the sources. Many studies on N2O utilizing GC have been conducted in Korea [9,10], but no serious evaluation of PAS for the analysis of the N2O has been conducted to date. Therefore, this study aimed to find out the characteristics of the analysis results according to the difference between analysis methods by using the PAS and GC methods together.

2. Study Methods

2.1. N2O Measurement Methods and Equipment Conditions

2.1.1. Photoacoustic Spectroscopy (PAS Method)

PAS utilizes the photoacoustic effect principle, which was first discovered by Alexander Graham Bell in 1880 [11]. The principle is the phenomenon that when a modulated light is projected with a constant cycle onto an absorbing medium, an acoustic signal with the same cycle is produced in the gas layer adhered to the material [12]. Since photoacoustic spectroscopy was first applied to gases by Viengerov (1938) and Luft (1943), the method has been widely utilized for gas analysis and vapor detection [13,14].

The PAS method makes it possible to measure almost all substances, including not only gases, liquids, and solid samples, but also specimens in bulk, powder, and gel states. The method is also utilized in the detection of substances with an infinitesimal level (ppb) in the air [15]. The instrumentation is easy to move and portable, providing cost savings, and the possibility of performing measurements in real-time [16]. However, it is very susceptible to vibrations and noises from the surroundings making it very difficult to conduct measurements in places with severe vibrations [17].

In this study, a LSE N2O-4405 instrument (LSE Monitors, Groningen, The Netherlands) was utilized as the analyzer, and the analysis conditions were as listed in Table 1. The sample inlet flow rate into the analyzer were set at 80 mL/min, the temperatures of the measurement cell and sample were set at 35 °C and 5∼25 °C, respectively, and the scan ranges were set at 1277.847∼1279.548 cm−1. It has also been reported that LSE N2O-4405 is affected by interfering materials such as H2O, CO2, SO2, etc. [7]. Therefore, the influence from interfering materials was minimized by a connecting molecular sieve (Sigma-Aldrich, St. Louis, OK, USA) trap and Chemisorb S (Bete, Gentbrugge, Belgium) trap to the front terminal of the sample-injecting part in order to remove interfering materials. The detailed analysis conditions of PAS are listed in Table 1.

2.1.2. Gas Chromatography (GC Method)

The GC method analyzes qualitatively and quantitatively by injecting the sample into a flow of gas, then separating the component of the specimen in the flow, and detecting the ingredients [18]. The GC method has a high sensitivity, a superior quantitative reproducibility, and superior heat stability. The method works well for the analysis of stable substances, but it is difficult to analyze unstable chemicals such as intermediates and radicals, and is limited for continuous measurements [14,17].

An Electron Capture Detector (ECD) is a typically utilized detector in the measurement of N2O. The GC used in this study was a cp-3800 (Varian, Santa Clara, CA, USA) and the analysis conditions are summarized in Table 2. A Porapak Q 80/100 column was utilized, the flow rates of the carrier gas and hydrogen were 30 mL/min, respectively, and the air was set at 300 mL/min. The temperatures of sample inlet, oven, and detector were set at 70 °C, 120 °C, and 320 °C, respectively, and high purity nitrogen (99.999%) was used as carrier gas.

2.2. Quality Control

For the quality control, the N2O analysis was tested using gas standards. Thus, standard gases containing 1, 3, 5 and 10 ppm N2O (RIGAS, Daejeon, Korea) were transferred from the standard gas cylinders to a Tedlar bag (SKC, Washington, PA, USA) with a volume of 10 L. The Tedlar bag used in the transfer was previously purged three times with high purity nitrogen (99.999%) in order to minimize the effect of any remaining infinitesimal ingredients in the Tedlar bag during the analysis of the standard gases [19].

The four standard gases were analyzed more than five times, and then the linearity was confirmed by preparing calibration curves. The standard gas with the same concentration was repeatedly analyzed more than 10 times to evaluate the repeatability. Methods for obtaining the Detection Limit (DL) include those based on visual evaluation, signal to noise, and the slope of the standard deviation and calibration curve of the response. The method base on the slope of the standard deviation and calibration curve of the response was applied in this study. This method involves dividing the standard deviation of the response by the slope of the calibration and then multiplying by 3.3, as shown in Equation (1) [20]. The standard deviation was used, in which standard gas of 1 ppm was analyzed 5 times repeatedly and measured, and the slope of calibration curve was applied for confirming the detection limit:

DL = 3.3 × / S

where ∂ is the standard deviation of the response and S is the slope of the calibration curve

2.3. Sampling and Analysis Method at Combustion Facilities

EPA Method 18 [21] was applied for sampling the greenhouse gases that were emitted from fossil fuel combustion facilities. A schematic diagram is shown in Figure 1 below. Because the exhaust gases of a combustion facility are generally emitted with a velocity of more than 10 m/sec and at temperatures over 100 °C, the sampling pipe was manufactured with stainless steel that can endure such flow rates and temperatures [22]. A Vacuum Lung sampler (Acen, Suwon, Korea) that samples a specimen by utilizing a pressure difference created by applying a sound pressure in the inner part was used for the specimen sampler and a 10 L Tedlar bag (SKC) was used as the specimen collection container [23]. In the case of analysis of N2O in the exhaust gases from a combustion facility, moisture removal from the sample is the most important factor, making the moisture remover essential [7]. Therefore, a gas conditioner (JCC, JPES, Wiener Neustadt, Austria) and molecular sieve trap (Sigma-Aldrich) were connected to the front part to remove moisture. Four samples of exhaust gas in total were collected in an interval of 20 min; the collected samples were stored in black bags to minimize the losses caused by sunlight, and they were then analyzed three times using gas chromatography and photoacoustic spectroscopy in the laboratory.

2.4. Accuracy and Response Time of PAS

Taking into account of the fact that PAS can be used for continuous measurements, increased response times and decreased response times according to changes in the N2O standard gas concentrations (1, 5, 10 ppm) were analyzed separately. Increased response time was set at a standard time when the analyzer reached 95% of the target concentration when changing from a low concentration to a high concentration; decreased response time was set at a standard time when the analyzer reached 5% of the target concentration when changing from a low N2O concentration to a high N2O concentration [24]. Conformity among the measurements was judged by measuring the same sample repeatedly to confirm its accuracy. Accuracy is suggested by the percentage of standard deviation for the average of the measured value, or is expressed by the relative standard deviation [25].

3. Results

3.1. Drawing of the Calibration Curve

Four standard gases with different concentrations (1, 3, 5, 10 ppm) were utilized for plotting the calibration curves for each N2O measurement method. The results are shown in Figure 2 below. The calibration curve that was obtained using PAS is expressed by a first degree equation, that is y = 1.0885x − 0.4385, R2 = 0.9929. In case of GC the calibration curve is expressed by the equation y = 1.0007x − 0.033, R2 = 0.9994. The linearity of PAS and GC are confirmed by their R2 = 0.99 values, and it is confirmed that the linearity of GC is superior to that of PAS.

3.2. Repeatability and Detection Limit

Standard gas (RIGAS) with a concentration of 10 ppm was repeatedly analyzed 10 times to confirm repeatability. The results are shown in Table 3. For PAS, the average value is evaluated for 10.46 ppm, the standard deviation for 0.12 ppm, and the relative standard deviation for 1.12%, respectively. For GC, the average value was evaluated at 10.00 ppm, the standard deviation at 0.02 ppm, and the relative standard deviation at 0.23%, respectively. The relative standard deviation of PAS is somewhat higher than that of GC, but the result of PAS is similar within 1%, which is the repeatability result from a prior study [2]. For both of the methods, the repeatability was measured at lower than 3.0%, which is suggested by ISO 1564 to indicate excellent repeatability.

The measurement of the detection limit was performed by applying the method based on the slope of the standard deviation of the response and calibration curve. The standard deviation of the measured values when 1 ppm was repeatedly analyzed five times was 0.008 for PAS and 0.023 for GC. The slope were calculated at 1.0885 in PAS and 1.0007 in GC, respectively, as shown in Figure 2, which is applied to calculating a detection limit; the detection limit was determined to be 0.025 ppm in PAS and 0.074 ppm in GC, respectively. A prior study [1] reported that the detection limit of PAS was 0.007 ppm and that of GC was 0.030 ppm, respectively, which are 3.6 and 2.5 times lower than compared to the detection limits in this study which was considered to be a very minute difference. Such differences in detection limits may result from the kinds of measuring devices and gases used,

3.3. Analysis and Comparison of the Exhaust Gases from Fossil Fuel Combustion

Four exhaust gases sampled from combustion facilities were analyzed three times, and the results are listed in Table 4. For PAS, the range of average concentrations went from a minimum of 32.40 ppm to a maximum of 33.43 ppm, and the average was 33.03 ppm. For GC, the range of average concentrations was from a minimum of 32.91 ppm to a maximum of 33.23 ppm, and the average was 33.07 ppm. The difference in average concentrations between PAS and GC is within 1%, showing very similar measurements. The standard deviation of the averaged concentrations was calculated at 0.34 ppm in PAS and 0.12 ppm in GC, and the relative standard deviation was calculated at 1.04% and 0.37%, respectively, which are excellent results. The relative standard deviation of PAS is a little higher than that of GC, which is very similar to the quality control result using standard gases.

3.4. Accuracies and Response Times per Concentration with PAS

In order to identify the accuracy and response time characteristics per N2O concentration, a test was conducted by dividing N2O concentrations into 1, 5, and 10 ppm, and the results are summarized in Figure 3. The accuracy provides valuable information for judging the conformity among measured values by measuring the same sample repeatedly. The conformity may be expressed for a range of measured data or standard deviation, and it is often expressed as relative standard deviation in the case of repeated experiments [25]. The results for the evaluation of accuracy per concentration show that the standard deviation is 0.01 at 1 ppm concentration, 0.02 at 5 ppm, and 0.08 at 10 ppm, respectively, and the relative standard deviation is 1.25%, 0.45%, and 0.81% at 1, 5, and 10 ppm, respectively. This means the relative standard deviation of a low concentration of 1 ppm is higher than at higher concentrations of 5 and 10 ppm.

Since PAS is a method that can be used to measure continuously, it should respond sensitively to N2O concentration changes during on site measurements. The initial response time of PAS was 3 min and 26 s, but an increased response time pursuant to each of the concentration changes was measured by increasing the concentration of the standard gases in the order of 1 ppm, 5 ppm, and 10 ppm, respectively. These results show that a response time in which the injected concentration reached 95% of the target concentration and then stabilized, was confirmed to be 6 min and 52 s. By reducing the concentration from 10 ppm to 1 ppm and reaching 5% of the target concentration, the result is also shown to be 6 min and 52 s, confirming that the increased response time when changing from a low concentration to a high concentration, and the decreased response time when changing from a high concentration to a low concentration are both within 7 min and equal to each other. This is a slightly longer response time than those of the Fourier Transform Infrared Spectroscopy (FTIR) or amperometric methods, which have a response time of 50 s [1], but it is sufficient time for the continuous measurement criteria suggested by the atmospheric pollution process test, so it may be judged as usable for continuous measurements. Therefore, we believe that PAS is suitable for conducting continuous measurements at a large waste incineration facility where there is deviation in the concentrations of greenhouse exhaust gases, because it is easy to analyze trends of whole concentration changes.

3.5. Comparison between PAS and GC

The performance of PAS and GC were compared based on the laboratory and on site test results, which are summarized in Table 5. For measurement precision, PAS is inferior to GC, but for mobility PAS is superior. Also, PAS has a response time within 3 min and 30 s, which is quicker than the 5 min of GC. It has been reported in prior studies that PAS was able to evaluate site-measured data quicker in real time than GC [16].

4. Conclusions

In this study, linearity, accuracy, and response time were compared and evaluated by utilizing a PAS and GC method, N2O measurements, and actual exhaust gases emitted from fossil fuel combustion facilities that were collected and their characteristics analyzed.

First, in accuracy control by using standard gases, linearity was evaluated by plotting calibration curves. Repeatability was analyzed by repeatedly measuring a 10 ppm standard gas 10 times. The detection limits of PAS and GC were calculated by applying the method based on the standard deviation of responses and the slope of calibration curves.

R2 of PAS was evaluated at 0.9929 and that of GC at 0.9994, showing that both these methods have excellent linearity. The linearity analysis results show that the relative standard deviations of PAS and GC are 1.12% and 0.23% respectively, which are lower than the 3.0% reproducibility that is suggested from ISO 11564, thus showing excellent reproducibility. The detection limits of PAS and GC are determined to be 0.025 ppm and 0.074 ppm, respectively.

Second, exhaust gases collected using a Lung Sampler and Tedlar bag were analyzed. The results show that the average concentrations measured by PAS and GC are approximately 33.03 ppm and 33.07 ppm, respectively, which are similar to each other. Taking into account the merit that PAS makes it possible to conduct a continuous measurement, a changing trend by changing concentrations was analyzed as well. The results show that the standard deviations are 0.01 ppm, 0.02 ppm, and 0.08 ppm, respectively, and the relative standard deviations are 1.25%, 0.45%, and 0.81%, respectively. It was confirmed that the increased response time and the decreased response time pursuant to change of concentrations are both within 7 minutes in total.

The results of our analysis of the analytical characteristics of PAS and GC show that GC is superior in measurement accuracy, but PAS is better in cost efficiency, mobility, and convenience. PAS also makes it possible to conduct continuous measurements compared to GC, which has limitations in continuous measurement, so PAS is available to analyze entire concentration change trends.

The Mandatory Reporting Rule (MMR) in the USA regulates the execution of continuous sampling for 24 h a day at waste incineration facilities, since combustion characteristics vary according to the type and amount of waste being incinerated, and therefore the characteristics of the incinerated gas exhaust vary as well. Therefore, N2O measurements utilizing PAS, could be advantageous to check the exhaust characteristics of N2O per incineration facility and quantify the amount.

Acknowledgments

This project was financially supported by Korea Ministry of Environment as “Climate Change Correspondence R&D Program”.

Author Contributions

All authors contributed extensively to the various phases of the work presented in this paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rapson, T.D.; Dacres, H. Analytical techniques for measuring nitrous oxide. Trends Anal. Chem. 2014, 54, 65–74. [Google Scholar]
  2. Gomes, D.A.; Silva, M.; Miklos, A.; Falkenroth, A.; Hess, P. Photoacoustic measurement of N2O concentrations in ambient air with a pulsed optical parametric oscillator. Appl. Phys. B Lasers Opt. 2006, 82, 329–336. [Google Scholar]
  3. Zhang, Y.; Mu, Y.; Fang, S.; Liu, J. An improved GC-ECD method for measuring atmospheric N2O. J. Environ. Sci. 2013, 25, 547–553. [Google Scholar]
  4. IPCC, Climate Change 2007: The Physical Science Basis. Contribution of Working Group I to the Fourth 16 Assessment Report of the Intergovernmental Panel on Climate Change; IPCC: Geneva: Switzerland, 2007.
  5. Keith, S.; Paul, C.; Arvin, M.; Wilfried, W. The Global Nitrous Oxide Budget: A Reassessment. In Nitrous Oxied and Climate Change; Keith, S., Ed.; Earthscan: Washington: DC, USA, 2010; pp. 65–67. [Google Scholar]
  6. Chang, K.-S. Status and Trends of Emission Reduction Technologies and CDM Projects of Greenhouse Gas Nitrous Oxide. Appl. Chem. Eng. 2008, 19, 17–26. [Google Scholar]
  7. Han, T.-H. Calibration Methods Uncertainty in an Ambient NO Measurement. Ph.D. Dissertation; Chungnam National University: Daejeon, Korea, 2005. [Google Scholar]
  8. Tanikawa, N. Characteristics of continuous analyzers for nitrous oxide in flue gas from municipal incinerators. Sci. Total Environ. 1995, 175, 189–198. [Google Scholar]
  9. Lee, S.-Y.; Kim, J.-S.; Lee, J.-W.; Jeon, E.-C. A Study on Methane and Nitrous oxide Emissions Characteristics from Anthracite Circulating Fluidized Bed Power Plant in Korea. Sci. World J. 2012. [Google Scholar] [CrossRef]
  10. Cho, C.-H.; Sa, J.-H.; Lim, K.-K.; Youk, T.-M.; Kim, S.-J.; Lee, S.-K.; Jeon, E.-C. Development of Methane and Nitrous Oxide Emission Factors for the Biomass Fired Circulating Fluidized Bed Combustion Power Plant. Sci. World J. 2012. [Google Scholar] [CrossRef]
  11. Li, J.; Chen, W.; Yu, B. Recent Progress on Infrared Photoacoustic Spectroscopy Techniques. Appl. Spectrosc. Rev. 2011, 46, 440–471. [Google Scholar]
  12. McClelland, J.F.; Bajic, S.J.; Jones, R.W.; Seaverson, L.M. Introduction to Photoacoustic Spectroscopy with Step Scan and Constant Velocity Scan FTIR Spectrometers. In Modern Techniques of Applied Molecular Spectroscopy; Francis, M.M., Jr., Ed.; John Wiley & Sons, Inc.: New York, NY, USA, 1996; pp. 1–4. [Google Scholar]
  13. Jung, H. Photoacoustic Measurements of Catalytic Effects for CO2 Reforming Reaction with Methane over Ni/SBA Nanotube Catalysts; M.S.c Dissertation, Yonsei University: Seoul, Korea, 2007. [Google Scholar]
  14. Ha, J.-A. Photoacoustic Measurements of Catalytic Effects for CO2 Reforming Reaction with Methane over Ni/Al2O3 and Ni/TiO2. Master's Thesis; Yonsei University: Seoul, Korea, 2003. [Google Scholar]
  15. Koskinen, V.; Fonsen, J.; Kauppinen, J.; Kauppinen, I. Extremely sensitive trace gas analysis with modern photoacoustic spectroscopy. Vib. Spectrosc. 2006, 42, 239–242. [Google Scholar]
  16. Jung, Y.-J.; Han, B.-H.; Mostafid, M.E.; Chiu, P.; Yazdani, R.; Imhoff, P.T. Photoacoustic infrared spectroscopy for conducting gas tracer tests and measuring water saturation in landfills. Waste Manag 2012, 32, 297–304. [Google Scholar]
  17. Annual Report of Essential Environmental Technology Development Project for Next Generation in 2003, A Development of High Sensitive Real Time Gas Detector and Analyzer by Utilizing Photoacoustic Spectroscopy; Korea Environmental Industry Technology Institute: Seoul, Korea, 2004; pp. 6–12.
  18. Kim, G.-L. A Measurement of Global Warming Gases. In Measuring Technology of Atmospheric Pollution Substances; Kim, K.-H., Ed.; Korea Atmospheric Environment Association & Korea Environmental Analysis Association: Seoul, Korea, 1999; pp. 159–163. [Google Scholar]
  19. Cho, C.-S.; Lee, S.-H.; Lim, K.-K.; Yoo, J.-H.; Sa, J.-H.; Jeon, B.-G.; Jeon, E.-C. Evaluation for Loss Rate of Carbon Dioxide by Sample Storage Method. Clim. Chang. Res. 2011, 2, 309–316. [Google Scholar]
  20. Handbook of Environmental Test, Examination and QA/QC, 2nd ed.; National Institute of Environmental Research: Incheon, Korea, 2011; pp. 18–25.
  21. US EPA (2001) Promulgated Method 18. Available online: http://www.epa.gov/ttn/emc/promgate/m-18.pdf 12 March 2014.
  22. Lee, S.-H.; Kim, J.; Lee, S.; Sa, J.-H.; Kim, K.; Jeon, E.-C. Development of Greenhouse Gas (CH4 and N2O) Emission Factors for Anthracite Fired Power Plants in Korea. J. Korean Soc. Atmospheric Environ. 2009, 25, 562–570. [Google Scholar]
  23. Kim, S.; Im, G.-Y.; Yi, C.-Y.; Lee, S.-Y.; Sa, J.-H.; Jeon, E.-C. Development of Carbon Dioxide Emission Factor from Resource Recovery Facility. Clim. Chang. Res. 2013, 4, 51–61. [Google Scholar]
  24. Sa, J.-H.; Yoon, S.-K.; Roh, G.-H.; Jeon, E.-C. Analysis Methods for Measurement of Ammonia Concentration. J. Korean Soc. Atmospheric Environ. 2008, 24, 43–54. [Google Scholar]
  25. Baek, S.-O.; Kim, K.-H.; Heo, G.-S. Air Quality Measurements and QC/QA(I)–Principles and Methodology. J. Korean Soc. Atmospheric Environ. 2004, 20, 237–249. [Google Scholar]

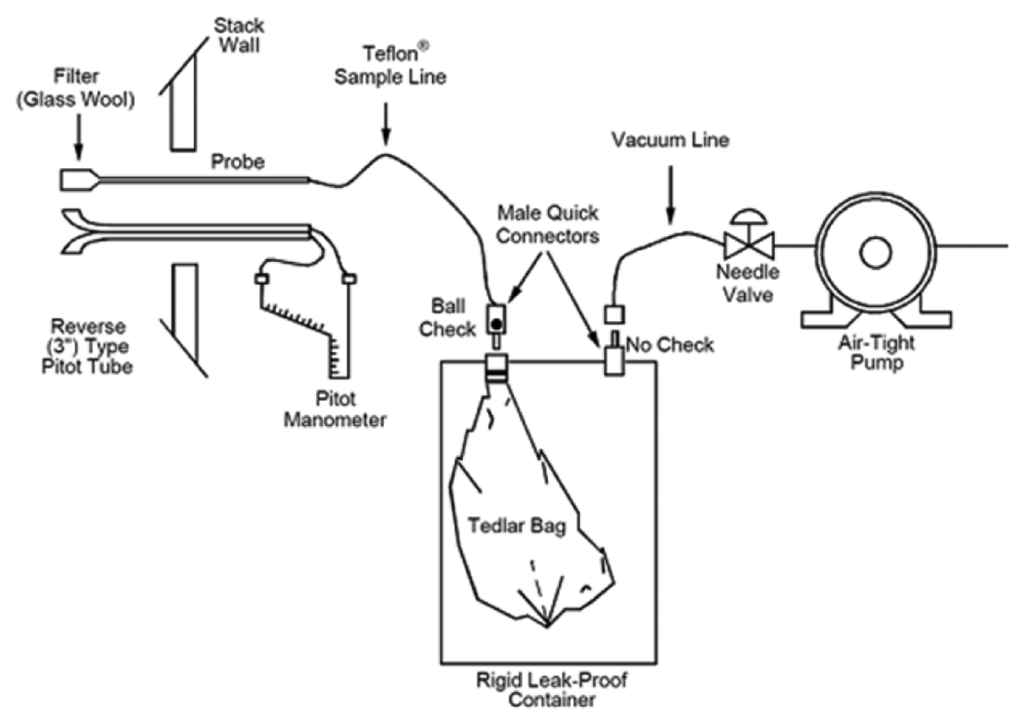

Figure 1. Diagram of the greenhouse gas sampling system.
Figure 1. Diagram of the greenhouse gas sampling system.
Sensors 14 14399f1 1024

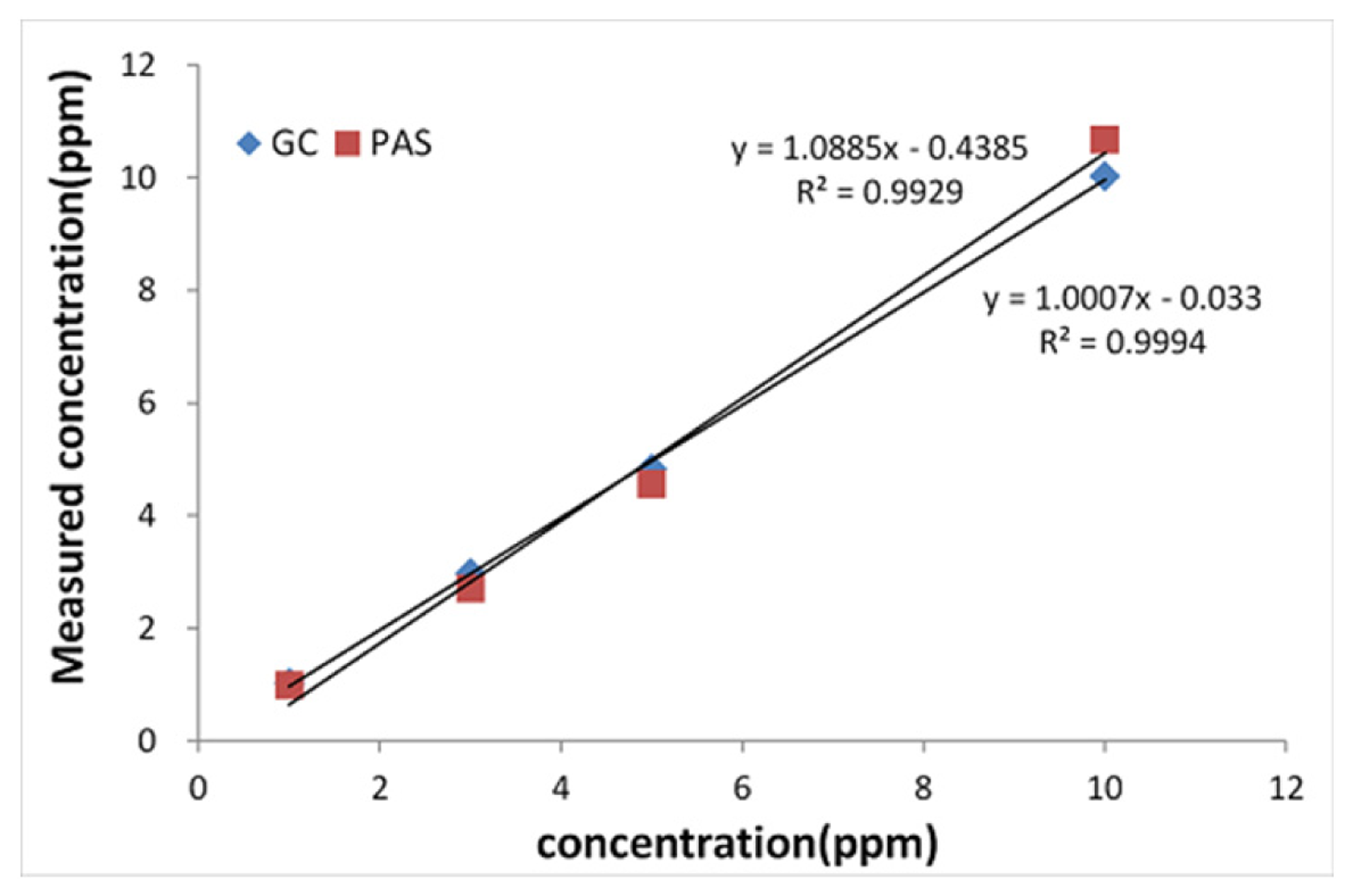

Figure 2. Calibration curve by GC and PAS.
Figure 2. Calibration curve by GC and PAS.
Sensors 14 14399f2 1024

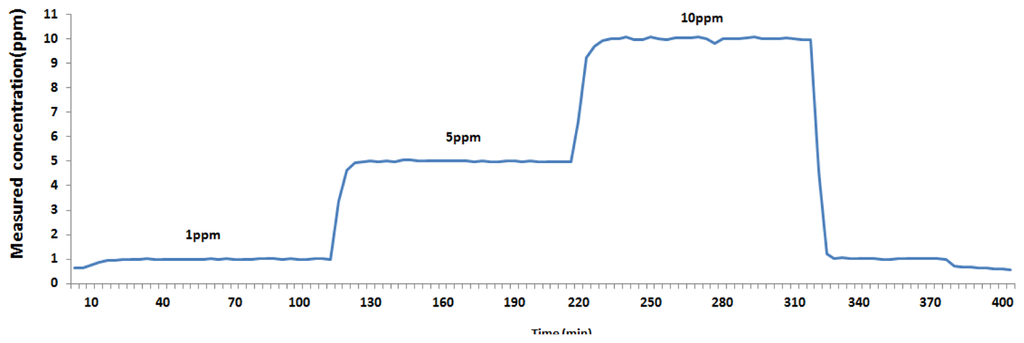

Figure 3. Trend of the concentration changes in PAS.
Figure 3. Trend of the concentration changes in PAS.
Sensors 14 14399f3 1024
Table 1. LSE N2O-4405 Analyzer Conditions.
Table 1. LSE N2O-4405 Analyzer Conditions.
Analysis ConditionLSE N2O-4405 Analyser
Sample flow rate80 mL/min
Sample temperature5∼25 °C
Pump speed42%
Tqcl cycle scan21∼25 °C
Current through QCL0.65A
Temperature measurement cell35 °C
Scan range1277.847∼1279.548 cm−1
Table 2. Varian cp-3800 Conditions.
Table 2. Varian cp-3800 Conditions.
Analysis ConditionVarian cp-3800
DetectorECD

ColumnPorapack Q 80/100

Carrier gasN2 (99.999%)

FlowN220 mL/min
H230 mL/min
Air300 mL/min

TemperatureOven70 °C
Injector120 °C
Table 3. Repeatability and detection limits of N2O analysis methods (units: ppm)
Table 3. Repeatability and detection limits of N2O analysis methods (units: ppm)
Repeatability

Number of AnalysisPhotoacoustic Spectroscopy(PAS)Gas Chromatography(GC)
110.2510.03
210.3310.01
310.3710.01
410.529.98
510.539.99
610.4310.01
710.5310.04
810.5810.00
910.6210.00
1010.479.96

Mean10.4610.00
SD0.120.02
RSD(%)1.120.23
Detection Limit

Analysis MethodMeasured ConcentrationMeanSDDL

12345
PAS0.9890.9770.9860.9960.9970.9890.0080.025
GC1.0251.0341.0701.0411.0091.0360.0230.074
Table 4. Analysis of the exhaust gas concentrations with PAS and GC.
Table 4. Analysis of the exhaust gas concentrations with PAS and GC.
Analysis MethodSample NameMeasured Concentration (ppm)SDRSD (%)

123Mean
PASSample 132.1532.7932.2732.400.341.05
Sample 232.9333.6032.9133.150.391.18
Sample 333.7733.5932.9433.430.441.31
Sample 433.3332.9233.1133.120.210.62

Mean33.030.311.04

GCSample 132.7033.0633.0832.950.210.65
Sample 232.9732.8632.8932.910.060.17
Sample 333.0133.2133.3333.180.160.49
Sample 433.2033.2933.2033.230.050.16

Mean33.070.120.37
Table 5. Analysis of the exhaust gas concentrations with PAS and GC.
Table 5. Analysis of the exhaust gas concentrations with PAS and GC.
DivisionPASGC
AccuracyAdequateGood
Response timeShort(<3 min 30 s)Long(>5 min)
Limit of detection0.025 ppm0.074 ppm
MobilityGoodPoor
Ease of useGoodPoor
Capital costHigh costLow cost
