Article

Label-Free Fluorescent Detection of Trypsin Activity Based on DNA-Stabilized Silver Nanocluster-Peptide Conjugates

1
Key Laboratory of Applied Surface and Colloid Chemistry of Ministry of Education, School of Chemistry and Chemical Engineering, Shaanxi Normal University, Xi’an 710062, China
2
Key Laboratory of Analytical Chemistry for Life Science of Shaanxi Province, School of Chemistry and Chemical Engineering, Shaanxi Normal University, Xi’an 710062, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Sensors 2016, 16(11), 1477; https://doi.org/10.3390/s16111477
Submission received: 27 June 2016 / Revised: 2 August 2016 / Accepted: 2 August 2016 / Published: 9 November 2016
(This article belongs to the Special Issue Colorimetric and Fluorescent Sensor)

Abstract

:
Trypsin is important during the regulation of pancreatic exocrine function. The detection of trypsin activity is currently limited because of the need for the substrate to be labeled with a fluorescent tag. A label-free fluorescent method has been developed to monitor trypsin activity. The designed peptide probe consists of six arginine molecules and a cysteine terminus and can be conjugated to DNA-stabilized silver nanoclusters (DNA-AgNCs) by Ag-S bonding to enhance fluorescence. The peptide probe can also be adsorbed to the surface of graphene oxide (GO), thus resulting in the fluorescence quenching of DNA-AgNCs-peptide conjugate because of Förster resonance energy transfer. Once trypsin had degraded the peptide probe into amino acid residues, the DNA-AgNCs were released from the surface of GO, and the enhanced fluorescence of DNA-AgNCs was restored. Trypsin can be determined with a linear range of 0.0–50.0 ng/mL with a concentration as low as 1 ng/mL. This label-free method is simple and sensitive and has been successfully used for the determination of trypsin in serum. The method can also be modified to detect other proteases.

1. Introduction

Trypsin is one of the most significant digestive protease produced in the pancreas. It cleaves proteins or peptides at the carboxyl terminal of arginine (Arg) or lysine (Lys) residues and plays an important role in the regulation of pancreatic exocrine function [1,2]. The abnormal expression of trypsin can lead to pancreatic diseases, cystic fibrosis, and cancer [3,4]. Therefore, trypsin activity detection is important. Thus far, several strategies for trypsin assay have been reported, such as radioimmunoassay [5], colorimetry [6,7], electrochemical methods [8], and fluorescence methods [9,10,11]. Among these methods, fluorescence methods have attracted significant attention because of their simplicity in situ and in real-time detection, e.g., quantum dot (QD) conjugates based on the Förster resonance energy transfer (FRET) between QD and Cy3 [10] (i.e., QD-(peptide-Cy3)n), the fluorescein-labeled peptide composed of six Arg residues and graphene oxide (GO) [9], and a cationic peptide substrate labeled with p-nitroaniline [11]. However, these methods require fluorescence labeling and require sophisticated equipment and laborious experiment procedures. Therefore, several label-free assays for trypsin activity have been developed recently [12,13]. However, simple, sensitive, and label-free assays for trypsin are still lacking [14,15].
Few silver nanoclusters, particularly DNA-stabilized silver nanoclusters (DNA-AgNCs) [16], have been successfully applied to metal ions [17], bioactive thiols detection [18], single nucleotide mutation identification [19], methylated DNA [20], homo-adenine binding molecules [21], enzyme activities assay [22,23,24] and biological imaging [25]. The thiol compounds would allow the fluorescence enhancement of DNA-AgNCs depending on the sequence of the DNA template and the micro-environmental changes of DNA-AgNCs [26]. We previously found that thiocholine enhanced the fluorescence of DNA-AgNCs and developed a simple and rapid method for the sensitive detection of acetylcholinesterase activity [27].
GO is a single-atom-thick and 2D carbon nanomaterial with a largely hydrophobic basal plane and hydrophilic edges. Nourbakhsh et al. [28] found the oxygen plasma-treated graphene becomes luminescent depending on the level of oxidation. GO is a promising nanomaterial for use in biosensors because of its unique ability of single-stranded DNA (ssDNA) adsorption and its super fluorescence quenching property [29]. Biosensors based on the π-stacking interaction between ssDNA and GO have been investigated to detect DNA [30,31], protein [32], and enzyme activities [9,33]. The fluorescently labeled peptide can be adsorbed onto GO to achieve fluorescence quenching [32]. On the basis of these properties, the methods for the determination of thrombin [6], matrix metalloproteinase-2 [34] and kinase activity [35] have been reported. However, all methods require laborious fluorescent label procedures.
We found that peptides tagged with cysteine (Cys) can enhance the fluorescence of DNA-AgNCs, and can then be adsorbed to GO, thus resulting in fluorescence quenching. On the basis of these findings, we designed a simple peptide probe for label-free assay of trypsin activity and inhibitor screening. The peptide consists of a trypsin-cleavable peptide sequence and a cysteine terminus.

2. Experimental Section

2.1. Chemicals and Materials

A stock solution of GO (0.5 mg/mL) was obtained from Nanoon Co. Ltd. (Beijing, China). The Arg6-Cys peptide was purchased from Biox-vision Co. Ltd. (Anhui, China) and purified with high-performance liquid chromatography. ζ potential of GO (0.25 mg/mL) in 2.0 mM PBS (pH = 7.4) was −37.23 mV. The isoelectric point (pI) of Arg6-Cys was calculated to be 12.4 by a calculator. The trypsin from porcine pancreas, thrombin, alkaline phosphatase (ALP), lysozyme, and Bowman Birk inhibitor (BBI) (trypsin inhibitor) were purchased from Sigma-Aldrich (Beijing, China). Oligonucleotides with polycytosine oligonucleotide (dC12) were synthesized and purified by Sangon Biotechnology (Shanghai, China). Silver nitrate (99.99%), sodium borohydride (NaBH4 powder, 98%) and other chemicals were obtained from Alfa-Aesar (Tianjing, China) and used as received. All solutions were prepared using Millipore Milli-Q water (18.2 MΩ·cm).
UV-visible spectra were obtained using a PerkinElmer Lambda 35 spectrometer. Fluorescence spectra were obtained using a Cary Eclipse fluorescence spectrophotometer (Varian, Santa Clara, CA, USA) at room temperature. Multi-function imaging photoelectron spectroscopy (XPS) measurements were conducted on an AXIS ULTRA photoelectron spectrometer (Kratos Analytical, Manchester, UK).

2.2. Synthesis of dC12-AgNCs

The dC12-AgNCs were synthesized according to the previously reported method with slight modifications [36]. dC12 was first dissolved in 2.0 mM pH 7.4 sodium phosphate buffer. AgNO3 was then introduced and further incubated in an ice bath for 15 min. Finally, freshly prepared NaBH4 (dissolved in deionized water) was added followed by vigorous stirring for 1 min. The final concentrations were 10 μM dC12, 60 μM AgNO3, and 60 μM NaBH4 (mole ratio for 1:6:6). After being kept in the dark at room temperature for 2 h and 4 °C overnight, the dC12-AgNCs was diluted with 2.0 mM pH 7.4 sodium phosphate buffer to reach the appropriate concentration for further use.

2.3. Optimal Concentration of the Peptide

Different amounts of a peptide stock solution (5.0 × 10−5 M) were added into dC12-AgNCs (2.0 μM) in a 500 μL phosphate buffer (2.0 mM, pH = 7.4) to vary the peptide concentrations from 0.0 nM to 300 nM, followed by the recording of fluorescence emission intensity at 635 nm. A blank cuvette containing dC12-AgNCs (2.0 μM) without peptide was also recorded as the control experiment.

2.4. Fluorescence Quenching by GO

Different amounts of a GO stock solution (0.5 mg/mL) were added into the dC12-AgNCs-peptide in 500 μL phosphate buffer (2.0 mM, pH = 7.4) to vary the GO concentrations from 0.0 μg/mL to 30.0 μg/mL. After incubation at room temperature for 10 min, the fluorescence spectra of the mixtures were recorded.

2.5. Determination of Trypsin Activity and Inhibition

First, trypsin was diluted to 0.5, 5.0, and 50 μg/mL of 2.0 mM pH 7.4 phosphate buffer. Different amounts of the diluted trypsin were then added to a series of phosphate buffer solutions (380 μL 2.0 mM, pH 7.4) containing 2.0 μL 5.0 × 10−5 M peptide. After enzyme digestion at 37 °C for 20 min, the mixture was heated at 90 °C for 10 min to terminate the cleavage reaction. Finally, 100 μL 10 μM dC12-AgNCs and 20 μL 0.5 μg/mL GO were introduced. After another incubation of 10 min at room temperature, the fluorescence spectra were measured. Moreover, to examine the specificity of this method, some interfering proteins such as thrombin (8.0 μg/mL), ALP (20.0 U/mL) and lysozyme (2.0 μg/mL) were employed as control to replace trypsin in the detection system.
The proposed method was further used to evaluate the inhibition of trypsin by BBI. Different amounts of a BBI stock solution (1 μg/mL) were added into a series of phosphate buffer solutions (380 μL 2.0 mM, pH 7.4) containing 2.0 μL 5.0 × 10−5 M peptide and 5.0 μg/mL trypsin. After enzyme digestion at 37 °C for 20 min, the following experiments were performed according to the aforementioned procedure. The inhibition efficiency was determined after the measurement of trypsin activity in the presence and absence of inhibitors.

2.6. Dynamic Detection of Trypsin

A series of phosphate buffer solutions (380 μL 2.0 mM, pH 7.4) containing 2.0 μL 5.0 × 10−5 M peptide and 5.0 μg/mL trypsin were incubated at 37 °C for 0, 5, 10, 15, 20, 25, 30, 35, 40 min. After different time durations, the following experiments were performed according to the aforementioned activity assay procedure.

2.7. Determination of Trypsin in Serum

To verify the applicability of this method for bio-samples, the human serums of three healthy volunteers were obtained from a local hospital and were used as the complex fluid and stored at −20 °C. Given that dilution is a commonly used pretreatment procedure for protein analysis in samples with high complexity, human serum was diluted 10 times before the detection of trypsin by using the proposed method with slight modifications. Phosphate buffer (380 μL 2.0 mM, pH 7.4) containing 2.0 μL 5.0 × 10−5 M peptide and 100 μL diluted human serum were incubated at 37 °C for 20 min. Thereafter, 100 μL 10 μM dC12-AgNCs and 20 μL 0.5 μg/mL GO were introduced. After another incubation of 10 min at room temperature, the fluorescence spectra were measured. For the recovery test, the known quantities of trypsin (0.75 μg/mL) were added to the human serum. After 10 dilution processes, the following experiments were performed using the same procedure.

3. Results and Discussion

3.1. Principle Design and Feasibility

The strategy of trypsin assay is illustrated in Scheme 1. First, a trypsin-recognizing peptide with six Arg and one Cys tag (Arg6-Cys) was designed. The design rationale is explained as follows: (1) The peptide rapidly reacts with dC12-AgNCs by Ag-S bonding, thus enhancing the fluorescence of dC12-AgNCs; (2) After the addition of GO, the peptide was adsorbed to the surface of GO because of electrostatic interaction between the COO groups of GO and the positively charged arginine residues. Accordingly, the fluorescence of dC12-AgNCs was quenched because of Förster resonance energy transfer (FRET); (3) When trypsin was added, Arg6 was degraded into small fragments, thus resulting in the release of these fragments from the surface of GO, the disappearance of FRET, and the restoration of the fluorescence of dC12-AgNCs. Furthermore, the hydrolysis of the peptide catalyzed by trypsin can be inhibited by trypsin inhibitors. Therefore, a new fluorescent biosensing method for the assay of trypsin activity and its inhibitor screening can be established.
First, we conducted the experiments to examine the feasibility of this method. The fluorescent silver nanoclusters were successfully prepared with dC12 as the template. The UV-vis absorption spectrum of dC12-AgNCs (Figure 1A, curve a) showed two peaks at 445 and 550 nm, respectively. The maximum fluorescence emission at 635 nm (Figure 1A, curve c) was obtained on excitation at 570 nm (Figure 1A, curve b). Depending on the preparation conditions, the DNA-AgNC samples can exhibit different photoluminescence characteristics. By plotting the average decay time as a function of emission wavelength emitters, a method has been developed to characterize the spectral heterogeneity and time evolution of these emissive species at any given point in time after preparation [37]. In our work, the DNA-AgNC samples were prepared and kept in the dark at room temperature for 2 h and 4 °C overnight. As shown in Figure 1B, the fluorescence of dC12-AgNCs (Figure 1B, curve a) is inefficiently quenched after the addition of GO (Figure 1B, curve b), thus eliminating the binding of the dC12-AgNCs to the GO. dC12-AgNCs can significantly increase because of the reaction of dC12-AgNCs with the peptide (Figure 1B, curve c). Moreover, the fluorescence of the dC12-AgNCs−peptide/GO complex is weak (Figure 1B, curve d). However, the peptide can be cleaved into small fragments in the presence of trypsin. This is a sign of peptide cleavage reaction because the same amount of inactivated trypsin could not restore the quenched fluorescence. These fragments will then be dissociated from the surface of GO, thus leading to fluorescence enhancement of dC12-AgNCs (Figure 1B, curve e).

3.2. Interaction of dC12-AgNCs with Peptide

To examine the manner in which the peptide was bound to the dC12-Ag NCs, multi-function imaging XPS was utilized to characterize the dC12-AgNCs-peptide conjugate. XPS measurements showed Ag 3d5/2 binding energies of 368.31 and 368.71 ev for dC12-AgNCs and dC12-AgNCs-peptide conjugate (Figure 2A), respectively, corresponding to Ag (0) [38], thus indicating the existence of AgNCs. The S 2p3/2 peak can be deconvoluted into two different components at 164.80 eV (unbounded S)/168.75 eV (oxidation state) and 162.23 eV (Ag-S bond)/168.71 eV (oxidation state) of the peptide and dC12-AgNCs-peptide conjugate, respectively (Figure 2B). The presence of Ag 3d5/2 and S 2p3/2 (162.23 eV) peaks in the dC12-AgNCs-peptide conjugate confirm that the peptide was bound to the dC12-AgNCs by the Ag-S bond [39].

3.3. Assay of Trypsin Activity

The effects of the peptide with a Cys tag on dC12-AgNCs were first tested. When the peptide was added to the dC12-AgNCs, the fluorescence of dC12-AgNCs increases as a function of peptide concentration at the range of 50 nM to 250 nM and then decreases as the peptide concentration reaches 300 nM. A previous study suggested that AgNCs formed in different DNA templates can have different fluorescence response to thiol compounds [26]. The fluorescence enhancement possibly results from the charge transfer via the Ag-S bonds (from the ligands to the metal center) or from the change of the microenvironment [26,27]. The fluorescence reduction of dC12-AgNCs in high concentration of thiol compounds may be due to the etching of dC12-AgNCs induced by the large amount of thiol compounds [40]. Therefore, to balance the etching effect, the optimal concentration of the peptide substrate was chosen as 200 nM.
To investigate the fluorescence quenching effect of GO on dC12-AgNCs-peptide composites, various amounts of GO were employed to study the dose-dependent responses. The fluorescence is quenched dramatically after the addition of GO. The quenching efficiency reaches 85% while the concentration of GO is 20.0 μg/mL. This phenomenon is probably due to the energy transfer from the dC12-AgNCs unit in dC12-AgNCs-peptide to GO within the dC12-AgNCs-peptide/GO complex [32].
The application of Arg6-Cys peptide, dC12-AgNCs, and GO for trypsin activity assay was investigated. First, the solution of dC12-AgNCs (2.0 μM), peptide (200 nM), and GO (20.0 μg/mL) exhibited weak fluorescence. After the addition of trypsin (20 ng/mL), the fluorescence intensity at 635 nm increases with the incubation time from 0 min to 40 min (Figure 3A). The fluorescence increases quickly in the first few minutes and reaches a saturation value after 20 min, thus suggesting that the proposed method is fast and sensitive to trypsin.
Finally, the dC12-AgNCs-peptide composite was applied to design the FRET biosensor for monitoring trypsin activity. Under the optimum experiment conditions, various amounts of trypsin (0.0, 2.5, 7.5, 2.5, 20, 35, 50, 100, 120, 150, and 200 ng/mL) were added into peptide (200 nM) and incubated at 37 °C for 20 min. The mixtures were then heated to 90 °C for 10 min to terminate the cleavage reaction. Thereafter, dC12-AgNCs (2.0 μM) and GO (20.0 μg/mL) were introduced, after another incubation of 10 min, the fluorescence spectra and emission images of the mixtures were recorded. As the concentration of trypsin increased from 0.0 ng/mL to 200 ng/mL, the fluorescence intensity of dC12-AgNCs-peptide/GO complex was continually enhanced (Figure 3B), thus indicating a gradual cleavage of peptide. Figure 3C reveals the plot of fluorescence intensity change (ΔF) at 635 nm of dC12-AgNCs-peptide/GO complex vs. trypsin concentration (0.0, 2.5, 7.5, 2.5, 20, 35, 50, 100, 120, 150, and 200 ng/mL) with a saturation point near 200 ng/mL. Trypsin can be determined with a linear range of 0.0–50.0 ng/mL (inset in Figure 3C). The detection limit of trypsin was calculated as 1 ng/mL according to the rule of three times the standard deviation over the blank response, which was lower than that of some fluorescence assays reported recently [9,12,13,41,42,43]. The label-free properties of the method can offer the advantages of easy preparation of DNA-AgNCs, low cost, and operation convenience.

3.4. Inhibition Assay of Trypsin

Enzymatic reactions can be retarded by its enzyme inhibitor, and some enzyme inhibitors have been utilized as drugs for diagnosis and therapy of diseases. To demonstrate that our proposed method has potential applications for trypsin inhibitor screening, BBI from soybean was selected as an example. Figure 4B depicts the plot of the inhibition efficiency versus the concentration of BBI. A higher BBI concentration in the solution leads to the slower increase in fluorescence of the dC12-AgNCs-peptide/GO, i.e., the inhibition efficiency of BBI on trypsin activity increases. The corresponding IC50 value (the concentration of the inhibitor that leads to 50% inhibition of the enzyme activity) of BBI toward trypsin was estimated to be 3.6 ng∙mL−1. The IC50 value of BBI lower than the previously reported value [9]. These results demonstrate that the developed method was sensitive for screening trypsin inhibitors.
To further assess the specificity of the proposed method, we performed a control experiment with ALP, lysozyme, and thrombin for testing. The experimental results are shown in Figure 4A. The high concentration of ALP, lysozyme, and thrombin cannot cause the observable fluorescence recovery of the dC12-AgNCs-peptide/GO complex at the same conditions. The etching effect of dC12-AgNCs [40,44] induced by large amount of lysozyme might produce a large decrease in signal. The different fluorescence patterns (turn-on or turn-off) of AgNCs in responses of thiol compounds have been reported [26,27,45]. One molecule of lysozyme (PDB 4AGA) contains 8 cysteine residues, moreover, the cysteine 6 and cysteine 127 individually locates at the terminus of lysozyme and forms disulfide bond Cys 6-Cys 127 [46]. Chymotrypsin can be selectively detected because of the different pattern of fluorescence response. This result demonstrates that the proposed method possesses high specificity for trypsin, thus indicating its applicability for bio-samples.

3.5. Detection of Trypsin in Human Serum

Human serum was diluted 10 times before the detection of trypsin by using the proposed method with slight modifications. Phosphate buffer (380 μL 2.0 mM, pH 7.4) containing 2.0 μL 5.0 × 10−5 M peptide and 100 μL diluted human serum were incubated at 37 °C for 20 min. Thereafter, 100 μL 10 μM dC12-AgNCs and 20 μL 0.5 μg/mL GO were introduced. After incubation of 10 min at room temperature, the concentrations of trypsin were determined to be 3.87, 4.32, and 4.45 ng/mL. After conversion (observed values multiple diluted 50 times), we obtain trypsin concentrations in human serum of 0.19, 0.22, 0.23 μg/mL (Table 1). The values were similar to those reported in previous works (0.15–0.35 μg/mL) [3,47,48]. For further evaluation of the validity of the proposed method, known quantities of trypsin (0.75 μg/mL) were added to the human serum. After 10 dilution instances, the same procedure was used to perform the following experiments. The concentrations of trypsin were determined to be 17.1, 18.4, and 17.2 ng/mL, after conversion (observed values multiple diluted 50 times), we obtain recovery values of 0.85, 0.92, and 0.86 μg/mL, respectively (Table 1). The recovery rates were determined to be 85%–94% (Table 1). These results clearly suggest that the assay can be applied to the detection of trypsin in a real sample.

4. Conclusions

In conclusion, we have successfully developed a new label-free fluorescence turn-on method with the ensemble of dC12-AgNCs-peptide and GO for trypsin assay and inhibitor screening. This new assay method is designed by taking advantage of the interactions between dC12-AgNCs-peptide and GO, the fluorescence quenching ability of GO, and the hydrolysis of peptide in the presence of trypsin. Trypsin can be determined with a linear range of 0.0–50.0 ng/mL with the concentration as low as 1 ng/mL. Moreover, the ensemble of dC12-AgNCs-peptide and GO can be employed for the screening of trypsin inhibitors with good sensitivity and the determination of trypsin in serum. This method opens new opportunities for the design of novel sensing strategies and the expansion of sensing applications in different fields.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (21275097) and the Fundamental Research Fund for the Central Universities (GK201602010).

Author Contributions

Y.-D.Z. made contributions in design of all experiments, data analysis, results interpretation and manuscript preparation. C.-X.Z. and L.-H.W. contributed equally in the design of the experiments, data acquisition, experimental work, data analysis, and manuscript writing. J.-J.F. contributed to the analysis of the results and the writing of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rawlings, N.D.; Barrett, A.J. Families of serine peptidases. Method Enzymol. 1994, 244, 19–61. [Google Scholar]
  2. Hirota, M.; Ohmuraya, M.; Baba, H. The role of trypsin, trypsin inhibitor, and trypsin receptor in the onset and aggravation of pancreatitis. J. Gastroenterol. 2006, 41, 832–836. [Google Scholar] [CrossRef] [PubMed]
  3. Artigas, J.; Garcia, M.E.; Faure, M.; Gimeno, A. Serum trypsin levels in acute pancreatic and non-pancreatic abdominal conditions. Postgrad. Med. J. 1981, 57, 219–222. [Google Scholar] [CrossRef] [PubMed]
  4. Byrne, M.F.; Mitchell, R.M.; Stiffler, H.; Jowell, P.S.; Branch, M.S.; Pappas, T.N.; Tyler, D.; Baillie, J. Extensive investigation of patients with mild elevations of serum amylase and/or lipase is ‘low yield’. Can. J. Gastroenterol. 2002, 16, 849–854. [Google Scholar] [CrossRef] [PubMed]
  5. Temler, R.S.; Felber, J.P. Radioimmunoassay of human plasma trypsin. Biochim. Biophys. Acta 1976, 445, 720–728. [Google Scholar] [CrossRef]
  6. Ding, X.; Ge, D.; Yang, K.L. Colorimetric protease assay by using gold nanoparticles and oligopeptides. Sens. Actuators B Chem. 2014, 201, 234–239. [Google Scholar] [CrossRef]
  7. Miao, P.; Liu, T.; Li, X.; Ning, L.; Yin, J.; Han, K. Highly sensitive, label-free colorimetric assay of trypsin using silver nanoparticles. Biosens. Bioelectron. 2013, 49, 20–24. [Google Scholar] [CrossRef] [PubMed]
  8. Stoytcheva, M.; Zlatev, R.; Cosnier, S.; Arredondo, M. Square wave voltammetric determination of trypsin activity. Electrochim. Acta 2012, 76, 43–47. [Google Scholar] [CrossRef]
  9. Gu, X.; Yang, G.; Zhang, G.; Zhang, D.; Zhu, D. A new fluorescence turn-on assay for trypsin and inhibitor screening based on graphene oxide. ACS Appl. Mater. Interfaces 2011, 3, 1175–1179. [Google Scholar] [CrossRef] [PubMed]
  10. Algar, W.R.; Malonoski, A.; Deschamps, J.R.; Blanco-Canosa, J.B.; Susumu, K.; Stewart, M.H.; Johnson, B.J.; Dawson, P.E.; Medintz, I.L. Proteolytic activity at quantum dot-conjugates: Kinetic analysis reveals enhanced enzyme activity and localized interfacial “hopping”. Nano Lett. 2012, 12, 3793–3802. [Google Scholar] [CrossRef] [PubMed]
  11. Liu, R.X.; Tan, Y.; Zhang, C.L.; Wu, J.T.; Mei, L.; Jiang, Y.Y.; Tan, C.Y. A real-time fluorescence turn-on assay for trypsin based on a conjugated polyelectrolyte. J. Mater. Chem. B 2013, 1, 1402–1405. [Google Scholar] [CrossRef]
  12. Hong, M.L.; Li, L.J.; Han, H.X.; Chu, X. A label-free fluorescence assay for trypsin based on the electron transfer between oligonucleotide-stabilized Ag nanoclusters and cytochrome c. Anal. Sci. 2014, 30, 811–815. [Google Scholar] [CrossRef] [PubMed]
  13. Ou, L.J.; Li, X.Y.; Li, L.J.; Liu, H.W.; Sun, A.M.; Liu, K.J. A sensitive assay for trypsin using poly(thymine)-templated copper nanoparticles as fluorescent probes. Analyst 2015, 140, 1871–1875. [Google Scholar] [CrossRef] [PubMed]
  14. González-Fernández, E.; Avlonitis, N.; Murray, A.F.; Mount, A.R.; Bradley, M. Methylene blue not ferrocene: Optimal reporters for electrochemical detection of protease activity. Biosens. Bioelectron. 2016. [Google Scholar] [CrossRef] [PubMed]
  15. Zhu, Q.; Yang, K.L. Polyethylene glycol (PEG) gel arrays for differentiating oligopeptide fragments and on-chip protease assays. Biosens. Bioelectron. 2016, 77, 1126–1133. [Google Scholar] [CrossRef] [PubMed]
  16. Liu, Z.; Liu, B.; Ding, J.; Liu, J. Fluorescent sensors using DNA-functionalized graphene oxide. Anal. Bioanal. Chem. 2014, 406, 6885–6902. [Google Scholar] [CrossRef] [PubMed]
  17. Su, Y.T.; Lan, G.Y.; Chen, W.Y.; Chang, H.T. Detection of copper ions through recovery of the fluorescence of DNA-templated copper/silver nanoclusters in the presence of mercaptopropionic acid. Anal. Chem. 2010, 82, 8566–8572. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, W.Y.; Lan, G.Y.; Chang, H.T. Use of fluorescent DNA-templated gold/silver nanoclusters for the detection of sulfide ions. Anal. Chem. 2011, 83, 9450–9455. [Google Scholar] [CrossRef] [PubMed]
  19. Yeh, H.C.; Sharma, J.; Shih, I.M.; Vu, D.M.; Martinez, J.S.; Werner, J.H. A fluorescence light-up Ag nanocluster probe that discriminates single-nucleotide variants by emission color. J. Am. Chem. Soc. 2012, 134, 11550–11558. [Google Scholar] [CrossRef] [PubMed]
  20. Dadmehr, M.; Hosseini, M.; Hosseinkhani, S.; Ganjali, M.R.; Sheikhnejad, R. Label free colorimetric and fluorimetric direct detection of methylated DNA based on silver nanoclusters for cancer early diagnosis. Biosens. Bioelectron. 2015, 73, 108–113. [Google Scholar] [CrossRef] [PubMed]
  21. Park, K.S.; Park, H.G. A DNA-templated silver nanocluster probe for label-free, turn-on fluorescence-based screening of homo-adenine binding molecules. Biosens. Bioelectron. 2015, 64, 618–624. [Google Scholar] [CrossRef] [PubMed]
  22. Liu, X.; Wang, F.; Niazov-Elkan, A.; Guo, W.; Willner, I. Probing biocatalytic transformations with luminescent DNA/silver nanoclusters. Nano Lett. 2012, 13, 309–314. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, W.; Lai, H.; Huang, R.; Zhao, C.; Wang, Y.; Weng, X.; Zhou, X. DNA methyltransferase activity detection based on fluorescent silver nanocluster hairpin-shaped DNA probe with 5’-C-rich/G-rich-3’ tails. Biosens. Bioelectron. 2015, 68, 736–740. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, K.; Wang, K.; Zhu, X.; Xie, M. A label-free kissing complexes-induced fluorescence aptasensor using DNA-templated silver nanoclusters as a signal transducer. Biosens. Bioelectron. 2016, 78, 154–159. [Google Scholar] [CrossRef] [PubMed]
  25. Li, J.; Zhong, X.; Cheng, F.; Zhang, J.R.; Jiang, L.P.; Zhu, J.J. One-pot synthesis of aptamer-functionalized silver nanoclusters for cell-type-specific imaging. Anal. Chem. 2012, 84, 4140–4146. [Google Scholar] [CrossRef] [PubMed]
  26. Huang, Z.; Pu, F.; Lin, Y.; Ren, J.; Qu, X. Modulating DNA-templated silver nanoclusters for fluorescence turn-on detection of thiol compounds. Chem. Commun. 2011, 47, 3487–3489. [Google Scholar] [CrossRef] [PubMed]
  27. Zhang, Y.D.; Cai, Y.N.; Qi, Z.L.; Lu, L.; Qian, Y.X. DNA-templated silver nanoclusters for fluorescence turn-on assay of acetylcholinesterase activity. Anal. Chem. 2013, 85, 8455–8461. [Google Scholar] [CrossRef] [PubMed]
  28. Liu, J. DNA-stabilized, fluorescent, metal nanoclusters for biosensor development. Trac-Trend. Anal. Chem. 2014, 58, 99–111. [Google Scholar] [CrossRef]
  29. Nourbakhsh, A.; Cantoro, M.; Vosch, T.; Pourtois, G.; Clemente, F.; van der Veen, M.H.; Hofkens, J.; Heyns, M.M.; Gendt, S.D.; Sels, B.F. Bandgap opening in oxygen plasma-treated graphene. Nanotechnology 2010, 21. [Google Scholar] [CrossRef] [PubMed]
  30. Lu, C.H.; Yang, H.H.; Zhu, C.L.; Chen, X.; Chen, G.N. A graphene platform for sensing biomolecules. Angew. Chem. 2009, 121, 4879–4881. [Google Scholar] [CrossRef]
  31. Liu, X.; Wang, F.; Aizen, R.; Yehezkeli, O.; Willner, I. Graphene oxide/nucleic-acid-stabilized silver nanoclusters: functional hybrid materials for optical aptamer sensing and multiplexed analysis of pathogenic DNAs. J. Am. Chem. Soc. 2013, 135, 11832–11839. [Google Scholar] [CrossRef] [PubMed]
  32. Zhang, M.; Yin, B.C.; Wang, X.F.; Ye, B.C. Interaction of peptides with graphene oxide and its application for real-time monitoring of protease activity. Chem. Commun. 2011, 47, 2399–2401. [Google Scholar] [CrossRef] [PubMed]
  33. Nguyen, P.D.; Cong, V.T.; Baek, C.; Min, J. Fabrication of peptide stabilized fluorescent gold nanocluster/graphene oxide nanocomplex and its application in turn-on detection of metalloproteinase-9. Biosens. Bioelectron. 2015. [Google Scholar] [CrossRef] [PubMed]
  34. Song, E.; Cheng, D.; Song, Y.; Jiang, M.; Yu, J.; Wang, Y. A graphene oxide-based FRET sensor for rapid and sensitive detection of matrix metalloproteinase 2 in human serum sample. Biosens. Bioelectron. 2013, 47, 445–450. [Google Scholar] [CrossRef] [PubMed]
  35. Zhou, J.; Xu, X.; Liu, W.; Liu, X.; Nie, Z.; Qing, M.; Nie, L.; Yao, S. Graphene oxide-peptide nanocomplex as a versatile fluorescence probe of protein kinase activity based on phosphorylation protection against carboxypeptidase digestion. Anal. Chem. 2013, 85, 5746–5754. [Google Scholar] [CrossRef] [PubMed]
  36. Petty, J.T.; Zheng, J.; Hud, N.V.; Dickson, R.M. DNA-templated Ag nanocluster formation. J. Am. Chem. Soc. 2004, 126, 5207–5212. [Google Scholar] [CrossRef] [PubMed]
  37. Temboury, M.R.C.; Paolucci, V.; Hooley, E.N.; Latterini, L.; Vosch, T. Probing DNA-stabilized fluorescent silver spectral heterogeneity by time-correlated single photon counting. Analyst 2016, 141, 123–130. [Google Scholar] [CrossRef] [PubMed]
  38. Guo, C.; Irudayaraj, J. Fluorescent Ag clusters via a protein-directed approach as a Hg(II) ion sensor. Anal. Chem. 2011, 83, 2883–2889. [Google Scholar] [CrossRef] [PubMed]
  39. Le Guével, X.; Spies, C.; Daum, N.; Jung, G.; Schneider, M. Highly fluorescent silver nanoclusters stabilized by glutathione: A promising fluorescent label for bioimaging. Nano Res. 2012, 5, 379–387. [Google Scholar]
  40. Ke, C.Y.; Chen, T.H.; Lu, L.C.; Tseng, W.L. Understanding thiol-induced etching of luminescent gold nanoclusters. RSC Adv. 2014, 4, 26050–26056. [Google Scholar] [CrossRef]
  41. Li, P.; Liu, Y.; Wang, X.; Tang, B. A new FRET nanoprobe for trypsin using a bridged β-cyclodextrin dimer-dye complex and its biological imaging applications. Analyst 2011, 136, 4520–4525. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, Y.; Zhang, Y.; Liu, B. Conjugated polyelectrolyte based fluorescence turn-on assay for real-time monitoring of protease activity. Anal. Chem. 2010, 82, 8604–8610. [Google Scholar] [CrossRef] [PubMed]
  43. Tang, B.Y.; Yang, Y.; Wang, G.Y.; Yao, Z.Y.; Zhang, L.; Wu, H.C. A simple fluorescent probe based on a pyrene derivative for rapid detection of protamine and monitoring of trypsin activity. Org. Biomol. Chem. 2015, 13, 8708–8712. [Google Scholar] [CrossRef] [PubMed]
  44. Yuan, X.; Zhang, B.; Luo, Z.T.; Yao, Q.F.; Leong, D.T.; Yan, N.; Xie, J.P. Balancing the rate of cluster growth and etching for gram-scale synthesis of thiolate-protected Au 25 nanoclusters with atomic precision. Angew. Chem. Int. Ed. 2014, 53, 4623–4627. [Google Scholar] [CrossRef] [PubMed]
  45. Shang, L.; Dong, S.J. Sensitive detection of cysteine based on fluorescent silver clusters. Biosens. Bioelectron. 2009, 24, 1569–1573. [Google Scholar] [CrossRef] [PubMed]
  46. Huang, C.Y.; Olieric, V.; Ma, P.; Panepucci, E.; Diederichs, K.; Wang, M.; Caffrey, M. In meso in situ serial X-ray crystallography of soluble and membrane proteins. Acta Crystallogr. 2015, D71, 1238–1256. [Google Scholar]
  47. Park, S.; Yang, H. Sensitive and selective trypsin detection using redox cycling in the presence of L-ascorbic acid. Analyst 2014, 139, 4051–4055. [Google Scholar] [CrossRef] [PubMed]
  48. Zhang, W.Z.; Zhang, P.; Zhang, S.Z.; Zhu, C.Q. Label-free and real-time monitoring of trypsin activity in living cells by quantum-dot-based fluorescent sensors. Anal. Methods UK 2014, 6, 2499–2505. [Google Scholar] [CrossRef]
Scheme 1. Schematic showing the principle of Arg6-Cys, dC12-AgNCs and graphene oxide (GO) for trypsin activity.
Scheme 1. Schematic showing the principle of Arg6-Cys, dC12-AgNCs and graphene oxide (GO) for trypsin activity.
Sensors 16 01477 sch001
Figure 1. UV-Vis (curve a), excitation (curve b), and emission (curves c) spectra of dC12-AgNCs (A); Fluorescence spectrum of dC12-AgNCs at different conditions (B): (a) 2.0 μM dC12-AgNCs; (b) 2.0 μM dC12-AgNCs + 20.0 μg/mL GO; (c) 2.0 μM dC12-AgNCs + 200 nM peptide; (d) 2.0 μM dC12-AgNCs + 200 nM peptide + 20.0 μg/mL GO; (e) 2.0 μM dC12-AgNCs + 200 nM peptide + 200 ng/mL trypsin + 20.0 μg/mL GO.
Figure 1. UV-Vis (curve a), excitation (curve b), and emission (curves c) spectra of dC12-AgNCs (A); Fluorescence spectrum of dC12-AgNCs at different conditions (B): (a) 2.0 μM dC12-AgNCs; (b) 2.0 μM dC12-AgNCs + 20.0 μg/mL GO; (c) 2.0 μM dC12-AgNCs + 200 nM peptide; (d) 2.0 μM dC12-AgNCs + 200 nM peptide + 20.0 μg/mL GO; (e) 2.0 μM dC12-AgNCs + 200 nM peptide + 200 ng/mL trypsin + 20.0 μg/mL GO.
Sensors 16 01477 g001

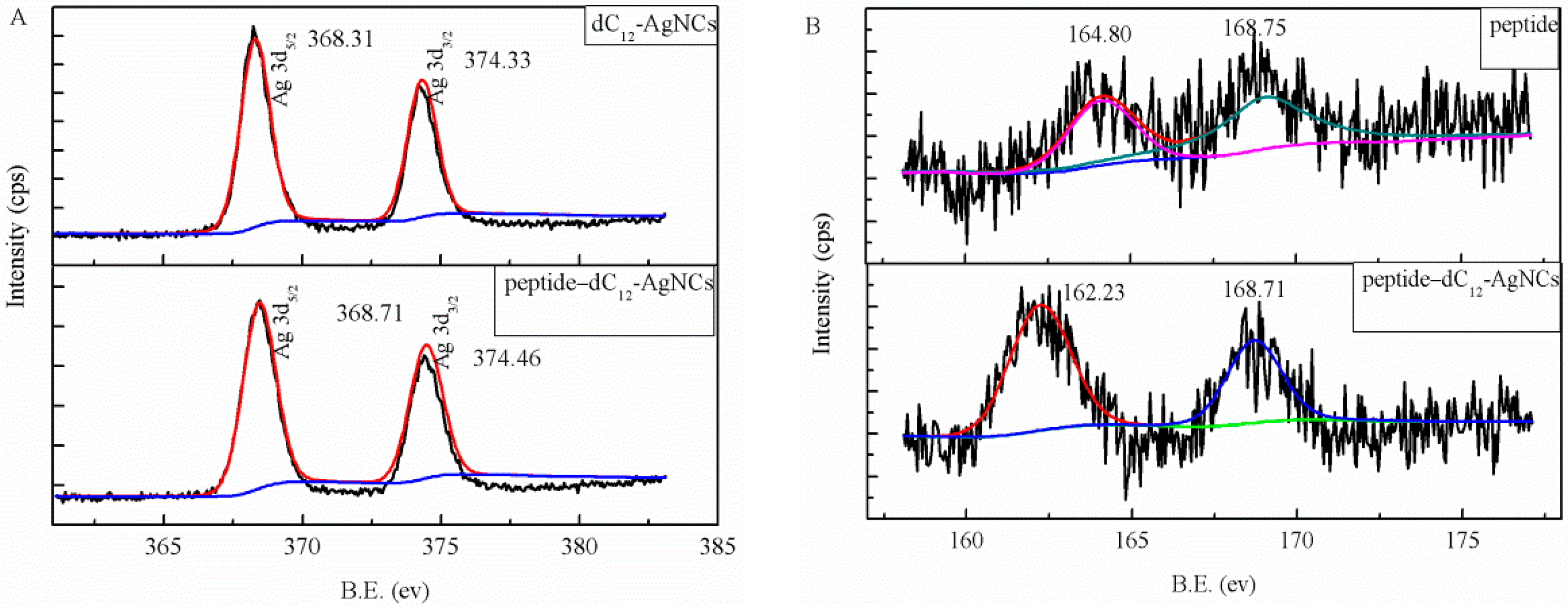

Figure 2. XPS spectrum of Ag 3d of dC12-AgNCs and dC12-AgNCs−peptide (A); XPS spectrum of S2p of peptide and dC12-AgNCs-peptide (B).
Figure 2. XPS spectrum of Ag 3d of dC12-AgNCs and dC12-AgNCs−peptide (A); XPS spectrum of S2p of peptide and dC12-AgNCs-peptide (B).
Sensors 16 01477 g002

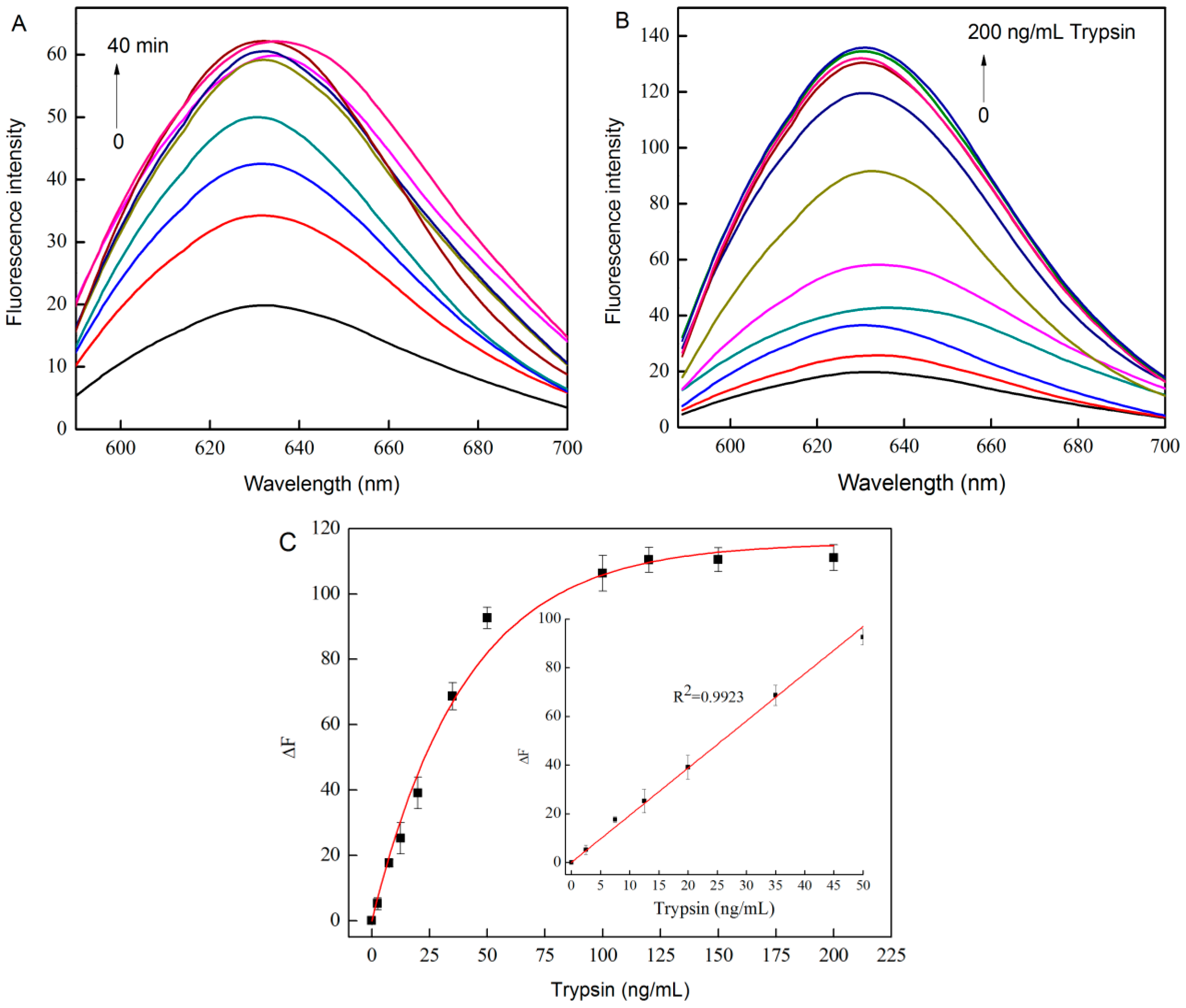

Figure 3. Fluorescence spectra of peptide (200 nM) in the presence of trypsin (20 ng/mL) incubated at 37 °C for different periods (A); Fluorescence spectra of the assay system at various concentrations of trypsin (B); Relationship of the fluorescence intensity changes of the assay system with trypsin concentration. Inset shows the linear response of this system to trypsin (C).
Figure 3. Fluorescence spectra of peptide (200 nM) in the presence of trypsin (20 ng/mL) incubated at 37 °C for different periods (A); Fluorescence spectra of the assay system at various concentrations of trypsin (B); Relationship of the fluorescence intensity changes of the assay system with trypsin concentration. Inset shows the linear response of this system to trypsin (C).
Sensors 16 01477 g003

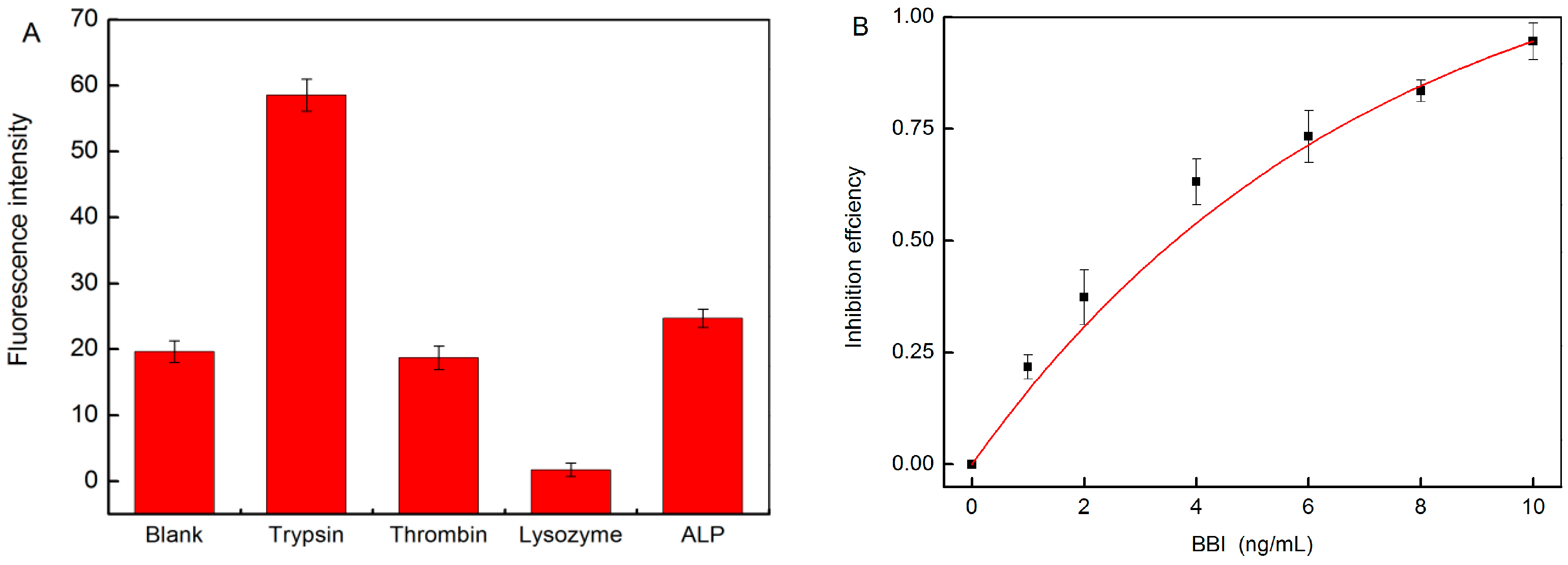

Figure 4. Selectivity test for trypsin (A). The concentrations of trypsin, alkaline phosphatase (ALP), lysozyme, thrombin are 20.0 ng/mL, 20.0 U/mL, 2.0 μg/mL, and 8.0 μg/mL, respectively; Inhibitory efficiency of BBI on the activity of trypsin (B). The concentration of trypsin is 20 ng/mL.
Figure 4. Selectivity test for trypsin (A). The concentrations of trypsin, alkaline phosphatase (ALP), lysozyme, thrombin are 20.0 ng/mL, 20.0 U/mL, 2.0 μg/mL, and 8.0 μg/mL, respectively; Inhibitory efficiency of BBI on the activity of trypsin (B). The concentration of trypsin is 20 ng/mL.
Sensors 16 01477 g004
Table 1. Analytical results of trypsin determination in human serum.
Table 1. Analytical results of trypsin determination in human serum.
SampleMeasured (μg/mL)Trypsin Added (μg/mL)Recovered (μg/mL)Recovery (%)RSD (%), n = 3
10.190.750.85888.5
20.220.750.929410.4
30.230.750.86857.9
