Gas Sensing Analysis of Ag-Decorated Graphene for Sulfur Hexafluoride Decomposition Products Based on the Density Functional Theory

1
State Key Laboratory of Power Transmission Equipment & System Security and New Technology, Chongqing University, Chongqing 400044, China
2
School of Electrical Engineering, Wuhan University, Wuhan 430072, China
3
No. 1 Branch of Chongqing Academy of Metrology and Quality Inspection, Chongqing 402260, China
*
Author to whom correspondence should be addressed.
Sensors 2016, 16(11), 1830; https://doi.org/10.3390/s16111830
Submission received: 16 August 2016 / Revised: 16 October 2016 / Accepted: 21 October 2016 / Published: 1 November 2016
(This article belongs to the Special Issue The Use of New and/or Improved Materials for Sensing Applications)

Abstract

:
Detection of decomposition products of sulfur hexafluoride (SF6) is one of the best ways to diagnose early latent insulation faults in gas-insulated equipment, and the occurrence of sudden accidents can be avoided effectively by finding early latent faults. Recently, functionalized graphene, a kind of gas sensing material, has been reported to show good application prospects in the gas sensor field. Therefore, calculations were performed to analyze the gas sensing properties of intrinsic graphene (Int-graphene) and functionalized graphene-based material, Ag-decorated graphene (Ag-graphene), for decomposition products of SF6, including SO2F2, SOF2, and SO2, based on density functional theory (DFT). We thoroughly investigated a series of parameters presenting gas-sensing properties of adsorbing process about gas molecule (SO2F2, SOF2, SO2) and double gas molecules (2SO2F2, 2SOF2, 2SO2) on Ag-graphene, including adsorption energy, net charge transfer, electronic state density, and the highest and lowest unoccupied molecular orbital. The results showed that the Ag atom significantly enhances the electrochemical reactivity of graphene, reflected in the change of conductivity during the adsorption process. SO2F2 and SO2 gas molecules on Ag-graphene presented chemisorption, and the adsorption strength was SO2F2 > SO2, while SOF2 absorption on Ag-graphene was physical adsorption. Thus, we concluded that Ag-graphene showed good selectivity and high sensitivity to SO2F2. The results can provide a helpful guide in exploring Ag-graphene material in experiments for monitoring the insulation status of SF6-insulated equipment based on detecting decomposition products of SF6.

1. Introduction

Sulfur hexafluoride (SF6) has been widely applied in gas-insulated switchgears (GIS) because of its excellent insulation and arc-quenching performance [1]. When the insulation performance of electrical equipment begins to decline, the energy released by the partial discharge phenomena will cause SF6 to decompose into multiple low fluorine sulfides [2]. These low fluorine sulfides react with trace water and oxygen to generate SO2F2, SOF2, SO2, and other characteristic gas products in GIS [3]. Based on previous research, decomposition and concentration of gas products are closely associated with the type, severity, and generation factor of partial discharge [4]. Therefore, detection of SF6 decomposition products is an effective way to monitor and diagnose insulation faults in gas-insulated electrical equipment.
The broad application prospect of graphene is due to its unique structure, electronic properties, and excellent electrical performance [5,6,7,8]. Moreover, graphene possesses many advantages, such as an extremely large specific surface area [9], great carrier concentration [10], ultrahigh carrier mobility [10], low Johnson noise, fewer internal defects [11], and zero-gap materials (with metallicity) [12]. In 2007, Schedin first researched adsorption and desorption behavior of single gas molecules on intrinsic graphene surfaces and expanded the research of graphene as a gas sensor [13]. Researchers confirmed that graphene with certain defects or decorations had stronger response characteristics to specific gases, and the selectivity and sensitivity of graphene to a particular gas can be effectively improved through conducting specific doping or functional modification [14]. At present, the research on functionalized graphene is limited to a common detection field, such as NO, H2, and other common gases [15,16]. Meanwhile, a few research reports have been written about its application in detection of SF6 decomposition products. According to the preliminary study in our study group and its high hydrogen uptake in a previous paper, Ag-graphene gas sensor has good gas-sensing properties for SF6 decomposition products [17,18,19]. In addition, feasible fabrication of Ag-graphene will lead to large-scale industrial production [20]. To further guide experiments to enhance the detection sensitivity and selectivity of Ag-graphene gas sensors for SF6 decomposition products, the gas-sensing properties and gas-response mechanism of Ag-graphene sensors for different SF6 decomposition products must be further analyzed.
Based on density functional theory (DFT), adsorption processes of single (SO2F2, SOF2 and SO2) and double gas molecules (2SO2F2, 2SOF2, 2SO2) on Ag-graphene were analyzed, respectively. The theory suggested that decorated Ag could effectively improve the electron density and charge transfer characteristics of graphene, which provided a new way of preparing sensing materials for functionalized graphene gas and developing a high-performance gas sensor for detection of SF6 decomposition products.

2. Materials and Methods

All calculations were based on DMol3 module of Materials Studio. First, we chose a 6 × 6 graphene supercell (72 carbon atoms) to build the graphene structure, and the periodic boundary condition of supercell was set to 20 Å to avoid the interaction between adjacent layers in modeling. Then, optimization calculation was conducted for the gas molecule structure and the supercell to adjust their structure parameters in the model to be as close to the experimental parameters as possible. To find the most stable Int-graphene and Ag-graphene structure after adsorbing gas molecules, the system of gas molecules on Int-graphene and Ag-graphene was calculated and optimized. Finally, obtained adsorption systems were analyzed by a series of physical and chemical characteristic parameters. Because the Van der Waals force shows obvious effects in physical adsorption, this work selected the generalized gradient approximation method, using Perdew-Burke-Ernzehof format and dispersion correction for DFT algorithm to process exchange correlation and iteration process, respectively [21]. Thus, the influence of the Van der Waals force on adsorption effect could be explored more accurately. In addition, a basis set of P-polarized double-number orbit was added; a k-point mesh of 6 × 6 × 1 was selected for the Brillouin zone integration to obtain accurate energies and structures; and the convergence tolerance of energy was 2.72 × 10−5 eV in structural optimization [22]. Previously published research agreed with the model and its related parameters established in this work [23].
After presenting the optimization structure, a series of physical and chemical parameters were analyzed to understand the adsorption process of gas molecules on Int-graphene and Ag-graphene. Their definitions are as follows:
Adsorption distance (d) means the closest distance from Int-graphene or Ag-graphene to gas molecules. Adsorption energy (∆Eads), the acting force of gas molecules adsorbed on Int-graphene and Ag-graphene, gives the change of total energy in the adsorption process of gas molecules on Int-graphene and Ag-graphene to reach the most stable adsorption system using the equation:
ΔEads = E(system) − E(Int-graphene/Ag-graphene) − E(molecule),
where E(system), E(Int-graphene/Ag-graphene), and E(molecule) are the total energy of adsorption system after the molecules adsorbed on graphene or Ag-graphene, the energy of graphene or Ag-graphene, and the energy of gas molecules, respectively.
Net charge transfer (Q) characterizes the quantity of electric charge transferred from gas molecules to Int-graphene or Ag-graphene in the absorption process and reflects the change of electrical properties of Int-graphene and Ag-graphene. The energy gap of adsorption system offers the complexity of electron transfer between the whole highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO), and its formula is as follows:
Eg = |EHOMO − ELUMO|

3. Results

3.1. Establishment of the Geometric Model

To find the steadiest state, gas molecule models of SF6 characteristic decomposition (SO2F2, SOF2 and SO2) and Int-graphene were constructed in material visualizer. Then, every geometrical structure was optimized by finding its lowest energy, so bond length and angle were marked in each optimized gas molecule model (see Figure 1), whose parameters were consistent with the published data from other simulation results [24].
We explored the decoration mechanism of a single Ag atom on graphene. After optimizing the geometrical structure of graphene, one Ag atom was embedded on the graphene plane in each unit cell. To reach the most stable decorated graphene with a single atom, three possible positions were considered according to the characteristics of highly symmetrical structure of graphene and the previous literature. Figure 2 shows the top site directly above a C atom (T-site), the hollow site at the center of a hexagon (H-site), and the bridge site at the midpoint of two C atoms (B-site).
The binding energy describes the natural interaction of the bonding between decorated Ag and graphene as:
Eform = −E(C72) − E(Ag) + E(Ag/C72),
where E (C72), E (Ag), and E (Ag/C72) represent the respective energy of intrinsic graphene, energy of a single Ag atom, and the total energy of optimized Ag-graphene.
Table 1 shows details of the binding energy in three possible positions, demonstrating that T-site holds the minimum energy. Moreover, the T-site model could be speculated to be the main decorated structure during experimental preparation according to the single metal atom decorated in the same method [25]. Therefore, we regarded the T-site model as the gas-sensing material to study its gas sensing properties to SF6 decomposition products, which was verified and used in previous similar studies [26].
Figure 3a and Figure 4b respectively offer the side and top views of the T-site model after geometry optimization, which illustrates that the Ag atom embedded on the graphene does not lead to the change of the whole two-dimensional plane structure of graphene, but rather protrudes out of the C atomic layer plane with distance (1.586 Å) along the Z-direction and forms covalent bonds with its adjacent C atoms with 2.053 Å bond length. This further supports the idea that an Ag-decorated graphene structure has a local sp3 configuration. Otherwise, the similar decorated structures of local sp3 configuration were also found in other metal-element-decorated graphene (Pd, Pt, Mn, etc.), and it is generally believed that local sp3 configuration is correct in metal-doped graphene theory research [27].

3.2. Adsorption of a Single Gas Molecule on Int-Graphene

To have a better understanding of adsorption effects of gas molecules on Ag-graphene, we first investigated single gas molecule (SO2F2, SOF2, and SO2) adsorption with different initial positions. We focused on a series of parameters presenting gas-sensing properties of adsorption process, such as d, ∆Eads, and Q. Figure 4 shows the optimized stable adsorption systems holding the lowest energy among similar configurations, and Table 2 shows their parameters.
As shown in Figure 4 and Table 2, graphene interacted weakly with gas molecules, and the structure of these molecules almost remains the same (see in Figure 1). The Eads and d were −0.463 eV and 3.486 Å for SO2F2, respectively. ∆Eads and d of graphene/SO2 were −0.459 eV and 3.531 Å. The value of ∆Eads and d upon SO2 adsorption on graphene were −0.298 eV and 3.344 Å, respectively. In addition, net charge transfers (Q) were −0.004 e, −0.002 e and −0.003 e in graphene/SO2F2, graphene/SOF2 and graphene/SO2, respectively. Consequently, the interaction for gas molecule adsorption on graphene is just van der Waals interactions, which are too weak to influence the change of conductivity in the gas adsorption process. Therefore, intrinsic graphene material is not suitable for decomposition component detection in SF6-insulated equipment. Thus, we do not further discuss the adsorption details for gas molecules adsorption on intrinsic graphene.

3.3. Adsorption of a Single Gas Molecule on Ag-Graphene

To obtain the most stable adsorption system, single gas molecules (SO2F2, SOF2 and SO2) were made closer to Ag-graphene with different initial positions. We computed same parameters to analyze the gas-sensing properties of the adsorbing process. These optimized stable adsorption systems are exhibited in Figure 5, and all their parameters are shown in Table 3.
As shown in Figure 5 and Table 3, Ag-graphene and SO2F2 have a strong interaction. Two F atoms separated from SO2F2 and approached decorated Ag with two S-F bonds of SO2F2, extending to 1.948 Å and 3.942 Å, respectively, in the adsorption process, which indicates SO2F2 decomposition. Meanwhile, the value of Q upon SO2F2 adsorption on Ag-graphene was −0.947 e, which meant that SO2F2 acted as an electron acceptor during electron transfer, because electron-rich F atoms contributed to pulling electrons from Ag-graphene to SO2F2. Another essential parameter ∆Eads verified that the strong interaction belonged to chemisorption, because ∆Eads of SO2F2 on Ag-graphene (−1.448 eV) had far exceeded the critical value of chemical adsorption (0.8 eV) [26].
However, a different case happened with SOF2. Figure 5b displays the most stable adsorption system, and its related data is shown in Table 3. When SOF2 came close to Ag-graphene, the F atom tried to separate from SOF2, so the S-F bond was stretched to 2.718 Å, which offered a chance to build a new bond between Ag interacted, and lone F and left S atoms, respectively. However, these interactions were some kind of physical adsorption because of low Van der Waals force with bonding energy (−0.678 eV). In addition, the value of Q upon SOF2 adsorption on Ag-graphene was only −0.351 e. This agrees with the conclusion about physical adsorption, which indicates that electron also transfers from Ag-graphene to gas molecule.
SO2 adsorption did not show obvious changes on molecular gas structure (see Figure 5). While the bond length of S-O in SO2 molecule had extended from 1.480 Å to 1.572 Å, distances from O and S atoms of SO2 to Ag atom gradually shortened to 2.210 Å and 2.558 Å, respectively. SO2-Ag-graphene interaction formed new Ag-S and Ag-O covalent bonds, as shown in Figure 5, thus leading to S-O bond stretching in SO2 molecule. Meanwhile, ∆Eads of Ag-graphene/SO2 (−1.075 eV) was lower than that of Ag-graphene/SO2F2, but higher than that of Ag-graphene/SOF2. Similarly, the value of Q (−0.801 e) upon SO2 adsorption on Ag-graphene was the middle value among three cases. Therefore, SO2 exhibited chemisorption with Ag-graphene.
Net charge transfer has an effect on the density of states (DOS), which results in the change of conductance in system. Thus, the density of states (DOS) and its corresponding partial DOS (PDOS) of Ag-graphene before and after adsorption were calculated to further analyze the chemical adsorption mechanism of gas on Ag-graphene.
DOS change was evident before and after SO2F2 adsorption by comparison, as shown in Figure 6a, where DOS decreased near the 0.8 eV conduction band and then increased in valence band range from −3 eV to −6 eV, which mainly led to an increase in the conductance of Ag-graphene/SO2F2 system. Figure 7a shows that PDOS peak near the −6 eV valence band causes DOS increase; because the 4d orbital of Ag atom hybridized with the 3p orbital of S atom and 2p orbital of O atom of SO2F2 in a certain filling rate degree, which bring a strong interaction between SO2F2 and decorated Ag.
DOS change before and after SOF2 only occurred below the Fermi level with a slight increase (see Figure 6b), suggesting that the conductivity of the system did not change, which was consistent with the conclusion of low adsorption energy discussed previously. More information from PDOS in Figure 7b reveals that a little energy overlap existed among atomic orbits. This indicated that the interaction between atoms was weak, which further verified that SOF2 adsorption on Ag-graphene belonged to physical adsorption.
Figure 6c shows DOS change during SO2 adsorption. Obvious change was not found before and after SO2 adsorption. However, the weak increase near valence bands of −3 eV and −6 eV was due to the net charge transfer at the effective overlapping part between the 4d orbital of the Ag atom, 2p orbital of the S atom, and 2p orbital of the O atom in PDOS (see Figure 7c). As a result, the effective charge number increased on a macroscopic scale after SO2 molecule adsorption, as did the conductance of Ag-graphene/SO2.
We investigated the transition ability of electrons from the top of valence band to the bottom of conduction band and electronic structure through HOMO and LUMO. The calculation results of HOMO and LUMO of Ag-graphene structure before and after absorbing SF6 characteristic gas molecules (SO2F2, SO2 and SOF2) are shown in Table 4 and Figure 8.
Before absorbing gas molecules, the HOMO and LUMO of Ag-graphene were mainly distributed at the Ag-decorated site and its opposite site in Figure 8a1,a2, and the energy gap of Ag-graphene was 0.272 eV (see Table 4). The energy decline of HOMO and LUMO was due to the adsorption process, but its HOMO–LUMO energy gap increased in the system. When SO2F2 was adsorbed on Ag-graphene, the energy gap of Ag-graphene/SO2F2 increased to 0.761 eV, which indicated that the SO2F2 adsorption greatly increased system conductivity. After SO2 was adsorbed, the energy gap of the system slightly increased to 0.359 eV, which supported that conductivity of the Ag-graphene/SO2 increased to a certain extent. However, SOF2 adsorption almost had no effect on changing the energy gap of the system. All cases were consistent with the conclusion obtained through DOS analysis above.

3.4. Adsorption of Double Gas Molecules on Ag-Graphene

Before understanding the mechanism of gas molecules interaction with Ag-graphene, it was necessary to explore whether more gas molecules could be adsorbed onto the Ag-graphene surface. Thus, we constructed all kinds of configurations with two gas molecules (2SO2F2, 2SOF2, and 2SO2) adsorbed in favorable positions on Ag-graphene. Optimized systems (Ag-graphene/2SO2F2, Ag-graphene/2SOF2, and Ag-graphene/2SO2) are shown in Figure 9, and their related parameters are listed in Table 5.
As shown in Figure 9a, two F atoms break away from one SO2F2 and attached to the Ag atom, while another SO2F2 held its local position. In terms of bond length, only the S-F bond lengths of that SO2F2 were respectively extended to 2.241 Å and 3.612 Å with other bond lengths unchanged, indicating that these two S-F bonds were broken in the adsorption process. These results reveal that only one of the double SO2F2 gas molecules interacted with Ag-graphene. Based on Figure 5a and Figure 9a and Table 3, adsorption distances (d) are 2.013 Å and 2.004 Å, absorption energies (∆Eads) are −1.448 eV and −1.365 eV, and net charge transfers (Q) are −1.084 e and −1.113 e in Ag-Graphene/SO2F2 and Ag-Graphene/2SO2F2, respectively. By comparison, the adsorption process of double gas molecules is basically similar to that of the corresponding single gas molecule.
Similarly, when F and S atoms from the first SOF2 came close to Ag-Graphene with the S-F bond extended to 1.702 Å, the second SOF2 kept its molecule structure unchanged. As the adsorption distance (d) for single gas molecule of SOF2 was 0.051 Å shorter than that of a double gas molecule (see Table 3 and Table 5), ∆Eads slightly decreased to −0.503 eV, and a total of 0.348 e electrons transferred from the gas molecule to the Ag-graphene. These demonstrated that only one of the double SOF2 gas molecules was adsorbed on the Ag-graphene.
However, an S atom from one SO2 and an O atom from another SO2 approached the Ag atom, adsorbing in opposite directions. The bond lengths of S-O bonds, 1.546, 1.503, 1.498, and 1.493 Å, were received from the initial 1.480 Å during the adsorption of double SO2 gas molecules. In addition, the net charge transfer (Q) of Ag-Graphene/2SO2 (−0.701 eV) were twice as much as that of Ag-Graphene/SO2 (−0.350 e) with considerable adsorption energy (∆Eads) of Ag-Graphene/2SO2 (−1.465 eV). Thus, new Ag–S and Ag–O bonds were formed, which led to electron enrichment of the Ag-graphene. These results reveal that more gas molecules were involved in interaction than Ag-Graphene/SO2.
As shown in Table 6, we calculated HOMO, LUMO, and energy gap after double gas molecules (2SO2F2, 2SOF2, and 2SO2) adsorbed on Ag-graphene. The adsorption results of double gas molecules are similar to that of single gas molecule adsorption; HOMO and LUMO energies declined after adsorbing gas molecules. When 2SO2F2 gas molecules were adsorbed on Ag-graphene, energy gap width increased to 1.050 eV, as shown in Table 6. The energy gap showed obvious changes compared to single gas molecule (−0.761), denoting that 2SO2F2 gas molecules made conductivity rise further. The HOMO gathered in SO2F, and all of LUMOs were located at Ag-graphene (see Figure 10b1,b2); and the HOMO-LUMO energy gap of Ag-graphene/2SOF2 was 0.282 eV, which was slightly higher compared with the intrinsic Ag-graphene that limits the performance of Ag-graphene to detect SO2F in SF6 decomposition components. For 2SO2 gas molecules, HOMO was mainly concentrated around Ag atom and gas molecules, while LUMO mainly distributed at the C atoms of Ag-graphene, as shown in Figure 10b1,b2. The width of energy gap increased to 0.542 eV, as shown in Table 6, indicating that the adsorption energy of 2SO2 gas molecules increased system conductivity to a certain extent. Nevertheless, 2SOF2 adsorption did not have an impact on the energy gap of the system. All adsorption results of double gas molecules are consistent with the conclusion of the corresponding adsorption energy, DOS, and other parameters above. (see Table 5 and Figure 11).

4. Conclusions

In summary, we mainly investigated the adsorption properties and mechanism for decomposition into SF6 product gases (SO2F2, SOF2, and SO2) on Ag-graphene based on density functional theory. A series of parameters presenting the adsorption characteristics in the adsorption process were calculated, and the main conclusions of the adsorption process were obtained as follows:
(1)
After calculating and comparing the binding energy of three different Ag atom adsorption positions on graphene, the T-site was the best decorated location for Ag atom.
(2)
Comparing with weak gas molecule interaction with Int-graphene, the Ag atom significantly enhances the electrochemical reactivity of graphene, reflected in the change of conductivity during the adsorption process.
(3)
For single gas molecule adsorption, SO2 and SO2F2 gas molecules were adsorbed on Ag-graphene with strong chemical adsorption effect, and the interaction strength decreased in following order: SO2F2 > SO2. Also, Ag-graphene physically interacted with SOF2. The information from DOS, HOMO, and LUMO supported the conclusion that the electrical resistivity of the system was reduced during the adsorption process.
(4)
The adsorption results of double gas molecules were similar to those of single gas molecules, and the increase of the number of molecules did not change the type of interaction. The decorating Ag atom only provided one adsorption site, so that only one gas molecule could be adsorbed on Ag-graphene when 2SO2F2 or 2SOF2 were near Ag-graphene. However, the adsorption energy and net charge transfer were significantly improved compared with that of single gas molecule adsorption. Based on the system conductivity change, the electrical conductivity of the system would further increase with the increase of adsorbed molecules (2SO2F2 and 2SOF2).
Thus, Ag-graphene showed distinct interaction with SO2F2, a kind of decomposition product of SF6. Results of theoretical study played a guiding role in preparing a gas sensor with strong selectivity and high sensitivity in the experiment. Meanwhile, the conclusions are beneficial to realizing online monitoring and diagnosis of SF6-insulated equipment in engineering.

Acknowledgments

We gratefully acknowledge the financial support from Project No. 51277188, which is supported by the Fundamental Research Funds for the Central Universities (China).

Author Contributions

Xiaoxing Zhang and Yingang Gui conceived and designed the experiments; Hong Zeng contributed analysis tools; Rong Huang wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bolin, P.; Koch, H. Gas insulated substation GIS. In Proceedings of the Power Engineering Society General Meeting Power Engineering Society General Meeting, Montreal, QC, Canada, 18–22 June 2006; pp. 1–3.
  2. Van Brunt, R.J.; Herron, J.T. Fundamental processes of SF6 decomposition and oxidation in glow and corona discharges. IEEE Trans. Electr. Insul. 1990, 25, 75–94. [Google Scholar] [CrossRef]
  3. Beyer, C.; Jenett, H.; Klockow, D. Influence of reactive SFx gases on electrode surfaces after electrical discharges under SF6 atmosphere. IEEE Trans. Dielectr. Electr. Insul. 2000, 7, 234–240. [Google Scholar] [CrossRef]
  4. Tang, J.; Zeng, F.; Pan, J.; Zhang, X.; Yao, Q.; He, J.; Hou, X. Correlation analysis between formation process of SF6 decomposed components and partial discharge qualities. IEEE Trans. Dielectr. Electr. Insul. 2013, 20, 864–875. [Google Scholar] [CrossRef]
  5. Stankovich, S.; Dikin, D.A.; Dommett, G.H.B.; Kohlhaas, K.M.; Zimney, E.J.; Stach, E.A.; Piner, R.D.; Nguyen, S.B.T.; Ruoff, R.S. Graphene-based composite materials. Nature 2011, 442, 282–286. [Google Scholar] [CrossRef] [PubMed]
  6. Liangti, Q.; Yong, L.; Jong-Beom, B.; Liming, D. Nitrogen-doped graphene as efficient metal-free electro catalyst for oxygen reduction in fuel cells. ACS Nano 2010, 4, 1321–1326. [Google Scholar]
  7. Wang, D.; Kou, R.; Choi, D.; Yang, Z.; Nie, Z.; Li, J.; Saraf, L.V.; Hu, D.; Zhang, J.; Graff, G.L.; et al. Ternary self-assembly of ordered metal oxide-graphene nanocomposites for electrochemical energy storage. ACS Nano 2010, 4, 1587–1595. [Google Scholar] [CrossRef] [PubMed]
  8. Berger, C.; Song, Z.; Li, T.; Li, X.; Ogbazghi, A.Y.; Feng, R.; Dai, Z.; Marchenkov, A.N.; Conrad, E.H.; First, P.N.; et al. Ultrathin epitaxial graphite: 2D electron gas properties and a route toward graphene-based nanoelectronics. Phys. Chem. B 2004, 108, 19912–19916. [Google Scholar] [CrossRef]
  9. Stoller, M.D.; Park, S.; Zhu, Y.; An, J.; Ruoff, R.S. Graphene-based ultra capacitors. Nano Lett. 2008, 8, 3498–3502. [Google Scholar] [CrossRef] [PubMed]
  10. Novoselov, K.S.; Firsov, A.A. Electric Field Effect in Atomically Thin Carbon Films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [PubMed]
  11. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Katsnelson, M.I.; Grigorieva, I.V.; Dubonos, S.V.; Firsov, A.A. Two-Dimensional Gas of Massless Dirac Fermions in Graphene. Nature 2005, 438, 197–200. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Phaedon, A.; Zhihong, C.; Vasili, P. Carbon-based electronics. Nat. Nano Technol. 2007, 2, 605–615. [Google Scholar]
  13. Schedin, F.; Geim, A.K.; Morozov, S.V.; Hill, E.W.; Blake, P.; Katsnelson, M.I.; Novoselov, K.S. Detection of individual gas molecules adsorbed on graphene. Nat. Mater. 2007, 6, 652–655. [Google Scholar] [Green Version]
  14. Shao, L.; Chen, G.; Ye, H.; Wu, Y.; Qiao, Z.; Zhu, Y.; Niu, H. Sulfur dioxide adsorbed on graphene and heteroatom-doped graphene: A first-principles study. Phys. Condens. Matter 2013, 86, 1–5. [Google Scholar] [CrossRef]
  15. Pramanik, A.; Kang, H.S. Density Functional Theory Study of O2 and NO Adsorption on Heteroatom-Doped Graphenes Including the van der Waals Interaction. Appl. Econ. Lett. 2010, 17, 895–900. [Google Scholar]
  16. Kaniyoor, A.; Imran, J.R.; Arockiadoss, T.; Ramaprabhu, S. Nanostructured Pt decorated graphene and multi walled carbon nanotube based room temperature hydrogen gas sensor. Nanoscale 2009, 1, 382–386. [Google Scholar] [CrossRef] [PubMed]
  17. Xiaoxing, Z.; Bing, Y.; Xiaojing, W.; Chenchen, L. Effect of Plasma Treatment on Multi-Walled Carbon Nanotubes for the Detection of H2S and SO2. Sensors 2012, 12, 9375–9385. [Google Scholar]
  18. Bhat, S.A.; Rather, M.A.; Pandit, S.A.; Ingole, P.P.; Bhat, M.A. Oxides in silver-graphene nanocomposites: Electrochemical signatures and electro catalytic implications. Analyst 2015, 140, 5601–5608. [Google Scholar] [CrossRef] [PubMed]
  19. Choucair, M.; Mauron, P. Versatile preparation of graphene-based nanocomposites and their hydrogen adsorption. Int. J. Hydrogen Energy 2015, 40, 6158–6164. [Google Scholar] [CrossRef]
  20. Yu, M.; Liu, P.-R.; Sun, Y.-J.; Liu, J.-H.; An, J.-W.; Li, S.-M. Fabrication and Characterization of Graphene-Ag Nanoparticles Composites. J. Inorg. Mater. 2012, 27, 89–94. [Google Scholar] [CrossRef]
  21. Silvestrelli, P.L. Van der Waals interactions in DFT made easy by Wannier functions. Phys. Rev. Lett. 2008, 100, 1135–1140. [Google Scholar] [CrossRef] [PubMed]
  22. Zhang, Y.H.; Han, L.F.; Xiao, Y.H.; Jia, D.Z.; Guo, Z.H.; Li, F. Understanding dopant and defect effect on H2S sensing performances of graphene: A first-principles study. Comput. Mater. Sci. 2013, 69, 222–228. [Google Scholar] [CrossRef]
  23. Zhang, X.; Yu, L.; Gui, Y.; Hu, W. First-principles study of SF6 decomposed gas adsorbed on Au-decorated graphene. Appl. Surf. Sci. 2016, 367, 259–269. [Google Scholar] [CrossRef]
  24. Zhang, X.; Gui, Y.; Dai, Z. A simulation of Pd-doped SWCNTs used to detect SF6 decomposition components under partial discharge. Appl. Surf. Sci. 2014, 315, 196–202. [Google Scholar] [CrossRef]
  25. Granatier, J.; Lazar, P.; Otyepka, M.; Hobza, P. The Nature of the Binding of Au, Ag, and Pd to Benzene, Coronene, and Graphene: From Benchmark CCSD (T) Calculations to Plane-Wave DFT Calculations. J. Chem. Theory Comput. 2011, 7, 3743–3755. [Google Scholar] [CrossRef] [PubMed]
  26. Castillo, R.M.D.; Sansores, L.E. Study of the electronic structure of Ag, Au, Pt and Pd clusters adsorption on graphene and their effect on conductivity. Phys. Condens. Matter 2015, 88, 1–13. [Google Scholar] [CrossRef]
  27. Zhou, M.; Lu, Y.H.; Cai, Y.Q.; Zhang, C.; Feng, Y.P. Adsorption of gas molecules on transition metal embedded graphene: A search for high-performance graphene-based catalysts and gas sensors. Nanotechnology 2011, 22, 385502–385509. [Google Scholar] [CrossRef] [PubMed]

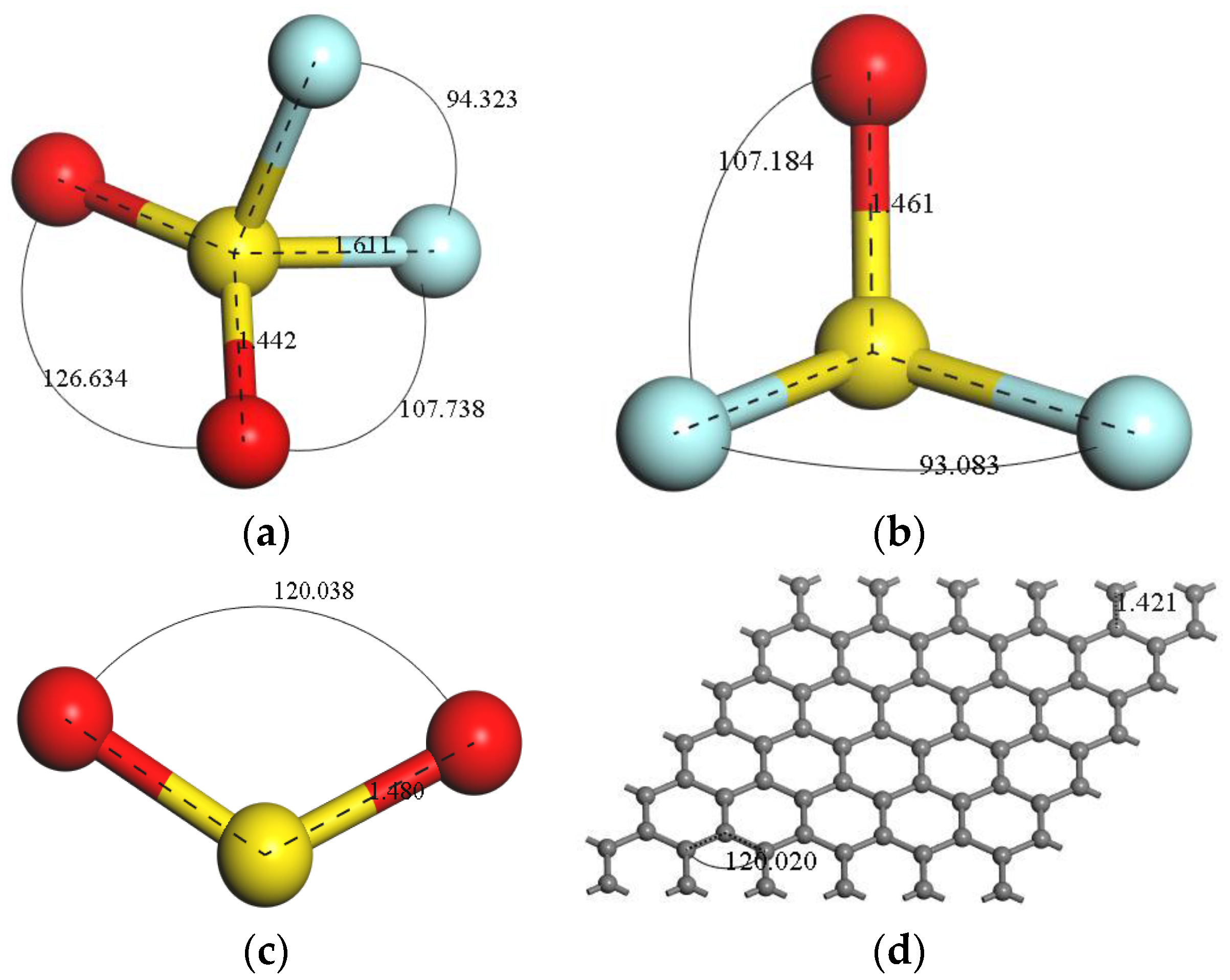

Figure 1. Geometric structures after optimization in (a) SO2F2 molecule; (b) SOF2 molecule; and (c) SO2 molecule and (d) Int-graphene.
Figure 1. Geometric structures after optimization in (a) SO2F2 molecule; (b) SOF2 molecule; and (c) SO2 molecule and (d) Int-graphene.
Sensors 16 01830 g001

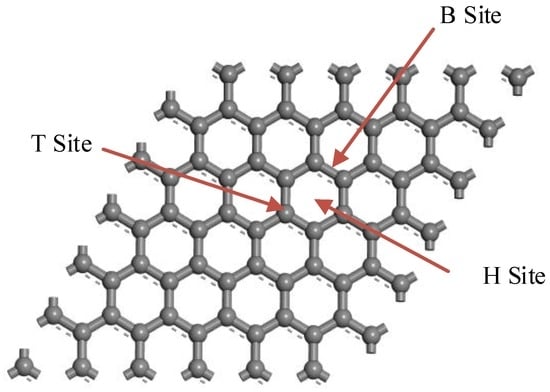

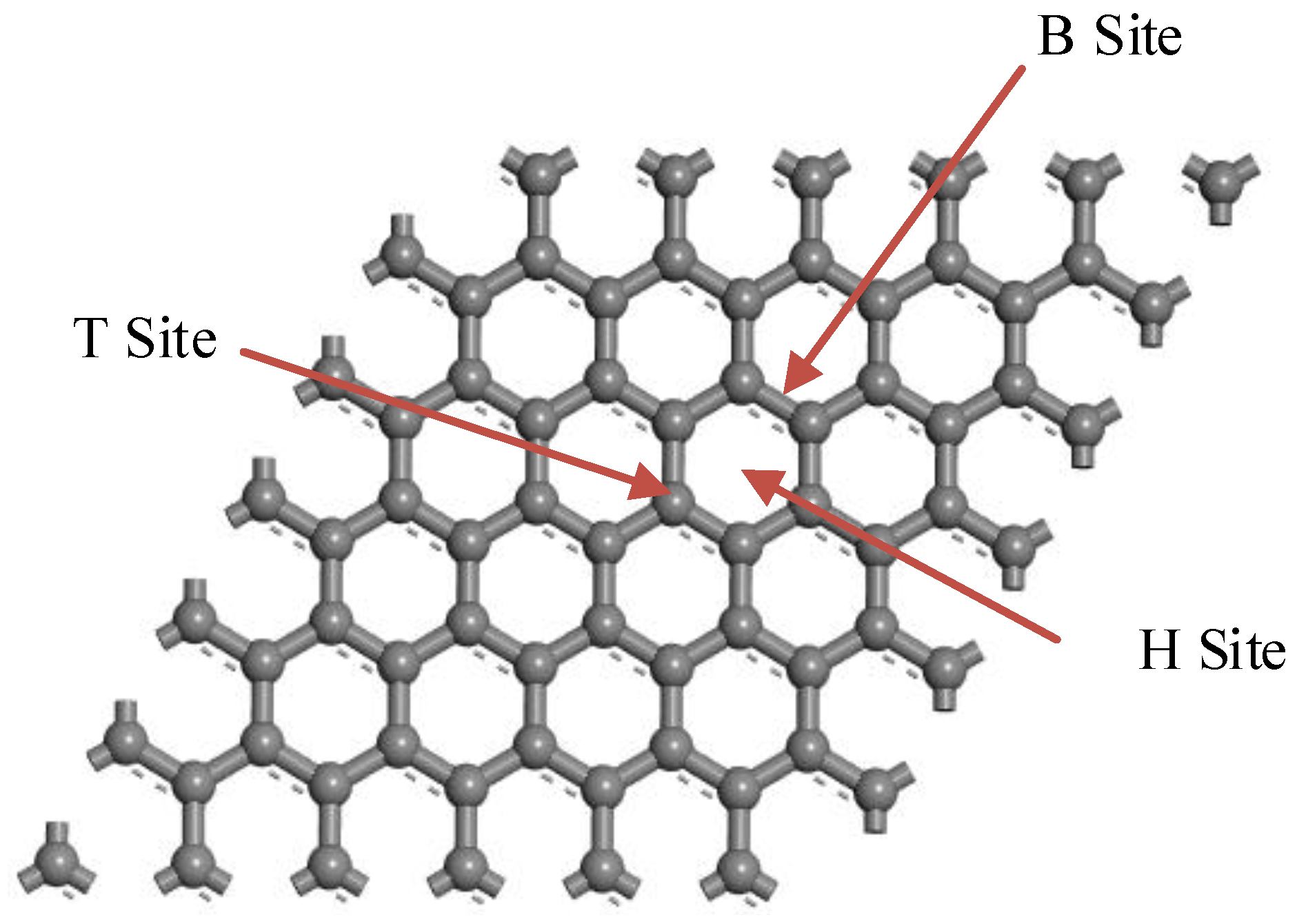

Figure 2. Three possible doping sites for an Ag atom.
Figure 2. Three possible doping sites for an Ag atom.
Sensors 16 01830 g002

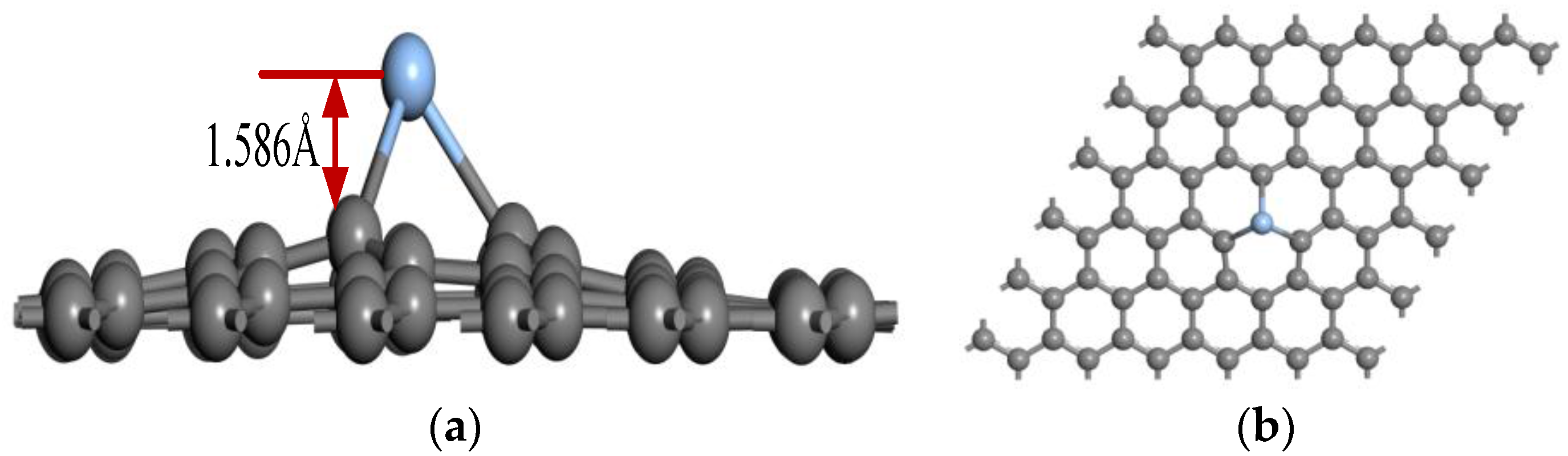

Figure 3. Partial atomic structure of (a) side view and (b) top view for the Ag-CT doping graphene surface.
Figure 3. Partial atomic structure of (a) side view and (b) top view for the Ag-CT doping graphene surface.
Sensors 16 01830 g003

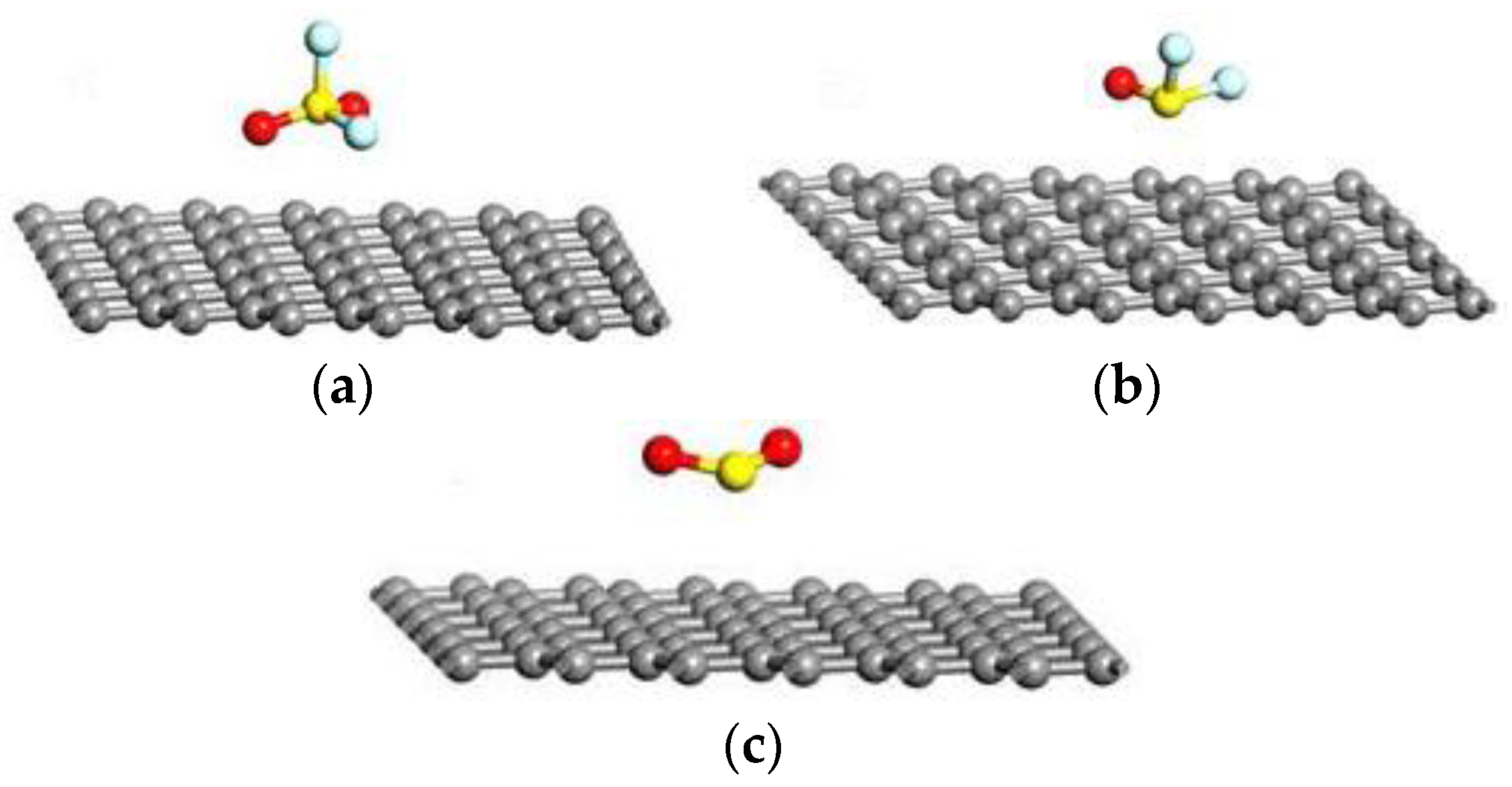

Figure 4. The most stable optimized geometric of single gas molecules interacting with Int-graphene in (a) Int-graphene/SO2F2; (b) Int-graphene/SOF2; and (c) Int-graphene/SO2.
Figure 4. The most stable optimized geometric of single gas molecules interacting with Int-graphene in (a) Int-graphene/SO2F2; (b) Int-graphene/SOF2; and (c) Int-graphene/SO2.
Sensors 16 01830 g004

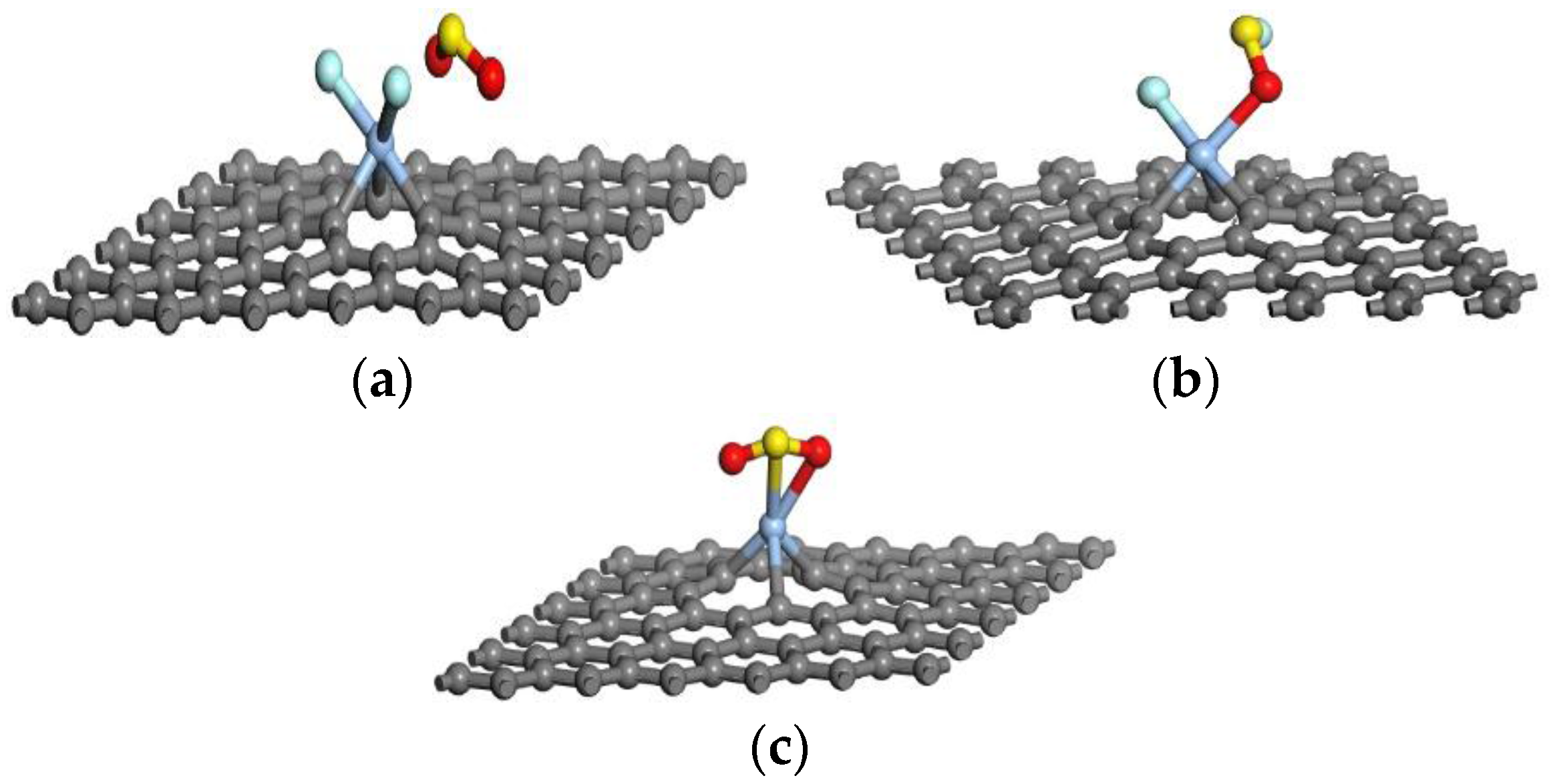

Figure 5. The most stable optimized geometric of single gas molecules interacting with Ag-graphene in (a) Ag-graphene/SO2F2; (b) Ag-graphene/SOF2; and (c) Ag-graphene/SO2.
Figure 5. The most stable optimized geometric of single gas molecules interacting with Ag-graphene in (a) Ag-graphene/SO2F2; (b) Ag-graphene/SOF2; and (c) Ag-graphene/SO2.
Sensors 16 01830 g005

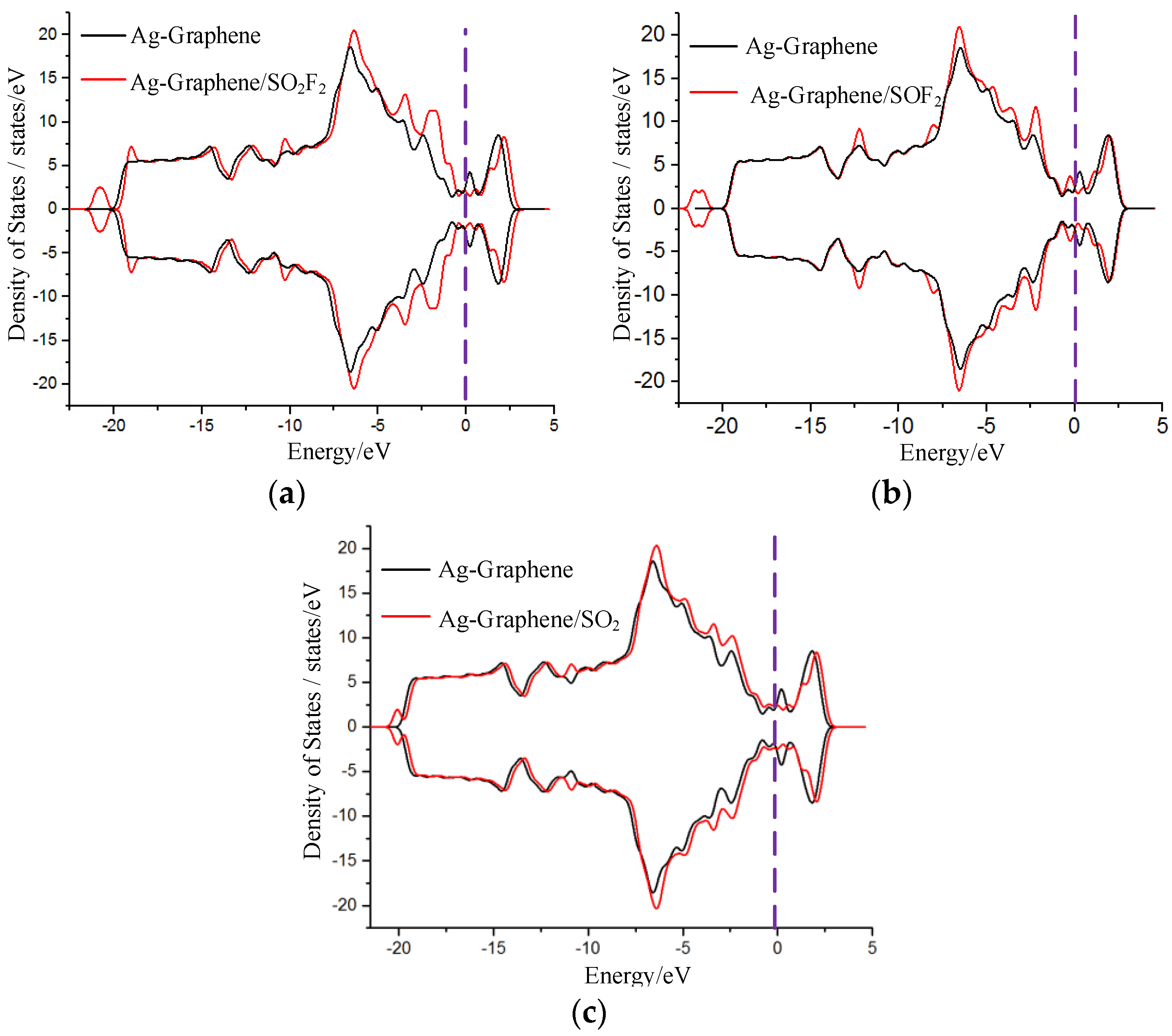

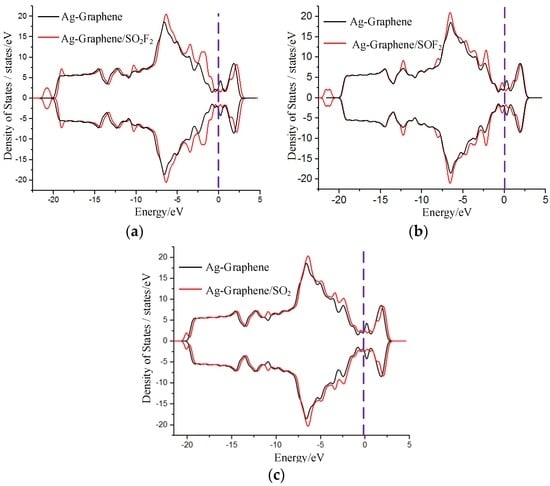

Figure 6. DOS for Ag-graphene with and without single-molecule adsorption in (a) SO2F2; (b) SOF2; and (c) SO2.
Figure 6. DOS for Ag-graphene with and without single-molecule adsorption in (a) SO2F2; (b) SOF2; and (c) SO2.
Sensors 16 01830 g006

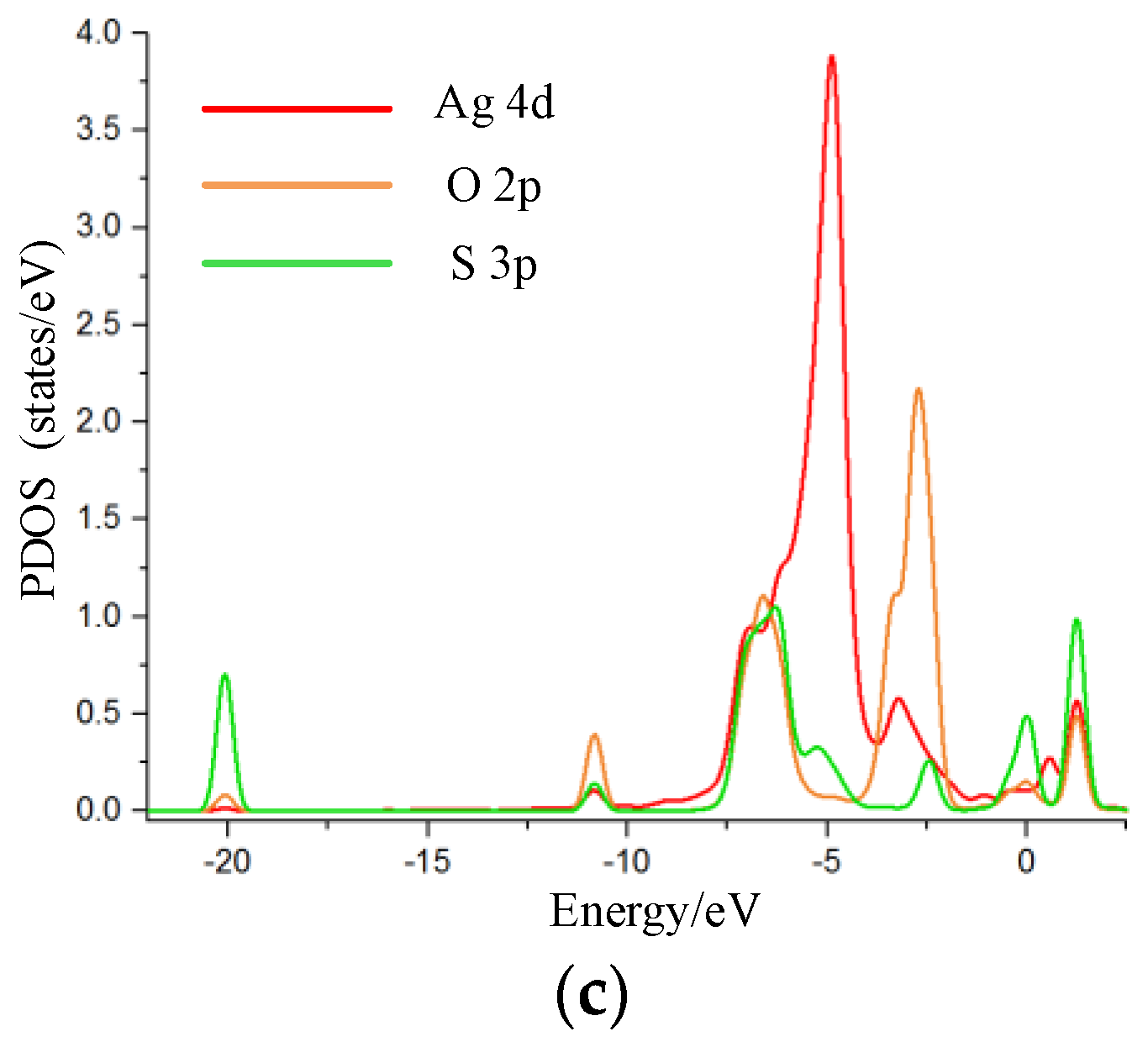

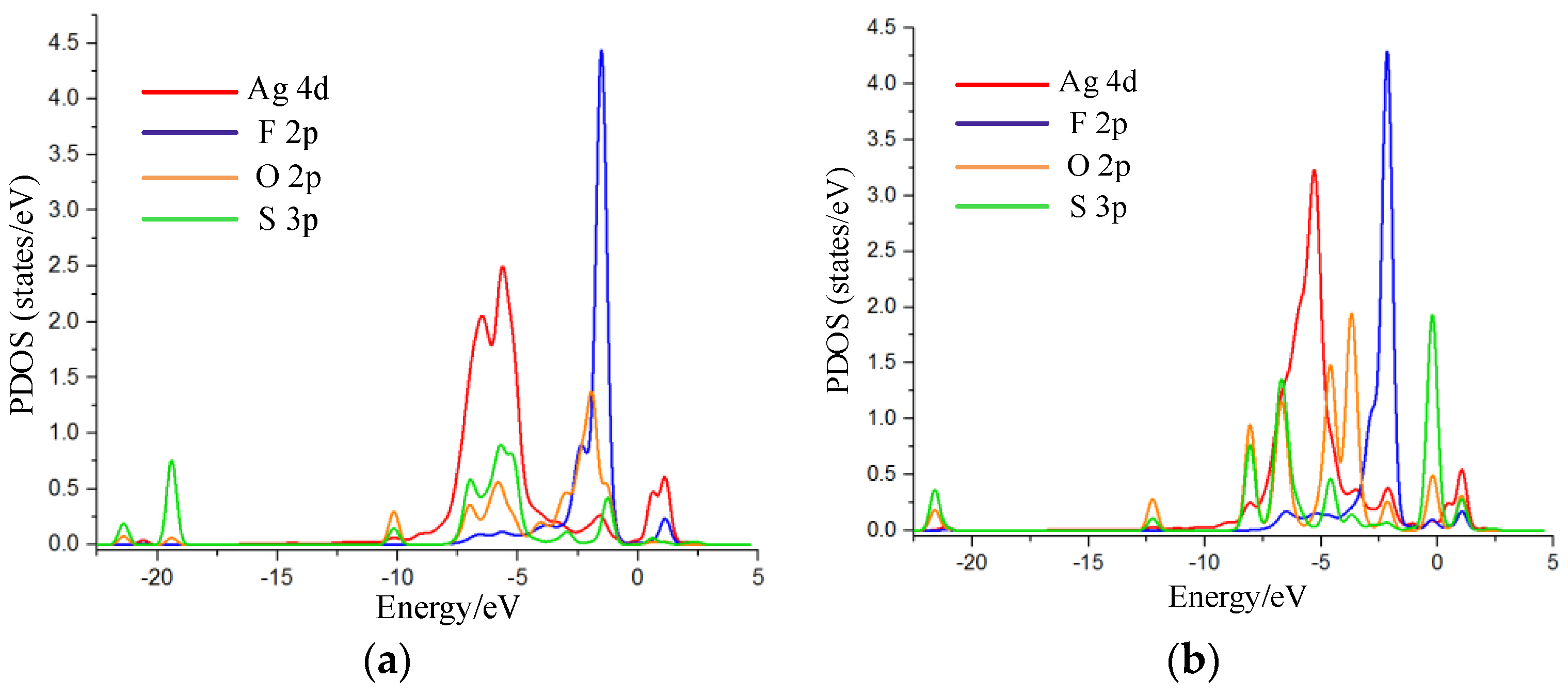

Figure 7. PDOS for Ag-graphene with and without single molecule adsorption; (a) PDOS for 4d of Ag atom, 3p of S atom, 2p of O atom, and 2p of F atom in SO2F2; (b) PDOS for 4d of Ag atom, 3p and 3d of S atom, and 2p of F atom in SOF2; and (c) PDOS for 3p of S atom and 2p of O in SO2.
Figure 7. PDOS for Ag-graphene with and without single molecule adsorption; (a) PDOS for 4d of Ag atom, 3p of S atom, 2p of O atom, and 2p of F atom in SO2F2; (b) PDOS for 4d of Ag atom, 3p and 3d of S atom, and 2p of F atom in SOF2; and (c) PDOS for 3p of S atom and 2p of O in SO2.
Sensors 16 01830 g007aSensors 16 01830 g007b

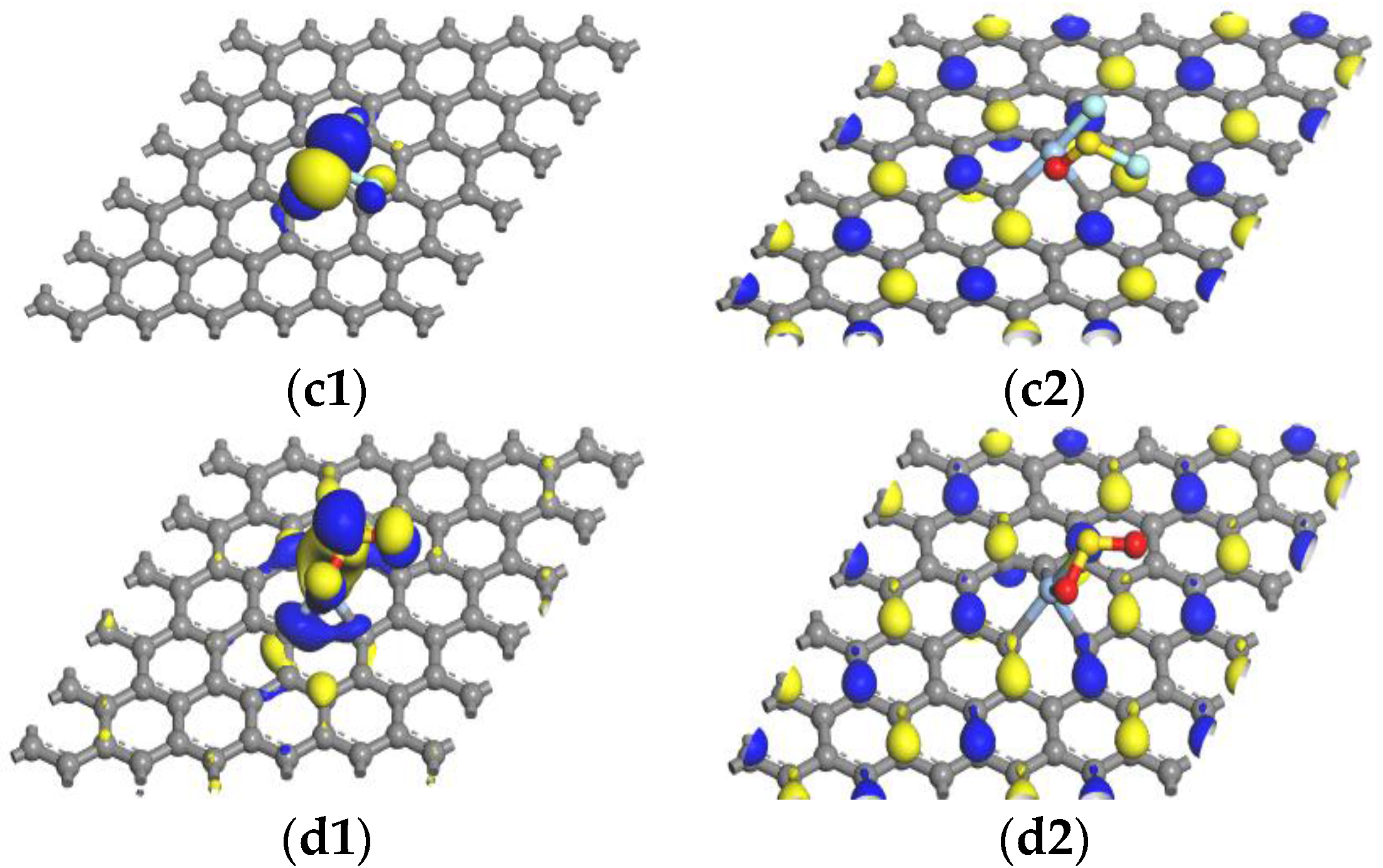

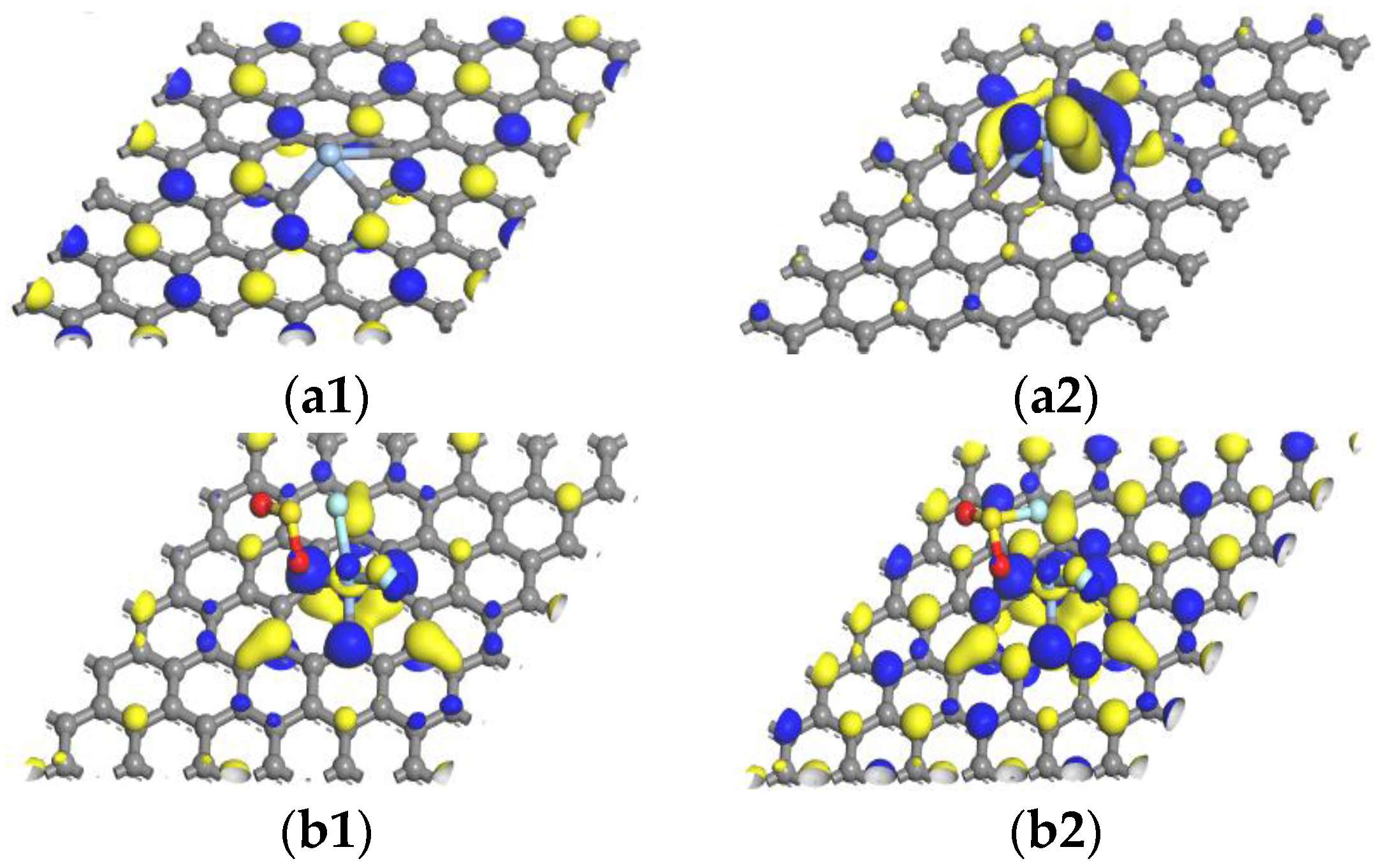

Figure 8. HOMO and LUMO: (a1,a2) Ag-graphene; (b1,b2) single SO2F2; (c1,c2) single SOF2; (d1,d2) single SO2.
Figure 8. HOMO and LUMO: (a1,a2) Ag-graphene; (b1,b2) single SO2F2; (c1,c2) single SOF2; (d1,d2) single SO2.
Sensors 16 01830 g008aSensors 16 01830 g008b

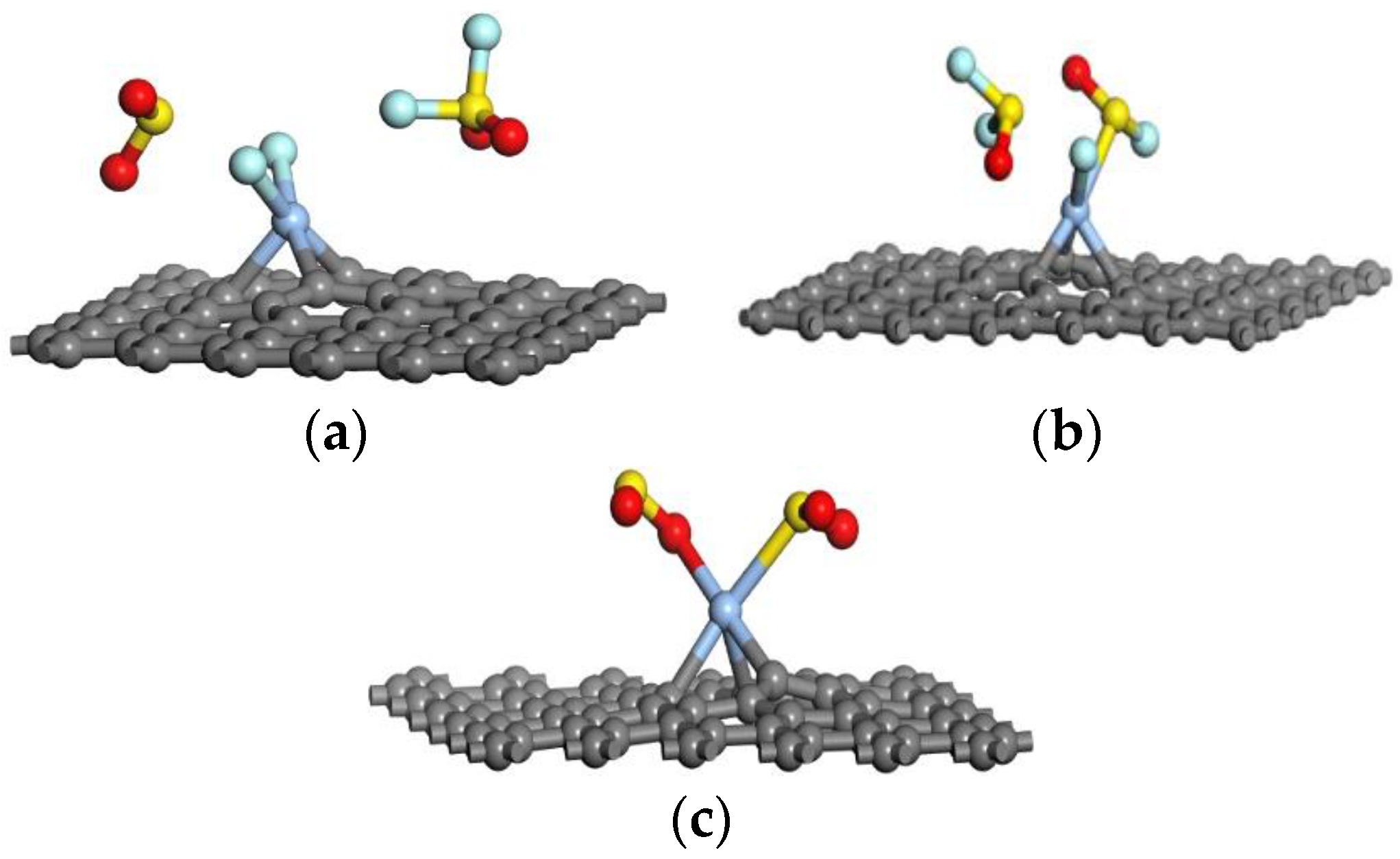

Figure 9. The most stable optimized geometries of double gas molecules interacting with Ag-graphene in (a) Ag-graphene/2SO2F2; (b) Ag-graphene/2SOF2; and (c) Ag-graphene/2SO2.
Figure 9. The most stable optimized geometries of double gas molecules interacting with Ag-graphene in (a) Ag-graphene/2SO2F2; (b) Ag-graphene/2SOF2; and (c) Ag-graphene/2SO2.
Sensors 16 01830 g009

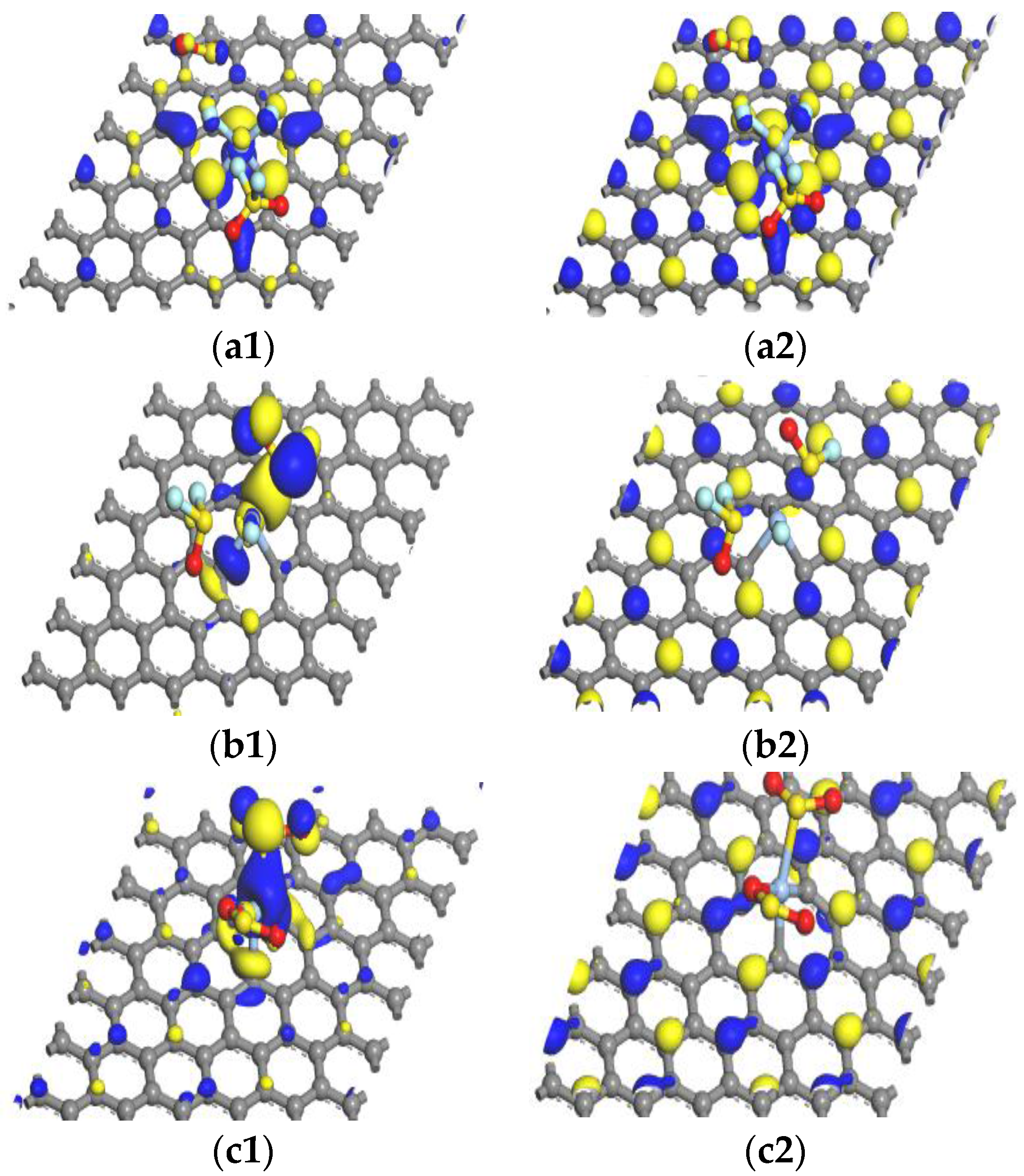

Figure 10. HOMO and LUMO: (a1, a2) double SO2F2; (b1, b2) double SOF2; (c1, c2) double SO2.
Figure 10. HOMO and LUMO: (a1, a2) double SO2F2; (b1, b2) double SOF2; (c1, c2) double SO2.
Sensors 16 01830 g010

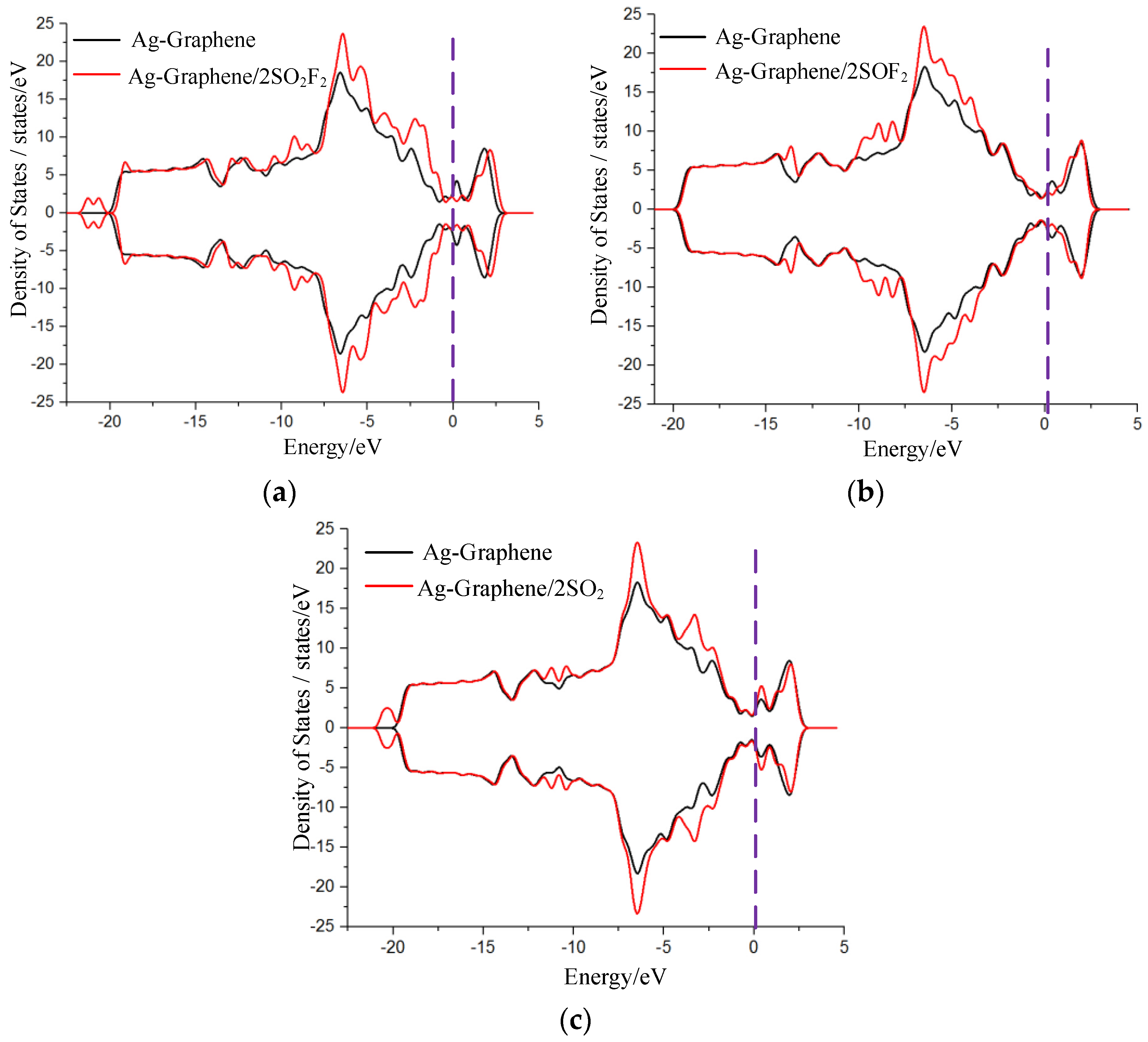

Figure 11. DOS for Ag-graphene with and without double molecule adsorption in (a) SO2F2; (b) SOF2; and (c) SO2.
Figure 11. DOS for Ag-graphene with and without double molecule adsorption in (a) SO2F2; (b) SOF2; and (c) SO2.
Sensors 16 01830 g011
Table 1. Doping formation energy of Ag-doped graphene surface.
Table 1. Doping formation energy of Ag-doped graphene surface.
Doping SitesH-siteB-siteT-site
Eform (eV)1.511.320.85
Table 2. Doping formation energy of an Ag-doped graphene surface.
Table 2. Doping formation energy of an Ag-doped graphene surface.
Systemd (Å)∆Eads (eV)Bond Length (Å)Qt (e)
Int-graphene/SO2F23.486−0.4631.610 (S-F2), 1.612 (S-F1), 1.442 (O2-S), 1.442 (O1-S)−0.004
Int-graphene/SOF23.531−0.4591.672 (S-F1), 1.702 (S-F2), 1.463 (O-S)−0.002
Int-graphene/SO23.344−0.2981.481 (O2-S), 1.482 (O1-S)−0.003
Table 3. Doping formation energy of the Ag-doped graphene surface.
Table 3. Doping formation energy of the Ag-doped graphene surface.
Systemd (Å)∆Eads (eV)Bond Length (Å)Qt (e)
Ag-graphene/SO2F22.013−1.4483.942 (S-F2), 1.948 (S-F1), 1.488 (O2-S), 1.536 (O1-S)−1.084
Ag-graphene/SOF22.029−0.6782.718 (S-F1), 1.683 (S-F2), 1.536 (O-S)−0.153
Ag-graphene/SO22.210−1.0751.499 (O2-S), 1.582 (O1-S)−0.350
Table 4. Calculated HOMO, LUMO and HOMO-LUMO energy gap.
Table 4. Calculated HOMO, LUMO and HOMO-LUMO energy gap.
SystemEHOMO/eVELUMO/eVEg/eV
Ag-graphene−4.589−4.3170.272
Ag-graphene/SO2F2−6.263−5.5020.761
Ag-graphene/SOF2−5.230−4.9450.285
Ag-graphene/SO2−5.271−4.9120.359
Table 5. SF6 decomposition products adsorption on Ag-graphene.
Table 5. SF6 decomposition products adsorption on Ag-graphene.
Systemd (Å)∆Eads (eV)Bond Length(Å)Qt (e)
Ag-graphene/SO2F22.004−1.3652.241 (S-F1), 3.612 (S-F2),−1.113
1.494 (O1-S), 1.487 (O2-S),
1.605 (S-F3), 1.606 (S-F4),
1.443 (O3-S), 1.444 (O4-S)
Ag-graphene/SOF22.080−0.5031.702 (S-F1), 1.672 (S-F2),−0.203
1.514 (O-S), 1.671 (S-F1),
1.673 (S-F2), 1.460 (O-S)
Ag-graphene/SO22.210−1.4651.546 (O1-S), 1.503 (O2-S),−0.701
1.498 (O3-S), 1.493 (O4-S)
Table 6. Calculated HOMO, LUMO and HOMO-LUMO energy gap.
Table 6. Calculated HOMO, LUMO and HOMO-LUMO energy gap.
SystemEHOMO/eVELUMO/eVEg/eV
Ag-graphene−4.589−4.3170.272
Ag-graphene/2SO2F2−6.250−5.2001.050
Ag-graphene/2SOF2−5.286−4.9030.282
Ag-graphene/2SO2−5.644−5.1020.542
