As a kind of important flexible joint, two-axis flexure hinges can realize in-plane and out-of-plane motions and can be used for constructing flexure-based spatial compliant mechanisms. The paper introduces a common two-axis elliptical-arc-filleted flexure hinge that is generated by two different elliptical-arc-filleted cutout profiles and that provides some new hinge types. The analytical compliance equations of both half-segments of the two-axis elliptical-arc flexure hinges are firstly formulated, and then, based on a generic compliance modeling method of a flexure serial chain, the closed-form compliance and precision matrices of two-axis elliptical-arc-filleted flexure hinges are established and validated by the finite element method. Some numerical simulations are conducted to compare the effect of different design geometric parameters on the performance of the two-axis flexure hinges.

1. Introduction

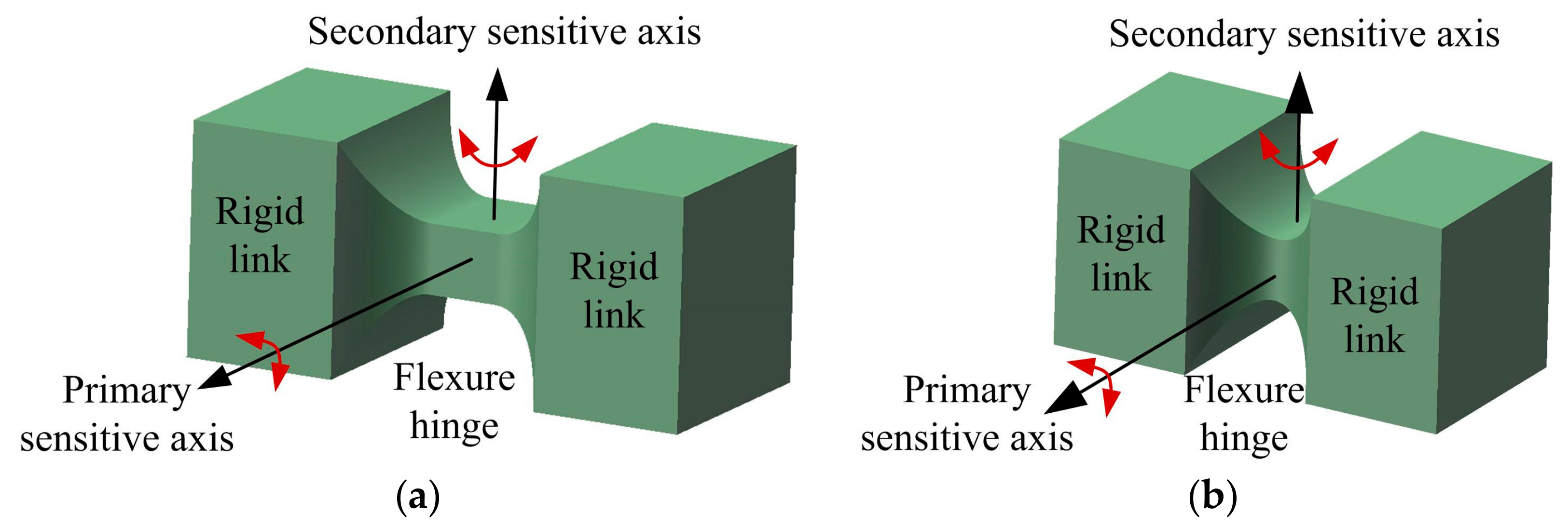

Flexure hinges can utilize their slender portions to produce relative motion between two adjacent rigid links in flexure-based compliant mechanism. In many high precision and micro-operation applications such as micro/nano-positioning platforms [1,2,3], displacement amplifiers [4,5,6,7], sensors [8,9,10], elliptical-vibration texturing device [11], micro-grippers, bionics, and micro-electromechanical systems [12,13,14,15], flexure hinges also play a very important role as alternative solutions to traditional rigid joints due to their positive features of not requiring assembly, compactness, zero friction and high resolution, etc.
The quasi-static responses of flexure hinges with different notch types under axial, bending, shear loading and torsion have been a research focus in the design of flexure-based compliant mechanisms. Paros and Weisbord [16] first formulated the exact and simplified compliance equations of the right circular flexure hinge. Since then, efforts to obtain precise, concise, and analytically compliance formulations of various types of flexure hinges are encouraging many researchers and scholars to explore more kinds of flexure hinges with different notch types. Normally, the notch types of flexure hinges include circular, elliptical, parabolic and hyperbolic [17,18,19,20], V-shaped [21], hybrid non-symmetric [22], and other more complex-shaped or multiple segments connected serially [23,24]. Based on the Castigliano’s second theorem and the small deformation assumptions, as well as by introducing the infinite element analysis method, the closed-form compliance and precision equations of various flexure hinges can be analytically conducted and effectively validated. However, for some special notch types, the compliance equations of flexure hinges are hard to derive analytically, or can only be obtained with numerical solutions [23] or empirical equations for some specific geometric parameters with enhanced calculation precision [25,26]. According to the capacity of rotation and the main functions, flexure hinges can be designed as single-axis, two-axis, and multiple-axis [27]. These hinge designs can be also further categorized into circular-axis and straight-axis in terms of the shapes of the central axis, or symmetric and non-symmetric whether the hinge profiles are transverse symmetry or not [28,29]. Unlike single-axis flexure hinge designs, which have only one sensitive revolute axis between two adjacent rigid links, two-axis flexure hinges have two orthogonal sensitive revolute axes at one point—see Figure 1. Figure 1a illustrates a two-axis corner-filleted hinge configuration that enables the right rigid link to produce in-plane rotation around the primary sensitive axis and out-of-plane rotation around the secondary sensitive axis with respect to the left rigid link. The in-plane or out-of-plane capacity of rotation can be evaluated by the thickness and width in the minimum cross section of two-axis flexure hinge. When disposing of the mid-segment flexure hinge with constant rectangular cross section from the two-axis corner-filleted flexure hinge, the hinge will degenerate into a general two-axis flexure hinge, as shown in Figure 1b. Meanwhile, two-axis flexure hinge can be regarded as a flexible U-joint, and possesses compact in size compared to other flexible U-joints designed in a serial or combined manner with two or multiple single-axis flexure hinges [30].
Several researchers have analyzed the design equations of two-axis flexure hinges. Lobontiu et al. [31] derived the closed-form compliances of two-axis flexure hinges with two non-identical parabolic profiles. The compliance equations of the double-axis elliptical flexure hinge and the bi-axial right circular flexure hinge were also formulated [32,33], respectively. Hou et al. [34] derived the precision equations of the two-axis rectangular cross-section corner-filleted flexure hinge. In order to select preferably the suitable two-axis flexure hinges for designers in the design phase, it is essential to introduce some other types of two-axis flexure hinges, especially for some most common two-axis corner-filleted flexure hinges. However, the closed-form compliance equations and precision equations for two-axis corner-filleted flexure hinges will be hard to obtain analytically by direct integration because the thickness and width of the hinges at arbitrary corner-filleted cross section are variable along the straight longitudinal axis x—see Figure 2, where L and Lm are the total length and the mid-segment length, respectively, w0 and t0 are the minimum width and the minimum thickness—respectively while—w and t are the maximum width and the maximum thickness, respectively.

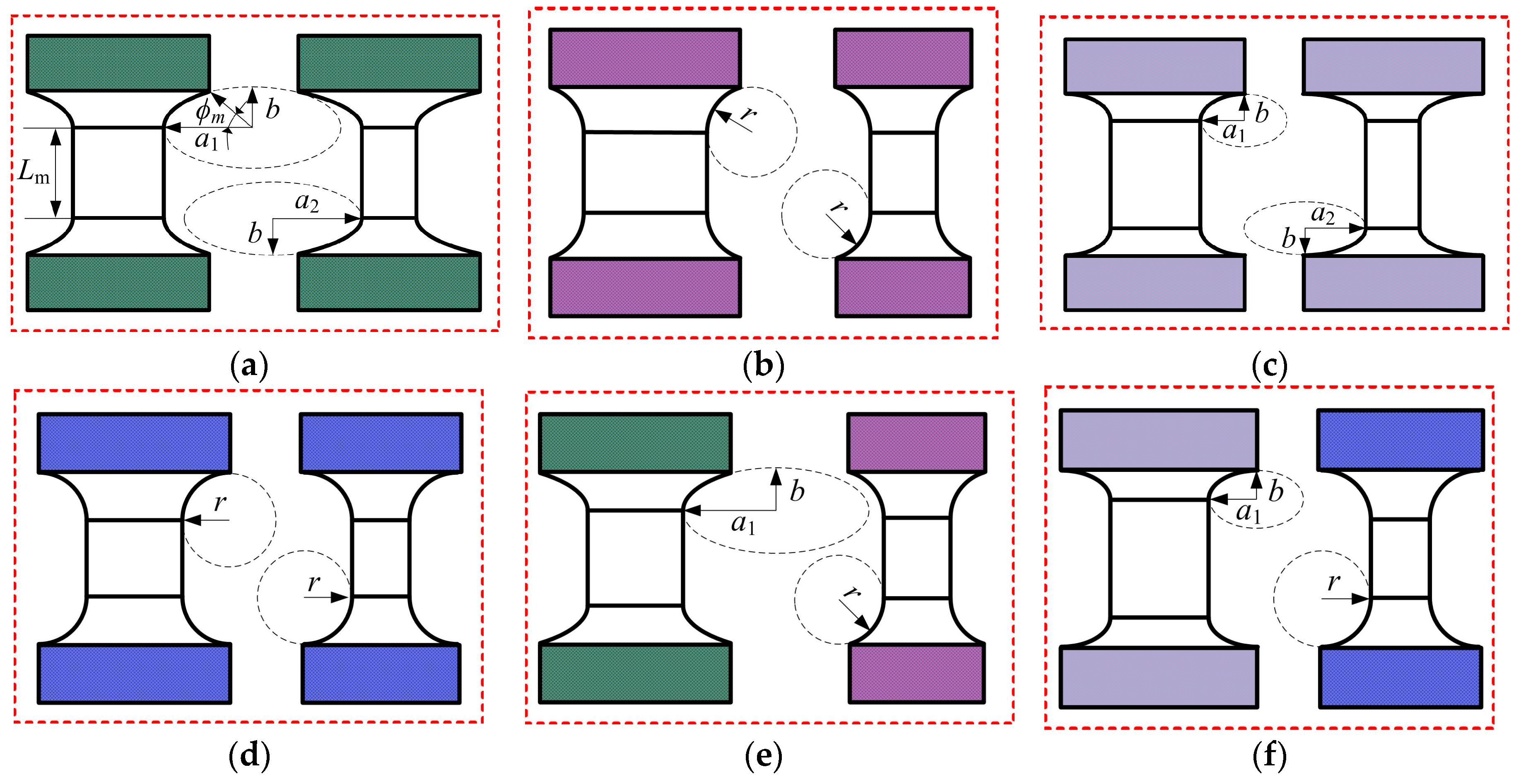

A two-axis corner-filleted flexure hinge whose two adjacent cutout profiles are introduced and defined by two non-identical elliptical-arc-filleted, respectively, as figured in Figure 3a, where a1 and a2 indicate the major semi-axis of ellipse, b and r represent the minor semi-axis of ellipse and the radius of circle, respectively, φm (0 < φm < π/2) is the maximum semi-eccentric angle. Chen et al. [35] gave the relationships among circular, right-circular, elliptical and elliptical-arc, and the former three are subsets of the latter one. Hence, the two-axis elliptical-arc-filleted flexure hinge defined by dual elliptical-arc-filleted cutout profiles as one of the most common two-axis corner-filleted flexure hinges can be translated into other two-axis corner-filleted flexure hinges in terms of the relationships among a1, a2, b and r and the value of φm. Figure 3b–f illustrate five two-axis corner-filleted flexure hinges, whose two different cutout profiles are defined by dual circular-arc-filleted, dual elliptical-filleted, dual right-circular-filleted, hybrid elliptical-arc-filleted and circular-arc-filleted, hybrid elliptical-filleted and right-circular-filleted, respectively. Similarly, when Lm = 0, all these two-axis corner-filleted flexure hinges above will degenerate into other six general two-axis flexure hinges.
The present work introduces a common two-axis elliptical-arc-filleted flexure hinge, and makes it piecewise and as a flexure serial chain composed of multiple flexure segments, then utilizes the compliance matrix modeling method based on the virtual theory and the superposition principle, and derives analytically the complex compliance and precision equations of two-axis elliptical-arc-filleted flexure hinge, as well as studies the sensitivity to geometric parameters.

2. Compliance Equations

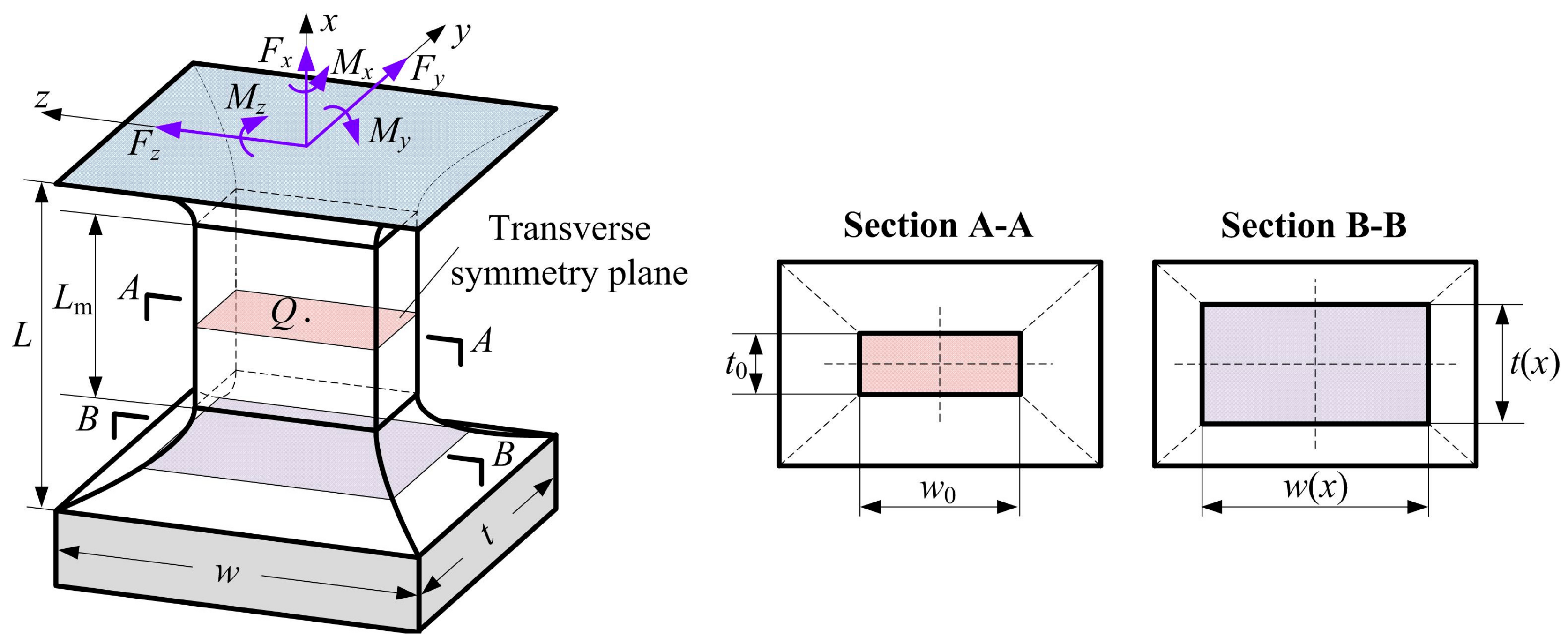

A generic two-axis elliptical-arc-filleted flexure hinge with a transverse symmetry plane is shown in Figure 4a, which can be divided into four segments in terms of the cutout geometric profiles. The segments 1 and 4 are the left half-segment and right half-segment two-axis flexure hinges with elliptical-arc notches, respectively, the segments 2 and 3 are both identical constant rectangular cross-section beams. Figure 4b shows the geometric parameters, the vertical and horizontal cutout profiles through the initial center of rotation Q, where l1 is the length of the segments 1 and 4, and l2 is the length of the segments 2 and 3.
When a variable- thickness and width two-axis flexure hinge with elliptical-arc-filleted notches is used for flexure-based spatial compliant mechanisms, the in-plane and out-of-plane motions can be achieved, thus its compliance matrix will be a 6 × 6 square matrix. To obtain the compliance matrix of two-axis elliptical-arc-filleted flexure hinge, the closed-form compliance equation of each element of the compliance matrix needs to be derived analytically with the consideration of the shear effects.

2.1. Two-Axis Elliptical-Arc-Filleted Flexure Hinge

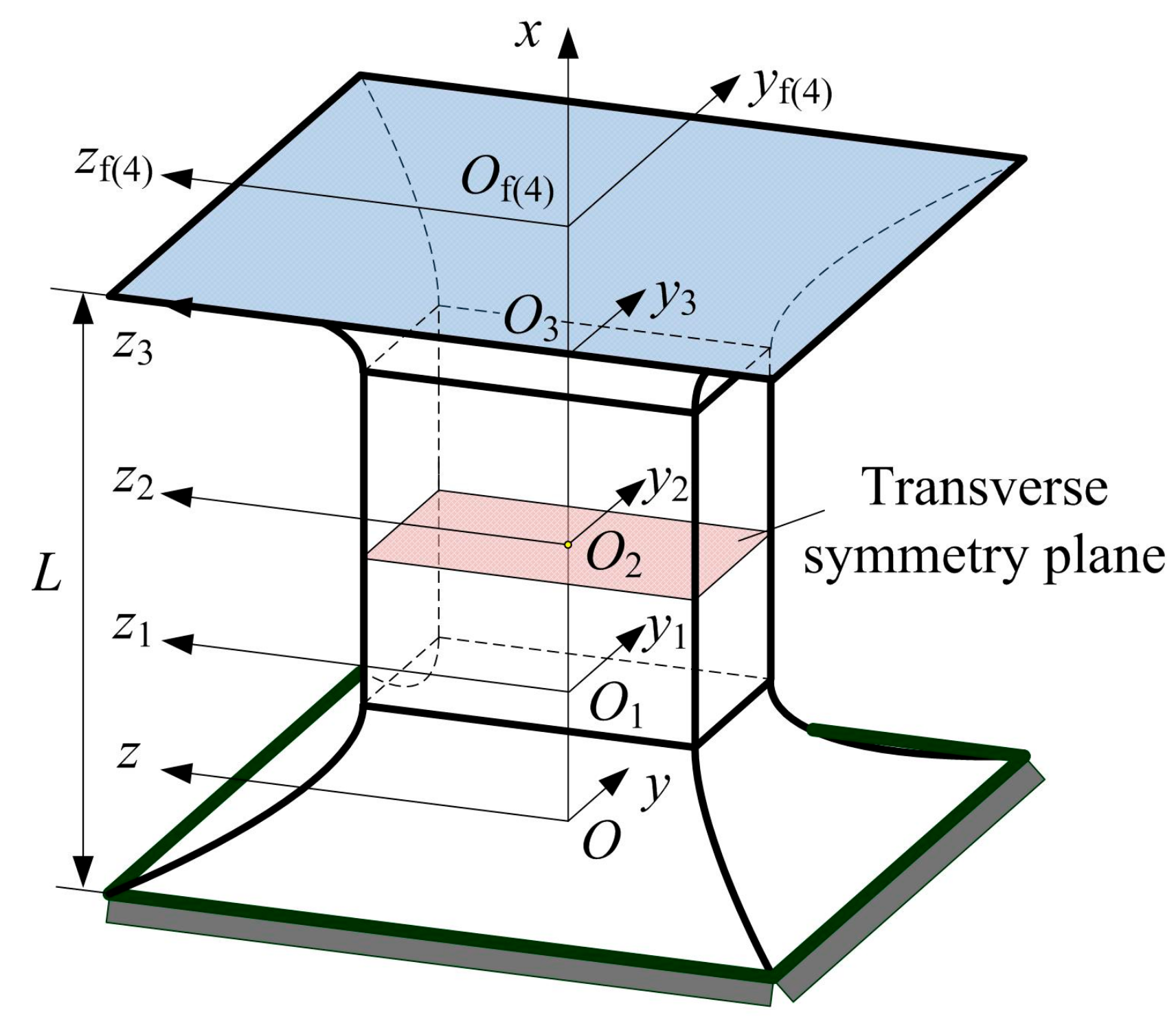

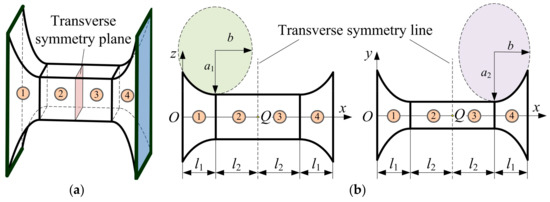

Assume that each flexure segment is a flexure member, then the two-axis elliptical-arc-filleted flexure hinge can be regarded as a flexure serial chain that is formed of four flexure members—see Figure 4a. For each fixed-free flexure member, the geometric center of the free end with a local frame can be constructed a compliance matrix with respect to the global frame established in the geometric center of the fixed end [36,37]. Furthermore, the overall compliance matrix of the multi-segment flexure hinge can be also derived through a certain operation relation depending on the local compliance matrix of all flexure members and the coordinate transformation matrix [37]. The geometric relationships among coordinate frames of two-axis elliptical-arc-filleted flexure hinge are shown in Figure 5, where the O-xyz and Of-xyfzf are the global frame and the local frame established in the fixed end and the free end of the hinge, respectively, the Oi-xyizi (i = 1, 2, 3, 4) is the local frame established in the tip of flexure segment i.
Based on the virtual work theory and the superposition relationship of the deformation, the overall compliance matrix of two-axis elliptical-arc-filleted flexure hinge in the local frame Of-xyfzf can be expressed [36,37,38]:
C = i = 1 4 J i C i J i T
where Ci indicates the compliance matrix of the flexure segment i, Ji indicates the compliance transformation matrix, which can be given by:
J i = ( R i R i S i ( r i ) 0 3 × 3 R i )
where Ri is the orientation transformation matrix of the local frame Oi-xyizi with respect to the local frame Of-xyfzf, and is a unit matrix here, 03×3 is a three order zero square matrix, Si(ri) represents the skew-asymmetric operator for the position vector ri = [rix, riy, riz]T that is the origin Of of local frame Of-xyfzf in the local frame Oi-xyizi, which both can be expressed as:
S i ( r i ) = ( 0 r i z r i y r i z 0 r i x r i y r i x 0 )
r 1 = ( l 1 + 2 l 2 0 0 ) T ; r 2 = ( l 1 + l 2 0 0 ) T ; r 3 = ( l 1 0 0 ) T ; r 4 = ( 0 0 0 ) T
For the constant rectangular cross-section flexure beam, its compliance matrix has been widely studied and has high calculation precision, thus the compliance matrix of flexure segments 2 and 3 can be directly given as follows [28,36]:
C 2 ( 3 ) = ( C 2 ( 3 ) , 11 0 0 0 0 0 0 C 2 ( 3 ) , 22 0 0 0 C 2 ( 3 ) , 26 0 0 C 2 ( 3 ) , 33 0 C 2 ( 3 ) , 35 0 0 0 0 C 2 ( 3 ) , 44 0 0 0 0 C 2 ( 3 ) , 53 0 C 2 ( 3 ) , 55 0 0 C 2 ( 3 ) , 62 0 0 0 C 2 ( 3 ) , 66 )
where each non-zero compliance element of compliance matrix C2(3) (the subscript “2(3)” indicates C2 (or C3)) can be calculated as:
{ C 2 ( 3 ) , 11 = l 2 E A 2 ( 3 ) ; C 2 ( 3 ) , 22 = l 2 3 3 E I z 2 ( 3 ) + α s l 2 G A 2 ( 3 ) ; C 2 ( 3 ) , 33 = l 2 3 3 E I y 2 ( 3 ) + α s l 2 G A 2 ( 3 ) C 2 ( 3 ) , 26 = C 2 ( 3 ) , 62 = l 2 2 2 E I z 2 ( 3 ) ; C 2 ( 3 ) , 35 = C 2 ( 3 ) , 53 = l 2 2 2 E I y 2 ( 3 ) C 2 ( 3 ) , 44 = l 2 G J P 2 ( 3 ) ; C 2 ( 3 ) , 55 = l 2 ( 3 ) E I y 2 ( 3 ) ; C 2 ( 3 ) , 66 = l 2 E I z 2 ( 3 )
where E and G indicate the modulus of elasticity and the shear modulus of material, respectively, A2(3) = w0t0 is the cross-section area, and Iy2(3) = w 0 3 t0/12 and Iz2(3) = w0 t 0 3 /12 are the second moment of the cross-section area. For short beams or short flexure hinges (with a length-to width ratio of less than 5), the shear effects cannot be neglected [27], and for the rectangular cross section, the shear coefficient αs is equal to (12 + 11μ)/[10(1 + μ)] according to the Timoshenko beam theory [39], where μ is the Poisson ratio of material, JP2(3) indicates the torsional moment of inertia of rectangular cross section beam, which can be expressed as [40]:
J P 2 ( 3 ) = w 0 t 0 3 { 1 / 3 0.21 ( t 0 / w 0 ) [ 1 ( t 0 / w 0 ) 4 / 12 ] }
It can be observed that the only compliance matrices of flexure segments 1 and 4 are unknown by substituting Equations (2)–(7) into Equation (1). Therefore, the compliance calculation of two-axis elliptical-arc-filleted flexure hinge can be transformed into the problem that solves individually the compliance matrices C1 and C4 of left half-segment and right half-segment two-axis flexure hinges with elliptical-arc notches.

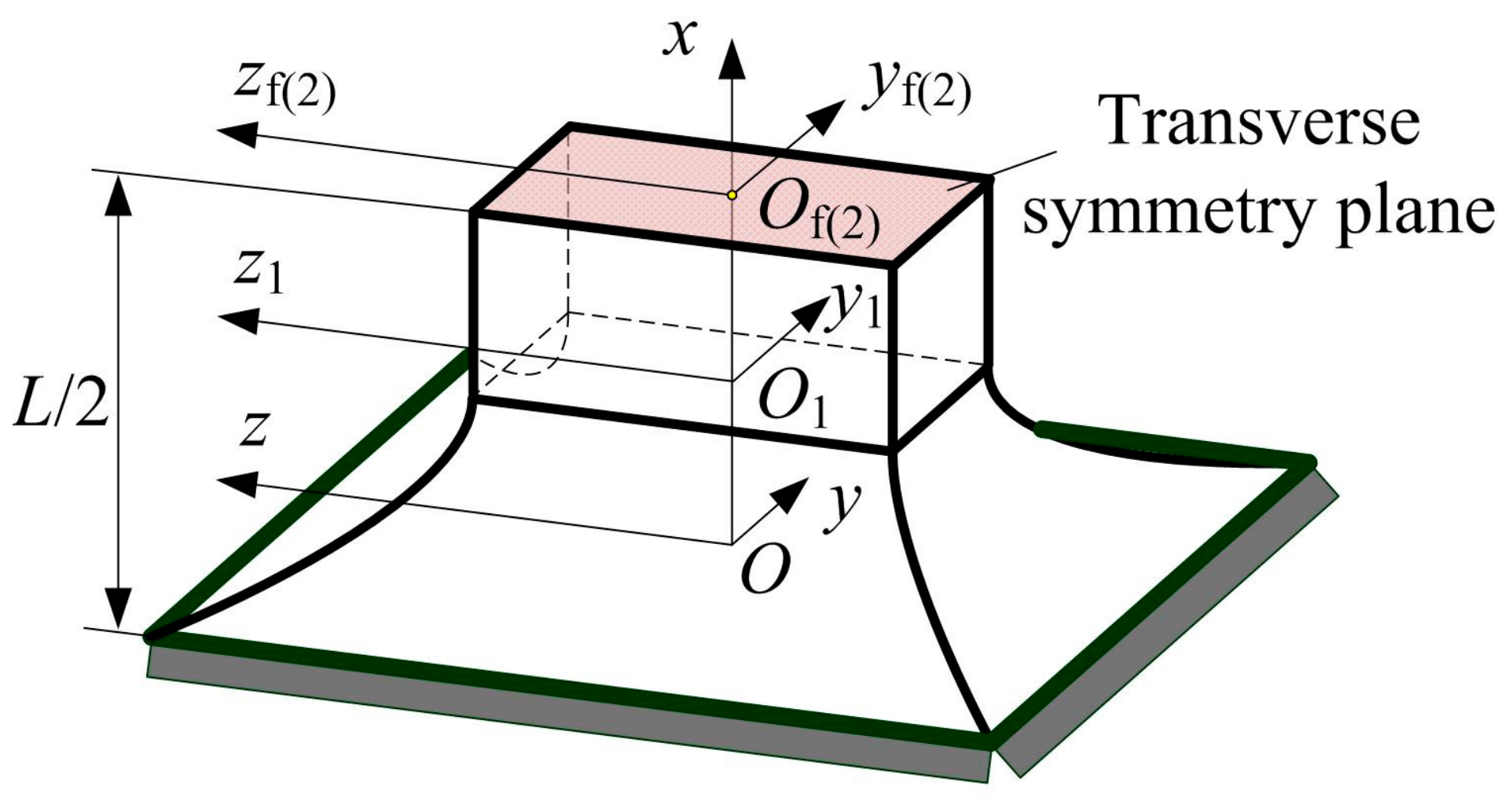

2.2. Left Half-Segment Two-Axis Flexure Hinge with Elliptical-Arc Notches

Several assumptions are given, such as a flexure hinge can be as a six degree-of-freedom, small-deformation, fixed-free beam, and so on [35,41], and the Castigliano’s second theorem (which states that if the strain energy Uε stored in a linear elastic body can be expressed as the function of the generalized forces FP1, FP2, …, FPN acting on the elastic body, and then the first-order partial derivative of the strain energy Uε with respect to the generalized force FPI will produce a corresponding generalized displacement ∆I (I = 1, 2, …, N) along the direction of the generalized force FPI [27]) is used for deriving the closed-from compliance equations of flexure segments 1 and 4. The geometric parameters and cutout profiles of the flexure segment 1 are shown in Figure 6, where w(x) and t(x) indicate the variable width in plane xz and the variable thickness in plane xy of the infinitesimal strip dx at position x, φ is the eccentric angle that traverses from −φm to 0, and also as the integral variable.

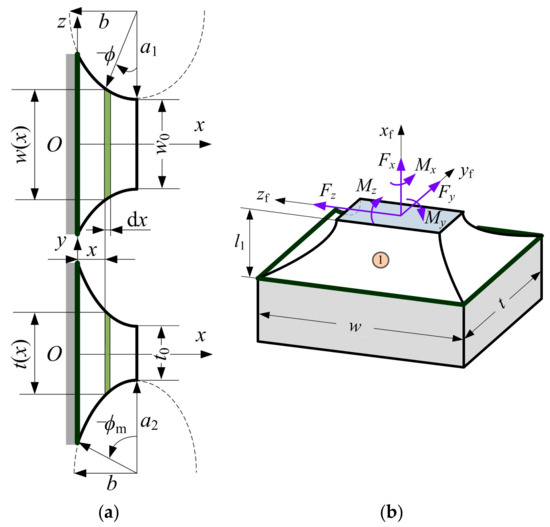

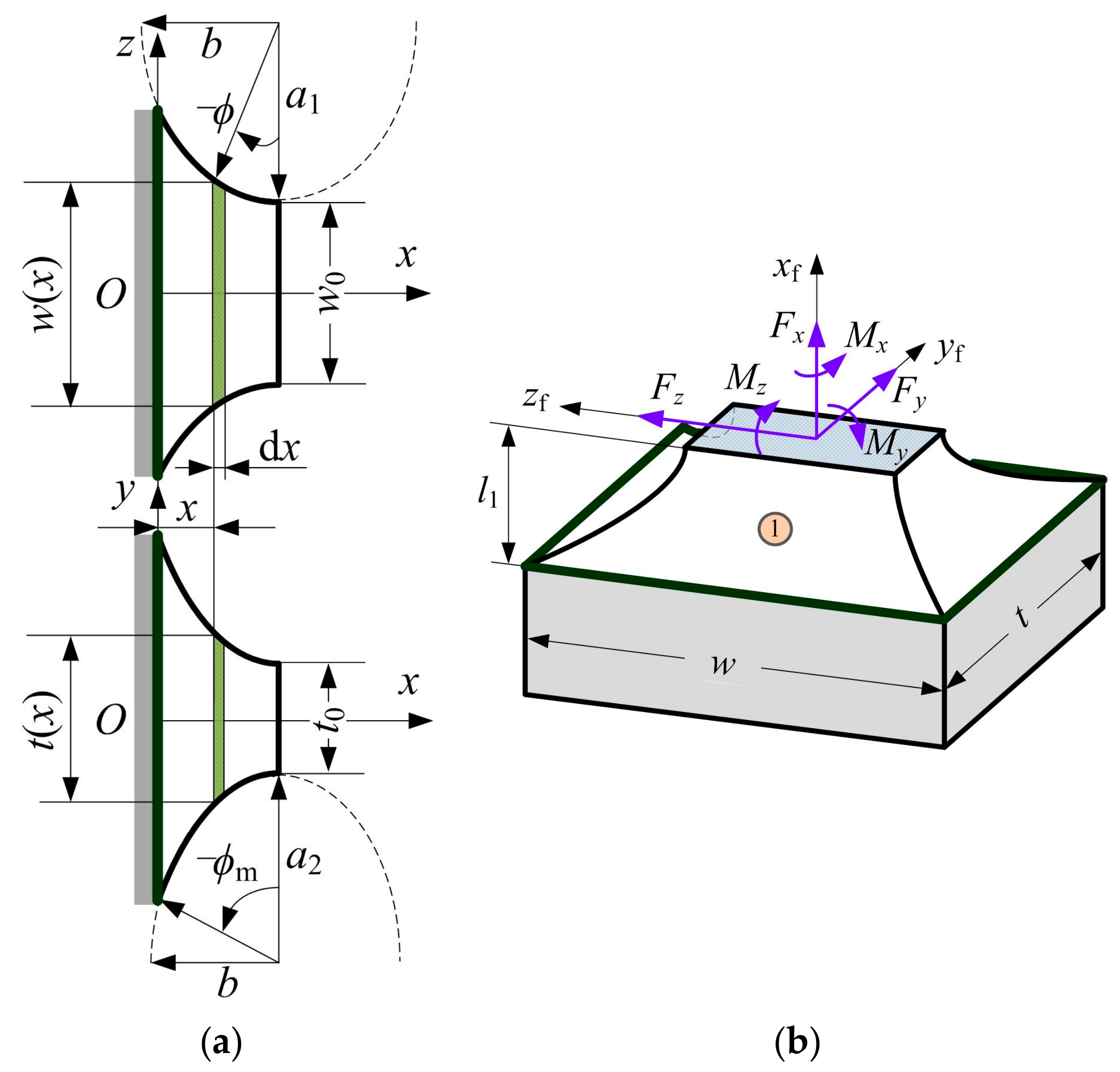

As shown in Figure 6a, the width w(x) in plane xz and the thickness t(x) in plane xy of the infinitesimal strip dx at position x can be expressed as:
{ w ( x ) = 2 z ( x ) = 2 a 1 ( 1 + ξ 1 1 ( x l 1 ) 2 b 2 ) t ( x ) = 2 y ( x ) = 2 a 2 ( 1 + ξ 2 1 ( x l 1 ) 2 b 2 )
where ξ1 = w0/2a1, ξ2 = t0/2a2.
Assume that ξ1ξ2, and by introducing the eccentric angle φ, we have:
x = b sin ϕ + l 1
Differentiating Equation (9) yields:
d x = b cos ϕ d ϕ
Thus Equation (8) can be rearranged as:
{ w ( ϕ ) = 2 a 1 ( 1 + ξ 1 cos ϕ ) t ( ϕ ) = 2 a 2 ( 1 + ξ 2 cos ϕ )
where φ [−φm,0], and w(φ), t(φ) are even functions, the maximum eccentric angle φm = arcsin(l1/b).
Under the small deformation assumptions, the deformation vector X = [ux, uy, uz, αx, αy, αz]T and the loading vector F = [Fx, Fy, Fz, Mx, My, Mz]T applied at the free end of the flexure segment 1 satisfies the following relationship:
X = C 1 F
where C1 is the compliance matrix of the flexure segment 1, each of its non-zero element can be determined by using the universal analytical method proposed by Ivanov and Corves [42] based on the Castigliano’s second theorem and by introducing the torsional compliance equation proposed by Chen and Howell [43] as follows:
C 1 , 11 = u x / F x = N 1 , 1 / E
C 1 , 22 = u y / F y = 12 ( l 1 2 N 1 , 2 2 l 1 N 1 , 3 + N 1 , 4 ) / E + α s N 1 , 1 / G
C 1 , 33 = u z / F z = 12 ( l 1 2 N 1 , 5 2 l 1 N 1 , 6 + N 1 , 7 ) / E + α s N 1 , 1 / G
C 1 , 26 = u y / M z = C 1 , 62 = α z / F y = 12 ( l 1 N 1 , 2 N 1 , 3 ) / E
C 1 , 35 = u z / M y = C 1 , 53 = α y / F z = 12 ( N 1 , 6 l 1 N 1 , 5 ) / E
C 1 , 44 = α x / M x = 7 ( w 0 2 + 2.609 w 0 t 0 + t 0 2 ) ( N 1 , 2 + N 1 , 5 ) / [ 2 G ( 1.17 w 0 2 + 2.191 w 0 t 0 + 1.17 t 0 2 ) ]
C 1 , 55 = α y / M y = 12 N 1 , 5 / E
C 1 , 66 = α z / M z = 12 N 1 , 2 / E
where the newly-introduced integral factors from N1,1 to N1,7 (the subscript “1” denotes these integral factors are related to the flexure segment 1) can be expressed as:
{ N 1 , 1 = 0 l 1 d x w ( x ) t ( x ) ; N 1 , 2 = 0 l 1 d x w ( x ) t 3 ( x ) ; N 1 , 3 = 0 l 1 x d x w ( x ) t 3 ( x ) ; N 1 , 4 = 0 l 1 x 2 d x w ( x ) t 3 ( x ) N 1 , 5 = 0 l 1 d x w 3 ( x ) t ( x ) ; N 1 , 6 = 0 l 1 x d x w 3 ( x ) t ( x ) ; N 1 , 7 = 0 l 1 x 2 d x w 3 ( x ) t ( x )

2.3. Right Half-Segment Two-Axis Flexure Hinge with Elliptical-Arc Notches

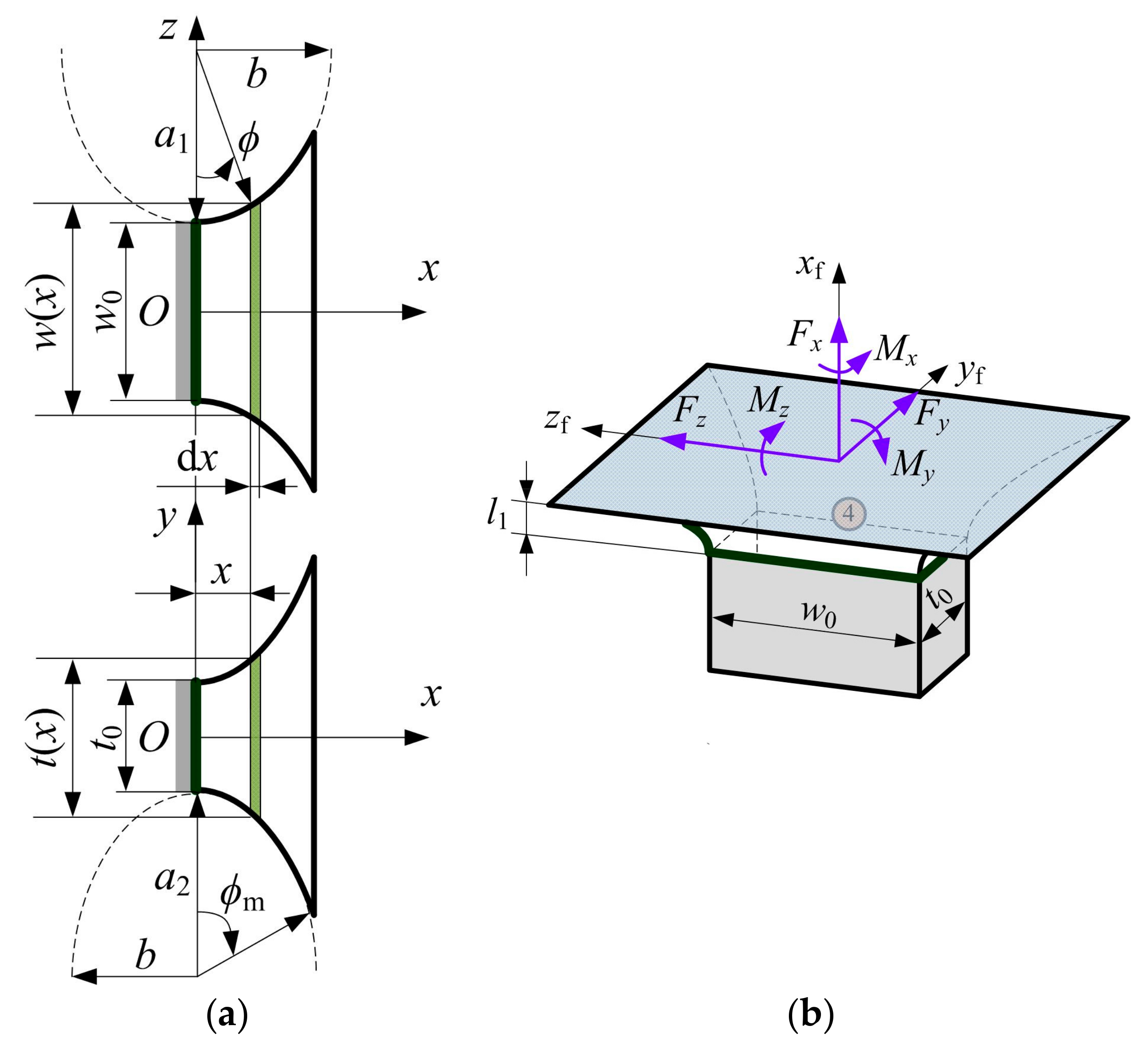

The geometric parameters and cutout profiles of the flexure segment 4 are sketched in Figure 7. Some identical parameters defined in Figure 6 can apply to the Figure 7. As shown in Figure 7a, the width w(x) in plane xz and the thickness t(x) in plane xy of the infinitesimal strip dx at position x can be expressed as:
{ w ( x ) = 2 z ( x ) = 2 a 1 ( 1 + ξ 1 1 x 2 b 2 ) t ( x ) = 2 y ( x ) = 2 a 2 ( 1 + ξ 2 1 x 2 b 2 )
Similarly, we have:
x = b sin ϕ
Differentiating Equation (23) yields:
d x = b cos ϕ d ϕ
Thus Equation (22) can be rearranged as:
{ w ( ϕ ) = 2 a 1 ( 1 + ξ 1 cos ϕ ) t ( ϕ ) = 2 a 2 ( 1 + ξ 2 cos ϕ )
where φ [0, φm].
For the flexure segment 4, the linear deformation ux produced by pure force Fx, and the angular deformations αx, αy and αz produced by pure moment Mx, My and Mz, respectively, are equal to the corresponding linear and angular deformations of the flexure segment 1 under the same conditions, namely:
C 4 , 11 = C 1 , 11 ; C 4 , 44 = C 1 , 44 ; C 4 , 55 = C 1 , 55 ; C 4 , 66 = C 1 , 66
Thus, we have:
N 4 , 1 = N 1 , 1 ; N 4 , 2 = N 1 , 2 ; N 4 , 5 = N 1 , 5
However, the other compliance elements C4,22, C4,33, C4,26 or C4,62, C4,35 or C4,53 need to be calculated individually, which can be expressed as:
C 4 , 22 = u y / F y = 12 ( l 1 2 N 1 , 2 2 l 1 N 4 , 3 + N 4 , 4 ) / E + α s N 1 , 1 / G
C 4 , 33 = u z / F z = 12 ( l 1 2 N 1 , 5 2 l 1 N 4 , 6 + N 4 , 7 ) / E + α s N 1 , 1 / G
C 4 , 26 = u y / M z = C 4 , 62 = α z / F y = 12 ( l 1 N 1 , 2 N 4 , 3 ) / E
C 4 , 35 = u z / M y = C 4 , 53 = α y / F z = 12 ( N 4 , 6 l 1 N 1 , 5 ) / E
where the newly-introduced integral factors from N4,3 to N4,7 (the subscript “4” denotes these integral factors are related to the flexure segment 4) can be expressed as:
N 4 , 3 = 0 l 1 x d x w ( x ) t 3 ( x ) ; N 4 , 4 = 0 l 1 x 2 d x w ( x ) t 3 ( x ) ; N 4 , 6 = 0 l 1 x d x w 3 ( x ) t ( x ) ; N 4 , 7 = 0 l 1 x 2 d x w 3 ( x ) t ( x )

2.4. Precision of Rotation

Unlike rigid revolute joints that have a fixed center of rotation, the geometric center of rotation of flexure hinges will change due to the elastic deformations. This will decrease or affect the motion accuracy of flexure-based compliant mechanisms. For symmetric two-axis flexure hinges, its linear compliance elements at the midpoint Q in the transverse symmetry plane are the key parameters for determining the offset of the rotational center and evaluating the precision of rotation of flexure hinges [19,20,21,31]. Therefore, the compliance matrix of the left half-segment two-axis elliptical-arc-filleted flexure hinge composed of flexure segments 1 and 2 needs to be solved. The coordinate frames established in the tips of flexure segments and their geometric relationships are in Figure 8.
Similar to Equation (1), the compliance matrix of the left half-segment two-axis elliptical-arc-filleted flexure hinge at the flexure midpoint Q can be expressed as:
C Q = J Q C 1 J Q T + C 2
where JQ indicates the compliance transformation matrix, which can be given by:
J Q = ( R Q R Q S ( r Q ) 0 3 × 3 R Q )
where RQ is a unit matrix here, the position vector rQ can be expressed as:
r Q = ( l 2 0 0 ) T
Substituting Equations (34) and (35) into Equation (33), and then rearranging the Equation (33), the precision matrix of two-axis elliptical-arc-filleted flexure hinge can be given by:
C P = ( C Q , 11 0 0 0 0 0 0 C Q , 22 0 0 0 C Q , 26 0 0 C Q , 33 0 C Q , 35 0 )
where each element in the precision matrix is called a precision factor, and all precision factors of the precision matrix CP can be expressed explicitly as:
{ C Q , 11 = C 1 , 11 + C 2 , 11 C Q , 22 = C 1 , 22   +   C 2 , 22   +   2 l 2 C 1 , 26   +   l 2 2 C 1 , 66 C Q , 33 = C 1 , 33   +   C 2 , 33 2 l 2   C 1 , 35 +   l 2 2 C 1 , 55 C Q , 26 = C 1 , 26   +   C 2 , 26   +   l 2 C 1 , 66 C Q , 35 = C 1 , 35   +   C 2 , 35 l 2 C 1 , 55
When the length l2 of flexure segment 2 is equal to zero, these precision factors in Equation (37) will be equal to the corresponding compliance elements of the left half-segment two-axis flexure hinge with elliptical-arc notches. However, when joining the serially-connected flexure segment 2, we will have to consider the effect of the compliance elements C1,55 and C1,66 on other precision factors of the precision matrix except the precision factor CQ,11.

3. Integrals in the Compliance Equations

Now we start to calculate these important and complex integrals given in Equations (21) and (32) in this section.

3.1. Integrals Simplification

Substituting Equations (9)–(11) into Equation (21), yields:
N 1 , 1 = b 4 a 1 a 2 0 ϕ m cos ϕ d ϕ ( 1 + ξ 1 cos ϕ ) ( 1 + ξ 2 cos ϕ ) = b 4 a 1 a 2 I 1 ( ξ 1 , ξ 2 )
N 1 , 2 = b 16 a 1 a 2 3 0 ϕ m cos ϕ d ϕ ( 1 + ξ 1 cos ϕ ) ( 1 + ξ 2 cos ϕ ) 3 = b 16 a 1 a 2 3 I 2 ( ξ 1 , ξ 2 )
N 1 , 3 = b 16 a 1 a 2 3 ϕ m 0 ( b sin ϕ + l 1 ) cos ϕ d ϕ ( 1 + ξ 1 cos ϕ ) ( 1 + ξ 2 cos ϕ ) 3 = b 16 a 1 a 2 3 ( l 1 I 2 ( ξ 1 , ξ 2 ) b I 3 ( ξ 1 , ξ 2 ) )
N 1 , 4 = b 16 a 1 a 2 3 ϕ m 0 ( b sin ϕ + l 1 ) 2 cos ϕ d ϕ ( 1 + ξ 1 cos ϕ ) ( 1 + ξ 2 cos ϕ ) 3 = b 16 a 1 a 2 3 ( ( b 2 + l 1 2 ) I 2 ( ξ 1 , ξ 2 ) 2 b l 1 I 3 ( ξ 1 , ξ 2 ) b 2 I 4 ( ξ 1 , ξ 2 ) )
N 1 , 5 = b 16 a 1 3 a 2 0 ϕ m cos ϕ d ϕ ( 1 + ξ 2 cos ϕ ) ( 1 + ξ 1 cos ϕ ) 3 = b 16 a 1 3 a 2 I 2 ( ξ 2 , ξ 1 )
N 1 , 6 = b 16 a 1 3 a 2 ϕ m 0 ( b sin ϕ + l 1 ) cos ϕ d ϕ ( 1 + ξ 2 cos ϕ ) ( 1 + ξ 1 cos ϕ ) 3 = b 16 a 1 3 a 2 ( l 1 I 2 ( ξ 2 , ξ 1 ) b I 3 ( ξ 2 , ξ 1 ) )
N 1 , 7 = b 16 a 1 3 a 2 ϕ m 0 ( b sin ϕ + l 1 ) 2 cos ϕ d ϕ ( 1 + ξ 2 cos ϕ ) ( 1 + ξ 1 cos ϕ ) 3 = b 16 a 1 3 a 2 ( ( b 2 + l 1 2 ) I 2 ( ξ 2 , ξ 1 ) 2 b l 1 I 3 ( ξ 2 , ξ 1 ) b 2 I 4 ( ξ 2 , ξ 1 ) )
where I1(ξ1, ξ2), Im(ξ1, ξ2) and Im(ξ2, ξ1) (m = 2, 3, 4) are new definite integrals about the eccentric angle φ, of which the non-dimensional parameters ξ1 and ξ2 of the corresponding Im(ξ1, ξ2) just need to switch each other when calculating these integrals from I2(ξ2, ξ1) to I4(ξ2, ξ1), thus we only need to derive these definite integrals from I1(ξ1, ξ2) to I4(ξ1, ξ2) individually.
Substituting Equations (23)–(25) into Equation (32), we have:
N 4 , 3 = b 2 16 a 1 a 2 3 0 ϕ m sin ϕ cos ϕ d ϕ ( 1 + ξ 1 cos ϕ ) ( 1 + ξ 2 cos ϕ ) 3 = b 2 16 a 1 a 2 3 I 3 ( ξ 1 , ξ 2 )
N 4 , 4 = b 3 16 a 1 a 2 3 0 ϕ m sin 2 ϕ cos ϕ d ϕ ( 1 + ξ 1 cos ϕ ) ( 1 + ξ 2 cos ϕ ) 3 = b 3 16 a 1 a 2 3 ( I 2 ( ξ 1 , ξ 2 ) I 4 ( ξ 1 , ξ 2 ) )
N 4 , 6 = b 2 16 a 1 3 a 2 0 ϕ m sin ϕ cos ϕ d ϕ ( 1 + ξ 2 cos ϕ ) ( 1 + ξ 1 cos ϕ ) 3 = b 2 16 a 1 3 a 2 I 3 ( ξ 2 , ξ 1 )
N 4 , 7 = b 3 16 a 1 3 a 2 0 ϕ m sin 2 ϕ cos ϕ d ϕ ( 1 + ξ 2 cos ϕ ) ( 1 + ξ 1 cos ϕ ) 3 = b 3 16 a 1 3 a 2 ( I 2 ( ξ 2 , ξ 1 ) I 4 ( ξ 2 , ξ 1 ) )

3.2. Integrals Calculation

These important definite integrals from I1(ξ1, ξ2) to I4(ξ1, ξ2) defined in Equations (38)–(41) can be rearranged as:
I 1 ( ξ 1 , ξ 2 ) = 0 ϕ m cos ϕ d ϕ ( 1 + ξ 1 cos ϕ ) ( 1 + ξ 2 cos ϕ ) = A 1 g 1 ( ξ 1 ) + B 1 g 1 ( ξ 2 )
I 2 ( ξ 1 , ξ 2 ) = 0 ϕ m cos ϕ d ϕ ( 1 + ξ 1 cos ϕ ) ( 1 + ξ 2 cos ϕ ) 3 = A 2 g 1 ( ξ 1 ) + B 2 g 2 ( ξ 2 ) + C 2 g 3 ( ξ 2 ) + D 2 g 4 ( ξ 2 )
I 3 ( ξ 1 , ξ 2 ) = 0 ϕ m sin ϕ cos ϕ d ϕ ( 1 + ξ 1 cos ϕ ) ( 1 + ξ 2 cos ϕ ) 3 = ( A 2 g 5 ( ξ 1 ) + B 2 g 6 ( ξ 2 ) + C 2 g 7 ( ξ 2 ) + D 2 g 8 ( ξ 2 ) )
I 4 ( ξ 1 , ξ 2 ) = 0 ϕ m cos 3 ϕ d ϕ ( 1 + ξ 1 cos ϕ ) ( 1 + ξ 2 cos ϕ ) 3 = A 3 g 1 ( ξ 1 ) + B 3 g 2 ( ξ 2 ) + C 3 g 3 ( ξ 2 ) + D 3 g 4 ( ξ 2 )
where the coefficients from Ak to Dk (k = 1, 2, 3) are related to ξ1 and ξ2, g1(ξ1), g5(ξ1) and gn(ξ2) (n = 1, 2, …, 8) are the definite integrals about the eccentric angle φ, the parameters ξ1 or ξ2 need to switch each other when calculating g1(ξ2), g5(ξ2) or gn(ξ1) used for calculating these integrals from I2(ξ2, ξ1) to I4(ξ2, ξ1). These coefficients from Ak to Dk and integrals g1(ξ1), g5(ξ1) and gn(ξ2) can be calculated as:
A 1 = 1 + ξ 1 ξ 1 ξ 2 ; B 1 = 1 + ξ 2 ξ 1 ξ 2
A 2 = 1 + ξ 1 ( ξ 1 ξ 2 ) 3 ; B 2 = ( 1 + ξ 2 ξ 1 ξ 2 ) 3 ; C 2 = ( 1 + ξ 1 ) ( ξ 1 3 ξ 2 2 ) ( ξ 1 ξ 2 ) 3 ; D 2 = 1 + ξ 1 ( ξ 1 ξ 2 ) 3 ,
{ A 3 = ( 1 + ξ 1 ξ 1 ξ 2 ) 3 ; B 3 = ( 1 + ξ 1 ) 2 ( 1 + ξ 2 ) 3 ( ξ 1 ξ 2 ) 3 ; C 3 = ( 1 + ξ 1 ) ( 1 + ξ 2 ) 2 ( 3 ξ 1 ξ 2 + 2 ) ( ξ 1 ξ 2 ) 3 D 3 = ( 1 + ξ 2 ) ( 3 ( 1 + ξ 1 ) ( ξ 1 ξ 2 ) + ( 1 + ξ 2 ) 2 ) ( ξ 1 ξ 2 ) 3
g 1 ( ξ 1 ) = 0 ϕ m d ϕ ( 1 + ξ 1 cos ϕ ) = 2 arctan ( ( ξ 1 + 2 ) / ξ 1 tan ( ϕ m / 2 ) ) ξ 1 ( ξ 1 + 2 )
g 2 ( ξ 2 ) = 0 ϕ m 1 ( 1 + ξ 2 cos ϕ ) 3 d ϕ = ( 2 ξ 2 2 + 4 ξ 2 + 3 ) arctan ( ( ξ 2 + 2 ) / ξ 2 tan ( ϕ m / 2 ) ) ( ξ 2 ( ξ 2 + 2 ) ) ( 5 / 2 ) + tan ( ϕ m / 2 ) ( 1 + cos ϕ m ) × 4 ξ 2 2 + 8 ξ 2 + 3 3 ( 1 + ξ 2 ) cos ϕ m 2 ξ 2 2 ( ξ 2 + 2 ) 2 ( 1 + ξ 2 cos ϕ m ) 2
g 3 ( ξ 2 ) = 0 ϕ m cos ϕ ( 1 + ξ 2 cos ϕ ) 3 d ϕ = 3 ( ξ 2 + 1 ) arctan ( ( ξ 2 + 2 ) / ξ 2 tan ( ϕ m / 2 ) ) ( ξ 2 ( ξ 2 + 2 ) ) ( 5 / 2 ) + ( cos ϕ m + 1 ) 2 tan ( ϕ m / 2 ) 4 ξ 2 ( ξ 2 + 2 ) 2 ( 1 + ξ 2 cos ϕ m ) 2 × ( 2 ξ 2 3 + 5 ξ 2 2 + 5 ξ 2 + ( 2 ξ 2 3 + 7 ξ 2 2 + 9 ξ 2 + 6 ) tan 2 ( ϕ m / 2 ) )
g 4 ( ξ 2 ) = 0 ϕ m cos 2 ϕ ( 1 + ξ 2 cos ϕ ) 3 d ϕ = ( ξ 2 2 + 2 ξ 2 + 3 ) arctan ( ( ξ 2 + 2 ) / ξ 2 tan ( ϕ m / 2 ) ) ( ξ 2 ( ξ 2 + 2 ) ) ( 5 / 2 ) + tan ( ϕ m / 2 ) ( 1 + cos ϕ m ) 2 ( ξ 2 + 1 ) 4 ξ 2 2 ( ξ 2 + 2 ) 2 ( 1 + ξ 2 cos ϕ m ) 2 × ( ξ 2 2 + 5 ξ 2 ( ξ 2 2 ξ 2 6 ) tan 2 ( ϕ m / 2 ) )
g 5 ( ξ 1 ) = 0 ϕ m 1 1 + ξ 1 cos ϕ dcos ϕ = ln ( ξ 1 / ( 1 + ξ 1 cos ϕ m ) )
g 6 ( ξ 2 ) = 0 ϕ m 1 ( 1 + ξ 2 cos ϕ ) 3 dcos ϕ = 1 2 ( 1 ( 1 + ξ 2 cos ϕ m ) 2 1 ξ 2 2 )
g 7 ( ξ 2 ) = 0 ϕ m cos ϕ ( 1 + ξ 2 cos ϕ ) 3 dcos ϕ = 1 2 ( 1 + ξ 2 2 cos ϕ m ( 1 + ξ 2 cos ϕ m ) 2 + 1 ξ 2 ξ 2 2 )
g 8 ( ξ 2 ) = 0 ϕ m cos 2 ϕ ( 1 + ξ 2 cos ϕ ) 3 dcos ϕ = ( 1 + ξ 2 ) 2 2 ( 1 + ξ 2 cos ϕ m ) 2 2 ( 1 + ξ 2 ) 1 + ξ 2 cos ϕ m + 3 ξ 2 2 + 2 ξ 2 1 2 ξ 2 2 + ln ( ξ 2 1 + ξ 2 cos ϕ m )

3.3. Special Case

When ξ1 = ξ2 = ξ, namely t0/w0 = t/w, these definite integrals from I1(ξ1, ξ2) to I4(ξ1, ξ2) defined in Equations (49)–(52) can be recalculated as:
I 1 ( ξ ) = I 1 ( ξ 1 , ξ 2 ) = 0 ϕ m cos ϕ d ϕ ( 1 + ξ cos ϕ ) 2 = 2 arctan ( ( ξ + 2 ) / ξ tan ( ϕ m / 2 ) ) ( ξ ( ξ + 2 ) ) ( 3 / 2 ) + ( 1 + ξ ) sin ϕ m ξ ( ξ + 2 ) ( 1 + ξ cos ϕ m )
I 2 ( ξ ) = I 2 ( ξ 1 , ξ 2 ) = 0 ϕ m cos ϕ d ϕ ( 1 + ξ cos ϕ ) 4 = ( 4 ξ 2 + 8 ξ + 5 ) arctan ( ( ξ + 2 ) / ξ tan ( ϕ m / 2 ) ) ( ξ ( ξ + 2 ) ) ( 7 / 2 ) +    ( 1 + cos ϕ m ) 3 8 ( 1 + ξ cos ϕ m ) 3 × ( ( 2 ξ 3 + 8 ξ 2 + 16 ξ + 11 ) tan ( ϕ m / 2 ) ξ ( ξ + 2 ) 3 + 4 ( 3 ξ 3 + 9 ξ 2 + 16 ξ + 10 ) tan 3 ( ϕ m / 2 ) 3 ξ 2 ( ξ + 2 ) 2 + ( 2 ξ 3 + 4 ξ 2 + 8 ξ + 5 ) tan 5 ( ϕ m / 2 ) ξ 3 ( ξ + 2 ) )
I 3 ( ξ ) = I 3 ( ξ 1 , ξ 2 ) = 0 ϕ m sin ϕ cos ϕ d ϕ ( 1 + ξ cos ϕ ) 4 = ( 2 + 3 ξ ) 6 ( 1 + ξ ) 2 ξ 3 ( 3 + 3 ξ cos ϕ m ) cos 2 ϕ m 6 ( 1 + ξ ) 2 ( 1 + ξ cos ϕ m ) 3
I 4 ( ξ ) = I 4 ( ξ 1 , ξ 2 ) = 0 ϕ m cos 3 ϕ d ϕ ( 1 + ξ cos ϕ ) 4 = ( 3 ξ 2 + 6 ξ + 5 ) arctan ( ( ξ + 2 ) / ξ tan ( ϕ m / 2 ) ) ( ξ ( ξ + 2 ) ) ( 7 / 2 ) + ( 1 + ξ ) × ( 3 ξ 2 ( 2 ξ 2 + 7 ξ + 11 ) tan ( ϕ m / 2 ) + 4 ξ ( ξ + 2 ) ( ξ 2 + 2 ξ + 10 ) tan 3 ( ϕ m / 2 ) + 3 ( ξ + 2 ) 2 ( 2 ξ 2 + ξ + 5 ) tan 5 ( ϕ m / 2 ) ) 3 ξ 3 ( ξ + 2 ) 3 ( ξ + ( ξ + 2 ) tan 2 ( ϕ m / 2 ) ) 3
Until now, all the integral factors can be calculated by substituting Equations (49)–(63) selectively into Equations (38)–(48), or using directly Equations (64)–(67) when ξ1 = ξ2 = ξ, and then all the compliance elements of the flexure segments 1 and 4 can be also calculated by substituting these integral factors selectively into Equations (13)–(20) and Equations (28)–(31). Finally, the closed-form compliance matrix and precision factors of two-axis elliptical-arc-filleted flexure hinge can be obtained analytically by using Equations (1) and (37). Meanwhile, the two-axis elliptical-arc-filleted flexure hinge can also be further degenerated into other single-axis flexure hinges including the elliptical-arc-filleted (a1 → 0), the elliptical-arc (a1 → 0 and l2 = 0), the circular-arc-filleted (a1 → 0 and a2 = b = r), the circular (a1 → 0, a2 = b = r and l2 = 0), the elliptical-fillet (a1 → 0 and φm = π/2), the elliptical (a1 → 0, φm = π/2 and l2 = 0), the right-circular-fillet (a1 → 0, φm = π/2 and a2 = b = r), and the right-circular (a1 → 0, φm = π/2, l2 = 0 and a2 = b = r) flexure hinges [15,16,17,29,35]. Moreover, the closed-form compliance and precision matrices of two-axis flexure hinges with different cutout profiles defined in Figure 3b–f and the single-axis flexure hinges above can get directly in terms of the particular values of the geometric parameters of the two-axis elliptical-arc-filleted flexure hinge. In addition, the analytical compliance equations of two-axis elliptical-arc-filleted flexure hinge can be used for motion accuracy or maximum stress prediction, characteristic analysis, optimal design of the hinges itself, as well as can be employed in kinematic or static analysis, dimension optimization, workspace determination of flexure-based spatial compliant mechanisms.

4. Validation and Numerical Simulation

Finite element analysis (FEA) is used to validate all analytical compliance equations in compliance and precision matrices derived in the previous section by utilizing the ANSYS Workbench software, and the effect of geometric parameters on compliance elements and hinge performance are discussed in this section.

4.1. Analytical Model

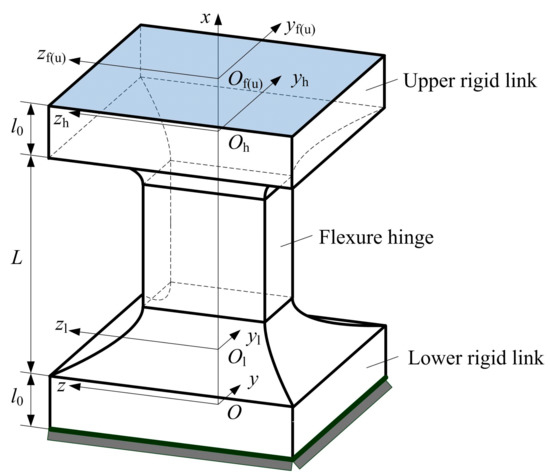

The FEA model of a flexure hinge includes the rigid links of both ends of the hinge besides the flexure hinge [18,19,20,21], namely the theoretical fixed end of the hinge will change and induce deformation in FEA model under the action of external load, and the FEA results of the hinge are that the rotations or deformations caused by the left-end section of the hinge were subtracted from the corresponding rotations or deformations caused by the right-end section of the hinge [25], thus there are different from the analytical model on the constraint conditions—see Figure 5 and the compliance calculations. Meanwhile, the point load is applied on a node or a test point [24,25], which is different from the actual applications of the hinge on the loading conditions. To overcome the above problems, an analytical model of two-axis elliptical-arc-filleted flexure hinge in accordance with the FEA model is proposed, and its geometric relationships among coordinate frames are shown in Figure 9, where the O-xyz and Of-xyfzf are the global frame and the local frame established in the fixed end and the free end of the analytical model, respectively, the Ol-xylzl, Oh-xyhzh and Ou-xyuzu are the local frames established in the tips of lower rigid link, flexure hinge and upper rigid link, respectively, and l0 is the length of the rigid link.
Similar to Equation (1), the analytical compliance matrix of the two-axis elliptical-arc-filleted flexure hinge with two rigid links can be expressed as:
C A n = J L C L J L T + J H C J H T + C U
where CAn, CL, C and CU indicate the compliance matrices of the analytical model, lower rigid link, two-axis elliptical-arc-filleted flexure hinge and upper rigid link, respectively, and each non-zero compliance element of CL and CU can be obtained by using l0, w and t instead of l2, w0 and t0 defined in Equation (6), respectively, JL and JH can be given by:
J L = ( R L R L S L ( r L ) 0 3 × 3 R L ) ; J H = ( R H R H S H ( r H ) 0 3 × 3 R H )
where both RL and RH are unit matrices here, and the position vectors rL and rH can be expressed as:
r L = ( l 0 + L 0 0 ) T ; r H = ( l 0 0 0 ) T
The length of the rigid link is short and its compliance is far less than the compliance of the hinge, as well as the deformation occurs mainly on the flexure hinge, thus the proposed analytical model can be used for verifying indirectly the correctness of the compliance and precision equations of two-axis elliptical-arc-filleted flexure hinge.

4.2. Finite Element Analysis and Validation

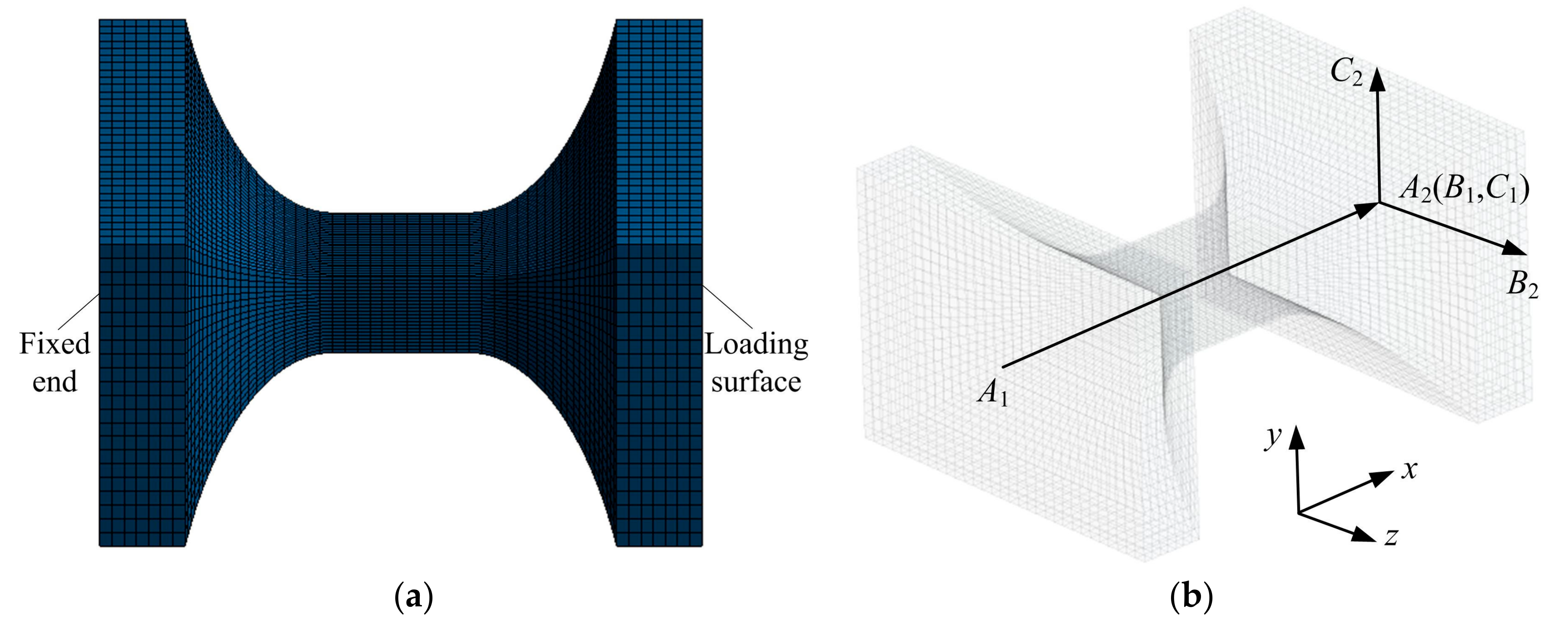

The finite element mesh models of two-axis corner-filleted flexure hinges with two rigid links were generated by using twenty-node, three-dimensional hexahedral elements (Solid 186) with three translational degrees of freedom per-node, one of the hinge mesh models is shown in Figure 10a, of which its total nodes and total elements are 195,716 and 45,696, respectively. Meanwhile, the mesh-independent validation is carried out to eliminate the effect of mesh densities on the computational accuracy and reduce the calculation time. The one and the opposite end of each hinge model are fixed and loaded, respectively. In order to obtain or calculate better the compliance elements in FEA results, three different paths in finite element model are defined, as depicted in Figure 10b, where the A1-A2 is path 1, the B1-B2 is path 2, the C1-C2 is path 3, and A1-A2, B1-B2 and C1-C2 are parallel to x-, z- and y-axis, respectively, A2, B1 and C1 three points coincide, A1 and A2 are located on the geometric center of the fixed end and the loading surface, respectively, B2 and C2 are located on both sidelines of the loading surface, respectively, of which the output displacement of point A2 along the corresponding axis produced by unit force fx, fy or fz is used for obtaining the element CAn,11, CAn,22, or CAn,33; the output displacements of point B2 along x-axis and point A2 along z-axis under unit moment My are used for calculating the element CAn,55 and obtaining the element CAn,35, respectively; similarly, the output displacements of point C2 along x-axis and point A2 along y-axis under unit moment Mz are used for calculating the element CAn,66 and obtaining the element CAn,26, respectively; the output displacement of point B2 along y-axis or point C2 along z-axis under unit moment Mx is used for calculating the element CAn,44. Six different two-axis corner-filleted flexure designs with two rigid links defined in Figure 3 are selected as the compliance comparisons between the analytical results and the finite element results. The geometric parameters of each model are listed in Table 1. For all design types, the linear elastic material properties are: the elastic modulus E = 2.0 × 1011 N/m2, Poisson’s ratio v = 0.3, the shear modulus G = 7.6923 × 1010 N/m2, and the density ρ = 8000 kg/m3. Notice, however, that only two-axis flexure hinges in small deformation are considered due to the stress concentration that occurs on the minimum cross section of the hinges, thus the static analysis with linear geometry setting is performed in the finite element model, which is different from the large deformation with non-linear geometry setting of the constant cross-section beams that are introduced by the material nonlinearity or the geometry nonlinearity [44,45], this is because the stress distributes uniformly on the constant cross-section beam. In addition, the nonlinear and the linear geometry settings in the finite element model of the hinges can get the same results in small deformation. Meanwhile, the analytical model is restricted to linear elastic materials and only applied to small deformation occasions.
Table 2 gives the analytical results and the finite element results, as well as the corresponding relative errors. It can be observed from Table 2 that the maximum relative error for two-axis elliptical-arc-filleted, circular-arc-filleted, elliptical-filleted, right-circular-filleted, hybrid elliptical-arc-filleted and circular-arc-filleted, and hybrid elliptical-filleted and right-circular-filleted flexure hinge between the analytical results and the finite element results is less than 10.5%, 6.5%, 9.0%, 7.5%, 6.5% and 8.0%, respectively, which shows that the analytical model predictions are in good conformity with the simulation results, and the analytical model can be also shown indirectly the exactness of the compliance and precision equations of two-axis corner-filleted flexure hinges deduced previously. Therefore, the analytical compliance and precision equations can be further used for predicting the effect of geometric parameters on compliance elements and performance of two-axis corner-filleted flexure hinges.

4.3. Compliance Ratio

To obtain the effect by joining the serially-connected flexure segments 2 and 3 on the compliance elements of two-axis flexure hinge with elliptical-arc notches, the analytical compliance equations is utilized, and the two-axis elliptical-arc-filleted flexure hinge is selected as an analysis example to compare with two-axis elliptical-arc flexure hinge by means of the following compliance ratio:
r i j = C i j , DEAF C i j , DEA
where the subscript ‘’DEA’’ denotes the two-axis elliptical-arc flexure hinge defined by dual elliptical-arc cutout profiles.

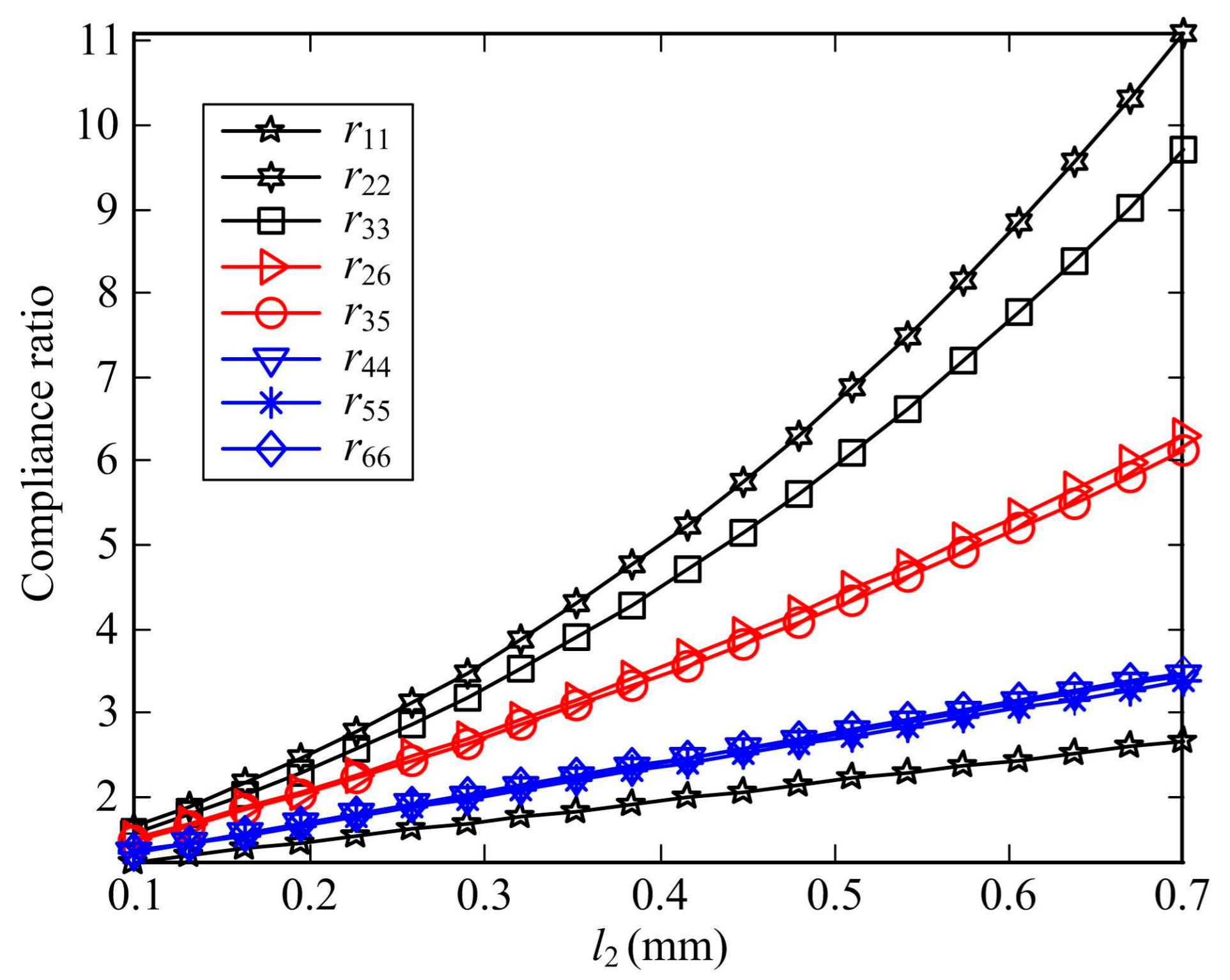

Figure 11 shows the variation of eight compliance ratios in terms of l2, the other geometric parameters listed in Table 1 except l0 = 0 and the material properties are all constant. According to the linear superposition principle, the compliance ratios r11, r44, r55, and r66 depend linearly on the length l2 and increase slowly. However, for the ratios r22, r33, r26 and r35, they depend non-linearly on the length l2, and the increased amplitude of r22 or r33 are more than r26 or r35. Meanwhile, it can be observed that the two-axis corner-filleted flexure hinges have higher capacity of rotation than two-axis flexure hinges when l2 is relatively large.

4.4. Compliance Precision Ratio

When designing a two-axis flexure hinge, we usually hope that the hinge can possess large compliance at the free end and relatively small off-axis compliance at the center of rotation to achieve high motion accuracy. Thus, the compliance and precision ratio can be an important performance index to evaluate the ability of preserving the center of rotation under the same displacement at the free end of the hinges [46]. For the transverse symmetric flexure hinges, according to the superposition principle, the axial compliance and precision ratio will be always equal to 2, which is not affected by the geometric parameters of the hinges. Hence, four compliance precision ratios can be defined as follows:
r 2 = C 22 C Q , 22 ; r 3 = C 33 C Q , 33 ; r 4 = C 26 C Q , 26 ; r 5 = C 35 C Q , 35
The larger compliance and precision ratios show that the flexure hinges have better ability and smaller relative motion error. Similarly, the two-axis elliptical-arc-filleted flexure hinge and its analytical compliance and precision equations are utilized to further investigate the effect of geometric parameters on the compliance precision ratio, all parameters listed in Table 1 except the corresponding variations and l0 = 0 keep constant. Figure 12 illustrates these trends that four compliance precision ratios of DEAF vary with the parameters w0 and t0, and Figure 13 illustrates the results of the compliance precision ratios as a function of l2.

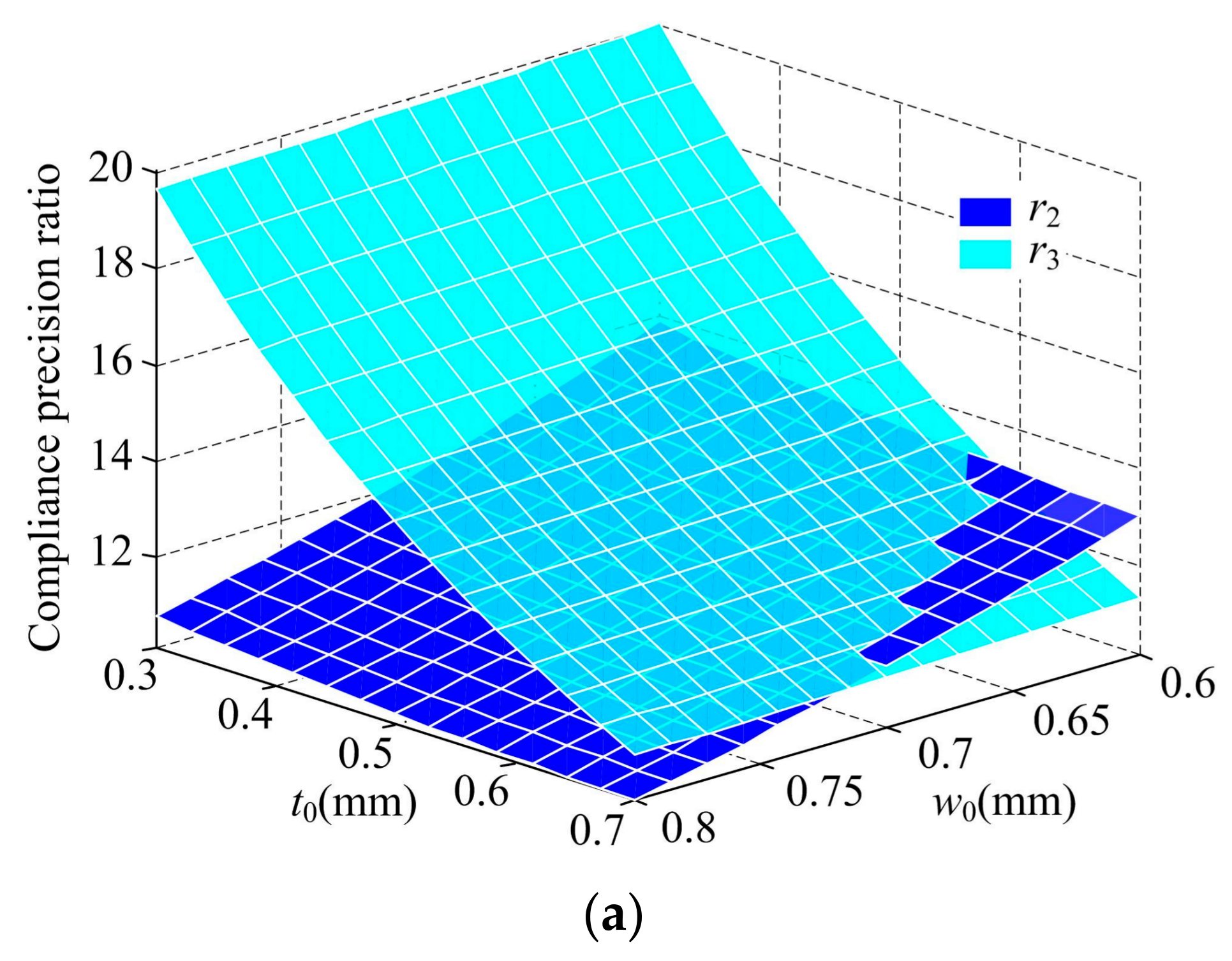

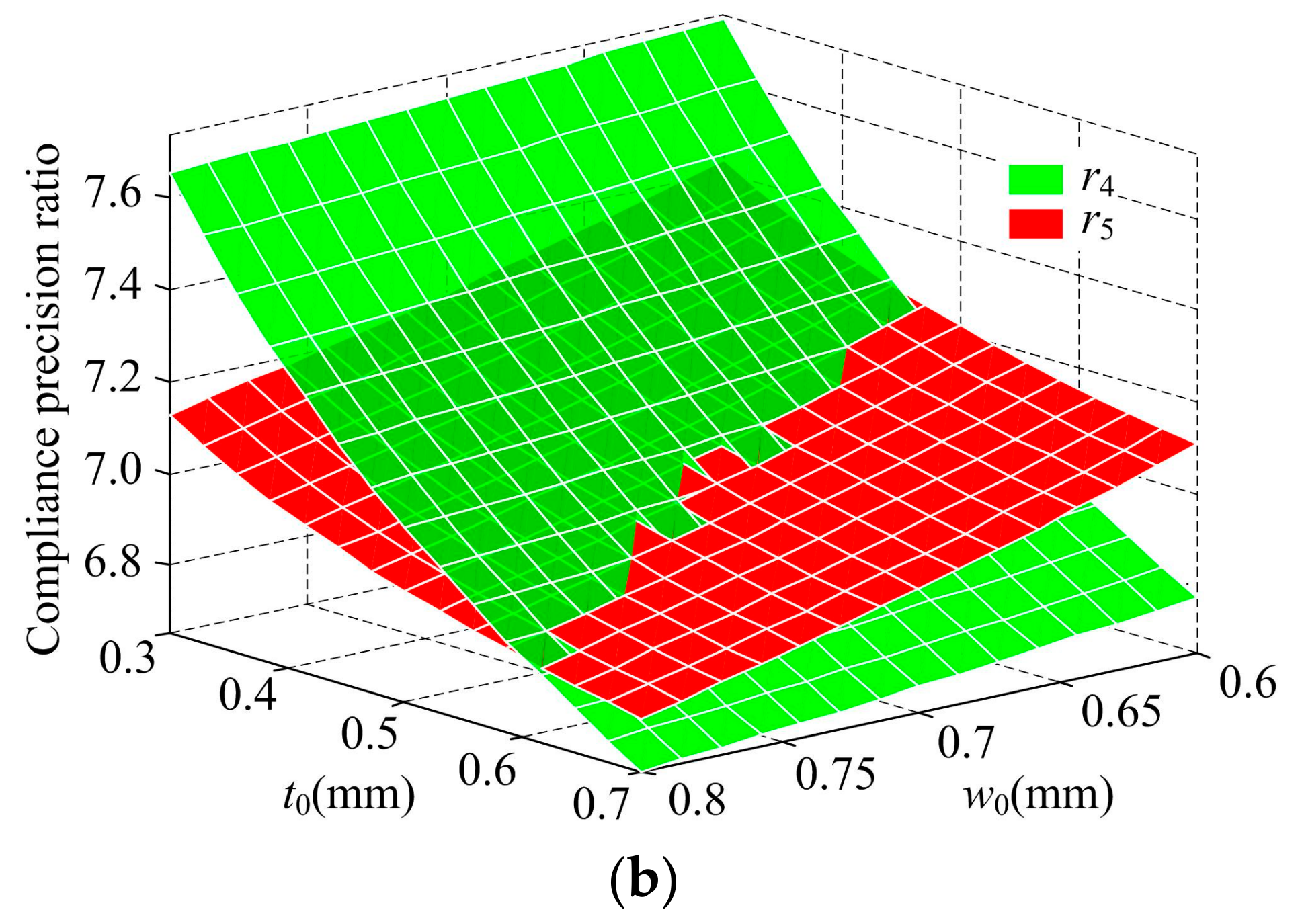

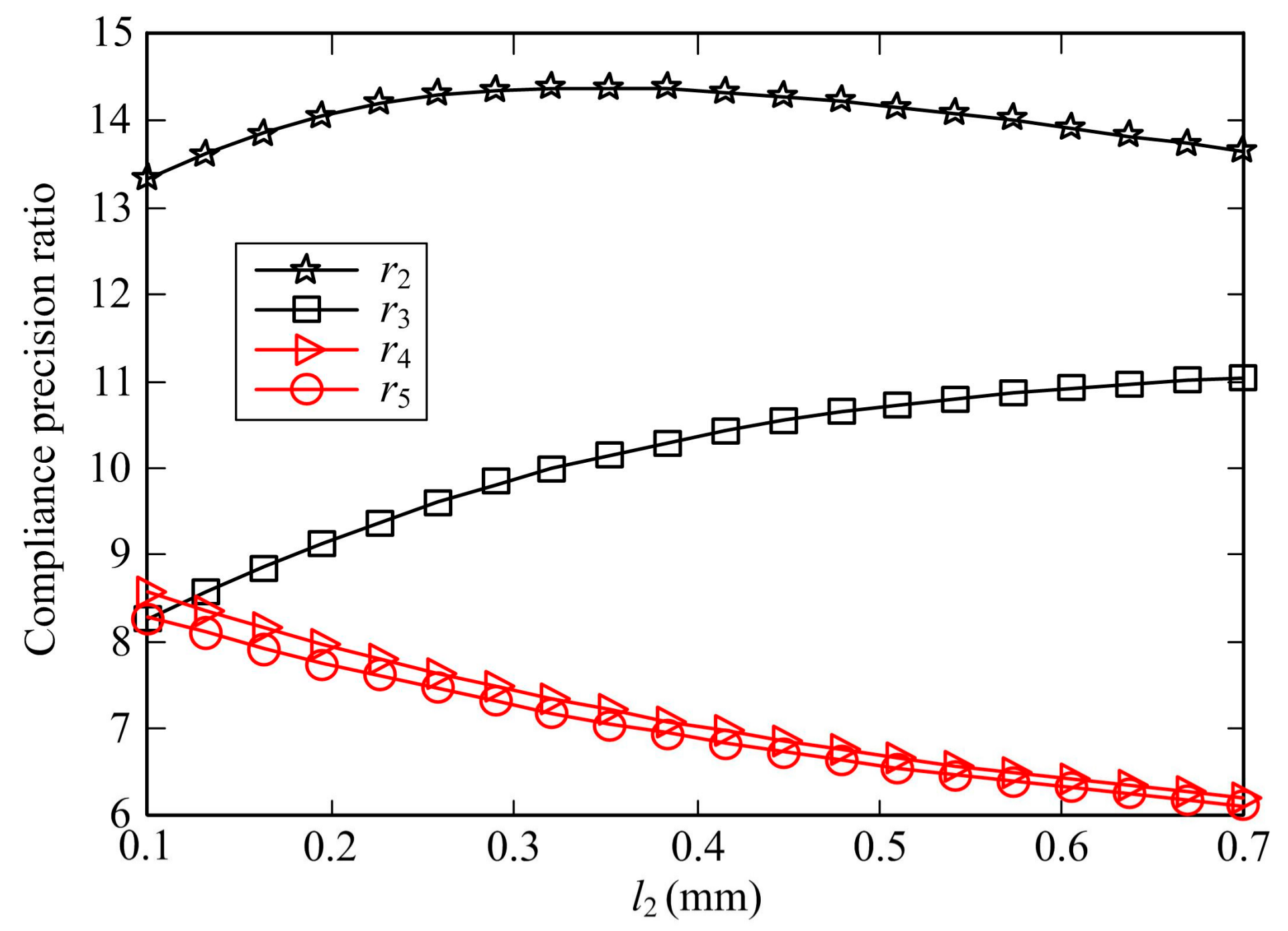

From Figure 12a,b, the following conclusions regarding the two axis elliptical-arc-filleted flexure hinge but are also valid for other two-axis corner-filleted flexure hinges can be drawn:
  • All the compliance precision ratios from r2 to r5 decrease when the parameters w0 and t0 increase, and vice versa; The ratios r3 and r4 are more sensitive to t0 than w0, and w0 has only slightly influence on them; The ratio r2 is less affected by the parameter t0 than w0; The effect of the parameters w0 and t0 on the ratio r5 are approximately the same.
  • From the trends of the ratios r2 and r3, the ability of preserving the rotational center under pure force along z-axis is larger than the one along y-axis when t0 < w0, namely r3 > r2, and vice versa; but for the plots of the ratios r4 and r5, the ability of preserving the rotational center under pure moment about z-axis is larger than the one about y-axis when ξ1 > ξ2, namely r4 > r5, and vice versa.
The compliance precision ratios from r2 to r5 depend non-linearly on the parameter l2, as shown in Figure 13. The ability of preserving the rotational center under pure moment My or Mz decreases whereas the ability under pure force fz increases with increasing l2; but the ratio r2 increases firstly and then decreases slowly and can be achieved larger compliance precision ratio with respect to the other three; the ratio r3 is also larger than r4 and r5 as l2 increases, which show that the ability of preserving the rotational center under force is larger than the one under moment when the free end of two-axis elliptical-arc-filleted flexure hinge has same displacement and l2 is gradually larger.

5. Conclusions

This paper introduces a class of two-axis flexure hinges with different cutout proflies as an alternative of flexure hooke hinges used for compact, small flexure-based spatial compliant mechanisms. The compliance and precision matrices of a common two-axis elliptical-arc-filleted flexure hinge are formulated by using the Castigliano’s second theorem and the generic compliance modeling method, which can be used for other two-axis flexure hinges. FEA simulation is carried out to validate indirectly the analytical compliance and precision equations of six different types of two-axis corner-filleted flexure hinges, and the analytical results with respect to the simulation results are in good agreement. Besides, several non-dimensional functions are defined and formulated to analyze and study the performance of two-axis flexure hinges sensitivity to the geometric parameters.

Author Contributions

Dan Zhang conceived and designed the hinge types and proposed the modeling method; Lijian Li performed the theoretical derivation and wrote the manuscript; Sheng Guo and Haibo Qu checked the data and the manuscript for its correctness. All authors read and approved the final version of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, F.J.; Liang, C.M.; Tian, Y.L.; Zhao, X.Y.; Zhang, D.W. A flexure-based kinematically decoupled micropositioning stage with a centimeter range dedicated to micro/nano manufacturing. IEEE/ASME Trans. Mech. 2016, 21, 1055–1062. [Google Scholar] [CrossRef]
  2. Wang, R.Z.; Zhang, X.M. A planar 3-DOF nanopositioning platform with large magnification. Precis. Eng. 2016, 46, 221–231. [Google Scholar] [CrossRef]
  3. Yao, Q.; Dong, J.; Ferreira, P.M. Design, analysis, fabrication and testing of a parallel-kinematic micropositioning XY stage. Int. J. Mach. Tool. Manuf. 2007, 47, 946–961. [Google Scholar] [CrossRef]
  4. Xu, Q.S.; Li, Y.M. Analytical modeling, optimization and testing of a compound bridge-type compliant displacement amplifier. Mech. Mach. Theory 2011, 46, 183–200. [Google Scholar] [CrossRef]
  5. Chen, G.M.; Ma, Y.K.; Li, J.J. A tensural displacement amplifier employing elliptic-arc flexure hinges. Sens. Actuators A Phys. 2016, 247, 307–315. [Google Scholar] [CrossRef]
  6. Ma, H.W.; Yao, S.M.; Wang, L.Q.; Zhong, Z. Analysis of the displacement amplification ratio of bridge-type flexure hinge. Sens. Actuators A Phys. 2006, 132, 730–736. [Google Scholar] [CrossRef]
  7. Jouaneh, M.; Yang, R.Y. Modeling of flexure-hinge type lever mechanisms. Precis. Eng. 2003, 27, 407–418. [Google Scholar] [CrossRef]
  8. Sun, Z.B.; Liu, J.H.; Yu, C.Z.; Zheng, Y.L. A small range six-axis accelerometer designed with high sensitivity DCB elastic element. Sensors 2016, 16, 1552. [Google Scholar] [CrossRef] [PubMed]
  9. Gao, Z.; Zhang, D. Design, analysis and fabrication of a multidimensional acceleration sensor based on fully decoupled compliant parallel mechanism. Sens. Actuators A Phys. 2010, 163, 418–427. [Google Scholar] [CrossRef]
  10. Yao, J.T.; Zhang, H.Y.; Zhang, W.M.; Xu, Y.D.; Zhao, Y.S. Fault-tolerant parallel six-component force sensor. Meccanica 2016, 51, 1639–1651. [Google Scholar] [CrossRef]
  11. Kurniawan, R.; Ko, T.J.; Ping, L.C.; Kumaran, S.T.; Kiswanto, G.; Guo, P.; Ehmann, K.F. Development of a two-frequency, elliptical-vibration texturing device for surface texturing. J. Mech. Sci. Technol. 2017, 31, 3465–3473. [Google Scholar] [CrossRef]
  12. Raghavendra, M.R.A.; Kumar, A.S.; Jagdish, B.N. Design and analysis of flexure-hinge parameter in microgripper. Int. J. Adv. Manuf. Technol. 2010, 49, 1185–1193. [Google Scholar] [CrossRef]
  13. Noveanu, S.; Lobontiu, N.; Lazaro, J.; Mandru, D. Substructure compliance matrix model of planar branched flexure-hinge mechanisms: Design, testing and characterization of a gripper. Mech. Mach. Theory 2015, 91, 1–20. [Google Scholar] [CrossRef]
  14. Mutlu, R.; Alici, G.; Panhuis, M.I.H.; Spinks, G.M. 3D printed flexure hinges for soft monolithic prosthetic fingers. Soft Robot. 2016, 3, 120–133. [Google Scholar] [CrossRef]
  15. Verotti, M.; Crescenzi, R.; Balucani, M.; Belfiore, N.P. MEMS-based conjugate surfaces flexure hinge. J. Mech. Des. 2015, 137, 012301. [Google Scholar] [CrossRef]
  16. Paros, J.M.; Weisbord, L. How to design flexure hinges. Mach. Des. 1965, 37, 151–156. [Google Scholar]
  17. Wu, Y.F.; Zhou, Z.Y. Design calculations for flexure hinges. Rev. Sci. Instrum. 2002, 73, 3101–3106. [Google Scholar] [CrossRef]
  18. Smith, S.T.; Badami, V.G.; Dale, J.S.; Xu, Y. Elliptical flexure hinges. Rev. Sci. Instrum. 1997, 68, 1474–1483. [Google Scholar] [CrossRef]
  19. Chen, G.M.; Liu, X.Y.; Gao, H.W.; Jia, J.Y. A generalized model for conic flexure hinges. Rev. Sci. Instrum. 2009, 80, 055106. [Google Scholar] [CrossRef] [PubMed]
  20. Lobontiu, N.; Paine, J.S.N.; O’Malley, E.; Samuelson, M. Parabolic and hyperbolic flexure hinges: Flexibility, motion precision and stress characterization based on compliance closed-form equations. Precis. Eng. 2002, 26, 183–192. [Google Scholar] [CrossRef]
  21. Tian, Y.; Shirinzadeh, B.; Zhang, D. Closed-form compliance equations of filleted V-shaped flexure hinges for compliant mechanism design. Precis. Eng. 2010, 34, 408–418. [Google Scholar] [CrossRef]
  22. Wang, R.Q.; Zhou, X.Q.; Zhu, Z.W.; Liu, Q. Development of a novel type of hybrid non-symmetric flexure hinges. Rev. Sci. Instrum. 2015, 86, 085003. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, R.Q.; Zhou, X.Q.; Zhu, Z.W. Development of a novel sort of exponent-sine-shaped flexure hinges. Rev. Sci. Instrum. 2013, 84, 095008. [Google Scholar] [CrossRef] [PubMed]
  24. Lobontiu, N.; Cullin, M.; Petersen, T.; Alcazar, J.A.; Noveanu, S. Planar compliances of symmetric notch flexure hinges: the right circularly corner-filleted parabolic design. IEEE Trans. Autom. Sci. Eng. 2014, 11, 169–176. [Google Scholar] [CrossRef]
  25. Yong, Y.K.; Lu, T.F.; Handley, D.C. Review of circular flexure hinge design equations and derivation of empirical formulations. Precis. Eng. 2008, 32, 63–70. [Google Scholar] [CrossRef]
  26. Li, T.M.; Zhang, J.L.; Jiang, Y. Derivation of empirical compliance equations for circular flexure hinge considering the effect of stress concentration. Int. J. Precis. Eng. Manuf. 2015, 16, 1735–1743. [Google Scholar] [CrossRef]
  27. Lobontiu, N. Compliant Mechanisms: Design of Flexure Hinges; CRC Press: Boca Raton, FL, USA, 2002. [Google Scholar]
  28. Zhu, Z.W.; Zhou, X.Q.; Wang, R.Q.; Liu, Q. A simple compliance modeling method for flexure hinges. Sci. China Technol. Sci. 2015, 58, 56–63. [Google Scholar] [CrossRef]
  29. Lobontiu, N.; Cullin, M.; Ali, M.; Brock, J.M. A generalized analytical compliance model for transversely symmetric three-segment flexure hinges. Rev. Sci. Instrum. 2011, 82, 105116. [Google Scholar] [CrossRef] [PubMed]
  30. Gao, F.; Zhang, J.J.; Chen, Y.L.; Jin, Z.L. Development of a new type of 6-DOF parallel micro-manipulator and its control system. In Proceedings of the 2003 IEEE International Conference on Robotics, Intelligent Systems and Signal Processing, Changsha, China, 8–13 October 2003; pp. 715–720. [Google Scholar]
  31. Lobontiu, N.; Garcia, E. Two-axis flexure hinges with axially-collocated and symmetric notches. Comput. Struct. 2003, 81, 1329–1341. [Google Scholar] [CrossRef]
  32. Cao, F.; Jiao, Z.X. Design of double-axis elliptical flexure hinges. Eng. Mech. 2007, 24, 178–182. [Google Scholar]
  33. Chen, A.W.; Cao, F.; Hou, W. The flexibility calculation of biaxial right circular flexible hinge. J. Basic Sci. Eng. 2010, 18, 838–846. [Google Scholar]
  34. Hou, W.F.; Zhang, X.M. Precision of rotation analysis of two-axis rectangular cross-section corner-filleted flexure hinges. J. Mech. Eng. 2010, 46, 15–21. [Google Scholar] [CrossRef]
  35. Chen, G.M.; Shao, X.D.; Huang, X.B. A new generalized model for elliptical arc flexure hinges. Rev. Sci. Instrum. 2008, 79, 095103. [Google Scholar] [CrossRef] [PubMed]
  36. Koseki, Y.; Tanikawa, T.; Koyachi, N.; Arai, T. Kinematic analysis of translational 3-DOF micro parallel mechanism using matrix method. In Proceedings of the Kinematic Analysis of Translational 3-DOF Micro Parallel Mechanism Using Matrix Method, Takamatsu, Japan, 31 October–5 November 2000; pp. 786–792. [Google Scholar]
  37. Pham, H.; Chen, I.M. Stiffness modeling of flexure parallel mechanism. Precis. Eng. 2005, 29, 467–478. [Google Scholar] [CrossRef]
  38. Liang, Q.K.; Zhang, D.; Chi, Z.Z.; Song, Q.J.; Ge, Y.J.; Ge, Y. Six-DOF micro-manipulator based on compliant parallel mechanism with integrated force sensor. Robot. Comput. Integr. Manuf. 2011, 27, 124–134. [Google Scholar] [CrossRef]
  39. Cowper, G.R. The shear coefficient in Timoshenko beam theory. J. Appl. Mech. 1966, 33, 335–340. [Google Scholar] [CrossRef]
  40. Yong, W.C.; Budynas, R.G. Roark’s Formulas for Stress and Strain, 7th ed.; McGraw Hill: New York, NY, USA, 2002. [Google Scholar]
  41. Lobontiu, N.; Paine, J.S.N.; Garcia, E.; Goldfarb, M. Design of symmetric conic-section flexure hinges based on closed-form compliance equations. Mech. Mach. Theory 2002, 37, 477–498. [Google Scholar] [CrossRef]
  42. Ivanov, I.; Corves, B. Stiffness-oriented design of a flexure hinge-based parallel manipulator. Mech. Based Des. Struct. Mach. 2014, 42, 326–342. [Google Scholar] [CrossRef]
  43. Chen, G.M.; Howell, L.L. Two general solutions of torsional compliance for variable rectangular cross-section hinges in compliant mechanisms. Precis. Eng. 2009, 33, 268–274. [Google Scholar] [CrossRef]
  44. Borboni, A.; Santis, D.D. Large deflection of a non-linear, elastic, asymmetric Ludwick cantilever beam subjected to horizontal force, vertical force and bending torque at the free end. Maccanica 2014, 49, 1327–1336. [Google Scholar] [CrossRef]
  45. Howell, L.L. Handbook of Compliant Mechanisms; John Wiley & Sons: New York, NY, USA, 2013. [Google Scholar]
  46. Lin, R.Z.; Zhang, X.M.; Long, X.J.; Fatikow, S. Hybrid flexure hinges. Rev. Sci. Instrum. 2013, 84, 085004. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Hinge configurations: (a) Two-axis corner-filleted flexure hinge; (b) Two-axis flexure hinge.
Figure 1. Hinge configurations: (a) Two-axis corner-filleted flexure hinge; (b) Two-axis flexure hinge.
Sensors 17 02154 g001
Figure 2. Geometric parameters and profiles of two-axis corner-filleted flexure hinge.
Figure 2. Geometric parameters and profiles of two-axis corner-filleted flexure hinge.
Sensors 17 02154 g002
Figure 3. Two-axis flexure hinges with different cutout profiles: (a) Dual elliptical-arc-filleted (DEAF); (b) Dual circular-arc-filleted (DCAF, a1 = a2 = b = r); (c) Dual elliptical-filleted (DEF, φm = π/2); (d) Dual right-circular-filleted (DRCF, a1 = a2 = b = r and φm = π/2); (e) Hybrid elliptical-arc-filleted and circular-arc-filleted (HEACF, a1 = b = r or a2 = b = r); (f) Hybrid elliptical-filleted and right-circular-filleted (HERCF, a1 = b = r or a2 = b = r and φm = π/2).
Figure 3. Two-axis flexure hinges with different cutout profiles: (a) Dual elliptical-arc-filleted (DEAF); (b) Dual circular-arc-filleted (DCAF, a1 = a2 = b = r); (c) Dual elliptical-filleted (DEF, φm = π/2); (d) Dual right-circular-filleted (DRCF, a1 = a2 = b = r and φm = π/2); (e) Hybrid elliptical-arc-filleted and circular-arc-filleted (HEACF, a1 = b = r or a2 = b = r); (f) Hybrid elliptical-filleted and right-circular-filleted (HERCF, a1 = b = r or a2 = b = r and φm = π/2).
Sensors 17 02154 g003
Figure 4. Four-segment two-axis elliptical-arc-filleted flexure hinge: (a) Three-dimensional view; (b) Geometric parameters and two non-identical cutout profiles.
Figure 4. Four-segment two-axis elliptical-arc-filleted flexure hinge: (a) Three-dimensional view; (b) Geometric parameters and two non-identical cutout profiles.
Sensors 17 02154 g004
Figure 5. Geometric relationships among coordinate frames.
Figure 5. Geometric relationships among coordinate frames.
Sensors 17 02154 g005
Figure 6. Left half-segment two-axis elliptical-arc flexure hinge: (a) Geometric parameters defining two non-identical symmetric elliptical-arc profiles; (b) Three-dimensional view.
Figure 6. Left half-segment two-axis elliptical-arc flexure hinge: (a) Geometric parameters defining two non-identical symmetric elliptical-arc profiles; (b) Three-dimensional view.
Sensors 17 02154 g006
Figure 7. Right half-segment two-axis elliptical-arc flexure hinge: (a) Geometric parameters defining two non-identical symmetric elliptical-arc profiles; (b) Three-dimensional view.
Figure 7. Right half-segment two-axis elliptical-arc flexure hinge: (a) Geometric parameters defining two non-identical symmetric elliptical-arc profiles; (b) Three-dimensional view.
Sensors 17 02154 g007
Figure 8. Geometric relationships among coordinate frames.
Figure 8. Geometric relationships among coordinate frames.
Sensors 17 02154 g008
Figure 9. Geometric relationships among coordinate frames of two-axis elliptical-arc-filleted flexure hinge with two rigid links.
Figure 9. Geometric relationships among coordinate frames of two-axis elliptical-arc-filleted flexure hinge with two rigid links.
Sensors 17 02154 g009
Figure 10. Two-axis elliptical-arc-filleted flexure hinge with two rigid links: (a) Finite element mesh model; (b) Path definitions.
Figure 10. Two-axis elliptical-arc-filleted flexure hinge with two rigid links: (a) Finite element mesh model; (b) Path definitions.
Sensors 17 02154 g010
Figure 11. Compliance ratio of DEAF and DEA as a function of l2.
Figure 11. Compliance ratio of DEAF and DEA as a function of l2.
Sensors 17 02154 g011
Figure 12. Compliance precision ratio of DEAF as a function of t0 and w0: (a) translational; (b) cross.
Figure 12. Compliance precision ratio of DEAF as a function of t0 and w0: (a) translational; (b) cross.
Sensors 17 02154 g012aSensors 17 02154 g012b
Figure 13. Compliance precision ratio of DEAF as a function of l2.
Figure 13. Compliance precision ratio of DEAF as a function of l2.
Sensors 17 02154 g013
Table 1. Geometric parameters of two-axis corner-filleted flexure hinges with two rigid links.
Table 1. Geometric parameters of two-axis corner-filleted flexure hinges with two rigid links.
t0 (mm)w0 (mm)a1 (mm)a2 (mm)b (mm)l2 (mm)φml0 (mm)Type
10.50.82.01.51.00.460°0.5DEAF
20.50.81.01.01.00.460°0.5DCAF
30.71.02.02.51.50.590°0.6DEF
40.71.01.51.51.50.590°0.6DRCF
50.91.22.03.02.00.660°0.7HEACF
60.91.22.03.02.00.690°0.7HERCF
Table 2. Comparison of compliance elements between the analytical results and the FEA results (denoted by An and FEA, respectively).
Table 2. Comparison of compliance elements between the analytical results and the FEA results (denoted by An and FEA, respectively).
CAn,11 (m/N)CAn,22 (m/N)CAn,33 (m/N)CAn,26/CAn,62 (1/N)CAn,35/CAn,53 (1/N)CAn,44 (rad/Nm)CAn,55 (rad/Nm)CAn,66 (rad/Nm)
1An2.135 × 10−82.780 × 10−61.149 × 10−61.449 × 10−3−5.767 × 10−40.8770.3270.820
FEA2.289 × 10−82.968 × 10−61.268 × 10−61.541 × 10−3−6.371 × 10−40.8790.3640.873
Err6.73%6.33%9.38%5.97%9.48%0.23%10.16%6.07%
2An2.453 × 10−83.133 × 10−61.354 × 10−61.603 × 10−3−6.627 × 10−30.9810.3750.908
FEA2.564 × 10−83.274 × 10−61.437 × 10−61.674 × 10−3−7.057 × 10−30.9760.4010.948
Err4.33%4.31%5.78%4.24%6.09%0.51%6.48%4.22%
3An1.647 × 10−82.296 × 10−61.231 × 10−68.228 × 10−4−4.294 × 10−40.3700.1650.317
FEA1.746 × 10−82.459 × 10−61.341 × 10−68.789 × 10−4−4.663 × 10−40.3740.1810.341
Err5.67%6.63%8.20%6.38%7.91%1.07%8.84%7.04%
4An1.825 × 10−82.580 × 10−61.354 × 10−69.133 × 10−4−4.667 × 10−40.4080.1800.351
FEA1.901 × 10−82.720 × 10−61.451 × 10−69.596 × 10−4−4.993 × 10−40.4110.1940.371
Err4.00%5.15%6.69%4.82%6.53%0.73%7.22%5.39%
5An1.421 × 10−81.606 × 10−61.012 × 10−64.844 × 10−4−2.962 × 10−40.1980.0980.160
FEA1.496 × 10−81.707 × 10−61.081 × 10−65.147 × 10−4−3.158 × 10−40.2010.1040.170
Err5.01%5.92%6.38%5.89%6.21%1.49%5.77%5.88%
6An1.400 × 10−81.870 × 10−61.169 × 10−65.262 × 10−4−3.209 × 10−40.1980.0970.160
FEA1.466 × 10−81.997 × 10−61.258 × 10−65.607 × 10−4−3.441 × 10−40.2010.1050.171
Err4.50%6.36%7.07%6.15%6.74%1.49%7.62%6.43%

Share and Cite

MDPI and ACS Style

Li, L.; Zhang, D.; Guo, S.; Qu, H. A Generic Compliance Modeling Method for Two-Axis Elliptical-Arc-Filleted Flexure Hinges. Sensors 2017, 17, 2154. https://doi.org/10.3390/s17092154

AMA Style

Li L, Zhang D, Guo S, Qu H. A Generic Compliance Modeling Method for Two-Axis Elliptical-Arc-Filleted Flexure Hinges. Sensors. 2017; 17(9):2154. https://doi.org/10.3390/s17092154

Chicago/Turabian Style

Li, Lijian, Dan Zhang, Sheng Guo, and Haibo Qu. 2017. "A Generic Compliance Modeling Method for Two-Axis Elliptical-Arc-Filleted Flexure Hinges" Sensors 17, no. 9: 2154. https://doi.org/10.3390/s17092154

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
