A Wireless, Passive, Magnetically-soft Harmonic Sensor for Monitoring Sodium Hypochlorite Concentrations in Water

Abstract

A wireless, passive, remote-query sensor for monitoring sodium hypochlorite (bleach) solutions is reported. The sensor is comprised of a magnetically-soft ferromagnetic ribbon, coated with a layer of polyurethane and alumina, having a large and nonlinear permeability that supports higher-order harmonics in response to a time varying magnetic field. The hypochlorite ions induce swelling in the coating, with the resultant stress altering the harmonic signature of the sensor from which the sodium hypochlorite concentration can be determined. The wireless, passive nature of the sensor platform enables long-term monitoring of bleach concentrations in the environment. The sensor platform can be extended to other chemical analytes of interest as desired.

Introduction

Bleach, commonly a 5.75 vol% sodium hypochlorite, NaOCl, solution, is an intensively used industrial chemical widely used for cleaning due to its properties as a disinfectant. While bleach is an excellent cleaning solution, at high concentrations it can readily damage drainage pipes. Hence the ability to remotely monitor sodium hypochlorite concentrations from within sealed pipes is of great interest for ensuring environmental integrity; if excessive quantities of bleach are detected appropriate steps can be taken to neutralize the chemical.

In this paper we present a wireless, passive sensor for in situ monitoring of sodium hypochlorite in water. The sensor is made of a high permeability, magnetically soft, ribbon-like amorphous ferromagnetic alloy that supports higher-order harmonics [1-4] in response to a magnetic ac field. In this work, two types of ferromagnetic alloys Fe₄₀Ni₃₈Mo₄B₁₈ (Metglas 2826MB) and Co₆₅Fe₄Ni₂Si₁₅B₁₄ (Metglas 2714a), from Honeywell Co. [5], are investigated. The sensors are first coated with a layer of polyurethane to prevent rusting of the iron-rich material, followed by a layer of alumina. The coating swells in response to changing bleach concentration, varying the stress and hence the magnetic permeability of the sensor and consequently the relative amplitudes of the higherorder harmonics generated by the sensor in response to an interrogation signal. Between these two materials, Metglas 2826MB is highly sensitive to stress (and hence bleach concentration) due to its high magnetostriction of 12 ppm. Metglas 2714a, on the other hand, has a magnetostriction of less than 1 and is insensitive to stress. The magnetic properties of both Metglas are listed in

Table 1. Magnetic properties of Metglas 2826MB and Metglas 2714a.

Material	Hk (A/m)	Hc (A/m)	Bs (T)	μ(dc)	λs (ppm)
2826MB	150	4	0.88	50,000	12
2714a	60	2	0.57	80,000	-1 to 0.1

.

The sensor is placed in the environment of interest as shown in Fig. 1. The sensor is excited by a single interrogation coil, and the higher-order harmonic response is detected by a figure-8 sensing coil coplanar with the interrogation coil. Since there is no coupling between the measured higher-order harmonic signals and the excitation signal the background noise level is relatively small enabling a greater detection range. Since the response is based upon the magnetic properties of the material, sensor length does not affect the response except total signal amplitude, where a physically larger sensor provides more signal than a physically smaller sensor. The only size restriction is when the dimensions of the sensor are reduced to a point that the demagnetizing field (associated with all magnetic materials) reduces the permeability of the material. The sensors used in this work, 55 mm × 6.35 mm × 30 μm, have a material cost of less than $0.005 making disposable use practical.

The sensors were excited using a coil (36-turn, 14 gauge wire, 30 cm radius) connected to a Wavetek 20 function generator to generate a 500 A/m 200Hz magnetic field, in series with a Kepco dc power supply used to provide a dc biasing field of controllable amplitude. A figure-8 sensing coil (400-turn, 40 gauge wire, 18 cm × 18 cm total area) co-planar with the interrogation coil was used to monitor the response of the sensor, with the harmonic amplitudes captured using a HP4293B spectrum analyzer. A computer was used to automate the experiment.

The sensor was fabricated by dip coating an as-cast Metglas 2826MB ribbon with polyurethane and then drying at 40°C for two hours. The dip coating process was repeated three times for a total polyurethane layer thickness of 200 μm. An alumina coating was then applied, via three separate dip coatings, having a total thickness of approximately 50 μm. Finally the sensor was baked in an oven at 100°C for 3 hours.

Theory

The amplitude of the higher order harmonics of a ribbon-shaped soft magnetic material is dependent upon the magnitude of the biasing field. From our previous work [6-9], the amplitude of the n-th mode higher-order harmonics, A_n, as a function of biasing field H_dc is given by:

$$A_n=\frac{L{B}_s\omega }{{\omega }^2}\cdot \left(e^{\frac{jn\pi \mathit{\text{Hdc}}}{h_{dc}}}cos(\pi n)-k\mu sin\left(\frac{1}{k\mu }\right)\right)$$

(1)

where ω is the radian frequency of the excitation field, h_ac is the amplitude of the ac excitation field, B_s is the saturation induction of the magnetic material, μ is the permeability of the material, L is the coupling between the magnetic ribbon and the detection coil, and k = h_ac/πnB_s. Eq. (1) shows the harmonic amplitudes, regardless of the order number and the amplitude of biasing field, increase with permeability.

When the magnetic ribbon is exposed to a longitudinal stress σ, such as the stress induced by the swelling of the bleach-sensing layer, its anisotropy field changes [11-13]:

$$H_k^{\sigma }=H_k-\frac{3{\lambda }_s\sigma }{M_s}$$

(2)

where λ_s is the saturation magnetostriction, H_k is the anisotropy field at zero stress, $H_k^{\sigma }$ is the anisotropy field at stress σ, and M_s is the saturation magnetization of the material (M_s ≈ B_s for our sensor since it has a high μ). The permeability of the sensor at stress σ is determined using the approximation μ ≈ B_s / H_k as:

$$\mu =\frac{{B_s}^2}{B_s{H}_k-3{\lambda }_s\sigma }$$

(3)

Eq. (3) shows the permeability of the magnetically soft material increases with increasing longitudinal stress σ. The measured harmonic amplitudes at biasing field H_dc and applied stress σ are:

$$A_n=\frac{L{B}_s\omega }{{\pi }^2}\left(e^{jn\pi H_{dc}/h_{ac}}cos(\pi n)-\frac{k{B_s}^2}{B_s{H}_k-3{\lambda }_s\sigma }sin\left(\frac{B_s{H}_k-3{\lambda }_s\sigma }{k{B_s}^2}\right)\right)$$

(4)

From Eq. (4) it is clear the amplitudes of the higher-order harmonics increase with increasing stress. As a result, the higher-order harmonics of the sensor is expected to increase with sodium hypochlorite concentration since the absorption of the hypochlorite ions causes the sensing layer to swell, which stresses the magnetic ribbon.

Our sensor is encapsulated within a thin coating of polyurethane and alumina as shown in Fig. 2. When the sensor is immersed into a sodium hypochlorite solution, the coating absorbs the sodium hypochlorite ions and swells introducing stress as illustrated in Fig. 2. Since the sensor has a high aspect ratio the longitudinal stress will be much larger than the transverse stress, with the stress changing the magnetic permeability of the sensor and in turn the relative amplitude of the different harmonics.

Results and Discussions

Fig. 3 plots the amplitudes of the 2^nd and 3^rd harmonics of a typical sensor as a function of dc biasing field. To determine the maximum amplitudes of both even and odd harmonics, a dc sweep is first performed to capture the harmonic response as a function of dc biasing fields. A peak-finding routine is then used to determine the maximum amplitude for each harmonic.

The 2826MB sensor was tested by immersion in a 5.75% sodium hypochlorite (commercially available bleach [14]) and deionized water. Before each experiment started the sensor was presoaked in water for 2 hours to eliminate any amplitude variations caused by the absorption of water molecules, and the associated stress, by the coating. Fig. 4 plots the variation in the 2^nd and 3^rd harmonic amplitudes when a dry sensor was immersed in deionized water. As shown in the plot, the maximum amplitudes of the higher-order harmonics increased and then saturated at constant values after 2 hours.

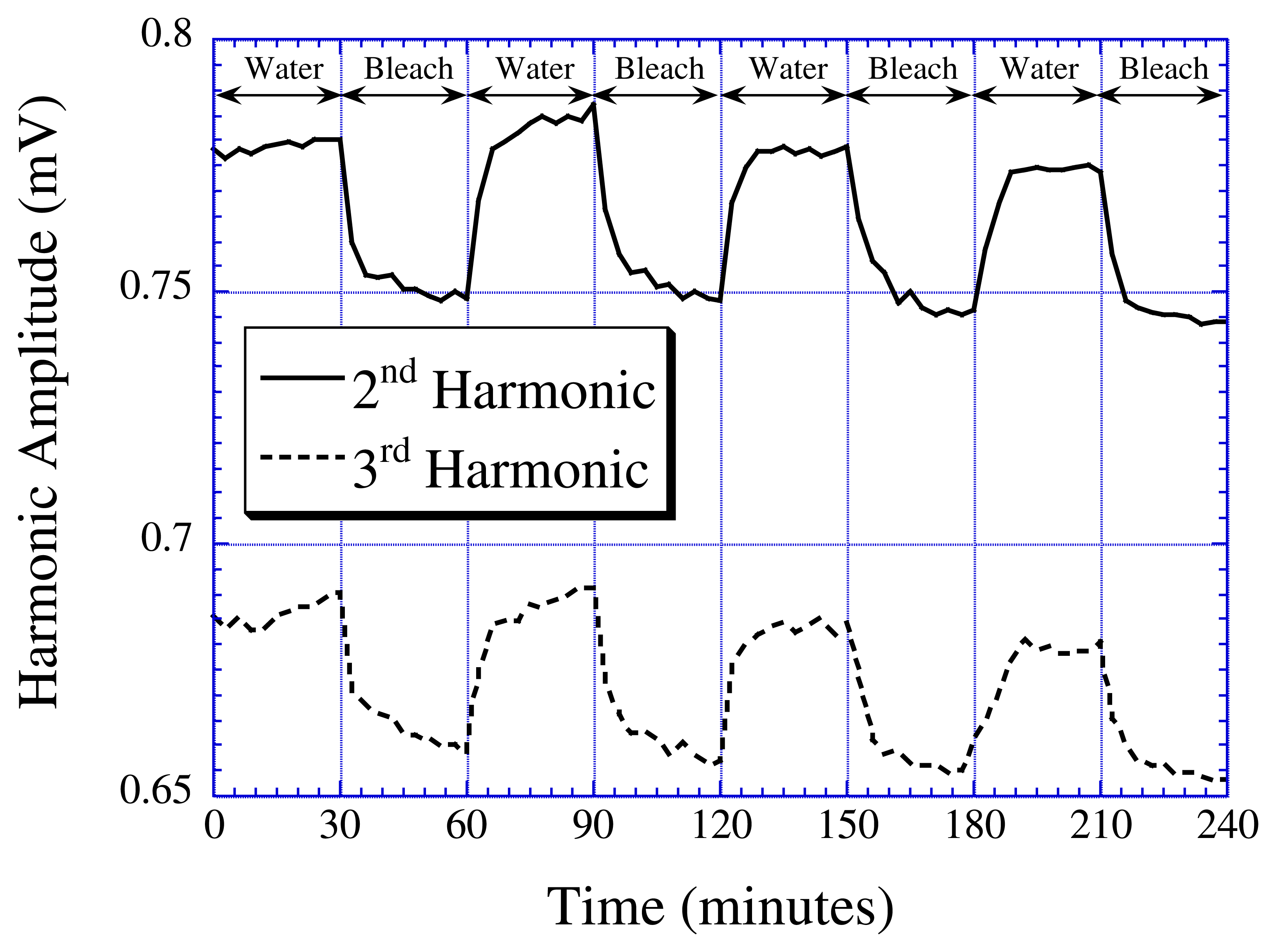

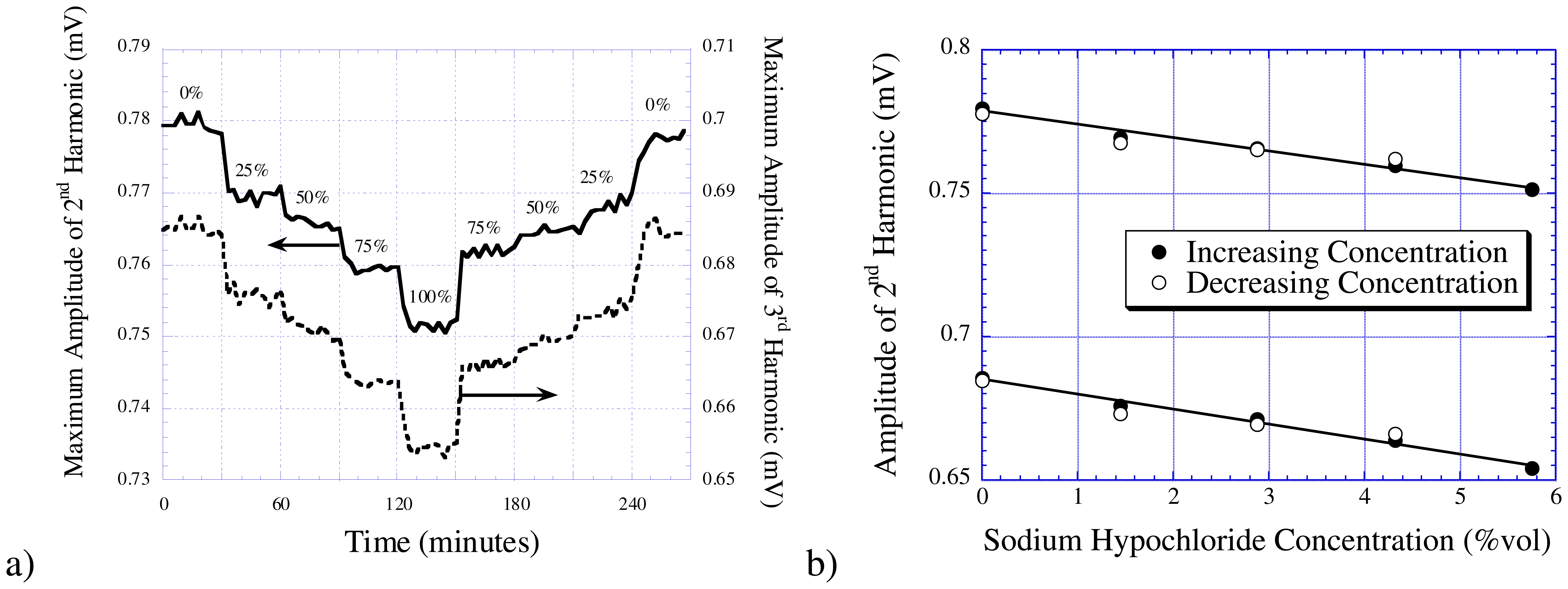

Fig. 5 plots the amplitudes of the 2^nd and 3^rd harmonics when the 2826MB sensor was cycled between deionized water and 5.75% sodium hypochlorite solution after the sensor was presoaked in water for 2 hours. The measured harmonic amplitudes decrease with each bleach/water cycle, indicating a decrease in coating swelling. The variation in the measured 2^nd and 3^rd harmonic amplitudes between the two test liquids were, respectively, 0.03 mV and 0.027 mV, or about 3.7% of the measured signal amplitudes. Fig. 6 shows the sensor was able to measure the concentration of hypochlorite solution diluted in water at varying concentrations; the sensors were immersed in the test solution for thirty minutes and then measured. The sensor responded linearly to bleach concentration, with a high/low hysteresis of less than 10%.

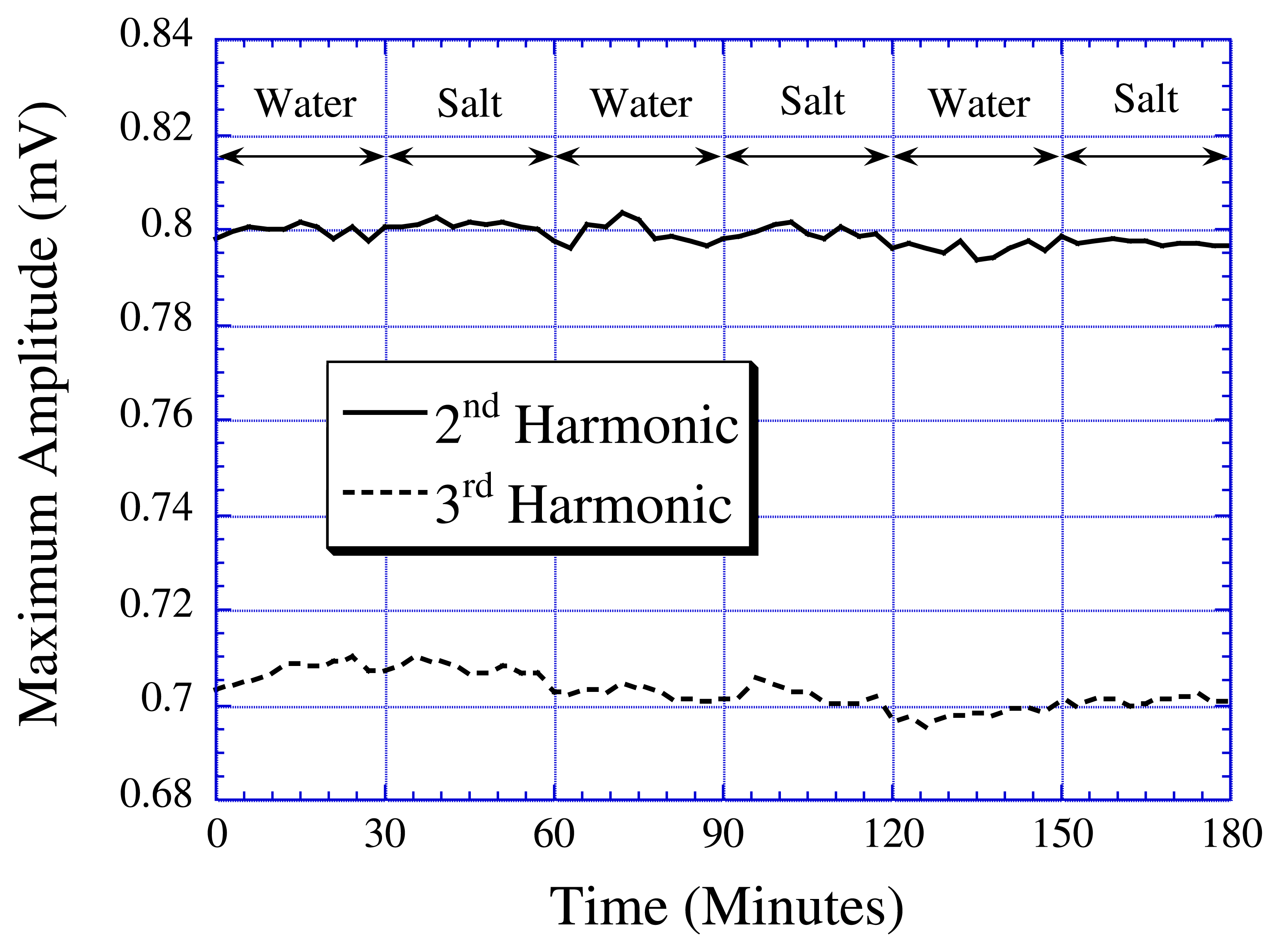

Fig. 7 shows the response of the 2826MB sensor when cycled between deionized water and water containing salt (sodium chloride 5.2 g/l). As shown in the plot, the sensor is insensitive to chloride ions.

Eq. (4) indicates that the stress-response of the sensor is proportional to the magnetostriction of the sensor material λ_s. Hence, the sensitivity of the sensor should increase with λ_s of the sensor material. Fig. 8 plots the response when a sensor made of Metglas 2714a (Co₆₅Fe₄Ni₂Si₁₅B₁₄, see Table 1 for its magnetic properties) was cycled between deionized water and the sodium hypochlorite solution. Since Metglas 2714a has a magnetostriction of less than 1 ppm, in contrast to Metglas 2826MB with magnetostriction of 12 ppm, it is insensitive to chlorine as indicated in the plot.

Conclusions

A wireless sensor useful for monitoring sodium hypochlorite concentrations has been presented. The sensor is a magnetically soft ribbon that supports higher-order harmonics the characteristics of which change with stress. The sensor is coated with a layer of polyurethane and alumina, the bleach dependent swelling of which induces stress in the sensor changing the amplitudes of the higher order harmonics. The sensor is interrogated through an excitation coil that generates a fixed-frequency ac field mixed with a dc field of varying amplitude. The harmonic response of the sensor as a function of dc biasing field is captured with a figure-8 detection coil, and the peak of each harmonic is determined for tracking bleach concentration. A theoretical model is presented to explain how the absorption of hypochlorite ions by the alumina coating creates stresses on the sensor affecting the higher-order harmonic response. Experimental results show the harmonic sensor is sensitive to sodium hypochlorite, a corrosive chemical, but does not respond to salt water containing sodium chloride. We have also shown a magnetically soft ribbon with large magnetostriction is needed for high sensitivity.

The sensor is remotely detected, so it can operate inside a confined place, such as a PVC or concrete sewer pipe, without any electrical connections. The sensor is passive; hence there are no battery lifetime issues. It should be noted that although the sensor can be operated in the vicinity of magnetic objects, its accuracy will be reduced due to interference from the stray magnetic fields.
