Surface Morphology and Sensing Property of NiO-WO3 Thin Films Prepared by Thermal Evaporation

by
Dong-myong Na
1,
L. Satyanarayana
2,
Gwang-Pyo Choi
3,
Yong-Jin Shin
4 and
Jin Seong Park
1,*
1
Department of Advanced Materials and Engineering, Chosun University, Gwangju 501-759, Korea.
2
Research Institute of Energy Resources Technology, Chosun University, Gwangju 501-759, Korea.
3
JAMIC, Sunchun, Jeonnam 540-856, Korea
4
Department of Physics, Chosun University, Gwangju 501-759, Korea
*
Author to whom correspondence should be addressed.
Sensors 2005, 5(12), 519-528; https://doi.org/10.3390/s5120519
Submission received: 18 November 2005 / Accepted: 30 November 2005 / Published: 1 December 2005

Abstract

:
WO3 and NiO-WO3 thin films of various thicknesses were deposited on an Al2O3-Si (alumina-silicon) substrate using high vacuum thermal evaporation. After annealing at 500°C for 30 minutes in air, the crystallanity and surface morphology of WO3 and NiO-WO3 thin films were investigated using X-ray diffraction (XRD) and Scanning Electron Microscopy (SEM). It is observed that the WO3 thin films were resulted in cracks between the polycrystalline grains and the grain growth was increased with increasing thickness causing deteriorated sensing characteristics of the films. On the other hand, an optimum deposition of NiO on WO3 thin film has inhibited the grain growth and improved the sensitivity of the films. The inhibition is limited to a certain thickness of WO3 and NiO content (mol %) of inclusion and below or above this limitation the grain growth could not be suppressed. Moreover, the deposition sequence of NiO and WO3 is also playing a significant role in controlling the grain growth. A probable mechanism for the control of grain growth and improving the sensing property has been discussed.

1. Introduction

Metal oxide thin films have become the focus of many studies in recent years in view of their electrical properties, stability at high temperature and durability. Many researchers have studied metal oxide thin films as electronic materials due to their structural simplicity and low cost [1]. However, in order to improve such devices the surface defects and the characteristics of thin films prevailing in film fabrication processes need to be carefully understood.
WO3 as a wide band gap n-type semiconductor was considered to be the best candidate in its thin film form and attracted much interest as conductance type gas sensor especially to detect H2S, NOx, and organophospate compounds [2, 3]. The sensitivity of the WO3 thin films is known to be improved by the accurate control of film microstructure and stoichiometry [4-7]. WO3 thin films used as sensing materials are typically amorphous or polycrystalline, and are usually treated by post deposited annealing [8]. The effect of annealing causes stoichiometry or microstructural changes that typically lead to a decrease in film conductivity [9]. In our earlier studies we have reported the microstructure control and electrical properties of thick film WO3 as a function of NiO doping, partial pressure of oxygen and concentration of NO2 [10]. In this paper, we report the surface characteristics of WO3 and NiO-WO3 thin films deposited by thermal evaporation and their growing mechanism as a function of amount of NiO (mol%) and WO3 thin film thickness in order to control the surface morphology and microstructure and to improve the sensing property.

2. Experimental

WO3 and NiO-WO3 thin films were deposited on an n-type silicon (100) single crystal substrate by high vacuum thermal evaporation. Al2O3 was deposited about 200nm thickness as an insulation layer between the substrate and WO3 films by electron-beam evaporator. During deposition, 3 sccm of oxygen flow rate at 7.23 KW of E-beam power and 70 mA of electric current was maintained. And a base pressure of 2.3×10-5 Torr and working pressure of 1.7×10-4 Torr was applied. The voltages of WO3 and NiO were maintained at 3.0 V and 4.5 V and the chamber vacuum was 5×10-5 Torr. WO3 (Aldrich, 99.99%) and NiO (Kanto chemical, 99.99%) powders were used as deposition materials. To measure the sensing property, two Au electrodes were designed 1mm apart from each other and were printed on Al2O3/Si-substrate by screen printing method.
Fig. 1 illustrates the deposition scheme of WO3 and NiO-WO3 thin films. Different weights of WO3 powders (0.25, 0.5, 0.75 and 1.0g) were deposited onto the Al2O3-Si substrates and consequently obtained respective 100, 120, 150 and 200nm thickness WO3 films. Initially, a fixed amount of NiO (0.0009g or 0.33mol%) was deposited onto the different thickness WO3 thin films. Further, various mol% of NiO was deposited on a fixed 0.75 g or 150nm thickness WO3 film. Finally, the sequence of deposition process of WO3 and NiO was altered and studied based on the surface morphology of the thin films. Following the deposition, all the films were annealed at 500°C for 30 minutes in air in order to improve the layer crystallanity.
The crystallanity and crystal structure of the films was analyzed by X-ray diffraction (Rigaku, D/Max-3C, CuK=1.5405Å) and the microstructure of the films was investigated by Scanning electron microscopy (FE-SEM- Hitachi S-4700).

3. Results and discussion

Fig. 2 (a) and (b) shows the X-ray diffraction pattern of various thickness deposited WO3 thin films before and after heat treatment at 500°C for 30minuts in air. Regardless of thickness, the as-deposited WO3 thin films were existed in an amorphous phase and no other peaks except a Si(100) peak at 33° (2θ) and a broad peak between 20-30° (2θ) were observed. After annealing, WO3 phase was grown into polycrystalline with increasing intensity, indicating a major peak (200) and other minor peaks in various directions. The obtained XRD peaks were in accordance with JCPDS data card No.83-0951 of WO3. Similar results of XRD were obtained when different mol% of NiO was deposited onto the WO3 films. It was difficult to distinguish NiO-WO3 thin film structure except the (002) peak tended stronger. The NiO phase was not detected by XRD since the amount of NiO is less and below the detection limit of the instrument.
Fig. 3 shows the variation of XRD peak intensities as a function of thickness for pure WO3 films after annealing. The major peak intensities were almost equal up to 150 nm WO3 thickness, however, between 150-200 nm thickness the intensities of (220), (200) and (002) peaks were steeply increased. Similar effect was observed after NiO addition also.
Fig. 4 shows the variation of peaks intensity as a function of NiO addition (mol%) on 150nm WO3 film. Though there was no major change observed in peak intensities up to 2 mol% NiO addition, the intensity of (002) major peak was steeply increased with above 2 mol% of NiO addition, remaining the intensities of other peaks unchanged. The sudden increase in the peak intensity indicates a change in microstructure and film properties. The change in relative intensity was calculated as the ratio of the particular peak intensity to the sum of all intensities of the film according to equation (1).
I T = I hkl / Σ I hkl
Fig. 5 shows the SEM micrographs of surface morphology and cross section of WO3 thin films deposited for (a) 100 (b) 120 (c) 150 and (d) 200 nm thickness after annealing. The surface morphology is generally similar except with increased thickness. The average grain size of these films is about 0.5 μm. However, large polycrystalline grains were formed by the necking or merging of small grains during the annealing process. The cracks between the large grains could be formed as the small grains became closer and agglomerated at the annealing temperature, and got shrinkage while undergoing the cooling process. Large grains or crack gaps cause to decrease the surface area and connectivity of films and to deteriorate film properties of electronic materials. It can be observed that crack gaps were increased with increasing film thickness.
The grain growth was effectively inhibited by depositing NiO on WO3 thin film surfaces. Fig. 6 (a-d) shows the surface morphology after a fixed amount of NiO (0.0009g, equivalent to 1.0, 0.75, 0.5 and 0.25 mol%) was deposited onto the respective films of 100, 120, 150 and 200nm (0.25, 0.5, 0.75, 1.0g weight) WO3 films. NiO deposition was found to be inhibited the grain growth in only 100 and 120 nm films (a, b), but not in 150 and 200nm WO3 films (c, d) as observed in the figure. Moreover, the crack gap was increased with WO3 thickness above 120nm. It means that 1.0-0.75mol% NiO addition could effectively able to control the surface cracks of 100-120nm thickness WO3 films, and below or above this critical range of NiO and WO3 thickness, surface cracks were not inhibited as seen in Figs. 6 (c) and (d). Thus, this is one limitation of inhibition of grain growth in NiO deposited WO3 thin films.
Similarly, by fixing WO3 thickness, NiO content was varied. 1-3 mol% of NiO was deposited on 150nm WO3 thin films and observed SEM surface morphologies as in Fig. 7 (a-c). It is observed that 1-2 mol% NiO added films contain small and uniform grain size (Fig. a, b) but 3 mol% NiO added surface (Fig. c) depicts indistinct large grains. This is because, 1-2 mol% NiO is forming small island like structures penetrating the inter-granules of WO3 and suppress the formation of large grains. But in case of 3mol%, NiO is becoming excess and forming like a thin continuous layer over WO3 surface and could not penetrate into the inter-granules of WO3.
It can be deduced from the above two results that, the grain growth was not inhibited in 150nm thickness WO3 films if the content of NiO is less than 0.75 mol% and more than 2 mol% as seen in Figs. 6 (c) and Fig. 7 (c). It can only be controlled if the addition of NiO is between 1-2 mol% as shown in Fig. 7(a) and (b). Hence, the inhibition is limited to a certain thickness of WO3 (100-150 nm) and NiO content (0.75-2 mol%) of inclusion, and below or above this limitation the cracks could not be suppressed. This inference is in quite coincidence with the XRD peak intensity patterns observed in Fig.3 and Fig.4.
Further, the deposition sequence of NiO on WO3 is also having an effect on the surface properties as shown in Fig. 8. The deposition of NiO beneath WO3 film (Fig.8a) could not inhibit any grain growth. Whereas NiO deposition on both sides of the WO3 film (Fig.8b) could control the cracks to some extent by forming island like structures on WO3 surface as observed from the figure. Hence, it can be implied that an optimum NiO deposition above WO3 film is only the most effective process to suppress the grain growth of WO3 films.
The mechanism involved in inhibition of grain growths by deposition of NiO on the WO3 thin film surface is illustrated in Fig. 9. During normal course of annealing large grains will be forming on WO3 surface due to material diffusion and merging effects. However, less amount of NiO deposition can not control the grain growth as they are widely dispersed and insufficient on WO3 surface (Fig. a). Similarly, excess amount of NiO leads to the formation of a thin continuous layer over WO3 surface leaving them uncontrolled underneath (Fig. c). But an optimum amount of NiO in proportion to the WO3 film thickness could only suppress the grain growth by interfering into the inter-granules with sufficient NiO-WO3 correlation (Fig. b).
WO3 thin films were found to be one of the best candidates to detect NOx gas. However, the sensitivity to NOx gas was comparatively not so high. Fig. 10 shows the change in resistances with time when 5 ppm NO2 gas was passed onto the various surface of (a) pure WO3 (150nm) (b) NiO(1mol%):WO3 (150nm) (c) NiO(0.5mol%):WO3(150nm) and (d) NiO(3mol%):WO3(150nm) thin films. 150nm pure WO3 thin film was able to detect a change of 40×106ohms in resistance at 250°C operating temperature. Whereas NiO(1mol%) deposited WO3 thin film has shown a change more than that of one order of the pure WO3 film at the same NO2 concentration. This reflects the improvement in sensitivity of the 1 mol % NiO:WO3 thin film as NO2 sensor. On the other hand, the fast response and recovery characteristics of the sensor were also be observed from Fig. 10 (b).
Similarly, the change of resistance of the NO2 sensor when the NiO addition is less or more of the critical limit was depicted in Fig. 10 (c) and (d). In both the cases the sensing property was much deteriorated due to the surface defects as compared to that of Fig. 10 (b).

4. Conclusions

WO3 and NiO-WO3 thin films of various thickness and sequence were deposited on n-type Si(001) substrate by high vacuum thermal evaporation. Al2O3 was deposited on silicon as an insulation layer between substrate and thin film by e-beam evaporation. After annealing at 500°C for 30 minutes in air, the amorphous thin films were grown into large polycrystalline grains along with formation of cracks between them. An optimum deposition of NiO on WO3 thin films has inhibited the grain growth in the films. The inhibition is limited to a certain thickness of WO3 and NiO content (mol%) of inclusion and below or above this limitation the cracks were not suppressed. Similarly, when NiO is deposited beneath or both sides of WO3 surface it could not control the grain growth effectively, whereas when deposited above of the WO3 surface it could sufficiently control the grain growth. The suppression of the grain growth in the WO3 thin films has lead to the improved surface morphology and NOx sensing properties.

Acknowledgments

This work was supported by Korea Research Foundation Grant (KRF-2004-005-D00008).

References

  1. Papadopoulos, C.A.; Vlachos, D.S.; Avaritsiotis, J.N. Comparative study of various metal oxide based gas sensor architectures. Sensors and Actuators B 1996, 32, 61–69. [Google Scholar]
  2. Cantalini, C.; Pelino, M.; Sun, H. T.; Faccio, M.; Santucci, S.; Lozzi, L.; Passacantando, M. Cross-sensitivity and stability of NO2 sensors from WO3 films. Sensors and Actuators B 1996, 35–36, 112–118. [Google Scholar]
  3. Penza, M.; Tegliente, M.A.; Merenghi, L.; Gerardi, C.; Martucci, C.; Cassano, G. Tungston oxide (WO3) sputtered thin films for a NOx gas sensor. Sensors and Actuators B 1998, 50, 9–18. [Google Scholar]
  4. Antonik, M.D.; Schneider, J. E.; Wittman, E. L.; Snow, K.; Lad, R. J. Micro structural effects in WO3 gas sensing films. Thin Solid Films 1995, 256, 247–252. [Google Scholar]
  5. Sun, H.T.; Cantalini, C.; Lozzi, L.; Passacantando, M.; Santucci, S.; Pelino, M. Micro structural effect on NO2 sensitivity of WO3 thin film gas sensors. Part 1. Thin film devices, Sensors and Actuators. Thin Solid Films 1996, 287, 258–265. [Google Scholar]
  6. Manno, D.; Serra, A.; Di Giulio, M.; Micocci, G.; Tepore, A. Physical and structural characterization of tungsten oxide thin films for NO gas detection. Thin Solid Films 1998, 324, 44–51. [Google Scholar]
  7. Dwyer, D.J. Surface chemistry of gas sensors: H2S on WO3 films. Sensors and Actuators B 1991, 5, 155–159. [Google Scholar]
  8. Fruhberger, B.; Grunze, M.; Dwyer, D. J. Surface chemistry of H2S sensitive tungsten oxide films. Sensors and Actuators B 1996, 31, 167–174. [Google Scholar]
  9. Xu, Z.; Vetelino, J.F.; Lee, R.; Parker, D. C. Electrical properties of tungsten trioxide films. J. Vac. Sci. Techonol. A 1990, 8, 3634–3638. [Google Scholar]
  10. Noh, W. S.; Shin, Y.; Kim, J.; Lee, W. S.; Hong, K.; Akbar, S. A.; Park, J. S. Effects of NiO addition in WO3-based gas sensors prepared by thick film process. Solid State Ionics 2002, 152–153, 827–832. [Google Scholar]

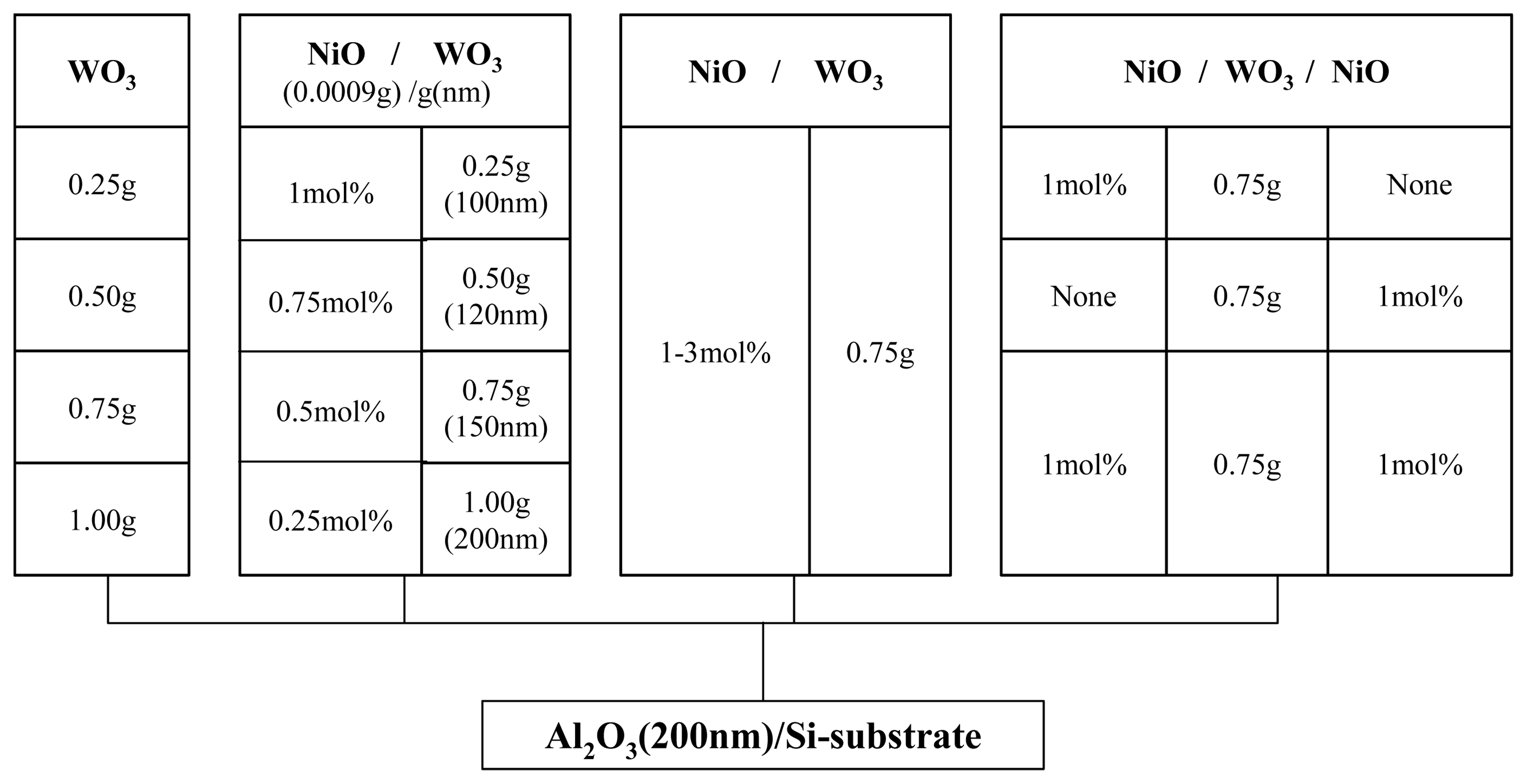

Figure 1. Specimen preparation processes of WO3 and NiO-WO3 thin films.
Figure 1. Specimen preparation processes of WO3 and NiO-WO3 thin films.
Sensors 05 00519f1

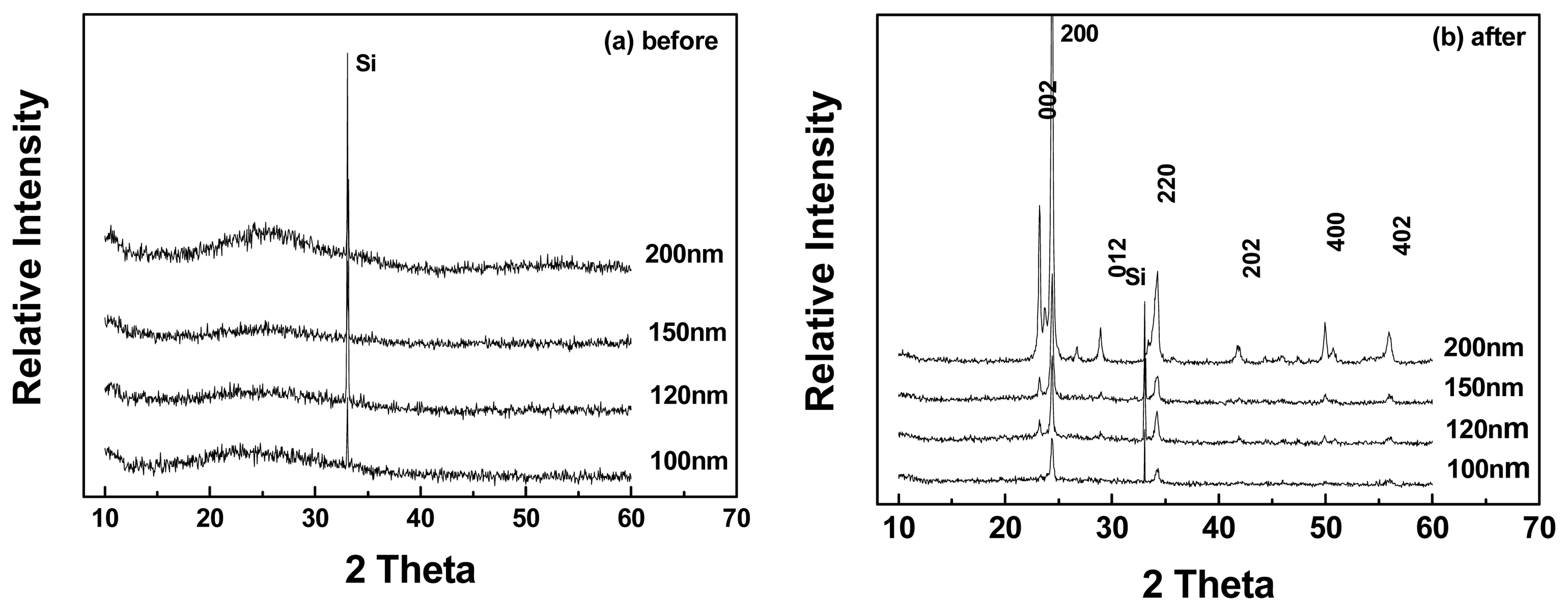

Figure 2. XRD patterns of WO3 films (a) before and (b) after annealing at 500°C for 30 minutes.
Figure 2. XRD patterns of WO3 films (a) before and (b) after annealing at 500°C for 30 minutes.
Sensors 05 00519f2

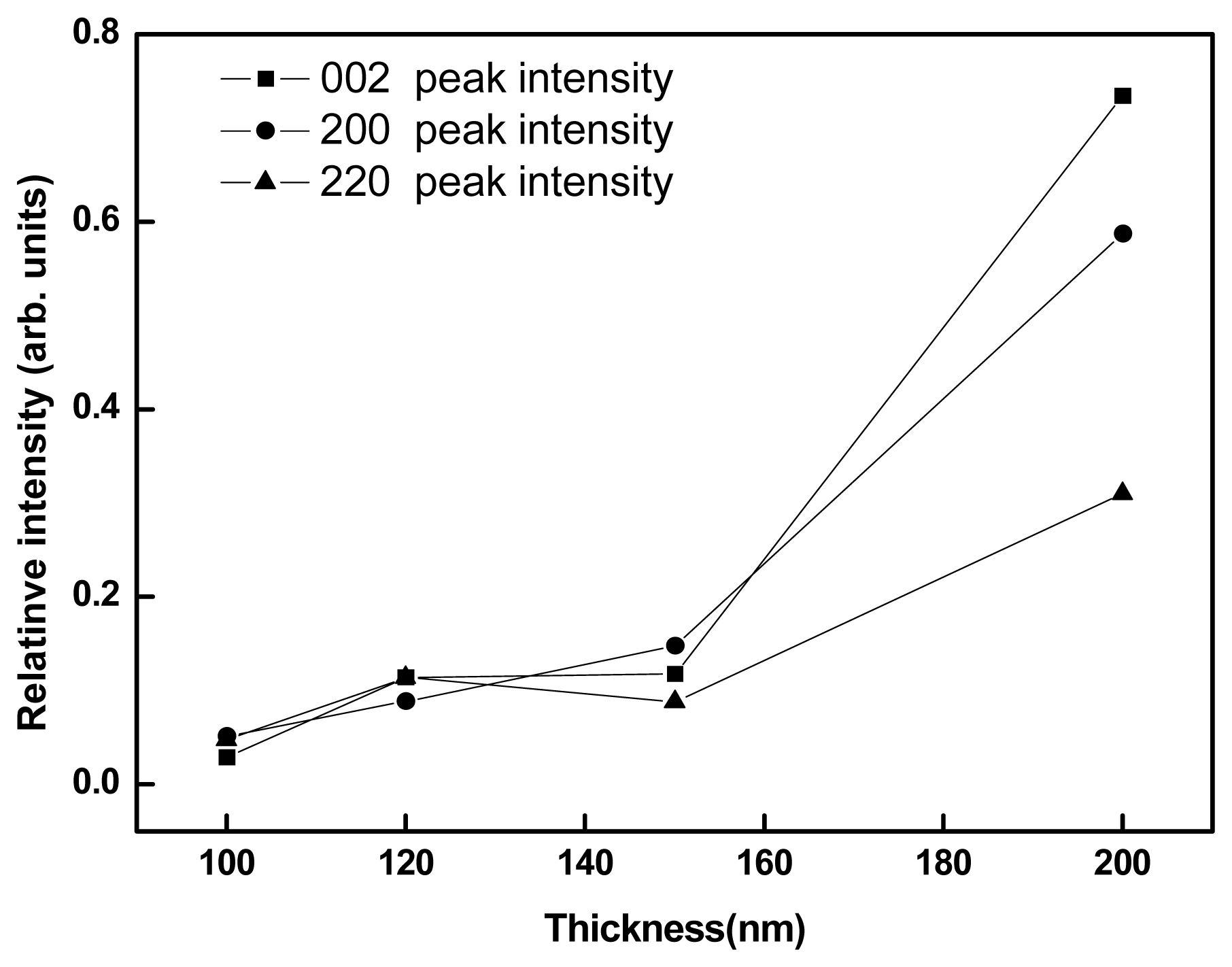

Figure 3. Variation of XRD peak intensities as a function of WO3 film thickness.
Figure 3. Variation of XRD peak intensities as a function of WO3 film thickness.
Sensors 05 00519f3

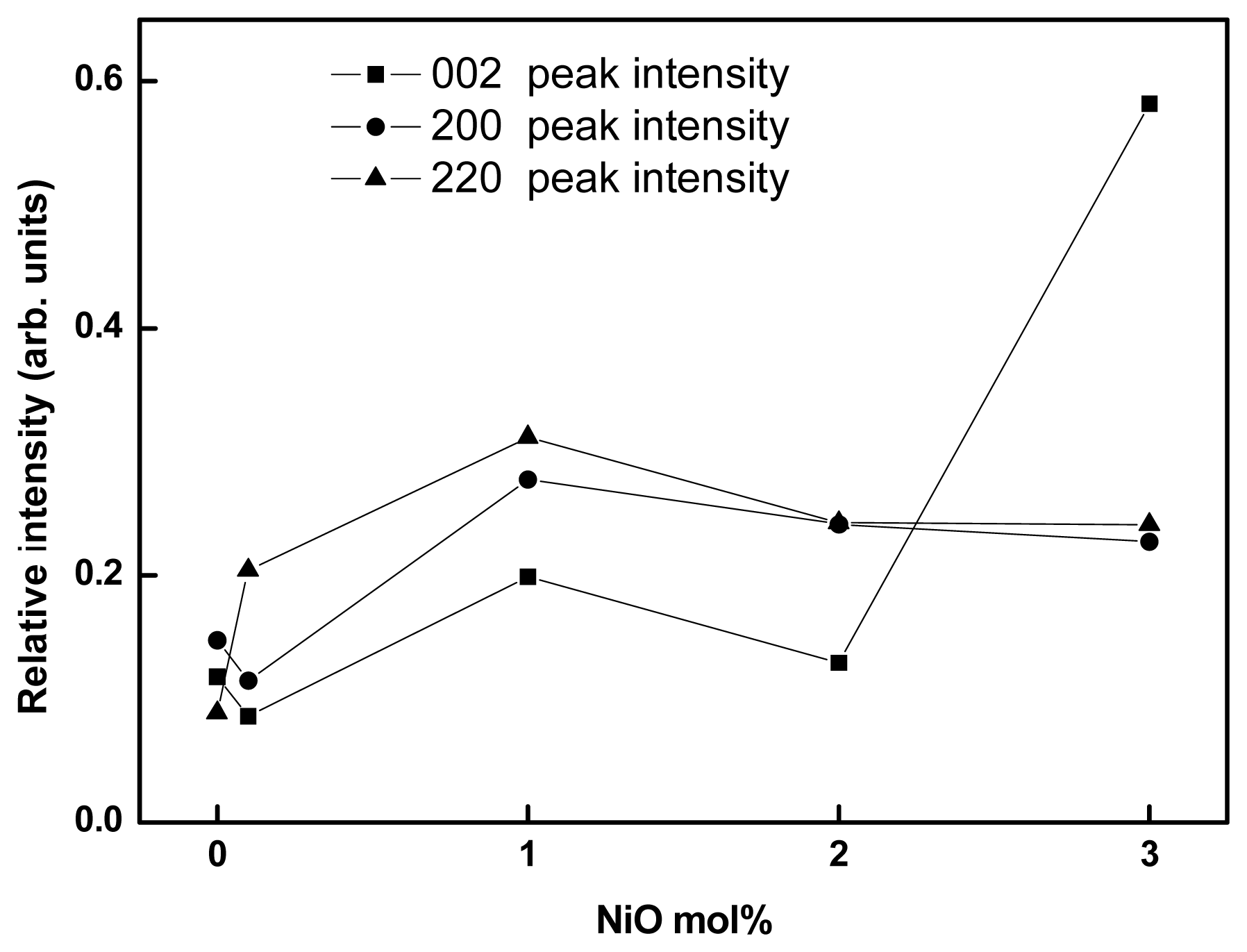

Figure 4. XRD peak intensity variation as a function of NiO content (mol%) on 150nm WO3 thin film.
Figure 4. XRD peak intensity variation as a function of NiO content (mol%) on 150nm WO3 thin film.
Sensors 05 00519f4
Figure 5. SEM micrographs of surface morphology and cross section of WO3 thin films. (a) 100 (b) 120 (c) 150 (d) 200nm thicknesses after annealing.
Figure 5. SEM micrographs of surface morphology and cross section of WO3 thin films. (a) 100 (b) 120 (c) 150 (d) 200nm thicknesses after annealing.
Sensors 05 00519f5
Figure 6. SEM micrographs of NiO:WO3 surfaces of (a) 100nmWO3:1mol%NiO (b) 120nmWO3: 0.75mol%NiO (c) 150nmWO3:0.5mol%NiO (d) 200nmWO3:0.25mol%NiO films.
Figure 6. SEM micrographs of NiO:WO3 surfaces of (a) 100nmWO3:1mol%NiO (b) 120nmWO3: 0.75mol%NiO (c) 150nmWO3:0.5mol%NiO (d) 200nmWO3:0.25mol%NiO films.
Sensors 05 00519f6
Figure 7. SEM micrographs of 150nm WO3 films after deposition of (a) 1 (b) 2 (c) 3 mol% NiO.
Figure 7. SEM micrographs of 150nm WO3 films after deposition of (a) 1 (b) 2 (c) 3 mol% NiO.
Sensors 05 00519f7
Figure 8. SEM micrographs showing deposition sequence of NiO:150nm WO3 films. (a) NiO beneath WO3, (b) NiO on both sides of WO3.
Figure 8. SEM micrographs showing deposition sequence of NiO:150nm WO3 films. (a) NiO beneath WO3, (b) NiO on both sides of WO3.
Sensors 05 00519f8

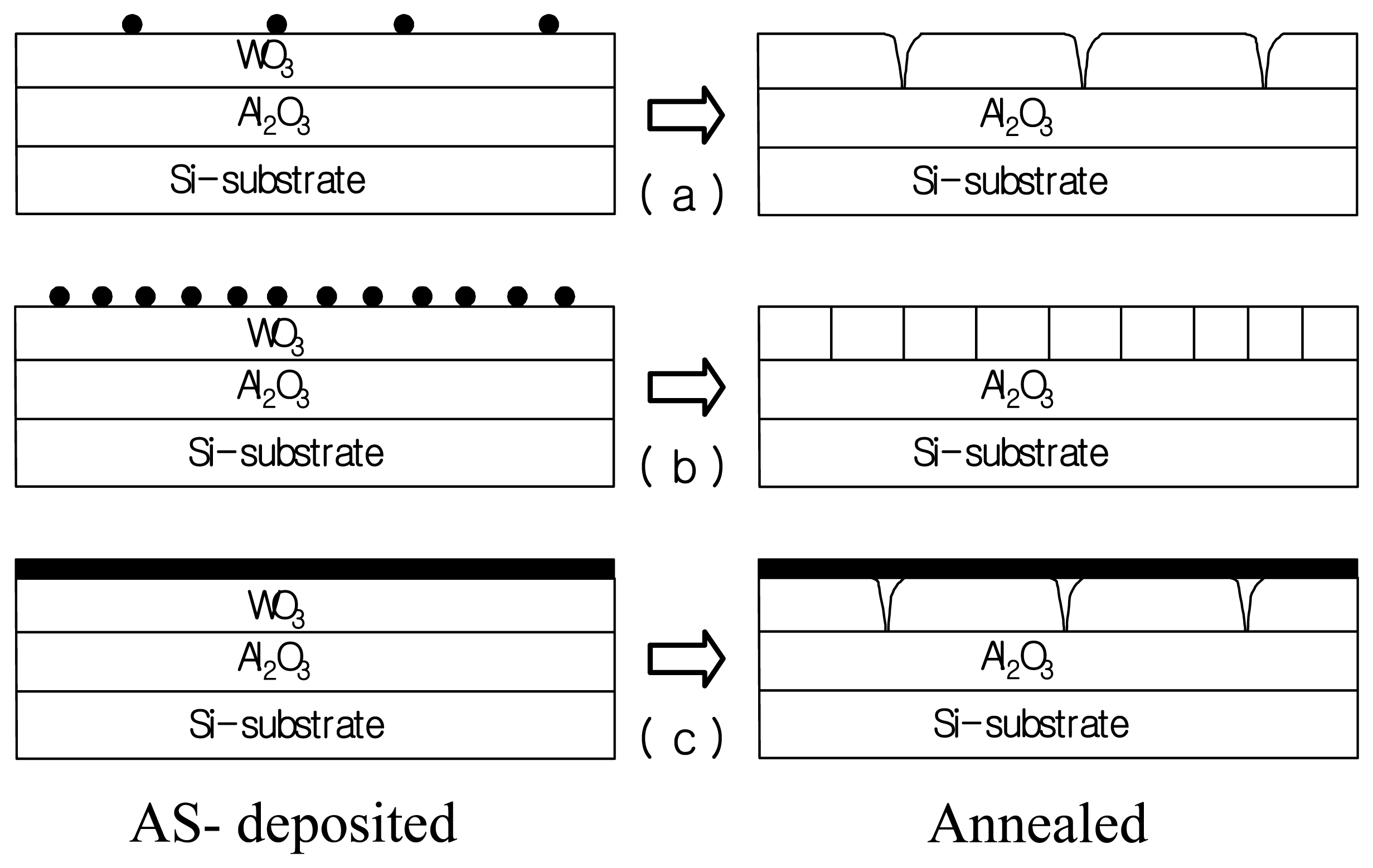

Figure 9. Mechanism of the crack formation and suppression in NiO deposited WO3 films with (a) less (b) optimum (c) excess of NiO. Black dots and layers represent NiO.
Figure 9. Mechanism of the crack formation and suppression in NiO deposited WO3 films with (a) less (b) optimum (c) excess of NiO. Black dots and layers represent NiO.
Sensors 05 00519f9

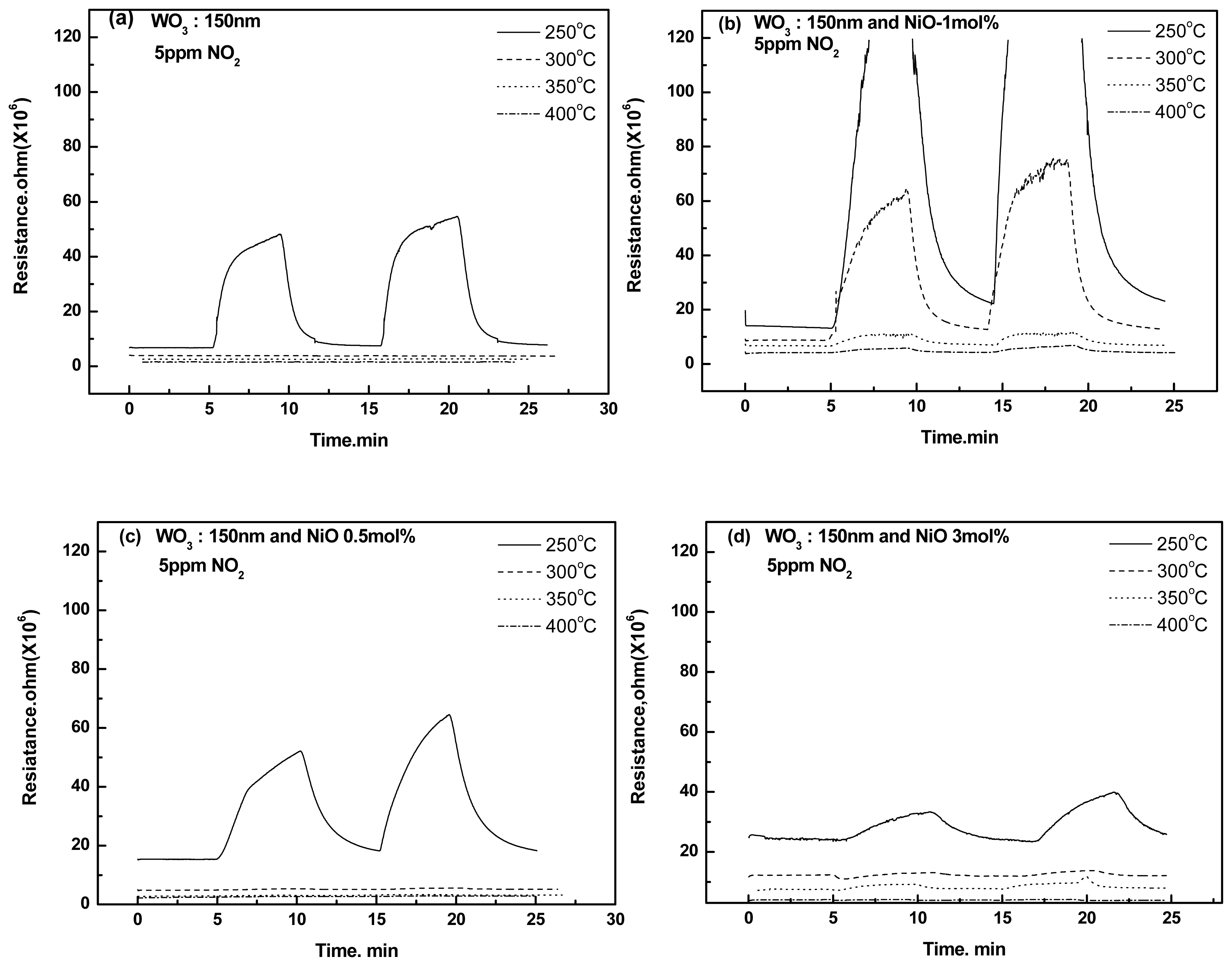

Figure 10. Change of resistance to 5 ppm NO2 gas with time. (a) 150nm pure WO3. (b) NiO(1mol%):WO3(150nm) (c) NiO (0.5mol%):WO3(150nm) (d) NiO(3mol%):WO3(150nm) thin film.
Figure 10. Change of resistance to 5 ppm NO2 gas with time. (a) 150nm pure WO3. (b) NiO(1mol%):WO3(150nm) (c) NiO (0.5mol%):WO3(150nm) (d) NiO(3mol%):WO3(150nm) thin film.
Sensors 05 00519f10
