Eliminating the Interference of Oxygen for Sensing Hydrogen Peroxide with the Polyaniline Modified Electrode

Department of Chemical and Materials Engineering, Tunghai University, Taichung 40704, Taiwan
*
Author to whom correspondence should be addressed.
Sensors 2008, 8(12), 8237-8247; https://doi.org/10.3390/s8128237
Submission received: 19 October 2008 / Revised: 24 November 2008 / Accepted: 10 December 2008 / Published: 12 December 2008
(This article belongs to the Section Chemical Sensors)

Abstract

:
Polyaniline (PANI) has been shown to possess excellent catalytic activity toward oxygen reduction, however, this molecule may interfere with the electrochemical measurement of other targets when using a polyaniline modified platinum (PANI/Pt) electrode. In this study, we have demonstrated the considerable effects of dissolved oxygen on the sensing of hydrogen peroxide with the PANI/Pt electrode. Accordingly, we proposed a strategy to eliminate the influence of dissolved oxygen with oxygen scavengers. Our results indicated that as an oxygen scavenger sodium thiosulfate was very effective in the removal of dissolved oxygen from the sample solution, and had negligible effect on the quantification of hydrogen peroxide when its applied concentration was below 1 mM.

1. Introduction

Polyaniline (PANI) has received considerable attention in biosensor fabrication because of its comparative conductivity, unique optical quality, and thermal stability [1-6]. The synthetic porous PANI matrix provides a suitable microenvironment for the immobilization of biocomponents, including enzymes, DNA, antibodies, and cells [7-14]. PANI-based biosensors have been successfully applied in many fields, in particular, monitoring in biological fluids of compounds with clinical significance, such as urea [15, 16], uric acid [17, 18], hydrogen peroxide (H2O2) [19, 20], glucose [21, 22], cholesterol [17, 23] and choline [24]. Most biosensors rely upon the target being involved in oxidation-reduction reactions catalyzed by oxidases, such as uricase, glucose oxidase, cholesterol oxidase, and cholin oxidase, where H2O2 is a common co-product. Consequently, the quantification of H2O2 becomes an alternative strategy to measure these target molecules.
On the other hand, the reduction of oxygen by the conductive PANI film has also been well recognized and investigated intensively [25-29]. Although PANI as a catalyst for oxygen reduction has potential applications in battery and fuel-cell development [27, 30-32], oxygen reduction may bring about unexpected interference while electrochemically measuring the above mentioned biomolecules with a PANI modified electrode. For this reason, a routine measurement of H2O2 is normally carried out under an anaerobic environment, and the sample is diluted with a large volume of buffer solution that has been deoxygenated with pure N2[33]. However, it may be inconvenient for those containing lesser amounts of H2O2. The direct deoxygenation of sample solutions is also not a suitable solution due to the instability and volatility of H2O2. Consequently, the remaining oxygen may lead to overestimation of the final H2O2 concentration.
In order to establish a procedure that is able to eliminate the interference of oxygen on sensing H2O2, in this study, we investigated the electrochemical response of oxygen with the PANI modified Pt electrode. Our results demonstrated that both air-saturated and oxygen-saturated solution exhibited significant interference on sensing H2O2, but the dissolved oxygen could be effectively removed by the addition of oxygen scavengers, such as sodium thiosulfate and ascorbic acid. In addition, oxygen scavengers with various concentrations were examined and the recommended concentration was below 1 mM because of the negligible effects on the reduction of H2O2.

2. Experimental

2.1. Chemicals

Hydrogen peroxide (35%, v/v) and aniline monomer were obtained from Merck (KGaA Darmstadt, Germany). Sodium thiosulfate and ascorbic acid were purchased from Sigma-Aldrich (Saint Louis, MO, USA). All other reagents used for buffer and standard solution preparation were purchased from various commercial sources and were of analytical grade.

2.2. Electrochemical apparatus

A PC-controlled CHI621B electrochemical analyzer (CH Instruments, Austin, USA) was employed to run cyclic voltammetric experiments for electrode preparation and electrochemical measurement. All experiments were proformed in a miniature electrochemical cell using a modified Pt electrode (area: 0.28 cm2) as the working electrode, a platinum wire as the auxiliary electrode, and a Ag/AgCl 3M NaCl electrode as the reference electrode.

2.3. Preparation of electrodes

The PANI/Pt electrode was constructed as previously described [22]. On a ceramic plate (area: 2.00 cm2), platinum was sputtered with a shadow mask desired (area: 0.28 cm2) for 10 min on a sputter instrument (JFC-1200, JEOL, Japan). The Pt/ceramic electrode was washed with 3 M NaOH and 3 M HCl, rinsed with water, and finally dried under 50°C for one hour. A certain amount of aniline was then electropolymerized onto the Pt/ceramic base by immersing the working electrode in a solution containing 1 M HCl and 0.1 M aniline, whilst the potential was swept from 0.0 to 1.0 V for four cycles under ambient conditions. The PANI/Pt electrodes thus fashioned were then immersed in a phosphate-buffered saline solution PBS (pH 4.0) and reduced at -0.5 V for 20 min to remove any remaining chloride ions that were possibly embedded in the polymer matrix. It was then oxidized in the same PBS buffer at 0.6 V for 10 min. The surface morphologies of the electrodes were visualized by an ABT-150S Scanning Electron Microscopic (SEM, TOPCON Corp., Tokyo, Japan).

2.4. Electrochemical measurements

The oxidation and reduction of H2O2 on a Pt or PANI/Pt electrode were quantified with cyclic voltammetry in 0.1 M PBS buffer (pH 6.2). The buffer had undergone deoxygenation with highly pure nitrogen for 20 min before a certain amount of H2O2 was added. During the calibration, pure nitrogen gas was gentle purged on the surface of the sample solution to create an anaerobic atmosphere. To investigate the reduction of oxygen on a Pt or PANI/Pt electrodes, the solution was purged with pure oxygen for 30 minutes to reach the saturate concentration. The fresh prepared oxygen scavenger, sodium thiosulfate or ascorbic acid, was added into the solution before the electrochemical measurement.

3. Results and discussion

3.1. Oxidation and reduction on a Pt electrode

It is well known that platinum is able to catalyze the electrochemical oxidation of H2O2[34]. Within our selected potential range between -0.6 to 0.6 V, the addition of H2O2 gave rise to a near 0.6 V anodic response on the bare Pt electrode (Figure 1A), which resulted from the oxidation of H2O2vs. Ag/AgCl in 0.1 M phosphate buffer solution (pH 6.2), as shown in reaction (1):
H 2 O 2 P t O 2 + 2 H + + 2 e
Meanwhile, a major cathodic peak between 0.1 ∼ 0.2 V was observed, whereas the potential shift slightly towards negative with the increase of H2O2 concentration. Applied the same electrode to an oxygen-saturated solution with the same potential window, the cathodic peak near 0.2 V was also visible with similar peak shift, but not the reduction of H2O2 near 0.6 V (Figure 1B). Therefore, the cathodic response to H2O2 in Figure 1A was possibly associated with the further reduction of oxygen on the Pt electrode, in which one-step four electron pathway was proposed as reaction (2) [35]:
O 2 + 4 H + + 4 e P t 2 H 2 O
The potential shift in Figure 1A also indicated an increase in the local concentration of oxygen on the Pt electrode. Both anodic and cathodic responses at 0.6 V and between 0.1∼0.2 V in Figure 1A were strongly dependent on the H2O2 concentration. The inset of Figure 1A shows the linear correlation between the anodic peak current at 0.6 V and the concentration of H2O2 over the 0∼2.5 mM range (sensitivity: 79.11 μA mM-1·cm-2, R2 = 0.996). However, under our experimental conditions bubbles were observed on the surface of electrode when the H2O2 concentration was higher than 2.5 mM indicating the local concentration of oxygen had exceeded its saturation point.
By narrowing the potential window to -0.6 ∼ 0.4 V, the above redox responses to H2O2 near 0.2 and 0.6 V were reduced significantly (Figure 2A). The small cathodic peak near 0.2 V with high concentration of H2O2 was likely associated with the reduction of oxygen that was formed from the partial decomposition of H2O2 on the Pt electrode. Similar cathodic peak was also observed while sensing the oxygen-saturated solution with the potential window of -0.6∼0.4 V (Figure 2B). Accordingly, the potential window of -0.6∼0.4 V was employed for further investigation.

3.2. Oxidation and reduction of H2O2 on a PANI/Pt electrode

A PANI film was then electrochemically synthesized on the surface of Pt electrode to form a PANI/Pt electrode. As shown in Figure 3A (red line a), the modified electrode completely suppressed the hydrogen adsorption-desorption redoxs between -0.5 and -0.6 V that was seen in Figures 1 and 2, thereby the PANI film effectively minimizing the background influences from the Pt electrode. Alternatively, H2O2 was electrochemically reduced with a peak potential centered at -0.32 V (blue line b in Figure 3A) by the following reaction (3):
H 2 O 2 + 2 H + + 2 e PANI 2 H 2 O
The inset of Figure 3A shows the linear correlation between the cathodic peak current near -0.32 V and the concentration of H2O2 in the range of 0 ∼ 2.5 mM (sensitivity: 101.14 μA mM-1·cm-2, R2 = 0.999). The SEM image indicated the typical sponge-like PANI film (Figure 3B). Due to the significant surface area provided by the microstructure of PANI film, the major cathodic response was extremely sensitive to the concentration of H2O2. Therefore, the PANI modified Pt electrode provided better sensitivity and selectivity than a bare Pt electrode, and had potential applications for fabricating H2O2 involved biosensors.

3.3. The effect of oxygen on sensing H2O2

Considering the catalytic activity of PANI towards oxygen reduction [29], the electrochemical measurement of H2O2 with PANI/Pt electrode was normally performed under an anaerobic atmosphere with solution that had undergone a deoxygenation procedure. As depicted in Figure 4, a significant cathodic peak at -0.32 V was observed for 2.39 mM H2O2 in 0.1 M PBS solution (pH 6.2) without any deoxygenation procedure (blue curve a in Figure 4). Purging the solution with pure nitrogen gas for ten minutes before the addition of H2O2 decreased the maximum cathodic response by about 1.82-fold (green curve b in Figure 4). In contrast, purging with pure oxygen increased the maximum cathodic response by about 1.80-fold (black curve c in Figure 4). Therefore, the dissolved oxygen may lead to an overestimation of the concentration of H2O2 measured by PANI/Pt electrode. In particular, the observed peak potential for O2 reduction was almost identical to that of H2O2 reduction under our experimental condition. Accordingly, the reduction of oxygen might go through a two-step four electron pathway on the PANI film, where oxygen was reduced to H2O2 within the applied potential window followed by immediate reduction of H2O2 through reactions (4) and (3), respectively:
O 2 + 2 H + + 2 e PANI H 2 O 2

3.4. The effect of oxygen scavengers on sensing H2O2

Although purging with nitrogen is a common option to remove dissolved oxygen, it is not always convenient in practice due to the instability of H2O2, especially for those samples with relatively low H2O2 concentrations. To overcome this problem, we modified the common deoxygenation by adding oxygen scavengers, such as sodium thiosulfate (Na2S2O3) and ascorbic acid (C6H8O6). For samples that were oxygen-saturated by purging with oxygen for 30 minutes, both sodium thiosulfate and ascorbic acid were able to effectively decrease the cathodic peak that was corresponding to the dissolved oxygen on the PANI/Pt electrode as shown in Figures 5A and 5B.
Sodium thiosulfate and ascorbic acid can also function as mild reducing agents, which may quench H2O2 in an aqueous solution. For that reason, we investigated whether the reduction of H2O2 by an oxygen scavenger could directly compete against that catalyzed by PANI in a deoxygenated H2O2 solution. As shown in Figures 6A and 6B, when the concentration was below 1 mM, both sodium thiosulfate and ascorbic acid showed insignificant effects on the sensing of H2O2 with the PANI/Pt electrode. Furthermore, the addition of 5 mM ascorbic acid leaded more than 20% reduction of response to 2.39 mM H2O2, whereas 5 mM sodium thiosulfate caused the lose of less than 5% response. Therefore, the influence of ascorbic acid on the H2O2 measurement showed more concentration dependence than that of sodium thiosulfate. Nevertheless, the concentration of air-saturated oxygen at the ambient temperature and pressure is approximately 0.26 mM in a buffered solution [36-38], both oxygen scavengers with a concentration below 1mM are capable to completely deprive the air-saturated oxygen according to the stoichiometry of the reaction. Meanwhile, sodium thiosulfate will be more efficient because it has less concentration effect on sensing.

4. Conclusions

Polyaniline, a functional electro-conductive polymer, has been successfully applied in biosensor fabrication to eliminate the background interference, to enhance the electrochemical sensitivity, as well as to immobilize biomolecules and cells [14-24]. However, the interference from dissolved oxygen on sensing of H2O2 with a PANI modified platinum electrode was inevitable, because the electro-state of PANI might be altered by the oxygen reduction on the PANI film [29]. Although purging with nitrogen has been commonly utilized to eliminate the influence of oxygen when sensing H2O2[33], this is not always feasible in practice. In this study, we further demonstrated that the reduction of oxygen was well catalyzed by PANI film, which might overestimate the electrochemical response to H2O2. Two oxygen scavengers, such as sodium thiosulfate and ascorbic acid, were examined for their ability to effectively remove the dissolved oxygen. Although H2O2 has been reported to be directly reduced by both oxygen scavengers, our results demonstrated that the reductions were not comparable to the electrochemical reduction catalyzed by PANI film. As a result, both oxygen scavengers had no significant effect on sensing of H2O2 by the PANI/Pt electrode as long as their concentrations were below 1 mM. Moreover, sodium thiosulfate had a less concentration dependent than ascorbic acid while sensing H2O2, hence, was more suitable for practical applications.

Acknowledgments

This work was supported by grants from National Science Council of ROC NSC93-2214-E-029-006 to Y. Gu. We also like to thank Dr. Jing-Shan Do for his kind technical advice.

References

  1. Amano, K.; Ishikawa, H.; Kobayashi, A.; Satoh, M.; Hasegawa, E. Thermal-stability of chemically synthesized polyaniline. Synth. Met. 1994, 62, 229–232. [Google Scholar]
  2. Chandrakanthi, N.; Careem, M.A. Thermal stability of polyaniline. Polym. Bull. 2000, 44, 101–108. [Google Scholar]
  3. Dalas, E.; Sakkopoulos, S.; Vitoratos, E. Thermal degradation of the electrical conductivity in polyaniline and polypyrrole composites. Synth. Met. 2000, 114, 365–368. [Google Scholar]
  4. Pud, A.; Ogurtsov, N.; Korzhenko, A.; Shapoval, G. Some aspects of preparation methods and properties of polyaniline blends and composites with organic polymers. Prog. Polym. Sci. 2003, 28, 1701–1753. [Google Scholar]
  5. Rannou, P.; Nechtschein, M. Aging studies on polyaniline: Conductivity and thermal stability. Synth. Met. 1997, 84, 755–756. [Google Scholar]
  6. Piletsky, S.A.; Panasyuk, T.L.; Piletskaya, E.V.; Sergeeva, T.A.; El'skaya, A.V.; Pringsheim, E.; Wolfbeis, O.S. Polyaniline-coated microtiter plates for use in longwave optical bioassays. Fresen J Anal Chem 2000, 366, 807–810. [Google Scholar]
  7. Parente, A.H.; Marques, E.T.A.; Azevedo, W.M.; Diniz, F.B.; Melo, E.H.M.; Filho, J.L.L. Glucose biosensor using glucose-oxidase immobilized in polyaniline. Appl. Biochem. Biotechnol. 1992, 37, 267–273. [Google Scholar]
  8. Karyakina, E.E.; Neftyakova, L.V.; Karyakin, A.A. A novel potentiometric glucose biosensor based on polyaniline semiconductor-films. Anal. Lett. 1994, 27, 2871–2882. [Google Scholar]
  9. Wu, J.; Zou, Y.H.; Li, X.L.; Liu, H.B.; Shen, G.L.; Yu, R.Q. A biosensor monitoring DNA hybridization based on polyaniline intercalated graphite oxide nanocomposite. Sens. Actuator B-Chem. 2005, 104, 43–49. [Google Scholar]
  10. Chang, H.X.; Yuan, Y.; Shi, N.L.; Guan, Y.F. Electrochemical DNA biosensor based on conducting polyaniline nanotube array. Anal. Chem. 2007, 79, 5111–5115. [Google Scholar]
  11. Grennan, K.; Killard, A.J.; Hanson, C.J.; Cafolla, A.A.; Smyth, M.R. Optimisation and characterisation of biosensors based on polyaniline. Talanta 2006, 68, 1591–1600. [Google Scholar]
  12. Sai, V.V.R.; Mahajan, S.; Contractor, A.Q.; Mukherji, S. Immobilization of antibodies on polyaniline films and its application in a piezoelectric immunosensor. Anal. Chem. 2006, 78, 8368–8373. [Google Scholar]
  13. Ahuja, T.; Mir, I.A.; Rajesh, D.K. Biomolecular immobilization on conducting polymers for biosensing applications. Biomaterials 2007, 28, 791–805. [Google Scholar]
  14. Langer, K.; Barczynski, P.; Baksalary, K.; Filipiak, M.; Golczak, S.; Langer, J.J. A fast and sensitive continuous flow nanobiodetector based on polyaniline nanofibrils. Microchim Acta 2007, 159, 201–206. [Google Scholar]
  15. Cho, W. J.; Huang, H. J. An amperometric urea biosensor based on a polyaniline-perfluorosulfonated ionomer composite electrode. Anal. Chem. 1998, 70, 3946–3951. [Google Scholar]
  16. Luo, Y.C.; Do, J.S. Urea biosensor based on PANi(urease)-Nation (R)/Au composite electrode. Biosens. Bioelectron. 2004, 20, 15–23. [Google Scholar]
  17. Arora, K.; Sumana, G.; Saxena, V.; Gupta, R.K.; Gupta, S.K.; Yakhmi, J.V.; Pandey, M.K.; Chand, S.; Malhotra, B.D. Improved performance of polyaniline-uricase biosensor. Anal. Chim. Acta 2007, 594, 17–23. [Google Scholar]
  18. Castillo-Ortega, M.M.; Rodriguez, D.E.; Encinas, J.C.; Plascencia, M.; Mendez-Velarde, F.A.; Olayo, R. Conductometric uric acid and urea biosensor prepared from electroconductive polyaniline-poly(n-butyl methacrylate) composites. Sens. Actuator B-Chem. 2002, 85, 19–25. [Google Scholar]
  19. Yang, Y.F.; Mu, S.L. Determination of hydrogen peroxide using amperometric sensor of polyaniline doped with ferrocenesulfonic acid. Biosens. Bioelectron. 2005, 21, 74–78. [Google Scholar]
  20. Mathebe, N.G.R.; Morrin, A.; Iwuoha, E.I. Electrochemistry and scanning electron microscopy of polyaniline/peroxidase-based biosensor. Talanta 2004, 64, 115–120. [Google Scholar]
  21. Xian, Y.Z.; Hu, Y.; Liu, F.; Xian, Y.; Wang, H.T.; Jin, L.T. Glucose biosensor based on Au nanoparticles-conductive polyaniline nanocomposite. Biosens. Bioelectron. 2006, 21, 1996–2000. [Google Scholar]
  22. Chen, C.; Gu, Y. Enhancing the sensitivity and stability of HRP/PANI/Pt electrode by implanted bovine serum albumin. Biosens. Bioelectron. 2008, 23, 765–770. [Google Scholar]
  23. Singh, S.; Solanki, P.R.; Pandey, M.K.; Malhotra, B.D. Cholesterol biosensor based on cholesterol esterase, cholesterol oxidase and peroxidase immobilized onto conducting polyaniline films. Sens. Actuator B-Chem. 2006, 115, 534–541. [Google Scholar]
  24. Rahman, A.; Park, D.S.; Shim, Y.B. A performance comparison of choline biosensors: anodic or cathodic detections of H2O2 generated by enzyme immobilized on a conducting polymer. Biosens. Bioelectron. 2004, 19, 1565–1571. [Google Scholar]
  25. Cui, C.Q.; Lee, J.Y. Effect of Polyaniline on Oxygen Reduction in Buffered Neutral Solution. J. Electroanal. Chem. 1994, 367, 205–212. [Google Scholar]
  26. Barsukov, V.Z.; Khomenka, V.G.; Katashinskii, A.S.; Motronyuk, T.I. Catalytic activity of polyaniline in the molecular oxygen reduction: Its nature and mechanism. Russ. J. Electrochem. 2004, 40, 1170–1173. [Google Scholar]
  27. Kitani, A.; Yokoo, A.; Ito, S. Reduction of oxygen at polyaniline electrodes modified with platinum and iron. Electrochemistry 2007, 75, 182–183. [Google Scholar]
  28. Lai, E.K.W.; Beattie, P.D.; Holdcroft, S. Electrocatalytic reduction of oxygen by platinum microparticles deposited on polyaniline films. Synth. Met. 1997, 84, 87–88. [Google Scholar]
  29. Khomenko, V.G.; Barsukov, V.Z.; Katashinskii, A.S. The catalytic activity of conducting polymers toward oxygen reduction. Electrochim. Acta 2005, 50, 1675–1683. [Google Scholar]
  30. Alonso-Vante, N.; Cattarin, S.; Musiani, M. Electrocatalysis of O2 reduction at polyaniline plus molybdenum-doped ruthenium selenide composite electrodes. J. Electroanal. Chem. 2000, 481, 200–207. [Google Scholar]
  31. Wu, A.; Venancio, E.C.; MacDiarmid, A.G. Polyaniline and polypyrrole oxygen reversible electrodes. Synth. Met. 2007, 157, 303–310. [Google Scholar]
  32. Doubova, L.; Mengoli, G.; Musiani, M.M.; Valcher, S. Polyaniline as a cathode for O2 reduction-kinetics of the reaction with H2O2 and use of the polymer in a model H2O2 fuel-cell. Electrochim. Acta 1989, 34, 337–343. [Google Scholar]
  33. Tang, D.Y.; Xia, B. Y.; Zhang, Y.Q. Direct electrochemistry and electrocatalysis of hemoglobin in a multilayer {nanogold/PDDA} (n) inorganic-organic hybrid film. Microchim Acta 2008, 160, 367–374. [Google Scholar]
  34. Hall, S.B.; Khudaish, E.A.; Hart, A.L. Electrochemical oxidation of hydrogen peroxide at platinum electrodes. Part II: effect of potential. Electrochim. Acta 1998, 43, 2015–2024. [Google Scholar]
  35. Fischer, P.; Heitbaum, J. Mechanistic aspects of cathodic oxygen reduction. J. Electroanal. Chem. 1980, 112, 231–238. [Google Scholar]
  36. Zhu, X.L.; Zhang, W.J.; Xiao, H.; Huang, J.Y.; Li, G.X. Electrochemical study of a hemin-DNA complex and its activity as a ligand binder. Electrochim. Acta 2008, 53, 4407–4413. [Google Scholar]
  37. Shumakovich, G.P.; Shleev, S.V.; Morozova, O.V.; Gonchar, M.V.; Yaropolov, A.I. Oxygen can be replaced by artificial electron acceptors in reactions catalyzed by alcohol oxidase. Appl. Biochem. Microbiol. 2007, 43, 15–20. [Google Scholar]
  38. Pajares, A.; Gianotti, J.; Stettler, G.; Bertolotti, S.; Criado, S.; Posadaz, A.; Amat-Guerri, F.; Garcia, N.A. Modelling the natural photodegradation of water contaminants - A kinetic study on the light-induced aerobic interactions between riboflavin and 4-hydroxypyridine. J. Photochem. Photobiol. A-Chem. 2001, 139, 199–204. [Google Scholar]
Figure 1. Cyclic voltammograms of a Pt electrode in the potential window of -0.6 ∼ 0.6 V with the scan rate of 0.2 V/s in 0.1 M phosphate buffer (pH 6.2). (A) The solutions were degassed before H2O2 was added. The concentration of H2O2 was 0, 0.748, 1.25, and 2.99 mM for lines (a) to (d), respectively, and the inset indicated the linear correlation of anodic peak current at 0.6 V with the concentration of H2O2. (B) The solutions were degassed before the oxygen-saturated sample was added, and the concentration of O2 was 0, 0.43, 0.86, and 1.3 mM for lines (a) to (d), respectively.
Figure 1. Cyclic voltammograms of a Pt electrode in the potential window of -0.6 ∼ 0.6 V with the scan rate of 0.2 V/s in 0.1 M phosphate buffer (pH 6.2). (A) The solutions were degassed before H2O2 was added. The concentration of H2O2 was 0, 0.748, 1.25, and 2.99 mM for lines (a) to (d), respectively, and the inset indicated the linear correlation of anodic peak current at 0.6 V with the concentration of H2O2. (B) The solutions were degassed before the oxygen-saturated sample was added, and the concentration of O2 was 0, 0.43, 0.86, and 1.3 mM for lines (a) to (d), respectively.
Sensors 08 08237f1
Figure 2. Cyclic voltammograms of a Pt electrode in the potential window of -0.6 ∼ 0.4 V with the scan rate of 0.2 V/s in 0.1 M phosphate buffer (pH 6.2). (A) The solutions were degassed before H2O2 was added. The concentration of H2O2 was 0, 0.748, 1.25, and 2.99 mM for lines (a) to (d), respectively. (B) The solutions were degassed before the oxygen-saturated sample was added, and the concentration of O2 was 0, 0.43, 0.86, and 1.3 mM for lines (a) to (d), respectively.
Figure 2. Cyclic voltammograms of a Pt electrode in the potential window of -0.6 ∼ 0.4 V with the scan rate of 0.2 V/s in 0.1 M phosphate buffer (pH 6.2). (A) The solutions were degassed before H2O2 was added. The concentration of H2O2 was 0, 0.748, 1.25, and 2.99 mM for lines (a) to (d), respectively. (B) The solutions were degassed before the oxygen-saturated sample was added, and the concentration of O2 was 0, 0.43, 0.86, and 1.3 mM for lines (a) to (d), respectively.
Sensors 08 08237f2
Figure 3. (A) Cyclic voltammograms of PANI/Pt electrode (a) in the absence of H2O2 (red) and (b) in the presence of 2.39 mM of H2O2 (blue). Inset indicated the linear correlation of cathodic peak current at -0.32 V with the concentration of H2O2. (B) The SEM image of PANI film on the Pt electrode.
Figure 3. (A) Cyclic voltammograms of PANI/Pt electrode (a) in the absence of H2O2 (red) and (b) in the presence of 2.39 mM of H2O2 (blue). Inset indicated the linear correlation of cathodic peak current at -0.32 V with the concentration of H2O2. (B) The SEM image of PANI film on the Pt electrode.
Sensors 08 08237f3
Figure 4. Cyclic voltammograms of PANI/Pt electrode in 0.1 M phosphate buffer (pH 6.2) containing 2.39 mM H2O2 , where (a) had no further pretreatment (blue), (b) was purged with N2 for 10 minutes (green), and (c) was purged with pure O2 for 10 minutes (black). There was no H2O2 added for (d) (red).
Figure 4. Cyclic voltammograms of PANI/Pt electrode in 0.1 M phosphate buffer (pH 6.2) containing 2.39 mM H2O2 , where (a) had no further pretreatment (blue), (b) was purged with N2 for 10 minutes (green), and (c) was purged with pure O2 for 10 minutes (black). There was no H2O2 added for (d) (red).
Sensors 08 08237f4

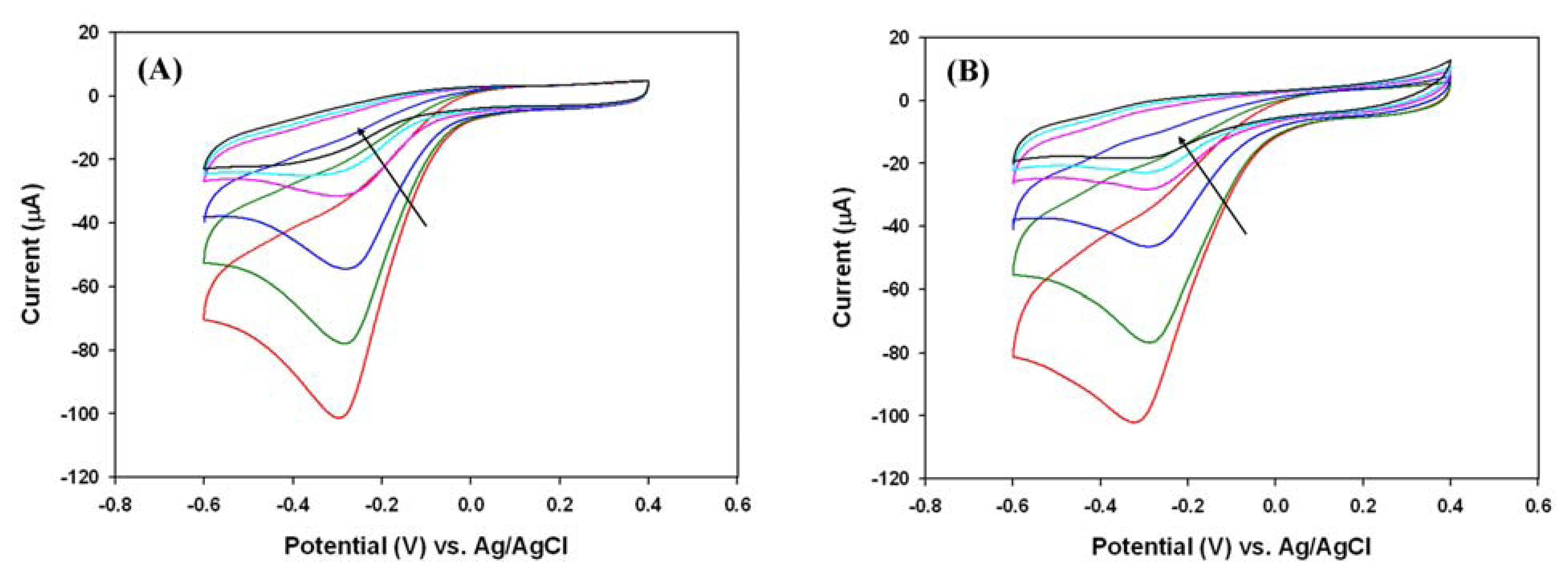

Figure 5. The effects of oxygen scavengers (A) sodium thiosulfate and (B) ascorbic acid. Before addition of oxygen scavenger, the 0.1 M phosphate buffer (pH 6.2) had been purged with pure oxygen for 30 minutes. The arrows indicated the concentrations of scavengers increased in an order of 0, 1, 5, 10, 15, 20 mM.
Figure 5. The effects of oxygen scavengers (A) sodium thiosulfate and (B) ascorbic acid. Before addition of oxygen scavenger, the 0.1 M phosphate buffer (pH 6.2) had been purged with pure oxygen for 30 minutes. The arrows indicated the concentrations of scavengers increased in an order of 0, 1, 5, 10, 15, 20 mM.
Sensors 08 08237f5
Figure 6. The effects of oxygen scavengers (A) sodium thiosulfate and (B) ascorbic acid on the detection of 2.39 mM H2O2 in 0.1 M phosphate buffer (pH 6.2). In both Figures, the concentrations of oxygen scavenger were 0 mM (red), 1 mM (green), and 5 mM (blue), respectively.
Figure 6. The effects of oxygen scavengers (A) sodium thiosulfate and (B) ascorbic acid on the detection of 2.39 mM H2O2 in 0.1 M phosphate buffer (pH 6.2). In both Figures, the concentrations of oxygen scavenger were 0 mM (red), 1 mM (green), and 5 mM (blue), respectively.
Sensors 08 08237f6
