A Perturbation Method for the 3D Finite Element Modeling of Electrostatically Driven MEMS

1
Department of Electrical Engineering and Computer Science, Applied and Computational Electromagnetics (ACE), 1 University of Liège B-4000, Li`ege, Belgium
2
FNRS Sart Tilman Campus, Building B28, B-4000, Li`ege, Belgium
*
Author to whom correspondence should be addressed.
Sensors 2008, 8(2), 994-1003; https://doi.org/10.3390/s8020994
Submission received: 14 September 2007 / Accepted: 8 February 2008 / Published: 19 February 2008
(This article belongs to the Special Issue Modeling, Testing and Reliability Issues in MEMS Engineering)

Abstract

:
In this paper, a finite element (FE) procedure for modeling electrostatically actuated MEMS is presented. It concerns a perturbation method for computing electrostatic field distortions due to moving conductors. The computation is split in two steps. First, an unperturbed problem (in the absence of certain conductors) is solved with the conventional FE method in the complete domain. Second, a perturbation problem is solved in a reduced region with an additional conductor using the solution of the unperturbed problem as a source. When the perturbing region is close to the original source field, an iterative computation may be required. The developed procedure offers the advantage of solving sub-problems in reduced domains and consequently of benefiting from different problem-adapted meshes. This approach allows for computational efficiency by decreasing the size of the problem.

1. Introduction

Increased functionality of MEMS has lead to the development of micro-structures that are more and more complex. Besides, modeling tools have not kept the pace with this growth. Indeed, the simulation of a device allows to optimize its design, to improve its performance, and to minimize development time and cost by avoiding unnecessary design cycles and foundry runs. To achieve these objectives, the development of new and more efficient modeling techniques adapted to the requirements of MEMS, has to be carried out [1].
Several numerical methods have been proposed for the simulation of MEMS. Lumped or reduced order models and semi-analytical methods [2][3] allow to predict the behaviour of simple micro-structures. However they are no longer applicable for devices, such as comb drives, electrostatic motors or deflectable 3D micromirrors, where fringing electrostatic fields are dominant [4][5][6]. The FE method can accurately compute these fringing effects at the expense of a dense discretization near the corners of the device [7]. Further the FE modeling of MEMS accounting for their movement needs a completely new mesh and computation for each new position what is specially expensive when dealing with 3D models.
The scope of this work is to introduce a perturbation method for the FE modeling of electrostatically actuated MEMS. An unperturbed problem is first solved in a large mesh taking advantage of any symmetry and excluding additional regions and thus avoiding their mesh. Its solution is applied as a source to the further computations of the perturbed problems when conductive regions are added [8][9][10]. It benefits from the use of different subproblem-adapted meshes, this way the computational efficiency increases as the size of each sub-problem diminishes [9]. For some positions where the coupling between regions is significant, an iterative procedure is required to ensure an accurate solution. Successive perturbations in each region are thus calculated not only from the original source region to the added conductor but also from the latter to the former. A global-to-local method for static electric field calculations is presented in [11]. Herein, the mesh of the local domain is included in the one of the global domain, whereas in the proposed perturbation method, the meshes of the perturbing regions are independent of the meshes of the unperturbed domain, which is a clear advantage with respect to the classical FE approach.
As test case, we consider a micro-beam subjected to an electrostatic field created by a micro-capacitor. The micro-beam is meshed independently of the complete domain between the two electrodes of the device. The electrostatic field is computed in the vicinity of the corners of the micro-beam by means of the perturbation method. For the sake of validation, results are compared to those calculated by the conventional FE approach. Furthermore, the accuracy of the perturbation method is discussed as a function of the extension of the reduced domain.

2. Electric Scalar Potential Weak Formulation

We consider an electrostatic problem in a domain Ω, with boundary ∂Ω, of the 2-D or 3-D Euclidean space. The conductive parts of Ω are denoted Ωc. The governing differential equations and constitutive law of the electrostatic problem in Ω are [12]
curl e = 0 , div d = q , d = ɛ e ,
where e is the electric field, d is the electric flux density, q is the electric charge density and ε is the electric permittivity (symbols in bold are vectors). In charge free regions, we obtain from (1a-b-c) the following equation in terms of the electric scalar potential υ [12]
div ( ɛ grad   υ ) = 0 .
The electrostatic problem can be calculated as a solution of the electric scalar potential formulation obtained from the weak form of the Laplace Equation (2) as [13]
( ɛ grad υ , grad υ ) Ω n d , υ Γ d = 0 , υ F ( Ω ) ,
where F(Ω) is the function space defined on Ω containing the basis functions for υ as well as for the test function υ;′ (·, ·) and 〈·,·〉Γd respectively denote a volume integral in Ω and a surface integral on Γ of products of scalar or vector fields. The surface integral term in (3) is used for fixing a natural boundary condition (usually homogeneous for a tangent field constraint) on a portion Γ of the boundary of Ω; n is the unit normal exterior to Ω.

3. Perturbation Method

Hereafter, the subscripts u and p refer to the unperturbed and perturbed quantities and associated domains, respectively. An unperturbed problem is first defined in Ω without considering the properties of a so-called perturbing region Ωc,p which will further lead to field distortions [8][9][10]. At the discrete level, this region is not described in the mesh of Ω. The perturbation problem focuses thus on Ωc,p and its neighborhood, their union Ωp being adequately defined and meshed will serve as the studied domain. Electric field distortions appear when a perturbing conductive region Ωc,p is added to the initial configuration. The perturbation problem is defined as an electrostatic problem in Ωp.
Particularizing (1a-b-c) for both the unperturbed and perturbed problems, we obtain [8]
curl e u = 0 , div d u = 0 , d u = ɛ u e u ,
curl e p = 0 , div d p = 0 , d p = ɛ p e p .
Equations (4b) and (5b) assume that no charge density exists in the considered regions. Subtracting the unperturbed equations from the perturbed ones, one gets [8]
curl e = 0 , div d = 0 , d = ɛ p e + ( ɛ p + ɛ u ) e u ,
with the field perturbations [8]: e = epeu and d = dpdu. Note that if εpεu, an additional source term given by the unperturbed solution (εpεu) eu is considered in (6c). For the sake of simplicity, εp and εu are kept equal.
For added perfect conductors, carrying floating potentials, one must have nepΩc,p= 0 and consequently neΩc,p= −neΩc,p. This leads to the following condition on the perturbation electric scalar potential
υ = υ u Ω c , p .
This way, υu acts as a source for the perturbation problem.
Two independent meshes are used. A mesh of the whole domain without any additional conductive regions and a mesh of the perturbing regions. A projection of the results between one mesh and the other is then required.

3.1. Unperturbed electric scalar potential formulation

Particularizing (υ = υu) and solving (3), the unperturbed problem is given by
( ɛ grad υ u , grad υ ) Ω n d u , υ Γ d = 0 , υ F ( Ω ) .

3.2. Perturbation electric scalar potential formulation

The source of the perturbation problem, υs, is determined in the new added perturbing conductive region Ωc,p through a projection method [14]. Given the conductive nature of the perturbing region, the projection of υu from its original mesh to that of Ωc,p is limited to ∂Ωc,p. It reads
grad υ s , grad υ Ω c , p grad υ u , grad υ Ω c , p = 0 , υ F ( Ω c , p ) ,
where the function space F(∂Ωc,p) contains υs and its associated test function υ′. At the discrete level, υs is discretized with nodal FEs and is associated to a gauge condition by fixing a nodal value in ∂Ωc,p.
In case of a dielectric perturbing region, the projection should be extended to the whole domain Ωc,p. Besides, we choose to directly project grad υu in order to ensure a better numerical behaviour in the ensuing equations where the involved quantities are also gradients.
The perturbation problem is completely characterised by (3) applied to the perturbation potential υ as follows
( ɛ grad υ , grad υ ) Ω p n d , υ Γ d p = 0 , υ F ( Ω p ) ,
with a Dirichlet boundary condition defined as υ = −υsc,p.
For a micro-beam subjected to a floating potential and placed inside a parallel-plate capacitor (Fig. 1), the processes of the resolution and projection of the electric scalar potential from one mesh to the other are represented in Fig. 2. The domain Ω surrounding the micro-beam is coarsely meshed while the domain Ωp containing the micro structure has an adapted mesh especially fine in the vicinity of the corners.

4. Iterative Sequence of Perturbation Electric Scalar Potential Problems

When the perturbing region Ωc,p is close to the original source field, an iterative sequence has to be carried out. Each region gives a suitable correction as a perturbation with an accuracy dependent of the fineness of its mesh.
For each iteration i (i = 0,1,…), we determine the electric scalar potential υ2i in Ω, with υ0= υu. The projection of this solution from its original mesh to that of the added conductor Ωc,p gives a source υs,2i+1 for a perturbation problem. This way, we obtain a potential υ2i+1 in ∂Ωc,p that will counterbalance the potential in ∂Ωc. A new source υs,2i+2 for the initial configuration has then to be calculated. This is done by projecting υ2i+1 from its support mesh to that of Ω as follows
( grad υ s , 2 i + 2 , grad υ ) Ω c ( grad υ 2 i + 1 , grad υ ) Ω c = 0 , υ F ( Ω c ) .
A new perturbation electric scalar potential problem is defined in Ω as
( ɛ grad υ 2 i + 2 , grad υ ) Ω n d 2 i + 2 , υ Γ d = 0 , υ F ( Ω ) ,
with Dirichlet BC υ2i+2 = −υs,2i+2∂Ωc.
This iterative process is repeated until convergence for a given tolerance.

5. Application

A parallel-plate capacitor (Fig. 1) is considered as a 2-D FE test case to illustrate and validate the perturbation method for electrostatic field distortions (length of plates= 200 μm, distance between plates: d = 200 μm). The conducting parts Ωc of the capacitor are two electrodes between which the difference of electric potential is ΔV= 1V (upper electrode fixed to 1V). The perturbing conductive region Ωc,p is a micro-beam (length= 100 μm, width= 10 μm). This perturbing region is placed at a distance d1 of the electrode at 1V.
First, we study the accuracy of the perturbation method as a function of the size of the perturbing domain. In this case, d1 = 75 μm. Fig. 3 shows examples of meshes for the perturbing problems. An adapted mesh, specially fine in the vicinity of the corners of the micro-beam is used. Note that any intersection of perturbation problem boundaries with the unperturbed problem material regions is allowed.
The electrostatic field between the plates of the capacitor is first calculated in the absence of the micro-beam. The solution of this problem is then evaluated on the added micro-beam and used as a source for the so-called perturbation problem.
In Fig. 4(left), the local electric field is depicted for different sizes of the perturbation domain. The first one is a rectangular bounded perturbation region (length= 170 μm, width= 50 μm). The second one is a rectangular perturbation domain as well (length= 180 μm, width= 150 μm). The third one is an extended perturbation region to infinity through a shell transformation [15].
Comparing with the conventional FE solution, we observe that the relative error of the local electric field is under 1.2% when the perturbation domain is extended to infinity through a shell transformation (Fig. 4(right)). This justifies our choice for this kind of perturbation region for the whole of our study.
The relative error of the electric potential and the electric field near the micro-beam increases when the latter is close to electrode at 1V (Fig. 5) what highlights a significant coupling of these regions. A more accurate solution for close positions needs an iterative process to calculate successive perturbations in each region.
To illustrate the iterative perturbation process, the distance d1 = 3 μm is chosen as an example (Fig. 6). Successive perturbation problems defined in each region are solved.
At iteration 0, the unperturbed electric potential scalar is computed in the whole domain Ω. Projecting this quantity in the domain Ωp at iteration 1 leads to a perturbed electric potential scalar υp ensuing the electric field perturbation ep. The relative error of the electric scalar potential computed near the micro- beam with respect to the conventional FE technique is bigger than 2% (Fig. 6(left)). Besides, the difference between the y-components of ep and the reference solution (FE) is considerable (relative error up to 32%) which is due to a strong coupling between these regions (Fig. 6 (right)). At iteration 2, υ is projected from its mesh to that of Ω where a new perturbation problem is solved and its solution is projected again in Ωp (at iteration 3). The relative error of the local electric field at iteration 25 is reduced to 1%.
In order to highlight the relationship between the distance separating the micro-beam and electrode at 1V and the number of iterations required to achieve the convergence without and with Aitken ac-celeration [16], several positions d1 of the micro-device are considered (Fig. 7). For each of them, the perturbation problem is solved and an iterative process is carried out till the relative error of the local electric field is smaller than 1%.
As expected, several iterations are needed to obtain an accurate solution when the micro-beam is close to the considered electrode. When the Aitken accelaration is used, the number of iterations is reduced.

6. Conclusion

A perturbation method for computing electrostatic field distortions due to the presence of conductive micro-structure has been presented. First, an unperturbed problem (in the absence of certain conductors) is solved with the conventional FE method in the complete domain. Second, a perturbation problem is solved in a reduced region with an additional conductor using the solution of the unperturbed problem as a source.
In order to illustrate and validate this method, we considered a 2-D FE model of a capacitor and a moving micro-beam. Results are compared to those obtained by the conventional FE method. When the moving region is close to the electrostatic field source, several iterations are required to obtain an accurate solution. Successive perturbations in each region are thus calculated not only from the original source region to the added conductive perturbing domain, but also from the latter to the former. The Aitken acceleration has been applied to improve the convergence of the iterative process.

Acknowledgments

This work was supported by the Belgian French Community (ARC 03/08-298) and the Belgian Sci-ence Policy (IAP P6/21).

References

  1. Batra, R. C.; Porfiri, M.; Spinello, D. Review of modeling electrostatically actuated microelec-tromechanical systems. Smart Materials and Structures 2007, 16, R23–R31. [Google Scholar]
  2. Younis, M. I.; Abdel-Rahman, E. M.; Nayfeh, A. A reduced-order model for electrically actuated microbeam-based MEMS. Journal of Microelectromechanical Systems 2003, 12(5), 672–680. [Google Scholar]
  3. Osterberg, P. M.; Senturia, S. D. M-test: A test chip for MEMS material property measurement using electrostatically actuated test structures. Journal of Microelectromechanical Systems 1997, 6(2), 107–118. [Google Scholar]
  4. Boutaayamou, M.; Nair, K. H.; Sabariego, R. V.; Dular, P. Finite element modeling of electrostatic MEMS including the impact of fringing field effects on forces. In press in Sensor Letters 2007. [Google Scholar]
  5. Zhang, L. X.; Zhao, Y. P. Electromechanical model of RF MEMS switches. Microsystem Technolo-gies 2003, 9, 420–426. [Google Scholar]
  6. Zhang, L. X.; Yu, T. X.; Zhao, Y. P. Numerical analysis of theoretical model of the RF MEMS switches. Acta Mechanica Sinica 2004, 20(2), 178–184. [Google Scholar]
  7. Rochus, V.; Rixen, D.; Golinval, J.-C. Modeling of electro-mechanical coupling problem using the finite element formulation. Proceedings of the 10th SPIE 2003, volume 5049, 349–360. [Google Scholar]
  8. Badics, Z.; Matsumoto, Y.; Aoki, K.; Nakayasu, F.; Uesaka, M.; Miya, K. An effective 3-D finite element scheme for computing electromagnetic field distortions due to defects in eddy-current nondestructive evaluation. IEEE Transactions on Magnetics 1997, 33(2), 1012–1020. [Google Scholar]
  9. Dular, P.; Sabariego, R. V. A perturbation finite element method for modeling moving conductive and magnetic regions without remeshing. The international journal for computation and mathe-matics in electrical and electric engineering 2007, 26(3), 700–711. [Google Scholar]
  10. Dular, P.; Sabariego, R. V. A perturbation finite element method for computing field distorsions due to conductive regions with h-conform magnetodynamic finite element formulations. IEEE Transactions on Magnetics 2007, 43(4), 1293–1296. [Google Scholar]
  11. Sebestyen, I. Electric field calculation for HV insulators using domain decomposition method. IEEE Transactions on Magnetics 2002, 38(2), 1213–1216. [Google Scholar]
  12. Stratton, J. A. Electromagnetic Theory; McGraw-Hill, 1941. [Google Scholar]
  13. Dular, P.; Legros, W.; Nicolet, A. Coupling of local and global quantities in various finite element formulations and its application to electrostatics, magnetostatics and magnetodynamics. IEEE Transactions on Magnetics 1998, 34(5), 3078–3081. [Google Scholar]
  14. Geuzaine, C.; Meys, B.; Henrotte, F.; Dular, P.; Legros, W. A Galerkin projection method for mixed finite elements. IEEE Transactions on Magnetics 1999, 35(3), 1438–1441. [Google Scholar]
  15. Brunotte, X.; Meunier, G.; Imhoff, J.-F. Finite element modeling of unbounded problems using transformations: a rigorous, powerful and easy solution. IEEE Transactions on Magnetics 1992, 28(2), 1663–1666. [Google Scholar]
  16. Weniger, E. J. Prediction properties of Aitken's iterated δ2process, of Wynn's epsilon algorithm and of Brezinski's iterated theta algorithm. Journal of Computational and Applied Mathematics 2000, 122(1-2), 329–356. [Google Scholar]

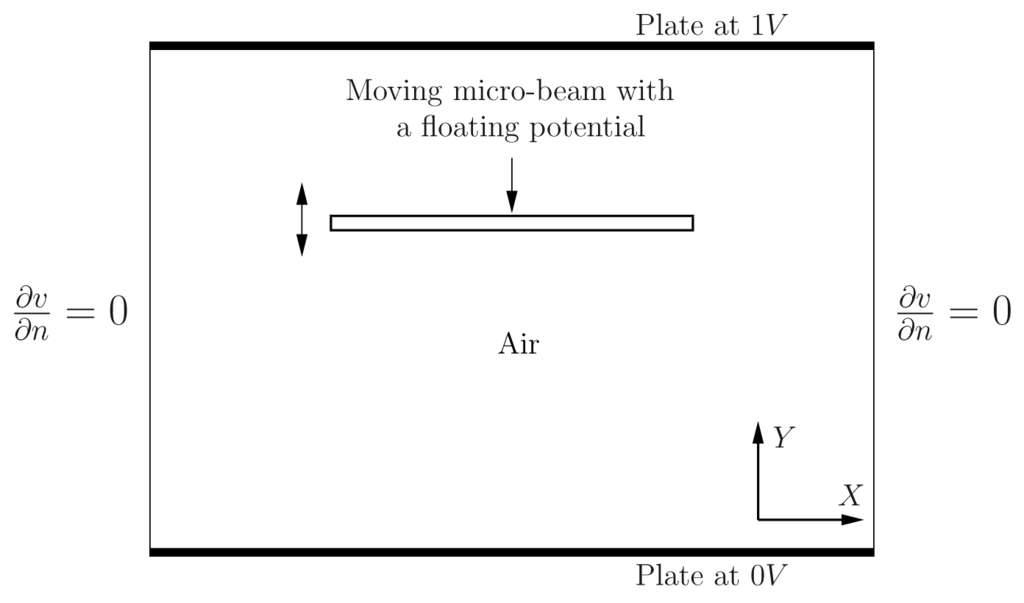

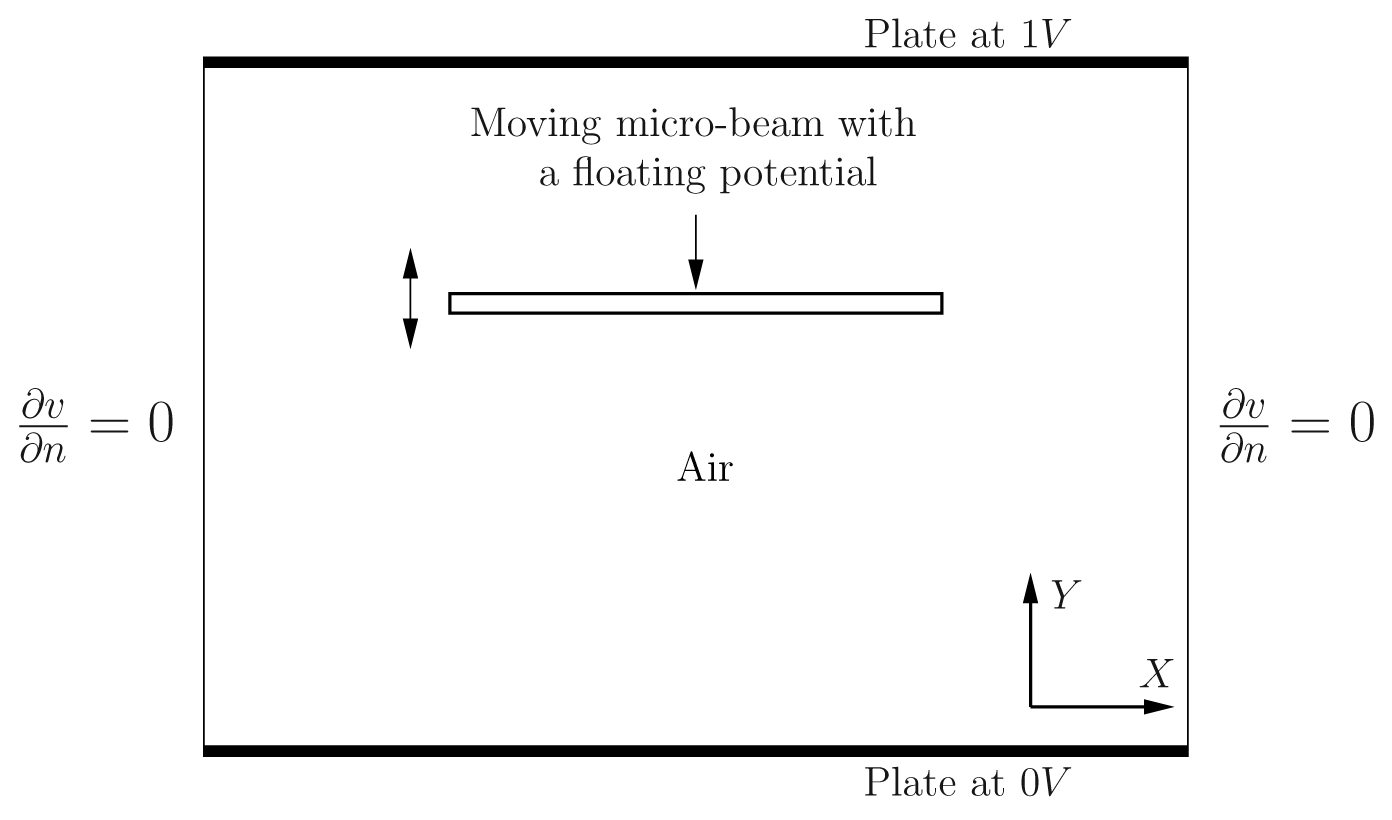

Figure 1. A moving micro-beam carrying a floating potential inside a parrallel-plate capacitor
Figure 1. A moving micro-beam carrying a floating potential inside a parrallel-plate capacitor
Sensors 08 00994f1

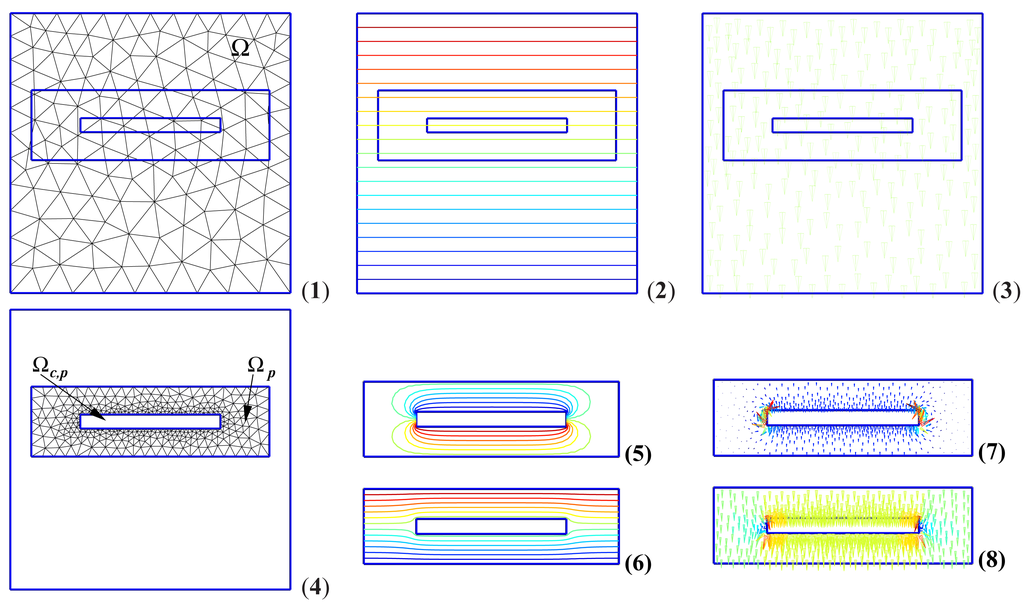

Figure 2. Mesh of Ω (1); distribution of the unperturbed electric potential υu (2) and electrice field eu (3); adapted mesh of Ωp (4); distribution of the perturbation electric potential υ (5) and the perturbed one υp (6); distribution of the perturbation electric field e (7) and the perturbed one ep (8)
Figure 2. Mesh of Ω (1); distribution of the unperturbed electric potential υu (2) and electrice field eu (3); adapted mesh of Ωp (4); distribution of the perturbation electric potential υ (5) and the perturbed one υp (6); distribution of the perturbation electric field e (7) and the perturbed one ep (8)
Sensors 08 00994f2

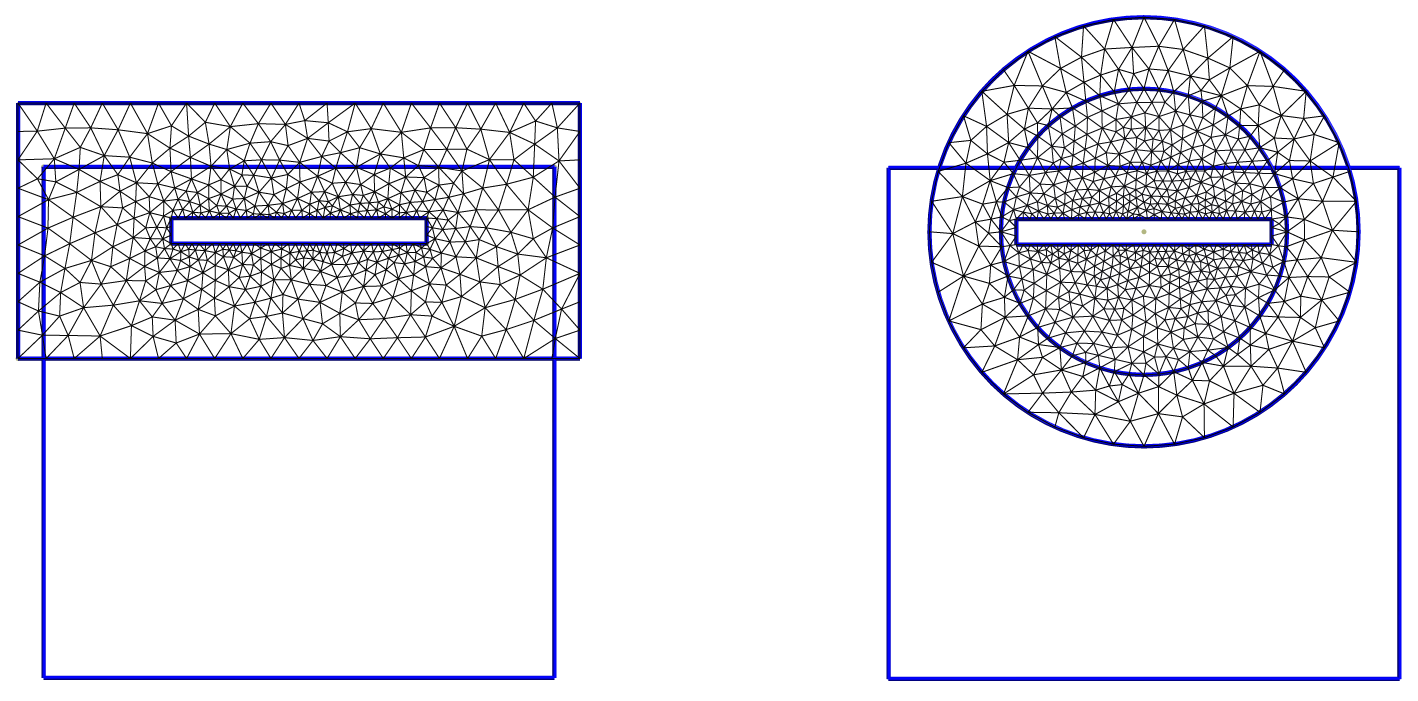

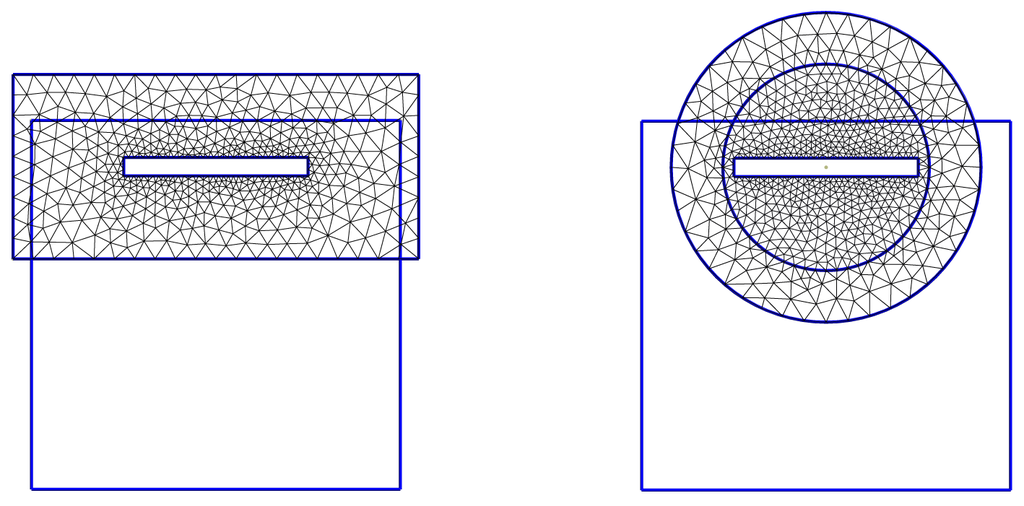

Figure 3. Meshes for the perturbation problems without (left) and with a shell for transformation to infinity (right)
Figure 3. Meshes for the perturbation problems without (left) and with a shell for transformation to infinity (right)
Sensors 08 00994f3

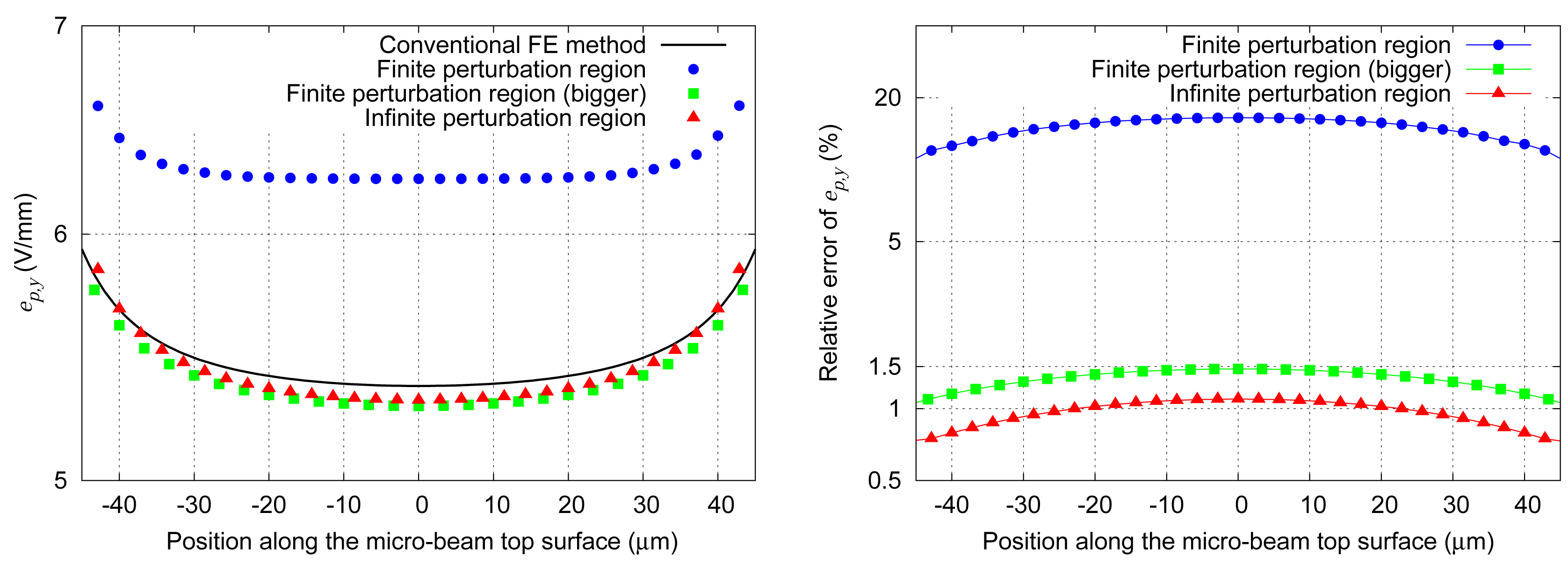

Figure 4. ep (y-component) computed along the micro-beam top surface for different perturbing regions (left). Relative error of ep (y-component) with respect to the FE solution in each perturbing region (right)
Figure 4. ep (y-component) computed along the micro-beam top surface for different perturbing regions (left). Relative error of ep (y-component) with respect to the FE solution in each perturbing region (right)
Sensors 08 00994f4

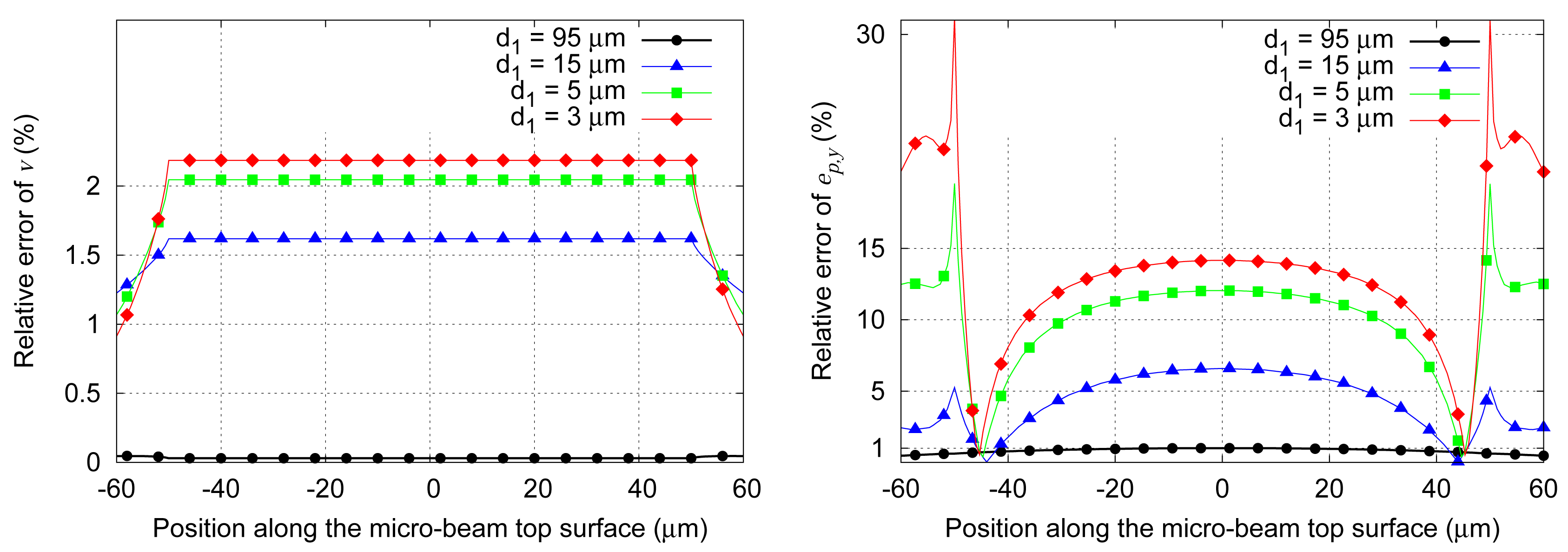

Figure 5. Relative error of υp(left) and ep (y-component) (right) computed along the micro-beam top surface for several distances separating electrode at 1V and the micro-beam
Figure 5. Relative error of υp(left) and ep (y-component) (right) computed along the micro-beam top surface for several distances separating electrode at 1V and the micro-beam
Sensors 08 00994f5

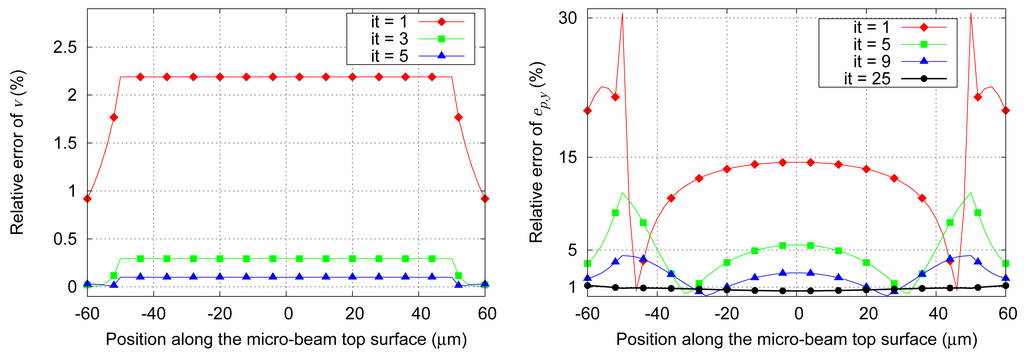

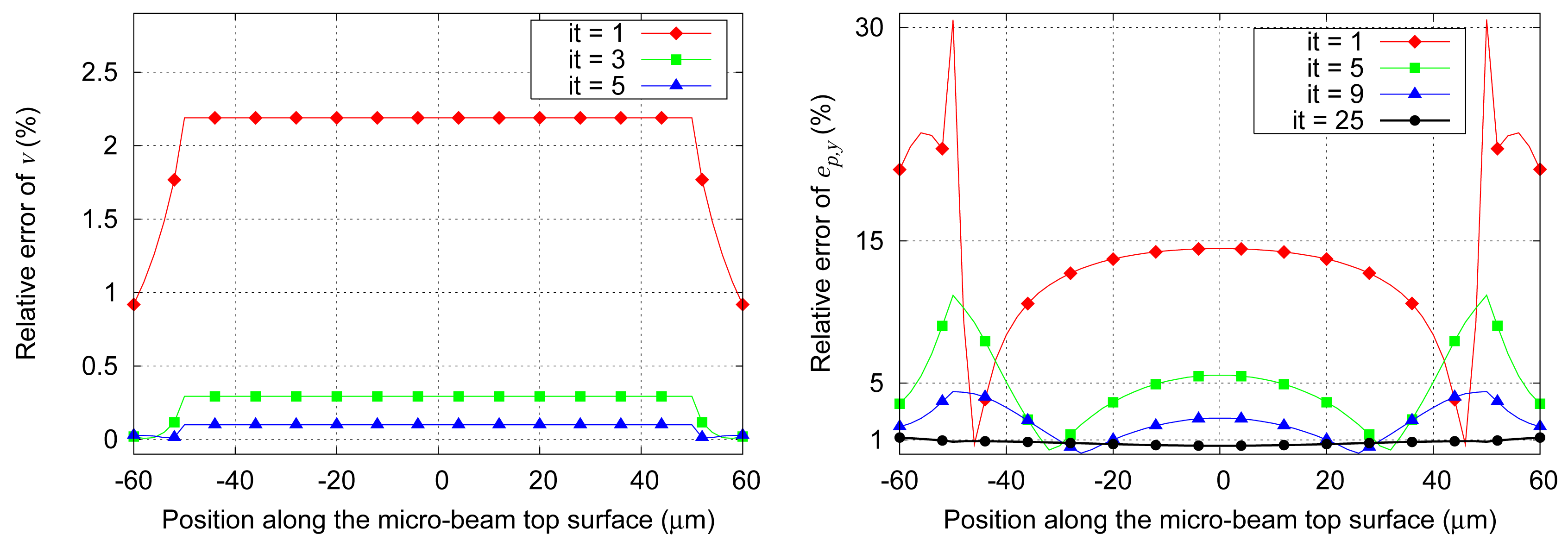

Figure 6. Relative error of υp (left) and e p (y-component) (right) computed along the micro-beam top surface for some iterations
Figure 6. Relative error of υp (left) and e p (y-component) (right) computed along the micro-beam top surface for some iterations
Sensors 08 00994f6

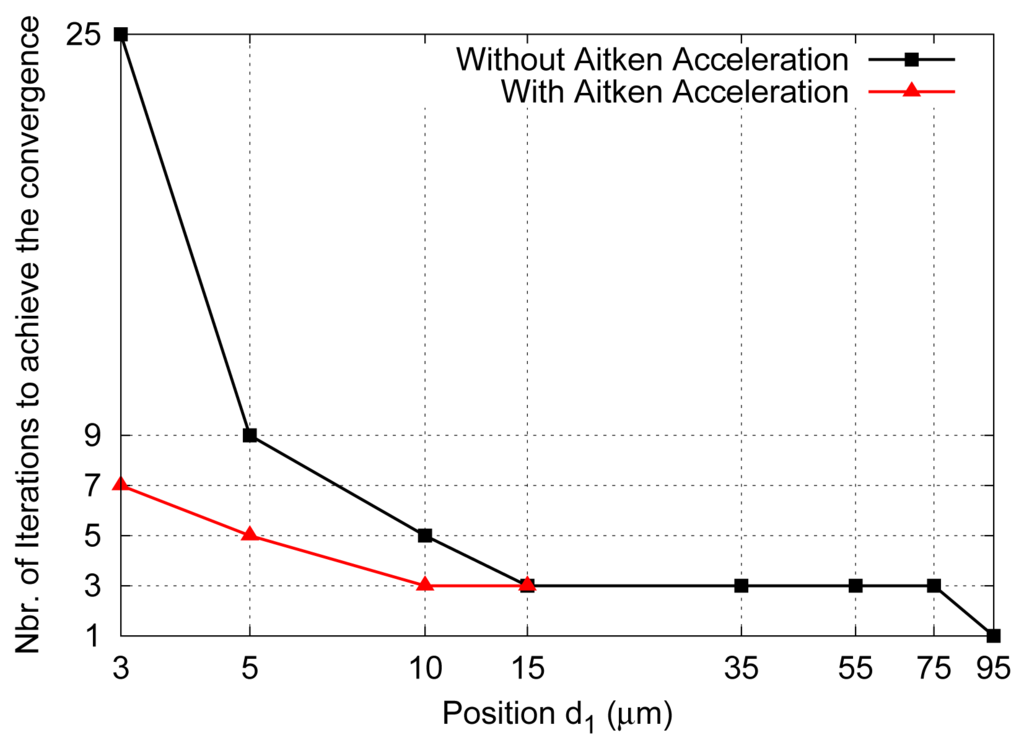

Figure 7. Iteration numbers to achieve the convergence versus the distance separating electrode at 1V and the micro-beam
Figure 7. Iteration numbers to achieve the convergence versus the distance separating electrode at 1V and the micro-beam
Sensors 08 00994f7
