Review

Magnetic Particle-Based Hybrid Platforms for Bioanalytical Sensors

1
School of Materials Engineering, Purdue University, West Lafayette, IN 47907-2045, USA
2
Department of Chemistry and Biomolecular Science, Clarkson University, Potsdam, NY 13699-5810, USA
*
Authors to whom correspondence should be addressed.
Sensors 2009, 9(4), 2976-2999; https://doi.org/10.3390/s90402976
Submission received: 19 February 2009 / Revised: 13 April 2009 / Accepted: 23 April 2009 / Published: 23 April 2009
(This article belongs to the Special Issue Toxin Sensors)

Abstract

:
Biomagnetic nano and microparticles platforms have attracted considerable interest in the field of biological sensors due to their interesting physico-chemical properties, high specific surface area, good mechanical stability and opportunities for generating magneto-switchable devices. This review discusses recent advances in the development and characterization of active biomagnetic nanoassemblies, their interaction with biological molecules and their use in bioanalytical sensors.

1. Introduction

In recent years, numerous types of magnetic particles of nanometer and micrometer dimensions and composites of these materials have become key components in different areas like catalysis, environmental remediation, the biomedical field and sensing devices, cell labeling and immunomagnetic separations, magnetic resonance imaging, targeted drug delivery, and bio-imaging [112]. Cell isolation, enzyme immobilization, drug targeting, waste water treatment are just few examples of such applications. These materials offer the potential of enhanced mechanical and catalytic properties when compared to their bulk counterparts. In the biosensors field, they have been used as bioimmobilization platforms, magnetic carriers of biomolecules, to separate or concentrate analytes and to control electrochemical processes at electrode surfaces [2,11,1317]. The combination of magnetic manipulation with bioimmobilization, separation and detection capabilities have created unique opportunities for enhancing the performance of sensing devices.
Of the various magnetic materials reported in the literature for sensing purposes, iron oxides, mainly Fe3O4 have been the most widely used because of their simple preparation and superparamagnetic properties. Iron oxide nanoparticles (NPs) are also biocompatible, displaying no hemolytic activity or genotoxicity. The NPs can either be used for simple adsorption of biomolecules, or functionalized or encapsulated in polymers or silica materials to fabricate hybrid composites with increased biocompatibility and added functionalities. These materials, deposited onto the surface of a glassy carbon (GCE) electrode have provided performance characteristics comparable with those of Prussian Blue modified electrodes [14]. Fe3O4 particles have catalytic active sites for sensing hydrogen peroxide [14,18], which is the product of many enzymatic reactions (e.g. glucose oxidase, lactate dehydrogenase, cholesterol oxidase) and a key component in various chemical, biological, pharmaceutical, clinical, environmental, and food processes. Magnetic iron oxide NPs have gained a great deal of attention also due to their potential for providing control of electrochemical processes [19,20] and creating magneto-switchable devices [14,21]. Biological recognition elements can be attached to their surface to develop various catalytic and affinity sensors. The use of magnetic particles for this purpose brings a number of additional advantages such as control and transport of the bioassembly to a specific location onto/close to the transducer surface. Furthermore, they can be retained and removed with a magnet without affecting the transducer surface, thus creating possibilities for regeneration and reuse.
Extensive research papers and reviews covering the synthesis and characterization of various magnetic particles were published in literature in recent years. In this review, we focus on the most important and widely used magnetic particles-biomolecule hybrid systems for sensing applications, their use as electrode materials and immobilization matrices, and discuss the success and limitations of these materials in biological sensors.

2. Biomagnetic Particles Platforms

Significant progress has been made in the control of size, size distribution, shape, and chemical composition of magnetic particles in recent years [2240]. These are readily available in different forms (Fe2O3, Fe3O4, Fe3S4, MO-Fe2O3 where M = Ni, Co, Zn etc) and can be purchased from several companies or prepared using established synthetic procedures [10]. However, bare magnetic particles tend to easily aggregate and therefore their use for bioanalytical purposes can be difficult. In addition, most of these particles are prepared in hexane or other organic solvents and therefore many biological applications involve particles with modified surfaces that render them biocompatible. For example, they can be surface functionalized with different organic or inorganic coatings in a core-shell format or be prepared in a composite form using various synthetic polymers and natural polysaccharides, like alginate cellulose and dextran [4144], polyaniline [4555], or silica glasses [45,5668]. Tridimensional multilayer films of carbon nanotubes with Fe2O3 introduced in the nanotubes have also been reported for development of a magnetic electrochemical platform for enzyme sensors [69]. This material provided enhanced adsorption of protein molecules, controlled deposition of higher density of carbon nanotubes onto the electrode surface and improved electrochemical properties.
An elegant approach is to coat the particle surface with a gold shell [23,7083], favouring protein binding by taking advantage of their gold affinity. Another interesting example is to coat the NPs with a porous, optically transparent sol-gel layer resulting in a multifunctional hybrid material in which the outer silica shell stabilizes the particles, induces biocompatibility and provides sites for surface modification with biological molecules, electronic mediators or fluorescent labels [84,85]. Such hybrid materials combining the properties of silica microspheres with the advantages of magnetic particles hold promise for additional applications. For example, multifunctional magnetic particles that incorporate chromophores can be easily manipulated through the use of an external magnetic field, while their position at a given time and place can be monitored using fluorescence methods [86,87]. Chromophores used for such applications included organic dyes such as rodhamine [84] as well as quantum dots, featuring narrow emission bandwidth, large two-photon absorption and continuous adsorption spectra [12,8894].

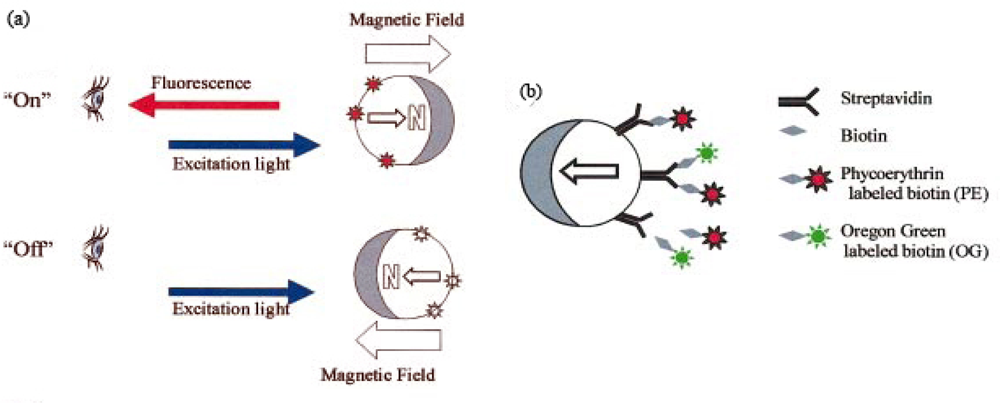

Anker et al. [95] synthesized metal-capped magnetically-modulated nanoprobes (Mag-MOON), that have the capacity to rotate under changing magnetic fields and emit light fluxes in different orientations. In general, fluorescent NPs emit light uniformly in all directions. When coated with a metal layer the symmetry is disturbed and the particles start emitting different amounts of light in different orientations. The orientation of the particle can also be tracked in time. The use of Mag-MOON particles allows in-situ fast background subtraction and provides a significant increase of signal-to-noise ratio. Therefore, immunoassays with a variety of fluorescent labels can be designed. For example, fluorescent dyes have limitations in terms of signal-to-noise ratio when cellular responses are investigated. Mag-MOONs have the potential to increase the sensitivity of these assays when used in nanosensors that are designed to perform rapid single cell measurements. Immunoassays based on Mag-MOONs can be designed for protein detection. Briefly, the Mag-MOONs can be functionalized with molecular recognition elements or antibodies that can bind specifically analytes of interest. In a subsequent step a fluorescent tag is added to increase Mag-MOONs brightness and allow antigen detection (Figure 1).
Silica-coated magnetites were obtained using various synthetic procedures [93,94,96101]. The thickness of the outer silica shell can be tuned by changing the concentration of the silica precursors during synthesis [84]. Zhao et al. [102] fabricated magnetic nanospheres covered with a mesoporous silica shell starting from uniform magnetite NPs, with a mean diameter of 120 nm. These were subsequently covered by a mesoporous silica coating via sol-gel polymerization using tetraetoxysilane (TEOS) and n-octadecyltrimethoxysilane (C18TMS). In the last step, a reduction of the hematite core under an atmosphere of H2 and N2 was performed, to lead to the formation of magnetic core/mesoporous silica shells with a narrow size distribution and a mean diameter of approximately 270 nm.
Lee, et al. [97] recently reported a one-pot synthesis of uniformly sized, non-agglomerated magnetic silica core-shell particles by using a reverse micelles procedure and alkoxide precursors. The synthesis was performed at 90 °C, which allowed maintaining the micelle structure. Two model enzymes (lipase and α-chemotrypsin) were crosslinked with glutaraldehyde (GA) and the results were compared with those obtained by covalent attachment on the NPs surface, through amine functionalization. As an alternative, biological molecules can be entrapped within the silica glass to generate a biologically active material with enhanced stability while providing magnetic properties for easy manipulation and control under a magnetic field. Preparation of silica coated iron oxide NPs with an average diameter of 5 – 7 nm has been described in the literature [96]. The size of the magnetic nanocomposite after the deposition of the silica was ∼ 53 nm.

3. Magnetic Activation of Redox Processes in Bioanalytical Sensors

In bioelectronic devices, such as biosensors and biofuel cells, the electrical contact between enzymes and the electrodes is essential [103114]. The main challenge in achieving good electrical contact stays in the lack of direct communication between the redox (Reduction-Oxidation reaction) center of the biomolecule and the electrode surface. Solutions such as attachment of redox-relay groups to the enzyme, the use of diffusional electron mediators, or the immobilization in a redox polymer matrix have poor efficiency. Problems include the inappropriate orientation of enzyme in respect to the electrode, and conformational modifications of the protein structure. The conjugation of NPs with enzymes in hybrid devices holds promise for the development of novel and improved biosensing platforms and ensures electrical ‘wiring’ between the enzyme and the electrode. Redox-active units are used in a series of electrocatalytical and bioelectrocatalytical processes. Magnetic particles have been functionalized with redox units and subsequently used in reactions relevant for such processes. Examples of redox-active units that have been used to functionalize magnetic nano or micro particles include microperoxidase-11, pyrroloquinoline quinone, 2,3-dichloro-1,4-naphthoquinone, N-ferrocenylmethyl)aminohexanoic acid, or N-methyl-N”-(dodecanoic acid)-4,4′-bipyridinium [115,116]. When redox units-functionalized magnetic particles are attracted to the electrode surface with the help of a magnet placed underneath the electrode, the electrical contact between the redox units on the particles and the electrode is activated and the electrochemical response of the sensor is switched “ON”. In turn, when the magnet is placed on top of the electrode, the NPs are removed from the electrode surface, and the electrochemical response is switched “OFF” [117].
Redox relay units such as bipyridinium or ferrocene are also part of this set-up, and can serve as mediators for electron transfer between redox enzyme and the electrode [115]. This approach has been used for enzymes such as glucose oxidase (GOx) and nitrate reductase [118]. Under a magnetic field, ferrocene oxidizes to ferrocenyl cations. In turn, the ferrocenyl cations have an oxidizing effect on the redox center of the GOx. Removing the magnetic particles from the electrode also removes the electrical contact between the ferrocene and the electrode, inhibiting glucose oxidation. In the case of nitrate oxidase [115], bipyridinium was used as a reducing agent in the reduction process of nitrate to nitrite. When the bipyridinium functionalized magnetic NPs interacted with the electrode under an electrical field (E = − 0.7V), the nitrate-nitrite transformation was favored only when a magnet was positioned in the system in such a way that the NPs were attracted to the electrode. In the same time, the removal of the magnetic particles led to the electrocatalyzed reactions being switched off. Lactate dehydrogenase (LDH) was also used in a similar approach that included pyrroloquinoline quinone as a relay mediator for the activation/deactivation of the NADH-NAD+ transformation [119121]. Selective dual biosensors were also designed with LDH and GOx and magnetic particles functionalized with monolayers of PQQ-NAD+ and ferrocene [122]. These were tested in both oxidation of glucose and inhibition of lactate oxidation when no electrical field was applied. When a small electrical field was applied (potential range: −0.13 < E < 0.13 V), the oxidation of lactate was enabled, while the oxidation of glucose was inhibited, since the potential range used does not favor the oxidation of ferrocene units.

4. Biofunctionalization of Magnetic Nanoparticles

Immobilization of enzymes, antibodies, oligonucleotides, and other biologically active compounds onto magnetic NP platforms is a key element in using these structures for biosensing purposes. Fabricating biofunctionalized magnetic materials containing a high amount of the biological element with high activity and stability is essential for the design of robust sensors that take advantage of the magnetic capabilities. Various routes for the fabrication of biofunctionalized magnetic NPs include traditional methods such as covalent binding, adsoprtion, specific affinity interactions, and entrapment in porous surface layers. In the following sections we describe representative procedures utilized for this purpose and provide selected examples reported in the literature.

4.1. Biofunctionalized Magnetic Nanoparticles Via Covalent Binding

The primary functionalization of iron oxide NPs with organic functionalities is the first step in the covalent binding of biomolecules to their surfaces. The drawbacks of this method stay in the restrictions derived from the biomolecule conformation being imposed by their orientation on the support upon binding. Functionalization of magnetic NPs with carboxyl, amino or hydroxyl groups prior to the covalent binding is traditionally used [6,39,123138]. Hong et al. [139] functionalized magnetic nanogels through a carbodiimide activation procedure. In this case, polyacrylamide (PAM) coated Fe3O4 NPs and Hoffman degradation was used to obtain amino-functionalized magnetic nanogels with a 25 nm diameter. Subsequently, α-chymotrypsin was covalently attached to the nanogel’s surface. The enzymatic activity was largely retained and the reaction temperature and usable pH range were wider after the covalent binding as compared to the free enzyme. In the case of the covalent binding, the enzymatic activity was not dramatically affected by varying the pH between 5.8 and 8.9, while for the free enzyme, the enzymatic activity decreased to less than 50% at pH values between 8 and 8.9. The temperature was varied between 35 and 85 °C and the optimum temperature for the both free and covalently bound enzyme was determined to be at 35 °C, while above this temperature, a decrease in activity was observed in both cases. However, after 60 °C, the free enzyme lost all its activity, while the covalently bound enzyme still retained 60% of its activity. The enzymatic activity was retained after storage at 4 °C for 36 days. The magnetic composite was reusable, with 96.8% of the biological activity being maintained after 12 usage cycles. On the other hand, the affinity between the enzyme and the substrate was lower than that of the free enzyme. An explanation related to sterric effects of diffusion barriers of the substrate to the enzymatic active sites was proposed. More recently [140], the same authors used a hydrophilic polymer with free carboxyl groups to covalently immobilize α-chymotrypsin to the surface of magnetic iron oxide NPs, followed by in-situ polymerization with 1-ethyl-3-(3-dimethylaminepropyl) carbodiimide (EDC) used as a coupling agent. The enzyme retained 80% of its activity at 65 °C, 90% at 25 °C and the full enzymatic activity at 4 °C. The same long term storage stability and reusability as in the case of the amino functionalized nanogels were observed. Other enzymes covalently immobilized on the surface of magnetic NPs include GOx [138] and peroxidase [141,142], as well as cholesterol oxidase, lipase [143], trypsin and chymotrypsin [131,136,137,144150]. Kuroiwa et al. [151] immobilized chitosanase on amylose-coated Fe3O4 NPs. The amylose provided hydroxyl groups on the NPs surface, which were then coupled with the amino groups of chitosanase via covalent binding. Fe3O4-chitosan NPs, exposing free amino groups on their surface were used to bind alcohol dehydrogenase via GA coupling, with about 48% retention of enzymatic activity [151]. The authors demonstrated the recovery of the enzyme by magnetic separation.

4.2. Biofunctionalized Magnetic Nanoparticles via Surface Adsorption

Core-shell NPs functionalized with polymers were investigated as supports for biomolecule immobilization. Mahmood et al. [152] immobilized lipase on magnetic NPs coated with a oleic acid-Pluronic® (L-64) block copolymer. In this work, the copolymer was used to improve stability (i.e. reduce agglomeration). Up to 90% enzymatic activity of lipase was retained for seven cycles. This extended usability was attributed to hydrophobic interactions between the preatreated NPs and the copolymer. Shamim et al. [153] synthesized core-shell iron oxide NPs coated with poly-(N-isopropylacrylamide) (PNIPAM) and used them to adsorb bovine serum albumin (BSA) on their surface. Thiodiglycolic and 4-vinylaniline were used as surfactants. The core-shell NPs were thermosensitive. Above 32 °C, the structure of the poly-(NIPAM) changes from hydrophilic to hydrophobic. Due to this effect, at temperatures above 32 °C, the magnetic NPs shrink, and are able to adsorb a larger amount of bovin serum albumin (BSA). Lowering the temperature below 32 °C resulted in desorption of the protein. It has been shown that the protein adsorption takes place a larger extent through hydrogen bonding, and less through hydrophobic interactions. Peng et al. [154] fabricated Fe3O4 magnetic NPs with 10 nm in diameter through a chemical precipitation method and further used them for physical adsorption of BSA and lysozyme (LSZ) with partial retention of enzymatic activity. Desorption of both BSA and LSZ was also investigated at the isoelectric points of the enzymes. Kausik et al. [155] used Fe3O4 NPs prepared via a co-precipitation method to design a glucose sensor. The NPs dispersed in chitosan formed a film onto an indium-tin oxide (ITO) glass. Dispersion in chitosan helped preventing aggregation, while the NPs facilitated communication with the electrode surface. This biosensor had a rapid response time (5 s), good linearity (10 – 400 mg dL−1), good reproducibility, and high affinity towards glucose. The sensitivity was of 9.3 μA/(mg·dL·cm2) and the sensor was stable for up to eight weeks at 4 °C.

4.3. Entrapment of biomoleules in magnetic composites

Biomolecules can be entrapped within the different polymeric or silica shells used to form hybrid magnetic composites. For example, spherical silica coated Fe3O4 NPs have allowed stable entrapment of horseradish peroxidase (HRP), simultaneously with the formation of the silica layer [96]. This method resulted in biomagnetic catalysts characterized by a long-term stability with temperature up to 85 °C and pH change, as compared to the free enzyme. However, the entrapped enzyme could lose activity due to conformational changes in the silica matrix and also suffers from possible diffusion limitations of the substrate through the silica pores. The same methodology allowed immobilization of an antibody for the development of an immunoassay, for the quantitative determination of gentamicin with a detection limit of 160 ng/mL. More complex systems with entrapped enzymes combining different types of materials were also reported. Such an example is the use of iron oxide NPs with crosslinked enzyme molecules, which were then encapsulated into large pores of mesoporous silica to form a “hierarchically ordered, mesocellular” structure [145]. These nanocomposites were magnetically separable, highly loaded with enzyme, stable under harsh shaking conditions, resistant to different treatment procedures, and reusable.

4.4. Site specific bioimmobilization onto magnetic nanoparticles

Site specific immobilization onto magnetic particles is an attractive strategy for attaching biomolecules because it provides a favorable orientation for biorecognition events while avoiding conformational changes, and offering magnetic control of the entire assembly. As opposed to other methods, this strategy involving attachment at a specific pre-determined position eliminate the diffusion barriers or chemical bond formation that could affect the biological activity and, therefore, a lower detection limit and a fast response time could be expected for sensors fabricated based on this method. Johnson et al. [156] developed a method for immobilization of affinity-tagged dehalogenase on iron/iron oxide core-shell NPs through a biomimetic approach. The authors used cloned dehalogenase (DhlA) fusion proteins, with an affinity for either silica or iron oxide surfaces [157,158]. Three different DhLA recombinant enzymes were expressed and immobilized on the NPs surface. The enzymes were able to specifically bind to either iron oxide or silica. The DhLA enzymes tagged with iron oxide or silica affinity peptides showed a higher rate of adsorption onto the magnetic NPs when compared to the His-tagged protein. In another example, pre-activated iron oxide beads carrying Ni- iminodiacetic acid (IDA) complexes were used to immobilize a genetically-modified acetylcholinesterase (AChE), having engineered an hexa(histidine) tag. The 6His-AChE-Ni-NTA-NPs system was deposited onto the surface of a screen-printed electrode surface with a small magnet placed underneath the electrode. This biosensor was used for the detection of two organophosphorous pesticides, via AChE inhibition [159]. The main advantage of this method for inhibition assays is the very high sensitivity with detection limits of 10−11 M for chlorpyriphos-oxon and the easy reusability of the same electrode. The system could be easily adapted for integration into an autonomously operated magnetoswitchable device for monitoring AChE inhibiting activities.

5. Applications of Biomagnetic Materials in Sensing Technology

5.1. Enzyme Sensors

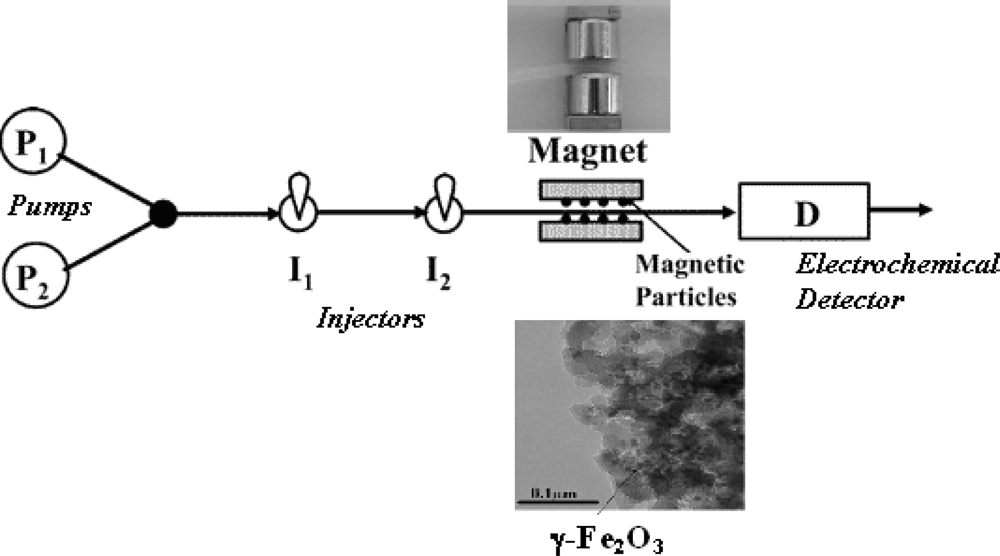

Enzymatic sensors based on various magnetic platforms, mainly iron oxides were designed with the advantages of offering high enzyme loading and control of the localization of the sensitive material through the use of a magnet allowing for the enzymatic reactions to occur in the close proximity of the transducer surface [159163].
The transducing component is easily renewable and reusable. This is due to the ability to control the charging/discharging of its surface by application of a magnetic field, providing reusability of the same electrode for several analyses. Examples include sensors based on tyrosinase for the detection of phenol [162], yeast (YADH/NAD+) [164] for the detection of ethanol, GOx for glucose [163], and AChE for organophosphorus pesticides [151]. Enzyme-immobilized magnetic beads can be incorporated in a flow injection analysis (FIA) system as described by Kauffmann et al. [161]. Figure 2 shows the schematic diagram of a FIA assay for detection of glucose using glucose oxidase modified magnetic microparticles. Functionalized magnetic particles were injected into the FIA system and retained near the detector using a pair of two small permanent magnets. An amperometric system for the detection of glucose with glucose oxidase immobilized onto the magnetic particles was developed based on this principle. The porous biomagnetic particles were ferromagnetic spinnel type iron oxide (γ-Fe2O3) with the GOx immobilized after silanization with aminopropyltrietoxysilane followed by covalent binding using GA.

5.2. Immunosensors

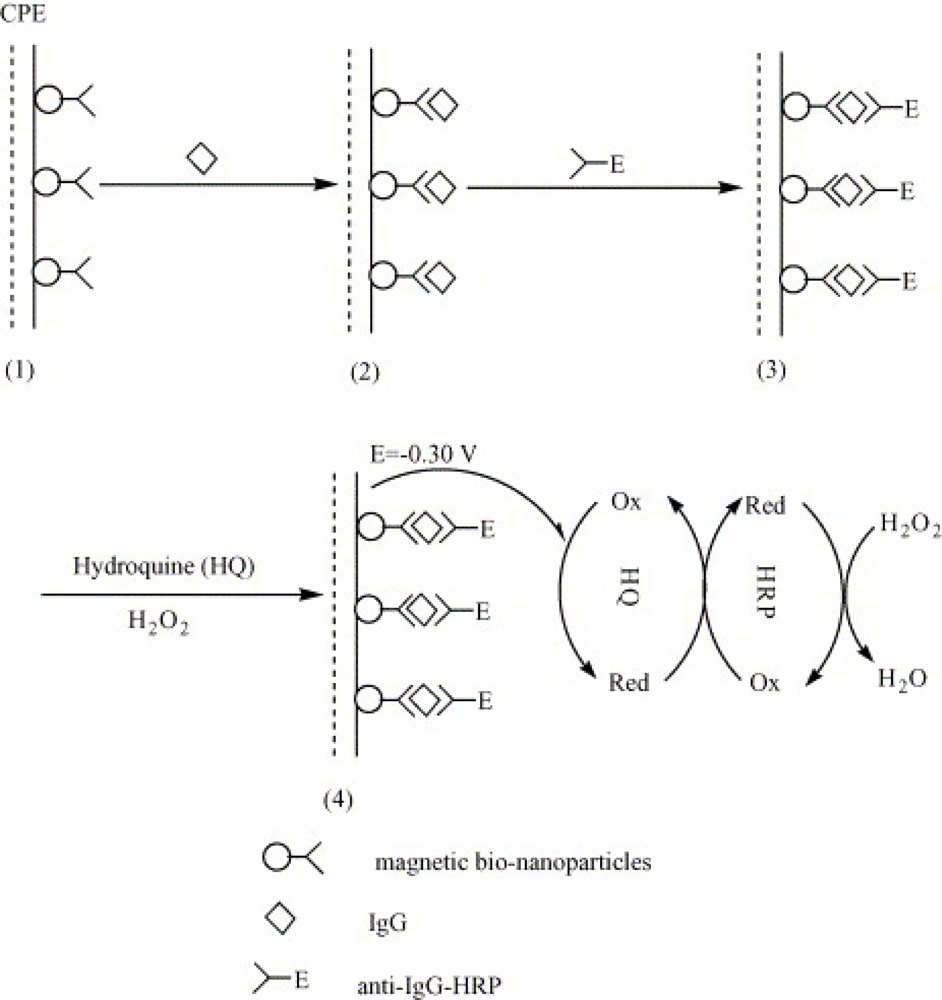

Magnetic particles functionalized with specific antibodies (Ab) have been used for the design of immunomagnetic sensors through the immobilization of the Ab-NPs assembly on the surface of an electrochemical transducer [3,165167]. For these types of immunosensors, the immunomagnetic complex is magnetically attached to the surface of the screen printed electrode. The utilization of Ab-coated magnetic particles is efficient in overcoming the need of regeneration of the sensing surface and makes possible integration into automatic systems, difficult to achieve otherwise due to the obstacles in renewing the sensing surface. The immunocomplex is usually quantified through the use of enzyme labels, with the electrochemical detection of the enzyme reaction product after the complex is exposed to the enzymatic substrate, or through a fluorescent label followed by fluorescence detection. An example of amperometric immunosensing assay obtained by immobilizing the antibody onto a solid carbon paste electrode using core-shell magnetic NPs is shown in Figure 3 [167].
Different analytes were detected using this method, such as: rabbit IgG [168170], non-pathogenic E. coli O157 [171], polychlorinated biphenyls (PCBs), the herbicide 2,4-D, atrazine [171175] pesticides and bacterial pathogens [176,177]. For example, streptavidin activated magnetic microbeads were used for the immobilization of an antibody for atrazine, a small pesticide molecule, allowing for the determination of its concentration in biological samples, with a detection limit of 0.027 nmol L−1 [173]. In another work, immunomagnetic separation coupled with differential pulse voltammetry allowed detection of Arochlor 1248 PCB mixture with a detection limit of 0.4 ng/mL using screen-printed three electrode strips [178]. Other immunosensors with renewable electrode surface were reported for the detection of pathogens such as Salmonella Typhimurium [176,177]. Another interesting application of immunomagnetic NPs was for selectively concentrating traces of pathogenic bacteria (Staphyloccocus saprophyticus and Staphyloccocus aureus) via IgGs attached onto the particles surface [179]. It was found that these IgG-NPs conjugates can bind selectively to the cell membrane. Detection limits of as low as 3 × 105 cfu/mL were achieved in aqueous solutions. Other specific examples of monodispersed bio-functional magnetic NPs for protein separation and pathogen detection were discussed recently by Gu et al. [180].

5.3. DNA sensors

DNA sensors with single-stranded (ss) oligodeoxynucleotides immobilized on electrode surfaces [181183] via magnetic beads were also fabricated [184190]. A three layer magnetic NPs structure with a gold surface, silica core and magnetic inner layer was functionalized with DNA and used for quantifying hybridization events [189]. It was found that upon hybridization with complementary oligonucleotides, this structure forms aggregates in the same way as Au NPs. In another work, surfactant-modified oligonucleotides were incorporated into the particle organic shell to create a DNA functionalized surface [188]. For example, monodisperse MnFe2O4 magnetic NPs were biofunctionalized with DNA using a combination of alkylphosphonate and ethoxylated fatty alcohols. This method is based on the affinity of alkylphosphonate for metal oxide surfaces. DNA amplification with magnetic primers in combination with electrochemical detection and enzyme labelling was used to develop a genomagnetic assay for detection of food pathogens such as Salmonella spp [190]. The electrode consisted of a graphite epoxy composite and streptavidin modified magnetic beads with immobilized DNA. Loaiza et al. [191] reported a sensitive method for isolation and detection of DNA from bacterial cells using disposable magnetic DNA sensors. Screen-printed gold electrodes with a 4 mm in diameter working electrode surface were used as amperometric transducers in this example.

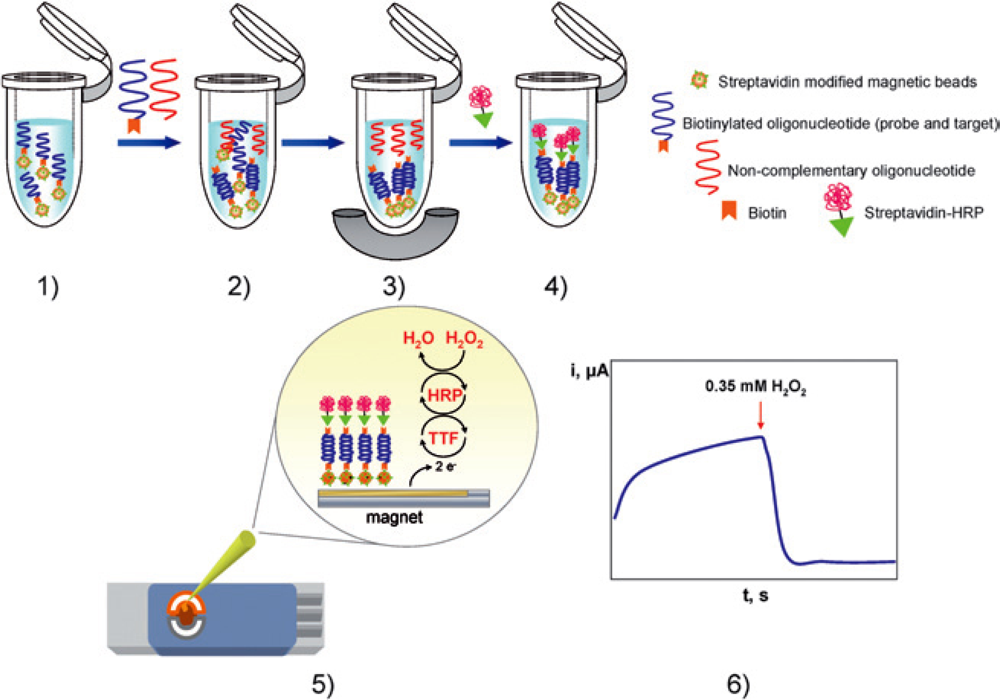

Figure 4 shows a schematic of the protocol used for enzyme amplification. The magnetic particles were functionalized with streptavidin. A 25-mer capture probe was subsequently attached, followed by the hybridization process. In the next step, streptavidin-peroxidase was attached and the functionalized magnetic particles were attached to the surface of the electrode through a magnet. The sensor was used for the detection of asymmetric DPCR amplified products obtained from E. coli bacterial cultures, with high speed, specificity and sensitivity. Another advantage of this method was elimination of false positive results, a drawback of conventional PCR analysis.

6. Conclusions

In this review, we have summarized the most recent developments in the field of biofunctionalized magnetic particles and their applications in bioanalytical sensors. Research in this field has focused mainly on the challenges of creating hybrid composite materials containing biomolecules, magnetic NPs and other inorganic components, and on the development of strategies that can be used to integrate these materials in functional sensing devices. Research in this direction involves scientific aspects of the preparation, structure and properties of magnetic systems and their functionalization with biological materials. This approach is unique in that it combines the high selectivity and specificity of biological processes with the high surface area and magnetic properties of magnetic particles. These properties have been used to provide control and orientation of the biomolecular recognition elements onto transducer surfaces as well as to enhance the response time, selectivity, sensitivity and stability of the sensor. These hybrid systems are the foundation of new generations of materials that could be used in the construction of biosensors, bioreactors, biofuel cells and in other biotechnological applications. The success of these research efforts is still dependent of the transferability of these materials into real life applications. The rapid developments in the field allowing successful fabrication and testing of various sensors designs based on biomagnetic assemblies illustrate the potential of this approach for further applications.

Acknowledgments

This work was supported by grants NSF-DMR-0804506 and NSF-OISE 0727861.
