Measurement Uncertainty Estimation of a Robust Photometer Circuit

1
Department of Circuits and Systems in the EUIT de Telecomunicación at the Universidad Politécnica de Madrid (UPM), Campus Sur UPM, Ctra. Valencia km 7, Madrid 28031, Spain
2
Department of Applied Physics in the ETSI Industriales at the Universidad Politécnica de Madrid, Calle José Gutierrez Abascal 2, Madrid 28006, Spain
*
Author to whom correspondence should be addressed.
Sensors 2009, 9(4), 3149-3160; https://doi.org/10.3390/s90403149
Submission received: 28 March 2009 / Revised: 22 April 2009 / Accepted: 24 April 2009 / Published: 24 April 2009
(This article belongs to the Section Chemical Sensors)

Abstract

:
In this paper the uncertainty of a robust photometer circuit (RPC) was estimated. Here, the RPC was considered as a measurement system, having input quantities that were inexactly known, and output quantities that consequently were also inexactly known. Input quantities represent information obtained from calibration certificates, specifications of manufacturers, and tabulated data. Output quantities describe the transfer function of the electrical part of the photodiode. Input quantities were the electronic components of the RPC, the parameters of the model of the photodiode and its sensitivity at 670 nm. The output quantities were the coefficients of both numerator and denominator of the closed-loop transfer function of the RPC. As an example, the gain and phase shift of the RPC versus frequency was evaluated from the transfer function, with their uncertainties and correlation coefficient. Results confirm the robustness of photodiode design.

1. Introduction

In general, there are many parameters that may affect a measurement result. Although it is impossible to identify all of them, the most significant can usually be identified and the magnitude of their respective effects on the measurement result can be estimated. Further, the way they impact the measurement result can, in many cases, be mathematically modeled [1].
In this paper, the uncertainty of measurement of a robust photometer circuit (RPC) based on both positive and negative feedback compensations was estimated. A rapid communication about the performance of the RPC was presented in [2]. Also, a detailed explanation of the electronic design of the RPC was given in [3]. The exact closed-loop transfer function (CLTF) of this complex feedback-controlled system was given in [4], a noise voltage analysis of it was carried out in [5] and an input-out transfer function analysis was carried out in [6].
In the above-mentioned references the importance of applying robust control techniques [7,8] to improve the disturbance rejection performance of photometer circuits was demonstrated. In addition, general information about signal conditioning and photodiode monitoring with operational amplifiers (opamps) by using non-robust feedback control techniques can be found in [911]. Other applications of robust and optimal filtering and control techniques to improve the performance of sensors can be found in [1223].
The knowledge of the photodiode transfer function allows estimation of the RPC input from a measurement of its output. However, without an accompanying statement of the estimated uncertainty of RPC input, results are incomplete and in order to estimate the RPC input uncertainty, some estimation of the transfer function uncertainty is needed. The uncertainty of the measurement is a non-negative parameter characterizing the dispersion of the quantity values being attributed to the measurands based on the information used [24].
The aim of this paper is to estimate the uncertainty of the RPC transfer function (at a level of confidence of approximately 95% [25]) and show how from this information it is possible to estimate other RPC parameters, such as its gain and phase response, with their respective uncertainties. The description of the RPC transfer function is made through the coefficients of both numerator and denominator of this function.

2. CLTF of the RPC

In accordance with [25], the RPC is shown in Figure 1. Note that in this figure the photodiode diode has been substituted by its circuit model, which according to [911], among other references, consists of a current generator (IP) proportional to the incident light intensity, a junction capacitance (Cj), a shunt resistance (Rj), and a series resistance (Rs). Also, in this figure, R1, R2, R3 and R4 are the feedback resistors previously calculated in [3] that guarantee the robust disturbance rejection performance characteristic of the photometer circuit.
Therefore, taking into consideration opamp parameters such as the input resistance (Ri), the input capacitance (Ci), the open-loop gain (Ao) and the gain bandwidth product (wT = 2πfT)), the CLTF from the current generator iP(t) to the output voltage vo(t) is given by:
T 1 ( s ) = L [ v o ( t ) ] ( s ) L [ i P   ( t ) ] ( s ) = R j R j + R s n 1 ( s ) ( s C j R j || R s + 1 ) d 1 ( s )
where Rj || Rs is the parallel equivalent of Rj and Rs, and:
n 1 ( s ) = a 3 s 3 + a 2 s 2 + a 1 s + a 0 d 1 ( s ) = d 5 s 5 + d 4 s 4 + d 3 s 3 + d 2 s 2 + d 1 s + d 0
where all the coefficients of n1(s) and d1(s) have been deduced in [4]. In [4] the equation that describes the CLTF of the RPC as a function of the above opamp parameters was shown along with the stability analysis of the feedback system and some simulations and experimental results.
Here s = jω (where j = 1 and ω represents angular frequency), L[vo(t)](s) is the Laplace transform of the output voltage vo(t) and L[iP(t)](s) is the Laplace transform of the current iP(t).
Thus, taking into consideration (1), the CLTF from the power of the incident light W(t) to the output voltage vo(t) is given by:
T 2 ( s ) = L [ v o ( t ) ] ( s ) L [ W ( t ) ] ( s ) = T 1 ( s ) σ ( λ )
where σ(λ) is the sensitivity of the photodiode at a specific wavelength λ and L[W(t)](s) the Laplace transform of W(t).
From the above equations, it can be seen the influence of several aspects that are usually of concern for circuit designers such as operational amplifier parameters. For the problem at hand, the opamp parameters that have been taken into consideration to obtain the above equations are the ones that often limit the performance of photometer circuits based on opamps [4].

3. Applications of the Law of Propagation of Uncertainty

The law of propagation of uncertainty given in [2425] assumes that the output quantity can be represented by a real number y, so that it can be written as a function that depends on one or more input quantities (i.e. x1, x2,⋯, xm)). The measurement function is given by:
y = f ( x 1 , x 2 , , x m )
However, if there are n output quantities, the relation between the input and output quantities is given by:
y = f ( x )
where x = [ x 1 ... x m ] T (where the superscript ⊤ denotes transposition) and:
y = [ y 1 y n ] = [ f 1 ( x 1 , , x m ) f n ( x 1 , , x m ) ] .
Furthermore, the uncertainty matrix of the vector x is given by:
U x = [ u 2 ( x 1 ) u ( x 1 , x m ) u ( x m , x 1 ) u 2 ( x m ) ]
where u(xi) is the standard uncertainty of the input quantity xi and u(xi, xj) = u(xj, xi) is the estimated covariance of the input quantities xi and xj. The degree of correlation between xi and xj is characterized by the estimated correlation coefficient:
r ( x i , x j ) = u ( x i , x j ) u ( x i ) u ( x j )
where r(xi, xj) = r(xj, xi) and −1 ≤ r(xi, xj) ≤1. If the estimates xi and xj are independent of each other, r(xi, xj) = 0, and a change in one does not imply an expected change in the other.
In addition, the function y = f(x) is linearized at x = x0 and:
y = y 0 + Δ y = f ( x 0 + Δ x ) y 0 + J Δ x
where y 0 = f ( x 0 ) = [ y 10 ... y n 0 ] T, Δy = y – y0, x 0 = [ x 10 ... x m 0 ] T, Δx = x – x0 and J is the Jacobian matrix of f(x):
J = [ f 1 x 1 f 1 x m f n x 1 f n x m ].
Thus, the uncertainty matrix of the vector y is given by Uy = J · Ux · JT [27].
The elements ∂fi/∂xj of the Jacobian matrix J are the sensitivity coefficients cij of the output quantities yi associated to the input quantities xj. In this paper, in order to build matrix J numerical differentiation was used [28].

4. Results of the Experiment

4.1. Uncertainty of the Input Quantities and Typical Value of the CLTF

According to [26], input quantities represent information obtained from sources such as direct measurements, calibration certificates, specifications of manufacturers, and tabulated data. Table 1 shows the minimum, typical and maximum value of the input quantities, and their standard uncertainties as well.
The information of the parameters of the OP07 and the junction capacitance of the BPW21 was taken from their datasheets. The value of the resistors R1R4 were the nominal ones, the series resistance and the shunt resistance of the BPW21 were measured experimentally by using the KEITHLEY Semiconductor Characterization System 4200-SGS, and the sensitivity of the BPW21 was measured experimentally by using the 3 mW RS Modulated Laser Diode Module 194-004 at 0 Hz and nominal wavelength 670 nm. A photograph of the prototype of the RPC with the 3 mW Modulated Laser Diode Module was shown in [4].
In accordance with [24,25], taking into consideration the available information concerning the input quantities, in this paper the input quantities were described by triangular a priori distributions. Finally, using the above typical values and taking into consideration that Ci = 0 for the OP07, the CLTF of the RPC given by (2) was given by:
T 2 ( s ) = σ ( λ ) n 2 ( s ) d 2 ( s )
Where:
n 2 ( s ) = 0 · s 3 + p 1 s 2 + p 2 s + p 3 d 2 ( s ) = 0 · s 6 + 0 · s 5 + q 1 s 4 + q 2 s 3 + q 3 s 2 + q 4 s + q 5
When Ci = 0, coefficients a3, d4 and d5 of (1) are equal to zero (see [4]). Therefore, n1(s) is a second order polynomial and d1(s) is a third order polynomial. Thus, in (3) the first term of the numerator, n2(s), is equal to zero and the first two terms of the denominator, d2(s), are equal to zero as well.
In order to have dimensionless parameter when possible the following change in polynomial n2(s) and d2(s) was made:
T 2 ( s ) = y 1 y 2 ( s / w 0 ) 2 + y 3 ( s / w 0 ) + 1 y 4 ( s / w 0 ) 4 + y 5 ( s / w 0 ) 3 + y 6 ( s / w 0 ) 2 + y 7 ( s / w 0 ) + 1
where w0 is a conventional value w0 = 1.5 Mrad/s. In this paper, the conventional value w0 has been chosen to be equal to the nominal value of the gain bandwidth product wT of the operational amplifier.
Please note that a conventional value has no uncertainty. Working in this way, the parameters y2 to y7 are dimensionless and the parameter y1 (the RPC gain at DC) is expressed in V/W. The expressions that relate the parameters yi with coefficients pj and qk of polynomials n2(s) and d2(s) are the following:
y 1 = p 3 / q 5 σ ( λ ) y 2 = p 1 / p 3 w 0 2 y 3 = p 2 / p 3 w 0 y 4 = q 1 / q 5 w 0 4 y 5 = q 2 / q 5 w 0 3 y 6 = q 3 / q 5 w 0 2 y 7 = q 4 / q 5 w 0
The first parameter y1 can be easily determined by direct calibration: a power stabilized laser, whose power WC has been previously measured by a traceable laser power meter, is focused onto the photodiode and the output voltage of the RPC is measured with a traceable voltmeter. The reading provided by the voltmeter is VC, and an estimation of the RPC gain y1 at DC would be gDC = VC/WC with standard uncertainty u(gDC):
u ( g DC ) = g DC [ u ( V C ) / V C ] 2 + [ u ( W C ) / W C ] 2
At this point it should be pointed out that as we are carrying out a direct calibration procedure, due to the fact that gDC has no relation with the estimations y2, y3, ⋯, y7, the covariance u(gDC) is equal to zero for yi, i > 1.
Thus, the RPC transfer function is described by using the output quantities gDCy1, y2, y3, ⋯, y7. This transfer function allows us to carry out the estimation of the power of the optical signal W(t) arriving at the photodiode, through the measurement of the electrical output signal v0(t):
W ( t ) = L 1 { L [ v 0 ( t ) ] ( s ) T 2 ( s ) }   ( t )
As in this paper the photodiode is operated in the photoconductive mode, the photocurrent is linearly proportional to the incident light energy. Thus, assuming we have no nonlinear distortion in the opamp, the RPC shown in Figure 1 is a linear circuit; and for the case in which the optical signal is harmonic, W(t) = W0cos(ωt + α), the output voltage is harmonic as well, v0(t) = V0cos(ωt + φ + α), where ω and α are the angular frequency and phase shift of the optical signal, respectively.
The amplitude V0 of the output voltage is determined by:
V 0 W 0 = G ( ω ) = | T 2 ( j ω ) | .
The gain G(ω) can be expressed as G(ω) = gDC · g(ω), where g(ω) is:
g ( ω ) = | y 2 ( j ω / w 0 ) 2 + y 3 ( j ω / w 0 ) + 1 y 4 ( j ω / w 0 ) 4 + y 5 ( j ω / w 0 ) 3 + y 6 ( j ω / w 0 ) 2 + y 7 ( j ω / w 0 ) + 1 |
And the phase shift φ is determined by:
φ ( ω ) = arg ( T 2 ( j ω ) ) = arg ( y 2 ( j ω / w 0 ) 2 + y 3 ( j ω / w 0 ) + 1 y 4 ( j ω / w 0 ) 4 + y 5 ( j ω / w 0 ) 3 + y 6 ( j ω / w 0 ) 2 + y 7 ( j ω / w 0 ) + 1 )

4.2. Uncertainty of the Parameters Describing the Transfer Function

The standard uncertainty and the relative standard uncertainty (which is defined as the ratio of the standard uncertainty of the parameter to its typical value) of the parameters y2, y3, ⋯, y7, are shown in Table 2.
The matrix of the estimated correlation coefficients among elements of parameters y2, y3, ⋯, y7 is:
R = [ r ( x i , x j ) ] = [ 1 0.98 0.05 0.16 0.33 0.38 0.98 1 0.17 0.24 0.39 0.29 0.05 0.17 1 0.96 0.88 0.64 0.16 0.24 0.96 1 0.95 0.58 0.33 0.39 0.88 0.95 1 0.47 0.38 0.29 0.64 0.58 0.47 1 ] .
where r(xi, xj) = r(yi, yj) and i = 2,3 and j = 4,5,6,7.
At first glance, y2,3 seem to be no correlated with y4,5,6,7 because they depend on different variables, y2,3 depend on p1,2,3 while y4,5,6,7 depend on q1,2,3,4,5. However, as p1,2,3 are correlated with q1,2,3,4,5, y2,3 and y4,5,6,7 are correlated as well.
The uncertainty matrix Uy of the parameters y2, y3, ⋯, y7 is:
U y = [ u 2 ( y 2 ) r 23 u ( y 2 ) u ( y 3 ) r 27 u ( y 2 ) u ( y 7 ) r 32 u ( y 3 ) u ( y 2 ) u 2 ( y 3 ) r 37 u ( y 3 ) u ( y 7 ) r 72 u ( y 7 ) u ( y 2 ) r 73 u ( y 7 ) u ( y 3 ) u 2 ( y 7 ) ] .

4.3. Using the Transfer Function to Determine Other Parameters: Gain, Phase Shift and Cut-Off Frequency of the RPC

As described previously, the transfer function can be used to determine the gain G(ω) = gDC · g(ω) and the phase shift φ(ω) of the RPC when the optical power arriving at the photodiode is harmonic. The angular frequency of the optical signal can be expressed as ω = 2πf, where f is its frequency.

4.3.1. Gain and Phase Shift

Again, the uncertainty propagation from the transfer function parameters gDCy1, y2, y3, ⋯, y7 to G(ω) = gDC · g(ω) and φ(ω) are calculated by using the procedure described in Section 3. At a specified frequency f, the gain and phase shift are functions of the parameters y2, y3, ⋯, y7:
g = g ( y 2 , y 3 , , y 7 ) φ = φ ( y 2 , y 3 , , y 7 )
The uncertainty matrix of the vector [gφ] is:
[ u 2   ( g ) u   ( g , φ ) u   ( g , φ ) u 2   ( φ ) ] = J 2 U y J 2 T
where J2 is the Jacobian matrix of the functions g = g(y2, y3, ⋯, y7) and φ = φ (y2, y3, ⋯, y7), and is given by:
J 2 = [ g / y 2 g / y 3 g / y 7 φ / y 2 φ / y 3 φ / y 7 ]
and the partial derivatives of matrix J2 are evaluated numerically.
For example, at frequency f = 47.7 kHz, we obtain the following results:
g = 12.1   dB φ = 78.9 ° r ( g , φ ) = u ( g , φ ) u ( g , ) u ( φ ) = + 0.54 u ( g ) = 0.48   dB   u ( φ ) = 1.3 °
Figures 2 and 3 show in thick-blue lines the gain g and the phase shift φ of the RPC versus frequency, respectively. The thin-red lines represent the upper and lower boundaries of the expanded uncertainty interval. Expanded uncertainties has been evaluated at a level of confidence of approximately 95%, using a coverage factor of k = 2 [25].

4.3.2. Cut-Off Frequency

Another important parameter is the cut-off frequency fc. For the case under analysis, from the frequency response shown in Figures. 2 and 3, it can be seen that, as the first zero is located between the second and the third pole and the second zero is located right after the forth pole, the cut-off frequency fc depends mainly on the denominator of T2(s).
In this paper, the cut-off frequency fc was determined numerically in the frequency range shown in Figures. 2 and 3, and its partial derivatives with respect to y4, y5, ⋯, y7 were determined numerically as well.
In order to be consistent with the above statements, for the analysis, the partial derivatives of fc with respect to y2 and y3 were assumed to be equal to zero. Therefore, the standard uncertainty of the cut-off frequency, u(fc), was calculated as follows:
u 2 ( f c ) = [ f c y 4 f c y 5 f c y 6 f c y 7 ] [ u 2 ( y 4 ) r 45 u ( y 4 ) u ( y 5 ) r 46 u ( y 4 ) u ( y 6 ) r 47 u ( y 4 ) u ( y 7 ) r 54 u ( y 5 ) u ( y 4 ) u 2 ( y 5 ) r 56 u ( y 5 ) u ( y 6 ) r 57 u ( y 5 ) u ( y 7 ) r 64 u ( y 6 ) u ( y 4 ) r 65 u ( y 6 ) u ( y 5 ) u 2 ( y 6 ) r 67 u ( y 6 ) u ( y 7 ) r 74 u ( y 7 ) u ( y 4 ) r 75 u ( y 7 ) u ( y 5 ) r 76 u ( y 7 ) u ( y 6 ) u 2 ( y 7 ) ] [ f c y 4 f c y 5 f c y 6 f c y 7 ]
Finally, the results are the following:
f c = 12 , 0   kHz         u ( f c ) = 0.70   kHz         U 95 % ( f c ) = 1.4   kHz
where the expanded uncertainty expanded U95%(fc) has been evaluate at a level of confidence of approximately 95%, using a coverage factor of k = 2 [25].

5. Conclusions

In this paper, the uncertainty of the transfer function of a RPC has been estimated in accordance with the Guide to the Expression of Uncertainty in Measurement of the Organization for Standardization. The RPC transfer function has been described through seven parameters and the uncertainty and correlation coefficients of these parameters have been estimated as well. Also, it has been shown that other parameters such as the gain, phase margin and the cut-off frequency can be estimated along with their respective uncertainties taking into consideration the information given by the RPC transfer function.

Acknowledgments

This work has been partially supported by the Ministry of Science and Innovation (MICINN) of Spain under the research project TEC2007-63121, and the Universidad Politécnica de Madrid.

References

  1. Adams, T.M. G104-A2LA Guide for estimation of measurement uncertainty in testing; American Association for Laboratory Accreditation: Frederick, MD, USA, July 2002. [Google Scholar]
  2. Hernandez, W. Photometer circuit based on positive and negative feedback compensations. Sens. Lett 2007, 5, 612–614. [Google Scholar]
  3. Hernandez, W. Linear robust photometer circuit. Sens. Actuator A 2008, 141, 447–453. [Google Scholar]
  4. Hernandez, W. Performance analysis of a robust photometer circuit. IEEE Trans. Circuit. Syst. II 2008, 55, 106–110. [Google Scholar]
  5. Hernandez, W. Robustness and noise voltage analysis in two photometer circuits. IEEE Sens. J 2007, 7, 1668–1674. [Google Scholar]
  6. Hernandez, W. Input-output transfer function analysis of a photometer circuit based on an operational amplifier. Sensors 2008, 8, 35–50. [Google Scholar]
  7. Skogestad, S.; Posthlethwaite, I. Multivariable Feedback Control; John Wiley and Sons: Chichester, England, 1996. [Google Scholar]
  8. Zhou, K.; Doyle, J.C.; Glover, K. Robust and Optimal Control; Prentice-Hall: New Jersey, USA, 1996. [Google Scholar]
  9. Johnson, M. Photodetection and measurement: maximizing performance in optical systems; McGraw-Hill: New York, NY, USA, 2003. [Google Scholar]
  10. Pallás-Areny, P.; Webster, J.G. Sensors and signal conditioning, 2nd Ed ed; John Wiley & Sons: New York, NY, USA, 2001. [Google Scholar]
  11. Graeme, J. Photodiode amplifiers: op amp solution; McGraw-Hill: New York, NY, USA, 1996. [Google Scholar]
  12. Hernandez, W. Improving the response of an accelerometer by using optimal filtering. Sensor. Actuator. A-phys 2001, 88, 198–208. [Google Scholar]
  13. Hernandez, W. Improving the response of several accelerometers used in a car under performance tests by using Kalman filtering. Sensors 2001, 1, 38–52. [Google Scholar]
  14. Hernandez, W. Improving the response of a wheel speed sensor using an adaptive line enhancer. Measurement 2003, 33, 229–240. [Google Scholar]
  15. Hernandez, W. Improving the response of a wheel speed sensor by using frequency-domain adaptive filtering. IEEE Sens. J 2003, 3, 404–413. [Google Scholar]
  16. Hernandez, W. Robust multivariable estimation of the relevant information coming from a wheel speed sensor and an accelerometer embedded in a car under performance tests. Sensors 2005, 5, 488–508. [Google Scholar]
  17. Hernandez, W. Improving the response of a rollover sensor placed in a car under performance tests by using a RLS lattice algorithm. Sensors 2005, 5, 613–632. [Google Scholar]
  18. Hernandez, W. Improving the response of a wheel speed sensor by using a RLS lattice algorithm. Sensors 2006, 6, 64–79. [Google Scholar]
  19. Hernandez, W. Improving the response of a load cell by using optimal filtering. Sensors 2006, 6, 697–711. [Google Scholar]
  20. Hernandez, W. Wheel speed sensors. In Encyclopedia of Sensors; Grimes, C.A., Dickey, E.C., Pishko, M.V., Eds.; American Scientific Publishers: Los Angeles, CA, USA, 2006; volume 10,; pp. 461–472. [Google Scholar]
  21. Hernandez, W. Optimal estimation of the acceleration of a car under performance tests. IEEE Sens. J 2007, 7, 392–400. [Google Scholar]
  22. Hernandez, W. Optimal estimation of the relevant information coming from a variable reluctance proximity sensor placed in a car undergoing performance tests. Mech. Syst. Signal Process 2007, 21, 2732–2739. [Google Scholar]
  23. Hernandez, W. A survey on optimal signal processing techniques applied to improve the performance of mechanical sensors in automotive applications. Sensors 2007, 7, 84–102. [Google Scholar]
  24. International vocabulary of metrology — Basic and general concepts and associated terms (VIM) European Co-operation for Acreditation of Laboratories, Published by BIPM in the name of BIPM, IEC, IFCC, ILAC, ISO, IUPAC, IUPAP and OIML. Ref. JGCM 200:. 2008.
  25. Evaluation of measurement data – Guide to the expression of uncertainty in measurement, Published by BIPM in the name of BIPM, IEC, IFCC, ILAC, ISO, IUPAC, IUPAP and OIML. Ref. JGCM 100:. 2008.
  26. Cox, M.G.; Harris, P.M. Software support for metrology. Best practice guide No. 6: Uncertaitny evaluation, National Physical Laboratory, NPL Report, DEM-ES-011,. Sep 2006.
  27. Evaluation of measurement data – Supplement 2 to the “Guide to the expression of uncertainty in measurement” – Models with any number of output quantities, Joint Committee for Guides in Metrology, ISO/IEC Guide 98-3/NP Suppl. 2, to be published.
  28. Ralston, A; Rabinowitz, P. A first course in numerical analysis; Courier Dover Publications: New York, NY, USA, 2001; Chapter 4. [Google Scholar]

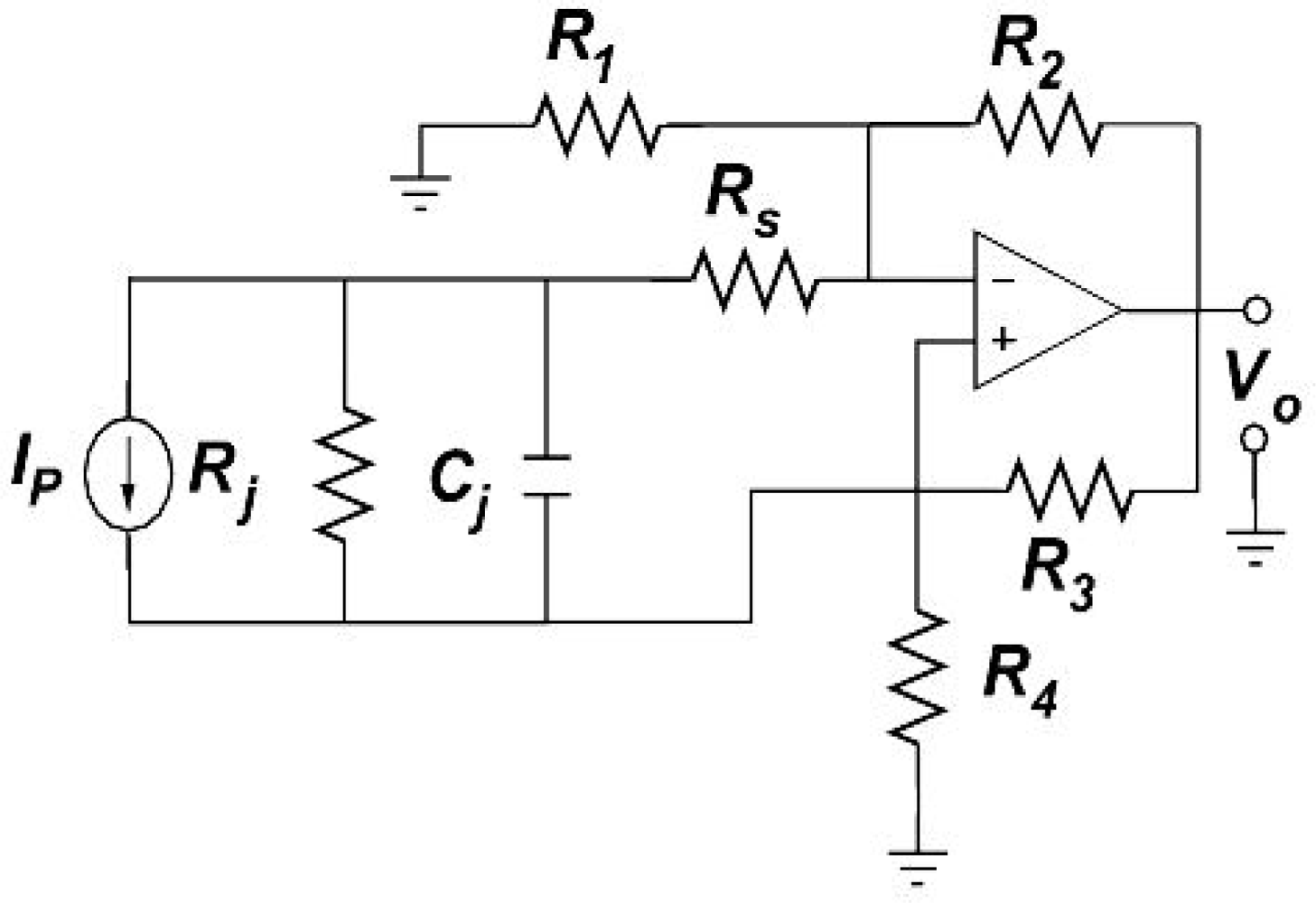

Figure 1. Robust photometer circuit.
Figure 1. Robust photometer circuit.
Sensors 09 03149f1

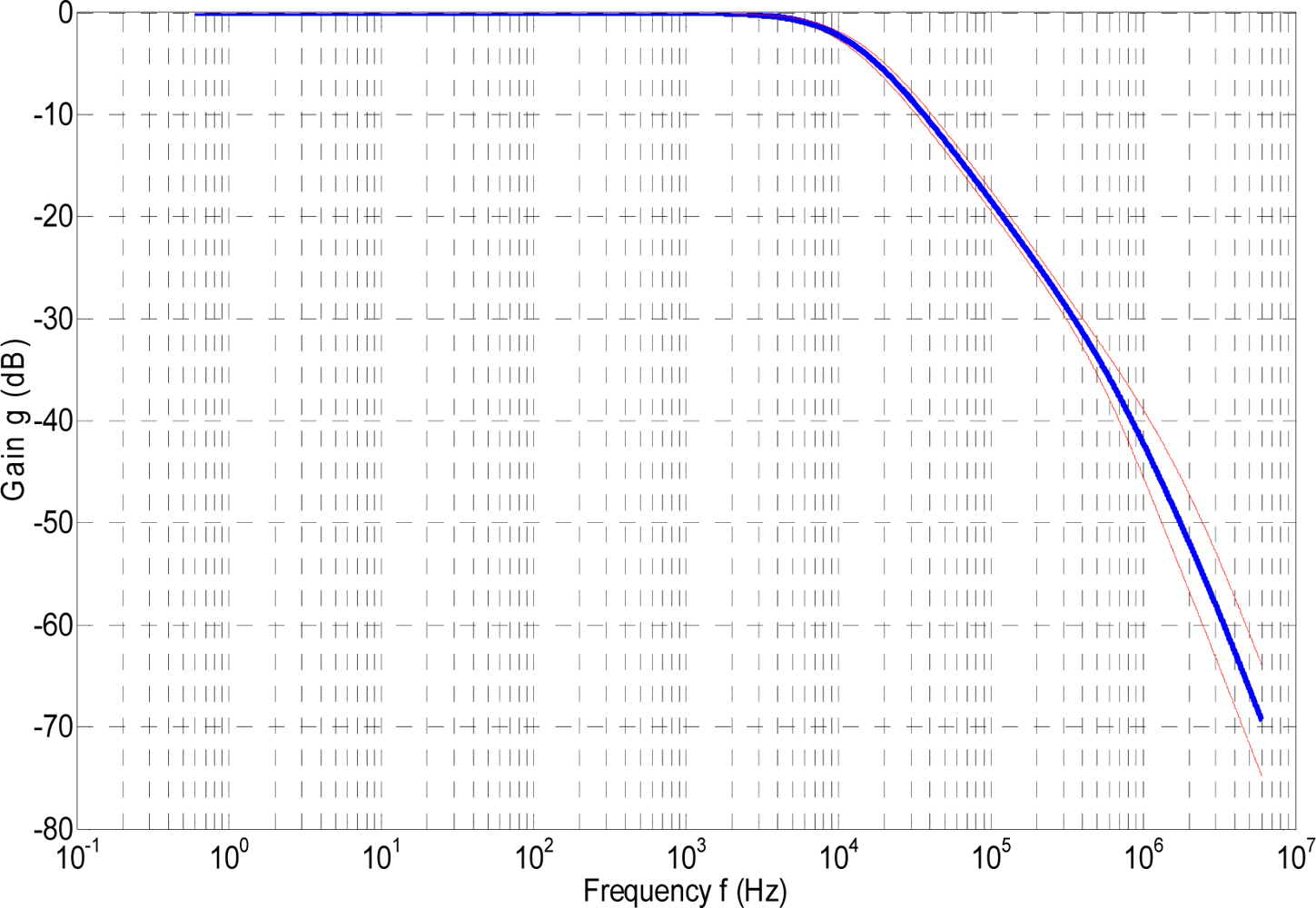

Figure 2. Gain g (dB) vs. frequency f (Hz).
Figure 2. Gain g (dB) vs. frequency f (Hz).
Sensors 09 03149f2

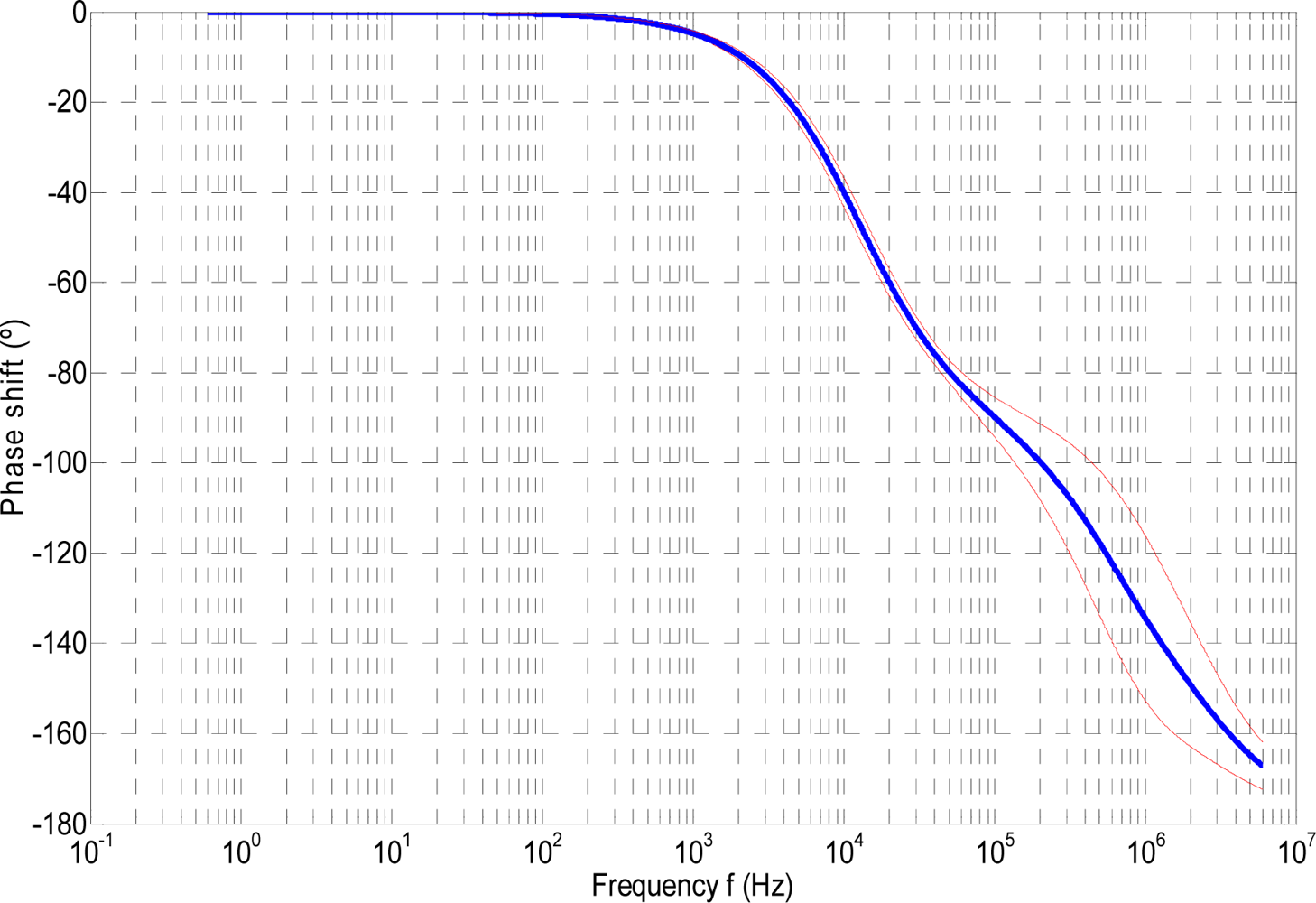

Figure 3. Phase shift φ(°) vs. frequency f (Hz).
Figure 3. Phase shift φ(°) vs. frequency f (Hz).
Sensors 09 03149f3
Table 1. Minimum, typical, maximum value and standard uncertainty of the input quantities.
Table 1. Minimum, typical, maximum value and standard uncertainty of the input quantities.
Input quantityMINTYPMAXStandard uncertainty
Cj522 pF580 pF638 pF24 pF
Rj374 MΩ416 MΩ457 MΩ17 MΩ
Rs5.31 Ω5.90 Ω6.49 Ω0.24 Ω
R1900 Ω1000 Ω1100 Ω41 Ω
R290.0 Ω100.0 Ω110.0 Ω4.1 Ω
R390.0 kΩ100.0 kΩ110.1 kΩ4.1 Ω
R419.87 kΩ22.08 kΩ24.29 kΩ0.90 kΩ
Ri15.0 MΩ50.0 MΩ55.0 MΩ2.0 MΩ
Ci0 pF0 pF0 pF0 pF
A0106 dB114 dB125.4 dB1.46 dB
ωT0.80π Mrad/s1.20π Mrad/s1.30π Mrad/s0.15 Mrad/s
σ121.1 mA/W134.5 mA/W148.0 mA/W5.5 mA/W
Table 2. Parameter estimation, standard uncertainty and relative standard uncertainty.
Table 2. Parameter estimation, standard uncertainty and relative standard uncertainty.
ParameterParameter estimationStandard uncertaintyRelative standard uncertainty
y20.00530.00160.30
y30.420.120.29
y40.1480.0290.20
y512.22.00.17
y655.98.00.14
y750.32.90.057
