Article

New Prenylated Aeruginosin, Microphycin, Anabaenopeptin and Micropeptin Analogues from a Microcystis Bloom Material Collected in Kibbutz Kfar Blum, Israel

Raymond and Beverly Sackler Faculty of Exact Sciences, Raymond and Beverly Sackler School of Chemistry, Tel Aviv University, Ramat Aviv, Tel Aviv 69978, Israel
*
Author to whom correspondence should be addressed.
Mar. Drugs 2015, 13(4), 2347-2375; https://doi.org/10.3390/md13042347
Submission received: 23 November 2014 / Revised: 16 March 2015 / Accepted: 18 March 2015 / Published: 15 April 2015

Abstract

:
Thirteen new and eighteen known natural products were isolated from a bloom material of an assembly of various Microcystis spp. collected in November, 2008, from a commercial fishpond near Kibbutz Kfar Blum, the Jordan Valley, Israel. The new natural products included the prenylated aeruginosin KB676 (1), microphycin KB921 (2), anabaenopeptins KB906 (3) and KB899 (4) and micropeptins KB928 (5), KB956 (6), KB970A (7), KB970B (8), KB984 (9), KB970C (10), KB1048 (11), KB992 (12) and KB1046 (13). Their structures were elucidated primarily by interpretation of their 1D and 2D nuclear magnetic resonance spectra and high-resolution mass spectrometry. Marfey’s and chiral-phase high performance liquid chromatography methods were used to determine the absolute configurations of their chiral centers. Aeruginosin KB676 (1) contains the rare (2S,3aS,6S,7aS)-Choi and is the first prenylated aeruginosin derivative described in the literature. Compounds 1 and 511 inhibited trypsin with sub-μM IC50s, while Compounds 1113 inhibited chymotrypsin with sub-μM IC50s. The structures and biological activities of the new natural products and our procedures of dereplication are described.

1. Introduction

Cyanobacterial water blooms are initiated from dormant cells under appropriate environmental conditions, which develop into a stable population of different biomass intensities and toxin content, which eventually collapses, disintegrates and discharges toxins to the water environment [1]. These blooms are frequently described as a single-species phenomenon. However, recent studies suggest that many of these blooms are composed of complex populations of various strains of one or more species of the same genus, as well as associated bacteria, and the community structure varies in time and space [2,3]. The natural products that are biosynthesized by the community members most probably govern the variation of the community in space and time [4,5]. A large volume of research was devoted to the toxins that are produced by cyanobacterial blooms and to the toxic action of these toxins; microcystins, anatoxins, saxitoxins and cylindrospermopsins [6,7]. However, recent studies have suggested that microcystins are involved in quorum sensing and might be produced to manage cyanobacterial colonies in the environment [8] and not necessarily produced for their toxic effects.
The protease inhibitors that are produced by microcystin-producing genera of cyanobacteria, i.e., micropeptins, aeruginosins, anabaenopeptins, microginins and microviridins, have been shown to affect the normal life cycle of organisms that interact with cyanobacteria in the environment [9]. These secondary metabolites usually appear in the bloom in relatively high concentrations as an array of structurally-related compounds, and their ecological role is still not fully understood [10].
As part of our continuous interest in the pharmacological properties and the ecological role of cyanobacterial natural products [11], we chemically investigated the extracts of a bloom material composed of an assembly of Microcystis spp. collected in November, 2008, from a commercial fishpond near Kibbutz Kfar Blum, the Jordan Valley, Israel. Thirteen new natural products, aeruginosin KB676 (1), microphycin KB921 (2), anabaenopeptins KB906 (3) and KB899 (4) and micropeptins KB928 (5), KB956 (6), KB970A (7), KB970B (8), KB984 (9), KB970C (10), KB1048 (11), KB992 (12) and KB1046 (13), and eighteen known natural products were isolated from this bloom material. The known natural products were aeruginazoles A [12] and DA1304 [13], aeruginosins 298B [14] and DA495A [15], anabaenopeptins G [16], H [16], 908 [17], 915 [17], HU892 [18] and MM913 [19], cyanopeptolins S [20] and SS [21], ichthyopeptin A [22], microcystin-LR [23], micropeptins HM978 [24], LH920 [25] and LH1021 [25] and oscillamide C [26] (Supplementary Figures S1 and S2). The structural elucidation and biological activity of the thirteen new compounds are described below.

2. Results and Discussion

Thirty-one natural products were isolated from a 70% aqueous methanol extract of bloom material collected from a fishpond of the Kibbutz Kfar Blum. The compounds were separated through fractionation by reversed-phase C18 open column, size exclusion chromatography and purification on various reversed-phase high performance liquid chromatography (HPLC) columns. The fractionation process was guided by the serine protease inhibition assay. Dereplication and verification of the purity of the isolated natural products was achieved by running liquid chromatography mass spectrometry (LCMS) and nuclear magnetic resonance (NMR) spectra on each one of the isolated compounds.

2.1. Structural Elucidation of Aeruginosin KB676

Aeruginosin KB676 (1, Figure 1a) was isolated as a glassy material that presented a high-resolution electrospray ionization mass spectrometry (HR ESI MS) protonated molecular ion at m/z 677.4031 corresponding to a molecular formula of C37H53N6O6 and 15 degrees of unsaturation. However, its 1H and 13C NMR spectra in DMSO-d6 (Supplementary Figures S3 and S4) seemed much more complicated than the expected spectra for 53 protons and 37 carbons. Careful examination of these spectra revealed that many of the signals appeared as pairs of signals with slightly different chemical shifts and integration of 55:45, while some presented doubled integration and a single chemical shift.
Figure 1. (a) The structure of aeruginosin KB676 (1); and (b) chemical shifts (in ppm) and NOE correlations of the l-6-epiChoi moiety of 1.
Figure 1. (a) The structure of aeruginosin KB676 (1); and (b) chemical shifts (in ppm) and NOE correlations of the l-6-epiChoi moiety of 1.
Marinedrugs 13 02347 g001
A full assignment of the NMR data (Table 1 for the major rotamer, and Supplementary Table S1 for the minor rotamer) by interpretation of the correlations from homo-nuclear (COSY, TOCSY and ROESY) and hetero-nuclear (HSQC and HMBC) 2D NMR experiments revealed that 1 contained pairs of the following acid units; p-hydroxyphenyl lactic acid (Hpla), Phe, 2-carboxy-6-hydroxy-octahydro-indole (Choi), characteristic of the aeruginosins, and 4N-prenyl-agmatine [15]. The Choi moiety was assigned as follows: COSY and TOCSY correlations connected H-2 through H-3ax and H-3eq to H-3a, while H-3a presented COSY correlations with H2-4 and H-7a. The small difference in the chemical shifts of H2-4 and H-5eq did not allow the unequivocal connection of H2-4 and H2-5. However, COSY correlations of H-7a, through H-7ax, H-7eq, H-6, 6-OH, to H-5ax and H-5eq, allowed the connection of all of the protons of the Choi moiety. TOCSY correlations connected H-3a with H-5ax and closed the six-membered ring of the Choi moiety. The carbons of the Choi moiety were assigned by the HSQC correlations, except for C-1 (δC 172.4) that, in the case of the major rotamer, did not show a correlation with the Choi protons, but showed a correlation with Agm-1-NH. It was assigned on the basis of the correlations of the minor rotamer C-1 (δC 171.6) with Choi-H-2 and Agm-1-NH. NOE correlations from a ROESY experiment (Figure 1b) established that H-2, H-3a, H-6 and H-7a pointed to the same face of the Choi moiety. A comparison of the protons’ and carbons’ chemical shifts and the NOE correlations of the Choi moiety protons of 1 with those of aeruginosin KT608 ((2R,3aR,6R,7aR)-Choi (d-3a,7a-diepiChoi)) [27], aeruginosin DA495A ((2S,3aS,6S,7aS)-Choi (l-6-epiChoi)) [15] and aeruginosin DA642A ((2S,3aS,6R,7aS)-Choi (l-Choi)) [15] revealed that it matched those of aeruginosins KT608 and DA495A and, thus, displayed all S* relative configurations. A comparison of the retention times of the 1-Choi-2,4-dinitrophenyl-5-l-alanine amide (Choi-l-DAA) derivative (Marfey’s analysis [28]) of 1 with those of authentic samples of (2R,3aR,6R,7aR)-Choi-l-DAA, (2S,3aS,6S,7aS)-Choi-l-DAA and (2S,3aS,6R,7aS)-Choi-l-DAA revealed that 1 contained ((2S,3aS,6S,7aS)-Choi (l-6-epiChoi)), similar to that of aeruginosin DA495A [15], which was isolated with it from the same extract.
Table 1. NMR data of the major rotamer of aeruginosin KB676 (1) in DMSO-d6 a.
Table 1. NMR data of the major rotamer of aeruginosin KB676 (1) in DMSO-d6 a.
PositionδC mult. bδH mult. b J in HzHMBC Correlations cNOE Correlations d
1Hpla
1173.5 qC-
272.4 CH3.87 m Hpla-3,3′,5,5′; Phe-5,5′,6,6′,NH
340.0 CH22.60 dd (14.0,3.5) Hpla-1,2,4,5,5′Hpla-2,3′,5,5′
2.27 dd (14.0,8.5)Hpla-1,2,4,5,5′Hpla-2,3,5,5′
4128.6 qC-
5,5′130.3 CH6.85 d (8.3)Hpla-3,6,6′,7Hpla-2,3,3′,6,6′
6,6′115.0 CH6.59 d (8.3)Hpla-4,7Hpla-5,5',7-OH
7155.8 qC-
2-OH-5.31 brs
7-OH-9.09 sHpla-7Hpla-6,6′
2Phe
1170.0 qC-
251.4 CH4.26 q (6.0)Phe-1,3Phe-3,5,5′,NH; Choi-2,3
336.6 CH22.80 mPhe-1,4Phe-2,5,5′,NH
4138.2 qC-
5,5′129.3 CH7.10 mPhe-3,7Phe-2,3,6,6′; Hpla-2
6,6′128.2 CH7.22 mPhe-4Phe-3,5,5′,7; Hpla-2
7126.4 CH7.16 mPhe-5Phe-6,6′
NH-7.76 d (8.0)Hpla-1; Phe-2Phe-2,3; Hpla-2
3Choi
1172.4 qC-
259.7 CH4.79 d (9)Choi-3Choi-3,3′,3a; Phe-2; Agm-1-NH
3 (ax) (eq)32.8 CH22.36 mChoi-7aChoi-2,3′,3a; Phe-2
1.70 mChoi-2,3,3a; Phe-2
3a32.2 CH2.25 m Choi-2,3,3′,4,7a
422.8 CH21.59 m, 2H Choi-3a,5,6,7a
5 (eq) (ax)29.9 CH21.57 m Choi-4,5′,6
1.22 mChoi-4,5,7ax
667.0 CH3.30 m Choi-4,5,7eq,7a
6-OH-4.55 brs
7 (eq) (ax)36.2 CH22.36 mChoi-3a,6,7aChoi-4,6,7′,7a; Phe-2
0.82 mChoi-5ax,7eq
7a56.8 CH4.03 m Choi-3a,5,6,7eq
4N-prenyl-4Agm
138.6 CH23.16 mChoi-1Agm-1′,2,3,6,7,1-NH
3.05 mChoi-1, Agm-2,3Agm-1,2,3,1-NH
226.4 CH21.40 mAgm-1,3Agm-1,1′,3,4,6,1-NH
324.7 CH21.48 mAgm-1,2Agm-1,1′,2,4,6,7,1-NH
447.3 CH23.16 mAgm-2,3,5,6Agm-2,3,6,7,1-NH
5155.8 qC-
645.9 CH23.87 brd (6.0) Agm-4,5,7,8Agm-1,2,3,4,7,9,10
8137.1 qC-
925.7 CH31.70 brsAgm-7,8Agm-6,7
1018.0 CH31.64 brsAgm-7,8Agm-6,1-NH
1-NH-8.23 t (5.5)Choi-1Agm-1,1′,2,3,4,10; Choi-2
5-NH,NH2-7.25 brm
a One hundred twenty five megahertz for carbons and 500 MHz for protons; b multiplicity: qC, quaternary carbon; CH, methane carbon; CH2, methylene carbon; CH3, methyl carbon; assigned from HSQC experiment; c determined from the HMBC experiment, nJCH = 8 Hz, recycle time 1 s; d selected NOEs from the ROESY experiment.
The structure of the unique 4N-prenyl-agmatine was established based on COSY correlations of 1-NH through CH2-4 and HMBC correlations of the guanidine carbon (C-5, δC 155.8) with H2-4 and H2-6. The structure of the prenyl substituent was established by the COSY correlations of H2-6 through H3-9 and H3-10 and the HMBC correlations of H2-6, H3-9 and H3-10 with the double-bond carbons (δC 118.6, CH and 137.1 qC). The four units were assembled to the full planar structure by an HMBC correlation of 1Hpla-CO with 2Phe-NH, NOE correlations of 1Hpla-H-2 with 2Phe-NH, of 2Phe-H-2 and 3Choi-H-2 and of 3Choi-H-2 with 4Agm-1-NH. The NOE correlations of 2Phe-H-2 and 3Choi-H-2 in the major rotamer established it as the cis rotamer, while the NOE of 2Phe-H-2 and 3Choi-H-7a in the minor rotamer verified it as the trans rotamer. Marfey’s analysis [28] established the configuration of the Phe residue as d, while chiral HPLC established the configuration of Hpla residue as D. Based on these arguments, the structure of aeruginosin KB676 was established as 1.
Several N-, O- and C-prenylated peptide-derived metabolites have been described from cyanobacteria. Kawaguchipeptin A [29] contains two C-prenylated tryptophan units within its cyclic undecapeptide structure. Prenylagaramides A and B are O-prenylated cyanobactins isolated from Oscillatoria (Planktothrix) agardhii [30]. N-prenylated peptides are more common in cyanobacterial extracts as exemplified by aeruginoguanidines 98-A-98-C [31], stictamides A–C [32] and microguanidine AL772 [33]. Aeruginosin KB676 (1) is the first prenylated aeruginosin derivative. It is related in structure to aeruginosin KT608B (IC50 (against trypsin) 1.3 μM) [27], except for the stereochemistry of the Choi, which resembled that of aeruginosin DA495A [15], and the agmatine prenylation. The reason for the biosynthesis of different isomers of the Choi moiety and prenylation of agmatine remains unclear.

2.2. Structural Elucidation of Microphycin KB921

Microphycin KB921 (2, Figure 2) was isolated as a transparent solid material presenting an HR ESI MS quasi-molecular ion ([M + Na]+) at m/z 944.4650, which corresponded to a molecular formula of C49H63N9NaO9. The molecular formula of 2 and its NMR spectra in DMSO-d6 (Table 2) pointed to its peptidic nature. The 23 degrees of unsaturation suggested, beside the nine carbonyls, three phenyl rings and a pyrrolidine ring, a cyclic peptide structure. A full assignment of the 1H and 13C NMR spectra of 2 in DMSO-d6 (Supplementary Table S2) established the structures of three Phe, two Ala, one Pro, one Gln and one Leu moieties. HMBC correlations (Supplementary Table S2) allowed the construction of two short amino acid sequences: 5Pro-6Leu-7Phe-8Phe-1Phe and 2Ala-3Gln. NOE correlations from a ROESY experiment (Supplementary Table S2) enabled the connection of 1Phe-H-2 with 2Ala-NH and 4Ala-NH with 5Pro-H-5 extending the amino acid sequence to: 4Ala-5Pro-6Leu-7Phe-8Phe-1Phe-2Ala-3Gln. However, the closure of the macrocyclic ring was evident only from the molecular weight of 2. To support this assumption, an MS/MS measurement was performed for 2, and some of the indicative data supporting the closure of the cycle between 3Gln-CO and 4Ala-NH are presented in Figure 3. Applying Marfey’s method [28] to the amino acid derivatives of 2 established all amino acids as being of the l-configuration. Based on these arguments, the structure of 2 was assigned to microphycin KB921.
Figure 2. The structure of microphycin KB921 (2).
Figure 2. The structure of microphycin KB921 (2).
Marinedrugs 13 02347 g002
Table 2. 1H and 13C NMR data of Compounds 24 in DMSO-d6.
Table 2. 1H and 13C NMR data of Compounds 24 in DMSO-d6.
Compound
2 34
PositionδC aδH bPositionδC aδH bδC cδH d
1Phe 1Ile
1171.1 qC 1170.7 qC-170.7 qC-
252.9 CH4.91 brdd258.1 CH4.19 m58.1 CH4.15 m
339.0 CH23.38 m336.1 CH1.97 m35.9 CH1.98 m
2.62 t
4137.7 qC-424.2 CH21.31 m24.2 CH21.28 m
0.98 m0.93 m
5,5′129.7 CH7.31 m511.6 CH30.75 t11.4 CH30.75 t
128.2 CH7.27 m616.1 CH30.77 d16.1 CH30.76 d
7126.5 CH7.20 mNH-8.10 d-8.17 d
NH 7.27 m2NMeHty
2Ala 1169.5 qC-169.4 qC-
1173.6 qC-259.5 CH4.66 t59.5 CH4.58 t
252.6 CH3.84 dq330.9 CH22.03 m30.8 CH21.98 m
1.70 m1.70 m
317.0 CH31.31 d431.6 CH22.32 m31.4 CH22.31 m
2.23 m2.27 m
NH 8.96 m5131.6 qC-131.6 qC-
3Gln 6,6′129.1 CH6.95 d129.0 CH6.95 d
1174.0 qC-7,7′115.4 CH6.66 d115.3 CH6.66 d
253.1 CH4.08 dt8155.7 qC-155.7 qC-
329.7 CH22.12 mNMe28.8 CH32.58 s28.6 CH32.57 s
1.84 m
431.8 CH22.14 m3Hph
5174.3 qC-1172.4 qC-173.2 qC-
NH-8.18 d248.6 CH4.71 m48.1 CH4.69 m
NH2-6.80 s333.2 CH22.00 m33.2 CH22.02 m
7.33 s1.78 m1.75 m
4Ala 431.7 CH22.81 m31.6 CH22.81 m
2.66 m2.66 m
1171.9 qC-5141.3 qC- 141.2 qC
247.2 CH4.58 dq6,6’128.6 CH7.25 d 128.6 CH7.25 m
316.4 CH31.21 d7,7’128.6 CH7.23 t 128.5 CH7.23 m
NH-7.07 m8126.4 CH7.18 t126.3 CH7.18 m
5Pro NH-8.93 d-8.98 d
1174.8 qC-4Ile/Val
262.8 CH4.31 t1173.1 qC -172.9 qC-
329.2 CH22.15 dd2 55.6 CH4.21 t58.1 CH3.94 t
1.67 m
424.6 CH21.85 m3 36.4 CH1.80 m30.1 CH1.88 m
1.47 m
547.3 CH23.54 m425.7 CH21.34 m19.1 CH30.88 d
3.38 m1.12 m
6Leu 511.8 CH30.83 t 18.7 CH30.86 d
1171.0 qC-614.5 CH30.78 d --
253.8 CH3.67 mNH-6.70 d -6.78 d
338.6 CH21.30 m5Lys
1.11 m
424.3 CH1.33 m1172.4 qC-172.4 qC-
522.6 CH30.79 d255.0 CH3.88 ddd54.9 CH3.85 ddd
621.6 CH30.67 d330.9 CH21.61 m31.1 CH21.61 m
NH-8.16 d420.6 CH21.30 m20.6 CH21.39 m
1.24 m1.32 m
7Phe 528.3 CH21.38 m28.2 CH21.40 m
1170.4 qC-638.2 CH23.48 m38.3 CH23.43 m
2.78 m
253.2 CH4.32 brddα-NH-6.51 d-2.81 m
336.9 CH23.47 mε-NH-7.13 m-7.07 m
2.73 t
4138.6 qC-6Arg/Tyr
5,5′129.2 CH7.14 m1174.3 qC-173.9 qC-
6,6′128.2 CH7.22 m252.1 CH4.09 dt54.2 CH4.26 m
7126.4 CH7.17 m329.6 CH21.69 m36.9 CH22.86 m
1.52 m2.75 m
NH-7.78 d425.2 CH21.46 m127.4 qC-
8Phe 540.5 CH23.09 m130.3 CH6.95 d
1169.5 qC 6156.9 qC-115.2 CH6.64 d
256.9 CH3.65 m7--156.0 qC-
332.6 CH23.22 mα-NH-6.42 d-6.19 d
4139.5 qC-δ -NH/OH-7.50 brm-9.21 s
5,5′129.0 CH7.07 mNH/NH2-6.65 brm
7.30 brm
6,6′128.4 CH7.20 mCO157.5 qC-157.2 qC
7126.2 CH7.18 m
NH-7.57 d
a One hundred twenty five megahertz; multiplicity: qC, quaternary carbon; CH, methane carbon; CH2, methylene carbon; CH3, methyl carbon; assigned from the HSQC experiment; b 500 MHz; c 100 MHz; d 400 MHz.
Figure 3. Sequence assignment of 2 by fragmentation of the parent ion of the ESI MS/MS quasi-molecular sodium ion.
Figure 3. Sequence assignment of 2 by fragmentation of the parent ion of the ESI MS/MS quasi-molecular sodium ion.
Marinedrugs 13 02347 g003
Microphycin KB921 (2) most probably belongs to the growing family of cyanobactins that are synthesized ribosomally. This family includes cyclic peptides, such as prenylagaramides A and B [30], planktocyclin [34] and anacyclamide [35], but their role in cyanobacteria is yet unknown.

2.3. Structural Elucidation of Anabaenopeptins KB906 and KB899

Compounds 3 and 4 (Figure 4) were identified as new anabaenopeptins based on their mass weights and the characteristic signals of the urea bridge in the proton and carbon NMR spectra in DMSO-d6, two amide doublet signals between 6 and 7 ppm in the proton spectrum and a carbonyl signal between 157 and 158 ppm in the carbon spectrum [16].
Anabaenopeptin KB906 (3) was isolated as a white solid material that presented an HR ESI MS protonated molecular ion at m/z 907.5417 and a molecular formula of C46H71N10O9. The 1H NMR spectrum of 3 in DMSO-d6 (Table 2) presented in the lower field proton signals characteristic of phenol-OH, seven secondary amide protons, a phenyl and a para substituted phenol ring. Signals of six methines, two methylenes and a methyl next to electron withdrawing atoms appeared in mid-spectrum, while two doublet and two triplet methyl signals were evident among other signals in the aliphatic region of the 1H NMR spectrum. In the 13C NMR spectrum (Table 2), 3 presented six acid/amide carbonyl signals around 170 ppm, three quaternary carbon signals around 156 ppm and additional two quaternary and five methine carbon signals at the aromatic region, six methine carbons next to electron withdrawing groups in mid-spectrum and a handful of signals in the upper field of the spectrum. The assignment of the proton and carbon signals to the following amino acid building blocks—2 × Ile, homophenylalanine (Hph), N-methylhomotyrosine (NMeHty), Arg and ε-substituted-Lys—was achieved by interpretation of the data from the 2D NMR spectra (Supplementary Table S3). These building blocks were assembled into the planar structure of 3 through the HMBC correlations of 2NMeHty-CO with the amide proton of 1Ile, of 3Hph-CO with 2NMeHty-H-2, of 5Lys-CO with the amide proton of 4Ile, of 1Ile-CO with the ε-amide proton of 4Lys- and of the uryl-CO with the amide proton of 6Arg and 5Lys-H-2 and the NOE correlations of 1Ile-NH and 2NMeHty-H-2, of 4Ile-H-2 with 3Hph-NH, of 5Lys-ε-NH with 1Ile-H-2 and of 5Lys-α-NH with 6Arg-α-NH. The application of Marfey’s method [28] to the hydrolysate of 3 established Ile, Hph, NMeHty and Arg as l-configuration and Lys as d-configuration. Based on these arguments, the structure of anabaenopeptin KB906 was assigned as 3 (Figure 4).
Figure 4. The structures of anabaenopeptins KB906 (3) and KB899 (4).
Figure 4. The structures of anabaenopeptins KB906 (3) and KB899 (4).
Marinedrugs 13 02347 g004
Anabaenopeptin KB899 (4) presented comparable NMR spectra to those of 3 (Table 2) and an HR ESI MS quasi-molecular ion ([M + Na]+) at m/z 922.4693 corresponding to the molecular formula C48H65N7NaO10. The full assignment of its NMR data (Supplementary Table S4) indicated that it shared 1Ile, 2Hph, 3NMeHty and 5Lys with 3, but contained 4Val instead of 4Ile and 6Tyr instead of 6Arg. The HMBC and NOE correlations that assisted in assembling the planar structure of 4 are presented in Figure 5. Marfey’s analysis [28], similar to the one applied for 3, established the absolute configuration of Lys as d, while that of the rest of the amino acids as l, assigning structure 4 to anabaenopeptin KB899 (Figure 4).
Figure 5. HMBC and NOE correlations that established the amino acid sequence of 4.
Figure 5. HMBC and NOE correlations that established the amino acid sequence of 4.
Marinedrugs 13 02347 g005

2.4. Structural Elucidation of the New Micropeptins

Micropeptin KB928 (5, Figure 6) was isolated as an amorphous white material that possessed a positive HR ESI MS quasi-molecular ion at m/z 929.5090 ([M + H]+), corresponding to a molecular formula of C44H69N10O12 and 16 degrees of unsaturation. Its NMR data, measured in DMSO-d6 (Table 3 and Supplementary Table S5), presented signals characteristic of the micropeptin-type cyclic depsipeptide [25], i.e., five secondary amide protons (8.6–7.2 ppm), an ester oxymethine proton (5.45 ppm), an amide methyl group (2.73 ppm), the distinctive hydroxyl signal of a 3-amino-6-hydroxy-2-piperidone (Ahp) moiety (6.11 ppm), nine carboxylic or amide sp2 carbons (173–169 ppm) and ester and aminal oxymethine carbons (72.2 and 74.2 ppm, respectively). The interpretation of the COSY and TOCSY NMR data (in DMSO-d6, Supplementary Table S5) established the sequence of the signals of α-NH-α-H-side chain protons of Asp, O-substituted-Thr, Arg, Ahp, Ile, the sequence of the signals of α-H-side chain protons of N,N-disubstituted-Val and Phe and mono-substituted n-propane. Using correlations from the hetero-nuclear HSQC and HMBC experiments (Supplementary Table S5) allowed the expansion of the later fragments to the entire acid residues, except for Arg, whose amide carbon was assigned based on an HMBC correlation of Ahp-NH (7.29 ppm) with the amide carbon (170.3 ppm) and the NOE of the later amide NH with Arg-H-2.

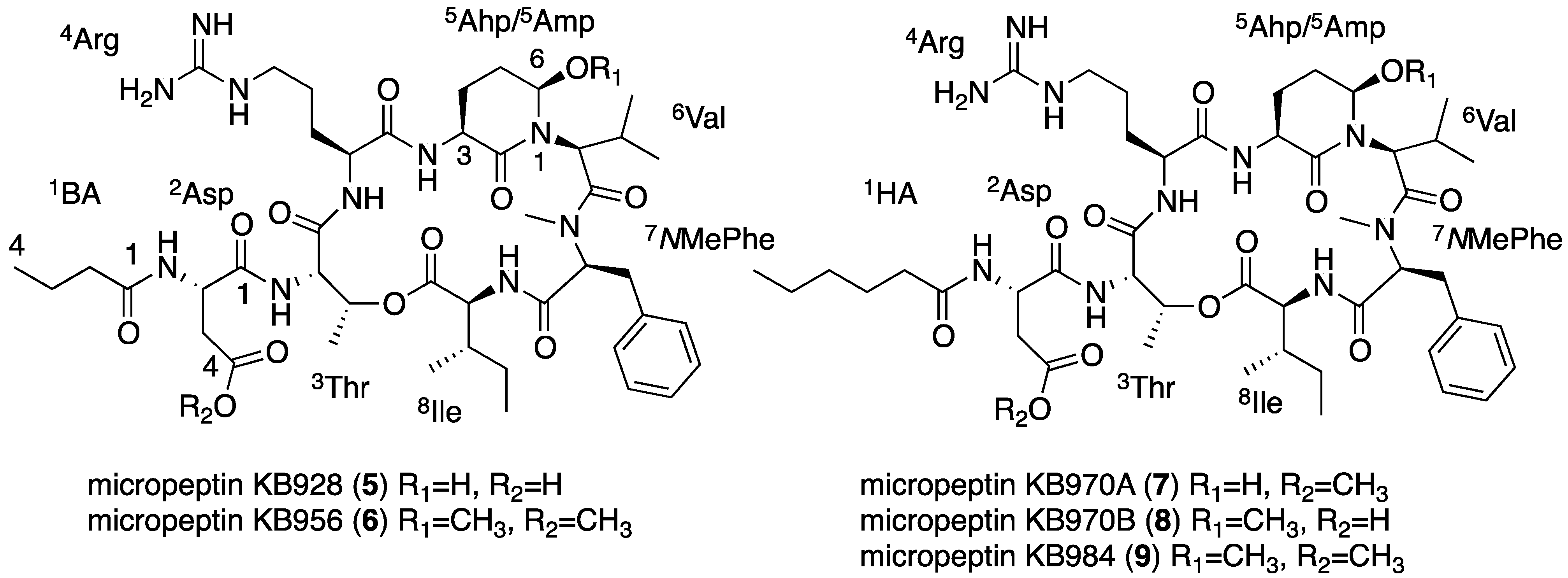

Figure 6. The structures of micropeptins KB928 (5), KB956 (6), KB970A (7), KB970B (8) and KB984 (9).
Figure 6. The structures of micropeptins KB928 (5), KB956 (6), KB970A (7), KB970B (8) and KB984 (9).
Marinedrugs 13 02347 g006
Table 3. 1H and 13C NMR data of Compounds 59 in DMSO-d6.
Table 3. 1H and 13C NMR data of Compounds 59 in DMSO-d6.
Compound
56789
PositionδC aδH bδC aδH bδC aδH bδC cδH dδC aδH b
1BA/1HA e
1172.0-172.8-173.0-173.0-173.1-
237.42.11 t37.32.11 t35.42.13 t35.62.13 t35.72.13 t
318.91.53 qi18.91.55 qi25.21.52 qi25.11.53 qi25.21.51 qi
413.80.88 t13.80.88 t31.11.22 m31.11.25 m31.11.23 m
5----22.11.27 m22.01.27 m22.11.27 m
6----14.20.84 t14.10.85 t14.20.84 t
2Asp
1172.6-171.4-171.6-171.7-171.6-
249.84.55 m49.54.86 q49.74.71 ddd49.74.63 m49.64.71 q
339.02.58 m35.52.80 m35.72.82 dd35.42.80 m35.42.81 m
2.20 m2.60 dd2.58 dd2.58 m2.58 dd
4172.0-170.9-171.0-172.0-171.0-
NH-8.09 d-8.33 d-8.27 d-8.28 d-8.29 d
OMe--51.73.56 s51.83.56 s--51.83.56 s
3Thr
1169.2-169.0-169.3-169.1-169.2-
254.84.62 d54.94.60 d55.14.57 d54.94.60 d55.14.60 d
372.25.45 q72.25.49 q72.25.47 q72.35.48 q72.35.49 q
417.81.17 d18.21.18 d18.21.19 d17.81.17 d18.01.18 d
NH-7.44 brd-7.65 d-7.46 d-7.63 d-7.68 d
4Arg
1170.3170.3-170.4-170.4-170.5-
251.84.28 m52.24.28 m52.54.26 m52.24.28 m52.44.27 m
327.52.02 m27.72.02 m27.62.02 m27.82.02 m27.92.02 m
1.45 m1.45 m1.45 m1.45 m1.45 m
425.21.45 m25.41.45 m25.81.45 m25.41.45 m25.51.45 m
540.13.05 m40.83.08 m41.03.09 m40.23.09 m40.73.09 m
NH-8.57 d-8.57 d-8.50 d-8.54 d-8.56 d
5-NH-7.49 brt-7.53 t-7.49 t-7.47 m-7.56 t
6156.9-156.8-157.0-156.9-157.0-
6-NH,NH2-7.30 brm-7.30 brm-7.30 brm7.30 brm-7.30 brm
6.60 brm6.70 brm6.80 brm6.77 brm6.85 brm
5Ahp/5Amp
2169.5-169.2-169.5-169.2-169.3-
349.04.44 m49.34.45 m49.34.44 m49.44.47 m49.44.47 m
421.72.55 m21.72.40 brq21.92.53 m21.72.40 brq21.92.40 brq
1.73 m1.70 m1.73 m1.75 m1.70 m
529.21.70 m23.82.05 m30.01.72 m23.82.05 m23.92.05 m
1.75 m1.70 m1.75 m
674.24.91 brs83.34.44 brs74.34.91 brs83.34.44 brs83.44.44 brs
NH-7.30 d-7.23 m-7.36 d7.24 m-7.25 m
OH/OMe6.11 d55.53.02 s-6.17 d55.63.02 s55.63.02 s
6Val
1169.8-169.7-170.0-169.8-169.9-
255.74.31 d55.74.35 d56.14.31 d55.84.35 d55.94.36 d
327.51.90 m27.21.95 m27.81.90 m27.31.95 m27.41.95 m
418.20.46 d18.90.46 d18.40.46 d18.30.46 d18.40.46 d
518.1−0.20 d17.8−0.24 d18.4−0.19 d17.8−0.23 d18.0−0.23 d
7NMePhe
1169.2-169.1-169.5-169.2-169.3-
260.65.06 brd60.85.09 brd60.85.06 brd60.95.10 brd61.05.10 brd
334.33.28 m34.23.25 m34.43.26 m34.33.30 m34.43.29 brd
2.80 m2.80 m2.80 dd2.81 dd2.80 m
4137.8137.7-137.9-137.8-137.8-
5,5′129.87.23 d129.77.22 m129.97.22 d129.87.22 m129.97.22 m
6,6′128.77.26 t128.87.27 m128.97.27 d128.97.27 m129.07.26 m
7126.87.19 t126.97.19 m127.07.19 d127.07.19 m127.07.19 m
NMe30.32.73 s30.22.73 s30.42.73 s30.32.73 s30.42.73 s
8Ile
1172.7-172.6-172.9-172.6-172.7-
255.94.69 dd56.64.64 dd56.04.63 dd55.64.64 m55.84.65 dd
337.41.78 m37.71.74 m37.31.77 m37.81.74 m37.81.74 m
424.71.23 m24.81.31 m24.81.23 m24.91.30 m25.01.30 m
1.04 m1.10 m1.02 m1.10 m1.10 m
511.30.81 t11.10.83 t11.40.80 t11.20.85 t11.20.84 t
616.00.83 d16.00.85 d16.20.84 t16.00.87 d16.10.87 d
NH-7.68 d-6.96 d-7.76 d-6.95 d-6.96 d
a One hundred megahertz; b 400 MHz; c 125 MHz; d 500 MHz; e BA: Butiric acid; HA: Hexanoic acid.
The acid units were combined to the linear structure, 1butyric acid (1BA)-2Asp-3Thr-4Arg-5Ahp-6Val-7NMePhe-8Ile, using HMBC correlations between 2Asp-NH and 1BA-CO, 3Thr-NH and 2Asp-CO, 4Arg-NH and 3Thr-CO, 5Ahp-NH and 4Arg-CO, 6Val-2 and 5Ahp-CO, 7NMePhe-NMe and 6Val-CO and 8Ile-NH and 7NMePhe-CO. The lactone bridge of 5 was established based on the HMBC correlation of 3Thr-H-3 with 8Ile-CO. The relative configuration of the Ahp was established as 3S*,6R* based on the chemical shifts of the protons and carbons of the Ahp moiety that were found to be identical to those of cyanopeptolin S [20] and the NOE between H-4ax (2.55 m) and the axial 6-OH (6.11 d, 3.2 Hz). Marfey’s analysis [28] of the amino acids derived from the hydrolysis of 5 (with and without oxidation of the aminal) revealed the presence of only l-form Arg, Asp, Glu (from Ahp), Ile, NMePhe, Thr and Val. The absolute configuration of the chiral centers of the Ahp moiety were thus established as 3S, 6R.
Marfey’s analysis does not distinguish between allo-Ile and Ile and between allo-Thr and Thr. The NMR data was thus used to confirm the identity of these amino acids. We have shown in the past that the proton and carbon chemical shifts of the methyl-groups of Ile in the micropeptins are sensitive to the absolute configuration of C-3 of Ile [36]. Based on this observation and the chemical shifts of the Ile methyl groups (δC 16.0 and 11.3 for Me-5 and Me-6, respectively) in 5, it was established as l-Ile. The observed J-value (less than 1 Hz) between H-2 and H-3 of the substituted threonine in Compound 5 suggested that, as in the case of all known micropeptins, it should be threonine and not allo-threonine [37]. On the basis of these arguments, the structure of micropeptin KB928 was determined as 5.
Micropeptin KB956 (6, Figure 6) was isolated as a glassy solid, which exhibited an HR ESI MS protonated-quasi-molecular ion at m/z 957.5412, corresponding to the molecular formula C46H73N10O12 and 16 degrees of unsaturation. Its 1H and 13C NMR data in DMSO-d6 (Table 3) were almost identical to those of 5, except for the appearance of two additional methoxy groups (δH 3.56 s and 3.02 s and δC 51.7 and 55.5). A full assignment of the NMR data (Supplementary Table S6) by interpretation of the correlations from homo-nuclear 2D NMR experiments (COSY, TOCSY and ROESY) and hetero-nuclear 2D NMR experiments (HSQC and HMBC) revealed that 6 contained 4-OMe-Asp (δH 3.56 s and δC 51.7) and 3-amino-6-methoxy-2-piperidone (Amp, δH 3.02 s and δC 55.5), instead of Asp and Ahp that exist in 5. The assignment of the relative configuration of the Amp moiety is presented in Figure 7a, and assembly of the acid units to the cyclic structure is presented in Figure 7b. A similar analysis [28] to the one applied for 5 established the absolute configuration of the acid units in 6 as l-Arg, l-4-OMe-Asp, l-Ile, l-NMePhe, l-Thr, l-Val and 3S, 6R-Amp. Based on these arguments, the structure of micropeptin KB956 was established as 6.
Micropeptin KB970A (7, Figure 6), a glassy solid, exhibited an HR ESI MS protonated molecular ion at m/z 971.5563 corresponding to the molecular formula C47H75N10O12 and 16 degrees of unsaturation. The molecular formula of 7 exceeded that of 5 in three methylenes. The 1H and 13C NMR data of 3 in DMSO-d6 (Table 3) resembled that of 5, except for an extra ester methoxy group (δH 3.56 s and δC 51.8) and two aliphatic methylenes (δH 1.27 m and 1.22 m, and δC 22.1 t and 31.1 t, respectively). The assignment of the NMR data of 7 (Supplementary Table S7) by interpretation of the 2D NMR experiments revealed that 7 contained a 4-OMe-Asp (like 6) and a hexanoic acid instead of Asp and butyric acid in 5. The absolute configuration of the asymmetric centers was established by a similar procedure as described for 5. Structure 7 was thus assigned to micropeptin KB970A.
Figure 7. (a) NOE correlations that established the relative configuration of the Amp unit of 6; (b) HMBC and NOE correlations that established the amino acid sequence of micropeptin KB956 (6).
Figure 7. (a) NOE correlations that established the relative configuration of the Amp unit of 6; (b) HMBC and NOE correlations that established the amino acid sequence of micropeptin KB956 (6).
Marinedrugs 13 02347 g007
Micropeptin KB970B (8, Figure 6) was isolated as a glassy material with a similar HR ESI MS protonated molecular ion, m/z 971.5561, and an identical molecular formula C47H75N10O12 to that of 7. The 1H and 13C NMR spectra of 8 (Table 3) were almost identical to those of 7, except for the chemical shifts of the methoxy moiety (δH 3.02 s and δC 55.6) and the amino piperidone moiety. A full assignment of the NMR data of 8 (Supplementary Table S8) revealed that it differs from 7 in having the Amp moiety instead of the Ahp moiety (in 7) and Asp instead of 4-OMe-Asp. The assignment of the absolute configuration of the chiral centers was achieved in a similar way to that of 5, assigning structure 8 to micropeptin KB970B.
Micropeptin KB984 (9, Figure 6) differed in 14 mass unit from 7 and 8, exhibiting an HR ESI MS quasi-molecular ion at m/z 985.5722 and a molecular formula of C48H77N10O12 that differed in a CH2 from that of 7 and 8. A comparison of the 1H and 13C NMR spectra of 9 (in DMSO-d6, Table 3) with those of 7 and 8 suggested that 9 contained both 4-OMe-Asp (δH 3.56 s and δC 51.8) and Amp (δH 3.02 s and δC 55.6) moieties. The assignment of the 1D and 2D NMR data of 5 (Supplementary Table S9) and the absolute configuration of the chiral centers, as described above for 5, established the acid units in micropeptin KB984 as l-Arg, l-4-OMe-Asp, l-Ile, l-NMePhe, l-Thr, l-Val, 3S,6R-Amp and hexanoic acid and its structure as 9.

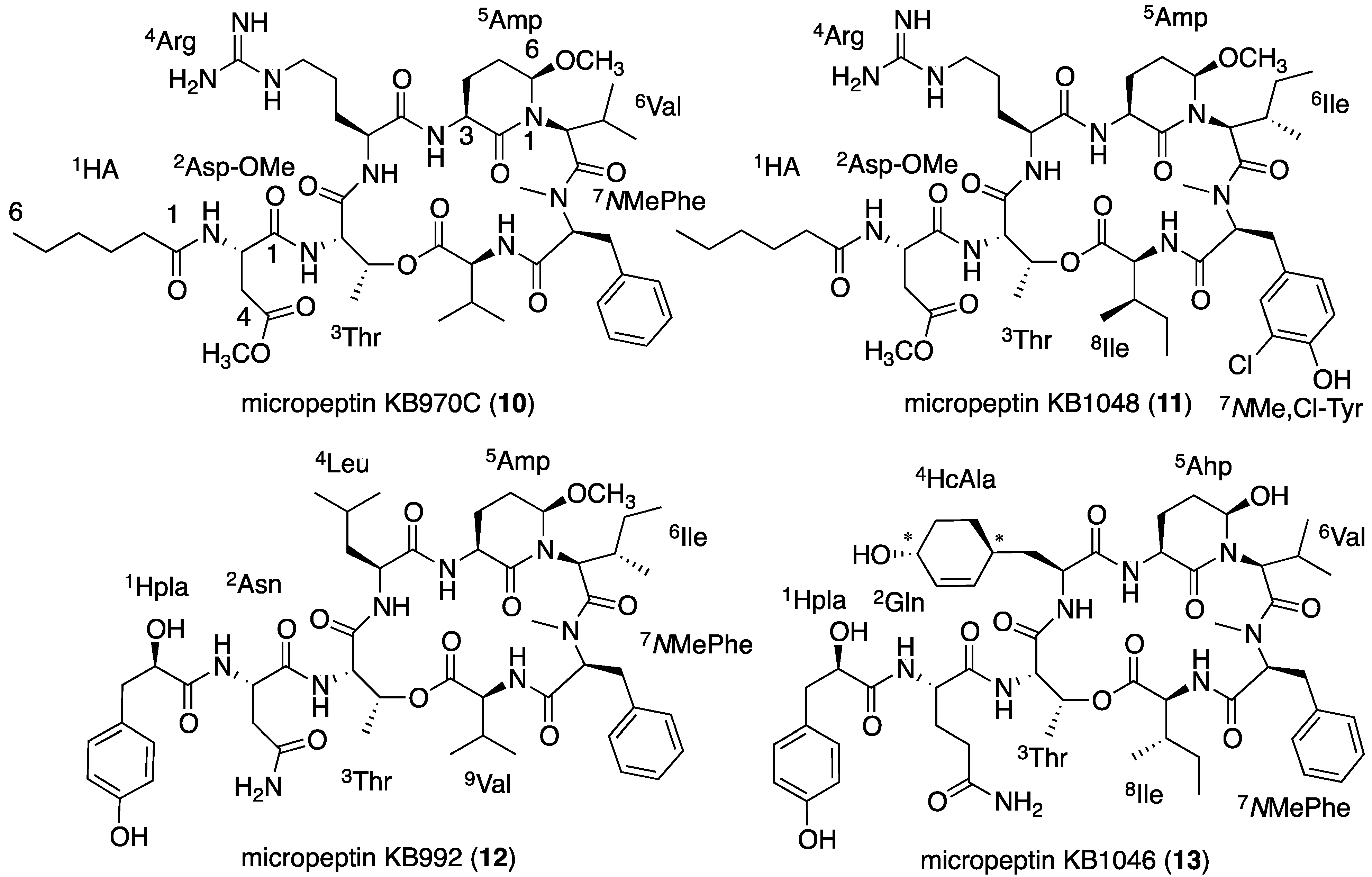

Micropeptin KB970C (10, Figure 8) presented 1H and 13C NMR spectra (DMSO-d6) almost identical to those of 9 and an HR ESI MS protonated molecular ion at m/z 971.5560, in accordance with the molecular formula C47H75N10O12. The major difference between the 1H NMR spectra of 10 and 9 (Table 4 and Table 3, respectively) was at the high end of the spectrum, where 10 presented a doublet methyl (δH 0.85) instead of the triplet methyl of 9H 0.84). The 14 mass units difference between 10 and 9, and the one carbon difference in the 13C NMR spectra (Table 3 and Table 4) suggested that 6 contained a valine instead of the isoleucine of 9. A full assignment of the NMR data of 10 (Supplementary Table S10) proved this assumption, while Marfey’s analysis [28], similar to the one used for 5, established the absolute configuration of all of the chiral centers, as l, ascribing structure 10 to micropeptin KB970C.
Figure 8. The structures of micropeptins KB970C (10), KB1048 (11), KB992 (12) and KB1046 (13).
Figure 8. The structures of micropeptins KB970C (10), KB1048 (11), KB992 (12) and KB1046 (13).
Marinedrugs 13 02347 g008
Table 4. 1H and 13C NMR data of Compounds 1013 in DMSO-d6.
Table 4. 1H and 13C NMR data of Compounds 1013 in DMSO-d6.
Compound
1011 1213
PositionδC aδH bδC aδH bPositionδC aδH bδC cδH d
1HA 1Hpla
1172.9-173.0-1174.2-173.6-
235.62.13 t35.52.17 t273.03.99 ddd72.74.01 ddd
325.11.52 qi25.11.51 qi341.02.93 dd39.82.87 dd
2.54 m2.55 m
431.01.25 m31.01.22 m4129.1 128.8-
522.11.27 m22.11.24 m5,5′130.57.02 d130.47.00 d
614.10.84 t14.80.85 t6,6′115.06.64 d115.06.62 d
2Asp 7155.8-155.8-
1171.5-171.5-2-OH-5.60 d-5.52 d
249.54.70 q49.54.70 q7-OH-9.11 s-9.06 s
335.32.80 m35.52.81 dd2Asn/2Gln
2.58 dd2.59 dd
4170.8-170.9-1171.8-172.4-
NH-8.27 d-8.28 d249.34.70 q51.44.51 dt
OMe51.73.56 s51.73.57 s336.92.54 m28.91.82 m
1.75 m
3Thr 4172.2-31.62.10 t
1169.1-169.1-5 174.0-
255.04.58 d55.04.59 dNH-8.23 d-7.78 d
NH2-7.39 s6.89 s-7.18 s6.70 s
372.25.50 q72.35.47 q3Thr
417.91.18 d17.81.17 d1169.2-169.6-
NH-7.68 d-7.71 d255.14.60 d55.34.62 d
4Arg 372.25.50 q71.85.52 q
1170.4-170.3-417.91.22 d17.91.23 d
252.24.27 m52.14.29 mNH-7.74 d-8.20 d
327.82.02 m27.72.00 m4Leu/4HcAla
1.45 m1.45 m
425.41.45 m25.41.45 m12171.0-170.7-
540.23.09 m40.13.08 m251.04.28 ddd50.04.33 m
NH-8.56 d-8.56 d339.01.80 m36.61.89 m
1.39 m1.49 m
5-NH-7.56 t-7.50 t424.41.50 m32.01.99 m
6156.9-156.9-523.90.87 d132.25.42 brd
6-NH,NH2-7.30 brm-7.30 brm621.20.78 d133.05.58 brd
6.90 brm6.90 brm
5Amp 7 65.53.97 m
2169.2-169.3-8 31.61.80 m
1.20 m
349.44.47 m49.44.46 m9 26.21.70 m
0.96 m
NH 8.45 d-8.47 d
OH4.63 d
421.72.40 brq21.92.40 brq
1.75 m1.75 m
523.82.05 m23.92.06 brd5Amp/5Ahp 2169.3-169.6-
1.70 m1.70 m
683.34.44 brs83.34.46 brs349.44.47 m48.94.45 m
NH-7.24 m-7.26 d421.92.40 q22.02.55 m
1.70 m1.72 m
OMe55.63.03 s55.73.02 s523.92.05 brd29.91.71 m
1.75 m
6Val/6Ile 1169.8-169.9-683.34.43 brs74.24.92 brs
255.84.36 d54.14.46 mNH-7.21 m 7.37 d
327.31.95 m33.11.86 mOH/OMe55.53.01 s 6.09 brs
1.10 m
418.30.46 d23.90.63 m6Ile/6Val 1169.8-169.9-
517.9−0.23 d10.40.63 m254.14.43 m56.04.32 d
6--13.7−0.13 d332.91.78 m27.71.90 m
7NMePhe 1169.4-169.3-423.51.05 m18.30.46 d
7ClNMeTyr0.59 m
261.05.10 brd61.05.08 brd510.50.59 m18.2−0.21 d
334.33.30 m32.93.20 brd613.7−0.30 d
2.80 m2.71 m
4137.7-129.3 7NMePhe 1169.3-169.3-
5(5′)129.87.23 d130.7 7.13 s260.95.17 dd60.75.08 brd
6(6′)128.97.27 t120.1-334.43.30 m34.43.28 m
2.80 dd2.80 m
7127.07.19 t152.3-4137.8-137.8-
8--117.06.84 d5,5′129.87.21 d129.97.22 m
9--129.66.96 d6,6′128.97.25 t128.87.26 m
NMe30.42.75 s30.42.71 s7126.97.19 t126.77.19 m
OH---9.96 sNMe30.52.74 s30.32.73 s
8Val/8Ile 1172.5-172.6-8Val/8Ile 1172.5-172.9-
256.74.60 m54.84.79 dd256.54.64 dd55.74.77 d
331.22.00 m37.61.80 m331.41.97 m37.71.80 m
419.40.89 d26.01.32 m419.50.83 d24.71.26 m
1.10 m1.00 m
518.10.83 d11.60.91 t518.00.77 d11.50.80 t
6--14.10.77 d6--16.30.83 d
NH-6.97 d-6.80 dNH-6.90 d-7.67 d
a One hundred twenty five megahertz ; b 500 MHz; c 100 MHz; d 400 MHz.
Micropeptin KB1048 (11, Figure 8) was isolated as a glassy solid that exhibited a HR ESI MS complex quasi-molecular ion at m/z 1049.5448/1051.5444 (3:1, indicative of one chlorine atom) and a molecular formula of C49H78ClN10O13. The 1H and 13C NMR spectra (DMSO-d6) of 11 (Table 4) were similar to those of 9 (Table 3) but presented some differences in the aromatic and the aliphatic regions. In the 1H NMR spectra, 11 presented a 1,2,4-tri-substituted phenol in the aromatic region, and three triplet and two doublet methyl signals at the higher end of the spectrum, while the rest of the spectrum seemed almost identical with that of 9.
The assignment of the NMR data of 11 (Supplementary Table S11), by interpretation of the correlations from the homo- and hetero-nuclear 2D NMR experiments (COSY, TOCSY, ROESY, HSQC and HMBC), revealed that 11 contained hexanoyl, 4-OMe-aspartyl, O-substituted threonyl, arginyl, Amp, N,N-disubstituted isoleucyl, NMe-o-chlorotyrosyl and isoleucyl moieties. These moieties were assembled to planar structure 11 through HMBC and ROESY correlations. Appling Marfey’s methodology [28] established the absolute configuration of all of the amino acids as of the l-configuration. The observed J-value between H-2 and H-3 (0–1 Hz) of the threonine unit of 11 suggested that it should be l-threonine and not l-allo-threonine [37]. The 3S,6R absolute configuration of the Amp moiety was inferred (similar to the one presented in Figure 7a) from the NOEs of axial H-3 with axial H-5 (δH 1.70), axial H-4 (δH 2.40 brq, 12.8 Hz) with equatorial H-5 (δH 2.06 brd, 13.4 Hz) and equatorial H-6 (δH 4.46) with axial H-5 and equatorial H-5, based on the S absolute configuration of Glu that was established by Marfey’s analysis. In the case of the N,N-disubstituted-Ile, the carbon chemical shifts measured for Compound 11, 10.4 (C-5) and 13.7 (C-6) ppm, were found to be similar to those measured for l-Ile, 10.3 (C-5) and 13.9 (C-6) ppm (established for nostopeptins A and B by chiral-GCMS [38]), and different from those measured for allo-Ile, 12.2 (C-5) and 14.1 (C-6) ppm (established for micropeptin KT1042 [27]). For the Ile moiety at the carboxylic end of the peptide, the measured carbon chemical shifts were 11.6 (C-5) and 14.1 (C-6) ppm, matching those of l-allo-Ile (established for oscillapeptin J by chiral-GCMS [39]), 11.4 (C-5) and 14.3 (C-6) ppm and differing from those of l-Ile (established for nostopeptins A and B by chiral-GCMS [38]), 11.3 for (C-5) and 16.1 (C-6) ppm. Based on these arguments, structure 11 was assigned to micropeptin KB1048.
Micropeptin KB992 (12, Figure 8) was isolated as a transparent solid that presented an HR ESI MS quasi-molecular ion ([M + Na]+) at m/z 1015.5121 corresponding to the molecular formula C50H72N8NaO13 and 19 degrees of unsaturation. Its 1H NMR spectrum (DMSO-d6, Table 4) presented signals corresponding to a mono-substituted phenyl ring, a para-substituted phenol, three doublet secondary amide protons (a forth signal was shown to be buried under the signals of the phenyl ring by COSY correlation), two singlet primary-amide protons, eleven protons next to electron withdrawing groups, two singlet methyl groups attached to electronegative atoms and, among others, six doublet methyl groups and one triplet methyl group in the aliphatic region. Among other signals, the 13C NMR spectrum (Table 4) presented signals of eight carbonyls, eight aromatic signals in accordance with one mono-substituted phenyl and one para-substituted phenol and eleven carbons next to electron withdrawing groups.
The interpretation of the 1D and 2D NMR spectra of 12 (Supplementary Table S12) revealed the planar structures of p-hydroxyphenyl lactyl (Hpla), aspaginyl, O-substituted threonyl, leucyl, Amp, N,N-disubstituted isoleucyl, NMe-phenylalanyl and isoleucyl, which closed a lactone ring with the oxygen of the threonyl moiety. The absolute configurations of the amino acids (all L) and the Amp moiety (3S,6R) were assigned for 11 as described above. The absolute configuration of Hpla was assigned as D by chiral-HPLC. On the basis of these arguments, structure 12 was assigned to micropeptin KB992.
Micropeptin KB1046 (13, Figure 8) presented an HR ESI MS quasi-molecular ion ([M + Na]+) at m/z 1069.5228, corresponding to the molecular formula C53H74N8NaO14 and 21 degrees of unsaturation. The 1H and 13C NMR spectral data of 13 in DMSO-d6 (Table 4) shared a significant number of structural elements with 12, i.e., the primary amide protons, Hpla, NMe-Phe, Ile, Thr and Val, while the signals of Amp and Leu (in 12) were substituted by signals characteristic of Ahp (δH 6.07 and 4.92, δC 74.2) and 3-(7-hydroxycyclohex-2-enyl)-alanyl (HcAla) (δH 5.42, 5.58, 3.97, δC 132.2, 133.0, 65.5) [40]. The primary amide protons were assigned by the interpretation of the 1D and 2D NMR experiments (Supplementary Table S13) to a Gln moiety, and the structure of the Ahp moiety, including the absolute configuration (3S,6R), was assigned in a similar fashion to the one described for 5.
COSY and TOCSY correlations (Supplementary Table S13) were used to assign the sequence of the proton signals of HcAla: α-NH (δH 8.47) through H-9pax and H-9peq and of the latter two with H-4, while the HSQC correlations assigned the carbons of this moiety. The carboxyl of HcAla was assigned through HMBC correlation of Ahp-α-NH with the amide carbonyl that resonated at δC 170.7 and NOE correlations of Ahp-α-NH with HcAla-α-NH and H-2. Assuming a twisted boat conformation for the cyclohexenyl moiety, the pseudoaxial H-8 (H-8pax) and H-9 (H-9pax) were identified by their shift to a higher field. The NOE correlation of H-9pax with H-7 and of H-8pax with H-4, as well as the rest of the NOEs of this spin system shown in Figure 9 established both as pseudoaxial and the relative configuration of the hydroxyl cyclohexenyl moiety as 4S*,7R*. Although the NOE pattern of H-2, 3a, 3b and 4 pointed to a restricted rotation (Figure 9), it was not possible to assume the relative configuration of Positions 2 and 4. The absolute configuration of C-2 of HcAla was determined by the advanced Marfey method [41]. The hydrolysate of 13 was reacted with l-and d-FDAA, and the retention times of the HcAla-DAA derivatives were obtained using HPLC-MS. The retention time of the HcAla-l-DAA (46.9 min) was shorter than that of HcAla-d-DAA (50.2 min), suggesting that HcAla-C-2 is of the l-configuration [41]. The absolute configuration of the other amino acids of 13 was elucidated by a combination of Marfey’s method [28] and NMR data, as described above for 512. Based on these arguments, structure 13 was assigned to micropeptin KB1046.
Figure 9. NOE correlations that established the relative configuration of the hydroxycyclohexenyl moiety of 13.
Figure 9. NOE correlations that established the relative configuration of the hydroxycyclohexenyl moiety of 13.
Marinedrugs 13 02347 g009
Micropeptins 513 could be divided into two separate groups; those that contain a short fatty acid in the side chain and arginine at the fourth position from the amino termini of the peptide and those that contain an Hpla residue at the side chain and lipophilic acid at the fourth position. However, the known micropeptins that were isolated from the bloom material also contained combinations of short fatty acids in the side chains and lipophilic residues at Position 4, and hydroxy acids at the side chain aside from arginine at Position 4. This was more in accordance with the regular varieties observed in bloom-forming cyanobacteria.

2.5. Biological Activity Assessment

The biological activity of Compounds 113 was determined for the inhibition of the proteases, trypsin and chymotrypsin (Table 5). The weak inhibitory activity of aeruginosin KB676 (1) can be explained by the steric hindrance of the prenyl substituent, which interferes with the interaction of the guanidine residue of this aeruginosin with the deep acidic binding pocket of trypsin [42]. It is an established phenomenon that micropeptins, which contain arginine or lysine moieties next to their Ahp/Amp residues, are inhibitors of trypsin-type serine proteases [35], explaining the inhibition of trypsin by the arginine containing 511. When lipophilic amino acids, such as leucine, tyrosine, glutamine and HcAla, occupied the same position in the micropeptins, chymotrypsin-type serine proteases were usually inhibited [37], explaining the inhibition of chymotrypsin by 12 and 13. The inhibition of chymotrypsin by 11, which contained the arginine moiety next to the Amp, was probably a result of the stronger (relative to Phe) interaction of NMe-o-chlorotyrosine with the enzyme, similar to our previous observation for micropeptins HU909 and HU895A [18].
Table 5. Protease inhibition properties of Compounds 113.
Table 5. Protease inhibition properties of Compounds 113.
CompoundTrypsin (IC50 in μM)Chymotrypsin (IC50 in μM)
Aeruginosin KB676 (1)40.0>45.5
Microphycin KB921 (2)>45.5>45.5
Anabaenopeptin KB906 (3)>45.5>45.5
Anabaenopeptin KB899 (4)>45.5>45.5
Micropeptin KB928 (5)0.09>45.5
Micropeptin KB956 (6)0.62>45.5
Micropeptin KB970A (7)0.09>45.5
Micropeptin KB970B (8)0.65>45.5
Micropeptin KB984 (9)1.12>45.5
Micropeptin KB970C (10)4.27>45.5
Micropeptin KB1048 (11)2.010.63
Micropeptin KB992 (12)>45.50.87
Micropeptin KB1046 (13)>45.50.22

2.6. Methods of Dereplication

Over the past several years, we have examined several methods to avoid the isolation and structural elucidation of known metabolites from cyanobacterial bloom material. Among the methods we applied were MALDI-TOF MS of on-plate extracts of small amounts of cyanobacteria colonies that gave reproducible results for the major components isolated from the large-scale extract of the bloom material, but failed to give reproducible results for the minor isolated components. In some cases, it seemed as if easily-ionized natural products hindered the ionization of some types of natural products. The yields of the bioactive natural products from cyanobacterial blooms are usually low (3 × 10−3% to 1 × 10−4%), and these compounds are accompanied by large amounts of fatty-acids and related metabolites that interfere with their chromatography and ionization when LCMS is used for dereplication. In our attempts to use the ESI LCMS methodology for dereplication of cyanobacterial bloom extracts, we found that we are usually able to detect the major bioactive metabolites that are available at yields of about 1 × 10−3% of the crude extract, but fail to detect the minor ones. The methodology we currently use combines bioactivity (usually protease inhibition)-guided isolation and purity verification by ESI LCMS and NMR, which allows us to identify the previously known compounds before we start the structural elucidation. This methodology allowed us to identify the stereoisomers of the Choi unit in the aeruginosins [15,27,35] and allo-Ile- versus Ile-containing anabaenopeptins [15].

3. Experimental Section

3.1. General Experimental Procedures

Optical rotation values were obtained on a Jasco P-1010 polarimeter at the sodium D line (589 nm; concentrations are reported in g/100 mL. UV spectra were recorded on an Agilent 8453 spectrophotometer (Santa Clara, California, CA, USA). IR spectra were recorded on a Bruker Tensor 27 FT-IR instrument (Billerica, Massachusetts, MA, USA). NMR spectra were recorded on a Bruker DRX-500 spectrometer at 500.13 MHz for 1H and 125.76 MHz for 13C and a Bruker Avance 400 Spectrometer at 400.13 MHz for 1H, 100.62 MHz for 13C (Billerica, Massachusetts, MA, USA). DEPT, COSY-45, gTOCSY, gROESY, gHSQC, gHMQC and gHMBC spectra were recorded using standard Bruker pulse sequences. Mass spectra and MS/MS analyses were recorded on a Waters MaldiSynapt instrument (Milford, Massachusetts, MA, USA). HPLC separations were performed on a Jasco HPLC system (Halifax, Nova-Scotia, NS, Canada) (Model PU-2080-plus pump, Model LG-2080-04 Quaternary gradient unit and Model MD-2010-plus Multi-wavelength detector). An Elisa ELx808 reader (Bio-Tek Instruments, Inc (Winooski, VT, USA)) was used for protease inhibition assays.

3.2. Biological Material

An assembly of Microcystis spp. (Tel Aviv University Collection Number IL-381) was collected in November, 2008, from a commercial fishpond in Kibbutz Kfar Blum, Israel (33°10′45.1′′N; 35°34′37.1′′E). Lyophilized samples of the collected cyanobacteria are deposited at the culture collection of Tel Aviv University.

3.3. Isolation Procedure

The freeze-dried cells (IL-381, 950 g) were extracted with 7:3 MeOH:H2O (3 × 3 L). The crude extract (142 g) was evaporated to dryness, and aliquots of the extract were fractionated (10 g in each separation) on an octadecyl-silica (ODS) (YMC-GEL, 120A, 4.4 × 6.4 cm) flash column with an increasing concentration of MeOH in H2O. The combined fractions from the 14 reversed-phase column separations were tested for inhibition of trypsin and chymotrypsin, and the active fractions (6, 7 and 8) were further purified by the biological activity-guided isolation described below. The combined Fraction 6 (1:1 MeOH:H2O, 1.72 g) was subjected to a Sephadex LH-20 column in 7:3 MeOH:H2O to obtain thirteen fractions. Fractions 8–9 from the Sephadex LH-20 column were separated on a reversed-phase HPLC (YMC C-8, 5 μm, 250 mm × 20 mm, Diode Array Detector (DAD) at 238 nm, flow rate 5.0 mL/min) in 45:55 0.1% aq. TFA:MeOH to obtain microcystin LR (5.7 mg, retention time (rt) 48.9 min, 6.0 × 10−4% yield based on the dry weight of the cells). Combined Fractions 10–12 from the Sephadex LH-20 column were separated on the same reversed-phase HPLC column and with the same solvent system as the previous separation to afford four pure compounds, anabaenopeptin KB899 (4; 5.7 mg, rt 48.9 min, 6.0 × 10−4% yield) and the known anabaenopeptin 915 (3.4 mg, rt 27.3 min, 3.6 × 10−4% yield), anabaenopeptin G (4.4 mg, rt 32.6 min, 4.6 × 10−4% yield) and anabaenopeptin MM913 (7.0 mg, rt 60.3 min, 7.4 × 10−4% yield). Fraction 2 from the former separation was fractionated again on the same column in 1:1 0.1% aq. TFA:MeOH to obtain aeruginosin 298B (4.4 mg, rt 17.0 min, 4.6 × 10−4% yield), anabaenopeptin 908 (5.8 mg, rt 19.5 min, 6.1 × 10−4% yield) and anabaenopeptin H (4.0 mg, rt 21.0 min, 4.2 × 10−4% yield).
The combined Fraction 7 from the initial reversed phase (RP) separation (6:4 MeOH:H2O, 1.83 g) was subjected to a Sephadex LH-20 column in 1:1 MeOH:CHCl3 to obtain thirteen fractions, of which Fractions 2–3 and 4–6 were further separated. The combined Fractions 2 and 3 from the latter separation were fractionated again on a Sephadex LH-20 column in 7:3 MeOH:H2O to obtain twelve fractions. The combined Fractions 6 and 7 from the former separation were separated on a reversed-phase HPLC (YMC C-8, 5 μm, 250 mm × 20 mm, DAD at 238 nm, flow rate 5.0 mL/min) in 1:3 0.1% aq. TFA:MeOH to obtain the known anabaenopeptin HU892 (5.2 mg, rt 19.0 min, 5.5 × 10−4% yield). Fraction 5 from the former HPLC was re-chromatographed on the same column in 1:1 0.1% aq. TFA:MeOH to obtain the known micropeptin LH920 (1.9 mg, rt 23.5 min, 2.0 × 10−4% yield) and micropeptin KB928 (5; 2.6 mg, rt 22.7 min, 2.7 × 10−4% yield). Fractions 4 to 6 from the Sephadex LH-20 column were re-separated on the same column eluted in 7:3 MeOH:H2O to obtain twelve fractions. Fractions 3–6 contain the pure known oscillamide C (2.1 mg, 2.2 × 10−4% yield), while the combined Fractions 7–9 (184.8 mg) were further separated on a reversed-phase HPLC (YMC C-8, 5 μm, 250 mm × 20 mm, DAD at 238 nm, flow rate 5.0 mL/min) in 2:3 0.1% aq. TFA:MeOH to obtain aeruginosin DA495A (2.6 mg, rt 17.1 min, 2.7 × 10−4% yield), anabaenopeptin KB906 (3; 4.2 mg, rt 21.4 min, 4.4 × 10−4% yield), micropeptin KB1046 (13; 4.8 mg, rt 33.5 min, 5.0 × 10−4% yield) and ichytopeptin A (2.6 mg, rt 35.4 min, 2.7 × 10−4% yield), as well as Fractions 6 and 9, which were further separated by HPLC. Fraction 6 was separated on the YMC C-8 column to yield cyanopeptolin SS (1.2 mg, rt 21.1 min, 1.2 × 10−4% yield), cyanopeptolin S (1.5 mg, rt 29.1 min, 1.6 × 10−4% yield) and micropeptin LH1020 (1.8 mg, rt 23.7 min, 1.9 × 10−4% yield), while Fraction 9 was separated on the same column in 3:7 0.1% aq. TFA:MeOH to obtain micropeptin HM978 (1.2 mg, rt 25.8 min, 1.2 × 10−4% yield) and micropeptin KB992 (12; 2.1 mg, rt 31.9 min, 2.2 × 10−4% yield).
The combined Fraction 8, from the initial RP separation (6:4 MeOH:H2O, 1.70 g), was subjected to a Sephadex LH-20 column in 1:1 MeOH:CHCl3 to obtain eleven fractions of which Fractions 4–8 were separated again on the same column eluted in 7:3 MeOH:H2O to obtain twelve fractions. Fractions 9–12 from the latter column were fractionated on the YMC C-8 column in 1:4 0.1% aq. TFA:MeOH to furnish the known aeruginazole DA1304 (1.0 mg, rt 30.9 min, 1.1 × 10−4% yield). Fractions 5–7 from the former Sephadex LH-20 column were separated again on the same column eluted in 1:1 MeOH:H2O to obtain ten fractions out of which, combined Fractions 5–8 and Fraction 9 were further separated on the C-8 HPLC column in 1:3 0.1% aq. TFA:MeOH. Fraction 9 yielded micropeptin KB1048 (11; 2.8 mg, rt 21.5 min, 2.9 × 10−4% yield), while Fractions 5–8 yielded micropeptin KB956 (6; 5.0 mg, rt 18.5 min, 5.3 × 10−4% yield), micropeptin KB984 (9; 9.6 mg, rt 25.9 min, 1.0 × 10−3% yield) and Fraction 3, which was separated on the same column in 1:1 0.1% aq. TFA:MeOH to afford micropeptin KB970A (7; 3.5 mg, rt 13.7 min, 3.7 × 10−4% yield), micropeptin KB970B (8; 2.1 mg, rt 14.5 min, 2.2 × 10−4% yield) and micropeptin KB970C (10; 0.9 mg, rt 15.4 min, 0.9 × 10−4% yield). Combined fractions 8–10 from the second Sephadex LH-20 column were separated again on the same column eluted in 1:1 MeOH:H2O to obtain twelve fractions, out of which combined Fractions 3–5 and 6–8 were further separated on the YMC C-8 HPLC column in 2:3 0.1% aq. TFA:acetonitrile. Fractions 3–5 yielded aeruginosin KB676 (1; 3.5 mg, rt 23.1 min, 3.7 × 10−4% yield), while Fractions 6–8 yielded microphycin KB921 (2; 3.3 mg, rt 40.8 min, 3.5 × 10−4% yield) and aeruginazole A (8.5 mg, rt 36.2 min, 8.9 × 10−4% yield).
Aeruginosin KB676 (1): Amorphous white solid; [α]D23 −14° (c 0.17, MeOH); UV (MeOH) λmax (log ε) 202 (4.29), 224 (3.79), 278 (3.12) nm; IR (ATR Diamond) νmax 2936, 1648, 1542, 1202, 1137 cm−1; 1H and 13C NMR (Table 1 and Supplementary Table S1); HR MALDI-TOF MS m/z 677.4031 [M + H]+, (calcd. for C37H53N6O6, 677.4027). Retention times of amino acid (AA) Marfey’s derivatives: d-Phe 52.9 min (l-Phe 50.1 min), (2S,3aS,6S,7aS)-Choi (l-6-epiChoi) 41.5 min, ((2R,3aR,6R,7aR)-Choi (d-3a,7a-diepiChoi)) 38.3 min and ((2S,3aS,6R,7aS)-Choi (l-Choi)) 42.0 min. Retention time of d-hydroxyphenyllactic acid (Hpla) on the chiral-phase column 5.69 min (l-Hpla 5.41 min).
Microphycin KB921 (2): Amorphous white solid; [α]D23 −36° (c 0.19, MeOH); UV (MeOH) λmax (log ε) 202 (4.25), 208 (4.15), 217 (3.94) nm; IR (ATR Diamond) νmax 2934, 1671, 1653, 1542, 1203, 1138 cm−1; 1H and 13C NMR (Table 2 and Supplementary Table S2); HR MALDI-TOF MS m/z 944.4650 [M + Na]+, (calcd. for C49H63N9NaO9, 944.4646). Retention times of AA Marfey’s derivatives: l-Glu 36.8 min (d-Glu 37.7 min), l-Pro 41.2 min (d-Pro 49.0 min), 2 × l-Ala 45.4 min (d-Ala 49.0 min), 3 × l-Phe 50.0 min (d-Phe 52.9 min), l-Leu 50.0 min (d-Leu 53.9 min).
Anabaenopeptin KB906 (3): Amorphous white solid; [α]D23 −62° (c 0.13, MeOH); UV (MeOH) λmax (log ε) 202 (4.18), 224 (3.67), 278 (2.91) nm; IR (ATR Diamond) νmax 3422, 1664, 1206 cm−1; 1H and 13C NMR (Table 2 and Supplementary Table S3); HR MALDI-TOF MS m/z 907.5417 [M + H]+, (calcd. for C46H71N10O9, 907.5405). Retention times of AA Marfey’s derivatives: l-Arg 29.6 min (d-Arg 29.4 min), l-NMeHty 39.6 min, 2 × l-Ile 43.1 min (d-Ile 46.2 min), d-Lys 45.2 min (l-Lys 44.6 min), l-Hph 46.8 min (d-Hph 49.4 min).
Anabaenopeptin KB899 (4): Amorphous white solid; [α]D23 −45° (c 0.38, MeOH); UV (MeOH) λmax (log ε) 202 (4.34), 225 (3.97), 278 (3.40) nm; IR (ATR Diamond) νmax 3310, 2934, 1638, 1542, 1204 cm−1; 1H and 13C NMR (Table 2 and Supplementary Table S4); HR MALDI-TOF MS m/z 922.4693 [M + Na]+, (calcd. for C48H65N7NaO10, 922.4691). Retention times of AA Marfey’s derivatives: l-Val 44.4 min (d-Val 47.9 min), l-NMeHty 46.4 min, l-Ile 48.1 min (d-Ile 50.7 min), d-Lys 49.0 min (l-Lys 50.46 min), l-Hph 52.0 min (d-Hph 55.2 min), l-Tyr 54.5 min (d-Tyr 57.1 min).
Micropeptin KB928 (5): Amorphous white solid; [α]D23 −82° (c 0.17, MeOH); UV (MeOH) λmax (log ε) 202 (4.37), 217 (4.00) nm; IR (ATR Diamond) νmax 3367, 2966, 1650, 1542, 1204, 1138 cm−1; 1H and 13C NMR (Table 3 and Supplementary Table S5); HR MALDI-TOF MS m/z 929.5090 [M + H]+, (calcd. for C44H69N10O12, 929.5096). Retention times of AA Marfey’s derivatives: l-Arg 28.2 min (d-Arg 26.9 min), l-Asp 33.0 min (d-Asp 34.0 min), l-Thr 32.7 min (d-Thr 35.9 min), l-Glu 34.6 min (d-Glu 35.9 min), l-Val 43.5 min (d-Val 47.6 min), l-Ile 47.3 min (d-Ile 52.1 min), l-NMePhe 48.2 min.
Micropeptin KB956 (6): Amorphous white solid; [α]D23 −128° (c 0.13, MeOH); UV (MeOH) λmax (log ε) 202 (4.34), 217 (3.84) nm; IR (ATR Diamond) νmax 3367, 2962, 1639, 1527, 1200, 1177, 1133 cm−1; 1H and 13C NMR (Table 3 and Supplementary Table S6); HR MALDI-TOF MS m/z 957.5412 [M + H]+, (calcd. for C46H73N10O12, 957.5409). Retention times of AA Marfey’s derivatives: l-Arg 27.8 min (d-Arg 26.6 min), l-Asp 28.6 min (d-Asp 29.5 min), l-Thr 27.8 min (d-Thr 31.2 min), l-Glu 30.1 min (d-Glu 31.2 min), l-Val 37.8 min (d-Val 41.8 min), l-Ile 41.4 min (d-Ile 45.2 min), l-NMePhe 42.5 min.
Micropeptin KB970A (7): Amorphous white solid; [α]D23 −54° (c 0.23, MeOH); UV (MeOH) λmax (log ε) 202 (4.21), 217 (3.57) nm; IR (ATR Diamond) νmax 3366, 2964, 1653, 1541, 1203, 1136 cm−1; 1H and 13C NMR (Table 3 and Supplementary Table S7); HR MALDI-TOF MS m/z 971.5563 [M + H]+, (calcd. for C47H75N10O12, 971.5566). Retention times of AA Marfey’s derivatives: l-Arg 28.5 min (d-Arg 27.3 min), l-Asp 29.3 min (d-Asp 30.3 min), l-Thr 28.5 min (d-Thr 32.0 min), l-Glu 31.1 min (d-Glu 31.7 min), l-Val 38.3 min (d-Val 45.6 min), l-Ile 41.8 min (d-Ile 45.2 min), l-NMePhe 42.8 min.
Micropeptin KB970B (8): Amorphous white solid; [α]D23 −88° (c 0.14, MeOH); UV (MeOH) λmax (log ε) 202 (4.30), 217 (3.74) nm; IR (ATR Diamond) νmax 3366, 2933, 1652, 1557, 1202, 1135 cm−1; 1H and 13C NMR (Table 3 and Supplementary Table S8); HR MALDI-TOF MS m/z 971.5561 [M + H]+, (calcd. for C47H75N10O12, 971.5566). Retention times of AA Marfey’s derivatives: l-Arg 28.5 min (d-Arg 27.3 min), l-Asp 29.2 min (d-Asp 30.2 min), l-Thr 28.5 min (d-Thr 31.9 min), l-Glu 31.0 min (d-Glu 32.0 min), l-Val 38.3 min (d-Val 42.7 min), l-Ile 41.8 min (d-Ile 45.7 min), l-NMePhe 42.8 min.
Micropeptin KB984 (9): Amorphous white solid; [α]D23 −62° (c 0.17, MeOH); UV (MeOH) λmax (log ε) 202 (4.32), 217 (3.74) nm; IR (ATR Diamond) νmax 3367, 2962, 1638, 1542, 1200, 1178 cm−1; 1H and 13C NMR (Table 3 and Supplementary Table S9); HR MALDI-TOF MS m/z 985.5732 [M + H]+, (calcd. for C48H77N10O12, 985.5736). Retention times of AA Marfey’s derivatives: l-Arg 28.1 min (d-Arg 26.9 min), l-Asp 28.8 min (d-Asp 29.8 min), l-Thr 28.1 min (d-Thr 31.5 min), l-Glu 30.6 min (d-Glu 31.7 min), l-Val 37.8 min (d-Val 41.8 min), l-Ile 41.4 min (d-Ile 45.2 min), l-NMePhe 42.4 min.
Micropeptin KB970C (10): Amorphous white solid; [α]D23 −87° (c 0.06, MeOH); UV (MeOH) λmax (log ε) 202 (4.37), 217 (4.00) nm; IR (ATR Diamond) νmax 3432, 2922, 1645, 1208 cm−1; 1H and 13C NMR (Table 4 and Supplementary Table S10); HR MALDI-TOF MS m/z 971.5560 [M + H]+, (calcd. for C47H75N10O12, 971.5566). Retention times of AA Marfey’s derivatives: l-Arg 28.2 min (d-Arg 27.5 min), l-Asp 34.1 min (d-Asp 34.8 min), l-Thr 33.2 min (d-Thr 36.3 min), l-Glu 34.9 min (d-Glu 36.3 min), 2 × l-Val 43.8 min (d-Val 48.0 min), l-NMePhe 48.4 min.
Micropeptin KB1048 (11): Amorphous white solid; [α]D23 −11° (c 0.19, MeOH); UV (MeOH) λmax (log ε) 202 (4.49), 230 (3.67), 282 (2.91) nm; IR (ATR Diamond) νmax 3366, 2962, 1652, 1541, 1201, 1136 cm−1; 1H and 13C NMR (Table 4 and Supplementary Table S11); HR MALDI-TOF MS m/z 1,049.5448/1,051.5444 (3:1) [M + H]+, (calcd. for C49H7835ClN10O13, 1049.5438). Retention times of AA Marfey’s derivatives: l-Arg 28.7 min (d-Arg 27.5 min), l-Asp 29.4 min (d-Asp 30.4 min), l-Thr 28.7 min (d-Thr 32.7 min), l-Glu 31.3 min (d-Glu 32.3 min), 2 × l-Ile 42.0 min (d-Ile 46.6 min), l-NMeClTyr 49.9 min.
Micropeptin KB992 (12): Amorphous white solid; [α]D23 −47° (c 0.14, MeOH); UV (MeOH) λmax (log ε) 202 (4.29), 208 (4.14), 278 (2.92) nm; IR (ATR Diamond) νmax 3421, 2931, 1648, 1542 cm−1; 1H and 13C NMR (Table 4 and Supplementary Table S12); HR MALDI-TOF MS m/z 1,015.5121 [M + Na]+, (calcd. for C50H72N8NaO13, 1015.5117). Retention times of AA Marfey’s derivatives: l-Asp 33.9 min (d-Asp 34.6 min), l-Thr 33.3 min (d-Thr 36.3 min), l-Glu 35.5 min (d-Glu 36.5 min), l-Val 43.9 min (d-Val 47.8 min), l-Ile 47.6 min (d-Ile 51.7 min), l-NMePhe 48.3 min, l-Leu 48.5 min (d-Leu 2.3 min). Retention time of d-hydroxyphenyllactic acid (Hpla) on the chiral-phase column 5.43 min (l-Hpla 5.27 min).
Micropeptin KB1046 (13): Amorphous white solid; [α]D23 −36° (c 0.39, MeOH); UV (MeOH) λmax (log ε) 202 (5.39), 225 (3.90), 276 (3.29) nm; IR (ATR Diamond) νmax 3367, 2933, 1638, 1533, 1202 cm−1; 1H and 13C NMR (Table 4 and Supplementary Table S13); HR MALDI-TOF MS m/z 1,069.5228 [M + Na]+, (calcd. for C53H74N8NaO13, 1069.5222). Retention times of AA Marfey’s derivatives: l-Thr 28.8 min (d-Thr 32.2 min), 2 × l-Glu 31.4 min (d-Glu 32.2 min), l-Val 38.6 min (d-Val 43.0 min), l-Ile 42.2 min (d-Ile 46.0 min), l-NMePhe 43.2 min. Retention time of HcAla derivatives with l-FDAA (46.9 min) and d-FDAA (50.2 min). Retention time of d-hydroxyphenyllactic acid (Hpla) on the chiral-phase column 5.36 min (l-Hpla 5.24 min).

3.4. Determination of the Absolute Configuration of the Amino Acids by Marfey’s Method

Compounds 113 (0.3 mg each) were hydrolyzed in 6 N HCl (1 mL). The reaction mixture was maintained in a sealed glass bomb at 104 °C for 16 h. The acid was removed in vacuo, and the residue was re-suspended in 250 μL of H2O. FDAA solution ((1-fluoro-2,4-dinitrophenyl)-5-l-alanine amide) or ((1-fluoro-2,4-dinitrophenyl)-5-d-Alanine amide) in acetone (115 μL, 0.03 M) and NaHCO3 (120 μL, 1 M) were added to each reaction vessel. The reaction mixture was stirred at 40 °C for 2 h. Then, HCl (2 M, 60 μL) was added to each reaction vessel, and the solution was evaporated in vacuo. The FDAA-amino acids derivatives from hydrolysate were dissolved in 1 mL CH3CN and compared with standard FDAA-amino acids by an HPLC analysis: Hibar LiChrospher 60, RP-select B (5 μm, 250 × 4.6 mm), flow rate 1 mL/min, UV detection at 340 nm, linear gradient elution from 1:9 CH3CN:0.1% aq. TFA buffer (pH 3) to CH3CN, within 60 min. The absolute configuration of each amino acid was determined by spiking the derivatized hydrolysates with d,l-mixture of the standard derivatized amino acids. As with the advanced Marfey method [41], the retention times of the d- and l-derivatives were compared to determine the configuration of the constituent amino acid.

3.5. Determination of the Absolute Configuration of Hydroxy Phenyl Lactic Acid

The extraction of the acid hydrolysates of Compounds 8, 9 and 13 with ethyl ether separated Hpla from the amino acid salts. The ether was removed in vacuo, and the residue was dissolved in MeOH (1 mL). The MeOH solution was analyzed on an Astec, Chirobiotic T, LC stationary phase, 250 × 4.6 mm flow rate 1 mL/min, UV detection at 277 nm, linear elution with 19:1 MeOH:1% aq. triethylammonium acetate buffer (pH 4). The Hpla derivatives from 1, 12 and 13 were compared with an authentic standard of d,l-Hpla.

3.6. Protease Inhibition Assays

The procedures used to determine the inhibitory activity of the new compounds on trypsin and chymotrypsin were described in a previous paper [19]. The range of concentrations used in the assays was between 45.5 μM and 0.011 μM.

4. Conclusions

Microcystis blooms usually produce a large variety of short peptides, of which the micropeptins are dominant in quantity and diversity. In the current research, the 7:3 MeOH:H2O extract yielded 31 different peptides of six structural groups. As in the case of many other Microcystis blooms that we have investigated [18,19,24,25], the diversity of the micropeptins (144 isolated variants excluding this publication) isolated was the greatest (15 compounds). The number of the anabaenopeptins (57 isolated variants excluding this publication) was second to the micropeptins, with nine closely-related analogs, while the aeruginosins (the second most diverse group of protease inhibitors in cyanobacterial blooms, 69 isolated variants excluding this publication) were represented by only three analogs, one of which was the prenylated aeruginosin KB676 (1). These three groups of modified peptides are biosynthesized by non-ribosomal peptide synthetases that are flexible and capable of synthesizing series of analogues metabolites. The reason(s) for the biosynthesis of these metabolites and their high variability in cyanobacterial water blooms are intriguing, and our current research is aimed at revealing the purpose for the biosynthesis of these metabolites.

Supplementary Information

1D (1H, 13C) and 2D NMR (HSQC, HMBC, COSY, ROESY) spectra and HR MS data of Compounds 113, tables of full NMR data of 113 and two figures with the structures of the known metabolites isolated in this study are available.

Acknowledgments

The authors thank Noam Tal, the Mass Spectrometry Facility of the School of Chemistry, Tel Aviv University, for the measurements of the HRESI mass spectra. We thank Josep Bonjoch, Faculty of Pharmacy, University of Barcelona, Spain, for the kind provision of the synthetic Choi isomers. This research was supported by the Israel Science Foundation Grant 776/06.

Author Contributions

This research work is part of Shira Elkobi-Peer PhD thesis under the supervision of Shmuel Carmeli.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zohary, T.; Roberts, R.D. Hyperscums and the population dynamics of Microcystis aeruginosa. J. Plank. Res. 1990, 12, 423–432. [Google Scholar] [CrossRef]
  2. Welker, M.; Brunke, M.; Preussel, K.; Lippert, I.; von Doheren, H. Diversity and distribution of Microcystis (Cyanobacteria) oligopeptide chemotypes from natural communities studied by single-colony mass spectrometry. Microbiology 2004, 150, 1785–1796. [Google Scholar] [CrossRef] [PubMed]
  3. Zhu, M.; Xu, Y.; Li, R. Genetic Diversity of Bloom-Forming Microcystis (Cyanobacteria) Populations in a Hyper-Eutrophic Pond in Central China. Curr. Microbiol. 2012, 65, 219–224. [Google Scholar] [CrossRef] [PubMed]
  4. Moree, W.J.; Yang, J.Y.; Zhao, X.; Liu, W.T.; Aparicio, M.; Atencio, L.; Ballesteros, J.; Sánchez, J.; Gavilán, R.G.; Gutiérrez, M.; et al. Imaging Mass Spectrometry of a Coral Microbe Interaction with Fungi. J. Chem. Ecol. 2013, 39, 1045–1054. [Google Scholar] [CrossRef] [PubMed]
  5. Traxler, M.F.; Watrous, J.D.; Alexandrov, T.; Dorrestein, P.C.; Kolter, R. Interspecies Interactions Stimulate Diversification of the Streptomyces coelicolor Secreted Metabolome. mBio 2013, 4. [Google Scholar] [CrossRef]
  6. Gademann, K.; Portmann, C. Secondary Metabolites from Cyanobacteria: Complex Structures and Powerful Bioactivities. Curr. Org. Chem. 2008, 12, 326–341. [Google Scholar] [CrossRef]
  7. Blaha, L.; Babica, P.; Marsalek, B. Toxins produced in cyanobacterial water blooms—Toxicity and risks. Interdisc. Toxicol. 2009, 2, 36–41. [Google Scholar] [CrossRef]
  8. Sedmak, B.; Elersek, T. Microcystins Induce Morphological and Physiological Changes in Selected Representative Phytoplanktons. Microb. Ecol. 2005, 50, 298–305. [Google Scholar] [CrossRef] [PubMed]
  9. Wiegand, C.; Pflugmacher, S. Ecotoxicological effects of selected cyanobacterial secondary metabolites a short review. Toxicol. Appl. Pharmacol. 2005, 203, 201–218. [Google Scholar] [CrossRef] [PubMed]
  10. Smith, J.L.; Boyer, G.L.; Zimba, P.V. A review of cyanobacterial odorous and bioactive metabolites: Impacts and management alternatives in aquaculture. Aquaculture 2008, 280, 5–20. [Google Scholar] [CrossRef]
  11. Bladt, T.T.; Kalifa-Aviv, S.; Larsen, T.O.; Carmeli, S. Micropeptins from Microcystis sp. collected in Kabul Reservoir, Israel. Tetrahedron 2014, 70, 936–943. [Google Scholar] [CrossRef]
  12. Raveh, A.; Carmeli, S. Aeruginazole A, a Novel Thiazole-Containing Cyclopeptide from the Cyanobacterium Microcystis sp. Org. Lett. 2010, 12, 3536–3539. [Google Scholar] [CrossRef] [PubMed]
  13. Adiv, S.; Aharonv-Nadborny, R.; Carmeli, S. New aeruginazoles, a group of thiazole-containing cyclic peptides from Microcystis aeruginosa blooms. Tetrahedron 2012, 68, 1376–1383. [Google Scholar] [CrossRef]
  14. Valls, N.; Lopez-Canet, M.; Vallribera, M.; Bonjoch, J. First Total Syntheses of Aeruginosin 298-A and Aeruginosin 298-B, Based on a Stereocontrolled Route to the New Amino Acid 6-Hydroxyoctahydroindole-2-carboxylic Acid. Chem. Eur. J. 2001, 7, 3446–3460. [Google Scholar] [CrossRef] [PubMed]
  15. Adiv, S.; Carmeli, S. Protease Inhibitors from Microcystis aeruginosa Bloom Material Collected from the Dalton Reservoir, Israel. J. Nat. Prod. 2013, 76, 2307–2315. [Google Scholar] [CrossRef] [PubMed]
  16. Itou, Y.; Suzuki, S.; Ishida, K.; Murakami, M. Anabaenopeptins G and H, Potent Carboxypeptidase A inhibitors from the cyanobacterium Oscillatoria agardhii (NIES-595). Bioor. Med. Chem. Lett. 1999, 9, 1243–1246. [Google Scholar] [CrossRef]
  17. Okumura, H.S.; Philmus, B.; Portmann, C.; Hemscheidt, T.K. Homotyrosine-Containing Cyanopeptolins 880 and 960 and Anabaenopeptins 908 and 915 from Planktothrix agardhii CYA 126/8. J. Nat. Prod. 2009, 72, 172–176. [Google Scholar] [CrossRef] [PubMed]
  18. Gesner-Apter, S.; Carmeli, S. Protease Inhibitors from a Water Bloom of the Cyanobacterium Microcystis aeruginosa. J. Nat. Prod. 2009, 72, 1429–1436. [Google Scholar] [CrossRef] [PubMed]
  19. Zafrir-Ilan, E.; Carmeli, S. Eight novel serine proteases inhibitors from a water bloom of the cyanobacterium Microcystis sp. Tetrahedron 2010, 66, 9194–9202. [Google Scholar] [CrossRef]
  20. Jakobi, C.; Oberer, L.; Quiquerez, C.; Konig, W.A.; Weckesser, J. Cyanopeptolin S, a sulfate-containing depsipeptide from a water bloom of Microcystis sp. FEMS Microbiol. Lett. 1995, 129, 129–133. [Google Scholar] [PubMed]
  21. Jakobi, C.; Rinehart, K.L.; Neuber, R.; Mez, K.; Weckesser, J. Cyanopeptolin SS, a disulphated depsipeptide from a water bloom: Structural elucidation and biological activities. Phycologia 1996, 35, 111–116. [Google Scholar] [CrossRef]
  22. Zainuddin, E.N.; Mentel, R.; Wray, V.; Jansen, R.; Nimtz, M.; Lalk, M.; Mundt, S. Cyclic Depsipeptides, Ichthyopeptins A and B, from Microcystis ichthyoblabe. J. Nat. Prod. 2007, 70, 1084–1088. [Google Scholar] [CrossRef] [PubMed]
  23. Krishanamurthy, T.; Caarmichael, W.W.; Sarver, E.W. Toxic peptides from freshwater cyanobacteria (blue-green algae). I. Isolation, purification and characterization of peptides from Microcystis aeruginosa and Anabaena flos-aquae. Toxicon 1986, 24, 865–873. [Google Scholar] [CrossRef] [PubMed]
  24. Lifshits, M.; Zafrir-Ilan, E.; Raveh, A.; Carmeli, S. Protease inhibitors from three fishpond water blooms of Microcystis spp. Tetrahedron 2011, 67, 4017–4024. [Google Scholar] [CrossRef]
  25. Vegman, R.; Carmeli, S. Eight micropeptins from a Microcystis spp. bloom collected from a fishpond near Kibbutz Lehavot HaBashan, Israel. Tetrahedron 2013, 69, 10108–10115. [Google Scholar] [CrossRef]
  26. Sano, T.; Usui, T.; Ueda, K.; Osada, H.; Kaya, K. Isolation of New Protein Phosphatase Inhibitors from Two Cyanobacteria Species, Planktothrix spp. J. Nat. Prod. 2001, 64, 1052–1055. [Google Scholar] [CrossRef] [PubMed]
  27. Lifshits, M.; Carmeli, S. Metabolites of Microcystis aeruginosa Bloom Material from Lake Kinneret, Israel. J. Nat. Prod. 2012, 75, 209–219. [Google Scholar] [CrossRef] [PubMed]
  28. Marfey, P. Determination of d-amino acids. II. Use of a bifunctional reagent, 1,5-difluoro-2,4-dinitrobenzene. Carlsberg Res. Commun. 1984, 49, 591–596. [Google Scholar] [CrossRef]
  29. Ishida, K.; Matsuda, H.; Murakami, M.; Yamaguchi, K. Kawaguchipeptin A, a novel cyclic undecapeptide from cyanobacterium Microcystis aeruginosa (NIES-88). Tetrahedron 1996, 52, 9025–9030. [Google Scholar] [CrossRef]
  30. Murakami, M.; Itou, Y.; Ishida, K.; Shin, H.J. Prenylagaramides A and B, new cyclic peptides from two strained of Oscillatoria agarghii. J. Nat. Prod. 1999, 62, 752–755. [Google Scholar] [CrossRef] [PubMed]
  31. Ishida, K.; Matsuda, H.; Okita, Y.; Murakami, M. Aeruginoguanidines 98-A-98-C: Cytoxic unusual peptides from the cyanobacterium Microcystis aeruginosa. Tetrahedron 2002, 58, 7645–7652. [Google Scholar] [CrossRef]
  32. Liang, Z.; Sorrobas, A.; Sulzmaier, F.J.; Jimenez, J.I.; Wang, X.; Sauvage, T.; Yoshida, W.Y.; Wang, G.; Ramos, J.W.; Williams, P.G. Stictamides A–C, MMP12 inhibitors containing 4-amino-3-hydroxy-5-phenylpentanoic acid subunits. J. Org. Chem. 2011, 76, 3635–3643. [Google Scholar] [CrossRef] [PubMed]
  33. Gesner-Apter, S.; Carmeli, S. Three novel metabolites from a bloom of the cyanobacterium Microcystis sp. Tetrahedron 2008, 64, 6628–6634. [Google Scholar] [CrossRef]
  34. Baumann, H.I.; Keller, S.; Wolter, F.E.; Nicholson, G.J.; Jung, G.; Sussmuth, R.D.; Juttner, F. Planktocyclin, a cyclooctapeptide protease inhibitor produced by the freshwater cyanobacterium Planktothrix rubescens. J. Nat. Prod. 2007, 70, 1611–1615. [Google Scholar] [CrossRef] [PubMed]
  35. Leikoski, N.; Fewer, D.P.; Jokela, J.; Wahlsten, M.; Rouhiainen, L.; Sivonen, K. Highly diverse cyanobactins in strains of the genus Anabaena. Appl. Environ. Microbiol. 2010, 76, 701–709. [Google Scholar] [CrossRef] [PubMed]
  36. Zafrir, E.; Carmeli, S. Micropeptins from an Israeli Fishpond Water Bloom of the Cyanobacterium Microcystis sp. J. Nat. Prod. 2010, 73, 352–358. [Google Scholar] [CrossRef] [PubMed]
  37. Linington, R.G.; Edwards, D.J.; Shuman, C.F.; McPhail, K.L.; Matainaho, T.; Gerwick, W.H. Symplocamide A, a Potent Cytotoxin and Chymotrypsin Inhibitor from the Marine Cyanobacterium Symploca sp. J. Nat. Prod. 2008, 71, 22–27. [Google Scholar] [CrossRef] [PubMed]
  38. Okino, T.; Qi, S.; Matsuda, H.; Murakami, M.; Yamaguchi, K. Nostopeptins A and B, Elastase Inhibitors from the Cyanobacterium Nostoc minutum. J. Nat. Prod. 1997, 60, 158–161. [Google Scholar] [CrossRef]
  39. Blom, J.F.; Bister, B.; Bischoff, D.; Nicholson, G.; Jung, G.; Sussmuth, R.D.; Juttner, F. Oscillapeptin J, a New Grazer Toxin of the Freshwater Cyanobacterium Planktothrix rubescens. J. Nat. Prod. 2003, 66, 431–434. [Google Scholar] [CrossRef] [PubMed]
  40. Adiv, S.; Aharonov-Nadborny, R.; Carmeli, S. Micropeptins from Microcystis aeruginosa collected in Dalton reservoir, Israel. Tetrahedron 2010, 66, 7429–7436. [Google Scholar] [CrossRef]
  41. Fujii, K.; Ikai, Y.; Mayumi, T.; Oka, H.; Suzuki, M.; Harada, K.-I. A Nonempirical Method Using LC/MS for Determination of the Absolute Configuration of Constituent Amino Acids in a Peptide: Elucidation of Limitations of Marfey’s Method and of Its Separation Mechanism. Anal. Chem. 1997, 69, 3346–3352. [Google Scholar] [CrossRef]
  42. Ersmark, K.; del Valle, J.R.; Hanessian, S. Chemistry and biology of the aeruginosin family of serine protease inhibitors. Angew. Chem. Int. Ed. 2008, 47, 1202–1223. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Elkobi-Peer, S.; Carmeli, S. New Prenylated Aeruginosin, Microphycin, Anabaenopeptin and Micropeptin Analogues from a Microcystis Bloom Material Collected in Kibbutz Kfar Blum, Israel. Mar. Drugs 2015, 13, 2347-2375. https://doi.org/10.3390/md13042347

AMA Style

Elkobi-Peer S, Carmeli S. New Prenylated Aeruginosin, Microphycin, Anabaenopeptin and Micropeptin Analogues from a Microcystis Bloom Material Collected in Kibbutz Kfar Blum, Israel. Marine Drugs. 2015; 13(4):2347-2375. https://doi.org/10.3390/md13042347

Chicago/Turabian Style

Elkobi-Peer, Shira, and Shmuel Carmeli. 2015. "New Prenylated Aeruginosin, Microphycin, Anabaenopeptin and Micropeptin Analogues from a Microcystis Bloom Material Collected in Kibbutz Kfar Blum, Israel" Marine Drugs 13, no. 4: 2347-2375. https://doi.org/10.3390/md13042347

Article Metrics

Back to TopTop
