Marine microalgae and seaweeds (microalgae) represent a sustainable source of various bioactive natural carotenoids, including β-carotene, lutein, astaxanthin, zeaxanthin, violaxanthin and fucoxanthin. Recently, the large-scale production of carotenoids from algal sources has gained significant interest with respect to commercial and industrial applications for health, nutrition, and cosmetic applications. Although conventional processing technologies, based on solvent extraction, offer a simple approach to isolating carotenoids, they suffer several, inherent limitations, including low efficiency (extraction yield), selectivity (purity), high solvent consumption, and long treatment times, which have led to advancements in the search for innovative extraction technologies. This comprehensive review summarizes the recent trends in the extraction of carotenoids from microalgae and seaweeds through the assistance of different innovative techniques, such as pulsed electric fields, liquid pressurization, supercritical fluids, subcritical fluids, microwaves, ultrasounds, and high-pressure homogenization. In particular, the review critically analyzes technologies, characteristics, advantages, and shortcomings of the different innovative processes, highlighting the differences in terms of yield, selectivity, and economic and environmental sustainability.

1. Introduction

Carotenoids are a class of terpenoid pigments with a tetraterpenes (C40) backbone, responsible for a range of colors, such as brilliant yellow, orange and red in fruits, vegetables, and aquatic creatures [1]. They contain highly conjugated polyene chromophoric chains which give rise to distinct colors and functions [2], constituting two major classes of molecules: (i) carotenes, which are strictly hydrocarbons (e.g., α-carotene, β-carotene, and lycopene) and (ii) xanthophylls, which are similar to carotenes but contain oxygen (e.g., lutein, zeaxanthin, neoxanthin, violaxanthin, flavoxanthin, and fucoxanthin). Carotenoids are predominantly found in plants; however, they are also present in many algae, bacteria and some fungi and play a key role in light harvesting and photo protection in photosynthetic organisms [3]. To date, over 600 unique carotenoids have been identified [4].
In recent decades, there has been a considerable amount of evidence supporting the role of carotenoids as food colorants and antioxidants with beneficial effects on human health, especially with regards to the prevention of chronic diseases, particularly certain cancers, cardiovascular and eye diseases [5,6,7]. They have been widely used as nutraceuticals, cosmeceuticals and feed supplements in aquaculture sectors [8,9]. For this reason, the global demand for carotenoids is growing remarkably with the worldwide carotenoids market estimated at USD 1.24 billion in 2016 and is expected to reach USD 1.53 billion by 2021 [10]. Currently, the major commercial carotenoids are produced by chemical synthesis [11]; however, in recent year, the increasing consumers’ concerns for public health, safety and environmental burden have driven the growth of the market demand for natural carotenoids-based products.
Marine microalgae and seaweeds serve as a unique, sustainable and alternative source of carotenoids [9,12]. Therefore, in recent years, the industrial interest towards the production of natural carotenoids using algae has considerably increased, as they offer cost, scale, time and yield advantages over terrestrial plants.
In microalgae, carotenoids can be classified into two groups, primary and secondary carotenoids, based on their metabolism and function. Primary carotenoids are structural and functional components in the photosynthetic apparatus, which take direct part in photosynthesis. Secondary carotenoids refer to extra-plastidic pigments produced in large quantities, through carotenogenesis, after exposure to specific environmental stimuli [13,14]. Primary and secondary carotenoids are of considerable interest as natural colorants as well as their potential in human health. Specifically, they possess a wide range of distinctive biological activities, including antioxidant, cardiovascular protection, anticancer, antidiabetic, and anti-obesity, which have been recently reviewed [15]. The primary microalgae carotenoids include α-carotene, β-carotene, lutein, fucoxanthin, violaxanthin, zeaxanthin, and neoxanthin, among others. Examples of secondary carotenoids, include: astaxanthin, canthaxanthin, and echinenone [16]. Interestingly, among these compounds, astaxanthin, zeaxanthin, β-carotenes, fucoxanthin and lutein are commercially important carotenoids, which are widely found in marine microalgae.
Seaweeds (macroalgae) also serve as an important source of carotenoids [17], such as fucoxanthin, lutein, β-carotene and siphonaxanthin. In particular, fucoxanthin is a characteristic orange xanthophyll, which is abundant in several brown seaweeds including Undaria pinnatifida [18,19,20,21,22,23], Hijikia fusiformis [24], Laminaria japonica [21,25,26], Sargassum sp. [27,28,29,30,31,32], and Fucus sp. [33]. It is one of the most abundant carotenoids in seaweeds, accounting for more than 10% of the estimated total natural production of carotenoids [34], with remarkable biological properties, including anticancer, anti-inflammatory, antiobesity and neuroprotective bioactivities [34,35,36,37,38].
Carotenoids produced by algae are generally localized in the chloroplast or accumulated in vesicles, cytoplasmic matrix or bound to membranes and other macromolecules in the intracellular space. The cell wall and plasma membrane surrounding the cell, as well the chloroplast membranes, act as a barrier which greatly limits the rate of mass transfer of carotenoids and other intracellular compounds during conventional extraction processes. Figure 1 illustrates a marine microalga, highlighting that the extraction of carotenoid yield requires the disruption or permeabilization of the cell wall, of the plasma membrane and, depending on the biological features (e.g., organelle localization), eventually of the chloroplast membrane. Algae display complex cell envelope structures and their composition varies from species to species [39]. Therefore, it is essential to develop and optimize efficient methods for the selective extraction of these compounds, which takes into account the biological diversity as well as the localization of carotenoids within specific organelles.
Generally, carotenoids are recovered from microalgae and seaweeds by means of conventional solvent extraction (e.g., Soxhlet extraction) using organic solvents [40]. However, these methods are time-consuming, and often require the usage of relatively large amounts of solvents, which is expensive and not environmental friendly. The use of innovative non-conventional techniques, based on the physical membrane permeabilization or lysis, to selectively or non-selectively increase the rate of mass transfer of carotenoids from the intracellular space of microalgae and seaweeds, has gained growing interest in recent years. In particular, this review extensively details the recent advances in the use of novel technologies to recover carotenoids from microalgae and seaweeds, including electrotechnologies-assisted extraction, such as pulsed electric field (PEF), moderate electric field (MEF), high-voltage electric discharges (HVED), as well as supercritical fluid extraction (SFE), subcritical fluid extraction, pressurized liquid extraction (PLE), microwave-assisted extraction (MAE), ultrasound-assisted extraction (UAE) and high pressure homogenization (HPH) treatment. These alternative technologies have several advantages, including rapid extraction (e.g., PLE, MAE, UAE, PEF, MEF, HVED and HPH), low solvent consumption (e.g., PEF, PLE, MAE and UAE), use of “green” environmentally friendly solvents (e.g., SFE), superior recovery (e.g., MAE, subcritical fluid extraction, HVED, UAE and HPH) and higher selectivity (e.g., PEF and SFE).

2. Extraction Technologies for Carotenoids

Conventional Extraction Methods

Conventional extraction of algae intracellular products is typically conducted from dry biomass and is based on maceration and thermal extraction using organic or aqueous solvents, depending on the polarity of the target compounds to be extracted. Carotenoids exhibit varying polarities, solubilities and chemical stabilities. Therefore, a suitable solvent system must be selected on the basis of the target carotenoids, which could selectively and efficiently extract carotenoids with greater purity. Since most carotenoids possess a high degree of hydrophobicity, their effective extractions requires the use of non-polar solvents, for example n-hexane, dichloromethane, dimethyl ether, diethyl ether etc. [23,41]. Acetone, octane, biphasic mixtures of several organic solvents have also been studied for the selective extraction of carotenoids [42,43,44]. Recently, the use of several green solvents such as ethanol, limonene and biphasic mixtures of water and organic solvents have been investigated for recovery of carotenoids from microalgae [45,46]. However, extraction efficiency, selectivity and high solvent consumption still remain a limiting factor in the conventional solvent extraction process. One avenue to overcome this problem can be based on the usage of a multi-stage extraction procedure eventually assisted by different physical and chemical methodologies which may selectively target the desired intracellular carotenoids.

3. Nonconventional Extraction of Carotenoids

3.1. Electrotechnologies

In recent years, there has been an emerging interest in the use of electrotechnologies, such as PEF, MEF, and HVED as a non-thermal, green extraction techniques for targeting intracellular compounds from plant or biosuspensions [47,48,49,50]. As illustrated in Figure 2, although each of these electrotechnologies has its own mode of treatment and mechanism of delivering electrical current through the processed biomaterial, they all induce a certain degree of cell disintegration allowing for the selective extraction of intracellular compounds. The principles and recent advances in application of electrotechnologies to extract carotenoids from microalgae and seaweeds are described in the following subsections.

3.1.1. Pulsed Electric Field (PEF)-Assisted Extraction

PEF processing is a non-thermal technique, which has received increasing attention in recent years [51]. In PEF-assisted extraction, the sample matrix is placed between two electrodes in a batch or a continuous flow treatment chamber and exposed to repetitive electric frequencies (Hz–kHz) with an intense (0.1–80 kV/cm) electric field for very short periods (from several nanoseconds to several milliseconds). The pulses commonly used in PEF treatments are unipolar or bipolar, with either exponential or square-wave shaped frequencies (Figure 2a). The application of electric pulses causes the formation of reversible or irreversible pores in the cell membranes, defined as electroporation or electropermeabilization, which consequently aids the rapid diffusion of the solvents and the enhancement of the mass transfer of intracellular compounds [51]. The selective extraction of analytes can be achieved by controlling the pore formation, which is dependent on the intensity of the treatment applied (electric field strength, single pulse duration, treatment time or total specific energy input) and the cell characteristics (i.e., size, shape, orientation in the electric field) [52].
Recently, a few authors have investigated the ability of PEF to enhance the extractability of carotenoids from microalgae obtaining controversial results (Table 1). A PEF pretreatment at 15 kV/cm and 100 kJ/kg increased the extraction of carotenoids from marine microalgae Chlorella vulgaris and Spirulina platensis up to 525 and 150%, respectively, compared to the conventional ball milling homogenization process alone [53]. Subsequently, a PEF treatment at 20 kV/cm electric field strength with an energy density of 13.3–53.1 kJ/kg for 1–4 ms did not increase the carotenoids yield extracted from marine microalga Nannochloropsis sp. [54]. It is likely that the use of a polar solvent, such as water, together with the thick cell wall structure of Nannochloropsis sp., with the presence of secondary structures, complex polysaccharide networks and an outer algaenan layer [55] could be the reasons for the observed scarce efficiency of PEF treatments. Furthermore, extraction of carotenoids which are bound to chloroplasts requires more intense treatments, as the chloroplast membranes has to be electroporated along with the plasma membrane to improve the mass transfer of extractable compounds. Considering that the external electric field threshold required to trigger electroporation is inversely related to cell size [56,57], higher electric field strengths are required for permeabilization of smaller internal organelles like chloroplasts [58]. Specifically, nanosecond pulses with electric field strengths around 100 kV/cm have been reported to cause the electroporation of intracellular organelles [59]. However, more recently, it has been demonstrated that also longer pulses of lower intensity, currently used for the electroporation of plasma membranes, can also cause non-thermal intracellular effects, including organelles electroporation [58].
In a recent study, it has been found that PEF treatments in the microsecond range (3 μs pulse duration) with a field strength in the range of 20–25 kV/cm can cause significant, irreversible electroporation of C. vulgaris, resulting in improved carotenoid yield. Lower electric field strengths (10 kV/cm) in the microsecond range resulted only in the reversible electroporation, leading to lower extraction yields [60]. However, the lower degree of electroporation at lower electric field strengths can be compensated by increasing the treatment duration to the milliseconds range [61], at the expense of a specific energy higher than that of treatment at higher electric field strengths in the microsecond range [61]. Interestingly, when the extraction of carotenoids was performed after 1 h of PEF treatment, the authors noted that the yield increased up to 1.58 mg/L of culture for the PEF treated samples in the microsecond range, while no further increase was observed for the sample treated in the millisecond range [61]. Nevertheless, the authors did not find an increase in the degree of permeabilization in the PEF treated cells during the incubation period. The increase in the yield was, therefore, attributed to subsequent plasmolysis of the chloroplast during the incubation time due to osmolytic disequilibrium in the cytoplasmatic space, which facilitated the diffusion of both the solvent into the chloroplast and the carotenoid pigments towards the cytoplasm [61].
The application of multi-step extraction procedures, based on the combination of PEF and solvent extractions at various pH and the usage of biphasic mixture of organic solvents, can also assist in the recovery of low water solubility carotenoids with optimum yields [62,63]. Using this approach, Parniakov et al. [63] observed a noticeable increase in the concentrations of carotenoids in the aqueous extracts from Nannochloropsis spp. after PEF was applied at pH 8.5, followed by extraction at pH 11. In a further study, the authors efficiently recovered carotenoids and other pigments from Nannochloropsis spp. with the application of biphasic mixtures of organic solvents [(i.e., dimethyl sulfoxide (DMSO) and ethanol (EtOH)] and water. A two stage extraction procedure involving PEF treatment (20 kV/cm) of microalgae suspension and extraction in water at the first step, followed by the conventional extraction using biphasic mixtures in the second step, allowed for the efficient extraction of carotenoids in less concentrated mixtures of organic solvents with water [62].
A combination of PEF and moderate thermal treatment could also assist to achieve the required permeabilization effect of rigid algal membrane structures with less severe processing conditions, or to achieve higher efficacy at the same treatment conditions [65]. It was found that a mild thermal treatment enhanced electroporation efficiency of PEF treatment in plant tissues [66,67]. In the case of extraction of luteinfrom C. vulgaris, PEF pretreated samples (25 kV/cm for 75 μs) resulted in a 4.5-fold higher concentration of lutein (753 μg/g dw of C. vulgaris culture), with respect to to untreated samples, when carried out at 40 °C, whereas the yield increased only of 2.3 and 3.2 fold when carried out at 10 and 25 °C [56]. The increase in yield at higher temperatures was positively correlated with the increase in membrane permeabilization. Furthermore, the yield also increased with the applied electric field strength, which was correlated to the irreversible electroporation of algal membranes. Interestingly, temperature enhanced electroporation under the PEF treatment and decreased the treatment time to achieve the desired yields, consequently reducing the total specific energy required for the treatment [56].

3.1.2. Moderate Electric Field (MEF)-Assisted Extraction

MEF-assisted extraction could also be an attractive alternative method to extract carotenoids from microalgae. MEF can promote cell membrane permeabilization and consequently assists in the diffusion of intracellular compounds from the intracellular matrix (for a detailed principle and mechanism MEF processing, see ref. [68]). The MEF-assisted extraction process involves the application of relatively low electric fields (arbitrarily defined between 1 and 1000 V/cm) in the range of Hz up to tens of kHz, with or without heating, to biomaterials placed between two electrodes [64] (Figure 2b). MEF can cause a wide variety of effects on biological samples depending on the electrical and thermal conditions used in the treatment. Interestingly, in spite of the relatively low field strength applied, it has been shown that MEF treatment can promote at least reversible electroporation of the cell membranes, increasing their permeability [69].
In comparison with PEF, there are only limited data available about the use of MEF in the recovery of intracellular compounds from microalgae (Table 1), although interesting studies have been reported on the extraction of valuable compounds from plant material [49,50]. In a recent study, Nezammahalleh et al. [70] showed that up to 73% of carotenoids (1.21 mg lutein Eq./g sample dw) can be recovered from the Heterochlorella luteoviridis microalga biomass using MEF combined with ethanol as solvent (180 V, 60 Hz, 75 mL/100 mL of ethanol solution). In this case, carotenoid extraction yield increased with electrical field strength and ethanol concentration. HPLC-UV-Vis analysis identified the presence of all-trans–lutein (856 μg/g), all-trans-zeaxanthin (244 μg/g) and all-trans-β-carotene (185 μg/g) in major quantities. Besides, all-trans-α-carotene, 9-13-15-cis-β-carotene, cis-violaxanthin, all-trans-violaxanthin and 13-13′-cis-lutein were detected in minor quantities [70]. In another study Jaeschke et al. [64] used a two-stage approach to evaluate the effect of MEF pretreatment (0–180 V, 10 min) in the presence of 25 mL/100 mL of ethanol/water solution, followed by the subsequent extraction with ethanol at varying concentrations (25–75 mL/100 mL, 50 min) for the extraction of carotenoids from the microalga Heterochlorella luteoviridis. It was observed that the extraction of carotenoids increased as the electrical field strength and ethanol concentration increased, with the highest extraction yields (73%) measured at the maximum values of the two variables (180 V and 75 mL/100 mL of ethanol concentration). The carotenoid profile of the extract revealed that the xanthophylls all-trans-lutein and all-trans-zeaxanthin were the major carotenoids extracted, owing to their polarity. Interestingly, the use of ethanol alone (75 mL/100 mL) was found to be insufficient for the extraction of carotenoids. It was anticipated that MEF was supposed to act on the cell membranes promoting their permeabilization. However, micrographic images of biomass samples revealed no visible damage caused by MEF to the cell structure, suggesting that a reversible electroporation occurred.

3.1.3. High Voltage Electric Discharges (HVED)-Assisted Extraction

HVED is a cell disintegration technique based on the phenomenon of electrical breakdown of water. As illustrated in Figure 2c, during HVED treatment, the biomaterial of interest is placed in a treatment chamber with a high voltage needle electrode and a plated grounded electrode exposed to pulsed shockwaves (typically, 40–60 kV/cm, 2–5 μs) [50]. To date, the mechanisms of HVED, due to their complexity, are not well understood. However, the combination of electrical breakdown with a number of secondary phenomena (high-amplitude pressure shock waves, bubbles cavitation, creation of liquid turbulence, etc.) occurring during HVED treatment have been reported to cause cell structural damages, including cell wall disruption, which accelerates the extraction of intracellular compounds. The attempts to study the effect of HVED on the extraction of intracellular compounds from microalgae have shown that this technology is effective in achieving the extraction of water-soluble, as well as high molecular weight intracellular compounds. However, as reported in Table 1, HVED does not appear to be very effective for the extraction of pigments (e.g., chlorophylls or carotenoids), which instead requires the use of organic solvents or the application of harsher, mechanical homogenization techniques, such as US or HPH [54].
Based on the available literature data, it can be concluded that electrotechnologies (PEF, MEF and HVED) offer a considerable potential for improving the extraction of carotenoids from microalgae. However, greater research is required in order to deeply understand the mechanisms regulating the electrically induced disintegration of cell wall, plasma and organelles (chloroplast) membranes, as well as the subsequent mass transfer of the target intracellular compounds. Moreover, the efficacy of the electrotechnologies on extraction improvement requires careful optimization of process parameters, depending on the compounds of interest, as well as algal cell size, shape, and envelope structures. It is likely that the potential of electrotechnologies could be exploited by using them as a first disintegration step in a multi-stage approach. In the first stage, water-soluble compounds could be extracted; in subsequent stages, either more powerful cell homogenization techniques or “green” solvents could be applied to achieve higher extraction yields of pigments or other hydrophobic compounds.

3.2. Pressurized Liquid Extraction

PLE, also known as accelerated solvent extraction, has been acknowledged as a green alternative technique for the extraction of compounds from biological matrices. It was first described by Richter et al. [71] in 1996. PLE involves the extraction using liquid solvents at elevated temperature and pressure (always below their critical points), normally in the ranges of 50–200 °C and 35–200 bar, respectively [72,73]. The use of solvents at temperatures above their atmospheric boiling point reduces their viscosity and surface tension significantly and enhances solubility and mass transfer of analytes. The main advantage of using PLE is that it allows for rapid extraction and reduces solvent consumption [74,75,76,77]. PLE allows for the efficient usage of green solvents such as water and ethanol for the extraction of a wide variety of compounds by changing their dielectric constants (polarity) to values similar to those of organic solvents [72]. Although water is the most widely used polar solvent for PLE (also referred as pressurized water extraction, subcritical water extraction, superheated water extraction, pressurized hot-water extraction), alternatively, bio-ethanol [78], methanol [79,80,81,82], n-hexane [83], propane, dichloromethane [84], acetone [85], ethyl acetate [86], ionic liquids [87], surfactants [88] can also be applied.
To date, PLE has been extensively investigated for the recovery of commercially and industrially valuable compounds from varying plant sources (reviewed in [89,90]). Nevertheless, the use of PLE in the recovery of carotenoids from microalgae and seaweeds is relatively limited. In an early study, Denery et al. [91] demonstrated the efficiency of PLE as an alternative technology for the extraction of oxygen and light-sensitive carotenoids from two green microalgae, namely Dunaliella salina and Hematococcus pluvialis. They confirmed that PLE required a lower amount of solvent and shorter extraction times compared to traditional extraction methods. They extracted equal amount of astaxanthin, β-carotene, lutein, and total pigments from D. salina and H. pluvialis compared to the traditional method.
In a subsequent study, Herrero et al. [92] detected all-trans-β-carotene and its isomers along with several minor carotenoids in the extract of the microalga Dunaliella salina while extracting antioxidant compounds using PLE [92]. The n-hexane extract obtained at 160 °C for 17.5 min showed the highest levels of β-carotene isomers (25.07 mg/100 g) and total carotenoids (29.50 mg/100g). This amount was more than seven times higher than the one obtained for ethanol extracts, with the antioxidant activity displaying double the activity to that of the ethanol extract. The authors selected ethanol as the most suitable solvent for PLE for these antioxidant compounds considering the total extraction yield and reduction in environmental impact using n-hexane. Interestingly, the β-carotene recovery increased with the extraction temperature and the best yield was obtained at a temperature of 160 °C, indicating PLE at high temperatures was not detrimental to the extraction of carotenoids, provided a short extraction time was applied.
In another study, PLE revealed the presence of several antioxidative carotenoids in the extracts of seaweed, Himanthalia elongata (commonly known as sea spaghetti) and from the microalgae Synechocystis sp. [93]. Fucoxanthin (0.82 mg/g) and zeaxanthin (0.13 mg/g) were the major carotenoids found in the H. elongata, while β-carotene (2.04 mg/g) zeaxanthin (1.64 mg/g), myxoxanthophyll (0.58 mg/g) and echinenone (0.24 mg/g) were abundant in the Synechocystis sp. extract. Overall, the Synechocystis sp. ethanolic extracts obtained at 100 °C showed a higher carotenoid yield than the those obtained at different temperatures (50, 150 and 200 °C), and using other solvents (n-hexane and water) [93].
Similarly, PLE was found to be a suitable technique for the extraction of bioactive carotenoids from C. vulgaris [94]. PLE followed by HPLC-DAD analysis revealed the presence of lutein, cis-lutein, and β-carotene in the extract and their presence was positively correlated to their antioxidant activity. In general, PLE resulted in a greater carotenoids yield when compared to conventional maceration and UAE [94]. In a subsequent study, the PLE process was optimized and its efficiency was compared with maceration, Soxhlet extraction and UAE [95]. Ethanol at 90% was found to be a suitable solvent for the PLE of carotenoids from C. vulgaris when compared to acetone, n-hexane and water. A temperature of 116.8 °C and an extraction time of 25.1 min were found to be optimal for the extraction of β-carotene, while 48.2 °C and 34.6 min yielded an optimum quantity of lutein. At these conditions the yields of β-carotene and lutein was 0.67 and 3.70 mg/g of sample, respectively. In general, β-carotene and lutein were more effectively extracted by PLE than conventional Soxhlet extraction and maceration techniques. The efficiencies of PLE and UAE for lutein extraction were similar, however, PLE found to be less time consuming [95].
In another study, extraction of antioxidant carotenoids from the microalga Haematococcus pluvialis was investigated by PLE using n-hexane and ethanol as the extraction solvents [96]. Lutein followed by neoxanthin and β-carotene were the main carotenoids extracted from the green phase, H. pluvialis vegetative cells, whereas astaxanthin derivatives were observed in abundance from the red phase encysted cells formed under the stress condition. Overall, ethanol was found to be the most suitable solvent for the recovery of total carotenoids, although the n-hexane extract showed a higher astaxanthin content (35.1 mg/g dw) in red phase cells [96]. Plaza et al. [97] demonstrated that acetone was the most suitable solvent to extract C. vulgaris carotenoids (α-carotene, β-carotene, neoxanthin and violaxanthin) with respect to ethanol and water in PLE. The authors also showed that PLE provided a higher yield in carotenoid compared to UAE. In a similar study, Kim et al. [98] showed that ethanol was a suitable solvent for the extraction of fucoxanthin from the microalga Phaeodactylum tricornutum. PLE was performed at 100 °C for 30 min at 103 bar yielding 16.51 mg/g dw of fucoxanthin. Although the obtained yield was similar to conventional maceration methods, PLE enabled to reduce solvent use and extraction time [98].
Recently, Shang et al. attempted to optimize the PLE protocols for the efficient recovery of carotenoids, using statistical experimental designs for the extraction of fucoxanthin from the edible seaweed, Eisenia bicyclis [99]. Results revealed that temperature and ethanol concentration significantly influenced the extraction efficiency. Fucoxanthin was found to be relatively stable at 80 °C when extracted for 1 h, however, slight degradation was observed at 100 °C when extracted for 1 h. Optimized conditions obtained by Response Surface Methodology (RSM) revealed that at 110 °C using 90% ethanol resulted in 0.39 mg/g of fucoxanthin. In a similar study, Koo et al. [100] optimized the pressurized liquid extraction of zeaxanthin from C. ellipsoidea using central composite design. According to their results, the highest recovery of zeaxanthin was obtained using ethanol when compared to n-hexane and isopropanol. The extraction temperature showed the strongest influence on the extraction of zeaxanthin. The optimum extraction temperature and time for zeaxanthin found to be 115.4 °C and 23.3 min, respectively and the maximum yield obtained under these conditions was 4.28 mg/g. Similarly, Castro-Puyana et al. [45] attempted to optimize the extraction conditions for the recovery of carotenoids from Neochloris oleoabundans using PLE with food grade solvents such as ethanol and limonene. A three-level factorial design was employed to optimize the extraction conditions; at a temperature of 112 °C and 100% ethanol (0% limonene) as the extraction solvent provided optimum yields of carotenoids. Under these conditions approximately 97–98 mg/g of the extract of carotenoids were detected with lutein the major carotenoid identified in the extract. Several other secondary carotenoids including canthaxanthin, echinenone, and astaxanthin monoesters and diesters were also detected [45].
In another recent study, Taucher et al. [101] showed that use of dichloromethane as an extraction solvent in PLE yielded significantly higher levels of carotenoids from H. pluvialis when compared to acetone, ethanol, ethyl acetate and n-hexane. The extraction temperature up to 60 °C demonstrated a positive effect on the recovery of carotenoids whilst higher temperatures resulted in the degradation of carotenoids. At optimized conditions (PLE at 60 °C for 10 min, in 1 cycle, using dichloromethane), 3.69 μg/mg dw astaxanthin and 4.78 μg/mg dw total carotenoids were recovered from H. pluvialis. Furthermore, 1.48 μg/mg dw lutein and 1.29 μg/mg dw astaxanthin were recovered from Chromochloris zofingiensis and 2.08 μg/mg dw lutein was obtained from C. sorokiniana under these conditions. The recovery was also dependent on mechanical cell-disruption techniques used (high pressure homogenization and ball mill disruption) [101].
Overall, PLE has been demonstrated to provide an alternative for the extraction of carotenoids from microalgae and seaweeds. It is evident that ethanol and in some cases acetone [97], dichloromethane [101] are the most suitable solvents for the PLE of bioactive carotenoids rather than organic solvents such as n-hexane [92,93,95,96,100,102]. Ethanol noted as a “green” solvent minimizes cost and environmental impact. Although, for the extraction of carotenoids, several researchers claim that PLE reduced the solvent consumption, a comparative study is elusive. A detailed investigation including optimization data is required for the potential usage of PLE in commercial and industrial applications.

3.3. Supercritical Fluid Extraction (SFE)

The current literature identifies that SFE is the most extensively studied non-conventional extraction technique for the recovery of carotenoids from algae and microalgae. SFE has been considered as a sustainable “green” technology for the selective isolation of compounds. SFE uses supercritical fluids i.e., fluids at a temperature and pressure above its critical limit as the extraction solvent. Since supercritical fluids possess low viscosity and high diffusivity, they provide better solvating and transport properties than liquids. As an important advantage, the solvating power (polarity) of supercritical fluid can be adjusted by manipulating the temperature and pressure of the fluid, allowing for the selective extraction of a wide range of compounds [103]. Nowadays, many laboratories and industries are replacing conventional extraction techniques with SFE in order to minimize organic solvent consumption and increase high throughput [104]. Currently, carbon dioxide is the preferred solvent (referred as supercritical CO2 extraction) as it can easily attain supercritical conditions and has several advantages including low toxicity, flammability and cost, and high purity when compared to other fluids [104]. Supercritical carbon dioxide provides a nonpolar environment and its polarity can be occasionally modified by using co-solvents, such as ethanol, to extract relatively polar xanthophylls, such as lutein and astaxanthin. In some studies, ethane and ethylene were also used as SFE solvents for the extraction of carotenoids [105].
SFE technology for extraction of carotenoids has been employed from laboratory to the commercial scale. Reported applications of SFE to extract a wide range of carotenoids from microalgae and seaweeds are summarized in Table 2. In many cases, SFE has been found to be a superior technique for the extraction of heat sensitive carotenoids. A number of investigations are available to describe several SFE issues, such as the effect of temperature, pressure, co-solvents, solvent flow rate [19,106] and pretreatment, the extraction of carotenoids, selectivity [107], kinetics [29,107,108], and the modelling of extraction [26,109].
In the supercritical CO2 extraction of carotenoids, in general, the extraction efficiency increases with CO2 pressure and temperature up to a optimal level [110,111,112,113,114], nevertheless, this trend is dependent on the combined effect of pressure and temperature [19,112,115,116,117]. In some instances, high CO2 pressure (>400 bar) has caused lower recovery of carotenoids [108,112], and on the other hand, some researchers have observed a reduction in carotenoid yields at low CO2 pressure, the latter dependent on the temperature used [107,113]. Pressure has contrasting effects on the extraction yield; increasing pressure (at a constant temperature) increases the density of CO2, and consequently, the solvation power of the fluids, which in turn increases the solubility of the compounds and extraction yield. However, high pressure can obstruct the diffusivity of supercritical fluid into the matrix, therefore decreasing the extraction yield [112]. Similarly, an increase in temperature at a constant pressure increases the vapour pressure resulting in improved solubility of pigments. An increase in temperature results in a decrease in the fluid density, which in turn results in lower solubility of pigments. Therefore, the recovery of carotenoids is highly dependent on the complex interaction of temperature and pressure, which greatly affects density, viscosity and vapour pressure in the system. The predominance of one or other effects is responsible for the extraction efficiency [112]. For instance, Macías-Sánchez et al. [116] obtained the highest carotenoid yield from the marine microalgae Synechococcus sp. using supercritical CO2 at a temperature of 50 °C when the operating pressure was 200 and 300 bar, while the yield decreased when the pressure was increased to 400 and 500 bar. At these pressures, the maximum extraction yield was obtained when the temperature was 60 °C. The observed variation in the yield with respect to pressure and temperature was correlated to the dominating effects of density or vapour pressure at these conditions. Similar observations were made in the authors subsequent study on SFE of carotenoids from Scenedesmus almeriensis [112]. While studying the effects of pressure (200–600 bar ) and temperature (32–60 °C), the maximum yield of lutein was recovered at intermediate pressures, except for the extraction at 46 °C where the maximum yield was obtained at 600 bar [112]. Furthermore, a number of studies have shown similar effects of pressure and temperature on the recovery of several carotenoids [107,108,110,111,114,115,116,117,118,119,120,121].
Several researchers have used co-solvents such as ethanol [26,108,109,111,113,114,118,120,121,122,123,124,125,126,127], acetone [113], vegetable oil [26,106,128] as polarity modifiers for the efficient recovery of carotenoids such as β-carotene [113,118], astaxanthin [106,109,114,120,121,122,125,129], lutein [111,113] and zeaxanthin [118]. Since supercritical CO2 is non-polar, addition of a small amount of co-solvent increases the ability of supercritical CO2 to dissolve relatively polar carotenoids. Addition of co-solvents can cause swelling [130] of algal cells, facilitating the rapid mass transfer of analytes from the matrix [109,114]. Some co-solvents such as ethanol can enhance mass transfer by creating hydrogen bonding with analytes [114,131]. In a study on the supercritical CO2 extraction of lutein from Scenedesmus sp., ethanol was found to be the superior co-solvent compared to methanol, propanol, butanol and acetone [111]. In another study, presence of the co-solvent ethanol improved the total carotenoid recovery from the microalga H. pluvialis by up to 25%. Similarly, it increased the recovery of fucoxanthin from the seaweeds U. pinnatifida and Sargassum muticum by up to 90 [29] and 10 times [23], respectively. Interestingly, Krichnavaruk et al. [106] showed that vegetable oils such as soybean oil or olive oil can be used as a co-solvent to enhance astaxanthin recovery from H. pluvialis in supercritical CO2 extraction. The presence of 10% olive oil increased the recovery up to 51% at 70 °C and 400 bar, which was equivalent to that obtained using ethanol as a co-solvent. Recently, Saravana et al. [26] showed that sunflower oil as a co-solvent with supercritical-CO2 increased the recovery of carotenoids and fucoxanthin from the brown seaweed Saccharina japonica and its efficiency was greater than canola oil, soybean oil, and ethanol.
Although the use of co-solvents improves the extraction yield, in some cases, the presence of co-solvents can decrease the selectivity of the extraction [113,118]. Cardoso et al. [118] showed that although the obtained yield of β-carotene increased on using CO2 and 5% ethanol as a co-solvent, under these conditions zeaxanthin was co-extracted. In any case, the selectivity was also dependent on SFE parameters such as pressure and temperature [118], including extraction time [113]. Thus, the use of a co-solvent might tend to compromise product purity and should be considered.
The initial pretreatment of algae with physical or mechanical cell disintegration techniques such as crushing, sonication, ball-milling has been found to enhance the extraction efficiency in SFE [110,114,119,122]. The yield of total carotenoids obtained using SFE (with CO2 and ethanol co-solvent) was significantly higher when the most homogenized form of the microalga Synechococcus sp., was used for the extraction when compared to uncrushed cells (91.8% recovery against 58.7%, respectively) [114]. Valderrama et al. [122] found that the astaxanthin yield increased with the degree of crushing microalga H. pluvialis during SFE performed at 60 °C at 300 bar with CO2. Similar results were observed while extracting total carotenoids from C. vulgaris [132]. Crushing enhances the accessibility of supercritical fluids to the carotenoid bound to the cell organelles, thereby, increases extraction efficiency.
Several SFE parameters (pressure, temperature, flow rate, time, co-solvents etc.) significantly influence the extraction efficiency as well as selectivity of target compounds for extraction. Therefore, these parameters must be carefully considered and optimized for an efficient and selective recovery of target analytes. RSM could be a good statistical tool to design experiments, optimize experimental parameters and to determine the effect of these parameters on carotenoid yield. In a study Thana et al. [133] employed RSM with central composite design to investigate the effect of operating temperatures (40–80 °C), operating pressures (300–500 bar) and extraction times (1–4 h) on astaxanthin yields in supercritical CO2 extraction. The optimal conditions for extraction of astaxanthin were found to be at 70 °C temperature, 500 bar pressure, and 4 h time. Under these conditions, the predicted astaxanthin extraction yield was 23.04 mg/g (83.78% recovery). Recently, Saravana et al. [26] showed that ~50 °C temperature, 300 bar pressure, and 2% of sunflower oil co-solvent are the most suited conditions for the extraction of total carotenoids and fucoxanthin from the brown seaweed, Saccharina japonica using supercritical CO2. The authors attained 2.391 mg/g total carotenoids and 1.421 mg/g of fucoxanthin under these conditions. The optimum pressures and temperatures required for the extraction of carotenoids from microalgae such as Nannochloropsis gaditana [115,123], Scenedesmus almeriensis [112], Dunaliella salina [123], Chlorella vulgaris [113], Scenedesmus sp. [111], Synechococcus sp. [116], Undaria pinnatifida [19,20] has also been reported and shown in Table 2. Overall, SFE has been shown to be an excellent technique for the selective extraction of carotenoids from a wide range of algae and microalgae. In general, using supercritical CO2 alone enhances selectivity, while, efficiency can be enhanced by using co-solvents such as ethanol, however, selectivity must be compromised.

3.4. Subcritical Fluid Extraction

Subcritical fluid extraction is a technique, similar to SFE, where subcritical (liquefied) fluids are used as extraction solvent. Compared to SFE, only a limited number of reports are available describing subcritical fluid extraction of carotenoids from microalgae and seaweeds. Subcritical fluid extraction operates at relatively lower temperature and pressure than SFE [18,23,129,138,139]. In recent studies, subcritical CO2, 1,1,1,2-tetrafluoroethane and dimethyl ether (DME) have shown potential to extract carotenoids from microalgae and seaweeds [18,23,129,138,139].
Subcritical CO2 extraction (SCCE) uses liquid CO2 as the extraction solvent. It operates at relatively lower temperature (lower than critical temperature of CO2, 31.06 °C), and therefore is effective in extracting thermally labile compounds. In this case, the operating pressure is maintained (sometimes higher) to the critical pressure of CO2 (73.8 bar). Recently, Fan et al. [138] reported the extraction of lutein from C. pyrenoidosa using ultrasound-enhanced subcritical CO2 extraction (UCCE) using ethanol as the co-solvent. The authors achieved excellent recovery of lutein (124 mg/100 g) using USCCE when compared to Soxhlet extraction, subcritical water extraction and supercritical CO2 extraction. Table 3 compares the efficiency of UCCE with other conventional and non-conventional extraction techniques in terms of process conditions and lutein yield.
Recently, subcritical (liquefied) dimethyl ether (DME) was also used as an extraction solvent replacing CO2 [18,23,129]. DME below its critical temperature and pressure (critical temperature, 126.85 °C; critical pressure, 53.7 bar) can dissolve a wide range of polar and nonpolar compounds [129]. DME can enhance mass transfer by forming hydrogen bonds with extractable compounds. DME is considered a non-toxic [140] extraction solvent [129], and unlike supercritical CO2 extraction, raw samples can be used for the recovery of carotenoids without drying the biomass, reducing process time and cost. As an additional advantage, the liquefied DME can be evaporated as a gas under low-pressure, which is a highly effective and energy efficient method for solvent recovery [141]. Recently, Billakanti et al. [18], Goto et al. [129] and Kanda et al. [23] reported the extraction of fucoxanthin from U. pinnatifida using subcritical DME. At 25 °C, 5.9 bar pressure and 0.72 h extraction time, the amount of fucoxanthin recovered was approximately 390 μg/g dw [23,129], which was significantly higher than that attained by conventional Soxhlet extraction using ethanol (50 μg/g dw) [23]. However, the yield was lower than that obtained in supercritical CO2 extraction [23]. The recovery of fucoxanthin using conventional extraction, subcritical DME extraction and supercritical CO2 is compared in Table 4 [adapted from ref. [23]]. In a study, Billakanti et al. [18] found that enzyme pretreatment prior to subcritical DME extraction has no significant positive effects on the recovery of fucoxanthin from wet or dry U. pinnatifida biomass, however, the addition of ethanol as a co-solvent slightly enhanced the relative recovery from the wet biomass [18].
In a recent subcritical fluid extraction study, carotenoids of marine seaweed Laminaria japonica were extracted using ethanol-modified subcritical 1,1,1,2-tetrafluoroethane (R134a) [142]. Response surface methodology (RSM) combined with a Box–Behnken design was applied to investigate the effects of pressure (50–170 bar), temperature (30–50 °C) and the amount of co-solvent (2%–6% R134a, w/w) on the recovery of carotenoids. An extraction temperature of 51 °C, extraction pressure 170 bar and a co-solvent amount of 4.73% yielded optimum quantity of carotenoids (0.233 g/kg), however, the yield was lower than that obtained using UAE with methanol solvent (0.336 g/kg) [142].

3.5. Microwave-Assisted Extraction

Microwaves are non-ionizing electromagnetic radiations with a frequency ranging from 300 MHz to 300 GHz. Microwave radiation can transfer heat to the system by means of dipole rotation of molecules and ionic conduction in the medium. This principle has been the basis for the development of microwave-assisted extraction (MAE), where the extraction is facilitated by microwave radiation that transfers heat in the extraction medium and aids in the dissolution and mass transfer of analytes. Heat transfer resulted by microwave irradiation can also cause evaporation of moisture inside the cell, developing significant pressure inside the biological matrix. This pressure change can rupture cell membranes and increase the cell porosity, which in turn accelerates the penetration of solvent and the release of intracellular compounds. Microwave radiation can also cause the disruption of hydrogen bonds and migration of dissolved ions, which further enhances the extraction of analytes (for an extensive explanation on theory and principles, see [143]). MAE can be performed in open or closed reaction vessels. Open vessels are used for low temperature extraction at atmospheric pressure whereas closed vessel systems are used for high temperature extractions.
Recently, several researchers have shown that MAE has the potential for the recovery of carotenoids from microalgae and seaweeds. Existing reports suggest that the efficiency of MAE is mainly dependent on the extraction condition and algal cell structures. In some cases, researchers have observed the selective degradation of carotenoids such as astaxanthin during intense microwave treatments, but not the subsequent degradation of other carotenoids such as fucoxanthin. Mild microwave treatment is sufficient to extract compounds from algae, however, species with complex exopolysaccharide envelopes require slightly intense microwave treatment. In a study, fucoxanthin was extracted from a frustulated diatom, Cylindrotheca closterium in acetone using MAE technique by Pasquet et al. [144]. MAE at 50 W resulted in the total extraction of fucoxanthin in 3–5 min with an extraction yield of 4.24 μg/mg. The yield obtained by MAE was comparable to that obtained by conventional cold and hot soaking extractions performed for 60 min (4.68 and 5.23 μg/mg, respectively), nevertheless, MAE significantly reduced the extraction time. MAE assisted the disruption of frustule structure associated with diatoms helping in the rapid extraction of analytes. In their study, increasing microwave power and irradiation times did not show any effect on the extraction yield, indicating a higher stability of fucoxanthin under microwave radiation. In the same study, authors did not observe a significant improvement in the extraction yield for β-carotene isolated from Dunaliella tertiolecta when they compared MAE with other conventional methods. This was mainly due to a simple cell-wall structure associated with D. tertiolecta, which may not require additional energy for cell disruption and mass transfer.
MAE has also been successfully applied for the extraction of fucoxanthin from seaweeds. In one study Xiao et al. [21] showed the optimized process conditions for MAE of fucoxanthin from edible seaweeds and brown algae. U. pinnatifida was used as model matrix for the optimization process, and the solvent/sample ratio, irradiation time was significant on the recovery of fucoxanthin, whereas, the microwave power had insignificant influence. The use of ethanol and acetone as extraction solvent resulted in similar extraction yields, whilst a 50% n-hexane in ethanol caused lower recovery of fucoxanthin. Applying ethanol as the extraction solvent, with a solvent to sample ratio of 15:1 mL/g, an extraction temperature of 60 °C, a time of 10 min and microwave power of 300 W resulted in the optimum recovery of fucoxanthin. Under these conditions, the maximal yield of fucoxanthin from fresh L. japonica, dry U. pinnatifida, and dry S. fusiforme was 5.13, 109.3, and 2.12 mg/100 g, respectively. Based on the studies of Pasquet et al. [144] and Xiao et al. [21] it can be concluded that microwave energy optimal level does not affect the stability of fucoxanthin, indicating fucoxanthin is relatively stable carotenoid under microwave irradiation.
MAE offers great potential for the extraction of astaxanthin from microalgae. In one study, a closed system MAE resulted in the highest astaxanthin recovery from marine alga H. pluvialis in a shorter duration (5 min) when compared to conventional solvent extractions and ultrasound assisted extractions (UAE), at a time of 60 min for the recovery of astaxanthin [145]. Acetone was found to be a suitable solvent for the recovery of astaxanthin when compared to methanol, ethanol and acetonitrile. MAE at a temperature of 75 °C resulted in 74% recovery of astaxanthin. A temperature above 75 °C in the microwave system caused a rapid loss in the recovery of astaxanthin [145]. Most of the carotenoids are temperature sensitive due to their structure and chemical bonding and can undergo isomerization and/or degradation at elevated temperature [146,147]. Therefore, it is important to optimize the process parameters to recover these molecules in an acceptable yield and purity. Optimizing this process also aids in the reduction of solvent and overall energy consumptions. In this approach, Zhao et al. [148] attempted to optimize MAE of astaxanthin from H. pluvialis in ethanol and ethyl acetate (2:1, v/v) medium using RSM [148]. The authors found that the extraction parameters such as microwave power, extraction time, solvent volume, the number of extraction, and their interaction effects had significant influence on the recovery of astaxanthin. A microwave power of 141 W, extraction time of 83 s, solvent volume of 9.8 mL and four consecutive extractions was found to be optimum for the recovery of astaxanthin provided yields of about 5.94 μg/mg dw. The response surface plots showed that an increase in microwave power beyond 141 W decreased the recovery of astaxanthin. Higher microwave power can lead to increase in the temperature of the extraction medium, which can disrupt the structure of astaxanthin, leading to its lower recovery [148].
Recently, Esquivel-Hernández et al. [126] showed that MAE is an excellent technique for the recovery of total carotenoids from microalgae/cyanobacteria Arthrospira platensis (Spirulina). MAE extraction performed using a mixture of methanol/ethyl acetate/light petroleum (1:1:1 v/v) at 400 W power, 50 °C temperature and 1 bar pressure, for 15 min yielded 629 μg/g of total carotenoids, which was significantly higher than the yield obtained by SFE (283 μg/g) (ref). In general, it can be concluded that MAE is a promising technology for the rapid extraction of carotenoids. However, in this case microwave power and extraction temperature must be accurately adjusted; as it could lead to the subsequent degradation of selected, valuable carotenoids.

3.6. Ultrasound-Assisted Extraction

Ultrasound is composed by sound pressure waves ranging from 20 kHz to 10 MHz with intensities greater than 1 W/cm2 which can be disruptive to matter, depending on the frequency utilized [149]. Most applications in extraction have dealt with low frequency ultrasound, defined between 18 and 200 kHz and recent literature defined the application of high frequency ultrasound standing waves between 400 kHz and 2 MHz to enhance separation [150].
The propagation of ultrasonic waves through liquid medium results in alternating compression and rarefaction cycles. During these rarefaction cycles, small bubbles filled with vapors are created, and these bubbles are able to grow to a certain size and shrink periodically. The formation of small bubbles in a liquid is defined as cavitation. Low frequency ultrasound produces large bubbles and bubble size decreases with frequency [151]. Bubbles formed at lower frequencies (between 18 and 200 kHz) typically attain a critical diameter up to several microns and collapse during the compression cycle, releasing large amounts of heat and shockwaves, creating localized temperatures around 5000 K and pressure jets from strong bubble implosions due to unstable cavitation [149]. Conversely, sound waves produced at frequencies in the megasonic range (>1MHz) produce more stable cavitation, producing tiny bubbles that open and close, creating localized microstreaming effects. Cavitation in general enhances diffusion through cell membranes; furthermore, the high temperature and pressure generated due to low frequency unstable cavitation can also destroy cell structures releasing intracellular components into the medium [152]. Therefore, low frequency ultrasound, also known as ultrasound-assisted extraction (UAE), has been more largely explored for the extraction of components from biological matter (Table 5). UAE is an alternative extraction technique that can be performed using four types of equipment, (i) ultrasonic bath; (ii) ultrasonic probe; (iii) ultrasound plates; and (iv) tubular devices populated with small transducer ceramics. In UAE, a number of parameters such as ultrasonic power, frequency, intensity, shape and size of the ultrasonic reactor, solvent type, temperature, presence of dissolved gases and an external pressure greatly influences the extraction efficiency (recently reviewed by [153]). Extraction temperatures can be controlled during UAE using heat-exchange systems, which are helpful in extracting thermally labile compounds in particular carotenoids.
In recent years, UAE has been employed to extract fucoxanthin, lutein, β-carotene, and astaxanthin from microalgae and seaweeds (Table 5). In a study Macías-Sánchez et al. [117] investigated the efficiency of UAE for the recovery of total carotenoids from the microalga D. salina. UAE was performed using lyophilized samples using methanol and N,N-dimethylformamide (DMF) as extraction solvents. According to their results, UAE performed using DMF recovered up to 27.7 μg/mg dw carotenoids and was significantly higher than the yield obtained by SFE (up to 14.92 μg/mg dw). On the other hand, the UAE had lower selectivity for carotenoids when compared to SFE [117].
In another study, Pasquet et al. [144] compared the extraction efficiency of UAE, MAE and conventional, cold and hot soaking methods for the extraction of fucoxanthin from Cylindrotheca closterium and β-carotene from Dunaliella tertiolecta. Although UAE performed at a power level of 4.3–12.2 W which appeared to be a rapid extraction technique compared to conventional soaking extractions and did not improve pigment yields at tested conditions. Similar results were observed in a subsequent study performed using the microalga, Phaeodactylum tricornutum [98], where the fucoxanthin yield attained through UAE was 15.96 mg/g dw was similar to conventional Soxhlet extraction and maceration; however, UAE reduced the extraction time significantly. Controlling process parameters or adjusting the power level could enhance the recovery of these pigments from these microalgae.
UAE was found to be a suitable technique also for the of extraction of violaxanthin, neoxanthin, β-carotene and lutein from C. vulgaris [97]. Superior extraction efficiency was obtained with acetone when compared to ethanol or n-hexane. However, UAE resulted in significantly lower carotenoids when compared to PLE [97]. Similar observations were also deduced by Cha et al. [95], who reported that a lower recovery of β-carotene was obtained in UAE when compared to PLE. On the other hand, lutein was recovered in similar levels both in UAE and PLE (3.83 and 3.78 mg/g, respectively [95]. Optimization of the UAE process parameters is crucial to increase pigment recovery. For example, Dey et al. [158] studied the effects of various UAE parameters such as extraction time, solvents, solid to solvent ratio, temperature, intensity, probe immersion length, duty cycles and pretreatment on the extraction of β-carotene from Spirulina platensis. Authors found that n-heptane was a better solvent than n-hexane and diethyl ether for ultrasound-assisted recovery of β-carotene. The extraction rate increased up to 4 min, and then slowed down, reaching saturation at 8 min. While investigating the effect of electrical acoustic intensity (in the range of 64–210 W/cm2), the extraction yield increased up to 167 W/cm2, then decreased at 185 W/cm2 and increased again at 210 W/cm2. The higher extraction yield observed up to 167 W/cm2 was attributed to the increase in cavitation, whereas the lower yield at 185 W/cm2 was ascribed to the formation of excessive bubbles due to higher acoustic intensity, which hindered the propagation of waves resulting in lower recovery. The authors suspected that a higher yield obtained from 185 to 210 W/cm2 was due to the positive influence of thermal effects generated at higher electrical acoustic intensities [158]. Since the authors have performed experiments utilizing a one-factor-at-a-time approach, the effect of uncontrolled parameters or interaction effects of controlled parameters on the extraction process could be a plausible reason for this ambiguous observation. On a comprehensive level, 1.5 g sample (2 min pre-soaked in methanol) in 50 mL n-heptane at 30 °C temperature, 167 W/cm2 electrical acoustic intensity and 61.5% duty cycle for 8 min with probe dip length of 0.5 cm resulted in the optimum recovery of β-carotene (up to 47%) [158]. Interestingly, a pretreatment of samples in methanol for 2 min dramatically enhanced the extraction yield of 12 times [158].
Similarly, Deenu et al. [156] optimized UAE and UAE combined with enzymatic pretreatment for the recovery of lutein from the green microalga C. vulgaris using RSM. UAE was performed at a frequency of 35 kHz and intensity of 56.58 W/cm2 using 90% ethanol as an extraction solvent. Ultrasonic treatment at 37.7 °C with solvent to solid ratio of 31 mL/g for 300 min resulted in an optimal lutein yield of 3.16 mg/g (wet basis). Enzymatic pretreatment for 2 h using viscozyme [1.23% (v/w)] reduced the extraction time from 300 min to 162 min with a slight increase in lutein yield (3.36 mg/g). Enzymatic pretreatment using cell-wall degrading enzymes aid cell disruption techniques [159], facilitated the recovery of analytes in subsequent UAE.
A recent optimization study by Zou et al. [155] revealed that ultrasound irradiation power of 200 W, frequency 40 kHz, a solvent composition 48.0% ethanol in ethyl acetate, liquid-to-solid ratio 20:1 (mL/g), extraction time 16.0 min and a temperature 41.1 °C resulted in the optimum recovery of astaxanthin (27.58 mg/g) from marine the microalgae, Haematococcus pluvialis. In this case, a higher extraction temperature and longer irradiation time also resulted in the degradation of astaxanthin with a similar result observed by Ruen-ngam et al. [145]. In another study, the effect of the ultrasonic treatment on microalgal cell disruption was investigated by evaluating the release of intracellular carotenoids from the green microalga, Chlamydomonas reinhardtii [154]. Although this research work was not aimed at extracting carotenoids, cells were sonicated under cold conditions for 10 or 30 s at amplitudes of 160, 128, 96, 64, and 10 μm and energy levels of ≥800 J/10 mL, with results showing 0.3 μg carotenoids/mg of cells.
Recently, UAE was successfully employed to the extraction of carotenoids from the microalgae, Phormidium autumnale cultivated from agro-industrial wastes [160]. The carotenoids were extracted from dried microalgae in acetone for 20 min at 20 °C using an ultrasonic probe instrument. The amplitude and frequency applied for the extraction was ~61 μm and 20 kHz, respectively and the ultrasound probe depth was 25 mm inside the sample. HPLC-PDA-MS/MS analysis identified the presence of twenty carotenoids. The all-trans-β-carotene (70.22 μg/g), all-trans-zeaxanthin (26.25 μg/g), all-trans-utein (21.92 μg/g), all-trans-echinenone (19.87 μg/g), cis-echinenone (15.70 μg/g) and 9-cis-β-carotene (15.70 μg/g) was found to be the major carotenoids present in P. autumnale [160]. Minor carotenoids identified (amount >6 μg/g) included all-trans-neoxanthin, 9-cis-neoxanthin, 9-cis-violaxanthin, 13-cis-lutein, 13′-cis-lutein, 13-cis-zeaxanthin, 9-cis-lutein, 9-cis-zeaxanthin, all-trans-canthaxanthin, cis-carotenoid, all-trans-myxoxantophyll, all-trans-zeinoxanthin and α-carotene. The total carotenoid content extracted was 183.03 μg/g [160].
Yamamoto et al. [157] have compared the efficiency for disruption of Dunaliella salina, a high producer of carotenoids, using both low and high frequencies. They have shown that even though low frequencies were most effective, higher frequencies between 580 and 1146 kHz also had high impact on cell disruption. High frequency transducer plates are now used in industrial applications for oil separation by promotion of droplet coalescence and through microstreaming “cleaning” mechanisms in vegetable matter and these systems could be amenable for integration of carotenoid production processes [150,161]. Standing wave high frequency (also known as megasonic) units have also shown the possibility for algal agglomeration and pre-separation during harvest, which may facilitate extraction process pretreatments [162].
UAE can be used as a pretreatment step or complementary technique with other extraction methods. In a study Fan et al. [138] showed that UAE combined with subcritical CO2 extraction is an efficient technique for the extraction of lutein from the microalga, Chlorella pyrenoidosa [138]. The combination of UAE and enzyme-assisted extraction for the extraction of lutein was previously described by Deenu et al. [156]. Recently, Parniakov et al. [63] found that the sonication pretreatment (60–600 s at power of 400 W and frequency of 24 kHz), followed by pH assisted extraction was efficient in the extraction of carotenoids from Nannochloropsis sp. However, ultrasonic pretreatment resulted in lower selectivity and required supplementary purification of the final products. Additional, sonication consumed greater power (≈250 kJ/kg, 200 W, 600 s) when compared to PEF (≈100 kJ/kg, 20 kV/cm, 6 ms).

3.7. High Pressure Homogenization (HPH)

A physical or mechanical pretreatment prior to extraction can be exploited to disrupt the cell wall of microalgae, promoting the recovery of carotenoids. In fact, to achieve high product yields, efficient cell disruption and extraction steps are required [101]. High pressure homogenization (HPH) is a wet milling process, where particle or cell disruption is achieved by applying high intensity fluid-mechanical stresses, as a consequence of the flow of the process fluid under high pressures (50–400 MPa) through a specifically designed homogenization valve chamber [163]. Schematic of a HPH system is given in Figure 3. Despite each manufacturer offers specific proprietary disruption valve chambers, the designs can be broadly classified as piston valves, where the valve gap is adjusted to set the operating pressure, and orifice valves, with a fixed opening, and operating pressure being adjusted by controlling the flow rate at the pressure intensifier [164]. In comparison with other physical comminution processes, such as ball or colloid milling, and ultrasounds, it offers significant advantages in terms of ease of operation, industrial scalability, reproducibility and high throughput [164,165,166].
HPH is a promising technique, particularly applied to micro- and macroalgae, as it is effective with respect to aqueous and/or fresh samples up to 25% w/w solids [167], omitting the energy intensive drying steps, and can be easily scaled up production purposes [168,169,170]. In HPH, the extraction process is facilitated by the mechanical disruption of the cell wall and cell membranes, enabling the non-selective release of the intracellular compounds. Several factors associated with HPH contribute to cell wall disruption, which includes the development of high pressure gradients, turbulence, cavitation, collision with hard surfaces, viscous and high pressure shear, pressure drop, as well as temperature increases due to the inherent heating associated to the rapid reduction in pressure [163,165,171,172]. In particular, while some of them depend on selected operating conditions, others are affected by suspension properties (density and viscosity) and by the feed concentration. Previously reported data have shown no significant impact on process performance for feed concentrations up to 9% w/w for Desmodesmus sp. [173] and up to 25% w/w for Nannochloropsis sp. [167].
Recent studies have suggested that the HPH systems exhibit higher microalgal disruption efficiencies than other methods, such as those based on electrotechnologies (PEF, and HVED) [54], ultrasounds (US) [54,101,174,175], microwaves (MW) [175], ball milling, colloidal milling, freeze drying or thawing [101]. Moreover, when used as a pretreatment to enhance extraction, HPH resulted in significantly higher yields of intracellular compounds, such as lipids [174,175,176,177,178] or carotenoids [101,173]. During HPH, due to the balance establishing between cell wall resistance and tearing forces transmitted to cell walls by the fluid-mechanical stresses generated in the fluid upon its passage through the homogenization valve, a certain variability in the degree of cell disruption efficiency can be observed. Previous comparative studies of different valve geometries on HPH-induced cell disruption showed that piston valves in general ensure a higher homogenization efficiency than orifice ones [165]. Moreover, available reports suggest that pressure is a more important variable than the number of passes [54,101,167,170,174,175,176,177,178,179,180] (which translates in higher investment costs but lower operating costs) and that, at least up to 25% w/w, biomass concentration does not significantly affects HPH performance, with significant advantages in terms of process intensification.
Although, the HPH technique has been successfully applied to the extraction of lipids, pigments, proteins, sugars etc. from algae and microalgae [174,181,182,183], to date, only a limited number of research has investigated the efficacy of HPH on the recovery and improvement of carotenoids from algae and microalgae. In an early study, HPH was used (700 bar, 1 pass) for commercial large scale production of astaxanthin from Haematococcus pluvialis [170]. In another study, HPH (1500 bar, 1–10 passes, 150–1500 kJ/kg) was found to be effective to extract carotenoids from the microalgae, Nannochloropsis sp. [54]. Recently, Taucher et al. [101] found that HPH (1000 bar, 3 passes) pretreatment resulted in the highest total carotenoid extraction yield [4.21 μg/mg (dry weight)] from H. pluvialis when compared to other cell disruption methods used such as ball mill [3.56 μg/mg (dry weight)], Ultra Turrax [3.42 μg/mg (dry weight)] and repeated freeze-and-thaw-cycles [0.02 μg/mg (dry weight)]. The HPH pretreatment also assisted in enhanced recovery of lutein and astaxanthin from C. zofingensis [101].
Although HPH has shown to be a useful technique for cell disruption and subsequent recovery of analytes, its main disadvantage lies in the non-selective extraction of compounds. Generally, HPH targets desired products along with high amounts of cell debris/other intracellular matrices, which complicates downstream separation and purification processes. Moreover, the usage of very high pressures in the process can result in increases in temperatures (in the range of 15–20 °C/1000 bar), which can cause negative effects on the recovery of thermally labile compounds, such as carotenoids, if adequate and rapid cooling is not applied [164]. Nevertheless, the use of lower pressures and multi-step treatments, together with process optimization, could be useful in selective extraction of intracellular components [183]. To date and to our knowledge, no results have been reported about the use of HPH in the treatment of seaweeds, whose processing would require preliminary comminution steps to transform them into a slurry which can be pumped through the HPH systems (average size <500 μm).

4. Conclusions and Future Perspectives

It is evident that microalgae and seaweeds are sources of commercially and industrially valuable, health-promoting and biologically active carotenoids. This comprehensive review has focused on a number of emerging and innovative alternative extraction technologies, including PEF-, MEF-, and HVED-assisted extractions, PLE, SFE, subcritical fluid extraction, MAE, UAE, and HPH, used for the extraction of carotenoids from microalgae and seaweeds. Growing evidence suggest that these non-conventional techniques offer superior efficiency, selectivity, and a reduction in treatment time or solvent consumption. Nevertheless, available reports clearly indicate that the algal cell structure has a marked influence on extraction efficiency.
In general, MAE and UAE are suitable for rapid extraction, whilst PLE reduces solvent consumption. However, temperatures associated with these techniques can cause degradation of thermolabile carotenoids. On the other hand, PEF was found to be an excellent, non-thermal process for the recovery of thermally labile carotenoids. As previously mentioned, PEF was also found to be inefficient when the alga of interest had a complex cell-wall structure. SFE using CO2 as a solvent was documented to be a superior “green” technique for the selective extraction of carotenoids, and the extraction efficiency was drastically improved by using co-solvents such as ethanol; however, the disadvantage was that it compromised the selectivity of carotenoids. In addition to this, SFE requires careful optimization of various factors to improve extraction efficiency often requiring dried samples, which may increase time and the cost of extraction. HPH was found to be one of the most effective techniques for completely unlocking algal, intracellular compounds, enabling the rapid extraction of carotenoids; however, its lack of selectivity has been documented as a major limitation, suggesting its use only in combination with other technologies, in the form of a biorefinery concept. More recently, subcritical fluid extraction and MEF-assisted extraction has also shown a potential to extract carotenoids.
Finally, it is evident that existing and emerging, non-conventional techniques could be a sustainable alternative in comparison to traditional extraction methods. Future developments should be directed towards overcoming the limitations associated with these techniques, the hyphenating and optimizing processes for improving yield and selectivity, and reducing the multitude of instrumentation, energy costs, and scaling-up of these processes from both commercial and industrial applications. The energy and cost efficiency of these emerging technologies, particularly electrotechnologies, are still under debate, as most of them have been tested only at lab or pilot scale, and are still far from commercial readiness. A detailed scientific investigation of these technologies at the industrial scale is required to understand their commercial viability. These developments could provide an innovative avenue to increase the production and target of selected carotenoids to use as nutraceuticals, pharmaceuticals, cosmeceuticals, food, and feed supplements.

Acknowledgments

Mahesha M. Poojary is grateful to the Australian Government for being awarded an Endeavour Research Fellowship under the supervision of Daniel A. Dias, RMIT University, Bundoora, Australia, and Regione Marche and The University of Camerino for the Eureka Ph.D. Fellowship.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lorenz, R.T.; Cysewski, G.R. Commercial potential for Haematococcus microalgae as a natural source of astaxanthin. Trends Biotechnol. 2000, 18, 160–167. [Google Scholar] [CrossRef]
  2. Liaaen-Jensen, S. Basic carotenoid chemistry. In Carotenoids in Health and Disease; Krinsky, N.I., Mayne, S.T., Sies, H., Eds.; Marcel Dekker: New York, NY, USA, 2004; pp. 1–30. [Google Scholar]
  3. Ritz, T.; Damjanović, A.; Schulten, K. Light-harvesting and photoprotection by carotenoids: Structure-based calculations for photosynthetic antenna systems. In Photosynthesis: Mechanisms and Effects; Springer: Dordrecht, The Netherlands, 1998; pp. 487–490. [Google Scholar]
  4. Hammond, B.R.; Renzi, L.M. Carotenoids. Adv. Nutr. Int. Rev. J. 2013, 4, 474–476. [Google Scholar] [CrossRef] [PubMed]
  5. Krinsky, N.I.; Mayne, S.T.; Sies, H. Carotenoids in Health and Disease; Marcel Dekker: New York, NY, USA, 2004. [Google Scholar]
  6. Fiedor, J.; Burda, K. Potential role of carotenoids as antioxidants in human health and disease. Nutrients 2014, 6, 466–488. [Google Scholar] [CrossRef] [PubMed]
  7. Johnson, E.J. The role of carotenoids in human health. Nutr. Clin. Care 2002, 5, 56–65. [Google Scholar] [CrossRef] [PubMed]
  8. Vílchez, C.; Forján, E.; Cuaresma, M.; Bédmar, F.; Garbayo, I.; Vega, J.M. Marine carotenoids: Biological functions and commercial applications. Mar. Drugs 2011, 9, 319–333. [Google Scholar] [CrossRef] [PubMed]
  9. Guedes, A.C.; Amaro, H.M.; Malcata, F.X. Microalgae as Sources of Carotenoids. Mar. Drugs 2011, 9, 625–644. [Google Scholar] [CrossRef] [PubMed]
  10. MarketsandMarkets. Carotenoids Market by Type (Astaxanthin, Beta-Carotene, Canthaxanthin, Lutein, Lycopene, & Zeaxanthin), Source (Synthetic and Natural), Application (Supplements, Food, Feed, and Cosmetics), by Region—Global Trends and Forecasts to 2021. Available online: http://www.marketsandmarkets.com/Market-Reports/carotenoid-market-158421566.html (accessed on 24 September 2016).
  11. Rodriguez-Amaya, D.B. Food Carotenoids: Chemistry, Biology and Technology; Wiley-Blackwell: West Sussex, UK, 2016. [Google Scholar]
  12. Safafar, H.; Van Wagenen, J.; Møller, P.; Jacobsen, C. Carotenoids, phenolic compounds and tocopherols contribute to the antioxidative properties of some microalgae species grown on industrial wastewater. Mar. Drugs 2015, 13, 7339–7356. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Grung, M.; D’Souza, F.M.L.; Borowitzka, M.; Liaaen-Jensen, S. Algal Carotenoids 51. Secondary carotenoids 2. Haematococcus pluvialis aplanospores as a source of (3S, 3′S)-astaxanthin esters. J. Appl. Phycol. 1992, 4, 165–171. [Google Scholar] [CrossRef]
  14. Minhas, A.K.; Hodgson, P.; Barrow, C.J.; Adholeya, A. A review on the assessment of stress conditions for simultaneous production of microalgal lipids and carotenoids. Front. Microbiol. 2016, 7, 1–19. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, J.; Sun, Z.; Sun, P.; Chen, T.; Chen, F. Microalgal carotenoids: Beneficial effects and potential in human health. Food Funct. 2014, 5, 413–425. [Google Scholar] [CrossRef] [PubMed]
  16. Grama, B.S.; Delhaye, A.; Agathos, S.N.; Jeffryes, C. Industrial biotechnology of vitamins, biopigments, and antioxidants. In Industrial Biotechnology of Vitamins, Biopigments, and Antioxidants; Vandamme, E.J., Revuelta, J.L., Eds.; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2016; pp. 265–286. [Google Scholar]
  17. Boominathan, M.; Mahesh, A. Seaweed carotenoids for cancer therapeutics. In Handbook of Anticancer Drugs from Marine Origin; Kim, S.-K., Ed.; Springer: Cham, Switzerland, 2015; pp. 185–203. [Google Scholar]
  18. Billakanti, J.M.; Catchpole, O.J.; Fenton, T.A.; Mitchell, K.A.; MacKenzie, A.D. Enzyme-assisted extraction of fucoxanthin and lipids containing polyunsaturated fatty acids from Undaria pinnatifida using dimethyl ether and ethanol. Process Biochem. 2013, 48, 1999–2008. [Google Scholar] [CrossRef]
  19. Roh, M.K.; Uddin, M.S.; Chun, B.S. Extraction of fucoxanthin and polyphenol from Undaria pinnatifida using supercritical carbon dioxide with co-solvent. Biotechnol. Bioprocess Eng. 2008, 13, 724–729. [Google Scholar] [CrossRef]
  20. Quitain, A.T.; Kai, T.; Sasaki, M.; Goto, M. Supercritical carbon dioxide extraction of fucoxanthin from Undaria pinnatifida. J. Agric. Food Chem. 2013, 61, 5792–5797. [Google Scholar] [CrossRef] [PubMed]
  21. Xiao, X.; Si, X.; Yuan, Z.; Xu, X.; Li, G. Isolation of fucoxanthin from edible brown algae by microwave-assisted extraction coupled with high-speed countercurrent chromatography. J. Sep. Sci. 2012, 35, 2313–2317. [Google Scholar] [CrossRef] [PubMed]
  22. Piovan, A.; Seraglia, R.; Bresin, B.; Caniato, R.; Filippini, R. Fucoxanthin from Undaria pinnatifida: Photostability and coextractive effects. Molecules 2013, 18, 6298–6310. [Google Scholar] [CrossRef] [PubMed]
  23. Kanda, H.; Kamo, Y.; Machmudah, S.; Wahyudiono, E.Y.; Goto, M. Extraction of fucoxanthin from raw macroalgae excluding drying and cell wall disruption by liquefied dimethyl ether. Mar. Drugs 2014, 12, 2383–2396. [Google Scholar] [CrossRef] [PubMed]
  24. Yan, X.; Chuda, Y.; Suzuki, M.; Nagata, T. Fucoxanthin as the major antioxidant in Hijikia fusiformis, a common edible seaweed. Biosci. Biotechnol. Biochem. 1999, 63, 605–607. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, W.-J.; Wang, G.-C.; Zhang, M.; Tseng, C.K. Isolation of fucoxanthin from the rhizoid of Laminaria japonica Aresch. J. Integr. Plant Biol. 2005, 47, 1009–1015. [Google Scholar] [CrossRef]
  26. Saravana, P.S.; Getachew, A.T.; Cho, Y.-J.; Choi, J.H.; Park, Y.B.; Woo, H.C.; Chun, B.S. Influence of co-solvents on fucoxanthin and phlorotannin recovery from brown seaweed using supercritical CO2. J. Supercrit. Fluids 2016, in press. [Google Scholar] [CrossRef]
  27. Heo, S.-J.; Jeon, Y.-J. Protective effect of fucoxanthin isolated from Sargassum siliquastrum on UV-B induced cell damage. J. Photochem. Photobiol. B 2009, 95, 101–107. [Google Scholar] [CrossRef] [PubMed]
  28. Noviendri, D.; Jaswir, I.; Salleh, H.M.; Taher, M.; Miyashita, K.; Ramli, N. Fucoxanthin extraction and fatty acid analysis of Sargassum binderi and S. duplicatum. J. Med. Plants Res. 2011, 5, 2405–2412. [Google Scholar]
  29. Conde, E.; Moure, A.; Domínguez, H. Supercritical CO2 extraction of fatty acids, phenolics and fucoxanthin from freeze-dried Sargassum muticum. J. Appl. Phycol. 2014, 2, 957–964. [Google Scholar] [CrossRef]
  30. Nomura, M.; Kamogawa, H.; Susanto, E.; Kawagoe, C.; Yasui, H.; Saga, N.; Hosokawa, M.; Miyashita, K. Seasonal variations of total lipids, fatty acid composition, and fucoxanthin contents of Sargassum horneri (Turner) and Cystoseira hakodatensis (Yendo) from the northern seashore of Japan. J. Appl. Phycol. 2013, 25, 1159–1169. [Google Scholar] [CrossRef]
  31. Afolayan, A.F.; Bolton, J.J.; Lategan, C.A.; Smith, P.J.; Beukes, D.R. Fucoxanthin, tetraprenylated toluquinone and toluhydroquinone metabolites from Sargassum heterophyllum inhibit the in vitro growth of the malaria parasite Plasmodium falciparum. Z. Naturforschung C J. Biosci. 2008, 63, 848–852. [Google Scholar] [CrossRef]
  32. Heo, S.-J.; Ko, S.-C.; Kang, S.-M.; Kang, H.-S.; Kim, J.-P.; Kim, S.-H.; Lee, K.-W.; Cho, M.-G.; Jeon, Y.-J. Cytoprotective effect of fucoxanthin isolated from brown algae Sargassum siliquastrum against H2O2-induced cell damage. Eur. Food Res. Technol. 2008, 228, 145–151. [Google Scholar] [CrossRef]
  33. Zaragozá, M.C.; López, D.; P Sáiz, M.; Poquet, M.; Pérez, J.; Puig-Parellada, P.; Màrmol, F.; Simonetti, P.; Gardana, C.; Lerat, Y.; et al. Toxicity and antioxidant activity in vitro and in vivo of two Fucus vesiculosus extracts. J. Agric. Food Chem. 2008, 56, 7773–7780. [Google Scholar] [CrossRef] [PubMed]
  34. Peng, J.; Yuan, J.-P.; Wu, C.-F.; Wang, J.-H. Fucoxanthin, a marine carotenoid present in brown seaweeds and diatoms: Metabolism and bioactivities relevant to human health. Mar. Drugs 2011, 9, 1806–1828. [Google Scholar] [CrossRef] [PubMed]
  35. Kim, S.-K.; Pangestuti, R. Biological activities and potential health benefits of fucoxanthin derived from marine brown algae. Adv. Food Nutr. Res. 2011, 64, 111–128. [Google Scholar] [PubMed]
  36. Zhang, H.; Tang, Y.; Zhang, Y.; Zhang, S.; Qu, J.; Wang, X.; Kong, R.; Han, C.; Liu, Z.; Zhang, H.; et al. Fucoxanthin: A promising medicinal and nutritional ingredient. Evid. Based Complement. Altern. Med. 2015, 2015, 1–10. [Google Scholar] [CrossRef] [PubMed]
  37. Gammone, M.A.; D’Orazio, N. Anti-obesity activity of the marine carotenoid fucoxanthin. Mar. Drugs 2015, 13, 2196–2214. [Google Scholar] [CrossRef] [PubMed]
  38. Pangestuti, R.; Kim, S.-K. Carotenoids, bioactive metabolites derived from seaweeds. In Springer Handbook of Marine Biotechnology; Kim, S.-K., Ed.; Springer: Berlin/Heidelberg, Germany, 2015; pp. 816–821. [Google Scholar]
  39. Siegel, B.Z.; Siegel, S.M. The chemical composition of algal cell walls. CRC Crit. Rev. Microbiol. 1973, 3, 1–26. [Google Scholar] [CrossRef] [PubMed]
  40. Fernández-Sevilla, J.M.; Acién Fernández, F.G.; Molina Grima, E. Biotechnological production of lutein and its applications. Appl. Microbiol. Biotechnol. 2010, 86, 27–40. [Google Scholar] [CrossRef] [PubMed]
  41. Sarkar, C.R.; Das, L.; Bhagawati, B.; Goswami, B.C. A comparative study of carotenoid extraction from algae in different solvent systems. Asian J. Plant Sci. Res. 2012, 2, 546–549. [Google Scholar]
  42. Mendes-Pinto, M.M.; Raposo, M.F.J.; Bowen, J.; Young, A.J.; Morais, R. Evaluation of different cell disruption processes on encysted cells of Haematococcus pluvialis: Effects on astaxanthin recovery and implications for bio-availability. J. Appl. Phycol. 2001, 13, 19–24. [Google Scholar] [CrossRef]
  43. Mojaat, M.; Foucault, A.; Pruvost, J.; Legrand, J. Optimal selection of organic solvents for biocompatible extraction of beta-carotene from Dunaliella salina. J. Biotechnol. 2008, 133, 433–441. [Google Scholar] [CrossRef] [PubMed]
  44. Hejazi, M.A.; de Lamarliere, C.; Rocha, J.M.S.; Vermuë, M.; Tramper, J.; Wijffels, R.H. Selective extraction of carotenoids from the microalga Dunaliella salina with retention of viability. Biotechnol. Bioeng. 2002, 79, 29–36. [Google Scholar] [CrossRef] [PubMed]
  45. Castro-Puyana, M.; Herrero, M.; Urreta, I.; Mendiola, J.A.; Cifuentes, A.; Ibáñez, E.; Suárez-Alvarez, S. Optimization of clean extraction methods to isolate carotenoids from the microalga Neochloris oleoabundans and subsequent chemical characterization using liquid chromatography tandem mass spectrometry. Anal. Bioanal. Chem. 2013, 405, 4607–4616. [Google Scholar] [CrossRef] [PubMed]
  46. Castro-Puyana, M.; Herrero, M.; Mendiola, J.A.; Suárez-Alvarez, S.; Cifuentes, A.; Ibáñez, E. Extraction of new bioactives from neochloris oleoabundans using pressurized technologies and food grade solvents. In Proceedings of the III Iberoamerican Conference on Supercritical Fluids Cartagena de Indias (Combodia), Cartagena, Colombia, 1–5 April 2013.
  47. Golberg, A.; Sack, M.; Teissie, J.; Pataro, G.; Pliquett, U.; Saulis, G.; Stefan, T.; Miklavcic, D.; Vorobiev, E.; Frey, W. Energy-efficient biomass processing with pulsed electric fields for bioeconomy and sustainable development. Biotechnol. Biofuels 2016, 9, 1–22. [Google Scholar] [CrossRef] [PubMed]
  48. Donsi, F.; Ferrari, G.; Pataro, G. Applications of pulsed electric field treatments for the enhancement of mass transfer from vegetable tissue. Food Eng. Rev. 2010, 2, 109–130. [Google Scholar] [CrossRef]
  49. Kulshrestha, S.; Sastry, S. Frequency and voltage effects on enhanced diffusion during moderate electric field (MEF) treatment. Innov. Food Sci. Emerg. Technol. 2003, 4, 189–194. [Google Scholar] [CrossRef]
  50. Vorobiev, E.; Lebovka, N. Enhanced extraction from solid foods and biosuspensions by pulsed electrical energy. Food Eng. Rev. 2010, 2, 95–108. [Google Scholar] [CrossRef]
  51. Poojary, M.M.; Roohinejad, S.; Barba, F.J.; Koubaa, M.; Puértolas, E.; Jambrak, A.R.; Greiner, R.; Oey, I. Application of pulsed electric field treatment for food waste recovery operations. In Handbook of Electroporation; Miklavcic, D., Ed.; Springer: Cham, Switzerland, 2017; in press. [Google Scholar]
  52. Raso, J.; Frey, W.; Ferrari, G.; Pataro, G.; Knorr, D.; Teissie, J.; Miklavčič, D. Recommendations guidelines on the key information to be reported in studies of application of PEF technology in food and biotechnological processes. Innov. Food Sci. Emerg. Technol. 2016, 37, 312–321. [Google Scholar] [CrossRef]
  53. Töpfl, S. Pulsed Electric Fields (PEF) for Permeabilization of Cell Membranes in Food- and Bioprocessing. Applications, Process and Equipment Design and Cost Analysis. Ph.D. Thesis, Technische Universität Berlin, Berlin, Germany, 2006. [Google Scholar]
  54. Grimi, N.; Dubois, A.; Marchal, L.; Jubeau, S.; Lebovka, N.I.; Vorobiev, E. Selective extraction from microalgae Nannochloropsis sp. using different methods of cell disruption. Bioresour. Technol. 2014, 153, 254–259. [Google Scholar] [CrossRef] [PubMed]
  55. Scholz, M.J.; Weiss, T.L.; Jinkerson, R.E.; Jing, J.; Roth, R.; Goodenough, U.; Posewitz, M.C.; Gerken, H.G. Ultrastructure and composition of the Nannochloropsis gaditana cell wall. Eukaryot. Cell 2014, 13, 1450–1464. [Google Scholar] [CrossRef] [PubMed]
  56. Luengo, E.; Martínez, J.M.; Bordetas, A.; Álvarez, I.; Raso, J. Influence of the treatment medium temperature on lutein extraction assisted by pulsed electric fields from Chlorella vulgaris. Innov. Food Sci. Emerg. Technol. 2015, 29, 15–22. [Google Scholar] [CrossRef]
  57. Kotnik, T.; Kramar, P.; Pucihar, G.; Miklavčič, D.; Tarek, M. Cell membrane electroporation—Part 1: The phenomenon. IEEE Electr. Insul. Mag. 2012, 28, 14–23. [Google Scholar] [CrossRef]
  58. Esser, A.T.; Smith, K.C.; Gowrishankar, T.R.; Vasilkoski, Z.; Weaver, J.C. Mechanisms for the intracellular manipulation of organelles by conventional electroporation. Biophys. J. 2010, 98, 2506–2514. [Google Scholar] [CrossRef] [PubMed]
  59. Schoenbach, K.H.; Beebe, S.J.; Buescher, E.S. Intracellular effect of ultrashort electrical pulses. Bioelectromagnetics 2001, 22, 440–448. [Google Scholar] [CrossRef] [PubMed]
  60. Luengo, E.; Condón-Abanto, S.; Álvarez, I.; Raso, J. Effect of pulsed electric field treatments on permeabilization and extraction of pigments from Chlorella vulgaris. J. Membr. Biol. 2014, 247, 1269–1277. [Google Scholar] [CrossRef] [PubMed]
  61. Luengo, E.; Martínez, J.M.; Coustets, M.; Álvarez, I.; Teissié, J.; Rols, M.-P.; Raso, J. A comparative study on the effects of millisecond- and microsecond-pulsed electric field treatments on the permeabilization and extraction of pigments from Chlorella vulgaris. J. Membr. Biol. 2015, 248, 883–891. [Google Scholar] [CrossRef] [PubMed]
  62. Parniakov, O.; Barba, F.J.; Grimi, N.; Marchal, L.; Jubeau, S.; Lebovka, N.; Vorobiev, E. Pulsed electric field assisted extraction of nutritionally valuable compounds from microalgae Nannochloropsis spp. using the binary mixture of organic solvents and water. Innov. Food Sci. Emerg. Technol. 2015, 27, 79–85. [Google Scholar] [CrossRef]
  63. Parniakov, O.; Barba, F.J.; Grimi, N.; Marchal, L.; Jubeau, S.; Lebovka, N.; Vorobiev, E. Pulsed electric field and pH assisted selective extraction of intracellular components from microalgae Nannochloropsis. Algal Res. 2015, 8, 128–134. [Google Scholar] [CrossRef]
  64. Jaeschke, D.P.; Menegol, T.; Rech, R.; Mercali, G.D.; Marczak, L.D.F. Carotenoid and lipid extraction from Heterochlorella luteoviridis using moderate electric field and ethanol. Process Biochem. 2016, 51, 1636–1643. [Google Scholar] [CrossRef]
  65. Postma, P.R.; Pataro, G.; Capitoli, M.; Barbosa, M.J.; Wijffels, R.H.; Eppink, M.H.M.; Olivieri, G.; Ferrari, G. Selective extraction of intracellular components from the microalga Chlorella vulgaris by combined pulsed electric field-temperature treatment. Bioresour. Technol. 2016, 203, 80–88. [Google Scholar] [CrossRef] [PubMed]
  66. Lebovka, N.I.; Praporscic, I.; Vorobiev, E. Effect of moderate thermal and pulsed electric field treatments on textural properties of carrots, potatoes and apples. Innov. Food Sci. Emerg. Technol. 2004, 5, 9–16. [Google Scholar] [CrossRef]
  67. Lebovka, N.I.; Praporscic, I.; Ghnimi, S.; Vorobiev, E. Temperature enhanced electroporation under the pulsed electric field treatment of food tissue. J. Food Eng. 2005, 69, 177–184. [Google Scholar] [CrossRef]
  68. Kulshrestha, S.; Sarang, S.; Loghavi, L.; Sastry, S. Moderate electrothermal treatments of cellular tissues. In Electrotechnologies for Extraction from Food Plants and Biomaterials; Vorobiev, E., Lebovka, N., Eds.; Springer: New York, NY, USA, 2009; pp. 83–94. [Google Scholar]
  69. Kusnadi, C.; Sastry, S.K. Effect of moderate electric fields on salt diffusion into vegetable tissue. J. Food Eng. 2012, 110, 329–336. [Google Scholar] [CrossRef]
  70. Nezammahalleh, H.; Ghanati, F.; Adams, T.A.; Nosrati, M.; Shojaosadati, S.A. Effect of moderate static electric field on the growth and metabolism of Chlorella vulgaris. Bioresour. Technol. 2016, 218, 700–711. [Google Scholar] [CrossRef] [PubMed]
  71. Richter, B.E.; Jones, B.A.; Ezzell, J.L.; Porter, N.L. Accelerated solvent extraction: A technique for sample preparation. Anal. Chem. 1996, 68, 1033–1039. [Google Scholar] [CrossRef]
  72. Plaza, M.; Turner, C. Pressurized hot water extraction of bioactives. TrAC Trends Anal. Chem. 2015, 71, 39–54. [Google Scholar] [CrossRef]
  73. Osorio-Tobón, J.F.; Meireles, M.A.A.; Osorio-Tobón, J.F.; Meireles, M.A.A. Recent applications of pressurized fluid extraction: Curcuminoids extraction with pressurized liquids. Food Public Health 2013, 3, 289–303. [Google Scholar] [CrossRef]
  74. Santos, D.T.; Veggi, P.C.; Meireles, M.A.A. Optimization and economic evaluation of pressurized liquid extraction of phenolic compounds from jabuticaba skins. J. Food Eng. 2012, 108, 444–452. [Google Scholar] [CrossRef]
  75. Gao, Q.; Haglund, P.; Pommer, L.; Jansson, S. Evaluation of solvent for pressurized liquid extraction of PCDD, PCDF, PCN, PCBz, PCPh and PAH in torrefied woody biomass. Fuel 2015, 154, 52–58. [Google Scholar] [CrossRef]
  76. Li, P.; Li, S.P.; Lao, S.C.; Fu, C.M.; Kan, K.K.W.; Wang, Y.T. Optimization of pressurized liquid extraction for Z-ligustilide, Z-butylidenephthalide and ferulic acid in Angelica sinensis. J. Pharm. Biomed. Anal. 2006, 40, 1073–1079. [Google Scholar] [CrossRef] [PubMed]
  77. Iqbal, J.; Theegala, C. Optimizing a continuous flow lipid extraction system (CFLES) used for extracting microalgal lipids. GCB Bioenergy 2013, 5, 327–337. [Google Scholar] [CrossRef]
  78. Hu, J.; Guo, Z.; Glasius, M.; Kristensen, K.; Xiao, L.; Xu, X. Pressurized liquid extraction of ginger (Zingiber officinale Roscoe) with bioethanol: An efficient and sustainable approach. J. Chromatogr. A 2011, 1218, 5765–5773. [Google Scholar] [CrossRef] [PubMed]
  79. Aliakbarian, B.; Casazza, A.A.; Perego, P. Valorization of olive oil solid waste using high pressure–high temperature reactor. Food Chem. 2011, 128, 704–710. [Google Scholar] [CrossRef]
  80. Ben Hamissa, A.M.; Seffen, M.; Aliakbarian, B.; Casazza, A.A.; Perego, P.; Converti, A. Phenolics extraction from Agave americana (L.) leaves using high-temperature, high-pressure reactor. Food Bioprod. Process. 2012, 90, 17–21. [Google Scholar] [CrossRef]
  81. Casazza, A.A.; Aliakbarian, B.; Sannita, E.; Perego, P. High-pressure high-temperature extraction of phenolic compounds from grape skins. Int. J. Food Sci. Technol. 2012, 47, 399–405. [Google Scholar] [CrossRef]
  82. Latoui, M.; Aliakbarian, B.; Casazza, A.A.; Seffen, M.; Converti, A.; Perego, P. Extraction of phenolic compounds from Vitex agnus-castus L. Food Bioprod. Process. 2012, 90, 748–754. [Google Scholar] [CrossRef]
  83. Lopresto, C.G.; Petrillo, F.; Casazza, A.A.; Aliakbarian, B.; Perego, P.; Calabrò, V. A non-conventional method to extract D-limonene from waste lemon peels and comparison with traditional Soxhlet extraction. Sep. Purif. Technol. 2014, 137, 13–20. [Google Scholar] [CrossRef]
  84. Moreau, R.A.; Powell, M.J.; Singh, V. Pressurized liquid extraction of polar and nonpolar lipids in corn and oats with hexane, methylene chloride, isopropanol, and ethanol. J. Am. Oil Chem. Soc. 2003, 80, 1063–1067. [Google Scholar] [CrossRef]
  85. Jeannotte, R.; Hamel, C.; Jabaji, S.; Whalen, J.K. Comparison of solvent mixtures for pressurized solvent extraction of soil fatty acid biomarkers. Talanta 2008, 77, 195–199. [Google Scholar] [CrossRef] [PubMed]
  86. Bermejo, D.V.; Luna, P.; Manic, M.S.; Najdanovic-Visak, V.; Reglero, G.; Fornari, T. Extraction of caffeine from natural matter using a bio-renewable agrochemical solvent. Food Bioprod. Process. 2013, 91, 303–309. [Google Scholar] [CrossRef]
  87. Wu, H.; Chen, M.; Fan, Y.; Elsebaei, F.; Zhu, Y. Determination of rutin and quercetin in Chinese herbal medicine by ionic liquid-based pressurized liquid extraction–liquid chromatography–chemiluminescence detection. Talanta 2012, 88, 222–229. [Google Scholar] [CrossRef] [PubMed]
  88. Choi, M.P.K.; Chan, K.K.C.; Leung, H.W.; Huie, C.W. Pressurized liquid extraction of active ingredients (ginsenosides) from medicinal plants using non-ionic surfactant solutions. J. Chromatogr. A 2003, 983, 153–162. [Google Scholar] [CrossRef]
  89. Mustafa, A.; Turner, C. Pressurized liquid extraction as a green approach in food and herbal plants extraction: A review. Anal. Chim. Acta 2011, 703, 8–18. [Google Scholar] [CrossRef] [PubMed]
  90. Ong, E.S.; Cheong, J.S. H.; Goh, D. Pressurized hot water extraction of bioactive or marker compounds in botanicals and medicinal plant materials. J. Chromatogr. A 2006, 1112, 92–102. [Google Scholar] [CrossRef] [PubMed]
  91. Denery, J.R.; Dragull, K.; Tang, C.; Li, Q.X. Pressurized fluid extraction of carotenoids from Haematococcus pluvialis and Dunaliella salina and kavalactones from Piper methysticum. Anal. Chim. Acta 2004, 501, 175–181. [Google Scholar] [CrossRef]
  92. Herrero, M.; Jaime, L.; Martin-Alvarez, P.J.; Cifuentes, A.; Ibanez, E. Optimization of the extraction of antioxidants from Dunaliella salina microalga by pressurized liquids. J. Agric. Food Chem. 2006, 54, 5597–5603. [Google Scholar] [CrossRef] [PubMed]
  93. Plaza, M.; Santoyo, S.; Jaime, L.; García-Blairsy Reina, G.; Herrero, M.; Señoráns, F.J.; Ibáñez, E. Screening for bioactive compounds from algae. J. Pharm. Biomed. Anal. 2010, 51, 450–455. [Google Scholar] [CrossRef] [PubMed]
  94. Cha, K.H.; Kang, S.W.; Kim, C.Y.; Um, B.H.; Na, Y.R.; Pan, C.H. Effect of pressurized liquids on extraction of antioxidants from Chlorella vulgaris. J. Agric. Food Chem. 2010, 58, 4756–4761. [Google Scholar] [CrossRef] [PubMed]
  95. Cha, K.H.; Lee, H.J.; Koo, S.Y.; Song, D.G.; Lee, D.U.; Pan, C.H. Optimization of pressurized liquid extraction of carotenoids and chlorophylls from chlorella vulgaris. J. Agric. Food Chem. 2010, 58, 793–797. [Google Scholar] [CrossRef] [PubMed]
  96. Jaime, L.; Rodríguez-Meizoso, I.; Cifuentes, A.; Santoyo, S.; Suarez, S.; Ibáñez, E.; Señorans, F.J. Pressurized liquids as an alternative process to antioxidant carotenoids’ extraction from Haematococcus pluvialis microalgae. LWT—Food Sci. Technol. 2010, 43, 105–112. [Google Scholar] [CrossRef] [Green Version]
  97. Plaza, M.; Santoyo, S.; Jaime, L.; Avalo, B.; Cifuentes, A.; Reglero, G.; García-Blairsy Reina, G.; Señorans, F.J.; Ibáñez, E. Comprehensive characterization of the functional activities of pressurized liquid and ultrasound-assisted extracts from Chlorella vulgaris. LWT—Food Sci. Technol. 2012, 46, 245–253. [Google Scholar] [CrossRef]
  98. Kim, S.M.; Jung, Y.J.; Kwon, O.N.; Cha, K.H.; Um, B.H.; Chung, D.; Pan, C.H. A potential commercial source of fucoxanthin extracted from the microalga Phaeodactylum tricornutum. Appl. Biochem. Biotechnol. 2012, 166, 1843–1855. [Google Scholar] [CrossRef] [PubMed]
  99. Shang, Y.F.; Kim, S.M.; Lee, W.J.; Um, B.H. Pressurized liquid method for fucoxanthin extraction from Eisenia bicyclis (Kjellman) Setchell. J. Biosci. Bioeng. 2011, 111, 237–241. [Google Scholar] [CrossRef] [PubMed]
  100. Koo, S.Y.; Cha, K.H.; Song, D.G.; Chung, D.; Pan, C.H. Optimization of pressurized liquid extraction of zeaxanthin from Chlorella ellipsoidea. J. Appl. Phycol. 2012, 24, 725–730. [Google Scholar] [CrossRef]
  101. Taucher, J.; Baer, S.; Schwerna, P.; Hofmann, D.; Hümmer, M.; Buchholz, R.; Becker, A. Cell disruption and pressurized liquid extraction of carotenoids from microalgae. Thermodyn. Catal. 2016, 7, 1–7. [Google Scholar] [CrossRef]
  102. Jeon, Y.; Wijesinghe, W.A.J.P.; Kim, S. Enzyme-assisted extraction and recovery of bioactive components from seaweeds. In Handbook of Marinemacroalgae: Biotechnology and Applied Phycology, 1st ed.; Kim, S.-K., Ed.; John Wiley & Sons, Ltd.: New York, NY, USA, 2012; pp. 221–228. [Google Scholar]
  103. Lang, Q.; Wai, C.M. Supercritical fluid extraction in herbal and natural product studies—A practical review. Talanta 2001, 53, 771–782. [Google Scholar] [CrossRef]
  104. Zougagh, M.; Valcárcel, M.; Rı́os, A. Supercritical fluid extraction: A critical review of its analytical usefulness. TrAC Trends Anal. Chem. 2004, 23, 399–405. [Google Scholar] [CrossRef]
  105. Talisic, G.C.; Yumang, A.N.; Salta, M.T.S. Supercritical Fluid Extraction of β-carotene from D. Salina algae using C2H6 and C2H2. In Proceedings of the 2012 International Conference on Geological and Environmental Sciences, Jeju Island, Korea, 29–30 June 2012; pp. 30–34.
  106. Krichnavaruk, S.; Shotipruk, A.; Goto, M.; Pavasant, P. Supercritical carbon dioxide extraction of astaxanthin from Haematococcus pluvialis with vegetable oils as co-solvent. Bioresour. Technol. 2008, 99, 5556–5560. [Google Scholar] [CrossRef] [PubMed]
  107. Ruen-ngam, D.; Shotipruk, A.; Pavasant, P.; Machmudah, S.; Goto, M. Selective extraction of lutein from alcohol treated Chlorella vulgaris by supercritical CO2. Chem. Eng. Technol. 2012, 35, 255–260. [Google Scholar] [CrossRef]
  108. Macías-Sánchez, M.D.; Serrano, C.M.; Rodríguez, M.R.; Martínez de la Ossa, E. Kinetics of the supercritical fluid extraction of carotenoids from microalgae with CO2 and ethanol as cosolvent. Chem. Eng. J. 2009, 150, 104–113. [Google Scholar] [CrossRef]
  109. Bustamante, A.; Roberts, P.; Aravena, R.; Del Valle, J.M. Supercritical extraction of astaxanthin from H. pluvialis using ethanol-modified CO2. Experiments and modeling. In Proceedings of the 11th International Conference of Eng Food, Athens, Greece, 22–26 May 2011.
  110. Aravena, R.I.; del Valle, J.M. Effect of microalgae preconditioning on supercritical CO2 extraction of astaxanthin from Haematococcus pluvialis. In Proceedings of the 10th International Symposium of Supercritical Fluids, San Francisco, CA, USA, 13–16 May 2012.
  111. Yen, H.W.; Chiang, W.C.; Sun, C.H. Supercritical fluid extraction of lutein from Scenedesmus cultured in an autotrophical photobioreactor. J. Taiwan Inst. Chem. Eng. 2012, 43, 53–57. [Google Scholar] [CrossRef]
  112. Macías-Sánchez, M.D.; Fernandez-Sevilla, J.M.; Fernández, F.G.A.; García, M.C.C.; Grima, E.M. Supercritical fluid extraction of carotenoids from Scenedesmus almeriensis. Food Chem. 2010, 123, 928–935. [Google Scholar] [CrossRef]
  113. Kitada, K.; Machmudah, S.; Sasaki, M.; Goto, M.; Nakashima, Y.; Kumamoto, S.; Hasegawa, T. Supercritical CO2 extraction of pigment components with pharmaceutical importance from Chlorella vulgaris. J. Chem. Technol. Biotechnol. 2009, 84, 657–661. [Google Scholar] [CrossRef]
  114. Nobre, B.; Marcelo, F.; Passos, R.; Beirão, L.; Palavra, A.; Gouveia, L.; Mendes, R. Supercritical carbon dioxide extraction of astaxanthin and other carotenoids from the microalga Haematococcus pluvialis. Eur. Food Res. Technol. 2006, 223, 787–790. [Google Scholar] [CrossRef]
  115. Macı́as-Sánchez, M.D.; Mantell, C.; Rodrı́guez, M.; de la Ossa, E.J.M.; Lubián, L.M.; Montero, O. Supercritical fluid extraction of carotenoids and chlorophyll a from Nannochloropsis gaditana. J. Food Eng. 2005, 66, 245–251. [Google Scholar] [CrossRef]
  116. Macías-Sánchez, M.D.; Mantell, C.; Rodríguez, M.; de la Ossa, E.J.M.; Lubián, L.M.; Montero, O. Supercritical fluid extraction of carotenoids and chlorophyll a from Synechococcus sp. J. Supercrit. Fluids 2007, 39, 323–329. [Google Scholar] [CrossRef]
  117. Macías-Sánchez, M.D.; Mantell, C.; Rodríguez, M.; de la Ossa, E.J.M.; Lubián, L.M.; Montero, O. Comparison of supercritical fluid and ultrasound-assisted extraction of carotenoids and chlorophyll a from Dunaliella salina. Talanta 2009, 77, 948–952. [Google Scholar] [CrossRef] [PubMed]
  118. Cardoso, L.C.; Serrano, C.M.; Rodríguez, M.R.; de la Ossa, E.J.M.; Lubián, L.M. Extraction of carotenoids and fatty acids from microalgae using supercritical technology. Am. J. Anal. Chem. 2012, 3, 877–883. [Google Scholar] [CrossRef]
  119. Mendes, R.L.; Nobre, B.P.; Cardoso, M.T.; Pereira, A.P.; Palavra, A.F. Supercritical carbon dioxide extraction of compounds with pharmaceutical importance from microalgae. Inorg. Chim. Acta 2003, 356, 328–334. [Google Scholar] [CrossRef]
  120. Machmudah, S.; Shotipruk, A.; Goto, M.; Sasaki, M.; Hirose, T. Extraction of astaxanthin from Haematococcus p luvialis using supercritical CO2 and ethanol as entrainer. Ind. Eng. Chem. Res. 2006, 45, 3652–3657. [Google Scholar] [CrossRef]
  121. Wang, L.; Yang, B.; Yan, B.; Yao, X. Supercritical fluid extraction of astaxanthin from Haematococcus pluvialis and its antioxidant potential in sunflower oil. Innov. Food Sci. Emerg. Technol. 2012, 13, 120–127. [Google Scholar] [CrossRef]
  122. Valderrama, J.O.; Perrut, M.; Majewski, W. Extraction of astaxantine and phycocyanine from microalgae with supercritical carbon dioxide. J. Chem. Eng. Data 2003, 48, 827–830. [Google Scholar] [CrossRef]
  123. Macías-Sánchez, M.D.; Mantell Serrano, C.; Rodríguez Rodríguez, M.; de la Ossa, E.J.M.; Lubián, L.M.; Montero, O. Extraction of carotenoids and chlorophyll from microalgae with supercritical carbon dioxide and ethanol as cosolvent. J. Sep. Sci. 2008, 31, 1352–1362. [Google Scholar] [CrossRef] [PubMed]
  124. Liau, B.C.; Shen, C.T.; Liang, F.P.; Hong, S.E.; Hsu, S.L.; Jong, T.T.; Chang, C.M.J. Supercritical fluids extraction and anti-solvent purification of carotenoids from microalgae and associated bioactivity. J. Supercrit. Fluids 2010, 55, 169–175. [Google Scholar] [CrossRef]
  125. Fujii, K. Process integration of supercritical carbon dioxide extraction and acid treatment for astaxanthin extraction from a vegetative microalga. Food Bioprod. Process. 2012, 90, 762–766. [Google Scholar] [CrossRef]
  126. Esquivel-Hernández, D.; López, V.; Rodríguez-Rodríguez, J.; Alemán-Nava, G.; Cuéllar-Bermúdez, S.; Rostro-Alanis, M.; Parra-Saldívar, R. Supercritical carbon dioxide and microwave-assisted extraction of functional lipophilic compounds from Arthrospira platensis. Int. J. Mol. Sci. 2016, 17, 658. [Google Scholar] [CrossRef] [PubMed]
  127. Ota, M.; Watanabe, H.; Kato, Y.; Watanabe, M.; Sato, Y.; Smith, R.L.; Inomata, H. Carotenoid production from Chlorococcum littorale in photoautotrophic cultures with downstream supercritical fluid processing. J. Sep. Sci. 2009, 32, 2327–2335. [Google Scholar] [CrossRef] [PubMed]
  128. Liau, B.-C.; Hong, S.-E.; Chang, L.-P.; Shen, C.-T.; Li, Y.-C.; Wu, Y.-P.; Jong, T.-T.; Shieh, C.-J.; Hsu, S.-L.; Chang, C.-M.J. Separation of sight-protecting zeaxanthin from Nannochloropsis oculata by using supercritical fluids extraction coupled with elution chromatography. Sep. Purif. Technol. 2011, 78, 1–8. [Google Scholar] [CrossRef]
  129. Goto, M.; Kanda, H.; Wahyudiono; Machmudah, S. Extraction of carotenoids and lipids from algae by supercritical CO2 and subcritical dimethyl ether. J. Supercrit. Fluids 2015, 96, 245–251. [Google Scholar] [CrossRef]
  130. Fahmy, T.M.; Paulaitis, M.E.; Johnson, D.M.; McNally, M.E.P. Modifier effects in the supercritical fluid extraction of solutes from clay, soil, and plant materials. Anal. Chem. 1993, 65, 1462–1469. [Google Scholar] [CrossRef]
  131. Ritter, D.C.; Campbell, A.G. Supercritical carbon dioxide extraction of southern pine and ponderosa pine. Wood Fiber Sci. 1991, 23, 98–113. [Google Scholar]
  132. Gouveia, L.; Nobre, B.P.; Marcelo, F.M.; Mrejen, S.; Cardoso, M.T.; Palavra, A.F.; Mendes, R.L. Functional food oil coloured by pigments extracted from microalgae with supercritical CO2. Food Chem. 2007, 101, 717–723. [Google Scholar] [CrossRef]
  133. Thana, P.; Machmudah, S.; Goto, M.; Sasaki, M.; Pavasant, P.; Shotipruk, A. Response surface methodology to supercritical carbon dioxide extraction of astaxanthin from Haematococcus pluvialis. Bioresour. Technol. 2008, 99, 3110–3115. [Google Scholar] [CrossRef] [PubMed]
  134. Montero, O.; Macías-Sánchez, M.D.; Lama, C.M.; Lubián, L.M.; Mantell, C.; Rodríguez, M.; de la Ossa, E.J.M. Supercritical CO2 extraction of β-carotene from a marine strain of the Cyanobacterium Synechococcus species. J. Agric. Food Chem. 2005, 53, 9701–9707. [Google Scholar] [CrossRef] [PubMed]
  135. Jaime, L.; Mendiola, J.A.; Ibáñez, E.; Martin-Álvarez, P.J.; Cifuentes, A.; Reglero, G.; Señoráns, F.J. β-carotene isomer composition of sub- and supercritical carbon dioxide extracts. Antioxidant activity measurement. J. Agric. Food Chem. 2007, 55, 10585–10590. [Google Scholar] [CrossRef] [PubMed]
  136. Nobre, B.P.; Villalobos, F.; Barragán, B.E.; Oliveira, A.C.; Batista, A.P.; Marques, P.A.S.S.; Mendes, R.L.; Sovová, H.; Palavra, A.F.; Gouveia, L. A biorefinery from Nannochloropsis sp. microalga—Extraction of oils and pigments. Production of biohydrogen from the leftover biomass. Bioresour. Technol. 2013, 135, 128–136. [Google Scholar] [CrossRef] [PubMed]
  137. Sivagnanam, S.P.; Yin, S.; Choi, J.H.; Park, Y.B.; Woo, H.C.; Chun, B.S. Biological properties of fucoxanthin in oil recovered from two brown seaweeds using supercritical CO2 extraction. Mar. Drugs 2015, 13, 3422–3442. [Google Scholar] [CrossRef] [PubMed]
  138. Fan, X.D.; Hou, Y.; Huang, X.X.; Qiu, T.Q.; Jiang, J.G. Ultrasound-enhanced subcritical CO2 extraction of lutein from Chlorella pyrenoidosa. J. Agric. Food Chem. 2015, 63, 4597–4605. [Google Scholar] [CrossRef] [PubMed]
  139. King, J.W.; Srinivas, K.; Zhang, D. Advances in Critical Fluid Processing. In Alternatives to Conventional Food Processing; Proctor, A., Ed.; The Royal Society of Chemistry: Cambridge, UK, 2010; pp. 93–144. [Google Scholar]
  140. Semelsberger, T.A.; Borup, R.L.; Greene, H.L. Dimethyl ether (DME) as an alternative fuel. J. Power Sources 2006, 156, 497–511. [Google Scholar] [CrossRef]
  141. Kanda, H.; Li, P. Simple extraction method of green crude from natural blue-green microalgae by dimethyl ether. Fuel 2011, 90, 1264–1266. [Google Scholar] [CrossRef]
  142. Lu, J.; Feng, X.; Han, Y.; Xue, C. Optimization of subcritical fluid extraction of carotenoids and chlorophyll a from Laminaria japonica Aresch by response surface methodology. J. Sci. Food Agric. 2014, 94, 139–145. [Google Scholar] [CrossRef] [PubMed]
  143. Chemat, F.; Cravotto, G. (Eds.) Microwave-Assisted Extraction for Bioactive Compounds; Food Engineering Series; Springer: Boston, MA, USA, 2013.
  144. Pasquet, V.; Chérouvrier, J.-R.; Farhat, F.; Thiéry, V.; Piot, J.-M.; Bérard, J.-B.; Kaas, R.; Serive, B.; Patrice, T.; Cadoret, J.-P.; et al. Study on the microalgal pigments extraction process: Performance of microwave assisted extraction. Process Biochem. 2011, 46, 59–67. [Google Scholar] [CrossRef]
  145. Ruen-ngam, D.; Shotipruk, A.; Pavasant, P. Comparison of extraction methods for recovery of astaxanthin from Haematococcus pluvialis. Sep. Sci. Technol. 2011, 46, 64–70. [Google Scholar] [CrossRef]
  146. Poojary, M.M.; Passamonti, P. Optimization of extraction of high purity all-trans-lycopene from tomato pulp waste. Food Chem. 2015, 188, 84–91. [Google Scholar] [CrossRef] [PubMed]
  147. Poojary, M.M.; Passamonti, P. Extraction of lycopene from tomato processing waste: Kinetics and modelling. Food Chem. 2015, 173, 943–950. [Google Scholar] [CrossRef] [PubMed]
  148. Zhao, L.; Chen, G.; Zhao, G.; Hu, X. Optimization of microwave-assisted extraction of astaxanthin from Haematococcus pluvialis by response surface methodology and antioxidant activities of the extracts. Sep. Sci. Technol. 2009, 44, 243–262. [Google Scholar] [CrossRef]
  149. Meullemiestre, A.; Breil, C.; Abert-Vian, M.; Chemat, F. Innovative techniques and alternative solvents for extraction of microbial oils. In Modern Techniques and Solvents for the Extraction of Microbial Oils; Springer: New York, NY, USA, 2015; pp. 19–42. [Google Scholar]
  150. Juliano, P.; Augustin, M.A.; Xu, X.-Q.; Mawson, R.; Knoerzer, K. Advances in high frequency ultrasound separation of particulates from biomass. Ultrason. Sonochem. 2016, in press. [Google Scholar] [CrossRef] [PubMed]
  151. Leong, T.; Johansson, L.; Juliano, P.; McArthur, S.L.; Manasseh, R. Ultrasonic separation of particulate fluids in small and large scale systems: A Review. Ind. Eng. Chem. Res. 2013, 52, 16555–16576. [Google Scholar] [CrossRef]
  152. Dolatowski, Z.J.; Stasiak, D.M. Ultrasonically Assisted Diffusion Processes. In Enhancing Extraction Processes in the Food Industry; Lebovka, F., Vorobiev, N., Chemat, E., Eds.; CRC Press: Boca Raton, FL, USA, 2012; pp. 123–144. [Google Scholar]
  153. Chemat, F.; Rombaut, N.; Sicaire, A.-G.; Meullemiestre, A.; Fabiano-Tixier, A.-S.; Abert-Vian, M. Ultrasound assisted extraction of food and natural products. Mechanisms, techniques, combinations, protocols and applications. A review. Ultrason. Sonochem. 2017, 34, 540–560. [Google Scholar] [CrossRef] [PubMed]
  154. Gerde, J.A.; Montalbo-Lomboy, M.; Yao, L.; Grewell, D.; Wang, T. Evaluation of microalgae cell disruption by ultrasonic treatment. Bioresour. Technol. 2012, 125, 175–181. [Google Scholar] [CrossRef] [PubMed]
  155. Zou, T.B.; Jia, Q.; Li, H.W.; Wang, C.X.; Wu, H.F. Response surface methodology for ultrasound-assisted extraction of astaxanthin from Haematococcus pluvialis. Mar. Drugs 2013, 11, 1644–1655. [Google Scholar] [CrossRef] [PubMed]
  156. Deenu, A.; Naruenartwongsakul, S.; Kim, S.M. Optimization and economic evaluation of ultrasound extraction of lutein from Chlorella vulgaris. Biotechnol. Bioprocess Eng. 2013, 18, 1151–1162. [Google Scholar] [CrossRef]
  157. Yamamoto, K.; King, P.M.; Wu, X.; Mason, T.J.; Joyce, E.M. Effect of ultrasonic frequency and power on the disruption of algal cells. Ultrason. Sonochem. 2015, 24, 165–171. [Google Scholar] [CrossRef] [PubMed]
  158. Dey, S.; Rathod, V.K. Ultrasound assisted extraction of β-carotene from Spirulina platensis. Ultrason. Sonochem. 2013, 20, 271–276. [Google Scholar] [CrossRef] [PubMed]
  159. Gerken, H.G.; Donohoe, B.; Knoshaug, E.P. Enzymatic cell wall degradation of Chlorella vulgaris and other microalgae for biofuels production. Planta 2013, 237, 239–253. [Google Scholar] [CrossRef] [PubMed]
  160. Rodrigues, D.B.; Flores, É.M.M.; Barin, J.S.; Mercadante, A.Z.; Jacob-Lopes, E.; Zepka, L.Q. Production of carotenoids from microalgae cultivated using agroindustrial wastes. Food Res. Int. 2014, 65, 144–148. [Google Scholar] [CrossRef]
  161. Leong, T.; Knoerzer, K.; Trujillo, F.J.; Johansson, L.; Manasseh, R.; Barbosa-Cánovas, G.V.; Juliano, P. Megasonic separation of food droplets and particles: Design considerations. Food Eng. Rev. 2015, 7, 298–320. [Google Scholar] [CrossRef]
  162. Bosma, R.; van Spronsen, W.A.; Tramper, J.; Wijffels, R.H. Ultrasound, a new separation technique to harvest microalgae. J. Appl. Phycol. 2003, 15, 143–153. [Google Scholar] [CrossRef]
  163. Donsì, F.; Ferrari, G.; Lenza, E.; Maresca, P. Main factors regulating microbial inactivation by high-pressure homogenization: Operating parameters and scale of operation. Chem. Eng. Sci. 2009, 64, 520–532. [Google Scholar] [CrossRef]
  164. Donsì, F.; Ferrari, G.; Maresca, P. High-Pressure Homogenization for Food Sanitization. In Global Issues in Food Science and Technology; Barbosa-Cánovas, G., Mortimer, A., Lineback, D., Spiess, W., Buckle, K., Colonna, P., Eds.; Elesvier: Cambridge, MA, USA, 2009; pp. 309–352. [Google Scholar]
  165. Donsì, F.; Annunziata, M.; Ferrari, G. Microbial inactivation by high pressure homogenization: Effect of the disruption valve geometry. J. Food Eng. 2013, 115, 362–370. [Google Scholar] [CrossRef]
  166. Donsì, F.; Sessa, M.; Ferrari, G. Nanometric-size delivery systems for bioactive compounds for the nutraceutical and food industries. In Bio-Nanotechnology: A Revolution in Food, Biomedical and Health Sciences; Bagchi, D., Bagchi, M., Moriyama, H., Shahidi, F., Eds.; Blackwell Publishing Ltd.: Oxford, UK, 2013; pp. 619–666. [Google Scholar]
  167. Yap, B.H.J.; Dumsday, G.J.; Scales, P.J.; Martin, G.J.O. Energy evaluation of algal cell disruption by high pressure homogenisation. Bioresour. Technol. 2015, 184, 280–285. [Google Scholar] [CrossRef] [PubMed]
  168. Samarasinghe, N.; Fernando, S.; Lacey, R.; Faulkner, W.B. Algal cell rupture using high pressure homogenization as a prelude to oil extraction. Renew. Energy 2012, 48, 300–308. [Google Scholar] [CrossRef]
  169. Samarasinghe, N.; Fernando, S.; Faulkner, B. Effect of high pressure homogenization on aqueous phase solvent extraction of lipids from Nannochloris oculata microalgae. J. Energy Nat. Resour. 2012, 1, 1–7. [Google Scholar] [CrossRef]
  170. Olaizola, M. Commercial production of astaxanthin from Haematococcus pluvialis using 25,000-liter outdoor photobioreactors. J. Appl. Phycol. 2000, 12, 499–506. [Google Scholar] [CrossRef]
  171. Clarke, A.; Prescott, T.; Khan, A.; Olabi, A.G. Causes of breakage and disruption in a homogeniser. Appl. Energy 2010, 87, 3680–3690. [Google Scholar] [CrossRef] [Green Version]
  172. Lee, A.K.; Lewis, D.M.; Ashman, P.J. Disruption of microalgal cells for the extraction of lipids for biofuels: Processes and specific energy requirements. Biomass Bioenergy 2012, 46, 89–101. [Google Scholar] [CrossRef]
  173. Xie, Y.; Ho, S.H.; Chen, C.N.N.; Chen, C.Y.; Jing, K.; Ng, I.S.; Chen, J.; Chang, J.S.; Lu, Y. Disruption of thermo-tolerant Desmodesmus sp. F51 in high pressure homogenization as a prelude to carotenoids extraction. Biochem. Eng. J. 2016, 109, 243–251. [Google Scholar] [CrossRef]
  174. Mulchandani, K.; Kar, J.R.; Singhal, R.S. Extraction of lipids from Chlorella saccharophila using high-pressure homogenization followed by three phase partitioning. Appl. Biochem. Biotechnol. 2015, 176, 1613–1626. [Google Scholar] [CrossRef] [PubMed]
  175. Lee, C.G.; Kang, D.H.; Lee, D.B.; Lee, H.Y. Pretreatment for simultaneous production of total lipids and fermentable sugars from marine alga, Chlorella sp. Appl. Biochem. Biotechnol. 2013, 171, 1143–1158. [Google Scholar] [CrossRef] [PubMed]
  176. Olmstead, I.L.D.; Kentish, S.E.; Scales, P.J.; Martin, G.J.O. Low solvent, low temperature method for extracting biodiesel lipids from concentrated microalgal biomass. Bioresour. Technol. 2013, 148, 615–619. [Google Scholar] [CrossRef] [PubMed]
  177. Choi, W.Y.; Lee, H.Y. Effective production of bioenergy from marine Chlorella sp. by high-pressure homogenization. Biotechnol. Biotechnol. Equip. 2016, 30, 81–89. [Google Scholar] [CrossRef]
  178. Halim, R.; Rupasinghe, T.W.T.; Tull, D.L.; Webley, P.A. Mechanical cell disruption for lipid extraction from microalgal biomass. Bioresour. Technol. 2013, 140, 53–63. [Google Scholar] [CrossRef] [PubMed]
  179. Spiden, E.M.; Yap, B.H.J.; Hill, D.R.A.; Kentish, S.E.; Scales, P.J.; Martin, G.J.O. Quantitative evaluation of the ease of rupture of industrially promising microalgae by high pressure homogenization. Bioresour. Technol. 2013, 140, 165–171. [Google Scholar] [CrossRef] [PubMed]
  180. Wang, D.; Li, Y.; Hu, X.; Su, W.; Zhong, M. Combined enzymatic and mechanical cell disruption and lipid extraction of green alga Neochloris oleoabundans. Int. J. Mol. Sci. 2015, 16, 7707–7722. [Google Scholar] [CrossRef] [PubMed]
  181. Shene, C.; Monsalve, M.T.; Vergara, D.; Lienqueo, M.E.; Rubilar, M. High pressure homogenization of Nannochloropsis oculata for the extraction of intracellular components: Effect of process conditions and culture age. Eur. J. Lipid Sci. Technol. 2016, 118, 631–639. [Google Scholar] [CrossRef]
  182. Cho, S.-C.; Choi, W.-Y.; Oh, S.-H.; Lee, C.-G.; Seo, Y.-C.; Kim, J.-S.; Song, C.-H.; Kim, G.-V.; Lee, S.-Y.; Kang, D.-H.; et al. Enhancement of lipid extraction from marine microalga, Scenedesmus associated with high-pressure homogenization process. J. Biomed. Biotechnol. 2012, 2012, 1–6. [Google Scholar] [CrossRef] [PubMed]
  183. Jubeau, S.; Marchal, L.; Pruvost, J.; Jaouen, P.; Legrand, J.; Fleurence, J. High pressure disruption: A two-step treatment for selective extraction of intracellular components from the microalga Porphyridium cruentum. J. Appl. Phycol. 2013, 25, 983–989. [Google Scholar] [CrossRef]

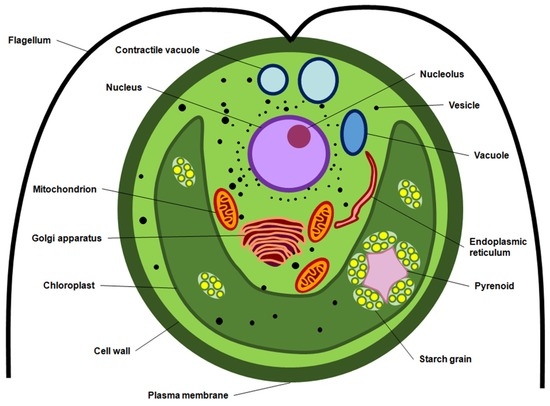

Figure 1. Illustration detailing organelles present in a typical marine unicellular microalgae.
Figure 1. Illustration detailing organelles present in a typical marine unicellular microalgae.
Marinedrugs 14 00214 g001

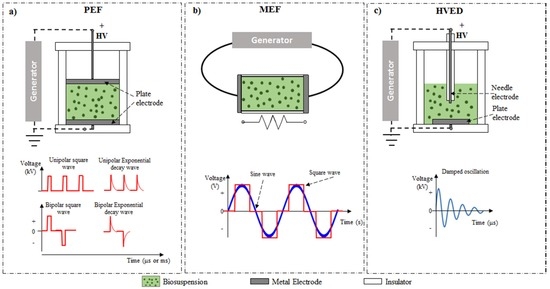

Figure 2. Schematics of typical experimental set-up and pulse protocols for (a) pulsed electric field (PEF)-assisted extraction; (b) moderate electric field (MEF)-assisted extraction; and (c) high voltage electric discharge (HVED)-assisted extraction.
Figure 2. Schematics of typical experimental set-up and pulse protocols for (a) pulsed electric field (PEF)-assisted extraction; (b) moderate electric field (MEF)-assisted extraction; and (c) high voltage electric discharge (HVED)-assisted extraction.
Marinedrugs 14 00214 g002

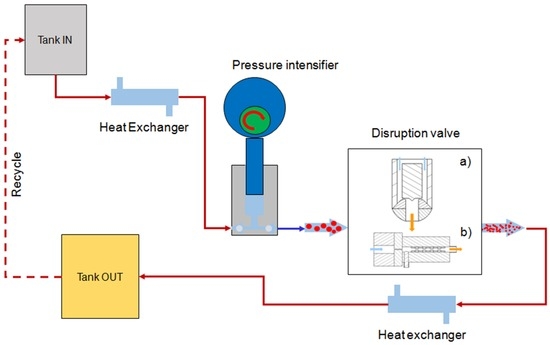

Figure 3. Schematics of a high pressure homogenization system, equipped with a (a) piston; or (b) orifice disruption valve.
Figure 3. Schematics of a high pressure homogenization system, equipped with a (a) piston; or (b) orifice disruption valve.
Marinedrugs 14 00214 g003
Table 1. Summary of reported applications of electrotechnology (PEF, MEF, and HVED)-assisted extraction of carotenoids from microalgae. PEF: pulsed electric field; MEF: moderate electric field; HVED: high-voltage electric discharges.
Table 1. Summary of reported applications of electrotechnology (PEF, MEF, and HVED)-assisted extraction of carotenoids from microalgae. PEF: pulsed electric field; MEF: moderate electric field; HVED: high-voltage electric discharges.
MicroalgaeBiomass ConcentrationElectrical TreatmentExtraction ConditionsCarotenoid YieldNotesReference
MEF
Heterochlorella luteoviridis4 g dry biomass/100 mL 25% ethanol solution0–180 V, 60 Hz, 10 min, <35 °C25%–75% ethanol, 50 min, 30 °CTotal carotenoids 1.21 mg/g dwMEF induced a reversible electroporation improving the extraction efficiency. Xanthophylls all-trans-lutein and all-trans-zeaxanthin were the major carotenoids extracted.[64]
PEF
Chlorella vulgaris~3% dw15 kV/cm, 100 kJ/kgN/A aTotal carotenoids 525% recovery compared with the conventional ball milling homogenization processAntioxidant activity of the extract was increased by almost 100%.[53]
Chlorella vulgaris109 CFU/mL in McIlvaine buffer (pH 7)10–25 kV/cm 0.6–93 kJ/L of culture96% ethanol, 20 °C, 0–1 hTotal carotenoids: ~0.82 mg/g dw and 1.04 mg/g dw after, respectively, 0 h and 1 h of incubation after PEF treatmentExtraction yield significantly increased after 1 h of the application of PEF, likely caused by the plasmolysis of the chloroplast during the incubation time.[60]
Chlorella vulgaris2 × 108 CFU/mL in McIlvaine buffer (pH 7)Millisecond range: 1–40 ms pulses, 3.5–5 kV/cm 9–150 kJ/L of culture Microsecond range: 3 μs pulses 10–25 kV/cm 1.5–93 kJ/L96% ethanol 20 °C, 0–1 hTotal carotenoids: ~1.06 mg/L after 0 h and 1 h of incubation in the ms range; 1.09 mg/L and 1.58 mg/L after, respectively, 0 h and 1 h of incubation in the μs rangePEF in the ms range at a lower electric field strength created irreversible alterations, while in the μs range the defects were a dynamic structure along the post-pulse time. Higher energy efficiency of treatment in the μs range than in the ms range.[61]
Chlorella vulgaris109 CFU/mL in McIlvaine buffer (pH 7)10–40 °C 10–25 kV/cm 1.5–93 kJ/L of culture96% ethanol, 20 °C, 0–1 hLutein up to 0.753 mg/g dwIncreasing temperature increased the sensitivity of microalgae cells to irreversible electroporation, and decreased the total specific energy required to obtain a given extraction yield. PEF treatment did not cause pigment degradation.[56]
Spirulina platensis~3% dw15 kV/cm, 100 kJ/kgN/A aTotal carotenoids 150% recovery compared with the conventional ball milling homogenization processAntioxidant activity of the extract was increased by almost 100%[53]
Nannochloropsis sp.1% (w/w) in distilled water20 kV/cm, 1–4 ms, 13.3–53.1 kJ/kgN/A bN/A cPEF allowed selective extraction of water-soluble ionic components and water-soluble proteins, but was ineffective for extraction of pigments.[54]
Nannochloropsis sp.1% (w/w) in distilled water20 kV/cm, 0.01–6 ms, 13.3–53.1 kJ/kgDistilled water, up to 3 h, 50 °C, pH = 8.5–11Total carotenoids: ~0.04 mg/g dw after PEF (pH 8.5); ~0.2 mg/g dw after PEF (pH 8.5) + extraction at pH 11Extraction efficiency after PEF (pH 8.5) was comparable with that of the aqueous extraction at pH 11. PEF (pH 8.5) treatment was more efficient than PEF (pH 11) treatment. Supplementary extraction at pH = 11 allowed a noticeable increase of the concentrations yield. PEF extracts showed high purity.[63]
Nannochloropsis sp.1% (w/w) in distilled water20 kV/cm, 0.01–6 ms, 13.3–53.1 kJ/kgAqueous DMSO, ethanol solutions: 0%, 30%, 50%, and 100%; 20 °C; 240 minKPEF d ≈3.0 at 50% DMSO KPEF d ≈ 2.4 at 30% EtOHHigh levels of extracted proteins at the first step with water, and noticeable enhancement of extraction of pigments at the second step with binary mixtures. The two-stage PEF-assisted procedure allowed effective extraction using less concentrated mixtures of organic solvents with water.[62]
HVED
Nannochloropsis sp.1% (w/w) in distilled water40 kV/cm, 1–4 ms, 13.3–53.1 kJ/kgN/A aN/A cNoticeably agglomeration of microalgae cells in the HVED-treated suspensions. Higher pigment recovery than PEF, but less than UAE and HPH.[54]
a N/A: not available; b Extract analyzed immediately after electrical treatment; c Results provided as UV absorption spectra and absorption peaks at 415 nm; d PEF efficiency coefficient defined as the ratio of concentration values of the extracts obtained for two-stage (PEF/water extraction + extraction with binary mixture) and one-stage (extraction with binary mixture); dw—dry weight.
Table 2. Applications of supercritical fluid extraction (SFE) for recovery of carotenoids from algae and seaweeds.
Table 2. Applications of supercritical fluid extraction (SFE) for recovery of carotenoids from algae and seaweeds.
Microalga/SeaweedExtraction ConditionCarotenoid YieldNotesReference
Solvent aPretreatmentP b (bar)T c (°C)T d (h)
Microalgae
Haematococcus pluvialisCO2 and 9.4% ethanolCrushing and then grinding in dry ice30060Astaxanthin >97% recoveryCo-solvent enhanced the recovery slightly[122]
Synechococcus sp.CO2Freeze drying500604Total carotenoids 2.76 mg/g dw eOptimal extraction conditions for β-carotene was 50 °C, 358 bar; for β-cryptoxanthin was 59 °C, 454 bar; and for zeaxanthin was 60 °C, 500 bar.[134]
Haematococcus pluvialisCO2Drying (powder form)705004Astaxanthin 23.04 mg/g dw ePressure, extraction time, and the interaction between temperature and pressure had significant effect on astaxanthin yield.[133]
Dunaliella salinaCO2Homogenization604003Total carotenoids 12.17 mg/g algae dwSFE was more selective than the UAE.[117]
Chlorella vulgarisCO2 and 7.5% ethanol805003Lutein ~≥1.8 mg/g algae; β-carotene ~≥0.2 mg/gSupercritical CO2 has high selectivity for lutein extraction, however the yield was lower than Soxhlet extraction; ethanol was better co-solvent than acetone.[113]
Chlorococcum littoraleCO2 and 10 mol % ethanolFreeze drying603001–3Total carotenoids 0.094%–0.21% dwCo-solvent enhanced the recovery slightly.[127]
Scenedesmus sp.CO2 and ethanol (30 mol %)Freeze drying and milling704001Lutein 2.210 mg/g algae eHigher temperature lead to increased impurity.[111]
Nannochloropsis gaditanaCO2Freeze drying (powder form)604003Total carotenoids 0.343 mg/g algae dw eHigher temperature lead to degradation.[115]
Haematococcus pluvialisCO2 and 5% ethanol705504Astaxanthin 77.9% recovery with respect to 34.3 mg/g dw total content found in the sample using Soxhlet extractionAstaxanthin yield increased with increasing cosolvent concentration up to 5% (v/v) ethanol.[120]
Haematococcus pluvialisCO2 and 10% ethanolFreeze drying and ball milling60300Carotenoid recovery 92%; esterified astaxanthin ~75%; lutein >90%; astaxanthin >90%; β-carotene >90%; and canthaxanthin ~85%Crushing improved the recovery significantly.[114]
Chlorella vulgarisCO2 and 5% ethanolCrushing40300Total carotenoids up to 0.299%Crushing increased pigments recovery.[132]
Dunaliella salinaCO2Freeze drying9.84431.6Total carotenoids 6.72% (predicted)Higher yields were obtained at high pressures and low temperatures.[135]
Nannochloropsis sp.CO2 and 20% ethanolBall milling40300>1Co-solvent increased the yield.[136]
Scenedesmus almeriensisCO2Freeze drying (powder form)604005Lutein 0.0466 mg/g dw e β-carotene 1.5 mg/g dw eRecovery was lower compared with conventional acetone extraction.[112]
Synechococcus sp.CO2Freeze drying503003Total carotenoids 1.511 mg/g algae dw eThe highest carotenoids/chlorophylls selectivity was obtained at 200 bar and 60 °C.[116]
Nannochloropsis oculataCO2 and 16.7 wt % ethanol50350Total carotenoids 7.61 mg/g dwAnti-solvent precipitation of carotenoids allowed pure Zeaxanthin.[124]
Nannochloropsis oculataCO2 and ethanolGrinding and freeze drying50350Zeaxanthin 13.17 mg/gEthanol as a co solvent increased the yield, and was efficient than dichloromethane, toluene and soybean oil[128]
Monoraphidium sp.CO2 and ethanolFreeze drying602001Astaxanthin 2.02 mg/g dwEthanol as a co-solvent improved astaxanthin yield.[125]
Chlorella vulgarisCO2 and ethanolPretreatment process using alcohol as elution solvent404000.75Lutein 1.78% recovery based on 7.9 mg/g obtained in Soxhlet extractionEthanol as an elution solvent removed chlorophyll a, b and β-carotene and improved selectivity of lutein[107]
Haematococcus pluvialisCO2 and 10% olive oilDrying704005Asthaxanthin 51% recoveryOlive oil co-solvent lead to a recovery comparable to ethanol as a co-solvent.[106]
Nannochloropsis gaditanaCO2 and 5% ethanolFreeze drying40–60100–5003Carotenoid yield up to 0.3%Extraction kinetics was studies.[108]
Synechococcus sp.Carotenoid yield up to 0.12%
Dunaliella salinaCarotenoid yield up to 1.3%
Nannochloropsis gaditanaCO2 and 5% ethanolFreeze drying605003Total carotenoids 2.893 mg/g algae dw eSupercritical extraction process with co-solvent was more selective than conventional methanol extraction.[123]
Synechococcus sp.50300Total carotenoids 1.860 mg/g algae dw e
Dunaliella salina Total carotenoids 9.629 mg/g algae dw e
Haematococcus pluvialisCO2 and 2.3 mL/g sample ethanolFreeze drying (powder form)654353.5Astaxanthin recovery of 87.42% from sample containing 2.26% astaxanthin.Increasing co-solvent amount resulted in an improving astaxanthin yield.[121]
Synechococcus sp.CO2 and ethanol40 and 60400 and 2003β-carotene 0.70 mg/g algae dw at 40 °C 400 bar e Zeaxanthin 0.70 mg/g algae dw at 60 °C 200 barCO2 with ethanol simultaneously extracted β-carotene and zeaxanthin.[118]
Arthrospira platensis fCO2 and 26.7% ethanolAir drying and milling601500.83Total carotenoids 283 mg/g algae eMAE resulted in better extraction yield than SFE.[126]
Seaweeds
Undaria pinnatifidaCO2 and ethanolFreeze drying502001Fucoxanthin 7.53 mg/g dwYield was dependent on pressure and temperature combination.[19]
Undaria pinnatifidaCO2Milling and microwave-assisted cell disruption404003Fucoxanthin 38.5 mg/g eMW pretreatment increased fucoxanthin yield.[20]
Sargassum muticumCO2 and ethanolFreeze drying and comminutating502001Fucoxanthin ~0.12 mg/g algae dwUse of co-solvent increased fucoxanthin yield by 90 times.[29]
Undaria pinnatifidaCO2 and 3.23% ethanolDrying604003Fucoxanthin 0.9945 mg/g dw eUse of co-solvent increased fucoxanthin yield by 10 times.[23]
Undaria pinnatifidaCO2Drying604002.5Fucoxanthin ~0.058 mg/g dw ePressure, temperature and extraction time affected fucoxanthin recovery.[129]
Saccharina japonicaCO2 and ethanolFreeze drying and grinding452502Fucoxanthin 0.41 mg/g dw eSFE process extracted a similar content of fucoxanthin as when acetone–methanol conventional extraction was used.[137]
Sargassum horneriFucoxanthin 0.77 mg/g dw e
Saccharina japonicaCO2 and 2% sunflower oilFreeze drying50.622002Total carotenoids 2.391 mg/g dw e; fucoxanthin 1.421 mg/g dw eSunflower oil as a co-solvent found to be the most effective, than soybean oil, canola oil, ethanol, and water.[26]
a Ethanol/vegetable oils mentioned in the column served as a co-solvent in the extraction; b Operating temperature; c Operating pressure; d Extraction time; e Maximal yield obtained at optimum conditions; f Considered as cyanobacteria.
Table 3. Comparison of different extraction techniques for extraction of lutein from Chlorella pyrenoidosa (reproduced with permission from [138]).
Table 3. Comparison of different extraction techniques for extraction of lutein from Chlorella pyrenoidosa (reproduced with permission from [138]).
Extraction MethodTemperature (°C)Pressure (MPa)Ultrasound Power (W)Time (h)Lutein Yield (μg/g)
SE430.1018546.4
SWE150501/30
SCE502504393.3
SCCE272104422.9
SCCE with pretreatment272104 (+3 h pretreatment)921.5
USCCE with pretreatment272110004 (+3 h pretreatment)1240.1
SE—Soxhlet extraction; SWE—subcritical water extraction; SCE—supercritical CO2 extraction; SCCE—subcritical CO2 extraction; USCCE—ultrasound-enhanced subcritical CO2 extraction; pretreatment includes enzymatic treatment with cellulose prior to extraction.
Table 4. Comparison of conventional and pressurized extraction techniques for recovery of fucoxanthin from Undaria pinnatifida (reproduced with permission from ref. [23]).
Table 4. Comparison of conventional and pressurized extraction techniques for recovery of fucoxanthin from Undaria pinnatifida (reproduced with permission from ref. [23]).
Extraction TechniquesTime (h)Temperature (°C)Pressure (MPa)Fucoxanthin Yield (μg/g)
Ethanol (Soxhlet)1278ND50
Liquefied DME0.7225ND390
Supercritical CO23604060.12
3704059.51
Supercritical CO2 with entrainer (3.23%)36040994.53
ND—Not determined.
Table 5. Summary of ultrasound applications to enhance carotenoids from microalgae.
Table 5. Summary of ultrasound applications to enhance carotenoids from microalgae.
MicroalgaeExtraction ConditionCarotenoid Yield/RecoveryNotesReference
Solvent aCell Concentration (g Cells Dry Weight/L)Pretreatmentf b (kHz)P c (W)t d (min)E e (kJ/kg)T f(°C)
Chlamydomonas reinhardtiiWater1.5Frozen cells with glycerol, thawing and suspension in artificial seawater2022000.17 or 0.5 min at various amplitudes0–450N/ACarotenoids—0.3 carotenoids/mg cells91%–95% disruption; 80 kJ/kg regardless of cell concentration[154]
Chlorella pyrenoidosaSubcritical CO2 at 5–35 MPaN/Ano treatment, ethanol soaking or enzymatic pretreatment20–240–19 W/cm2; 0–1000 W 15–45 kg/h, time 0–6 h, 15–33Lutein—87–124 mg lutein/100 g ChlorellaUltrasound-enhanced subcritical CO2 extraction[138]
Haematococcus pluvialisEthanol and ethyl acetate50From dried algae4020010–20120–24030–50Astaxanthin—27 mg/gUS led to higher astaxanthin compared with conventional treatment[155]
Chlorella vulgarisEthanol (90%)N/A (31 mL solid/g solvent)With or without enzymatic pre-treatment, 50 °C3556 W/cm260–240N/A37Lutein—3.16–3.36 mg/g wet weightHighest ultrasound-based extraction was with enzymatic pre-treatment[156]
Cylindrotheca closterium (bacillariophyte)AcetoneN/A, 30 mLFreeze driedN/A4.3–12.23–1525–3508.5Fucoxanthin 3.5–4.5 g/mg-[144]
Dunaliella salinaWaterN/ANone20, 580, 864 and 114632.3, 3, 20, 60305.415–20Carotenoids (yield not reported)Inactivation efficiency 20 < 580 = 864 < 1146 kHz[157]
Dunaliella tertiolecta (chlorophyte)Water30 mLNoneN/A4.3–12.23–1525–3508.5β-carotene—5 mg/g [144]
Haematococcus pluvialisMethanol, ethanol, acetonitrile, acetone0.1 g/30 mLNone38.518.40–90200030–60Astaxanthin—73% recovery55%–60% yield increase of astaxanthin after US[145]
Spirulina platensisn-heptane, diethyl ether and hexane10–60 g/L solventSpray dried spirulina mixed with methanol and kept fat various times2050–165 W (167 W/cm2)8 min with cycling220 kWh/m310–50β-carotene—0.8–1.0 mg/gExtraction had variable increase with acoustic intensity.[158]
a 1–2 mL solvent/g; b Frequency; c Power; d Time; e Specific energy; f Temperature.

Share and Cite

MDPI and ACS Style

Poojary, M.M.; Barba, F.J.; Aliakbarian, B.; Donsì, F.; Pataro, G.; Dias, D.A.; Juliano, P. Innovative Alternative Technologies to Extract Carotenoids from Microalgae and Seaweeds. Mar. Drugs 2016, 14, 214. https://doi.org/10.3390/md14110214

AMA Style

Poojary MM, Barba FJ, Aliakbarian B, Donsì F, Pataro G, Dias DA, Juliano P. Innovative Alternative Technologies to Extract Carotenoids from Microalgae and Seaweeds. Marine Drugs. 2016; 14(11):214. https://doi.org/10.3390/md14110214

Chicago/Turabian Style

Poojary, Mahesha M., Francisco J. Barba, Bahar Aliakbarian, Francesco Donsì, Gianpiero Pataro, Daniel A. Dias, and Pablo Juliano. 2016. "Innovative Alternative Technologies to Extract Carotenoids from Microalgae and Seaweeds" Marine Drugs 14, no. 11: 214. https://doi.org/10.3390/md14110214

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
