Article

Bioresponsive Materials for Drug Delivery Based on Carboxymethyl Chitosan/Poly(γ-Glutamic Acid) Composite Microparticles

School of Material Science and Engineering, Beijing Institute of Technology, Beijing 100081, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Mar. Drugs 2017, 15(5), 127; https://doi.org/10.3390/md15050127
Submission received: 27 March 2017 / Revised: 14 April 2017 / Accepted: 17 April 2017 / Published: 28 April 2017
(This article belongs to the Special Issue Marine Chitin)

Abstract

:
Carboxymethyl chitosan (CMCS) microparticles are a potential candidate for hemostatic wound dressing. However, its low swelling property limits its hemostatic performance. Poly(γ-glutamic acid) (PGA) is a natural polymer with excellent hydrophilicity. In the current study, a novel CMCS/PGA composite microparticles with a dual-network structure was prepared by the emulsification/internal gelation method. The structure and thermal stability of the composite were determined by Fourier transform infrared spectroscopy (FTIR), X-ray powder diffraction (XRD), scanning electron microscope (SEM), X-ray photoelectron spectroscopy (XPS), and thermogravimetric analysis (TGA). The effects of preparation conditions on the swelling behavior of the composite were investigated. The results indicate that the swelling property of CMCS/PGA composite microparticles is pH sensitive. Levofloxacin (LFX) was immobilized in the composite microparticles as a model drug to evaluate the drug delivery performance of the composite. The release kinetics of LFX from the composite microparticles with different structures was determined. The results suggest that the CMCS/PGA composite microparticles are an excellent candidate carrier for drug delivery.

Graphical Abstract

1. Introduction

In the past decades, various drug delivery systems have been developed to improve the releasing behaviors and effectiveness of drugs, and lower their side-effects. An ideal drug delivery system should be able to increase drug solubility, provide a sustained release system to avoid rapid breakdown and excessive use, and improve biodistribution [1]. Mild reaction conditions and absence of toxic or/and active organic substances are required to maintain the activity of active drugs, such as proteins [2,3]. Controlled-release systems based on smart bioresponsive materials have been extensively studied to delivery drugs [4]. The intraluminal pH of the gastrointestinal tract should be taken into consideration for the design of drug delivery system. The oral drug undergoes exposure to stomach (pH 1.0–2.5), duodenum (pH 6), and terminal ileum (pH 7.4) environments. Drugs encapsulated in pH-sensitive carriers should survive the harsh microenvironment in the stomach prior to entering the small intestine [5,6]. In addition, an ideal drug carrier should be biocompatible and biodegradable [7,8].
Chitosan is a biocompatible, biodegradable, and antibacterial polysaccharide. Chitosan and its derivatives are promising candidates of drug carrier and have been applied in many biomedical fields [9]. However, the chemical modification of chitosan requires toxic organic substances and chitosan is poorly soluble in water, which limits its encapsulation ability of hydrophilic drugs [10,11]. Therefore, various chitosan derivatives were reported as drug carriers with improved hydrophilicity and swelling behavior [12,13,14,15]. The compositions of chitosan with hydrophilic polymers, such as alginate and poly (acrylic acid), is an ideal strategy to develop drug carriers with desired swelling behaviors [16,17].
Poly(γ-glutamic acid) (PGA) is a hydrophilic polypeptide that can be used as a carrier of various drugs and biomolecules, such as proteins, growth factors, and genes, and its degradation product is nutritional to cellular proliferation [16,17,18,19,20,21]. Many chitosan/PGA composites, such as nanoparticles [22,23,24,25,26], hydrogels [27], and microcapsules [28], have been reported as drug carriers. Yu et al. [29] prepared carboxymethyl chitosan/poly(γ-glutamic acid) nanoparticles and used it as the carrier of bovine serum albumin. The introduction of PGA enhanced the incorporation ability of chitosan with biological molecules and intracellular trafficking. The composite nanoparticles exhibited a long-acting release of protein drugs in hyper-gluconic acid. However, extensive studies indicate that the covalent crosslink of chitosan has at least two drawbacks: (1) potential irritation to mucosal membranes due to the toxic crosslinker residues, such as glutaric dialdehyde; and (2) possible reactions between drugs and the reactive crosslinkers, such as genipin [30,31]. To overcome these limits, tripolyphosphate, citrates, and metal ions (e.g., Ca2+) have been used for the ionic crosslinking of chitosan-based drug carriers in recent studies [32,33].
In the present work, PGA was composited with carboxymethyl chitosan (CMCS) to improve the hydrophilicity of CMCS. The CMCS/PGA composite microparticles were gelled using Al3+ as the crosslinker under mild conditions. Such ionic crosslinking with the metal ion as the crosslinker is favorable to the scaled-up industrial production, and highly sensitive to external stimulation. Hydrophilic drug levofloxacin (LFX) was encapsulated as a model drug to evaluate the encapsulation effectiveness of the CMCS/PGA composite microparticles. The controlled and sustained drug release behaviors of the composite microparticles were determined by its swelling behaviors and in vitro drug release experiments.

2. Results and Discussion

2.1. Characterization of CMCS/PGA Composite Microparticles

The Fourier transform infrared spectroscopy (FTIR) spectra of CMCS, PGA, and CMCS/PGA composite microparticles prepared at different feeding ratios are shown in Figure 1a. The characteristic absorption peaks of PGA at 3443 cm−1 and 2920 cm−1 were ascribed to the O-H and N-H stretching vibrations, respectively, and the absorption peak at 1617 cm−1 was attributed to the asymmetric stretching vibration of C=O. The absorption peak at 1417 cm−1 was assigned to the N-H stretching vibration of amide [34]. CMCS exhibited an absorption band at 3020–3562 cm−1 that was attributed to the O-H and N-H stretching vibrations. Its absorption peaks at 1650 cm−1, 1485 cm−1, 1426 cm−1, and 1078 cm−1 were ascribed to the C=O asymmetric stretching vibration, N-H (amide II band) bending vibration, N-H stretching vibration, and C-O-C bonds stretching vibration [35], respectively.
Compared with CMCS, CMCS/PGA composite microparticles exhibited a broader absorption bond in the range of 2972–3628 cm−1 and the absorption peak of the N-H stretching vibration shifted from 1426 cm−1 to 1414 cm−1, indicating that the hydrogen bond between the polymer chains was enhanced [36]. The COO- peaks blueshifted from 1650 cm−1 to 1634 cm−1 as CMCS composited with PGA and Al3+. Both C-O-C peaks of CMCS at 1078 cm−1 and PGA at 1126 cm−1 shifted to 1067 cm−1 as the composite formed. These results indicated that the carboxyl group was successfully coordinated with Al3+ [37], which was further confirmed by the characteristic absorption peak of Al-O at 624 cm−1 in the IR spectrum of CMCS/PGA composite microparticles [38].
Figure 1b shows the X-ray diffraction (XRD) patterns of CMCS, PGA, and CMCS/PGA microparticles. The intensity and position of a diffraction peak can reflect the crystalline degree of a the structure. CMCS exhibited a crystal structure with a crystalline diffraction peak at 20°. No diffraction peak was found in PGA, indicating that it was amorphous. The weak diffraction peak of CMCS/PGA microparticles indicates that the crystalline degree of the CMCS in CMCS/PGA composite microparticles was significantly destructed due to the amorphous PGA interpenetrating into CMCS polymer chains, the coordination between the carboxyl group and Al3+, and the hydrogen bond formed between the carboxyl group and amide or amino group.
The composite microparticles were further characterized with XPS. Figure 2 shows the C1s, O1s and N1s XPS spectra of CMCS, PGA, and CMCS/PGA. The corresponding binding energies and the relative contents of C, N, and O elements can be found in Supplementary Table S1. The binding energy of O1s revealed that the hydroxyl groups on the surface of CMCS/PGA composite microparticles (531.2 eV) shared similar binding energy with those of CMCS (531.3 eV) and PGA (531.0 eV). The binding energy of C=O on CMCS/PGA composite microparticles (530.2 eV) is higher than those of CMCS (529.8 eV) and PGA (529.7 eV), indicating the carboxyl group was successfully coordinated with Al3+, is consistent with the FT-IR results.
The binding energy of the N-H in CMCS/PGA composite microparticles (400.2 eV) is higher than that in CMCS (398.4 eV), and the binding energy of C-N in CMCS/PGA composite microparticles (398.3 eV) is higher than those in CMCS (397.8 eV) and PGA (398.0 eV), indicating that hydrogen bonds were formed between the carboxyl group and amide or amino group. These results suggest that a double network structure of CMCS/PGA composite microparticles was formed by the coordination between carboxyl group and Al3+, and the hydrogen bond between carboxyl group and amide or amino group (Figure 1c).

2.2. Morphology of CMCS/PGA Composite Microparticles

The morphology of CMCS/PGA composite microparticles prepared with different concentrations of CMCS and PGA were imaged by scanning electron microscope (SEM) at the magnifications of 50× and 5000×. As shown in the low magnification SEM images in Figure 3, the composite was comprised of spherical microparticles with a narrow size distribution, and the particle size increased with the increase of polymer concentration. The high magnification SEM images revealed a porous surface morphology on the microparticles. Such porous structure can promote a swelling behavior, drug release and response to external stimulation, and provide the ion channels to maintain the balance between the osmotic pressures inside and outside of the microparticles.

2.3. Swelling Behaviors of CMCS/PGA Composite Microparticles

The CMCS/PGA composite microparticles prepared under different conditions exhibited different swelling properties due to their different hydrophilicity, osmotic pressures between inside and outside of the microparticles, and structures. Therefore, the feeding ratio and total polymer concentration of CMCS and PGA were optimized to obtain desired swelling behavior of CMCS/PGA composite microparticles. Figure 4a,b shows the swelling kinetic curves of CMCS/PGA composite microparticles prepared under different conditions. The Voigt model fitted the experimental data well, indicating the swelling behavior of CMCS/PGA composite microparticles could be simulated as polymer creep motion.
As shown in Figure 4a and Table 1, all CMCS/PGA composite microparticles prepared under different conditions exhibited higher swelling rates and ratios than CMCS microparticles, indicating that the introduction of PGA improved the hydrophilicity of CMCS. The swelling ratio of CMCS/PGA composite microparticles increased with PGA content, peaked at mCMCS:mPGA = 8:2, and decreased as PGA content increased further. The highest swelling rate was also obtained with the composite prepared at mCMCS:mPGA = 8:2. It can be explained that the hydrophilicity of CMCS/PGA composite microparticles increases with PGA content due to its rapid and high water absorption. Water is introduced into the microparticles rapidly, resulting in excellent swelling behaviors. However, extremely high PGA content can strengthen the intermolecular interaction and enhanced the physical tangle of the double network, which inhibits water permeation, and thus reduce the swelling ratio and rate.
The total polymer concentration of CMCS and PGA was then varied to determine its effects on the swelling behavior of the CMCS/PGA composite. As shown in Figure 4b, both the swelling ratio and rate increased first, peaked, and decreased with the increase in total polymer concentration. SEM imaging indicated that the composite particles prepared with low polymer concentrations were relatively small. The intermolecular entanglement between CMCS and PGA at low concentrations mainly results from hydrogen bonding and, thus, is weak, leading to low crosslink density and incomplete double network. Increasing the polymer concentration can improve the swelling behavior of CMCS/PGA composite microparticles. However, higher polymer concentration results in larger particles, which decreases the specific area for water contact and increases the intermolecular entanglement between CMCS and PGA. Water is then inhibited to permeate into CMCS/PGA composite microparticles, which decreases the swelling ratio and rate.
The swelling behaviors of CMCS/PGA composite microparticles at different pHs were investigated and the results were shown in Figure 4c,d. All tested CMCS/PGA composite microparticles showed similar pH responses. The swelling ratio increased with the increase of pH, peaked at pH = 7 and significantly declined as the pH increased to 8. The swelling ratio slightly increased as pH varied from 9 to 10. Further increasing pH led to lower swelling ratios.
The responsive swelling mechanism of CMCS/PGA composite microparticles to pH is summarized in Figure 4e. In acid condition, the significant amount of H+ in a strong acid solution can decrease the dissociation degree of –COOH, which weakens the repulsion between –COO groups. The polymer chains were rolled and the network of CMCS/PGA composite microparticles shrank, which inhibited the swelling of the composite and resulted in low swelling ratios. Increasing pH can increase the dissociation degree of –COOH, leading to stronger repulsion between –COO groups. The polymer network swelled up due to the high repulsion and hydrophilicity of –COO and amide bonds, which improved the swelling behavior of the composite. The swelling ratio reached the maximum at pH = 7. In basic condition, [Al(OH)(H2O)5]2+ was formed as pH further increased, which decreased the amount of coordination sites with COO and COOH. The decreased crosslink density led to a significantly low swelling ratio at pH = 8. In strong base (the pH increased to 9–10), the dissociation degree of –COOH reached the maximum and the repulsion between –COO groups was maximized, which dominated the swelling behavior again. The swelling ratio was slightly increased. At pH = 11, the massive Na+ shielded COO groups, which weakened the repulsion force. Meanwhile, aluminum was hydrolyzed to polyaluminium [Alx(OH)y](3x−y)+ forming a highly-crosslinked network with the polymers [39], which further decreased the swelling ratio.

2.4. Hydrophilic Properties of CMCS/PGA Composite Microparticles

The hydrophilicity of CMCS/PGA composite microparticles prepared at different feeding ratios was determined by their water contact angles. All CMCS/PGA composite microparticles exhibited water contact angles less than 90°, smaller than that of CMCS microparticles (Figure 5), indicating that the introduction of PGA improved the hydrophilicity of CMCS. In addition, the water contact angle decreased with the increase of PGA content, further demonstrating that PGA enhanced the hydrophilicity of CMCS.

2.5. Drug Release Behaviors of CMCS/PGA Composite Microparticles

The drug encapsulation and release behaviors of CMCS/PGA composite microparticles were investigated using LFX as a model drug. The highest LFX encapsulation efficiency of the composite was obtained as 28.6% (w/w). The Al3+ concentration and feeding ratio for the composite preparation exhibited significant effects on its drug release behavior (Figure 6). More than 70% LFX was released in one hour from the loaded composite microparticles prepared at low [Al3+] concentrations, which was not ideal for a drug carrier (Figure 6a). Increasing [Al3+] for the composite preparation significantly improved the sustained release behavior and extended the maximum drug release time to 4 h. It can be explained that a higher [Al3+] results in a denser inner network, which encapsulates LFX more tightly. The release kinetics were simulated with a zero-order kinetic model, one-order dynamic model, and a Higuchi model, respectively. The results are shown in Table 2. When [Al3+] was less, the release of LFX was better fitted with the Higuchi model. At this time, because the crosslinking density in the microparticles was lower, the mass transfer resistance of the drug in the network was weaker and easy to spread out from the network. Then the drug on the surface of the microparticles was dissolved in the liquid and drugs within the microparticles were gradually diffused to the surface of microparticles and eventually spread into the liquid due to the concentration gradient. With the increase of the [Al3+], the release model was gradually deviated from the Higuchi model and turned to one-order kinetics. Then, with increased [Al3+], the network density was increased. As a result, the resistance of the drug from the microparticles was increased and its release was controlled by surface diffusion and dissolution mechanisms. In addition, Table 2 indicates that using the same equation to perform the simulation, the slope of the curve obtained was decreased with the increase of [Al3+]. This also demonstrated that the increase of [Al3+] may result in a decreased release rate of LFX from the microparticles.
In addition, the sustained release time increased with the increase of PGA content in the CMCS/PGA composite (Figure 6b) due to the enhanced hydrogen bond and intermolecular entanglement.

3. Materials and Methods

3.1. Materials

Carboxymethyl chitosan (CMCS, 1000 kDa) was synthesized according to a method reported in the literature [40]. The substitution degree of the carboxymethyl was determined as 0.75 by elemental analysis. Poly(γ-glutamic acid) (PGA, >92.0%, 1000 kDa) was purchased from Nanjing Saitaisi Biotechnology Co., Ltd. (Nanjing, China); Aluminum sulfate was purchased from Tianjin Fu Chen Chemical Reagent Factory (Tianjing, China); Levofloxacin (LFX, 98%) was purchased from Shanghai Macklin Biochemical Co., Ltd. (Shanghai, China).

3.2. Preparetion of CMCS/PGA Composite Microparticles

A polymer solution of CMCS and PGA at a certain concentration was mechanically stirred, and added to an aluminum sulfate solution at a tested concentration dropwise under stirring. The suspension was stirred for 1 h, suction filtrated, and dried to afford CMCS/PGA composite microparticles. The feeding ratio, total polymer concentration of CMCS and PGA, and [Al3+] were varied to optimize the preparation condition of CMCS/PGA composite microparticles. The detailed preparation conditions are shown in Table 3.
LFX was loaded in CMCS/PGA composite microparticles as follows: 0.8 g LFX was dissolved in a polymer solution of CMCS and PGA. The mixture was added to a 0.1 g/mL aluminum sulfate solution dropwise. The suspension was stirred for 1 h, suction filtrated, and dried to form LFX-loaded CMCS/PGA composite microparticles.

3.3. Characterization of CMCS/PGA Composite Microparticles

3.3.1. Fourier Transform Infrared Spectroscopy (FTIR) Analyses

Fourier Transform Infrared Spectroscopy (FTIR) analyses were performed on a Thermo-Nicolet NEXUS 470 Spectroscopy (ThermoFish, Waltham, MA, USA) equipped with a KBr beam splitter. The test samples were prepared with KBr pellets.

3.3.2. XRD Diffractograms Analyses

XRD diffractograms were recorded in the 2θ range of 5.0°–80.0° on a Rigaku D/Max-1200 instrument (Rigaku, Tokyo, Japan) equipped with Ni-filtered Cu Kα radiation (40 kV, 40 mA) to determine the crystallinity of Alg/PGA composite microparticles.

3.3.3. X-ray Photoelectron Spectroscopy (XPS) Analyses

X-ray Photoelectron Spectroscopy (XPS) analyses were conducted on a PHI QUANTERA-II instrument (Ulvac-PHI Inc., Chigasaki, Kanagawa, Japan) equipped with a monochromatized Al KRX-ray source operated at 25 W and 15 kV. For wide-scan spectra, an energy range of 0–1100 eV was used with a pass energy of 280.00 eV and a step size of 1.00 eV. High-resolution spectra were collected at a 26.00 eV pass energy using a step size of 0.025 eV. The XPS results were further fitted in a nonlinear least squares curve fitting program (XPS-peak-41 software, Version 4.0).

3.3.4. Surface Analysis via Scanning Electron Microscopy

SEM was used to examine the structure and surface morphology of the produced microparticles. Microparticles were dusted onto a double-sided tape on an aluminum stub, coated with a gold layer using a gold sputter coater and imaged on an S-4800 SEM instrument (Hitachi, Tokyo, Japan) with a 5 kV electron beam.

3.4. Determination of the Swelling Behavior of Composite Microparticles

The swelling behavior of the composite microparticles was investigated by the filtering bag test method. A sample (0.2 g) was put in a nylon bag and immersed into the liquid to be absorbed at room temperature. The mass of the swollen sample was weighed every 5 min after the excess water was removed. The water uptake ratio (Q) of the microparticles were calculated as the following equation:
Q = ( ( W 1 W 0 W 2 ) / W 0 ) × 100 %
where, W1 is the weight of the test sample and bag at a given swelling time, W2 is the weight of the nylon bag and W0 is the initial weight of the sample. Every group of samples was tested three times, and the mean and SD of swelling ratio was calculated.
The swelling process of the composite microparticles is similar to the creeping response of the polymer. It is caused by the combination of hydrophilic interactions, the repulsion force between the anions, and the osmotic pressures between the inside and outside of the networks. Therefore, the swelling kinetic parameters of the composite microparticles can be fitted by the Voigt model [40]. Assuming that the force σ0 is applied to the model at time t0 and the corresponding response ε was produced at time t, the model can be expressed as the following equation:
ε ( t ) = σ 0 / E { 1 exp [ ( t 0 t ) / τ 0 ] } = ε ( ) { 1 exp [ ( t 0 t ) / τ 0 ] }
where, τ0 is the relaxation time that is theoretically inversely proportional to the swelling ratio of the microparticles and E is the Young’s modulus that represents the resistance to deformation. σ0/E equals to ε(∞), representing the maximum swelling ratio. The slope of forward straight part of the curve (ki) with Q = 0.7ε(∞) and the time (tc) when the swelling become slow can be calculated accordingly. The swelling rate is directly proportional to ki and inversely proportional to tc.

3.5. Water Contact Angle Measurement

The water contact angle (WCA) was measured with a drop-shape analysis system (KRUSS DSA100, Hamburg, Germany) at three different points for each sample. Three replicate specimens were tested for each sample and the relative standard deviation was within ±3%.

3.6. Pharmacokinetic Drug Release Analysis

The LFX stock solution (0.1 g/L) was diluted with 0.9% NaCl solution to 2, 4, 8, 16, 32, and 48 μg/mL. The absorbance of each standard at λ = 328 nm was measured using a TU-1810 UV-VIS system (Persee, Beijing, China) with 0.9% NaCl solution as the blank group to construct a standard curve of the LFX. The LFX concentration in the dialysate of loaded CMCS/PGA composite microparticles was determined by fitting its absorbance at λ = 328 nm to Equation (3).
To determine the drug release, 0.2 g LFX loaded CMCS/PGA composite microparticles were immersed in 100 mL 0.9% NaCl solution. Three milliliters of solution was taken at the predesigned time, measured for its absorbance at λ = 328 nm, and put back into the sample solution. The concentration of released LFX in the NaCl solution was calculated with Equation (3) to profile the pharmacokinetic drug release of the CMCS/PGA composite microparticles. The encapsulation efficiency and cumulative drug release was calculated with Equations (4) and (5) respectively.
Absorbance = 0 . 0288 [ LFX ] 0 . 0005 ( R = 0 . 9994 )
Encapsulation efficiency ( % ) = ( Total drug used unencapsulated drug Total drug used ) × 100 %
Cumulative drug release ( % ) = ( Amount of drug at times Total drug present in composite microparticles ) × 100 %
The kinetics of LFX released from CMCS/PGA composite microparticles was determined by finding the best fit of the dissolution data (LFX-released fraction versus time) to distinct models: zero-order, first-order, and Higuchi [41,42].
Zero-order kinetics:
y = k0t + b
where y is the amount of LFX released at time t, and k0 is the zero-order release constant.
First-order kinetics:
ln(1 − y) = −k1t + b
where y is the amount of LFX released at time t, and k1 is the first-order release constant.
Higuchi’s model:
y = kHt1/2 + b
where y is the amount of LFX released at time t, and kH is the Higuchi’s release rate constant.

4. Conclusions

CMCS/PGA composite microparticles were prepared by ionic crosslinking using Al3+ as the crosslinker. The microparticles exhibited the excellent properties of CMCS and high hydrophilicity of PGA. The FT-IR, XRD, and XPS analyses indicate that a double network structure was formed by the hydrogen bond between PGA and CMCS and the coordination between Al3+ and carboxyl groups. A systematic investigation was conducted to determine the effects of the PGA content and total polymer concentration of CMCS and PGA on the swelling behavior of the microparticles. The results revealed that the introduction of PGA significantly improved the hydrophilicity of CMCS microparticles. The composite preparation conditions for the highest swelling ratio and rate were optimized as: wCMCS = 20 mg/mL and mCMCS:mPGA = 8:2. In addition, the swelling behavior of the CMCS/PGA composite microparticles is pH sensitive, indicating that it is an ideal carrier for sustained drug delivery. The drug encapsulation and release behaviors were then investigated using hydrophilic LFX as a model drug. The LFX encapsulation efficiency of the microparticles reached as high as 28.6% (w/w), and an ideal sustained drug release was obtained. These results suggest that CMCS/PGA composite microparticles are a promising candidate carrier for drug delivery system.

Supplementary Materials

The following are available online at www.mdpi.com/1660-3397/15/5/127/s1, Table S1: The corresponding binding energies and the relative contents of C, N, and O elements in CMCS, PGA, and CMCS/PGA composite microparticles.

Acknowledgments

The authors gratefully acknowledge the financial support of The National Undergraduate Innovative Experiment Program of China, the Youth Talent Plan of Beijing City, the Combination Project of Guangdong Province and the “Yangfan” Innovative Research Team Project of Guangdong Province.

Author Contributions

Xiaoting Yan, Zongrui Tong, and Yu Chen designed the experiments and wrote the paper; Xiaoting Yan, Mo Yanghe, Feng Huaiyu, and Qu Xiaosai performed the preparation, tests, and data analysis; and Peng Li and Shaohua Jin contributed to the conception and design of the experiments. All authors reviewed the manuscript and approved the final version.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Allen, T.M.; Cullis, P.R. Drug Delivery Systems: Entering the Mainstream. Science 2004, 303, 1818–1822. [Google Scholar] [CrossRef] [PubMed]
  2. Venkatesan, J.; Anil, S.; Kim, S.; Shim, M.S. Seaweed Polysaccharide-Based Nanoparticles: Preparation and Applications for Drug Delivery. Polymers 2016, 8, 30. [Google Scholar] [CrossRef]
  3. Pakulska, M.M.; Miersch, S.; Shoichet, M.S. Designer protein delivery: From natural to engineered affinity-controlled release systems. Science 2016, 351, 1279. [Google Scholar] [CrossRef] [PubMed]
  4. Fox, C.B.; Kim, J.; Le, L.V.; Nemeth, C.L.; Chirra, H.D.; Desai, T.A. Micro/nanofabricated platforms for oral drug delivery. J. Control. Release 2015, 219, 431–444. [Google Scholar] [CrossRef] [PubMed]
  5. Skorb, E.V.; Möhwald, H.; Andreeva, D.V. How Can One Controllably Use of Natural ΔpH in Polyelectrolyte Multilayers? Adv. Mater. Interfaces 2017, 4, 1600282. [Google Scholar] [CrossRef]
  6. Corobea, M.C.; Muhulet, O.; Miculescu, F.; Antoniac, I.V.; Vuluga, Z.; Florea, D.; Vuluga, D.M.; Butnaru, M.; Ivanov, D.; Voicu, S.I.; et al. Novel nanocomposite membranes from cellulose acetate and clay-silica nanowires. Polym. Adv. Technol. 2016, 27, 1586–1595. [Google Scholar] [CrossRef]
  7. Voicu, S.I.; Condruz, R.M.; Mitran, V.; Cimpean, A.; Miculescu, F.; Andronescu, C.; Miculescu, M.; Thakur, V.K. Sericin Covalent Immobilization onto Cellulose Acetate Membrane for Biomedical Applications. ACS Sustain. Chem. Eng. 2016, 4, 1765–1774. [Google Scholar] [CrossRef]
  8. Thakur, M.K.; Thakur, V.K.; Gupta, R.K.; Pappu, A. Synthesis and Applications of Biodegradable Soy Based Graft Copolymers: A Review. ACS Sustain. Chem. Eng. 2016, 4, 1–17. [Google Scholar] [CrossRef]
  9. Thakur, V.K.; Thakur, M.K. Recent Advances in Graft Copolymerization and Applications of Chitosan: A Review. ACS Sustain. Chem. Eng. 2014, 2, 2637–2652. [Google Scholar] [CrossRef]
  10. Casettari, L.; Illum, L. Chitosan in nasal delivery systems for therapeutic drugs. J. Control. Release 2014, 190, 189–200. [Google Scholar] [CrossRef] [PubMed]
  11. Bellich, B.; D’Agostino, I.; Semeraro, S.; Gamini, A.; Cesaro, A. “The Good, the Bad and the Ugly” of Chitosans. Mar. Drugs 2016, 14, 99. [Google Scholar] [CrossRef] [PubMed]
  12. Zhang, A.; Ding, D.; Ren, J.; Zhu, X.; Yao, Y. Synthesis, characterization, and drug delivery property of 2-N-carboxymethyl-6-O-diethylaminoethyl-chitosan. e-Polymers 2013, 13. [Google Scholar] [CrossRef]
  13. Chen, Y.; Yi, J.; Gao, Q.; Zhou, X.; Luo, Y.; Liu, P. Surface Performance and Cytocompatibility Evaluation of Acrylic Acid-Mediated Carboxymethyl Chitosan Coating on Poly(tetrafluoroethylene-co-hexafluoropropylene). Plasma Chem. Plasma Process. 2013, 33, 1153–1165. [Google Scholar] [CrossRef]
  14. Sereshti, H.; Samadi, S.; Asgari, S.; Karimi, M. Preparation and application of magnetic graphene oxide coated with a modified chitosan pH-sensitive hydrogel: An efficient biocompatible adsorbent for catechin. RSC Adv. 2015, 5, 9396–9404. [Google Scholar] [CrossRef]
  15. De Kruif, J.K.; Fasler-Kan, E.; Varum, F.; Bravo, R.; Kuentz, M. On Prilling of Hydrophilic Microgels in Lipid Dispersions Using Mono-N-Carboxymethyl Chitosan for Oral Biologicals Delivery. J. Pharm. Sci. 2014, 103, 3675–3687. [Google Scholar] [CrossRef] [PubMed]
  16. Samanta, H.S.; Ray, S.K. Controlled release of tinidazole and theophylline from chitosan based composite hydrogels. Carbohydr. Polym. 2014, 106, 109–120. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, Q.; Zuo, Q.; Guo, R.; Hong, A.; Li, C.; Zhang, Y.; He, L.; Xue, W. Fabrication and characterization of carboxymethyl chitosan/poly(vinyl alcohol) hydrogels containing alginate microspheres for protein delivery. J. Bioact. Compat. Polym. 2015, 30, 397–411. [Google Scholar] [CrossRef]
  18. Chen, M.; Ling, M.; Kusuma, S.J. Poly-γ-glutamic acid microneedles with a supporting structure design as a potential tool for transdermal delivery of insulin. Acta Biomater. 2015, 24, 106–116. [Google Scholar] [CrossRef] [PubMed]
  19. Yu, H.; Tang, Z.; Zhang, D.; Song, W.; Zhanga, Y.; Yang, Y.; Ahmad, Z.; Chen, X. Pharmacokinetics, biodistribution and in vivo efficacy of cisplatin loaded poly(l-glutamic acid)-g-methoxy poly(ethylene glycol) complex nanoparticles for tumor therapy. J. Control. Release 2015, 205, 89–97. [Google Scholar] [CrossRef] [PubMed]
  20. Conejos-Sanchez, I.; Cardoso, I.; Oteo-Vives, M.; Romero-Sanz, E.; Paul, A.; Ruiz Sauri, A.; Morcillo, M.A.; Saraiva, M.J.; Vicent, M.J. Polymer-doxycycline conjugates as fibril disrupters: An approach towards the treatment of a rare amyloidotic disease. J. Control. Release 2015, 198, 80–90. [Google Scholar] [CrossRef] [PubMed]
  21. Gao, D.; Xu, M.; Cao, Z.; Gao, J.; Chen, Y.; Li, Y.; Yang, Z.; Xie, X.; Jiang, Q.; Wang, W.; et al. Ultrasound-Triggered Phase-Transition Cationic Nanodroplets for Enhanced Gene Delivery. ACS Appl. Mater. Interfaces 2015, 7, 13524–13537. [Google Scholar] [CrossRef] [PubMed]
  22. Lu, K.; Lin, C.; Hsu, C.; Ho, Y.; Chuang, E.; Sung, H.; Mi, F. FRET-Based Dual-Emission and pH-Responsive Nanocarriers for Enhanced Delivery of Protein Across Intestinal Epithelial Cell Barrier. ACS Appl. Mater. Interfaces 2014, 6, 18275–18289. [Google Scholar] [CrossRef] [PubMed]
  23. Liao, Z.; Peng, S.; Chiu, Y.; Hsiao, C.; Liu, H.; Lim, W.; Lu, H.; Sung, H. Enhancement of efficiency of chitosan-based complexes for gene transfection with poly(γ-glutamic acid) by augmenting their cellular uptake and intracellular unpackage. J. Control. Release 2014, 193, 304–315. [Google Scholar] [CrossRef] [PubMed]
  24. Su, Y.; Yu, S.; Chao, A.; Wu, J.; Lin, Y.; Lu, K.; Mi, F. Preparation and properties of pH-responsive, self-assembled colloidal nanoparticles from guanidine-containing polypeptide and chitosan for antibiotic delivery. Colloids Surf. A Physicochem. Eng. Asp. 2016, 494, 9–20. [Google Scholar] [CrossRef]
  25. Teixeira, G.Q.; Pereira, C.L.; Castro, F.; Ferreira, J.R.; Gomez-Lazaro, M.; Aguiar, P.; Barbosa, M.A.; Neidlinger-Wilke, C.; Goncalves, R.M. Anti-inflammatory Chitosan/Poly-γ-glutamic acid nanoparticles control inflammation while remodeling extracellular matrix in degenerated intervertebral disc. Acta Biomater. 2016, 42, 168–179. [Google Scholar] [CrossRef] [PubMed]
  26. Kim, E.S.; Lee, J.; Lee, H.G. Nanoencapsulation of Red Ginseng Extracts Using Chitosan with Polyglutamic Acid or Fucoidan for Improving Antithrombotic Activities. J. Agric. Food Chem. 2016, 64, 4765–4771. [Google Scholar] [CrossRef] [PubMed]
  27. Park, B.G.; Kang, H.; Lee, W.; Kim, J.S.; Son, T. Reinforcement of pH-responsive γ-poly(glutamic acid)/chitosan hydrogel for orally administrable colon-targeted drug delivery. J. Appl. Polym. Sci. 2013, 127, 832–836. [Google Scholar] [CrossRef]
  28. Yan, S.; Rao, S.; Zhu, J.; Wang, Z.; Zhang, Y.; Duan, Y.; Chen, X.; Yin, J. Nanoporous multilayer poly(l-glutamic acid)/chitosan microcapsules for drug delivery. Int. J. Pharm. 2012, 427, 443–451. [Google Scholar] [CrossRef] [PubMed]
  29. Yu, S.; Wu, S.; Tang, D.; Ho, Y.; Mi, F.; Kuo, T.; Sung, H. Stimuli-responsive materials prepared from carboxymethyl chitosan and poly(γ-glutamic acid) for protein delivery. Carbohydr. Polym. 2012, 87, 531–536. [Google Scholar] [CrossRef]
  30. Ko, J.A.; Park, H.J.; Hwang, S.J.; Park, J.B.; Lee, J.S. Preparation and characterization of chitosan microparticles intended for controlled drug delivery. Int. J. Pharm. 2002, 249, 165–174. [Google Scholar] [CrossRef]
  31. Nilsen-Nygaard, J.; Strand, S.; Vårum, K.; Draget, K.; Nordgård, C. Chitosan: Gels and Interfacial Properties. Polymers 2015, 7, 552–579. [Google Scholar] [CrossRef]
  32. Lapitsky, Y. Ionically crosslinked polyelectrolyte nanocarriers: Recent advances and open problems. Curr. Opin. Colloid 2014, 19, 122–130. [Google Scholar] [CrossRef]
  33. Bao, D.; Chen, M.; Wang, H.; Wang, J.; Liu, C.; Sun, R. Preparation and characterization of double crosslinked hydrogel films from carboxymethylchitosan and carboxymethylcellulose. Carbohydr. Polym. 2014, 110, 113–120. [Google Scholar] [CrossRef] [PubMed]
  34. Chang, K.; Lin, C.; Ho, G.; Huang, Y.; Lee, Y. Synthesis and self-assembly of comb-like amphiphilic Doxifluridine-poly(epsilon-caprolactone)-graft-poly(γ-glutamic acid) copolymer. Polymer 2009, 50, 1755–1763. [Google Scholar] [CrossRef]
  35. Tang, H.; Chen, Y.; Tan, H. Primary study on preparation and water absorption property of the CMCTS-g-(PAA-co-PDMDAAC) polyampholytic superabsorbent polymer. Polym. Mater. Sci. Eng. 2006, 22, 115–118. [Google Scholar]
  36. Fang, J.; Zhang, Y.; Yan, S.; Liu, Z.; He, S.; Cui, L.; Yin, J. Poly(l-glutamic acid)/chitosan polyelectrolyte complex porous microspheres as cell microcarriers for cartilage regeneration. Acta Biomater. 2014, 10, 276–288. [Google Scholar] [CrossRef] [PubMed]
  37. Ma, J.; Shen, Y.; Shen, C.; Wen, Y.; Liu, W. Al-doping chitosan-Fe(III) hydrogel for the removal of fluoride from aqueous solutions. Chem. Eng. J. 2014, 248, 98–106. [Google Scholar] [CrossRef]
  38. Ng, M.; Liana, A.E.; Liu, S.; Lim, M.; Chow, C.W.K.; Wang, D.; Drikas, M.; Amal, R. Preparation and characterisation of new-polyaluminum chloride-chitosan composite coagulant. Water Res. 2012, 46, 4614–4620. [Google Scholar] [CrossRef] [PubMed]
  39. Chen, Y.; Liang, Y.; Chen, N.; Guo, Y.; Ye, Y.; Tan, H. A Sustained Release of Model Drug from a Novel Polyacrylic Acid-polyaluminium Chloride Superabsorbent. Iran. Polym. J. 2010, 19, 531–540. [Google Scholar]
  40. Chen, Y.; Tan, H.M. Crosslinked carboxymethylchitosan-g-poly(acrylic acid) copolymer as a novel superabsorbent polymer. Carbohydr. Res. 2006, 341, 887–896. [Google Scholar] [CrossRef] [PubMed]
  41. Hussain, T.; Ranjha, N.M.; Shahzad, Y. Swelling and controlled release of tramadol hydrochloride from a pH-sensitive hydrogel. Des. Monomers Polym. 2011, 14, 233–249. [Google Scholar] [CrossRef]
  42. Singh, B.; Sharma, V. Influence of polymer network parameters of tragacanth gum-based pH responsive hydrogels on drug delivery. Carbohydr. Polym. 2014, 101, 928–940. [Google Scholar] [CrossRef] [PubMed]

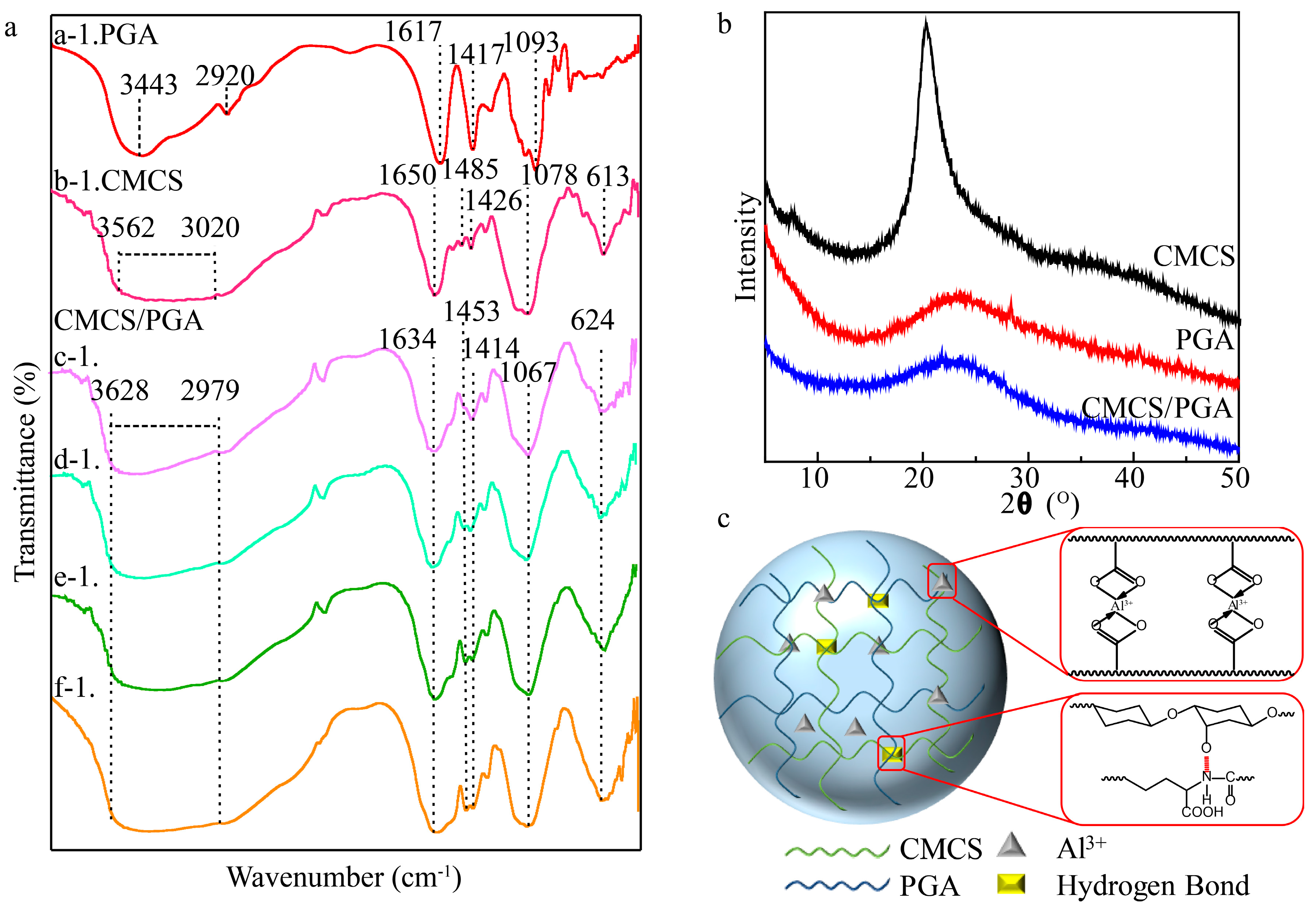

Figure 1. Structural characterization of CMCS/PGA composite microparticles. (a) FT-IR spectra of PGA (a-1), CMCS (b-1) and CMCS/PGA composite microparticles prepared at the feeding ratio mCMCS:mPGA= 9:1 (c-1), 8:2 (d-1), 7:3 (e-1), 6:4 (f-1); (b) XRD patterns of CMCS, PGA and CMCS/PGAcomposite microparticles; and (c) the scheme of the composite microparticles.
Figure 1. Structural characterization of CMCS/PGA composite microparticles. (a) FT-IR spectra of PGA (a-1), CMCS (b-1) and CMCS/PGA composite microparticles prepared at the feeding ratio mCMCS:mPGA= 9:1 (c-1), 8:2 (d-1), 7:3 (e-1), 6:4 (f-1); (b) XRD patterns of CMCS, PGA and CMCS/PGAcomposite microparticles; and (c) the scheme of the composite microparticles.
Marinedrugs 15 00127 g001

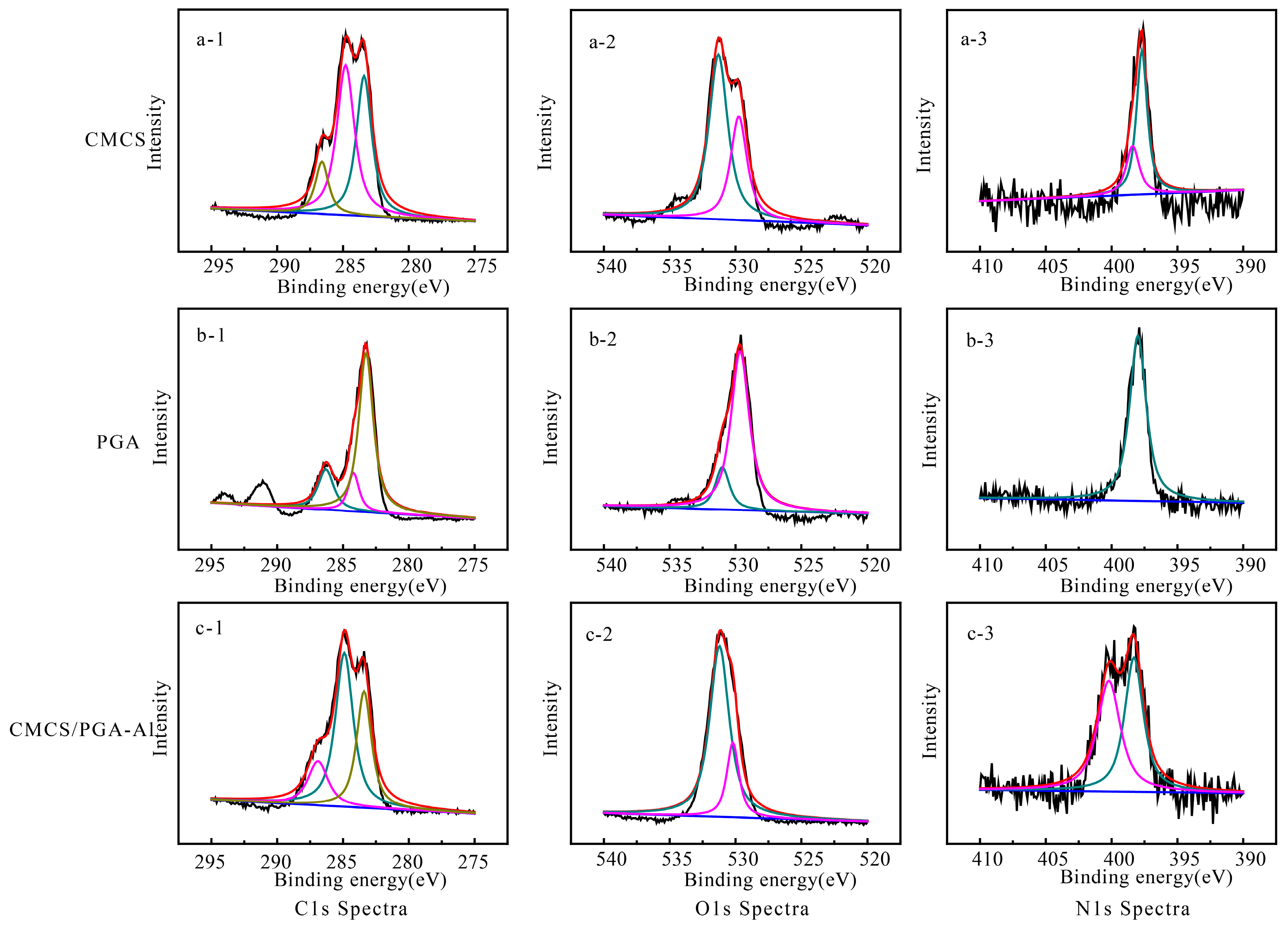

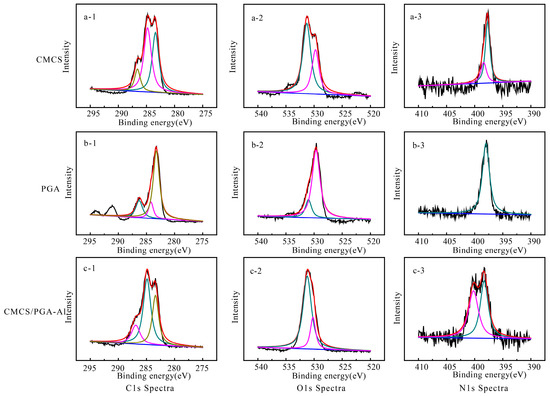

Figure 2. XPS spectra of CMCS, PGA, and CMCS/PGA composite microparticles. The spectra include C1s (a-1, b-1, c-1), O1s (a-2, b-2, c-2), and N1s (c-1, c-2, c-3); a-1,2,3 belong to CMCS, b-1,2,3 belong to PGA, c-1,2,3 belong to CMCS/PGA composite microparticles.
Figure 2. XPS spectra of CMCS, PGA, and CMCS/PGA composite microparticles. The spectra include C1s (a-1, b-1, c-1), O1s (a-2, b-2, c-2), and N1s (c-1, c-2, c-3); a-1,2,3 belong to CMCS, b-1,2,3 belong to PGA, c-1,2,3 belong to CMCS/PGA composite microparticles.
Marinedrugs 15 00127 g002

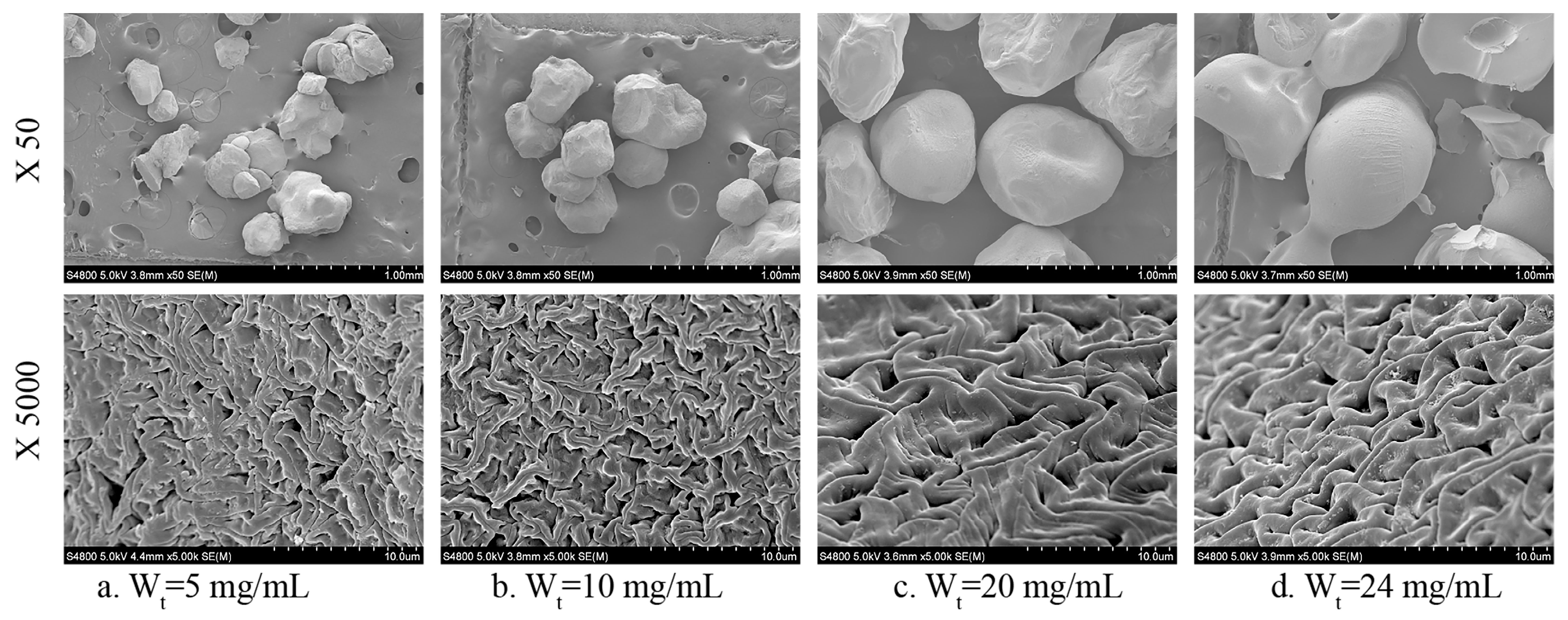

Figure 3. SEM images (50×) and (5000×) of CMCS/PGA microparticles prepared at different polymer concentrations (Wt).
Figure 3. SEM images (50×) and (5000×) of CMCS/PGA microparticles prepared at different polymer concentrations (Wt).
Marinedrugs 15 00127 g003

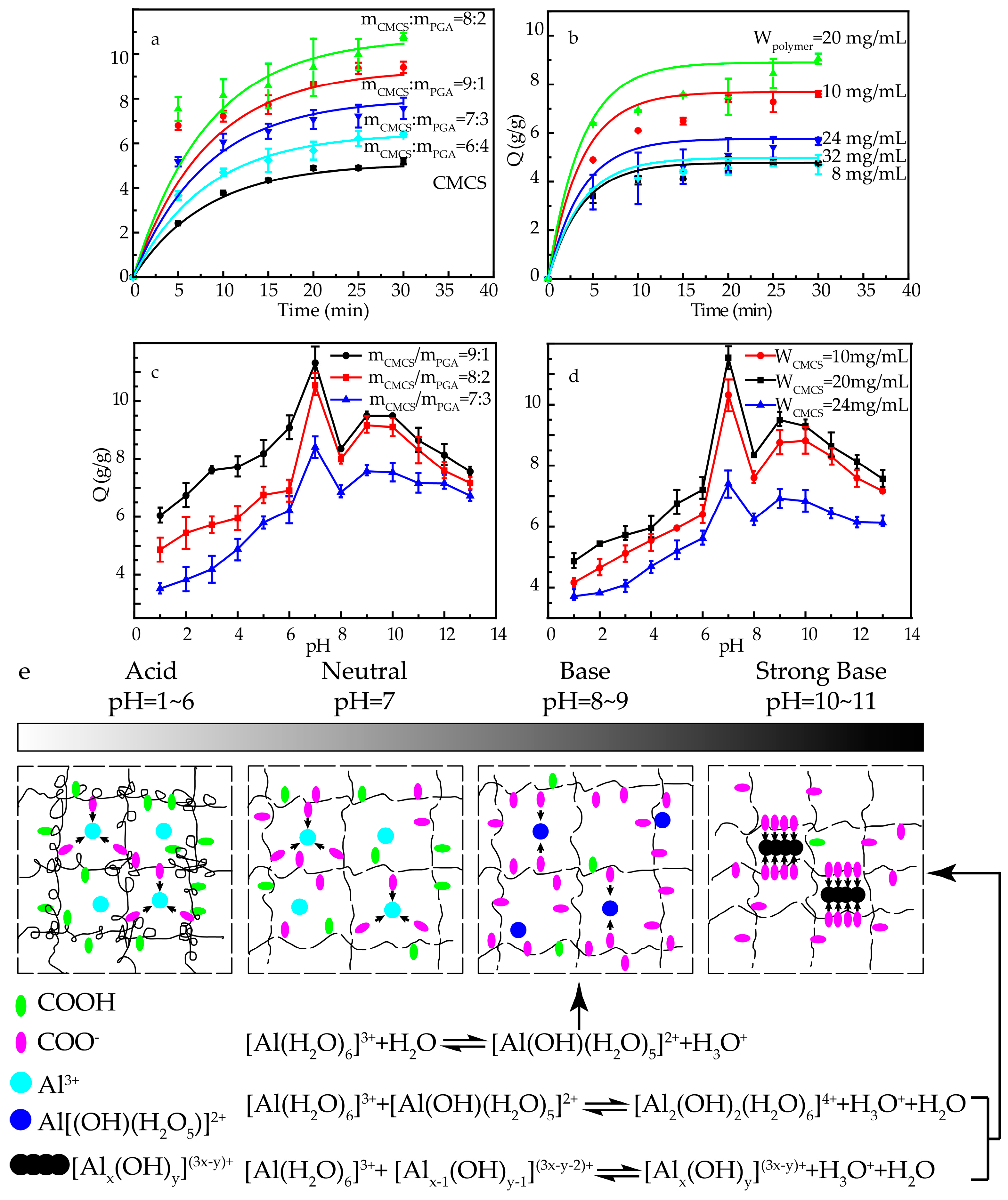

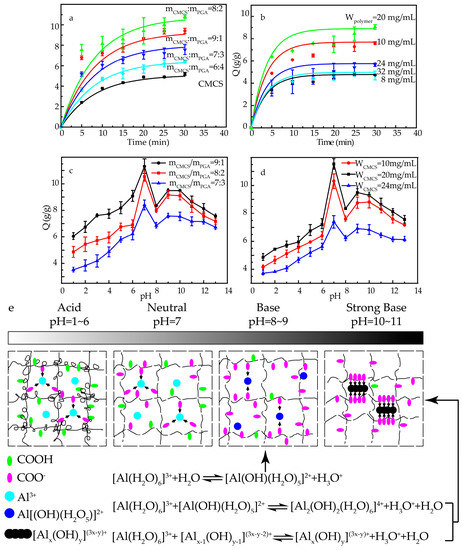

Figure 4. The swelling behaviors and pH responsive behaviors of CMCS/PGA composite microparticles and the proposed mechanism of the pH responsive behavior. (1) Effects of feeding ratio (a) and CMCS weight ratio (b) on the swelling behavior of CMCS/PGA composite microparticles; (2) Effects of feeding ratio (c) and CMCS weight ratio (d) on the pH responsive behavior of CMCS/PGA composite microparticles; and (3) the proposed mechanism of pH responsive behavior (e).
Figure 4. The swelling behaviors and pH responsive behaviors of CMCS/PGA composite microparticles and the proposed mechanism of the pH responsive behavior. (1) Effects of feeding ratio (a) and CMCS weight ratio (b) on the swelling behavior of CMCS/PGA composite microparticles; (2) Effects of feeding ratio (c) and CMCS weight ratio (d) on the pH responsive behavior of CMCS/PGA composite microparticles; and (3) the proposed mechanism of pH responsive behavior (e).
Marinedrugs 15 00127 g004

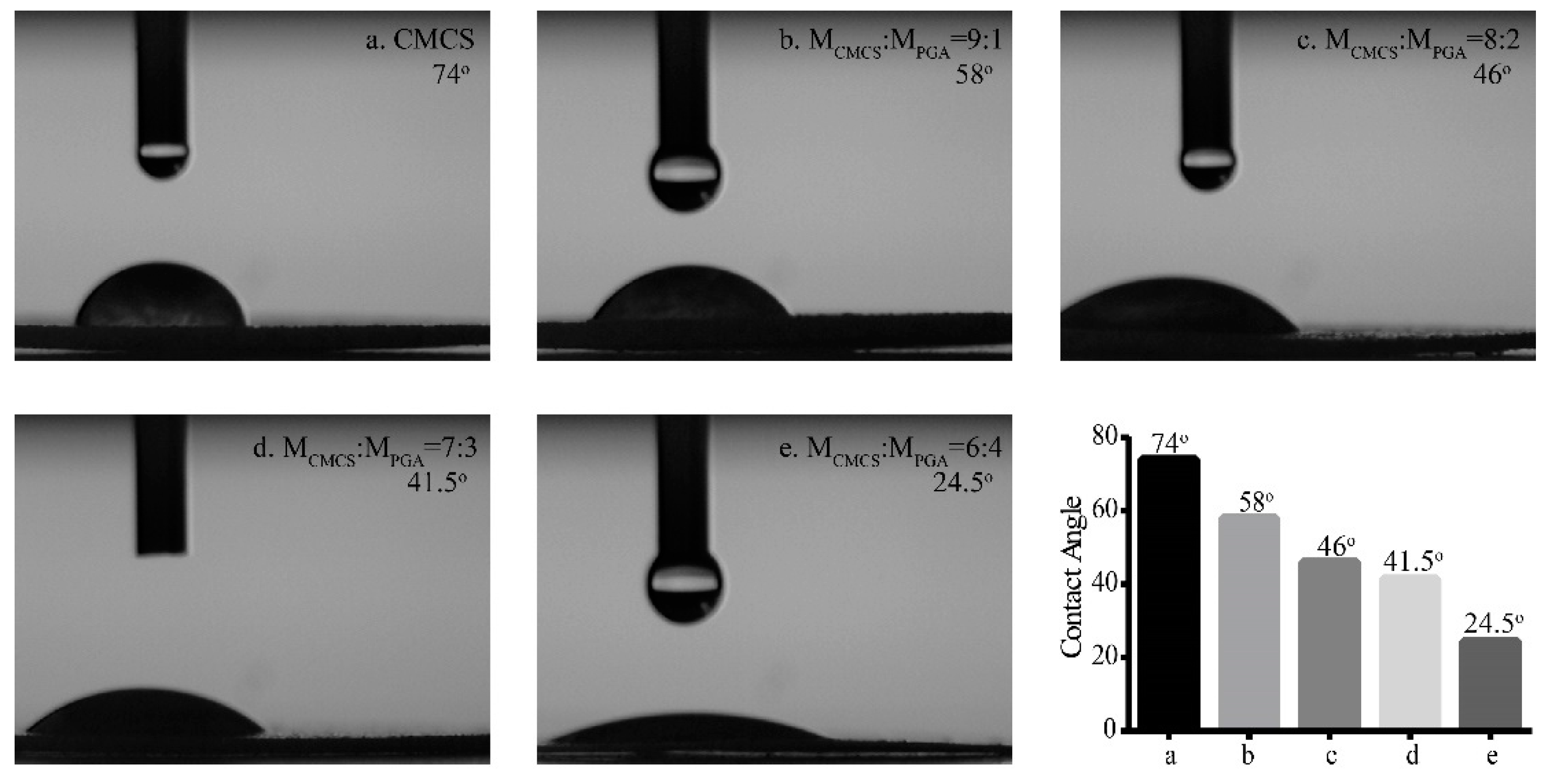

Figure 5. Water contact angles of CMCS microparticles (a) and CMCS/PGA composite microparticles prepared at mCMCS:mPGA = 9:1 (b), 8:2 (c), 7:3 (d), and 6:4 (e).
Figure 5. Water contact angles of CMCS microparticles (a) and CMCS/PGA composite microparticles prepared at mCMCS:mPGA = 9:1 (b), 8:2 (c), 7:3 (d), and 6:4 (e).
Marinedrugs 15 00127 g005

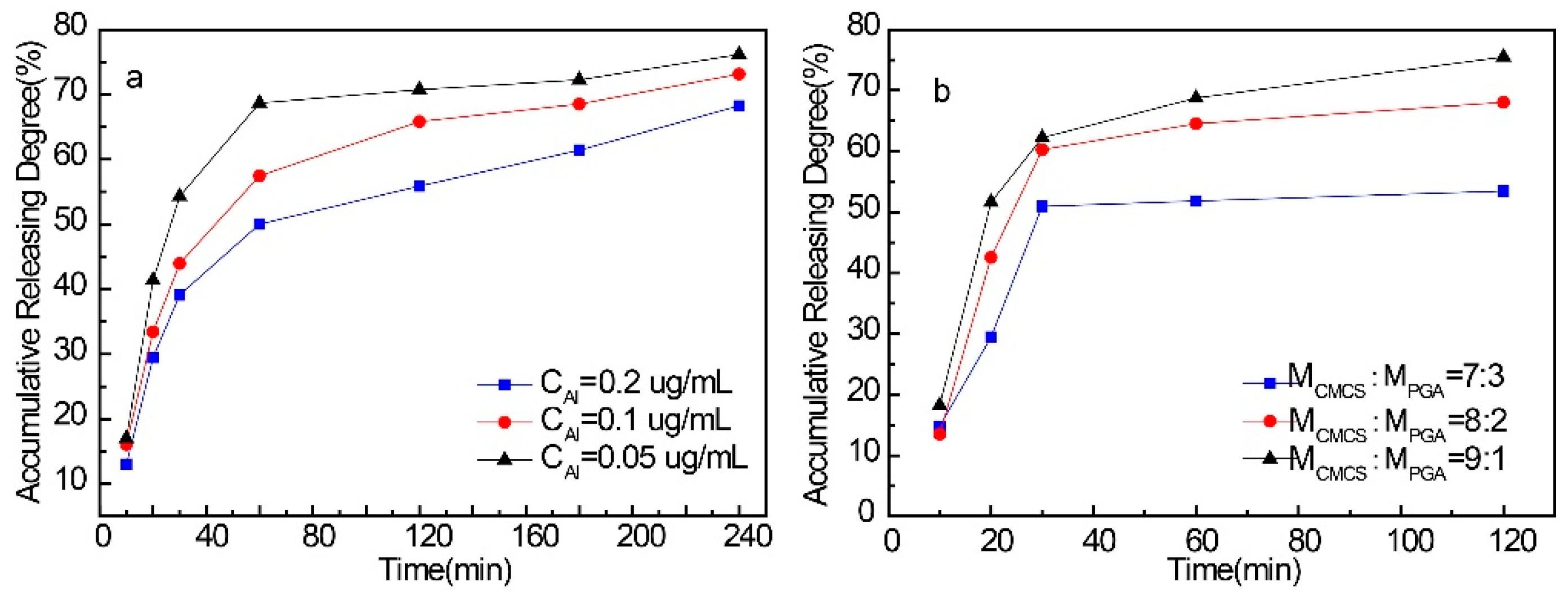

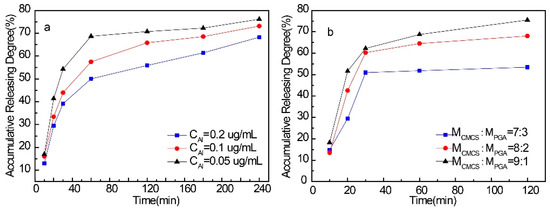

Figure 6. The drug release behaviors of LFX loaded CMCS/PGA composite microparticles prepared at different [Al3+] levels (a) and different feeding ratio (b).
Figure 6. The drug release behaviors of LFX loaded CMCS/PGA composite microparticles prepared at different [Al3+] levels (a) and different feeding ratio (b).
Marinedrugs 15 00127 g006
Table 1. Swelling kinetic parameter of various CMCS/PGA composite microparticles.
Table 1. Swelling kinetic parameter of various CMCS/PGA composite microparticles.
mCMCS:mPGAσ0/E (g·g−1)τ0 (min)ki (g·min−1)tc (min)
CMCS5.1057.7120.3839.394
9:19.3167.3330.7408.788
8:210.7386.3550.9877.576
7:38.0067.3080.6378.788
6:46.4627.8970.4789.394
CCMCS+PGA (g/mL)σ0/E (g·g−1)τ0 (min)ki (g·min−1)tc (min)
0.0084.7866.5130.4267.879
0.0107.6906.3380.7087.576
0.0208.9025.3550.9746.354
0.0245.7635.5890.6026.667
0.0324.9856.2390.4637.576
Table 2. Simulation of the releasing kinetics of LFX loaded CMCS/PGA composite microparticles.
Table 2. Simulation of the releasing kinetics of LFX loaded CMCS/PGA composite microparticles.
ConditionsModelFitting EquationR
CAl = 0.05 μg/mLZero-order equationy = 0.0019t + 0.39710.7092
One-order equationln(1 − y) = −0.0043t − 0.53460.8089
Higuchi equationy = 0.0389t1/2 + 0.23490.8192
CAl = 0.10 μg/mLZero-order equationy = 0.0020t + 0.32030.8292
One-order equationln(1 − y) = −0.0044t − 0.38100.9072
Higuchi equationy = 0.0413t1/2 + 0.15350.9142
CAl = 0.20 μg/mLZero-order equationy = 0.0019t + 0.27060.8613
One-order equationln(1 − y)= −0.0037t − 0.30380.9304
Higuchi equationy = 0.0388t1/2 + 0.11670.9317
Table 3. Conditions for preparation of various CMCS/PGA composite microparticles.
Table 3. Conditions for preparation of various CMCS/PGA composite microparticles.
SamplesmCMCS:mPGAPolymer Concentration (mg/mL)[Al3+] (g/mL)
110:0200.1
29:122
38:225
47:329
56:433
68:2100.1
712.5
825
930
1040
118:2250.05
120.1
130.2
