Article

Identification and Antifungal Activity of Compounds from the Mangrove Endophytic Fungus Aspergillus clavatus R7

1
College of Materials and Energy, South China Agricultural University, Guangzhou 510642, China
2
School of Chemistry and Chemical Engineering, Sun Yat-Sen University, Guangzhou 510275, China
*
Authors to whom correspondence should be addressed.
Mar. Drugs 2017, 15(8), 259; https://doi.org/10.3390/md15080259
Submission received: 17 July 2017 / Accepted: 17 August 2017 / Published: 19 August 2017

Abstract

:
Two new coumarin derivatives, 4,4′-dimethoxy-5,5′-dimethyl-7,7′-oxydicoumarin (1), 7-(γ,γ-dimethylallyloxy)-5-methoxy-4-methylcoumarin (2), a new chromone derivative, (S)-5-hydroxy-2,6-dimethyl-4H-furo[3,4-g]benzopyran-4,8(6H)-dione (5), and a new sterone derivative, 24-hydroxylergosta-4,6,8(14),22-tetraen-3-one (6), along with two known bicoumarins, kotanin (3) and orlandin (4), were isolated from an endophytic fungus Aspergillus clavatus (collection No. R7), isolated from the root of Myoporum bontioides collected from Leizhou Peninsula, China. Their structures were elucidated using 1D- and 2D- NMR spectroscopy, and HRESIMS. The absolute configuration of compound 5 was determined by comparison of the experimental and calculated electronic circular dichroism (ECD) spectra. Compound 6 significantly inhibited the plant pathogenic fungi Fusarium oxysporum, Colletotrichum musae and Penicillium italicum, compound 5 significantly inhibited Colletotrichum musae, and compounds 1, 3 and 4 greatly inhibited Fusarium oxysporum, showing the antifungal activities higher than those of the positive control, triadimefon.

Graphical Abstract

1. Introduction

Marine mangrove endophytic fungi are among the most productive sources of structurally unusual and biologically active natural products [1,2,3]. Aspergillus clavatus, belonging to Ascomycetes (Eurotiales, Trichocomaceae), is usually found as a saprophytic fungus, which is widespread in nature, producing mycotoxins and other metabolites with activities [4,5,6,7,8,9]. In our continuous search for new bioactive natural products from mangrove endophytes, the methanol extract from the endophytic fungus, A. clavatus (collection No. R7) isolated from the root of Myoporum bontioides A. Gray collected from Leizhou Peninsula, China, had been screened to show antifungal activities against several plant pathogenic fungi [10]. This prompted us to investigate the corresponding metabolites. As a result, two new coumarin derivatives, 4,4′-dimethoxy-5,5′-dimethyl-7,7′-oxydicoumarin (1), 7-(γ,γ-dimethylallyloxy)-5-methoxy-4-methylcoumarin (2), a new chromone derivative, (S)-5-hydroxy-2,6-dimethyl-4H-furo[3,4-g]benzopyran-4,8(6H)-dione (5), and a new sterone derivative, 24-hydroxylergosta-4,6,8(14),22-tetraen-3-one (6), along with two known bicoumarins, kotanin (3) and orlandin (4) [11], were isolated (Figure 1). Herein, we report their isolation, structural elucidation and bioactivity.

2. Results and Discussion

Compound 1 was obtained as a white, amorphous powder. It showed a molecular ion peak at m/z 395.1129 in the positive HR-ESI-MS spectrum, corresponding to molecular formula C22H18O7 (fourteen degrees of unsaturation) ([M + H]+, calcd. 395.1125). The 1H NMR spectrum of 1 (Table 1) exhibited signals of two meta-coupling aromatic protons at δH 6.92 (d, 1H, 2.4 Hz) and 7.05 (d, 1H, 2.4 Hz), an olefinic proton at δH 5.70 (s, 1H), an aromatic methyl group at δH 2.56 (s, 3H) and a methoxyl group at δH 3.94 (s, 3H). The 13C NMR and HSQC spectra of 1 revealed 11 carbon signals, including one methyl, one methoxyl, one ester carbonyl and eight olefinic carbons. These NMR and MS data suggested that compound 1 was most likely a symmetrical coumarin dimer derivative [12,13], wherein each subunit was substituted by one methoxyl and one methyl, and connected together by one oxygen atom. Comparison of the NMR spectral data of compound 1 with those of the known 7-hydroxy-4-methoxy-5-methylcoumarin [11] showed great similarity in that they both use deuterated dimethyl sulfoxide as solvent. However, the chemical shifts of compound 1 are obviously shifted downfield by 3.3/0.28, 6.0/0.37 ppm at C-6/H-6, C-8/H-8, and upfield by 5.7 ppm at C-7, compared with those of 7-hydroxy-4-methoxy-5-methylcoumarin, suggesting that the two coumarin subunits were presumably connected together through an oxygen atom from C-7 and C-7′ in 1. This presumption was further confirmed by HMBC experiment (Figure 2). HMBC correlations from δH 6.92 (H-6/H-6′) to δC 109.4 (C-4a/C-4′a), 155.5 (C-7/C-7′), 105.4 (C-8/C-8′) and 23.5 (C-10/C-10′), from δH 2.56 (H-10/H-10′) to δC 109.4 (C-4a/C-4′a), 137.9 (C-5/C-5′) and 119.6 (C-6/C-6′), and from δH 7.05 (H-8/H-8′) to δC 109.4 (C-4a/C-4′a) and 156.4 (C-8a/C-8′a), suggested that the methyl (C-10/C-10′) and the oxygen atom were attached on C-5/C-5′ and C-7/C-7′, respectively. Simultaneously, HMBC correlations from δH 5.70 (H-3/H-3′) to δC 162.1 (C-2/C-2′), 169.5 (C-4/C-4′), and 109.4 (C-4a/C-4′a), and from δH 3.94 (H-9/H-9′) to 169.5 (C-4/C-4′), along with a four-bond HMBC correlation from δH 2.56 (H-10/H-10′) to δC 169.5 (C-4/C-4′), indicated that the methoxyl was connected to C-4/C-4′. Therefore, compound 1 was unambiguously elucidated as 4,4′-dimethoxy-5,5′-dimethyl-7,7′-oxydicoumarin.
Compound 2 was obtained as white needles. Its molecular formula of C16H18O4 (eight degrees of unsaturation) was determined based on HRESIMS (m/z 275.1277 [M + H]+, calcd. 275.1277, and 297.1106 [M + Na]+, calcd. 297.1097). The 1H NMR spectrum (Table 1) showed signals of two meta-coupling aromatic protons at δH 6.64 (d, 1H, 2.4 Hz) and 6.68 (d, 1H, 2.4 Hz), an olefinic proton at δH 5.54 (s, 1H), an aromatic methyl group at δH 2.62 (s, 3H), a methoxyl group at δH 3.94 (s, 3H), and a prenyloxy moiety at δH 1.77 (3H, s), 1.82 (3H, s), 5.47 (1H, t, 7.2 Hz), 4.55 (d, 2H, 7.2 Hz). The 13C NMR spectrum (Table 1) exhibited 16 carbon including one methyl, one methoxyl, one ester carbonyl, one prenyl group, and eight olefinic carbons. These NMR data of 2 were similar to those of 7-hydroxy-4-methoxy-5-methylcoumarin [11]. The obvious difference between them was ascribed to a prenyl group of the former replaced the hydroxyl proton of the latter. This deduction and the position of the prenyloxy group in 2 was confirmed by comparision with the reported examples of 7-O-prenyl coumarins such as marianins A, B [14], and anisocoumarin B [15], and by HMBC (Figure 2) correlations from H-1′ to C-7, from H-6 to C-7, C-8, C-4a, C-10, and from H-8 to C-6, C-7, C-4a and C-8a. Additionally, the positions of the other two substituents were confirmed to be the same as 7-hydroxy-4-methoxy-5-methylcoumarin by detailed analysis of the HMBC spectrum. Thus, the structure of 4 was elucidated as 7-(γ,γ-dimethylallyloxy)-5-methoxy-4-methylcoumarin.
Compound 5 was obtained as colorless powders, and its molecular formula was established as C13H10O5 with nine degrees of unsaturation by positive HR-ESI-MS (m/z 269.0423, [M + Na]+, calcd. 269.0420). The characteristic UV absorption maxima at 229, 242, 263, 345 nm suggested the presence of a chromone pattern in 5 [16,17]. The 1H and 13C NMR spectral data of 5 are listed in Table 2. The 1H NMR spectrum exhibited signals of one olefinic methyl at δH 2.52 (s, 1H), one secondary methyl at δH 1.67 (d, 6.6 Hz 3H) connected to one oxomethine at δH 5.73 (q, 6.6 Hz, 1H), one hydroxyl at δH 13.43 (s, 1H), and two aromatic proton singlets at δH 6.37 and 7.83. The olefinic methyl was revealed to be attached at C-2 due to HMBC correlations (Figure 2) from the 2-CH3 proton at δH 2.52 to C-2 (δC 170.3) and C-3 (δC 108.9), and from the aromatic H-3 proton (δH 6.37) to C-2 and C-4a (δC 112.7). The hydroxyl was proved to be substituted at C-5 based on HMBC correlations from 5-OH (δH 13.43) to C-4a, C-5 (δC 155.8) and C-5a (δC 130.7). These results, combined with the HMBC correlations, including H-9 (δH 7.37) to C-4a, C-5a, and the oxygen-bearing C-9a (δC 157.2), ambiguously established the chromone substructure, indicating that the positions of C-8a and C-9 of the aromatic ring were substituted by the remaining moiety. Subsequently, HMBC correlations from H-9 to C-8 (δC 168.2), from H-6 (δH 5.73) to C-5a, C-8, 6-CH3H 1.67), from 6-CH3 to C-5a, C-6 (δC 76.5), together with the remaining 2 degrees of unsaturation revealed by the molecular formula, suggested a γ-valerolactone ring system attached to C-8a and C-9 through C-8 and C-6, respectively. Thus, the planar structure of 5 was completely established. The absolute configuration of 5 was determined by comparing the theoretical calculation of ECD (electronic circular dichroism) with the experimental ECD [18,19]. The experimental ECD of 5 is similar to the ECD of the (S)-model compound (Figure 3), so as to determine that the absolute configuration of 5 was 6S. Therefore, the structure of 5 was as shown in Figure 1.
Compound 6 was obtained as colorless needles. The molecular formula was determined as C28H40O2 (nine degrees of unsaturation) by analysis of positive HR-ESI-MS (m/z 409.3108; [M + H]+, calcd. 409.3101). The 1H NMR spectrum of 6 displayed five olefinic proton signals at δH 6.04 (d, 1H, 9.6 Hz), 6.61 (d, 1H, 9.6 Hz), 5.75 (s, 1H), 5.48 (m, 1H), 5.49 (m, 1H), six methyl signals at δH 0.98 (s, 3H), 1.00 (s, 3H), 1.08 (d, 3H, 6.6 Hz), 0.91 (d, 3H, 3.1 Hz), 0.90 (d, 3H, 3.2 Hz), 1.23 (s, 3H), and numerous methene and methine signals ranging from δH 1.29 to 2.53. The 13C NMR and HSQC spectra showed 28 carbons, including a ketone group (δC 199.5), and four olefinic double bonds. Comparison of the 1H and 13C NMR spectral data (Table 3) of compound 6 with those of ergosta-4,6,8(14),22-tetraen-3-one [20], revealed their great structural similarities. However, the 13C NMR of the former exhibited one quaternary carbon more at δC 74.9 and one methine less at high field than in the latter. This result combined the difference between their molecular formulas presumed 6 to be a hydroxyl substituted derivate of ergosta-4,6,8(14),22-tetraen-3-one. The position of the hydroxyl group was confirmed to locate at C-24 by HMBC correlations of H-22, H-23, H-26, H-27 and H-28 to C-24 at δC 74.9. Detailed analysis of HSQC, 1H-1H-COSY, and HMBC spectra (Figure 2) allowed the complete assignment of the proton and carbon signals of 6. The relative configuration of 6 was assigned by NOESY (nuclear overhauser effect spectroscopy) experiments. In the NOESY spectrum of 6, NOE (nuclear overhauser effect) correlations of Me-18 with both H-20 and H-11a, and the lack of NOE correlations between Me-18 and H-11b, suggested β-orientations of Me-18, H-20 and H-11a. Consequently, NOE correlations between H-19 and H-11a, and the absence of NOE correlations between H-19 and H-11b suggested H-19 was also in a β-orientation. Additionally, NOE correlations between H-9 and H-1a, and between H-19 and H-1b, along with no NOE correlations between H-19 and H-1a, indicated H-9 was in an α-orientation. The configuration of double bond Δ22 was deduced to be E by comparison of the chemical shifts with those of the same positions of ergosta-4,6,8(14),22-tetraen-3-one and the large coupling constant (15.2 Hz) between H-22 and H-23. The configuration of C-24 could not be assigned based on the obtained NOE data. Therefore, compound 6 was elucidated as 24-hydroxylergosta-4,6,8(14),22-tetraen-3-one, as shown in Figure 1.
In addition, the structures of the known compounds 3 and 4 [11] were identified by comparison of their spectroscopic data with those reported in the literature. HRESIMS, 1H, 13C, 1H-1H COSY, HSQC and HMBC NMR spectra of the new compounds are available at the Supplementary Materials File (Figures S1–S22).
The antifungal activities of the isolated compounds were examined in vitro towards three plant pathogens, including Fusarium oxysporum Schlecht. f. sp. lycopersici (Sacc.) W.C. Snyder et H.N. Hansen (F. oxysporum), Colletotrichum musae (Berk. and M. A. Curtis) Arx. (C. musae), and Penicillium italicum Wehme (P. italicm). From the results presented in Table 4, all of the compounds showed broad-spectrum inhibitory activities against these fungi except compound 2, which is inactive towards P. italicm with MIC value >729.66 μM. Moreover, compound 6 exhibited the strongest broad-spectrum inhibitory activities against all the three pathogenic fungi F. oxysporum, C. musae and P. italicm with MIC values of 244.73, 195.79 and 61.18 μM, respectively, in comparison with other compounds and triadimefon (used as the positive control, MIC values = 340.43, 272.39, 170.24 μM, respectively). In addition, compounds 1, 3 and 4 showed high activities against F. oxysporum (MICs = 253.81, 235.85, 252.47 μM, respectively), which was better than triadimefon. Whereas compound 5 displayed more potent inhibitory activity against C. musae, with MIC values of 203.07 μM, than triadimefon.

3. Experimental Section

3.1. General Experimental Procetures

Melting points were determined using a JH30 melting point detector (Jia Hang Instrument Co., Ltd., Shanghai, China). Optical rotations were measured using a Horiba SEPA-300 polarimeter at 25 °C. The UV spectra were obtained on a Shimadzu UV-2550 spectrophotometer (Shimadzu, Tokyo, Japan), and IR spectra were run on a Nicolet 5DX-Fourier transform infrared spectrophotometer (Thermo Electron Corporation, Madison, WI, USA). NMR spectra data were recorded at Bruker AV-600 MHz NMR spectrometers (Bruker Biospin AG, Fällanden, Switzerland), with tetramethylsilane (TMS) as internal standard, and the chemical shifts were reported in δ values (ppm). The HRESIMS spectra were recorded on an Q-TOF mass spectrometer (Thermo Fisher, Frankfurt, Germany). CD spectra were recorded with a Chirascan™ CD spectrometer (Applied Photophysics, Leatherhead, UK). Silica gel (200–300 mesh) for column chromatography was purchased from Qingdao Haiyang Chemical Co., Ltd., Qingdao, China. Sephadex LH-20 was purchased from Amersham Pharmacia Biotech. Buckinghamshire, UK. All other chemicals were of analytical grade.

3.2. Fungal Material and Fermentation

The fungal strain R7 was isolated from the root of M. bontioides, collected from the mangrove in Leizhou peninsula, China, in May 2014, and deposited at the College of Materials and Energy, South China Agricultural University, Guangdong Province, China. The strain has been identified as A. clavatus, according to morphologic traits and molecular identification [10]. Its 599 base pair ITS sequence had 99% sequence identity to those of several A. clavatus strains (AY373847.1, NR121482.1, KF669481.1) by a NCBI BLAST search. The sequence data has been submitted to GenBank with accession number KY765893.
A small agar scrap with mycelium of the fungal isolate which was grown on potato dextrose agar medium for 5 days at 28 °C was added into 250 mL GYT medium (1% glucose, 0.1% yeast extract, 0.2% peptone, 0.2% crude sea salt), and incubated at 28 °C, 180 rpm for 6 days as seed culture. Then the seed culture was grown on a solid autoclaved rice substrate medium (one hundred 1000 mL Erlenmeyer flasks, each containing 100 mL water, 100 g rice and 0.3 g crude sea salt) for 30 days at 25 °C under static stations.

3.3. Extraction and Isolation

The mycelia and solid rice medium were extracted with 95% ethanol three times. The solvent was concentrated to 1 L in vacuo and extracted with equal volume of ethyl acetate, yielding 70.0 g extract. Then the extract was subjected to a silica gel column (30 × 6 cm), eluting with gradient of petroleum ether/ethyl acetate (97:3, 95:5, 75:25, 50:50, 25:75, 0:100, v/v) to afford six fractions (Fr. A1–Fr. A6). Fraction A2 was chromatographed on Sephadex LH-20 CC (110 × 4 cm) eluting with Methanol-dichloromethane-petroleum ether (2:2:1, v/v), to obtain three subfractions (Fr. A2-1–Fr. A2-3) based on TLC properties. Fraction A2-3 was dissolved in acetone and recrystallized at room temperature to afford compound 5 (8.2 mg). Fraction A3 was purified by preparative silica gel TLC (petroleum ether/ethyl acetate, 5:1, v/v) to yield compound 6 (15 mg). Fraction A4 was further fractioned by silica gel eluting with petroleum ether-ethyl acetate (85:15, 75:25, 50:50, v/v) to give three subfractions (Fr. A4-1–Fr. A4-3). Fraction A4-1 was separated through Sephadex LH-20 CC (methanol-dichloromethane 3:2, v/v) to afford compound 2 (7.5 mg). Fraction A4-3 was applied to preparative silica gel TLC (petroleum ether/ethyl acetate, 1:5, v/v) to give compounds 3 (6.8 mg) and 4 (4.3 mg). Fraction A6 was subjected to silica gel column chromatography and eluted with ethyl acetate/methanol (50:50, 15:85, 0:100, v/v), leading to three subfractions (Fr. A6-1–Fr. A6-3). Fraction A6-3 was further chromatographed on a Sephadex LH-20 column using methanol/dichloromethane (3:2, v/v) to afford compound 1 (1.8 mg).
4,4′-dimethoxy-5,5′-dimethyl-7,7′-oxydicoumarin (1): White amorphous powder. m.p. 174.7–175.3 °C; HR-ESI-MS m/z 315.1129 ([M + H]+, calcd. for C22H19O7 315.1125). 1H NMR and 13C NMR data see Table 1.
7-(γ,γ-dimethylallyloxy)-5-methoxy-4-methylcoumarin (2): White crystal. m.p. 115.5–116.3 °C; UV (EtOH) λmax (log ε): 208 (4.28), 218 (4.08), 310 (3.81) nm; IR (KBr) νmax: 3144, 2968, 1716, 1613, 1575, 1400, 1256, 1152 cm−1; HR-ESI-MS m/z 275.1127 ([M + H]+, calcd. for C16H19O4 275.1127). 1H NMR and 13C NMR see Table 1.
(S)-5-hydroxy-2,6-dimethyl-4H-furo[3,4-g]benzopyran-4,8(6H)-dione (5): White needles. [α]D25 = −37.87 (c 0.0015, MeOH); UV (MeOH) λmax (log ε): 229 (4.32), 242 (4.24), 263 (3.72), 345 (3.63) nm; IR (KBr) νmax: 3420, 2987, 1635, 1616, 1487, 1396, 1173 cm−1; HR-ESI-MS m/z 269.0423 ([M + Na]+, calcd. for C13H10O5Na 269.0420). 1H NMR and 13C NMR see Table 2.
24-hydroxylergosta-4,6,8(14),22-tetraen-3-one (6): Yellow oil. [α]D25 = +173.3 (c 0.004, MeOH); UV (MeOH) λmax (log ε): 341 (3.79) nm; IR (KBr) νmax: 3420, 3136, 1669, 1650, 1528, 1453, 1401, 1385 cm−1; HR-ESI-MS m/z 409.3108 ([M + H]+, calcd. for C28H41O2 409.3101). 1H NMR and 13C NMR see Table 3.

3.4. Computational Analyses

Conformational analyses for compound 5 were performed via Spartan’10 software (Wavefunction, Inc., Irvine, CA, USA) using the MMFF94 molecular mechanics force field calculation. Conformers within a 10 kcal/mol energy window were generated and optimized using DFT calculations at the B3LYP/6-31G (d) level. Conformers for R or S were chosen for ECD calculations in MeOH at the B3LYP/6-311+G (2d, p) level. Rotary strengths for a total of 50 excited states were calculated. The IEF-PCM solvent model for MeOH was used. The calculated ECD spectra were obtained by density functional theory (DFT) and time-dependent DFT (TD-DFT) using Gaussian 09 (Gaussian Inc., Wallingford, CT, USA) program package. The calculated ECD curve was generated using SpecDis 1.6 software package (University of Wurzburg, Wurzburg, Germany) with a half-bandwidth of 0.2 eV.

3.5. Antifungal Activity Assay

The following four phytopathogenic fungi were used for bioassay: F. oxysporum, C. musae, and P. italicm. They were obtained from the College of Agriculture, South China Agricultural University. The antifungal activities of the isolated compounds were determined by the broth dilution method as described in the previous report to get the minimum inhibitory concentration (MIC) [21]. Triadimefon and the solvent were used as positive and negative control, respectively.

4. Conclusions

In conclusion, two new coumarin derivatives, 4,4′-dimethoxy-5,5′-dimethyl-7,7′-oxydicoumarin (1), 7-(γ,γ-dimethylallyloxy)-5-methoxy-4-methylcoumarin (2), a new chromone derivative, (S)-5-hydroxy-2,6-dimethyl-4H-furo[3,4-g]benzopyran-4,8(6H)-dione(5), and a new sterone derivative, 24-hydroxylergosta-4,6,8(14),22-tetraen-3-one (6), together with two known bicoumarins, kotanin (3) and orlandin (4), were isolated from an endophytic fungus Aspergillus clavatus R7, isolated from the root of Myoporum bontioides that collected from Leizhou Peninsula, China. Compound 6 remarkably inhibited Fusarium oxysporum, Colletotrichum musae and Penicillium italicum, compound 5 highly inhibited Colletotrichum musae, and compounds 1, 3 and 4 greatly inhibited Fusarium oxysporum, by comparison to triadimefon, indicating that these compounds could be used as leads of new fungicides.

Supplementary Materials

The NMR and MS spectra of 1, 2, 5 and 6 are available online at www.mdpi.com/link/1660-3397/15/8/259/s1 in Figures S1–S22.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (21102049), the Natural Science Foundation of Guangdong Province (2015A030313405, 9451064201003751), the Science and Technology Project for public welfare research and capacity building of Guangdong Province (2016A020222019), the Science and Technology Project of Guangzhou City (201707010342), and the Scientific Research Foundation for the Returned Overseas Chinese Scholars, State Education Ministry (grant number [2015] 311).

Author Contributions

C.L. and W.D. conceived and designed the experiments; W.L., P.X., W.Z., X.Z. and W.D. performed the experiments; Z.S. and C.L. analyzed the data; W.L. and W.D. wrote the paper. C.L. revised and edited the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Blunt, J.W.; Copp, B.R.; Keyzers, R.A.; Munroa, M.H.G.; Prinsep, M.R. Marine natural products. Nat. Prod. Rep. 2017, 34, 235–294. [Google Scholar] [CrossRef] [PubMed]
  2. Ahmed, A.M.M.; Taha, T.M.; Abo-Dahab, N.F.; Hassan, F.S.M. Process optimization of l-glutaminase production; a tumour inhibitor from marine endophytic isolate Aspergillus sp. ALAA-2000. J. Microb. Biochem. Technol. 2016, 8, 256–267. [Google Scholar] [CrossRef]
  3. Gao, S.; Li, X.; Williams, K.; Proksch, P.; Ji, N.; Wang, B. Rhizovarins A–F, indole-diterpenes from the mangrove-derived endophytic fungus Mucor irregularis QEN-189. J. Nat. Prod. 2016, 79, 2066–2074. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, J.; Huang, Y.; Fang, M.; Zhang, Y.; Zheng, Z.; Zhao, Y.; Su, W. Brefeldin A, a cytotoxin produced by Paecilomyces sp. and Aspergillus clavatus isolated from Taxus mairei and Torreya grandis. FEMS Immunol. Med. Microbiol. 2002, 34, 51–57. [Google Scholar] [CrossRef] [PubMed]
  5. Bawin, T.; Seye, F.; Boukraa, S.; Zimmer, J.; Raharimalala, F.N.; Ndiaye, M.; Compere, P.; Delvigne, F.; Francis, F. Histopathological effects of Aspergillus clavatus (Ascomycota: Trichocomaceae.) on larvae of the southern house mosquito, Culex quinquefasciatus (Diptera: Culicidae). Fungal Biol. 2016, 120, 489–499. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, C.; Zheng, B.; Lao, J.; Mao, L.; Chen, S.; Kubicek, C.P.; Lin, F. Clavatol and patulin formation as the antagonistic principle of Aspergillus clavatonanicus, an endophytic fungus of Taxus mairei. Appl. Microbiol. Biotechnol. 2008, 78, 833–840. [Google Scholar] [CrossRef] [PubMed]
  7. Losada, L.; Ajayi, O.; Frisvad, J.C.; Yu, J.J.; Nierman, W.C. Effect of competition on the production and activity of secondary metabolites in Aspergillus species. Med. Mycol. 2009, 47, S88–S96. [Google Scholar] [CrossRef] [PubMed]
  8. Wang, J.; Bai, G.; Liu, Y.; Wang, H.; Li, Y.; Yin, W.; Wang, Y.; Lu, F. Cytotoxic metabolites produced by the endophytic fungus Aspergillus clavatus. Chem. Lett. 2015, 44, 1148–1149. [Google Scholar] [CrossRef]
  9. Liu, J.Y.; Song, Y.C.; Zhang, Z.; Wang, L.; Guo, Z.J.; Zou, W.X.; Tan, R.X. Aspergillus fumigatus CY018, an endophytic fungus in Cynodon dactylon as a versatile producer of new and bioactive metabolites. J. Biotechnol. 2004, 114, 279–287. [Google Scholar] [CrossRef] [PubMed]
  10. Ding, W.; Zhang, S.; Gong, B.; Li, C.; Wang, X. Isolation and inhibitory activity of endophytic fungi from the semi-mangrove plant Myoporum bontioides A. Gray. Guangdong Agric. Sci. 2014, 41, 74–78. [Google Scholar]
  11. Hüttel, W.; Müller, M. Regio- and stereoselective Intermolecular oxidative phenol coupling in kotanin biosynthesis by Aspergillus niger. ChemBioChem 2007, 8, 521–529. [Google Scholar] [CrossRef] [PubMed]
  12. Ju-ichi, M.; Takemura, Y.; Okano, M.; Fukamiya, N.; Hatano, K.; Asakawa, Y.; Hashimoto, T.; Ito, C.; Furukawa, H. The structures of claudimerines-A and -B, novel bicoumarins from Citrus hassaku. Chem. Pharm. Bull. 1996, 44, 11–14. [Google Scholar] [CrossRef]
  13. Mahibalan, S.; Rao, P.C.; Khan, R.; Basha, A.; Siddareddy, R.; Masubuti, H.; Fujimoto, Y.; Begum, A.S. Cytotoxic constituents of Oldenlandia umbellata and isolation of a new symmetrical coumarin dimer. Med. Chem. Res. 2016, 25, 466–472. [Google Scholar] [CrossRef]
  14. Fukuda, T.; Sudoh, Y.; Tsuchiya, Y.; Okuda, T.; Fujimori, F.; Igarashi, Y. Marianins A and B, prenylated phenylpropanoids from Mariannaea camptospora. J. Nat. Prod. 2011, 74, 1327–1330. [Google Scholar] [CrossRef] [PubMed]
  15. Ngadjui, T.B.; Ayafor, J.F.; Sondengam, B.L.; Connolly, J.D. Coumarins from Clausena anisata. Phytochemistry 1989, 28, 585–589. [Google Scholar] [CrossRef]
  16. Huang, M.; Li, J.; Liu, L.; Yin, S.; Wang, J.; Lin, Y. Phomopsichin A–D; four new chromone derivatives from mangrove endophytic fungus Phomopsis sp. 33#. Mar. Drugs 2016, 14, 215. [Google Scholar] [CrossRef]
  17. Xia, M.; Cui, C.; Li, C.; Wu, C.; Peng, J.; Li, D. Rare chromones from a fungal mutant of the marine-derived Penicillium purpurogenum G59. Mar. Drugs 2015, 13, 5219–5236. [Google Scholar] [CrossRef] [PubMed]
  18. Srebro-Hooper, M.; Autschbach, J. Calculating natural optical activity of molecules from first principles. Annu. Rev. Phys. Chem. 2017, 68, 399–420. [Google Scholar] [CrossRef] [PubMed]
  19. Pescitelli, G.; Bruhn, T. Good Computational Practice in the Assignment of Absolute Configurations by TDDFT Calculations of ECD Spectra. Chirality 2016, 28, 466–474. [Google Scholar] [CrossRef] [PubMed]
  20. Fujimoto, H.; Nakamura, E.; Okuyama, E.; Ishibashi, M. Six immunosuppressive features from an ascomycete, Zopfiella longicaudata, found in a screening study monitored by immunomodulatory activity. Chem. Pharm. Bull. 2004, 52, 1005–1008. [Google Scholar] [CrossRef] [PubMed]
  21. Wang, J.; Ding, W.; Wang, R.; Du, Y.; Liu, H.; Kong, X.; Li, C. Identification and bioactivity of compounds from the mangrove endophytic fungus Alternaria sp. Mar. Drugs 2015, 13, 4492–4504. [Google Scholar] [CrossRef] [PubMed]

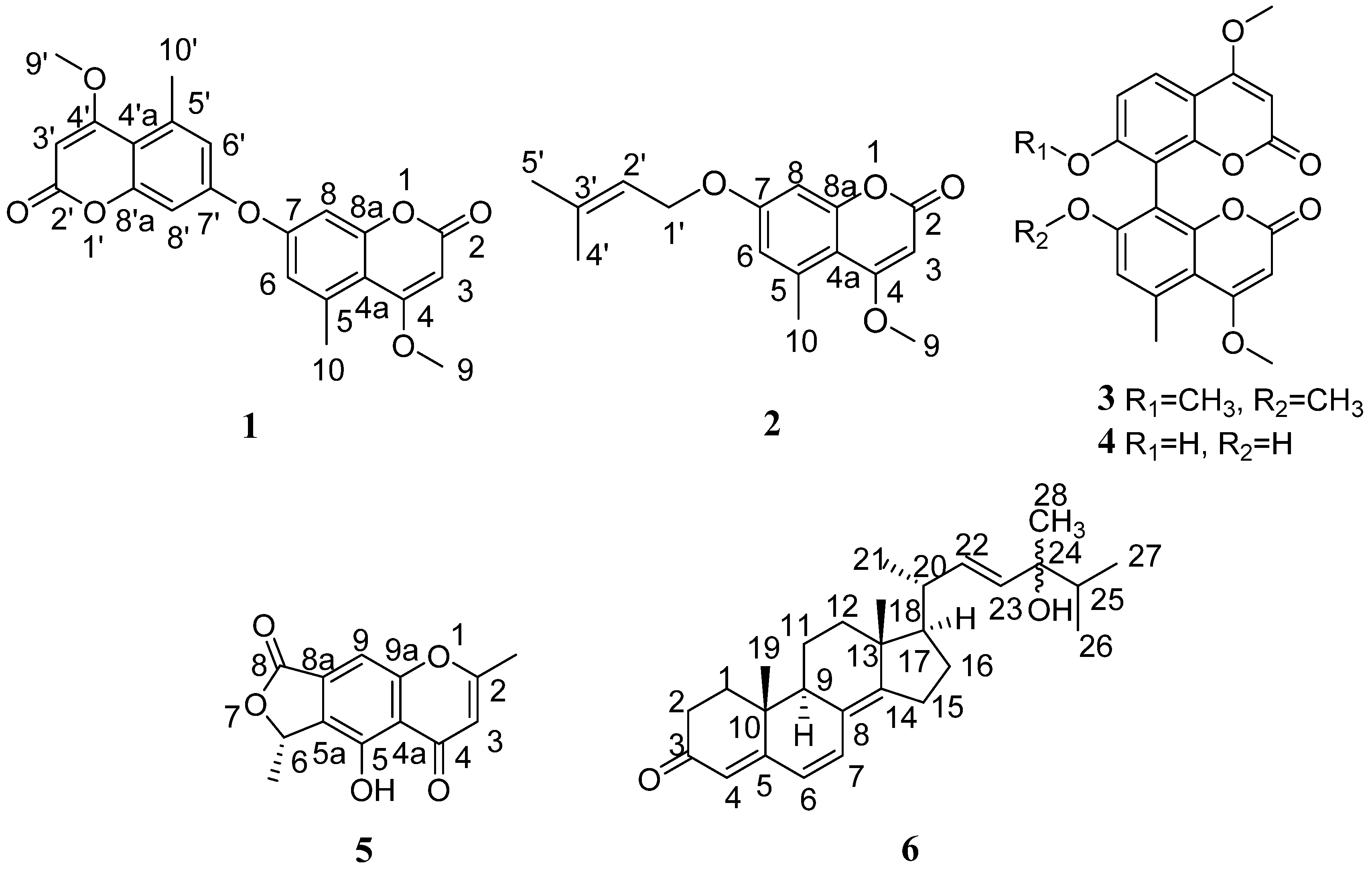

Figure 1. The chemical structures of compounds 16.
Figure 1. The chemical structures of compounds 16.
Marinedrugs 15 00259 g001

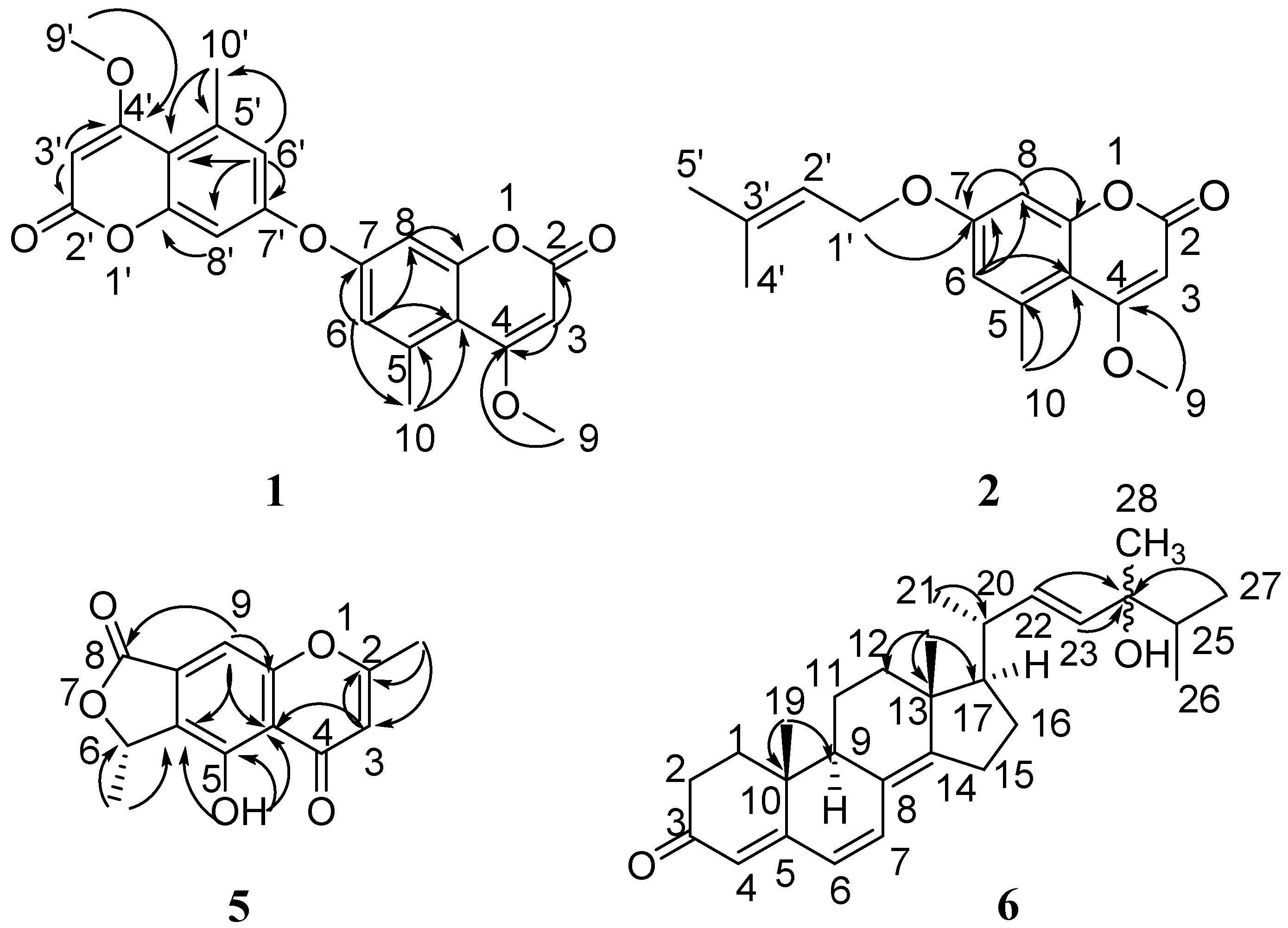

Figure 2. Selected HMBC (arrow) correlations of 1, 2, 5 and 6.
Figure 2. Selected HMBC (arrow) correlations of 1, 2, 5 and 6.
Marinedrugs 15 00259 g002

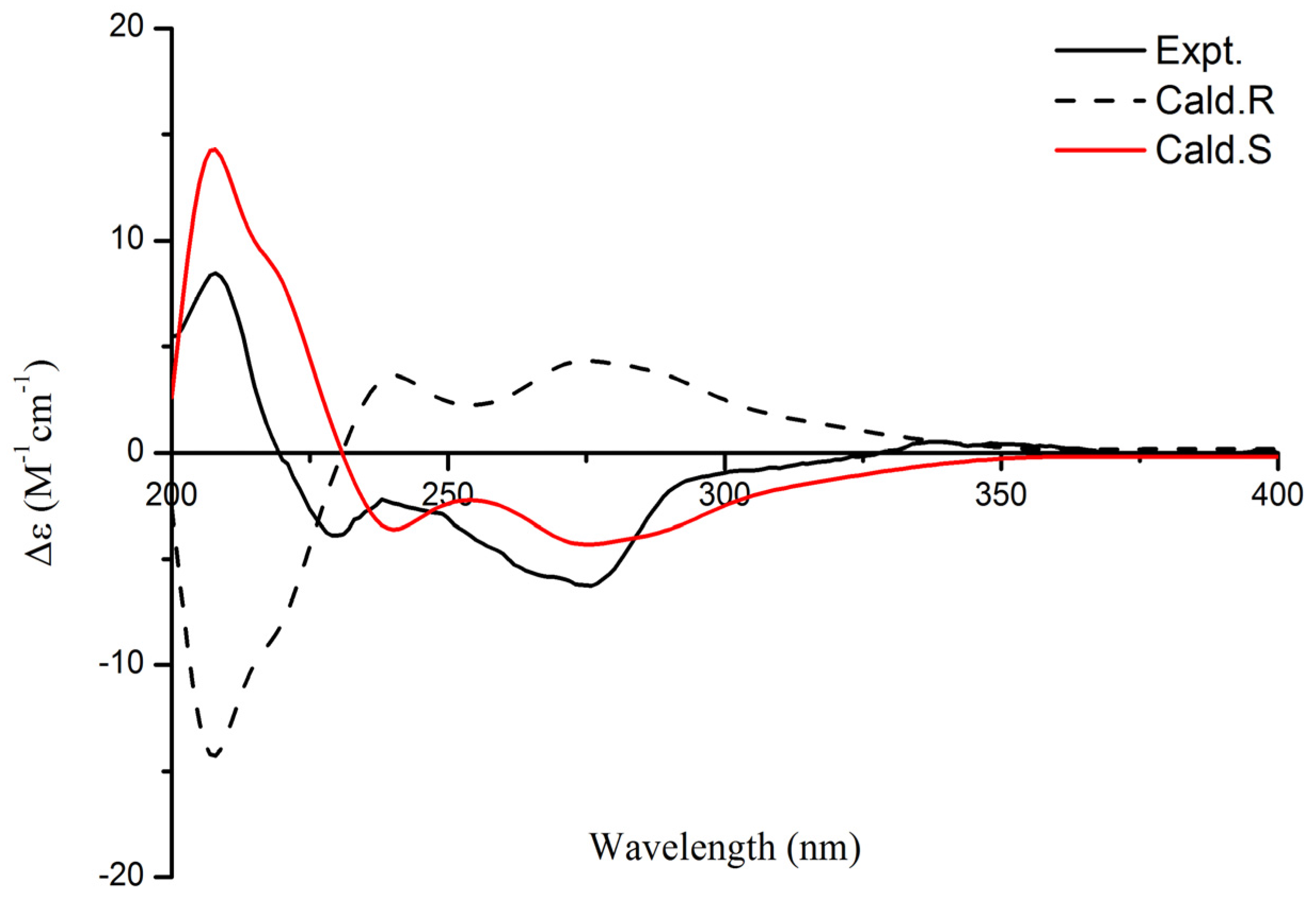

Figure 3. The calculated and experimental ECD spectra of 5.
Figure 3. The calculated and experimental ECD spectra of 5.
Marinedrugs 15 00259 g003
Table 1. 1H and 13C NMR data for compounds 1 and 2.
Table 1. 1H and 13C NMR data for compounds 1 and 2.
No.1 a2 b
δCδH, Mult. (J in Hz)δCδH, Mult. (J in Hz)
1
2162.1, C7.61, s163.2, C
2-OH
388.6, CH5.7, s87.5, CH5.54, s
4169.5, C 169.8, C
5137.9, C 138.4, C
6119.6, CH6.92, d (2.4)116.3, CH6.64, d (2.4)
7155.5, C 161.2, C
8105.4, CH7.05, d (2.4)99.4, CH6.68, d (2.4)
957.2, CH33.94, s55.9, CH33.94, s
1023.5, CH32.56, s23.4, CH32.62, s
4a109.4, C 107.8, C
8a156.4, C 156.6, C
1′ 65.1, CH24.55, d (7.2)
2′162.1, C7.61, s118.8, CH5.47, t (7.2)
3′88.6, CH5.7, s139.1, C
4′169.5, C 25.8, CH31.82, s
5′137.9, C 18.2, CH31.77, s
6′119.6, CH6.92, d (2.4)
7′155.5, C
8′105.4, CH7.05, d (2.4)
9′57.2, CH33.94, s
10′23.5, CH32.56, s
4′a109.4, C
8′a156.4, C
a Measured in CD3COCD3; b Measured in CDCl3.
Table 2. 1H and 13C NMR data for compound 5 in CD3COCD3.
Table 2. 1H and 13C NMR data for compound 5 in CD3COCD3.
No.δCδH, Mult. (J in Hz)
1
2170.3, C
2-CH319.7, CH32.52, s
3108.9, CH6.37, s
4184.0, C
4a112.7, C
5155.8, C
5-OH 13.43, s
5a130.7, C
676.5, CH5.73, q (6.6)
6-CH318.2, CH31.67, d (6.6)
8168.2, C
8a131.0, C
9102.9, CH7.37, s
9a157.2, C
Table 3. 1H and 13C NMR data for compound 6 in CDCl3.
Table 3. 1H and 13C NMR data for compound 6 in CDCl3.
No.δCδH, Mult. (J in Hz)
134.1, CH2a1.82, m
b2.02, m
234.1, CH2a2.46, m
b2.53, m
3199.5, C
4123.0, CH5.75, s
5124.5, C
6124.6, CH6.04, d (9.6)
7134.0, CH6.61, d (9.6)
8164.3, C
944.3, CH2.14, m
1036.7, C
1119.0, CH2a1.60, m
b1.71, m
1235.6, CH2a1.31, m
b2.09, m
1344.0, C
14155.7, C
1525.2, CH2a2.39, m
b2.48, m
1627.8, CH2a1.49, m
b1.80, m
755.9, CH1.29, m
1819.0, CH30.98, s
1916.6, CH31.00, s
2039.1, CH2.22, m
2121.0, CH31.08, d (6.6)
22133.7, CH)5.48, dd (8.2, 15.2)
23134.0, CH5.52, d (15.2)
2474.9, C
2538.1, CH1.70, m
2617.6, CH30.91, d (3.1)
2717.2, CH30.90, d (3.2)
2825.4, CH31.23, s
Table 4. Antifungal activity of the isolated compounds by MIC values (µM).
Table 4. Antifungal activity of the isolated compounds by MIC values (µM).
CompoundsF. oxysporumC. musaeP. italicm
1253.81380.71253.81
2729.66547.25>729.66
3235.85353.77235.85
4252.47378.71252.47
5609.21203.07304.61
6244.73195.7961.18
Triadimefon a340.43272.39170.24
a positive control.
