Communication

Isolation of Marine Bacillus sp. with Antagonistic and Organic-Substances-Degrading Activities and Its Potential Application as a Fish Probiotic

by
Shuxin Zhou
1,
Yu Xia
2,
Chongmiao Zhu
3 and
Weihua Chu
1,*
1
Department of Pharmaceutical Microbiology, School of Life Science and Technology, China Pharmaceutical University, Nanjing 210009, China
2
Bureau of Ocean and Fisheries of Jiangsu Province, Nanjing 210003, China
3
Nanjing Zhirun Bio Technology Co., Ltd., Nanjing 211200, China
*
Author to whom correspondence should be addressed.
Mar. Drugs 2018, 16(6), 196; https://doi.org/10.3390/md16060196
Submission received: 8 March 2018 / Revised: 23 May 2018 / Accepted: 1 June 2018 / Published: 5 June 2018
(This article belongs to the Special Issue Marine Probiotics and Prebiotics: Characterization and Prospects for the Development of New Drugs/Nutraceuticals)
Browse Figures
Versions Notes

Abstract

:
We report on the isolation and characterization of an acid- and bile-tolerant bacterial strain, Bacillus sp. YB1701 with antibacterial and quorum-quenching activity. Strain YB1701 was isolated from coastal sediment samples and characterized by biochemical tests and 16S rRNA sequencing. In vitro study indicated that strain YB1701 can survive at pH 2.0 for up to 3 h and tolerate bile up to 2.0% concentration even after 12 h of exposure. Strain YB1701 showed antimicrobial activity against fish pathogens Aeromonas hydrophila and Vibrio parahemolyticus using an agar well diffusion assay. The trial test showed dietary supplementation of YB1701 significantly improved the resistance of Carassius auratus gibelio against A. hydrophila challenge. The safety assessment revealed that the isolate Bacillus sp. YB1701 was not cytotoxic to Carassius auratus gibelio or mice and did not exhibit hemolytic activity on rabbit blood agar plate. Disc-diffusion assays using a panel of antibiotics listed by the European Food Safety Authority (EFSA) showed that YB1701 was susceptible to selected antibiotics. Under laboratory conditions, the degradation rate of organic waste (predominately fish excrement) for 14 days by YB1701 was 79.69%. Results from the present study suggest that strain YB1701 is a potential probiotic strain and can be used in aquaculture for degrading organic waste and improving disease resistance of fish against bacterial infection. Further study is needed to assess the utility of strain YB1701 on a commercial scale.

1. Introduction

Over the past four decades, the aquaculture industry has been developing rapidly in China with the production accounting for more than 70% of the whole world’s output [1]. Intensification of fish farm technologies has shown high potential in improving fish production and supplying more animal protein food. However, as fish farming intensifies, the amount of bait per unit area increases, while the organic pollution caused by the farming system becomes an acute issue. Antibiotics have been used as traditional disease control strategy to combat bacteria diseases. However, the usage of antibiotics causes drug residues and the spread of antibiotic-resistance [2]. For a sustainable development of the aquaculture industry, novel strategies to control organic pollutants and bacterial infections are needed. Many studies have shown that the usage of probiotics as an alternative instead of antibiotics for sustainable aquaculture [3,4].
Probiotics are live microorganisms that confer a health benefit to the host when administered in adequate amounts [5,6]. Probiotics can enhance the stress tolerance and immune response, as well as improve feed digestion and pond water quality in aquaculture. The mechanisms of the probiotics include the production of antagonistic compounds that are inhibitory toward pathogens, interruption of bacteria-bacteria communication, competition with bacterial pathogen for essential nutrients, energy and attachment sites, stimulation of the host’s innate immune system, and improvement of water quality by degrading or absorbing the waste [7,8,9]. Several bacteria such as Lactobacillus sp. and Bacillus sp. can produce antimicrobial substances against fish pathogens and stimulate fish’s innate immune response [2,10]. It has been reported that Bacillus subtilis E20 can produce effective antimicrobial peptides against Vibrio alginolyticus and V. parahaemolyticus [11]. Lactococcus lactis strain A5 can producing a 3.4 kDa bacteriocin against Bacillus cereus, Staphylococcus aureus and Salmonella thyphimurium. Bacillus amyloliquefaciens FPTB16 can enhance the immunity of Catla [12]. Thus, the present study was carried out to isolate bacterial strains from the sediment of intertidal zone and fishing pounds with antagonistic, quorum-quenching ability and multienzymatic activities which can inhibit the quorum sensing of fish pathogen and degrade the organic pollutants in aquaculture.

2. Results

2.1. Isolation of Marine Antagonistic, Quorum-Quenching and Multienzymes Producing Strains

A total of 45 bacteria were isolated and purified from the coastal sediment samples along the South Yellow Sea in Jiangsu Province, China. Seven of the isolates (NO. 1–7) with proteolysis activities on LB agar medium with 1% (w/v) skim milk were used for the selection of other organic hydrolases and quorum-quenching enzymes. Only the isolates NO. 2 and NO. 6, named YB1701 and YB1706, were found to exhibit strong antagonistic activity to A. hydrophila strain YJ-1 and V. parahemolyticus DX-1, with the inhibitory zones at 12.0 mm, 17.0 mm and 13.0 mm, and a 16.0 mm inhibitory diameter, respectively. YB1701 and YB1706 also can produce quorum-quenching enzyme, amylase, cellulase and lipase (Figure 1). YB1701 is a spore-forming bacterium resistant to heat, so it was chosen for further study.

2.2. Characterization and Identification of YB1701

The morphological and physiological characteristics of the strain YB1701 were compared with the data from Bergey’s Manual of Determinative Bacteriology, and strain YB1701 is a facultative anaerobe, motile, and has Gram-positive rods. The strain was positive in oxidase activity, catalase activity, gelatin liquefaction, starch hydrolysis and the citrate test. The results of biochemical tests of the strain YB1701 are shown in Table 1.
The partial 16S rDNA sequences of YB1701 were submitted to GenBank and the accession number was assigned as MG760246.1. Followed by BLAST analysis, the partial 16S rRNA gene sequence of YB1701 showed 100% similarity to various members of the Bacillus genus (Figure 2), such as B. velezensis, B. subtilis and B. amyloliquefaciens strains deposited in the NCBI database and top BLAST hit with B. velezensis strain NJN-6. Based on the 16S rRNA sequence and biochemical and morphological characteristics, the isolate YB1701 was identified as Bacillus sp. Strain YB1701 was deposited in the China General Microbiological Culture Collection Center (CGMCC, Beijing) as CGMCC No. 15605.

2.3. Acid and Bile Salt Tolerance

An acid and bile salt tolerance assay showed that strain YB1701 has a strong tolerance ability to acid and bile. YB1701 showed a more than 85.7% survival rate in LB broth at pH 2.0 for 3 h, and showed profound resistance to bile salt with an 85.3% survival rate in 2.0% bile for 12 h (Table 2).

2.4. Safety Assessment of YB1701

Strain YB1701 has no hemolytic activity and also lacks the zone formation on the rabbit blood agar (RBA) plates (data not shown). In addition, neither mortality nor clinical symptoms of disease were observed in the tested fish treated with 0.1 mL bacterial suspension containing 105–1011 CFU/mL of YB1701 for 7 days (data not shown). The LD50 value of YB1701 was estimated to exceed 1010 CFU for fish. Different doses of YB1701 were administrated intraperitoneally and orally to the BALB/c mice. There were no bacterial treatment-related deaths, even in groups of animals intraperitoneally treated at the highest doses. Thus, the LD50 for IP administrated YB1701 was more than 5 × 109 CFU, and the oral LD50 for the tested strains is more than 5 × 1010 CFU.

2.5. Antibiotic Susceptibility

YB1701 was evaluated for its resistance to a panel of antibiotics, including those highlighted by the European Food Safety Authority (EFSA 2012) and recommended by the NCCLS (1997). The antibiotic resistance profile of YB1701 is listed in Table 3 which indicates that YB1701 is sensitive to all selected antibiotics as suggested by EFSA.

2.6. Ability of YB1701 to Degrade Organic Pollutants

The effects of YB1701 on the degradation of organic compounds in laboratory conditions are shown in Figure 3. The removal rate of Chemical oxygen demand (COD) was above 79.69% on day 14 in YB1701 group. The value of COD in YB1701group declined quickly and reached 19.5 ± 2.84 mg/L in the first 6 days, and after that, the COD value declined steadily, and reached 13.2 ± 4.08 mg/L on day 14. The COD removal rate by YB1701 was significantly higher than the control group (p < 0.05).

2.7. In Vivo Protective Effect of YB1701 on A. hydrophila Infection

The protective effect of the diet supplemented with YB1701 on C. auratus gibelio against A. hydrophila infection was assessed, shown in Figure 4. The results indicate that YB1701 is essential in prevention of mortality of C. auratus gibelio by A. hydrophila. The cumulative mortality of the YB1701 group was only 23.3%, while that of the control group was 50%. Infection of A. hydrophila was observed in all dead fishes and was determined by bacterial isolation and API identification kits (data not shown).

3. Discussion

Alternative strategies for disease control and enhancement of water quality are important for sustainable aquaculture. The application of probiotics in aquaculture, has many advantages in contrast to antibiotics and/or chemicals for reducing disease and improving water quality [13,14]. The common microorganisms used as probiotic candidates in aquaculture are lactic acid bacteria, including the genus, Bifidobacterium [7,15]. Other potential probiotic candidates include the bacterial genera Bacillus, Carnobacterium, Enterococcus, Vibrio, Pseudomonas and Streptomyces, as well as some fungi, yeasts, and algae of the genera Debaryomyces, Saccharomyces, and Tetraselmis [8,16].
In this study, the potential probiotic strain Bacillus sp. YB1701, isolated from the coastal sediment sample, displayed positive probiotic effects in vitro including antibacterial activity against fish pathogens (A. hydrophila and V. parahemolyticus), absence of haemolysin, production of hydrolase (protease, cellulase, amylase, and lipase) and antibiotic susceptibility to all the antibiotics listed by the EFSA. Strain Bacillus sp. YB1701 has tested as relatively safe for in vivo application as the experimental animals (fish and mice) did not present any signs of infection or any other abnormalities after administration of Bacillus sp. YB1701. Our results are in concordance with other similar studies showing that Bacillus species are safe in animal models [17,18].
Disease resistance is an important criterion for probiotic candidate selection. Some species of Bacillus sp. can produce antimicrobial compounds and quorum-quenching enzymes [19,20]. The selected strain YB1701 has antagonistic activity to A. hydrophila and V. parahemolyticus, and it also produces quorum-quenching enzymes. Bacterial tests were conducted after dietary supplementation of YB1701, and the results showed that the selected strain provided significant protection to C. auratus gibelio. Some previous studies have also shown that some Bacillus sp. isolates can protect fish against bacterial infection. Gao et al. found that the marine probiotic strain, Bacillus velezensis V4 with anti-A. salmonicida properties is an effective probiotic in Oncorhynchus mykiss [21]. Gobi et al. observed that dietary supplementation of Bacillus licheniformis Dahb1 can significantly enhance the resistance against A. hydrophila in tilapia (Oreochromis mossambicus) [22]. Ran et al. found that Bacillus strains isolated from the intestines of catfish showed antagonism against Edwardsiella ictaluri and A. hydrophila, and showed protective effects against E. ictaluri in striped catfish [23]. Some other species of Bacillus, such as B. aerius [24], B. aerophilus [25], B. siamensis [26], B. pumilus [27], and B. subtilis [28], can also improve the resistance of the host against fish pathogens. Bacillus sp. can produce antibacterial compounds such as bacteriocins (e.g., Subtilin and Coagulin) and antibiotics (e.g., Surfactin and Bacilysin). Besides the production of antimicrobial compounds can increase the disease resistance of the host, probiotics also can enhance the host’s immune response [29]. We will investigate the regulation effect of YB1701 on host immune response and characterize the bioactive compound(s) in the future.
Organic compounds affect the quality of the water and also increase the spread of bacteria and diseases. Several researchers have reported that probiotics can be used as an eco-friendly bio-control or bioremediation agents. Among the strains selected for probiotics used in aquaculture, Bacillus sp. is the most used genus [10]. Bacillus sp. can produce versatile metabolites including enzymes that are important for water quality [20,30]. The strain YB1701 that was isolated from the costal sediment can produce extracellular enzymes such as protease, amylase, cellulose, and lipase, and the strain have high ability of degrading organic waste in aquaculture water under laboratory conditions. Zhang et al. isolated two strains from the sediment of sea cucumber Apostichopus japonicus ponds, and the degradation rates on sediment COD were 46.95% ± 1.58% in the L15 strain and 44.31% ± 1.44% in the E4 strain [31]. Al-Wasify et al., isolated bacteria and fungi for removal of organics at the rate of 78.7% and 74.7% biological oxygen demand (BOD) removal [32]. A low-temperature organic-pollutant-degrading Paracoccus sp. DR8 was isolated that can degrade the feed over 5 days with COD removal rates of 50.0% [33]. The degradation rate of COD by YB1701 was 79.69% for 14 days, whereas on organic compounds, its rate was higher, which could be attributed to the test substrate being different. The composition of organic substances from feeds may be more favorable for bacterial use compared to that of pond sediment. The results indicate that YB1701 can be used as a probiotic to enhance the water quality.

4. Materials and Methods

4.1. Sample Collection and Isolation of Bacteria

Ten different sediment samples were collected from the exposed intertidal zone and fishing ponds along the South Yellow Sea in Jiangsu Province, China. Each sediment sample (approximately 100 g) was placed in a sterile plastic bag with ice bag and transported to our laboratory within 10 h and then processed immediately to isolate the bacteria. Ten grams of each sample (wet mass) were homogenized in 90 mL sterile 0.9% saline solution then 10-fold the serial dilution to 10−4 times. Then, 100 μL of each dilution was spread on LB agar plates containing 2% skim milk to select the microorganisms producing extracellular protease. All the plates were incubated at 28 °C for 24–48 h to determine the morphology of the colony.

4.2. Antimicrobial, Quorum-Quenching and Extracellular Enzymatic Activity Screening

4.2.1. Antimicrobial Activity Assay

Antimicrobial activity of the selected strains against A. hydrophila YJ-1 [34] and V. parahemolyticus DX-1 [35] were tested in vitro by an agar well diffusion test [36] with minor modification. Nutrient agar medium with 0.7% (w/v) agar was melted and cooled to approximately 50 °C. The respective indicator microorganism was added at the final cell density of 105 CFU/mL, and the medium were immediately poured to plate with agar as top layer. When the plates were solidified, the selected strains were inoculated. The inhibition zones were detected after 24 h of incubation at 28 °C.

4.2.2. Bioassay of Quorum-Quenching Activity

The AHL biosensor Chromobacterium violaceum CV12472 was used to detect the quorum signal activity. All isolates were inoculated as a spot on an LB agar plate and grown overnight at 37 °C. The plate was overlaid with 10 mL of LB agar (0.5% agar) that was warmed at 50 °C and contained 106 CFU/mL C. violaceum 12,472, which produces a short-chain autoinducer, N-hexanoyl homoserine lactone (C6-HSL) [37]. The plate was incubated at 28 °C for 2 days to see the inhibition of purple pigment production by CV12472 around the isolates.

4.2.3. Extracellular Enzymatic Activities Assay

The hydrolytic extracellular enzymatic activities of potential probiotics were further detected by using the agar diffusion method. LB agar, as the experimental medium, was added to different substrates according to Nair et al. [38] with minor modifications, including skim milk (1%) for proteolytic activity, soluble starch (2%) for amylolytic activity, carboxymethyl cellulose sodium salt (CMC-Na, 2%) for cellulolytic activity, and Spirit Blue Agar (SBA) (Hi-Media, Mumbai, India) for lipase activity respectively. The hydrolytic enzymatic activity of the isolates inoculated on the plates were observed after incubating at 28 °C for 24 h. Proteolytic activity and lipolytic activity were determined by the transparent circle of milk degradation and the halo formation of precipitated fatty acids around the colony. To detect the amylolytic activity, after incubation at 28 °C for 24 h, the plates were flooded with 1% iodine solution at room temperature and a transparent circle around the colony indicated positivity. For cellulose detection, after incubation at 28 °C for 24 h, the plate was overlaid with Congo-red solution (0.1%) for 10 min and then washed with 1 M NaOH solution for destaining. Cellulolytic strains lacked the formation of red color around the strain.

4.3. Morphological and Physiological Characteristics and 16S rRNA Gene Amplification of Potential Probiotic Strain

As for the pellet granulating process and long time storage, heat-resistant ability was selected as a criterion. Strain NO. 2 named YB1701 can form spores, so it was chosen for further study. The morphological (Gram staining), cultural (colony), and physiological (biochemical test) characteristics were tested. Physiological identification was undertaken as described by Bergey’s Manual of Systematic Bacteriology [39] using a trace biochemical identification reaction tube (Hangzhou BinHe Microorganism Reagent Co. Ltd., Hangzhou, China). To determine the heat resistance, the isolates were treated at 60 °C for 5 min as previously described by Dlusskaya et al. [40]. The strain with high heat-resistant ability was chosen for further study.
Genomic DNA of YB1701 was extracted using QIAamp DNA Mini Kit (QIAGEN) and quantification was done according to the described method [41]. The 16S rRNA gene of YB1701 was amplified using the upstream primer (27F 5′-AGAGTTTGATCMTGGCTCAG-3′) and the downstream primer (1492R 5′-CGGTTACCTTGTTACGACTT-3′). Partial sequencing of 16S rDNA PCR product was carried out by Shanghai Lingen Biotechnology Co., Ltd. (Shanghai, China) These sequences were submitted to GenBank and the accession number was assigned as MG760246. Multiple sequence alignment was done and phylogenetic tree was constructed by the neighbor-joining method using MEGA (Version 5.2) software. The confidence level of each branch (1000 repeats) was tested by bootstrap analysis.

4.4. In Vitro Acid and Bile Salt Tolerance Assay

The acid and bile tolerance of YB1701 was determined as described by Duc et al. 2004. [42] with some modifications. Different pH solutions (2.0, 3.0, and 6.5) were prepared to stimulate gastric acidic conditions by adding reagent grade HCl (35.8%) in LB medium and supplemented with pepsin from porcine gastric mucosa (Sigma-Aldric P7000, Buchs, Switzerland) at 1 mg/mL. High bile salt solutions (1.0% and 2.0%) were prepared by dissolving bile salts (Hi-media, Mumbai, India) in LB medium. One milliliter of fresh culture containing approximately 107–108 CFU/mL was added to the different pH solutions as well as the bile solutions and was mixed thoroughly. Cultures were then incubated at 37 °C with agitation and aliquots were removed after 30, 60 and 90 min for acid tolerance, and after 1 and 3 h for bile salt tolerance. Serial dilution was done in sterile saline (0.9% w/v) and the viable count was enumerated by plating on an LB agar plate. Bacterial cell survival was calculated as follows: NA/NB × 100%, where NA = log10 CFU/mL after incubation and NB = log10 CFU/mL before incubation.

4.5. Safety Evaluation of YB1701

Hemolytic activity assay was carried out with brackish water RBA plates at 30 °C for 2 days. Pathogenicity of YB1701 was further assayed in Carassius auratus gibelio and mouse models. For 50% lethal dose (LD50) determinations, YB1701 cells were washed with physiological saline (0.9% NaCl) and then subjected to 10-fold serial dilutions using the physical saline with the concentration of 105–1011 CFU/mL, and then 0.1 mL of each dilution was injected intraperitoneally into each fish, and intraperitoneally to mouse at the levels of 5 × 107, 5 × 108, 5 × 109 CFU/mouse and orally at 5 × 107, 5 × 108, and 5 × 1010 CFU/mouse. Each dilution trial was performed in three replicates and each group included 10 C. auratus gibelio (50 ± 3 g) and 10 6–8 week male BALB/c mice. Physiological saline was used as control. During this period, the activity and behavior of each animal were recorded and dead animals were removed and the mortalities were recorded daily for 7 days. The LD50 value was calculated by the method of Reed and Muench [43].

4.6. Antibiotic Susceptibility Assay

The susceptibility of Bacillus sp. YB1701 was obtained by the disc diffusion method according to the method described by the National Committee for Clinical Laboratory Standards (NCCLS, 2012) [44] using antibiotic discs (Oxoid, UK). Antimicrobials required to be examined in Bacillus sp. are vancomycin, gentamicin, kanamycin, streptomycin, erythromycin, clindamycin, tetracycline, and chloramphenicol, as suggested by EFSA [45]. The reading was performed by measuring the diameter of the no bacteria growing zone (inhibiting zone) around the disk.

4.7. Degradation Rates of YB1701 for Organics in Wastewater of Aquaculture

The degradation rate of the isolate for organics removal was evaluated by chemical oxygen demand (COD). Aquaria (90 × 55 × 45 cm) with 100 L C. auratus gibelio culture wastewater with continuous aeration were selected for experimental tanks. The initial COD was adjusted to 65.0 mg/L using the normal feed. Culture broth of strain YB1701 containing 1 × 108 CFU/mL was added to the aquaria water samples by adding a ratio of 1 × 105 CFU/mL to evaluate its effect on wastewater. The experiment was divided into two groups (with and without adding YB1701), with each group containing three duplicates.

4.8. Effect of YB1701 Supplemented Fish Diet on Disease Resistance

Bacillus sp. strain YB1701 was grown in LB medium at 37 °C for 36 h in a rotary shaker. Bacterial cells were harvested by centrifugation, washed with saline solution, and then resuspended in saline solution. The solution was then mixed with pelleted basal diet and air-dried at 50 °C in the oven for 2–5 h to obtain about 5.0 × 106 CFU/g feed and kept at 4 °C for use.
Groups of 30 healthy C. auratus gibelio (50 ± 3 g) were fed with (at the concentration of 5.0 × 106 CFU/g feed) or without YB1701 separately for 30 days. After that, fish were tested intraperitoneally with 0.1 mL of A. hydrophila YJ-1 suspension containing 2.0 × 105 cells at the dose causing 50% mortality (LD50). The diet was continued for 14 days after infection. The mortality in each group was recorded daily. Dead fish were removed from the aquaria daily, and their livers and kidneys were subjected to pathogen isolation on ampicillin dextrin agar (ADA) as described by Latif-Eugenín [46]. After incubation at 30 °C for 24 h, the bacteria growth on the medium were identified by using the API 20 NE test kit.

4.9. Ethics Statement

All experiments conducted with vertebrate animals (carp and mice) were approved by the Animal Care and Use Committee (ACUC) review boards at China Pharmaceutical University in accordance with the respective animal welfare guidelines specified by the government of China.

5. Statistical Analysis

All data were analyzed by using One-way Analysis of Variance (ANOVA), and multiple comparison tests (Duncan’s and Tukey’s-tests) were performed using SPSS Statistic 2.0 software. Data were presented as Mean ± Standard. p < 0.05 was considered statistically significant.

6. Conclusions

The antagonistic and multienzymes producing bacteria Bacillus sp. was isolated from coastal sediment and the preliminary probiotic effects of bacterial disease resistance and degradation of organic waste water was characterized. This is the first report on the isolation of a Bacillus strain with both antibacterial and organic substances degrading activity. The results of this study indicate that the Bacillus sp. YB1701 showed potential for biological control of fish bacterial disease and degrading organic waste water in aquaculture. Further study is needed to evaluate the practical concentrations on a commercial scale.

Author Contributions

Planned the experiments: W.C. and Y.X. Performed the experiments: S.Z. and C.Z. Analyzed the data: S.Z. Contributed reagents or other essential material: W.C. Wrote the paper: S.Z. Read and approved the final manuscript: S.Z., Y.X., C.Z. and W.C.

Acknowledgments

This research was funded by the Marine and Fishery Science and Technology Innovation Project of Jiangsu Ocean and Fishery Bureau, China (grant number Y2017-40) and the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD). We thank Bob McLean (Texas State University at San Marcos, TX, USA) for the AHLs biosensor strains. The authors are grateful to Fahad Akhtar and Robert McLean for English editing of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Food and Agriculture Organization (FAO). The State of World Fisheries and Aquaculture, 2010; Food and Agriculture Organization (FAO): Rome, Italy, 2012. [Google Scholar]
  2. Watts, J.E.M.; Schreier, H.J.; Lanska, L.; Hale, M.S. The rising tide of antimicrobial resistance in aquaculture: Sources, sinks and solutions. Mar. Drugs 2017, 15, 158. [Google Scholar] [CrossRef] [PubMed]
  3. Hossain, M.I.; Sadekuzzaman, M.; Ha, S.D. Probiotics as potential alternative biocontrol agents in the agriculture and food industries: A review. Food Res. Int. 2017, 100 Pt 1, 63–73. [Google Scholar] [CrossRef] [PubMed]
  4. Hai, N.V. The use of probiotics in aquaculture. J. Appl. Microbiol. 2015, 119, 917–935. [Google Scholar] [CrossRef] [PubMed]
  5. Hill, C.; Guarner, F.; Reid, G.; Gibson, G.R.; Merenstein, D.J.; Pot, B.; Morelli, L.; Canani, R.B.; Flint, H.J.; Salminen, S.; et al. Expert consensus document. The International Scientific Association for Probiotics and Prebiotics consensus statement on the scope and appropriate use of the term probiotic. Nat. Rev. Gastroenterol. Hepatol. 2014, 11, 506–514. [Google Scholar] [CrossRef] [PubMed]
  6. Food and Agriculture Organization (FAO)/World Health Organization (WHO). Guidelines for the Evaluation of Probiotics in Food; Food and Agriculture Organization of the United Nations and World Health Organization Working Group Report; Food and Agriculture Organization: Rome, Italy, 2002. [Google Scholar]
  7. Verschuere, L.; Rombaut, G.; Sorgeloos, P.; Verstraete, W. Probiotic bacteria as biological control agents in aquaculture. Microbiol. Mol. Biol. Rev. 2000, 64, 655–671. [Google Scholar] [CrossRef] [PubMed]
  8. Cruz, P.M.; Ibáñez, A.L.; Hermosillo, O.A.M.; Saad, H.C.R. Use of probiotics in aquaculture. ISRN Microbiol. 2012, 2012, 916845. [Google Scholar] [CrossRef]
  9. Huynh, T.G.; Shiu, Y.L.; Nguyen, T.P.; Truong, Q.P.; Chen, J.C.; Liu, C.H. Current applications, selection, and possible mechanisms of actions of synbiotics in improving the growth and health status in aquaculture: A review. Fish Shellfish Immunol. 2017, 64, 367–382. [Google Scholar] [CrossRef] [PubMed]
  10. Banerjee, G.; Ray, A.K. The advancement of probiotics research and its application in fish farming industries. Res. Vet. Sci. 2017, 115, 66–77. [Google Scholar] [CrossRef] [PubMed]
  11. Cheng, A.C.; Lin, H.L.; Shiu, Y.L.; Tyan, Y.C.; Liu, C.H. Isolation and characterization of antimicrobial peptides derived from Bacillus subtilis E20-fermented soybean meal and its use for preventing Vibrio infection in shrimp aquaculture. Fish Shellfish Immunol. 2017, 67, 270–279. [Google Scholar] [CrossRef] [PubMed]
  12. Singh, S.T.; Kamilya, D.; Kheti, B.; Bordoloi, B.; Parhi, J. Paraprobiotic preparation from Bacillus amyloliquefaciens FPTB16 modulates immune response and immune relevant gene expression in Catla catla (Hamilton, 1822). Fish Shellfish Immunol. 2017, 66, 35–42. [Google Scholar] [CrossRef] [PubMed]
  13. Zorriehzahra, M.J.; Delshad, S.T.; Ade, L.M.; Tiwari, R.; Karthik, K.; Dhama, K.; Lazado, C.C. Probiotics as beneficial microbes in aquaculture: An update on their multiple modes of action: A review. Vet. Q. 2016, 36, 228–241. [Google Scholar] [CrossRef] [PubMed]
  14. Bentzon-Tilia, M.; Sonnenschein, E.C.; Gram, L. Monitoring and managing microbes in aquaculture—Towards a sustainable industry. Microb. Biotechnol. 2016, 9, 576–584. [Google Scholar] [CrossRef] [PubMed]
  15. Vázquez, L.; Hernández, R.; Sainz, E.; González Cervantes, R.; Martínez Cruz, P.; Mayorga Reyes, L.; Azaola Espinosa, A. Cambio en la flora intestinal de ratones por la administraci ´on de bifidobacterias y jugo de girasol. Vet. Méx. 1996, 27, 127–131. [Google Scholar]
  16. Tan, L.T.; Chan, K.G.; Lee, L.H.; Goh, B.H. Streptomyces bacteria as potential probiotics in aquaculture. Front. Microbiol. 2016, 7, 79. [Google Scholar] [CrossRef] [PubMed]
  17. Mingmongkolchai, S.; Panbangred, W. Bacillus probiotics: An alternative to antibiotics for livestock production. J. Appl. Microbiol. 2018. [Google Scholar] [CrossRef] [PubMed]
  18. Elshaghabee, F.M.F.; Rokana, N.; Gulhane, R.D.; Sharma, C.; Panwar, H. Bacillus as potential probiotics: Status, concerns, and future perspectives. Front. Microbiol. 2017, 8, 1490. [Google Scholar] [CrossRef] [PubMed]
  19. Zhao, J.; Chen, M.; Quan, C.S.; Fan, S.D. Mechanisms of quorum sensing and strategies for quorum sensing disruption in aquaculture pathogens. J. Fish Dis. 2015, 38, 771–786. [Google Scholar] [CrossRef] [PubMed]
  20. Hong, H.A.; Duc le, H.; Cutting, S.M. The use of bacterial spore formers as probiotics. FEMS Microbiol. Rev. 2005, 29, 813–835. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Gao, X.Y.; Liu, Y.; Miao, L.L.; Li, E.W.; Sun, G.X.; Liu, Y.; Liu, Z.P. Characterization and mechanism of anti-Aeromonas salmonicida activity of a marine probiotic strain, Bacillus velezensis V4. Appl. Microbiol. Biotechnol. 2017, 101, 3759–3768. [Google Scholar] [CrossRef] [PubMed]
  22. Gobi, N.; Vaseeharan, B.; Chen, J.C.; Rekha, R.; Vijayakumar, S.; Anjugam, M.; Iswarya, A. Dietary supplementation of probiotic Bacillus licheniformis Dahb1 improves growth performance, mucus and serum immune parameters, antioxidant enzyme activity as well as resistance against Aeromonas hydrophila in tilapia Oreochromis mossambicus. Fish Shellfish Immunol. 2018. [Google Scholar] [CrossRef] [PubMed]
  23. Ran, C.; Carrias, A.; Williams, M.A.; Capps, N.; Dan, B.C.T.; Newton, J.C.; Kloepper, J.W.; Ooi, E.L.; Browdy, C.L.; Terhune, J.S.; et al. Identification of Bacillus strains for biological control of catfish pathogens. PLoS ONE 2012, 7, e45793. [Google Scholar] [CrossRef] [PubMed]
  24. Meidong, R.; Khotchanalekha, K.; Doolgindachbaporn, S.; Nagasawa, T.; Nakao, M.; Sakai, K.; Tongpim, S. Evaluation of probiotic Bacillus aerius B81e isolated from healthy hybrid catfish on growth, disease resistance and innate immunity of Pla-mong Pangasius bocourti. Fish Shellfish Immunol. 2017, 73, 1–10. [Google Scholar] [CrossRef] [PubMed]
  25. Ramesh, D.; Souissi, S.; Ahamed, T.S. Effects of the potential probiotics Bacillus aerophilus KADR3 in inducing immunity and disease resistance in Labeo rohita. Fish Shellfish Immunol. 2017, 70, 408–415. [Google Scholar] [CrossRef] [PubMed]
  26. Meidong, R.; Doolgindachbaporn, S.; Jamjan, W.; Sakai, K.; Tashiro, Y.; Okugawa, Y.; Tongpim, S. A novel probiotic Bacillus siamensis B44v isolated from Thai pickled vegetables (Phak-dong) for potential use as a feed supplement in aquaculture. J. Gen. Appl. Microbiol. 2017, 63, 246–253. [Google Scholar] [CrossRef] [PubMed]
  27. Srisapoome, P.; Areechon, N. Efficacy of viable Bacillus pumilus isolated from farmed fish on immune responses and increased disease resistance in Nile tilapia (Oreochromis niloticus): Laboratory and on-farm trials. Fish Shellfish Immunol. 2017, 67, 199–210. [Google Scholar] [CrossRef] [PubMed]
  28. Hao, K.; Wu, Z.Q.; Li, D.L.; Yu, X.B.; Wang, G.X.; Ling, F. Effects of dietary administration of Shewanella xiamenensis A-1, Aeromonas veronii A-7, and Bacillus subtilis, single or combined, on the grass Carp (Ctenopharyngodon idella) intestinal microbiota. Probiotics Antimicrob. Proteins 2017, 9, 386–396. [Google Scholar] [CrossRef] [PubMed]
  29. De, B.C.; Meena, D.K.; Behera, B.K.; Das, P.; Das Mohapatra, P.K.; Sharma, A.P. Probiotics in fish and shellfish culture: Immunomodulatory and ecophysiological responses. Fish Physiol. Biochem. 2014, 40, 921–971. [Google Scholar] [CrossRef]
  30. Mondol, M.A.; Shin, H.J.; Islam, M.T. Diversity of secondary metabolites from marine Bacillus species: Chemistry and biological activity. Mar. Drugs 2013, 11, 2846–2872. [Google Scholar] [CrossRef] [PubMed]
  31. 35Zhang, D.S.; Li, H.; Liu, Y.; Qiao, G.; Chi, S.; Song, J. Screening and identification of organics-degrading bacteria from the sediment of sea cucumber Apostichopus japonicus ponds. Aquacult. Int. 2016, 24, 373–384. [Google Scholar] [CrossRef]
  32. Al-Wasify, R.S.; Ali, M.N.; Hamed, S.R. Biodegradation of dairy wastewater using bacterial and fungallocal isolates. Water Sci. Technol. 2017, 76, 3094–3100. [Google Scholar] [CrossRef] [PubMed]
  33. Yan, F.J.; Tian, X.L.; Dong, S.G.; Wu, X.H.; Liu, B.G. Isolation, selection and characterization of low temperature organic-pollutant-degrading bacteria in sea cucumber ponds. J. Fish Sci. China 2012, 19, 626–634. [Google Scholar] [CrossRef]
  34. Chu, W.H. Studies on the pathology and control of the bacterial hemorrhage disease in a hybrid crussian carp. Reserv. Fish. 2001, 21, 40. [Google Scholar]
  35. Chu, W.H.; Zhu, W.; Kang, C.T. Isolation, identification of marine Bdellovibrios and its effect on Vibrio parahaemolyticus. Microbiology 2009, 36, 20–24. [Google Scholar]
  36. Perez, C.; Paul, M.; Bazerque, P. An antibiotic assay by the agar well diffusion method. Acta Biol. Med. Exp. 1990, 15, 113–115. [Google Scholar]
  37. McLean, R.J.; Pierson, L.S.; Fuqua, C. A simple screening protocol for the identification of quorum signal antagonists. J. Microbiol. Methods 2004, 58, 351–360. [Google Scholar] [CrossRef] [PubMed]
  38. Nair, A.V.; Vijayan, K.K.; Chakrabort, K.; Antony, M.L. Diversity and characterization of antagonistic bacteria from tropical estuarine habitats of Cochin, India for fish health management. World J. Microbiol. Biotechnol. 2012, 28, 2581–2592. [Google Scholar] [CrossRef] [PubMed]
  39. Holt, J.G.; Krieg, N.R.; Sneath, P.H.A.; Staley, J.T.; Williams, S.T. Bergey’s Manual of Determinative Bacteriology, 9th ed.; Williams & Wilkins: Baltimore, MD, USA, 1994. [Google Scholar]
  40. Dlusskaya, E.A.; McMullen, L.M.; Gänzle, M.G. Characterization of an extremely heat-resistant Escherichia coli obtained from a beef processing facility. J. Appl. Microbiol. 2011, 110, 840–849. [Google Scholar] [CrossRef] [PubMed]
  41. Sambrook, J.; Fritch, E.F.; Maniatis, T. Molecular Cloning: A Laboratory Manual; Cold Spring Harbour Laboratory: Cold Spring Harbor, NY, USA, 1982. [Google Scholar]
  42. Duc, L.H.; Hong, H.A.; Barbosa, T.M.; Henriques, A.O.; Cutting, S.M. Characterization of Bacillus probiotics available for human use. Appl. Environ. Microbiol. 2004, 70, 2161–2171. [Google Scholar] [CrossRef]
  43. Reed, L.J.; Muench, H. A simple method of estimating fifty per cent endpoints. Am. J. Epidemiol. 1938, 27, 493–497. [Google Scholar] [CrossRef]
  44. NCCLS. Methods for Dilution Antimicrobial Susceptibility Tests for Bacteria that Grow Aerobically, Approved Standard, 9th ed.; 2012; Available online: http://antimicrobianos.com.ar/ATB/wp-content/uploads/2012/11/03-CLSI-M07-A9-2012.pdf (accessed on 3 November 2012).
  45. EFSA. Guidance on the assessment of bacterial susceptibility to antimicrobials of human and veterinary importance. EFSA J. 2012, 10, 2740. [Google Scholar]
  46. Latif-Eugenín, F.; Beaz-Hidalgo, R.; Figueras, M.J. Evaluation of different conditions and culture media for the recovery of Aeromonas spp. from water and shellfish samples. J. Appl. Microbiol. 2016, 121, 883–891. [Google Scholar] [CrossRef] [PubMed]
Marinedrugs 16 00196 g001 550
Figure 1. Antagonistic, quorum-quenching and extracellular enzymatic activities of selected isolates (NO. 1–7). (A). Proteolytic activity, (B). Cellulolytic activity, (C). Amylolytic activity, (D). Lipolytic activity, (E). Antibacterial activity against A. hydropila YJ-1, (F). Antibacterial activity against Vibrio parahemolyticus DX-1, (G). Quorum-quenching activity against C. violaceum CV12472.
Figure 1. Antagonistic, quorum-quenching and extracellular enzymatic activities of selected isolates (NO. 1–7). (A). Proteolytic activity, (B). Cellulolytic activity, (C). Amylolytic activity, (D). Lipolytic activity, (E). Antibacterial activity against A. hydropila YJ-1, (F). Antibacterial activity against Vibrio parahemolyticus DX-1, (G). Quorum-quenching activity against C. violaceum CV12472.
Marinedrugs 16 00196 g001
Marinedrugs 16 00196 g002 550

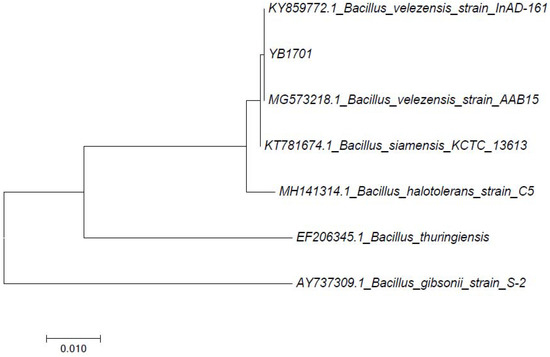

Figure 2. The phylogenetic tree of 16S rRNA gene sequences for Bacillus sp. YB1701 and other closely related Bacillus bacteria. The tree was generated using Neighbor-joining with scale bar equals 0.01 substitutions per nucleotide.
Figure 2. The phylogenetic tree of 16S rRNA gene sequences for Bacillus sp. YB1701 and other closely related Bacillus bacteria. The tree was generated using Neighbor-joining with scale bar equals 0.01 substitutions per nucleotide.
Marinedrugs 16 00196 g002
Marinedrugs 16 00196 g003 550

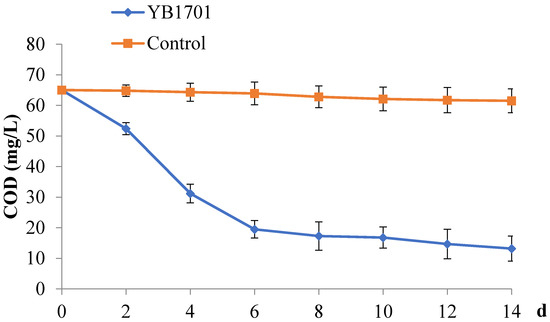

Figure 3. Chemical oxygen demand (COD) concentration changes in wastewater for 14 days. Error bars in Figure 3 and Figure 4 represent standard deviation of the mean (SD) from three replicate experiments (n = 3).
Figure 3. Chemical oxygen demand (COD) concentration changes in wastewater for 14 days. Error bars in Figure 3 and Figure 4 represent standard deviation of the mean (SD) from three replicate experiments (n = 3).
Marinedrugs 16 00196 g003
Marinedrugs 16 00196 g004 550

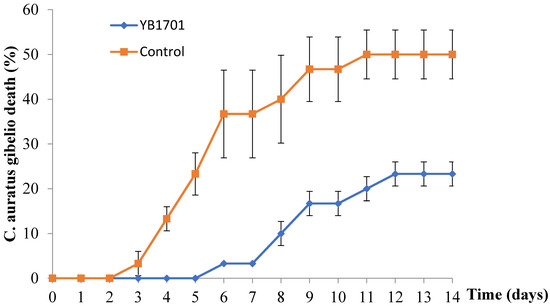

Figure 4. Protective effect of strain YB1701 on C. auratus gibelio under A. hydrophila challenge trial. YB1701 was administered by feeding at the concentration of 5.0 × 106 CFU/g feed.
Figure 4. Protective effect of strain YB1701 on C. auratus gibelio under A. hydrophila challenge trial. YB1701 was administered by feeding at the concentration of 5.0 × 106 CFU/g feed.
Marinedrugs 16 00196 g004
Table
Table 1. Morphological and biochemical properties of Bacillus sp. YB1701.
Table 1. Morphological and biochemical properties of Bacillus sp. YB1701.
CharacteristicsBacillus sp. YB1701
Morphological
ShapeRods
Gram stainG+
MotilityMotile
Spore formation+
Growth
Growth temperature15 °C–50 °C
Growth pH5–8
Growth in 10% NaCl+
Aerobic growth+
Anaerobic growth+
Biochemical tests
Catalase+
Oxidase+
Voges-Proskauer+
Indole production-
Methyl red test-
Citrate+
Catalase reaction+
Glucosamine+
Nitrate reduction+
H2S production+
Crystalline dextrin production test-
Fermentative
Glucose+
Fructose+
Lactose-
Mannose-
Raffinose+
Hydrolysis of
Casein+
Gelatin+
Starch+
Note: +: Positive; −: Negative.
Table
Table 2. In vitro acid and bile tolerance of YB1701.
Table 2. In vitro acid and bile tolerance of YB1701.
-Log10 CFU of Viable Bacteria per mL-Log10 CFU of Viable Bacteria per mL
Time/hpH 6.5pH 3.0pH 2.0Time/h0.0% bile1.0% bile2.0% bile
07.987.987.9808.768.768.76
17.897.637.2518.158.137.94
28.147.187.1837.967.957.32
38.277.036.84127.827.877.47
Table
Table 3. Antibiotics sensitivity test of YB1701.
Table 3. Antibiotics sensitivity test of YB1701.
Antibiotic Discs *Inhibition Zone Diameter (mm) #Susceptibility
Gentamicin23.4 ± 0.4S
Kanamycin27.0 ± 0.2S
Clindamycin25.4 ± 1.4S
Chloramphenicol22.6 ± 0.6S
Erythromycin27.5 ± 0.5S
Streptomycin21.7 ± 0.7S
Tetracycline13.4 ± 0.6S
Vancomycin20.2 ± 1.1S
* Antibiotic-impregnated discs (6 mm) with amount in μg ± SE shown in brackets; # Diameter of inhibition from three individual experiments; S, sensitive; I, intermediate; R, resistant.
