Article

Asperindoles A–D and a p-Terphenyl Derivative from the Ascidian-Derived Fungus Aspergillus sp. KMM 4676

1
G.B. Elyakov Pacific Institute of Bioorganic Chemistry, Far Eastern Branch of the Russian Academy of Sciences, Prospect 100-letiya Vladivostoka, 159, Vladivostok 690022, Russia
2
School of Natural Science, Far Eastern Federal University, Sukhanova St., 8, Vladivostok 690000, Russia
3
Laboratory of Experimental Oncology, Department of Oncology, Hematology and Bone Marrow Transplantation with Section Pneumology, Hubertus Wald-Tumorzentrum, University Medical Center Hamburg-Eppendorf, 20246 Hamburg, Germany
*
Author to whom correspondence should be addressed.
Mar. Drugs 2018, 16(7), 232; https://doi.org/10.3390/md16070232
Submission received: 7 June 2018 / Revised: 2 July 2018 / Accepted: 3 July 2018 / Published: 9 July 2018

Abstract

:
Four new indole-diterpene alkaloids asperindoles A–D (14) and the known p-terphenyl derivative 3″-hydroxyterphenyllin (5) were isolated from the marine-derived strain of the fungus Aspergillus sp., associated with an unidentified colonial ascidian. The structures of 15 were established by 2D NMR and HRESIMS data. The absolute configurations of all stereocenters of 14 were determined by the combination of ROESY data, coupling constants analysis, and biogenetic considerations. Asperindoles C and D contain a 2-hydroxyisobutyric acid (2-HIBA) residue, rarely found in natural compounds. Asperindole A exhibits cytotoxic activity against hormone therapy-resistant PC-3 and 22Rv1, as well as hormone therapy-sensitive human prostate cancer cells, and induces apoptosis in these cells at low-micromolar concentrations.

Graphical Abstract

1. Introduction

Marine fungi are promising and prolific sources of new biological active compounds. Fungi of the genus Aspergillus, section Candidi (A. candidus, A. campestris, A. taichungensis, A. tritici), are known to produce several types of p-terphenyl derivatives, such as terphenyllins (terphenyllin [1], 3-hydroxyterphenyllin [2], terprenins [3]) and candidusins (candidusins A–C [4], prenylcandidusins A–C [5]), and a number of flavonoid derivatives (e.g., chlorflavonin [6], chlorflavonin A [7]). These compounds exhibit antioxidant [8,9], cytotoxic [5,9,10], antimicrobial [9], and immunosuppressive activities [9]. Recently, several indole and pyrrolidine alkaloids unusual for this fungal group were isolated from a Thai sponge-derived A. candidus strain [11].
Indole-diterpene alkaloids are widely represented among the fungal metabolites. These compounds have been isolated from fungi of the genera Claviceps, Acremonium, Eupenicillium, Penicillium, and Aspergillus (including Emericella striata). Most natural indole-diterpenes have an invariable framework (Figure 1). Usually, C-7, C-13, and C-27 are oxidized. The oxygenation of C-27 is often followed by the formation of an ether bridge between C-27 and C-7 with inversion of the stereoconfiguration at C-7 [12]. Interestingly, some fungi produce metabolites with relatively rare features in the classical indole-diterpene backbone. For example, Acremonium lolii produces indoles diprenylated at C-20 and C-21, together with oxygenated derivatives [13]. Alkaloids with a 1,3-dioxane moiety joined at C-9 and C-10 with the F-ring from A. lolii have also been reported [14,15]. Many of such compounds showed tremorgenic [16], cytotoxic [17,18], and antiinsectan [19] activities, and some of them are antagonists of cannabinoid receptors [20].
Based on promising screening results in search of producers of biologically active compounds, the marine-derived fungus Aspergillus sp. KMM 4676, which is associated with an unidentified colonial ascidian (from the Shikotan Island in the Pacific Ocean), was selected for further studies. During earlier examinations of this fungal strain, five known p-terphenyls and one known flavonoid were isolated [21]. Herein, we describe the results of subsequent comprehensive chemical and bioactivity investigations of the extracts of strain KMM 4676, leading to the characterization of four new natural compounds.

2. Results

The HRESIMS spectrum of 1 exhibited a pseudo-molecular peak at m/z 526.1980 [M + H]+, showing the characteristic isotope pattern with one chlorine atom, therefore establishing its molecular formula as C29H32NO6Cl, which was supported by the 13C NMR spectrum.
Inspection of the 1H and 13C NMR data (Table 1, Figures S1–S2) of 1 revealed the presence of three quaternary methyls (δC 16.1, 17.0, 23.4; δH 1.02, 1.21, 1.31), one acetate methyl (δC 21.8, δH 2.07), six methylene sp3 (δC 20.8, 26.3, 26.9, 30.0, 31.5, 64.8; δH 1.66, 1.77, 1.91, 1.93, 2.00, 2.11, 2.30, 2.40, 2.55, 2.60, 3.67, 4.04), two methine sp3 (δC 48.3, 78.3, δH 2.72, 4.74), four methine sp2 (δC 111.3, 118.6, 118.7, 119.9; δH 6.11, 6.91, 7.26, 7.27), three quaternary oxygen-bearing sp3 (δC 75.0, 77.0, 93.6), two quaternary sp3 (δC 38.5, 51.4), and eight quaternary sp2 (δC 115.0, 123.3, 123.7, 140.2, 154.0, 159.1, 170.2, 195.9) carbons, as well as a NH singlet (δH 10.73) and an OH singlet (δH 5.10).
The 1H and 13C NMR spectra of 1 (Table 1) resembled those of paspalinine [16], suggesting that 1 has an indole-diterpene core similar to that of paspalinine. However, the differences in chemical shift values of C-19 (δC 123.3) and C-22 (δC 123.7) of 1 from the corresponding carbons in paspalinine [16]; the HMBC correlations (Figure 2, Figure S5) from H-20 (δH 7.26) to C-18 (δC 115.0) and C-22, from H-21 (δH 7.26) to C-19 and C-23 (δC 111.3), and from H-23 (δH 7.26) to C-19 and C-21 (δC 118.7); and the coupling constants JH20–H21 (8.5 Hz) and JH21–H23 (2.1 Hz) suggested the presence of a chlorine atom on C-22 of 1.
The HMBC correlations (Figure 3, Figure S5) from H-28β (δH 3.67) to C-27 (δC 75.0), C-29 (δC 17.0), and C-1′ (δC 170.2); from H-9 (δH 4.74) to C-7 (δC 93.6), C-28 (δC 64.8), and C-27; from H-28α (δH 4.04) to C-7, C-9 (δC 78.3), and C-27; and from H3-29 (δH 1.21) to C-27 suggested the presence of a 1,3-dioxane ring with an acetoxy group at C-27. The W-type coupling constant JH9–H28α (2.5 Hz) and ROESY correlations (Figure 4, Figure S6) of H-28β with H-11 (δH 6.11), H3-29, H3-26 (δH 1.02), and of H-28α with H3-29 indicated a relative configuration of chiral centers in the 1,3-dioxane ring as 7R*, 9R*, 27S*. The ROESY correlations (Figure 4, Figure S6) of H3-25 (δH 1.31) with H-5α (δH 1.93), 13-OH (δH 5.10), H-6α (δH 2.00), and H-15α (δH 1.91), and of H-16 (δH 2.72) with H3-26 (δH 1.02) suggested the relative configurations of the stereogenic carbons of the C–G rings in 1 as 3S*, 4R*, 13S*, 16R*. The absolute configurations of all stereocentres in 1 was proposed as 3S, 4R, 7R, 9R, 13S, 16R, 27S—the same as those in paspalinine—based on biosynthetic considerations, and was confirmed by the comparison of the ECD (electronic circular dichroism) spectral data with that of paspalinine [17] (Figure 5). Compound 1 was named asperindole A. It should be noted that chlorinated indolediterpenes are rare in nature [12,22,23,24,25].
The molecular formula of 2 was determined as C29H33NO6 by a HRESIMS peak at m/z 490.2188 [M − H], which was supported by the 13C NMR spectrum. The general features of the 1H and 13C NMR spectra (Table 1, Figures S7 and S8) of 2 resemble those of 1, with the exception of the proton and carbon signals of an indole moiety, as well as the absence of a chlorine atom as evidenced by the HRESIMS spectrum. The coupling constants and the multiplicity of the aromatic protons in ring A (H-20, δH 7.25, d, J = 7.6 Hz; H-21, δH 6.89, t, J = 7.6 Hz; H-22, δH 6.93, t, J = 7.6 Hz; and H-23, δH 7.27, d, J = 7.6 Hz) allowed the conclusion to be made that 2 is a nonchlorinated analogue of 1. Compound 2 was therefore named asperindole B.
The molecular formula of 3 was established as C33H38NO8Cl on the basis of the HRESIMS, containing a peak at m/z 610.2206 [M − H], and was supported by the 13C NMR spectrum. The analysis of the NMR data (Figures S14–S20) for 3 revealed the presence of the same indole-diterpene framework as that in 1, with the exception of the proton and carbon signals in a 1,3-dioxane ring, as well as the presence of two methyl (δC 23.9, 24.2), an ester carbonyl (δC 171.1), and an oxygen-bearing quaternary sp3 (δC 77.9) carbons. The HMBC correlations (Figure 3, Figure S19) from H-3′ (δH 1.52) and H-4′ (δH 1.54) to C-2′ (δC 77.9), and from H-6′ (δH 2.04) to C-5′ (δC 169.3) suggested the presence of an acetylated residue of 2-hydroxyisobutyric acid (2-HIBA) in 3. This was corroborated by the molecular weight of 3, which was 86 amu (C4H6O2) greater than that of 1. The ROESY correlations of 3 (Figure S20) were similar to those in 1 (Figure 4, Figure S6). Based on these data and together with the ECD spectrum of 1 (Figure 5), the absolute configurations of all stereocentres in 3 were proposed to be the same as those in asperindole A. Consequently, 3 was named asperindole C. To the best of our knowledge, the 2-HIBA residue is unique amongst naturally occurring compounds.
The HRESIMS spectrum of 4 exhibited the [M − H] peak at m/z 576.2594, corresponding to C33H39NO8, which was supported by the 13C NMR spectrum. The general features of the 1H and 13C NMR spectra (Table 2, Figures S21 and S22) of 4 resembled those of 3, with the exception of some proton and carbon signals of the indole moiety. Similar to 2, the coupling constants and multiplicity of the aromatic protons in ring A (H-20, δH 7.25, d, J = 7.5 Hz; H-21, δH 6.88, brt, J = 7.2 Hz; H-22, δH 6.92, brt, J = 7.1 Hz; and H-23, δH 7.27, d, J = 6.9 Hz) led to the conclusion that 4 is a nonchlorinated analogue of 3. Compound 4 was therefore named asperindole D.
The molecular formula of 5 was determined as C20H18O6, based on a pseudo-molecular peak at m/z 353.1013 [M − H] from the HRESIMS spectrum. This was supported by the 13C NMR spectrum. A close inspection of the 1H and 13C NMR data (Table 3, Figures S23 and S24) of 5 revealed the presence of eight aromatic protons (δH 6.47, 6.85, 2H; 6.91, 7.02, 7.19, 7.25, 2H) and eight methine sp2 (δC 104.8, 115.9, 115.9, 116.8, 117.5, 122.0, 133.7, 133.7), six oxygen-bearing quaternary sp2 (δC 140.8, 146.3, 146.4, 149.8, 155.1, 157.6), and four quaternary sp2 (δC 118.3, 126.8, 131.9, 134.2) carbons, and two methoxy groups (δC 56.8, 61.4; δH 3.41, 3.71). A direct comparison of 1H and 13C NMR spectra of 5 (Table 3, Figures S23 and S24) with those of terphenyllin [1] showed their close resemblance, with the exception of the presence of a hydroxy group at C-3″ (δC 146.4) and the difference in carbon chemical shifts at C-2″ (δC 117.5), C-4″ (δC 146.3), C-5″ (δC 116.8) and C-6″ (δC 122.0) (131.1 ppm for C-1″, C-2″, and C-6″; 158.0 ppm for C-4″ in terphenyllin [1]). The HMBC correlations (Figure 6, Figure S27) from H-2 (δH 7.25) to C-4 (δC 157.6), C-6 (δC 133.7), and C-4′ (δC 118.3); from H-3 (δH 6.85) to C-1 (δC 126.8) and C-5 (δC 115.9); from H-5 (δH 6.85) to C-3 (δC 115.9) and C-1; from H-6 (δH 7.25) to C-2 (δC 133.7), C-4, and C-4′; from H-6′ (δH 6.47) to C-2′ (δC 140.8), C-4′, and C-1″ (δC 131.9); from H-2″ (δH 7.19) to C-1′ (δC 134.2), C-4″, and C-6″; from H-5″ (δH 6.91) to C-1″ and C-3″; from H-6″ (δH 7.50) to С-1′, C-2″, and C-4″; and ROESY correlation from H-6′ and 2′-OMe (δH 3.41) to H-2″ and H-6″, and from 5′-OMe (δH 3.71) to H-2 (H-6) established the structure of 5 as the 2′,5′-dimethoxy-4,3′,3″,4″-tetrahydroxy-p-terphenyl derivative. This structure was previously published as hydroxyterphenyllin in an unavailable source [26]. It should be noted that these authors reported the name “hydroxyterphenyllin” for an isomeric compound [27] now known as 3-hydroxyterphenyllin [2,28]. Probably, the structure of 5 was mistakenly provided by [26] instead of the structure of 3-hydroxyterphenyllin. Therefore, 5 should be named 3″-hydroxyterphenyllin.
The biosynthesis of related indole-diterpenes was previously proposed for paspalinine [29]. Apparently, the common biosynthetic precursor of asperindoles and 1,3-dioxolane indole-diterpenoids (including paspalinine) is 7α-hydroxypaxilline (Figure 7). Oxidation of the isopropyl substituent, followed by cyclization at С-7 and С-2′, generates a 1,3-dioxane ring. Asperindoles are then formed by acylation and halogenation.
The effect of the asperindoles A (1) and C (3) on cell viability, cell cycle progression, and induction of apoptosis in human prostate cancer cell lines was investigated. MTT assays revealed that asperindole C (3) was noncytotoxic against human PC-3, LNCaP (androgen-sensitive human prostate adenocarcinoma cells), and 22Rv1 cell lines with an IC50 > 100 µM. In contrast, asperindole A (1) showed cytotoxicity in all three cell lines, with IC50 values of 69.4 µM, 47.8 µM, and 4.86 µM, respectively. Docetaxel, which was used as a reference substance, displayed IC50 values of 15.4 nM, 3.8 nM, and 12.7 nM, respectively. Asperindole A (1) was able to induce apoptosis in human cancer 22Rv1 cells at low-micromolar concentrations (Figure 8). Cell cycle progression analysis of 22Rv1 cells treated with asperindole A (1) for 48 h revealed a S-phase arrest (as well as a discrete G2/M-phase arrest, Figure 8). Thus, asperindole A (1) may be a promising candidate for further studies in human drug-resistant prostate cancer. In contrast, 22Rv1 cells treated with 100 µM of asperindole C (3) for 48 h revealed only minimal induction of apoptosis (8.9 ± 0.6% vs 1.2 ± 0.1% in the control) and no significant changes in cell cycle progression.

3. Materials and Methods

3.1. General Experimental Procedures

Optical rotations were measured on a Perkin-Elmer 343 polarimeter (Perkin Elmer, Waltham, MA, USA). UV spectra were recorded on a Specord UV−vis spectrometer (Carl Zeiss, Jena, Germany) in CHCl3. NMR spectra were recorded in DMSO-d6 on a Bruker DPX-500 (Bruker BioSpin GmbH, Rheinstetten, Germany) and a Bruker DRX-700 (Bruker BioSpin GmbH, Rheinstetten, Germany) spectrometer, using TMS as an internal standard. HRESIMS spectra were measured on an Agilent 6510 Q-TOF LC mass spectrometer (Agilent Technologies, Santa Clara, CA, USA) and a Maxis impact mass spectrometer (Bruker Daltonics GmbH, Rheinstetten, Germany).
Low-pressure liquid column chromatography was performed using silica gel (50/100 μm, Imid, Russia). Plates (4.5 cm × 6.0 cm) precoated with silica gel (5–17 μm, Imid) were used for thin-layer chromatography. Preparative HPLC was carried out on a Shimadzu LC-20 chromatograph (Shimadzu USA Manufacturing, Canby, OR, USA) using a YMC ODS-AM (YMC Co., Ishikawa, Japan) (5 µm, 10 mm × 250 mm) and YMC SIL (YMC Co., Ishikawa, Japan) (5 µm, 10 mm × 250 mm) columns with a Shimadzu RID-20A refractometer (Shimadzu Corporation, Kyoto, Japan).

3.2. Fungal Strain

The strain was isolated from an unidentified colonial ascidian (Shikotan Island, Pacific Ocean) on malt extract agar, and identified on the basis of morphological and molecular features. For DNA extraction, the culture was grown on malt extract agar under 25 °C for 7 days. DNA extraction was performed with the HiPurATM Plant DNA Isolation kit (CTAB Method) (HiMedia Laboratories Pvt. Ltd., Mumbai, India) according to the manufacturer’s instructions. Fragments containing the ITS (internal transcribed spacer) regions were amplified using ITS1 and ITS4 primers. The newly obtained sequences were checked visually and compared to available sequences in the GenBank database (www.mycobank.org). According to BLAST analysis of the ITS1–5.8S–ITS2 sequence, the strain KMM 4676 had 98% similarity with Aspergillus candidus. The sequences were deposited in the GenBank nucleotide sequence database under MG 241226. The strain is deposited in the Collection of Marine Microorganisms of G. B. Elyakov Pacific Institute of Bioorganic Chemistry FEB RAS under the code KMM 4676.

3.3. Cultivation of Fungus

The fungus was cultured at 22 °С for three weeks in 14 × 500 mL Erlenmeyer flasks, each containing rice (20.0 g), yeast extract (20.0 mg), KH2PO4 (10 mg), and natural sea water (40 mL).

3.4. Extraction and Isolation

The fungal mycelia with the medium were extracted for 24 h with 5.6 L of EtOAc. Evaporation of the solvent under reduced pressure gave a dark brown oil (6.25 g), to which 250 mL H2O–EtOH (4:1) was added, and the mixture was thoroughly stirred to yield a suspension. It was extracted successively with n-hexane (150 mL × 2), EtOAc (150 mL × 2), and n-BuOH (150 mL × 2). After evaporation of the EtOAc layer, the residual material (3.92 g) was passed over a silica gel column (35.0 cm × 2.5 cm, 75 g), which was eluted first with n-hexane (1.0 L), followed by a step gradient from 5% to 100% EtOAc in n-hexane (total volume 30 L). Fractions of 250 mL each were collected and combined on the basis of TLC (Si gel, toluene–2-propanol, 6:1 and 3:1, v/v).
The n-hexane–EtOAc (9:1, 2 L, 21.70 mg) fraction was purified by LH-20 column (80 cm × 2 cm, 50 g) with CHCI3 to yield 30 subfractions. Subfraction 6 is the individual compound 1 (8.30 mg). Subfractions 8–12 (7.00 mg) were purified by HPLC on a YMC ODS-AM column, eluting with MeOH–H2O (9:1), and then by HPLC on a YMC SIL column, eluting with acetone–n-hexane (1:3) to yield 2 (0.56 mg), 3 (1.05 mg), and 4 (1.47 mg). The n-hexane–EtOAc (4:1, 2 L, 145 mg) fraction was purified by by HPLC on a YMC ODS-AM column, eluting with MeOH–H2O (13:7), then by HPLC on a YMC-SIL column eluting first with CHCl3–MeOH–NH4OAc (90:10:1.5), and then with CHCl3–MeOH–NH4OAc (85:15:1) to yield 5 (56.10 mg).
Asperindole A (1): white powder; [α ] D 20 +22 (c 0.10, CHCl3); UV (MeOH) λmax (log ε) 284 (3.86), 236.4 (4.55), 195.6 (4.55) nm; ECD (0.21 mM, MeOH) λmaxε) 205 (+8.52), 240 (−19.80), 280 (+0.25), 360 (+3.60) nm; 1H and 13C NMR data see Table 1, Figures S1–S6; HR ESIMS m/z 526.1980 [M + H]+ (calcd. for C29H33NO6Cl, 526.1992, Δ −2.28 ppm).
Asperindole B (2): white powder; [α ] D 20 +40 (c 0.03, CHCl3); 1H and 13C NMR data see Table 1, Figures S7–S13; HRESIMS m/z 514.2194 [M + Na]+ (calcd. for C29H33NO6Na, 514.2200, Δ −1.17 ppm).
Asperindole C (3): white powder; [α ] D 20 +46 (c 0.72, CHCl3); UV (MeOH) λmax (log ε) 284 (3.90), 236.4 (4.56), 194.8 (4.46) nm; ECD (0.21 mM, MeOH) λmaxε) 205 (+6.43), 240 (−18.25), 280 (+0.02), 360 (+3.57) nm; 1H and 13C NMR data see Table 2, Figures S14–S20; HRESIMS m/z 610.2206 [M − H] (calcd. for C33H37NO8Cl, 610.2213, Δ −1.15 ppm).
Asperindole D (4): white powder; [α ] D 20 +24 (c 0.05, CHCl3); 1H and 13C NMR data, see Table 2, Figures S21 and S22; HRESIMS m/z 576.2594 [M − H] (calcd. for C33H38NO8, 576.2603, Δ −1.56 ppm).
3″-hydroxyterphenylline (5): 1H and 13C NMR data, see Table 3, Figures S23–S27; HRESIMS m/z 353.1036 [M − H] (calcd. for C20H17O6, 353.1031, Δ −1.42 ppm).

3.5. Cell Culture

The human prostate cancer cells lines 22Rv1, PC-3, and LNCaP were purchased from ATCC. Cell lines were cultured in 10% FBS/RPMI media (Invitrogen Ltd., Paisley, UK) with (for LNCaP) or without (for 22Rv1 and PC-3) 1 mM sodium pyruvate (Invitrogen). Cells were continuously kept in culture for a maximum of 3 months, and were routinely inspected microscopically for stable phenotype and regularly checked for contamination with mycoplasma. Cell line authentication was performed by DSMZ (Braunschweig, Germany) using highly polymorphic short tandem repeat loci [30].

3.6. Cytotoxicity Assay

The in vitro cytotoxicity of individual substances was evaluated using the MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) assay, which was performed as previously described [31]. Docetaxel was used as a control.

3.7. Cell Cycle and Apoptosis Induction Analysis

The cell cycle distribution was analyzed by flow cytometry using PI (propidium iodide) staining as described before with slight modifications [32]. In brief, cells were preincubated overnight in 6-well plates (2 × 105 cells/well in 2 mL/well). The medium was changed to fresh medium containing different concentrations of the substances. After 48 h of treatment, cells were harvested with a trypsin-EDTA solution, fixed with 70% EtOH, stained, and analyzed by BD Bioscience FACS Calibur analyzer (BD Bioscience, Bedford, MA, USA). The results were quantitatively analyzed using BD Bioscience Cell Quest Pro v.5.2.1. software (San Jose, CA, USA). Cells detected in the sub-G1 peak were considered as apoptotic.

4. Conclusions

Four new metabolites, the indole-diterpene alkaloids asperindoles A–D (14), and the known p-terphenyl derivative 3′′-hydroxyterphenyllin (5) were isolated from a marine-derived strain of the fungus A. candidus KMM 4676, associated with an unidentified colonial ascidian. To the best of our knowledge, 3 and 4 are the first examples of naturally occurring compounds containing a 2-hydroxyisobutiric acid (2-HIBA) residue. This is the first report of the spectral data and reliable assignment for 3′′-hydoxyterphenyllin (5). Asperindole A (1) was proved to be highly cytotoxic in 22Rv1 human prostate cancer cells resistant to androgen receptor-targeted therapies. Therefore, this compound is a promising candidate for further evaluation in human drug-resistant prostate cancer cells.

Supplementary Materials

1H, 13C, DEPT, COSY-45, HSQC, HMBC, and ROESY spectra of new compounds 15 are available online at https://www.mdpi.com/1660-3397/16/7/232/s1.

Author Contributions

Conceptualization, A.N.Y.; Data curation, A.N.Y. and S.A.D.; Formal analysis, A.N.Y.; Funding acquisition, G.v.A. and S.S.A.; Investigation, E.V.I., A.N.Y., O.F.S., A.B.R., O.I.Z., M.V.P., R.S.P. and S.A.D.; Methodology, A.N.Y., G.v.A. and S.A.D.; Project administration, G.v.A. and S.S.A.; Resources, A.N.Y. and G.v.A.; Supervision, S.S.A.; Validation, S.A.D.; Visualization, E.V.I.; Writing-original draft, E.V.I., M.V.P. and S.A.D.; Writing-review & editing, A.N.Y., G.v.A., S.S.A. and S.A.D.

Acknowledgments

The study was supported by the Federal Agency for Scientific Organizations program for support to bioresource collections. The authors thank Friedemann Honecker for thorough English editing.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Marchelli, R.; Vining, L.C. Terphenyllin, a novel p terphenyl metabolite from Aspergillus candidus. J. Antibiot. 1975, 28, 328–331. [Google Scholar] [CrossRef] [PubMed]
  2. Kurobane, I.; Vining, L.C.; McInnes, A.G.; Smith, D.G. 3-Hydroxyterphenyllin, a new metabolite of Aspergillus candidus. Structure elucidation by 1H and 13C nuclear magnetic resonance spectroscopy. J. Antibiot. 1979, 32, 559–564. [Google Scholar] [CrossRef] [PubMed]
  3. Kamigauchi, T.; Sakazaki, R.; Nagashima, K.; Kawamura, Y.; Yasuda, Y.; Matsushima, K.; Tani, H.; Takahashi, Y.; Ishii, K.; Suzuki, R.; et al. Terprenins, novel immunosuppressants produced by Aspergillus candidus. J. Antibiot. 1998, 51, 445–450. [Google Scholar] [CrossRef] [PubMed]
  4. Rahbæk, L.; Frisvad, J.C.; Christophersen, C. An amendment of Aspergillus section Candidi based on chemotaxonomical evidence. Phytochemistry 2000, 53, 581–586. [Google Scholar] [CrossRef]
  5. Cai, S.; Sun, S.; Zhou, H.; Kong, X.; Zhu, T.; Li, D.; Gu, Q. Prenylated polyhydroxy-p-terphenyls from Aspergillus taichungensis ZHN-7-07. J. Nat. Prod. 2011, 74, 1106–1110. [Google Scholar] [CrossRef] [PubMed]
  6. Bird, A.E.; Marshall, A.C. Structure of chlorflavonin. J. Chem. Soc. C 1969, 18, 2418–2420. [Google Scholar] [CrossRef]
  7. Yan, T.; Guo, Z.K.; Jiang, R.; Wei, W.; Wang, T.; Guo, Y.; Song, Y.C.; Jiao, R.H.; Tan, R.X.; Ge, H.M. New Flavonol and Diterpenoids from the Endophytic Fungus Aspergillus sp. YXf3. Planta Med. 2013, 79, 348–352. [Google Scholar] [CrossRef] [PubMed]
  8. Kuhnert, E.; Surup, F.; Herrmann, J.; Huch, V.; Müller, R.; Stadler, M.; Rickenyls, A.-E. antioxidative terphenyls from the fungus Hypoxylon rickii (Xylariaceae, Ascomycota). Phytochemistry 2015, 118, 68–73. [Google Scholar] [CrossRef] [PubMed]
  9. Valeria Calì, C.S.; Tringali, C. Polyhydroxy-P-Terphenyls and Related P-Terphenylquinones From Fungi: Overview and Biological Properties. Stud. Nat. Prod. Chem. 2003, 29, 263–307. [Google Scholar]
  10. Kobayashi, A.; Takemoto, A.; Koshimizu, K.; Kawazu, K. p-Terphenyls with cytotoxic activity toward sea urchin embryos. Agric. Biol. Chem. 1985, 49, 867–868. [Google Scholar] [CrossRef]
  11. Buttachon, S.; Ramos, A.A.; Inácio, Â.; Dethoup, T.; Gales, L.; Lee, M.; Costa, P.M.; Silva, A.M.S.; Sekeroglu, N.; Rocha, E.; et al. Bis-indolyl benzenoids, hydroxypyrrolidine derivatives and other constituents from cultures of the marine sponge-associated fungus Aspergillus candidus KUFA0062. Mar. Drugs 2018, 16, 119. [Google Scholar] [CrossRef] [PubMed]
  12. Netz, N.; Opatz, T. Marine indole alkaloids. Mar. Drugs 2015, 13, 4814–4914. [Google Scholar] [CrossRef] [PubMed]
  13. Munday-Finch, S.C.; Miles, C.O.; Wilkins, A.L.; Hawkes, A.D. Isolation and Structure Elucidation of Lolitrem A, a Tremorgenic Mycotoxin from Perennial Ryegrass Infected with Acremonium lolii. J. Agric. Food Chem. 1995, 43, 1283–1288. [Google Scholar] [CrossRef]
  14. Gallagher, R.T.; White, E.P.; Mortimer, P.H. Ryegrass staggers: Isolation of potent neurotoxins lolitrem a and lolitrem b from staggers-producing pastures. N. Z. Vet. J. 1981, 29, 189–190. [Google Scholar] [CrossRef] [PubMed]
  15. Munday-Finch, S.C.; Wilkins, A.L.; Miles, C.O.; Tomoda, H.; Omura, S. Isolation and Structure Elucidation of Lolilline, a Possible Biosynthetic Precursor of the Lolitrem Family of Tremorgenic Mycotoxins. J. Agric. Food Chem. 1997, 45, 199–204. [Google Scholar] [CrossRef]
  16. Gallagher, R.T.; Finer, J.; Clardy, J.; Leutwiler, A.; Weibel, F.; Acklin, W.; Arigoni, D. Paspalinine, a Tremorgenic Metabolite from Claviceps paspali Stevens Et Hall. Tetrahedron Lett. 1980, 21, 235–238. [Google Scholar] [CrossRef]
  17. Sun, K.; Li, Y.; Guo, L.; Wang, Y.; Liu, P.; Zhu, W. Indole diterpenoids and isocoumarin from the fungus, Aspergillus flavus, isolated from the prawn, Penaeus vannamei. Mar. Drugs 2014, 12, 3970–3981. [Google Scholar] [CrossRef] [PubMed]
  18. Fan, Y.; Wang, Y.; Liu, P.; Fu, P.; Zhu, T.; Wang, W.; Zhu, W. Indole-diterpenoids with anti-H1N1 activity from the aciduric fungus Penicillium camemberti OUCMDZ-1492. J. Nat. Prod. 2013, 76, 1328–1336. [Google Scholar] [CrossRef] [PubMed]
  19. Belofsky, G.N.; Gloer, J.B.; Wicklow, D.T.; Dowd, P.F. Antiinsectan alkaloids: Shearinines A-C and a new paxilline derivative from the ascostromata of Eupenicillium shearii. Tetrahedron 1995, 51, 3959–3968. [Google Scholar] [CrossRef]
  20. Harms, H.; Rempel, V.; Kehraus, S.; Kaiser, M.; Hufendiek, P.; Müller, C.E.; König, G.M. Indoloditerpenes from a marine-derived fungal strain of Dichotomomyces cejpii with antagonistic activity at GPR18 and cannabinoid receptors. J. Nat. Prod. 2014, 77, 673–677. [Google Scholar] [CrossRef] [PubMed]
  21. Yurchenko, A.N.; Ivanets, E.V.; Smetanina, O.F.; Pivkin, M.V.; Dyshlovoi, S.A.; von Amsberg, G.; Afiyatullov, S.S. Metabolites of the Marine Fungus Aspergillus candidus KMM 4676 Associated with a Kuril Colonial Ascidian. Chem. Nat. Compd. 2017, 53, 747–749. [Google Scholar] [CrossRef]
  22. Sallam, A.A.; Houssen, W.E.; Gissendanner, C.R.; Orabi, K.Y.; Foudah, A.I.; El Sayed, K.A. Bioguided discovery and pharmacophore modeling of the mycotoxic indole diterpene alkaloids penitrems as breast cancer proliferation, migration, and invasion inhibitors. MedChemComm 2013, 4. [Google Scholar] [CrossRef] [PubMed]
  23. De Jesus, A.E.; Steyn, P.S.; van Heerden, F.R.; Vleggaar, R.; Wessels, P.L.; Hull, W.E. Tremorgenic mycotoxins from Penicillium crustosum. Structure elucidation and absolute configuration of penitrems B–F. J. Chem. Soc. Perkin Trans. 1 1983, 41, 1857–1861. [Google Scholar] [CrossRef]
  24. De Jesus, A.E.; Steyn, P.S.; Van Heerden, F.R.; Vleggaar, R.; Wessels, P.L.; Hull, W.E. Tremorgenic mycotoxins from Penicillium crustosum: Isolation of penitrems A–F and the structure elucidation and absolute configuration of penitrem A. J. Chem. Soc. Perkin Trans. 1 1983, 14, 1847–1856. [Google Scholar] [CrossRef]
  25. Penn, J.; Biddle, J.R.; Mantle, P.G.; Bilton, J.N.; Sheppard, R.N. Pennigritrem, a naturally-occurring penitrem A analogue with novel cyclisation in the diterpenoid moiety. J. Chem. Soc. Perkin Trans. 1 1992, 23, 23–26. [Google Scholar] [CrossRef]
  26. Cutler, H.G.; Cole, R.J.; Cox, R.H.; Wells, J.M. Fungal metabolites: Interesting new plant growth inhibitors. Proc. Plant Growth Regul. Work. Group 1979, 6, 87–91. [Google Scholar]
  27. Cutler, H.G.; LeFiles, J.H.; Crumley, F.G.; Cox, R.H. Hydroxyterphenyllin: A novel fungal metabolite with plant growth inhibiting properties. J. Agric. Food Chem. 1978, 26, 632–635. [Google Scholar] [CrossRef]
  28. Guo, Z.K.; Yan, T.; Guo, Y.; Song, Y.C.; Jiao, R.H.; Tan, R.X.; Ge, H.M. P-terphenyl and diterpenoid metabolites from endophytic Aspergillus sp. YXf3. J. Nat. Prod. 2012, 75, 15–21. [Google Scholar] [CrossRef] [PubMed]
  29. Mantle, P.G.; Weedon, C.M. Biosynthesis and transformation of tremorgenic indole-diterpenoids by Penicillium paxilli and Acremonium lolii. Phytochemistry 1994, 36, 1209–1217. [Google Scholar] [CrossRef]
  30. Dyshlovoy, S.A.; Menchinskaya, E.S.; Venz, S.; Rast, S.; Amann, K.; Hauschild, J.; Otte, K.; Kalinin, V.I.; Silchenko, A.S.; Avilov, S.A.; et al. The marine triterpene glycoside frondoside A exhibits activity in vitro and in vivo in prostate cancer. Int. J. Cancer 2016, 138, 2450–2465. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Dyshlovoy, S.A.; Venz, S.; Shubina, L.K.; Fedorov, S.N.; Walther, R.; Jacobsen, C.; Stonik, V.A.; Bokemeyer, C.; Balabanov, S.; Honecker, F. Activity of aaptamine and two derivatives, demethyloxyaaptamine and isoaaptamine, in cisplatin-resistant germ cell cancer. J. Proteom. 2014, 96, 223–239. [Google Scholar] [CrossRef] [PubMed]
  32. Dyshlovoy, S.A.; Hauschild, J.; Amann, K.; Tabakmakher, K.M.; Venz, S.; Walther, R.; Guzii, A.G.; Makarieva, T.N.; Shubina, L.K.; Fedorov, S.N.; et al. Marine alkaloid monanchocidin a overcomes drug resistance by induction of autophagy and lysosomal membrane permeabilization. Oncotarget 2015, 6, 17328–17341. [Google Scholar] [CrossRef] [PubMed]

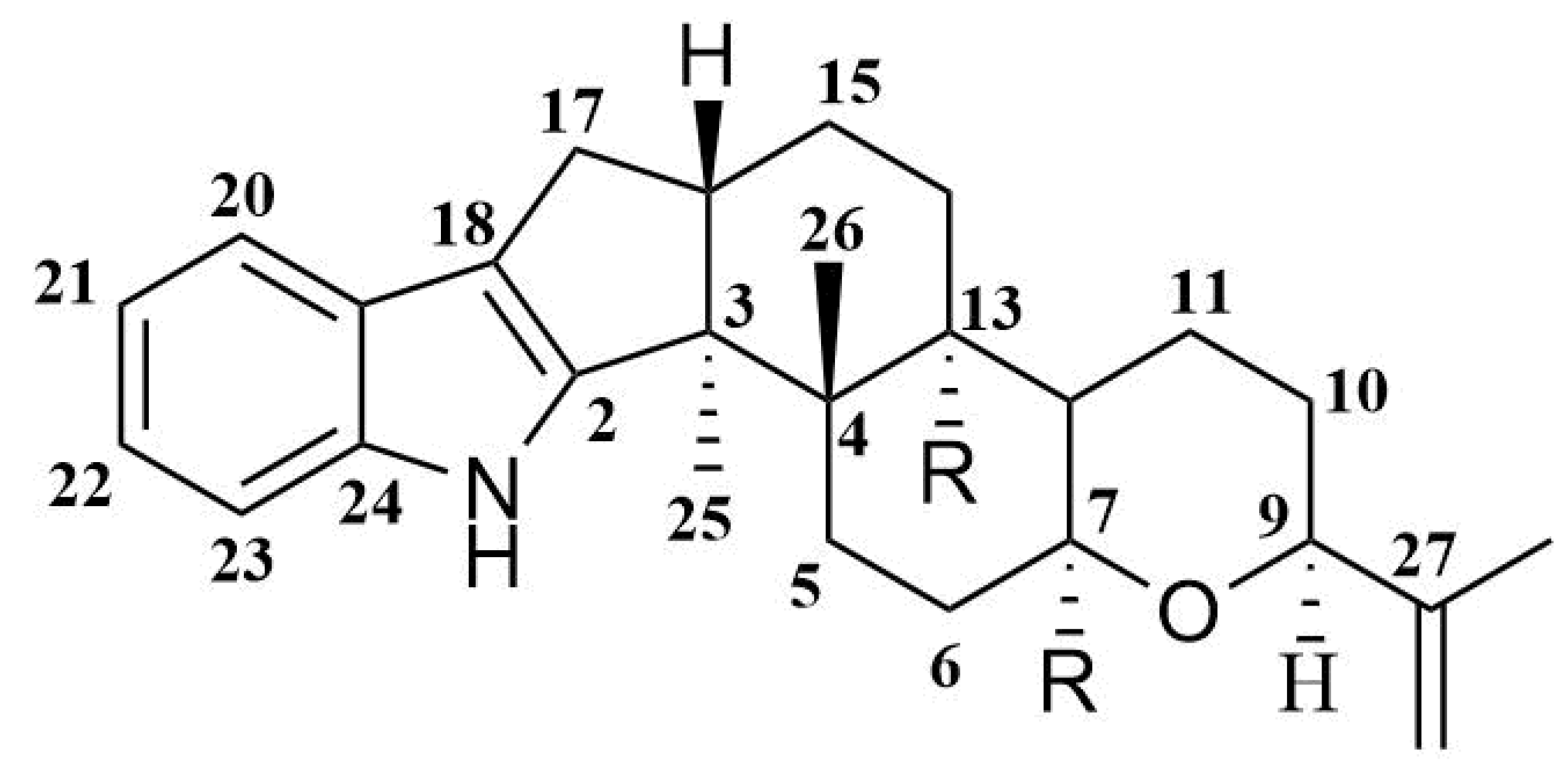

Figure 1. Usual framework of indole-diterpenes.
Figure 1. Usual framework of indole-diterpenes.
Marinedrugs 16 00232 g001

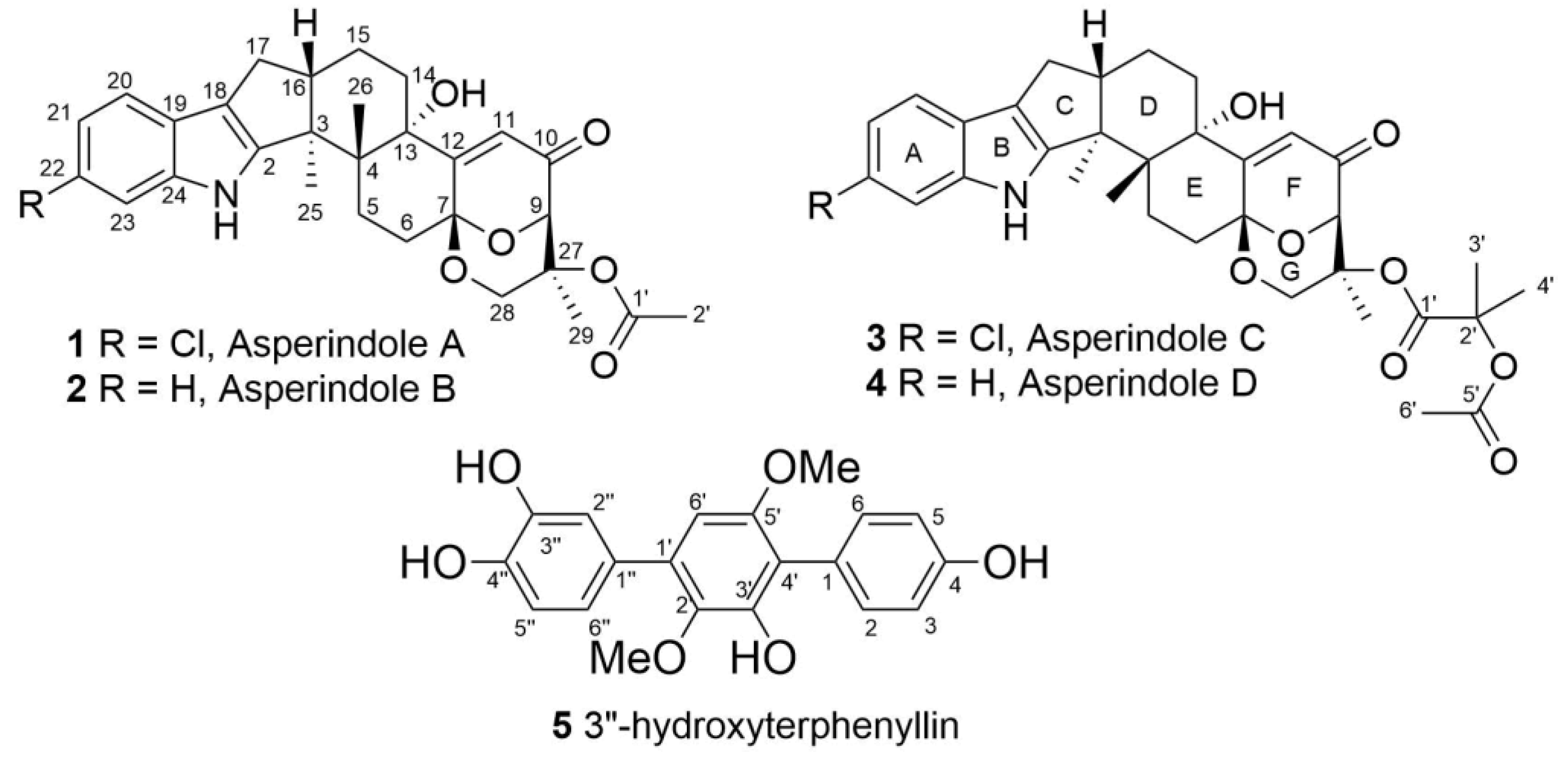

Figure 2. Chemical structures of 15.
Figure 2. Chemical structures of 15.
Marinedrugs 16 00232 g002

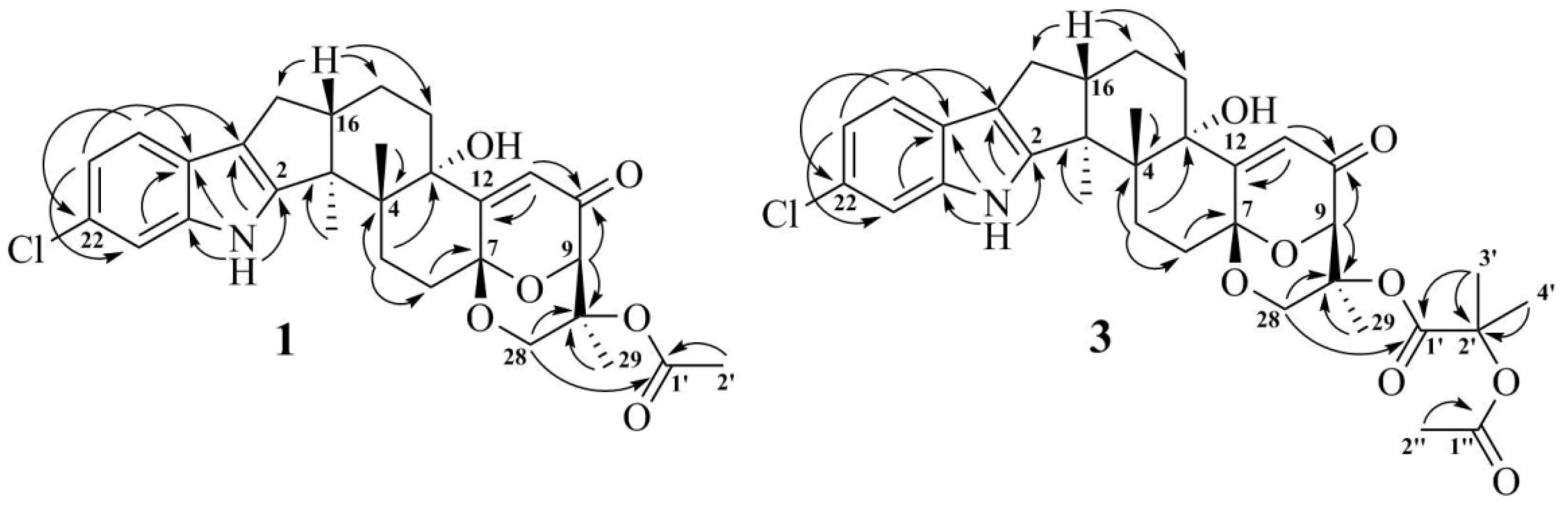

Figure 3. Key HMBC correlations of 1 and 3.
Figure 3. Key HMBC correlations of 1 and 3.
Marinedrugs 16 00232 g003

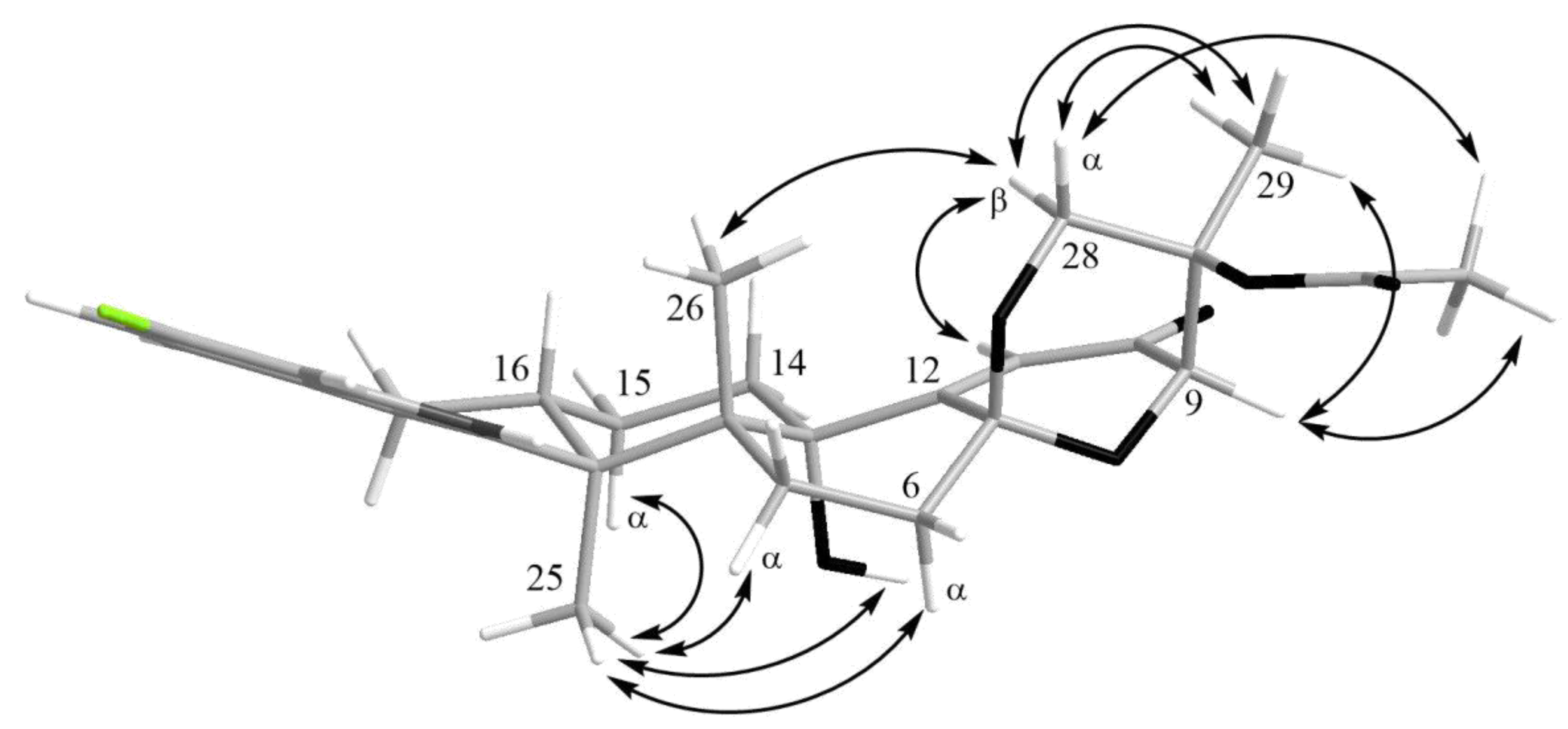

Figure 4. Key ROESY correlations in asperindole A (1).
Figure 4. Key ROESY correlations in asperindole A (1).
Marinedrugs 16 00232 g004

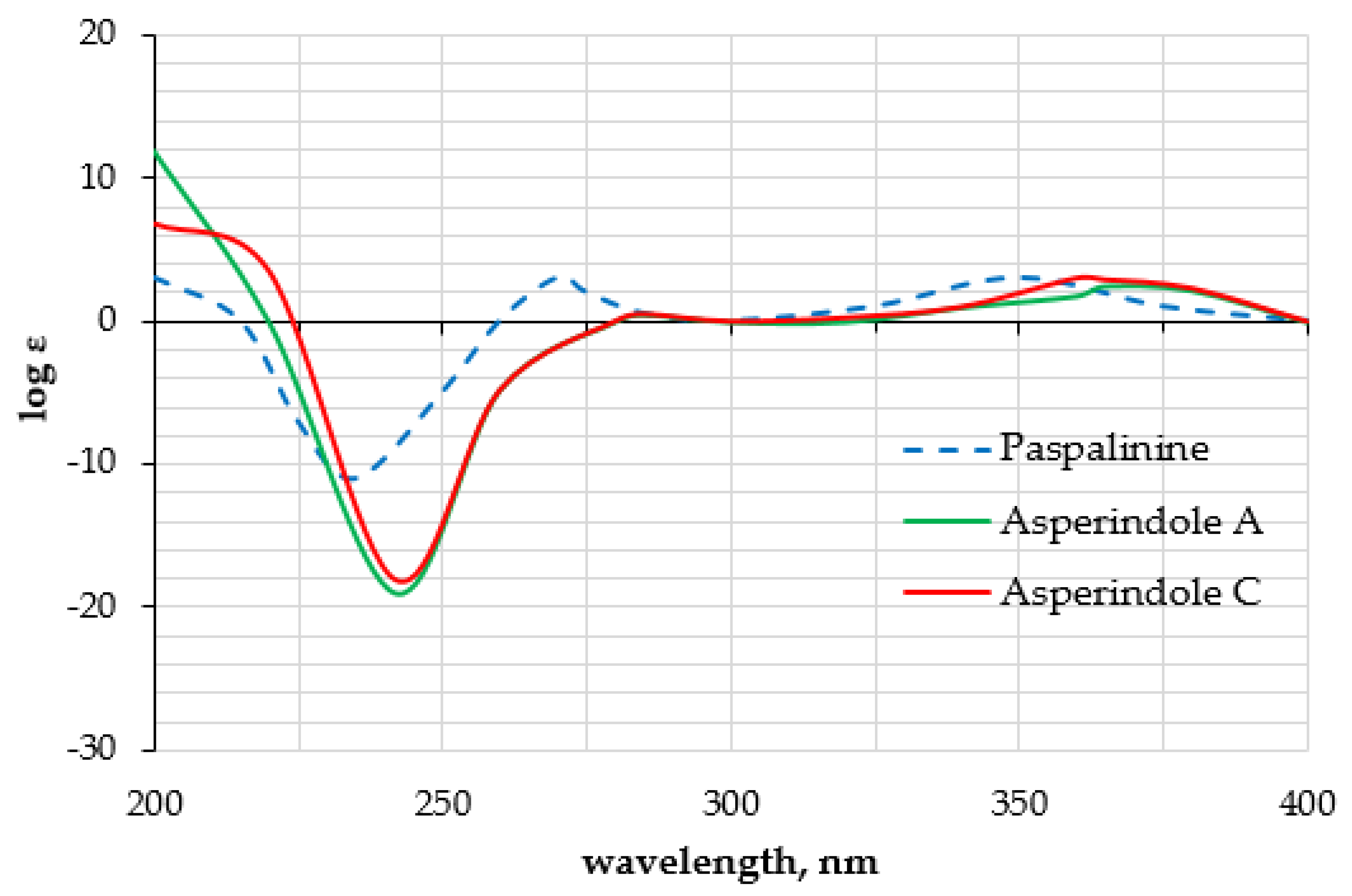

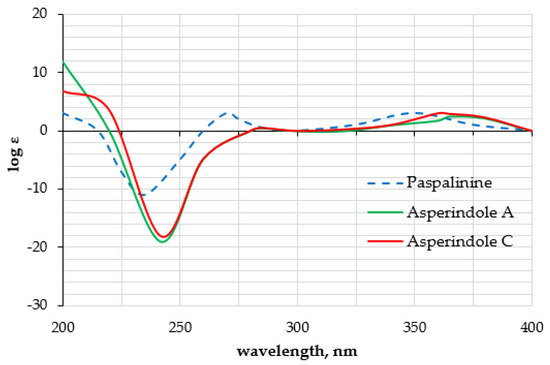

Figure 5. Experimental ECD data of 1, 3, and paspalinine [17].
Figure 5. Experimental ECD data of 1, 3, and paspalinine [17].
Marinedrugs 16 00232 g005

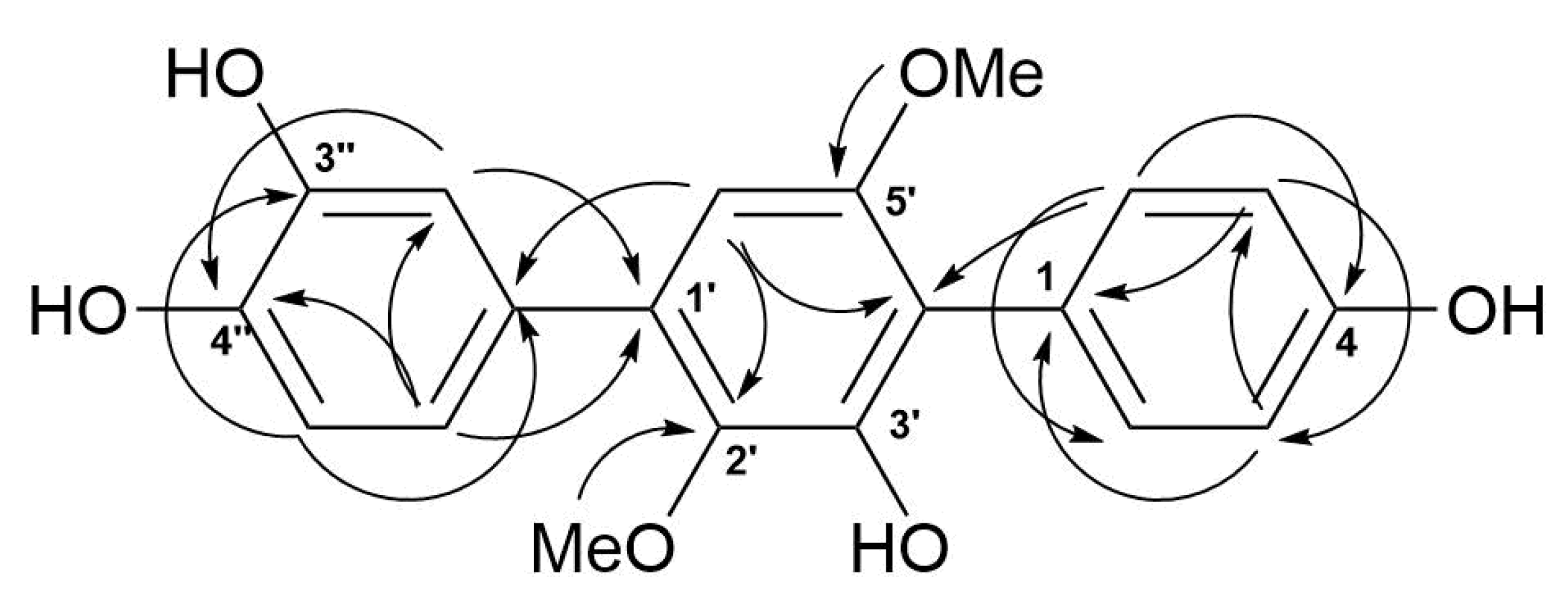

Figure 6. Key HMBC correlations of 5.
Figure 6. Key HMBC correlations of 5.
Marinedrugs 16 00232 g006

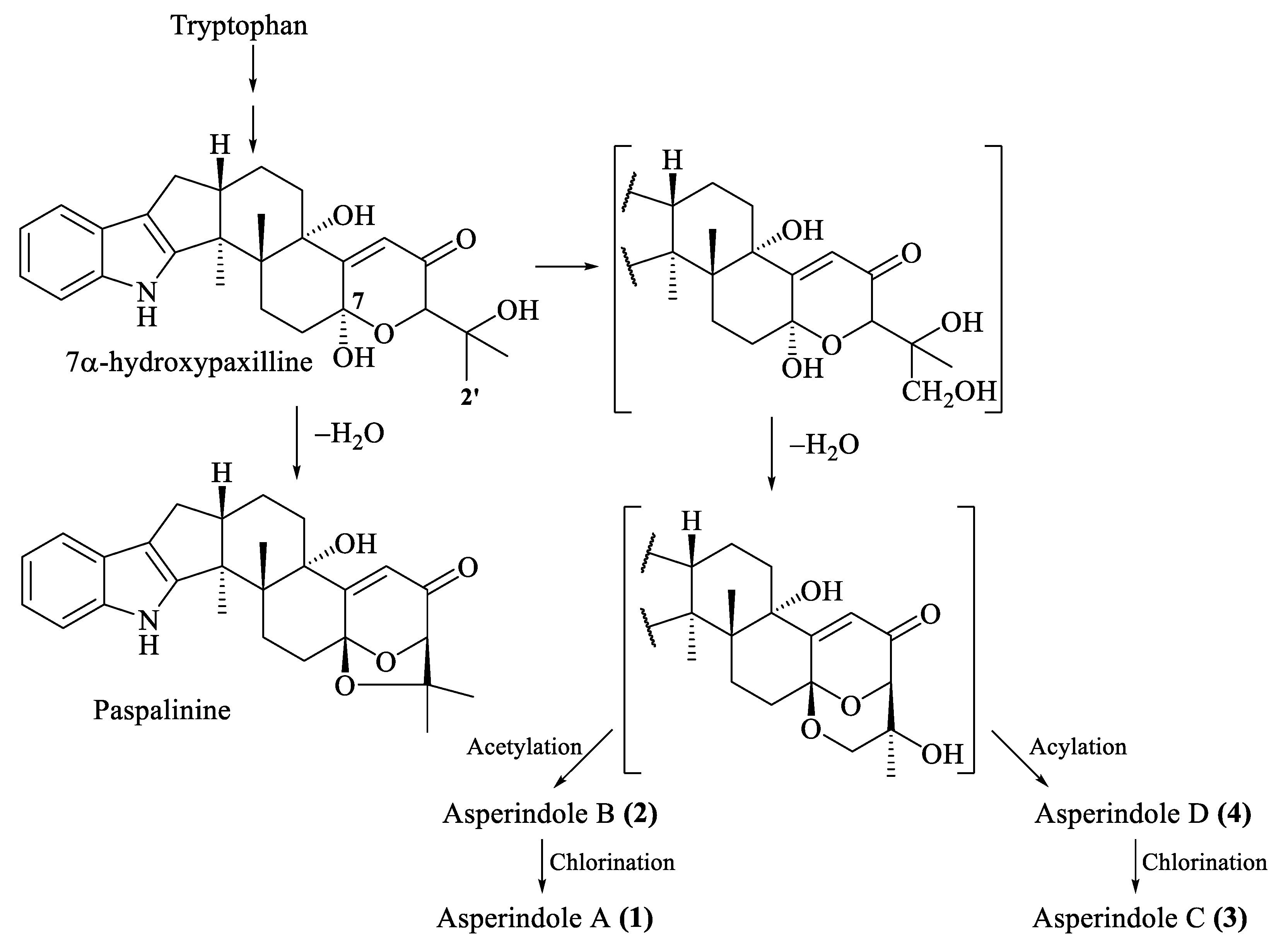

Figure 7. Proposed biosynthesis of asperindoles A–D (14).
Figure 7. Proposed biosynthesis of asperindoles A–D (14).
Marinedrugs 16 00232 g007

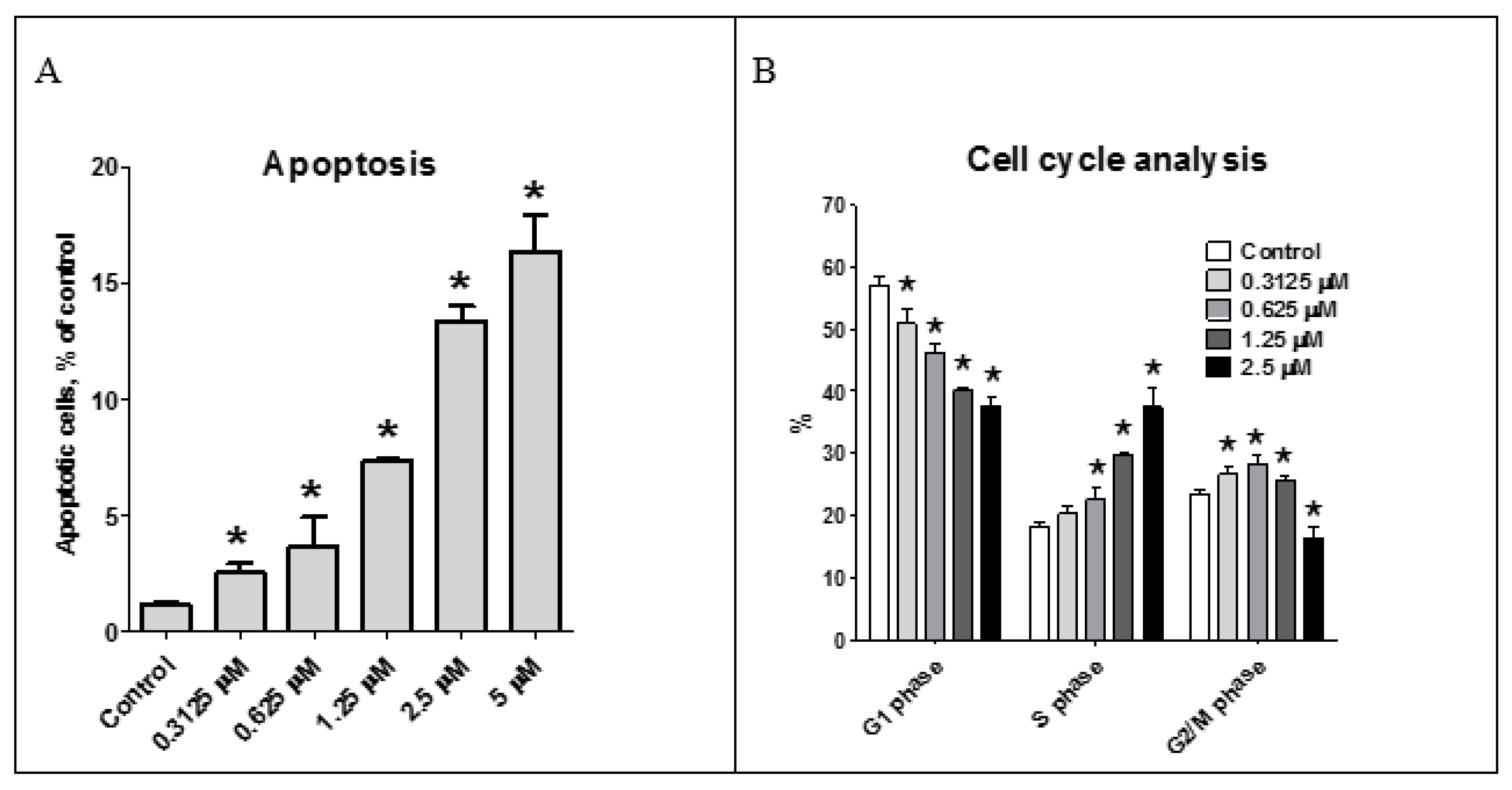

Figure 8. Effect of asperindole A (1) on cell cycle progression and apoptosis induction. Apoptotic cells were detected as a sub-G1 population (A); Cell cycle analysis of 22Rv1 cells treated with asperindole A (1) for 48 h (B). Cell cycle phase distribution, quantified using the Cell Quest Pro software. * p < 0.05.
Figure 8. Effect of asperindole A (1) on cell cycle progression and apoptosis induction. Apoptotic cells were detected as a sub-G1 population (A); Cell cycle analysis of 22Rv1 cells treated with asperindole A (1) for 48 h (B). Cell cycle phase distribution, quantified using the Cell Quest Pro software. * p < 0.05.
Marinedrugs 16 00232 g008
Table 1. 13С NMR data (125 MHz, δ in ppm, DMSO-d6) for asperindoles A–D (14).
Table 1. 13С NMR data (125 MHz, δ in ppm, DMSO-d6) for asperindoles A–D (14).
Position1234
2154.0, C152.8, C154.1, C152.8, C
351.4, C51.2, C51.4, C51.2, C
438.5, C38.6, C38.5, C38.6, C
526.3, CH226.2, CH226.3, CH226.2, CH2
630.0, CH230.1, CH230.0, CH230.0, CH2
793.6, C93.6, C93.6, C93.5, C
978.3, CH78.3, CH78.3, CH78.6, CH
10195.9, C195.9, C195.9, C195.7, C
11119.9, CH119.9, CH119.9, CH119.8, CH
12159.1, C159.2, C159.1, C159.2, C
1377.0, C77.0, C77.0, C77.0, C
1431.5, CH231.6, CH231.5, CH231.5, CH2
1520.8, CH220.9, CH220.82, CH220.9, CH2
1648.3, CH48.3, CH48.3, CH48.4, CH
1726.9, CH227.1, CH226.9, CH227.1, CH2
18115.0, C114.8, C115.0, C114.8, C
19123.3, C124.6, C123.3, C124.6, C
20118.6, CH117.5, CH118.6, CH117.5, CH
21118.7, CH118.3, CH118.7, CH118.3, CH
22123.7, C119.1, CH123.7, C119.1, CH
23111.3, CH111.8, CH111.3, CH111.8, CH
24140.2, C139.9, C140.2, C139.9, C
2516.1, CH316.2, CH316.1, CH316.2, CH3
2623.4, CH323.4, CH323.4, CH323.3, CH3
2775.0, C75.0, C75.8, C75.8, C
2864.8, CH264.8, CH264.1, CH264.1, CH2
2917.0, CH317.0, CH316.4, CH316.4, CH3
1′170.2, C170.2, C171.1, C171.1, C
2′21.8, CH321.8, CH377.9, C77.9, C
3′ 23.9, CH323.9, CH3
4′ 24.2, CH324.2, CH3
1″ 169.3, C169.3, C
2″ 20.75, CH320.8, CH3
Table 2. 1H NMR data (δ in ppm, J in Hz, DMSO-d6) for asperindoles A–D (14).
Table 2. 1H NMR data (δ in ppm, J in Hz, DMSO-d6) for asperindoles A–D (14).
Position1 *2 **3 **4 **
NH10.73, brs10.54, brs10.73, s10.52, s
5α
5β
1.93, m
2.40, dd (13.4, 10.0)
1.96, m
2.41, t (12.3)
1.95, m
2.39, dd (13.4,10.0)
1.96, m
2.41, t (12.3)
6α
6β
2.00, dd (12.9, 8.6)
2.55, m
1.99, m
2.55, m
1.95, dd (12.9, 8.6)
2.55, m
1.95, dd (12.9, 8.6)
2.55, m
94.74, d (2.3)4.74, d (2.1)4.74, d (2.3)4.63, d (2.4)
116.11, s6.11, s6.11, s6.12, s
14α
14β
2.11, dt (13.6, 2.8)
1.77, td (13.2, 4.5)
2.12, brd (13.4)
1.78, brt (13.4)
2.12, dt (13.6, 2.8)
1.76, td (13.2, 4.5)
15α
15β
1.91, m
1.66, m
1.91, m
1.66, m
1.91, m
1.65, m
1.91, m
1.65, m
162.72, m2.72, m2.72, m2.63, m
17α
17β
2.30, dd (13.0, 10.9)
2.60, dd (13.0, 6.4)
2.30, t (12.3)
2.60, dd (12.3, 6.6)
2.30, dd (13.0, 10.9)
2.60, dd (13.0, 6.4)
2.31, dd (13.0, 10.9)
2.60, dd (13.0, 6.2)
207.26, d (8.6)7.25, d (7.6)7.26, d (8.3)7.25, d (7.5)
216.91, dd (8.3, 1.9)6.89, t (7.6)6.91, dd (8.3, 2.0)6.88, brt (7.2)
22 6.93, t (7.6) 6.92, brt (7.1)
237.27, d (2.2)7.27, d (7.6)7.25, d (2.0)7.27, d (6.9)
251.31, s1.30, s1.31, s1.30, s
261.02, s1.03, s1.02, s1.03, s
28α
28β
4.04, dd (13.4, 2.5)
3.67, d (13.4)
4.05, dd (13.3, 2.1)
3.68, d (13.3)
4.11, dd (13.2, 2.5)
3.68, d (13.2)
4.11, dd (13.4, 2.4)
3.69, d (13.4)
291.21, s1.21, s1.17, s 1.18, s
3′ 1.52, s1.52, s
4′ 1.54, s1.54, s
2″2.07, s2.07, s2.04, s2.04, s
13-OH5.10, s5.08, s5.11, s5.08, s
1H NMR spectroscopic data were measured at * 700 MHz and ** 500 MHz, respectively.
Table 3. 1H and 13С NMR data (δ in ppm, DMSO-d6) for 3″-hydroxyterphenyllin (5).
Table 3. 1H and 13С NMR data (δ in ppm, DMSO-d6) for 3″-hydroxyterphenyllin (5).
PositionδС, multδH (J in Hz)HMBCROESY
1126.8, C
2133.7, CH7.25, d (8.4)4, 6, 4′
3115.9, CH6.85, d (8.5)1, 5
4157.6, C
5115.9, CH6.85, d (8.5)1, 3
6133.7, CH7.25, d (8.4)2, 4, 4′5′-OMe
1′134.2, C
2′140.8, C
3′149.8, C
4′118.3, C
5′155.1, C
6′104.8, CH6.47, s2′, 4′, 1″2″, 6″
1″131.9, C
2″117.5, CH7.19, d (2.1)1′, 4″, 6″6′, 2′-OMe
3″146.4, C
4″146.3, C
5″116.8, CH6.91, d (8.1)1″, 3″
6″122.0, CH7.02, dd (8.1, 2.1)1′, 2″, 4″6′, 2′-OMe
2′-OMe61.4, CH33.41, s2′2″, 6”
5′-OMe56.8, CH33.71, s5′6
1H NMR and 13C NMR spectroscopic data were measured at 700 MHz and 175 MHz, respectively.
