Indoor Air Quality in the Metro System in North Taiwan

1
Institute of Environmental and Occupational Health Sciences, School of Medicine, National Yang Ming University, Taipei 11221, Taiwan
2
Management Office for Health Data, China Medical University Hospital, Taichung 40402, Taiwan
3
Department of Health Services Administration, College of Public Health, China Medical University, Taichung 40402, Taiwan
4
Department of Occupational Safety and Health, Chung Shan Medical University, Taichung 40201, Taiwan
5
Department of Medical Research, Chung Shan Medical University Hospital, Taichung 40201, Taiwan
6
Department of Sport and Health Management, Da-Yeh University, No.168, University Rd., Dacun, Changhua 51591, Taiwan
7
School of Post-Baccalaureate Chinese Medicine, China Medical University, Taichung 40402, Taiwan
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Environ. Res. Public Health 2016, 13(12), 1200; https://doi.org/10.3390/ijerph13121200
Submission received: 26 September 2016 / Revised: 28 November 2016 / Accepted: 29 November 2016 / Published: 2 December 2016
(This article belongs to the Special Issue Indoor Air Quality and Health 2016)

Abstract

:
Indoor air pollution is an increasing health concern, especially in enclosed environments such as underground subway stations because of increased global usage by urban populations. This study measured the indoor air quality of underground platforms at 10 metro stations of the Taipei Rapid Transit system (TRTS) in Taiwan, including humidity, temperature, carbon monoxide (CO), carbon dioxide (CO2), formaldehyde (HCHO), total volatile organic compounds (TVOCs), ozone (O3), airborne particulate matter (PM10 and PM2.5), bacteria and fungi. Results showed that the CO2, CO and HCHO levels met the stipulated standards as regulated by Taiwan’s Indoor Air Quality Management Act (TIAQMA). However, elevated PM10 and PM2.5 levels were measured at most stations. TVOCs and bacterial concentrations at some stations measured in summer were higher than the regulated standards stipulated by Taiwan’s Environmental Protection Administration. Further studies should be conducted to reduce particulate matters, TVOCs and bacteria in the air of subway stations.

1. Introduction

In the metropolitan Taipei area of Taiwan, millions of people take the advantage of the convenience of the Taipei Rapid Transit system (TRTS), which substantially reduces traffic jams on city streets [1]. This system consists of five lines and 117 transfer stations with a 131.1-km length in the metro area [2], serving the majority of passengers from 06:00 to 24:00 on weekdays. There are three daily rush hours, from 7 to 9 a.m., from 5 to 7 p.m. and from 9 to 11 p.m. Most parts of the TRTS are underground, where various types of air pollutants, either generated internally or entering from the outside atmosphere, might be accumulated in a confined space. There is concern over whether the pollutants could pose a health risk to passengers and subway employees. With the fast-rising TRTS ridership, concerns about indoor air pollution have been raised. The indoor air pollutant control in the rapid transit system is important to commuters and employees. The Environmental Protection Administration (EPA) of Taiwan has considered that prolonged exposure to indoor air pollutants might affect job performance and could be detrimental to human health. The Administration thus implemented the Taiwan Indoor Air Quality Management Act (TIAQMA) to set maintenance limits for the main indoor pollutants including carbon dioxide (CO2), carbon monoxide (CO), formaldehyde (HCHO), total volatile organic compounds (TVOCs), ozone (O3), airborne particulate matters, including particles of 2.5–10 µm (PM10) and of ≤2.5 µm (PM2.5), bacteria and fungi [3,4] (Table 1).
The TIAQMA defines the scope of “Indoor” in the Act broadly, meaning “any closed or semi-closed space in buildings used by the public, and any mass transportation space that carries passengers”. However, the Taiwan EPA has decreased the number of regulated projects according to different categories and characteristics of the sites to reduce the cost of detection and the impact of industrial chemicals. The EPA requires that the indoor air quality (IAQ) of rapid transit systems to comply with the stipulated standards for CO, CO2, and HCHO [5]. Previous studies have associated poor indoor air quality with building-related symptoms and oxidative stress [6,7,8,9,10,11,12,13,14]. The accumulation of indoor CO2, HCHO, TVOCs, O3, PM10, bacteria and fungal contamination significantly increases the risks of sick building syndrome (SBS) [6,7,8,9,10,11], and high urinary 8-hydroxydeoxyguanosine (8-OHdG) levels [12,13,14]. Urinary 8-OHdG is considered as a biomarker for oxidative stress and has been significantly associated with building-related complaints in office workers [14,15], the exposure to polyaromatic hydrocarbons in traffic conductors and Chinese military cooks [16,17] as well as the exposure of PM10 and PM2.5 in bus drivers [18]. In addition, HCHO may cause nasal and eye irritation, neurological effects, and increased risk of asthma or allergies, and is genotoxic, causing DNA adduct formation and clastogenic effects [19]. It also has been classified as a group B1 carcinogen because of its carcinogenic potential to humans [20,21,22].
Many studies on indoor air quality in crowded stations of subways or metro systems have been conducted in many countries. High levels of PM10, PM2.5 and volatile organic compounds (VOCs) were reported for some subways or metro systems [23,24,25,26]. Johansson and Johansson reported that the mean PM10 and PM2.5 concentrations in the air of underground platforms of Stockholm’s subway system were 470 and 260 µg/m3, respectively, or more than 5 and 10 times higher than those of outdoor roads, respectively [23]. Aarnio et al. also reported that mean concentrations of PM2.5 in two subway stations of Helsinki’s subway system were 47 and 60 µg/m3, representing five to six times higher values than the mean outdoor concentration (19 µg/m3) [24]. A study of Tehran’s subway system found that the mean particulate matter levels in air samples from two indoor platforms were greater than that of outdoors for both PM10 (91.3 vs. 77.9 µg/m3) and PM2.5 (46.8 vs. 32.5 µg/m3) [25]. A recent study in Shanghai found elevated concentrations of VOCs in old metro carriages and carriages in urban areas because of poor air circulation and ventilation on the underground track. The measured average acetone and acrolein increased from 7.71 to 26.28 µg/m3 as the number of commuters increased from 40 to 200 people in the carriages [26].
Cheng et al. have measured PM10 and PM2.5 in the air of platforms at five TRTS stations for one hour and found the concentrations ranged from 11 to 137 µg/m3 and from 7 to 100 µm/m3, respectively [27,28]. The PM levels in the air of underground platforms were more than 10-fold greater than that of outdoor air. However, no other pollutants were measured. We, therefore, attempted to measure the 24-h indoor air quality at major TRTS stations to provide quantitative information on the temporal variations and spatial distributions for target indoor air pollutants. This study also intended to compare indoor air quality of the TRTS not only with the stipulated standards of CO, CO2, and HCHO for public transportation platforms, but also with other standards specified in the TIAQMA.

2. Materials and Methods

With the permit obtained from the Taipei Rapid Transit Corporation (TRTC), Taiwan, we identified for this study the 10 stations with the highest ridership among all TRTS stations. Indoor air samples were collected from and quantified for the underground platforms once in winter and once in summer. At these stations, the central heating ventilation and air-conditioning (HVAC) system set air changes per hour (ACH) at 4–10 changes regulated by the indoor and outdoor temperatures.
At each station, 24-h measures were performed for CO, CO2, humidity, temperature, O3, PM10 and PM2.5 on the platform at each station. A one-hour assessment for HCHO and TVOCs was also performed during the evening rush hour. A 5-min air sample of indoor airborne particles was also collected to evaluate the exposure to bacteria and fungi during the evening rush hour. All samples were collected at 1.5 m height and at least 0.5 m away from all surfaces of objects and ventilation systems to simulate the breathing zone of standing passengers. CO and CO2 were measured with the PPMonitor Stand Alone System (SAS) monitor (PPM Technology Ltd., Caernarfon, UK) with a detectable range of 0–100 ppm (resolution: 0.1 ppm), and a nondispersive infrared technique with a detectable range of 0–5000 ppm (resolution: 1 ppm), respectively. Calibrations were conducted using 2018 ppm CO2 and 100.4 ppm CO for the span gas as well as nitrogen for the zero gas before sampling. O3 and HCHO were measured with the PPMonitor SAS monitor with detectable ranges of 0–1 ppm (resolution: 0.01 ppm) and 0–10 ppm (resolution: 0.001 ppm), respectively. Calibrations were respectively conducted using 1.02 ppm O3 and 2.51 ppm HCHO for the span gas before sampling. Temperature and humidity were also measured with the PPMonitor SAS monitor by using a thermistor in a range from −40 °C to 128 °C (resolution: 0.01 °C) and an interchangeable capacitor with a detectable range of 0%–100% (resolution: 0.01%), respectively. TVOCs were measured with a photoionization detector (Model PGM-7240, RAE Systems, San Jose, CA, USA) with a range of 0–10,000 ppb (resolution: 1 ppb) and built-in correction for 102 built-in VOC gases. Calibration was conducted using 10,000 ppb isobutylene for the span gas and hydrocarbon-free air for the zero gas before sampling. The PM10 and PM2.5 levels were assessed using a portable dust monitor (Model TSI 8520, TSI Inc., Shoreview, MN, USA) by using a light scattering technique with a range of 0.001–100 mg/m3 (resolution: 0.001 mg/m3). Calibration was conducted using filter for zero count test before sampling. Bacteria and fungi were sampled using a bioaerosol impactor with a flow rate of 28.3 mL/min for 5 min. Calibration was conducted using a BioStage Single-stage Impactor (SKC Inc., Covington, GA, USA) with 28.3 L/min for flow test before and after sampling. After sampling, the samples were transported to the laboratory as soon as possible avoiding exposure to sunlight. For the quantitative analyses, samples were cultivated in a temperate box at 25 ± 1 °C for 5 days. The assessments of bacteria and fungi concentrations were performed by counting the number of colonies and then dividing by sampling air volume of 141.5 L. Table 2 summarizes the information of the instruments and operational conditions of the analyses. Data were set up by EXCEL version 14.0 (Microsoft Corp., Redmond, WA, USA) and analyzed by SPSS version 17.0 (SPSS, Inc., Chicago, IL, USA). The IAQ indices between seasons were compared using the t-test analysis with the significance level of 0.05. The correlations between IAQ indices and ridership were estimated using the Pearson’s correlation coefficient analysis.

3. Results

Monitoring for indoor air quality was conducted on the platforms at ten stations with the highest daily riderships in the TRTS (Table 3). Mean levels of CO2, CO, O3, TVOCs, HCHO, humidity, temperature, PM10 and PM2.5, bacteria and fungi were 578.2 ppm, 2.08 ppm, 0.01 ppm, 0.064 ppm, 0.013 ppm, 54.6%, 22.39 °C, 97.2 μg/m3, 75.4 μg/m3, 478.5 CFU/m3 and 269.0 CFU/m3 in winter, respectively, and 701.6 ppm, 2.26 ppm, 0.01 ppm, 0.738 ppm, 0.009 ppm, 66.4%, 26.61 °C, 80.9 μg/m3, 56.2 μg/m3, 995.2 CFU/m3 and 232.2 CFU/m3 in summer, respectively. The stations with the highest pollution levels varied by pollutant and season. They were CO2 at station F, TVOCs at station E, PM2.5 at station D and bacteria at station F measured in summer, and CO at station C, HCHO at station D, PM10 at station D and fungi at station H measured in winter. Humidity and temperature were significantly higher in summer than in winter.

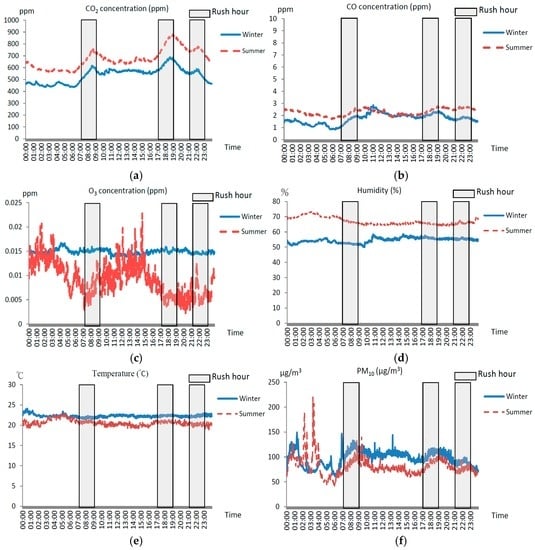

Figure 1 shows the mean hourly levels of CO2, CO, O3, humidity, temperature, PM10 and PM2.5 for the 10 stations in the TRTS. There were three peak mean CO2 concentrations, 685 ppm at 8:34 a.m., of 776 ppm at 6:38 p.m. and of 680 ppm at 10:02 p.m. The hourly distribution trends were parallel in similar patterns in both seasons, but tended to be higher in summer than in winter. However, the difference had no statistical significance. Indoor CO concentrations remained at low levels in both seasons, ranging from 1.70 to 2.77 ppm. The mean O3 concentrations remained at a stable level of at about 15 ppb in winter. On the contrary, the O3 levels varied in summer and ranged from 2 ppb to 23 ppm, with two peak mean concentrations, 17 ppb at 0:08 a.m. and 23 ppb at 2:39 p.m.. The mean hourly indoor humidity mean levels in winter were obviously higher than those in summer, ranging from 63.8%–73.4% and from 49.9%–58.6%, respectively. Indoor mean temperature levels remained stable on a daily basis (18.9–24.1 °C), especially in winter (18.9–22.8 °C). The hourly trends of mean PM10 and PM2.5 concentrations were both parallel in winter and in summer, with the highest peaks appearing at midnight and increasing again during the morning rush hour. There was a peak of 219.9 μg/m3 PM10 at 3:17 a.m and a peak of 164.3 μg/m3 PM2.5 at 3:14 a.m. in Winter.

4. Discussion

Indoor CO, CO2, and HCHO levels in rapid transit systems are regulated by Taiwan’s EPA. However, we also compared the measured levels against all the air pollutant standards of the TIAQMA, including CO, CO2, HCHO, TVOCs, O3, PM10, PM2.5, bacteria and fungi. The 8-h measurements of CO2, CO and O3 levels for all stations met the standards. The measured 1-h level of HCHO was below the standard value of 0.08 ppm. The levels of pollutants except for ozone varied among stations and between seasons. The TVOCs levels were generally greater in summer than in winter. (Table 3). TVOC concentrations appeared highly variable across the stations, with mean levels that ranged from 0.016 to 0.137 ppm in winter and from 0.253 to 1.547 ppm in summer. For the five stations (A, D, E, H and J) in summer, TVOCs levels exceeded the indoor air quality standard of 0.56 ppm. The TVOCs at station E measured in summer was 97 times higher than that at station A measured in winter. However, further data analysis shows that TVOCs concentrations were not significantly associated with the ridership and CO2 concentrations, with Pearson’s correlation coefficients of 0.20 and 0.42, respectively. The reason for the increase of TVOCs concentration must be further investigated.
Bacteria concentrations exceeded the indoor air quality standard of 1500 CFU/m3 at three stations (D, E and F) in summer. Our further data analysis show that indoor bacterial concentrations were associated with the ridership and with indoor CO2 concentrations, with Pearson’s correlation coefficients of 0.58 and 0.76, respectively. The continued measurements in Figure 1 show that the CO2 mean levels among stations were closely associated with the ridership in both winter and summer, with a Pearson’s correlation coefficient of 0.66. It is likely that bacteria are carried into the indoor air and CO2 is generated by riders. The mean CO2 concentrations peaked during rush hours, but none of peak levels exceeded the TIAQMA standard limits. However, the average CO2 levels measured at stations E and F were near 1000 ppm because of the large amount of riders. This implied that the existing air conditioning and ventilation systems were unable to provide sufficient fresh air, resulting in the accumulation of pollutants.
CO in the air is generated mainly from incomplete combustion. In the TRTS, the average concentrations of CO remained at relatively low levels because there is no fossil fuel combustion source and smoking is prohibited in TRTS. The indoor O3 in the platforms may be released from indoor surface materials and enter from outdoor air. This study found that the average concentrations of O3 among stations were different between winter and summer. The difference could be associated with the indoor air change frequency, which was regulated by temperature sensors responding to the changes of indoor and outdoor temperatures. The O3 level decreased during rush hours in summer, which could be associated with low ACH and a larger number of commuters that increased the decay of O3. The Pearson’s correlation coefficient between O3 concentrations and ridership was −0.55.
Indoor humidity and temperature remained at relatively constant levels and were highly correlated with each other (Pearson’s correlation coefficient, 0.78) in this study. The humidity level was obviously higher in winter than in summer, reflecting the seasonal difference of the ambient atmosphere.
We found that the 24-h trends of PM10 and PM2.5 concentrations were parallel with same patterns in this study. However, it is important to note that most PM10 and PM2.5 measurements exceeded the 24-h indoor air quality standard levels of 75 and 35 µm/m3, respectively. It is also interesting that both the highest PM10 and PM2.5 levels appeared at midnight. These particular matters could be generated from the rail maintenance operations, including track inspection, and metallographic polishing and grinding, which produce aerosols. These aerosols could be re-suspended when the TRTS started the service in the early morning. Prevention and control of the indoor particulate matter releasing from the maintenance of rails at midnight should be implemented.

5. Conclusions

This study showed that among the indoor air pollutants measured at the 10 TRTS stations the concentrations of CO, CO2 and HCHO met the stipulated standards set by the TIAQMA. However, TVOCs levels measured at five stations and bacterial levels estimated at three stations in summer, and PM10 and PM2.5 concentrations exceeded the stipulated standards regulated by the EPA. The TRTS is a non-smoking system. The source of the increased TVOCs levels in the TRTS is unknown and should be further investigated. Indoor bacterial concentration in the TRTS was associated with the ridership and indoor CO2 concentrations. Increased air change rates in each station might reduce the exposure to bacteria and CO2. High PM10 and PM2.5 concentrations appeared at midnight, which could be associated with the maintenance of the railway tracks, and adequate control measures should be developed to reduce the generation of particulate matters.

Acknowledgments

The study did not have any grant support. We thank all authors’ contributions.

Author Contributions

Ying-Yi Chen and Chung-Yen Lu reviewed the literature, designed and carried out the study, had full access to data in the study as well as drafted and revised the manuscript. I-Fang Mao, Mei-Lien Chen and Chung-Yen Lu contributed to the study design, the result interpretation and discussion, reviewed and edited the manuscript, and takes responsibility for the contents of the article. Fung-Chang Sung assisted in the study. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Taipei Rapid Transit Corporation (TRTC). Ridership Statistics. Available online: http://english.metro.taipei/ct.asp?xItem=3512769&ctNode=70218&mp=122036 (accessed on 26 September 2016).
  2. Taipei Rapid Transit Corporation (TRTC). Network and Systems. Available online: http://english.metro.taipei/ct.asp?xItem=1315555&ctNode=70214&mp=12203 (accessed on 26 September 2016).
  3. Lu, C.Y.; Kang, S.Y.; Liu, S.H.; Mai, C.W.; Tseng, C.H. Controlling Indoor Air Pollution from Moxibustion. Int. J. Environ. Res. Public Health 2016, 13, 612. [Google Scholar] [CrossRef] [PubMed]
  4. QED Environmental Services. Taiwan—Indoor Air Quality Management Act. Available online: http://www.qed.net.au/news/Taiwan-%E2%80%93-Indoor-Air-Quality-Management-Act (accessed on 26 September 2016).
  5. U-MING MARINE. Green Information—2012-12-04/Indoor Air Quality Management Act Officially Implemented on 23 November 2012. Available online: http://www.uming.com.tw/green_informations/5 (accessed on 1 January 2016).
  6. Apte, M.G.; Fisk, W.J.; Daisey, J.M. Associations between indoor CO2 concentrations and sick building syndrome symptoms in U.S. office buildings: An analysis of the 1994–1996 BASE study data. Indoor Air 2000, 10, 246–257. [Google Scholar] [CrossRef] [PubMed]
  7. Lu, C.Y.; Lin, J.M.; Chen, Y.Y.; Chen, Y.C. Building-related symptoms among office employees associated with indoor carbon dioxide and total volatile organic compounds. Int. J. Environ. Res. Public Health 2015, 12, 5833–5845. [Google Scholar] [CrossRef] [PubMed]
  8. Sahlberg, B.; Gunnbjörnsdottir, M.; Soon, A.; Jogi, R.; Gislason, T.; Wieslander, G.; Janson, C.; Norback, D. Airborne molds and bacteria, microbial volatile organic compounds (MVOC), plasticizers and formaldehyde in dwellings in three North European cities in relation to sick building syndrome (SBS). Sci. Total Environ. 2013, 444, 433–440. [Google Scholar] [CrossRef] [PubMed]
  9. Zhang, X.; Li, F.; Zhang, L.; Zhao, Z.; Norback, D. A longitudinal study of sick building syndrome (SBS) among pupils in relation to SO2, NO2, O3 and PM10 in schools in China. PLoS ONE 2014, 9, e112933. [Google Scholar] [CrossRef] [PubMed]
  10. Norbäck, D.; Hashim, J.H.; Markowicz, P.; Cai, G.H.; Hashim, Z.; Ali, F.; Larsson, L. Endotoxin, ergosterol, muramic acid and fungal DNA in dust from schools in Johor Bahru, Malaysia—Associations with rhinitis and sick building syndrome (SBS) in junior high school students. Sci. Total Environ. 2016, 545–546, 95–103. [Google Scholar] [CrossRef] [PubMed]
  11. Straus, D.C.; Cooley, J.D.; Wong, W.C.; Jumper, C.A. Studies on the role of fungi in Sick Building Syndrome. Arch. Environ. Health 2003, 58, 475–478. [Google Scholar] [CrossRef] [PubMed]
  12. Lu, C.Y.; Ma, Y.C.; Lin, J.M.; Chuang, C.Y.; Sung, F.C. Oxidative DNA damage estimated by urinary 8-hydroxydeoxyguanosine and indoor air pollution among non-smoking office employees. Environ. Res. 2007, 103, 331–337. [Google Scholar] [CrossRef] [PubMed]
  13. Lu, C.Y.; Ma, Y.C.; Chen, P.C.; Wu, C.C.; Chen, Y.C. Oxidative stress of office workers relevant to tobacco smoking and inner air quality. Int. J. Environ. Res. Public Health 2014, 11, 5586–5597. [Google Scholar] [CrossRef] [PubMed]
  14. Jung, C.C.; Liang, H.H.; Lee, H.L.; Hsu, N.Y.; Su, H.J. Allostatic load model associated with indoor environmental quality and sick building syndrome among office workers. PLoS ONE 2014, 9, e95791. [Google Scholar] [CrossRef] [PubMed]
  15. Lu, C.Y.; Ma, Y.C.; Lin, J.M.; Li, C.Y.; Lin, R.S.; Sung, F.C. Oxidative stress associated with indoor air pollution and sick building syndrome-related symptoms among office workers in Taiwan. Inhal. Toxicol. 2007, 19, 57–65. [Google Scholar] [CrossRef] [PubMed]
  16. Huang, H.B.; Lai, C.H.; Chen, G.W.; Lin, Y.Y.; Jaakkola, J.J.; Liou, S.H.; Wang, S.L. Traffic-related air pollution and DNA damage: A longitudinal study in Taiwanese traffic conductors. PLoS ONE 2012, 7, e37412. [Google Scholar] [CrossRef] [PubMed]
  17. Lai, C.H.; Jaakkola, J.J.; Chuang, C.Y.; Liou, S.H.; Lung, S.C.; Loh, C.H.; Yu, D.S.; Strickland, P.T. Exposure to cooking oil fumes and oxidative damages: A longitudinal study in Chinese military cooks. J. Expo. Sci. Environ. Epidemiol. 2013, 23, 94–100. [Google Scholar] [CrossRef] [PubMed]
  18. Rossner, P., Jr.; Svecova, V.; Milcova, A.; Lnenickova, Z.; Solansky, I.; Santella, R.M.; Sram, R.J. Oxidative and nitrosative stress markers in bus drivers. Mutat. Res. 2007, 617, 23–32. [Google Scholar] [CrossRef] [PubMed]
  19. Nielsen, G.D.; Larsen, S.T.; Wolkoff, P. Re-evaluation of the WHO (2010) formaldehyde indoor air quality guideline for cancer risk assessment. Arch. Toxicol. 2016, 1–27. [Google Scholar] [CrossRef] [PubMed]
  20. Duhayon, S.; Hoet, P.; Van Maele-Fabry, G.; Lison, D. Carcinogenic potential of formaldehyde in occupational settings: A critical assessment and possible impact on occupational exposure levels. Int. Arch. Occup. Environ. Health 2008, 81, 695–710. [Google Scholar] [CrossRef] [PubMed]
  21. Bosetti, C.; McLaughlin, J.K.; Tarone, R.E.; Pira, E.; La Vecchia, C. Formaldehyde and cancer risk: A quantitative review of cohort studies through 2006. Ann. Oncol. 2008, 19, 29–43. [Google Scholar] [CrossRef] [PubMed]
  22. Agency for Toxic Substances and Disease Registry (ATSDR); U.S. Department of Health and Human Services. ToxFAQs—Formaldehyde. Available online: http://www.atsdr.cdc.gov/toxfaqs/tf.asp?id=219&tid=39 (accessed on 26 September 2016).
  23. Johansson, C.; Johansson, P.A. Particulate matter in the underground of Stockholm. Atmos. Environ. 2003, 37, 3–9. [Google Scholar] [CrossRef]
  24. Aarnio, P.; Yli-Tuomi, T.; Kousa, A.; Makela, T.; Hirsikko, A.; Hameri, K.; Raisanen, M.; Hillamo, R.; Koskentalo, T.; Jantunen, M. The concentrations and composition of and exposure to fine particles (PM2.5) in the Helsinki subway system. Atmos. Environ. 2005, 39, 5059–5066. [Google Scholar] [CrossRef]
  25. Kamani, H.; Hoseini, M.; Seyedsalehi, M.; Mahdavi, Y.; Jaafari, J.; Safari, G.H. Concentration and characterization of airborne particles in Tehran’s subway system. Environ. Sci. Pollut. Res. Int. 2014, 21, 7319–7328. [Google Scholar] [CrossRef] [PubMed]
  26. Gong, Y.; Wei, Y.; Cheng, J.; Jiang, T.; Chen, L.; Xu, B. Health risk assessment and personal exposure to Volatile Organic Compounds (VOCs) in metro carriages—A case study in Shanghai, China. Sci. Total. Environ. 2017, 574, 1432–1438. [Google Scholar] [CrossRef] [PubMed]
  27. Cheng, Y.H.; Lin, Y.L.; Liu, C.C. Levels of PM10 and PM2.5 in Taipei Rapid Transit System. Atmos. Environ. 2008, 42, 7242–7249. [Google Scholar] [CrossRef]
  28. Cheng, Y.H.; Liu, C.C.; Lin, Y.L. Levels of Ultrafine Particles in the Taipei Rapid Transit System. Transp. Res. D Trans. Environ. 2009, 14, 479–486. [Google Scholar] [CrossRef]

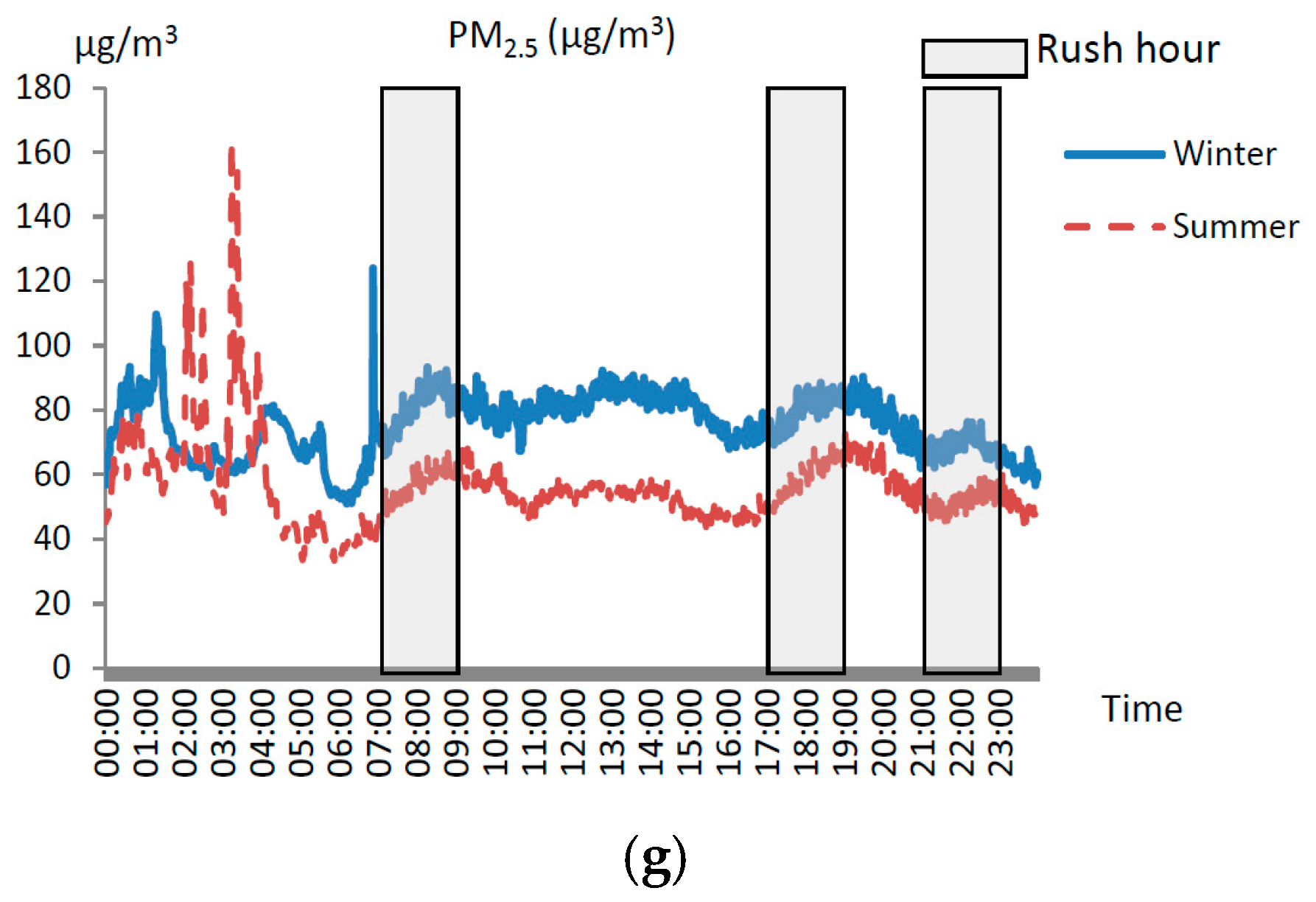

Figure 1. Mean hourly air quality measured from platforms of ten top most popular stations with top ridership in the Taipei Rapid Transit system (TRTS) in Taiwan. (a) CO2; (b) CO; (c) O3; (d) humidity; (e) temperature; (f) PM10; and (g) PM2.5.
Figure 1. Mean hourly air quality measured from platforms of ten top most popular stations with top ridership in the Taipei Rapid Transit system (TRTS) in Taiwan. (a) CO2; (b) CO; (c) O3; (d) humidity; (e) temperature; (f) PM10; and (g) PM2.5.
Ijerph 13 01200 g001aIjerph 13 01200 g001b
Table 1. The stipulated standards of Taiwan’s indoor air quality management act (TIAQMA).
Table 1. The stipulated standards of Taiwan’s indoor air quality management act (TIAQMA).
Air PollutantIndoor Air Quality Standards
Carbon Dioxide (CO2)1000 ppm (8-h Average)
Carbon Monoxide (CO)9 ppm (8-h Average)
Formaldehyde (HCHO)0.08 ppm (1-h Average)
Total Volatile Organic Compounds (TVOC)0.56 ppm (1-h Average)
Bacteria1500 CFU/m3 (Ceiling)
Fungi1000 CFU/m3 (Ceiling)
particulate Matter of 2.5–10 µm (PM10)75 μg/m3 (24-h Average)
particulate Matter of ≤2.5 µm (PM2.5)35 μg/m3 (24-h Average)
Ozone (O3)0.06 ppm (8-h Average)
Table 2. Instruments for indoor air quality assessment for the Taipei Rapid Transit System (TRTS).
Table 2. Instruments for indoor air quality assessment for the Taipei Rapid Transit System (TRTS).
ItermEquipmentCompanyAnalytical PrincipleDetectable RangeResolutionCalibration
COPPMonitor SAS monitorPPM Technology Ltd., Caernarfon, UKNon-Dispersion Infrared Detector0–100 ppm0.1 ppm100.4 ppm
CO2PPMonitor SAS MonitorPPM Technology Ltd., Caernarfon, UKElectrochemical0–5000 ppm1 ppm2018 ppm
HumidityPPMonitor SAS MonitorPPM Technology Ltd., Caernarfon, UKCMOSens Technology0%–100%0.01%100%
TemperaturePPMonitor SAS MonitorPPM Technology Ltd., Caernarfon, UKCMOSens Technology−40 °C–128 °C0.01 °C100 °C
O3PPMonitor SAS MonitorPPM Technology Ltd., Caernarfon, UKElectrochemical0–1 ppm0.01 ppm1.02 ppm
PM10DUSTTRAK Aerosol Monitor 852TSI Inc., Shoreview, MN, USALaser Photometer0.001–100 mg/m30.001 mg/m30 mg/m3
PM2.5DUSTTRAK Aerosol Monitor 852TSI Inc., Shoreview, MN, USALaser Photometer0.001–100 mg/m30.001 mg/m30 mg/m3
HCHOPPMonitor SAS MonitorPPM Technology Ltd., Caernarfon, UKElectrochemical0–10 ppm0.001 ppm2.51 ppm
TVOCsRAE PGM-7240RAE Systems, San Jose, CA, USAPhotoionization 0–10,000 ppb1 ppb10,000 ppb
BacteriaSKC BiostageSKC Inc., Covington, GA, USAImpaction and Culture---
FungiSKC BiostageSKC Inc., Covington, GA, USAImpaction and Culture---
CO, carbon monoxide; CO2, carbon dioxide; O3, ozone; PM, particulate matter; HCHO, formaldehyde; TVOCs, total volatile organic compounds.
Table 3. Indoor air quality of the platforms of ten stations with top ridership in Taipei Rapid Transit system in Taiwan.
Table 3. Indoor air quality of the platforms of ten stations with top ridership in Taipei Rapid Transit system in Taiwan.
StationSeasonCO2 (ppm)CO (ppm)O3 (ppm)TVOCs (ppm)HCHO (ppm)Humidity (%)Temperature (°C)PM10 (μg/m3)PM2.5 (μg/m3)Bacteria (CFU/m3)Fungi (CFU/m3)Riders (Number)
Standard a-1000 a9 a0.06 a0.56 a0.08 a--75 a35 a1500 a1000 a-
AWinter4941.90.010.0160.0064120.696 b75 b28025096,355
Summer6793.0<0.011.439 b0.0156325.6102 b58 b20136395,808
BWinter4272.30.010.026<0.0014021.5147 b101 b15032039,283
Summer5892.40.010.2530.0046526.9135 b134 b19312337,577
CWinter6412.70.010.0720.0115923.7128 b108 b22020547,763
Summer6602.00.010.2880.0016526.86644 b38512249,099
DWinter6483.50.020.1090.0426121.5111 b88 b66013547,700
Summer6572.50.011.338 b0.0156625.2103 b60 b1801 b31245,320
EWinter7601.20.010.0640.0105521.95539 b1335205110,126
Summer9062.60.011.547 b0.0156426.791 b56 b2693 b189135,394
FWinter6631.40.010.0490.0085621.36345 b480160136,167
Summer9192.4<0.010.3920.0036627.399 b75 b3253 b192143,548
GWinter4932.80.020.0440.0015923.477 b59 b36032566,079
Summer6512.00.010.2900.0087126.94937 b28315768,089
HWinter5552.20.010.0630.0075923101 b80 b38065587,205
Summer6612.00.010.811 b0.0087126.8101 b60 b22745592,299
IWinter5701.70.020.1340.0195623.8103 b75 b71513577,064
Summer8402.70.010.3840.0046328.1402773730079,385
JWinter5311.10.010.0660.0116023.291 b84 b20530013,100
Summer4541.00.010.642b0.0157025.8231117910913,032
Mean (S.D.)Winter578.2 (99.5)2.08 (0.77)0.01 (0.01)0.064 (0.035)0.013 (0.012)54.6 (7.7)22.39 (1.15)97.2 b (28.0)75.4 b (22.3)478.5 (355.2)269.0 (153.5)72,084.2 (36,777.9)
Summer701.6 (145.5)2.26 (0.55)0.01 (<0.01)0.738 b (0.517)0.009 (0.006)66.4 (3.1)26.61 (0.86)80.9 b (34.9)56.2 b (33.1)995.2 (1159.8)232.2 (118.4)75,955.1 (42,069.6)
p-Value c0.060.810.08<0.01 d0.56<0.01 d<0.01 d0.270.180.230.610.88
a The stipulated standards of Taiwan’s indoor air quality management act (TIAQMA); b Measurement exceeded stipulated standards of Taiwan’s indoor air quality management act (TIAQMA); c Probability associated with a Student‘s t-Test, with a two-tailed distribution; d Statistically significant.
