Fate of Fecal Indicators in Resource-Oriented Sanitation Systems Using Nitrifying Bio-Treatment

1
Department of Civil and Environmental Engineering, Seoul National University, 1 Gwanak-ro, Gwanak-gu, Seoul 08826, Korea
2
Institute of Construction and Environmental Engineering, Seoul National University, 1 Gwanak-ro, Gwanak-gu, Seoul 08826, Korea
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2018, 15(1), 164; https://doi.org/10.3390/ijerph15010164
Submission received: 26 December 2017 / Revised: 16 January 2018 / Accepted: 16 January 2018 / Published: 20 January 2018
(This article belongs to the Section Environmental Science and Engineering)

Abstract

:
Hygienic fecal treatment in resource-oriented sanitation (ROS) systems is an important concern. Although the addition of nitrifying microorganisms is a sustainable fecal treatment method in ROS systems, it is essential to examine the cleanliness of this method. In this study, we investigated the fate of fecal indicators in source-separated fecal samples through tracking Escherichia coli and total coliforms. The effects of adding different amounts of Nitrosomonas europaea bio-seed, along with a constant amount of Nitrobacter winogradskyi bio-seed, were studied. In intact feces samples, the pathogen population underwent an initial increase, followed by a slight decrease, and eventually became constant. Although the addition of nitrifying microorganisms initially enhanced the pathogen growth rate, it caused the reduction process to become more efficient in the long-term. In addition to a constant concentration of 10,000 cells of N. winogradskyi per 1 g feces, a minimum amount of 3000 and 7000 cells of N. europaea per 1 g feces could completely remove E. coli and total coliforms, respectively, in less than 25 days. Increasing the amount of bio-seeds added can further reduce the time required for total pathogen removal.

1. Introduction

Lack of access to sustainable sanitation is a result of several technical, economic, and social challenges of the current sanitation systems, and can lead to improper sanitation practices (i.e., open defecation), especially in low-income countries. Consequently, the sixth goal of the Sustainable Development Goals (SDG-6) aims to end open defecation by 2030 [1,2,3,4].
Resource-oriented sanitation (ROS) systems are a sustainable solution for sanitation challenges [1,5]. Such systems are based on source-separation of urine and feces and treating them onsite to be utilized as fertilizer [1,6].
Although ROS systems are effective in controlling open defecation, there are concerns about their hygienic conditions, especially in the case of source-separated feces [7]. Feces naturally contains pathogens [8]. In this case, it is essential to have a hygienic treatment process for source-separated feces so that it may be utilized as fertilizer.
Several studies examined different approaches for pathogen removal in ROS systems [9]. Magri et al. suggested the application of desiccation and urea treatment in Urine-Diverting Dry Toilet (UDDT) systems for removing pathogens in source-separated feces [10]. Composting is also a common practice, as it is useful in killing fecal pathogens, while also successfully providing a soil conditioner [11,12]. Wastewater stabilization pond (WSP) is also an economic systems that is effective in removal of fecal indicators and pathogenic bacteria [13]. Other approaches, such as temperature and pH adjustment, are effective in the reduction of harmful bacteria [14,15]. However, challenges persist in the stability and sustainability of the aforementioned methods for ROS systems, especially when there is a high amount of feces as input [16].
A suitable approach for onsite fecal treatment is required to meet the basic requirements of ROS systems. Utilizing nitrifying microorganisms not only can be useful in enhancing the degradation of source-separated feces, but also adds a specific concentration of Nitrosomonas europaea and Nitrobacter winogradskyi to source-separated feces, which boosts the fertility by optimizing the nitrogen composition as well as removing heterotrophic microorganisms [17,18]. However, it is essential to check if this method is profitable for hygienic purposes by investigating the effect of the aforementioned nitrifying microorganisms on the fate of fecal indicators.
Therefore, the two objectives of this study were: (1) To investigate the fate of intestinal microorganisms in source-separated feces by tracking Escherichia coli and total coliforms as fecal indicators, and (2) to examine the effect of adding nitrifying microorganisms on this fate.

2. Materials and Methods

2.1. Sample Preparation

The sampling procedure was previously described [18]. Fresh samples (collected within 24 h) of raw source-separated feces were obtained from the feces storage tank of a ROS system using a 20-L sterile sampling bag, as previously described [2]. The construction and operation of the ROS system were carried out by the GnV Company (Gunpo, Korea). This system is located in a public park near the West Suwon Lake Prugio Residential Complex Phase 1 at Gunpo City, Gyeonggi Province, Republic of Korea (37°18′00″ N, 126°47′11″ E). The same company provided two stabilized bio-seed solutions. One solution contained 6 × 106 N. europaea cells per 100 mL and the other solution contained 8 × 105 N. winogradskyi cells per 100 mL. Both bio-seed solutions contained various microbial growth promoters including amino acids, vitamins, and minerals.
Twenty-one sets of samples were prepared in 1-L beakers as a batch system, with each set containing three samples (total of 63 samples), which enabled replication of the experiment. Each sample included 300 g of feces, which represents the usual defecation amount of one event [8]. One set of samples was left intact as the control, whereas varying amounts of bio-seed were added to the other sets of samples. By diluting the bio-seed solutions, a range of 1000–20,000 cells of N. europaea bio-seed were added per 1 g of feces, in 1000-cell increments. In addition, a specific constant amount of 10,000 N. winogradskyi cells per 1 g of feces were added to the samples of each set, except for the control set.
Using laboratory mixers (model EW-04555-00; Cole-Parmer, Vernon Hills, IL, USA), the samples were mixed at 45 rpm. After mixing, the samples became homogeneous, soft, and creamy. During the experiment, the samples were turned over twice daily using the mixers at a speed of 45 rpm for 10 min. To avoid bacterial contamination, all beakers and mixing blades were first disinfected using 70% ethanol provided by Samchun Chemical (Pyeongtaek, Korea) and were subsequently placed in an ultraviolet (UV) sterilizing oven (Model SW305H; Shimwon, Incheon, Korea) using four 15-W UV lamps for 90 min.
During the experiment, all the sets of samples were maintained under similar conditions. The initial temperature of the samples and the experimental environment were maintained at 25 °C, the optimum temperature at which the nitrifying bio-seeds are active [19]. A soil pH meter (model AB927; Lee Valley Tools Ltd., Ogdensburg, NY, USA) was used for pH measurement.

2.2. Analysis of Characteristics

Every day, using 1-g samples of each set, liquid extracts of feces were prepared with 100 mL distilled water. The water samples were placed in the UV sterilizing oven for 12 h before the experiment to avoid any unwanted bacterial interaction. These extracts were used to measure E. coli and total coliforms. For this purpose, 3M™ Petrifilm™ E. coli and Total Coliform Count Plates (3M, St. Paul, MN, USA) were used. Results were interpreted following ISO 6222 [20]. The detection limit for this method was two log10 CFU/g feces.
Using three samples in each set, all measurements were performed in triplicate and an arithmetic mean was calculated. Standard errors are used to provide error bars. The significance of changes in fecal indicators was assessed by Student’s t-test analyses (α = 0.05). Furthermore, one-way statistical analysis of variance (ANOVA) was used to evaluate the differences between the trends of removal of fecal indicators achieved in treatment with the different initial addition of bio-seeds. Each dependent parameter, e.g., microorganism population and pH, is strongly related to two independent ones, comprising the time and the initial addition of bio-seeds. Therefore, to present such a bivariate model, the results were plotted as contour diagrams through local polynomial regression [18].
Table 1 presents the initial characteristics of the intact feces sample. The experiments lasted for 30 days. However, the condition of all the samples stabilized after approximately 20 days, with no significant changes detected thereafter.

3. Results

3.1. Fate of E. coli and Total Coliforms in Intact Feces

Figure 1 presents the changes in the numbers of E. coli and total coliforms in intact feces. For a short period initially, the microorganism population increased significantly (p < 0.001). However, after this initial growth phase, the microbial population eventually decreased. After 21 days, there was no significant change in the microbial population (p > 0.06), implying that the rates of microbial growth and death may have become equal.

3.2. Effect of Adding Nitrifying Microorganisms on the Fate of E. coli and Total Coliforms

Figure 2 presents the changes in the population of E. coli and total coliforms by adding different amounts of N. europaea bio-seed along with a constant amount of N. winogradskyi bio-seed. The general trend observed after adding varying amounts of nitrifying microorganisms on E. coli and total coliforms was not statistically different (p > 0.03).
The addition of bio-seeds initially increased the microbial population, which decreased over time. The minimum amounts of N. europaea bio-seed required to achieve the clean zone were 3000 and 7000 cells per 1 g feces, respectively, for E. coli and total coliforms. For both E. coli and total coliforms, the highest microbial population was observed when the amount of N. europaea bio-seed added was higher than the constant amount of N. winogradskyi bio-seed (10,000 cells to 1 g feces).
Significant reduction in pH was observed (Figure 3), as was also reported previously [18]. This trend was more rapid with higher addition of N. europaea bio-seed, and probably because of the nitrification process.

3.3. Comparison of Time Required for Removal of E. coli and Total Coliforms

Figure 4 presents the data of the time required for the complete removal of E. coli and total coliforms following the addition of different amounts of nitrifying microorganisms. With low addition of nitrifying microorganisms of 0–3000 cells and 0–7000 cells to 1 g feces, there was incomplete removal of E. coli and total coliforms, respectively. Consistently, adding a higher amount of nitrifying bio-seeds reduced the time required for complete removal of E. coli and total coliforms.
As mentioned previously, the minimum amount of bio-seeds required for complete removal of E. coli was less than that for total coliforms. However, as the amount of nitrifying bio-seeds added increased, the time required to achieve a clean zone for total coliforms approached that of E. coli. For instance, in the case of adding 20,000 cells per 1 g feces, the time required to achieve clean zones for E. coli and total coliforms was the same (11 days).

4. Discussion

There are two important phases in the trends of the fate of E. coli and total coliforms: The growth phase followed by the reduction phase. The addition of nitrifying microorganisms enhances both phases. The enhancement observed in the growth phase might be due to the reduction of ammonia as a result of nitrification, as the presence of ammonia limits the growth of E. coli and some other coliforms [18,21].
It has also been demonstrated that the addition of nitrifying microorganisms can significantly enhance the degradation of source-separated feces by improving the growth of heterotrophic microorganisms, leading to higher consumption of available organic carbon compounds [18]. Since the availability of organic compounds plays a vital role in the vitality of microorganisms, the number of fecal indicators declines significantly after the rapid degradation of Total Organic Carbon (TOC) [18].
The enhancement in the reduction phase may also be explained by considering the reduction of pH. As the nitrification process continues with time, the production rate of nitrate increases, especially with the addition of more bio-seeds. In this case, the pH drops rapidly which makes the condition unfavorable for habitat microorganisms, leading to the enhancement in the reduction phase [18,22]. However, this cannot be considered as a conclusive reason, since the pH stress response of E. coli is sophisticated, robust, and versatile, and since other studies have described the acid habituation behavior of E. coli [14,23].
There are concerns about the hygiene of ROS systems. Addressing these concerns with sustainable solutions can help make these sanitation systems more acceptable. This study suggests an innovative feces treatment method through the addition of nitrifying microorganisms.
In onsite treatment processes in ROS, it is essential to apply the optimal amount of bio-seed to the source-separated feces. Hashemi and Han suggested that an additional amount of 7000–8000 N. europaea cells to 1 g feces, along with 10,000 N. winogradskyi cells per 1 g feces, can probably be considered optimal, because under this circumstance, a sustainable 1:1 ratio of nitrate to ammonium and a pH of between 6.2 and 6.4 was achieved, meeting the criteria for standard fertilizer [18]. The results of the current study show that under such a situation it takes about 23 and 26 days to achieve total removal of E. coli and total coliforms, respectively. Using a higher initial addition of N. europaea bio-seed can reduce the required time for the treatment, which can be useful in a circumstance of high feces input.
Consequently, fecal storage and reactors in ROS systems must be designed reasonably. The mixture of fresh and stored feces should be avoided, as the fresh feces contain pathogens and will reduce the efficiency of this treatment method. It is proposed that the time interval should be defined for treating the gathered feces and preparing them for utilization. Using smart systems supported by information technology can be useful for measuring the exact amount of feces input, determining the optimum initial addition of bio-seeds, and provide it by the proper dilution process. In addition, the enhancement in the growth phase caused by the addition of nitrifying microorganisms is useful in boosting the degradation process of the source-separated feces [18]. Therefore, it is essential to limit access to the treatment reactors until the reduction phase starts.

5. Conclusions

In this study, we investigated the fate of E. coli and total coliforms in stored feces. The reduction rate of microorganisms in these samples was slow. This poses potential health challenges in the case of a lack of treatment or improper sanitation practices, such as open defecation. The addition of nitrifying microorganisms proved useful for reducing the viable numbers of E. coli and total coliforms in feces. This can be useful for ROS systems that are unable to perform proper composting or other appropriate treatment processes for feces, especially in low to middle-income countries. An innovative approach for designing fecal treatment reactors is thus an essential future direction and deserves to be investigated in separate research.

Acknowledgments

This research was supported by “Development of Nano-Micro Bubble Dual System for Restoration of Self-purification and Sustainable Management in Lake” project (Grant No. ERL 2016000200007) and “Waste to Energy • Recycling Human Resource Development” project, both funded by the Republic of Korea Ministry of Environment. Furthermore, this research was supported by the Institute of Construction and Environmental Engineering at Seoul National University. The authors wish to express their gratitude for the support.

Author Contributions

Mooyoung Han and Shervin Hashemi conceived and designed the experiments. Shervin Hashemi performed the experiments and analyzed the data. Eun Namkung contributed reagents, materials, and analysis tools. Shervin Hashemi prepared the manuscript. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Han, M.; Hashemi, S. Sanitation revolution: From waste to resource. Desalin. Water Treat. 2017, 91, 305–310. [Google Scholar] [CrossRef]
  2. Han, M.; Hashemi, S.; Joo, S.H.; Kim, T. Novel integrated systems for controlling and prevention of mosquito-borne diseases caused by poor sanitation and improper water management. J. Environ. Chem. Eng. 2016, 4, 3718–3723. [Google Scholar] [CrossRef]
  3. Hashemi, S.; Han, M.; Kim, T.; Kim, Y. Innovative toilet technologies for smart and green cities. In Proceedings of the 8th Conference International Forum on Urbanism (IFoU), Incheon, Korea, 22–24 June 2015; pp. 873–879. [Google Scholar]
  4. Kim, Y.; Hashemi, S.; Han, M.; Kim, T.; Sohn, H.G. The waterless portable private toilet: An innovative sanitation solution in disaster zones. Disaster Med. Public Health Prep. 2016, 10, 281–285. [Google Scholar] [CrossRef] [PubMed]
  5. Flores, A.E. Towards Sustainable Sanitation: Evaluating the Sustainability of Resource-Oriented Sanitation. Doctoral Thesis, University of Cambridge, Cambridge, UK, 2011. [Google Scholar]
  6. Diener, S.; Semiyaga, S.; Niwagaba, C.B.; Muspratt, A.M.; Gning, J.B.; Mbéguéré, M.; Ennin, J.E.; Zurbrugg, C.; Strande, L. A value proposition: Resource recovery from faecal sludge—Can it be the driver for improved sanitation? Resour. Conserv. Recycl. 2014, 88, 32–38. [Google Scholar] [CrossRef]
  7. Drechsel, P.; Scott, C.A.; Raschid-Sally, L.; Redwood, M.; Bahri, A. Wastewater Irrigation and Health; Earthscan: London, UK, 2009. [Google Scholar]
  8. Shier, D.; Butler, J.; Lewis, R. Hole's Human Anatomy & Physiology, 14th ed.; McGraw-Hill College: New York, NY, USA, 2016. [Google Scholar]
  9. Niwagaba, C. Treatment Technologies for Human Faeces and Urine. Doctoral Thesis, Swedish University of Agricultural Sciences, Uppsala, Sweden, 2009. [Google Scholar]
  10. Magri, M.E.; Philippi, L.S.; Vinnerås, B. Inactivation of pathogens in feces by desiccation and urea treatment for application in urine-diverting dry toilets. Appl. Environ. Microbiol. 2013, 79, 2156–2163. [Google Scholar] [CrossRef] [PubMed]
  11. Hanajima, D.; Kuroda, K.; Fukumoto, Y.; Haga, K. Effect of addition of organic waste on reduction of escherichia coli during cattle feces composting under high-moisture condition. Bioresour. Technol. 2006, 97, 1626–1630. [Google Scholar] [CrossRef] [PubMed]
  12. Sikora, L.; Azad, M. Effect of compost-fertilizer combinations on wheat yields. Compost Sci. Util. 1993, 1, 93–96. [Google Scholar] [CrossRef]
  13. Sheludchenko, M.; Padovan, A.; Katouli, M.; Stratton, H. Removal of fecal indicators, pathogenic bacteria, adenovirus, cryptosporidium and giardia (oo)cysts in waste stabilization ponds in northern and eastern australia. Int. J. Environ. Res. Public Health 2016, 13, 96. [Google Scholar] [CrossRef] [PubMed]
  14. Chung, H.J.; Bang, W.; Drake, M.A. Stress response of escherichia coli. Compr. Rev. Food Sci. Food Saf. 2006, 5, 52–64. [Google Scholar] [CrossRef]
  15. Marois-Fiset, J.-T.; Carabin, A.; Lavoie, A.; Dorea, C.C. Effects of temperature and ph on reduction of bacteria in a point-of-use drinking water treatment product for emergency relief. Appl. Environ. Microbiol. 2013, 79, 2107–2109. [Google Scholar] [CrossRef] [PubMed]
  16. Hyde, K.; Smith, A.; Smith, M.; Henningsson, S. The challenge of waste minimisation in the food and drink industry: A demonstration project in east anglia, UK. J. Clean. Prod. 2001, 9, 57–64. [Google Scholar] [CrossRef]
  17. Hashemi, S.; Han, M. Effect of nitrosomonas europaea bio-seed addition on the fate of carbon and nitrogen compounds in human feces. Waste Biomass Valorization 2017, in press. [Google Scholar] [CrossRef]
  18. Hashemi, S.; Han, M. Optimizing source-separated feces degradation and fertility using nitrifying microorganisms. J. Environ. Manag. 2018, 206, 540–546. [Google Scholar] [CrossRef] [PubMed]
  19. Grady, C.L., Jr.; Daigger, G.T.; Love, N.G.; Filipe, C.D. Biological Wastewater Treatment, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2011. [Google Scholar]
  20. International Organization for Standardization (ISO). 6222: Water Quality—Enumeration of Culturable Micro-Organisms—Colony Count by Inoculation in a Nutrient Agar Culture Medium (ISO 6222:1999), 2nd ed.; ISO: Geneva, Switzerland, 1999. [Google Scholar]
  21. Leejeerajumnean, A.; Ames, J.; Owens, J. Effect of ammonia on the growth of bacillus species and some other bacteria. Lett. Appl. Microbiol. 2000, 30, 385–389. [Google Scholar] [CrossRef] [PubMed]
  22. Bearson, S.; Bearson, B.; Foster, J.W. Acid stress responses in enterobacteria. FEMS Microbiol. Lett. 1997, 147, 173–180. [Google Scholar] [CrossRef] [PubMed]
  23. Small, P.; Blankenhorn, D.; Welty, D.; Zinser, E.; Slonczewski, J.L. Acid and base resistance in escherichia coli and shigella flexneri: Role of rpos and growth ph. J. Bacteriol. 1994, 176, 1729–1737. [Google Scholar] [CrossRef] [PubMed]

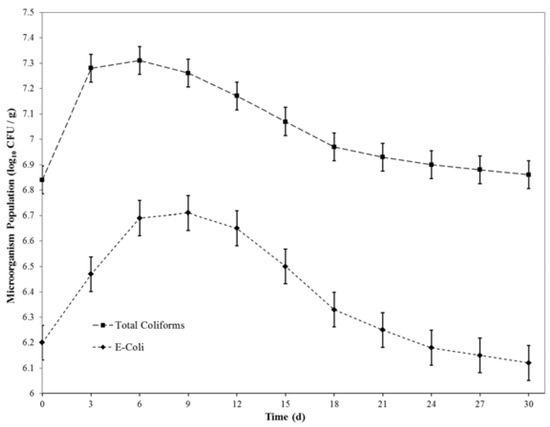

Figure 1. Changes in the microorganism population in 1 g of intact feces with time.
Figure 1. Changes in the microorganism population in 1 g of intact feces with time.
Ijerph 15 00164 g001

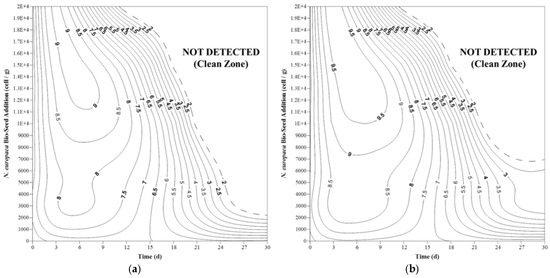

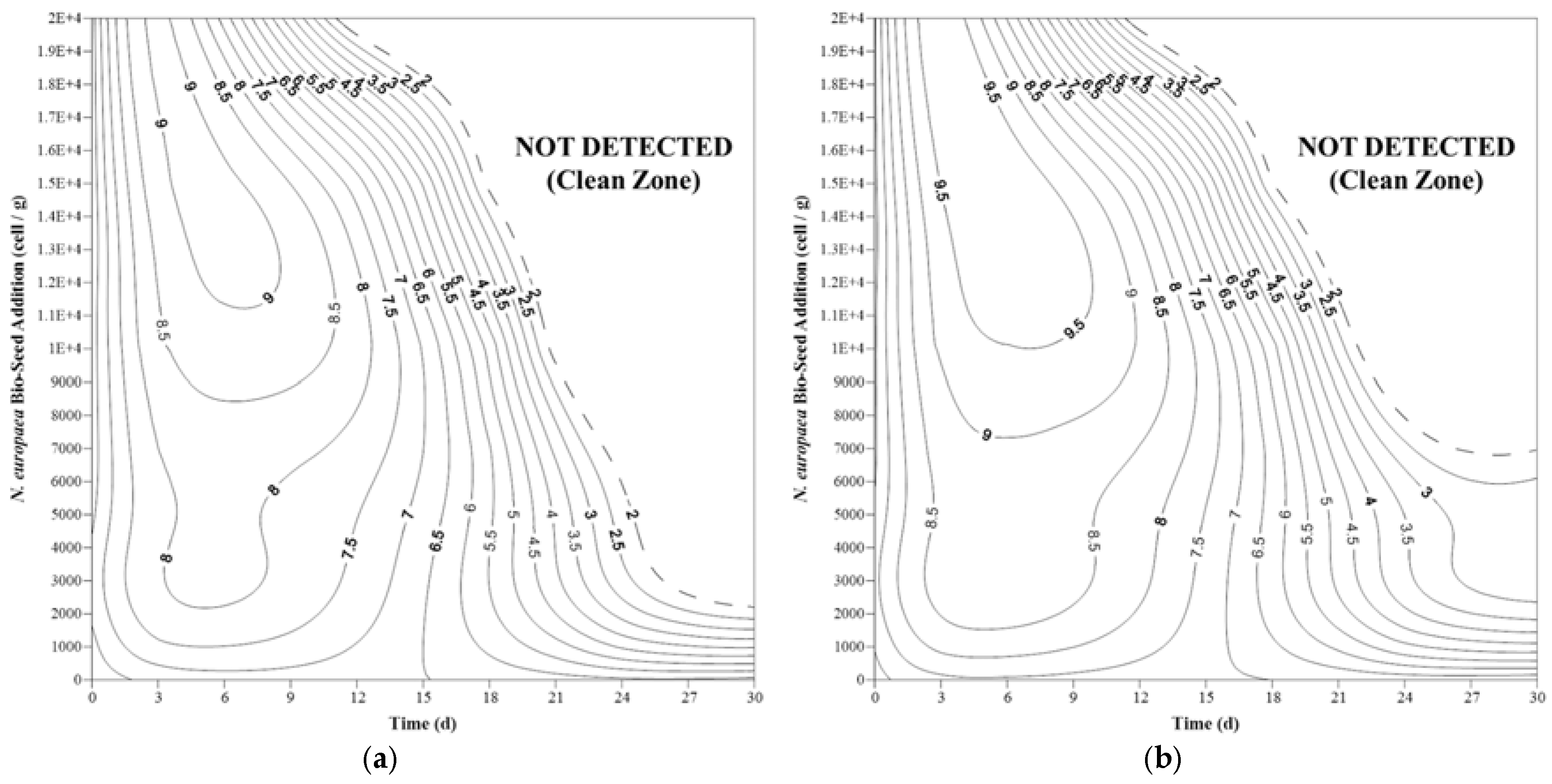

Figure 2. Changes in (a) total E. coli population and (b) total coliform population in experimental samples with different amounts of nitrifying bio-seeds per 1 g of feces; numbers in contours represent log10 CFU/g.
Figure 2. Changes in (a) total E. coli population and (b) total coliform population in experimental samples with different amounts of nitrifying bio-seeds per 1 g of feces; numbers in contours represent log10 CFU/g.
Ijerph 15 00164 g002
Figure 3. Changes in pH in experimental samples with different amounts of nitrifying bio-seeds in 1 g of feces; numbers in contours represent pH.
Figure 3. Changes in pH in experimental samples with different amounts of nitrifying bio-seeds in 1 g of feces; numbers in contours represent pH.
Ijerph 15 00164 g003
Figure 4. Changes in pH in experimental samples with different amounts of nitrifying bio-seeds in 1 g of feces; numbers in contours represent pH.
Figure 4. Changes in pH in experimental samples with different amounts of nitrifying bio-seeds in 1 g of feces; numbers in contours represent pH.
Ijerph 15 00164 g004
Table 1. Initial characteristics of intact feces.
Table 1. Initial characteristics of intact feces.
ParametersAverageStandard Deviation
pH7.80.22
log10 CFU E. coli/g6.20.12
log10 CFU Total Coliforms/g6.90.10
