Article

Prediction and Analysis of CO2 Emission in Chongqing for the Protection of Environment and Public Health

National Research Base of Intelligent Manufacturing Service, Chongqing Technology and Business University, Chongqing 400067, China
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2018, 15(3), 530; https://doi.org/10.3390/ijerph15030530
Submission received: 31 January 2018 / Revised: 3 March 2018 / Accepted: 5 March 2018 / Published: 16 March 2018
(This article belongs to the Special Issue Decision Models in Green Growth and Sustainable Development)

Abstract

:
Based on the consumption of fossil energy, the CO2 emissions of Chongqing are calculated and analyzed from 1997 to 2015 in this paper. Based on the calculation results, the consumption of fossil fuels and the corresponding CO2 emissions of Chongqing in 2020 are predicted, and the supporting data and corresponding policies are provided for the government of Chongqing to reach its goal as the economic unit of low-carbon emission in the ‘13th Five-Year Plan’. The results of the analysis show that there is a rapid decreasing trend of CO2 emissions in Chongqing during the ‘12th Five-Year Plan’, which are caused by the adjustment policy of the energy structure in Chongqing. Therefore, the analysis and prediction are primarily based on the adjustment of Chongqing’s coal energy consumption in this paper. At the initial stage, support vector regression (SVR) method is applied to predict the other fossil energy consumption and the corresponding CO2 emissions of Chongqing in 2020. Then, with the energy intensity of 2015 and the official target of CO2 intensity in 2020, the total fossil energy consumption and CO2 emissions of Chongqing in 2020 are predicted respectively. By the above results of calculation, the coal consumption and its corresponding CO2 emissions of Chongqing in 2020 are determined. To achieve the goal of CO2 emissions of Chongqing in 2020, the coal consumption level and energy intensity of Chongqing are calculated, and the adjustment strategies for energy consumption structure in Chongqing are proposed.

1. Introduction

From the evaluation report of Intergovernmental Panel on Climate Change (IPCC), the emission of green gases is confirmed as the primary reason for global warming. With the climate change caused by global warming, the development of human society is threatened by natural disasters such as sea level rise and extreme weather [1,2]. According to ‘Global Climate Risk Index 2018’, more than 524,000 people died worldwide as a direct result of more than 11,000 extreme weather events, and the loss in Purchasing Power Parities (PPP) has reached US$3.16 trillion at the time span of 1997 to 2016 [2,3,4,5]. Without any doubt, global warming has become one of the top environmental hazard all over the world. It is well known, global warming is mainly caused by the excessive emissions of greenhouse gases, which includes carbon dioxide (CO2), methane, nitrous oxide, and fluorine gas [6]. With its dominant role in the growth of green gases emissions, CO2 is generated by fossil fuels and other related industrial processes [7]. Based on previous studies, CO2 emissions will also cause the generation of other pollutants like sulfur dioxide and nitrogen dioxide, which are extremely hazardous to public health [6,8]. Therefore, for the protection of the environment and public health, the CO2 emissions caused by fossil-fuel consumption need to be controlled.
China is the largest growth market for energy in this world, which accounts for 23% of global energy consumption, and 27% percent of global energy consumption growth [9]. Therefore, for China, the control of the greenhouse gases emissions will be a significant factor to stop global warming. As an important member states of the ‘Kyoto Protocol’, efforts have been made by China in the task of low-carbon emission reduction and building an environment-friendly society. During the ‘12th Five-Year Plan’ (FYP12:2011–2015), the first batch of low-carbon pilot cities were promoted by China to achieve the goal of environment-friendly society. By classifying a city as an economic unit, the reasonable reduction policy of CO2 emission has been proven to be an effective way to stimulate the growth of the low-carbon economy. In ‘19th Communist Party of China National Congress’, the coordinated development of green cycle and low carbon is proposed again, which shows the determination of Chines government for the energy conservation and emission reduction.
As the largest heavy industrial city in southwest China, the energy consumption structure of Chongqing is mainly based on fossil energy and electricity. In 2010, Chongqing is defined as the first low-carbon pilot city by Chinese National Development and Reform Commission. In response to the national policy of environment-friendly society, a work plan for greenhouse gas emission control during the ‘13th five-year plan’ (FYP13:2016–2020) period is issued by the Chongqing government. In this plan the CO2 emissions per unit of GDP in Chongqing will be dropped by more than 19.5% by 2020 compared to 2015 [10]. Hence, to achieve the goal of low CO2 emissions, research about the status and law of CO2 emissions in Chongqing need to be carried out, which will play a significant role in strategy of development in China.
In the last two decades, the progress achieved by researchers regarding to the research of CO2 emission is impressive [7,11,12,13,14,15,16,17,18,19,20,21,22]. Davis et al. presented a global consumption-based CO2 emissions inventory and calculations of associated consumption-based energy and carbon intensity [7]. Heil estimated the historic relationship between carbon emissions and GDP in his study [11]. By taking India as an example, Tiwari indicated the relationship between energy consumption, CO2 emissions and economic growth in this country [12]. From the energy point of view, the CO2 emission factors in Guangdong Province were analyzed by Wang et al. [13]. There is any little difference in the methodology of prediction on carbon emissions throughout the world. Among them, EKC curve [14,15], STIRPAT model [16], LMDI decomposition [17,18], genetic Algorithm [19], support vector machine stands for the mainstream research method [20]. Ikaga et al. estimated buildings-related CO2 emissions in Japan up to 2050 [21]. Panareda et al. analyzed global atmospheric CO2 [22]. In this study, a comparison of the ability to predict changes in simulated CO2 changes at different time and space scales with observations was proposed. Despite the progress of the prediction on CO2 emission, the relative research about analysis and decision-making based on the prediction results is rare.
In this paper, the prediction of CO2 emissions based on energy consumption is proposed, as well as the adjustment strategies for energy consumption structure in Chongqing. It is organized as follows: in Section 2, the relevant data are collected and analyzed, and the corresponding mathematical method is introduced. In Section 3, energy consumption of Chongqing from 2016 to 2020 is predicted by SVR, and the corresponding CO2 emissions are calculated. To achieve the goal of measuring CO2 emissions of Chongqing in 2020, the coal consumption level and energy intensity of Chongqing are calculated in Section 4, and the adjustment strategies for energy consumption structure in Chongqing are proposed. The conclusions are drawn in Section 5.

2. Data Analysis and Mathematical Method for Prediction

2.1. Data Analysis

2.1.1. Energy Intensity and CO2 Intensity

Due to a lack of official statistics, energy intensity is used to calculate the total energy consumption of Chongqing under different scenario assumptions, and CO2 intensity is used to calculate the CO2 emission target of the Chongqing government. Energy intensity is the ratio between total primary energy consumption/final energy use and gross domestic product. It reflects the economic benefits of energy consumption. The CO2 intensity in this paper is defined as the emissions of CO2 per unit of GDP [23,24]. The function of energy intensity is written as follows:
I e = E t G t
where I e represents the energy intensity, E t stands for the energy consumption emissions, G t is the value of GDP.
The function of CO2 intensity can be described as follows:
I c = C t G t
where I c is the energy intensity, C t is the CO2 emissions.

2.1.2. Energy Consumption in Chongqing

In this paper, all the data is cited from the National Bureau of Statistics of the People’s Republic of China and Chongqing Statistics [25,26]. As a typical model of conventional energy consumption, the main energy consumption in Chongqing is fossil fuels, such as coal, oil and natural gas. Due to its geographical condition, the dominating clean power in Chongqing is hydroelectric power. Coal plays a dominant role in the energy consumption of Chongqing, which is accounting for 57.68% of total energy consumption. The proportions of hydroelectric power, natural gas and oil are 13.32%, 14.43% and 14.57% respectively. Among them, there are up to 86% energy consumption in Chongqing is generated by fossil fuels. To the best of our knowledge, most CO2 emissions are produced by fossil fuels, which will be discussed in this paper. Thus, the energy consumption in the following paper refers to fossil energy consumption.
According to National Bureau of Statistics of the People’s Republic of China, the fossil energy consumption is divided into eight categories which are coal, coke, gasoline, diesel oil, crude oil, kerosene, fuel oil, and natural gas, respectively. Since Chongqing was appointed as a municipality city by central government of China in 1997, the economic policy was adjusted at that time point, this paper only selects the related data from 1997 to 2015.
Due to the low consumption of crude oil, kerosene and fuel oil in Chongqing, these three types of fossil fuels are combined as one category in the future discussion. As shown in Figure 1, the coal consumption trend of Chongqing can be divided into three different stages. The first stage is the period from 1997 to 2003, when the coal consumption is stable; Chongqing is a typical industrial city with coal-based energy consumption [27]. During this time span, as a new municipality city, the economic development of Chongqing was at an initial phase. The second stage is the range from 2004 to 2011, the coal consumption of Chongqing shows a steady increasing trend due to the economic developments. Final stage is time span from 2012 to 2015, the coal consumption of Chongqing shows a rapid decreasing trend. Chongqing was appointed as a low-carbon pilot city in 2010, the energy-saving and emission-reduction policies of Chongqing government caused a series significant impacts on coal consumption in Chongqing. The consumption of gasoline, diesel oil, natural gas and kerosene, crude oil, fuel oil have been increasing since 1997. Among them, the largest growth rate of energy consumption is diesel oil, which is followed by gasoline.
Table 1 presents the energy intensity of Chongqing and the ratio between each energy source and total energy consumption in Chongqing from 1997 to 2015. Based on Table 1, the trend of energy intensity declines with the time in Chongqing. From 1997 to 2015, the average coal consumption is responsible for 70% of the total fossil energy consumption. Although the total quantity of coal consumption has been decreasing year by year, it is still the primary energy consumption in Chongqing. The ratios of natural gas and diesel oil consumption have been increasing after 2011.

2.1.3. Calculation and Analysis of CO2 Emission

Due to the lack of official data for CO2 emissions, relevant methods need to be applied for the calculation. In this paper, coal, coke, gasoline, diesel oil, crude oil, kerosene, fuel oil, and natural gas are chosen to calculate the CO2 emission of Chongqing. The basic calculation formula is given by 2006 IPCC Guidelines for National Greenhouse Gas Inventories, which can be presented as follows [28]:
C = i = 1 n C i = i = 1 n E i × F i , ( n = 8 )
where C represents the emission value of CO2, n represents the number of varieties of fossil energy. E i is the ith type of energy consumption, and F i stands for the carbon emissions coefficient of the ith type energy. According to IPCC Guidelines for National Greenhouse Gas Inventories, the carbon emissions coefficient in Equation (3) can be represented as follows:
F i = L i × T i × R i × V i
where L i in this equation is the average lower calorific value [29]. T i is the carbon content per unit calorific value, R i represents the rate of carbon oxidation [30]. V i represents the carbon conversion coefficient, which is 44/12 [31]. The following is the CO2 emission coefficient used in this paper: 1.9003 (coal), 2.8604 (coke), 3.0202 (crude oil), 2.9251 (gasoline), 3.0179 (kerosene), 3.0959 (diesel oil), 3.1705 (fuel oil), 2.1622 (natural gas).
According to Equations (3) and (4), the results of CO2 emissions in Chongqing from 1997 to 2015 are shown in Figure 2. From this figure, the trend of the CO2 emission of Chongqing can be divided into three different stages. The first stage is the range from 1997 to 2003, the CO2 emissions of Chongqing are stable, there is no obvious fluctuation during this time span.
The second stage is time span from 2004 to 2010, the CO2 emissions of Chongqing show a steady and linear increasing trend through this time range. The finally stage is the range from 2011 to 2015. In the contrary to the former stage, the CO2 emissions of Chongqing show a rapid decreasing trend in this time span. The trend of CO2 emissions in Chongqing is similar with the coal consumption in the previous analysis. Figure 3 shows the annual growth rate of CO2 emissions and coal consumption in Chongqing. The reason for such trend in Chongqing’s CO2 emissions can be explained by the change of coal consumption. The formation reasons for the decreasing of coal from 2011 to 2015 in Chongqing are analyzed in a later section of this paper.
As mentioned above, government policy plays a dominant role in the CO2 emissions. The energy-saving and emission-reduction policies during ‘12th Five-Year Plan’ of Chongqing government caused a series significant impacts on coal consumption in Chongqing, which led to a sudden reduction in CO2 emissions. According to the official report of Chongqing government, a total amount of 16.29 million tons of low-level production capacity was eliminated. Among them, 3 small-size coal mines were permanently closed, 69 coal mines were closed for the optimization of structure, 261 coal mines were upgraded, and 95 coal mines were restructured into 17 model enterprises [32,33]. Without any effect to economic development in Chongqing, CO2 emissions of Chongqing is rapidly decreased by these low-carbon policies, which can be observed in Figure 3. Figure 4 shows the growth rate of GDP in Chongqing from 1997 to 2015. From 2012 to 2013, the CO2 emissions of Chongqing shows a sudden inclination. In the contrary, the GDP growth rate of Chongqing is still at a health level compare to former several years, which are 13.97% and 12.04% respectively.

2.2. Description of Input and Output

Time series prediction is applied to this paper. Supposing that x i and y i are the input data and output data respectively. As is known to us, there is a positive correlation between energy consumption and socio-economic development [34]. When the society reaches a certain level, without any major changes (such as technology or policies), the level of energy consumption and social development generally correspond to each other. For example, energy consumption in our present level of social development will not suddenly drop to the level of 10 years ago. As a result, the energy consumption of the current moment is more relevant to the data of neighboring years, and this correlation decreases as the distance of time increases.
Therefore, a sliding time window over time is created. To keep the width of the sliding time window constant, a new sample is added from the right side of the time window and the old sample is shifted out from the left side during modeling. The input data and output data can be rewritten as: Q = { ( x i , y i ) | x i ( x i , x i + 1 , , x i + k 1 ) , y i x i + k , i = 1 , 2 , , 19 k } , where k represents the width of the sliding time window. Autocorrelation analysis is used for the determination of k [35,36]. The function can be presented as:
m k = i = 1 n k ( x i x ¯ ) ( x i + k x ¯ ) i = 1 n ( x i x ¯ ) 2
where m k stands for the coefficient of autocorrelation when the width of sliding time window is k . x ¯ is the mean of the time series. n represents the number of data.

2.3. Support Vector Regression Method for Time Series Prediction

Based on the data analysis above, the trend of CO2 emissions in Chongqing is nonlinear, which can be affected by many factors. Among them, the government policy usually plays a significant role [37]. Therefore, by the previous data of CO2 emissions in Chongqing, the prediction results can be inaccurate. However, by the prediction of non-fossil energy consumption in Chongqing, the CO2 emissions of Chongqing can be predicted indirectly.
Due to the small samples with the characteristics of non-linear, Support Vector Machine method (SVM) is applied to analyze the selected data. SVM is one of machine learning methods based on statistic theory based on statistic theory, which is proposed by Cortes and Vapnik in 1995 [38]. It provides excellent results on solving problem related to small samples, nonlinear and high-dimensional pattern recognition [39]. SVM for regression is also called SVR. By using the thought of support vector and the method of Lagrange multiplier, the data can be analyzed by support vector regression. The basic function for SVR is given by [38,39,40,41,42]:
f ( x ) = ω ( x ) + b
where f ( x ) is a nonlinear mapping function, ω and b are the vector parameters need to be determined. With data set { ( x 1 , y 1 ) , ( x 2 , y 2 ) , , ( x n , y n ) } ( y i R n , x i R n ), x i is an input, y i is a output target and R n represents n-dimensional Euclidean space. Function f ( x ) can be trained to approximate the actual value y . The objective function of support vector regression can be presented as follows:
min ω , b 1 2 ω 2 + C i = 1 n ( f ( x i ) y i )
In Equation (6), ( f ( x i ) y i ) is the insensitive loss function, C is the penalty factor, n represents the number of data. The insensitive loss function of SVR is shown as follows:
= { | f ( x i ) y i | ε , | f ( x i ) y i | ε 0 , otherwise
where ε stands for insensitive loss parameter. In SVR method, largest ε -deviation can be placed between the predicted value f ( x ) and the actual value y . When the absolute value of the difference between f ( x ) and y is bigger than ε , the calculation of the cost value will start. The margin with 2 ε width will be constructed under the center of f ( x ) . The point right with the boundary is the determining model of ‘support vector’. If the training sample stays in the margin, the results will can be assumed as correct.
Due to the flexible boundary, the slack variable ξ i and ξ i are introduced, thus the equation can be rewritten as:
min ω , b , ξ i , ξ i 1 2 ω 2 + C i = 1 n ( ξ i + ξ i ) subject   to { y i f ( x i ) ε + ξ i f ( x i ) y i ε + ξ i ξ i 0 ,   ξ i 0 ,   i = 1 , 2 , , n
where ξ i and ξ i represent the upper error limit and the lower error limit, respectively. By Introducing the Lagrange multipliers α 0 , δ 0 , the Lagrange function is:
Lg ( ω , b , ξ , α , δ ) = 1 2 ω 2 + C i = 1 n ( ξ i + ξ i ) i = 1 n δ i ξ i i = 1 n δ i ξ i + i = 1 n α i ( y i f ( x i ) ε ξ i ) + i = 1 n α i ( f ( x i ) y i ε ξ i )
The dual function of Equation (8) can be written as:
max α , α i = 1 n y i ( α i α i ) ε ( α i + α i ) 1 2 i 1 n j = 1 n ( α i α i ) ( α j α j ) K ( x i , x j ) subject   to { i = 1 n ( α i α i ) = 0 0 α i , α i C , i = 1 , 2 , , n
In Equation (11), function K ( x i , x j ) is the kernel function. The function of kernel can transfer the non-linear problem of low-dimensional space into programming linear problem of high-dimensional space. The approximate function is:
f ( x ) = i = 1 n ( α i α i ) K ( x i , x ) + b
The chosen of kernel function and parameters will cause obvious difference on the simulation results of SVR [42]. At present, there is no standard method about the choice of kernel function. The most widely used kernel function is Gaussian Radial Basis Function (RBF) [43], which is employed in this paper. The formula can be described as: K ( x i , x j ) = exp ( g x i x j 2 ) , g > 0 . where g stands for the RBF function parameter. In this paper, penalty factor C and RBF function parameter g are the parameters need to be determined.

3. Simulation and Prediction

As mentioned before, from 2011 to 2015, the CO2 emissions of Chongqing and the coal consumption both show a rapid decreasing trend in this time span due to the adjustment of the government policy. From the best of our knowledge, the government policy will not be an eternal way to solve situation like this. Especially for Chongqing, which is the economic unit with the fastest economic growth rate in China. With the developing trend of mega city, the energy consumption of Chongqing will still show a steady increasing trend in the near future.
By using SVR method, the prediction results are based on previous experience, which means under a data set with short fluctuation, the precision of prediction will be deviating. However, from the data in Figure 1b, gasoline, diesel oil, crude oil, kerosene, fuel oil and natural gas have been showing steady ascending trends year by year. Two reasons can be concluded to explain this phenomenon. First, all these six types of energy are related to the basic daily life of citizens in Chongqing. With the increasing of population in Chongqing, these energy consumptions will ascend inevitably. Moreover, from the previous records, policy regarding to these energies did not show obvious effect on their growth rate of consumption.
Therefore, SVR method is applied to predict the consumptions of gasoline, diesel, natural gas, crude oil, kerosene and fuel oil in this paper. By assuming the structure and level of energy consumption are stable in Chongqing, the total energy consumption of Chongqing in 2020 can be obtained based on the energy intensity. With these two calculation results, the both consumptions of coal and coke of Chongqing in 2020 will be predicted indirectly.

3.1. Determination of the Inputs and Outputs

In this paper, time-series: gasoline, diesel, natural gas, crude oil, kerosene and fuel oil (in Figure 1b) are selected for the prediction of SVR. The data from 1997 to 2008 are used as the training samples to train the model. The data from 2009 to 2015 are selected to validate the accuracy of the model. Through the process of normalization, the original data is linearly mapped to the interval of (−1, 1) to reduce the amount of computation.
According to Equation (5), when the value of ‘Autocorrelation Function’ (ACF) reaches at 0.5, it is chosen as the width of the sliding time window [44]. Based on the calculation results, 2 is employed as the width to predict the energy consumption of gasoline, and 3 is the width used for prediction of the rest three time series.

3.2. Selection of Parameters Used in SVR

The method of grid-search is used to obtain the parameter combination g and C. The parameters with the highest cross-validation accuracy can be determined. The mean absolute percentage error (MAPE) is used to verify the parameters selected by grid-search and cross-validation. The obtained result of MAPE shows the accuracy of the final results. When the value of MAPE is minimum, the corresponding combination of parameters are selected as the best parameters for the model.
Table 2 shows the RBF function parameters and penalty factors used in this paper. The smallest MAPE in the performance of SVR are 7.16%, 5.70%, 3.76%, 3.99% respectively. When MAPE < 10%, the prediction performance shows high accuracy [45].

3.3. Evaluation of Model Accuracy

The parameters of Table 2 are applied into the model for validation, the observation and prediction values are compared in Figure 5. The accuracy of the model is validated in this part. The model can be used to predict the data from 2016 to 2020 when it passes the test. In this paper, posteriori error estimation is introduced to evaluate the accuracy of SVR method [46]. The main steps are described as follows:
Step 1: The residual sequences between observation and prediction value are calculated as e . Where x o and x p stands for the value of observation and prediction, respectively:
e = x o x p
Step 2: The standard deviation of residual and observation sequences are calculated as S o and S e :
S o = i = 1 n [ x o ( i ) x o ¯ ] 2 n 1
S e = i = 1 n [ e ( i ) e ¯ ] 2 n 1
Step 3: According to Equations (15) and (16), the posterior error ratio D and error probability P can be obtained [46,47]:
D = S e / S o
P = p {   | e ( i ) e ¯   | < 0 . 6745 S o }
Through calculation, the accuracy of the model is shown in Table 3. The rating grade of model accuracy is shown in Table 4 [46]. Based on the above analysis, the model can be applied to predict the data from 2016 to 2020.

3.4. Prediction Result with Analysis

In this part, the model which has been validated in previously part is employed to predict the consumption of gasoline, diesel oil, natural gas, crude oil, kerosene and fuel oil in Chongqing from 2016 to 2020. The prediction results can be seen from Table 5. According to the results, these types of energy consumption in Chongqing will keep a steady growth trend in the next five years. Through Equations (3) and (4), the CO2 emissions of Chongqing in 2020 can be determined by the energy consumptions of gasoline, diesel, natural gas and crude oil, kerosene and fuel oil in 2020. The calculation results are shown in Table 6.
According to Equation (1), the total fossil energy consumption of Chongqing in 2020 can be predicted by energy intensity with the given GDP target of Chongqing. In the official reports of Chongqing government, the GDP of Chongqing should reach to 2500 billion yuan in 2020. By assuming the current level of energy intensity will be maintained, the total energy consumption of Chongqing in 2020 can be obtained by the energy intensity of Chongqing in 2015. With the reduction of the determined CO2 emissions from gasoline, diesel, natural gas and crude oil, kerosene and fuel oil, the consumption of coal and coke under the same energy intensity can be obtained as well as the corresponding CO2 emissions of Chongqing. The results are shown in Table 7. With the energy intensity of 2015, the CO2 emissions caused by coal and coke will be 205.08 (Mt) tons in 2020. Comparing to 2015, the CO2 emissions of Chongqing will increase 82.44 (Mt).

4. Analysis

In the previous analysis, the energy consumption (except for coal and coke) of Chongqing in 2020 are predicted, as well as the corresponding CO2 emissions. Therefore, the CO2 emissions within government target of coal and coke can be calculated. This section focuses on the analysis of the CO2 emissions and consumption of coal and coke under different energy intensity scenarios.
Based on the official report of Chongqing government, the CO2 emissions of per unit GDP in Chongqing will drop by more than 19.5% compare to 2015 in 2020. According to this target, the target value of Chongqing’s CO2 emissions in 2020 can be determined. By reduction of predicted CO2 emissions of gasoline, diesel, natural gas and crude oil, kerosene and fuel oil in the same time, the CO2 emissions of coal and coke from Chongqing in 2020 can be obtained under the same energy intensity. The results are shown in Table 8. To achieve the proposed goal of CO2 emissions in Chongqing, the CO2 emissions caused by coal and coke need to be under 151.48 (Mt) by 2020.
According to the results given in Table 7, when the energy intensity of Chongqing in 2020 is maintained at the level of 2015, the CO2 emissions of coal and coke in Chongqing will reach 205.76 (Mt). This result is 54.28 (Mt) higher than the proposed CO2 emissions of Chongqing government given in Table 8. Therefore, to reduce the CO2 emissions in Chongqing and reach the official target of CO2 emissions in 2020, the energy intensity need to be reduced. In order to reach the official GDP target, the reduction of total energy consumption is the only method to decrease the energy intensity.
Liang et al. proposed an analysis on the consumption of Chinese energy industry [48]. According to this research, industry with the highest energy consumption is manufacturing industry, which is also the largest coal consumption industry. Although various industries are trying to reduce their coal consumption, coal will still be one of the most important energy source of Chongqing in the near future. The consumption of gasoline increases in industries like transportation, warehousing and telecommunications instead of manufacturing industry. Like gasoline, the trend of diesel oil consumption also deviates to transportation and other industries. The primary consumption of natural gas is for daily lives of citizens in our country, the ratio of application for industry is small [47].
Based on the previous analysis, the applications of different energy sources are demonstrated. With the GDP growth and the development of tertiary industry in Chongqing, the energy consumption regarding to daily lives of citizens will inevitably increase, which will eventually lead to the rising energy consumption of gasoline, diesel, natural gas, crude oil, kerosene and fuel oil. Therefore, to reduce the total amount of energy consumption in Chongqing, the consumption of coal and coke should be the primary target, which has been verified by the adjustment results of energy in Chongqing during ’12th Five-Year plan’.
The coal consumption and CO2 emissions of coal in Chongqing under the different average annual declinations of energy intensity can be calculated through the above method. Table 9 shows the calculation results. From Table 9, when the annual declination of energy intensity is 4%, CO2 emissions of coal in Chongqing will reach to the limitation of the official target of Chongqing government, and the corresponding coal consumption is 79.49 (Mt). Therefore, to achieve the reduction plan of CO2 emissions in 2020, the coal consumption of Chongqing should be limited in 79.49 (Mt).

5. Conclusions

Based on the prediction and analysis of fossil energy consumption and CO2 emissions in Chongqing, this paper reveals its inherent variation of CO2 emissions and focuses on the impact of coal consumption on them. To achieve low-carbon development of Chongqing, a low-carbon energy system needs to be built for the promotion of energy structure optimization. Due to the dominant ratio of coal consumption of the fossil energy in Chongqing, there are several effective ways to optimize the energy structure in Chongqing by the reduction of the coal consumption, such as increasing the consumption of natural gas, development of wind power, development of solar energy and other renewable energy sources. According to the analysis results, the specific suggestions for Chongqing to achieve its reduction targets of CO2 emission are proposed as follows:
  • The price leverage can be applied to control the total amount of coal consumption by government. Meanwhile, the supplement of non-fossil fuels should be adequate, and the consumption of high-quality energy need to be encouraged, such as renewable energy, natural gas and electricity. Due to the geographical feature, the storage of natural gas in Chongqing is abundant. In the contrary, the supply systems of natural gas in Chongqing is under a lagging development relatively. Therefore, the fundamental constructions for these renewable energies are necessary.
  • By enhancing the management of the energy consumption of high-energy consumption industry, the CO2 emissions need to be limited during industrial production process. Especially for the top five carbon-intensive and high-consumption of coal enterprise, which are thermal power, iron steel, non-ferrous metals, chemical industry and construction materials. The efficiency and cleaning-level of energy consumption should be improved to control the consumption of coal.
  • The applications of high-quality and clean coal need to be promoted by government. By the cost reduction of clean coal, the promotion of application for clean coal is a primary strategy to achieve the goal of low CO2 emissions. Meanwhile, through eliminating production capacity with low-efficiency, the problem of excess production capacity will be receded, which will lead to the relief of energy pressure.
As the first low-carbon pilot city, the contributions on the reduction of CO2 emissions that was made by Chongqing will play a significant role in strategy of development in China. Tremendous contributions have been made by China to develop the green economy and build an environment-friendly society. In the future, to promote the work of emission reduction, the experience that gained at one unit should be popularized in a whole area.

Acknowledgments

This research is funded by National Key Research & Development Program of China (2016YFE0205600), Chongqing Science & Technology Commission (cstc2015zdcy-ztzx70012), Program of Chongqing Education Commission (KJZH17123) and Open funding of Chongqing Technology and Business University (KFJJ2017076).

Author Contributions

Shuai Yang and Yu Wang proposed the structure of this manuscript, and wrote the paper; Yu Wang and Wengang Ao build the mathematical model; Yun Bai provided the original data and the relative analysis. Chuan Li contributed the revision of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rahmstorf, S. A semi-empirical approach to projcting future sea-level rise. Science 2007, 315, 368–370. [Google Scholar] [CrossRef] [PubMed]
  2. Eckstein, D.; Künzel, V.; Schäfer, L. Global Climate Risk Index 2018. Germanwatch. Available online: www.germanwatch.org/en/cri (accessed on 23 January 2018).
  3. Jiang, T.; Shi, Y.F. Global climatic warming, the Yangtze floods and potential loss. Adv. Earth Sci. 2003, 18, 277–284. [Google Scholar]
  4. Hossain, M.A.; Gilkes, R.J.; Prakongkep, N. Global warming induced sea level rise on soil, land and crop production loss in Bangladesh. In Proceedings of the 2010 19th World Congress of Soil Science, Soil Solutions for a Changing World, Brisbane, Australia, 1–6 August 2010; pp. 77–80. [Google Scholar]
  5. Seager, R.; Naik, N.; Vogel, L. Does Global Warming Cause Intensified Interannual Hydroclimate Variability? J. Clim. 2012, 25, 3355–3372. [Google Scholar] [CrossRef]
  6. Robertson, G.P. Abatement of Nitrous Oxide, Methane, and the Other Non-CO2 Greenhouse Gases: The Need for a Systems Approach. In The Global Carbon Cycle; Field, C.B., Raupach, M.R., Eds.; Island Press: Washington, DC, USA, 2004; pp. 493–506. [Google Scholar]
  7. Davis, S.J.; Caldeira, K. Consumption-based accounting of CO2 emissions. Proc. Natl. Acad. Sci. USA 2010, 107, 5687–5692. [Google Scholar] [CrossRef] [PubMed]
  8. Perera, F. Pollution from Fossil-Fuel Combustion is the Leading Environmental Threat to Global Pediatric Health and Equity: Solutions Exist. Int. J. Environ. Res. Public Health 2018, 15, 16. [Google Scholar] [CrossRef] [PubMed]
  9. The BP Statistical Review of World Energy. Available online: http://www.bp.com/statisticalreview (accessed on 28 October 2017).
  10. Work Plan for Greenhouse Gas Emission Control during the 13th Five-Year Plan Period. Available online: http://wx.cq.gov.cn/Item/31762.aspx (accessed on 28 October 2017).
  11. Heil, M.T. Carbon emissions and economic development: Future trajectories based on historical experience. Environ. Dev. Econ. 2001, 6, 63–83. [Google Scholar] [CrossRef]
  12. Tiwari, A.K. Energy consumption, CO2 emissions and economic growth: Evidence from India. J. Int. Bus. Econ. 2011, 12, 85–122. [Google Scholar] [CrossRef]
  13. Wang, W.; Kuang, Y.; Huang, N. Study on the Decomposition of Factors Affecting Energy-Related Carbon Emissions in Guangdong Province, China. Energy 2011, 4, 2249–2272. [Google Scholar] [CrossRef]
  14. Jalil, A.; Mahmud, S.F. Environment Kuznets curve for CO2 emissions: A cointegration analysis for China. Energy Policy 2009, 37, 5167–5172. [Google Scholar] [CrossRef]
  15. Zhu, Y.; Wang, Z.; Pang, L.; Wang, L.; Zhou, X. Simulations on China’s economy and prediction on energy consumption and carbon emissions under optimal growth path. Acta Geogr. Sin. 2009, 64, 935–944. [Google Scholar]
  16. Ma, Z.; Liu, W.; Wang, L.; Ma, P.L.; Wang, Y.X.; Dong, D.M.; Duan, H.Y.; Wang, X.E. Study on energy consumption prediction and energy management in Jilin province based on STIRPAT model. Appl. Mech. Mater. 2013, 281, 542–545. [Google Scholar] [CrossRef]
  17. Yang, J.; Chen, B. Using LMDI method to analyze the change of industrial CO2 emission from energy use in Chongqing. Front. Earth Sci. 2010, 5, 103–109. [Google Scholar] [CrossRef]
  18. González, P.F.; Landajo, M.; Presno, M.J. Tracking European Union CO2 emissions through LMDI (logarithmic-mean Divisia index) decomposition. The activity revaluation approach. Energy 2014, 73, 741–750. [Google Scholar] [CrossRef]
  19. Kavoosi, H.; Saidi, M.H.; Kavoosi, M.; Bohrng, M. Forecast Global Carbon Dioxide Emission by Use of Genetic Algorithm (GA). Int. J. Comput. Sci. Issues 2012, 9, 418–427. [Google Scholar]
  20. Saleh, C.; Dzakiyullah, N.R.; Nugroho, J.B. Carbon dioxide emission prediction using support vector machine. IOP Conf. Ser. Mater. Sci. Eng. 2016, 114. [Google Scholar] [CrossRef]
  21. Ikaga, T.; Murakami, S.; Kato, S.; Shiraishi, Y. Forecast of CO2 Emissions from Construction and Operation of Buildings in Japan Up to 2050. J. Asian Archit. Build. Eng. 2002, 1, 149–156. [Google Scholar] [CrossRef]
  22. Agusti-Panareda, A.; Massart, S.; Chevallier, F.; Boussetta, S.; Balsamo, G. Forecasting global atmospheric CO2. Atmos. Chem. Phys. 2014, 14, 13909–13962. [Google Scholar] [CrossRef]
  23. Shahbaz, M.; Jam, F.A.; Bibi, S.; Loganathan, N. Multivariate granger causality between CO2 emissions, energy intensity and economic growth in Portugal: Evidence from cointegration and causality analysis. Technol. Econ. Dev. Econ. 2016, 22, 47–74. [Google Scholar] [CrossRef]
  24. Jin, Z.; Kuramochi, T.; Asuka, J. Energy and CO2 intensity reduction policies in China: Targets and implementation. Glob. Environ. Res. 2013, 17, 19–28. [Google Scholar]
  25. National Bureau of Statistics of the People’s Republic of China. Available online: http://www.stats.gov.cn/ (accessed on 17 October 2017).
  26. Chongqing Statistics. Available online: http://www.cqtj.gov.cn/ (accessed on 17 October 2017).
  27. Li, B.; Liu, M.; Mckinnell, K. Energy issue in Chongqing. Prop. Manag. 2006, 24, 342–353. [Google Scholar] [CrossRef]
  28. Xiao, H. The calculation of carbon emissions of Shandong province and the comparison with the national average. Energy Procedia 2011, 5, 1514–1518. [Google Scholar]
  29. Hu, X.; Li, A.; Chen, H.; Xin, D.; Zhang, G.; Zhen, B. General Principles for Calculation of the Comprehensive Energy Consumption, 1st ed.; Standards Press of China: Beijing, China, 2008; pp. 1–12. [Google Scholar]
  30. Provincial Greenhouse Gas Inventory Preparation Guidelines (Trial). Available online: http://www.docin.com/p-297792786.html (accessed on 24 October 2017).
  31. Wang, Z.X.; Hao, P.; Yao, P.Y. Non-Linear Relationship between Economic Growth and CO2 Emissions in China: An Empirical Study Based on Panel Smooth Transition Regression Models. Int. J. Environ. Res. Public Health. 2017, 14, 1568. [Google Scholar] [CrossRef] [PubMed]
  32. Chongqing Municipal People’s Government. 2012. Available online: http://www.cq.gov.cn/publicinfo/web/views/Show!detail.action?sid=1102981 (accessed on 3 November 2017).
  33. Chongqing Municipal People’s Government. 2013. Available online: http://www.cq.gov.cn/publicinfo/web/views/Show!detail.action?sid=3847160 (accessed on 3 November 2017).
  34. Niu, S.; Jia, Y.; Wang, W.; He, R.; Hu, L.; Liu, Y. Electricity Consumption and Human Development Level: A Comparative Analysis Based on Panel Data for 50 Countries. Econ. Geogr. 2013, 53, 338–347. [Google Scholar] [CrossRef]
  35. Abarbanel, H.D.I.; Brown, R.; Sidorowich, J.J.; Tsimring, L.S. The analysis of observed chaotic data in physical system. Rev. Mod. Phys. 1993, 65. [Google Scholar] [CrossRef]
  36. Gao, S.; Xiao, Q.; Xu, M.; Wang, P. Analyzing a nonlinear system of various SNR with RQA. Phys. Exp. 2003, 23, 13–17. [Google Scholar]
  37. Jiang, J. Impacts of Chinese economic and energy policies on carbon emission intensity. J. Chongqing Univ. Technol. 2016, 30, 28–36. [Google Scholar]
  38. Cortes, C.; Vapnik, V. Support-vector networks. Mach. Learn. 1995, 20, 273–297. [Google Scholar] [CrossRef]
  39. Cui, B.; Xue, T.; Yang, K. Vehicle recognition based on support vector machine. In Proceedings of the 2008 International Symposium on Intelligent Information Technology Application Workshops, Shanghai, China, 21–22 December 2008. [Google Scholar]
  40. Chang, C.C.; Lin, C.J. LIBSVM: A Library for Support Vector Machines. ACM Trans. Intell. Syst. Technol. 2011, 2, 27. [Google Scholar] [CrossRef]
  41. Cherkassky, V.; Ma, Y. Practical selection of SVM parameters and noise estimation for SVM regression, Neural Networks. Neural Netw. 2004, 17, 113–126. [Google Scholar] [CrossRef]
  42. Baydaroglu, O.; Koçak, K. SVR-based prediction of evaporation combined with chaotic approach. J. Hydrol. 2014, 508, 356–363. [Google Scholar] [CrossRef]
  43. Yee, P.; Haykin, S. A dynamic regularized Gaussian radial basis function network for nonlinear, nonstationary time series prediction. IEEE Trans. Signal Process. 1999, 47, 2503–2521. [Google Scholar] [CrossRef]
  44. Jayawardena, A.W.; Lai, F. Analysis and prediction of chaos in rainfall and stream flow time series. J. Hydrol. 1994, 153, 23–52. [Google Scholar] [CrossRef]
  45. Yi, D. Statistical Prediction: Methods and Applications, 1st ed.; China Statistic Press: Beijing, China, 2001; p. 18. ISBN 7-5037-3453-1. [Google Scholar]
  46. Yi, D.; Guo, P. Gray Theory and Methods: Summary·Solution·Program·Application, 1st ed.; Petroleum Industry Press: Beijing, China, 1992; p. 75. ISBN 7-5021-0581-6. [Google Scholar]
  47. Xie, Z. Engineering of Safety System, 1st ed.; Metallurgy Industry Press: Beijing, China, 2010; p. 124. ISBN 7-5024-5132-5. [Google Scholar]
  48. Liang, H.; Chen, Q. Analysis on the consumption characters of Chinese energy industry based on panel data model. J. Northeast Norm. Univ. 2005, 37, 41–44. [Google Scholar]

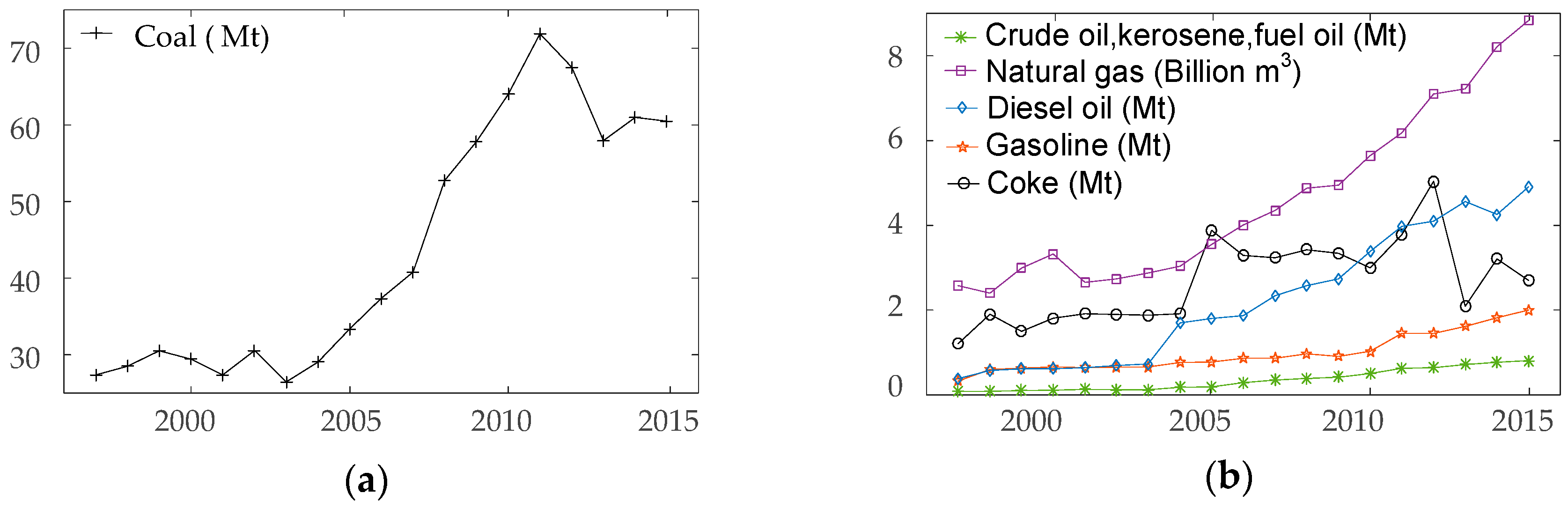

Figure 1. The fossil energy consumption of Chongqing from 1997 to 2015. (a) Coal consumption; (b) The others energy consumption. In this paper, the unit of natural gas is ‘Billion m3’, the other energy is ‘Mt’.
Figure 1. The fossil energy consumption of Chongqing from 1997 to 2015. (a) Coal consumption; (b) The others energy consumption. In this paper, the unit of natural gas is ‘Billion m3’, the other energy is ‘Mt’.
Ijerph 15 00530 g001

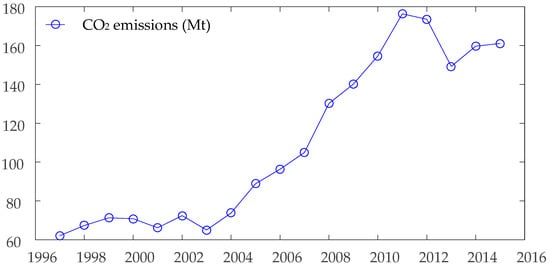

Figure 2. CO2 emissions of Chongqing from 1997 to 2015.
Figure 2. CO2 emissions of Chongqing from 1997 to 2015.
Ijerph 15 00530 g002

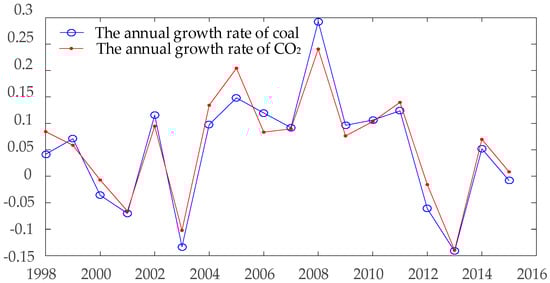

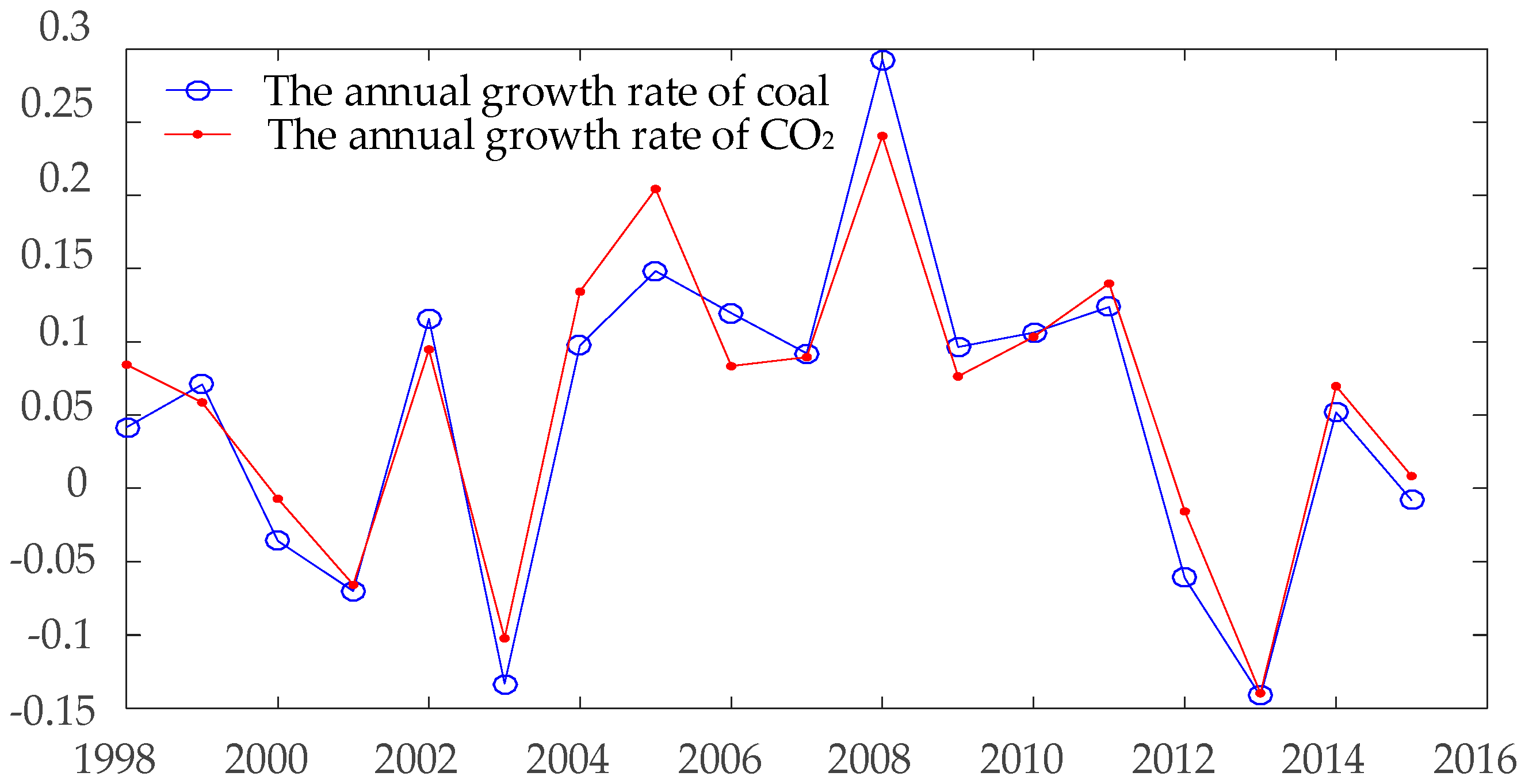

Figure 3. The growth rate of coal and CO2 emissions in Chongqing from 1998 to 2015.
Figure 3. The growth rate of coal and CO2 emissions in Chongqing from 1998 to 2015.
Ijerph 15 00530 g003

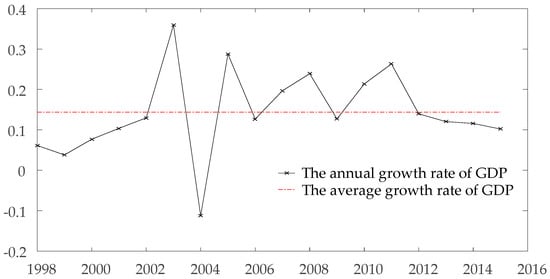

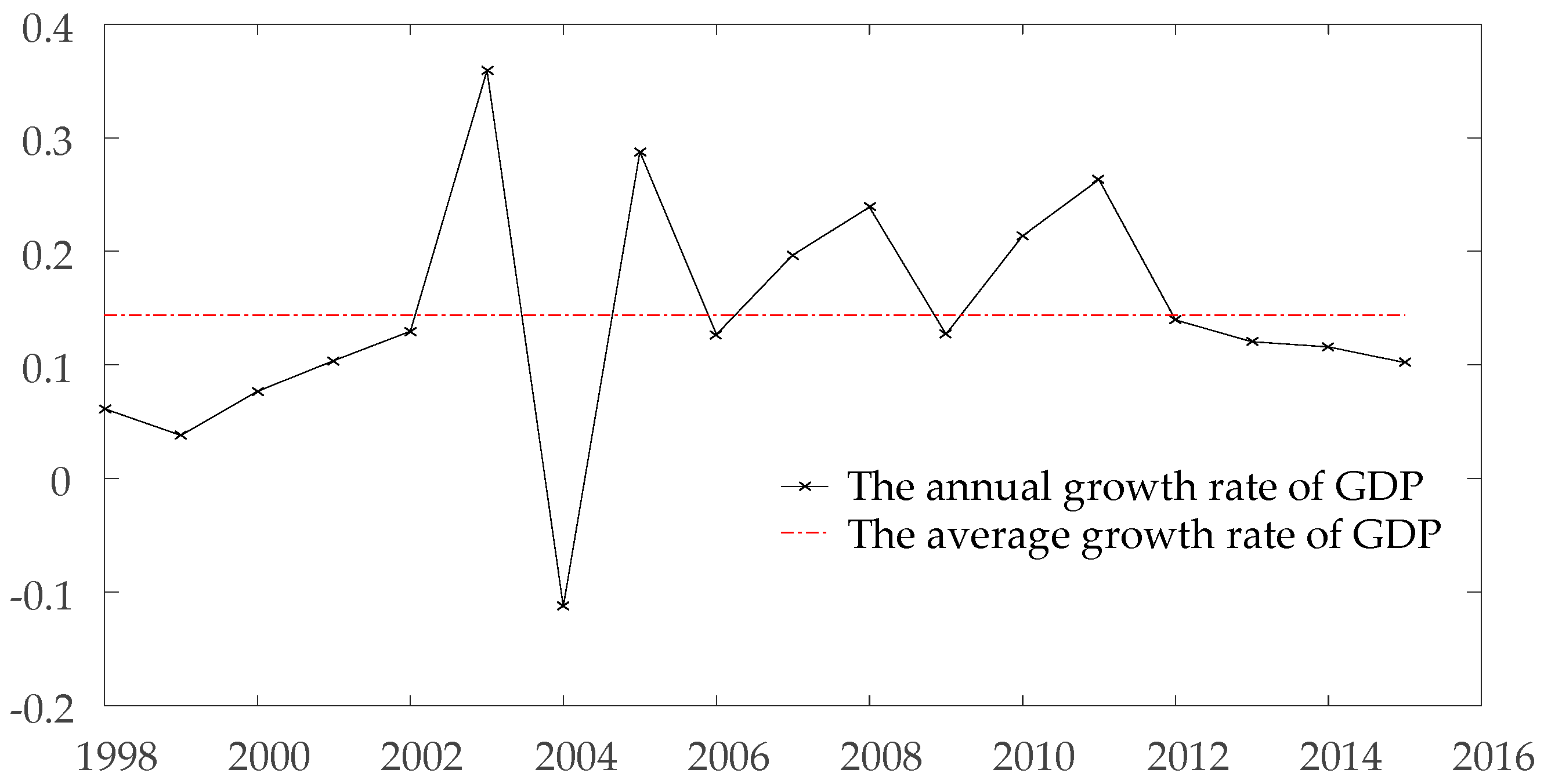

Figure 4. The growth rate of GDP in Chongqing from 1998 to 2015.
Figure 4. The growth rate of GDP in Chongqing from 1998 to 2015.
Ijerph 15 00530 g004

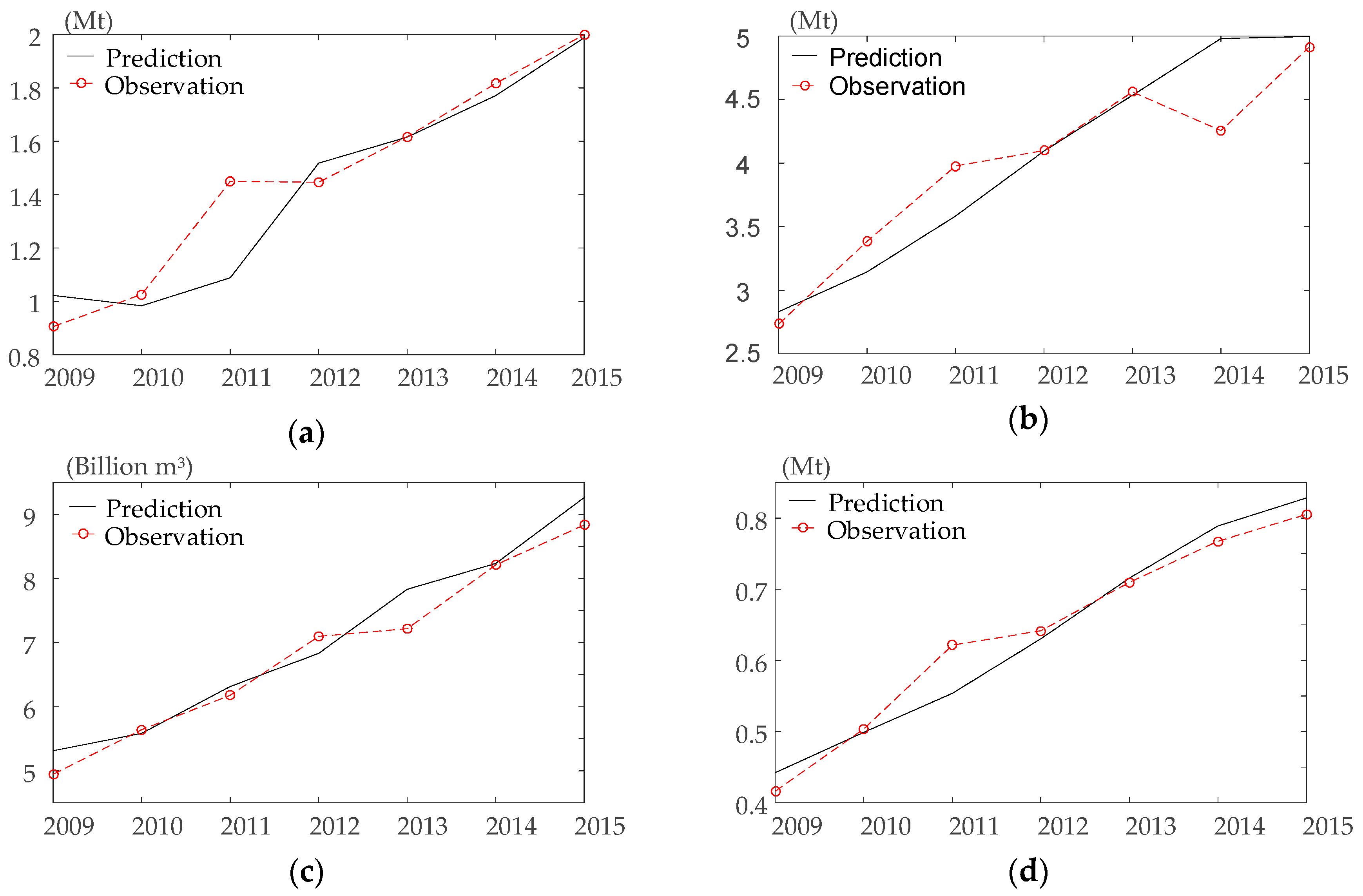

Figure 5. The comparison of observation and the prediction results of SVR. (a) Gasoline; (b) Diesel oil; (c) Natural gas; (d) Crude oil, kerosene, fuel oil.
Figure 5. The comparison of observation and the prediction results of SVR. (a) Gasoline; (b) Diesel oil; (c) Natural gas; (d) Crude oil, kerosene, fuel oil.
Ijerph 15 00530 g005
Table 1. Energy intensity in Chongqing from 1997 to 2015 and the proportion of each energy source to total energy consumption.
Table 1. Energy intensity in Chongqing from 1997 to 2015 and the proportion of each energy source to total energy consumption.
YearEnergy IntensityCoal
(%)
Coke
(%)
Gasoline
(%)
Diesel Oil
(%)
Kerosene, Crude Oil, Fuel Oil (%)Natural Gas
(%)
19971.6777.264.631.912.200.4513.54
19981.7074.756.783.223.080.4511.72
19991.7674.664.983.173.050.5013.63
20001.6371.936.013.313.060.5515.14
20011.3772.396.873.503.470.6813.09
20021.3274.116.263.273.410.6012.35
20030.8870.646.823.623.980.6514.29
20041.1368.056.103.698.100.8313.24
20051.0565.5310.373.147.220.7512.99
20061.0167.358.073.206.861.0713.45
20070.9367.357.262.947.891.1813.38
20080.9270.786.252.677.061.0612.18
20090.8772.395.692.346.991.0711.53
20100.8072.204.602.397.791.1711.86
20110.7271.245.092.968.041.2611.40
20120.6367.356.842.978.341.3113.19
20130.4965.613.223.7710.531.6515.22
20140.4764.434.613.959.181.6616.17
20150.4462.743.814.2710.401.7117.07
Table 2. The RBF function parameters and penalty factors used in SVR.
Table 2. The RBF function parameters and penalty factors used in SVR.
Energy TypegCMAPE (%)
Gasoline1505.704553.737.16
Diesel oil3723.09955.365.70
Natural gas5594.361102.493.76
Crude oil, kerosene, fuel oil2543.05119.603.99
Table 3. The calculation result of model accuracy.
Table 3. The calculation result of model accuracy.
Time Series TypepD
Gasoline0.860.39
Diesel oil0.860.48
Natural gas10.22
Crude oil, kerosene, fuel oil10.23
Table 4. The rating grade of model accuracy.
Table 4. The rating grade of model accuracy.
GradepD
Excellent≥0.95≤0.35
Qualified0.80 ≤ p < 0.950.35 < C ≤ 0.50
Barely qualified0.70 ≤ p < 0.800.50 < C ≤ 0.65
Unqualified<0.70>0.65
Table 5. The prediction results of SVR method.
Table 5. The prediction results of SVR method.
YearGasoline
(Mt)
Diesel Oil
(Mt)
Natural Gas
(billion m3)
Kerosene, Crude Oil, Fuel Oil (Mt)
20162.185.3798.330.87
20172.365.64108.480.91
20182.516.08117.250.95
20192.636.48125.230.97
20202.7216.82131.720.99
Table 6. The CO2 emissions from each energy at the predicted consumption level in 2020.
Table 6. The CO2 emissions from each energy at the predicted consumption level in 2020.
YearGasoline
(Mt)
Diesel Oil
(Mt)
Natural Gas
(billion m3)
Kerosene, Crude Oil, Fuel Oil (Mt)Sum
(Mt)
20207.9521.1322.212.9854.27
Table 7. The CO2 emissions from coal and coke of Chongqing in 2020 under the energy intensity of Chongqing in 2015.
Table 7. The CO2 emissions from coal and coke of Chongqing in 2020 under the energy intensity of Chongqing in 2015.
YearEnergy IntensityCoal and Coke
Consumption (Mt)
Coal and Coke CO2 Emissions (Mt)
20150.4460.47122.64
20200.44107.92205.08
Table 8. The target CO2 emissions of Chongqing under the given GDP and emission target.
Table 8. The target CO2 emissions of Chongqing under the given GDP and emission target.
YearCO2 Emission IntensityTotal CO2 Emissions
(Mt)
The CO2 Emissions from Coal and Coke (Mt)
20151.025161.05122.64
20200.823205.76151.48
Table 9. The coal consumption and CO2 emissions from coal and coke of Chongqing in 2020 under different energy intensity scenarios.
Table 9. The coal consumption and CO2 emissions from coal and coke of Chongqing in 2020 under different energy intensity scenarios.
The Average Annual Decline in Energy Intensity (%)Energy Intensity in 2020Energy Consumption in 2020 (Mtce 1)Coal Consumption in 2020 (Mt)The CO2 Emissions from Coal and Coke
(Mt)
1%0.42104.61100.37190.74
2%0.4099.4393.12176.96
3%0.3894.4686.17163.74
4%0.3689.6979.49151.05
5%0.3285.1273.08138.88
1 The unit of Mtce means ‘million tons of standard coal equivalent’.

Share and Cite

MDPI and ACS Style

Yang, S.; Wang, Y.; Ao, W.; Bai, Y.; Li, C. Prediction and Analysis of CO2 Emission in Chongqing for the Protection of Environment and Public Health. Int. J. Environ. Res. Public Health 2018, 15, 530. https://doi.org/10.3390/ijerph15030530

AMA Style

Yang S, Wang Y, Ao W, Bai Y, Li C. Prediction and Analysis of CO2 Emission in Chongqing for the Protection of Environment and Public Health. International Journal of Environmental Research and Public Health. 2018; 15(3):530. https://doi.org/10.3390/ijerph15030530

Chicago/Turabian Style

Yang, Shuai, Yu Wang, Wengang Ao, Yun Bai, and Chuan Li. 2018. "Prediction and Analysis of CO2 Emission in Chongqing for the Protection of Environment and Public Health" International Journal of Environmental Research and Public Health 15, no. 3: 530. https://doi.org/10.3390/ijerph15030530

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
