Article

Adsorption Properties of Hydrocarbons (n-Decane, Methyl Cyclohexane and Toluene) on Clay Minerals: An Experimental Study

1
Research Institute of Unconventional Oil & Gas and Renewable Energy, China University of Petroleum (East China), Qingdao 266580, China
2
School of Geosciences, China University of Petroleum (East China), Qingdao 266580, China
3
Exploration & Production Research Institute SINOPEC, Beijing 100083, China
4
Shandong Provincial Key Laboratory of Depositional Mineralization & Sedimentary Mineral, Shandong University of Science and Technology, Qingdao 266590, China
*
Author to whom correspondence should be addressed.
Energies 2017, 10(10), 1586; https://doi.org/10.3390/en10101586
Submission received: 20 September 2017 / Revised: 4 October 2017 / Accepted: 4 October 2017 / Published: 12 October 2017
(This article belongs to the Special Issue Flow and Transport Properties of Unconventional Reservoirs)

Abstract

:
Adsorption of hydrocarbons may significantly affect hydrocarbon migration in unconventional reservoirs. Clay minerals form the primary adsorbent surfaces for hydrocarbons adsorbed in mudstone/shale. To study the adsorption properties of hydrocarbons (n-decane (C10H22), methyl cyclohexane (C7H14) and toluene (C7H8)) on clay minerals (i.e., cookeite, ripidolite, kaolinite, illite, illite/smectite mixed-layer, Na-montmorillonite and Ca-montmorillonite), hydrocarbon vapor adsorption (HVA) tests were conducted at 298.15 K. The results showed that (i) the adsorption amounts of C10H22, C7H14 and C7H8 ranged from 0.45–1.03 mg/m2, 0.28–0.90 mg/m2 and 0.16–0.53 mg/m2, respectively; (ii) for cookeite, ripidolite and kaolinite, the adsorption capacity of C10H22 was less than C7H14, which was less than C7H8; (iii) for illite, Na-montmorillonite and Ca-montmorillonite, the adsorption capacity of C10H22 was greater than that of C7H8, and the adsorption capacity of C7H14 was the lowest; (iv) for an illite/smectite mixed-layer, C7H14 had the highest adsorption capacity, followed by C10H22, and C7H8 had the lowest capacity. Adsorption properties were correlated with the microscopic parameters of pores in clay minerals and with experimental pressure. Finally, the weighted average method was applied to evaluate the adsorption properties of C10H22, C7H14 and C7H8 on clay minerals in oil-bearing shale from the Shahejie Formation of Dongying Sag in the Bohai Bay Basin, China. For these samples, the adsorbed amounts of C7H14 ranged from 18.03–28.02 mg/g (mean 23.33 mg/g), which is larger than that of C10H22, which ranges from 15.40–21.72 mg/g (mean 18.82 mg/g). The adsorption capacity of C7H8 was slightly low, ranging from 10.51–14.60 mg/g (mean 12.78 mg/g).

1. Introduction

The adsorption of hydrocarbons may affect hydrocarbon migration in the subsurface [1], which significantly impacts the recovery from unconventional reservoirs [2,3,4,5,6]. Clay minerals form the primary adsorbent surface for adsorbed hydrocarbons in mudstone/shale [7,8,9,10]. In recent decades, the adsorption behavior of CH4 on clay minerals has been studied extensively in a large number of laboratory experiments [11,12,13,14]. In addition to CH4, a few studies were conducted using C2H2 [11,12], and a gas mixture of C1–C6 alkanes [15]. It is generally considered that CH4 adsorption capacity of clay minerals is determined by its pore volume and specific surface area [16,17]. However, due to the dramatic differences in physicochemical properties between liquid and gas, previously proposed techniques [14,18,19,20,21,22,23,24,25] and models (including Freundlich [26,27], Langmuir [28], and Dubinin-Astakhov [29,30,31]) for gas adsorption are not appropriate to evaluate hydrocarbon in a liquid state.
Usually, hydrocarbon-solution adsorption tests were used to determine adsorption capacity of liquid hydrocarbon on porous media [32,33,34,35,36,37,38,39,40,41,42,43,44,45]. First, mixed hydrocarbons (e.g., crude oil, asphaltene, maltene and resin) are diluted using an organic solvent (e.g., toluene and n-heptane) to a certain concentration. Then, experiments are carried out to determine the adsorption capacity of minerals (e.g., clay minerals, quartz, feldspar, calcite and dolomite) as a function of equilibrium time or hydrocarbon concentration under a certain temperature. Previous studies showed the following: (1) for shale-oil, clay minerals had the highest adsorption capacity (18.0 mg/g), quartz had an intermediate value (3.0 mg/g), and carbonates had the lowest adsorption capacity (1.8 mg/g) [39]; (2) for quartz, the adsorbed amount (2 mg/g) of asphaltene [36], which was diluted with a solution of n-heptane and toluene, is apparently lower than that of asphaltene diluted with toluene (4.5 mg/g) [45] and 6.4 mg/g [44]; (3) feldspar has a greater adsorption capacity than quartz [45]; (4) for calcite, the maximum adsorbed amount of polar compounds (resin and asphaltene) is 2.1–3.6 mg/g [42]; and (5) when compared to limestone, dolomite has a smaller adsorption capacity and a smaller adsorbed amount of asphaltene diluted in toluene [46].
Examination of the adsorption behavior of a hydrocarbon solution should consider the interactions of the adsorbent, solute (i.e., adsorbate) and solvent. Usually, greater interaction between the adsorbent and solute results in a larger adsorption capacity. Nevertheless, interaction between the solute and solvent can prevent the adsorbent adsorbing the solute from the solvent, negatively affecting the adsorption process. These complexities require a new method to study adsorption properties of liquid hydrocarbons on clay minerals.
In order to account for the complex constituent clay minerals in oil-bearing mudstone/shale, we use hydrocarbon vapor adsorption (HVA) tests to evaluate the adsorption properties of hydrocarbons (n-decane (C10H22), methyl cyclohexane (C7H14) and toluene (C7H8)) on different clay minerals (i.e., cookeite, ripidolite, kaolinite, illite, illite/smectite mixed-layer, Na-montmorillonite and Ca-montmorillonite) by obtaining adsorption isotherms with increasing relative pressure at 298.15 K [47,48]. Furthermore, we investigate the impact of microscopic parameters (specific surface area, pore size distribution, pore volume, etc.) related to pores in clay minerals and pressure on the adsorption properties of C10H22, C7H14 and C7H8 on clay minerals. Finally, we evaluate the adsorption properties of C10H22, C7H14 and C7H8 on clay minerals in oil-bearing shale from the Shahejie Formation of the Dongying Sag in the Bohai Bay Basin, northern China.

2. Materials and Methods

2.1. Materials

The pure clay minerals of cookeite (CAr-1), ripidolite (CCa-2), kaolinite (KGa-1b), illite (IMt-2), illite/smectite mixed-layer (ISCz-1), Na-montmorillonite (SWy-2) and Ca-montmorillonite (STx-1b) were obtained from the Clay Minerals Society. Baseline Studies (e.g., composition, geologic origin, infrared (IR) analysis, thermal analysis, chemical analysis and cation exchange capacity) of clay minerals from the Clay Minerals Society are available [49,50,51,52,53,54,55,56,57,58].
Oil-bearing shale samples (B172, F169, F41, H172, H88, L76, LX884 and Y556) were obtained from the primary shale formations of different petroleum well boreholes in the Dongying sag of the Bohai Bay basin, China. In the sag, the development of lacustrine mudstone/shale formations was widespread in the Eocene Shahejie Formation, mainly including the Middle and Lower-third Member (Es3z and Es3x) and the Upper-fourth Member (Es4s). As one of the prospective districts in China for shale oil development, abundant oil-gas resources have been discovered recently in the shale formations from the Es3x and Es4s sub-members of the sag [48].
All clay samples were milled into powder particles at 40–60 mesh (250–425 μm) by an agate mortar. Then, each sample was subdivided into three parts, which were tested for HVA, low-temperature nitrogen adsorption/desorption (LT-N2A/D) and low-pressure carbon dioxide adsorption (LP-CO2A). The objective of these tests was to obtain the adsorption isotherms of hydrocarbons and the microscopic parameters of pores in clay minerals.

2.2. HVA Test

HVA tests were conducted for the n-decane (C10H22), methyl cyclohexane (C7H14) and toluene (C7H8) adsorption on clay minerals using a 3H-2000PW Gravimetry Vapor Sorption Analyzer [48]. Prior to the test, the samples were heated at 383.15 K to remove residual gas and water in the sample [59,60,61]. The equipment and procedure used here is the same as that used in HVA tests of C10H22 at a certain relative pressure that are detailed in a previous study by Li et al. [48]. In this study, the experimental temperature is held constant at 298.15 K. Because it is difficult to precisely control the experimental pressure due to the large carbon numbers of the hydrocarbons, adsorption isotherms for C10H22, C7H14 and C7H8 were only measured at several non-uniform relative pressure points. The highest relative pressures (P/P0) measured were 0.8 P/P0 for C10H22 and 0.9 P/P0 for C7H14 and C7H8. Under 0.8 P/P0 and 298.15 K conditions, the total amount (Qt) of C10H22 accumulating on clay minerals was measured. Under 0.9 P/P0 and 298.15 K conditions, the total amounts (Qt) of C7H14 and C7H8 were obtained.

2.3. LT-N2A/D and LP-CO2A Tests

LT-N2A/D isotherms were measured over relative pressures ranging from approximately 10−5 to 0.995 using an Autosorb-iQ-Station-1 instrument at 77 K [48] to obtain the pore size distributions (PSD), pore volumes and specific surface areas of the clay minerals. The maximum pore diameter (dmax) (306.42–385.55 nm) was directly determined by Barrett-Joyner-Halenda (BJH) method [62]. The minimum pore diameter (dmin) (1.17–1.22 nm) was obtained by density functional theory (DFT) [63]. In addition, LP-CO2A tests were carried out on an Autosorb-IQ-MP instrument at 273.15 K to obtain the pore size distribution of pores with the size of 0.305–1.475 nm. According to the classification of the International Union of Pure and Applied Chemistry (IUPAC), pores were subdivided into micropores (<2 nm in diameter), mesopores (2–50 nm in diameter) and macropores (>50 nm in diameter) [64]. LT-N2A/D and LP-CO2A tests referred to the People’s Republic of China petroleum natural gas profession standard (SY/T 6154-1995) and National Standards of the People’s Republic of China (GBT 21650.3-2011), respectively.

2.4. XRD

The constituent clay minerals of the oil-bearing shale samples (B172, F169, F41, H172, H88, L76, LX884 and Y556) were analyzed using a Bruker D8 DISCOVER X-ray diffraction at 295.15 K temperature and 35% humidity. The radiation source was Cu.

3. Results and Discussion

3.1. Adsorption Properties of C10H22, C7H14 and C7H8 on Clay Minerals

The amount of hydrocarbon measured during the tests contains two parts: adsorption and capillary condensation. As shown in Figure 1, from the P/P0 ≈ 0, the amount of hydrocarbons adsorbed by clay minerals made up most of the total amount of hydrocarbon measured during the tests and is closely related to the specific surface area of clay minerals. With increasing relative pressure (0 < P/P0 < 1), capillary condensation begins to appear on the interspace of pores. At relatively high pressures, condensed rather than adsorbed hydrocarbon became the larger contributor to the total amount of hydrocarbon measured during the tests. Accordingly, at certain relative pressures (i.e., inflection points), the amount of hydrocarbon measured per unit surface area (nBET) accurately reflects the adsorption of hydrocarbons on clay minerals, and the values of nBET are assumed to the adsorbed amount per unit surface area.
As shown in Figure 2, correlation coefficients (R2) between BET surface areas (ABET) and tested amounts of hydrocarbon (Q) for C10H22, C7H14 and C7H8 increase linearly at the early stages of pressure increase, but then deviate from the straight lines (even decreasing for C10H22 and C7H8). These inflection points occur at approximately 0.65 P/P0 (C10H22), 0.4 P/P0 (C7H14) and 0.3 P/P0 (C7H8). Theoretically, high R2 values reflect the dominance of the adsorption process of hydrocarbons on pore surfaces, and low R2 values are mainly attributed to the apparent dominance of capillary condensation. As shown in Figure 2a–c, the correlation coefficient (R2) for total pore volume (Vt) and tested amount of hydrocarbon (Q) continues to increase when P/P0 is larger than the inflection point. If capillary condensation had no effect, then the R2 values for Vt and Q would decrease with decreasing R2 values for ABET and Q because total pore volume is proportional to BET surface area (Figure 3a). In Figure 2b, as P/P0 becomes larger than the P/P0 at the inflection point, the value of the correlation coefficient (R2) of ABET and Q does not decrease but deviates from the straight line. For C7H14, the capillary condensation may not be strong enough to cause the decrease in R2 value, since when compared with C10H22 and C7H8, C7H14 has the smallest radius of capillary condensation according to the classical Kelvin equation [65]. Therefore, at the inflection points, the amount of hydrocarbon per unit surface area measured during the test (i.e., nBET) (Table 1) can be used to evaluate the adsorption properties of hydrocarbons on clay minerals.
For C10H22, the values of nBET range from 0.45–1.03 mg/m2 (mean 0.67 mg/m2). Cookeite has the greatest adsorption of C10H22, followed by Ca-montmorillonite. For C7H14, the values of nBET range from 0.28–0.90 mg/m2, with an average of 0.42 mg/m2. The interaction between C7H14 and the illite/smectite mixed-layer is the most prominent among all the clay minerals. When compared with C10H22 and C7H14, the adsorption of C7H8 on clay minerals is relatively weak, with a range of 0.16–0.53 mg/m2 (mean 0.35 mg/m2). For C7H8, Ca-montmorillonite has the largest nBET (0.53 mg/m2), illite/smectite mixed-layer has the second largest value (0.46 mg/m2), and cookeite has the lowest adsorption value (0.16 mg/m2). The hydrocarbon amounts (qa) tested at inflection points are shown in Table 1. Apparently, the adsorption capacities of C10H22, C7H14 and C7H8 on clay minerals are diverse: (a) for cookeite, ripidolite and kaolinite, the adsorption capacities for C10H22, C7H14 and C7H8 progressively decrease for all the clay minerals; (b) for illite, Na-montmorillonite and Ca-montmorillonite, the adsorption capacity of C10H22 is greater than that of C7H8, which is greater than C7H14; (c) for the illite/smectite mixed-layer, C7H14 has the highest adsorption capacity, followed by C10H22, and the C7H8 has the lowest capacity.
When the phenomenon of capillary condensation is considered [66], the amount of hydrocarbon measured at a certain P/P0 includes both the adsorbed and condensed (i.e., free-phase-like liquid) hydrocarbon. Thus, the hydrocarbons measured at each experimental point represent the accumulated amount in clay minerals, which includes adsorbed and free hydrocarbons. As P/P0 becomes extremely high, up to ~1, pore spaces will become completely filled with hydrocarbon in adsorbed and condensed states [48]. In this paper, the tested amounts (Q) of C10H22, C7H14 and C7H8 with increasing P/P0 are expressed in Figure 4; the accumulated amount of hydrocarbons in clay minerals increases with increasing P/P0. The accumulated amounts of C10H22 in clay minerals are presented in Figure 4a. At P/P0 = 0.8, (a) the accumulated amount of hydrocarbon in Ca-montmorillonite is the largest, over 100 mg/g; (b) the accumulated amounts in Na-montmorillonite, the illite/smectite mixed-layer and kaolinite progressively decrease, ranging from 33.89–25.46 mg/g; (c) illite has a relatively low accumulated amount (14.09 mg/g); (d) the accumulated amount for cookeite is slightly higher than that of ripidolite, but both are extremely low with an average value of 4.31 mg/g. In Figure 4b–c, the amounts of C7H14 and C7H8 accumulated in clay minerals are presented. At P/P0 = 0.9, the accumulated amount of C7H14 and C7H8 in Ca-montmorillonite is more than 100 mg/g, much higher than the accumulation amounts in the other clay minerals. For C7H8, Na-montmorillonite has a greater storage capacity than the illite/smectite mixed-layer, whereas for C7H14, the result is the opposite. The mean accumulated amount of C7H14 and C7H8 in kaolin is 21.05 mg/g, which is larger than the value (15.87 mg/g) for illite. Ripidolite has an extremely weak storage capacity of C7H14 and C7H8, with an average of 3.69 mg/g, which is slightly greater than that of cookeite (2.98 mg/g).
Therefore, in terms of relative amounts of accumulated hydrocarbons for C10H22, C7H14 and C7H8: Ca-montmorillonite ≫ illite/smectite mixed-layer and Na-montmorillonite > kaolinite > illite > cookeite and ripidolite, which is different from the CH4 adsorption capacity: montmorillonite ≫ illite/smectite mixed-layer > kaolinite > chlorite > illite, as reported by Ji et al. [13].

3.2. Factors Influencing Hydrocarbon Adsorption on Clay Minerals

Microscopically, adsorption/desorption of hydrocarbon molecules on the surface of clay minerals is influenced by the intermolecular force. In addition, if the clay minerals adsorb hydrocarbon molecules, adsorption sites on the surface must be present. Therefore, the adsorption properties of C10H22, C7H14 and C7H8 are associated with the microscopic parameters (specific surface area, pore size distribution, pore volume, etc.) of pores in clay minerals, as well as the experimental conditions (temperature and pressure, etc.).

3.2.1. Microscopic Parameters of Pores in Clay Minerals

The adsorption properties of C10H22, C7H14 and C7H8 are associated with the microscopic parameters (specific surface area, pore size distribution, pore volume, etc.) of pores in clay minerals. In this study, the total pore volumes were measured by LT-N2A/D tests. The specific surface area was calculated from the adsorption branch of the N2 isotherm by the standard Brunauer-Emmett-Teller (BET) equation with relative pressure ranging from 0.05 to 0.3 [67]. Because of an extraneous peak located at ~3.8 nm in the PSD curves obtained using the BJH method [68], the PSDs (>1.475 nm in diameter) were determined by combining the DFT with BJH method using LT-N2A/D tests, and other PSDs (<1.475 nm in diameter) were obtained by LP-CO2A tests.
As shown in Figure 3b and Table 2, the BET surface areas (ABET) range from 3.242–96.563 m2/g (mean 27.731 m2/g). Ca-montmorillonite has the largest specific surface area followed by the illite/smectite mixed-layer (31.959 m2/g) and Na-montmorillonite (25.421 m2/g). The BET surface areas for Ca- and Na- montmorillonite measured in this study are credible based on comparison with the BET surface areas (24.7–97 m2/g) of montmorillonite previously measured [11,69,70,71,72,73]. For illite and kaolinite, the BET surface areas (19.738 m2/g and 12.271 m2/g, respectively) decrease progressively but are larger than that of illite (17.5 m2/g) [74] and kaolinite (13.0 m2/g) [44]. Ripidolite (4.922 m2/g) has a slightly higher specific surface area than cookeite (3.242 m2/g) and is similar to chlorite with an ABET of 4.8 m2/g as measured by Ross and Bustin [72]. Meanwhile, total pore volumes range from 8.9 × 10−3–278.2 × 10−3 cm3/g (mean 86.8 × 10−3 cm3/g). Ca-montmorillonite has the largest pore volume followed by kaolinite (136.38 × 10−3 cm3/g). The total pore volume (73.75 × 10−3 cm3/g) of the illite/smectite mixed-layer is approximately the same as that of Na-montmorillonite (71.96 × 10−3 cm3/g) and is significantly larger than that of illite (27.53 × 10−3 cm3/g). Cookeite and ripidolite both have the lowest Vt (11.08 × 10−3 and 8.95 × 10−3 cm3/g, respectively). Thus, in the terms of relative specific surface areas and total pore volumes for clay minerals: Ca-montmorillonite > illite/smectite mixed-layer > Na-montmorillonite > illite > cookeite and ripidolite.
There is a part of pore volume (V0) that is inactive and scarcely contributes to hydrocarbon adsorption because the pore diameters are less than the size of hydrocarbon molecules (d0). When considering the complete entrance of molecule into the pore, d0 should be determined by the maximal length of n-alkane molecule rather than the cross-sectional diameter. The maximal length of n-butane (C4H10) molecule is 0.8 nm and that of n-hexane (C6H14) is 1.1 nm [75]. The three-dimensional size of a toluene (C7H8) molecule is 0.380 × 0.666 × 0.818 nm in its minimum energy configuration determined using Material Studio from Accelrys Inc., San Diego, CA, USA. Methyl cyclohexane (C7H14) and toluene (C7H8) are both composed of a six-membered carbocyclic ring (cyclohexane or benzene) and a methyl group (-CH3). The cross-sectional area of cyclohexane is similar to that of benzene [76], thus the maximal length of C7H14 is approximately equal to that of C7H8. Consequently, the molecule sizes of C10H22, C7H14 and C7H8 are larger than 1.1 nm, 0.818 nm and 0.818 nm, respectively. The volume of micropores (0.82–1.17 nm in diameter) (Figure 5) for clay minerals determined by the LP-CO2A test only accounts for an average of 3.16% of the total pore volume measured using LT-N2A/D tests. For the reasons given above, the pore volume of micropores can be simply measured by LT-N2A/D tests. Deviations due to the exclusion of pores with sizes between d0 and dmin are insignificant and are considered negligible in this paper.
As mentioned previously, the adsorption capacities of C10H22, C7H14 and C7H8 are closely associated with the specific surface areas of the clay minerals, with correlation coefficients (R2) of 0.985, 0.840 and 0.996, respectively (Figure 2). The relationship between the adsorbed amounts (qa) of C10H22, C7H14 and C7H8 and the pore volume for micropores, mesopores and macropores measured using LT-N2A/D tests are shown in Figure 6. The adsorbed amounts (qa) are proportional to the pore volumes of mesopores rather than that of micropores or macropores. The percentages of active micropores in clay minerals are too small, considering the diameter of n-decane, methyl cyclohexane and toluene molecules; in macropores, hydrocarbons are main capillary condensed rather than adsorbed; most clay minerals are dominated by mesopores, thus the adsorbed hydrocarbons mainly exist in mesopores.

3.2.2. Pressure

The adsorption properties of C10H22, C7H14 and C7H8 on clay minerals are closely associated with the experimental conditions (temperature and pressure, etc.) during HVA tests. In this study, the experimental temperature was held constant at 298.15 K, and the relative pressure (P/P0) varied between 0 and 1. As shown in Figure 7, for one clay mineral sample (i.e., same microscopic parameters of pores), the features of three curves of C10H22, C7H14 and C7H8 are different. When considering series of samples with the same radius of capillary condensation (i.e., synchronous processes of capillary condensation), the differences and relative changes in the amount of hydrocarbon tested are mainly controlled by the change of adsorption properties with increasing relative pressures.
The radius of capillary condensation (rk) as a function of relative pressure (P/P0) was obtained from the classical Kelvin equation [65]:
L n P / P 0 = 2 σ V L r k R T cos θ
where σ and VL are the surface tension and molar volume of the liquid, measured in dyne/cm and m3/mol, respectively; R is the gas constant, 8.314 m3·Pa/ (K·mol); T is the absolute temperature, K; and θ is the contact angle, which is commonly taken to be zero since the liquid hydrocarbon is assumed to completely wet the adsorbed film. As shown in Figure 7, the tested amounts of C10H22, C7H14 and C7H8 on clay minerals are considered as a function of Kelvin radius, which was fitted to Equation (2) using a least square method in IBM SPSS Statistics software
Q = a L n ( r k ) + b
where Q is the tested amount of hydrocarbon at the Kelvin radius rk. A series of fitting parameters (a, b) for C10H22, C7H14 and C7H8 are shown in Table 3. The parameter a can effectively represent the differences and relative changes of adsorption properties with increasing rk (or P/P0). Comparing the value of a, clay minerals can be subdivided into Groups A, B and C. Cookeite, ripidolite and kaolinite are in Group A where the parameter a varies as follows: C10H22 > C7H14 > C7H8. Illite, the illite/smectite mixed-layer and Ca-montmorillonite are in Group B where the parameter a is C10H22 > C7H8 > C7H14. Na-montmorillonite is in Group C where the parameter a is C7H8 > C10H22 > C7H14.

3.3. Application in Oil-Bearing Shale

The tested amounts (qa) of C10H22, C7H14 and C7H8 measured at inflection points for clay minerals have been analyzed above (Table 1); these are assumed to be the adsorbed hydrocarbons. According the weighted average method, the total adsorbed hydrocarbon (Qa) per gram of clay minerals in shale is simply equal to the sum of that (qa) of every clay mineral based on the percentage of clay mineral constituents, expressed as
Q a = i = 1 n x i q a i
where xi and qai are the i-th clay mineral fraction in shale and its adsorbed hydrocarbon, measured as a percentage and in mg/g, respectively. The qa of chlorite is equal to the mean value of qa of cookeite and ripidolite. The constraint condition is
i = 1 n x i = 1
The clay mineral constituents of shale samples from the Shahejie Formation of the Dongying Sag in the Bohai Bay Basin, China, are mainly illite/smectite mixed-layer (Table 4). Recently, the equilibrium sorption amount for clay minerals was assigned as 18.0 mg/g on the assessment model of adsorbed and free shale-oil [39,77], which is based on 12 groups of hydrocarbon-solution tests of clay minerals separated from different mudstones/shales in the Shahejie Formation. In this study, the adsorbed amounts (Qa) of C10H22 on clay minerals ranged from 15.40–21.72 mg/g (mean 18.82 mg/g) (Table 4). This range is smaller than that of C7H14, with a range of 18.03–28.02 mg/g (mean 23.33 mg/g). Compared to C10H22 and C7H14, the adsorbed capacity of C7H8 is the smallest, with a range of 10.51–14.60 mg/g (mean 12.78 mg/g).

4. Conclusions

This study used HVA tests for evaluating the adsorption properties of n-decane (C10H22), methyl cyclohexane (C7H14) and toluene (C7H8) on different clay minerals (i.e., cookeite, ripidolite, kaolinite, illite, illite/smectite mixed-layer, Na-montmorillonite and Ca-montmorillonite) at 298.15 K. The results showed the following:
(1)
The tested amounts per unit surface area (nBET) measured at inflection points accurately reflects the interaction between clay minerals and hydrocarbons. As a whole, the nBET for C10H22 ranged from 0.45–1.03 mg/m2 (mean 0.67 mg/m2), and the nBET for C7H14 ranged from 0.28–0.90 mg/m2 (mean 0.42 mg/m2).
(2)
The adsorption properties of C10H22, C7H14 and C7H8 are associated with the specific surface areas, the pore volumes of mesopores and experimental pressures. In terms of relative specific surface areas and total pore volumes in clay minerals: Ca-montmorillonite > illite/smectite mixed-layer > Na-montmorillonite > illite > cookeite and ripidolite. Kaolinite has a larger pore volume than the illite/smectite mixed-layer, but a smaller specific surface area than illite.
(3)
In the Shahejie Formation, Dongying Sag, Bohai Bay Basin, China, the adsorbed amounts of C7H14 on clay minerals from shale samples ranges from 18.03–28.02 mg/g (mean 23.33 mg/g), which is larger than that of C10H22, which ranges from 15.40–21.72 mg/g (mean 18.82 mg/g). The adsorbed capacity of C7H8 was the smallest, with a range of 10.51–14.60 mg/g (mean 12.78 mg/g). The values are similar to the adsorption properties of the main clay mineral (i.e., illite/smectite mixed-layer) in the shale samples.

Acknowledgments

This study was financially supported by the Key Program of the National Nature Science Foundation (41330313), the National Natural Science Foundation (41602131, 41572122, 41602143), and the Fundamental Research Funds for the Central Universities (17CX06036, 17CX02074, YCX2017002).

Author Contributions

J.L. and S.L. conceived and designed the experiments; P.Z. and L.X. performed the experiments; J.Z. and H.X. analyzed the data; X.Z. contributed analysis tools; J.Z. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Thomas, M.M.; Clouse, J.A. Selected physical model of secondary oil migration. AAPG Bull. 1995, 79, 19–29. [Google Scholar]
  2. Li, J.Q.; Liu, D.M.; Yao, Y.B.; Cai, Y.D.; Xu, L.L.; Huang, S.P. Control of CO2 permeability change in different rank coals during pressure depletion: An experimental study. Energy Fuels 2014, 28, 987–996. [Google Scholar] [CrossRef]
  3. Li, J.Q.; Lu, S.F.; Cai, Y.D.; Xue, H.T.; Cai, J.C. Impact of coal ranks on dynamic gas flow: An experimental investigation. Fuel 2017, 194, 17–26. [Google Scholar] [CrossRef]
  4. Cai, J.C.; Yu, B.M. A discussion of the effect of tortuosity on the capillary imbibition in porous media. Transp. Porous Media 2011, 89, 251–263. [Google Scholar] [CrossRef]
  5. Cai, J.C.; Yu, B.M.; Zou, M.Q.; Luo, L. Fractal characterization of spontaneous co-current imbibition in porous media. Energy Fuels 2010, 24, 1860–1867. [Google Scholar] [CrossRef]
  6. Li, J.Q.; Yu, T.; Liang, X.; Zhang, P.F.; Chen, C.; Zhang, J. Insights on the gas permeability change in porous shale. Adv. Geo-Energ. Res. 2017, 1, 63–67. [Google Scholar] [CrossRef]
  7. Curtis, J.B. Fractured shale-gas systems. AAPG Bull. 2002, 86, 1921–1938. [Google Scholar]
  8. Montgomery, S.L.; Jarvie, D.M.; Bowker, K.A.; Pollastro, R.M. Mississippian Barnett shale, Fort Worth basin, north-central Texas: Gas-shale play with multi-trillion cubic foot potential. AAPG Bull. 2005, 89, 155–175. [Google Scholar] [CrossRef]
  9. Ross, D.J.K.; Bustin, R.M. Shale gas potential of the Lower Jurassic Gordondale member, northeastern British Columbia. Canada. Bull. Can. Pet. Geol. 2007, 55, 51–75. [Google Scholar] [CrossRef]
  10. Chalmers, G.R.L.; Bustin, R.M. Lower Cretaceous gas shales in northeastern British Columbia, Part I: Geological controls on methane sorption capacity. Bull. Can. Pet. Geol. 2008, 56, 1–21. [Google Scholar] [CrossRef]
  11. Volzone, C.; Thompson, J.G.; Melnitchenko, A.; Ortiga, J.; Palethorpe, S.R. Selective gas adsorption by amorphous clay-mineral derivatives. Clays Clay Miner. 1999, 47, 647–657. [Google Scholar] [CrossRef]
  12. Melnitchenko, A.; Thompson, J.G.; Volzone, C. Selective gas adsorption by metal exchanged amorphous kaolinite derivatives. Appl. Clay Sci. 2000, 17, 35–53. [Google Scholar] [CrossRef]
  13. Ji, L.; Zhang, T.; Milliken, K.L.; Qu, J.; Zhang, X. Experimental investigation of main controls to methane adsorption in clay-rich rocks. Appl. Geochem. 2012, 27, 2533–2545. [Google Scholar] [CrossRef]
  14. Heller, R.; Zoback, M. Adsorption of methane and carbon dioxide on gas shale and pure mineral samples. J. Unconv. Oil Gas Resour. 2014, 8, 14–24. [Google Scholar] [CrossRef]
  15. Cheng, A.L.; Huang, W.L. Selective adsorption of hydrocarbon gases on clays and organic matter. Org. Geochem. 2004, 35, 413–423. [Google Scholar] [CrossRef]
  16. Aringhieri, R. Nanoporosity characteristics of some natural clay minerals and soils. Clays Clay Miner. 2004, 52, 700–704. [Google Scholar] [CrossRef]
  17. Wang, C.C.; Juang, L.C.; Lee, C.K.; Hsu, T.C.; Lee, J.F. Effects of exchanged surfactant cations on the pore structure and adsorption characteristics of montmorillonite. J. Colloid Interface Sci. 2004, 280, 27–35. [Google Scholar] [CrossRef] [PubMed]
  18. Krooss, B.M.; Van Bergen, F.; Gensterblum, Y.; Siemons, N.; Pagnier, H.J.; David, P. High-pressure methane and carbon dioxide adsorption on dry and moisture equilibrated pennsylvanian coals. Int. J. Coal Geol. 2002, 51, 69–92. [Google Scholar] [CrossRef]
  19. Ustinov, E.A.; Do, D.D.; Jaroniec, M. Adsorption of argon and nitrogen in cylindrical pores of MCM-41 materials: Application of density functional theory. Appl. Surf. Sci. 2005, 252, 1013–1028. [Google Scholar] [CrossRef]
  20. Ustinov, E.A.; Do, D.D. Comparison of nitrogen adsorption at 77 K on non-porous silica and pore wall of MCM-41 materials by means of density functional theory. J. Colloid Interface Sci. 2006, 297, 480–488. [Google Scholar] [CrossRef] [PubMed]
  21. Zhang, T.; Ellis, G.S.; Ruppel, S.C.; Milliken, K.; Yang, R. Effect of organic-matter type and thermal maturity on methane adsorption in shale-gas systems. Org. Geochem. 2012, 47, 120–131. [Google Scholar] [CrossRef]
  22. Wang, S.B.; Song, Z.G.; Cao, T.T.; Song, X. The methane sorption capacity of Paleozoic shales from the Sichuan Basin, China. Mar. Pet. Geol. 2013, 44, 112–119. [Google Scholar] [CrossRef]
  23. Gasparik, M.; Bertier, P.; Gensterblum, Y.; Ghanizadeh, A.; Krooss, B.M.; Littke, R. Geological controls on the methane storage capacity in organic-rich shales. Int. J. Coal Geol. 2014, 123, 34–51. [Google Scholar] [CrossRef]
  24. Tan, J.; Weniger, P.; Krooss, B.; Merkel, A.; Horsfield, B.; Zhang, J.; Boreham, C.J.; Van Graas, G.; Alastair, B. Shale gas potential of the major marine shale formations in the Upper Yangtze Platform, South China, Part II: Methane sorption capacity. Fuel 2014, 129, 204–218. [Google Scholar] [CrossRef]
  25. Hu, H.; Zhang, T.; Wiggins-Camacho, J.D.; Ellis, G.S.; Lewan, M.D.; Zhang, X. Experimental investigation of changes in methane adsorption of bitumen-free Woodford Shale with thermal maturation induced by hydrous pyrolysis. Mar. Pet. Geol. 2015, 59, 114–128. [Google Scholar] [CrossRef]
  26. Freundlich, H. Of the adsorption of gases. Section II. Kinetics and energetics of gas adsorption. Introductory paper to section II. Trans. Faraday Soc. 1932, 28, 195–201. [Google Scholar] [CrossRef]
  27. Appel, J. Freundlich’s adsorption isotherm. Surf. Sci. 1973, 39, 237–244. [Google Scholar] [CrossRef]
  28. Langmuir, I. The adsorption of gases on plane surface of glass, mica and platinum. J. Am. Chem. Soc. 1918, 40, 1361–1403. [Google Scholar] [CrossRef]
  29. Dubinin, M.M. The potential theory of adsorption of gases and vapors for adsorbents with energetically nonuniform surfaces. Chem. Rev. 1960, 60, 235–241. [Google Scholar] [CrossRef]
  30. Dubinin, M.M. Fundamentals of the theory of adsorption in micropores of carbon adsorbents: Characteristics of their adsorption properties and microporous structures. Pure Appl. Chem. 1989, 61, 1841–1843. [Google Scholar] [CrossRef]
  31. Chen, S.G.; Yang, R.T. Theoretical basis for the potential theory adsorption isotherms. The Dubinin-Radushkevich and Dubinin-Astakhov equations. Langmuir 1994, 10, 4244–4249. [Google Scholar] [CrossRef]
  32. Marlow, B.J.; Sresty, G.C.; Hughes, R.D.; Mahajan, O.P. Colloidal stabilization of clays by asphaltenes in hydrocarbon media. Colloids Surf. 1987, 24, 283–297. [Google Scholar] [CrossRef]
  33. Menon, V.B.; Wasan, D.T. Adsorption of maltenes on sodium montmorillonite. Colloids Surf. 1987, 25, 387–392. [Google Scholar] [CrossRef]
  34. Kokal, S.; Tang, T.; Schramm, L.; Sayegh, S. Electrokinetic and adsorption properties of asphaltenes. Colloids Surf. A 1995, 94, 253–265. [Google Scholar] [CrossRef]
  35. Balabin, R.M.; Syunyaev, R.Z. Petroleum resins adsorption onto quartz sand: Near infrared (NIR) spectroscopy study. J. Colloid Interface Sci. 2008, 318, 167–174. [Google Scholar] [CrossRef] [PubMed]
  36. Daughney, C.J. Sorption of crude oil from a non-aqueous phase onto silica: The influence of aqueous pH and wetting sequence. Org. Geochem. 2000, 31, 147–158. [Google Scholar] [CrossRef]
  37. Dudášová, D.; Simon, S.; Hemmingsen, P.V.; Sjöblom, J. Study of asphaltenes adsorption onto different minerals and clays. Part 1. Experimental adsorption with UV depletion detection. Colloids Surf. A 2008, 317, 1–9. [Google Scholar] [CrossRef]
  38. Giraldo, J.; Nassar, N.N.; Benjumea, P.; Pereira-almao, P. Modeling and prediction of asphaltene adsorption isotherms using Polanyi’s modified theory. Energy Fuels 2013, 27, 2908–2914. [Google Scholar] [CrossRef]
  39. Li, Z.; Zou, Y.R.; Xu, X.Y.; Sun, J.N.; Li, M.W.; Peng, P.A. Adsorption of mudstone source rock for shale oil–experiments, model and a case study. Org. Geochem. 2016, 92, 55–62. [Google Scholar] [CrossRef]
  40. Marczewski, A.W.; Szymula, M. Adsorption of asphaltenes from toluene on quartz and silica-rich soils. Colloids Surf. A 2002, 58, 69–79. [Google Scholar]
  41. Minssieux, L.; Nabzar, L.; Chauveteau, G.; Longeron, D. Permeability damage due to asphaltene deposition: Experimental and modeling aspects. Oil Gas Sci. Technol. 1998, 53, 313–327. [Google Scholar] [CrossRef]
  42. Mohammadi, M.; Sedigh, M. Modification of Langmuir isotherm for the adsorption of asphaltene or resin onto calcite mineral surface: Comparison of linear and non linear methods. Prot. Met. Phys. Chem. Surf. 2013, 49, 460–470. [Google Scholar] [CrossRef]
  43. Montoya, T.; Coral, D.; Franco, C.A.; Nassar, N.N.; Cortés, F.B. A novel solid-liquid equilibrium model for describing the adsorption of associating asphaltene molecules onto solid surfaces based on the “chemical theory”. Energy Fuels 2014, 28, 4963–4975. [Google Scholar] [CrossRef]
  44. Pernyeszi, T.; Patzkó, Á.; Berkesi, O.; Dékány, I. Asphaltene adsorption on clays and crude oil reservoir rocks. Colloids Surf. A 1998, 137, 373–384. [Google Scholar] [CrossRef]
  45. Ribeiro, R.C.; Correia, J.C.G.; Seidl, P.R. The influence of different minerals on the mechanical resistance of asphalt mixtures. J. Pet. Sci. Eng. 2009, 65, 171–174. [Google Scholar] [CrossRef]
  46. Yunan, M.H.; Idris, A.K. Role of asphaltene in changing wettability of reservoir rock. In Proceedings of the Eleventh Symposium of Malaysia Chemical Engineers, Kuala Terengganu, Malaysia, 18–19 June 1995; pp. C12-1–C12-3. [Google Scholar]
  47. Awaja, F.; Bhargava, S. The prediction of clay contents in oil shale using DRIFTS and TGA data facilitated by multivariate calibration. Fuel 2006, 85, 1396–1402. [Google Scholar] [CrossRef]
  48. Li, J.Q.; Lu, S.F.; Xie, L.J.; Zhang, J.; Xue, H.T.; Zhang, P.F.; Tian, S.S. Modeling of hydrocarbon adsorption on continental oil shale: A case study on n-alkane. Fuel 2017, 206, 603–613. [Google Scholar] [CrossRef]
  49. Borden, D.; Giese, R.F. Baseline studies of the clay minerals society source clays: Cation exchange capacity measurements by the ammonia-electrode method. Clays Clay Miner. 2001, 49, 444–445. [Google Scholar] [CrossRef]
  50. Chipera, S.J.; David, L.B. Baseline studies of the clay minerals society source clays: Powder x-ray diffraction analyses. Clays Clay Miner. 2001, 49, 398–409. [Google Scholar] [CrossRef]
  51. Guggenheim, S.; van Groos, A.F.K. Baseline studies of the clay minerals society source clays: Thermal analysis. Clays Clay Miner. 2001, 49, 433–443. [Google Scholar] [CrossRef]
  52. Kogel, J.E.; Lewis, S.A. Baseline studies of the clay minerals society source clays: Chemical analysis by inductively coupled plasma-mass spectroscopy (ICP-MS). Clays Clay Miner. 2001, 49, 387–392. [Google Scholar] [CrossRef]
  53. Madejová, J.; Komadel, P. Baseline studies of the clay minerals society source clays: Infrared methods. Clays Clay Miner. 2001, 49, 410–432. [Google Scholar] [CrossRef]
  54. Mermut, A.R.; Cano, A.F. Baseline studies of the clay minerals society source clays: Chemical analyses of major elements. Clays Clay Miner. 2001, 49, 381–386. [Google Scholar] [CrossRef]
  55. Mermut, A.R.; Lagaly, G. Baseline studies of the clay minerals society source clays: Layer-charge determination and characteristics of those minerals containing 2:1 layers. Clays Clay Miner. 2001, 49, 393–397. [Google Scholar] [CrossRef]
  56. Moll, W.F., Jr. Baseline studies of the clay minerals society source clays: Geological origin. Clays Clay Miner. 2001, 49, 374–380. [Google Scholar] [CrossRef]
  57. Wu, W.J. Baseline studies of the clay minerals society source clays: Colloid and surface phenomena. Clays Clay Miner. 2001, 49, 446–452. [Google Scholar] [CrossRef]
  58. Gailhanou, H.; Rogez, J.; van Miltenburg, J.C.; van Genderen, A.C.G.; Grenèche, J.M.; Gilles, C.; Jalabert, D.; Michau, N.; Gaucher, E.C.; Blanc, P. Thermodynamic properties of chlorite CCa-2. Heat capacities, heat contents and entropies. Geochim. Cosmochim. Acta 2009, 73, 4738–4749. [Google Scholar] [CrossRef]
  59. Bustin, R.M.; Clarkson, C.R. Geological controls on coalbed methane reservoir capacity and gas content. Int. J. Coal Geol. 1998, 38, 3–26. [Google Scholar] [CrossRef]
  60. Busch, A.; Gensterblum, Y.; Krooss, B.M.; Siemons, N. Investigation of high-pressure selective adsorption/desorption behaviour of CO2 and CH4 on coals: An experimental study. Int. J. Coal Geol. 2006, 66, 53–68. [Google Scholar] [CrossRef]
  61. Labani, M.M.; Rezaee, R.; Saeedi, A.; Hinai, A.A. Evaluation of pore size spectrum of gas shale reservoirs using low pressure nitrogen adsorption, gas expansion and mercury porosimetry: A case study from the Perth and Canning Basins, Western Australia. J. Pet. Sci. Eng. 2013, 112, 7–16. [Google Scholar] [CrossRef]
  62. Barrett, E.P.; Joyner, L.G.; Halenda, P.P. The determination of pore volume and area distributions in porous substances. I. computations from nitrogen isotherms. J. Am. Chem. Soc. 1951, 73, 373–380. [Google Scholar] [CrossRef]
  63. Evans, R. The nature of the liquid-vapour interface and other topics in the statistical mechanics of non-uniform classical fluids. Adv. Phys. 1979, 28, 143–200. [Google Scholar] [CrossRef]
  64. Sing, K.S.W.; Everet, D.H.; Haul, R.A.W.; Moscou, L.; Pierotti, R.A.; Rouquerol, J.; Siemieniewska, T. Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity. Pure Appl. Chem. 1985, 57, 603–619. [Google Scholar] [CrossRef]
  65. Lowell, S.; Shields, J.E. Powder Surface Area and Porosity, 2nd ed.; Chapman and Hall: New York, NY, USA, 1984; p. 54. ISBN 978-94-010-8953-1. [Google Scholar]
  66. Gelb, L.D.; Gubbins, K.E.; Radhakrishnan, R.; Sliwinska-Bartkowiak, M. Phase separation in confined systems. Rep. Prog. Phys. 1999, 63, 727. [Google Scholar] [CrossRef]
  67. Brunauer, S.; Emmett, P.H.; Teller, E. Adsorption of gases in multimolecular layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  68. Groen, J.C.; Peffer, L.A.A.; Pérez-Ramirez, J. Pore size determination in modified micro-and mesoporous materials: Pitfalls and limitations in gas adsorption data analysis. Microporous Mesoporous Mater. 2003, 60, 1–17. [Google Scholar] [CrossRef]
  69. Macht, F.; Eusterhues, K.; Pronk, G.J.; Totsche, K.U. Specific surface area of clay minerals: Comparison between atomic force microscopy measurements and bulk-gas (N2) and -liquid (EGME) adsorption methods. Appl. Clay Sci. 2011, 53, 20–26. [Google Scholar] [CrossRef]
  70. Madsen, F.T. Surface area measurements of clay minerals by glycerol sorption on a thermobalance. Thermochim. Acta 1977, 21, 89–93. [Google Scholar] [CrossRef]
  71. Metz, V.; Raanan, H.; Pieper, H.; Bosbach, D.; Ganor, J. Towards the establishment of a reliable proxy for the reactive surface area of smectite. Geochim. Cosmochim. Acta 2005, 69, 2581–2591. [Google Scholar] [CrossRef]
  72. Ross, D.J.K.; Bustin, R.M. The importance of shale composition and pore structure upon gas storage potential of shale gas reservoirs. Mar. Pet. Geol. 2009, 26, 916–927. [Google Scholar] [CrossRef]
  73. Tournassat, C.; Neaman, A.; Villéras, F.; Bosbach, D.; Charlet, L. Nanomorphology of montmorillonite particles: Estimation of the clay edge sorption site density by low-pressure gas adsorption and AFM observations. Am. Mineral. 2003, 88, 1989–1995. [Google Scholar] [CrossRef]
  74. Dogan, A.U.; Dogan, M.; Onal, M.; Sarikaya, Y.; Aburub, A.; Wurster, D.E. Baseline studies of the Clay Minerals Society special clays: Specific surface area by the Brunauer Emmett Teller (BET) method. Clays Clay Miner. 2006, 55, 534–541. [Google Scholar] [CrossRef]
  75. Tasi, G.; Pálinkó, I.; Molnár, Á.; Hannus, I. Molecular shape, dimensions, and shape selective catalysis. J. Mol. Struct. THEOCHEM 2003, 666–667, 69–77. [Google Scholar] [CrossRef]
  76. Mcclellan, A.L.; Harnsberger, H.F. Cross-sectional areas of molecules adsorbed on solid surfaces. J. Colloid Interface Sci. 1967, 23, 577–599. [Google Scholar] [CrossRef]
  77. Cao, H.; Zou, Y.R.; Lei, Y.; Xi, D.; Wan, X.; Peng, P. Shale oil assessment for the Songliao basin, northeastern China, using oil generation–sorption method. Energy Fuels 2017, 31, 4826–4842. [Google Scholar] [CrossRef]

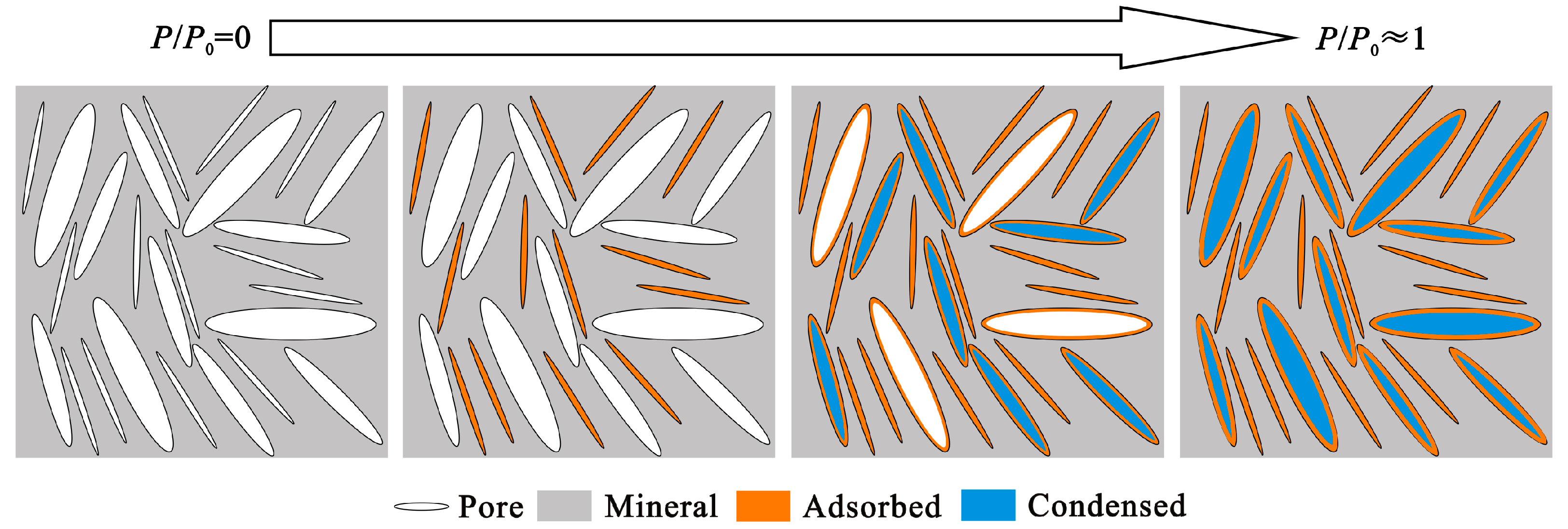

Figure 1. Schematic of the adsorption and condensation of hydrocarbon with increasing relative pressure.
Figure 1. Schematic of the adsorption and condensation of hydrocarbon with increasing relative pressure.
Energies 10 01586 g001

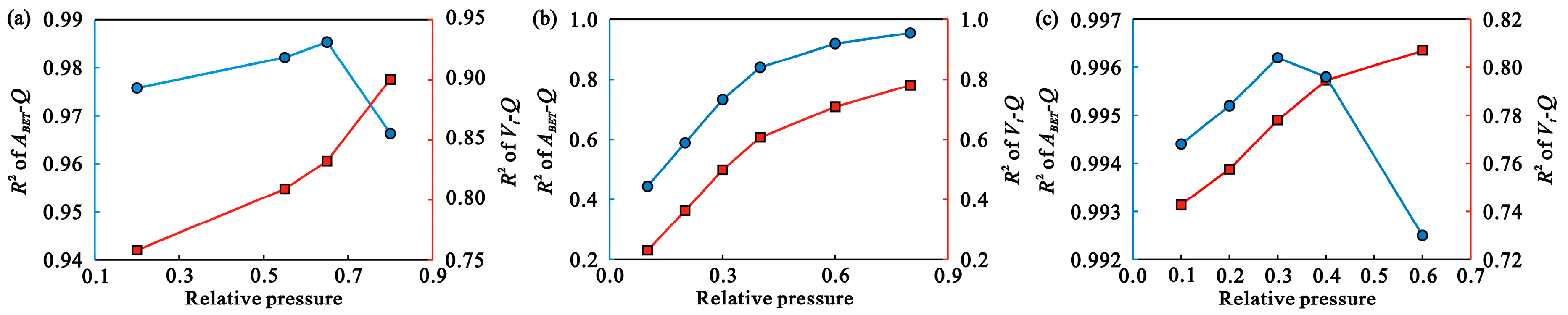

Figure 2. Correlation coefficients for BET surface area and tested hydrocarbon amount (R2 of ABET-Q) shown with blue line and Y-axis, and correlation coefficients for total pore volume and tested hydrocarbon amount (R2 of Vt-Q) shown with red line and Y-axis for C10H22 (a), C7H14 (b) and C7H8 (c) with increasing relative pressure.
Figure 2. Correlation coefficients for BET surface area and tested hydrocarbon amount (R2 of ABET-Q) shown with blue line and Y-axis, and correlation coefficients for total pore volume and tested hydrocarbon amount (R2 of Vt-Q) shown with red line and Y-axis for C10H22 (a), C7H14 (b) and C7H8 (c) with increasing relative pressure.
Energies 10 01586 g002
Figure 3. (a) Relationship between BET surface areas (ABET) and total pore volumes (Vt) of clay minerals; (b) total pore volumes (Vt) and BET surface areas (ABET) of clay minerals from LT-N2A/D tests (a–g: Ca-montmorillonite, kaolinite, illite/smectite mixed-layer, Na-montmorillonite, illite, cookeite and ripidolite).
Figure 3. (a) Relationship between BET surface areas (ABET) and total pore volumes (Vt) of clay minerals; (b) total pore volumes (Vt) and BET surface areas (ABET) of clay minerals from LT-N2A/D tests (a–g: Ca-montmorillonite, kaolinite, illite/smectite mixed-layer, Na-montmorillonite, illite, cookeite and ripidolite).
Energies 10 01586 g003

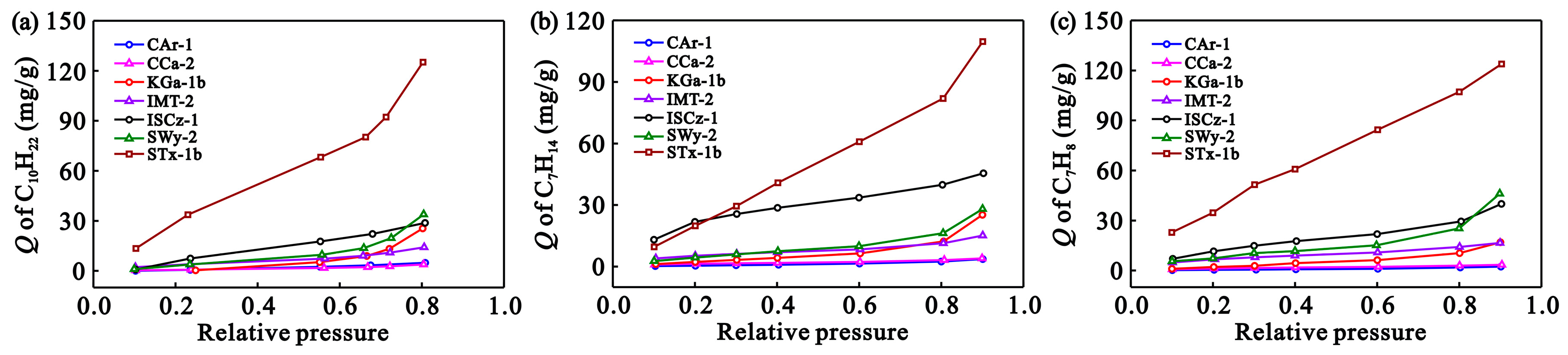

Figure 4. Tested amounts (Q) of C10H22 (a), C7H14 (b) and C7H8 (c) with increasing P/P0 for clay minerals (CAr-1: cookeite; CCa-2: ripidolite; KGa-1b: kaolinite; IMt-2: illite; ISCz-1: illite/smectite mixed-layer; SWy-2: Na-montmorillonite; STx-1b: Ca-montmorillonite).
Figure 4. Tested amounts (Q) of C10H22 (a), C7H14 (b) and C7H8 (c) with increasing P/P0 for clay minerals (CAr-1: cookeite; CCa-2: ripidolite; KGa-1b: kaolinite; IMt-2: illite; ISCz-1: illite/smectite mixed-layer; SWy-2: Na-montmorillonite; STx-1b: Ca-montmorillonite).
Energies 10 01586 g004

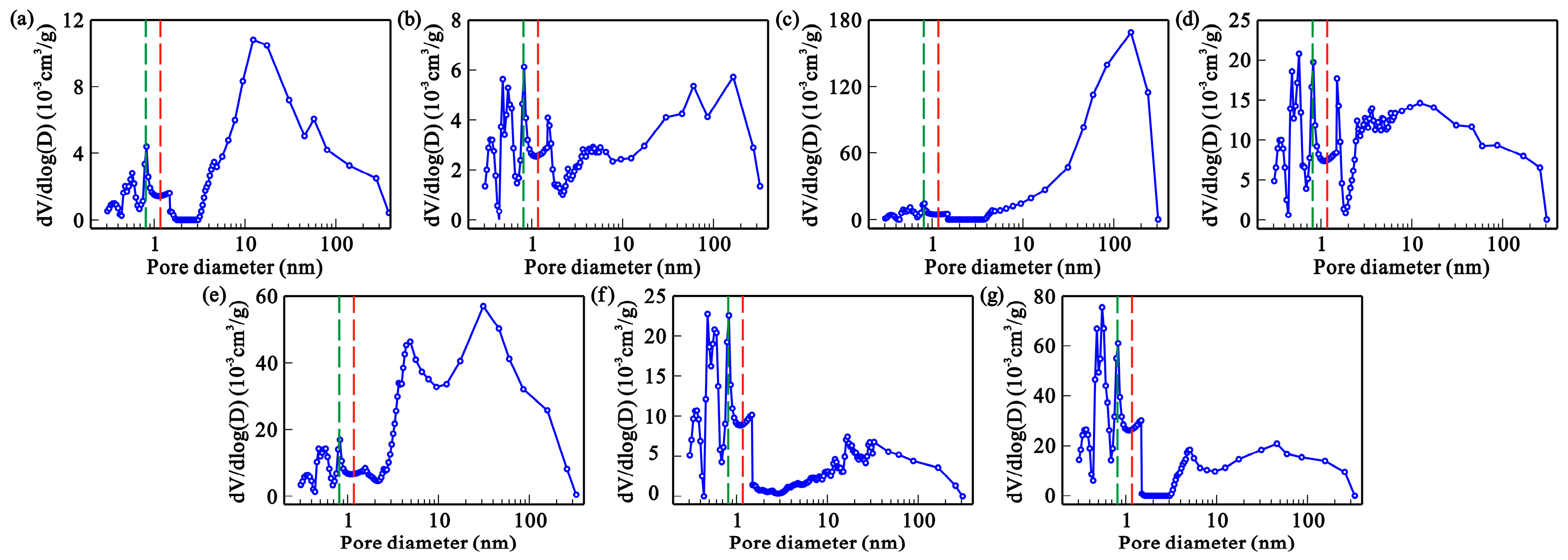

Figure 5. Pore size distribution for clay minerals from LT-N2A/D and LP-CO2A tests (ag: cookeite, ripidolite, kaolinite, illite, illite/smectite mixed-layer, Na-montmorillonite and Ca-montmorillonite; green short dash line: Pore diameter = 0.82 nm; red short dash line: Pore diameter = 1.17 nm).
Figure 5. Pore size distribution for clay minerals from LT-N2A/D and LP-CO2A tests (ag: cookeite, ripidolite, kaolinite, illite, illite/smectite mixed-layer, Na-montmorillonite and Ca-montmorillonite; green short dash line: Pore diameter = 0.82 nm; red short dash line: Pore diameter = 1.17 nm).
Energies 10 01586 g005
Figure 6. Relationships between the adsorbed amounts (qa) and the pore volume of micropores (a), mesopores (b) and macropores (c).
Figure 6. Relationships between the adsorbed amounts (qa) and the pore volume of micropores (a), mesopores (b) and macropores (c).
Energies 10 01586 g006
Figure 7. Relationship between radius of capillary condensation (rk) and the tested amounts (Q) of C10H22, C7H14 and C7H8 (ag: cookeite, ripidolite, kaolinite, illite, illite/smectite mixed-layer, Na-montmorillonite and Ca-montmorillonite).
Figure 7. Relationship between radius of capillary condensation (rk) and the tested amounts (Q) of C10H22, C7H14 and C7H8 (ag: cookeite, ripidolite, kaolinite, illite, illite/smectite mixed-layer, Na-montmorillonite and Ca-montmorillonite).
Energies 10 01586 g007
Table 1. Tested amounts (qa) of C10H22, C7H14 and C7H8 measured at inflection points and the qa per unit of surface area (nBET) for clay minerals.
Table 1. Tested amounts (qa) of C10H22, C7H14 and C7H8 measured at inflection points and the qa per unit of surface area (nBET) for clay minerals.
Clay MineralsCodesnBET (mg/m2)qa (mg/g)
C10H22C7H14C7H8C10H22C7H14C7H8
cookeiteCAr-11.020.280.163.32 ± 0.050.91 ± 0.010.53 ± 0.02
ripidoliteCCa-20.450.360.312.24 ± 0.011.81 ± 0.011.52 ± 0.02
kaoliniteKGa-1b0.730.340.238.90 ± 0.234.21 ± 0.022.85 ± 0.13
illiteIMt-20.460.360.409.03 ± 0.037.03 ± 0.017.92 ± 0.04
illite/smectite mixed-layerISCz-10.690.900.4622.11 ± 0.0828.67 ± 0.0214.81 ± 0.03
Na-montmorilloniteSWy-20.530.290.4113.58 ± 0.067.45 ± 0.0110.43 ± 0.04
Ca-montmorilloniteSTx-1b0.830.420.5380.24 ± 0.1940.82 ± 0.0451.47 ± 0.19
Table 2. BET surface areas (ABET), total pore volumes (Vt) and the percentages of pore volumes from micropore, mesopore and macropore.
Table 2. BET surface areas (ABET), total pore volumes (Vt) and the percentages of pore volumes from micropore, mesopore and macropore.
Clay MineralsCodesABET (m2/g)Vt (10−3 cm3/g)Percentages of Pore Volumes (%)
MicroporeMesoporeMacropore
cookeiteCAr-13.2411.088.9965.4125.61
ripidoliteCCa-24.928.9523.2939.1437.58
kaoliniteKGa-1b12.27136.382.6823.4673.86
illiteIMt-219.7427.5324.8554.8620.29
illite/smectite mixed-layerISCz-131.9673.758.0366.1625.81
Na-montmorilloniteSWy-225.4271.9611.9052.3635.75
Ca-montmorilloniteSTx-1b96.56278.177.8255.9236.26
Table 3. Fitting parameters a and b for C10H22, C7H14 and C7H8.
Table 3. Fitting parameters a and b for C10H22, C7H14 and C7H8.
Clay MineralsCodesC10H22C7H14C7H8
ababab
cookeiteCAr-12.013−1.1721.113−0.0680.6950.074
ripidoliteCCa-21.405−0.6140.9650.8820.8830.852
kaoliniteKGa-1b12.469−15.1987.181−1.7184.965−0.332
illiteIMt-24.772−0.6933.4503.5883.7604.956
illite/smectite mixed-layerISCz-111.650−4.3769.53117.08410.0106.903
Na-montmorilloniteSWy-212.044−8.1347.6870.48112.2071.125
Ca-montmorilloniteSTx-1b44.401−10.91532.0727.69633.03225.228
Table 4. Clay mineral constituents and total adsorbed hydrocarbon per gram of clay minerals in shale samples.
Table 4. Clay mineral constituents and total adsorbed hydrocarbon per gram of clay minerals in shale samples.
WellStageDepth (m)Clay Mineral Constituents (%)Qa (mg/g)
KCISI/SC10H22C7H14C7H8
B172Es3x3127.300820/7217.9522.1612.33
F169Es4s3697.0061326/5515.4018.0310.51
F41Es3x2918.665314/7819.0423.6012.83
H172Es3x3336.804219/7518.7123.0312.75
H88Es3x3042.606219/7318.4522.5412.51
L76Es4s3780.42003/9721.7228.0214.60
LX884Es4s3506.20003/9721.7228.0214.60
Y556Es3x2448.314326/6717.6021.2512.13
Es3x: lower-third Member in the Eocene Shahejie Formationl; Es4s: upper-fourth Member in the Eocene Shahejie Formation; Qa: total adsorbed hydrocarbon per gram of clay minerals; K: kaolinite; C: chlorite; I: illite; S: smectite; I/S: illite/smectite mixed-layer.

Share and Cite

MDPI and ACS Style

Zhang, J.; Lu, S.; Li, J.; Zhang, P.; Xue, H.; Zhao, X.; Xie, L. Adsorption Properties of Hydrocarbons (n-Decane, Methyl Cyclohexane and Toluene) on Clay Minerals: An Experimental Study. Energies 2017, 10, 1586. https://doi.org/10.3390/en10101586

AMA Style

Zhang J, Lu S, Li J, Zhang P, Xue H, Zhao X, Xie L. Adsorption Properties of Hydrocarbons (n-Decane, Methyl Cyclohexane and Toluene) on Clay Minerals: An Experimental Study. Energies. 2017; 10(10):1586. https://doi.org/10.3390/en10101586

Chicago/Turabian Style

Zhang, Jie, Shuangfang Lu, Junqian Li, Pengfei Zhang, Haitao Xue, Xu Zhao, and Liujuan Xie. 2017. "Adsorption Properties of Hydrocarbons (n-Decane, Methyl Cyclohexane and Toluene) on Clay Minerals: An Experimental Study" Energies 10, no. 10: 1586. https://doi.org/10.3390/en10101586

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
