Abstract

:
A novel Building Integrated Concentrating Photovoltaic (BICPV) Smart Window has been designed and developed as a next generation intelligent window system. In response to climatic conditions, the smart window varies solar light transmission into the building for provision of light and heat with the reflection of light to the photovoltaic (PV) for electricity generation. This unique function is realised using an integrated thermotropic layer in conjunction with embedded PVs. As commercial PVs are readily available, the success of this novel BICPV design depends solely on the performance of the thermotropic material. This study aimed to develop a suitable reflective thermotropic layer for the proposed smart Concentrating Photovoltaic (CPV) system. A Hydroxypropyl cellulose (HPC) polymer was tested for its applicability as a potential reflective thermotropic material for this purpose. HPC concentration was systematically varied from 1 wt. % to 6 wt. % in aqueous solution so as to provide insight into the relationship between transmittance/reflectance properties, the concentration of the thermotropic material and their dependence upon the environmental temperature. The degree of hysteresis of light transmittance upon subjecting HPC to heating and cooling cycles was also investigated. Specifically, for the HPC liquid samples the measured threshold temperature/transition temperature (Ts) was observed to be approximately 40 °C for 6 wt. % HPC, increasing to approximately 44 °C for 1 wt. % HPC. No hysteresis was observed upon heating and cooling HPC samples. Reflectance below the Ts was recorded at ~10%, increasing up to ~70% above the Ts for 6 wt. % HPC. Finally, a HPC-based hydrogel membrane sample was developed and exhibited good thermotropic activity therefore demonstrating its suitability for use within the BICPV smart window. This study corroborates that HPC is a suitable thermotropic material in the application of next generation BICPV smart window systems.

1. Introduction

Intelligent window design has been used to address problems associated with the regulation of heating and glare within buildings by dynamically controlling the amount of incoming solar radiation. One way to achieve this is through the integration of a thermotropic layer into the window design. Thermotropic materials reversibly change their transmission behaviour based upon the amount of heat they are exposed to. For example, when a thermotropic hydrogel is exposed to temperatures below its designed threshold switching temperature/transition temperature (Ts), the two main components, water and polymer, are homogeneously mixed [1,2]. This is due to the hydrophillicity of the polymer structure and therefore results in a transparent material. Above the threshold switching temperature, the polymer behaves hydrophobically resulting in water being quenched out of the polymer network and resulting in phase separation. With sufficient disparity between the refractive indices of these two phases, diffusion of light occurs via scattering with a resultant ‘clouding’ of the system [1,2]. For glazing purposes, an optically transparent appearance is required and so below their Ts thermotropic materials need to allow for at least 85% light transmission [3,4].
The amount of solar radiation incident upon facades and rooftops in the UK has been estimated as around seven times greater than the amount of electricity used within these buildings [5]. This abundance of utilisable solar energy is a great potential opportunity for integrating solar power harnessing technologies into current and future building design. Previously published research has been conducted into the use of photovoltaics (PV) for powering electrochromic materials in glazing, i.e., using an electric field (rather than heat) to influence optical properties [6]. However, there has been little research undertaken on the reverse situation, i.e., using PV cells to harvest scattered solar radiation produced upon heating a thermotropic material above its Ts [7]. This harvested solar energy could be converted into electricity via solar cells and used to power air conditioning or other electrical needs within a building. A variation of this idea has been to use luminescent solar collectors (LSC) for concentrating solar radiation onto PV cells situated at the edges of windows. However, despite increased research into LSC’s, their performance requires further optimisation, e.g., photostability of organic dye based concentrators over prolonged ultraviolet (UV) exposure periods or the relatively low luminescent quantum efficiency exhibited by Quantum dot based luminescent concentrators [8,9,10].
Recently, an innovative design of a Concentrating PV (CPV) smart window system has been proposed to integrate renewable energy technologies and energy savings technologies into current window systems [11,12], as shown in Figure 1. The CPV design involves optically coupling PV cells around the edges of a glazing unit with a thermotropic layer laminated within. Above a certain threshold temperature, the thermotropic layer is thermally activated to scatter light within the glazing unit directing a high proportion of this scattered light via total internal reflection toward the solar cells. Below the designed threshold temperature/transition temperature (Ts), the thermotropic material (e.g., polymer) is water-soluble and therefore the layer appears transparent as shown in Figure 1b. Above the threshold Ts the water and polymer components separate and the thermotropic layer becomes translucent with a diffuse reflectivity, which is ascribed to the soluble-to-insoluble phase transition of the thermotropic material. The relatively high reflectivity induced by this thermotropic layer leads to scattering of the majority of incoming sunlight, which, when harvested by the integrated solar cells, results in the generation of renewably sourced electricity [11,12], as shown in Figure 1a.
The system is “smart” by automatically responding to climatic conditions, thus balancing solar energy entering indoor space for passive lighting and heating in a cooling season and redirecting solar energy to the solar cells for electricity generation in a hot season, which in traditional design is controlled by blinds or shutters and therefore lost as heat to the outdoor environment. Consequently, the designed system has the potential to improve energy efficiency for buildings. To achieve solar energy conversion in such a “smart” window system, commercial solar cells can be employed to generate electricity via light reflected by the thermotropic layer when its temperature is above the Ts. Therefore, the major challenge to realise the “smart” window system is to obtain a thermotropic layer with the desired threshold Ts for any given climatic condition and with the appropriate transmittance/reflectance properties, both of which are highly dependent on the material composition. To be of practical application, the optimal threshold Ts would need to correlate with the balance temperature of the building (i.e., the temperature at which it switches from a need for heating to a need for cooling). An ideal thermotropic layer would therefore be required to have an adjustable Ts in the temperature range between 25 °C and 40 °C which would allow for its application in a variety of climatic conditions. For maximum efficiency of this system, it is essential that above the Ts the thermotropic layer mostly reflects light, rather than absorbing the solar radiation. This light scattering property of thermotropic materials has been widely demonstrated in their provision of passive overheating protection for solar absorbers [13]. A final requirement for optimising the operation of this system is that the scattered light be within the wavelength range of 350–1100 nm so as to be compatible with the spectral response of the solar cells.
Hydroxypropyl cellulose (HPC) was chosen to test for its suitability for use as the thermotropic polymer for this CPV smart window system due to its clear advantages when considering environmental and safety concerns. Cellulose is a polysaccharide found within plant material and is therefore an abundant and sustainable organic polymer source with ~5 × 1011 metric tons generated annually [14]. Cellulose is therefore low cost, innocuous and biodegradable. HPC has previously been considered as a suitable biopolymer for thermotropic glazing both independently [15,16] and as part of an interpolymer complex [17,18,19]. In addition, HPC is water-soluble due to the substitution of reactive hydroxyl groups on the cellulose structure with hydrophobic hydroxypropyl groups which results in weakened intermolecular hydrogen bonding within the cellulose [20]. HPC chains are dissolved within water at temperatures below the Ts due to a sheath of tightly bound water molecules surrounding HPC chains via hydrogen bonding resulting in HPC chains being uncoiled and separated. When the temperature is increased, the solubility of HPC decreases due to the additional thermal energy disrupting the polymer-water hydrogen bonding. Concurrently, the structure shrinks until a high enough temperature is reached whereby the cellulose ether collapses on itself allowing for aggregation and precipitation of HPC chains out of solution and thereby reducing light transmittance [21,22].
Previous research on the Ts of HPC has mainly focused upon using concentrations of up to only 2 wt. % HPC; however, these studies did not systematically vary HPC concentration. Also, only transmittance of HPC has been measured with the reflectance property of HPC critical to the potential of electricity generation via integrated solar cells in a CPV smart window system being so far neglected [15,18,19]. Another report by Nishio et al. [23] studied the variation in HPC Ts with increased HPC concentration in increments of 10 wt. % HPC and showed that between 10 and 40 wt. % HPC there was very little, if any, change observed in Ts. A further knowledge gap that exists for aqueous HPC is in the potential observation of hysteresis of light transmittance when samples undergo heating and cooling cycles. Therefore, the research conducted in this paper will focus upon both transmittance and reflectance behaviour of aqueous HPC at systematically increased HPC concentrations between 1 and 6 wt. %. Furthermore, the knowledge gained from aqueous phase HPC will be used to develop a thermotropic hydrogel layer between two glass sheets to simulate the “truncated” version of the smart window (no integrated PV) to monitor transmittance and reflectance under varying environmental temperatures in order to demonstrate the potential applicability of HPC membranes for electricity generating ‘smart’ windows.

2. Experimental

2.1. Materials and Synthesis

Membranes were synthesised using hydroxypropyl cellulose (HPC) with Gellan Gum as the gelling agent. Hydroxypropyl cellulose was obtained from Sigma Aldrich having an average Mw ~ 80,000, average Mn ~ 10,000 and a viscosity range of 150–700 cP for 10 wt. % HPC in water at 25 °C. Varying concentrations of HPC solution were prepared by heating distilled water to between 50 and 60 °C and magnetically stirring in the HPC powder until it all had dissolved. Cooled to room temperature additional distilled water was then added to the solution and stirred for several hours to synthesise the final predetermined HPC wt. % concentrations [11,12].
Membrane synthesis was then undertaken by dissolving the gelling agent into magnetically stirred and heated distilled water in quantities so as to make up 1.5 wt. % of the final membrane composition with various concentrations of aqueous HPC then added to the solution. Casting of the HPC/gelling agent solution was then undertaken between two 4 mm thick, 5 × 5 cm sheets of optical white low iron glazing. A 0.5 mm silicone membrane was used as a spacer between the two sheets of glazing resulting in a “truncated” version (no integrated PV) of the proposed CPV smart window system [11,12].

2.2. UV-Vis Spectroscopy

The temperature-dependent transmittance behaviour of the liquid HPC samples at concentrations from 1 wt. % to 6 wt. % was tested using a Thermo Scientific Evolution 201 UV-Vis spectrophotometer with peltier single-cell holder for homogeneous sample temperature control at the University of Nottingham. Two Suprasil quartz cuvettes with a spectral range of 200–2500 nm were used, each with a path length of 10 mm. UV-Vis was run from 20 °C to 70 °C, generally in 5 °C increments but adjusted to 1 °C increments when the transmittance behaviour began to switch in order to get more accurate Ts. Distilled water was used in the reference cuvette. Prior to each transmission, measurement temperature equilibration of the sample was achieved by maintaining the sample at the designated temperature for 20 min. Upon reaching 70 °C, the temperature was incrementally decreased in the same manner back down to 20 °C so as to compare cooling transmission behaviour with the heating curve. The Ts was taken as the temperature at which the thermotropic material transmitted 50% of incoming solar radiation [24,25].
The reflectance of liquid samples was measured using an Ocean Optics USB200+ spectrometer with an ISP-REF integrating sphere. A light reference was measured using a WS-1 diffuse reflectance standard. The sample was held within a Perspex based, leak proof sample box which had three 50 W 10 Ω thermal resistors mounted onto its sides. The resistors were connected to a power supply and temperature controller with the liquid sample temperature controlled between 20 °C and 55 °C by varying the input voltage and current. A thermocouple connected to the power supply and temperature controller was placed in the centre of the liquid sample to monitor the temperature change of the liquid as well as to control the heat supplied to the sample by the thermal resistors [11,12].
An Ocean Optics USB200+ spectrometer connected to a FOIS-1 integrating sphere and a HL-2000 Halogen Light Source was used to measure the transmittance behaviour of the membrane samples. Measurements were taken with the glazing encased membrane sample placed directly over the light port. For recording reflectance of the membrane sample, the same experimental setup as for liquid samples was applied with the glazing encased membrane sample placed directly over the ISP-REF light port. A hot plate with temperature control of ±1 °C was used to heat membrane samples to the required temperature with the sample allowed to equilibrate at any given temperature for 20 min before measurements were recorded. Four T-type thermocouples were glued to the top surface of the glazing with highly thermally conducting Electrolube Thermal Bonding System. The membrane temperature recorded was taken as the average of the four thermocouple readings [11,12].
Baseline references were taken prior to testing. For reflectivity measurements of liquid samples, the baseline was measured using the Perspex pane of the empty sample box; for transmittance and reflection measurements of the membrane samples, a single 4 mm thick optical white low iron sheet of glazing was used. Baseline measurements were taken in order to remove transmittance and reflectance behaviour of either the Perspex or the glazing from the final results. To substantiate the validity of results, all experiments were conducted at least in triplicate.

3. Results

A typical UV-Vis transmittance spectrum with increased temperature for an aqueous solution of HPC is shown in Figure 2 whereby most transmittance below the Ts occurs in the near infrared and visible light regions. From Figure 2, it can be seen that transmittance decreases upon increasing the liquid temperature, being approximately 100% below 38 °C and near 0% when above 45 °C. There is no significant difference for the transmittance data from 20 °C to 38 °C.
Figure 3 shows the visual change in transparency observed for a representative liquid HPC sample of 3 wt. % HPC both below and above the Ts. Below the Ts, water and HPC are homogeneously mixed due to the hydrophillicity of the polymer structure resulting in a transparent material. Above the Ts, the polymer behaves hydrophobically, resulting in water being quenched out of the polymer network resulting in phase separation and an opaque appearance.
The Ts of the HPC aqueous solutions was found to be dependent upon the concentration of HPC, the higher the wt. % of HPC the lower the Ts. Figure 4 shows how varying the temperature between 20 °C and 70 °C affected the transmittance behaviour of each aqueous HPC sample as measured at 600 nm. The spectral response of the silicon solar cells to be used in the ‘smart’ window system is in the wavelength range of 400 nm to 1200 nm, additionally 600 nm is in the centre of the visible light range. For the consideration of electricity generation and also daylight application, the value of 600 nm was plotted for further discussion. The Ts, taken as 50% transmittance, was measured at 44 °C for 1 wt. % HPC and 40 °C for 6 wt. % HPC. A decrease in Ts with increased HPC concentration would be expected given that inter- and intrachain hydrophobicity drive the aggregation of HPC chains, therefore less thermal energy would be required to precipitate HPC out of solution at higher HPC concentrations. At 5 wt. % and higher concentrations of HPC, the Ts was observed to become static at 40 °C which may indicate that 5 wt. % HPC is a saturation point for the amount of hydrophobic interaction that can occur in any given aqueous HPC sample. Below the Ts there is only an observed 3% decrease in light transmittance when increasing HPC concentration from 1 wt. % (~98% transmittance) up to 6 wt. % HPC (~95% transmittance).
To calculate the average transmittance of visible light in the wavelength range 430 nm–780 nm and the average direct solar transmittance in the wavelength range 440 nm–950 nm, BSI Standards BS EN 410:2011 [26] were applied as shown in Equations (1) and (2), respectively.
τ ν = λ = 380   n m 780   n m D λ τ ( λ ) V ( λ ) Δ λ λ = 380   n m 780   n m D λ V ( λ ) Δ λ
τ e = λ = 300   n m 2500   n m S λ τ ( λ )   Δ λ λ = 300   n m 2500   n m S λ Δ λ
  • τv(λ) is the visible light transmittance.
  • Dλ is the relative spectral distribution of illuminant D65.
  • τ(λ) is the spectral transmittance of the glazing.
  • V(λ) is the spectral luminous efficiency for photopic vision defining the standard observer for photometry.
  • Δ(λ) is the wavelength interval.
  • τe(λ) is the solar direct transmittance.
  • Sλ is the relative spectral distribution of the solar radiation.
Figure 5 shows the averaged transmittance values calculated using Equation (1) (labelled as Vis Light T%) and Equation (2) (labelled as Direct Solar T%) for the 1 wt. % and 6 wt. % HPC samples. For a given sample, the similarity in transmittance values calculated at all stages of the heating process indicates that reliable transmittance data can be assumed from the 600 nm transmittance values that are recorded directly during experiments and so this is the data reported in the rest of this paper.
After heating aqueous HPC samples up to 70 °C, samples were incrementally cooled back down to room temperature with measurements taken after 20 min equilibration periods as shown for a representative 2 wt. % HPC sample in Figure 6. This figure clearly shows that, on cooling from 70 °C, the light transmittance of the sample has not been affected by prior heating. This is a promising attribute for potential use within a thermotropic ‘smart’ window.
Aqueous HPC samples from 1 wt. % to 6 wt. % HPC were then analysed for potential reflectivity of light in the temperature range between 20 °C and 55 °C. Figure 7 shows a typical UV-Vis reflection spectrum with increased temperature for a representative HPC aqueous sample. Prior to any change in transparency due to the temperature dependency of HPC solubility in water, a reflectance of ~10% is recorded from the transparent liquid itself. The data in Figure 7 confirms that above the Ts aqueous samples of HPC are reflecting incoming light within the stated 350–1100 nm wavelength range required for use by the solar cells. HPC therefore has the potential to be used as the thermotropic component of the proposed novel CPV device which relies on this reflected light being harvested by solar cells embedded at the edge of the glazing unit.
Upon increasing HPC concentration in aqueous solution from 1 wt. % up to 6 wt. % HPC, reflectance was also observed to increase, as can be seen in Figure 8.
It is proposed that above the Ts samples with higher HPC concentration will be subjected to increased aggregation and precipitation of HPC chains out of solution, therefore resulting in the observed increase in the amount of light being reflected by the HPC.
To calculate the average reflectance of visible light in the wavelength range 430 nm–780 nm and the average direct solar reflectance in the wavelength range of 440 nm–950 nm, BSI Standards BS EN 410:2011 [26] were again used as shown in Equations (3) and (4), respectively.
ρ ν = λ = 380   n m 780   n m D λ ρ ( λ ) V ( λ ) Δ λ λ = 380   n m 780   n m D λ V ( λ ) Δ λ
ρ e = λ = 300   n m 2500   n m S λ ρ ( λ )   Δ λ λ = 300   n m 2500   n m S λ Δ λ
  • ρv(λ) is the light reflectance.
  • Dλ is the relative spectral distribution of illuminant D65.
  • ρ(λ) is the spectral reflectance of the glazing.
  • V(λ) is the spectral luminous efficiency for photopic vision defining the standard observer for photometry.
  • Δ(λ) is the wavelength interval.
  • ρe(λ) is the solar direct reflectance.
  • Sλ is the relative spectral distribution of the solar radiation.
The data calculated for visible light and direct solar reflectance, as well as for reflectance measured at 600 nm, is shown in Figure 9. This data coincides with that observed in Figure 7 whereby above the Ts reflectance is highest in the visible light range as compared to light in the wavelength range of 780 nm to 950 nm.
Transmittance and reflectance data for the 6 wt. % HPC aqueous sample are shown in Figure 10. Transmittance and reflectance were measured using differing baselines and due to this the data values do not total 100% below the Ts. The transmittance of the HPC aqueous sample is relevant to its solvent liquid (water) and therefore shows a higher transmittance when compared with air. The measured reflectance is relevant to the reference WS-1 diffuse reflectance standard (100% reflectance), with the transparent HPC aqueous sample showing ~10% reflectivity before transition. Both light reflectance and transmittance start to increase at ~38 °C; however, transmittance sharply declines to nearly 0% transmittance within ~8 °C range whereas reflectance is still observed to increase by 20–40% after this point. This could potentially be attributed to temperature induced hydrophobicity of the HPC occurring in stages due to different types of water bonding being present in solution. Specifically, water molecules that are hydrogen bonded to OH groups on the HPC chain will dissociate first followed by dissociation of OH groups bonded to methyne, methyl and methylene groups at higher temperatures [27]. The breaking of this latter group of bonds results in hydrophobic interaction of the methyl groups in HPC subsequently then leading to coil-to-globule transition occurring. This would also further explain the increase in reflectivity observed upon increasing the HPC concentration.
The 6 wt. % HPC aqueous sample was then used to synthesise thermotropic hydrogel membranes within a “truncated” version (no integrated PV) of the CPV ‘smart’ window system in order to compare transmittance and reflectance data for a membrane sample with that of the aqueous samples. Figure 11 shows photographs of the 6 wt. % HPC membrane sample both below and above the Ts. It can be seen that below the Ts the optical transparency of the membrane is sufficient for glazing purposes (left), whilst above the Ts the membrane transitions to an opaque state (right).
The presence of the gelling agent in the molecular structure of the HPC membrane caused several main effects. Firstly, the Ts of the membrane sample increased to 42 °C, as shown in Figure 12, as compared to 40 °C for the same concentration of HPC in aqueous solution. Temperature switching from high to low transmittance in the membrane sample occurred over a 15 °C temperature range, almost double that observed for the aqueous HPC samples. Reflectance above the Ts decreased by around 20% in the membrane sample as compared to the aqueous sample, as shown in Figure 10. There is also a stronger correlation between transmittance change and reflectance change in the membrane sample than observed for the liquid samples, with both transmittance and reflectance starting to change at ~39 °C and levelling off at around 55 °C. Again, below the Ts the data values for transmittance and reflectance do not total 100% due to different baselines being applied. The measured transmittance was not compared with air, but was relative to a single layer of 4 mm glazing.
The 2 °C increase in Ts of the membrane sample, as compared to the aqueous sample, is likely due to the increased strength of the hydrogen bonding between OH groups of the HPC and gelling agent, as compared to OH bonding of HPC with aqueous water. This also explains the greater Ts range observed for the membrane sample. The reduced reflectivity observed for the membrane sample above the Ts, as compared to aqueous samples, may also be explained by this stronger hydrogen bonding between gelling agent and HPC.

4. Conclusions

The proposed CPV smart window can automatically respond to climatic conditions and thus vary the balance of solar energy for generating electricity and passive lighting and heating. HPC was selected as a suitable reflective thermotropic layer for the system. It was experimentally studied by systematically varying HPC concentration from 1 wt. % to 6 wt. % in aqueous solution. It was found that HPC shows promise for use in the proposed novel BICPV ‘smart’ window design in both its transmittance and reflectance properties. Transmittance of the aqueous HPC samples was shown to be >95% below the Ts and ~0% above the Ts with the Ts of the thermotropic HPC solution lowered by increasing HPC wt. %. For the HPC aqueous sample with lowest Ts at 40 °C (6 wt. % HPC), the reflectance above the Ts is very high at ~60%, enhancing the suitability of HPC for use in the proposed novel BICPV ‘smart’ window design. Furthermore, transmittance data was consistent upon both heating and cooling aqueous HPC samples, indicating that the temperature-dependent transmittance characteristics of HPC are the same, regardless of heating up or cooling down the system. When integrated into a membrane sample, HPC still shows promising attributes in regard to transmittance, reflectivity and Ts. Further research into the applicability of this membrane into the BICPV ‘smart’ window design is the subject of continued research.

Acknowledgments

This work is supported by Faculty of Engineering University of Nottingham through Dean of Engineering Prize.

Author Contributions

Yupeng Wu initialed the research idea. Karen Connelly synthesized the HPC samples and also carried out the experimental tests with Yupeng Wu together. Karen Connelly, Yupeng Wu, Xiaoyu Ma and Yu Lei wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Resch, K.; Wallner, G.M. Thermotropic layers for flat-plate collectors-A review of various concepts for overheating protection with polymeric materials. Sol. Energy Mater. Sol. Cells 2009, 93, 119–128. [Google Scholar]
  2. Zhou, Q.; Zhang, L.; Minoda, M.; Miyamoto, T. Phase transition of thermosensitive amphiphilic cellulose esters bearing olig(oxyethylene)s. Polym. Bull. 2000, 45, 381–388. [Google Scholar]
  3. Yao, J.; Zhu, N. Evaluation of indoor thermal environmental, energy and daylighting performance of thermotropic windows. Build. Environ. 2012, 49, 283–290. [Google Scholar] [CrossRef]
  4. Nitz, P.; Hartwig, H. Solar control with thermotropic layers. Sol. Energy 2005, 79, 573–582. [Google Scholar] [CrossRef]
  5. Muneer, T. Windows in Buildings: Thermal, Acoustic, Visual, and Solar Performance; Architectural Press: Oxford, UK, 2000. [Google Scholar]
  6. Campese, G.M.; Rodrigues, E.M.G.; Tambourgi, E.B.; Pessoa, A., Jr. Determination of cloud-point temperatures for different copolymers. Braz. J. Chem. Eng. 2003, 20, 335–337. [Google Scholar]
  7. Zhou, J.; Gao, Y.; Zhang, Z.; Luo, H.; Cao, C.; Chen, Z.; Dai, L.; Liu, X. VO2 thermochromic smart window for energy savings and generation. Sci. Rep. 2013, 3, 3029. [Google Scholar] [PubMed]
  8. Dienel, T.; Bauer, C.; Dolamic, I.; Brühwiler, D. Spectral-based analysis of thin film luminescent solar concentrators. Sol. Energy 2010, 84, 1366–1369. [Google Scholar] [Green Version]
  9. Kerrouche, A.; Hardy, D.A.; Ross, D.; Richards, B.S. Luminescent solar concentrators: From experimental validation of 3D ray-tracing simulations to coloured stained-glass windows for BIPV. Sol. Energy Mater. Sol. Cells 2014, 122, 99–106. [Google Scholar] [CrossRef]
  10. Chatten, A.J.; Farrell, D.J.; Bose, R.; Dixon, A.; Poelking, C.; Gödel, K.C.; Mazzer, M.; Barnham, K.W.J. Luminescent and geometric concentrators for building integrated photovoltaics. In Proceedings of the 2011 37th IEEE Photovoltaic Specialists Conference (PVSC), Seattle, WA, USA, 19–24 June 2011. [Google Scholar]
  11. Wu, Y.; Connelly, K.; Liu, Y.; Gu, X.; Gao, Y.; Chen, G. Smart solar concentrators for building integrated photovoltaic façades. Sol. Energy 2016, 133, 111–118. [Google Scholar] [CrossRef]
  12. Connelly, K.; Wu, Y.; Chen, J.; Lei, Y. Design and development of a reflective membrane for a novel Building Integrated Concentrating Photovoltaic (BICPV) ‘Smart Window’ system. Appl. Energy 2016, 182, 331–339. [Google Scholar] [CrossRef]
  13. Gladen, A.C.; Davidson, J.H.; Mantell, S.C. Selection of thermotropic materials for overheat protection of polymer absorbers. Sol. Energy 2014, 104, 42–51. [Google Scholar] [CrossRef]
  14. Qiu, X.; Hu, S. “Smart” materials based on cellulose: A review of the preparations, properties, and applications. Materials 2013, 6, 738–781. [Google Scholar] [CrossRef] [PubMed]
  15. Schneider, J.; Seeboth, A. Natural thermotropic materials for solar switching glazing. Mater. Werkst. 2001, 32, 231–237. [Google Scholar] [CrossRef]
  16. Watanabe, H. Intelligent window using a hydrogel layer for energy efficiency. Sol. Energy Mater. Sol. Cells 1998, 54, 203–211. [Google Scholar] [CrossRef]
  17. Guirguis, O.W.; Moselhey, M.T.H. Thermal and structural studies of poly(vinyl alcohol) and hydroxypropyl cellulose blends. Nat. Sci. 2011, 4, 57–67. [Google Scholar] [CrossRef]
  18. Lu, X.; Hu, Z.; Schwartz, J. Phase transition behavior of hydroxypropylcellulose under interpolymer complexation with poly(acrylic acid). Macromolecules 2002, 35, 9164–9168. [Google Scholar] [CrossRef]
  19. Liao, Q.; Shao, Q.; Wang, H.; Qiu, G.; Lu, X. Hydroxypropylcellulose templated synthesis of surfactant-free poly(acrylic acid) nanogels in aqueous media. Carbohydr. Polym. 2012, 87, 2648–2654. [Google Scholar] [CrossRef]
  20. Li, L.; Shan, H.; Yue, C.Y.; Lam, Y.C.; Tam, K.C.; Hu, X. Thermally induced association and dissociation of methylcellulose in aqueous solutions. Langmuir 2002, 18, 7291–7298. [Google Scholar] [CrossRef]
  21. Jain, S.; Sandhu, P.S.; Malvi, R.; Gupta, B. Cellulose derivatives as thermoresponsive polymer: An overview. J. Appl. Pharm. Sci. 2013, 3, 139–144. [Google Scholar]
  22. Goddard, E.D.; Gruber, J.V. Principles of Polymer Science and Technology in Cosmetics and Personal Care; Marcel Dekker: New York, NY, USA, 1999. [Google Scholar]
  23. Nishio, Y.; Chiba, R.; Miyashita, Y.; Oshima, K.; Miyajima, T.; Kimura, N.; Suzuki, H. Salt addition effects on mesophase structure and optical properties of aqueous hydroxypropyl cellulose solutions. Polym. J. 2002, 34, 149–157. [Google Scholar] [CrossRef]
  24. Mori, T.; Shiota, Y.; Minagawa, K.; Tanaka, M. Alternative approach to the design of thermosensitive polymers: The addition of hydrophobic groups to the ends of hydrophilic polyether. J. Polym. Sci. Part A Polym. Chem. 2005, 43, 1007–1013. [Google Scholar] [CrossRef]
  25. Urry, D.W. Physical chemistry of biological free energy transduction as demonstrated by elastic protein-based polymers. J. Phys. Chem. B 1997, 101, 11007–11028. [Google Scholar] [CrossRef]
  26. Glass in Building—Determination of Luminous and Solar Characteristics of Glazing. Available online: https://bsol-bsigroup-com.ezproxy.nottingham.ac.uk/Bibliographic/BibliographicInfoData/000000000030219373 (accessed on 1 December 2015).
  27. Jing, Y.; Wu, P. Study on the thermoresponsive two phase transition processes of hydroxypropyl cellulose concentrated aqueous solution: From a microscopic perspective. Cellulose 2013, 20, 67–81. [Google Scholar] [CrossRef]

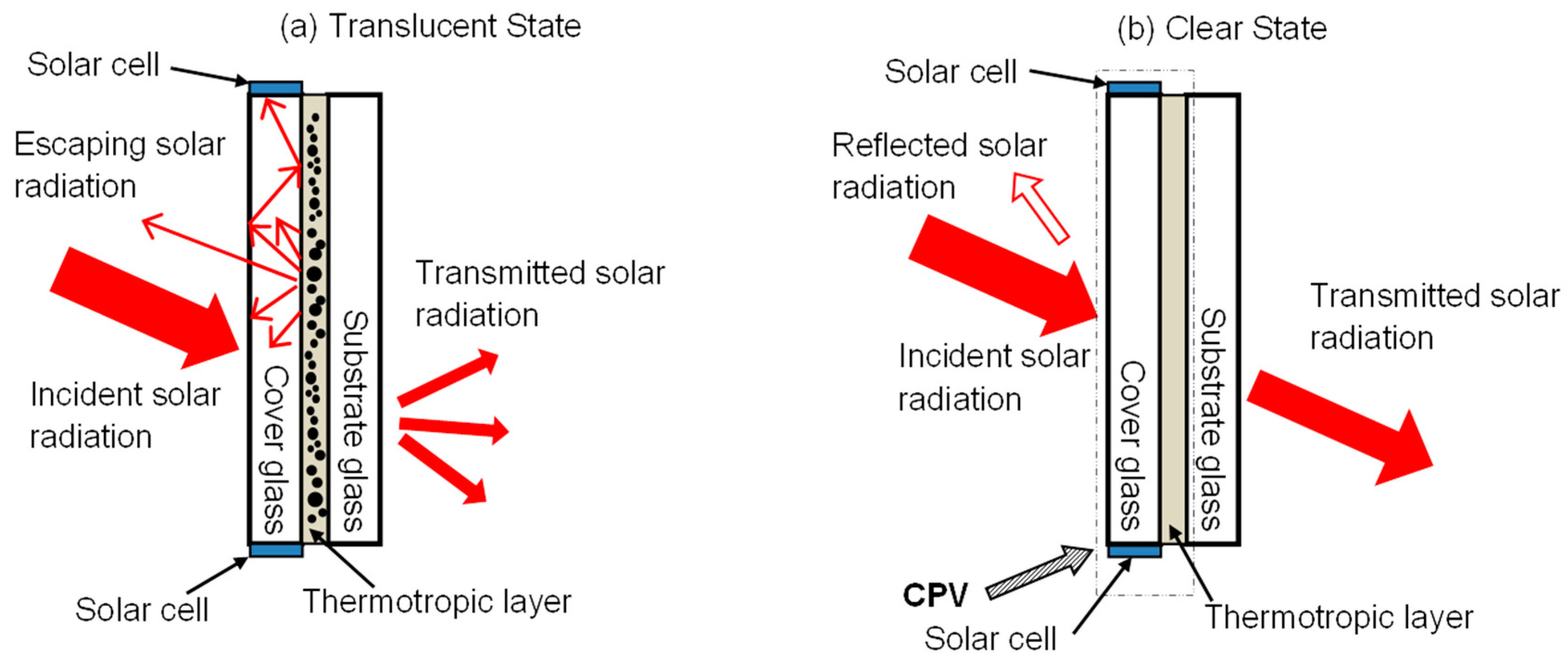

Figure 1. Schematic sketch of the proposed smart window, illustrating its working principle.
Figure 1. Schematic sketch of the proposed smart window, illustrating its working principle.
Energies 10 01889 g001

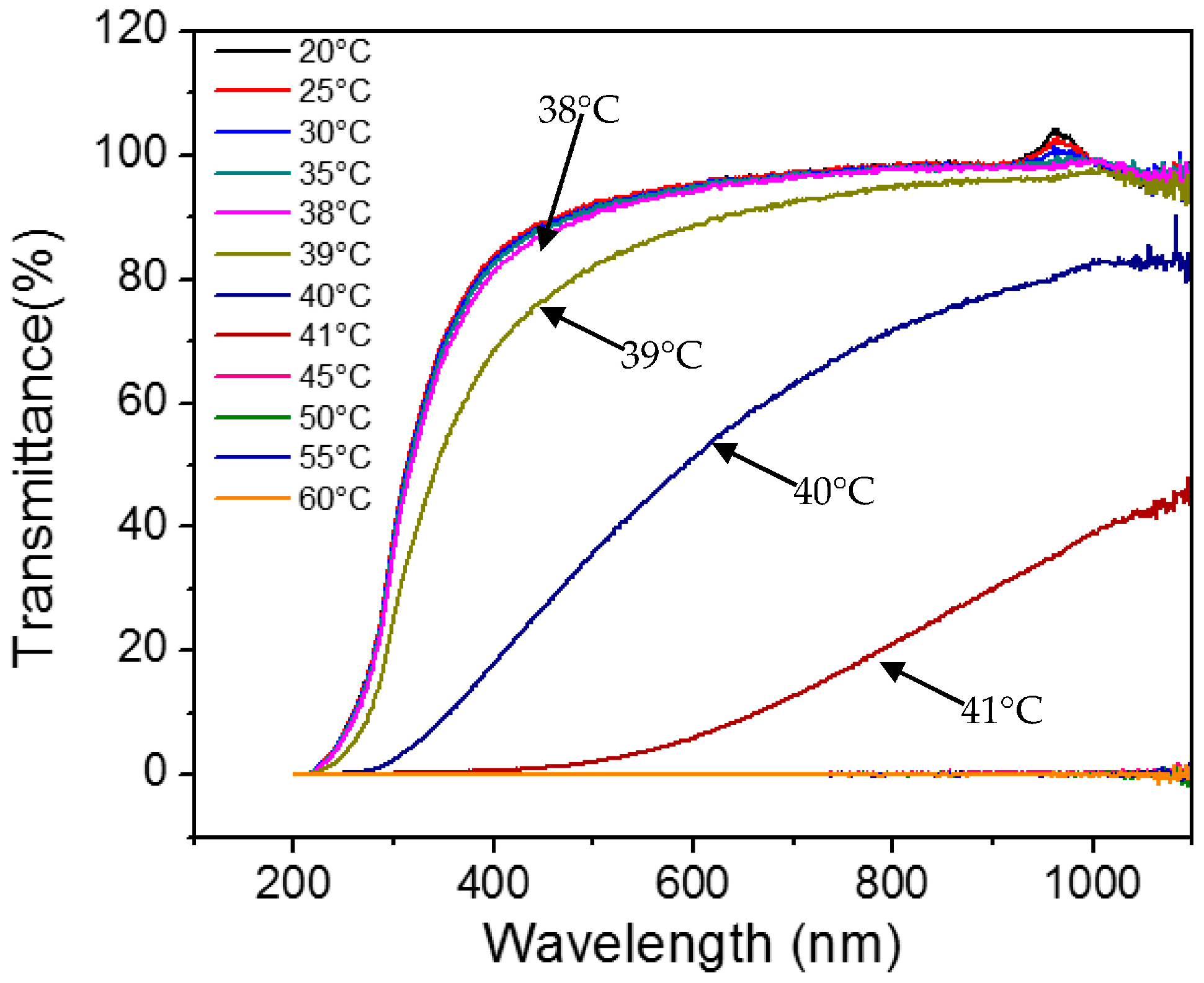

Figure 2. Transmittance of the 6 wt. % Hydroxypropyl cellulose (HPC) for the spectra from 200 nm to 1100 nm over the temperature range 20–65 °C.
Figure 2. Transmittance of the 6 wt. % Hydroxypropyl cellulose (HPC) for the spectra from 200 nm to 1100 nm over the temperature range 20–65 °C.
Energies 10 01889 g002

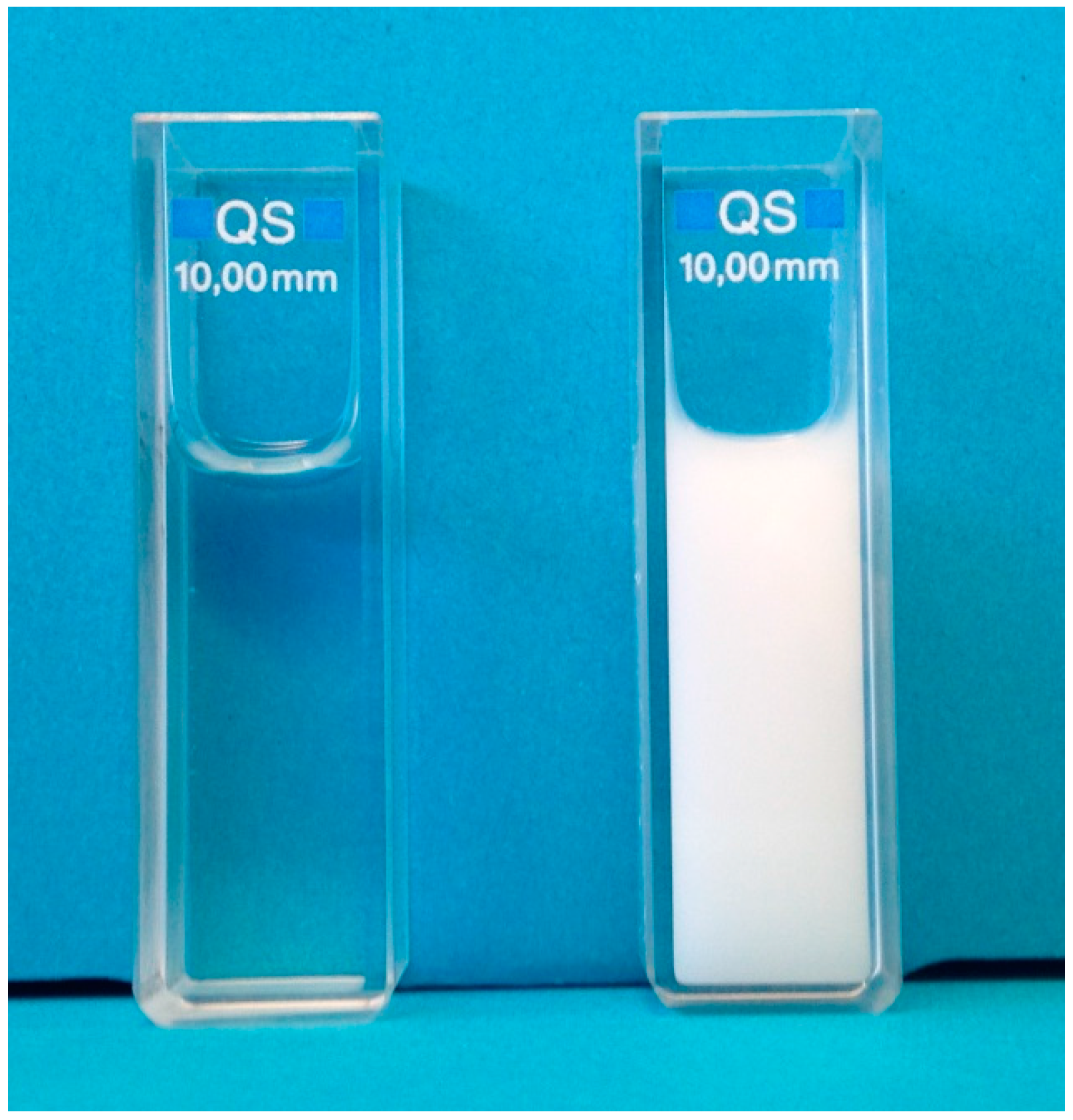

Figure 3. Photograph of aqueous 3 wt. % HPC sample below switching temperature (left), above switching temperature (right).
Figure 3. Photograph of aqueous 3 wt. % HPC sample below switching temperature (left), above switching temperature (right).
Energies 10 01889 g003

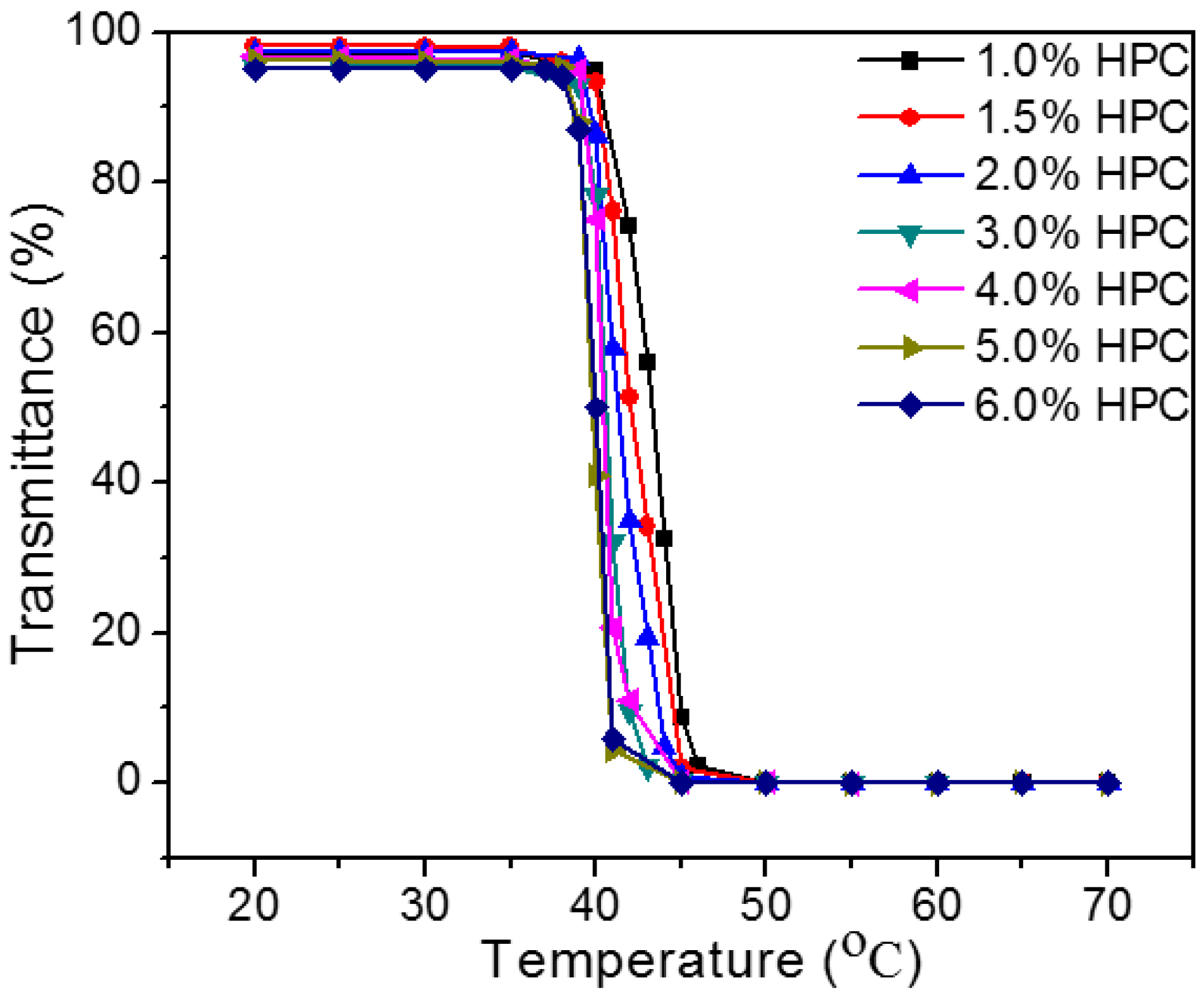

Figure 4. The thermal and optical behaviour of the selected wt. %’s HPC in aqueous solution at spectra of 600 nm.
Figure 4. The thermal and optical behaviour of the selected wt. %’s HPC in aqueous solution at spectra of 600 nm.
Energies 10 01889 g004

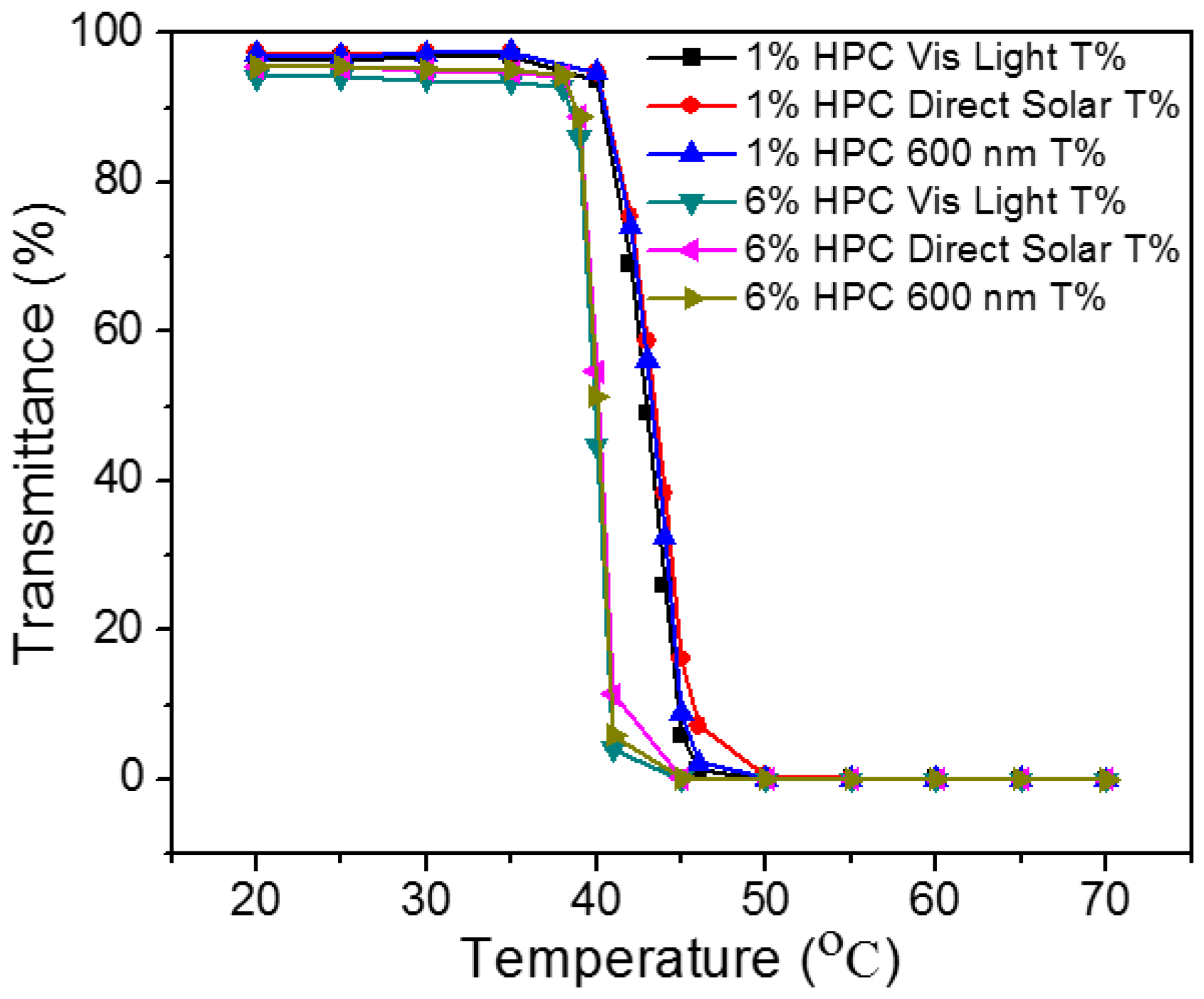

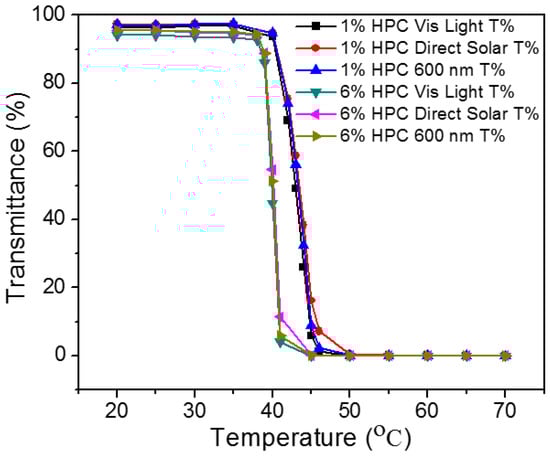

Figure 5. UV-Vis spectra showing transmittance of aqueous 1 wt. % and 6 wt. % HPC at 600 nm, averaged over 430 nm to 780 nm (Vis Light T%) and averaged over 440 nm to 950 nm (Direct Solar T%).
Figure 5. UV-Vis spectra showing transmittance of aqueous 1 wt. % and 6 wt. % HPC at 600 nm, averaged over 430 nm to 780 nm (Vis Light T%) and averaged over 440 nm to 950 nm (Direct Solar T%).
Energies 10 01889 g005

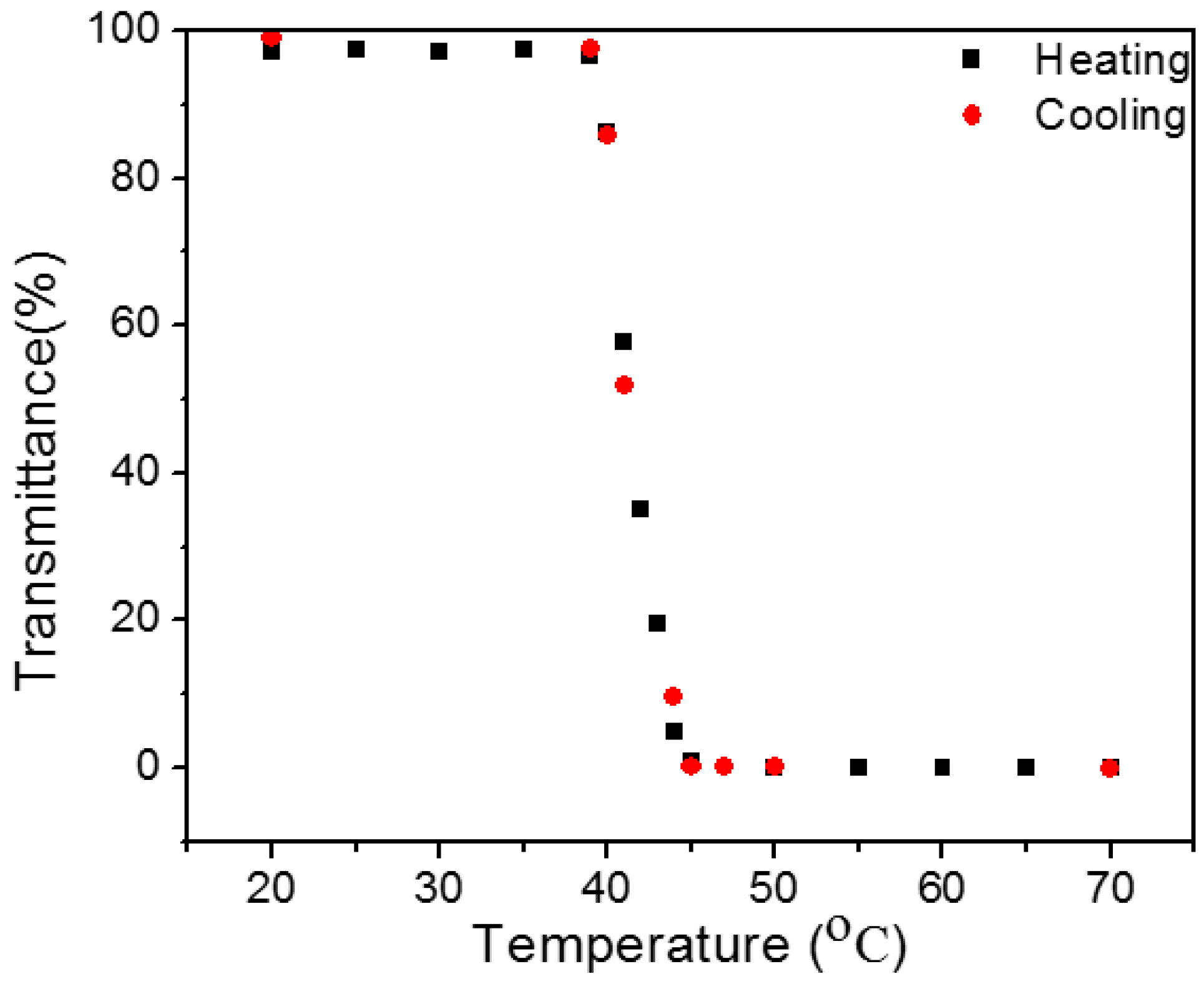

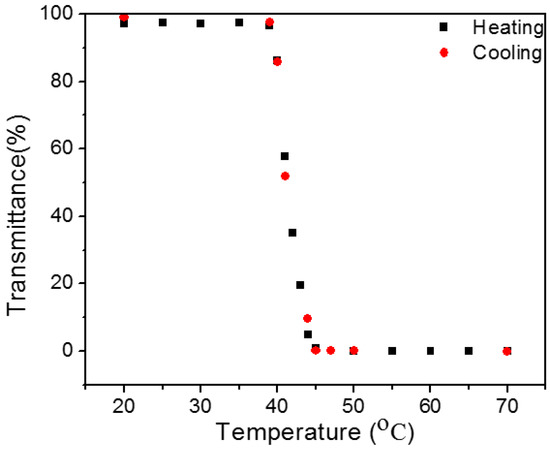

Figure 6. Thermal and optical behaviour of 2 wt. % HPC in aqueous solution at spectra of 600 nm under heating (transmittance change with increased temperature) and cooling (transmittance change with subsequent reduction in temperature) conditions.
Figure 6. Thermal and optical behaviour of 2 wt. % HPC in aqueous solution at spectra of 600 nm under heating (transmittance change with increased temperature) and cooling (transmittance change with subsequent reduction in temperature) conditions.
Energies 10 01889 g006

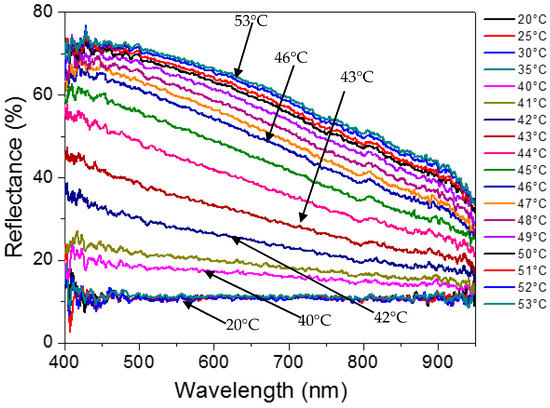

Figure 7. The reflectance of 6 wt. % HPC in aqueous solution under various temperature conditions.
Figure 7. The reflectance of 6 wt. % HPC in aqueous solution under various temperature conditions.
Energies 10 01889 g007

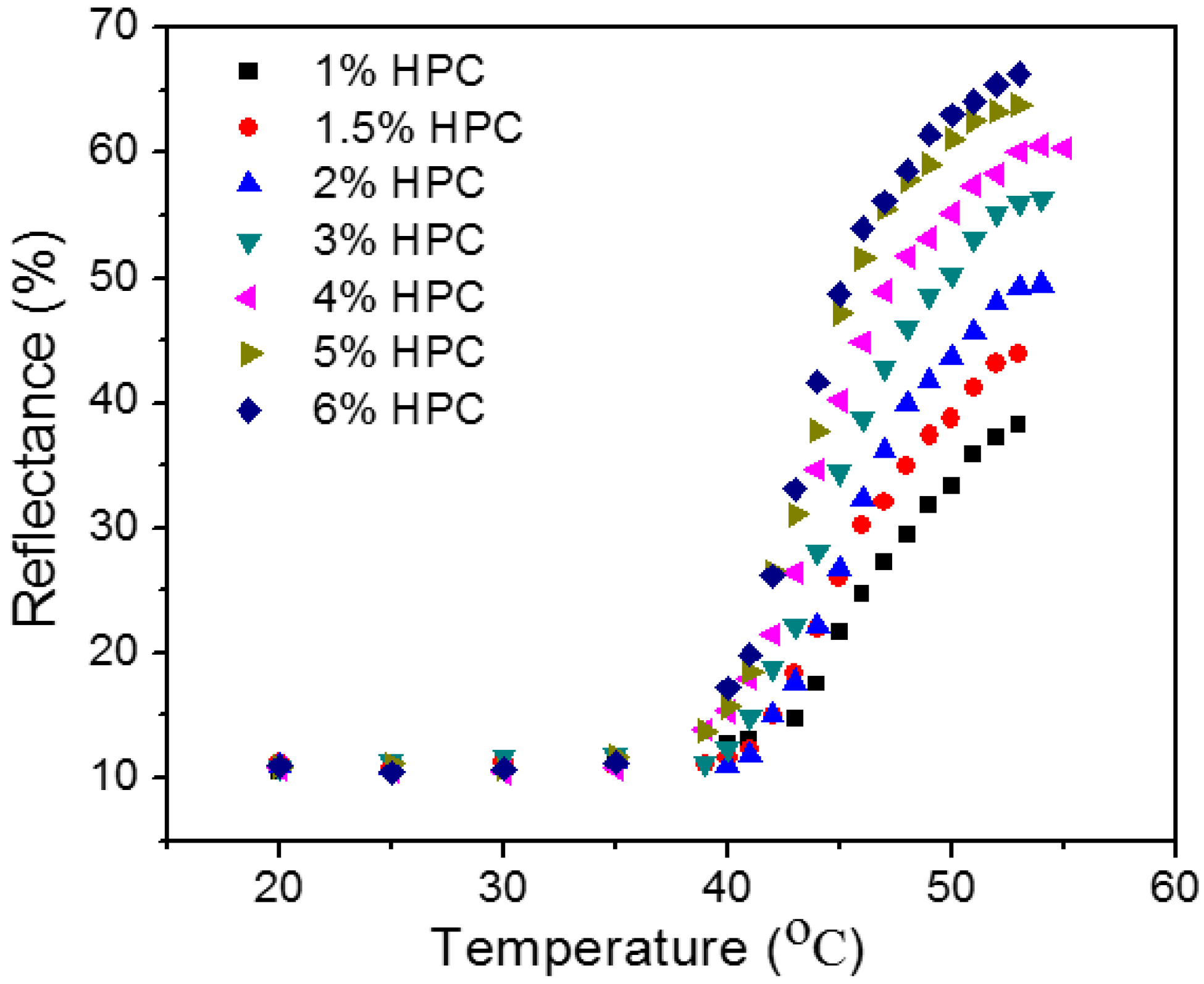

Figure 8. The variation of the reflectance under spectra of 600 nm of the selected wt. % of HPCs under different temperature.
Figure 8. The variation of the reflectance under spectra of 600 nm of the selected wt. % of HPCs under different temperature.
Energies 10 01889 g008

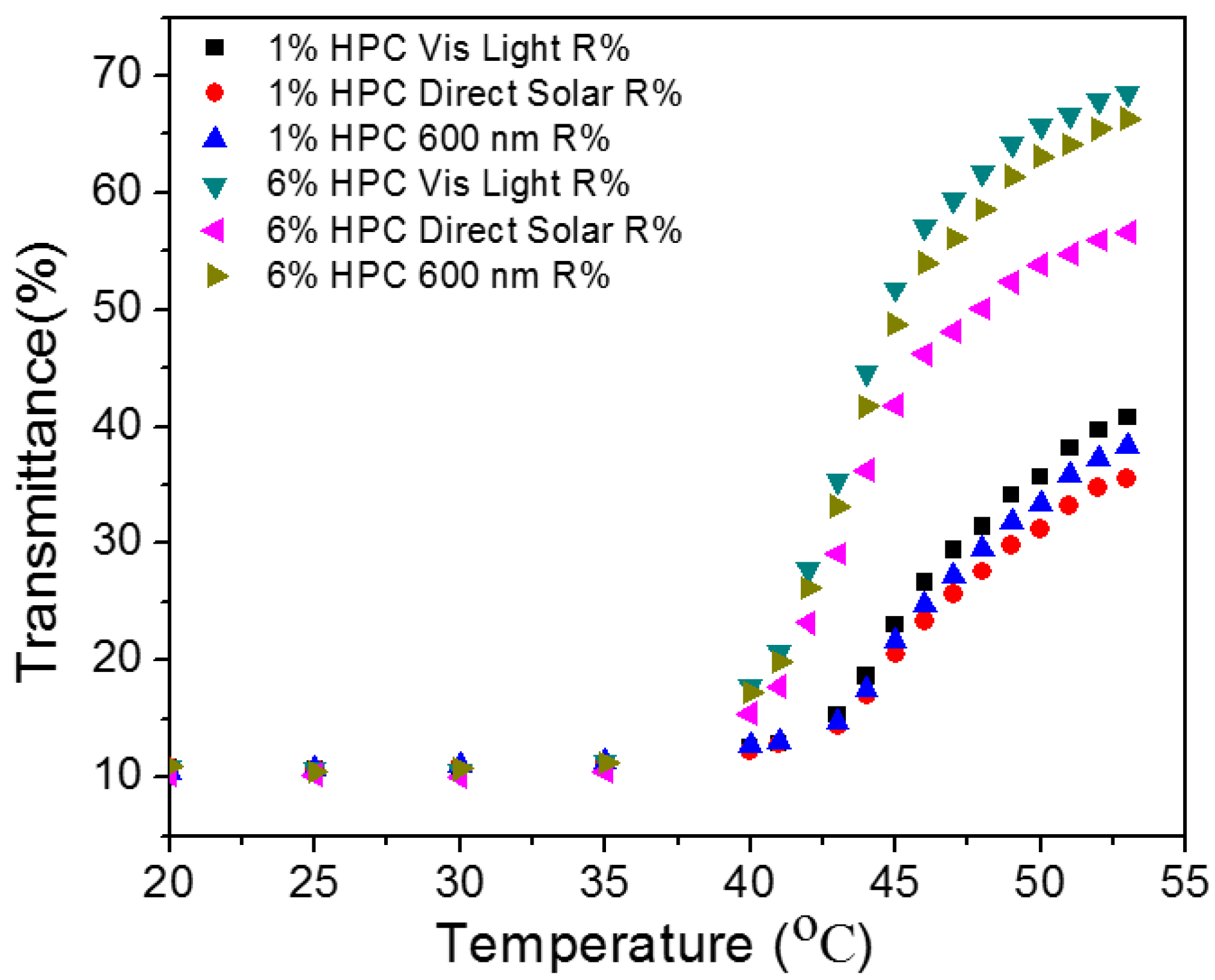

Figure 9. Measured reflectance for aqueous 1 wt. % and 6 wt. % HPC at 600 nm, Vis Light T% (averaged over 430 nm to 780 nm) and Direct Solar T% (averaged over 440 nm to 950 nm).
Figure 9. Measured reflectance for aqueous 1 wt. % and 6 wt. % HPC at 600 nm, Vis Light T% (averaged over 430 nm to 780 nm) and Direct Solar T% (averaged over 440 nm to 950 nm).
Energies 10 01889 g009

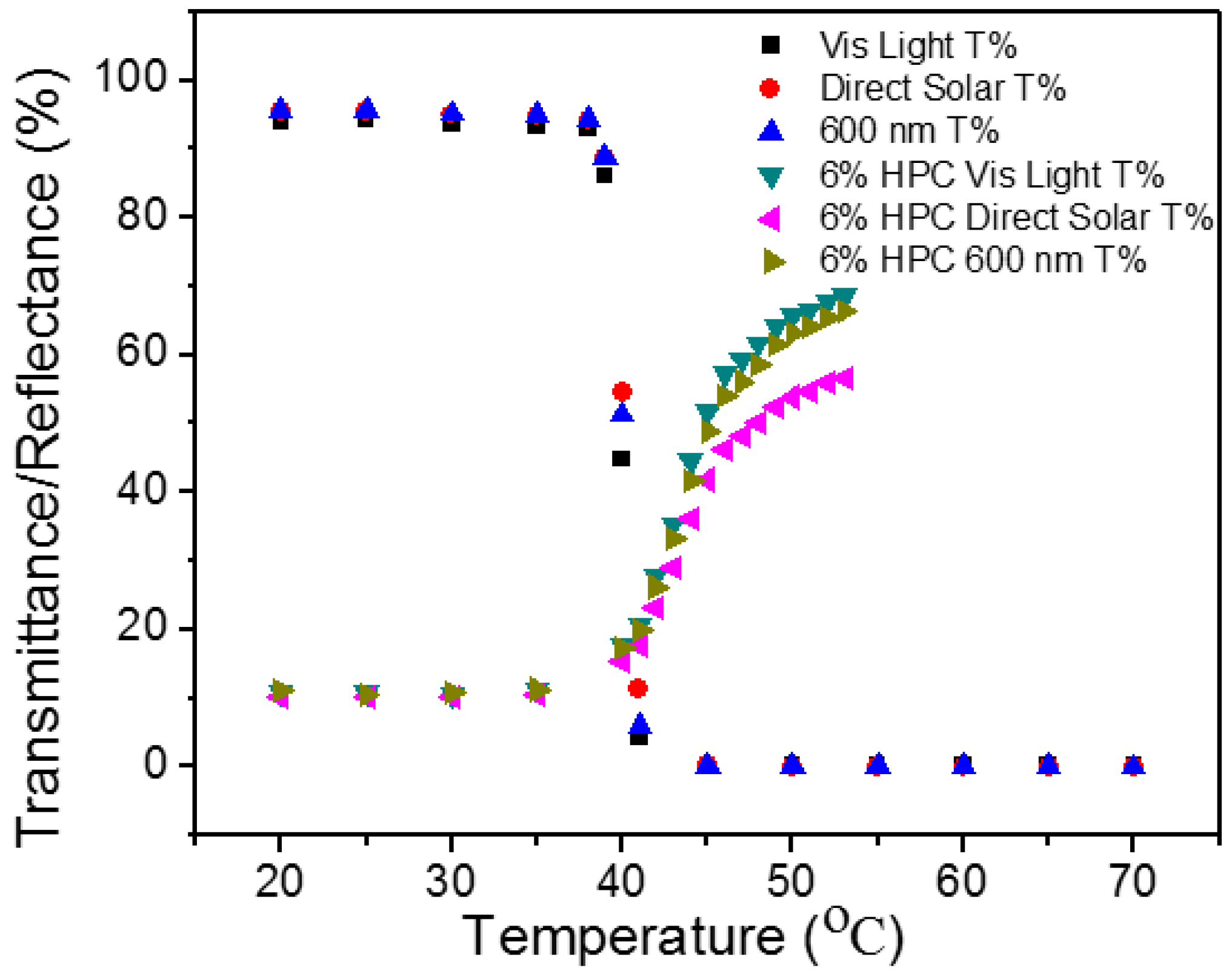

Figure 10. Measured transmittance and reflectance data for aqueous 6 wt. % HPC at 600 nm, Vis Light T% (averaged over 430 nm to 780 nm) and Direct Solar T% (averaged over 440 nm to 950 nm).
Figure 10. Measured transmittance and reflectance data for aqueous 6 wt. % HPC at 600 nm, Vis Light T% (averaged over 430 nm to 780 nm) and Direct Solar T% (averaged over 440 nm to 950 nm).
Energies 10 01889 g010

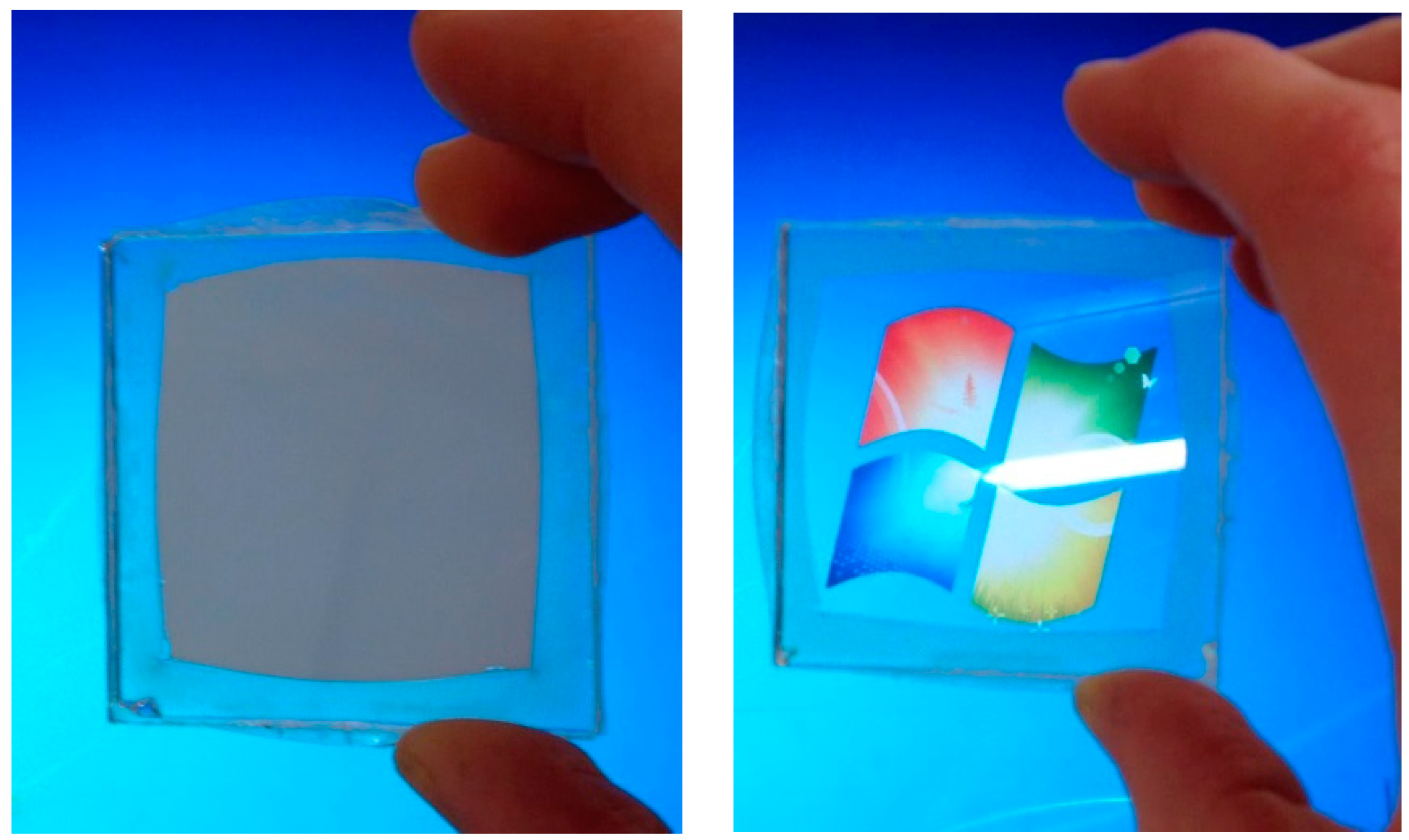

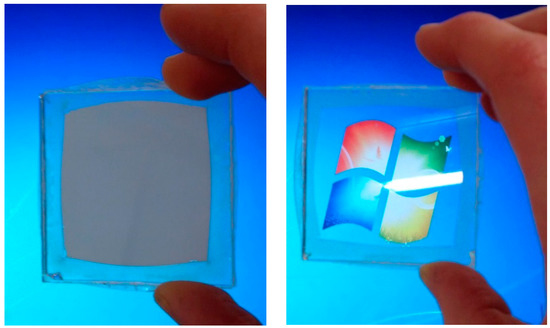

Figure 11. Photograph of 6 wt. % HPC membrane heated above the Ts (left) and below the Ts (right).
Figure 11. Photograph of 6 wt. % HPC membrane heated above the Ts (left) and below the Ts (right).
Energies 10 01889 g011

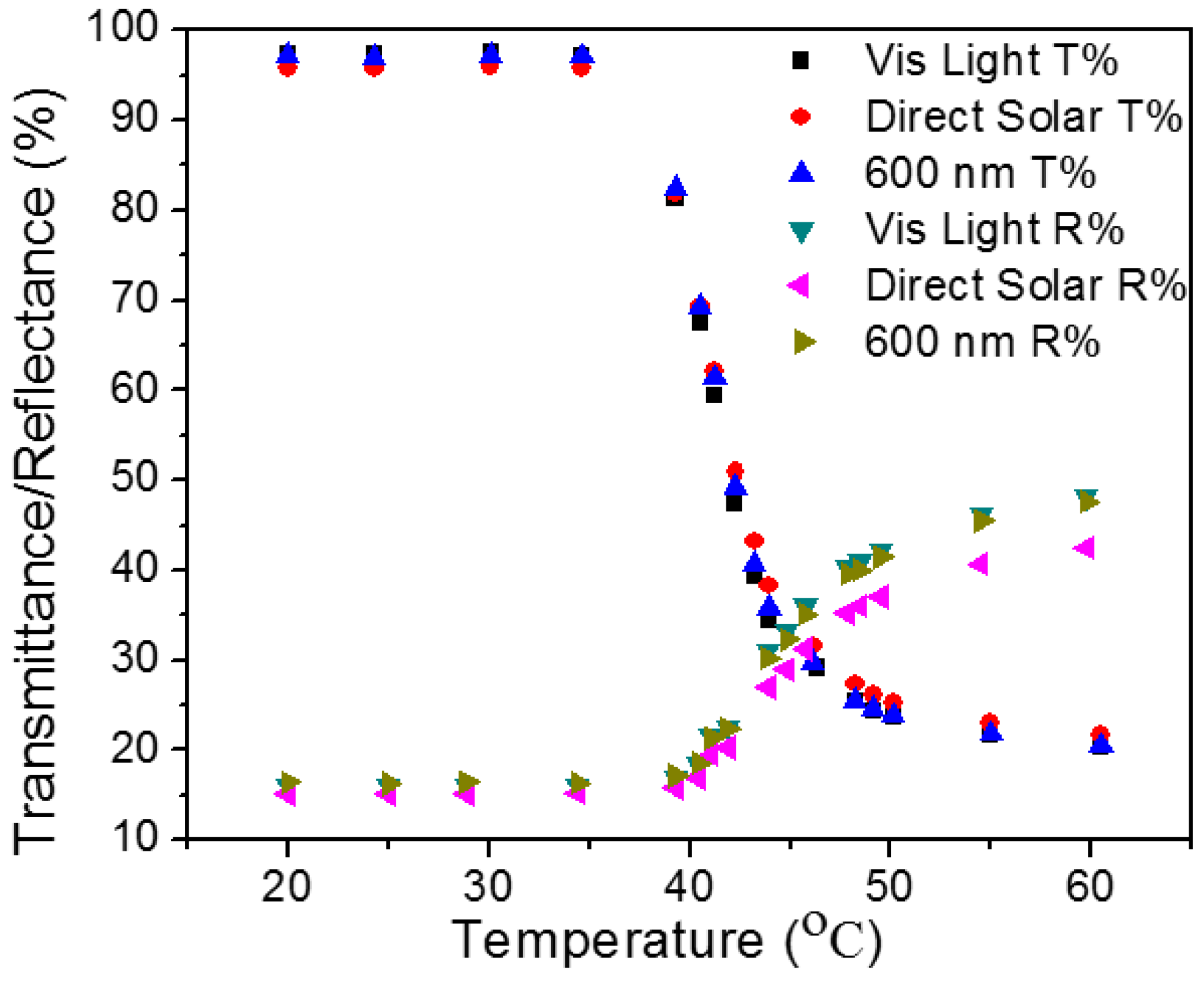

Figure 12. Measured transmittance and reflectance for 6 wt. % HPC membrane at 600 nm, Vis Light T% (averaged over 430 nm to 780 nm) and Direct Solar T% (averaged over 430 nm to 950 nm).
Figure 12. Measured transmittance and reflectance for 6 wt. % HPC membrane at 600 nm, Vis Light T% (averaged over 430 nm to 780 nm) and Direct Solar T% (averaged over 430 nm to 950 nm).
Energies 10 01889 g012
