Energies 2017, 10(4), 422; doi:10.3390/en10040422

A 3-D Coupled Magneto-Fluid-Thermal Analysis of a 220 kV Three-Phase Three-Limb Transformer under DC Bias

School of Electrical Engineering, Wuhan University, No. 8, South Road of Eastern Lake, Wuhan 430072, China
*
Author to whom correspondence should be addressed.
Academic Editor: Chunhua Liu
Received: 11 January 2017 / Revised: 28 February 2017 / Accepted: 20 March 2017 / Published: 23 March 2017
View Full-Text   |   Download PDF [3608 KB, uploaded 23 March 2017]   |

Abstract

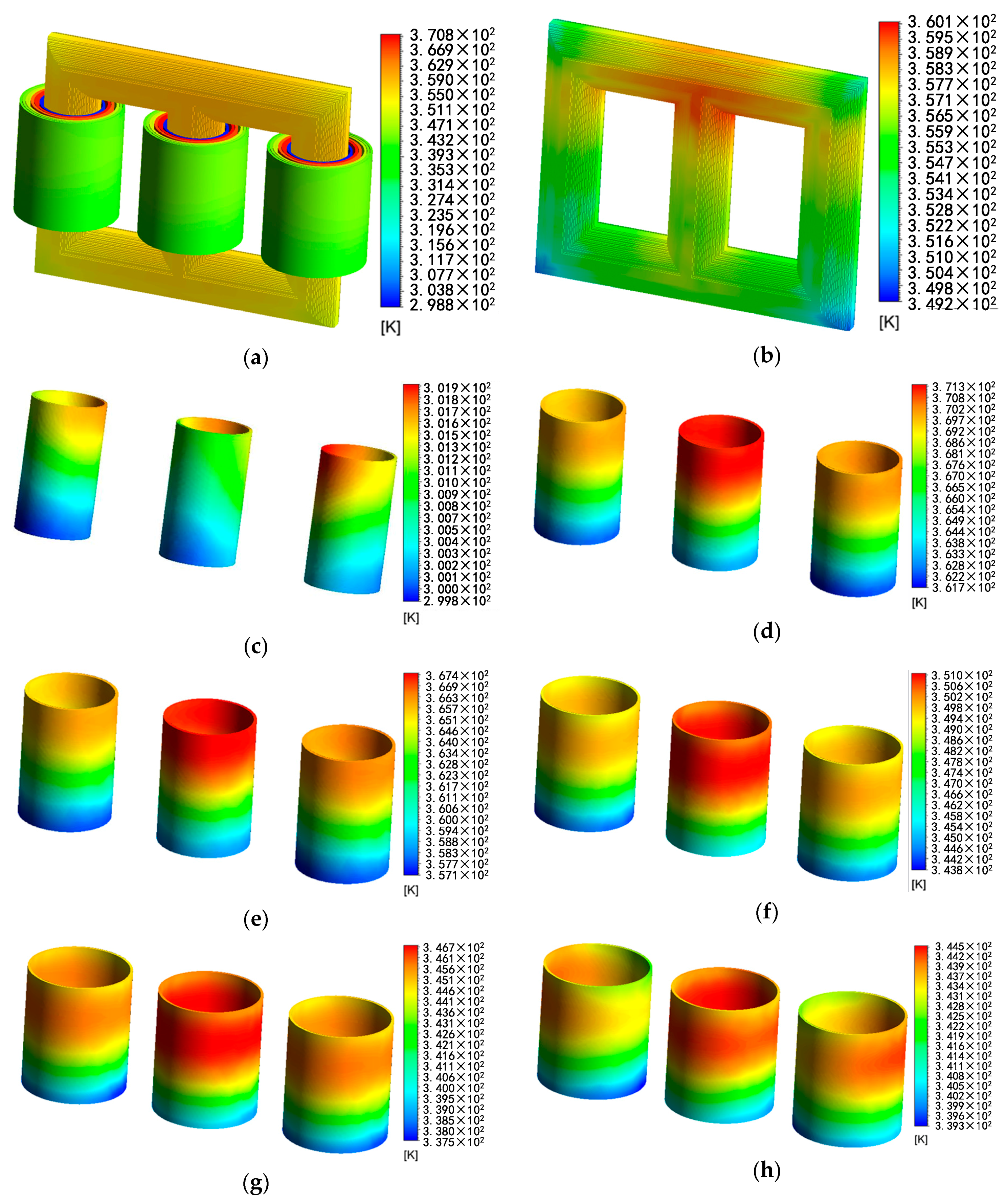

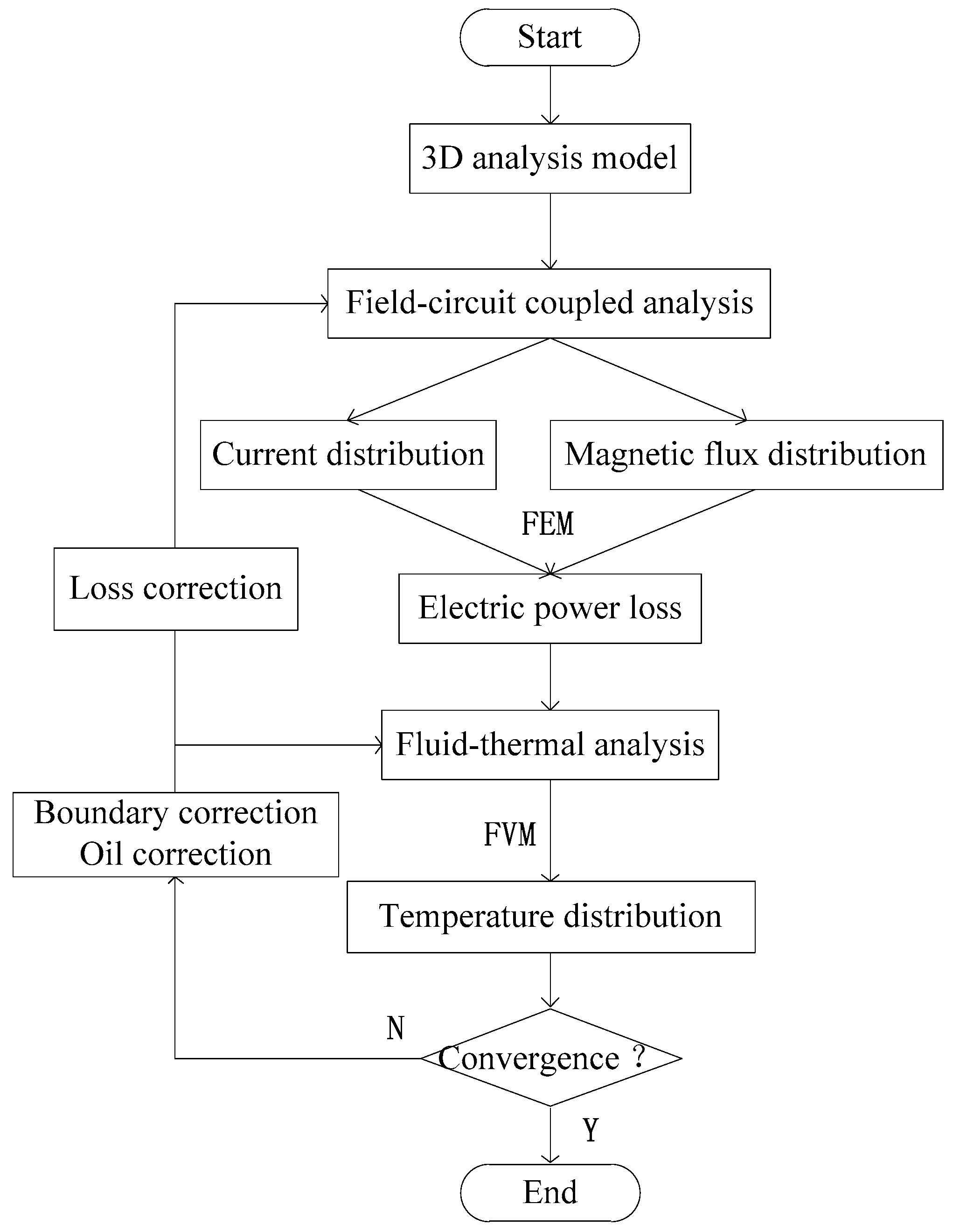

This paper takes a typical 220 kV three-phase three-limb oil-immersed transformer as an example, this paper building transient field-circuit coupled model and 3D coupled magneto -fluid-thermal model. Considering a nonlinear B–H curve, the magneto model uses the field-circuit coupled finite element method (FEM) to calculate the magnetic flux distribution of the core and the current distribution of the windings when the transformer is at a rated current and under direct current (DC) bias. Taking the electric power losses of the core and windings as a heat source, the temperature inside the transformer and the velocity of the transformer oil are analyzed by the finite volume method (FVM) in a fluid-thermal field. In order to improve the accuracy of the calculation results, the influence of temperature on the electrical resistivity of the windings and the physical parameter of the transformer oil are taken into account in the paper. Meanwhile, the convective heat transfer coefficient of the FVM model boundary is determined by its temperature. By iterative computations, the model is updated according to the thermal field calculation result until the maximum difference in hot spot temperature between the two adjacent steps is less than 0.01 K. The result calculated by the coupling method agrees well with the empirical equation result according to IEC 60076-7. View Full-Text
Keywords: field-circuit coupled analysis; magneto-fluid-thermal coupled analysis; three-phase three-limb transformer; temperature rise; DC bias field-circuit coupled analysis; magneto-fluid-thermal coupled analysis; three-phase three-limb transformer; temperature rise; DC bias
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Gong, R.; Ruan, J.; Chen, J.; Quan, Y.; Wang, J.; Jin, S. A 3-D Coupled Magneto-Fluid-Thermal Analysis of a 220 kV Three-Phase Three-Limb Transformer under DC Bias. Energies 2017, 10, 422.
