Release Mechanism of Fuel-N into NOx and N2O Precursors during Pyrolysis of Rice Straw

by
Xiaorui Liu
,
Zhongyang Luo
*,
Chunjiang Yu
,
Bitao Jin
and
Hanchao Tu
State Key Laboratory of Clean Energy Utilization, Zhejiang University, Hangzhou 310027, China
*
Author to whom correspondence should be addressed.
Energies 2018, 11(3), 520; https://doi.org/10.3390/en11030520
Submission received: 25 January 2018 / Revised: 23 February 2018 / Accepted: 24 February 2018 / Published: 28 February 2018
(This article belongs to the Special Issue Biomass Chars: Elaboration, Characterization and Applications Ⅱ)
Browse Figures
Versions Notes

Abstract

:
Rice straw, which is a typical agricultural residue in China, was pyrolyzed in a horizontal tube reactor connected with a Fourier transform infrared (FTIR) analyzer at temperatures ranging from 500 to 900 °C to research the release mechanism of fuel-N into NOx and N2O precursors. The concentrations of gaseous nitrogen components were monitored online. NH3, HCN, HNCO, as well as NO were identified components. A high dependency between the gaseous products and temperature was found. NH3 and HNCO preferred to be formed at lower temperatures and HCN tended to form at higher temperatures. It is worth noting that NO was also an important product. X-ray photoelectron spectroscopy (XPS) was performed to analyze the nitrogen species in rice straw. The result showed that amino-N (N-A) was the main form of nitrogen which accounted for 88.85%. Pyrrolic-N (N-5) was also identified and occupied the rest. Then nitrogen modeling compounds, glycine and pyrrole, were appropriately selected based on the results of XPS to well understand the nitrogen release mechanism during pyrolysis of rice straw. The formation routes of all the nitrogen gaseous components were confirmed. NH3, HNCO and NO were originated from the decomposition of amino-N. While both amino-N and pyrrolic-N produced HCN. NO was not detected during the pyrolysis of pyrrole and a little NO was found during the pyrolysis of glycine. Hence, it can be deduced that the large amount of NO formed during the pyrolysis of rice straw was due to the direct oxidization reaction of –NH and –OH, the latter is abundant in the raw material. In order to provide evidence for this deduction, cellulose was added to increase the amount of –OH and co-pyrolysis of cellulose and glycine was conducted. The effect of –OH on the formation of NO was confirmed. Then, the release mechanism of fuel-N into NOx and N2O precursors during rice straw pyrolysis was concluded based on the experimental results.

1. Introduction

Biomass is considered as one of the most promising alternative energy because of its renewability and carbon-neutrality [1,2,3,4,5,6,7,8]. About 300 million tons of straw wastes, as well as the same amount of forestry wastes, are generated in China [9]. Direct combustion power generation is the major technology for large scale utilization of biomass [10]. Rice straw, which is abundant in southern China, dominates the amount of straw wastes, and is widely used as a fuel for biomass power plants. NOx and N2O, which can lead to environmental pollution [11], are the main gaseous pollutants during biomass combustion although the nitrogen content in most biomass is lower than that of coal. It is well known that pyrolysis is the first step of combustion, during which, part of the nitrogen in biomass is converted into NOx and N2O precursors (that is, NH3, HCN, HNCO, et al.). These precursors will produce NOx and N2O via subsequent combustion. It was reported that about 80% of the nitrogen in biomass is released into gaseous precursors during pyrolysis at temperatures above 850–900 K [12]. It means that most of NOx and N2O originate from the combustion of volatile-N. Hence, it is necessary to understand the release mechanism of nitrogen during pyrolysis well, so that the emission of NOx can be reduced by appropriate in-furnace low-nitrogen combustion measures.
Researches have been conducted to investigate the nitrogen release during biomass pyrolysis. It was reported that the gaseous components generally contain NH3, HCN, HNCO, and NO [13,14,15]. Two approaches, chemical method and thermogravimetry infrared spectrum (TG-FTIR) method, were frequently used to research the conversion of fuel-N into gaseous nitrogen components.
Chemical method was carried out by many researches [13,14,16,17,18,19,20,21,22]. In those studies, NH3 and HCN were absorbed by acid and alkaline solutions to form NH4+ and CN−, respectively. The total yields of NH3 and HCN could be confirmed based on the ion concentrations of NH4+ and CN− in the solutions. However, the yield of NH3 was actually the sum of NH3 and HNCO. HNCO, the precursor of N2O [23], could not be investigated due to the reaction HNCO + H2O→NH3 + CO2 [10,15,16,17]. The yield of NO was also not measured. Additionally, only the yields of NH3 and HCN could be measured by chemical method, rather than the dynamic variation of concentrations for the precursors.
The nitrogen release was also studied by TG-FTIR [15,24,25,26,27], during which, the temperature of the sample was heated from ambient temperature to a higher temperature at a certain heating rate. However, the temperature of the sample was instantly heated up in an industrial combustor. For this reason, the results obtained from those researches could not accurately represent the nitrogen conversion in industrial combustors.
Rice straw is a typical agricultural residue and contains a higher nitrogen content, therefore, it was employed to investigate the release of fuel-N into NOx and N2O precursors during pyrolysis. The conversion of fuel-N into gaseous components during rice straw pyrolysis was researched in a few previous studies [17,28]. Yuan et al. [14] investigated the fuel-N conversion characteristic during rapid pyrolysis of rice straw at temperatures ranging from 600 to 1200 °C using a high frequency furnace. The yields of NH3 and HCN were measured by chemical method. The results showed that HCN was the main nitrogen product while little NH3 was found. Ren et al. [28] researched the formation of NOx precursors during rice straw pyrolysis using TG-FTIR. They found that HCN and HNCO were the main nitrogen products. However, the results obtained from previous studies were based on TG-FTIR or chemical method, the shortcomings of which were discussed above.
A review of literatures shows that researches on nitrogen release during the pyrolysis of rice straw are rare and the release mechanism is still not well understood. Therefore, pyrolysis experiments of rice straw were conducted in a horizontal tube furnace in this study, and the concentrations of NH3, HCN, HNCO, and NO were accurately and dynamically monitored by a FTIR gas analyzer (Gasmet DX4000, Gasmet Technologies Inc., Helsinki, Finland) during the whole reaction process at temperatures ranging from 500 to 900 °C. Compared with previous studies, in which chemical method was employed, the concentrations of gaseous nitrogen products were on-line monitored, not only the yields. HNCO was also measured in current work. Besides, different from TG, the temperature of the sample could be heated up to the set value instantly so that the pyrolysis process could be more similar to that of an industrial combustor.
It was reported that the nitrogen conversion mechanism of biomass could be explained by nitrogen modeling compounds to some extent [23,29,30,31,32,33], while X-ray photoelectron spectroscopy (XPS) was reliable to investigate the nitrogen occurrence form in biomass [12,34,35,36]. Therefore, in order to further understand the fuel-N release mechanism during pyrolysis, XPS was performed to analyze the occurrence form in rice straw, and the appropriate nitrogen modeling compounds were selected according to the XPS result.

2. Materials and Methods

2.1. Materials

Rice straw, a widely available biomass raw material in China, was employed. The samples were first dried for 2 h at 105 °C and then pulverized. The particle size was between 0.15 and 0.25 mm. Proximate analysis of the sample was performed using an Automatic Industrial Analyzer (5E-MAG6700, Kaiyuan Instruments Co., Changsha, China). Ultimate analysis was conducted with an elemental analyzer (LECO-CHNS932, LECO Co., St. Joseph, MI, USA). The results are shown in Table 1.
The occurrence form of nitrogen in rice straw was characterized using XPS (Escalab 250Xi, Thermo Fisher Scientific, Waltham, MA, USA), equipped with Al Kα radiation source. The constant analyzer energy (CAE) mode with 30 eV pass energy was used for survey spectra and 20 eV was used for high resolution spectra. To calibrate the binding energy, the C1s peak was set to 284.8 eV and the Shirley background was subtracted from the spectra. The N1s peaks were fitted using Gaussian (80%)−Lorentzian (20%) and established with XPSpeak. According to the result of XPS, as shown in Figure 1, the main peak at 399.9 eV was assigned to amino-A and the other peak at 400.5 eV was assigned to pyrrolic-N. Thus, the nitrogen in rice straw was composed of 11.15% pyrrolic-N (N-5) and 88.85% amino-N (N-A). Therefore, Pyrrole and glycine, commercial reagents with high purity of 98% or more, were chosen as the modeling compounds for mechanism research. Cellulose, with a purity of 99%, was also purchased as an additive to research the effect of –OH on NO formation. All of the modeling compounds were purchased from Sigma-Aldrich (St. Louis, MO, USA).

2.2. Experimental Methods

Experiments were conducted in a horizontal tube furnace reactor system, as shown in Figure 2. The furnace was 800 mm long and the inner diameter was 60 mm. The quartz tube was 1000 mm long and the inner diameter was 36 mm. The temperature of the reaction zone was controlled by a thermocouple connected to a temperature controller. The monitoring point of the thermocouple was set inside the quartz tube where the solid materials were placed to ensure an accurate temperature control. During experiments, 20 mg samples (rice straw or modeling compounds) were employed and were placed in a quartz boat (with length of 100 mm, width of 25 mm, and thickness of 1 mm). The reactor was heated by an electric furnace up to the given temperature ranging from 500 to 900 °C and maintained for 15 min. Then, the quartz boat that contained the sample was quickly pushed into the reaction zone. The carrier gas was argon (Ar) with a high purity of 99.999%. The gas flow rate was controlled at 4 L/min by mass flow meters. The volatiles released during pyrolysis were removed out from the reactor immediately by the carrier gas to keep a short residence time (less than 1.5 s) and to avoid the secondary reactions. Gasmet DX4000 (Gasmet DX 4000, Gasmet Technologies Inc., Helsinki, Finland), a kind of Fourier transform infrared gas analyzer, was employed to measure the concentrations of nitrogen containing components (NH3, HCN, HNCO, and NO) on line. A sampling line was connected between the reactor and the gas analyzer, the temperature of which was maintained at 180 °C to avoid secondary pyrolysis and components condensing. The measurement time interval of the analyzer was set to be 3 s. Each test was repeated for three times to make sure that the relative standard deviations were less than 5%.
The convert ratios of fuel-N to gaseous nitrogen containing products (NH3, HCN, HNCO, and NO) were calculated by Equation (1):
R gas - N = ∫ c d t × Q 22.4 × 10 6 × 60 × M N m × N pc × 100 %
where Rgas-N is the convert ratio of fuel-N to gaseous nitrogen components (%), c is the concentration of gaseous species (mg/Nm3), t is the measuring time (s), Q is the flow rate of flue gas (L/min), MN is the molar mass of nitrogen (g/mol), and m is the weight of initial rice straw sample (g).

3. Results and Discussion

3.1. Nitrogen Release during Pyrolysis of Rice Straw

NH3, HCN, HNCO, and NO were all found during the pyrolysis experiments of rice straw. Their concentrations were measured by a FTIR gas analyzer and recorded online. Figure 3 shows the release behavior of these gaseous products at temperatures ranging from 500 to 900 °C.
As shown in Figure 3, the peaks of the concentration curves of all the species appeared earlier as the temperature increased. This means that the chemical bond was broken more easily and that the reaction was more drastic at higher temperatures. NH3 was detected at lower temperatures. Its concentration decreased with increasing temperature and totally disappeared at temperatures higher than 700 °C. HNCO also decreased with rising temperature, and was disappeared at 800 °C. On the contrary, HCN was first detected at 600 °C and the concentration increased with an increasing temperature. It should be noted that NO was also a very important product, the concentration of which firstly increased with temperature and reached its maximum at 800 °C and then decreased.
The convert ratios of fuel-N to gaseous products are shown in Figure 4. The convert ratios of fuel-N to NH3 and HNCO decreased, while that of HCN increased with the increasing temperature. Previous researchers also reported that HCN is preferentially formed at a higher temperature or at a higher heating rate, and that NH3 is formed at a lower temperature or a lower heating rate [4,17,23,24]. Nitrogen release during rice straw pyrolysis was also studied by other researchers [17,28]. They also reported that HCN was the main product and little NH3 was found. These results are in accordance with the result of the current study. The convert ratio of fuel-N to NO, a very important product, firstly increased and reached its maximum yield at 800 °C, and then decreased.
It is well known that the nitrogen species in biomass is mostly composed of amino acids [2,10,23,28]. The primary decomposition step of amino acid during pyrolysis contains decarboxylation, dehydration and deamination [32,33,37]. In present experiments, NH3 was produced at temperatures lower than 700 °C, while at higher temperatures, NH3 thoroughly disappeared. It was reported that amino acid could be converted into heterocyclic nitrogen compounds during thermal treatment [2], which would then lead to the decrease of amino acid. Due to this, the convert ratio of fuel-N to NH3 decreased with the increase of temperature.
Cyclic amide, which was produced by dehydration, could be decomposed into HNCO and HCN further [15,23,32]. The convert ratio of fuel-N to HNCO decreased with the increase of temperature, while the reverse of HCN was observed. This corresponded with a previous study [38]. Therefore, the decomposition of cyclic amide has a high selectivity [15,23]. At lower temperatures, the convert ratio of fuel-N to HNCO was larger than that of HCN, while HCN was the main product at the higher temperatures. Hansson [38] pointed out that the activation energy for the formation of HNCO was lower than that of HCN during the decomposition of all cyclic amides. Besides, HNCO could be decomposed into HCN at high temperatures via the following reaction [24,32]:
HNCO→HCN + CO,
which also led to the decrease of HNCO.
The peaks of NO concentration curves appeared simultaneously with that of other products at the same temperature, even a little earlier at lower temperatures. Hence, NO was definitely attributed to the direct oxidization reaction of N-sites with –OH, which is abundant in rice straw. The convert ratio of fuel-N to NO firstly increased with the increase of temperature and decreased at 900 °C. It was probably caused by the reduction reaction of NO and CO, which was catalyzed by inorganic impurities and even the chars at high temperatures [12,39]. CO was largely generated during pyrolysis and the reduction reaction easily occurred at higher temperatures. The concentration of CO was also tested by the gas analyzer in the experiments, as shown in Figure 5, which was powerful evidence for this explanation.

3.2. Nitrogen Release during Pyrolysis of Nitrogen Modeling Compounds

Nitrogen in rice straw consisted of N-5 and N-A, as shown in Figure 1. It was reported that glycine is one of the major amino acids in agricultural straw [40]. Therefore, glycine and pyrrole were employed as modeling compounds to provide evidence for the release mechanism of fuel-N into gaseous components proposed above.

3.2.1. Pyrolysis of Glycine

Figure 6 shows the nitrogen release behavior during glycine pyrolysis at different temperatures. The concentrations of gaseous nitrogen containing products were much higher than that of rice straw. This was attributed to the high purity of glycine as well as its higher nitrogen content of 18.7%. The peaks of the concentration curves also appeared much earlier with the increasing temperature. The concentrations of HCN and NH3 increased with the rising temperature, while the concentrations of other products firstly increased, and reached their maximum at 800 °C, then decreased.
The convert ratios of fuel-N into gaseous nitrogen containing products are shown in Figure 7. Different from the pyrolysis of rice straw, the convert ratios of fuel-N to NH3 and HNCO firstly increased, and reached their maximum at 800 °C, then decreased. In particular, the proportion of NO was much smaller than that of rice straw.
It was reported that during the pyrolysis of glycine, the main primary decomposition reactions are deamination and dehydration [33]. NH3 and HNCO were formed via Equations (3) and (4). Additionally, the decomposition reaction of primary amines, as well as the bimolecular reactions between imine and amine, could also produce NH3 [41].
Energies 11 00520 i001
Energies 11 00520 i002
HNCO was produced by the decomposition of cyclic amino, which was formed by the dehydration reaction, as shown in Equation (5). Meanwhile, the cracking of cyclic amino also produced HCN (see Equation (6)). HNCO could be further decomposed into HCN and CO at higher temperatures, and then the reduction of HNCO could be explained.
Energies 11 00520 i003
Energies 11 00520 i004
The peaks of NO concentration curves appeared a little earlier than that of other products at the same temperature. Hence, it is undoubted that NO was formed by the direct oxidization reaction of –NH with –OH. The less convert ratio of NO might be caused by the lack of –OH in glycine when compared to that rice straw.

3.2.2. Pyrolysis of Pyrrole

HCN was found to be the only product and was detected at temperatures higher than 700 °C during the pyrolysis of pyrrole, as shown in Figure 8. The concentration of HCN at higher temperatures was much higher than that of rice straw. It was caused by the high purity of pyrrole and the high nitrogen content of 20.90%.
As it was reported in previous researches in regard to pyrrole pyrolysis [41,42,43], C–N was broken to generate an intermediate that decomposed into HCN and ĊH2–CH=ĊH subsequently, as shown in Equation (7). The formation of HCN tended to occur at temperatures higher than 700 °C [17,44]. This highly corresponded with the current study.
Energies 11 00520 i005

3.2.3. Effect of –OH on the Formation of NO

NO was a major product during rice straw pyrolysis, however, it was not detected during the pyrolysis of pyrrole and little was formed during the pyrolysis of glycine. Therefore, it can be deduced that the large amount of NO formed during pyrolysis of rice straw was due the direct oxidization reaction of –NH and –OH, which is abundant in rice straw.
Cellulose is the major component in lignocellulosic biomass, which accounts for 32–47% [45,46]. The percentage of cellulose in rice straw is 35% [46]. In order to prove the deduction of NO formation, cellulose was mixed into glycine to increase the amount of –OH and co-pyrolysis of glycine and cellulose was conducted. The mass ratio of cellulose to glycine was 1:4. The convert ratios of fuel-N to NO are shown in Figure 9. It is obvious that the convert ratio of NO increased with the addition of –OH. Furthermore, the ratio of –OH to amino acid in rice straw is much higher than in the mixed samples. Therefore, the larger amount of NO that is produced during pyrolysis of rice straw than model amino acid could be explained.

3.3. Mechanism of Nitrogen Release during Rice Straw Pyrolysis

As discussed above, NH3 and HNCO were derived from the pyrolysis of amino acid. HCN was produced by pyrolysis of both amino acid and pyrrole. NO was an important product during rice straw pyrolysis, while a small amount of NO was found during amino acid pyrolysis, and it was not detected during pyrrole pyrolysis. Therefore, the formation of NO was attributed to the oxidization reaction of –NH and –OH, which is abundant in rice straw. This was proved by the co-pyrolysis of glycine and cellulose.
The nitrogen in rice straw was more complex than the model compounds of glycine and pyrrole. The transformation of nitrogen was reported to be affected by mineral matters [28,29,47] and the three major components of raw material, that is, cellulose, hemicellulose, and lignin [10,30,40] during pyrolysis of biomass. However, the research on modeling compounds could explain the nitrogen release route during pyrolysis due to the definite nitrogen occurrence forms in rice straw analyzed by XPS. Thus, the release mechanism of fuel-N into NOx and N2O precursors during rice straw pyrolysis was concluded in Figure 10.

4. Conclusions

Pyrolysis of rice straw was conducted to research the release mechanism of fuel-N into NOx and N2O precursors. The concentration variations of gaseous nitrogen components, i.e., NH3, HCN, HNCO, and NO were dynamically monitored. The formation of gaseous nitrogen components was found to be highly dependent on temperature. NH3 and HNCO preferred to be formed at lower temperatures and HCN tended to form at higher temperatures. It is worth noting that NO was also an important product.
The nitrogen occurrence form in rice straw was analyzed by XPS. Amino-N and pyrrolic-N were identified. Therefore, glycine, as well as pyrrole, were chosen as the nitrogen modeling compounds based on the results of XPS to understand the release mechanism of nitrogen during rice straw pyrolysis well. The formation routes of all nitrogen gaseous components were confirmed. NH3, HNCO, and NO originated from the decomposition of amino acid. HCN was formed by the decomposition of both amino acid and pyrrole. NO was not detected during pyrolysis of pyrrole, and a little NO was found during amino acid pyrolysis. Therefore, a considerable proportion of NO formed during the pyrolysis of rice straw was due to the direct oxidization reaction of –NH and –OH in the raw material. To provide evidence for this proposal, cellulose was selected as an additive to increase the amount of –OH and co-pyrolysis of glycine and cellulose was conducted. Then, the release mechanism of fuel-N into NOx and N2O precursors during rice straw pyrolysis was proposed based on the experimental results. In future research, various biomass materials with different nitrogen occurrence forms would be employed to investigate the effect of fuel type on nitrogen release.

Acknowledgments

This work is supported by the National Natural Science Foundation of China (NO. 51336008).

Author Contributions

Zhongyang Luo and Chunjiang Yu conceived and designed the experiments; Xiaorui Liu performed the experiments; Xiaorui Liu analyzed the data; Hanchao Tu and Bitao Jin contributed reagents/materials/analysis tools; Xiaorui Liu wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tripathi, M.; Sahu, J.N.; Ganesan, P. Effect of process parameters on production of biochar from biomass waste through pyrolysis. Renew. Sustain. Energy Rev. 2016, 55, 467–481. [Google Scholar] [CrossRef]
  2. Chen, H.; Si, Y.; Chen, Y.; Yang, H.; Chen, D.; Chen, W. NOx precursors from biomass pyrolysis: Distribution of amino acids in biomass and Tar-N during devolatilization using model compounds. Fuel 2017, 187, 367–375. [Google Scholar] [CrossRef]
  3. Shan, F.; Lin, Q.; Zhou, K.; Wu, Y.; Fu, W.; Zhang, P.; Song, L.; Shao, C.; Yi, B. An experimental study of ignition and combustion of single biomass pellets in air and oxy-fuel. Fuel 2017, 188, 277–284. [Google Scholar] [CrossRef]
  4. Wang, S.; Hu, Y.; Wang, Q.; Xu, S.; Lin, X.; Ji, H.; Zhang, Z. TG-FTIR-MS analysis of the pyrolysis of blended seaweed and rice husk. J. Therm. Anal. Calorim. 2016, 126, 1689–1702. [Google Scholar] [CrossRef]
  5. Houshfar, E.; Løvås, T.; Skreiberg, Ø. Experimental Investigation on NOx Reduction by Primary Measures in Biomass Combustion: Straw, Peat, Sewage Sludge, Forest Residues and Wood Pellets. Energies 2012, 5, 270–290. [Google Scholar] [CrossRef] [Green Version]
  6. Molina-Moreno, V.; Leyva-Díaz, J.; Sánchez-Molina, J. Pellet as a Technological Nutrient within the Circular Economy Model: Comparative Analysis of Combustion Efficiency and CO and NOx Emissions for Pellets from Olive and Almond Trees. Energies 2016, 9, 777. [Google Scholar] [CrossRef]
  7. Yang, X.; Wang, H.; Strong, P.J.; Xu, S.; Liu, S.; Lu, K.; Sheng, K.; Guo, J.; Che, L.; He, L.; et al. Thermal Properties of Biochars Derived from Waste Biomass Generated by Agricultural and Forestry Sectors. Energies 2017, 10, 469. [Google Scholar] [CrossRef]
  8. Gao, P.; Xue, L.; Lu, Q.; Dong, C. Effects of Alkali and Alkaline Earth Metals on N-Containing Species Release during Rice Straw Pyrolysis. Energies 2015, 8, 13021–13032. [Google Scholar] [CrossRef]
  9. Ren, X.; Sun, R.; Meng, X.; Vorobiev, N.; Schiemann, M.; Levendis, Y.A. Carbon, sulfur and nitrogen oxide emissions from combustion of pulverized raw and torrefied biomass. Fuel 2017, 188, 310–323. [Google Scholar] [CrossRef]
  10. Ren, Q.; Zhao, C. Evolution of fuel-N in gas phase during biomass pyrolysis. Renew. Sustain. Energy Rev. 2015, 50, 408–418. [Google Scholar] [CrossRef]
  11. Ghouma, I.; Jeguirim, M.; Sager, U.; Limousy, L.; Bennici, S.; Däuber, E.; Asbach, C.; Ligotski, R.; Schmidt, F.; Ouederni, A. The Potential of Activated Carbon Made of Agro-Industrial Residues in NOx Immissions Abatement. Energies 2017, 10, 1508. [Google Scholar] [CrossRef]
  12. Glarborg, P.; Jensen, A.D.; Johnsson, J.E. Fuel nitrogen conversion in solid fuel fired systems. Prog. Energy Combust. Sci. 2003, 29, 89–113. [Google Scholar] [CrossRef]
  13. Chen, H.; Wang, Y.; Xu, G.; Yoshikawa, K. Fuel-N Evolution during the Pyrolysis of Industrial Biomass Wastes with High Nitrogen Content. Energies 2012, 5, 5418–5438. [Google Scholar] [CrossRef]
  14. Yuan, S.; Zhou, Z.J.; Li, J.; Chen, X.L.; Wang, F.C. HCN and NH3 (NOx precursors) released under rapid pyrolysis of biomass/coal blends. J. Anal. Appl. Pyrolysis 2011, 92, 463–469. [Google Scholar] [CrossRef]
  15. Ren, Q.; Zhao, C.; Wu, X.; Liang, C.; Chen, X.; Shen, J.; Wang, Z. Formation of NOx precursors during wheat straw pyrolysis and gasification with O2 and CO2. Fuel 2010, 89, 1064–1069. [Google Scholar] [CrossRef]
  16. Yuan, S.; Chen, X.L.; Li, W.F.; Liu, H.F.; Wang, F.C. Nitrogen conversion under rapid pyrolysis of two types of aquatic biomass and corresponding blends with coal. Bioresour. Technol. 2011, 102, 10124–10130. [Google Scholar] [CrossRef] [PubMed]
  17. Yuan, S.; Zhou, Z.J.; Li, J.; Chen, X.L.; Wang, F.C. HCN and NH3 Released from Biomass and Soybean Cake under Rapid Pyrolysis. Energy Fuels 2010, 24, 6166–6171. [Google Scholar] [CrossRef]
  18. Tian, F.J.; Yu, J.; McKenzie, L.J.; Hayashi, J.I.; Li, C.Z. Conversion of Fuel-N into HCN and NH3 during the Pyrolysis and Gasification in Steam: A Comparative Study of Coal and Biomass. Energy Fuels 2007, 21, 517–521. [Google Scholar] [CrossRef]
  19. Tian, F.J.; Yu, J.L.; Mckenzie, L.J.; Hayashi, J.I.; Chiba, T.; Li, C.Z. Formation of NO precursors during the pyrolysis of coal and biomass. Part VII. Pyrolysis and gasification of cane trash with steam. Fuel 2005, 84, 371–376. [Google Scholar] [CrossRef]
  20. Chang, L.; Xie, Z.; Xie, K.C.; Pratt, K.C.; Hayashi, J.I.; Chiba, T.; Li, C.Z. Formation of NOx precursors during the pyrolysis of coal and biomass. Part VI. Effects of gas atmosphere on the formation of NH3 and HCN. Fuel 2003, 82, 1159–1166. [Google Scholar] [CrossRef]
  21. Tan, L.L.; Li, C. Formation of NOx and SOx precursors during the pyrolysis of coal and biomass. Part I. Effects of reactor configuration on the determined yields of HCN and NH3 during pyrolysis. Fuel 2000, 79, 1883–1889. [Google Scholar] [CrossRef]
  22. Zhan, H.; Yin, X.; Huang, Y.; Yuan, H.; Xie, J.; Wu, C.; Shen, Z.; Cao, J. Comparisons of Formation Characteristics of NOx Precursors during Pyrolysis of Lignocellulosic Industrial Biomass Wastes. Energy Fuels 2017, 31, 9557–9567. [Google Scholar] [CrossRef]
  23. Hansson, K.M.; Samuelsson, J.; Tullin, C.; Åmand, L.E. Formation of HNCO, HCN, and NH3 from the pyrolysis of bark and nitrogen-containing model compounds. Combust. Flame 2004, 137, 265–277. [Google Scholar] [CrossRef]
  24. Zhu, X.; Yang, S.; Wang, L.; Liu, Y.; Qian, F.; Yao, W.; Zhang, S.; Chen, J. Tracking the conversion of nitrogen during pyrolysis of antibiotic mycelial fermentation residues using XPS and TG-FTIR-MS technology. Environ. Pollut. 2016, 211, 20–27. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, X.; Si, J.; Tan, H.; Ma, L.; Pourkashanian, M.; Xu, T. Nitrogen, Sulfur, and Chlorine Transformations during the Pyrolysis of Straw. Energy Fuels 2010, 24, 5215–5221. [Google Scholar] [CrossRef]
  26. De Jong, W.; Di Nola, G.; Venneker, B.C.; Spliethoff, H.; Wójtowicz, M.A. TG-FTIR pyrolysis of coal and secondary biomass fuels: Determination of pyrolysis kinetic parameters for main species and NOx precursors. Fuel 2007, 86, 2367–2376. [Google Scholar] [CrossRef]
  27. Becidan, M.; Skreiberg, Ø.; Hustad, J.E. NOx and N2O Precursors (NH3 and HCN) in Pyrolysis of Biomass Residues. Energy Fuels 2007, 21, 1173–1180. [Google Scholar] [CrossRef]
  28. Ren, Q.; Zhao, C. Effect of mineral matter on the formation of NOx precursors during biomass pyrolysis. J. Anal. Appl. Pyrolysis 2009, 85, 447–453. [Google Scholar] [CrossRef]
  29. Ren, Q.; Zhao, C. NOx and N2O Precursors from Biomass Pyrolysis: Role of Cellulose, Hemicellulose and Lignin. Environ. Sci. Technol. 2013, 47, 8955–8961. [Google Scholar] [CrossRef] [PubMed]
  30. Ren, Q.; Zhao, C. NOx and N2O precursors (NH3 and HCN) from biomass pyrolysis: Interaction between amino acid and mineral matter. Appl. Energy 2013, 112, 170–174. [Google Scholar] [CrossRef]
  31. Ren, Q.; Zhao, C. NOx and N2O Precursors from Biomass Pyrolysis: Nitrogen Transformation from Amino Acid. Environ. Sci. Technol. 2012, 46, 4236–4240. [Google Scholar] [CrossRef] [PubMed]
  32. Jie, L.; Yuwen, L.; Jingyan, S.; Zhiyong, W.; Ling, H.; Xi, Y.; Cunxin, W. The investigation of thermal decomposition pathways of phenylalanine and tyrosine by TG–FTIR. Thermochim. Acta 2008, 467, 20–29. [Google Scholar] [CrossRef]
  33. Li, J.; Wang, Z.; Yang, X.; Hu, L.; Liu, Y.; Wang, C. Evaluate the pyrolysis pathway of glycine and glycylglycine by TG–FTIR. J. Anal. Appl. Pyrolysis 2007, 80, 247–253. [Google Scholar] [CrossRef]
  34. Titantah, J.T.; Lamoen, D. Carbon and nitrogen 1s energy levels in amorphous carbon nitride systems: XPS interpretation using first-principles. Diam. Relat. Mater. 2007, 16, 581–588. [Google Scholar] [CrossRef]
  35. Schmiers, H.; Friebel, J.; Streubel, P.; Hesse, R.; Köpsel, R. Change of chemical bonding of nitrogen of polymeric N-heterocyclic compounds during pyrolysis. Carbon 1999, 37, 1965–1978. [Google Scholar] [CrossRef]
  36. Jansen, R.J.J.; van Bekkum, H. XPS of nitrogen-containing functional groups on activated carbon. Carbon 1995, 33, 1021–1027. [Google Scholar] [CrossRef]
  37. Deng, L.; Jin, X.; Zhang, Y.; Che, D. Release of nitrogen oxides during combustion of model coals. Fuel 2016, 175, 217–224. [Google Scholar] [CrossRef]
  38. Hansson, K.; Samuelsson, J.; Åmand, L.; Tullin, C. The temperature’s influence on the selectivity between HNCO and HCN from pyrolysis of 2,5-diketopiperazine and 2-pyridone. Fuel 2003, 82, 2163–2172. [Google Scholar] [CrossRef]
  39. Johnsson, J.E. Formation and reduction of nitrogen oxides in fluidized-bed combustion. Fuel 1994, 73, 1398–1415. [Google Scholar] [CrossRef]
  40. Ren, Q.; Zhao, C.; Chen, X.; Duan, L.; Li, Y.; Ma, C. NOx and N2O precursors (NH3 and HCN) from biomass pyrolysis: Co-pyrolysis of amino acids and cellulose, hemicellulose and lignin. Proc. Combust. Inst. 2011, 33, 1715–1722. [Google Scholar] [CrossRef]
  41. Lifshitz, A.; Tamburu, C.; Suslensky, A. Isomerization and Decomposition of Pyrrole at Elevated Temperatures: Studies with a Single-Pulse Shock Tube. J. Chem. Phys. 1989, 93, 5802–5808. [Google Scholar] [CrossRef]
  42. Zhai, L.; Zhou, X.; Liu, R. A Theoretical Study of Pyrolysis Mechanisms of Pyrrole. J. Phys. Chem. A 1999, 103, 3917–3922. [Google Scholar] [CrossRef]
  43. Mackie, J.C.; Colket, M.B.; Nelson, P.F.; Esler, M. Shock Tube Pyrolysis of Pyrrole and Kinetic Modeling. Int. J. Chem. Kinet. 1991, 23, 733–760. [Google Scholar] [CrossRef]
  44. Li, C.; Tan, L.L. Formation of NOx and SOx precursors during the pyrolysis of coal and biomass. Part III. Further discussion on the formation of HCN and NH3 during pyrolysis. Fuel 2000, 79, 1899–1906. [Google Scholar] [CrossRef]
  45. Binod, P.; Sindhu, R.; Singhania, R.R.; Vikram, S.; Devi, L.; Nagalakshmi, S.; Kurien, N.; Sukumaran, R.K.; Pandey, A. Bioethanol production from rice straw: An overview. Bioresour. Technol. 2010, 101, 4767–4774. [Google Scholar] [CrossRef] [PubMed]
  46. Saha, B.C. Hemicellulose bioconversion. J. Ind. Microbiol. Biotechnol. 2003, 30, 279–291. [Google Scholar] [CrossRef] [PubMed]
  47. Wei, L.; Wen, L.; Liu, M.; Yang, T. Interaction Characteristics of Mineral Matter and Nitrogen during Sewage Sludge Pyrolysis. Energy Fuels 2016, 30, 10505–10510. [Google Scholar] [CrossRef]
Energies 11 00520 g001 550

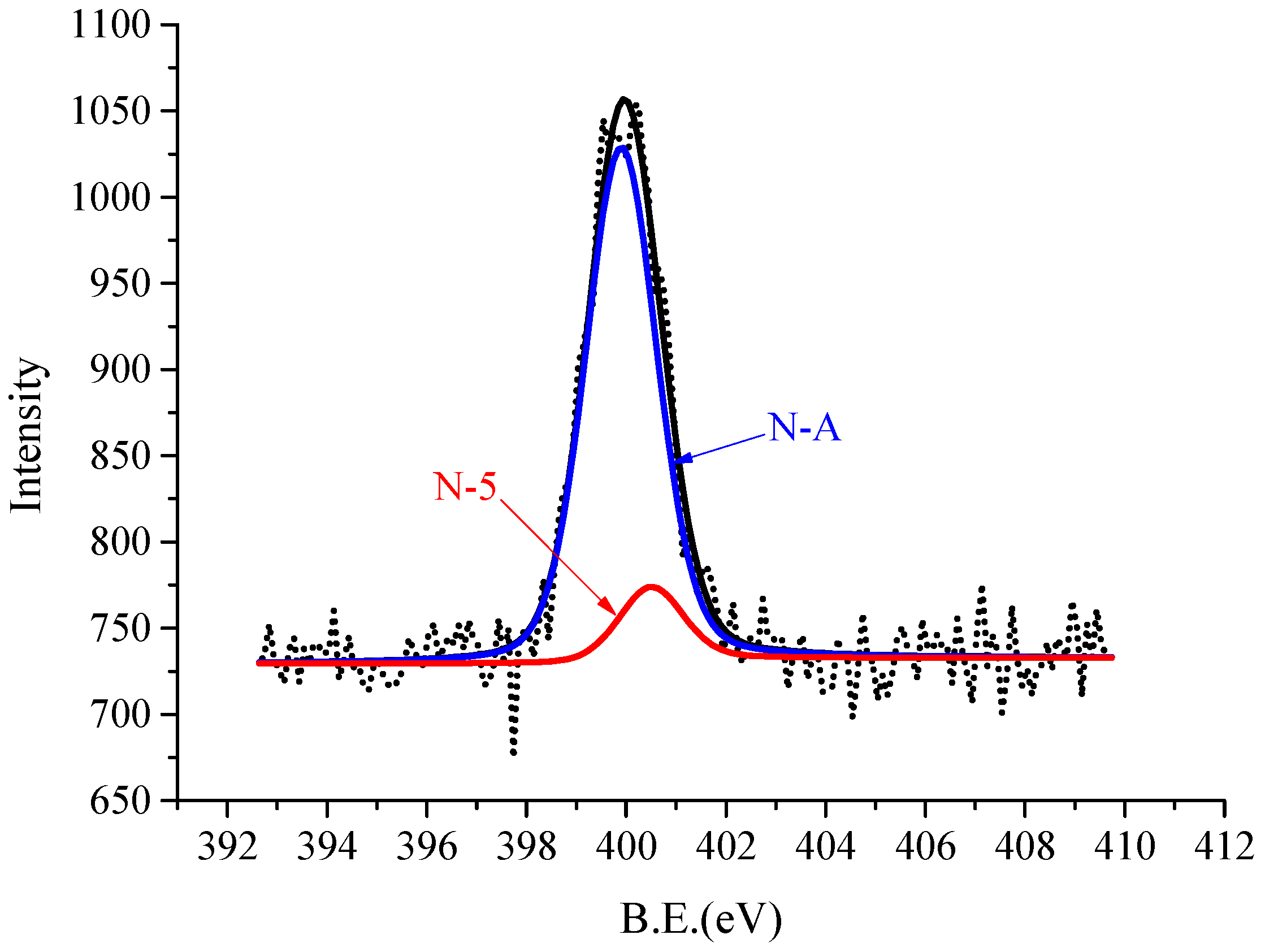

Figure 1. Nitrogen species in rice straw.
Figure 1. Nitrogen species in rice straw.
Energies 11 00520 g001
Energies 11 00520 g002 550
Figure 2. Schematic diagram of the horizontal tube furnace reactor system.
Figure 2. Schematic diagram of the horizontal tube furnace reactor system.
Energies 11 00520 g002
Energies 11 00520 g003 550
Figure 3. Release behaviors of nitrogen gaseous products during rice straw pyrolysis. (a) 500 °C, (b) 600 °C, (c) 700 °C, (d) 800 °C, (e) 900 °C.
Figure 3. Release behaviors of nitrogen gaseous products during rice straw pyrolysis. (a) 500 °C, (b) 600 °C, (c) 700 °C, (d) 800 °C, (e) 900 °C.
Energies 11 00520 g003
Energies 11 00520 g004 550

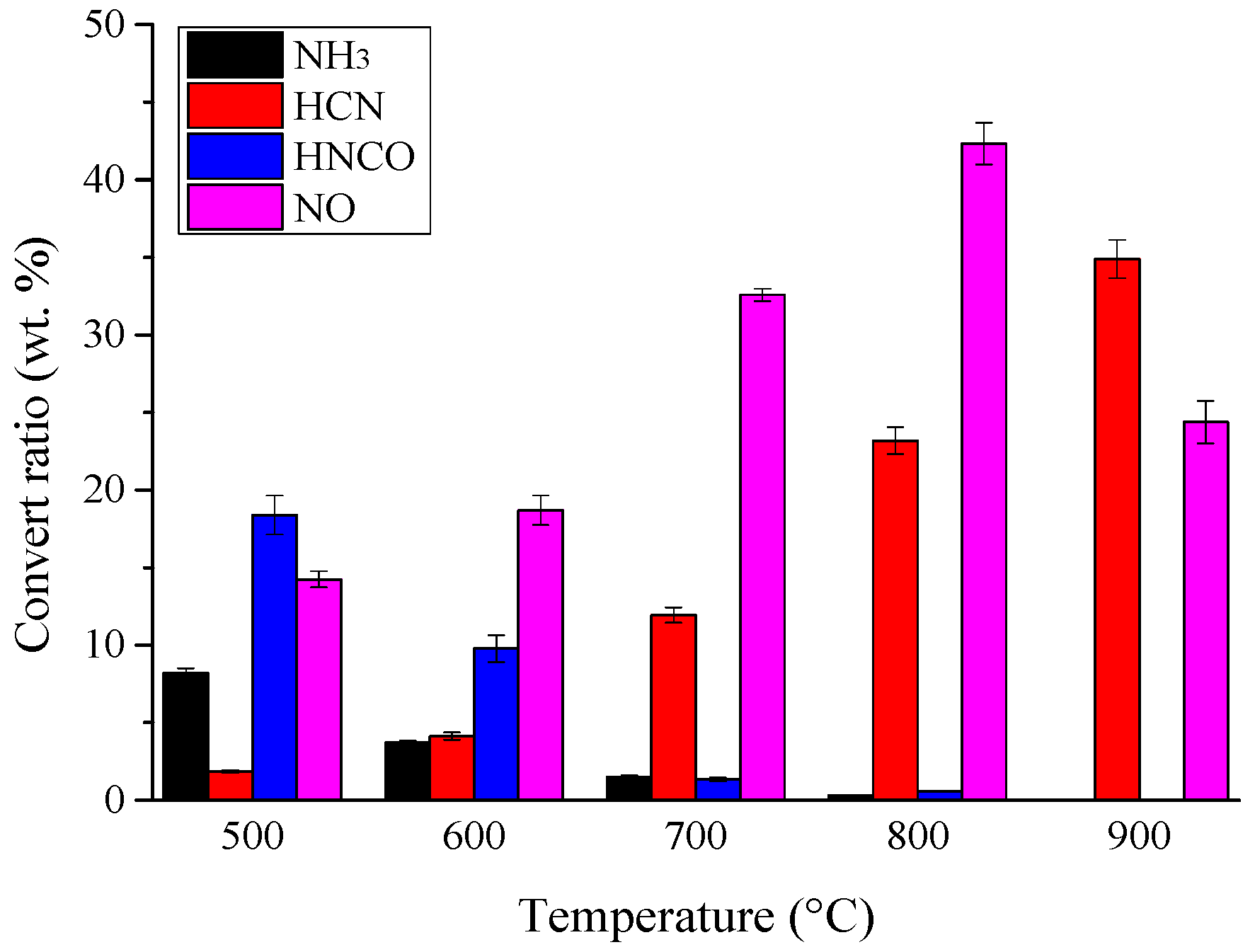

Figure 4. Convert ratios of fuel-N to gaseous products during pyrolysis of rice straw.
Figure 4. Convert ratios of fuel-N to gaseous products during pyrolysis of rice straw.
Energies 11 00520 g004
Energies 11 00520 g005 550

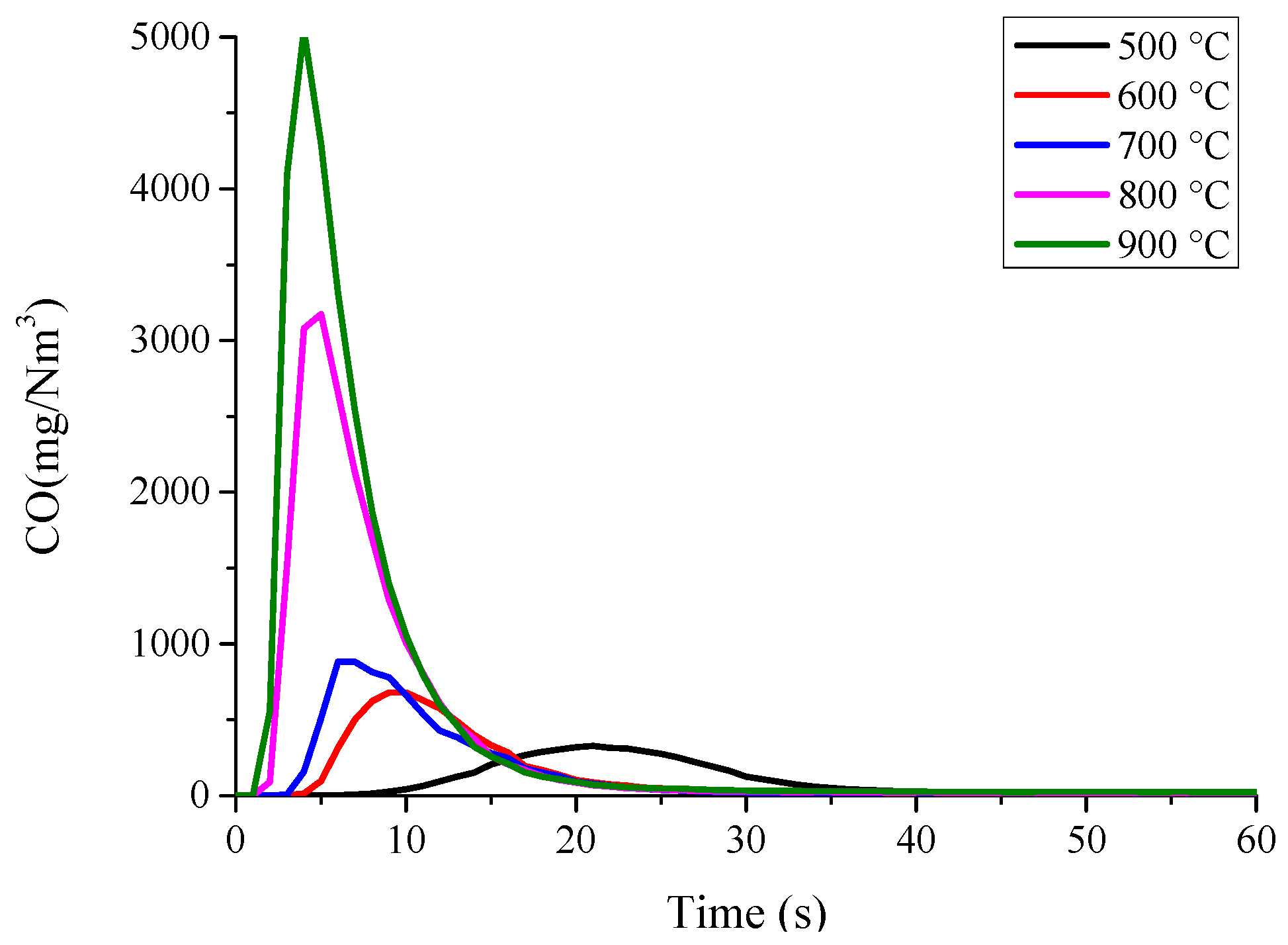

Figure 5. Variation of CO concentration with temperature.
Figure 5. Variation of CO concentration with temperature.
Energies 11 00520 g005
Energies 11 00520 g006a 550Energies 11 00520 g006b 550

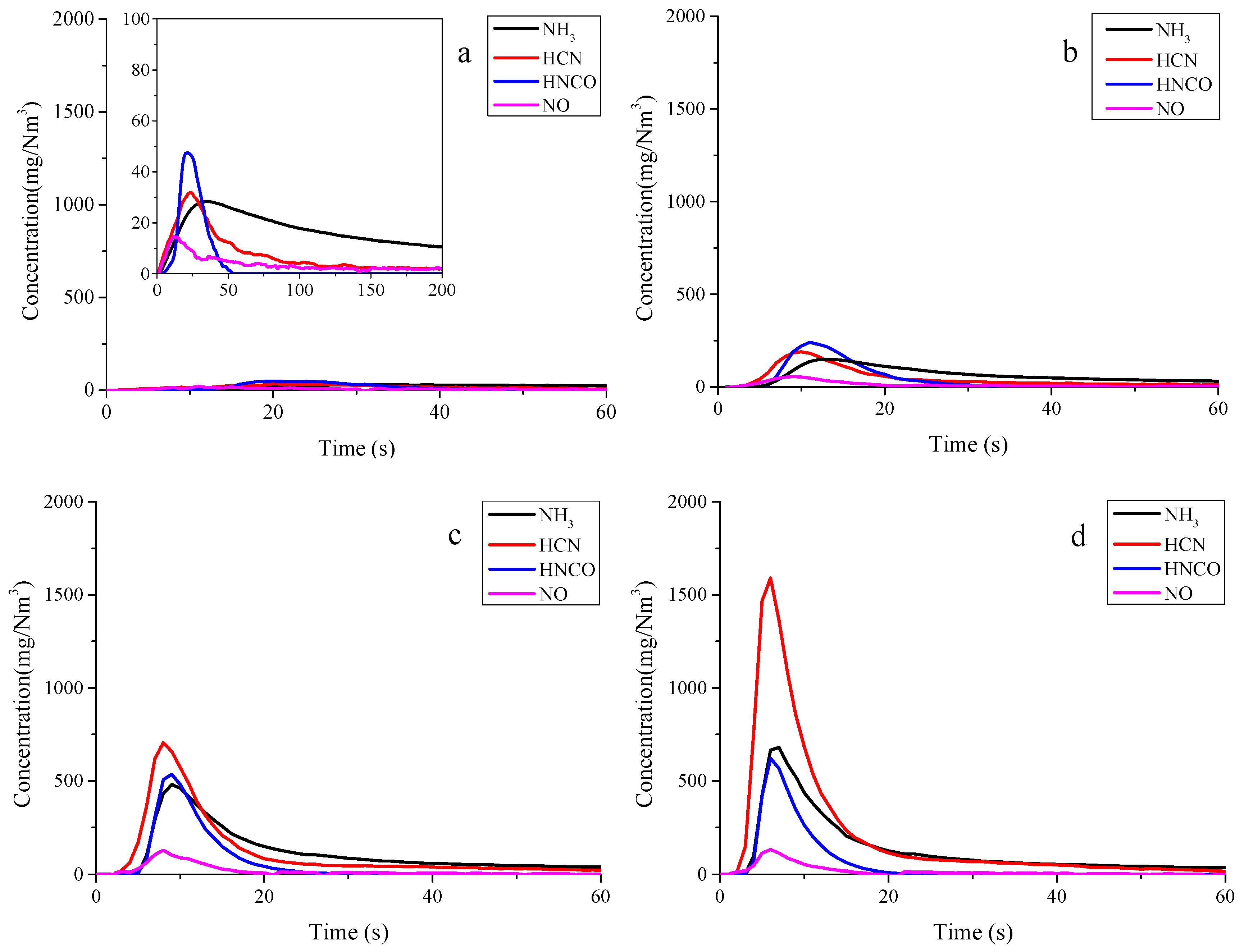

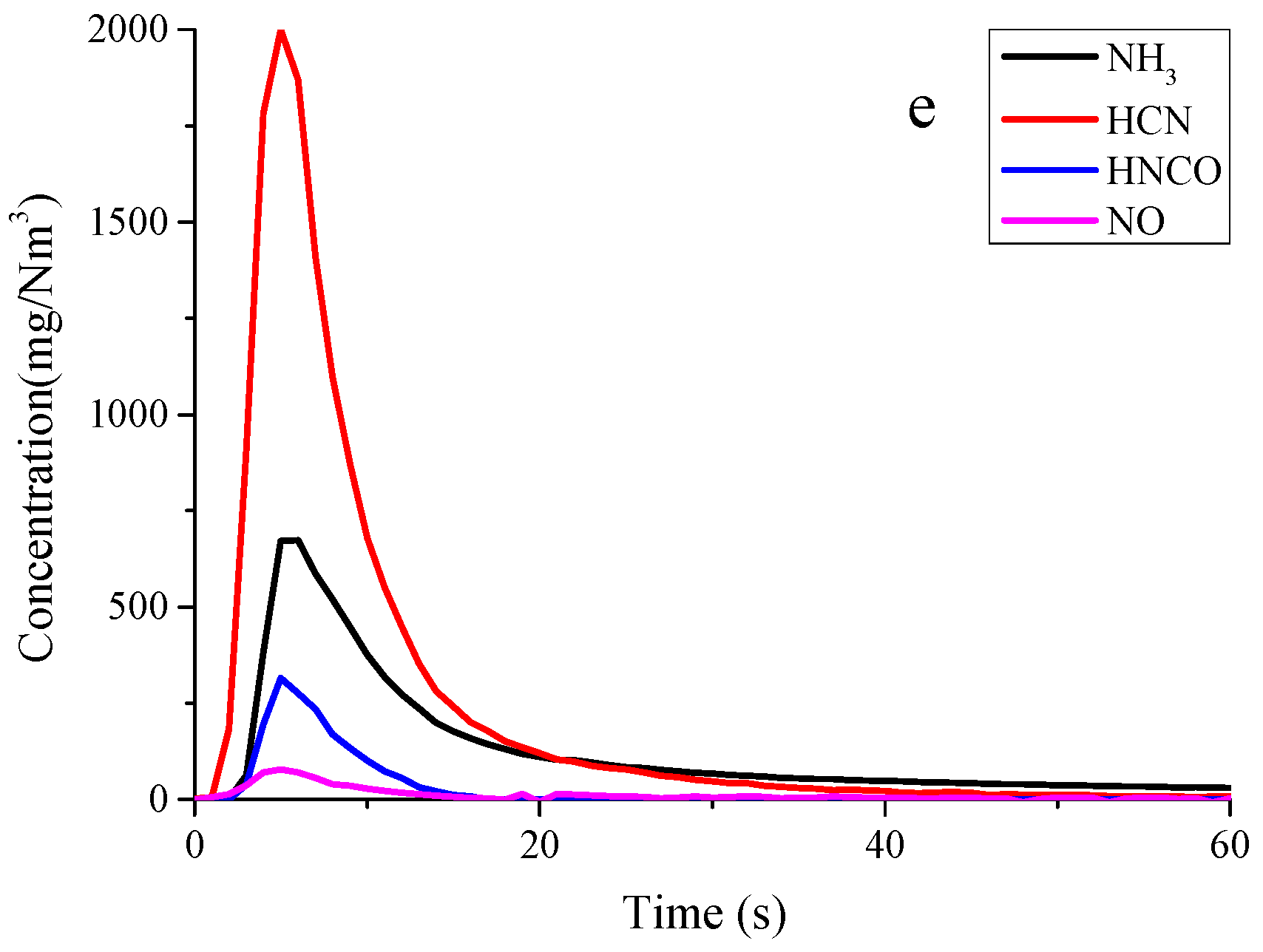

Figure 6. Release behavior of nitrogen gaseous products during glycine pyrolysis. (a) 500 °C, (b) 600 °C, (c) 700 °C, (d) 800 °C, (e) 900 °C.
Figure 6. Release behavior of nitrogen gaseous products during glycine pyrolysis. (a) 500 °C, (b) 600 °C, (c) 700 °C, (d) 800 °C, (e) 900 °C.
Energies 11 00520 g006aEnergies 11 00520 g006b
Energies 11 00520 g007 550

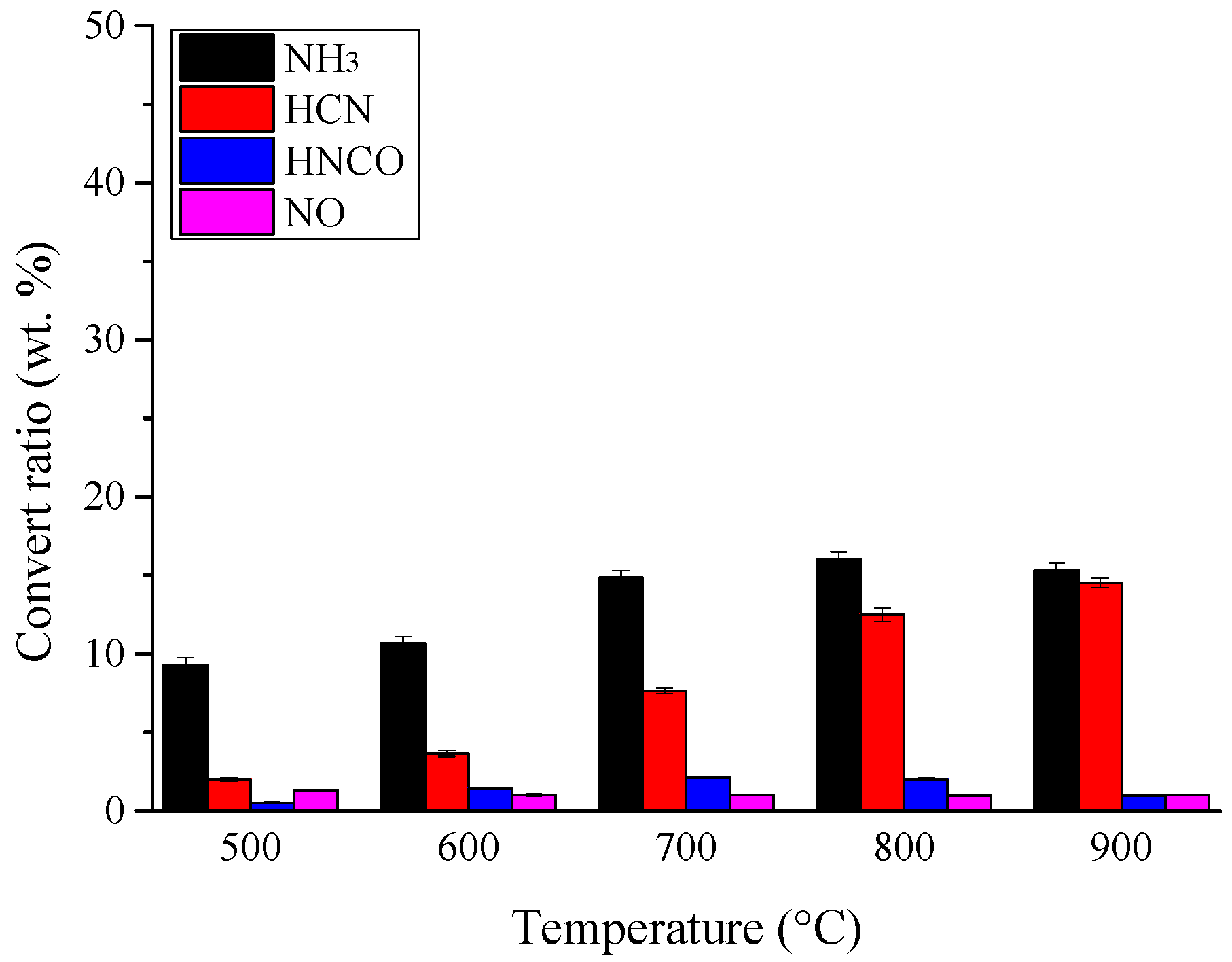

Figure 7. Convert ratios of fuel-N to gaseous nitrogen containing products during pyrolysis of glycine.
Figure 7. Convert ratios of fuel-N to gaseous nitrogen containing products during pyrolysis of glycine.
Energies 11 00520 g007
Energies 11 00520 g008 550

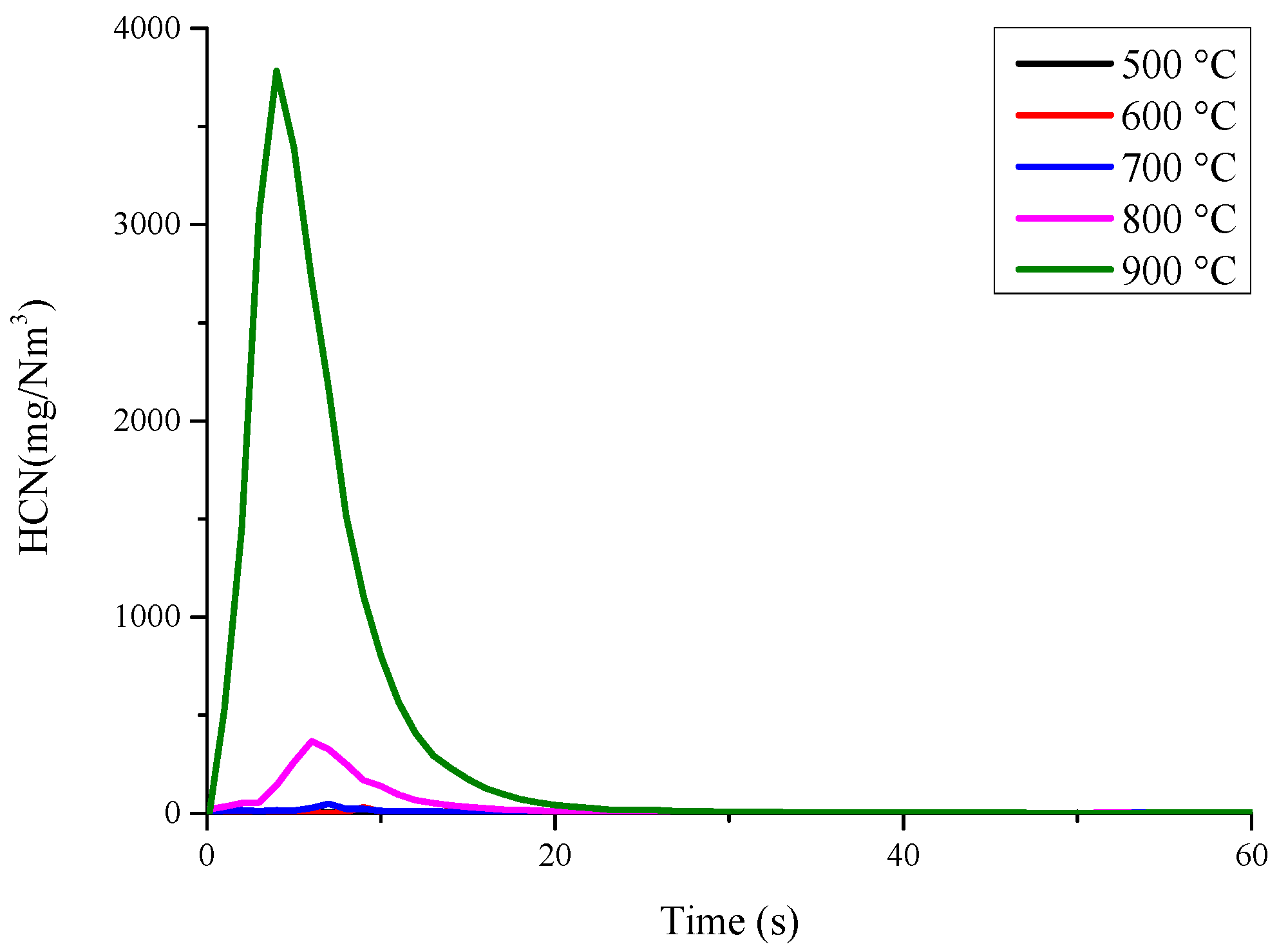

Figure 8. Variation of HCN concentration with temperature during pyrrole pyrolysis.
Figure 8. Variation of HCN concentration with temperature during pyrrole pyrolysis.
Energies 11 00520 g008
Energies 11 00520 g009 550
Figure 9. Convert ratios of fuel-N to NO during pyrolysis of glycine and co-pyrolysis of glycine and cellulose.
Figure 9. Convert ratios of fuel-N to NO during pyrolysis of glycine and co-pyrolysis of glycine and cellulose.
Energies 11 00520 g009
Energies 11 00520 g010 550

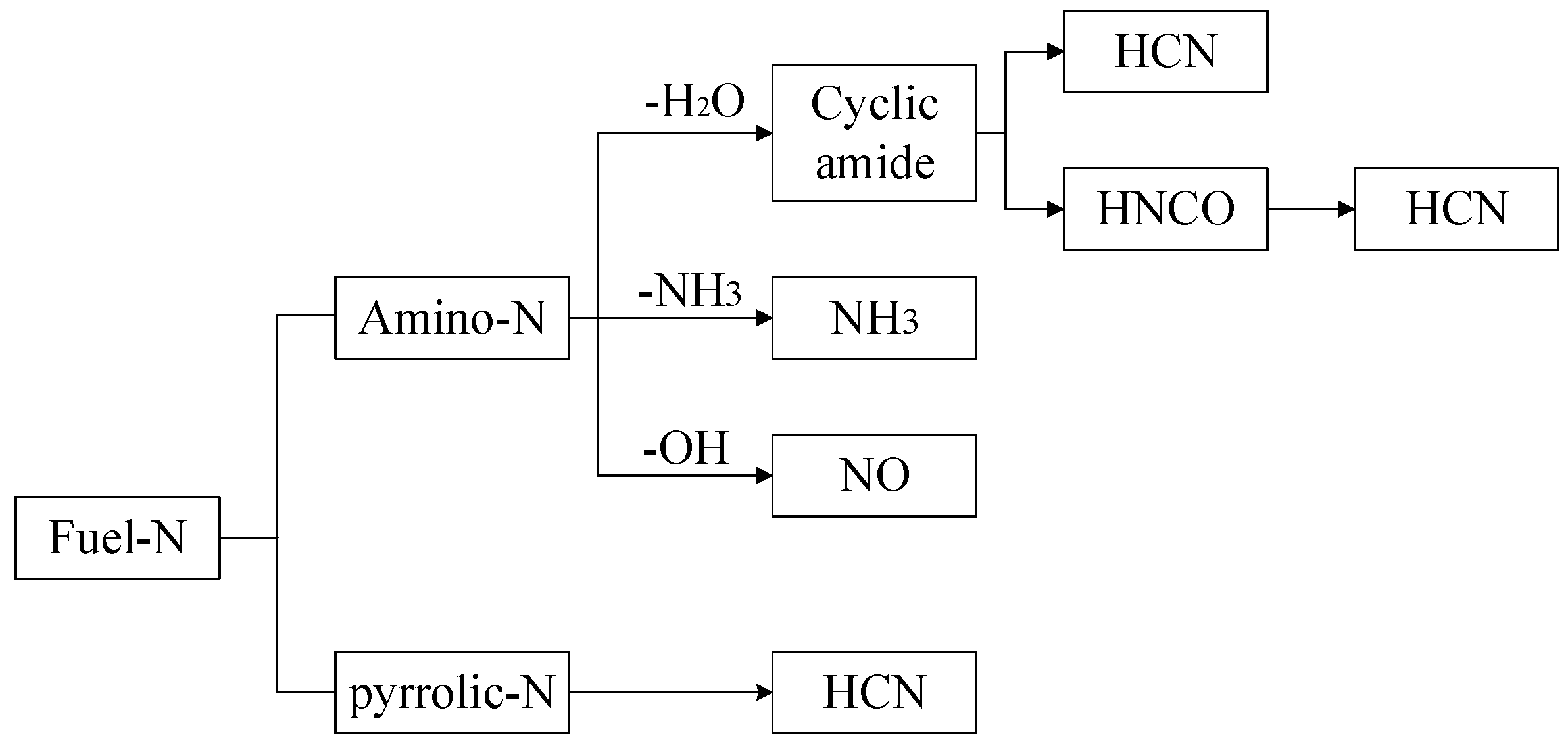

Figure 10. Release mechanism of fuel-N during rice straw pyrolysis.
