Article

Investigation on the Factors Affecting the Temperature in Urban Distribution Substations and an Energy-Saving Cooling Strategy

1
State Key Laboratory of Power Transmission Equipment & System Security and New Technology, Chongqing University, 400030, Chongqing, China
2
Chongqing Electric Power Test & Research Institute, Huangshang Road, Yubei District, 401123, Chongqing, China
*
Author to whom correspondence should be addressed.
Energies 2011, 4(2), 314-323; https://doi.org/10.3390/en4020314
Submission received: 8 December 2010 / Revised: 16 January 2011 / Accepted: 14 February 2011 / Published: 16 February 2011

Abstract

:
The different locations of the equipment in urban distribution substations (DSSs) and the location of inlet holes and outlet holes usually result in different ventilation effect, which means the power consumed by any ventilating devices present is different. In this paper the temperature field distribution in an urban distribution substation with different locations of the equipment in the substation was calculated first, then factors influencing the temperature field distribution were investigated, and the influence of the different factors was analyzed. When the distance between the apparatus and walls exceeds 3 m, the change of the temperature in the DSS is very small. Therefore considering the floor area of the DSS, 3 m is the best value of the distance between the apparatus. With the change of the environment temperature or the velocity of the ventilation fans, the maximum temperature in the DSS or apparatus will change. Hence an energy saving ventilation strategy is proposed in the paper, and an intelligent cooling control system is developed, which can modify the velocity of the ventilation fans according to the environment temperature, and thus realize energy savings.

1. Introduction

Final use energy reduction is an increasingly important topic in electrical engineering, and many experts have concentrated on methods to increase the usage of resources or strategies to save energy. With the development of cities in China, more and more urban distribution substations (DSSs) have been built for the supply of power to residential communities, and dry-type transformers are used more frequently in urban distribution substations due to their advantages compared with oil-filled transformers [1,2], such as small size, light weight, less space occupation, and above all, it adoption of epoxy resins with high temperature resistance as dielectric. However the heat conduction performance of dry-type transformers is worse, which results in a high temperature of the internal winding, and heat transfer occurs in the distribution substation. In addition, the high voltage (HV) switchgears and bus bars in the distribution substation also produce heat losses, which results in a temperature increase in the distribution house.
For the safety and high efficiency operation of dry-type transformers and HV switchgears in the DSS, a cooling system is usually installed to lower the temperature as otherwise the performance and reliability of the dry-type transformers will decrease. When the average temperature in the DSS increases by 1 °C above the standard average temperature (35 °C), the continuous working current of the dry-type transformer would be reduced by 1% [3]. It is suggested that the air temperature should not be higher than 45 °C in a DSS, and the difference between the temperature at the air-inlet and air-outlet should not exceed 15 °C, and the average temperature in the DSS should not exceed 40 °C. Consequently the following heat dissipation measures are frequently used in DSSs [4]: (1) installation of air conditioners; (2) increasing the floor area; (3) use of ventilating fans. Measures (1) and (3) consume power and (2) is wastes land, so it is necessary to evaluate the efficiency of current measures and develop a more energy-conserving ventilation strategy for urban DSSs.
In the paper, a model of a DSS in Chongqing (containing two dry-type transformers and switchgears) was set up first, and the temperature field distribution was calculated. Then factors influencing the temperature field distribution were studied, and the influence of different factors was computed and discussed. When the distance between the apparatus and wall exceeds 3 m, the temperature change in the DSS is very small. Therefore considering the floor area of the DSS, 3 m is the best between the apparatus. With any change of the environment temperature or the velocity of the ventilation fans, the maximum temperature in the DSS or apparatus will change, therefore an energy saving ventilation strategy is proposed in this paper, and an intelligent cooling control system is developed, which can modify the wind velocity of the ventilation fans according to the environment temperature, which can result in energy savings.
The remainder of the paper is organized as follows: Section 2 presents the calculation of temperature field in the DSS, including the setup of model, calculation of heat losses in the transformers and switchgears, and setting of boundary conditions. Section 3 will describe the study on the factors influencing the heat distribution. This section also shows the influence on the distribution of temperature field caused by different factors. The intelligent cooling control system for urban DSS mentioned in this paper will be explained in Section 4. Finally, concluding remarks will be given in Section 5.

2. Calculation of the Temperature Field in an Urban Distribution Substation

2.1. Physical Model Setup

A DSS in Chongqing is taken as an example for the study. In this DSS there are 2 dry-type transformers, two HV switchgears and a few bus bars. Because the heat loss on the bus bars is much less than the loss in the dry-type transformers and HV switchgears, therefore, to simplify the calculation, the bus bars were ignored in the model, as shown in Figure 1.
Table 1 shows the dimensions of the model. The dry-type transformer is a SCB10-1250/10 type, with a rated capacity of 1250 kVA, high-voltage side of 10.5 kV, low-voltage side of 0.4 kV, load loss of 9300 W, and no-load loss of 2500 W. For the HV switchgears, the total loss is 560 W. The distance between the transformer and the HV switchgear is 12 m, the distance between two transformers is 9 m. The air inlet and the two transformers are located in the same line. In the calculation, the environmental temperature is 38 °C.

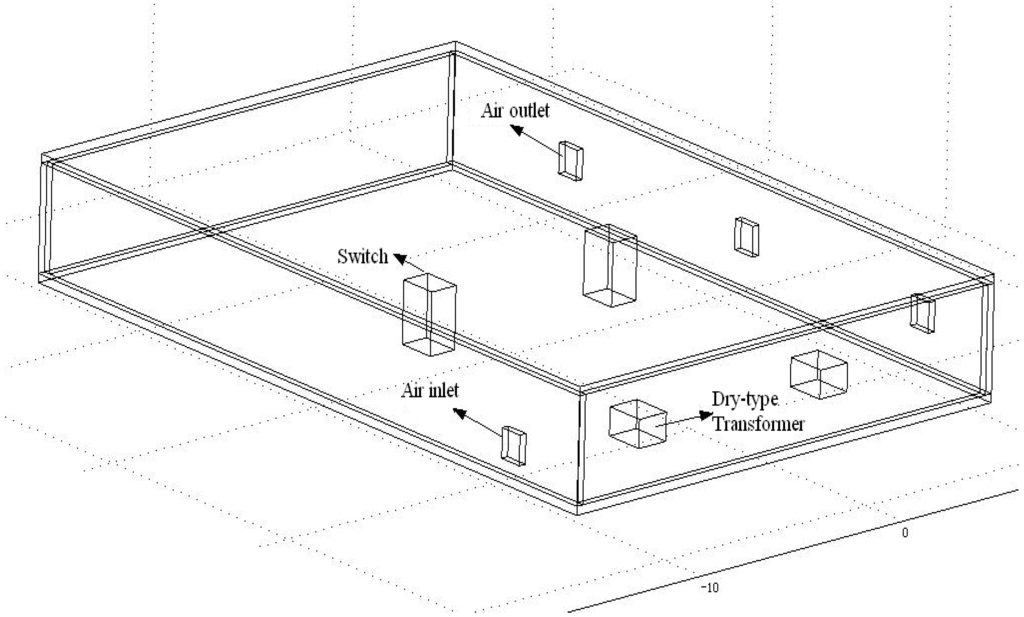

Figure 1. Physical model of the DSS (two transformers, two HV switchgears, one air inlet and two air outlets are considered in the model).
Figure 1. Physical model of the DSS (two transformers, two HV switchgears, one air inlet and two air outlets are considered in the model).
Energies 04 00314 g001
Table 1. Size of objects in the model.
Table 1. Size of objects in the model.
NameSize (Length, Width, Height)
DSS house20 m × 10 m × 3.6 m
Transformer1.67 m × 1.34 m × 0.95 m
Switchgear1.62 m × 1.23 m × 1.81 m

2.2. Heat Produced by Dry-Type Transformer

Heat produced by a transformer in operation per unit time is just the total loss (P) of the transformer, which includes the no-load loss (P0) and load loss (Pe). The no-load loss is a constant, and the load loss is equal to the square of the load rate [defined as the ratio of the current in low-voltage side (I) to that in high-voltage side (Ie) multiplied by the load loss at rated load. That is:
P = P 0 + ( I I e ) 2 P e

2.3. Heat Dissipation of Apparatus in the DSS

The main modes of heat dissipation of the transformers and switchgears in the DSS include heat radiation and heat convection. Heat convection includes natural-convection and forced-convection [5,6]. The natural-convection heat transfer occurs mainly on the surface of the switchgears and transformers without exposure to ventilating fans. The forced-convection heat transfer occurs mainly within the radiation range of the ventilating fans.
(1) Heat radiation transfer:
If the wall temperature is Tw and the environmental temperature is Tf, then the heat quantity of the heat radiation transfer can be calculated as follows:
Φ r = 5.67 A r ε ( ( T w 100 ) 4 ( T f 100 ) 4 )
where Ar is the area of radiation surface (m2), ε is the radiance on the radiation surface. For common steel plate, ε = 0.820.
(2) Heat convection transfer:
The heat quantity of heat convection can be calculated according to Equation (3):
Φ c = h A ( T w T f )
where:
  • h is coefficient of the heat convection, here h = λ N u l ;
  • Φc is heat quantity of the heat convection (W);
  • Nu is Nusselt number characterizing the property of the heat convection;
  • l is characteristic length;
  • λ is heat conductivity of air (W·m−2·K−1);
  • A is area of the heat convection (m2);
  • Tw is wall temperature (°C);
  • Tf is air temperature (°C);
For the natural-convection heat transfer:
N u n = C ( G r P r ) n
where Pr is the Prandtl number, Gr is the Grashof number, C and n are constants.
The natural convection occurring on the surface of the dry-type transformer can be regarded as the natural convection occurring on a vertical plate in infinite space. The values of C and n in Equation (4) are shown in Table 2.
Table 2. Value of C and n for natural convection occurring on vertical plate in infinite space.
Table 2. Value of C and n for natural convection occurring on vertical plate in infinite space.
Flow PatternCnApplication Scope of Gr
laminar flow0.590.251 × 104~3 × 109
transient state0.02920.393 × 109~2 × 1010
turbulence flow0.111/3>2 × 1010
For the forced-convection heat transfer occurring on the surface of the apparatuses, Nuf can be calculated as follows:
N u f = C R e n
where Re = ul/v, Re is the Reynolds number, u is the air velocity (m/s), and ν is the kinematic viscosity (in m2/s). The values of C and n refer to the values in [4], which are obtained from wind-tunnel tests.

2.4. Control Equations

The temperature field inside the DSS is a temperature field containing heat sources, so the control equation can be formulated as follows [7,8]:
2 T x 2 + 2 T y 2 + 2 T z 2 + q v = 0
where qv is the heat rate in unit volume.

2.5. Setting of the Boundary Conditions

For the steady-state temperature field calculated in this paper, the boundary condition for convection is the typical second boundary condition. That is:
λ T n = α ( T w T f )
For this model, the calculated equivalent heat source of the transformer is 220.93 W/m3, and the equivalent heat source of a HV switchgear is 166.36 W/m3. The convection heat transfer coefficient is 10.87 when the wind velocity is 5.55 m/s. The radiation factor is 0.6. Considering the hot summers in Chongqing, an environmental temperature of 38 °C is assumed in this model.

2.6. Distribution of the Temperature Filed in the Objective DSS

Ventilation fans were installed in the DSS shown in Figure 1. The parameters of the intake fan are as follows: the rotational speed (n) is 1450 r/min, the wind rate is 6178 m3/h, and the wind pressure is 138 Pa. The wind rate of the exhaust fans is 2000 m3/h. According to the boundary conditions mentioned above the temperature field distribution in the DSS was computed, and the result is shown in Figure 2. The maximum temperature of the transformers and the switchgears is 60.829 °C, and the maximum temperature of the air in the DSS is 40.057 °C, which means the transformers and switchgears are under safe operation conditions.
At present the ventilating fans operate day and night to ensure the apparatus operate safely, however the environmental temperature decreases during the night, so if same ventilating fans were used during the daytime and at night or during different seasons, energy waste will result when the environmental temperature is lower than the temperature in summer. Hence it is necessary to find an intelligent strategy for the cooling system. For this purpose, first of all, the factors affecting the distribution of temperature field in the DSS were investigated.

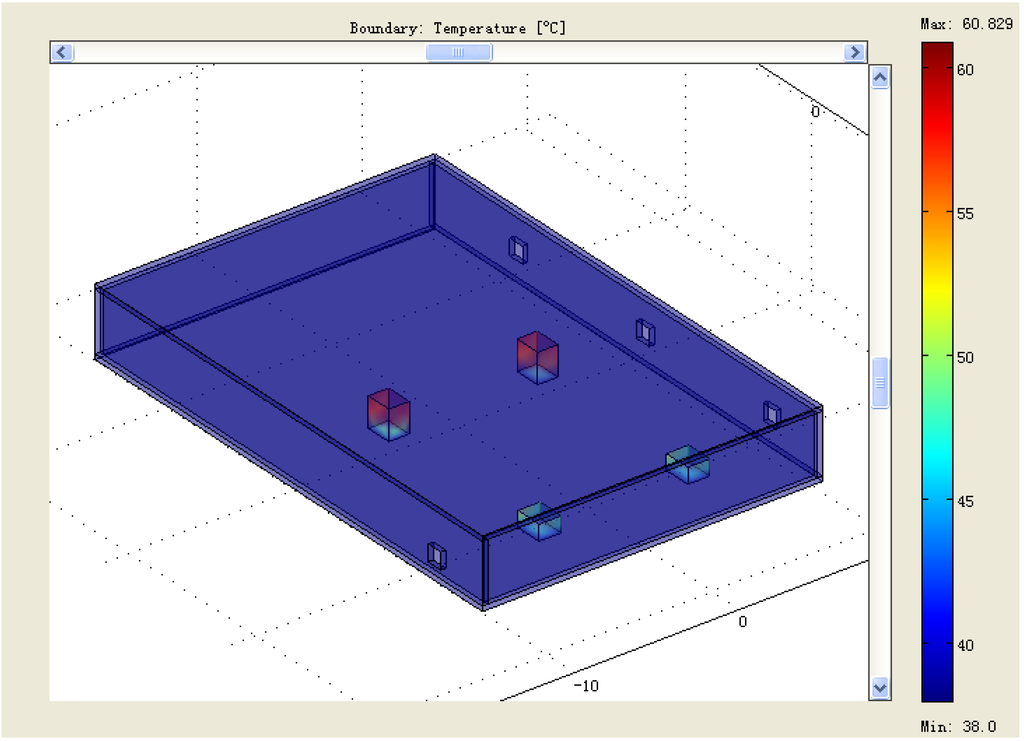

Figure 2. Temperature field distribution in the studied DSS.
Figure 2. Temperature field distribution in the studied DSS.
Energies 04 00314 g002

3. Factors Influencing the Temperature Field Distribution in the DSS

3.1. Distance between the Apparatus and Walls

Considering the conservation of land resources, the smaller the floor area of the DSS is the more land is saved. However, if the floor area of the DSS is too small, the distance between apparatus and the distance between the apparatus and walls inside the DSS will be reduced. When the distances are too small, the heat dissipation will be affected, and higher temperatures will result in the apparatus.
Therefore, in this paper, the temperature field distribution in the DSS with different distances between the apparatus and walls was calculated. Figure 3 shows the schematic diagram of the models with different distance between the apparatus and walls. Figure 4 shows the maximum temperature inside the apparatus and the substation with different distances between the equipment and the wall. In the calculations, the wind velocity is 2.5 m/s, and the distance between the apparatus and walls gradually increases from 0.3 m to 5.0 m.
It can be seen from Figure 4 that the maximum temperatures inside the apparatus and the substation are decreasing gradually. The larger the distance between the apparatus and the wall is, the better the effectiveness of the heat dissipation is. When the distance between the apparatus and wall exceeds 3 m, the change of the temperature in the DSS is very small. Therefore, as to the DSS computed in this paper, the distance between the apparatus should be more than 3 m, and considering the floor area of the DSS, 3 m is the best value.

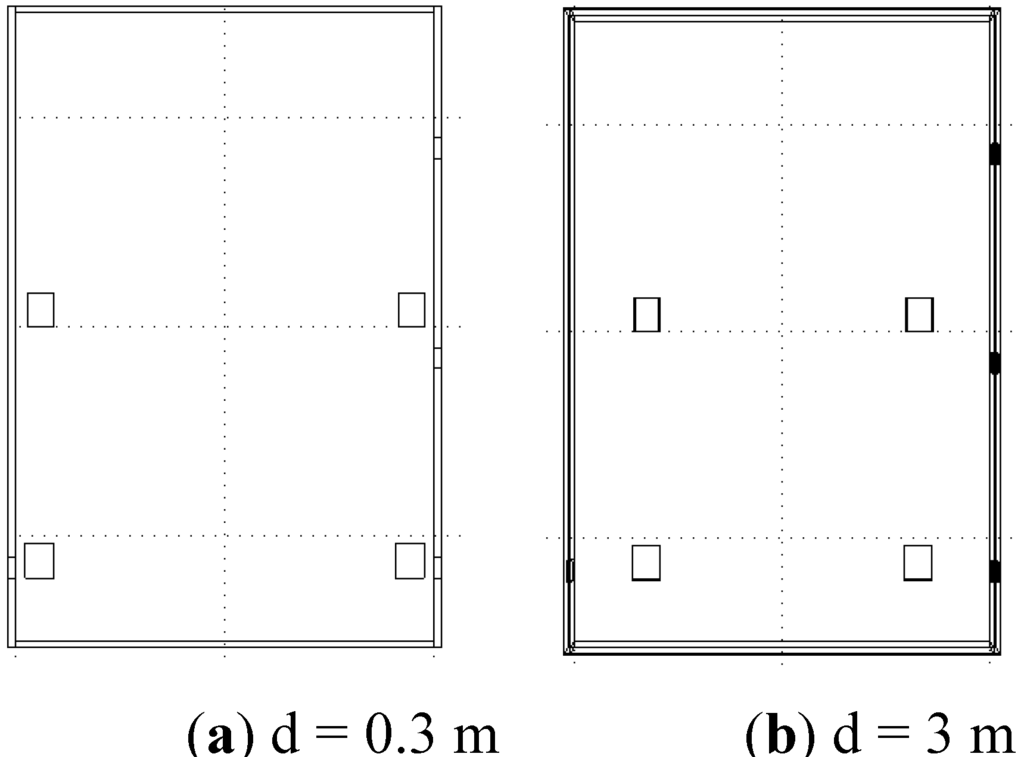

Figure 3. Schematic diagram of the models with different distances between the apparatus and wall.
Figure 3. Schematic diagram of the models with different distances between the apparatus and wall.
Energies 04 00314 g003

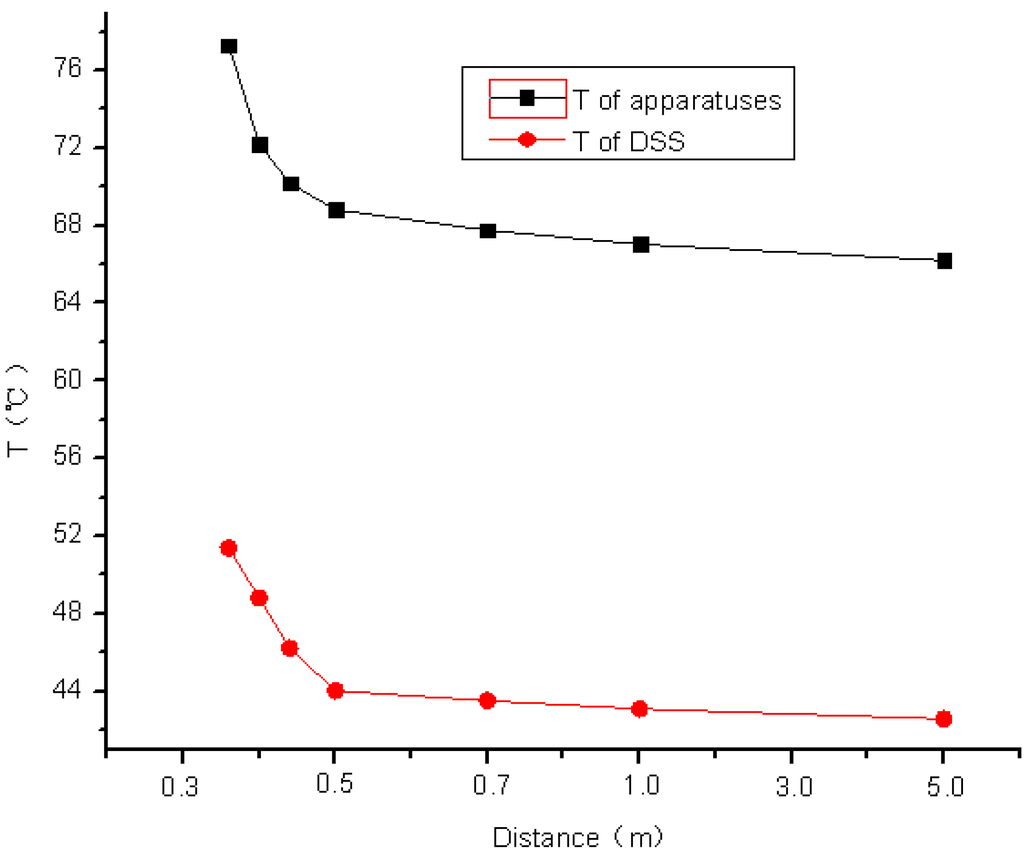

Figure 4. Maximum temperature inside the apparatus and the substation with different distances between apparatus and wall (wind velocity is 2.5 m/s).
Figure 4. Maximum temperature inside the apparatus and the substation with different distances between apparatus and wall (wind velocity is 2.5 m/s).
Energies 04 00314 g004

3.2. Wind Velocity of Ventilation Fans

The wind rate of fan is mainly decided by the wind velocity. Different wind velocities will result in different coefficients of convection heat transfer on the surface of switchgears and transformers. Consequently, the heat dissipation of the apparatus will also be influenced. Table 3 shows the temperature field distribution in the DSS with different wind velocities. It can be seen from this data that the wind velocity has a great influence on the temperature field distribution in the DSS. As to the indoor substation studied in this paper, when the wind velocity is 2.5 m/s, the maximum temperature in the indoor substation is 42.577 °C, which is lower than 45 °C. The condition for the safe operation of equipment is satisfied.
Table 3. Maximum temperature inside the apparatus and the DSS with different wind velocities (distance between apparatus and walls is 5 m, environmental temperature is 38 °C).
Table 3. Maximum temperature inside the apparatus and the DSS with different wind velocities (distance between apparatus and walls is 5 m, environmental temperature is 38 °C).
Wind Velocity (m/s)Maximum Temperature in the Apparatus (°C)Maximum Temperature of Air in the DSS (°C)
1.072.83546.386
2.566.21542.577
5.062.13140.813

3.3. Environmental Temperature

Table 4 shows the maximum temperature inside the apparatuses and air in the DSS with different environmental temperatures when the distance between apparatus and wall is 5 m and the wind velocity is 2.5 m/s. It can be seen from Table 4 that the maximum air temperature in the DSS increases as the environmental temperature increases, therefore, considering the final use energy reduction, different cooling measures should be used for different environmental temperatures.
Table 4. Maximum temperature inside the apparatus and the substation with different environmental temperature (distance between apparatus and wall is 5 m, wind velocity is 2.5m/s).
Table 4. Maximum temperature inside the apparatus and the substation with different environmental temperature (distance between apparatus and wall is 5 m, wind velocity is 2.5m/s).
Environmental Temperature (°C)Maximum Temperature in the Apparatus (°C)Maximum Temperature of Air in the DSS (°C)
1056.54836.041
2061.12939.281
2563.84741.330
3066.21542.577

4. Intelligent Cooling Control System

According to the influence of the environmental temperature on the temperature field distribution in the DSS shown in Figure 1, an intelligent cooling control system was set up, and an energy-saving ventilation strategy was implemented, which means that for different environment temperatures, the wind velocity of the ventilation fan is different. This energy-saving cooling strategy is shown in Table 5, while Figure 5 shows the schematic diagram of the system.
As shown in Figure 5, the control system is composed of a central sever and a control terminal. A temperature sensor was used to measure the environmental temperature, and according to the measured environmental temperature, the MCU modifies the velocity of the ventilating fans in operation, hence for different environment temperatures the power-consumption for the ventilation fans is different, which can save energy compared with the current strategy, in which the ventilating fans always operate at the same velocity. The operational status of the apparatus are sent to the central sever by GPRS. This intelligent control system is now in operation in this DSS.
Table 5. Energy-saving cooling strategy.
Table 5. Energy-saving cooling strategy.
Environment Temperature(°C)Wind Velocity (m/s)
101.7
202.3
304.6
385.5

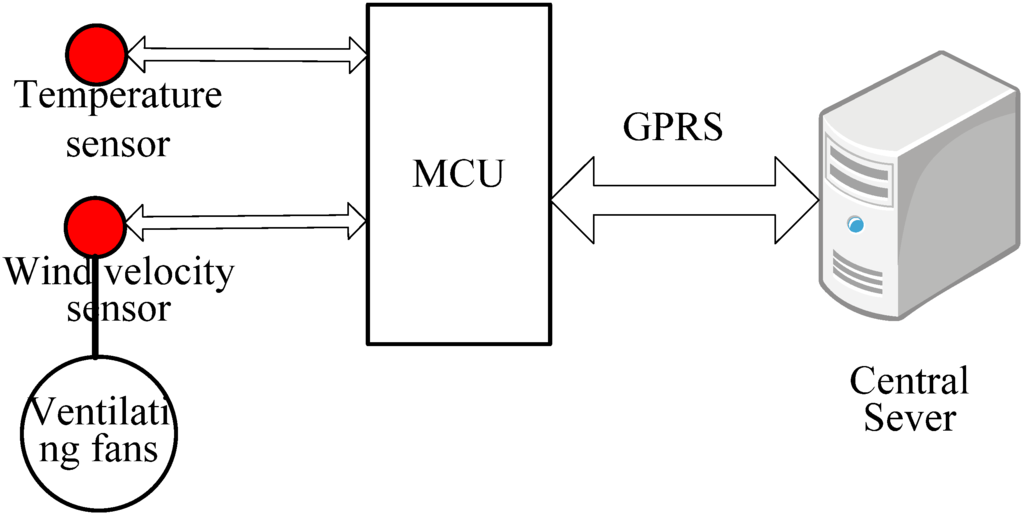

Figure 5. Schematic diagram of the intelligent cooling control system.
Figure 5. Schematic diagram of the intelligent cooling control system.
Energies 04 00314 g005

5. Discussions and Conclusions

A method to calculate the temperature field distribution in an urban DSS is proposed in this paper. The temperature field distribution in the DSS is calculated, and factors affecting the temperature in the DSS are analyzed, and finally an energy-saving strategy is presented.
Based on the results obtained in this paper, it can conclude the following:
(1)
For the design of a new urban DSS, the size of the substation house and the distance between apparatus and walls should be calculated according to the parameters of the transformers and switchgears, and if there are too many bus bars in the DSS, the influence of these bus bars must be taken into account too. In this case the new DSS can occupy less space while having good ventilation efficiency. The design should not be made only according to the prior experience.
(2)
As for DSSs already in use, an energy-conservation strategy should be implemented. For example an energy-conservation strategy can be based on the influence of the environmental temperature.

Acknowledgement

The authors would like to acknowledge the grant from the Fundamental Research Funds for the Central Universities (Project No. CDJZR10150001), the grand from Scientific Research Foundation of State Key Lab. of Power Transmission Equipment and System Security (Project No. 2007DA10512710502) and the grant from the National Natural Science Foundation of China (Project No. 51007096).

References

  1. Nochumson, C.J. Considerations in Application and Selection of Unit Substation Transformers. IEEE Trans. Ind. Appl. 2002, 38, 778–787. [Google Scholar] [CrossRef]
  2. Yuen, D.C.M.; Choi, V.; Liu, Z.G. The first 110 kV/35 kV–31.5 MVA cast resin transformer. IEEE Conf. Ind. Appl. 2004, 2, 763–767. [Google Scholar]
  3. IEC. Electrical Installations of Buildings-Part 5-51: Selection and Erection of Electrical Equipment-Common Rules; International Electrotechnical Commission: Geneva, Switzerland, 2005. [Google Scholar]
  4. Hui, P.; Tan, H.S. Temperature distributions in a heat dissipation system using a cylindrical diamond heat spreader on a copper heat sink. J. Appl. Phys. 1994, 75, 748–757. [Google Scholar] [CrossRef]
  5. Shidore, S.; Adams, V.; Lee, T.T. A study of compact thermal model topologies in CFD for a flip chip plastic ball grid array package. IEEE Trans. Compon. Packag. Technol. 2001, 24, 191–198. [Google Scholar] [CrossRef]
  6. Fleischer, A.S.; Weinstein, R.D.; Khobragade, S.A. Forced convective cooling of electro-optical components maintained at different temperatures on a vertically oriented printed circuit board. IEEE Trans. Compon. Packag. Technol. 2004, 27, 296–304. [Google Scholar] [CrossRef]
  7. Anders, G.J.; Radhakrishna, H.S. Power cable thermal analysis with consideration of heat and moisture transfer in the soil. IEEE Trans. Power Delivery 1988, 3, 1280–1288. [Google Scholar] [CrossRef]
  8. Paulke, J.; Weichert, H.; Steinhaeuser, P. Thermal simulation of switchgear. IEEE Trans. Compon. Packag. Technol. 2002, 25, 434–439. [Google Scholar] [CrossRef]
