Article

Electrodeposition of a Au-Dy2O3 Composite Solid Oxide Fuel Cell Catalyst from Eutectic Urea/Choline Chloride Ionic Liquid

Department of Innovation Engineering, University of Salento, via Monteroni, Lecce 73100, Italy
*
Author to whom correspondence should be addressed.
Energies 2012, 5(12), 5363-5371; https://doi.org/10.3390/en5125363
Submission received: 15 August 2012 / Revised: 20 October 2012 / Accepted: 7 December 2012 / Published: 19 December 2012
(This article belongs to the Special Issue Hydrogen Energy and Fuel Cells)

Abstract

:
In this research we have fabricated and tested Au/Dy2O3 composites for applications as Solid Oxide Fuel Cell (SOFC) electrocatalysts. The material was obtained by a process involving electrodeposition of a Au-Dy alloy from a urea/choline chloride ionic liquid electrolyte, followed by selective oxidation of Dy to Dy2O3 in air at high temperature. The electrochemical kinetics of the electrodeposition bath were studied by cyclic voltammetry, whence optimal electrodeposition conditions were identified. The heat-treated material was characterised from the morphological (scanning electron microscopy), compositional (X-ray fluorescence spectroscopy) and structural (X-ray diffractometry) points of view. The electrocatalytic activity towards H2 oxidation and O2 reduction was tested at 650 °C by electrochemical impedance spectrometry. Our composite electrodes exhibit an anodic activity that compares favourably with the only literature result available at the time of this writing for Dy2O3 and an even better cathodic performance.

Graphical Abstract

1. Introduction

Solid oxide fuel cells (SOFCs) have received great attention in recent years as a viable high temperature fuel cell technology, because they offer the promise of high efficiency and fuel flexibility [1]. The most advanced SOFCs are those based on the so-called cermet anodes, which are composed of Ni and an oxygen ion conducting ceramic such as yttria-stabilized zirconia (YSZ) or doped ceria (DCO) [2,3]. In these anodes, Ni acts as both the catalyst for electrochemical oxidation of the fuel and electronic conducting phase, while the ceramic possesses a substantial oxygen ionic conductivity, in order to increase the triple phase boundary region where anode, electrolyte and pores meet [4]. Recent studies have shown that Ni-LnOx cermet anodes exhibit high electrochemical performance, comparable to the state-of-the-art anodes for intermediate temperature SOFCs, due to the high catalytic performance of lanthanide oxides [2,4,5]. In order to produce composite electrodes with different composition, some methods alternative to powder technologies have been proposed, as an approach based on the impregnation of soluble salts into the electrode layer and electrodeposition, a potentially simple method to incorporate the metallic component.
Among rare earth oxides, Dy2O3 has been demonstrated to have a good catalytic behaviour [4]. Dysprosium cannot be electrodeposited from aqueous solutions due to its negative electrode potential. Moreover dysprosium reacts very fast with the components of the atmosphere [6]. An alternative could be the use of non aqueous solutions and few studies have been conducted relating to the electrodeposition of dysprosium in ionic liquid [6,7,8]. The electrodeposition in ionic liquid is a specific way to obtain compounds of reactive and refractory elements as well as of actinides and rare earth metals [9,10] and presents some advantages in comparison with processes performed from aqueous solutions, among them: higher efficiency of electrolysis, lower energy consumption and much better characteristics of the deposits [9,11].
In previous research, we have developed methods for the co-electrodeposition of metal-ceramic composites [12,13,14,15,16]. In this work we have incorporated Dy2O3 into a Au matrix, fabricating Au-Dy2O3 composites by electrodeposition from a ionic liquid based on choline chloride and urea, followed by controlled oxidation. In this way an oxide with controlled nanometric structure, more suited for electrocatalytic work can be achieved. We used a gold matrix in order to devise a model system aiming at singling out the specific catalytic properties of finely dispersed dysprosium oxide, according to cognate SOFC literature discussing dispersed MnO2 catalyst in a Au matrix [17,18]. Of course, it is relatively straightforward to replace Au with another metal that can be electrodeposited from the same solvent, such as Ni, if the target of the research is to fabricate a better performing catalyst for direct application. In the particular case of nickel, we have already demonstrated the feasibility of this process for the fabrication of Ni/ceria composites [16]. The present research represents the first step of a process aiming to achieve, by electrodeposition, the synthesis of nickel and rare earth oxides, having both good electronic and ionic conductivity [19,20,21,22,23], as potential materials for SOFC electrodes.

2. Results and Discussion

2.1. Electrodeposition of Au-Dy Alloy—Electrochemical Measurements

CVs of a GC electrode in 2:1 urea/ChCl ionic liquid without and with added DyCl3 or DyCl3 and KAu(CN)2 are reported in Figure 1. The CV of the pure electrolyte [Figure 1 (A)] shows the extent of the double layer charging region, ranging from ca. 1.1 to ca. −1.75 V, where anodic and cathodic decomposition reactions of the ionic liquid occur. In the presence of DyCl3 [Figure 1 (B)] we observed a current density increase at about −1.4 V, followed by a mass-transport controlled plateau, that can be straightforwardly attributed to Dy electrodeposition [6,9], followed by a typical mass-transport controlled voltammetric peak, and by a further current density increase, due to the cathodic reactivity of the ionic liquid. In the presence of KAu(CN)2 [Figure 1 (C)], a cathodic peak—corresponding to Au electrodeposition, followed by a diffusion-controlled plateau can be observed at ca. −0.3 V, decreasing to current density values that are much lower than those observed in the absence of the Au(I) salt. Since reagent consumption does not justify this low current density, it could be explained with cathodic passivation by adsorbed CN [24,25]. Coherently with the cathodic passivation found after the Au deposition process, the deposition potential for Dy is shifted cathodically with respect to the case of the pure-Dy bath. This passivation process, giving rise to higher crystallisation overvoltages, ensures the formation of nanocrystalline Dy in the Au matrix (see XRD results in Section 2.2) giving rise to optimal catalyst properties. The positive current density increase at potentials more anodic than ca. 0 V corresponds to Au oxidation [24,25,26]. From these voltammetric data, the potential of −1.8 V has been chosen for Au-Dy alloy electrodeposition: in correspondence of this potential in fact both Dy and Au might be deposited and this condition not yet leads to reduction of the ionic liquid. Thus, we performed potentiostatic electrodeposition experiments of growth of Au-Dy at the potential of −1.8 V for 2 hours.
Figure 1. Cyclic voltammetries (scan rate: 100 mV·s−1) for a glassy carbon electrode in: (A) 2:1 urea/ChCl; (B) 2:1 urea/ChCl with DyCl3 250 mM; (C) 2:1 urea/ChCl with DyCl3 250 mM and KAu(CN)2 10 mM.
Figure 1. Cyclic voltammetries (scan rate: 100 mV·s−1) for a glassy carbon electrode in: (A) 2:1 urea/ChCl; (B) 2:1 urea/ChCl with DyCl3 250 mM; (C) 2:1 urea/ChCl with DyCl3 250 mM and KAu(CN)2 10 mM.
Energies 05 05363 g001

2.2. Morphology, Composition and Structure of Au-Dy Electrochemically Grown Films.

In Figure 2 we report SEM micrographs obtained at different magnifications of the Au-Dy alloy electrodeposited at the potential of −1.8 V for 2 hours, before Figure 2 (a) and after (b, c and d) heat treatment of 1 hour at 650 °C. The oxidised deposit presents a combination of morphological characteristics of electroplated metal ceramic stress-relief cracking. A granular and cracked morphology is desirable when a catalyst is used with a reactant gas, as in the case of a SOFC, whose porous electrodes are typically manufactured with powder metallurgy techniques. The EDX compositional analysis showed that dendrites represent zones rich in Au (3 wt.% of Dy), while the background on which these dendrites are grown is rich in Dy (80 wt.% of Dy) (Figure 2 C), following the local current-density distribution and attending Mullins-Sekerka type growth instabilities [27]. The Dy-rich background gives rise to matrix cracking and the Au-rich dendrites exhibit a nanometric dispersion of Dy2O3.
Figure 2. SEM micrographs of Au-Dy electrochemically grown film at the potential of −1.8 V for 2 hour, before (a) and after (b, c and d) heat treatment at 650 °C for 1 hour.
Figure 2. SEM micrographs of Au-Dy electrochemically grown film at the potential of −1.8 V for 2 hour, before (a) and after (b, c and d) heat treatment at 650 °C for 1 hour.
Energies 05 05363 g002
The structural characterization of the oxidized Au-Dy2O3 alloys has been carried out by X-ray diffractometry (Figure 3) [28]. Well-defined diffraction peaks of the Dy2O3 phase appear (JCPDS files #22-0612 and #04-0784), in addition to Au reflections. Scherrer analysis of the Dy2O3 peaks yields a characteristic grain dimension of ca. 13 nm.
Figure 3. X-ray diffractogram of Au-Dy2O3 alloy electrodeposited at the potential of −1.8 V for 2 hour, after heat treatment at 650 °C for 1 hour.
Figure 3. X-ray diffractogram of Au-Dy2O3 alloy electrodeposited at the potential of −1.8 V for 2 hour, after heat treatment at 650 °C for 1 hour.
Energies 05 05363 g003

2.3. Single Cell Testing—Electrochemical Impedance Spectrometry

The electrocatalytic activity of the electrodeposited composite material was tested by electrochemical impedance spectrometry (EIS) under single-cell SOFC conditions at 650 °C in the system illustrated in Figure 4. Both the anodic and cathodic behaviour was considered, feeding the cell with hydrogen and with air, respectively. The interfacial polarization resistance Rp of the bare gold electrode used as anode resulted 4,220 Ω·cm2 while that of Au-Dy2O3 composite was 1650 Ω cm2 [Figure 5(a)], revealing a higher anodic catalytic activity of the Au-Dy2O3 composite compared with bare Au and confirming the only available literature result on this material [4]. This catalytic behaviour might be explained by an high H2 consumption creating new active sites through hydrogen or oxygen spillover [4,29]. Even more evident effect was noticed by evaluating the catalytic activity of the novel material cathodic catalyst. In fact we found Rp values of 11,210 Ω·cm2 for bare Au and 157 Ω·cm2 for Au-Dy2O3 respectively [Figure 5(b)].
Figure 4. Schematic diagram of measurement apparatus employed for EIS experiments.
Figure 4. Schematic diagram of measurement apparatus employed for EIS experiments.
Energies 05 05363 g004

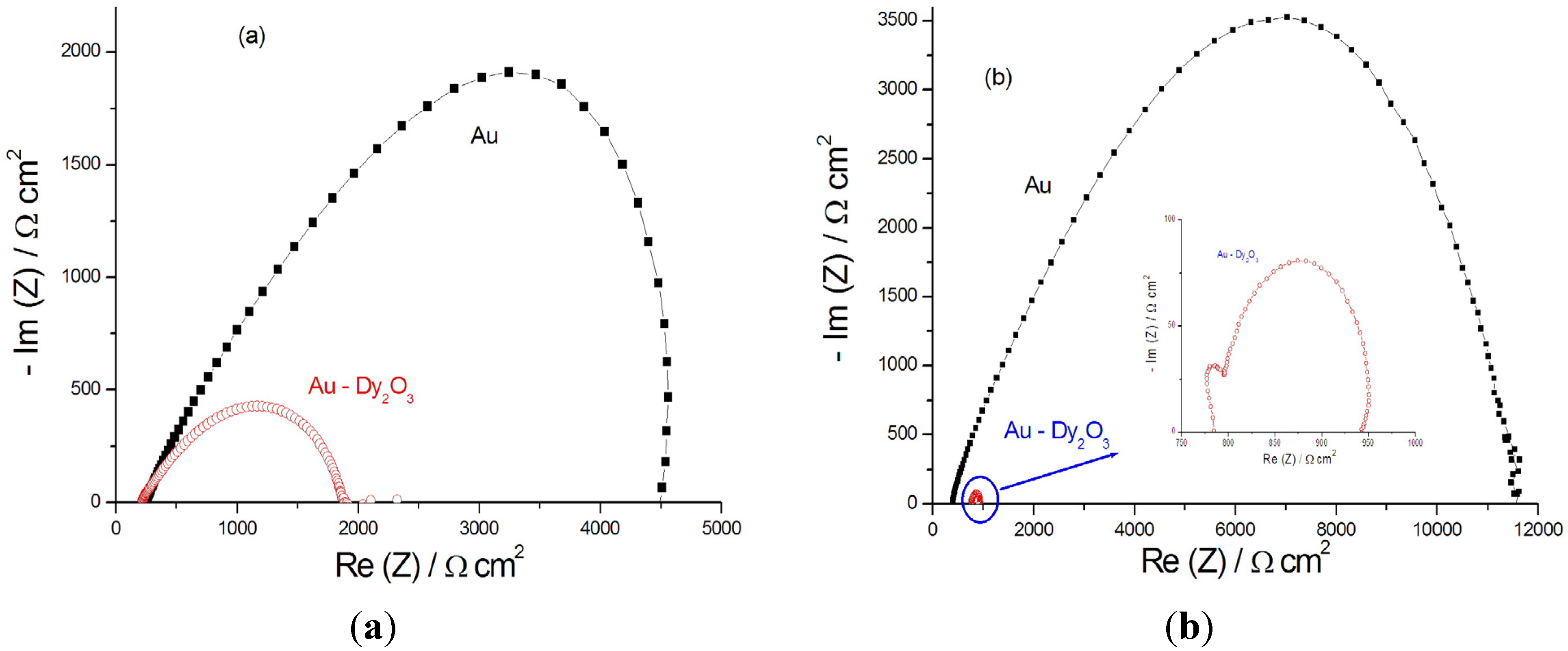

Figure 5. EIS spectra of the composite Au-Dy2O3 electrode as anode, feeding the single cell with hydrogen (a) or as cathode, feeding the cell with ambient air (b), measured at of 650 °C and applied bias potential of 1 V.
Figure 5. EIS spectra of the composite Au-Dy2O3 electrode as anode, feeding the single cell with hydrogen (a) or as cathode, feeding the cell with ambient air (b), measured at of 650 °C and applied bias potential of 1 V.
Energies 05 05363 g005

3. Experimental Section

The ionic liquid formulation was prepared by mixing urea and choline chloride (ChCl) in a 2:1 molar ratio and heating at a temperature of 80 °C, with continuous magnetic stirring, until a clear colourless liquid was formed. Two electrodeposition solutions were obtained from the ionic liquid, by adding either DyCl3 250 mM or this same amount of Dy(III) with KAu(CN)2 10 mM: stirring for additional 30 min yielded a clear liquid. Cyclic voltammetry (CV) measurements at 100 mV s−1 were performed in order to characterise the pure electrolyte and the bath containing Dy with or without Au. A dysprosium-gold thin film was cathodically deposited at 80 °C under a nitrogen atmosphere in a glove box, in which the moisture and oxygen contents were maintained below 1 ppm. The deposited film was thoroughly cleaned with acetone and isopropanol, according to [30] and then it was oxidized in air at 650 °C for 1 hour.
Electrochemical measurement [potentiostatic deposition, cyclic voltammetry (CV) and electrochemical impedance spectrometry (EIS)] were carried out with an AMEL 5000 potentiostat/galvanostat connected to a frequency response analyzer (Solartron SI 1250). A three-electrode electrochemical cell was employed. The surface morphology and chemical composition of the electrodeposit were examined with a Cambridge Stereoscan scanning electron microscope (SEM) equipped with X-ray energy dispersive spectrometer (EDS). A Ultima+Rigaku diffractometer with a Bragg–Brentano goniometer was employed for XRD. For CV experiments and for compositional, structural and morphological studies the working electrode (WE) were, respectively, a glassy carbon (GC) rod of diameter 2 mm, embedded in Teflon and a polycrystalline Au disc of diameter 8 mm, respectively. The counter electrode (CE) was a graphite rod with an exposed area of 3 cm2. A Au wire was chosen as the quasi-reference electrode (QRE), as customary in the literature and successfully tested in our own laboratory [18,31].
In order to estimate the electro-catalytic activity of the electrodeposited material, the apparatus described in Figure 4 was employed. A Au polycrystalline disc was used as the catalyst support, onto which the catalyst sample was electrodeposited and oxidised, as described above. A sheet of yttria-stabilised zirconia (YSZ) with thickness 0.5 mm (Goodfellow ZR613051) was used as electrolyte. Porous tapes of YSZ, were prepared by tape casting with graphite pore formers using aqueous-based slurries of YSZ (Tosoh, 8 mol% Y2O3), followed by sintering at 1550 °C as described in [32] and were painted onto one side of the dense YSZ electrolyte. The electrolyte, composed of a compact YSZ support, coated with a porous YSZ layer, was pressed against the electroplated samples by using the spring load of the sample-holder depicted in Figure 4. A thin layer of porous platinum paste—acting as counter electrode and the gas distribution layer—was applied on the back-side of YSZ electrolyte and contacted via Pt wire. The cell was then sealed in a quartz cylinder and inserted in an oven at 650 °C. H2 was used as the fuel to test the samples as anode and ambient air to test them as cathodes: in both cases we used a flow rate of 30 mL·min−1. Electrochemical impedance experiments were performed in the frequency range from 0.01 to 100 kHz, with a sinusoidal potential modulation of 0.1 V peak-to-peak and a bias of +1 and −1 V for anodic and cathodic tests, respectively.

4. Conclusions

In this paper, we report on the successful electrodeposition of dysprosium and its alloy with metals of very different nobility (Au-Dy) from an eutectic choline chloride/urea ionic liquid. In this way, with a single electrodeposition process, followed by heat treatment, we obtained a composite Au-Dy2O3 usable as SOFC electrode. In fact, test of our composite material as SOFC electrode demonstrated good electrocatalytic cathodic and anodic behaviour. The anodic behaviour observed in the literature for a cermet manufactured from powders was confirmed by our electrochemically grown material and the obtained composite demonstrated even better behaviour as cathode, not yet reported in the literature.

References

  1. McIntosh, S.S.; Gorte, R.J. Direct hydrocarbon solid oxide fuel cells. Chem. Rev. 2004, 104, 4845–4865. [Google Scholar] [CrossRef]
  2. He, B.B.; Ding, D.; Xia, C.R. Ni–LnOx (Ln = La, Ce, Pr, Nd, Sm, Eu, and Gd) cermet anodes for intermediate-temperature solid oxide fuel cells. J. Power Sources 2010, 195, 1359–1364. [Google Scholar] [CrossRef]
  3. De Boer, B.; Gonzalez, M.; Bouwmeester, H.J.M.; Verweij, H. The effect of the presence of fine YSZ particles on the performance of porous nickel electrodes. Solid State Ionics 2000, 127, 269–276. [Google Scholar] [CrossRef]
  4. He, B.; Zhao, L.; Wang, W.; Chen, F.; Xia, C. Electro-catalytic activity of Dy2O3 as a solid oxide fuel cell anode material. Electrochem. Comm. 2011, 13, 194–196. [Google Scholar] [CrossRef]
  5. Ding, D.; Li, L.; Feng, K.; Liu, Z.B.; Xia, C.R. High performance Ni–Sm2O3 cermet anodes for intermediate-temperature solid oxide fuel cells. J. Power Sources 2009, 187, 400–402. [Google Scholar] [CrossRef]
  6. Lodermeyer, J.; Multerer, M.; Zistler, M.; Jordan, S.; Gores, H.J.; Kipferl, W.; Diaconu, E.; Sperl, M.; Bayreuther, G. Electroplating of dysprosium, electrochemical investigations, and study of magnetic properties. J. Electrochem. Soc. 2006, 153, 242–248. [Google Scholar] [CrossRef]
  7. Hsu, H.Y.; Yang, C.C. Conductivity, electrodeposition and magnetic property of Cobalt(II) and dysprosium chloride in Zinc Chloride-1-Ethyl-3-Methylimidazolium chloride room temperature molten salt. Z. Naturforsch. B 2003, 58, 139–146. [Google Scholar]
  8. Kumbhar, P.P.; Lokhande, C.D. Electrodeposition of Dysprosium from nonaqueous Bath. Indian J. Chem. Technol. 1994, 1, 194–196. [Google Scholar]
  9. Castrillejo, Y.; Bermejo, M.R.; Barrado, A.I.; Pardo, R.; Barrado, E.; Martínez, A.M. Electrochemical behaviour of Dysprosium in the eutectic LiCl–KCl at W and Al electrodes. Electrochim. Acta. 2005, 50, 2047–2057. [Google Scholar] [CrossRef]
  10. Taxil, P.; Chamelot, P.; Massot, L.; Hamel, C. Electrodeposition of alloys or compounds in molten salts and applications. J. Min. Metall. 2003, 39, 177–200. [Google Scholar] [CrossRef]
  11. Sheti, R.S. Electrocoating from molten salts. J. Appl. Electrochem. 1979, 9, 411–426. [Google Scholar] [CrossRef]
  12. Tondo, E.; Boniardi, M.; Cannoletta, D.; De Riccardis, M.F.; Bozzini, B. Electrodeposition of Yttria/Cobalt-oxide and Yttria/Gold coatings onto ferritic stainless steel for SOFC interconnects. J. Power Sources 2010, 195, 4772–4778. [Google Scholar] [CrossRef]
  13. Bozzini, B.; Tondo, E.; Raffa, P.; Boniardi, M. Electrodeposition of Y2O3-Au composite coatings for SOFC interconnects: in situ monitoring of film growth by surface-enhanced Raman spectroscopy. Trans. Inst. Met. Fin. 2012, 90, 30–37. [Google Scholar] [CrossRef]
  14. Hassannejad, H.; Mele, C.; Shahrabi, T.; Bozzini, B. Electrodeposition of Ni/ceria composites: an in situ visible reflectance investigation. J. Solid State Electrochem. 2012, 16, 3429–3441. [Google Scholar] [CrossRef]
  15. Ding, B.Y.; Kim, Y.J.; Erlebacher, J. Nanoporous Gold Leaf: “Ancient Technology”/Advanced Material. Adv. Mater. 2004, 16, 1897–1900. [Google Scholar] [CrossRef]
  16. Mele, C.; Catalano, M.; Taurino, A.; Bozzini, B. Electrochemical fabrication of nanoporous gold-supported manganese oxide nanowires based on electrodeposition from eutectic urea/choline chloride ionic liquid. Electrochim. Acta 2013, 87, 918–924. [Google Scholar] [CrossRef]
  17. Kuhn, M.; Napporn, T.W. Single-chamber solid oxide fuel cell technology—from its origins to today's state of the art. Energies 2010, 3, 57–134. [Google Scholar] [CrossRef]
  18. Hibino, T.; Kuwahara, Y.; Wang, S. Effect of electrode and electrolyte modification on the performance of one-chamber solid oxide fuel cell. J. Electrochem. Soc. 1999, 146, 2821–2826. [Google Scholar] [CrossRef]
  19. Shuk, P.; Greenblatt, M.; Croft, M. Hydrothermal synthesis and properties of mixed conducting Ce1−xTbxO2-deltasolid solutions. Chem. Mater. 1999, 11, 473–479. [Google Scholar] [CrossRef]
  20. Trovarelli, A. Catalytic properties of Ceria and CeO2-Containing materials. Catal. Rev. Sci. Eng. 1996, 38, 439–520. [Google Scholar] [CrossRef]
  21. Fu, Q.; Saltsburg, H.; Flytzani-Stephanopoulous, M. Active nonmetaltic Au and Pt species on Ceria-based water-gas shift catalysts. Science 2003, 301, 935–938. [Google Scholar] [CrossRef] [PubMed]
  22. Fernández-García, M.; Martínez-Arias, A.; Guerrero-Ruiz, A.; Conesa, J.C.; Soria, J. Ce-Zr-Ca ternary mixed oxides: structural characteristics and oxygen handling properties. J. Catal. 2002, 211, 326–334. [Google Scholar] [CrossRef]
  23. Vlaic, G.; Di Monte, R.; Fornasiero, P.; Fonda, E.; Kašpar, J.; Graziani, M. Redox property-local structure relationships in the ph-loaded CeO2-ZrO2 mixed oxides. J. Catal. 1999, 182, 378–389. [Google Scholar] [CrossRef]
  24. Bozzini, B.; Tondo, E.; Bund, A.; Ispas, A.; Mele, C. Electrodeposition of Au from [EMIm][TFSA] room temperature ionic liquid: an electrochemical and Surface-Enhanced Raman Spectroscopy study. J. Electroanal. Chem. 2011, 651, 1–11. [Google Scholar] [CrossRef]
  25. Bozzini, B.; Busson, B.; Humbert, C.; Mele, C.; Raffa, P.; Tadjeddine, A. In situ SFG Investigation of Au electrodeposition from [BMP][TFSA], containing KAu(CN)2. J. Electroanal. Chem. 2011, 661, 20–24. [Google Scholar] [CrossRef]
  26. Oyama, T.; Okajima, T.; Ohsaka, T. Electrodeposition of gold at glassy carbon electrodes in room-temperature ionic liquids. J. Electrochem. Soc. 2007, 154, 322–327. [Google Scholar] [CrossRef]
  27. Bozzini, B.; Lacitignola, D.; Mele, C.; Sgura, I. Coupling of morphology and chemistry leads to morphogenesis in electrochemical metal growth: a review of the reaction-diffusion approach. Acta Appl. Math. 2012, 122, 53–68. [Google Scholar]
  28. Tok, H.A.I.Y.; Boey, F.Y.C.; Huebner, R.; Ng, S.H. Synthesis of dysprosium oxide by homogeneous precipitation. J. Electroceram. 2006, 17, 75–78. [Google Scholar] [CrossRef]
  29. Kili, K.; Hilaire, L.; Le Normand, F. Modification by lanthanide (La, Ce) promotion of catalytic properties of palladium: characterization of the catalysts. Phys. Chem. Chem. Phys. 1999, 1, 1623–1631. [Google Scholar] [CrossRef]
  30. Zein El Abedin, S.; Endres, F. Electrodeposition of nanocrystalline silver films and nanowires from the ionic liquid 1-ethyl-3-methylimidazolium trifluoromethylsulfonate. Electrochim. Acta 2009, 54, 5673–5677. [Google Scholar] [CrossRef]
  31. Bozzini, B.; Gianoncelli, A.; Kaulich, B.; Mele, C.; Prasciolu, M.; Kiskinova, M. Electrodeposition of manganese oxide from eutectic urea/choline chloride ionic liquid: an in situ study based on soft X-ray spectromicroscopy and visible reflectivity. J. Power Sources 2012, 211, 71–76. [Google Scholar] [CrossRef]
  32. Park, S.; Gorte, R.J.; Vohs, J.M. Tape cast solid oxide fuel cells for the direct oxidation of hydrocarbons. J. Electrochem. Soc. 2001, 148, 443–447. [Google Scholar] [CrossRef]
