Assessment of Thailand’s Energy Policies and CO₂ Emissions: Analyses of Energy Efficiency Measures and Renewable Power Generation

Abstract

This study assesses Thailand’s energy policies on renewable electricity generation and energy efficiency in industries and buildings. The CO₂ emissions from power generation expansion plans (PGEPs) are also evaluated. The PGEPs of CO₂ reduction targets of 20% and 40% emissions are also evaluated. Since 2008 Thai government has proposed the Alternative Energy Development Plan (AEDP) for renewable energy utilization. Results from energy efficiency measures indicate total cost saving of 1.34% and cumulative CO₂ emission reduction of 59 Mt-CO₂ in 2030 when compared to the business-as-usual (BAU) scenario. It was found that subsidies in the AEDP will promote renewable energy utilization and provide substantial CO₂ mitigation. As a co-benefit, fuel import vulnerability can be improved by 27.31% and 14.27% for CO₂ reduction targets of 20% and 40%, respectively.

1. Introduction

Carbon dioxide has contributed to more than 70% of total greenhouse gas concentration in the atmosphere leading to the deleterious effect from climate change and global warming. Due to economic development and population increase, electricity demand growth in developing countries has lead to increasing CO₂ emissions in the power sector. Although CO₂ emission reduction for developing countries has not been targeted by the Kyoto Protocol [1], the power generation expansion planning (PGEP) for both developed and developing countries needs to be concerned about providing efficient power generation to satisfy the electricity demand. Environmental protection is also a serious challenge in power system development [2]. Thailand is also concerned with such a problem, especially in the power sector. Two important plans, the 20-year National Energy Conservation Plan (NCEP) of 2011–2030 and the 15-year Alternative Energy Development Plan (AEDP) of 2008–2022, were launched and associated with CO₂ emission mitigation from electricity production. Based on the efficiency improvement of energy utilization and avoidance of unnecessary consumption, the NECP has been assessed its own potential to save electricity consumption of 86,150 GWh in three economic sectors: industrial, commercial and residential sectors [3]. Meanwhile, the primary purpose of AEDP is to promote renewable energy utilization. The total installed capacity of renewable energy is targeted up to 5608 MW which would produce 26,500 GWh of power generation by the year 2022. Additionally, subsidies in the form of “adders” within certain time periods for particular renewable energy technologies are established to promote investment of renewable power generation [4].

The objective of the paper is to assess the impact of two important policy drivers proposed by the Thai government on the Thai power supply sector with the help of Mixed Integer Linear Programming (MILP). These two policy drivers are Energy Efficiency and Renewable Energy. The impact of constraints with regard to CO₂ emissions and the various power generation technologies on future technology selection have been assessed. In this study, the least-cost PGEP model was developed on the basis of General Algebraic Modeling System (GAMS) framework which provides Cplex, the well-known MILP solver in order to select the optimal capacity expansion and generation mix under different scenarios during 2010–2030. In this study the specific CO₂ emission reduction targets are adopted as emission constraints in optimization. Financial and environmental impacts of NECP and AEDP are further assessed by the PGEP model. Different scenarios related to selected policies and CO₂ emission reduction targets were conducted in order to analyze their own impacts in terms of cost savings, CO₂ intensity as well as fuel imported requirement.

2. Mathematical Formulation of MILP Model in GAMS Framework

In this study, the PGEP model was operated on Pentium quad-core processor at a processing speed of 2.66 GHz with 3 GB of RAM based on the GAMS program, which provides ILOG Cplex 9.0 solver for handling MILP problem efficiently [5]. In order to minimize the generation and expansion cost (Obj_cost) by using the above mentioned model, the mathematical formulation of the objective function and its corresponding constraints must be a linear combination of mixed-integer decision variables as in the following expression:

$$\underset{u,p}{\min }Ob{j}_{\text{cost}}={\displaystyle \sum _{t=1}^T\left[I_t-S_t+F_t+V_t-S{D}_t\right]}$$

(1)

The objective function to determine the investment cost (I_t), salvage value (S_t), fixed operation and maintenance cost (F_t), variable operation and maintenance cost (V_t) and total adder subsidy for renewable energy (SD_t) are as follows:

$$I_t={\left(\frac{1}{1+D}\right)}^{t-1}\left[{\displaystyle \sum _{i=1}^I\left[In{v}_i\cdot Ca{p}_i\cdot u_{i,t}\right]}\right]$$

(2)

$$S_t={\left(\frac{1}{1+D}\right)}^T{\displaystyle \sum _{i=1}^I\left[{\delta }_i^{T-t+1}\cdot In{v}_i\cdot Ca{p}_i\cdot u_{i,t}\right]}$$

(3)

$$F_t={\left(\frac{1}{1+D}\right)}^{t-\frac{1}{2}}\left({\displaystyle \sum _{r=1}^t{\displaystyle \sum _{i=1}^I\left[Fixe{d}_i\cdot Ca{p}_i\cdot u_{i,r}\right]}}+{\displaystyle \sum _{j=1}^J\left[Fixe{d}_j\cdot ExistCa{p}_j\right]}\right)$$

(4)

$$V_t=K\cdot {\left(\frac{1}{1+D}\right)}^{t-\frac{1}{2}}{\displaystyle \sum _{s=1}^{S}s\left[{\displaystyle \sum _{i=1}^I\left[Va{r}_i\cdot p_{i,s,t}\right]}+{\displaystyle \sum _{j=1}^J\left[Va{r}_j\cdot p_{j,s,t}\right]}\right]}$$

(5)

$$S{D}_t=K\cdot {\left(\frac{1}{1+D}\right)}^{t-\frac{1}{2}}\left({\displaystyle \sum _{s=1}^{S}s\left[{\displaystyle \sum _{i=1}^I\left[Adde{r}_i\cdot p_{i,s,t}\right]}\right]}-\{\begin{array}{cc}{\displaystyle \sum _{s=1}^{S}s\left[{\displaystyle \sum _{i=1}^I\left[Adde{r}_i\cdot p_{i,s,r}\right]}\right]}& ;r=t-T_i^{Subsidy}\ge 1\\ 0& ;r=t-T_i^{Subsidy}<1\end{array}\right)$$

(6)

The integer decision variables, u_i,t and u_i,r represent the number of the ith candidate technology in the tth year and the rth year, respectively. The continuous decision variables, p_i,s,t represents the power output of the ith candidate technology in the sth subperiod in the tth year and p_j,s,t the power output of the jth existing technology in the sth subperiod in the tth year. The parameters Cap_i, Inv_i, δ_i, Fixed_i and Var_i, represent the capacity, investment, salvage value, fixed and variable operational maintenance charges of the ith candidate technology, respectively. The variable operational maintenance charge also includes the fuel cost. ExistCap_j, Fixed_j and Var_j represent the capacity, fixed and variable operational maintenance charges of the jth existing technology, respectively. The constants D and K are the discount rate and number of hours in sub-period, respectively. EF_i and EF_j are the CO₂ emission factors of the ith candidate technology and the jth existing technology. Adder_i and T_i^Subsidy are adder costs and subsidy periods of the ith candidate technology, respectively.

Constraint handling is primary and requisite to optimization practice. The constraints normally entail the physical limitation of the realistic system. For the entire planning horizon, the total installed capacity in the power system must satisfy maximum and minimum reserve margin which are characterized by proportion of peak load in Equation (7). In each sub-period, total power generation of the selected existing and candidate generating units must be sufficient for the predicted electricity demand, along with Load Duration Curve (LDC) in Equation (8). Furthermore, the power generation by each existing and candidate unit must be limited by its capacity factor in Equations (9,10). Renewable energy utilization always encounters with limitation of resources. The conversion of particular renewable energy to electricity cannot exceed its own potential in Equation (11). Finally, CO₂ reduction target is imposed on constrained optimization Equation (12). The above mentioned mathematical constraints are formulated as follows:

$$\left(1+{\mathrm{R}}_{\min }\right)\cdot Loa{d}_{1,t}\le {\displaystyle \sum _{r=1}^t\left[{\displaystyle \sum _{i=1}^I\left[Ca{p}_i\cdot u_{i,r}\right]-{\displaystyle \sum _{j=1}^J\left[Retir{e}_{j,r}\right]}}\right]+{\displaystyle \sum _{j=1}^{J}ExistCa{p}_j}\le \left(1+{\mathrm{R}}_{\max }\right)\cdot Loa{d}_{1,t}}$$

(7)

$${\displaystyle \sum _{i=1}^I\left[{\displaystyle \sum _{s=k}^S\left[p_{i,s,t}\right]}\right]}+{\displaystyle \sum _{j=1}^J\left[{\displaystyle \sum _{s=k}^S\left[p_{j,s,t}\right]}\right]}\ge Loa{d}_{k,t}$$

(8)

$${\displaystyle \sum _{s=k}^S\left[p_{j,s,t}\right]}\le C{F}_j\cdot ExistCa{p}_j$$

(9)

$${\displaystyle \sum _{s=k}^S\left[p_{i,s,t}\right]}\le {\displaystyle \sum _{r=1}^{t}C{F}_i\cdot Ca{p}_i\cdot u_{i,r}}$$

(10)

$${\displaystyle \sum _{t=1}^{T}Ca{p}_i\cdot u_{i,t}}\le PR{E}_i$$

(11)

$$K\cdot {\displaystyle \sum _{t=1}^T\left[{\displaystyle \sum _{s=1}^{S}s\left[{\displaystyle \sum _{i=1}^I\left[E{F}_i\cdot p_{i,s,t}\right]}+{\displaystyle \sum _{j=1}^J\left[E{F}_j\cdot p_{j,s,t}\right]}\right]}\right]}\le Limi{t}_{C{O}_2}$$

(12)

where R_min and R_max denotes the minimum and maximum reserve margins, respectively. CF_i and CF_j denotes the capacity factors of the ith candidate technology and the jth existing technology respectively. PRE_i denotes the maximum capacity expansion of the ith candidate renewable energy technology. Load_k,t denotes the load of the kth sub-period in the tth year and Load_1,t denotes the peak load in the tth year. Limit_CO2 denotes the limitation of CO₂ emissions related to the reduction targets.

3. Description of Scenarios

In power system planning, the Electricity Generating Authority of Thailand (EGAT) is responsible for PGEP. The Power Development Plan 2010 (PDP2010) was thus formulated and served as the master plan to expand generation capacity. In this study the planning horizon of PGEP is the period between 2010 and 2030 according to the PDP2010 [6]. A discount rate of 10% per year is used and the reserved margin is always maintained between 15% and 25%. The salvage value was set at 0.15 for all candidate technologies. The fuel price of natural gas, coal, lignite, fuel oil, diesel, uranium and biomass is 9.76, 4.01, 0.95, 14.3, 20.51, 0.5 and 2.01 $/MMBtu, respectively [6,7,8]. With respect to future fuel prices, an escalation rate of 2.3% per year was applied according to prior work in [9]. In this study, five scenarios of PGEP have been considered and their descriptions are as follows.

Business-as-usual scenario (hereafter referred to as “BAU”) is the reference scenario. The load duration curve (LDC) used in this study is presented in Table 1. Each year of planning horizon is divided into 12 equal segments, and each contains 730 hours. The load levels in each segment are obtained from Thailand’s hourly electricity consumption in 2009 [6]. The average load demand growth is about 4.27% per year. The electricity consumption is expected to increase from 144,791 GWh in 2009 to 347,947 GWh in 2030, as shown in Figure 1. Table 2 describes the replacement of existing power plants according to the retirement schedule. Nuclear power is initially introduced from 2020 and limited to only one unit per year according to PDP2010. Renewable power generation is constrained by its resource potentials with regard to the AEDP plan (see Table 3).

Table 1. Load profiles of in the PGEP model.

Year	Load factor	Sub-period
		1	2	3	4	5	6	7	8	9	10	11	12
2009	74.98	22,045	20,844	19,945	19,113	18,239	17,153	15,914	15,014	14,308	13,526	12,461	9,782
2010	75.1	23,249	21,751	20,852	20,020	19,146	18,060	16,821	15,921	15,215	14,433	13,368	10,690
2011	74.5	24,568	22,550	21,651	20,819	19,945	18,859	17,620	16,720	16,014	15,232	14,167	11,487
2012	74.03	25,913	23,389	22,490	21,658	20,784	19,698	18,459	17,559	16,853	16,071	15,006	12,324
2013	73.74	27,188	24,217	23,318	22,486	21,612	20,526	19,287	18,387	17,681	16,899	15,834	13,155
2014	73.89	28,341	25,086	24,187	23,355	22,481	21,395	20,156	19,256	18,550	17,768	16,703	14,026
2015	74.09	29,463	25,952	25,053	24,221	23,347	22,261	21,022	20,122	19,416	18,634	17,569	14,891
2016	74.24	30,754	26,929	26,030	25,198	24,324	23,238	21,999	21,099	20,393	19,611	18,546	15,868
2017	74.15	32,225	27,955	27,056	26,224	25,350	24,264	23,025	22,125	21,419	20,637	19,572	16,900
2018	74.15	33,688	29,004	28,105	27,273	26,399	25,313	24,074	23,174	22,468	21,686	20,621	17,948
2019	74.26	34,988	29,979	29,080	28,248	27,374	26,288	25,049	24,149	23,443	22,661	21,596	18,924
2020	74.44	36,336	31,022	30,123	29,291	28,417	27,331	26,092	25,192	24,486	23,704	22,639	19,964
2021	74.4	37,856	32,101	31,202	30,370	29,496	28,410	27,171	26,271	25,565	24,783	23,718	21,043
2022	74.49	39,308	33,184	32,285	31,453	30,579	29,493	28,254	27,354	26,648	25,866	24,801	22,122
2023	74.6	40,781	34,296	33,397	32,565	31,691	30,605	29,366	28,466	27,760	26,978	25,913	23,234
2024	74.81	42,236	35,448	34,549	33,717	32,843	31,757	30,518	29,618	28,912	28,130	27,065	24,392
2025	74.68	43,962	36,634	35,735	34,903	34,029	32,943	31,704	30,804	30,098	29,316	28,251	25,578
2026	74.76	45,621	37,877	36,978	36,146	35,272	34,186	32,947	32,047	31,341	30,559	29,494	26,818
2027	74.84	47,344	39,166	38,267	37,435	36,561	35,475	34,236	33,336	32,630	31,848	30,783	28,107
2028	75.06	49,039	40,511	39,612	38,780	37,906	36,820	35,581	34,681	33,975	33,193	32,128	29,455
2029	75.03	50,959	41,892	40,993	40,161	39,287	38,201	36,962	36,062	35,356	34,574	33,509	30,840
2030	75.1	52,890	43,339	42,440	41,608	40,734	39,648	38,409	37,509	36,803	36,021	34,956	32,283

Table 1. Load profiles of in the PGEP model.

Year	Load factor	Sub-period
		1	2	3	4	5	6	7	8	9	10	11	12
2009	74.98	22,045	20,844	19,945	19,113	18,239	17,153	15,914	15,014	14,308	13,526	12,461	9,782
2010	75.1	23,249	21,751	20,852	20,020	19,146	18,060	16,821	15,921	15,215	14,433	13,368	10,690
2011	74.5	24,568	22,550	21,651	20,819	19,945	18,859	17,620	16,720	16,014	15,232	14,167	11,487
2012	74.03	25,913	23,389	22,490	21,658	20,784	19,698	18,459	17,559	16,853	16,071	15,006	12,324
2013	73.74	27,188	24,217	23,318	22,486	21,612	20,526	19,287	18,387	17,681	16,899	15,834	13,155
2014	73.89	28,341	25,086	24,187	23,355	22,481	21,395	20,156	19,256	18,550	17,768	16,703	14,026
2015	74.09	29,463	25,952	25,053	24,221	23,347	22,261	21,022	20,122	19,416	18,634	17,569	14,891
2016	74.24	30,754	26,929	26,030	25,198	24,324	23,238	21,999	21,099	20,393	19,611	18,546	15,868
2017	74.15	32,225	27,955	27,056	26,224	25,350	24,264	23,025	22,125	21,419	20,637	19,572	16,900
2018	74.15	33,688	29,004	28,105	27,273	26,399	25,313	24,074	23,174	22,468	21,686	20,621	17,948
2019	74.26	34,988	29,979	29,080	28,248	27,374	26,288	25,049	24,149	23,443	22,661	21,596	18,924
2020	74.44	36,336	31,022	30,123	29,291	28,417	27,331	26,092	25,192	24,486	23,704	22,639	19,964
2021	74.4	37,856	32,101	31,202	30,370	29,496	28,410	27,171	26,271	25,565	24,783	23,718	21,043
2022	74.49	39,308	33,184	32,285	31,453	30,579	29,493	28,254	27,354	26,648	25,866	24,801	22,122
2023	74.6	40,781	34,296	33,397	32,565	31,691	30,605	29,366	28,466	27,760	26,978	25,913	23,234
2024	74.81	42,236	35,448	34,549	33,717	32,843	31,757	30,518	29,618	28,912	28,130	27,065	24,392
2025	74.68	43,962	36,634	35,735	34,903	34,029	32,943	31,704	30,804	30,098	29,316	28,251	25,578
2026	74.76	45,621	37,877	36,978	36,146	35,272	34,186	32,947	32,047	31,341	30,559	29,494	26,818
2027	74.84	47,344	39,166	38,267	37,435	36,561	35,475	34,236	33,336	32,630	31,848	30,783	28,107
2028	75.06	49,039	40,511	39,612	38,780	37,906	36,820	35,581	34,681	33,975	33,193	32,128	29,455
2029	75.03	50,959	41,892	40,993	40,161	39,287	38,201	36,962	36,062	35,356	34,574	33,509	30,840
2030	75.1	52,890	43,339	42,440	41,608	40,734	39,648	38,409	37,509	36,803	36,021	34,956	32,283

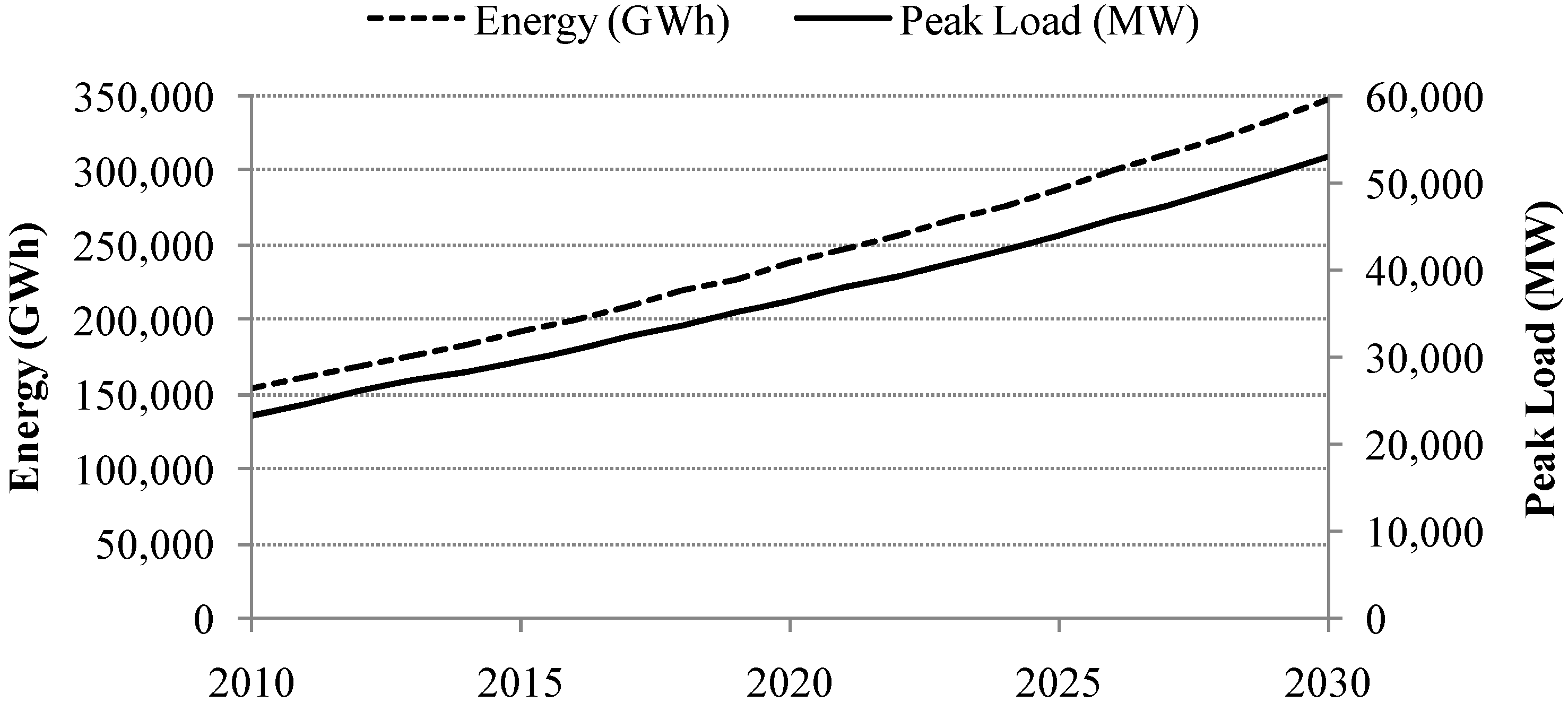

Figure 1. Load forecast.

Figure 1. Load forecast.

Energy efficiency scenario (hereafter referred to as “EE”) presumes the implementation of the NECP which would contribute to electricity demand saving of 33,500, 27,500, and 25,500 GWh in the industrial, commercial, and residential sectors respectively. Table 4 reports the estimated sectoral budgets for energy efficiency improvement programs. The annual peak load demand and total energy would be saved on average of 628 MW and 4102 GWh per year respectively. In the EE scenario, the configuration of the LDC is maintained as shown in Table 1. The magnitudes in the LDC is reduced by regarding the above mentioned load reduction, whilst sharing the same load factor on average of 74.42% per year.

Table 2. The retirement schedule of existing plants (in MW).

Year	TH-Lignite-EGAT	CC-Gas-IPP	CC-Gas-EGAT	TH-Gas-IPP	TH-Gas-EGAT
2011	0	0	0	−70	0
2012	0	0	0	−70	0
2013	0	0	0	0	−1052
2014	0	−1175	0	0	0
2015	0	0	0	0	0
2016	0	−678	−314	0	0
2017	0	0	−639	0	0
2018	0	0	0	0	0
2019	0	0	−641	0	0
2020	0	−700	0	0	0
2021	0	0	0	0	−576
2022	0	0	−2472	0	−576
2023	−140	−350	0	0	0
2024	−280	0	0	0	0
2025	−140	−700	0	−1440	0
2026	0	0	0	0	0
2027	0	−2041	0	0	0
2028	−270	−713	0	0	0
2029	−270	0	0	0	0
2030	−270	0	0	0	0

Abbreviations: TH-Lignite-EGAT (Lignite-fired thermal owned by EGAT); CC-Gas-IPP (Gas-fired combined cycle owned by independent power producer, IPP); CC-Gas-EGAT (Gas-fired combined cycle owned by EGAT); TH-Gas-IPP (Gas-fired thermal owned by IPP); TH-Gas-EGAT (Gas-fired thermal owned by EGAT).

Table 2. The retirement schedule of existing plants (in MW).

Year	TH-Lignite-EGAT	CC-Gas-IPP	CC-Gas-EGAT	TH-Gas-IPP	TH-Gas-EGAT
2011	0	0	0	−70	0
2012	0	0	0	−70	0
2013	0	0	0	0	−1052
2014	0	−1175	0	0	0
2015	0	0	0	0	0
2016	0	−678	−314	0	0
2017	0	0	−639	0	0
2018	0	0	0	0	0
2019	0	0	−641	0	0
2020	0	−700	0	0	0
2021	0	0	0	0	−576
2022	0	0	−2472	0	−576
2023	−140	−350	0	0	0
2024	−280	0	0	0	0
2025	−140	−700	0	−1440	0
2026	0	0	0	0	0
2027	0	−2041	0	0	0
2028	−270	−713	0	0	0
2029	−270	0	0	0	0
2030	−270	0	0	0	0

Abbreviations: TH-Lignite-EGAT (Lignite-fired thermal owned by EGAT); CC-Gas-IPP (Gas-fired combined cycle owned by independent power producer, IPP); CC-Gas-EGAT (Gas-fired combined cycle owned by EGAT); TH-Gas-IPP (Gas-fired thermal owned by IPP); TH-Gas-EGAT (Gas-fired thermal owned by EGAT).

Table 3. Potentials, targets and adders for renewable power in the AEDP plan.

Types of Energy	Potential	Existing	2008–2011		2012–2016		2017–2022		Capacity factor	Adder ($/MWh)	Subsidy period
	(MW)	(MW)	(MW)	(GWh)	(MW)	(GWh)	(MW)	(GWh)
Solar energy	50,000	32	55	70	95	129	500	657	15.04%	262.30	10
Wind energy	1600	1	115	153	375	493	800	1,044	15.02%	114.75	10
Hydro power	700	56	165	194	281	330	324	384	13.44%	26.23	7
Biomass	4400	1610	2800	17,169	3,220	19,739	3700	22,685	69.99%	9.84	7
Biogas	190	46	60	317	90	469	120	634	60.04%	9.84	7
Municipal Solid Waste (MSW)	400	5	78	411	130	681	160	845	60.06%	114.75	7
Hydrogen	-	-	-		-		3.5	1	3.26%	-	-
Total	-	1750	3273	18,314	4191	21,841	5608	26,250	-	-	-

Table 3. Potentials, targets and adders for renewable power in the AEDP plan.

Types of Energy	Potential	Existing	2008–2011		2012–2016		2017–2022		Capacity factor	Adder ($/MWh)	Subsidy period
	(MW)	(MW)	(MW)	(GWh)	(MW)	(GWh)	(MW)	(GWh)
Solar energy	50,000	32	55	70	95	129	500	657	15.04%	262.30	10
Wind energy	1600	1	115	153	375	493	800	1,044	15.02%	114.75	10
Hydro power	700	56	165	194	281	330	324	384	13.44%	26.23	7
Biomass	4400	1610	2800	17,169	3,220	19,739	3700	22,685	69.99%	9.84	7
Biogas	190	46	60	317	90	469	120	634	60.04%	9.84	7
Municipal Solid Waste (MSW)	400	5	78	411	130	681	160	845	60.06%	114.75	7
Hydrogen	-	-	-		-		3.5	1	3.26%	-	-
Total	-	1750	3273	18,314	4191	21,841	5608	26,250	-	-	-

Table 4. Energy savings due to NECP and related costs

Economic sector	Total electricity saving (GWh)	Budgets (Millon $)
Industrial	33500	367
Commercial	27500	133
Residential	25230	167

Table 4. Energy savings due to NECP and related costs

Economic sector	Total electricity saving (GWh)	Budgets (Millon $)
Industrial	33500	367
Commercial	27500	133
Residential	25230	167

Renewable energy scenario (hereafter referred to as “RE”) shares the same load profile as in the BAU scenario. In this scenario, the overall capacity of renewable energy must be equal to or higher than the expansion targets of renewable energy in the AEDP plan, as shown in Table 3. Several rates of adders for promotion of renewable energy are incorporated into the objective function in the optimization model. The term Tariff_t in the objective function Equation (1) is subsequently activated.

Renewable energy and energy efficiency scenario (herein referred to as “RE+EE”) shares the same load profile as in the EE scenario. The constraint of renewable energy development and government subsidy mechanism in the RE scenario is also applied to this scenario.

In addition, four scenarios including the BAU, EE, RE and RE+EE scenarios are analyzed subject to 20% and 40% of CO₂ emission reduction targets when compared to the BAU scenario. Total CO₂ emissions of PGEP are constrained in the model to achieve the reduction targets. The Constraint (11) is subsequently activated.

Thailand’s existing power system is comprised of various generating technologies with a total installed capacity of 29,212 MW. Natural gas is the primary energy source and accounted for 70% of total fuel consumption in 2009 [10]. In this study, the candidate power plants in the GPEP model are categorized into three types: conventional fossil-fired power plants, clean generating technology, and renewable energy. In Thailand, since the total installed capacity is predominated by coal-fired thermal (TH-Coal), gas-fired combined cycle (CC-Gas) and diesel-fired gas turbine (GT-Diesel) power plants, these three conventional fossil-fired generating technologies are selected to indicate their financial benefits with carbon intensity.

Nuclear power plants have been an attractive technology to deal with rapidly increasing electricity demand, enhancing security of energy supply and mitigating of greenhouse gas emission. In addition, a simple steam cycle’s efficiency can be improved by substituting a supercritical steam cycle in its place. The coal-fired supercritical power plant (SuperC-Coal)’s efficiency is 19.51% higher than that of TH-Coal. Furthermore, the acceptable capital cost and high efficiency are determining factors in the IGCC technology being employed in power generation. Nuclear, IGCC and SuperC-Coal are selected as clean generation options for CO₂ mitigation.

Renewable energy is esteemed as the best alternative in terms of environmental-friendly strategy. Seven important technologies of renewable energy such as small hydro, wind energy, solar energy, biomass, biogas and MSW are selected to explore their economic feasibilities and operational performances. The technical, economic and environmental characteristics of the above mentioned existing and candidate power plants are summarized in Table 5.

Table 5. Technical, economic and environmental characteristics of existing and candidate power plants.

Existing power plant a
Plant code	Owner	Capacity	Efficiency	Fixed O&M	Variable O&M	Capacity factor	CO2 emission factor b
		MW	%	$/MW/Yr	$/MWh	%	kg/MWh
TH-Coal	IPP	1717	38	229,495	37.13	92	973
TH-Lignite	EGAT	2180	35	38,909	11.024	92	1,159
CC-Gas	IPP	9225	47	83,190	71.2	94	370
CC-Gas	EGAT	5857	43	17,200	78.186	94	370
TH-Gas	IPP	1580	33	62,500	102.17	92	631
TH-Gas	EGAT	2920	34	20,500	99.2	92	631
GT-Gas	EGAT	220	25	9000	133.3	96	631
TH-Oil	EGAT	324	37	22,000	133.38	92	796
DT-Diesel	EGAT	124	33	7000	211.32	96	808
GT-Diesel	EGAT	610	22	7000	317.28	96	808
Hydro	EGAT	3424	-	49,500	0.13	23	23
Biomass	SPP	287	31	34,200	22.98	83	58
Renewable	EGAT	34	-	67,800	1.1	20	34
Candidate power plant c
Plant code	Capital cost	Capacity	Efficiency	Fixed O&M	Variable O&M	Capacity factor	CO2 emission factor b
	million $/MW	MW	%	$/MW/Yr	$/MWh	%	kg/MWh
TH-Coal	1.05	800	36	38,000	37.89	83	973
GT-Diesel	0.43	100	33	19,000	214.05	83	808
CC-Gas	0.71	400	49	25,000	67.03	83	404
IGCC-Coal	1.55	500	46	42,000	30.39	83	766
SuperC-Coal	1.57	500	39	40,000	37.38	83	782
Biomass	1.45	100	31	34,200	22.98	70	58
Nuclear	3.02	1,000	33	66,600	5.68	83	21
Wind	1.32	10	-	13,500	0.88	15	18
Solar	4.16	10	-	9,000	1.32	15	49
Small hydro	2.74	10	-	49,500	0.13	29	23
Biogas	2.56	10	31	34,200	22.98	61	58
MSW	4.15	10	31	34,200	22.98	61	58

Abbreviations: TH-Coal (Coal-fired thermal); TH-Lignite (Lignite-fired thermal); CC-Gas (Gas-fired combined cycle); GT-Gas (Gas-fired gas turbine); TH-Oil (Oil-fired thermal); DT-Diesel (Diesel turbine); GT-Diesel (Diesel-fired gas turbine); IGCC (Integrated gasification combined cycle); SuperC (Supercritical) and MSW (Municipal solid waste) O&M stand for operation and maintenance. The data reported derives from various sources and literature reviews. Sources: ^a adopted from [6,10]; ^b adopted from [6,11,12]; ^c adopted from [4,8,13,14,15].

Table 5. Technical, economic and environmental characteristics of existing and candidate power plants.

Existing power plant a
Plant code	Owner	Capacity	Efficiency	Fixed O&M	Variable O&M	Capacity factor	CO2 emission factor b
		MW	%	$/MW/Yr	$/MWh	%	kg/MWh
TH-Coal	IPP	1717	38	229,495	37.13	92	973
TH-Lignite	EGAT	2180	35	38,909	11.024	92	1,159
CC-Gas	IPP	9225	47	83,190	71.2	94	370
CC-Gas	EGAT	5857	43	17,200	78.186	94	370
TH-Gas	IPP	1580	33	62,500	102.17	92	631
TH-Gas	EGAT	2920	34	20,500	99.2	92	631
GT-Gas	EGAT	220	25	9000	133.3	96	631
TH-Oil	EGAT	324	37	22,000	133.38	92	796
DT-Diesel	EGAT	124	33	7000	211.32	96	808
GT-Diesel	EGAT	610	22	7000	317.28	96	808
Hydro	EGAT	3424	-	49,500	0.13	23	23
Biomass	SPP	287	31	34,200	22.98	83	58
Renewable	EGAT	34	-	67,800	1.1	20	34
Candidate power plant c
Plant code	Capital cost	Capacity	Efficiency	Fixed O&M	Variable O&M	Capacity factor	CO2 emission factor b
	million $/MW	MW	%	$/MW/Yr	$/MWh	%	kg/MWh
TH-Coal	1.05	800	36	38,000	37.89	83	973
GT-Diesel	0.43	100	33	19,000	214.05	83	808
CC-Gas	0.71	400	49	25,000	67.03	83	404
IGCC-Coal	1.55	500	46	42,000	30.39	83	766
SuperC-Coal	1.57	500	39	40,000	37.38	83	782
Biomass	1.45	100	31	34,200	22.98	70	58
Nuclear	3.02	1,000	33	66,600	5.68	83	21
Wind	1.32	10	-	13,500	0.88	15	18
Solar	4.16	10	-	9,000	1.32	15	49
Small hydro	2.74	10	-	49,500	0.13	29	23
Biogas	2.56	10	31	34,200	22.98	61	58
MSW	4.15	10	31	34,200	22.98	61	58

Abbreviations: TH-Coal (Coal-fired thermal); TH-Lignite (Lignite-fired thermal); CC-Gas (Gas-fired combined cycle); GT-Gas (Gas-fired gas turbine); TH-Oil (Oil-fired thermal); DT-Diesel (Diesel turbine); GT-Diesel (Diesel-fired gas turbine); IGCC (Integrated gasification combined cycle); SuperC (Supercritical) and MSW (Municipal solid waste) O&M stand for operation and maintenance. The data reported derives from various sources and literature reviews. Sources: ^a adopted from [6,10]; ^b adopted from [6,11,12]; ^c adopted from [4,8,13,14,15].

4. Results

4.1. Additional Power Generation and Capacity

In the BAU scenario coal-fired generating technologies are the largest contributors in electricity generation, as shown in Figure 2. TH-Coal and IGCC plants would be selected up to 21,717 MW and 17,000 MW by 2030, and would account for 23.6% and 39.3% of power generation in the planning horizon, respectively. The CC-Gas plants, which dominated the power generation share in 2010, would decrease from 57.9% in 2010 down to 5.9% in 2030 due to the retirement of 14,207 MW. It is noted that CC-Gas and GT-Diesel plants are less attractive options than TH-Coal plants in the least cost category due to their high fuel prices. Nonetheless, since capital cost of 800 MW of TH-Coal and 500 MW of IGCC plants is not attractive in the short-term planning because the time needed for breaking even is more, CC-Gas plants of 6000 MW and GT-Diesel plants of 4400 MW are selected at the end of planning period. Additionally, nuclear and renewable energy-based plants are not attractive due to their high capital costs. Nuclear power plant of only 1000 MW would be invested in the year 2020 and only the existing hydro power plants have provided about 6900 GWh per year. Biomass-based technologies play an important role in total generation and cost savings as well as CO₂ emission mitigation. Biomass power is projected to expand to 4100 MW regarding the maximum biomass availability for all scenarios. In the EE, RE and RE+EE scenarios, configurations of capacity and generation mixes are significantly identical to those of the BAU scenario. Under subsidy of adders in the RE and RE+EE scenarios, wind and MSW plants are competitive in comparison to conventional generating technologies. In 2020, wind and MSW plants will be selected at total capacities of 1600 and 400 MW, respectively.

The power generating technologies will shift from conventional coal-fired plants to cleaner technologies when CO₂ emissions are limited. In the BAU20 scenario, IGCC capacity will increase to 19,500 MW, and share about 40.8% of total electricity generation in 2030. The requirement of TH-Coal power plant in BAU scenario would be replaced by CC-Gas plant which would share 23% of power generation in the planning horizon. In addition, 9000 MW nuclear plants will be selected and share about 18.8% of total electricity generation in 2030. Results of the BAU20, EE20, RE20 and RE + EE20 scenarios for CO₂ limitations of 20% lead to the conclusion that TH-Coal, GT-Diesel and renewable energy plants are not competitive in the least cost planning concept (see Figure 2).

In the BAU40, EE40, RE40 and RE+EE40 scenarios, lower-carbon-content fossil-based technology such as CC-Gas plant is significantly promoted to achieve more CO₂ emission reduction. Power generation by IGCC plants in the BAU20 scenario would reduce from 2218 to 606 TWh (by 72.6%) in the BAU40 scenario. Thus CC-Gas plants would contribute 31,200 MW of additional capacity, and share about 2863 TWh of total electricity generation. Increasing CO₂ reduction target, from 20% to 40%, results in more renewable energy adoption. Biogas-based plants would be competitive in reduction of substantial CO₂ emissions. The biogas-based capacity is expected to be 190 MW in 2030 with respect to the maximum potential.

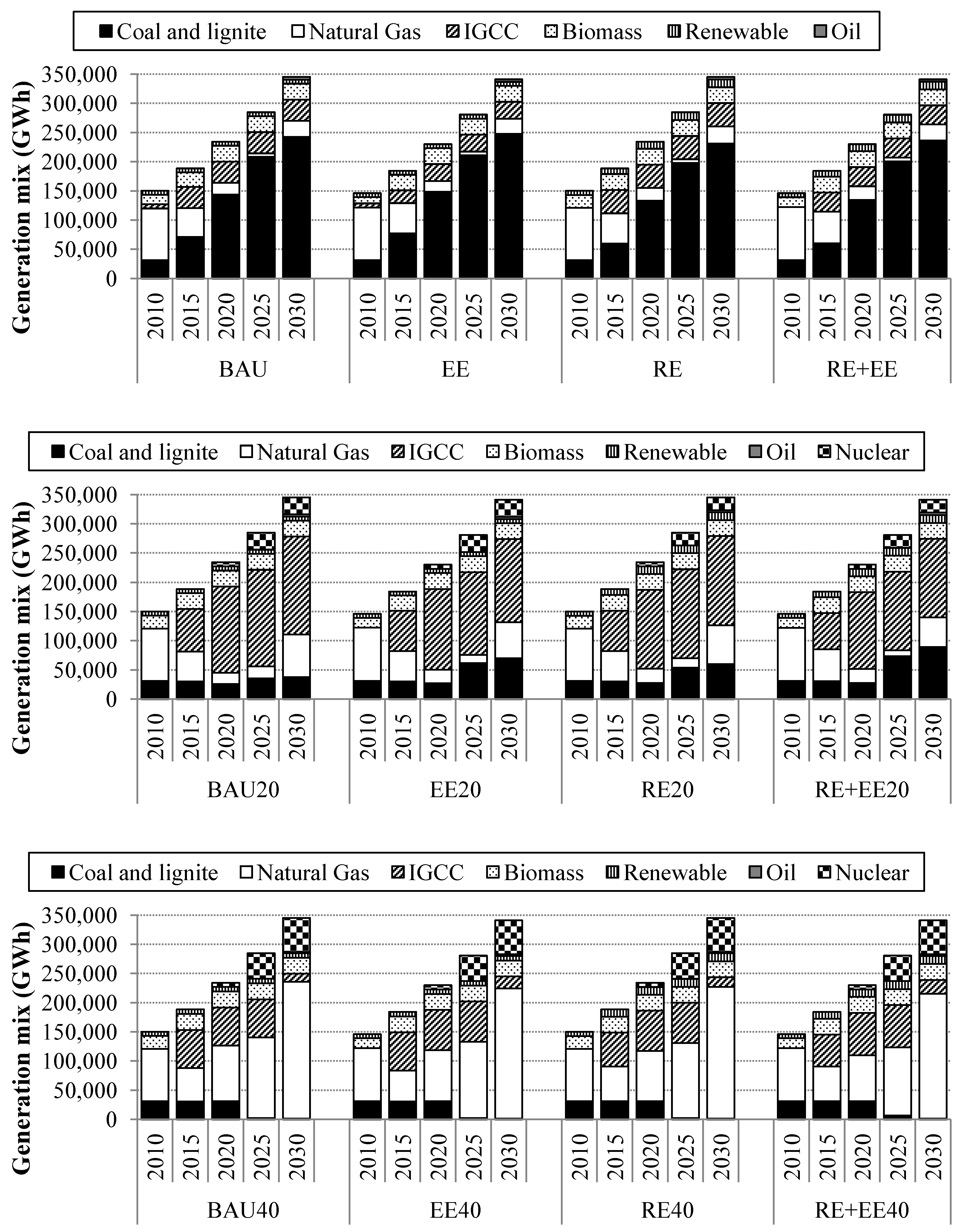

Figure 2. Generation mixes in all scenarios.

Figure 2. Generation mixes in all scenarios.

4.2. CO₂ Emission Trends and CO₂ Intensity

In the BAU scenario CO₂ emissions have steadily increased due to high coal-based power generation (see Figure 2). CO₂ emissions in other scenarios without reduction targets are approximately 246-261 Mt-CO₂ in 2030. The average increasing rate of CO₂ emissions for all scenarios is 5.98% per year. It implies that energy savings from efficiency improvement of the NECP have less effect on the traditional demand. The renewable energy in the AEDP plan shares only small proportion when compared to the coal-based plants which result in increasing CO₂ emissions. The government subsidy seems to be insufficient to promote renewable energy technologies, and the power market would still be dominated by fossil-based technologies.

Trends of CO₂ emissions in all CO₂ limitation scenarios are shown in Figure 3. In the BAU20 scenario, the cumulative emission reduction when compared to the BAU scenario would be 40 and 653 Mt-CO₂ during 2011–2020 and 2021–2030, respectively. The CO₂ emissions in the BAU20, EE20, RE20 and RE+EE20 scenarios have gradually increased, but less than that in the BAU scenario. It is noted that substitution of nuclear power and IGCC plants for coal-based plants will significantly contribute to CO₂ emission reduction.

In the BAU40, EE40, RE40 and RE+EE40 scenarios, electricity production would be dominated by CC-gas, IGCC and nuclear plants with the absence of TH-Coal plants after 2020 (see Figure 2). As a consequence, the CO₂ emissions of 108 Mt-CO₂ in 2020 would stop increasing and start decreasing. It can be noticed that CO₂ emission would increase again during 2027-2030 because nuclear power plant capacity is limited. In this period, the electricity demand growth would be mainly served by CC-Gas plants which result in increasing CO₂ emissions.

As presented in Table 6, a significant amount of CO₂ mitigation would be achieved by implementation of the NECP and the AEDP plans. It is noted that electricity demand reduction obtained from energy efficiency improvement in the EE scenario results in 111 Mt-CO₂ of cumulative CO₂ emission reduction when compared to the BAU scenario. In the RE scenario, establishment of renewable energy targets and incorporating adders into the power market mechanism would contribute to CO₂ reduction of 3.12%. Finally, integration of both RE or AEDP and EE or NECP plans will result in environmental benefits. It is proved that 240 Mt-CO₂ of cumulative CO₂ reduction can be achieved in the RE+EE scenario.

In this study, based on historical data of population and Gross Domestic Product (GDP) obtained from the Office of National Economic and Social Development Board of Thailand [16], average annual population and GDP growths were projected to increase at 0.48% and 4.11%, respectively. In 2009, CO₂ emissions per GDP and per capita in the power sector were 0.41 kg-CO₂/$US$ and 1.12 t-CO₂, respectively [17]. In the BAU scenario, CO₂ emissions would increase by 110% in 2030. Nonetheless, the CO₂ emissions per GDP would decrease by 17.6%. Carbon intensity would be significantly improved by application of CO₂ emission constraints. It is noticed that 40% emission reduction would maintain the carbon intensity at 1.41 t-CO₂ per capita. Furthermore, according to [6], Thailand would import 10,982 MW of power from neighboring countries, and the expected average emission factor will be 0.45 kg-CO₂/kWh. Table 6 demonstrates that the proposed PGEP plan with 40% CO₂ reduction is able to achieve the expected emission level without power import dependence.

Table 6. Present worth of total cost, CO₂ emissions and fuel import requirement.

Scenario	CO2 emission				Present worth of total cost	Present worth of total cost with subsidy	Incremental abatement cost ($/tCO2)	Fuel imports
	(MtCO2)	(kgCO2/kWh)	(tCO2 per capita)	(kgCO2 per GDP)	Billion USD$			Coal (Mt)	Natural gas (MM.scf/day)	Vulnerability (% to GDP)
BAU	3824	0.73	2.58	0.38	132.90	-	-	1167	-	1.17%
EE	3766	0.72	2.54	0.38	131.12	-	−27.00	1142	-	1.14%
RE	3673	0.70	2.48	0.37	135.45	132.31	18.38	1101	-	1.10%
RE+EE	3616	0.69	2.44	0.36	133.69	130.59	5.70	1077	-	1.08%
BAU20	3059	0.59	2.06	0.31	136.13	-	2.24	848	-	0.85%
EE20					133.30	-	−0.20	852	-	0.85%
RE20					137.76	134.26	5.49	846	-	0.85%
RE+EE20					135.03	131.77	3.01	854	-	0.86%
BAU40	2295	0.44	1.55	0.23	152.09	-	7.08	351	847	1.00%
EE40					148.47	-	5.26	373	709	0.92%
RE40					153.12	149.09	8.20	373	686	0.90%
RE+EE40					149.49	145.64	6.35	395	553	0.82%

Table 6. Present worth of total cost, CO₂ emissions and fuel import requirement.

Scenario	CO2 emission				Present worth of total cost	Present worth of total cost with subsidy	Incremental abatement cost ($/tCO2)	Fuel imports
	(MtCO2)	(kgCO2/kWh)	(tCO2 per capita)	(kgCO2 per GDP)	Billion USD$			Coal (Mt)	Natural gas (MM.scf/day)	Vulnerability (% to GDP)
BAU	3824	0.73	2.58	0.38	132.90	-	-	1167	-	1.17%
EE	3766	0.72	2.54	0.38	131.12	-	−27.00	1142	-	1.14%
RE	3673	0.70	2.48	0.37	135.45	132.31	18.38	1101	-	1.10%
RE+EE	3616	0.69	2.44	0.36	133.69	130.59	5.70	1077	-	1.08%
BAU20	3059	0.59	2.06	0.31	136.13	-	2.24	848	-	0.85%
EE20					133.30	-	−0.20	852	-	0.85%
RE20					137.76	134.26	5.49	846	-	0.85%
RE+EE20					135.03	131.77	3.01	854	-	0.86%
BAU40	2295	0.44	1.55	0.23	152.09	-	7.08	351	847	1.00%
EE40					148.47	-	5.26	373	709	0.92%
RE40					153.12	149.09	8.20	373	686	0.90%
RE+EE40					149.49	145.64	6.35	395	553	0.82%

Figure 3. Trends of CO₂ emissions in the CO₂ limitation scenarios.

Figure 3. Trends of CO₂ emissions in the CO₂ limitation scenarios.

4.3. Present Worth of Total Cost and Incremental Abatement Cost

In the EE scenario, 1.34% of present worth of total cost can be saved when compared to the BAU scenario due to the implementation of the NECP plan (see Table 6). Because of high capital cost of renewable energy technologies, renewable subsidy and development targets in the AEDP lead to increasing the total cost by 1.9% in comparison to the BAU scenario. In addition, when both plans are integrated, the total cost of RE+EE scenario is higher than the BAU scenario. The costs in the CO₂ limitation scenarios are higher due to more investment in cleaner generating technologies. For the CO₂ emission reduction of 40%, the costs in 2030 will increase by 14.4%, 11.7%, 15.2% and 12.4% when compared to the corresponding BAU, EE, RE, and RE+EE scenarios, respectively. Furthermore, the 20% CO₂ reduction scenarios would require much lower incremental cost, a reduction of 1.85% on average.

In this study, the incremental abatement cost (IAC) represents the proportion of the incremental cost to CO₂ emission reduction when compared to the BAU scenario. The EE scenario show negative IACs due to savings achieved by energy efficiency measures in the NECP plan. In the RE scenario, the power expansion targets and subsidies of adders in the AEDP plan result in the highest IAC of 23.42 US$/t-CO₂. It is noted that the IACs in the EE20 and RE20 scenarios are relatively small. Nonetheless, the IACs are higher in range between 11.15 and 14.48 US$/t-CO₂ in the EE40 and RE40 scenarios.

4.4. Fuel Import Vulnerability

The electricity production in all scenarios employs both coal-fired and gas-fired generating technologies. Nonetheless, indigenous coal resources are not enough to meet the power demand and coal mining has encountered the public opposition. Furthermore, Thailand produced 30,880 million m³ of natural gas in 2011 and has proven reserves of 312,200 million m³ [18]. Thus the need for imported coal and natural gas result in less energy supply security. In this study the indigenous natural gas of 310,000 million m³ is presumed to be available for the PGEP according to the proven reserves during 2011–2030. Therefore, the imported gas is taken into account when the excessive natural gas supply is required.

The coal import requirement of 1,049 Mt in the BAU scenario is abated by 31.3% and 77.9% in the BAU20 and BAU40 scenarios, respectively (see Table 6). The fuel import vulnerability in Thailand’s power system is represented by the proportion of total imported fuel cost to the total GDP [8]. It can be seen that the import vulnerability of the BAU40 scenario will deteriorate by 5.68% compared to the BAU scenario due to more natural gas import. As a co-benefit of CO₂ emission reduction, both imported coal and gas in the BAU20 scenario decrease resulting in vulnerability improvement of 31.3%. It is noted that CO₂ emission limitation, energy efficiency improvement, renewable power generation as well as adders not only mitigate substantial CO₂ emissions but also reduce imported fuel dependency.

4.5. Sensitivity Analysis

Parameter setting in the PGEP model may cause dramatic changes in the results. In this study, two important parameters which are discount rate and escalation rate of fuel prices have been taken into account for sensitivity analysis. Both parameters have been considered in two other rates: 5% and 10% for discount rate, and 2.3% and 4% per year for escalation rate. Four different cases under these rates (herein referred to as BAU-E2D10, BAU-E2D5, BAU-E4D10 and BAU-E4D5) were composed for comparative assessment. For the sake of completeness it should be mentioned that the reference case is officially the BAU-E2D10 case in the forthcoming explanation.

The prefix “BAU” is changed to “20%CO₂” and “40%CO₂” when 20% and 40% of CO₂ emission reduction targets are applied to the PGEP model. The 10% of discount rate and 2.3% of escalation rate, which is the reference case in this analysis, provide comparative details in terms of generation mix, CO₂ emission, the present worth of total cost and vulnerability, as shown in the previous sub-section. Hence, the 20%CO₂-E2D10 and 40%CO₂-E2D10 are also reference cases.

From Table 7, it can be noticed that capital intensive generating technologies would be augmented more than those of the reference case due to increasing fuel price and decreasing discount rate. Nuclear power plant in the BAU-E2D5, BAU-E4D10 and BAU-E4D5 cases would provide more power generation by 245%, 364% and 490%, respectively. For achieving 20% and 40% reduction targets, both parameters (escalation rate and discount rate) do not influence the selection of nuclear power plant, which was selected only up to its maximum capacity in the reference cases (20% CO-E2D10 and 40% CO-E2D10).

Likewise it should be noted that the coal and lignite utilization in the power sector is decreasing which can be attributed to the increase of IGCC in the generation mix and this is in comparison to the BAU in all the other cases with parametric changes. But in the case of BAU with reduction target, natural gas utilization increases and IGCC capacity decreases which might seem counter-intuitive. The reason for this is that the model makes an economic compromise between the targeted reduction of CO₂ emissions and the escalation of fuel prices, and then it selects the least cost technology which happens to be natural gas technology.

Although renewable energy would not be selected as much as the nuclear power in the BAU-E2D5, BAU-E4D10 and BAU-E4D5 cases because of their capital intensiveness and low capacity factor, they would play an important role in reducing CO₂ emission with high fuel price and low discount rate. Renewable energy would account for 5.5% of total power generation in the 20% CO2-E4D5 case which is more than that in the corresponding reference case (20% CO₂-E2D10) by 2%.

As reported in Table 8, decreasing discount rate by 5% from the reference case (BAU-E2D10) would increase the present worth of total cost by 52.2% in the BAU-E2D5 case. The cost would increase by only 9.1% in the BAU-E4D10 case when the escalation rate of 4% per year is applied. Nonetheless, the CO₂ emission from the BAU-E4D10 case would decrease by 9.6% when compared to the reference case (BAU-E2D10), whilst decreasing by 6.8% in the BAU-E2D5 case. Thus, when 20% and 40% of CO₂ emission reduction targets are taken into account, the incremental abatement cost would be substantially high due to increase in the generation and expansion cost. The 20% CO₂-E4D5 and 40% CO₂-E4D5 would require higher abatement cost than both corresponding reference cases (20% CO₂-E2D10 and 40% CO₂-E2D10), by 785% and 295% respectively. In terms of vulnerability of the power sector the paper presents the fuel import vulnerability for the various scenarios. The significant aspect to be noted is that when the reduction target increases to 40% the vulnerability increases, albeit by a small margin. The reason for this is two-fold. One is the escalation in the fuel prices and the other is the increase in the natural gas usage in the generation mix which has a much higher price than that of coal. These two reasons combined increase the fuel import vulnerability of the power sector. Hence this analysis proves that whilst having reduction targets is mandatory if CO₂ emissions are to be reduced this should be done in tandem with policies which compulsorily implement renewable technologies. Another aspect to be noted is that for a marginal increase in vulnerability a country possessing a power sector like Thailand may implement reduction targets which in turn reduce the utilization of coal and lignite.

Table 7. Comparative generation mix for the sensitivity analysis.

Fuel type	BAU-E2D10 (Reference case)	BAU-E2D5	BAU-E4D10	BAU-E4D5
	Electricity production for entire planning horizon (TWh)
Coal and lignite	1575	1001	950	753
Natural Gas	745	722	723	708
IGCC	2052	2481	2415	2609
Biomass	551	522	547	522
Renewable	152	153	152	158
Oil	6	6	3	2
Nuclear	80	276	371	407
Other	56	56	56	56
Fuel type	20%CO2-E2D10 (Reference case)	20%CO2-E2D5	20%CO2-E4D10	20%CO2-E4D5
	Electricity production for entire planning horizon (TWh)
Coal and lignite	533	426	442	298
Natural Gas	1198	1428	1658	1589
IGCC	2218	1991	1754	1933
Biomass	579	579	579	579
Renewable	171	275	254	287
Oil	3	2	1	2
Nuclear	458	458	473	473
Other	56	56	56	56
Fuel type	40%CO2-E2D10 (Reference case)	40%CO2-E2D5	40%CO2-E4D10	40%CO2-E4D5
	Electricity production for entire planning horizon (TWh)
Coal and lignite	411	327	373	212
Natural Gas	2864	3102	3283	3209
IGCC	607	404	174	396
Biomass	579	579	579	579
Renewable	239	288	277	290
Oil	3	2	1	2
Nuclear	458	458	473	473
Other	56	56	56	56

Table 7. Comparative generation mix for the sensitivity analysis.

Fuel type	BAU-E2D10 (Reference case)	BAU-E2D5	BAU-E4D10	BAU-E4D5
	Electricity production for entire planning horizon (TWh)
Coal and lignite	1575	1001	950	753
Natural Gas	745	722	723	708
IGCC	2052	2481	2415	2609
Biomass	551	522	547	522
Renewable	152	153	152	158
Oil	6	6	3	2
Nuclear	80	276	371	407
Other	56	56	56	56
Fuel type	20%CO2-E2D10 (Reference case)	20%CO2-E2D5	20%CO2-E4D10	20%CO2-E4D5
	Electricity production for entire planning horizon (TWh)
Coal and lignite	533	426	442	298
Natural Gas	1198	1428	1658	1589
IGCC	2218	1991	1754	1933
Biomass	579	579	579	579
Renewable	171	275	254	287
Oil	3	2	1	2
Nuclear	458	458	473	473
Other	56	56	56	56
Fuel type	40%CO2-E2D10 (Reference case)	40%CO2-E2D5	40%CO2-E4D10	40%CO2-E4D5
	Electricity production for entire planning horizon (TWh)
Coal and lignite	411	327	373	212
Natural Gas	2864	3102	3283	3209
IGCC	607	404	174	396
Biomass	579	579	579	579
Renewable	239	288	277	290
Oil	3	2	1	2
Nuclear	458	458	473	473
Other	56	56	56	56

Table 8. Economic and environmental results of the sensitivity analysis.

Scenario	Escalation rate	Discount rate	CO2 emission reduction target	CO2 emission		Present worth of total cost	Incremental abatement cost	Fuel import vulnerability (% to GDP)
				(MtCO2)	(kgCO2/kWh)	Billion USD$	($/tCO2)
BAU-E2D10	2.3	10	-	3489	0.67	132.90	-	1.05%
BAU-E2D5		5		3252	0.62	202.28		0.97%
BAU-E4D10	4	10		3154	0.60	145.01		0.93%
BAU-E4D5		5		3104	0.59	224.96		0.91%
20%CO2-E2D10	2.3	10	20%	2792	0.54	136.13	4.62	0.72%
20%CO2-E2D5		5		2602	0.50	217.10	22.78	0.63%
20%CO2-E4D10	4	10		2523	0.48	156.01	17.44	0.63%
20%CO2-E4D5		5		2483	0.48	250.36	40.92	0.61%
40%CO2-E2D10	2.3	10	40%	2094	0.40	152.09	13.75	1.11%
40%CO2-E2D5		5		1951	0.37	249.75	36.49	1.17%
40%CO2-E4D10	4	10		1892	0.36	177.27	25.58	1.25%
40%CO2-E4D5		5		1862	0.36	292.36	54.29	1.23%

Table 8. Economic and environmental results of the sensitivity analysis.

Scenario	Escalation rate	Discount rate	CO2 emission reduction target	CO2 emission		Present worth of total cost	Incremental abatement cost	Fuel import vulnerability (% to GDP)
				(MtCO2)	(kgCO2/kWh)	Billion USD$	($/tCO2)
BAU-E2D10	2.3	10	-	3489	0.67	132.90	-	1.05%
BAU-E2D5		5		3252	0.62	202.28		0.97%
BAU-E4D10	4	10		3154	0.60	145.01		0.93%
BAU-E4D5		5		3104	0.59	224.96		0.91%
20%CO2-E2D10	2.3	10	20%	2792	0.54	136.13	4.62	0.72%
20%CO2-E2D5		5		2602	0.50	217.10	22.78	0.63%
20%CO2-E4D10	4	10		2523	0.48	156.01	17.44	0.63%
20%CO2-E4D5		5		2483	0.48	250.36	40.92	0.61%
40%CO2-E2D10	2.3	10	40%	2094	0.40	152.09	13.75	1.11%
40%CO2-E2D5		5		1951	0.37	249.75	36.49	1.17%
40%CO2-E4D10	4	10		1892	0.36	177.27	25.58	1.25%
40%CO2-E4D5		5		1862	0.36	292.36	54.29	1.23%

4.6. Model Uncertainty and Policy Implication

The results presented, whilst being significant in understanding the implications of EE and RE on the power sector of Thailand, do need to be read with certain caveats. The inherent weakness of the model is that it is a single objective optimization model. Once all the constraints have been satisfied the model will select the cheapest generating technology. The extraneous aspects which contribute to the uncertainty of the model are multi-fold. The model does not accommodate sudden and unexpected changes in fuel or technology prices. This may lead to the actual situation being significantly different to the model results. Another aspect is that the model cannot depict the inherent inertia of a very large power system.

However, the policy measures modeled in this study prove the necessity of EE and RE to Thailand but it is important that policy makers also understand the implications and barriers. In the case of nuclear power plant the public perception may need to be improved before any attempt is made to commissioning. Another important aspect for policy makers are measures to alleviate institutional barriers regarding RE technologies and the support of continuous improvement in the EE measures which would need cooperation from stakeholders.

5. Conclusions

In this study, the optimal PGEP plans with regard to CO₂ mitigation and selected government policies on RE and EE are provided in order to analyze generation mix, CO₂ intensity, cost savings, mitigation costs as well as imported fuel requirement. Results indicate that traditional coal-based plants dominate in PGEP in terms of generation cost resulting in high CO₂ intensity. The power generation from IGCC and nuclear plants must increase in order to achieve the 20% CO₂ reduction target. In addition to increasing nuclear power utilization, natural gas resource will play an important role in power generation in regard to the 40% CO₂ reduction target.

The energy efficiency improvement and adders as well as increasing renewable energy utilization will contribute to large CO₂ mitigation in the power sector. In addition, the NECP and AEDP also provide co-benefits in terms of decreasing imported fuel vulnerability. The abatement costs of the 40% CO₂ reduction scenarios range from 5.26 to 8.20 US$/tCO₂, which are significantly higher than the 20% CO₂ reduction scenarios scenario. The CO₂ emission reduction definitely provides the satisfaction of government-expected average emission of 0.44 kg-CO₂/kWh without power import requirement.
