Shear Bond Strength of Al2O3 Sandblasted Y-TZP Ceramic to the Orthodontic Metal Bracket

by
Seon Mi Byeon
1,
Min Ho Lee
1 and
Tae Sung Bae
1,2,*
1
Department of Dental Biomaterials and Institute of Biodegradable Material, Institute of Oral Bioscience and BK21 Plus Project, School of Dentistry, Chonbuk National University, 567 Baeckje-daero, Deokjin-gu, Jeonju-si, Jeollabuk-do 54896, Korea
2
Research Institute of Clinical Medicine of Chonbuk National University, Biomedical Research Institute of Chonbuk National University Hospital, 20 Geonji-ro, Deokjin-gu, Jeonju-si, Jeollabuk-do 54907, Korea
*
Author to whom correspondence should be addressed.
Materials 2017, 10(2), 148; https://doi.org/10.3390/ma10020148
Submission received: 4 January 2017 / Revised: 30 January 2017 / Accepted: 5 February 2017 / Published: 9 February 2017
Browse Figures
Versions Notes

Abstract

:
As the proportion of adult orthodontic treatment increases, mainly for aesthetic reasons, orthodontic brackets are directly attached to yttria-stabilized tetragonal zirconia polycrystal (Y-TZP) restorations. This, study analyzed the shear bond strength (SBS) between various surface treated Y-TZP and orthodontic metal brackets. The Y-TZP specimens were conditioned by 110 μm Al2O3 sandblasting, or sandblasting followed by coating with one of the primers (silane, MDP, or an MDP-containing silane primer). After surface treatment, the orthodontic metal bracket was bonded to the specimen using a resin cement, and then 24 h storage in water and thermal cycling (5000 cycles, 5–55 °C), SBS was measured. Surface roughness was analyzed for surface morphology, and X-ray photoelectron spectroscopy (XPS) was employed for characterization of the chemical bond between the Y-TZP and the MDP-based primers (MDP, MDP containing silane primer). It was found that after surface treatment, the surface roughness of all groups increased. The groups treated with 110 μm Al2O3 sandblasting and MDP, or MDP-containing silane primer showed the highest SBS values, at 11.92 ± 1.51 MPa and 13.36 ± 2.31 MPa, respectively. The SBS values significantly decreased in all the groups after thermal cycling. Results from XPS analysis demonstrated the presence of chemical bonds between Y-TZP and MDP. Thus, the application of MDP-based primers after Al2O3 sandblasting enhances the resin bond strength between Y-TZP and the orthodontic metal bracket. However, bonding durability of all the surface-treated groups decreased after thermal cycling.

1. Introduction

Recently, several studies have reported the importance of the bond strength between yttria-stabilized tetragonal zirconia polycrystal (Y-TZP) ceramics and resin cement [1,2,3,4,5]. Because of its aesthetic, excellent biocompatibility and superior mechanical properties, Y-TZP-based restoratives are widely used in dental clinics [6,7,8,9]. With the introduction of CAD (computer-aided design)/CAM (computer-aided manufacturing) methods for the production of dental restoratives, the designing of teeth shapes has become more refined. Additionally, it has been possible to reduce the production time of restoratives and the frequency of patient visits to dental clinics [10,11]. The development of staining techniques has enabled the reproduction of tooth-matched colors. Thus, Y-TZP based full-contour all zirconia crowns and bridges have been widely utilized [12,13].
With increasing use of Y-TZP-based restoratives, surface treatment methods are required to enhance the bond strength between the orthodontic bracket and the Y-TZP ceramic for patients who need to undergo orthodontic treatment. Because of the high stability, the Y-TZP ceramic does not easily bond to the resin. Therefore, a method to enhance this bond strength is required, unlike the case where bonding occurs between the bracket and teeth [14]. To enhance the bond strength of the bracket to Y-TZP, it is important to maintain the bonding between the Y-TZP ceramic and the resin [15,16]. As surface treatment methods become more complicated, the clinical application of these methods become more difficult, which means that finding a simple method to enhance the bond strength becomes imperative. To increase the bond strength, a variety of surface treatments [17,18,19] such as rough polishing, sandblasting with high strength particles, glass coating, acid etching, laser treatment, and primer treatments have been reported [14,20,21,22,23].
Micromechanical retention is largely associated with the surface microstructure of the restoratives, which bond with the resin cement. Surface roughness affects the bond strength, and a rougher surface with a larger surface area increases micro-retention for the resin cement [24]. The sandblasting method, which involves blasting with alumina particles, produces micro-unevenness. However, this method has the limitation that it increases the surface area and thus leads to limited improvement in bond strength [25,26]. Representative chemical bonding methods such as the primer treatments, including silane (3-methacryloxypropyl trimethoxy-silane, MPS) or 10-methacryloyloxydecyl dihydrogen phosphate (MDP), have been used [27,28]. Silane primers improve the chemical bond with resin in silica-based feldspathic porcelain, leucite, or lithium disilicate crystal-based glass ceramics. However, it is difficult for Y-TZP to increase the bond strength due to its high chemical stability and because it does not contain silica [29,30]. Phosphate ester included in MDP-based primers can form a chemical bond to the hydroxyl groups on the surface of zirconia [31]. Iwasaki et al. [32] measured the bond strength between an indirect composite and the zirconia framework using a variety of primers, and Lee et al. [33] used different types of primers to enhance the bond strength between the orthodontic bracket and glazed zirconia.
In addition, thermal cycling (TC) was conducted to understand the effect of water exposure and temperature change in the oral environment on the bond strength between Y-TZP and the bracket [34,35] for different numbers of cycles ranging from 500 to 100,000 at temperatures between 5 and 55 °C [14]. For long-term water storage, the effect of the various treatment conditions on the bond strength was studied at the average temperature in the oral environment for a time period of 3–12 months [34,36,37].
Generally, methods such as shear bond strength and tensile bond strength tests have been used to measure the bond strength [38]. The shear bond strength (SBS) test is commonly used to measure the bond strength and in parallel, an analysis of the failure modes in the bonding area is also conducted [39].
In this study, we used silane, MDP, and MDP containing silane primers after alumina sandblasting to enhance the resin bond strength between the Y-TZP ceramic and the orthodontic metal bracket. In addition, we measured the SBS and analyzed the failure modes to measure the strength of bonding to the resin, and analyzed the effect of surface roughness. We also conducted X-ray photoelectron spectroscopy (XPS) to identify the chemical bond between Y-TZP and all the primers.

2. Materials and Methods

2.1. Preparation of Specimens and Surface Treatments

One hundred and thirty cuboid shaped ceramic specimens were cut from a pre-sintered yttria-stabilized tetragonal zirconia polycrystal (Y-TZP) ceramic block (Zirtooth, HASS, Gangneung, Korea) in distilled water using a high speed diamond saw (Isomet 5000, Buehler, Lake Bluff, IL, USA). The cuboid shaped Y-TZP was sintered according to the manufacturer’s instructions (the final size for shear bond strength test was 8 × 8 × 4 mm3 (n = 100) and that for surface characterization was 8 × 8 × 2 mm3 (n = 30)).
The bonding surface of Y-TZP was polished with a # 400–1200 SiC sandpaper, washed by sonicating for 10 min in distilled water, and dried. Next, the bonding surface of Y-TZP was sandblasted with 110 μm alumina (Al2O3) particles from a distance of 10 mm for 10 s under 0.3 MPa at a constant impact angle of 90°. The sandblasted Y-TZP was heated at 1200 °C for 10 min to stabilize the monoclinic phase to the tetragonal phase. Next, the silane primer (ESPE Sil, 3M ESPE, St. Paul, MN, USA), the MDP primer (Z-PRIME Plus, Bisco, Schaumburg, IL, USA), or the MDP containing silane primer (Clearfil Ceramic primer, Kuraray Medical, Tokyo, Japan) was applied on the sandblasted Y-TZP with a disposable brush tip. The entire primer treated surface was sufficiently dried by blowing mild oil-free air.
The MDP primer was applied to increase the bond strength between the metal bracket for maxillary central incisor (Archist Bracket, Daeseung medical, Seoul, Korea) and the resin cement, after which, the bracket was bonded to the surface treated Y-TZP under a force of about 5 N [40] using the resin cement (Transbond XT, 3M Unitek, Monorvia, CA, USA). Excess resin cement was removed with an explorer, and the remaining resin cement was light cured for 20 s on each side using a halogen light curing unit (Demetron Optilux, Kerr model-VCL 401, Demetron Research, Danbury, CT, USA) at an angle of 45°. The irradiance of light curing was measured with a curing radiometer (Model 100, Demetron Research, Danbury, CT, USA) and found to be >400 mW/cm2.
Fifty of the metal bracket bonded Y-TZP were stored in distilled water at 37 ± 1 °C for 24 h. The other fifty were thermal-cycled (INV-TCS-109, Invertech, Gwangju, Korea) in distilled water at 5 °C and 55 °C for 5000 times with a dwell and transfer times of 15 s, each.
Based on the surface treatments and thermal cycling protocol, the bracket bonded Y-TZP was divided randomly into eight groups, as given in Table 1. The materials used in the present study are listed in Table 2.

2.2. Measurement of Surface Roughness

To compare the surface roughness of the Y-TZP after the surface treatments, it was analyzed using a surface roughness tester (SV-3000, Mitutoyo, Tokyo, Japan) (3 per non-thermal cycled group). The surface roughness tester was used with the diamond stylus to move along a length of 5 mm at a speed of 0.2 mm/s.

2.3. Surface Morphology and Characterization

The morphology of Y-TZP after the different surface treatments (one sample per group without thermal cycling) was observed by both field emission scanning electron microscopy (FE-SEM; SU-70, Hitachi, Tokyo, Japan) and atomic force microscopy (AFM; Multimade-8, Bruker, Billerica, MA, USA).
The surface treated Y-TZP was analyzed using energy dispersive X-ray spectroscopy (EDS; EDAX Octane pro, Ametek, NJ, USA) to characterize the distribution of elemental composition and EDS detection.

2.4. Chemical Bond Characterization

In order to demonstrate the chemical bond between the Y-TZP ceramic and MDP containing primer, Y-TZP treated with MDP containing primers were detected using X-ray photoelectron spectroscopy (XPS; Theta Probe AR-XPS System, Thermo Fisher Scientific, Runcorn, UK) (1 per non-thermal cycled group). The samples were placed in a μ-metal ultra-high vacuum (UHV) chamber of an X-ray photoelectron spectrometer. The data were analyzed under the following conditions: monochromatic Al-Kα radiation source (1486.6 eV), X-ray beam diameter (400 μm), and X-ray energy (15 kv, 150 W).

2.5. Shear Bond Strength (SBS) Test

All of the metal bracket bonded Y-TZP was subjected to SBS test using a universal testing machine (Model 4201, Instron, Canton, MA, USA) (10 per group). The bracket bonded Y-TZP was fixed to the jig and subjected to shear force with a chisel shaped metal rod, at a crosshead speed of 1.0 mm/min.
Measured the load at the metal bracket failed from the Y-TZP was calculated by following equation for the SBS value: Load at fracture (N)/Surface area of bracket provided by the manufacturer (8.05 mm2).

2.6. Evaluation of Failure Modes

After measuring the SBS, the bonded surface were analyzed using a light microscope (DM 2500M, Leica Microsystems, Wetzlar, Germany) at a magnification of 20× to examine the failure modes between the Y-TZP and the orthodontic metal bracket. The failure modes were then classified into adhesive failure, cohesive failure, or mixed (adhesive + cohesive) failure, and the ratios of the failure modes were calculated. Next, the failed surfaces of the Y-TZP and the metal brackets were analyzed using SEM (JSM-6400, JEOL, Tokyo, Japan).

2.7. Statistical Analysis

Statistical processing was performed using SPSS 12.0 software (SPSS, Chicago, IL, USA). After the experiment, a one-way ANOVA (ANalysis Of VAriance) test was performed, and variables showing significant differences were analyzed by Tukey’s combined comparison test (p value = 0.05).

3. Results

3.1. Shear Bond Strength (SBS) and Failure Modes

Figure 1 shows the SBS values (means and standard deviation) between the surface treated Y-TZP and the bracket before and after thermal cycling (aging). Compared to the unaged groups (P, A, AS, AM, and AMS), the artificially aged groups (PT, AT, AST, AMT, and AMST) had significantly lower SBS values (p < 0.05). The AM (11.92 ± 1.51 MPa) and AMS (13.36 ± 2.31 MPa) groups showed higher SBS values than the other groups (p < 0.05). There was no significant difference between A (4.98 ± 1.28 MPa) and AS (5.13 ± 0.85 MPa) groups (p > 0.05). Comparing the groups after thermal cycling, it was found that there was no significant difference between PT, AT, and AST, or between AMT and AMST groups (p > 0.05).
The percentages of the different failure modes observed in the bonding area between Y-TZP and the bracket are shown in Figure 2 and SEM images observed in the fractured area are displayed in Figure 3. We confirmed that for the P and PT groups, the resin entirely remained on the bracket (Figure 3E) with a 100% adhesive failure at the zirconia-resin interface. The A group showed 70% adhesive failure at the zirconia-resin interface and 30% mixed failure. The AT group showed 100% adhesive failure similar to the P and PT groups. The AS group showed 20% adhesive failure at the resin-bracket interface, 40% adhesive failure at the zirconia-resin interface, and 40% mixed failure. Compared to the AS group, the adhesive failure of the AST group increased by 50%, and mixed failure decreased by 30%. The AM group showed 40% adhesive failure at the resin-bracket interface, 30% adhesive failure at the zirconia-resin interface, and 30% mixed failure. Compared to the AM group, the adhesive failure of the AMT group increased by 40% at the zirconia-resin interface. The AMS group showed 70% adhesive failure and 30% mixed failure at the resin-bracket interface and the resin entirely remained on the zirconia (Figure 3D). Compared to the AMS group, the adhesive failure of the AMST group decreased by 40%, and 20% adhesive failure occurred at the zirconia-resin interface for this group.

3.2. Surface Roughness and Morphology

The surface roughness values of the surface treated zirconia are shown in Table 3, and the surface morphology is illustrated in Figure 4. The surface roughness values of A, AS, AM, and AMS, except P group, significantly increased (p < 0.05). However, there were no significant differences among the surface treated groups (p > 0.05). The grooves and bridges of the A, AS, AM, and AMS groups appeared to be distributed irregularly (Figure 4B–E). In particular, the A group with its highest surface roughness value showed the roughest surface (Figure 4G). A very thin layer of primer was observed on the surface of the AS group (Figure 4H), and the surface layer became flatter for the AM and AMS groups as the primer infiltrated into the grooves and bridges formed by alumina sandblasting (Figure 4D,E,I,J).

3.3. Surface Characterization

The distribution of elemental composition and EDS detection for each group indicated that Al particles remained on the surface after alumina sandblasting for the A, AS, AM, and AMS groups (Figure 5C,E,F,G). C and P were detected on the surface treated with MDP primer and MDP containing silane primer (AM and AMS groups) (Figure 5F,I,G,J).

3.4. Chemical Bond Characterization

The chemical bond between the Y-TZP and MDP-based primers (MDP and MDP containing silane primer) was analyzed by XPS (Figure 6). In the O 1s signal, the peaks at 532.58 eV (MDP primer), 532.78 eV (MDP containing silane primer) are contributed to Zr–O–P interactions. These data shows that the between ZrO2 and MDP was well formed with a high ratio of Zr–O (Figure 6A). The peaks in the C 1s signal in the MDP primer (284.68 eV) and the MDP containing silane primer (284.58 eV) represent C–C bonds (Figure 6B) and the peaks in the P 2p signal of the MDP primer (134.78 eV) and the MDP containing silane primer (134.28 eV) are assigned to P–O bonds (Figure 6C). The C–C and P–O bonds originate from the internal bonds of MDP-based primers; both these peaks had high intensities in the MDP containing silane primer [41].

4. Discussion

In this study, the effect of sandblasting with 110 μm Al2O3 and the addition of silane, MDP, and MDP containing silane primers on the resin bonding between an orthodontic metal bracket and a Y-TZP ceramic was evaluated. The bond strength was evaluated after surface treatments followed by thermal cycling, which is the most widely used method to evaluate bond durability with the resin. Although there are many different opinions on the number of cycles that need to be used in thermal cycling, it has been mentioned that it is not necessary to increase the number of cycles. This is because, the effect of temperature changes on the bond strength is observed already in the early stage of aging [42]. Other studies have reported that the bond strength decreased with increase in cycle number [14,43]. Based on these reports, this study performed the aging process by thermal cycling up to 5000 times (6 months in vivo) [44] to investigate bond durability with the resin.
Adhesion of an orthodontic bracket to restoratives has a relatively low bond strength, which increases the possibility of a premature failure of the bracket. To solve this problem, the restorative is covered with an orthodontic metal band before it is attached to the bracket. However, band is unaesthetic in the anterior, which requires esthetic compared with the posterior, and may irritate the gingiva. Thus, there is a great interest in developing methods for maintaining bonded brackets directly on restoratives, and appropriate surface treatment methods have been devised [17,18,19].
Some of the evidence shows that Al2O3 sandblasting, which was performed mainly to compare the different pretreatment conditions of this experiment, is likely to produce defects on the ceramic surface, which depends on the pressure as well as the size of the particles, and decreases the mechanical strength [45,46]. However, it is mentioned that sandblasting not only improves the bond strength by increasing surface roughness, but also removes contaminants on the surface to help the successful bonding of the restoratives [47]. Contaminants in silicon and saliva are typical contaminants in the oral environment. Yang et al. [48] measured the tensile bond strength, and from XPS analysis, proved that sandblasting is effective in removing silicone residues and salivary contaminants. According to Pascal Magne et al. [49], when sandblasting is used with 4-META or MDP-based primers, the bond strength with the resin increases. This is because acidic monomers in the primer react with the oxide groups of zirconia as the surface energy and roughness increase, which improves the wettability. As the bonding between the resin and zirconia is strengthened, it prevents micro-leakage and simplifies complex processes, resulting in reduced treatment time and cost [50]. However, the chemical bond formed by using a primer without sandblasting does not guarantee successful bonding between zirconia and the resin [51].
With regard to the bond strength required for adequate bonding of the orthodontic metal bracket, Maijer et al. [52] suggested that the minimum bond strength required for dental clinical use is 5.9–7.9 MPa and Schmage et al. [40] proposed that 6–10 MPa strength is necessary to support normal orthodontic forces. Based on these studies, groups treated with MDP (AM group, 11.92 ± 1.51 MPa) and MDP containing silane primers (AMS group, 13.36 ± 2.31 MPa) after sandblasting were shown to have sufficient bond strength (Figure 1). Groups treated with MDP-based primers had increased roughness after sandblasting as a pretreatment, which enhanced the mechanical strength. XPS analysis showed that the Zr–O bonds contribute to forming chemical bonds between ZrO2 (Y-TZP) and MDP (MDP-based primers) (Figure 6A). Additionally, it has been reported that the methacryloyl and the dihydrogen phosphate groups in the MDP-based primer react with the Bis-GMA matrix of the resin and the metal oxides (zirconium oxides, aluminum oxides), respectively (Figure 7B,C), and these reactions improved the chemical bond [53,54].
Some studies showed that sandblasting enhanced the micromechanical interlocking and wettability, which in turn increased the bond strength with the resin [55]. However, the SBS after sandblasting was determined to be 4.98 ± 1.28 MPa in this study, which was higher than the SBS value after polishing; these values are insufficient to support orthodontic forces. The SBS value for the silane primer treatment after sandblasting was 5.13 ± 0.85 MPa, which is not significantly different from the result after only sandblasting. Thus, this treatment did not improve the orthodontic forces (Figure 1) and unlike MDP-based primers, the silane primer does not form a chemical bond with zirconia, but only depends on the mechanical strength due to the micro-unevenness generated during sandblasting (Figure 7A). Silane coupling agents are most commonly used to improve the bond strength between dissimilar materials, namely inorganic (for example, ceramics) and organic (for example, resins). Silane contains methacrylate groups that can react with the resin monomer (polymerization reaction) and the alkoxy group combines with silica-based materials such as porcelain, thereby improving the bond strength (Figure 7A). Therefore, silane based coupling agents cannot be used for non-silica-based restorative materials such as zirconia-based ceramics, alumina ceramics, and metals [56].
This experiment determines the durability of the bond strength with respect to temperature changes in the oral environment by thermal cycling for 5000 cycles at temperatures in the range 5–55 °C. In all the artificially aged groups, the bond strength decreased to such an extent that it could not support orthodontic forces. As suggested by Attia [57], because of the difference in the thermal expansion coefficients of zirconia and the resin during thermal cycling, hoop stress occurs, accelerating the hydrolytic degradation of the resin, thus reducing the bond strength. Moreover, da Silva et al. [37] reported that the bond strength between ceramics treated with MDP-based primers and the resin cement was not maintained when immersed in distilled water for more than six months. However, it has been reported that applying an MDP-based primer to zirconia after thermal cycling did achieve stable bond strength [58]. Similar results were reported by Iwasaki et al. [32], where the bond strength between zirconia treated with MDP primer following 110 μm Al2O3 sandblasting and the resin cement was measured to be 9.5 MPa, which decreased to 9.2 MPa after thermal cycling, but there was no significant difference. These results are in accordance with the fact that the acidic functional monomer in MDP shows a relatively stable hydrolysis as it contains a long carbonyl chain [5,59]. Based on these reports, thermal cycling for 5000 cycles was performed in this study, which reduced the bond strength of Y-TZP treated with MDP-based primers (MDP, MDP containing silane primer). Thus, it was demonstrated that the hydrolytic degradation of the resin reduced the bond strength.
Failure modes on the bonding surfaces between zirconia and the bracket (Figure 2) reflected the results of the SBS (Figure 1). The groups of polishing, sandblasting, and sandblasting with the silane primer were observed adhesive failure at the zirconia-resin cement interfaces before and after thermal cycling. The failure mode results supported the conclusion that the bond strength between zirconia and the resin was low. The groups that had MDP and MDP containing silane primer coating after sandblasting showed adhesive failures at the resin-bracket interface, which proved the superior bond strength between zirconia and the resin. However, after thermal cycling, the bond strength was reduced by the increased adhesive failure at the zirconia-resin interface.
To improve the bond strength of the Y-TZP based restoratives and the orthodontic metal bracket, Y-TZP was treated with the MDP-based primers after 110 μm Al2O3 sandblasting, which enhanced resin bond strength. However, all the surface-treated Y-TZP showed a decrease in resin bond strength after 5000 thermal cycles. Thus, further research should focus on highly durable surface treatment methods that help to maintain strong bond strength even after artificial aging.

5. Conclusions

In this research, we examined the application of silane, MDP, and MDP containing silane primers, to 110 μm Al2O3 sandblasted Y-TZP ceramic to study the effects of these primers on the shear bond strength with an orthodontic metal bracket. The following conclusions were drawn:
  • The groups that were treated with the MDP and MDP containing silane primer after alumina sandblasting showed significantly higher SBS values (p < 0.05).
  • None of the primers applied to the sandblasted Y-TZP showed durable resin bond strength with the bracket after thermal cycling.

Acknowledgments

This work was supported by the Technological Innovation R&D Program (S2410617) funded by the Small and Medium Business Administration (SMBA, Korea). This paper was supported by Fund of Biomedical Research Institute, Chonbuk National University Hospital.

Author Contributions

Seon-Mi Byeon and Tae-Sung Bae conceived and designed the experiments; Seon-Mi Byeon performed the experiments; Seon-Mi Byeon and Tae-Sung Bae analyzed the data; Min-Ho Lee contributed reagents/materials/analysis tools; Seon-Mi Byeon wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yun, J.Y.; Ha, S.R.; Lee, J.B.; Kim, S.H. Effect of sandblasting and various metal primers on the shear bond strength of resin cement to Y-TZP ceramic. Dent. Mater. 2010, 26, 650–658. [Google Scholar] [CrossRef] [PubMed]
  2. Yoshida, K.; Tsuo, Y.; Atsuta, M. Bonding of dual-cured resin cement to zirconia ceramic using phosphate acid ester monomer and zirconate coupler. J. Biomed. Mater. Res. Part B 2006, 77, 28–33. [Google Scholar] [CrossRef] [PubMed]
  3. Passos, S.; May, L.; Barca, D.; Özcan, M.; Bottino, M.; Valandro, L. Adhesive quality of self-adhesive and conventional adhesive resin cement to Y-TZP ceramic before and after aging conditions. Oper. Dent. 2010, 35, 689–696. [Google Scholar] [CrossRef] [PubMed]
  4. Akin, H.; Tugut, F.; Akin, G.E.; Guney, U.; Mutaf, B. Effect of Er: YAG laser application on the shear bond strength and microleakage between resin cements and Y-TZP ceramics. Lasers Med. Sci. 2012, 27, 333–338. [Google Scholar] [CrossRef] [PubMed]
  5. Miragaya, L.; Maia, L.C.; Sabrosa, C.E.; de Goes, M.F.; da Silva, E.M. Evaluation of self-adhesive resin cement bond strength to yttria-stabilized zirconia ceramic (Y-TZP) using four surface treatments. J. Adhes. Dent. 2011, 13, 473–480. [Google Scholar] [PubMed]
  6. Luthardt, R.G.; Holzhüter, M.; Sandkuhl, O.; Herold, V.; Schnapp, J.D.; Kuhlisch, E.; Walter, M. Reliability and properties of ground Y-TZP-zirconia ceramics. J. Dent. Res. 2002, 81, 487–491. [Google Scholar] [CrossRef] [PubMed]
  7. Ruiz, L.; Readey, M.J. Effect of heat treatment on grain size, phase assemblage, and mechanical properties of 3 mol % Y-TZP. J. Am. Ceram. Soc. 1996, 79, 2331–2340. [Google Scholar] [CrossRef]
  8. Nettleship, I.; Stevens, R. Tetragonal zirconia polycrystal (TZP)—A review. Int. J. High Tech. Ceram. 1987, 3, 1–32. [Google Scholar] [CrossRef]
  9. Kosmac, T.; Oblak, C.; Jevnikar, P.; Funduk, N.; Marion, L. Strength and reliability of surface treated Y-TZP dental ceramics. J. Biomed. Mater. Res. 2000, 53, 304–313. [Google Scholar] [CrossRef]
  10. Duret, F.; Blouin, J.L.; Duret, B. CAD-CAM in dentistry. J. Am. Dent. Assoc. 1988, 117, 715–720. [Google Scholar] [CrossRef] [PubMed]
  11. Strub, J.R.; Rekow, E.D.; Witkowski, S. Computer-aided design and fabrication of dental restorations: Current systems and future possibilities. J. Am. Dent. Assoc. 2006, 137, 1289–1296. [Google Scholar] [CrossRef] [PubMed]
  12. Guess, P.C.; Schultheis, S.; Bonfante, E.A.; Coelho, P.G.; Ferencz, J.L.; Silva, N.R.F.A. All-ceramic systems: Laboratory and clinical performance. Dent. Clin. N. Am. 2011, 55, 333–352. [Google Scholar] [CrossRef] [PubMed]
  13. Miyazaki, T.; Nakamura, T.; Matsumura, H.; Ban, S.; Kobayashi, T. Current status of zirconia restoration. J. Prosthodont. Res. 2013, 57, 236–2361. [Google Scholar] [CrossRef] [PubMed]
  14. Papia, E.; Larsson, C.; Du Toit, M.; Vult von Steyern, P. Bonding between oxide ceramics and adhesive cement systems: A systematic review. J. Biomed. Mater. Res. Part B 2014, 102, 395–413. [Google Scholar] [CrossRef] [PubMed]
  15. Akyıl, M.Ş.; Uzun, İ.H.; Bayındır, F. Bond strength of resin cement to yttrium-stabilized tetragonal zirconia ceramic treated with air abrasion, silica coating, and laser irradiation. Photomed. Laser Surg. 2010, 28, 801–808. [Google Scholar] [CrossRef] [PubMed]
  16. Akın, H.; Ozkurt, Z.; Kırmalı, O.; Kazazoglu, E.; Ozdemir, A.K. Shear bond strength of resin cement to zirconia ceramic after aluminum oxide sandblasting and various laser treatments. Photomed. Laser Surg. 2011, 29, 797–802. [Google Scholar] [CrossRef] [PubMed]
  17. Rippe, M.P.; Amaral, R.; Oliveira, F.S.; Cesar, P.F.; Scotti, R.; Valandro, L.F.; Bottino, M.A. Evaluation of tensile retention of Y-TZP crowns cemented on resin composite cores: Effect of the cement and Y-TZP surface conditioning. Oper. Dent. 2015, 40, e1–e10. [Google Scholar] [CrossRef] [PubMed]
  18. Alves, M.L.L.; Campos, F.; Bergoli, C.D.; Bottino, M.A.; Özcan, M.; Souza, R.O.A. Effect of adhesive cementation strategies on the bonding of Y-TZP to human dentin. Oper. Dent. 2016, 41, 276–283. [Google Scholar] [CrossRef] [PubMed]
  19. Hallmann, L.; Ulmer, P.; Wille, S.; Polonskyi, O.; Köbel, S.; Trottenberg, T.; Bornholdt, S.; Haase, F.; Kersten, H.; Kersten, M. Effect of surface treatments on the properties and morphological change of dental zirconia. J. Prosthet. Dent. 2016, 115, 341–349. [Google Scholar] [CrossRef] [PubMed]
  20. Bayram, M.; Yeşilyurt, C.; Kuşgöz, A.; Ülker, M.; Nur, M. Shear bond strength of orthodontic brackets to aged resin composite surfaces: Effect of surface conditioning. Eur. J. Orthod. 2011, 33, 174–179. [Google Scholar] [CrossRef] [PubMed]
  21. Casucci, A.; Mazzitelli, C.; Monticelli, F.; Toledano, M.; Osorio, R.; Osorio, E.; Osorio, E.; Papacchini, F.; Ferrari, M. Morphological analysis of three zirconium oxide ceramics: Effect of surface treatments. Dent. Mater. 2010, 26, 751–760. [Google Scholar] [CrossRef] [PubMed]
  22. Melgaço, C.A.; de Andrade, G.G.; de Souza Araújo, M.T.; Nojima, L.I. Shear bond strength evaluation of metallic brackets using self-etching system. Dent. Press J. Orthod. 2011, 16, 73–78. [Google Scholar] [CrossRef]
  23. Shin, Y.J.; Shin, Y.S.; Yi, Y.A.; Kim, J.H.; Lee, I.B.; Cho, B.H.; Son, H.H.; Seo, D.G. Evaluation of the shear bond strength of resin cement to Y-TZP ceramic after different surface treatments. Scanning 2014, 36, 479–486. [Google Scholar] [CrossRef] [PubMed]
  24. Wendler, M.; Belli, R.; Panzer, R.; Skibbe, D.; Petschelt, A.; Lohbauer, U. Repair bond strength of aged resin composite after different surface and bonding treatments. Materials 2016, 9, 547. [Google Scholar] [CrossRef]
  25. Mattiello, R.D.L.; Coelho, T.M.K.; Insaurralde, E.; Coelho, A.A.K.; Terra, G.P.; Kasuya, A.V.B.; Favarao, I.N.; de Souza Goncalves, L.; Fonseca, R.B. A review of surface treatment methods to improve the adhesive cementation of zirconia-based ceramics. ISRN Mater. 2013, 2013, 185376. [Google Scholar] [CrossRef]
  26. Yi, Y.A.; Ahn, J.S.; Park, Y.J.; Jun, S.H.; Lee, I.B.; Cho, B.H.; Son, H.H.; Seo, D.G. The effect of sandblasting and different primers on shear bond strength between yttria-tetragonal zirconia polycrystal ceramic and a self-adhesive resin cement. Oper. Dent. 2015, 40, 63–71. [Google Scholar] [CrossRef] [PubMed]
  27. Zakir, M.; Ashraf, U.; Tian, T.; Han, A.; Qiao, W.; Jin, X.; Zhang, M.; Tsoi, J.K.-H.; Matinlinna, J.P. The role of silane coupling agents and universal primers in durable adhesion to dental restorative materials—A review. Curr. Oral Health Rep. 2016, 3, 244–253. [Google Scholar] [CrossRef]
  28. Luthra, R.; Kaur, P. An insight into current concepts and techniques in resin bonding to high strength ceramics. Aust. Dent. J. 2016, 61, 163–173. [Google Scholar] [CrossRef] [PubMed]
  29. Lung, C.Y.K.; Kukk, E.; Matinlinna, J.P. Shear bond strength between resin and zirconia with two different silane blends. Acta Odontol. Scand. 2012, 70, 405–413. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Blatz, M.B.; Sadan, A.; Kern, M. Resin-ceramic bonding: A review of the literature. J. Prosthet. Dent. 2003, 89, 268–274. [Google Scholar] [CrossRef] [PubMed]
  31. Özcan, M.; Nijhuis, H.; Valandro, L.F. Effect of various surface conditioning methods on the adhesion of dual-cure resin cement with MDP functional monomer to zirconia after thermal aging. Dent. Mater. J. 2008, 27, 99–104. [Google Scholar] [CrossRef] [PubMed]
  32. Iwasaki, T.; Komine, F.; Fushiki, R.; Kubochi, K.; Shinohara, M.; Matumura, H. Shear bond strengths of an indirect composite layering material to a tribochemically silica-coated zirconia framework material. Dent. Mater. J. 2016, 35, 461–469. [Google Scholar] [CrossRef] [PubMed]
  33. Lee, J.H.; Lee, M.; Kim, K.N.; Hwang, C.J. Resin bonding of metal brackets to glazed zirconia with a porcelain primer. Korean J. Orthod. 2015, 45, 299–307. [Google Scholar] [CrossRef] [PubMed]
  34. Ehlers, V.; Kampf, G.; Stender, E.; Willershausen, B.; Ernst, C.P. Effect of thermocycling with or without 1 year of water storage on retentive strengths of luting cements for zirconia crowns. J. Prosthet. Dent. 2015, 113, 609–615. [Google Scholar] [CrossRef] [PubMed]
  35. Sciasci, P.; Abi Rached, F.O.; Adabo, G.L.; Baldissara, P.; Fonseca, R.G. Effect of surface treatments on the shear bond strength of luting cements to Y-TZP ceramic. J. Prosthet. Dent. 2015, 113, 212–219. [Google Scholar] [CrossRef] [PubMed]
  36. Smith, R.L.; Villanueva, C.; Rothrock, J.K.; Garcia-Godoy, C.E.; Stoner, B.R.; Piascik, J.R.; Thompson, J.Y. Long-term microtensile bond strength of surface modified zirconia. Dent. Mater. 2011, 27, 779–785. [Google Scholar] [CrossRef] [PubMed]
  37. Da Silva, E.M.; Miragaya, L.; Sabrosa, C.E.; Maia, L.C. Stability of the bond between two resin cements and an yttria-stabilized zirconia ceramic after six months of aging in water. J. Prosthet. Dent. 2014, 112, 568–575. [Google Scholar] [CrossRef] [PubMed]
  38. Fischer, J.; Grohmann, P.; Stawarczyk, B. Effect of zirconia surface treatments on the shear strength of zirconia/veneering ceramic composites. Dent. Mater. J. 2008, 27, 448–454. [Google Scholar] [CrossRef] [PubMed]
  39. Ahrari, F.; Heravi, F.; Hosseini, M. CO2 laser conditioning of porcelain surfaces for bonding metal orthodontic brackets. Lasers Med. Sci. 2013, 28, 1091–1097. [Google Scholar] [CrossRef] [PubMed]
  40. Schmage, P.; Nergiz, I.; Herrmann, W.; Özcan, M. Influence of various surface-conditioning methods on the bond strength of metal brackets to ceramic surfaces. Am. J. Orthod. Dentofac. Orthop. 2003, 123, 540–546. [Google Scholar] [CrossRef]
  41. Xie, H.; Li, Q.; Zhang, F.; Lu, Y.; Tay, F.R.; Qian, M.; Chen, C. Comparison of resin bonding improvements to zirconia between one-bottle universal adhesives and tribochemical silica coating, which is better? Dent. Mater. 2016, 32, 403–411. [Google Scholar] [CrossRef] [PubMed]
  42. Rossomando, K.J.; Wendt, S.L. Thermocycling and dwell times in microleakage evaluation for bonded restorations. Dent. Mater. 1995, 11, 47–51. [Google Scholar] [CrossRef]
  43. Wegner, S.M.; Gerdes, W.; Kern, M. Effect of different artificial aging conditions on ceramic-composite bond strength. Int. J. Prosthodont. 2002, 15, 267–272. [Google Scholar] [PubMed]
  44. Zhu, L.; Nikaido, T.; Kitayama, S.; Ikeda, M.; Foxton, R.M.; Tagami, J. Effect of surface abrasion and silica coating on tensile bond strength of a resin cement to zirconia ceramics. Int. Chin. J. Dent. 2009, 9, 23–30. [Google Scholar]
  45. Kosmač, T.; Oblak, C.; Jevnikar, P.; Funduk, N.; Marion, L. The effect of surface grinding and sandblasting on flexural strength and reliability of Y-TZP zirconia ceramic. Dent. Mater. 1999, 15, 426–433. [Google Scholar] [CrossRef]
  46. Guazzato, M.; Albakry, M.; Quach, L.; Swain, M.V. Influence of surface and heat treatments on the flexural strength of a glass-infiltrated alumina/zirconia-reinforced dental ceramic. Dent. Mater. 2005, 21, 454–463. [Google Scholar] [CrossRef] [PubMed]
  47. Zhang, S.; Kocjan, A.; Lehmann, F.; Kosmač, T.; Kern, M. Influence of contamination on resin bond strength to nano-structured alumina-coated zirconia ceramic. Eur. J. Oral Sci. 2010, 118, 396–403. [Google Scholar] [CrossRef] [PubMed]
  48. Yang, B.; Scharnberg, M.; Wolfart, S.; Quaas, A.C.; Ludwig, K.; Adelung, R.; Kern, M. Influence of contamination on bonding to zirconia ceramic. J. Biomed. Mater. Res. Part B 2007, 81, 283–290. [Google Scholar] [CrossRef] [PubMed]
  49. Magne, P.; Paranhos, M.P.; Burnett, L.H. New zirconia primer improves bond strength of resin-based cements. Dent. Mater. 2010, 26, 345–352. [Google Scholar] [CrossRef] [PubMed]
  50. Queiroz, J.R.; Massi, M.; Nogueira, L., Jr.; Sobrinho, A.S.; Bottino, M.A.; Ozcan, M. Silica-based nano-coating on zirconia surfaces using reactive magnetron sputtering: Effect on chemical adhesion of resin cements. J. Adhes. Dent. 2013, 15, 151–159. [Google Scholar] [PubMed]
  51. May, L.G.; Passos, S.P.; Capelli, D.B.; Özcan, M.; Bottino, M.A.; Valandro, L.F. Effect of silica coating combined to a MDP-based primer on the resin bond to Y-TZP ceramic. J. Biomed. Mater. Res. Part B 2010, 95, 69–74. [Google Scholar] [CrossRef] [PubMed]
  52. Maijer, R.; Smith, D. Variables influencing the bond strength of metal orthodontic bracket bases. Am. J. Orthod. 1981, 79, 20–34. [Google Scholar] [CrossRef]
  53. Xie, H.; Tay, F.R.; Zhang, F.; Lu, Y.; Shen, S.; Chen, C. Coupling of 10-methacryloyloxydecyldihydrogenphosphate to tetragonal zirconia: Effect of pH reaction conditions on coordinate bonding. Dent. Mater. 2015, 31, e218–e225. [Google Scholar] [CrossRef] [PubMed]
  54. Sümer, E.; Değer, Y. Contemporary permanent luting agents used in dentistry: A literature review. Int. Dent. Res. 2011, 1, 26–31. [Google Scholar] [CrossRef]
  55. Karakoca, S.; Yılmaz, H. Influence of surface treatments on surface roughness, phase transformation, and biaxial flexural strength of Y-TZP ceramics. J. Biomed. Mater. Res. Part B 2009, 91, 930–937. [Google Scholar] [CrossRef] [PubMed]
  56. Matinlinna, J.P.; Heikkinen, T.; Özcan, M.; Lassila, L.V.J.; Vallittu, P.K. Evaluation of resin adhesion to zirconia ceramic using some organosilanes. Dent. Mater. 2006, 22, 824–831. [Google Scholar] [CrossRef] [PubMed]
  57. Attia, A. Bond strength of three luting agents to zirconia ceramic-influence of surface treatment and thermocycling. J. Appl. Oral Sci. 2011, 19, 388–395. [Google Scholar] [CrossRef] [PubMed]
  58. Kern, M.; Wegner, S.M. Bonding to zirconia ceramic: Adhesion methods and their durability. Dent. Mater. 1998, 14, 64–71. [Google Scholar] [CrossRef]
  59. Giannini, M.; Makishi, P.; Ayres, A.P.A.; Vermelho, P.M.; Fronza, B.M.; Nikaido, T.; Tagami, J. Self-etch adhesive systems: A literature review. Braz. Dent. J. 2015, 26, 3–10. [Google Scholar] [CrossRef] [PubMed]
Materials 10 00148 g001 550

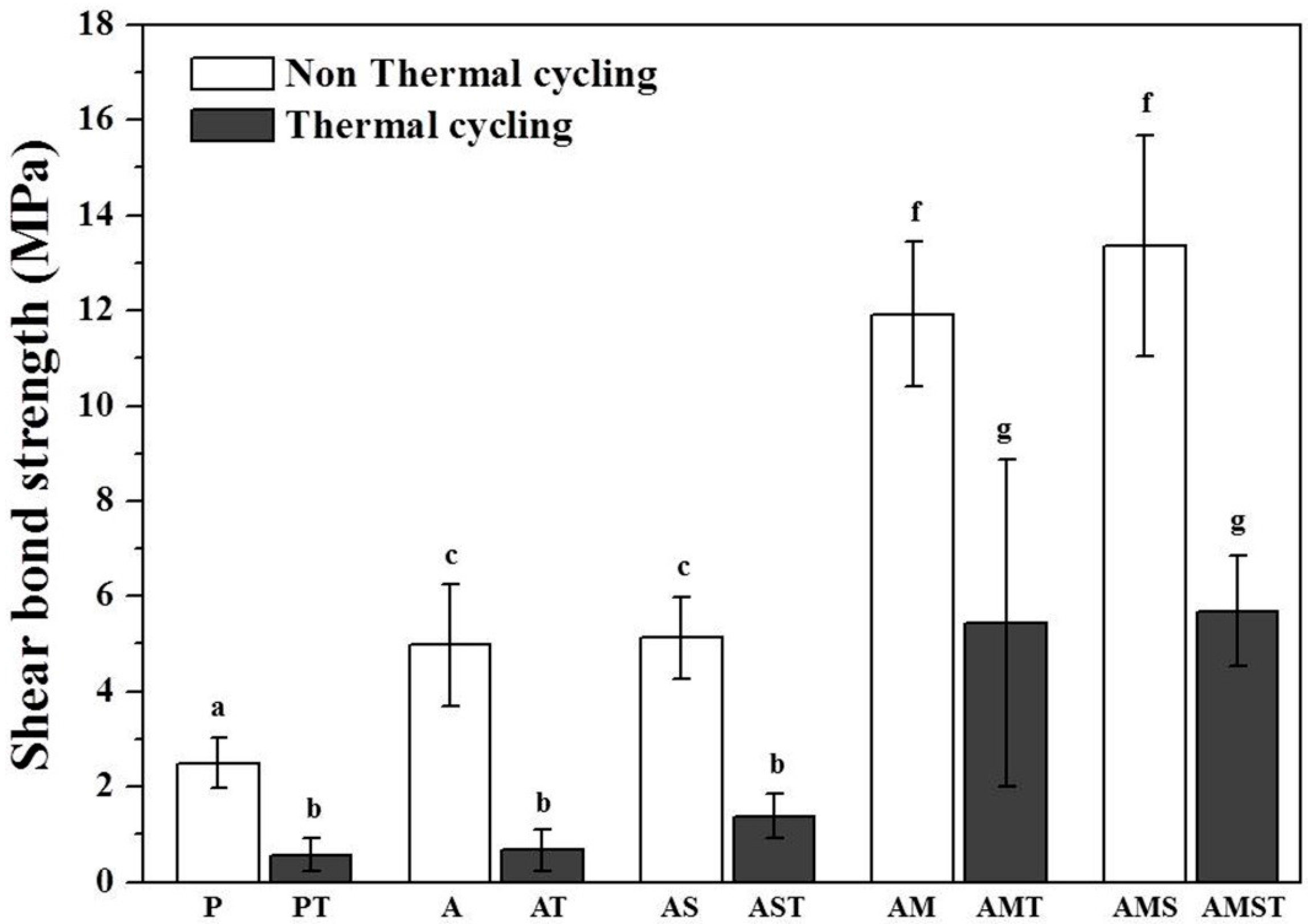

Figure 1. Shear bond strength (SBS) of an orthodontic metal bracket bonded to Y-TZP after surface treatments with and without thermal cycling. Bars indicate the standard deviation. a–g: Groups denoted by different letters are significantly different (p < 0.05).
Figure 1. Shear bond strength (SBS) of an orthodontic metal bracket bonded to Y-TZP after surface treatments with and without thermal cycling. Bars indicate the standard deviation. a–g: Groups denoted by different letters are significantly different (p < 0.05).
Materials 10 00148 g001
Materials 10 00148 g002 550

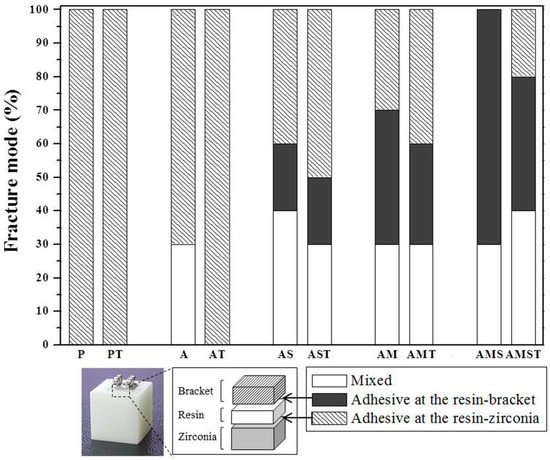

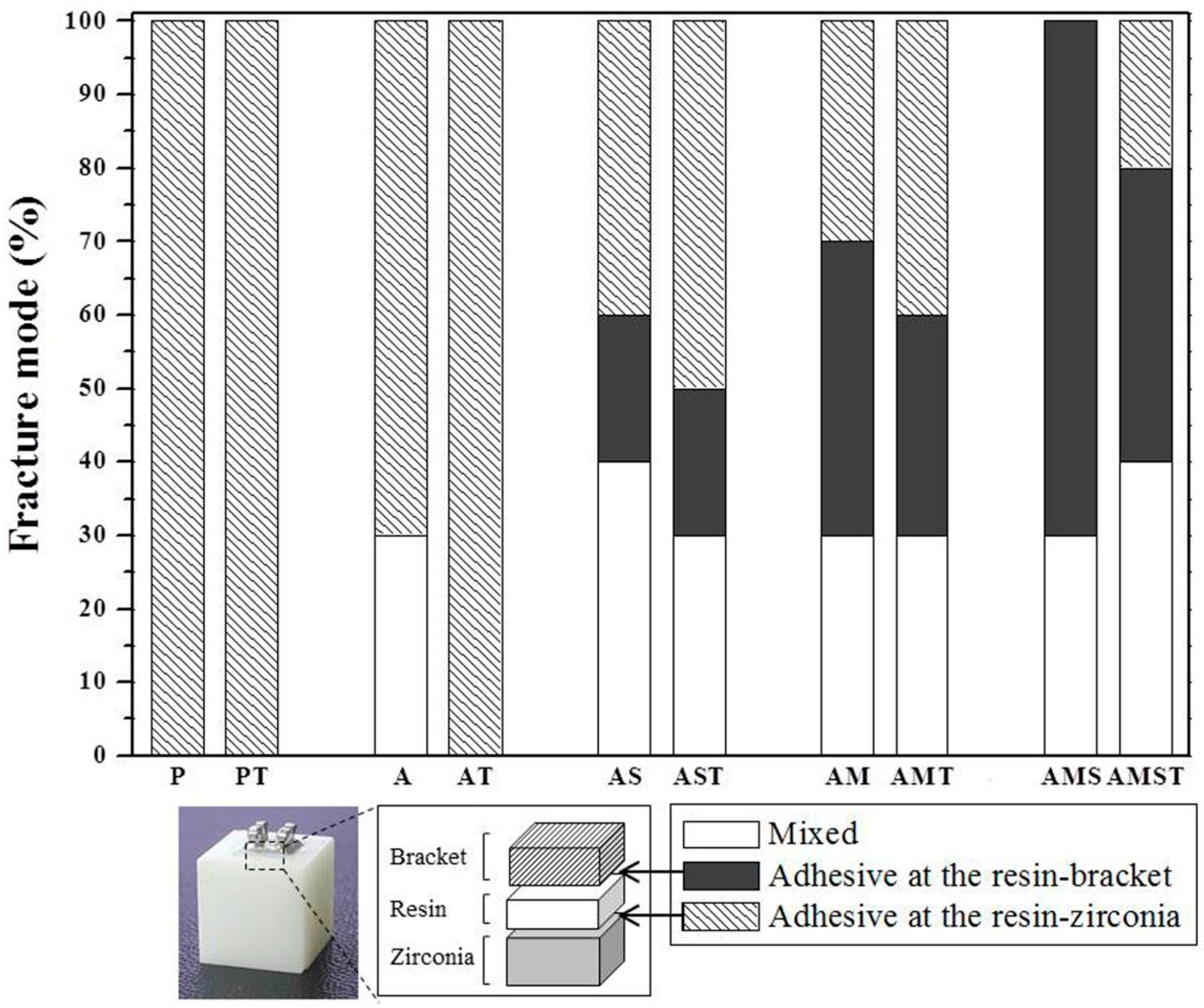

Figure 2. Percentages (%) of the different failure modes after shear bond strength test of an orthodontic metal bracket bonded to Y-TZP.
Figure 2. Percentages (%) of the different failure modes after shear bond strength test of an orthodontic metal bracket bonded to Y-TZP.
Materials 10 00148 g002
Materials 10 00148 g003 550

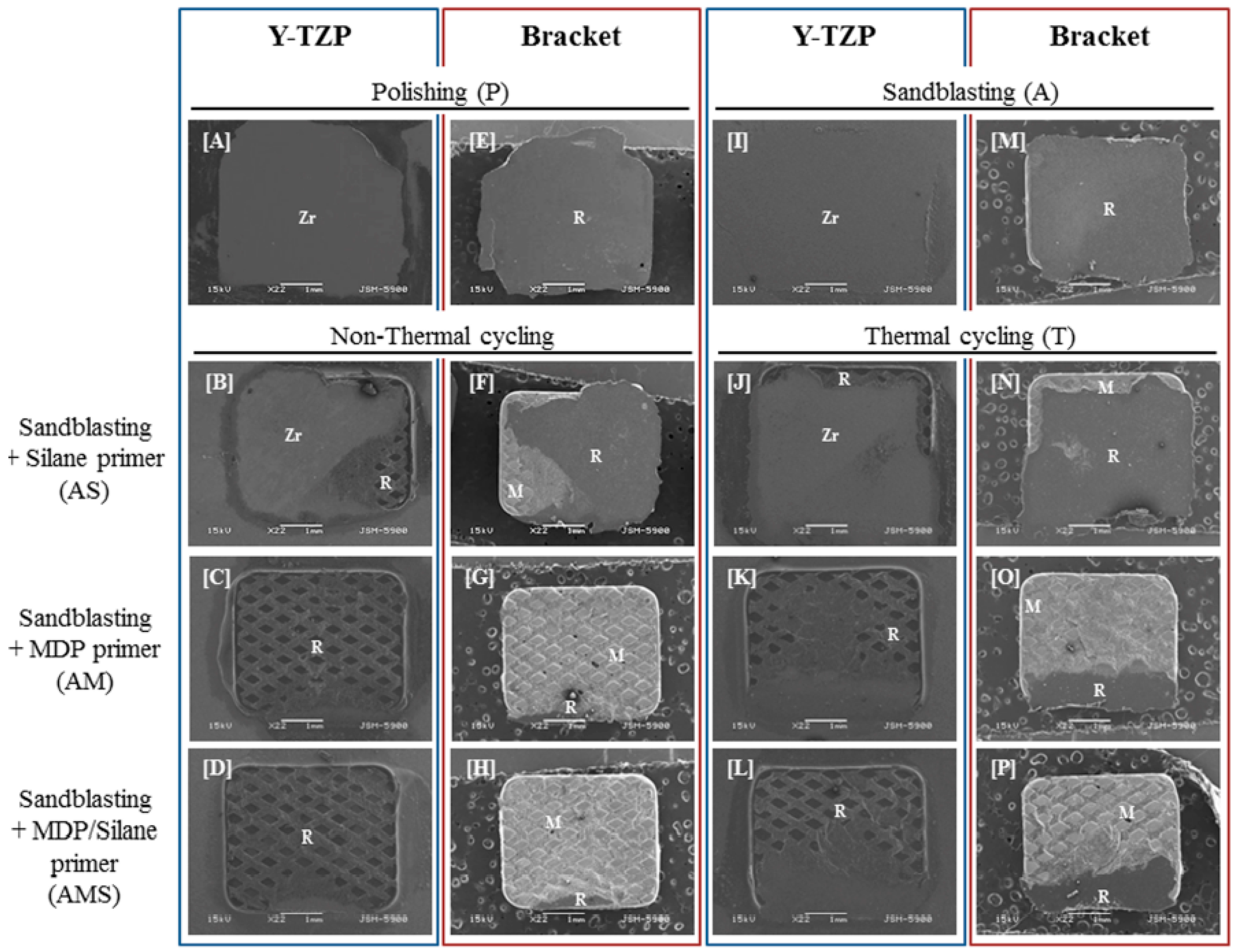

Figure 3. SEM images (22× magnification) of the de-bonded Y-TZP surface (A–D,I–L), and the orthodontic metal bracket surface (E–H,M–P) after shear bond strength test. Abbreviations: Zr (Y-TZP ceramic), R (Resin cement), M (Orthodontic metal bracket).
Figure 3. SEM images (22× magnification) of the de-bonded Y-TZP surface (A–D,I–L), and the orthodontic metal bracket surface (E–H,M–P) after shear bond strength test. Abbreviations: Zr (Y-TZP ceramic), R (Resin cement), M (Orthodontic metal bracket).
Materials 10 00148 g003
Materials 10 00148 g004 550

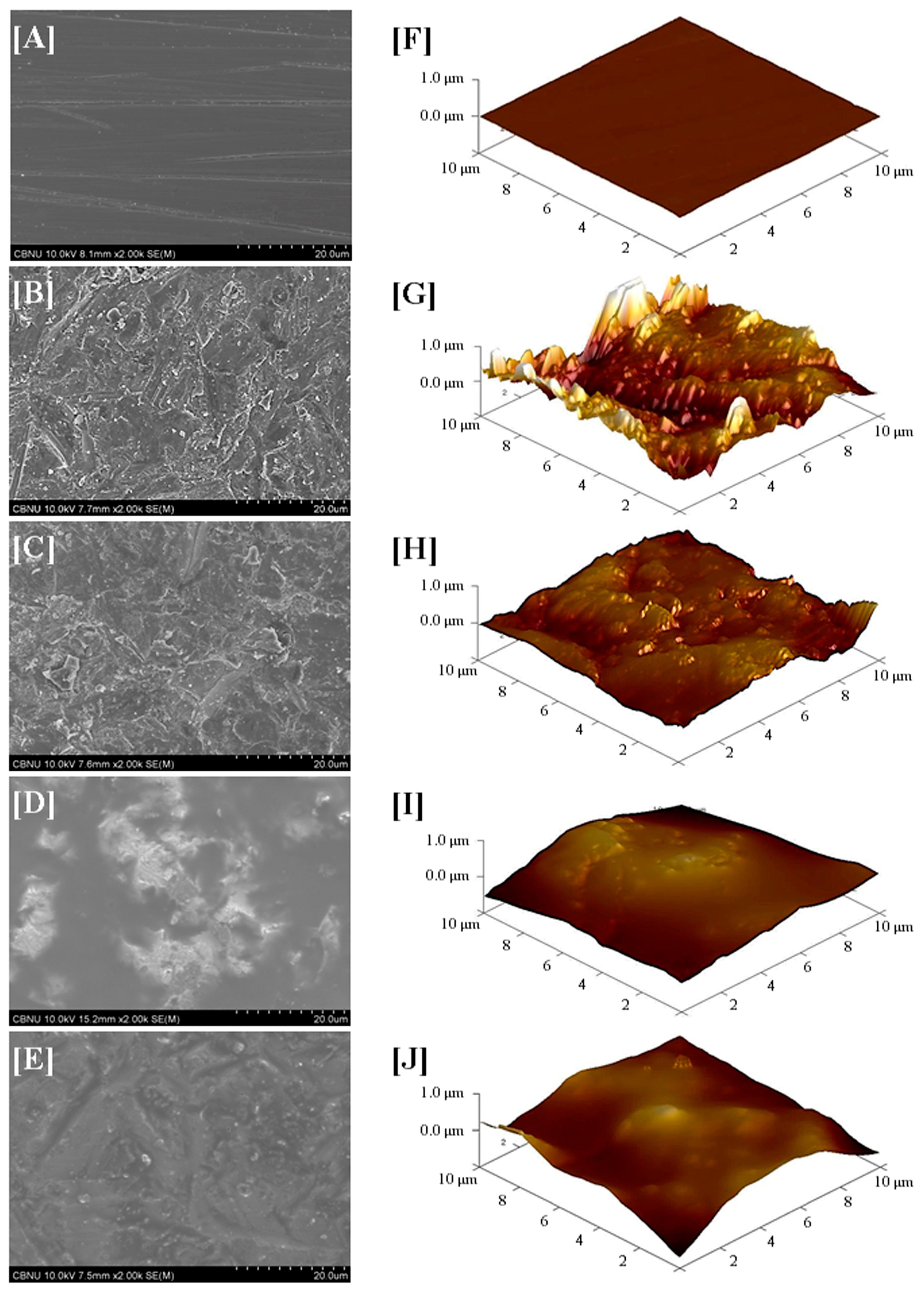

Figure 4. FE-SEM images (2000× magnification) and AFM images (spot size 10 μm × 10 μm). (A,F) P group; (B,G) A group; (C,H) AS group; (D,I) AM group; (E,J) AMS group.
Figure 4. FE-SEM images (2000× magnification) and AFM images (spot size 10 μm × 10 μm). (A,F) P group; (B,G) A group; (C,H) AS group; (D,I) AM group; (E,J) AMS group.
Materials 10 00148 g004
Materials 10 00148 g005 550

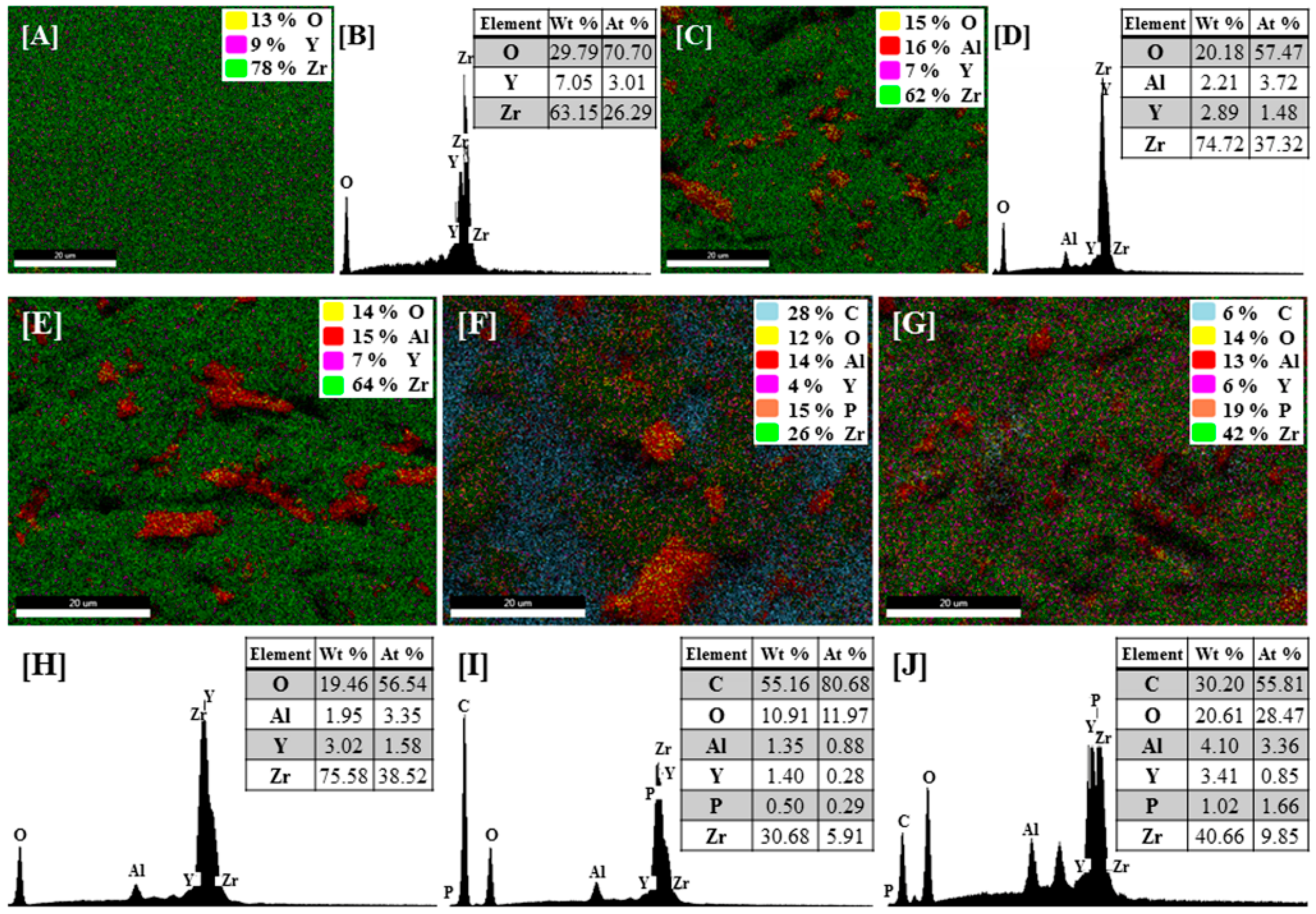

Figure 5. Distribution of elemental composition and EDS detection on the Y-TZP surface of (A,B) P group; (C,D) A group; (E,H) AS group; (F,I) AM group; (G,J) AMS group.
Figure 5. Distribution of elemental composition and EDS detection on the Y-TZP surface of (A,B) P group; (C,D) A group; (E,H) AS group; (F,I) AM group; (G,J) AMS group.
Materials 10 00148 g005
Materials 10 00148 g006 550

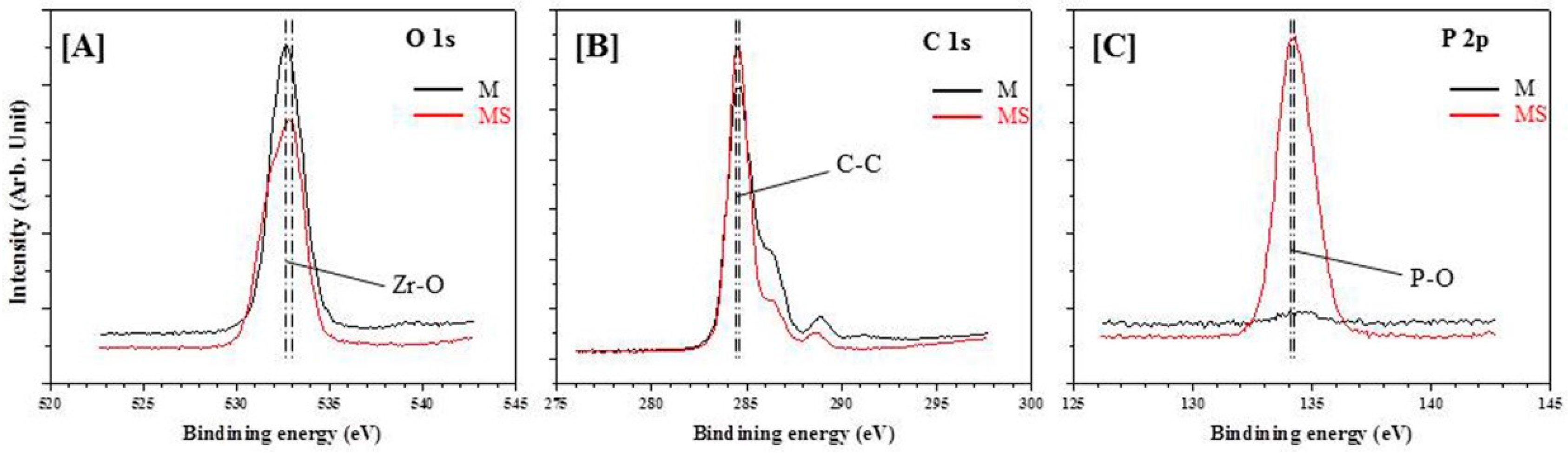

Figure 6. XPS spectra of (A) O 1s; (B) C 1s; and (C) P 2p of the interface between Y-TZP and MDP containing primer (M: MDP primer, MS: MDP containing silane primer).
Figure 6. XPS spectra of (A) O 1s; (B) C 1s; and (C) P 2p of the interface between Y-TZP and MDP containing primer (M: MDP primer, MS: MDP containing silane primer).
Materials 10 00148 g006
Materials 10 00148 g007 550

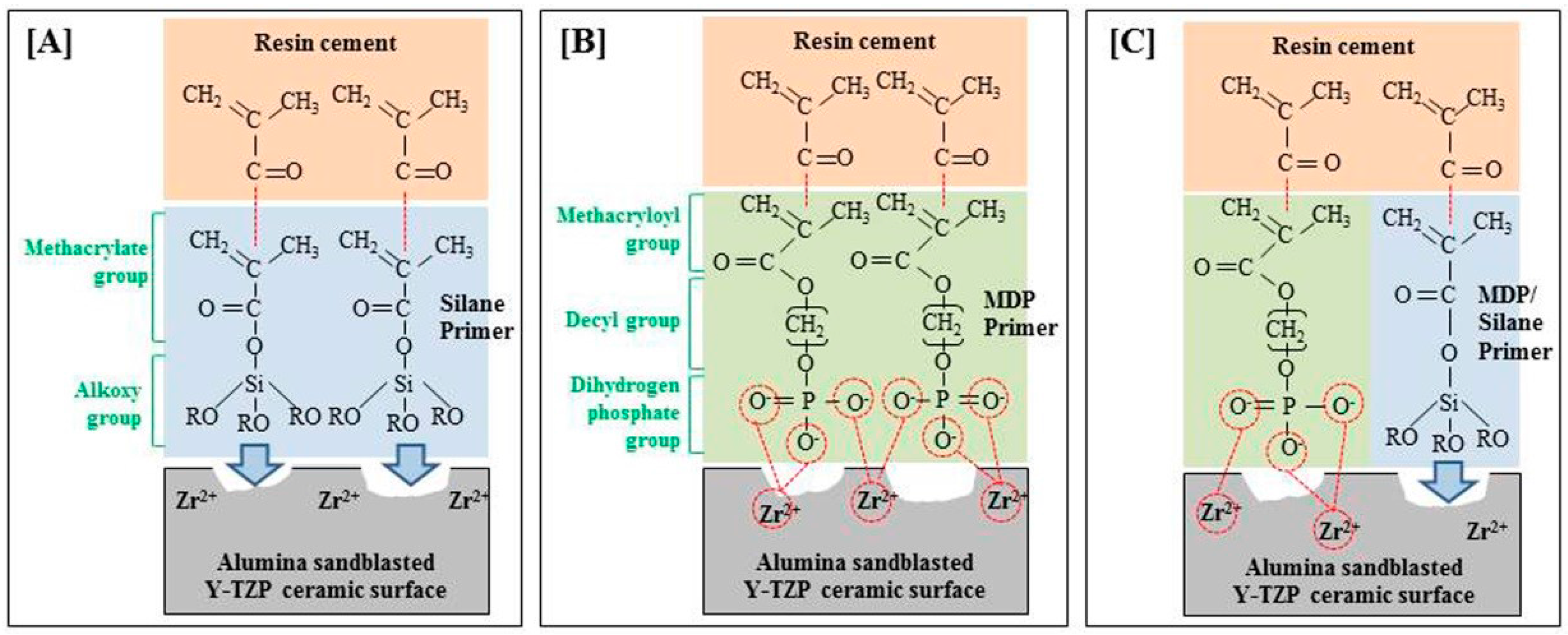

Figure 7. Schematic illustration of micromechanical retention and chemical bonds of the two interfaces, (i) between alumina sandblasted Y-TZP surface and the three different primers; (ii) between the three different primers and Bis-GMA matrix in resin cement; (A) Silane primer; (B) MDP primer; (C) MDP containing silane primer. Sky blue arrows: micro-mechanical interlocking, red line: chemical bonding.
Figure 7. Schematic illustration of micromechanical retention and chemical bonds of the two interfaces, (i) between alumina sandblasted Y-TZP surface and the three different primers; (ii) between the three different primers and Bis-GMA matrix in resin cement; (A) Silane primer; (B) MDP primer; (C) MDP containing silane primer. Sky blue arrows: micro-mechanical interlocking, red line: chemical bonding.
Materials 10 00148 g007
Table
Table 1. Groups of the different treated Y-TZP surface in the present study.
Table 1. Groups of the different treated Y-TZP surface in the present study.
GroupsSurface Treatment & Condition (37 °C)GroupsSurface Treatment & Condition (Thermal Cycling: 5–55 °C)
PPolishingPTPolishing
A110 μm A12O3 BlastingAT110 μm A12O3 Blasting
AS110 μm A12O3 Blasting + Silane PrimerAST110 μm A12O3 Blasting + Silane Primer
AM110 μm A12O3 Blasting + MDP PrimerAMT110 μm A12O3 Blasting + MDP Primer
AMS110 μm A12O3 Blasting + MDP Containing Silane PrimerAMST110 μm A12O3 Blasting + MDP Containing Silane Primer
Table
Table 2. Materials used in the present study.
Table 2. Materials used in the present study.
Material/Trade NameMain ComponentManufacturer
Y-TZP Ceramic/Zirtooth88%–96% ZrO2, 4%–6% Y2O3HASS, Gangneung, Korea
Bracket/Archist Bracket (0.022 twin, Central)Nickel, ChromiumDaeseung medical, Seoul, Korea
110 μm A12O3 Blasting/Rocatec PreAluminium oxide, Size: 110 μm3M ESPE, St. Paul, MN, USA
Silane Primer/ESPE Sil3-TMSPMA a, Ethanol3M ESPE, St. Paul, MN, USA
MDP Primer/Z-PRIME PlusMDP b, EthanolBisco, Schaumburg, IL, USA
MDP Containing Silane Primer/Clearfil Ceramic PrimerMDP b, 3-TMSPMA a, EthanolKuraray Medical, Tokyo, Japan
Resin Cement/Transbond XTSilane treated quartz, Bis-GMA c, Bisphenol a bis(2-hydroxyethyl ether) dimethacrylate, Silane treated silica, Diphenyliodonium hexafluorophosphate3M Unitek, Monorvia, CA, USA
Abbreviations: a 3-TMSPMA (3-trimethoxysilylpropyl methacrylate), b MDP (10-methacryloyloxydecyl dihydrogen phosphate), c Bis-GMA (bisphenol-A-diglycidyl methacrylate).
Table
Table 3. Mean surface roughness values (Ra) after surface treatments.
Table 3. Mean surface roughness values (Ra) after surface treatments.
GroupsSurface Roughness Values (Unit μm)
P0.037 ± 0.011 a
A0.546 ± 0.031 b
AS0.530 ± 0.010 b
AM0.525 ± 0.041 b
AMS0.513 ± 0.052 b
a,b Groups shown with different letters were significantly different (p < 0.05).

Share and Cite

MDPI and ACS Style

Byeon, S.M.; Lee, M.H.; Bae, T.S. Shear Bond Strength of Al2O3 Sandblasted Y-TZP Ceramic to the Orthodontic Metal Bracket. Materials 2017, 10, 148. https://doi.org/10.3390/ma10020148

AMA Style

Byeon SM, Lee MH, Bae TS. Shear Bond Strength of Al2O3 Sandblasted Y-TZP Ceramic to the Orthodontic Metal Bracket. Materials. 2017; 10(2):148. https://doi.org/10.3390/ma10020148

Chicago/Turabian Style

Byeon, Seon Mi, Min Ho Lee, and Tae Sung Bae. 2017. "Shear Bond Strength of Al2O3 Sandblasted Y-TZP Ceramic to the Orthodontic Metal Bracket" Materials 10, no. 2: 148. https://doi.org/10.3390/ma10020148

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
