Mechanical Performance of Asphalt Mortar Containing Hydrated Lime and EAFSS at Low and High Temperatures

1
Pavement research division, Korea Expressway Corporation (KEC), Hwa Sung city, Gyung Gi do 18489, Korea
2
Department of Civil Engineering, Braunschweig Pavement Engineering Centre—ISBS, Technical University of Braunschweig, Braunschweig 38106, Germany
*
Author to whom correspondence should be addressed.
Materials 2017, 10(7), 743; https://doi.org/10.3390/ma10070743
Submission received: 24 May 2017 / Revised: 20 June 2017 / Accepted: 25 June 2017 / Published: 3 July 2017

Abstract

:
In this paper, the possibility of improving the global response of asphalt materials for pavement applications through the use of hydrated lime and Electric Arc-Furnace Steel Slag (EAFSS) was investigated. For this purpose, a set of asphalt mortars was prepared by mixing two different asphalt binders with fine granite aggregate together with hydrated lime or EAFSS at three different percentages. Bending Beam Rheometer (BBR) creep tests and Dynamic Shear Rheometer (DSR) complex modulus tests were performed to evaluate the material response both at low and high temperature. Then, the rheological Huet model was fitted to the BBR creep results for estimating the impact of filler content on the model parameters. It was found that an addition of hydrated lime and EAFSS up to 10% and 5%, respectively, results in satisfactory low-temperature performance with a substantial improvement of the high-temperature behavior.

1. Introduction

Low-temperature cracking represents one of the major distresses for asphalt pavement built in cold regions such as northern U.S. and northern Europe [1,2]. As temperature decreases, a considerable increase in thermal stress is observed up to the material strength limit, beyond which cracks start developing on the pavement surface. Other phenomena, such as traffic loading and freeze-thaw cycles can further accelerate the structural deterioration eventually leading to premature failure [3]. A simple solution to this distress is given by the application of softer asphalt binders, with considerably low Performance Grade (PG) [4] and better relaxation capabilities. However, this may potentially compromise the high-temperature response of the pavement inducing undesirable rutting phenomena. This is especially true for geographical location where extreme temperature variations are experienced between summer and winter, for which even a wide PG range cannot fully guarantee satisfactory pavement response.
The use of reinforcement materials, such as fine particles and fillers, represents an alternative solution to improve the rutting resistance when the low-temperature properties are not significantly affected by a potential increase in brittleness. A number of studies investigated how materials such as silica fume and hydrated lime affect the properties of asphalt materials from a mechanical and rheological viewpoint [5,6,7,8]. When these types of filler or fine particles are combined with asphalt binder, asphalt mastic or asphalt mortar are obtained. These materials have arisen significant interest in the recent past since their behavior is much closer to that of asphalt mixture than plain or modified asphalt binder [6,8,9,10]. In addition, they do not require very expensive testing devices, such servo-hydraulic machines, and the standard testing equipment for asphalt binder characterization can be easily used to determine their mechanical properties [9,10,11,12].
Many researchers investigated the possibility of relating the properties of asphalt mastic and mortar to the corresponding asphalt mixture behavior showing that type, size, grading and particles concentration significantly affect the final performance [9,10,11,12,13,14]. In most cases, an improvement in rutting, fatigue cracking, and moisture damage resistance was observed coupled to an overall stiffening effect [10,11,15,16,17]. For example, the research conducted at the École Nationale des Travaux Publics de l’État (ENTPE) in France, demonstrated that when ultra-fine particles are incorporated with asphalt binder, a considerable stiffening effect is observed especially at higher temperature [7,14,15]. Such an increase in stiffness is associated with obvious practical benefits in terms of resistance to permanent deformation and may appear as a simple and economical solution to mitigate (and/or reduce) rutting phenomena for road authorities and department of transportations.
However, not much attention was devoted to the effect of the inclusions of finer particles at low temperature. In most of the cases the response of mastic and mortar was only addressed in terms of complex modulus, and hence stiffness, while, the response in terms of relaxation properties, the evolution of thermal stress and the associated critical cracking temperature were not evaluated together with the high temperature performance [9,10,11,12,13,14,15,16,17]. Among the different reinforcement materials, Electric Arc-Furnace Steel Slag (EAFSS) represent a valuable option given the large amount available coupled to the environmental benefits associated with the recycling process of this industrial by-product [18,19,20,21,22].

2. Literature Review

Slag from the iron and steel industry are obtained from the rapid cooling process of the oxidized and superficial liquid phase present in electric arc furnaces, from circa 1300 °C to room temperature [18,19]. EAFSS are mainly composed of calcium, iron, aluminum, magnesium and silicon oxides, which together account for an average of approx. 90% of the weight of the material [20,21]. The principal component is iron, the presence of which is due to the action of the oxidative regime of the electric arc furnace on the liquid metal bath.
A number of studies were performed in the past [22] and more recently [23,24] to address the use of EAFSS in asphalt mixture, although not many have been devoted to the use of the fine fraction of this material. Sofilic et al. [21] evaluated the feasibility of using EAFSS as an alternative aggregate source in asphalt pavement by performing several microstructural analyses. It was found that EAFSS does not contain environmentally harmful elements and that they can be used as alternative aggregate for asphalt pavement construction and surface treatments. Skid resistance, permeability, porosity and surface texture of asphalt mixture prepared with EAFSS was evaluated by Liapis and Likoydis [25]. Based on field testing of highway sections, it was observed that EAFSS mixtures present performance comparable to the conventional paving mixtures. In the recent past, Mahmoud et al. [26] evaluated the possibility of using EAFSS in combination with the Warm Mix Asphalt (WMA) technology in substitution of natural limestone aggregate. Scanning Electron Microscope analysis and mechanical testing showed that, in spite of higher porosity and roughness, EAFSS mixture presented enhanced Marshall stability, resilient modulus, tensile strength, together with reduced moisture sensitivity and permanent deformation in comparison to conventional mixtures.
The use of alternative steel slags was also investigated over the years. This includes blast furnace granulated slag [27] and Linz-Donawitz (LD) slag. The latter were used for partially or entirely replacing the conventional aggregate skeleton [28]. The experimental results indicated that asphalt mixtures prepared with slag are suitable for asphalt pavement construction and that, in most cases, they perform better than conventional asphalt mixtures designed with natural aggregates.

3. Objective and Research Approach

In this research, the effect of different types of filler on the low and high-temperature properties of asphalt mortar was investigated. For this purpose, two different asphalt binders, one aggregate type and two diverse filler types, hydrate lime and EAFSS were mixed together to prepare a set 12 asphalt mortars. Hydrated lime conventionally used as filler for asphalt mixture and EAFSS were combined with a conventional type of fine granite aggregate (<0.150 mm) at three different percentages: 5%, 10% and 20% (by volume).
Bending Beam Rheometer (BBR) (Cannon Instrument Company, State College, PA, USA) [29] and Dynamic Shear Rheometer (DSR) (Malvern Instruments Ltd, Malvern, UK) [30] tests were performed both on the original asphalt binders and on the corresponding mortars to evaluate the material response at low and high temperatures. Based on the experimental results, complex modulus, |G*(ω)|, creep stiffness, S(t), m-value, m(t), thermal stress, σ(T), and critical cracking temperature, TCR, were computed then graphically and statistically analyzed [31]. Specifically, two different computation approaches were used to determine the evolution of σ(T): the Hopkins and Hamming’s algorithm [32], which is a numerical solution to solve the convolution integral, and Park and Kims’ algorithm [33], which represents an advanced power law interconversion method. These two methods were selected as, in a different study, it was found that they provide the upper and lower limit boundaries for thermal stress and critical cracking temperature of asphalt mixtures [2].
Then, the rheological Huet model [34] was fitted to the low temperature creep stiffness data and a relation between the characteristic time, τ, of mortar and the filler content was obtained. In the case of DSR data analysis, Christensen Anderson and Marasteanu (CAM) model [35] and a simple sigmoidal function [36,37] were used for generating |G*(ω)| master curves which were then statistically compared to better understand the high temperature performance of the given asphalt materials. A schematic of the research approach selected for this study is presented in Figure 1.

4. Materials Testing

4.1. Materials Preparation

One plain PG 58-28 asphalt binder and one SBS polymer modified binder having PG 64-34 were prepared at the asphalt material laboratory of Korea Expressway Corporation (KEC). Both binders were combined with the fine portion (0.075 < d < 0.150 mm) of granite aggregate and mixed either with hydrated lime or EAFSS filler. The lower part of the sieve size curve of an asphalt mixture, AC11, commonly used for wearing course in Germany [38] was selected for establishing the relative proportions of fine granite particles and fillers. AC11 refers to a Hot Mix Asphalt (HMA) having nominal maximum aggregate size (NMAS) of 12.5 mm. Aggregates (fines and filler) were incorporated with the binder at three different percentages 5%, 10% and 20% (by volume), and a total of 12 mortars were prepared. The corresponding weight ratio according to volume fraction was 11.2%, 22.3% and 44.7%, and 16.5%, 32.9% and 65.8%, for hydrated lime and EAFSS, respectively, where the specific gravity of asphalt binder = 1.03 g/cm3, hydrated lime = 2.3 g/cm3 and EAFSS = 3.39 g/cm3 [39].
In the case of Hot Mix Asphalt (HMA), averagely 5% asphalt binder (by weight) is used [1,3]. Therefore, approximately 0.6%, 1.1% and 2.2% of hydrated lime can be included (by weight) in the mix design when adding 5%, 10% and 20% based on binder volume, respectively. In the case of EAFSS, this corresponds to 0.8%, 1.6%, and 3.3%. A summary of the materials used in this research is presented in Table 1, while Figure 2 shows the three aggregate particles.
Asphalt binders, particles, and fillers were heated in the oven at the temperature range within 150 to 160 °C. Then, the filler was progressively added to the asphalt binder and the material was continuously mixed with a stirring device in order to achieve a homogenous distribution and to avoid the formation of lumps. Asphalt binders and corresponding mortars were short and long term aged with the Rolling Thin-Film Oven Test (RTFOT) (James Cox & Sons, Inc., Colfax, CA, USA) [40] and the Pressurized Aging Vessel (PAV) (Prentex Alloy Fabricators, Inc., Dallas, TX, USA) [41], and then, tested with the DSR [30] and the BBR [29] at the corresponding aging conditions (RTFOT and PAV aged binder for DSR and BBR), respectively.

4.2. Low-Temperature Testing and Parameters Computation

BBR creep tests (Cannon Instrument Company, State College, PA, USA) [29] were performed to determine the low-temperature properties of binder and corresponding mortar. In this test method, a constant load of 980 mN is applied for 240 s on small asphalt binder and mortar beams (l = 102 mm, b = 12.5 mm, h = 6.25) in three-point bending (3PB) configuration. Two different temperature, lowPG + 10 °C and low(PG + 10) − 6 °C, were considered in order to generate relaxation modulus, E(t), master curves, thermal stress, σ(T), and corresponding critical cracking temperature, TCR. Three asphalt binder and mastic replicates were tested at each temperature. Both binders and mortars were subjected to long-term aging before testing [41]. Based on the BBR test creep stiffness, S(t), and m-value, m(t), were computed according to the following well-known formulas [1,2,3,29]:
S ( t ) = 1 D ( t ) = σ ε ( t ) = P · l 3 4 · b · h 3 · δ ( t ) ,
m ( t ) = | d Log   S ( t ) d Log   t   |
where S(t) is the time-dependent flexural creep stiffness (MPa), D(t) is the creep compliance (1/MPa) = 1/S(t), σ(t) is the bending stress in the beam (MPa), ε(t) is the time-dependent bending strain in the beam (mm/mm), P is the applied constant load (=980 ± 50 mN), δ(t) is the beam deflection (mm), l, b, h are the beam dimensions (mm), t is time (s), respectively.
In order to compute thermal stress, σ(T), S(t) was first numerically converted to the corresponding relaxation modulus, E(t), based on two different computation approaches: the Hopkins and Hamming’s algorithm [2,32] and Park and Kims’ power law interconversion method [2,33]. The Hopkins and Hamming algorithm [32] computes E(t) from D(t) by numerically solving the convolution integral [42]; see Equations (3)–(6). On the other hand, the Park and Kim’s approach (Equations (7) and (8)) estimates E(t) using a power law expression, which is a function of the rescaled time, t* [33]. Based on the findings obtained in a previous research [2], these two solutions were used in the present study to provide a more extensive data analysis of the experimental results.
t = 0 t E ( τ ) · D ( t τ ) d τ = 0 t E ( t τ ) · D ( τ ) d τ ,
t n + 1 = 0 t n + 1 E ( τ ) · D ( t n + 1 τ ) d τ = i = 0 n t i t i + 1 E ( τ ) · D ( t n + 1 τ ) d τ ,
t i t i + 1 E ( τ ) · D ( t n + 1 τ ) d τ = E ( t i + 1 2 ) · [ f ( t n + 1 t i + 1 ) f ( t n + 1 t i ) ] ,
E ( t n + 1 2 ) = t n + 1 i = 0 n 1 E ( t i + 1 2 ) · [ f ( t n + 1 t i ) f ( t n + 1 t i + 1 ) ] f ( t n + 1 t n ) = t n + 1 i = 0 n 1 E ( t i + 1 2 ) · [ f ( t i + 1 t i ) ] f ( t n + 1 t n ) ,
where
t i + 1 / 2 = 1 2 ( t i + 1 + t i ) ,   f ( t ) = 0 t D ( t ) d t ,   f ( t 0 ) = 0 ,   E ( t 0 ) = 0 ,   E ( t 1 ) = t 1 / f ( t 1 ) .
1 = E ( t * ) · D ( t ) = E ( [ sin ( n · π ) n · π ] 1 n · t ) · D ( t )         E ( t ) = 1 D ( t / [ sin ( n · π ) n · π ] 1 n ) ,
n = | d L o g D ( t ) L o g τ | τ = t   or   n = | d L o g E ( t ) L o g τ | τ = t
Then, E(t) master curves were generated using the CAM model with simple power law shift factor relation (see Equations (9) and (10)) [35] based on the values of E(t) computed through Equations (6) and (7), respectively:
E ( t ) = E g · [ 1 + ( t t c ) v ] w / v . L o g E ( t ) = L o g E g + ( w v ) · L o g [ 1 + ( t t c ) v ] L o g E ( t ) = Log ( E g = 3 GPa ) + ( w v ) · L o g [ 1 + ( 10 L o g t L o g t c ) v ]
a T = 10 C 1 + C 2 · T S     L o g a T = C 1 + C 2 · T S
where Eg is the glassy modulus (assumed as 3 GPa for binders: [1]), tc, ν, w are fitting parameters (i.e., constants), C1, C2 are fitting parameters (i.e., constants), TS is reference temperature (TS = lowPG + 10 °C; −18 °C and −24 °C for PG 58-28, PG 64-34 binder, respectively).
Finally, thermal stress was computed based on Equation (11); the one-dimensional hereditary integral, was solved with the 24 Gaussian points quadrature, assuming a cooling rate of 2 °C/h within a temperature range between 20 °C and −40 °C as [1,2]:
σ ( ξ ) = ξ d ε ( ξ ) d ξ · E ( ξ ξ ) d ξ = t d ( α Δ T ) d t · E ( ξ ( t ) ξ ( t ) ) d t ,
where ε ( ξ ) is the strain rate, ξ = t / a T is the reduced time, α is the coefficient of thermal contraction of asphalt binder assumed to be equal to 0.00017/°C [1].
In addition, the critical cracking temperature, TCR, was computed from the results of thermal stress of the given asphalt binders and asphalt mortars based on the Single Asymptote Procedure (SAP) method [1,43], since no strength tests were conducted for this research. The experimentally obtained σ(T) and TCR of each two sets of binder and mortars from Equations (6), (7), (9)–(11) were further evaluated based on statistical analysis and rheological modeling as later described in the present paper.

4.3. High-Temperature Testing

DSR asphalt binder tests [30] were performed to measure complex modulus, |G*(ω)|, and phase angle, δ, and to determine the conventional |G*(ω)|/sinδ parameter commonly used for obtaining the binder PG [4] with respect to rutting resistance. This parameter has received a number of criticisms over the years as it is unable to fully capture the response of modified binders and to well correlate to rutting measurements, leading to the development of an alternative standard for determining the binder PG [44]. Nevertheless, in the present study, this parameter was selected since it provides a simple and practical approach to the evaluation of the material response to permanent deformations.
Tests were conducted with a plate-plate geometry having an 8mm diameter and 2 mm gap for temperatures between 4 and 40 °C and with a 25 mm diameter and 1 mm gap in the temperature range 28 °C to 70 °C. A temperature step of 6 °C was used to cover the entire temperature window, while the following angular frequencies (ω) were imposed to the specimens: 1.000, 1.586, 2.512, 3.980, 6.309, 10.000, 15.840, 25.120, 39.810, 63.090, and 100.000 rad/s. Similar to the BBR creep tests, three replicates were prepared and tested. All DSR tests were conducted on short term aged binders and mortars [40]. CAM model [35] and the sigmoidal function proposed by Pellinen [36] were used for generating |G*(ω)| master curves according to Equations (12) and (13), respectively, and assuming a reference temperature, TS = 22 °C. The expression of the CAM model for the complex modulus is:
| G * ( ω ) | = | G * ( ω ) | · [ 1 + ( ω t c ) μ ] β μ Log | G * ( ω ) | = L o g | G * ( ω ) | + ( β μ ) · L o g [ 1 + ( ω t c ) μ ] = L o g | G * ( ω ) | + ( β μ ) · L o g [ 1 + ( 10 L o g ω L o g t c ) μ ] = L o g | E g = 3 GPa 2 · ( 1 + ν ) | + ( β μ ) · L o g [ 1 + ( 10 L o g ω L o g t c ) μ ]
while the sigmoidal model can be expressed as:
L o g | G * ( ω ) | = δ + α 1 + e β 1 + γ · L o g ξ = δ + α 1 + e β 1 + γ · ( L o g ω + L o g a T ) | G * ( ω ) | = 10 δ + α 1 + e β 1 + γ · ( L o g ω + L o g a T )
E = G * ( ω ) · 2 · ( 1 + ν ) G * ( ω ) = E 2 · ( 1 + ν )
where G * ( ω ) is the glassy modulus (assumed as 1.056~1.014 GPa, v = 0.42~0.48 for binders), tc, μ are fitting parameters (i.e., constants), LogaT is the shift factor parameters (at 4, 10, 16, 28, 34, 40, 46, 52, 58, 64 and 70 °C). It should be remarked that the CAM model predicts relatively higher values of G*, while the simple sigmoidal approach provides G* values relatively lower with smoother S-shaped plot due to characteristics of the function.

5. Statistical Analysis: Methodology

The difference in σ(T), TCR and |G*(ω)| across the different asphalt binders and corresponding mortars was evaluated with a simple statistical t-test with 5% significance level (i.e., α = 0.05). To perform the analysis, the conditions of data normality and constant variance were assumed and formulated [31] while the testing hypotheses were expressed as:
Null   hypothesis :   H 0 : μ A ( σ ,   T C R ,   G * ) = μ B ( σ ,   T C R ,   G * )
Alternative   hypothesis :   H 1 : μ A ( σ ,   T C R ,   G * ) μ B ( σ ,   T C R ,   G * )
where the mean (response) μ corresponds to σ(T), TCR and |G*(ω)| obtained from BBR and DSR tests. The pooled standard deviation, SP, can be computed as follows:
S P ( σ ( T ) ,   T C R ,   G * ) = ( n A ( = 3 ) 1 ) · S A ,     ( σ ( T ) ,   T C R ,   G * ) 2 + ( n B ( = 3 ) 1 ) · S B ,     ( σ ( T ) ,   T C R ,   G * ) 2 n A ( = 3 ) + n B ( = 3 ) 2
where S A ( σ ( T ) ,   T C R ,   G * ) is standard deviation of σ(T), TCR and |G*(ω)| (Group A), S B ( σ ( T ) ,   T C R ,   G * ) is standard deviation of σ(T), TCR and |G*(ω)| (Group B), nA and nB is number of specimens in Group A and B (n = 3), respectively.
By using Equation (18) the results of t-static can be computed as:
t - s t a t i c = μ A ( σ ( T ) ,   T C R ,   G * ) μ B ( σ ( T ) ,   T C R ,   G * ) S P ( σ ( T ) ,   T C R ,   G * ) · 1 n A + 1 n B = μ A ( σ ( T ) ,   T C R ,   G * ) μ B ( σ ( T ) ,   T C R ,   G * ) S P ( σ ( T ) ,   T C R ,   G * ) · 2 3
where the degrees of freedom, d f = ( n A + n B ) 2 = 3 + 3 2 + 4 .
Based on Equation (18), the output of the statistical tests, p-value, can be computed and compared to the significant threshold (i.e., α = 0.05), to verify if the two compared groups can be considered statistically equivalent or different.

6. Low-Temperature Results and Modeling

In the present section, the experimental results and the statistical analysis of the low-temperature tests are first presented. Then, the Huet model [34], is fitted to the creep stiffness data, S(t), and the evolution the characteristic time, τ, which is a parameter governing the temperature dependency of the model and that is associated with the time needed for the system to relax, is further investigated.

6.1. Experimental Results and Statistical Analysis

The experimentally measured creep stiffness and m-value at 60 s (see Equations (1) and (2)) are presented in Figure 3. A visual inspection of the two plots suggests that for low volume content of hydrated lime and EAFSS both creep stiffness and m-value of mortars are in the same order of magnitude of the original binder, while a significant increase of S(60 s) coupled to a considerable decrease of m(60 s) are observed when moving to higher particles concentration. However, it should be mentioned that up to 5% addition either of hydrated lime or EAFSS to the binder, no visual significant differences in S(60 s) and m(60 s) were observed. In addition, coefficients of variation (CoV) smaller than 5% provide evidence that BBR creep testing can be successfully used not only for asphalt binder but also for mortar specimens. It is also interesting to observe that although the two binders present S(60 s) close to the limiting stiffness value, they both exceed 300 MPa.
Based on Equations (1)–(11), thermal stress, σ(T), and critical cracking temperature, TCR, of asphalt binders and corresponding mortars were computed and then graphically and statistically compared based on t-test [31] with a 5% significance level (i.e., α = 0.05). The results and the statistical analysis are presented in Figure 4 and Figure 5 and Table 2, for σ(T) and TCR, respectively; bold values indicate the significance of the statistical comparison.
From the results of Table 2 and Figure 4 and Figure 5, an increase in thermal stress and TCR was obtained for higher content of hydrated lime and EAFSS with respect to the original asphalt binder for both E(t) computation approaches: Hopkins and Hammings [32] and Park and Kim [33]. This confirms what visually observed in the bar charts of Figure 3 for which poorer relaxation properties and higher stiffness characteristics were measured when the content of aggregate particles and filler was increased. It also should be noted that no significant differences in σ(T) and TCR were found for mortars prepared with the softer PG 64-34 binder and up to 10% of both hydrated lime and EAFSS filler. This is not the case for the stiffer PG 58-28 binder, where the EAFSS content has to be limited to 5%.
Overall, for low filler content, the low-temperature response of asphalt mortar is comparable with that of asphalt binder; this should guarantee satisfactory performance against thermal cracking. Nevertheless, with respect to filler type, the use of hydrated lime rather than EAFSS is advisable when combined with a stiffer binder to maintain a reasonable level of low temperature cracking resistance compared to non-filler added asphalt binder (see Figure 4 and Figure 5 and Table 2).

6.2. Huet Model and Analysis

In order to further evaluate the effect of particles contents on the material mechanical response at low temperature, the Huet model [34] was fitted to the experimental creep stiffness data. This model consists of two parabolic elements and a spring combined in series (Figure 6).
In the Huet model, the creep compliance, D(t), is expressed according to the following equation:
D ( t ) = 1 S ( t ) = 1 E · ( 1 + δ ( t τ ) k Г ( k + 1 ) + ( t τ ) h Г ( h + 1 ) ) ,
where S(t) is creep stiffness(=1/D(t)), E is glassy modulus (=3 GPa, [1]), h, k is exponents such that 0 < k < h < 1, δ is dimensionless constant, Γ is gamma function.
Г ( n ) = 0 t n 1 · e t d t ,
Г ( n + 1 ) = n · Г ( n ) ,
where n > 0 or Real (n) > 0, t is integration variable, n is argument of the gamma function.
τ = a T ( T ) · τ 0 ( T s ) ,
where τ is the characteristic time, associated with the relaxation time of the material [12].
In previous studies [45,46], it was found that for viscoelastic materials such as asphalt binder, parameters k and h range within 0.08~0.3 and 0.3~0.8, respectively. In addition, it was also shown that stiffer materials are linked to lower values of k and h [34,46]. The five constants required by the Huet model (δ, k, h, E, and τ) were determined through the minimization of the sum of the distances between the experimental creep compliance and that predicted by the Huet model at n time points (see Equation (23)).
Error = n = 1 240 sec [ D ( t ) experimental D ( t ) Heut   fitting ] 2 = n = 1 240 sec [ D ( t ) experimental 1 E ( = 3 GPa ) · ( 1 + δ ( t / τ ) k Г ( k + 1 ) + ( t / τ ) h Г ( h + 1 ) ) ] 2 0
The fitting was limited to the low-temperature creep stiffens data obtained at lowPG + 10 °C, as the three kernel parameters of the model (δ, k, h) are the same over the entire spectrum of temperature as demonstrated in different research efforts [14,46]. Figure 7 provides examples of model fitting of both binder and mortar data.
With respect to the model parameters, the addition of fine aggregate particles was first investigated by evaluating the variation of parameters k and h, to obtain an indirect estimation of the stiffening effect. Table 3 and Table 4 present the values of k and h and the results of the statistical t-tests [31] conducted to determine any significant change in these two parameters depending on the content of hydrated lime and EAFSS; bold numbers indicate a significant difference in k and h.
A significant variation in k and h is observed (for both binders) for hydrated lime and EAFSS content above 10% and 5%, respectively. This suggests that EAFSS present a much more effective stiffening effect than what obtained with hydrated lime for the same volumetric content, substantially confirming the statistical trend observed for thermal stress and TCR. It must be stressed out that the difference in terms of binder PG is also confirmed, where the stiffer PG 58-28 seems to be more sensitive to the addition of EAFSS. In the case of softer asphalt binder (i.e., PG 64-34 binder), no significant difference at low temperature was observed up to 10% of hydrated lime and EAFSS.
The effect of the particle content was also addressed by relating the percentage of material included in the mortar to the variation in characteristic time, τ. For example, if the value of τ is larger more time is required for the given material to relax at low temperature. As already mentioned, this parameter governs the temperature dependency of the model and provides information on the time required for the material to relax [12]. Figure 8 presents the relation obtained between τ and aggregate particle content for all the different materials used in the present study.
The two plots suggest that a clear proportional stiffening effect with a linear trend is linked to the addition of hydrated lime and EAFSS. Longer relaxation time is experienced for the EAFSS filler. This is true for both binder types (PG 58-28 and PG 64-34). In addition, substantially higher relaxation capabilities can be expected from materials prepared with PG 64-34 binder, confirming the results previously obtained. The comparison of the Huet model [34] parameter supports the trends observed in Section 6.1 of the present work.

7. High-Temperature Results and Analysis

In this section, the complex modulus, |G*(ω)|, obtained from DSR tests was graphically and statistically compared to evaluate the potential improvement in term of resistance to permanent deformations, which can be obtained at higher temperature condition when using hydrated lime and EAFSS. In order to perform a consistent comparison over a wider range of frequency, |G*(ω)| master curves were generated with the CAM model (Equation (12)) [35] and with a simple sigmoidal function (Equation (13)) [36].
Statistical t-tests (Equations (15)–(18)) was then conducted on the entire range of values for the different binders and mortars. The experimental and statistical results are shown in Figure 9 and Figure 10.
The master curves clearly show a significant increase in |G*(ω)| starting from the lower aggregate particles contents (5%). This is true for both binder types and for both hydrated lime and EAFSS. Therefore, better performance against rutting can be expected when adding 5% or more of hydrated lime and EAFSS. However, given the results of the low-temperature analysis (previous section), the filler content has to be limited to 10% and 5% for hydrated lime and EAFSS, respectively in order to avoid a substantial reduction in the corresponding relaxation properties and consistent increase in creep stiffness.
The conventional parameter |G*(ω)|/sinδ [4], was computed from the master curve at the corresponding shifting reference temperature (TS = 22 °C) and then used to further evaluate the stiffening effect with respect to rutting resistance. This parameter was then plotted against aggregate particle content as shown in Figure 11.
A reasonable linear trend is observed between |G*(ω)|/sinδ and the percentage of both hydrated lime or EAFSS. Higher particles content results in larger |G*(ω)|/sinδ ratios for both binders. As in the case of low-temperature creep stiffness, EAFSS induces a more consistent stiffening effect on the material. On the other hand, higher stiffening ratios are observed for PG 64-34 binder, showing an opposite trend to what measured at low temperature, where lower stiffness was obtained in comparison to the mortars prepared with PG 58-28 binder. It is hypothesized that the polymer modification affects the global stiffness of the binder at higher temperature leading to a more consistent structure when interacting with the reinforcement given by the aggregate inhomogeneities (i.e., particles).
Based on the results at low and high temperatures, the optimal aggregate particle content is limited to 10% for hydrated lime and EAFSS when using plain PG 64-34 binder. A slightly different result was found for mortars prepared with the modified PG 58-28 binder, for which 10% of hydrated lime, but only 5% EAFSS can be used without compromising the low-temperature performance.

8. Summary and Conclusions

In this paper, the possibility of using hydrated lime and EAFSS filler to improve the resistance of asphalt materials to permanent deformation without compromising the low-temperature performance was investigated. BBR creep and DSR complex modulus tests were conducted on two different binders and on 12 mortars prepared with fine granite particles and two type of fillers: hydrated lime and EAFSS. In addition, the Huet model was used to evaluate the effect of particles content on the model parameters. Based on the analysis performed, the following conclusions can be drawn:
  • The low-temperature properties of mortars prepared with softer asphalt binder (PG 64-34 binder) are not significantly affected when using hydrated lime or EAFSS up to 10%. When a stiffer binder is used in the mix design, the EAFSS content has to be limited to 5%, suggesting a consistent stiffening effect for this type of filler.
  • Higher material characteristic time was obtained from the Huet model for materials contenting higher amount of filler, suggesting a progressive loss in relaxation capabilities.
  • At high temperature, the inclusion of hydrated lime and EAFSS results into a consistent improvement of the performance against rutting. This is shown by the increasing linear trend of the conventional PG rutting parameter for increased particles contents.
The use of hydrated lime and EAFSS filler is beneficial in terms of rutting resistance when the low-temperature characteristics of the original binder are not significantly affected. Given the sensitivity to smaller contents of EAFSS of the plain binder, hydrated lime is preferable from a practical viewpoint since large amounts can be incorporated in the mixture, potentially leaving room for mix design adjustments. Nevertheless, the possibility of incorporating EAFSS in the mix design represents a significant opportunity for recycling an industrial by-product with substantial environmental benefits.
The approach used in this research represents a simple practical tool for engineers when operating in regions experiencing climate with large yearly temperature range. Nevertheless, a larger testing campaign needs to be undertaken to provide additional support to methodology and results; this includes more binder and filler types, together with the use of alternative testing methods, such as the Multiple-Stress Creep-Recovery (MSCR) test. In addition, the present work highlight the need for identifying a set of robust limiting criteria for asphalt mortars as currently available for the selection of asphalt binder, based on the PG system [4] or as recently proposed for asphalt mixture at low temperature [47]. This is part of a joint research effort between Technical University of Braunschweig, Germany, and Korea Expressway Corporation (KEC), Research Division in South Korea.

Acknowledgments

The contribution of the Institut für Straßenwesen at TU Braunschweig (Germany) and the support of Korea Expressway Corporation (KEC) pavement research division (Korea) are gratefully acknowledged.

Author Contributions

Augusto Cannone Falchetto and Ki Hoon Moon conceived and designed the experiments; Ki Hoon Moon and Di Wang performed the experiments; Augusto Cannone Falchetto and Chiara Riccardi analyzed the data; Augusto Cannone Falchetto and Ki Hoon Moon wrote the paper; Michael P. Wistuba provided some recommendations.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Moon, K.H.; Marasteanu, M.O.; Turos, M. Comparison of thermal stresses calculated from asphalt binder and asphalt mixture creep tests. J. Mater. Civ. Eng. 2012, 25, 1059–1067. [Google Scholar] [CrossRef]
  2. Cannone Falchetto, A.; Moon, K.H. Comparison of analytical and approximate inter-conversion methods for thermal stress computation. Can. J. Civ. Eng. 2015, 42, 705–719. [Google Scholar] [CrossRef]
  3. Marasteanu, M.O.; Buttlar, W.; Bahia, H.; Williams, C.; Moon, K.H.; Teshale, E.Z.; Falchetto, A.C.; Turos, M.; Dave, E.; Paulino, G.; et al. Investigation of Low Temperature Cracking in Asphalt Pavements. National Pooled Fund Study Phase II; Research Report 2007-43; Minnesota Department of Transportation (MN/DOT): Saint Paul, MN, USA, 2012. [Google Scholar]
  4. AASHTO M320: Standard Specification for Performance-Graded Asphalt Binder; American Association of State Highway and Transportation Officials: Washington, DC, USA, 2016.
  5. Anderson, D.A.; Bahia, H.U.; Dongre, R. Rheological Properties of Mineral Filler-Asphalt Mastics and Its Importance to Pavement Performance; In STP-1147; ASTM: Washington, DC, USA, 1992; pp. 131–153. [Google Scholar]
  6. Little, D.N.; Petersen, J.C. Unique effects of hydrated lime filler on the performance-related properties of asphalt cements: Physical and chemical interactions revisited. J. Mater. Civ. Eng. 2005, 17, 207–218. [Google Scholar] [CrossRef]
  7. Delaporte, B.; Di Benedetto, H.; Chaverot, P.; Gauthier, G. Effect of ultrafine particles on linear viscoelastic properties of mastics and asphalt concretes. Trans. Res. Rec. 2008, 2051, 41–48. [Google Scholar] [CrossRef]
  8. Wu, K.; Zhu, K.; Kang, C.; Wu, B.; Huang, Z. An experimental investigation of flame retardant mechanism of hydrated lime in asphalt mastics. Mater. Des. 2016, 103, 223–229. [Google Scholar] [CrossRef]
  9. Zhang, Z.Q.; Wang, Y.C. Influence of asphalt mortar on hot mix asphalt performance at high and low Temperature. J. Chang’an Univ. Nat. Sci. Ed. 2006, 26, 1–5. (In Chinese) [Google Scholar]
  10. Liao, M.C.; Airey, G.; Chen, J.S. Mechanical properties of filler asphalt mastic. Int. J. Pavement Res. Technol. 2013, 6, 576–581. [Google Scholar] [CrossRef]
  11. Riccardi, C.; Cannone Falchetto, A.; Losa, M.; Wistuba, M.P. Rheological modeling of asphalt binder and asphalt mortar containing recycled asphalt material. Mater. Struct. 2016, 49, 4167–4183. [Google Scholar] [CrossRef]
  12. Riccardi, C.; Cannone Falchetto, A.; Losa, M.; Wistuba, M.P. Back-calculation method for determining the maximum rap content in stone matrix asphalt mixtures with good fatigue performance based on asphalt mortar tests. Constr. Build. Mater. 2016, 118, 364–372. [Google Scholar] [CrossRef]
  13. Buttlar, W.G.; Bozkurt, D.; Al-Khateeb, G.G.; Waldhoff, A.S. Understanding asphalt mastic behavior through micromechanics. Trans. Res. Rec. 1999, 1681, 157–169. [Google Scholar] [CrossRef]
  14. Delaporte, B.; Di Benedetto, H.; Chaverot, P.; Gauthier, G. Linear viscoelastic properties of bituminous materials: From binder to mastics. J. Assoc. Asph. Paving 2007, 76, 445–494. [Google Scholar]
  15. Phan, C.V.; Di Benedetto, H.; Sauzéat, C.; Lesueur, D. Influence of hydrated lime on linear viscoelastic properties of bituminous mixtures. In Proceedings of the 8th RILEM International Symposium on Testing and Characterization of Sustainable and Innovative Bituminous Materials, Nantes, France, 7–9 June 2016; pp. 667–680. [Google Scholar]
  16. Zou, J.; Roque, R.; Lopp, G.; Isola, M.; Bekoe, M. Impact of hydrated lime on cracking performance of asphalt mixtures with oxidation and cyclic pore pressure. Transp. Res. Rec. 2016, 2576, 51–59. [Google Scholar] [CrossRef]
  17. Kakade, V.B.; Reddy, M.A.; Reddy, K.S. Effect of aging on fatigue performance of hydrated lime modified bituminous mixes. Constr. Build. Mater. 2016, 113, 1034–1043. [Google Scholar] [CrossRef]
  18. Ellis, C.; Widyatmoko, I. Performance and durability aspects of asphalts incorporating electric arc furnace steel slag aggregates designed for use in thin pavement surfaces. In Proceedings of the 3rd European Symposium on Performance and Durability of Bituminous Materials and Hydraulic Stabilized Composites, Leeds, UK, April 1999; pp. 221–238. [Google Scholar]
  19. Morone, M.; Costa, G.; Polettini, A.; Pomi, R.; Baciocchi, R. Valorization of steel slag by a combined carbonation and granulation treatment. Miner. Eng. 2014, 59, 82–90. [Google Scholar] [CrossRef]
  20. Suer, P.; Lindqvist, J.E.; Arm, M.; Frogner-Kockum, P. Reproducing ten years of road ageing-accelerated carbonation and leaching of EAF steel slag. Sci. Total Environ. 2009, 407, 5110–5118. [Google Scholar] [CrossRef] [PubMed]
  21. Sofilic, T.; Maldenovic, A.; Sofilic, U. Characterization of the EAF steel slag as aggregate for use in road construction. In Proceedings of the 4th International Conference on Safety & Environment in Process Industry, Florence, Italy, 14 March 2010; pp. 117–123. [Google Scholar]
  22. Wu, S.; Xue, Y.; Ye, Q.; Chen, Y. Utilization of steel slag as aggregates for stone mastic asphalt (SMA) mixtures. Build. Environ. 2007, 42, 2580–2585. [Google Scholar] [CrossRef]
  23. Sorlini, S.; Sanzeni, A.; Rondi, L. Reuse of steel slag in bituminous paving mixtures. J. Hazard. Mater. 2012, 209, 84–91. [Google Scholar] [CrossRef] [PubMed]
  24. Washington State DOT. WSDOT Strategies Regarding Use of Steel Slag Aggregate in Pavements; A Report to the State Legislature in Response to 2ESHB 1299; Washington State DOT: Olympia, WA, USA, 2015. [Google Scholar]
  25. Liapis, I.; Likoydis, S. Use of electric arc furnace slag in thins skid-resistant surfacing. Procedia Soc. Behav. Sci. 2012, 48, 907–918. [Google Scholar] [CrossRef]
  26. Ameri, M.; Hesami, S.; Goli, H. Laboratory evaluation of warm mix asphalt mixtures containing Electric Arc Furnace (EAF) steel slag. Constr. Build. Mater. 2013, 49, 611–617. [Google Scholar] [CrossRef]
  27. Rockliff, D.; Moffett, A.; Thomas, N. Recent developments in the use of steel slag aggregates in asphalt mixtures in the UK. In Proceedings of the 4th European Symposium on Performance of Bituminous and Hydraulic Materials in Pavements, Nottingham, UK, 11–12 April 2002. [Google Scholar]
  28. Grönniger, J.; Wistuba, M.P.; Cannone Falchetto, A. Reuse of Linz-Donawitz (LD) slag in asphalt mixtures for pavement application. In Proceedings of the International Conference on Industrial Wasted and Wastewater Treatment & Valorization, Athens, Greece, 21–23 May 2015. [Google Scholar]
  29. AASHTO T313: Standard Method of Test for Determining the Flexural Creep Stiffness of Asphalt Binder Using the Bending Beam Rheometer (BBR); American Association of State Highway and Transportation Officials: Washington, DC, USA, 2012.
  30. AASHTO T315: Standard Method of Test for Determining the Rheological Properties of Asphalt Binder Using a Dynamic Shear Rheometer (DSR); American Association of State Highway and Transportation Officials: Washington, DC, USA, 2012.
  31. Cook, D.R.; Weisberg, S. Applied Regression Including Computing and Graphics; John Wiley & Sons, Inc.: New York, NY, USA, 1999. [Google Scholar]
  32. Hopkins, I.L.; Hamming, R.W. On creep and relaxation. J. Appl. Phys. 1957, 28, 906–909. [Google Scholar] [CrossRef]
  33. Park, S.W.; Kim, Y.R. Interconversion between relaxation modulus and creep compliance for viscoelastic solids. J. Mater. Civ. Eng. 1999, 11, 76–82. [Google Scholar] [CrossRef]
  34. Huet, C. Etude par une Méthode d’Impédance du Comportement Viscoélastique des Matériaux Hydrocarbonés. Thèse de Doctorat d’Ingénieur, Faculté des Sciences de l’Université de Paris, Paris, France, 18 October 1963. (In French). [Google Scholar]
  35. Marasteanu, M.O.; Anderson, D.A. Improved model for bitumen rheological characterization. In Proceedings of the European Workshop on Performance-Related Properties for Bituminous Binders, Brussels, Belgium, 3–6 May 1999. [Google Scholar]
  36. Pellinen, T. The Assessment of Validity of Using Different Shifting Equations to Construct a Master Curve of HMA; University of Maryland: College Park, MD, USA, 1998. [Google Scholar]
  37. Pellinen, T.K.; Witczak, M.W. Stress dependent master curve construction for dynamic (complex) modulus. J. Assoc. Asph. Paving 2002, 71, 281–309. [Google Scholar]
  38. TL Asphalt-StB 07/13. Technische Lieferbedingungen für Asphaltmischgut für den Bau von Verkehrsflächenbefestigungen; Forschungsgesellschaft für Straßen- und Verkehrswesen: Köln, Germany, 2015. (In German) [Google Scholar]
  39. Maharaj, D.; Mwasha, A. Assessment of the use of Arcelor Mittal elelctric arc furnace slag as coarse aggregates in concrete production. In Proceedings of the 4th International Conference on Concrete Repair, Leipzig, Germany, 5–8 October 2015; pp. 389–393. [Google Scholar]
  40. AASHTO T240: Standard Method of Test for Effect of Heat and Air on a Moving Film of Asphalt (Rolling Thin-Film Oven Test); American Association of State Highway and Transportation Officials: Washington, DC, USA, 2013.
  41. AASHTO R028: Standard Practice for Accelerated Aging of Asphalt Binder Using a Pressurized Aging Vessel (PAV); American Association of State Highway and Transportation Officials: Washington, DC, USA, 2012.
  42. Findley, W.N.; Lai, J.S.; Onaran, K. Creep and Relaxation of Nonlinear Viscoelastic Materials; Dover Publications: New York, NY, USA, 1976. [Google Scholar]
  43. Shenoy, A. Single-event cracking temperature of asphalt pavements directly from bending beam rheometer data. J. Transp. Eng. 2002, 128, 465–471. [Google Scholar] [CrossRef]
  44. AASHTO M332-14: Standard Specification for Performance-Graded Asphalt Binder Using Multiple Stress Creep Recovery (MSCR) Test; American Association of State Highway and Transportation Officials: Washington, DC, USA, 2014.
  45. Cannone Falchetto, A.; Marasteanu, M.O.; Di Benedetto, H. Analogical based approach to forward and inverse problems for asphalt materials characterization at low temperatures. J. Assoc. Asph. Paving 2011, 80, 549–581. [Google Scholar]
  46. Cannone Falchetto, A.; Moon, K.H. Micromechanical–analogical modelling of asphalt binder and asphalt mixture creep stiffness properties at low temperature. Road Mater. Pavement 2015, 16, 111–137. [Google Scholar] [CrossRef]
  47. Cannone Falchetto, A.; Moon, K.H.; Wistuba, M.P. Investigation on the development of asphalt mixture limit criteria for low-temperature cracking. Transp. Res. Rec. 2016, 2574, 83–91. [Google Scholar] [CrossRef]

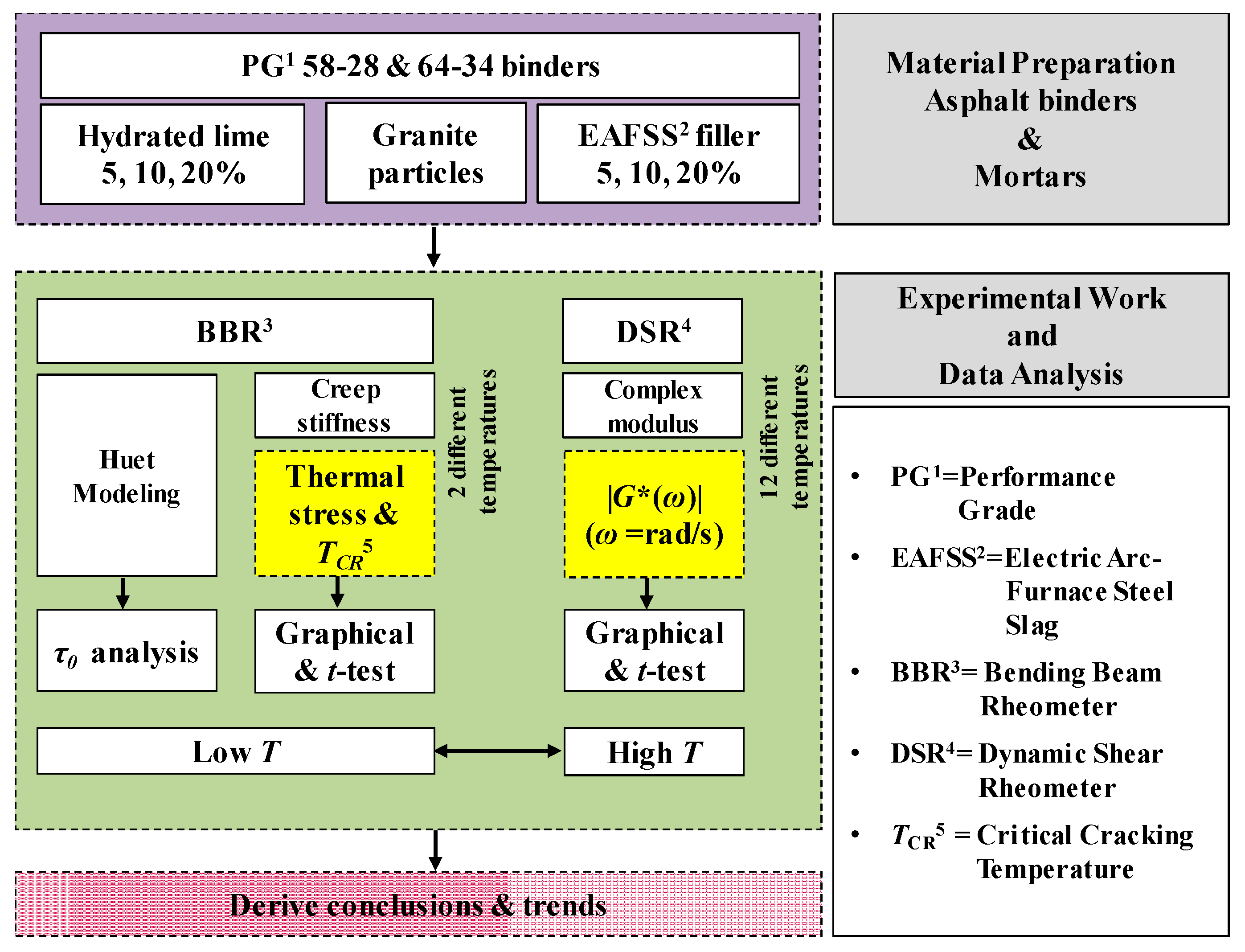

Figure 1. Research approach performed in this study.
Figure 1. Research approach performed in this study.
Materials 10 00743 g001

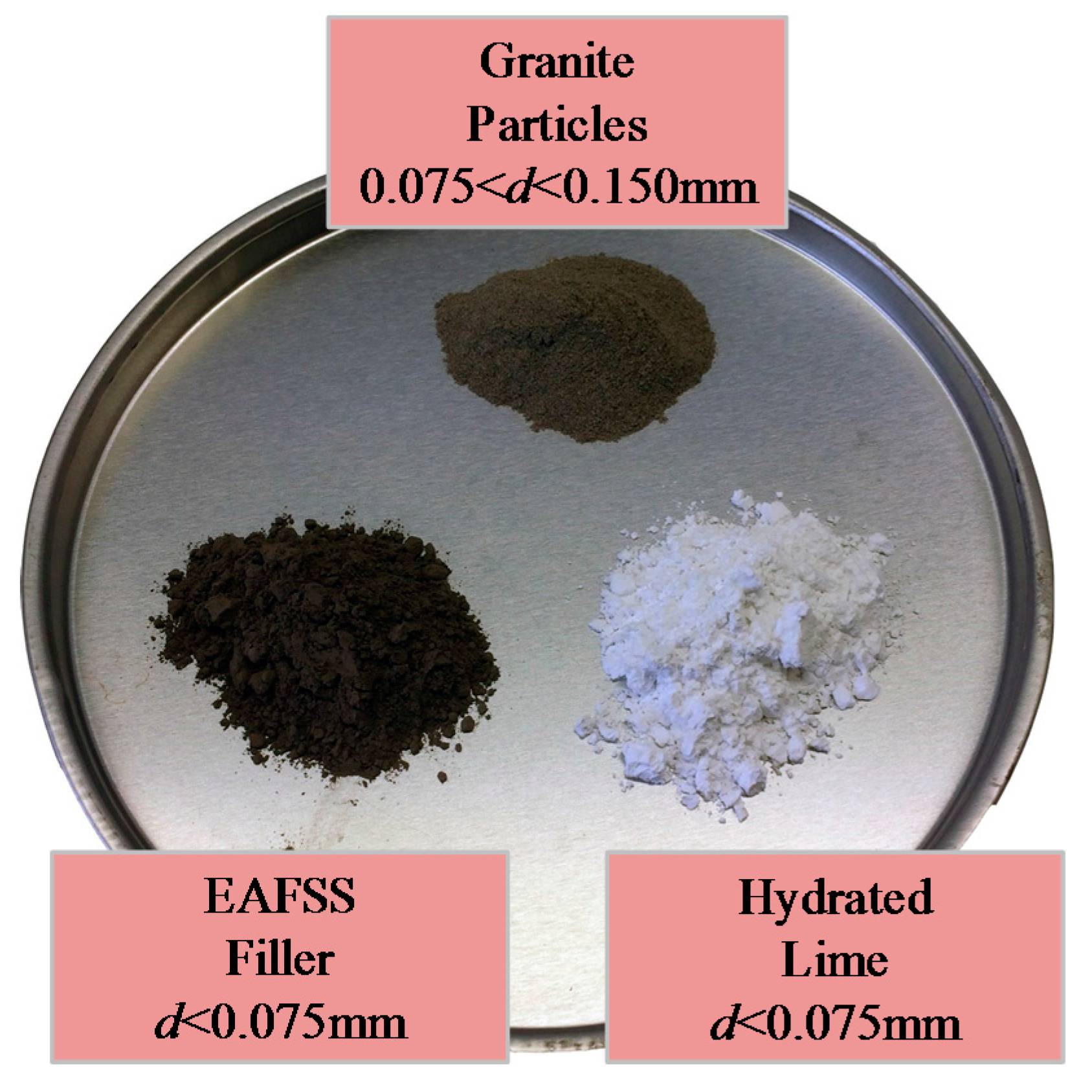

Figure 2. Granite, EAFSS, and hydrated lime particles.
Figure 2. Granite, EAFSS, and hydrated lime particles.
Materials 10 00743 g002
Figure 3. BBR results comparison. (a) S(60) [MPa] comparison; (b) m(60) comparison.
Figure 3. BBR results comparison. (a) S(60) [MPa] comparison; (b) m(60) comparison.
Materials 10 00743 g003aMaterials 10 00743 g003b

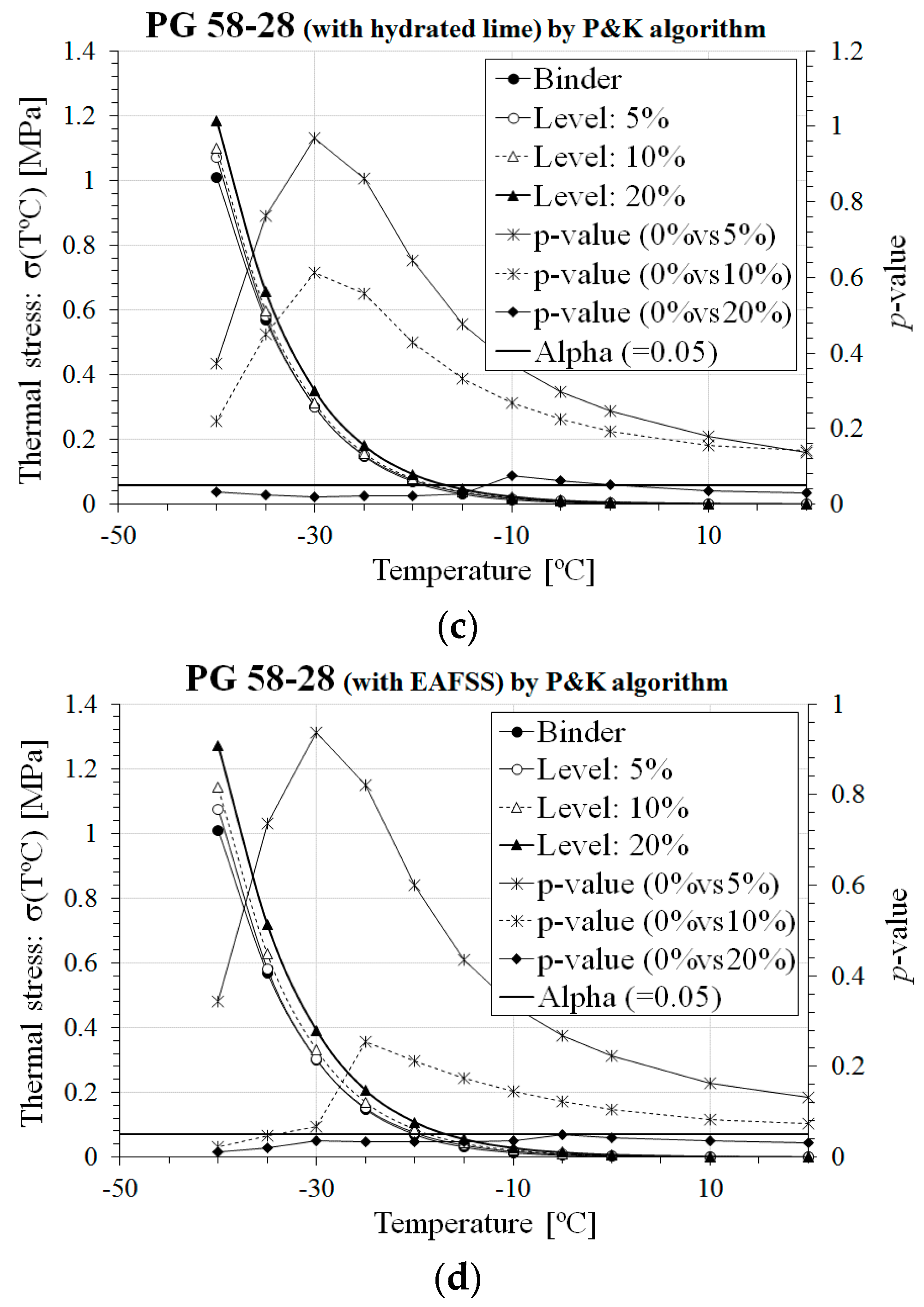

Figure 4. Comparison of σ(T) and TCR for PG 58-28 binder. (a) PG 58-28 (with hydrated lime) by H&H algorithm; (b) PG 58-28 (with EAFSS) by H&H algorithm; (c) PG 58-28 (with hydrated lime) by P&K algorithm; (d) PG 58-28 (with EAFSS) by P&K algorithm.
Figure 4. Comparison of σ(T) and TCR for PG 58-28 binder. (a) PG 58-28 (with hydrated lime) by H&H algorithm; (b) PG 58-28 (with EAFSS) by H&H algorithm; (c) PG 58-28 (with hydrated lime) by P&K algorithm; (d) PG 58-28 (with EAFSS) by P&K algorithm.
Materials 10 00743 g004aMaterials 10 00743 g004b
Figure 5. Comparison of σ(T) and TCR for PG 64-34 binder. (a) PG 64-34 (with hydrated lime) by H&H algorithm; (b) PG 64-34 (with EAFSS) by H&H algorithm; (c) PG 64-34 (with hydrated lime) by P&K algorithm; (d) PG 64-34 (with EAFSS) by P&K algorithm.
Figure 5. Comparison of σ(T) and TCR for PG 64-34 binder. (a) PG 64-34 (with hydrated lime) by H&H algorithm; (b) PG 64-34 (with EAFSS) by H&H algorithm; (c) PG 64-34 (with hydrated lime) by P&K algorithm; (d) PG 64-34 (with EAFSS) by P&K algorithm.
Materials 10 00743 g005aMaterials 10 00743 g005b

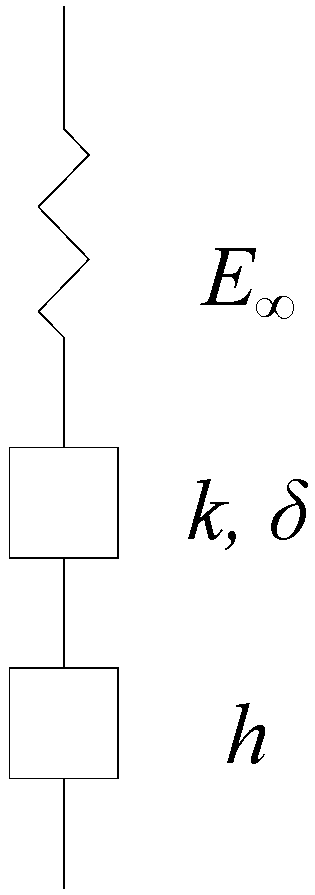

Figure 6. Huet model schematic [41].
Figure 6. Huet model schematic [41].
Materials 10 00743 g006

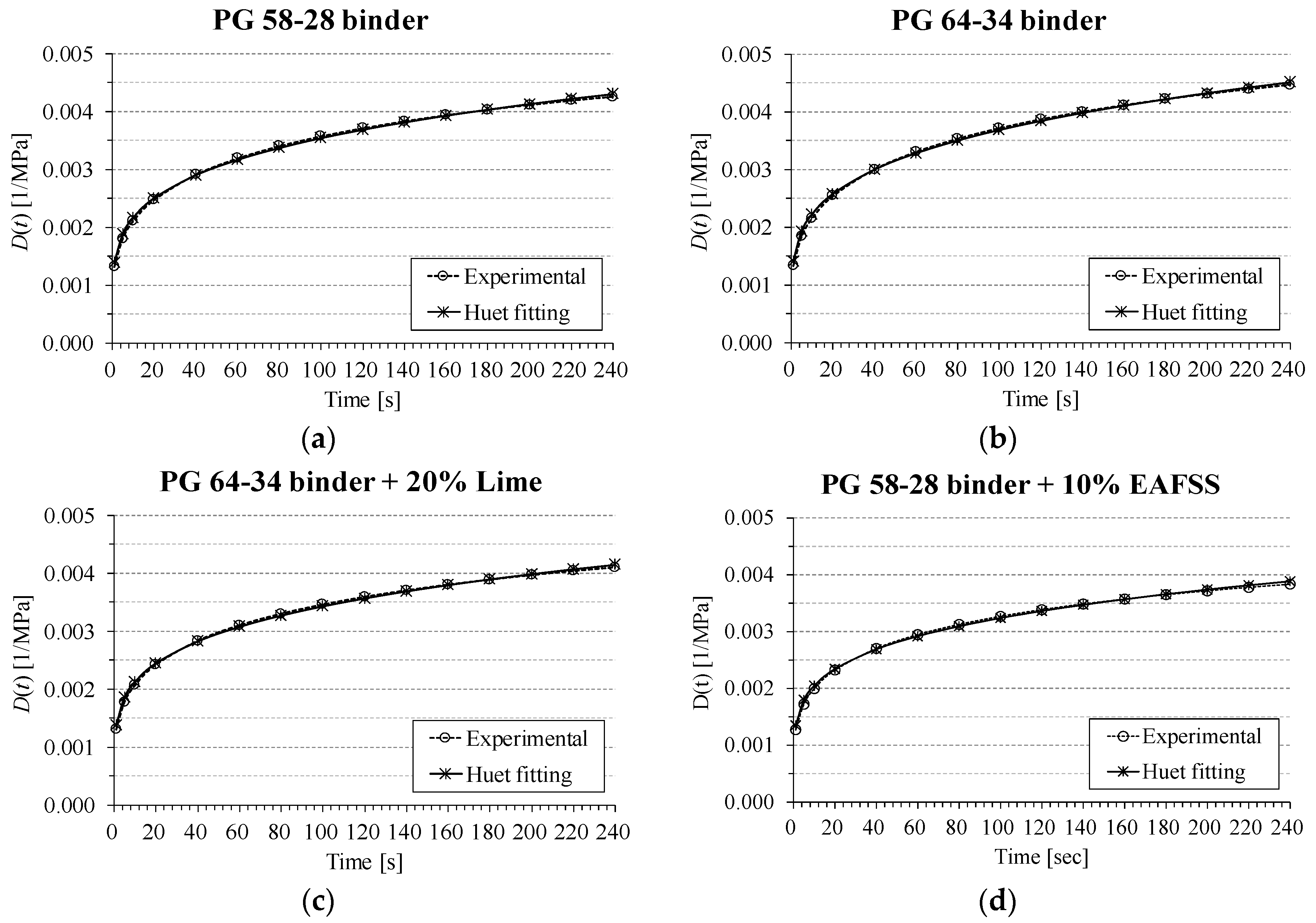

Figure 7. Huet model fitting of BBR binder and mortar (10 & 20%) D(t) = 1/S(t). (a) PG 58-28 binder; (b) PG 64-34 binder; (c) PG 64-34 binder + 20% Lime; (d) PG 58-28 binder + 10% EAFSS.
Figure 7. Huet model fitting of BBR binder and mortar (10 & 20%) D(t) = 1/S(t). (a) PG 58-28 binder; (b) PG 64-34 binder; (c) PG 64-34 binder + 20% Lime; (d) PG 58-28 binder + 10% EAFSS.
Materials 10 00743 g007

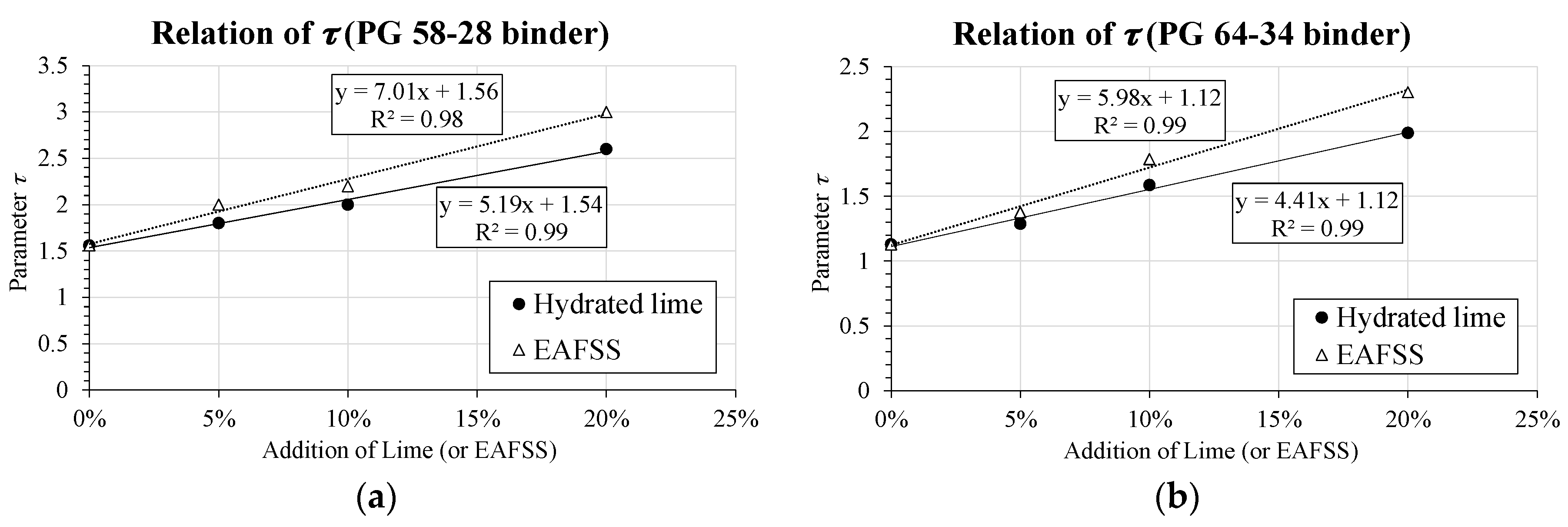

Figure 8. Relation between τ and aggregate particle content. (a) Relation of τ (PG 58-28 binder); (b) Relation of τ (PG 64-34 binder).
Figure 8. Relation between τ and aggregate particle content. (a) Relation of τ (PG 58-28 binder); (b) Relation of τ (PG 64-34 binder).
Materials 10 00743 g008
Figure 9. |G*(ω)| comparisons by using the CAM model [35]. (a) |G*(ω)| comparisons (PG 58-28, Lime, CAM); (b) |G*(ω)| comparisons (PG 58-28, EAFSS, CAM); (c) |G*(ω)| comparisons (PG 64-34, Lime, CAM); (d) |G*(ω)| comparisons (PG 64-34, EAFSS, CAM).
Figure 9. |G*(ω)| comparisons by using the CAM model [35]. (a) |G*(ω)| comparisons (PG 58-28, Lime, CAM); (b) |G*(ω)| comparisons (PG 58-28, EAFSS, CAM); (c) |G*(ω)| comparisons (PG 64-34, Lime, CAM); (d) |G*(ω)| comparisons (PG 64-34, EAFSS, CAM).
Materials 10 00743 g009aMaterials 10 00743 g009b
Figure 10. |G*(ω)| comparisons by using the sigmoidal function [45]. (a) |G*(ω)| comparisons (PG 58-28, Lime, Sigmoidal); (b) |G*(ω)| comparisons (PG 58-28, EAFSS, Sigmoidal); (c) |G*(ω)| comparisons (PG 64-34, Lime, Sigmoidal); (d) |G*(ω)| comparisons (PG 64-34, EAFSS, Sigmoidal).
Figure 10. |G*(ω)| comparisons by using the sigmoidal function [45]. (a) |G*(ω)| comparisons (PG 58-28, Lime, Sigmoidal); (b) |G*(ω)| comparisons (PG 58-28, EAFSS, Sigmoidal); (c) |G*(ω)| comparisons (PG 64-34, Lime, Sigmoidal); (d) |G*(ω)| comparisons (PG 64-34, EAFSS, Sigmoidal).
Materials 10 00743 g010aMaterials 10 00743 g010b

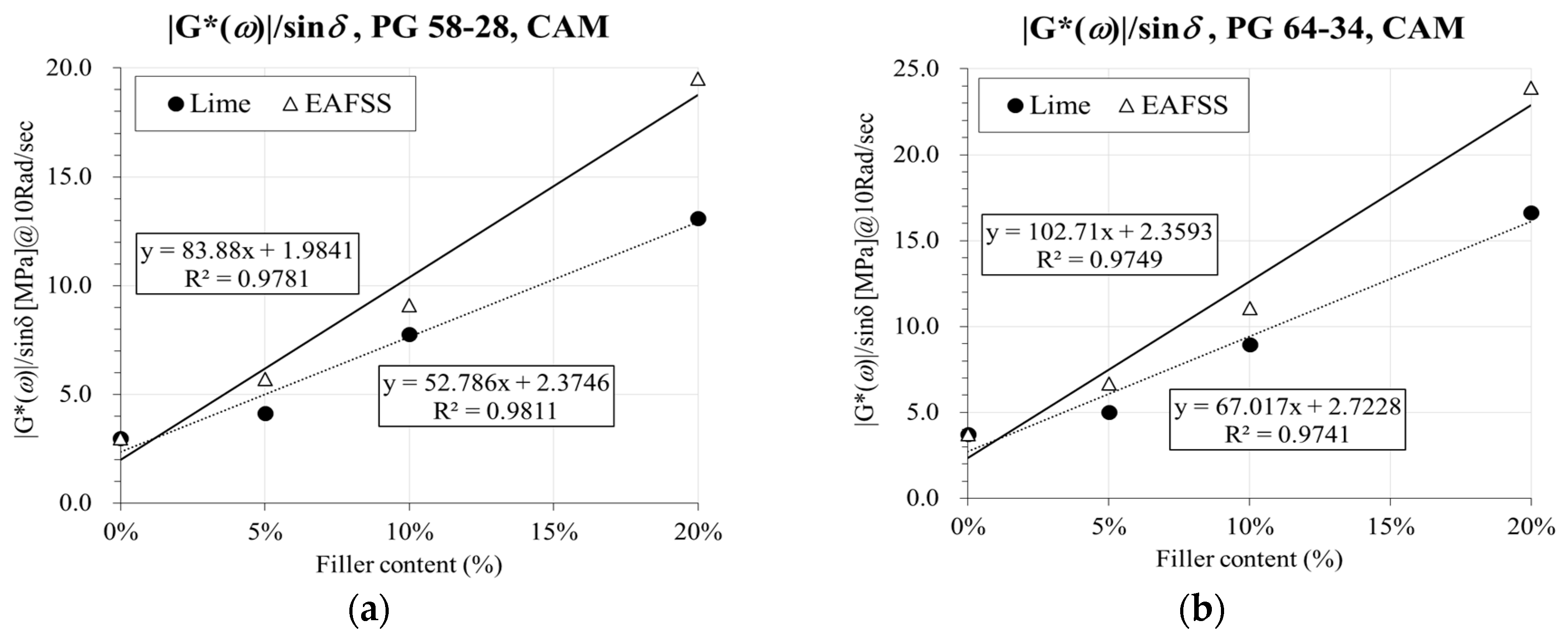

Figure 11. Relation between |G*(ω)|/sinδ and aggregate particle content with CAM [35] and simple Sigmoidal function [45]. (a) |G*(ω)|/sinδ, PG 58-28, CAM; (b) |G*(ω)|/sinδ, PG 64-34, CAM; (c) |G*(ω)|/sinδ, PG 58-28, Sigmoidal; (d) |G*(ω)|/sinδ, PG 64-34, Sigmoidal.
Figure 11. Relation between |G*(ω)|/sinδ and aggregate particle content with CAM [35] and simple Sigmoidal function [45]. (a) |G*(ω)|/sinδ, PG 58-28, CAM; (b) |G*(ω)|/sinδ, PG 64-34, CAM; (c) |G*(ω)|/sinδ, PG 58-28, Sigmoidal; (d) |G*(ω)|/sinδ, PG 64-34, Sigmoidal.
Materials 10 00743 g011aMaterials 10 00743 g011b
Table 1. Asphalt binders and mortars prepared in this study.
Table 1. Asphalt binders and mortars prepared in this study.
Binder TypePGFiller TypeFiller ContentMaterialReference
PlainPG 58-28Hydrated lime
(r = 2.3 g/cm3)
0%BinderControl
5%Mortar-
10%Mortar-
20%Mortar-
EAFSS
(r = 3.39 g/cm3)
0%BinderControl
5%Mortar-
10%Mortar-
20%Mortar-
ModifiedPG 64-34Hydrated lime
(r = 2.3 g/cm3)
0%BinderControl
5%Mortar-
10%Mortar-
20%Mortar-
EAFSS
(r = 3.39 g/cm3)
0%BinderControl
5%Mortar-
10%Mortar-
20%Mortar-
Table 2. TCR comparison results.
Table 2. TCR comparison results.
VariablesParticle Content1 H&H Algorithm [41]2 P&K algorithm [42]
PG 58-28PG 64-34PG 58-28PG 64-34
3 H.LimeEAFSSH.LimeEAFSSH.LimeEAFSSH.LimeEAFSS
TCR (°C)0%−28.8−32.9−28.3−32.2
5%−28.7−28.4−32.5−32.5−28.2−28.2−31.9−32.0
10%−28.3−27.6−32.2−32.4−28.1−27.5−31.8−31.8
20%−26.9−26.7−31.8−31.3−26.7−26.5−31.6−30.8
p-value0 vs. 5%0.8690.0670.0590.0510.7600.5880.3180.502
0 vs. 10%0.0680.0030.0760.0520.4260.0180.2910.077
0 vs. 20%0.0080.0010.0210.0010.0140.0050.0460.012
1 H&H: Hopkins and Hammings; 2 P&K: Park and Kim; 3 H.Lime: hydrated lime.
Table 3. Huet Model Parameters k: statistical comparison for PG 58-28 and PG 64-34 binder.
Table 3. Huet Model Parameters k: statistical comparison for PG 58-28 and PG 64-34 binder.
ParameterPG 58-28PG 64-34
H.LimeEAFSSH.LimeEAFSS
kLevel 0%0.1010.143
Level 5%0.0970.0930.1320.128
Level 10%0.0930.0890.1270.126
Level 20%0.0870.0790.1160.101
p-value0% vs. 5%0.3060.0640.1600.068
0% vs. 10%0.0980.0440.0550.051
0% vs. 20%0.0110.0020.0090.005
Table 4. Huet Model Parameters h: statistical comparison for PG 58-28 and PG 64-34 binder.
Table 4. Huet Model Parameters h: statistical comparison for PG 58-28 and PG 64-34 binder.
ParameterPG 58-28PG 64-34
H.LimeEAFSSH.LimeEAFSS
hLevel 0%0.5330.646
Level 5%0.5230.4990.6230.615
Level 10%0.5040.4840.6150.594
Level 20%0.4670.4530.5720.555
p-value0% vs. 5%0.5090.0730.1250.055
0% vs. 10%0.0910.0290.0520.005
0% vs. 20%0.0140.0090.0040.002

Share and Cite

MDPI and ACS Style

Moon, K.H.; Falchetto, A.C.; Wang, D.; Riccardi, C.; Wistuba, M.P. Mechanical Performance of Asphalt Mortar Containing Hydrated Lime and EAFSS at Low and High Temperatures. Materials 2017, 10, 743. https://doi.org/10.3390/ma10070743

AMA Style

Moon KH, Falchetto AC, Wang D, Riccardi C, Wistuba MP. Mechanical Performance of Asphalt Mortar Containing Hydrated Lime and EAFSS at Low and High Temperatures. Materials. 2017; 10(7):743. https://doi.org/10.3390/ma10070743

Chicago/Turabian Style

Moon, Ki Hoon, Augusto Cannone Falchetto, Di Wang, Chiara Riccardi, and Michael P. Wistuba. 2017. "Mechanical Performance of Asphalt Mortar Containing Hydrated Lime and EAFSS at Low and High Temperatures" Materials 10, no. 7: 743. https://doi.org/10.3390/ma10070743

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
