Synthesis of Bi2S3/BiVO4 Heterojunction with a One-Step Hydrothermal Method Based on pH Control and the Evaluation of Visible-Light Photocatalytic Performance

1
Key Laboratory of Three Gorges Reservoir Region’s Eco-Environment Ministry of Education and National Centre for International Research of Low-Carbon and Green Buildings, Chongqing University, No. 174 Shazhengjie, Shapingba, Chongqing 400045, China
2
National Centre for International Research of Low-Carbon and Green Buildings, Chongqing University, Chongqing 400045, China
3
Faculty of Urban Construction and Environment Engineering, Chongqing 400045, China
*
Authors to whom correspondence should be addressed.
Materials 2017, 10(8), 891; https://doi.org/10.3390/ma10080891
Submission received: 11 June 2017 / Revised: 15 July 2017 / Accepted: 28 July 2017 / Published: 2 August 2017

Abstract

:
The band gaps of bismuth vanadate (BiVO4) and bismuth sulfide (Bi2S3) are about 2.40 eV and 1.30 eV, respectively. Although both BiVO4 and Bi2S3 are capable of strong visible light absorption, electron–hole recombination occurs easily. To solve this problem, we designed a one-step hydrothermal method for synthesizing a Bismuth sulfide (Bi2S3)/Bismuth vanadate (BiVO4) heterojunction using polyvinylpyrrolidone K-30 (PVP) as a structure-directing agent, and 2-Amino-3-mercaptopropanoic acid (l-cysteine) as a sulfur source. The pH of the reaction solution was regulated to yield different products: when the pH was 7.5, only monoclinic BiVO4 was produced (sample 7.5); when the pH was 8.0 or 8.5, both Bi2S3 and BiVO4 were produced (samples 8.0 and 8.5); and when the pH was 9.0, only Bi2S3 was produced (sample 9.0). In sample 8.0, Bi2S3 and BiVO4 were closely integrated with each other, with Bi2S3 particles formed on the surface of concentric BiVO4 layers, but the two compounds grew separately in a pH solution of 8.5. Visible-light photocatalytic degradation experiments demonstrated that the degradation efficiency of the Bi2S3/BiVO4 heterojunction was highest when prepared under a pH of 8.0. The initial rhodamine B in the solution (5 mg/L) was completely degraded within three hours. Recycling experiments verified the high stability of Bi2S3/BiVO4. The synthesis method proposed in this paper is expected to enable large-scale and practical use of Bi2S3/BiVO4.

1. Introduction

Semiconductors such as bismuth oxybromide–bismuth oxyiodide [1], β-ZnMoO4 [2], metal–organic frameworks (MOFs) [3], and BiOxIy/GO [4] can facilitate the photodegradation of dyes. Bismuth oxides and their composites (e.g., bismuth oxyiodides [5], bismuth oxyiodide/graphitic carbon nitride [6], and BiOxIy/GO [7]) have been widely used for photocatalytic degradation of dyes, owing to their superior photocatalytic traits. Bismuth vanadate (BiVO4) has the advantages of no toxicity, low cost, high chemical stability, photocorrosion resistance, and strong response to visible light (Eg ~ 2.40 eV) [8]. However, because BiVO4 has a limited visible absorption range (<525 nm), and its electrons and holes recombine easily, the widespread application of this material is limited [9]. To improve the photocatalytic efficiency of BiVO4 under visible radiation, it is necessary to expand its visible absorption range, and limit the recombination of electrons and holes. On this basis, researchers have made considerable efforts towards BiVO4 modification.
Doping is the most frequently used method for improving the visible absorption range of BiVO4. For instance, BiVO4 has been doped with rare earth metals (e.g., Bi4V2−xMxO11−x(M = Gd, Nd, Gd, M = Nd) [10]), europium [11], transition metals (e.g., Ag-doped BiVO4 [12] and Pd/BiVO4 [13]), and C [14,15]. These doping systems can effectively reduce the band gap of BiVO4 and increase its visible absorption range. However, these methods may elevate costs due to the use of precious metals, and increase heavy metal pollution. In addition, excessive doping may enhance electron–hole recombination.
A common method to restrain the recombination of electron–hole pairs is to construct a heterojunction. A number of studies have reported the synthesis of heterojunctions such as WO3/BiVO4 [16], CaFe2O4/BiVO4 [17], BiOCl/BiVO4 [18], and CO3O4/BiVO4 [19]. Although these heterojunctions effectively restrain the separation of electron–hole pairs, they do not have an expanded visible adsorption range.
Bismuth sulfide (Bi2S3) is a p-type semiconductor (Eg ~ 1.30 eV) [20] with a narrow band gap and a very strong response to visible light. The valence band (VB) position of Bi2S3 is more negative than that of BiVO4, whereas the conduction band (CB) position of Bi2S3 is more positive [21]. Therefore, Bi2S3 can be combined with n-type semiconductor BiVO4 to form a heterojunction with a strong capacity for visible light absorption. Using thioacetamide as a sulfur source, De-Kun Ma et al. [22] developed a two-step hydrothermal method to synthesize olive-shaped Bi2S3/BiVO4 microspheres with a limited chemical conversion route and enhanced photocatalytic activity. Canjun Liu et al. [23] used thiourea as a sulfur source in a two-step method for synthesizing Bi2S3 nanowires on BiVO4 nanostructures with enhanced photoelectrochemical performance. Xuehui Gao et al. [24] studied the enhanced photoactivity of mesoporous heterostructured Bi2S3/BiVO4 hollow discoid prepared using Na2S·9H2O as a sulfur source.
In this work, we developed a simple one-step method to synthesize a Bi2S3/BiVO4 heterojunction using the amino acid l-cysteine as a sulfur source. We added the sulfur source during the preparation of BiVO4 using a one-step hydrothermal method, and then regulated the pH of the system to cause Bi2S3 to form on the BiVO4, thereby creating the Bi2S3/BiVO4 heterojunction. We found that this complex material demonstrated a strong capacity for visible light absorption and separation of electron–hole pairs. The use of the heterojunction as a catalyst for rhodamine B (RhB) degradation was investigated under visible light irradiation, and possible formation and degradation mechanisms strongly affected by pH were proposed. The results indicate that this complex material has potential for use in environmental and optoelectronic applications.

2. Materials and Methods

2.1. Materials and Reagents

The materials included analytical grade pure bismuth nitrate (Bi(NO3)3·5H2O (Chengdu Industrial Development Zone Xinde Mulan, Chengdu, China), analytical grade pure sodium hydroxide powder (NaOH, Chongqing Chuandong Chemical Company, Chongqing, China), analytical grade polyvinylpyrrolidone K-30 (PVP) (Chengdu Kelong Chemical Co., Ltd., Chengdu, China), ammonium metavanadate (NH4VO3, Chongqing Chuandong Chemical Company, Chongqing, China), l-cysteine (Aladdin Industrial Corporation, Shanghai, China), rhodamine B (RhB, Tianjin Guangfu Fine Chemical Research Institute, Tianjin, China), nitric acid (HNO3, Chengdu Area of the Industrial Development Zone Xinde Mulan, Chengdu, China), ethylene glycol, (C4H4O6KNa4·H2O), silver nitrate (AgNO3), p-benzoquinone (PBQ), and isopropanol (IPA) (Chongqing Chuandong Chemical Company, Chongqing Chuandong, China).

2.2. Synthesis of Photocatalysts

The pH of the reaction solution was set to 7.5, 8.0, 8.5, or 9.0 (Sample-7.5, Sample-8.0, Sample-8.5, and Sample-9.0, respectively). During synthesis, 2 mmol Bi(NO3)·5H2O and 0.6 mmol l-cysteine were dissolved in 4 mL of 4 mol/L HNO3. Then, 50 mL of deionized water was added to the solution, and the mixture was stirred for 30 min to obtain solution A. Similarly, 2 mmol NH4VO3 was dissolved in 4 mL of 2 mol/L NaOH, and the mixture was stirred for 30 min to obtain solution B. Solutions A and B were mixed together, and the pH was adjusted to 7.5, 8.0, 8.5, or 9.0 using NaOH or HNO3. The solutions were transferred into a 100-mL, Teflon-lined autoclave, heated at 180 °C for 16 h, and allowed to cool to room temperature. Finally, the solutions were centrifuged to obtain the final products. The samples were rinsed with distilled water and ethanol six times, and the pH of the filtrate was measured after the last rinse. If the pH of a sample was not neutral, the sample was further rinsed until a pH of ~7 was obtained. Then, the products were dried at 60 °C for 12 h in vacuum.

2.3. Characterization

The crystal structures of prepared samples were characterized using X-ray diffraction (XRD) under CuK radiation with a Rigaku D/Max2500pc (Tokyo, Japan) diffractometer (scanning angle 2θ from 10° to 70°, and scanning rate of 4°/min). A high-voltage (10 kV) Tescan FEG-SEM microscope (TESCAN, MARI3, Brno, Czech Republic) was used to acquire scanning electron microscopy (SEM) images of the prepared samples, and the elemental composition was characterized with an energy dispersive X-ray detector (EDX). A JEM-3010 electron microscope (JEOL, Tokyo, Japan) was used to perform transmission electron microscopy (TEM) at an acceleration voltage of 300 kV. Fourier transform infrared (FT-IR) spectra of prepared samples were recorded on a Shimadzu IR Prestige-1 spectrometer (Tokyo, Japan) using the KBr pellet technique. The chemical characteristics of sample surfaces were investigated using X-ray photoelectron spectra (XPS) acquired with a PHI5000 (ULVAC-PHI,INC., Kanagawa Prefecture, Japan) versa probe system under monochromatic Al K X-rays. A Hitachi U-3010 UV-Vis spectrophotometer (Tokyo, Japan) was used to perform UV-Vis diffuse reflectance spectroscopy (UV-Vis DRS) using the “Abs” data mode. The photoluminescence (PL) spectra of the photocatalysts were obtained using a Hitachi F-7000 (Tokyo, Japan) spectrometer with an excitation wavelength of 280 nm. A CHI Electrochemical Workstation (CHI 760E, Shanghai Chenhua Co., Ltd., Shanghai, China) was used to evaluate the photoelectrochemical properties of the samples. The visible light source was a 500 W Xe lamp (with a <400 nm UV cutoff filter), and all experiments were carried out at room temperature.

2.4. Evaluation of Photocatalytic Activity

The photocatalytic activity of samples was evaluated under visible radiation at room temperature by measuring the degradation rate of RhB. For the experiments, 0.20 g of catalyst was added to 200 mL of 5 mg/L RhB aqueous solution, and the mixture was stirred for 30 min in the dark to achieve adsorption–desorption equilibrium between the dye and the catalyst. The experimental solution was placed 350 mm from the 500-W Xe lamp (with a <400 nm UV cutoff filter). Samples were collected after every 0.5 h of irradiation, and then centrifuged (10,000 r/min) to remove the catalyst. Subsequently, the absorbance of the solution at 552 nm was measured to indicate the concentration of the remaining dye. For comparison, the photocatalytic experiments were conducted with Samples 7.5, 8.0, 8.5, and 9.0 as catalysts, and with no catalyst.

3. Results and Discussion

3.1. XRD Pattern Analysis

When the synthesis reaction was performed in a pH solution of 7.5, the XRD diffraction pattern of the resulting sample was similar to that of monoclinic BiVO4 (yellow line in Figure 1 JCPDS#83-1697) [25], indicating that the sample was monoclinic BiVO4. In contrast, the XRD diffraction peaks of samples 8.0 and 8.5 showed characteristics of both BiVO4 and Bi2S3 (JCPDS#84-0279) [26]. As the pH increased, the Bi2S3 peak increased in both height and intensity. However, when the pH of the precursor solution was 9.0, only Bi2S3 was obtained. Therefore, the SEM, XPS, and TEM results indicate that a Bi2S3/BiVO4 heterojunction may be synthesized when the reaction was performed under a pH of 8.0 or (and) 8.5.

3.2. Morphology Analysis Based on SEM, HRTEM, and FT-IR

According to the SEM images (Figure 2), sample 7.5 was cube-like in shape, with a length of about 5 μm, whereas sample 8.0 consisted of concentric layers, with some Bi2S3 particles dotting the outer layers. Sample 8.5 mainly consisted of BiVO4 shaped as hexagonal pyramids and some flakes of Bi2S3. Sample 9.0 consisted of only Bi2S3 flakes. Therefore, the pH of the precursor solution strongly influenced the prepared products. Characteristic stripes of BiVO4 (004) [27] and Bi2S3 (200) [28] can be observed from the HRTEM results (Figure 2e). Figure 2f shows the FT-IR spectra of sample 8.0. The broad absorptions at 740 cm−1 can be attributed to BiVO4 [29]. Furthermore, absorption at 543 cm−1 and 486 cm−1 can be ascribed to Bi2S3 [30], whereas the broad and weak peaks around 3700 cm−1 and 1600 cm−1 are due to the vibrational rotation and bending deformation of very small amounts of water molecules in the sample [31]. These results show that the heterojunction was successfully prepared when the pH of precursor solution was 8.0.

3.3. Analysis of Composition and Chemical States Based on EDX and XPS

The composition and chemical states of samples were analyzed based on EDX and XPS. According to the EDX patterns of samples (Figure 3a), sample 7.5 contained the elements C, Bi, O, and V. When the pH of the precursor solution was 8.0 and 8.5, the sample contained C, Bi, O, V, and S. As the pH increased to 9.0, only C, Bi, and S were tested. Carbon was mostly due to CO2 adsorption from the atmosphere [32], whereas Si was from the substrate. The wt % of Bi, V, O, S, and C in the samples tested via EDX are listed in Table 1, as well as the speculated composition. The molar ratio of BiVO4:Bi2S3 was about 7.42:1 and 6.07:1 in samples 8.0 and 8.5, respectively.
The chemical state of Sample-8 was analyzed by XPS. Figure 3b shows fully scanned spectra and the S 2s orbital of Sample-8.0 within the range of 0–700 eV. As shown in the spectra, the composite material was composed of Bi, O, V, C, and S. The binding energy of C ls of the non-oxygenated ring C was corrected to 284.6 eV (Figure 3c) [33]. The V 2p core level spectrum in Figure 3d indicates that the binding energies (516.8 and 524.4 eV) for V 2p are in accordance with former reports on V5+ in BiVO4 [34]. The XPS signals of O 1s are 529.7 eV and 532.7 eV (Figure 3e) [14], respectively; this can be explained by the existence of O2 anions in BiVO4. According to Figure 3f, the peaks with binding energies of 159.3 eV and 164.6 eV are respectively related to Bi 4f7/2 and Bi 4f5/2 in BiVO4 [35]. The peaks with binding energies of 157.2 eV and 162.6 eV respectively correspond to Bi 4f7/2 and Bi 4f5/2 in Bi2S3 [36]. The peak with binding energy of 160.4 eV corresponds to the S 2p transition [37]. It is known that the binding energy of pure Bi2S3 is 158.9 ± 0.1 eV, whereas the measured value is 158.4 ± 0.1 eV [38]. This shift indicates the interfacial chemical interaction between Bi2S3 and BiVO4 [39]. In conclusion, the XRD, SEM, TEM, EDX, and XPS results indicate that Bi2S3 quantum dots successfully formed on BiVO4.

3.4. Optical Properties Characterized by UV-Vis DRS, Transient Photocurrent Response, and PL

Both BiVO4 [40,41] and Bi2S3 [22,42,43,44] display characteristics of direct transition. The light absorption properties and the band gap of the semiconductor can be determined based on UV-Vis absorption spectra (Figure 4a). Moreover, the band gap can be obtained from the slope of (Ahυ)2 versus hυ using Equation (1):
Ah ν   =   C ( h ν     E g ) 1 / 2
E V B   =   χ     E e   +   0.5   E g
E C B   = E V B     E g
where A is the absorption coefficient, Eg is the band gap energy, h is Planck’s constant, ν is the incident light frequency, and C is a constant.
According to Figure 4b, sample 7.5 contained BiVO4. Most of the absorption regions were concentrated in the ultraviolet region, with a few concentrated in the visible region, and the band gap was 2.6 eV. Sample 9.0 contained Bi2S3, and the spectra show almost complete absorption, with a band gap of about 1.5 eV. Based on Equations (2) and (3), the VB values of Bi2S3 and BiVO4 are 1.52 and 2.84 eV, respectively, and the CB values of Bi2S3 and BiVO4 are 0.02 and 0.24 eV, respectively. Thus, Bi2S3 enhanced the absorption of visible light by BiVO4.
Photoelectrochemical tests were conducted to analyze the excitation, separation, and transfer of carriers in the catalyst. Photoanodes were prepared by electrophoretic deposition on ITO glass supports. The electrophoretic deposition was carried out in an acetone solution (20 mL) containing iodine (50 mg) and photocatalyst powder (50 mg), and then dispersed via sonication for 5 min. The ITO electrode (1.0 × 2.0 cm2 was immersed in the solution with a Pt electrode, and a 30 V differential was applied for 100 s using a potentiostat. After this process was repeated twenty times, the electrode was dried and calcined at 200 °C for 2 h. The exposed effective area of the ITO glass was controlled to be 1.0 × 1.0 cm2. According to the transient photocurrent responses of the samples under visible irradiation (Figure 4c), the photocurrent of sample 8.0 had the highest density, followed by sample 8.5, sample 9.0, and finally sample 7.5. The PL spectra (excitation wavelength of 280 nm) are shown in Figure 4d. The characteristic peak of bismuth vanadate is visible at 320 nm [45]. No peak was visible in sample 9.0 owing to the presence of bismuth sulfide. In contrast, sample 7.5 had the strongest peak, followed by sample 8.5, and sample 8.0. This is because sample 8.0 contained a Bi2S3/BiVO4 heterojunction, which is conductive to the separation of electron–hole pairs. Sample 8.5 was produced by physical contact of Bi2S3 and BiVO4. Sample 9.0 contained Bi2S3, but even though this catalyst can almost completely absorb visible light, the recombination of electrons and holes may occur due to the narrow band gap. Sample 7.5 contained BiVO4, which has a limited visible absorption range. Therefore, sample 8.0 displays the strongest potential for use in photoelectric and environmental applications.

3.5. Evaluation of Photocatalytic Activity Based on RhB Degradation

Figure 5a shows the results of the adsorption–desorption equilibrium tests. The samples were collected once every 5 min during the dark reaction stage. The RhB concentrations of the various solutions stabilized over time. Dyes and catalysts reached adsorption–desorption equilibrium after stirring for 30 min in the dark. Figure 5b shows the photocatalytic activities of the samples under visible irradiation for 3 h, and the corresponding degradation kinetics constants are shown in Figure 5c. For comparison, the RhB degradation rate was also estimated with no catalyst. The results indicate that 45.07%, 62.13%, 72.00%, and 100.00% of the RhB was degraded when samples 9.0, 7.5, 8.5, and 8.0 were used as catalysts, respectively. This indicates that sample 8.0 has the highest catalytic activity, followed by sample 8.5, sample 7.5, and sample 9.0. Sample 8.0 can be easily recycled by simple filtration, and its degradation effect was respectively maintained at 95.19%, 95.18%, 94.91%, 94.64%, and 94.63% after five recycling cycles (Figure 5d). The EDX, SEM, and XRD results for sample 8.0 after five recycling cycles indicated that no leaching of elements occurred and the morphology remained unchanged (Figure 5e,f). This indicated that sample 8.0 has an excellent heterostructure. Furthermore, the Bi2S3 dots were very small (19.7 ± 2.2 nm, calculated based on the Sherer relation); thus, the specific surface area of the sample was larger than that of pure BiVO4 (Table 2). The specific surface area of samples 7.5, 8.0, 8.5, and 9.0 was 6.423, 19.527, 12.642, and 21.165 m2 g−1, respectively, indicating that Bi2S3 greatly impacted the specific surface area of the samples. The formation of the heterojunction, and the greater specific surface area of BiVO4 of sample 8.0 improved its photocatalytic activity. These features are very important for its practical application and modification.

3.6. Postulated Heterojunction Formation Mechanism

The pH of the reaction system had a strong influence on the crystal phase and morphology of the synthesized products [46]. By fixing the amounts of materials and l-cysteine, as well as the reaction parameters (except pH), the synthesis reaction was conducted under varying pH values. To explain the results, we speculated a series of reactions that can occur successively based on the amount of OH. First, when Bi3+ is added to the l-cysteine system, chelation between the metal and amino acids can occur (4) [47].
Bi 3 + + n L cysteine [ Bi ( L cysteine ) n ] 3 +
Below, we discuss what happens when the pH of different systems is adjusted.
The pH was lowest in the first system. Pure monoclinic BiVO4 was produced. The probably reaction is the (5), because we know that S3− did not exist in the system and S3− can exchange ions with BiVO4 to form Bi2S3 [32].
[ Bi ( L cysteine ) n ] 3 + + VO 3 + H + BiVO 4 + H 2 S +   H 2 O
In the second system, the pH was adjusted to 8.0, and the composite Bi2S3/BiVO4 was produced. We can see that some Bi2S3 formed on the BiVO4; thus, we speculate that (5) still took place in the system. Since OH remains in the system, (6) will occur, forming S2−. Then, as previously mentioned, S2− will react with BiVO4 to form Bi2S3. As the amount of S in the system was low (0.6 mmol in total), some of the BiVO4 formed Bi2S3 as shown in Figure 2b.
H 2 S + OH S 2 +   H 2 O
BiVO 4 + S 2 Bi 2 S 3 + VO 4 +
As the pH increased to 8.5, the first reaction could no longer take place. Instead, (8) occurred, causing the OH concentration to decrease, followed by (9). Sample 8.5 consisted of both Bi2S3 and BiVO4, separately.
[ Bi ( L cysteine ) n ] 3 + + NH 4 + + OH Bi 2 S 3 + NH 3 +   H 2 O
Bi 3 + + VO 3 BiVO 4
Equation (8) could still take place under a pH of 9.0. The synthesized sample contained only Bi2S3 due to the high OH concentration. The remaining Bi3+ first reacted with OH to form Bi(OH)3, as shown in (10). The reaction then continued, causing Bi(OH)3 to dissolve, and forming Bi(OH)4 (11) [48].
Bi 3 + + OH Bi ( OH ) 3
Bi ( OH ) 3 + OH Bi ( OH ) 4

3.7. Postulated Degradation Mechanism

Active species such as ·O2, ·OH, e, and holes(h+)play an important role in the photodegradation of dyes [49]. To investigate the photocatalytic mechanism and activity of Bi2S3/BiVO4, the contribution of each active species to the photodegradation performance was examined based on a scavenger experiment [50]. In this experiment, potassium sodium tartrate (C4H4O6KNa·4H2O, 0.1 mmol) was used as the h+ scavenger, silver nitrate (AgNO3, 0.1 mmol) was used as the e scavenger, p-benzoquinone (PBQ, 0.1 mmol) was used as the ·O2 scavenger, and isopropanol (IPA, 0.1 mmol) was used as the ·OH scavenger. These scavengers were added to RhB solutions containing Bi2S3/BiVO4, and the solutions were irradiated with visible light for 1.5 h. According to Figure 6, the addition of the h+ scavenger (C4H4O6KNa) and the ·O2 scavenger (IPA) severely suppressed the catalytic performance, suggesting that h+ and ·O2 are the main reactive species contributing to the photodegradation of RhB. After the addition of the ·OH scavenger (IPA), the catalytic degradation effect was slightly inhibited, which suggests that ·OH plays an insignificant role in this reaction system. The ·OH was mainly produced by oxidation of H2O to ·O2 and OH through BiVO4 VB [1]. Lizhen Ren et al. reported that the VB of Bi2S3 was not sufficient to oxidize OH to ·OH [51]. After adding the e scavenger (AgNO3), the degradation efficiency increased owing to e consumption and increased h+ efficiency; therefore, h+ plays the most important role in this degradation process and can directly degrade dyes [1,49].
The scavenger experiments confirmed the existence of ·O2, ·OH, e, and h+ in the catalytic system. A thorough understanding of the photocatalytic degradation mechanism is necessary for the actual application of Bi2S3/BiVO4 heterojunctions. The postulated degradation mechanism is shown in Schematic 1. Figure 5a demonstrates that the concentration of the dye did not significantly change without the addition of a catalyst. In contrast, photocatalyst addition significantly reduced the dye concentration. The adsorption of dye onto the catalyst surface is the primary process, as shown in (12). RhB is sensitive to visible light, as indicated by (13) [52]. The potential energy of the RhB LUMO and HOMO was −1.42 and 0.95 eV, respectively [53]. The VB values of Bi2S3 and BiVO4 were 1.52 and 2.84 eV, respectively, and the CB values of Bi2S3 and BiVO4 were 0.02 and 0.24 eV, respectively. Hence, the photosensitive dye transferred electrons to the CB of semiconductors (14) [54]. BiVO4 and Bi2S3 were excited under visible radiation, causing transfer of Bi2S3 and BiVO4 electrons from VB to CB, and leaving holes in VB ((15) and (16)). Due to the formation of the heterojunction, the holes in the VB of BiVO4 shifted to the VB of Bi2S3, while the electrons in CB of Bi2S3 shifted to the CB of BiVO4. Thus, the carriers of the electron–hole pair were separated ((17) and (18)). H2O can ionize OH, as shown (19). The photogenerated electrons can react with dissolved oxygen molecules (O2) to yield superoxide radical anions (·O2), as shown in (20), and ·O2 can react with H2O to produce ·OH (21) [55,56]. As previously mentioned, the VB of BiVO4 can oxidize OH to ·OH (22), and h+, ·O2, and ·OH are strong oxidizing agents for the decomposition of organic dyes (23) [57]. The whole set of redox reactions can be summarized as follows:
BiVO 4 / Bi 2 S 3 + RhB   adsorption
RhB +   h ν RhB *
RhB *   + BiVO 4 / Bi 2 S 3   BiVO 4 / Bi 2 S 3   ( e ) +   RhB +
Bi 2 S 3 +   h ν Bi 2 S 3   ( h + ) +   Bi 2 S 3   ( e )
BiVO 4 +   h ν   BiVO 4   ( h + ) +   BiVO 4   ( e )
Bi 2 S 3   ( e )   +   BiVO 4 BiVO 4   ( e )
BiVO 4   ( h + ) +   Bi 2 S 3 Bi 2 S 3   ( h + )
H 2 O H +   + OH
( e ) +   O 2   · O 2
H 2 O + · O 2   · OH   + OH + O 2
BiVO 4   ( h + ) + OH · OH
( h + )   or   · O 2   or   · OH +   RhB   or   RhB +       degradation   products

4. Conclusions

A one-step method for synthesizing a Bi2S3/BiVO4 heterojunction with high photocatalytic activity under visible irradiation was developed based on pH regulation of the reaction solution. The morphologies and compositions of prepared samples were characterized with various analytical methods. The degradation rate of RhB under visible irradiation was used to estimate the photocatalytic activity of prepared samples. The photocatalytic activity of sample 8.0 was higher than that of samples 7.5, 8.5, and 9.0, because the former contained a heterojunction.

Acknowledgments

This work was supported by the Science and Technology Innovation Special Projects of Social Undertakings and Livelihood Support, Chongqing (cstc2016shmszx20009), the graduate scientific research and innovation foundation of Chongqing, China (CYB16008), the Chongqing Research Program of Basic Research and Frontier Technology (cstc2015jcyjA20013, cstc2017jcyjBX0080), and the 111 Project (B13041).

Author Contributions

Project conception/design: Deqiang Zhao, Fangying Ji and Xuan Xu; Performed the experiments: Wenjuan Zong, Shimin Xiong, Qian Zhang, and Wenwen Wang; Data analysis: Deqiang Zhao and Fangying Ji; Manuscript preparation: Deqiang Zhao and Xuan Xu. Authors have no competing financial interests.

Conflicts of Interest

Fangying Ji received research grants from the 111 Project (B13041). Xuan Xu received research grants from the Science and Technology Innovation Special Projects of Social Undertakings and Livelihood Support, Chongqing (cstc2016shmszx20009), and the 111 Project (B13041). Deqiang Zhao received research grants from the Graduate Scientific Research and Innovation Foundation of Chongqing, China (CYB16008). Wenjuan Zong, Shimin Xiong, Wenwen Wang, and Qian Zhang declare that they have no conflict of interest.

References

  1. Jiang, Y.R.; Chou, S.Y.; Chang, J.L.; Huang, S.T.; Lin, H.P.; Chen, C.C. Hydrothermal synthesis of bismuth oxybromide-bismuth oxyiodide composites with high visible light photocatalytic performance for the degradation of CV and phenol. RSC Adv. 2015, 5, 30851–30860. [Google Scholar] [CrossRef]
  2. Jiang, Y.R.; Lee, W.W.; Chen, K.T.; Wang, M.C.; Chang, K.H.; Chen, C.C. Hydrothermal synthesis of β-ZnMoO4 crystals and their photocatalytic degradation of Victoria Blue R and phenol. J. Taiwan Inst. Chem. Eng. 2014, 45, 207–218. [Google Scholar] [CrossRef]
  3. Zubair, H.; Sung Hwa, J. Removal of hazardous organics from water using metal-organic frameworks (MOFs): Plausible mechanisms for selective adsorptions. J. Hazard. Mater. 2015, 283, 329–339. [Google Scholar]
  4. Chou, S.Y.; Chung, W.H.; Chen, L.W.; Dai, Y.M.; Lin, W.Y.; Lin, J.H.; Chen, C.C. A series of BiOxIy/GO photocatalysts: Synthesis, characterization, activity, and mechanism. RSC Adv. 2016, 6, 82743–82758. [Google Scholar] [CrossRef]
  5. Lee, W.W.; Lu, C.S.; Chuang, C.W.; Chen, Y.J.; Fu, J.Y.; Siao, C.W.; Chen, C.C. Synthesis of Bismuth Oxyiodides and Their Composites: Characterization, Photocatalytic Activity, and Degraded Mechanisms. RSC Adv. 2015, 5, 23450–23463. [Google Scholar] [CrossRef]
  6. Chou, S.Y.; Chen, C.C.; Chen, L.W.; Dai, Y.M.; Lin, J.H.; Lee, W.W. Novel synthesis of bismuth oxyiodide/graphitic carbon nitride nanocomposite with enhanced visible-light photocatalytic activity. RSC Adv. 2016, 6, 33478–33491. [Google Scholar] [CrossRef]
  7. Lee, Y.H.; Dai, Y.M.; Fu, J.Y.; Chen, C.C. A series of bismuth-oxychloride/bismuth-oxyiodide/graphene-oxide nanocomposites: Synthesis, characterization, and photcatalytic activity and mechanism. Mol. Catal. 2017, 432, 196–209. [Google Scholar] [CrossRef]
  8. Liu, S.; Tang, H.; Zhou, H.; Dai, G.; Wang, W. Photocatalytic perfermance of sandwich-like BiVO4 sheets by microwave assisted synthesis. Appl. Surf. Sci. 2016, 391, 542–547. [Google Scholar] [CrossRef]
  9. Xiao, B.C.; Lin, L.Y.; Hong, J.Y.; Lin, H.S.; Song, Y.T. Synthesis of a monoclinic BiVO4 nanorod array as the photocatalyst for efficient photoelectrochemical water oxidation. RSC Adv. 2017, 7, 7547–7554. [Google Scholar] [CrossRef]
  10. Lee, C.K.; Ong, C.S. Synthesis and characterisation of rare earth substituted bismuth vanadate solid electrolytes. Solid State Ion. 1999, 117, 301–310. [Google Scholar] [CrossRef]
  11. Zhang, A.; Zhang, J. Effects of europium doping on the photocatalytic behavior of BiVO4. J. Hazard. Mater. 2010, 173, 265–272. [Google Scholar] [CrossRef] [PubMed]
  12. Xu, X.; Du, M.; Chen, T.; Xiong, S.; Wu, T.; Zhao, D.; Fan, Z. New insights into Ag-doped BiVO4 microspheres as visible light photocatalysts. RSC Adv. 2016, 6, 98788–98796. [Google Scholar] [CrossRef]
  13. Lei, G. Novel Pd/BiVO4 composite photocatalysts for efficient degradation of methyl orange under visible light irradiation. Mater. Chem. Phys. 2008, 107, 465–470. [Google Scholar]
  14. Zhao, D.; Zong, W.; Fan, Z.; Xiong, S.; Du, M.; Wu, T.; Fang, Y.W.; Ji, F.; Xu, X. Synthesis of Carbon Doped BiVO4@Multi-walled Carbon Nanotubes with High Visible Light Absorption Behavior and Evaluation of Its Photocatalytic Property. CrystEngComm 2016, 18, 9007–9015. [Google Scholar] [CrossRef]
  15. Yin, C.; Zhu, S.; Chen, Z.; Zhang, W.; Gu, J.; Zhang, D. One step fabrication of C-doped BiVO4 with hierarchical structures for a high-performance photocatalyst under visible light irradiation. J. Mater. Chem. A 2013, 1, 8367–8378. [Google Scholar] [CrossRef]
  16. Su, J.; Guo, L.; Bao, N.; Grimes, C.A. Nanostructured WO3/BiVO4 Heterojunction Films for Efficient Photoelectrochemical Water Splitting. Nano Lett. 2011, 11, 1928–1933. [Google Scholar] [CrossRef] [PubMed]
  17. Kim, E.S.; Kang, H.J.; Magesh, G.; Kim, J.Y.; Jang, J.W.; Lee, J.S. Improved photoelectrochemical activity of CaFe2O4/BiVO4 heterojunction photoanode by reduced surface recombination in solar water oxidation. ACS Appl. Mater. Interfaces 2014, 6, 17762–17769. [Google Scholar] [CrossRef] [PubMed]
  18. He, Z.; Shi, Y.; Gao, C.; Wen, L.; Chen, J.; Song, S. BiOCl/BiVO4 p-n Heterojunction with Enhanced Photocatalytic Activity under Visible-Light Irradiation. J. Phys. Chem. C 2013, 118, 389–398. [Google Scholar] [CrossRef]
  19. Chang, X.; Wang, T.; Peng, Z.; Zhang, J.; Li, A.; Gong, J. Enhanced Surface Reaction Kinetics and Charge Separation of p-n Heterojunction CO3O4/BiVO4 Photoanodes. J. Am. Chem. Soc. 2015, 137, 8356–8359. [Google Scholar] [CrossRef] [PubMed]
  20. Yu, H.; Wang, J.; Wang, T.; Yu, H.; Yang, J.; Liu, G.; Qiao, G.; Yang, Q.; Cheng, X. Scalable colloidal synthesis of uniform Bi2S3 nanorods as sensitive materials for visible-light photodetectors. CrystEngComm 2017, 19, 727–733. [Google Scholar] [CrossRef]
  21. Kumar, S.; Sharma, S.; Umar, A.; Kansal, S.K. Bismuth Sulphide (Bi2S3) Nanotubes as an Efficient Photocatalyst for Methylene Blue Dye Degradation. Nanosci. Nanotechnol. Lett. 2016, 8, 266–272. [Google Scholar] [CrossRef]
  22. Ma, D.K.; Guan, M.L.; Liu, S.S.; Zhang, Y.Q.; Zhang, C.W.; He, Y.X.; Huang, S.M. Controlled synthesis of olive-shaped Bi2S3/BiVO4 microspheres through a limited chemical conversion route and enhanced visible-light-responding photocatalytic activity. Dalton Trans. 2012, 41, 5581–5586. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, C.; Li, J.; Li, Y.; Li, W.; Yang, Y.; Chen, Q. Epitaxial growth of Bi2S3 nanowires on BiVO4 nanostructures for enhancing photoelectrochemical performance. RSC Adv. 2015, 5, 71692–71698. [Google Scholar] [CrossRef]
  24. Gao, X.; Wu, H.B.; Zheng, L.; Zhong, Y.; Hu, Y.; Lou, X.W. Formation of Mesoporous Heterostructured BiVO4/Bi2S3 Hollow Discoids with Enhanced Photoactivity. Angew. Chem. 2014, 53, 5917–5921. [Google Scholar] [CrossRef] [PubMed]
  25. Obregón, S.; Colón, G. On the different photocatalytic performance of BiVO4 catalysts for Methylene Blue and Rhodamine B degradation. J. Mol. Catal. A Chem. 2013, 376, 40–47. [Google Scholar] [CrossRef]
  26. Zhou, X.; Ma, L.; Feng, Z. Synthesis and Characterization of Bismuth Sulfide Nanorods by Solvothermal Route. Chem. Lett. 2015, 44, 1113–1115. [Google Scholar] [CrossRef]
  27. Zheng, Y.; Wu, J.; Duan, F.; Xie, Y. Gemini Surfactant Directed Preparation and Photocatalysis of m-BiVO4 Hierarchical Frameworks. Chem. Lett. 2007, 36, 520–521. [Google Scholar] [CrossRef]
  28. Zhang, H.; Ji, Y.; Ma, X.; Xu, J.; Yang, D. Long Bi2S3 nanowires prepared by a simple hydrothermal method. Nanotechnology 2003, 14, 974–977. [Google Scholar] [CrossRef]
  29. Fu, Y.; Sun, X.; Xin, W. BiVO4-graphene catalyst and its high photocatalytic performance under visible light irradiation. Mater. Chem. Phys. 2011, 131, 325–330. [Google Scholar] [CrossRef]
  30. Chu, W.; Tao, T.; Xu, J. Synthesis, characterization and photocatalytic property of BiOI/Bi2S3/AOCF composite. New Chem. Mater. 2016, 44, 237–239. [Google Scholar]
  31. Vu, T.H. Water-Guest Interactions under Clathrate Hydrate Formation Conditions: A Matrix-Isolation Approach. Ph.D. Thesis, Tufts University, Medford, MA, USA, 2013. [Google Scholar]
  32. Malakooti, R.; Cademartiri, L.; Akçakir, Y.; Petrov, S.; Migliori, A.; Ozin, G.A. Shape-Controlled Bi2S3 Nanocrystals and Their Plasma Polymerization into Flexible Films. Adv. Mater. 2006, 18, 2189–2194. [Google Scholar] [CrossRef]
  33. Marton, D.; Boyd, K.J.; Al-Bayati, A.H.; Todorov, S.S.; Rabalais, J.W. Carbon nitride deposited using energetic species: A two-phase system. Phys. Rev. Lett. 1994, 73, 118–121. [Google Scholar] [CrossRef] [PubMed]
  34. Ou, M.; Zhong, Q.; Zhang, S.; Nie, H.; Lv, Z.; Cai, W. Graphene-decorated 3D BiVO4 superstructure: Highly reactive (040) facets formation and enhanced visible-light-induced photocatalytic oxidation of NO in gas phase. Appl. Catal. B 2016, 193, 160–169. [Google Scholar] [CrossRef]
  35. Li, D.; Wang, W.; Jiang, D.; Zheng, Y.; Li, X. Surfactant-free hydrothermal fabrication of monoclinic BiVO4 photocatalyst with oxygen vacancies by copper doping. RSC Adv. 2015, 5, 14374–14381. [Google Scholar] [CrossRef]
  36. Nair, P.K.; Huang, L.; Nair, M.T.S.; Hu, H.; Meyers, E.A.; Zingaro, R.A. Formation of p-type Cu3BiS3 absorber thin films by annealing chemically deposited Bi2S3-CuS thin films. J. Mater. Res. 1997, 12, 651–656. [Google Scholar] [CrossRef]
  37. Chen, Z.; Cao, M. Synthesis, characterization, and hydrophobic properties of Bi2S3 hierarchical nanostructures. Mater. Res. Bull. 2011, 46, 555–562. [Google Scholar] [CrossRef]
  38. Morgan, W.E.; Stec, W.J.; Wazer, J.R.V. Inner-orbital binding-energy shifts of antimony and bismuth compounds. Inorg. Chem. 1973, 12, 953–955. [Google Scholar] [CrossRef]
  39. Lin, L.; Yang, Y.; Men, L.; Wang, X.; He, D.; Chai, Y.; Zhao, B.; Ghoshroy, S.; Tang, Q. A highly efficient TiO2@ZnO n-p-n heterojunction nanorod photocatalyst. Nanoscale 2013, 5, 588–593. [Google Scholar] [CrossRef] [PubMed]
  40. Petala, A.; Bontemps, R.; Spartatouille, A.; Frontistis, Z.; Antonopoulou, M.; Konstantinou, I.; Kondarides, D.I.; Mantzavinos, D. Solar light-induced degradation of ethyl paraben with CuOx/BiVO4: Statistical evaluation of operating factors and transformation by-products. Catal. Today 2017, 280, 122–131. [Google Scholar] [CrossRef]
  41. Dos Santos, W.S.; Almeida, L.D.; Afonso, A.S.; Rodriguez, M.; Mesquita, J.P.; Monteiro, D.S.; Lca, O.; Fabris, J.D.; Pereira, M.C. Photoelectrochemical water oxidation over fibrous and sponge-like BiVO4/β-Bi4V2O11 photoanodes fabricated by spray pyrolysis. Appl. Catal. B 2016, 182, 247–256. [Google Scholar] [CrossRef]
  42. Vogel, R.; Hoyer, P.; Weller, H. Quantum-Sized PbS, CdS, Ag2S, Sb2S3, and Bi2S3 Particles as Sensitizers for Various Nanoporous Wide-Bandgap Semiconductors. J. Phys. Chem. 1994, 98, 3183–3188. [Google Scholar] [CrossRef]
  43. Wu, T.; Zhou, X.; Zhang, H.; Zhong, X. Bi2S3 nanostructures: A new photocatalyst. Nano Res. 2010, 3, 379–386. [Google Scholar] [CrossRef]
  44. Bessekhouad, Y.; Mohammedi, M.; Trari, M. Hydrogen photoproduction from hydrogen sulfide on Bi2S3 catalyst. Sol. Energy Mater. Sol. Cells 2002, 73, 339–350. [Google Scholar] [CrossRef]
  45. Zhao, D.; Zong, W.; Fan, Z.; Fang, Y.W.; Xiong, S.; Du, M.; Wu, T.; Ji, F.; Xu, X. Synthesis of carbon-doped nanosheets m-BiVO4 with three-dimensional (3D) hierarchical structure by one-step hydrothermal method and evaluation of their high visible-light photocatalytic property. J. Nanopart. Res. 2017, 19, 124. [Google Scholar] [CrossRef]
  46. Tan, G.; Zhang, L.; Ren, H.; Wei, S.; Huang, J.; Xia, A. Effects of pH on the hierarchical structures and photocatalytic performance of BiVO4 powders prepared via the microwave hydrothermal method. ACS Appl. Mater. Interfaces 2013, 5, 5186–5193. [Google Scholar] [CrossRef] [PubMed]
  47. Hood, M.A.; Landfester, K.; Muñozespí, R. The Role of Residue Acidity on the Stabilization of Vaterite by Amino Acids and Oligopeptides. Cryst. Growth Des. 2014, 14, 1077–1085. [Google Scholar] [CrossRef]
  48. Rai, D.; Yui, M.; Schaef, H.; Kitamura, A. Thermodynamic Model For BiPO4(Cr) And Bi(OH)3(Am) Solubility In The Aqueous Na+-H+-H2PO4-HPO42−-PO43−-OH-Cl-H2O System. J. Solut. Chem. 2010, 39, 999–1019. [Google Scholar] [CrossRef]
  49. Jiang, Y.R.; Lin, H.P.; Chung, W.H.; Dai, Y.M.; Lin, W.Y.; Chen, C.C. Controlled hydrothermal synthesis of BiOxCly/BiOmIn composites exhibiting visible-light photocatalytic degradation of crystal violet. J. Hazard. Mater. 2015, 283, 787–805. [Google Scholar] [CrossRef] [PubMed]
  50. Huang, S.T.; Jiang, Y.R.; Chou, S.Y.; Dai, Y.M.; Chen, C.C. Synthesis, characterization, photocatalytic activity of visible-light-responsive photocatalysts BiOxCly/BiOmBrn by controlled hydrothermal method. J. Mol. Catal. A Chem. 2014, 391, 105–120. [Google Scholar] [CrossRef]
  51. Ren, L.; Zhang, D.; Hao, X.; Xiao, X.; Gong, J.; Wang, M.; Tong, Z. Synthesis and photocatalytic performance of Bi2S3/SnS2 heterojunction. Funct. Mater. Lett. 2016, 10, 1750004. [Google Scholar] [CrossRef]
  52. Xue, C.; Yan, X.; Ding, S.; Yang, G. Monodisperse Ag-AgBr nanocrystals anchored on one-dimensional TiO2 nanotubes with efficient plasmon-assisted photocatalytic performance. RSC Adv. 2016, 6, 68653–68662. [Google Scholar] [CrossRef]
  53. Tang, J.; Li, D.; Feng, Z.; Tan, Z.; Ou, B. A Novel AgIO4 Semiconductor with Ultrahigh Activity in Photodegradation of Organic Dyes: Insights into the Photosensitization Mechanism. Cheminform 2013, 4, 2151–2154. [Google Scholar]
  54. Lin, H.P.; Lee, W.W.; Huang, S.T.; Chen, L.W.; Yeh, T.W.; Fu, J.Y.; Chen, C.C. Controlled hydrothermal synthesis of PbBiO2Br/BiOBr heterojunction with enhanced visible-driven-light photocatalytic activities. J. Mol. Catal. A Chem. 2016, 417, 168–183. [Google Scholar] [CrossRef]
  55. Lin, H.P.; Chen, C.C.; Lee, W.W.; Lai, Y.Y.; Chen, J.Y.; Chen, Y.Q.; Fu, J.Y. Synthesis of a SrFeO3−x/g-C3N4 heterojunction with improved visible-light photocatalytic activities in chloramphenicol and crystal violet degradation. RSC Adv. 2015, 6, 1–9. [Google Scholar] [CrossRef]
  56. Yang, C.T.; Lee, W.W.; Lin, H.P.; Dai, Y.M.; Chi, H.T.; Chen, C.C. A novel heterojunction photocatalyst, Bi2SiO5/g-C3N4: Synthesis, characterization, photocatalytic activity, and mechanism. RSC Adv. 2016, 6, 40664–40675. [Google Scholar] [CrossRef]
  57. Du, M.; Xiong, S.; Wu, T.; Zhao, D.; Zhang, Q.; Fan, Z.; Zeng, Y.; Ji, F.; He, Q.; Xu, X. Preparation of a Microspherical Silver-Reduced Graphene Oxide-Bismuth Vanadate Composite and Evaluation of Its Photocatalytic Activity. Materials 2016, 9, 160. [Google Scholar] [CrossRef]

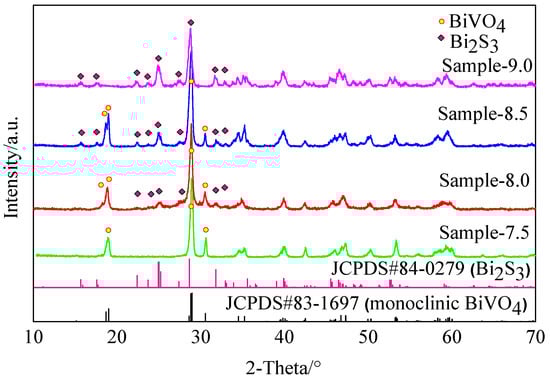

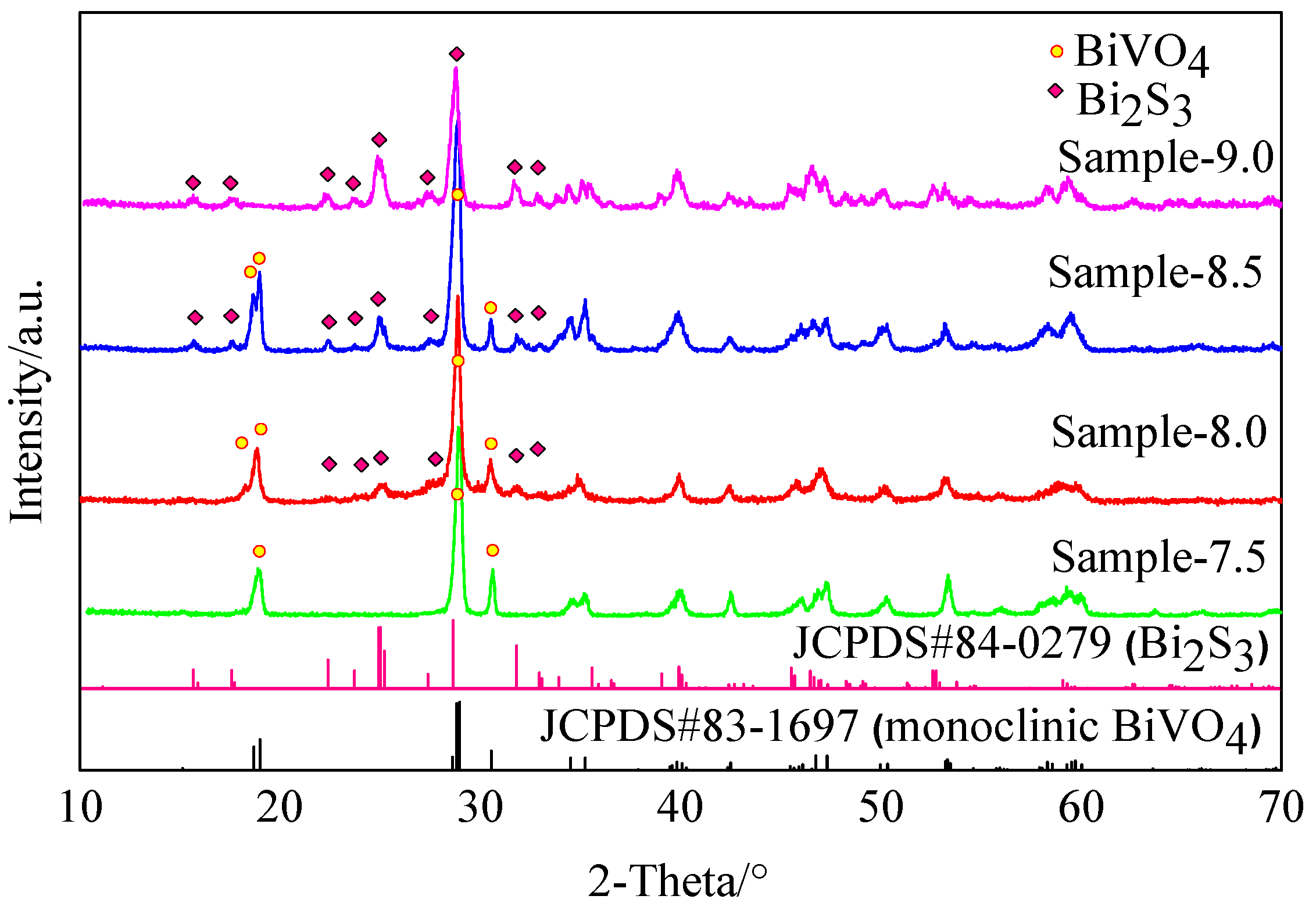

Figure 1. X-ray diffraction (XRD) patterns.
Figure 1. X-ray diffraction (XRD) patterns.
Materials 10 00891 g001

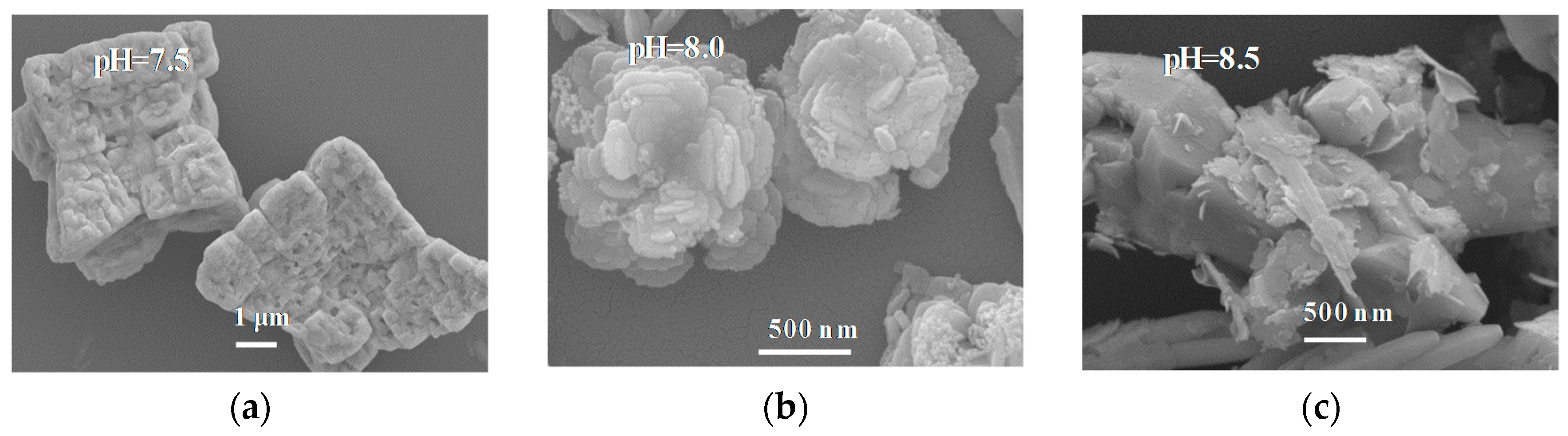

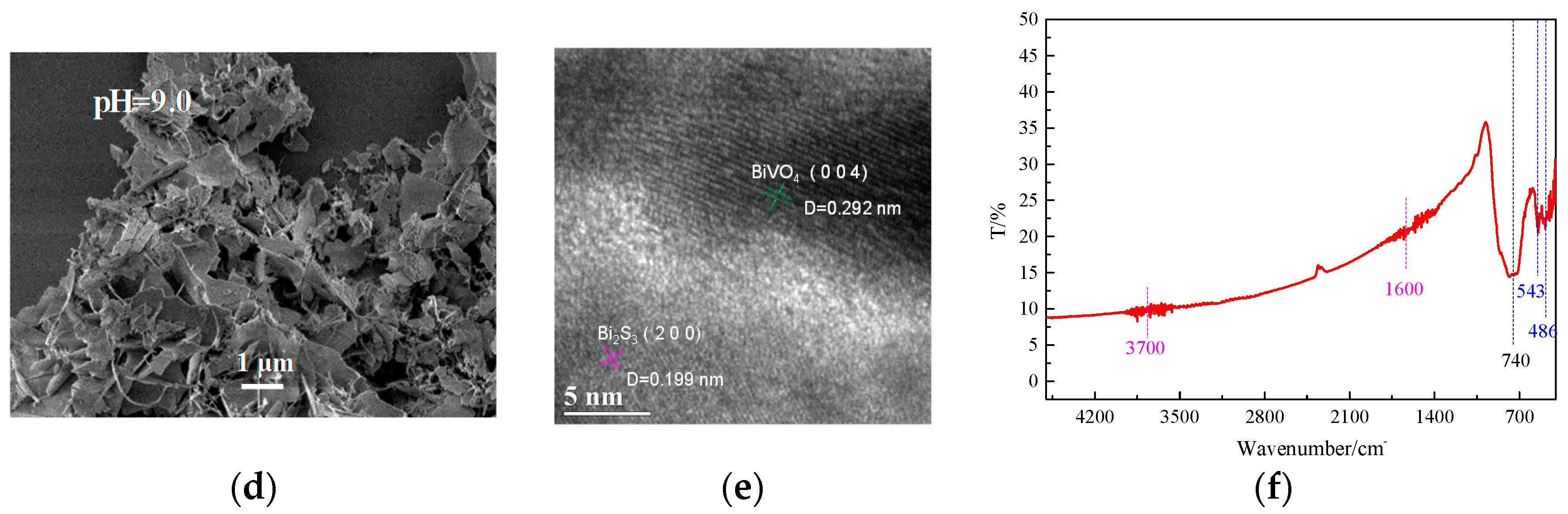

Figure 2. Scanning electron microscopy (SEM) (ad) of samples, HRTEM (e) of Sample-8.0, and Fourier–transform infrared (FT-IR) spectra (f) of Sample-8.0.
Figure 2. Scanning electron microscopy (SEM) (ad) of samples, HRTEM (e) of Sample-8.0, and Fourier–transform infrared (FT-IR) spectra (f) of Sample-8.0.
Materials 10 00891 g002aMaterials 10 00891 g002b

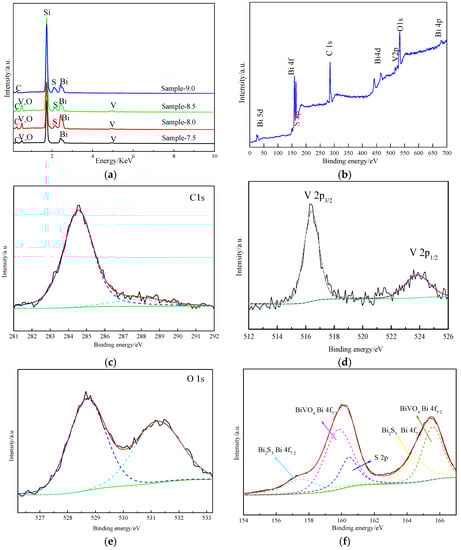

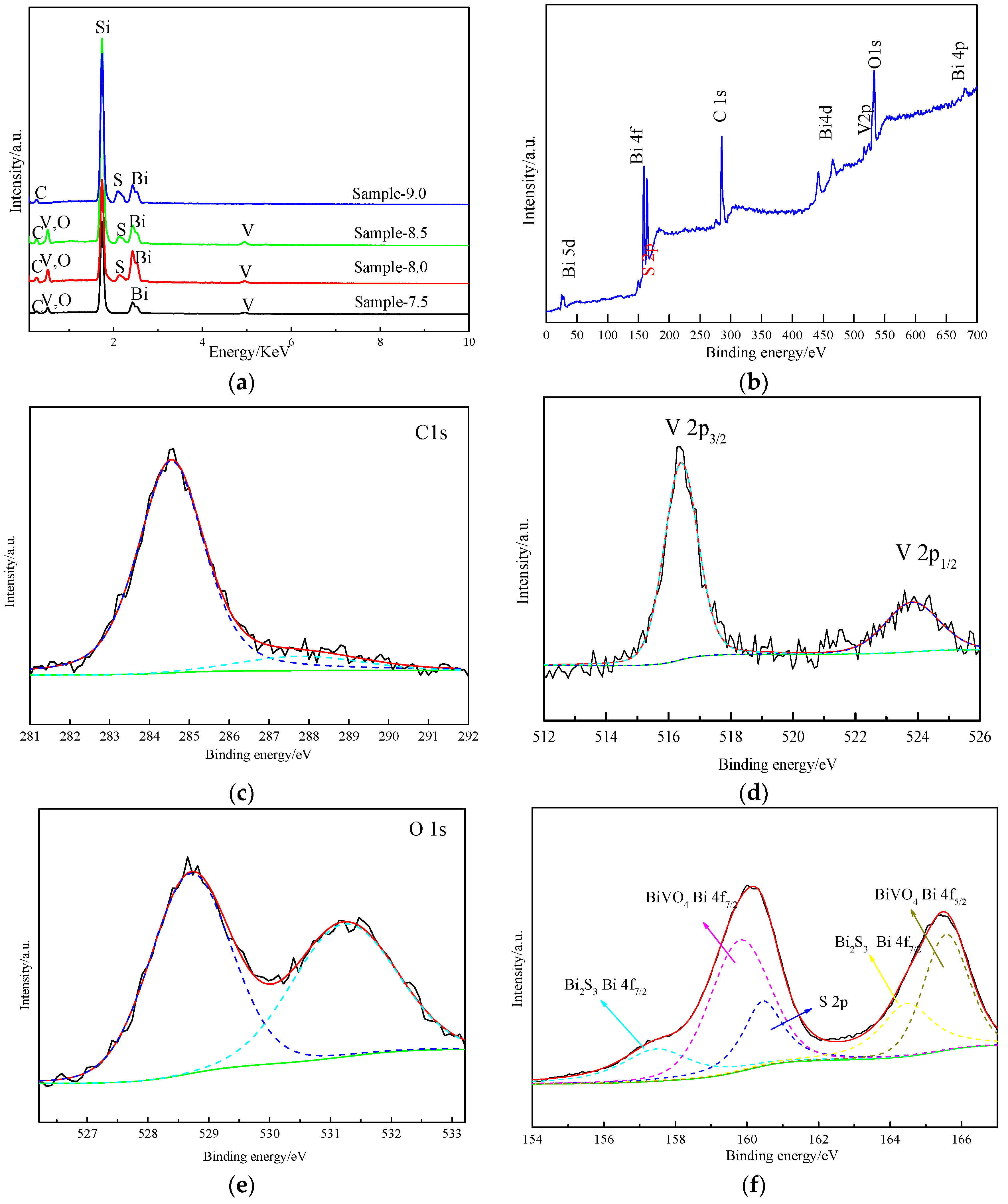

Figure 3. Energy dispersive X-ray detector (EDX) spectra of all samples (a) and X-ray photoelectron spectra (XPS) spectra of Sample-8.0 (bf): (b) survey XPS spectrum, (c) C 1s peaks, (d) V 2p3/2 and V 2p1/2 peaks, (e) O 1s peak, and (f) Bi 4f5/2, Bi 4f7/2 and S 2p peaks.
Figure 3. Energy dispersive X-ray detector (EDX) spectra of all samples (a) and X-ray photoelectron spectra (XPS) spectra of Sample-8.0 (bf): (b) survey XPS spectrum, (c) C 1s peaks, (d) V 2p3/2 and V 2p1/2 peaks, (e) O 1s peak, and (f) Bi 4f5/2, Bi 4f7/2 and S 2p peaks.
Materials 10 00891 g003

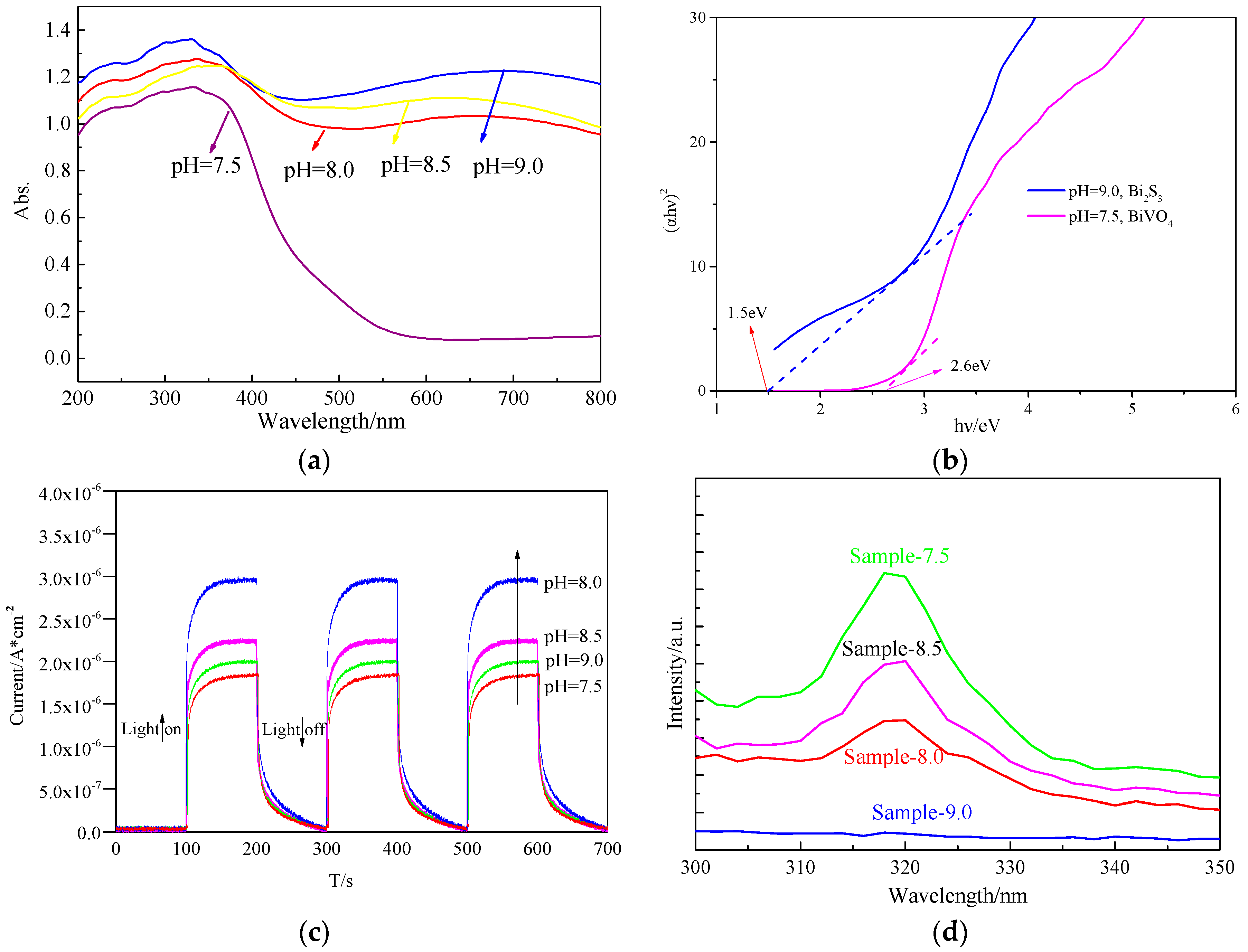

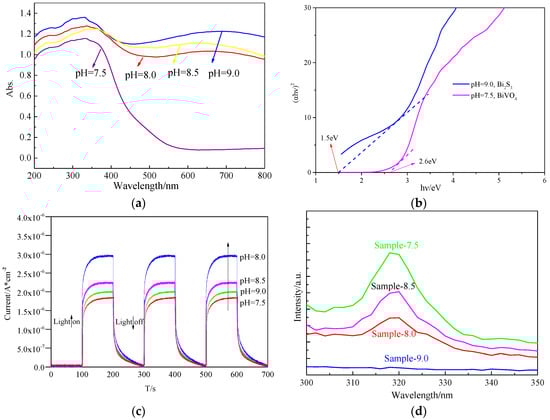

Figure 4. (a) UV-Vis diffuse reflectance spectra of samples; (b) Estimated band gaps of UV-Vis spectra of the samples; (c) Transient photocurrent response; (d) Photoluminescence (PL) spectra at an excitation wavelength of 280 nm.
Figure 4. (a) UV-Vis diffuse reflectance spectra of samples; (b) Estimated band gaps of UV-Vis spectra of the samples; (c) Transient photocurrent response; (d) Photoluminescence (PL) spectra at an excitation wavelength of 280 nm.
Materials 10 00891 g004

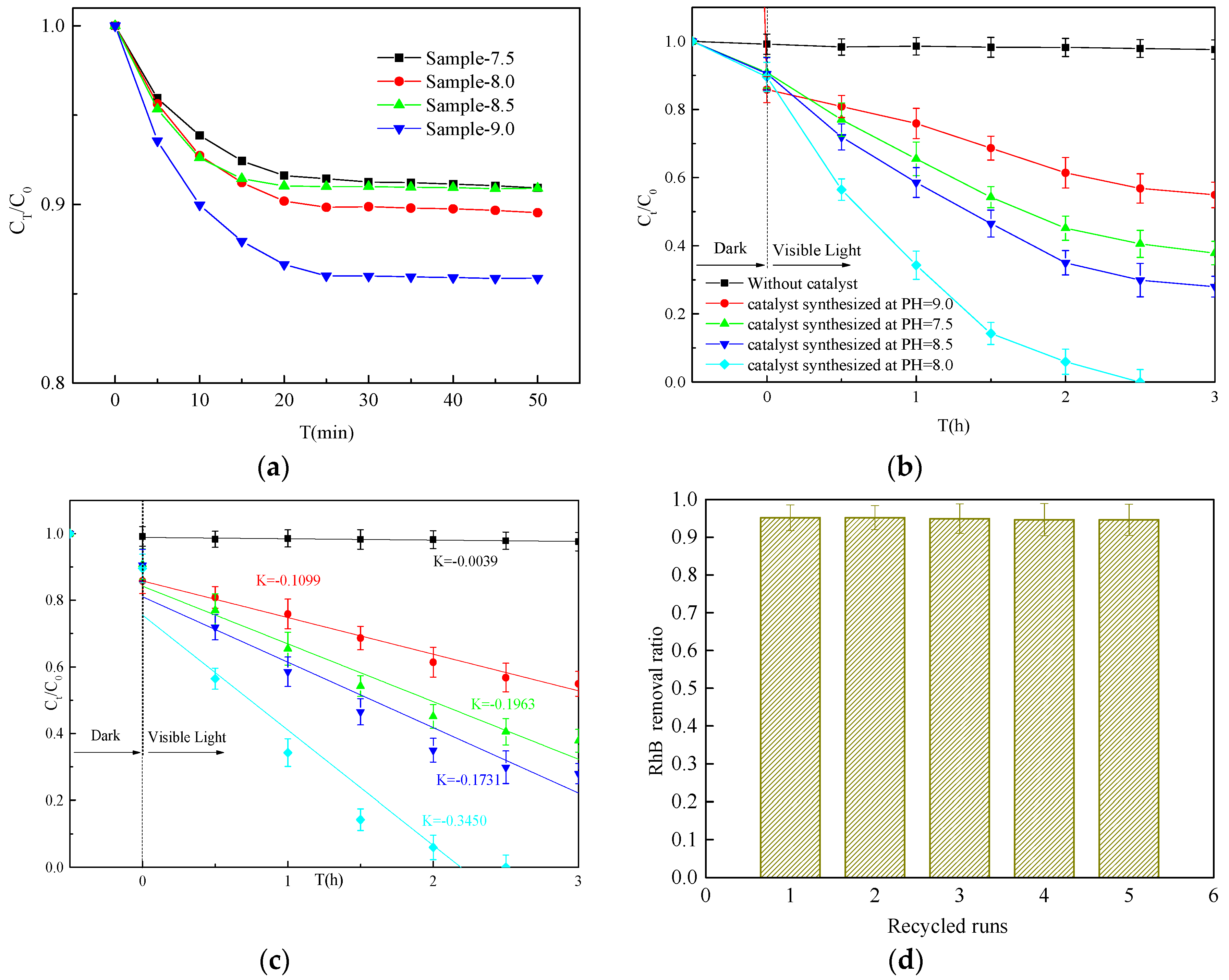

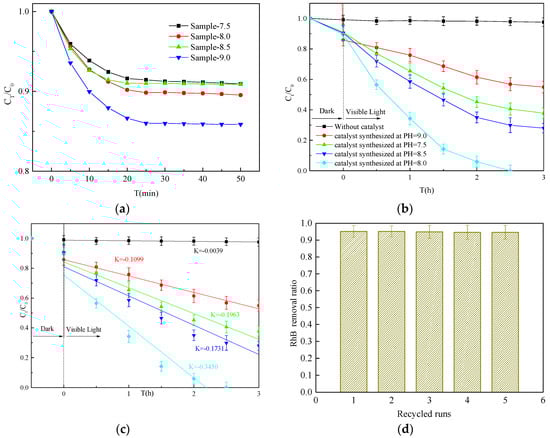

Figure 5. (a) Adsorption–desorption equilibrium test results; (b) Degradation of rhodamine B (RhB) using different catalysts under visible light irradiation; (c) Linear fit of the photocatalytic reaction and the reaction rate constant k; (d) Photocatalytic degradation of RhB reusing photocatalyst sample 8 after filtration; (e) EDX and SEM (inset) of sample 8 after recycling five times; (f) XRD of sample 8 after recycling five times.
Figure 5. (a) Adsorption–desorption equilibrium test results; (b) Degradation of rhodamine B (RhB) using different catalysts under visible light irradiation; (c) Linear fit of the photocatalytic reaction and the reaction rate constant k; (d) Photocatalytic degradation of RhB reusing photocatalyst sample 8 after filtration; (e) EDX and SEM (inset) of sample 8 after recycling five times; (f) XRD of sample 8 after recycling five times.
Materials 10 00891 g005aMaterials 10 00891 g005b

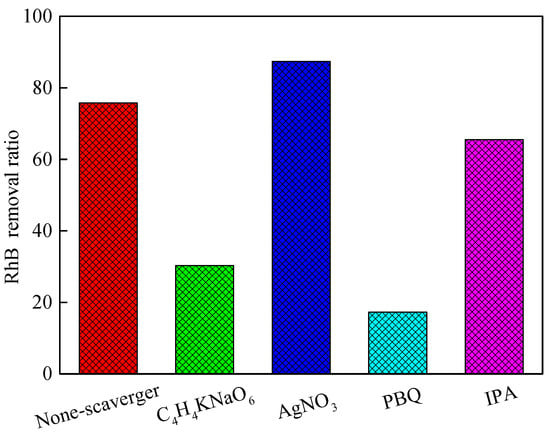

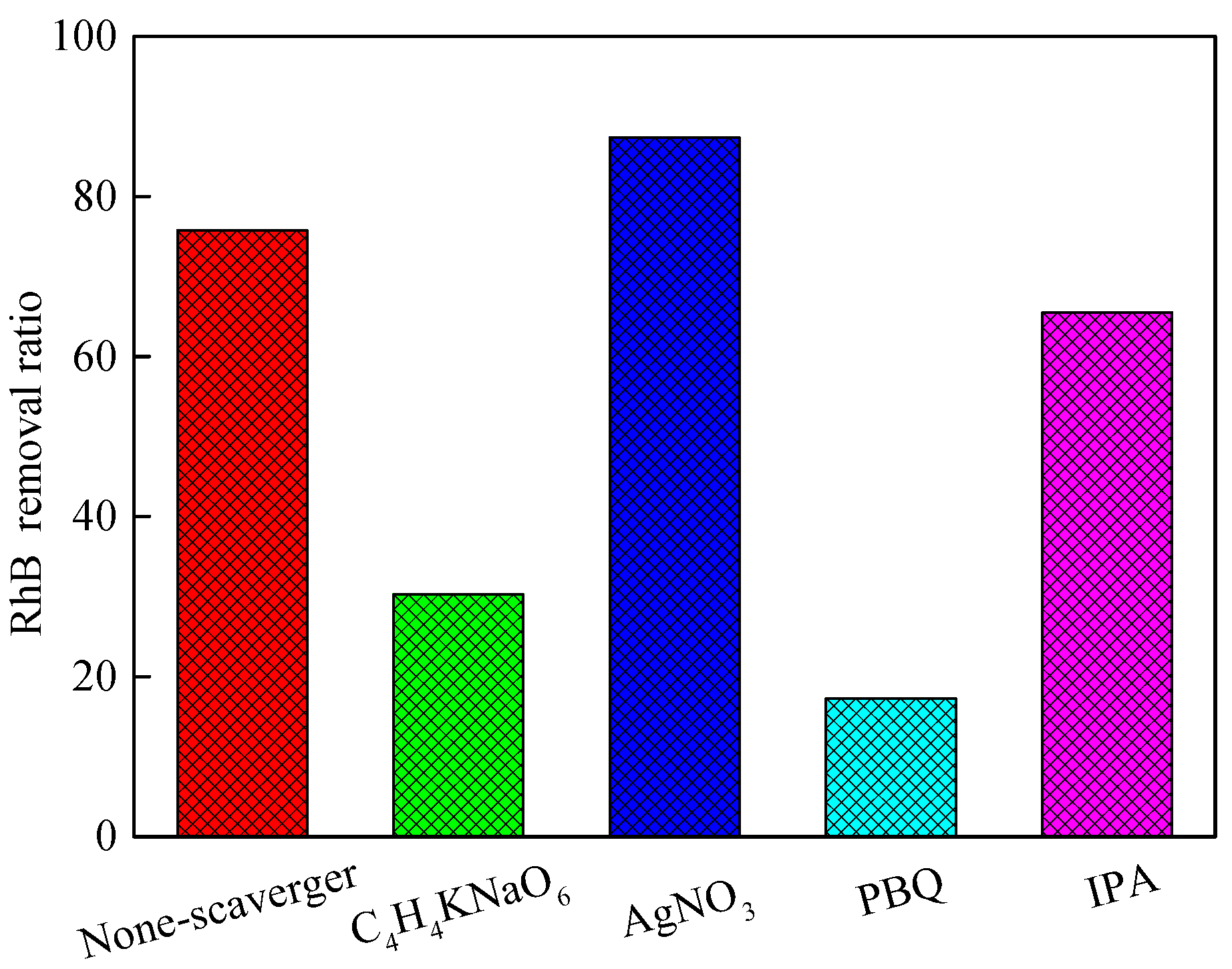

Figure 6. Scavenger effect of sample 8 photocatalyst.
Figure 6. Scavenger effect of sample 8 photocatalyst.
Materials 10 00891 g006

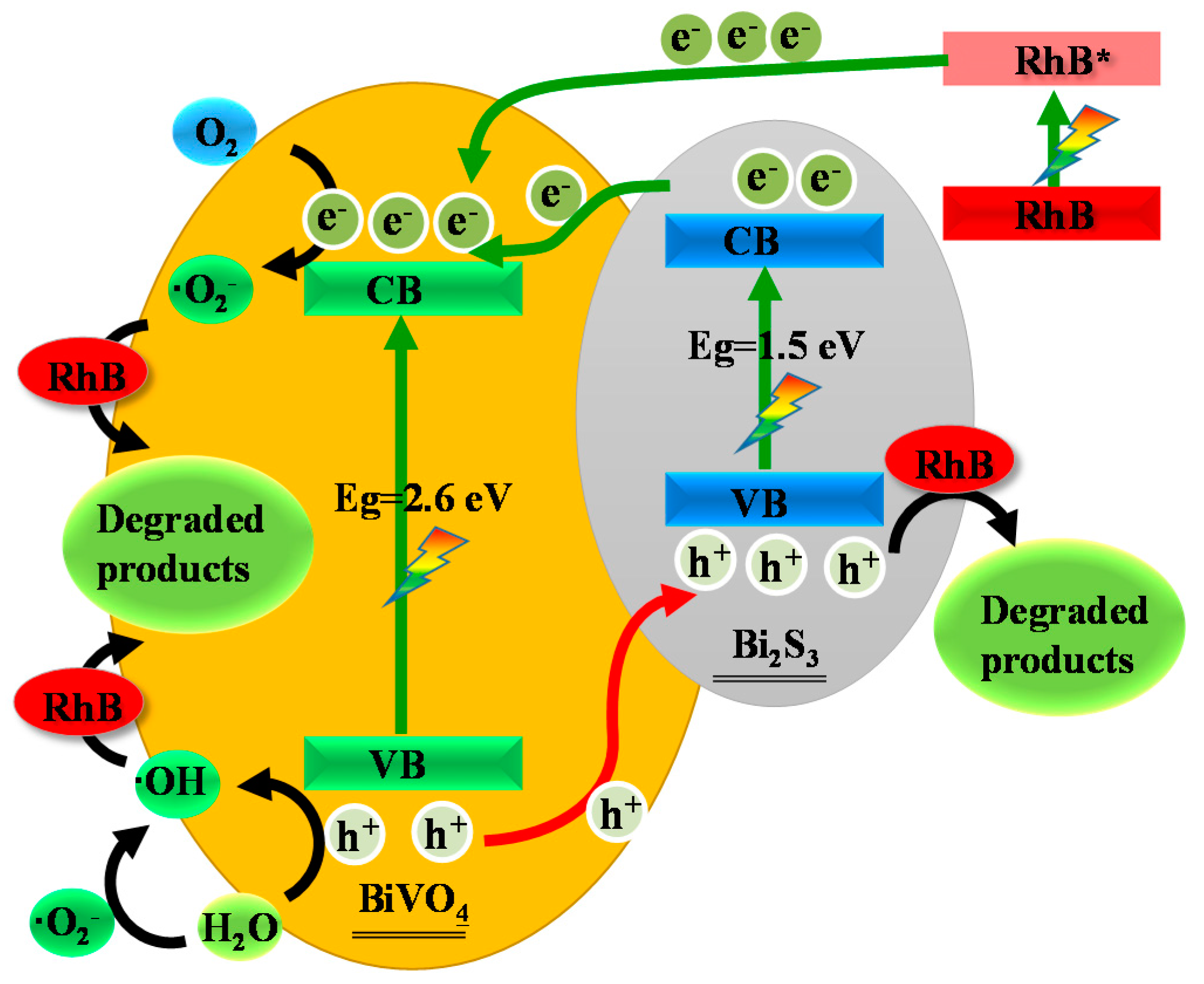

Schematic 1. Postulated mechanism for RhB degradation catalyzed with sample 8.0.
Schematic 1. Postulated mechanism for RhB degradation catalyzed with sample 8.0.
Materials 10 00891 g007
Table 1. Sample composition based on EDX.
Table 1. Sample composition based on EDX.
SampleBiVOSCMolar Ratio
wt %wt %wt %wt %wt %BiVO4:Bi2S3
Sample-7.561.3615.8918.940.003.81/
Sample-8.076.0414.502.263.693.517.42:1
Sample-8.579.7611.642.093.622.896.07:1
Sample-9.078.750.000.0017.673.58/
Table 2. Brunner−Emmet−Teller (BET) measurements of samples.
Table 2. Brunner−Emmet−Teller (BET) measurements of samples.
SampleMean Pore Size (nm)Pore Volume (cm3 g−1)Specific Surface Area (m2 g−1)
Sample-7.515.7650.0246.423
Sample-8.015.4620.02119.527
Sample-8.514.4590.01812.642
Sample-9.017.2650.03021.165
