Article

The Effect of Heat Treatment on the Emission Color of P-Doped Ca2SiO4 Phosphor

1
Cooperative Research Facility Center, Toyohashi University of Technology, Toyohashi 441-8580, Japan
2
Department of Environmental and Life Sciences, Toyohashi University of Technology, Toyohashi 441-8580, Japan
3
Department of Materials Science and Engineering, Nagoya Institute of Technology, Nagoya 466-8555, Japan
*
Author to whom correspondence should be addressed.
Materials 2017, 10(9), 1000; https://doi.org/10.3390/ma10091000
Submission received: 25 July 2017 / Revised: 21 August 2017 / Accepted: 21 August 2017 / Published: 26 August 2017
(This article belongs to the Special Issue Luminescent Materials 2017)

Abstract

:
In a series of (Ca2–x/2–yEuyx/2)(Si1–xPx)O4 (x = 0.06, 0.02 ≤ y ≤0.5), various color-emitting phosphors were successfully synthesized by a solid-state reaction. These phosphors were characterized by photoluminescence (PL) spectroscopy, X-ray powder diffractometry, transmission electron microscopy, and X-ray absorption fine structure spectroscopy. We evaluated the effect of heat treatment on PL properties with various annealing temperatures at 1373–1773 K for 4 h before/after reduction treatment from Eu3+ to Eu2+. In the red-emitting (Ca1.95Eu3+0.020.03)(Si0.94P0.06)O4+δ phosphor, the highest PL intensity exhibited when it was annealed at 1773 K. On the other hand, in the green-emitting (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphor, the highest PL intensity was realized when it was annealed at 1473 K and consequently treated under a reductive atmosphere. With increasing annealing temperature, the emission peak wavelength steadily decreased. Furthermore, with increasing Eu2+ content, the emission peak wavelength increased, with the color of emitting light becoming yellowish. Thus, the PL properties of the phosphors were affected by both the structural change from β to α’L, which occurred by heat treatment, and the amount of doped Eu ions.

1. Introduction

Rare-earth-doped dicalcium silicate (Ca2SiO4, C2S) phosphors have been investigated by several researchers for application to white light-emitting diodes (LEDs) [1,2,3,4,5]. Two types of phosphors have been reported so far: Eu3+-doped and Eu2+-doped C2S phosphors. The former phosphors are characterized by the emission of red light due to the transition of 5D0-7F2 for the Eu3+ ion [3]. Thus, the luminescence originates from the 4f-4f dipole transitions of the Eu3+ ion, and hence the wavelength of the emission is almost the same among the various phosphors with different host materials. For example, a group of A2SiO4: Eu3+ (A = Ca, Sr, Ba) phosphors showed similar emission spectra at around the maximum wavelength of 620 nm [4]. On the other hand, Eu2+-doped C2S phosphors are generally useful for a wide range of applications, because their luminescent colors, due to the f-d transition of the Eu2+ ion, are tunable by the crystal structures and/or compositions of the host materials. Recently, a crystal-site engineering technique was reported, which enabled us to customize the luminescent colors of C2S:Eu2+ phosphors [5].
A series of structural studies of P-doped C2S crystals has demonstrated that the incorporation of P most effectively stabilized the high-temperature phases of C2S [6]. Hence, the authors present the idea of utilizing the P-doped C2S as the host material of Eu2+-activated phosphors. In a previous study, the relationship between the photoluminescence (PL) intensities and crystal structures of P-doped C2S phosphors was reported [7]. The doping of P ions in the green-emitting C2S:Eu2+ phosphors were found to effectively increase the PL intensities. The polymorphs of C2S established are, in the order of increasing temperature, γ (orthorhombic), β (monoclinic), α’L (orthorhombic), α’H (orthorhombic), and α (trigonal) [8]. The phase transition temperatures are, during the heating process, 963 K for β to α’L, 1433 K for α’L to α’H, and 1698 K for α’H to α. The β to α’L phase transition of the cooling of doped C2S has been reported to be thermoelastic martensitic [9], hence the stabilized phases at ambient temperature systematically changed from β, β+α’L to α’L with increasing concentrations of foreign ions such as Sr2+, Ba2+, and/or P5+ in C2S [10,11]. Thus, the change of crystal structures by heat treatment must be potentially able to improve the photoluminescence (PL) properties of the phosphors. In fact, we have succeeded in the further improvement of the PL intensities by the annealing of the green-emitting P-doped C2S phosphor [12].
In the present study, we successfully synthesized P-doped C2S phosphors showing various emission colors (red, green, and yellow) by a solid-state reaction. The PL intensities were compared between the phosphors with different activators of Eu3+ or Eu2+ ions that were annealed at 1373–1773 K. We also discussed the relationship between the PL intensities and crystal structures.

2. Results and Discussion

2.1. Red-Emitting P-Doped C2S:Eu3+ Phosphor

In a previous study, we prepared a series of (Ca1.98–x/2Eu2+0.02x/2)(Si1–xPx)O4 (P-doped C2S:Eu2+) phosphors with 0 ≤ x ≤ 0.20 (y = 0.02), and investigated the effect of P5+-ion doping on the PL properties. Here, the box in the chemical formula represents vacancies according to a previous paper [6]. The P-doped C2S:Eu2+ phosphor with x = 0.06 exhibited the highest PL intensity among those with 0 ≤ x ≤ 0.20 [12].
In the present study, we prepared the Eu3+-activated red-emitting phosphor with a chemical formula of (Ca1.95Eu3+0.020.03)(Si0.94P0.06)O4, and focused on the effect of annealing on its PL property.
Figure 1 shows the X-ray diffraction (XRD) patterns of the red-emitting phosphor annealed at various temperatures from 1373 K to 1773 K for 4 h. With increasing annealing temperature, the relative amount of the α’L phase with respect to the β phase increased. This is caused by the phase transition from β to α’L during annealing. Figure 2 shows the emission and excitation spectra of the red-emitting phosphors annealed at 1373 K, 1573 K, and 1773 K. Red light emission of the Eu3+-activated phosphors were observed at an excitation wavelength of 394 nm due to the intraconfigurational 7F0-5L6 transition. We observed the highest PL intensity for the specimen that was annealed at 1773 K. The sharp and strong emission peaks, induced by the transitions in the Eu3+ ion, appeared at around 594 nm (5D0-7F1, magnetic-dipole), 625 nm (5D0-7F2, electric-dipole), and 706 nm (5D0-7F4, electric-dipole). We plotted the emission intensity at 594 nm (=I594 nm) and that at 706 nm (=I706 nm) with excitation by 394 nm in Figure 3. The intensity ratios of I706 nm/I594 nm (=5D0-7F4/5D0-7F1) with different annealing temperatures are also plotted in the figure. Both I594 nm- and I706 nm-values steadily increased with increasing annealing temperature, while there was no significant change in the intensity ratio of I706 nm/I594 nm. The electric-dipole transitions, which is the f-f transition from 5D0 to 7F2,4, are, according to the theory of selection rule [13], affected by the site symmetry of the crystal fields around the Eu3+ ion. From the present results, the Eu3+ ion would be in the same Ca site, although the site environment of the Eu3+ ion must be changed from the β phase to the α’L phase. Interestingly, in our previous paper, bright red emission due to hypersensitive 5D0-7F2 (electric-dipole) transition and very small 5D0-7F4 and 5D0-7F1 transitions were observed under the ultraviolet irradiation of 541 nm or 398 nm to Li1.11Ta0.89Ti0.11O3 phosphor [14]. The eccentricity of the Eu3+ positions in [(Li, Eu)O12] polyhedron thus seems to be closely related to the PL efficiency of the doped lithium tantalate phosphors [15].

2.2. Green-Emitting P-Doped C2S:Eu2+ Phosphor

The phase compositions of green-emitting (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphors were, as shown in Figure 4, different among those with different annealing temperatures. When comparing the phase compositions between the two types of phosphors, (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 and (Ca1.95Eu3+0.020.03)(Si0.94P0.06)O4+δ, at the same annealing temperatures, they were almost equal to each other. Figure 5 shows the relationship between the PL intensity and annealing temperature in green-emitting (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphors. The broad excitation spectra were composed of the four bands at 310 nm, 340 nm, 360 nm, and 400 nm, each of which could be attributed to the location of an Eu2+ ion in the crystal structures of the β- and α’L-phases [16,17]. The differences in peak shapes of the excitation spectra are caused by the differences in crystal structures of the host materials. The emission or excitation wavelengths were measured by monitoring them at the maximum wavelengths, as shown in Table 1. The emission peak wavelength decreased with increasing annealing temperature. This is caused by the expansion of Eu–O bond lengths by phase transition [17], because the 4f-5d transition of the Eu2+ ion must be closely related to the crystal field. We observed the highest PL intensity for the specimen annealed at 1473 K, of which the phase composition was both β and α’L.
We investigated the profile intensity data of the phosphor sample annealed at 1473 K by the Rietveld method, and determined the precise phase composition. The structural parameters were taken from those reported by Jost et al. [18] for β-C2S, Udagawa et al. [19] for α’L-C2S, and Dickens and Brown [20] for Ca5P2SiO12. The sample was found to be composed of both the β- and α’L-phases with a small amount of Ca5P2SiO12 as the impurity phase. The phase composition was determined to be 75.3 mol % β, 23.5 mol % α’L, and 1.2 mol % Ca5P2SiO12 (Figure 6), under the condition of each effective particle radii being 5 μm. Because the highest PL intensity for the present sample among the phosphors annealed at 1373–1673 K, the co-existence of the β- and α’L-phases would be essentially important for the enhancement of the PL intensity of green-emitting P-doped C2S:Eu2+ phosphors. This is because the coherent interphase boundaries between α’L and β would store the strain energy, which would distort the crystal lattices and provide a favorable environment for the efficient PL emission of the Eu2+ ion.
Figure 7 shows a transmission electron microscope (TEM) image of (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphor annealed at 1473 K taken from the ( 1 ¯ 00), and the corresponding selected area electron diffraction (SAED) pattern. The relevant crystal grain was made up of the two regions of β and α’L. The β-phase region showed a pseudo-merohedral (polysynthetic) twin structure, with the splitting of reflections for the SAED pattern. The reflection indices are based on the β-phase lattice. The coherent grain boundary (depicted by G. B. in Figure 7) was parallel to the ( 01 1 ¯ ) plane of the β phase (a = 5.513, b = 6.758, c = 10.460 nm, β = 117.27 degrees) and the (001) plane of the α’L phase (a = 20.470, b = 9. 390, c = 5.437 nm). We examined the XRD profile intensity data by the Rietveld method to find that the geometrical difference in the boundaries between ( 01 1 ¯ ) and (001) was as small as 0.023 nm. The coherent interphase boundaries between α’L and β would store the strain energy, which would distort the crystal lattices and, consequently, provide a favorable environment for the efficient PL emission of the Eu2+ ion in the green-emitting phosphor.
In order to determine the environment of the Eu ion, X-ray absorption fine structure (XAFS) spectra were obtained with fluorescence mode at room temperature. Figure 8 shows the radial structure function of (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphor annealed at 1473 K. The simulation was performed using the software Artemis [21] (Figure 8b), in which the Eu ion is substituted in the Ca(1n) site with 10 coordination of β-Ca2SiO4 (structural parameters by Jost et al. (1977) [18]. Figure 8c shows the calculated peaks as a sum of each peak shown in Figure 8b. With radial distance less than 2 Å, a distinct doublet peak appeared in the simulation in Figure 8c, although the corresponding peak was single for the measurement data in Figure 8a. The doping of the Eu ion in the Ca site would equalize the Ca(Eu)–O lengths, and hence we observed the single peak for the radial structure function in Figure 8a. This result agreed well with that obtained by Sato et al. (2014) [4]. For the doping of a large amount of Eu ions, the Eu ions would preferentially occupy the Ca (2n) site, leading to the change in emission color from green to yellow, and then to red, because the PL property is closely related to the crystal field of the host material.

2.3. Green-Yellow-Emitting P-Doped C2S Phosphor with a Large Amount of Eu2+ Ions

In the formula of (Ca1.97–yEu2+y0.03)(Si0.94P0.06)O4, the phosphors were synthesized with a large Eu2+ content (y = 0.1, 0.3, and 0.5). Figure 9 shows XRD patterns of the phosphors that were annealed at 1473 K and consequently reduced under a 97% Ar–3% H2 reductive atmosphere. With increasing Eu content, it was obvious that the structural change occurred after the reduction process. Before the reduction treatment, the β and α’L phases, together with the Ca5(PO4)2(SiO4) phase, coexisted. However, after the reduction, the main constituent phase was the α’L phase. For the doping of Eu with a smaller amount, the phase compositions were almost the same between the phosphors before and after the reduction treatment, as shown in Figure 1 and Figure 4. Therefore, the phase compositions were effectively affected by the doping of a large amount of Eu2+, the ionic radius of which is larger than that of Eu3+. Figure 10 shows the PL intensities of phosphors with the Eu2+ content of y = 0.02, 0.1, 0.3, and 0.5. With increasing Eu content, the PL intensity steadily decreased due to the effect of concentration quenching. The top peaks shifted to the longer wavelength sides; they are 512 nm with y = 0.02, 525 nm with y = 0.1, and 533 nm with y = 0.3. With the Eu2+ content of y = 0.5, two peak-tops appeared at around 550 nm for one top and around 640 nm for the other. As described above, the emission peak wavelength decreased by the expansion of Eu–O bond lengths by the phase transition from β to α’L [18]. The emission color would change in accordance with the site preference of Eu2+ ions between the distinct two sites of Ca(1n) and Ca(2n). Sato et al. reported that the emission color of Ca2–xEuxSiO4 phosphor changed from green-yellow to deep-red with increasing Eu2+ content [4], which was closely related to the peculiar coordination environments of Eu2+ in the two Ca sites of the host C2S [22].

3. Materials and Methods

The phosphors were synthesized by a conventional solid-state reaction without flux regents because their compositions should be precisely controlled. The starting materials used were the chemicals of CaCO3, SiO2, CaHPO4·2H2O, and Eu2O3 (>99.9% grade) for the preparation of the Eu2+-doped C2S phosphors. The chemicals were weighted in molar ratios of [Ca:Eu:Si:P] = [2−x/2−y:y:1−x:x] with 0 ≤ x ≤ 0.20 and 0.02 ≤ y ≤ 0.5, the chemical variations of which correspond to the general formula (Ca2–x/2–yEu2+yx/2)(Si1–xPx)O4. These powder specimens were thoroughly mixed with a small amount of acetone in a planetary ball mill (Pulverisette P-6, Fritsch, Dresden, Germany. The well-mixed materials were subsequently pressed into pellets, heated at 498 K for 6 h, 973 K for 2 h, and then at 1273 K for 8 h in air. The densely sintered disc-shaped specimens thus obtained were subsequently annealed for 4 h at 1373–1773 K, which correspond to the stable temperature regions of α’L (1373 K), α’H (1473, 1573, and 1673 K), and α (1773 K), and then cooled to ambient temperature in the electric furnace. Finally, these samples were heated at 1473 K for 3 h under a 97% Ar–3% H2 reductive atmosphere. Phase identification was made based on the XRD data (CuKα), which were obtained on a RINT 2500 device (Rigaku Co., Ltd., Tokyo, Japan) operated at 40 kV and 200 mA. The phase compositions were determined from the X-ray profile intensity data (CuKα1) collected on another diffractometer in the 2θ range of 25.0°–43.0° (X’Pert PRO Alpha-1, PANalytical B.V., Almelo, The Netherlands) operated at 45 kV and 40 mA. The profile intensity data were examined by the Rietveld method [23] using a computer program RIETAN-FP [24,25]. The refinement resulted in the satisfactory reliability (R) indices of Rwp = 4.74%, S (=Rwp/Re) = 1.72, and Rp = 3.61%. TEM images were observed using a conventional TEM (JEM-2100F, JEOL, Tokyo, Japan) equipped with an energy-dispersive spectroscopy. Eu L3-edge X-ray absorption fine structure spectroscopy (XAFS) was measured at beam line BL5S1 in Aichi Synchrotron Center with fluorescence mode at room temperature. The simulation of XAFS was performed on the software Artemis [21]. Excitation and emission spectra were obtained using a fluorescence spectrophotometer (F-7000, HITACHI, Tokyo, Japan).

4. Conclusions

A series of (Ca2–x/2–yEu2+yx/2)(Si1–xPx)O4 (x = 0.06, 0.02 ≤ y ≤ 0.5) with various color-emitting phosphors were successfully synthesized by a solid-state reaction. We clarified the effect of heat treatment on the emission color using X-ray powder diffractometry, transmission electron microscopy, and X-ray absorption fine structure spectroscopy. The PL properties of the phosphors were closely related to the structural change from β to α’L, which occurred by heat treatment, and the amount of doped Eu ions.
  • With red-emitting (Ca1.95Eu3+0.020.03)(Si0.94P0.06)O4+δ phosphor, the PL intensity increased with increasing annealing temperature, with the highest PL intensity reached when annealed at 1773 K. There was no significant change in the ratio of electric-dipole transition/magnetic-dipole transition during the annealing.
  • With green-emitting (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphor, the highest PL intensity was observed when annealed at 1473 K. Because the phase composition was both α’L and β, there must be many α’L/β boundaries, which would provide a favorable luminescent environment of the Eu2+ ion in the host material. We confirmed that the Eu2+ ion preferentially occupied the Ca(1n) site, based on the simulation and experimental data. With increasing annealing temperature, the emission peak wavelength decreased due to the expansion of the Eu–O bond lengths.
  • With the increase of the y-value for (Ca1.97–yEu2+y0.03)(Si0.94P0.06)O4, the emission color accordingly changed from green (y = 0.02) to yellow (y = 0.5). This color change was caused by the increase of Eu2+ occupancy at the Ca(2n) site with respect to the Ca(1n) site.

Acknowledgments

This work was partially supported by a Gra761-71.nt-in-Aid for Scientific Research (c) No. 16K06721 (Hiromi Nakano) by the Japan Society for the Promotion of Science.

Author Contributions

H.N. designed the experiments, analyzed the TEM and wrote the paper; N.Y. and K.K. performed the experiments; K.F. analyzed the XRD by the Rietveld method.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Choi, S.-W.; Hong, S.-H. Characterization of Ca2SiO4: Eu2+ Phosphor Synthesized by Polymeric Precursor Process. J. Am. Ceram. Soc. 2009, 92, 2025–2028. [Google Scholar] [CrossRef]
  2. Jang, H.S.; Kim, H.Y.; Kim, Y.S.; Lee, H.M.; Jeon, D.Y. Yellow-emitting γ-Ca2SiO4:Ce3+, Li+ phosphor for solid-state lighting: luminescent properties, electronic structure and white light-emitting diode application. Opt. Express 2012, 20, 2761–2771. [Google Scholar]
  3. Zhang, Y.; Chen, J.; Li, Y.; Seo, H.J. Monitoring of hydroxyapatite conversion by luminescence intensity of Eu3+ ions during mineralization of Eu3+-doped β-Ca2SiO4. Opt. Mater. 2014, 37, 525–530. [Google Scholar] [CrossRef]
  4. Wei, F.; Jia, Q. Massive production of A2SiO4:Eu3+ and A2SiO4:Eu2+ (A = Ca, Sr, Ba) microspheres and luminescent properties. Superlattices Microstruct. 2015, 82, 11–17. [Google Scholar] [CrossRef]
  5. Sato, Y.; Kato, H.; Kobayashi, M.; Masaki, T.; Yoon, D.H.; Kakihana, M. Tailoring of deep-red luminescence in Ca2SiO4: Eu2+. Angew. Chem. Int. Ed. 2014, 53, 7756–7759. [Google Scholar] [CrossRef] [PubMed]
  6. Fukuda, K.; Maki, I.; Ito, S.; Miyake, T. Structural change in phosphorus-bearing dicalcium silicates. J. Ceram. Soc. Jpn. 1997, 105, 117–121. [Google Scholar] [CrossRef]
  7. Furuya, S.; Nakano, H.; Yokoyama, N.; Banno, H.; Fukuda, K. Enhancement of photoluminescence intensity and structural change by doping of P5+ ion for Ca2–x/2(Si1–xPx)O4: Eu2+ green phosphor. J. Alloys Compd. 2016, 658, 147–151. [Google Scholar] [CrossRef]
  8. Taylor, H.F.W. Cement Chemistry, 2nd ed.; Thomas Telford: London, UK, 1997. [Google Scholar]
  9. Fukuda, K. Phenomenological analysis of αL’-to-β martensitic transformation in phosphorus-bearing dicalcium silicate. J. Mater. Res. 1999, 14, 460–464. [Google Scholar] [CrossRef]
  10. Fukuda, K.; Maki, I.; Ito, S. Structure change in strontium oxide-doped dicalcium silicates. J. Am. Ceram. Soc. 1996, 79, 2577–2581. [Google Scholar] [CrossRef]
  11. Fukuda, K.; Maki, I.; Ito, S. Thermal hysteresis for the α′L ↫ β transformations in strontium oxide-doped dicalcium silicates. J. Am. Ceram. Soc. 1996, 79, 2969–2970. [Google Scholar] [CrossRef]
  12. Nakano, H.; Yokoyama, N.; Banno, H.; Fukuda, K. Enhancement of PL intensity and formation of core-shell structure in annealed Ca2–x/2(Si1–xPx)O4:Eu2+ phosphor. Mater. Res. Bull. 2016, 83, 502–506. [Google Scholar] [CrossRef]
  13. Fujishiro, F.; Murakami, M.; Sekimoto, R.; Arakawa, T.; Hashimoto, T. Development of New Oxide Phosphors by Controlling Substitution Site of Lanthanide Ion. Nihon Daigaku Bunrigakubu Shizenkagakukenkyujo Kenkyukiyou 2012, 47, 475–487. Available online: http://www.chs.nihon-u.ac.jp/institute/nature/kiyou/2012/pdf/4_1.pdf (accessed on 27 February 2017). (In Japanese).
  14. Nakano, H.; Ozono, K.; Hayashi, H.; Fujihara, S. Synthesis and luminescent properties of a new Eu3+-doped Li1+x(Ta1–zNbz)1–xTixO3 Red phosphor. J. Am. Ceram. Soc. 2012, 95, 2795–2797. [Google Scholar] [CrossRef]
  15. Ichioka, H.; Furuya, S.; Asaka, T.; Nakano, H.; Fukuda, K. Crystal structures and enhancement of photoluminescence intensities by effective doping for lithium tantalate phosphors. Powder Diffr. 2015, 30, 326–332. [Google Scholar] [CrossRef]
  16. Luo, Y.Y.; Jo, D.S.; Senthil, K.; Tezuka, S.; Kakihana, M.; Toda, K.; Masaki, T.; Yoon, D.H. Synthesis of high efficient Ca2SiO4:Eu2+ green emitting phosphor by a liquid phase precursor method. J. Solid State Chem. 2012, 189, 68–74. [Google Scholar] [CrossRef]
  17. Mori, K.; Kiyanagi, R.; Yonemura, M.; Iwase, K.; Sato, T.; Ito, K.; Sugiyama, M.; Kamiyama, T.; Fukunaga, T. Charge states of Ca atoms in β-dicalcium silicate. J. Solid State Chem. 2006, 179, 3286–3294. [Google Scholar] [CrossRef]
  18. Jost, K.H.; Ziemer, B.; Seydel, R. Redetermination of β-dicalcium silicate. Acta Crystallogr. 1977, B33, 1696–1700. [Google Scholar] [CrossRef]
  19. Udagawa, S.; Urabe, K.; Yano, T.; Takada, K.; Natsume, M. Studies on the Dusting of Ca2SiO4—The Crystal Structure of α’L-Ca2SiO4. Proc. Jpn. Cem. Eng. Assoc. 1979, 33, 35–37. [Google Scholar]
  20. Dickens, B.; Brown, W.E. The Crystal Structure of Ca5(PO4)2SiO4 (Silieo-Carnotite). Tschermaks Miner. Petrogr. Mitt. 1971, 16, 1–27. [Google Scholar] [CrossRef]
  21. Ravel, B.; Newville, M. ATHENA, ARTEMIS, HEPHAESTUS: Data analysis for X-ray absorption spectroscopy using IFEFFIT. J. Synchrotron Radiat. 2005, 12, 537–541. [Google Scholar] [CrossRef]
  22. Tezuka, S.; Sato, Y.; Komukai, T.; Takatsuka, Y.; Kato, H.; Kakihana, M. Eu2+-Activated CaSrSiO4: a New Red-Emitting Oxide Phosphor for White-Light-Emitting Diodes. Appl. Phys. Express. 2013, 6, 072101-1-4. [Google Scholar] [CrossRef]
  23. Izumi, F.; Momma, K. Three-dimensional visualization in powder diffraction. Solid State Phenom. 2007, 130, 15–20. [Google Scholar] [CrossRef]
  24. Brindley, G.W. The effect of grain or particle Size on X-ray reflections from mixed powders and alloys, considered in relation to the quantitative determination of crystalline substances by X-ray methods. Philos. Mag. 1945, 36, 347–369. [Google Scholar] [CrossRef]
  25. Young, R.A. Introduction to the Rietveld method. In The Rietveld Method; Young, R.A., Ed.; Oxford University Press: Oxford, UK, 1993; pp. 1–38. [Google Scholar]
Figure 1. XRD patterns of (Ca1.95Eu3+0.020.03)(Si0.94P0.06)O4+δ annealed at various temperatures from 1373 K to 1773 K for 4 h.
Figure 1. XRD patterns of (Ca1.95Eu3+0.020.03)(Si0.94P0.06)O4+δ annealed at various temperatures from 1373 K to 1773 K for 4 h.
Materials 10 01000 g001

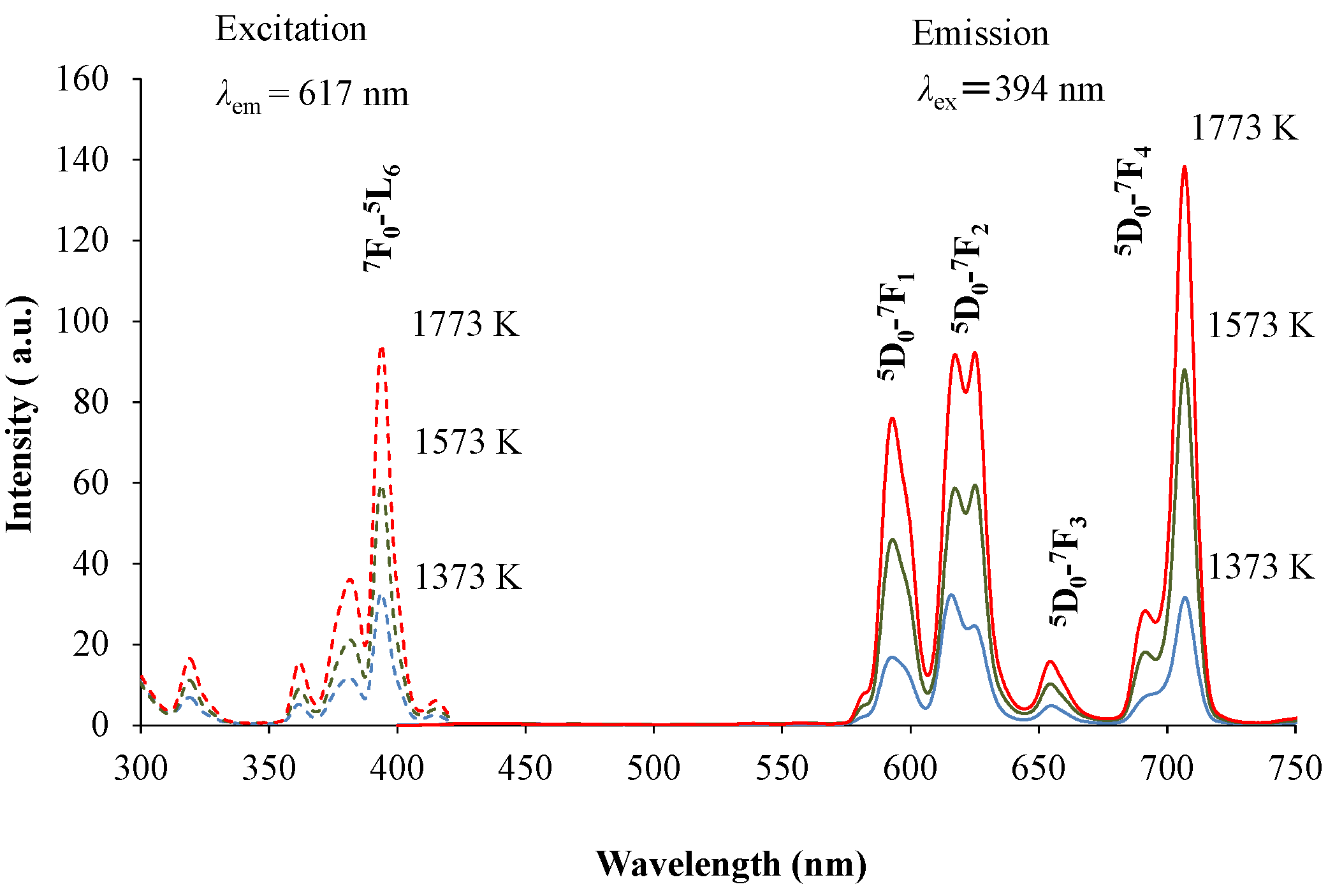

Figure 2. Emission and excitation spectra of (Ca1.95Eu3+0.020.03)(Si0.94P0.06)O4+δ annealed at 1373 K, 1573 K, and 1773 K.
Figure 2. Emission and excitation spectra of (Ca1.95Eu3+0.020.03)(Si0.94P0.06)O4+δ annealed at 1373 K, 1573 K, and 1773 K.
Materials 10 01000 g002
Figure 3. The emission intensities of (Ca1.95Eu3+0.020.03)(Si0.94P0.06)O4+δ at 706 nm and at 594 nm excited by 394 nm. The ratio of I706 nm/I594 nm is also plotted.
Figure 3. The emission intensities of (Ca1.95Eu3+0.020.03)(Si0.94P0.06)O4+δ at 706 nm and at 594 nm excited by 394 nm. The ratio of I706 nm/I594 nm is also plotted.
Materials 10 01000 g003
Figure 4. XRD patterns of (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 annealed at various temperatures from 1373 K to 1773 and subsequent heating under 97% Ar–3% H2.
Figure 4. XRD patterns of (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 annealed at various temperatures from 1373 K to 1773 and subsequent heating under 97% Ar–3% H2.
Materials 10 01000 g004

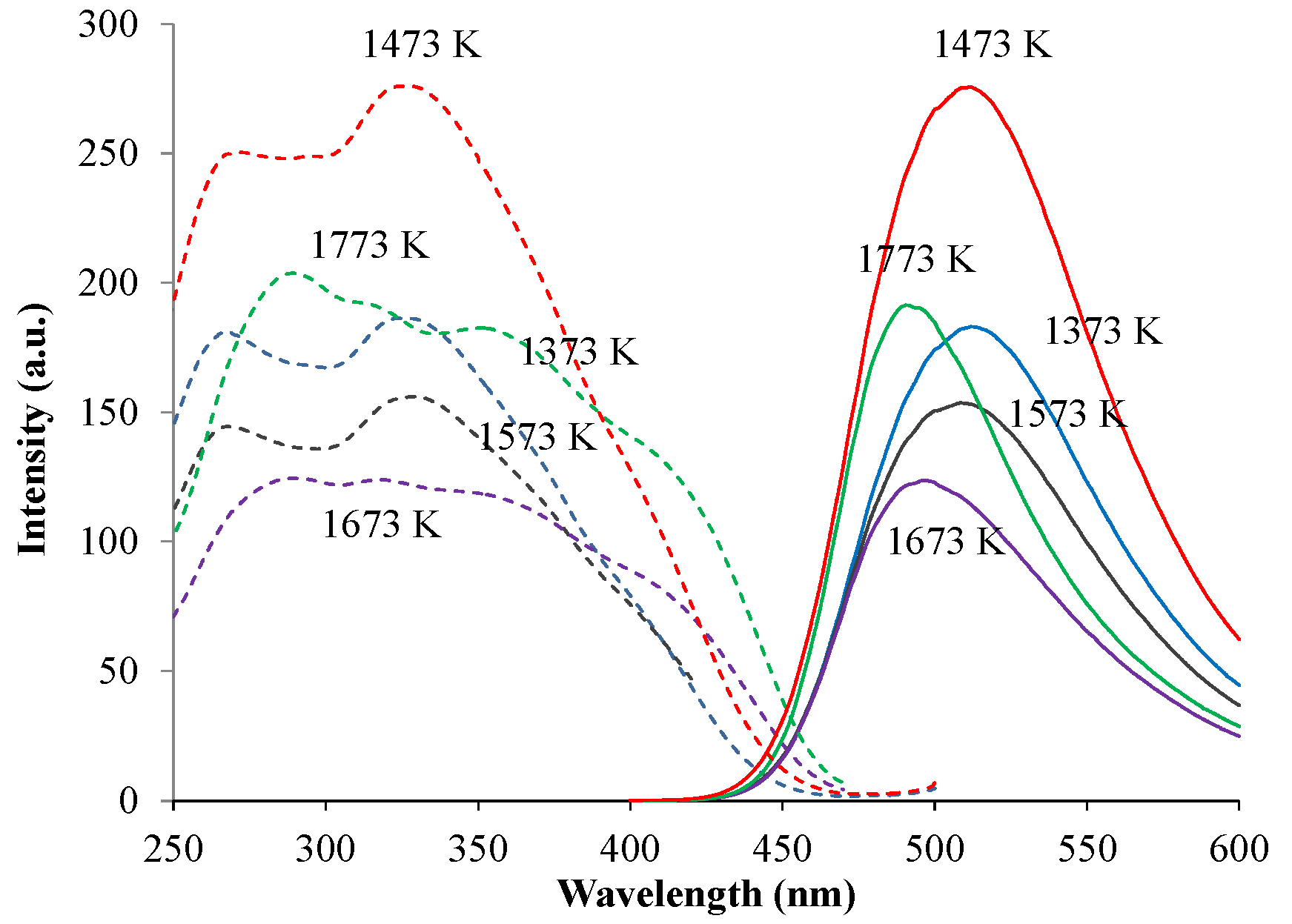

Figure 5. Relationship between photoluminescence (PL) intensity and annealing temperature in (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphors.
Figure 5. Relationship between photoluminescence (PL) intensity and annealing temperature in (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphors.
Materials 10 01000 g005
Figure 6. Observed profile intensities (red symbol: t), fitted patterns (green solid lines), and difference curves (blue solid lines in lower part of diagrams) obtained from the (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 annealed at 1473 K.
Figure 6. Observed profile intensities (red symbol: t), fitted patterns (green solid lines), and difference curves (blue solid lines in lower part of diagrams) obtained from the (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 annealed at 1473 K.
Materials 10 01000 g006

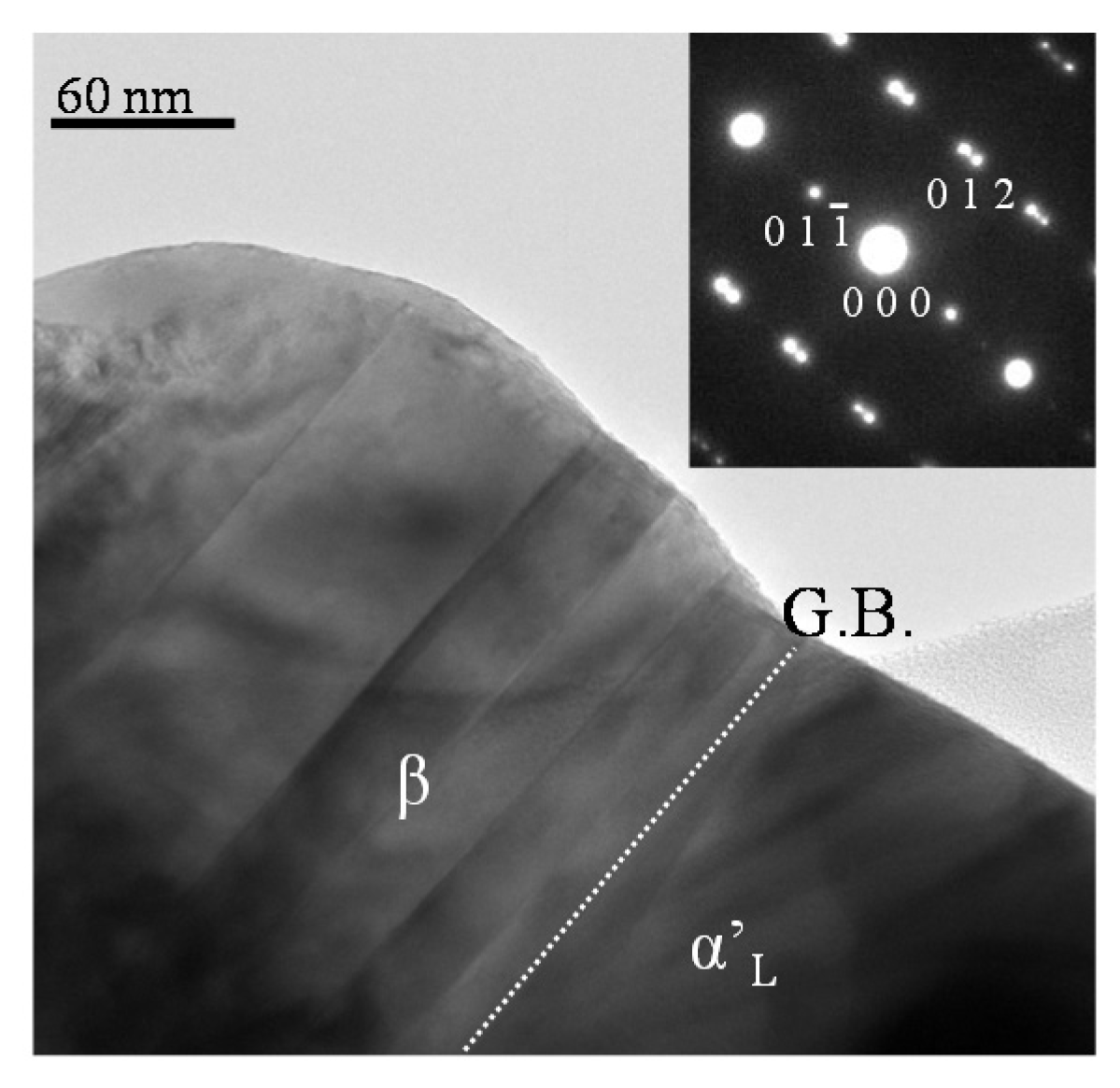

Figure 7. TEM image taken from the ( 1 ¯ 00) and SAED pattern of (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphor annealed at 1473 K.
Figure 7. TEM image taken from the ( 1 ¯ 00) and SAED pattern of (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphor annealed at 1473 K.
Materials 10 01000 g007

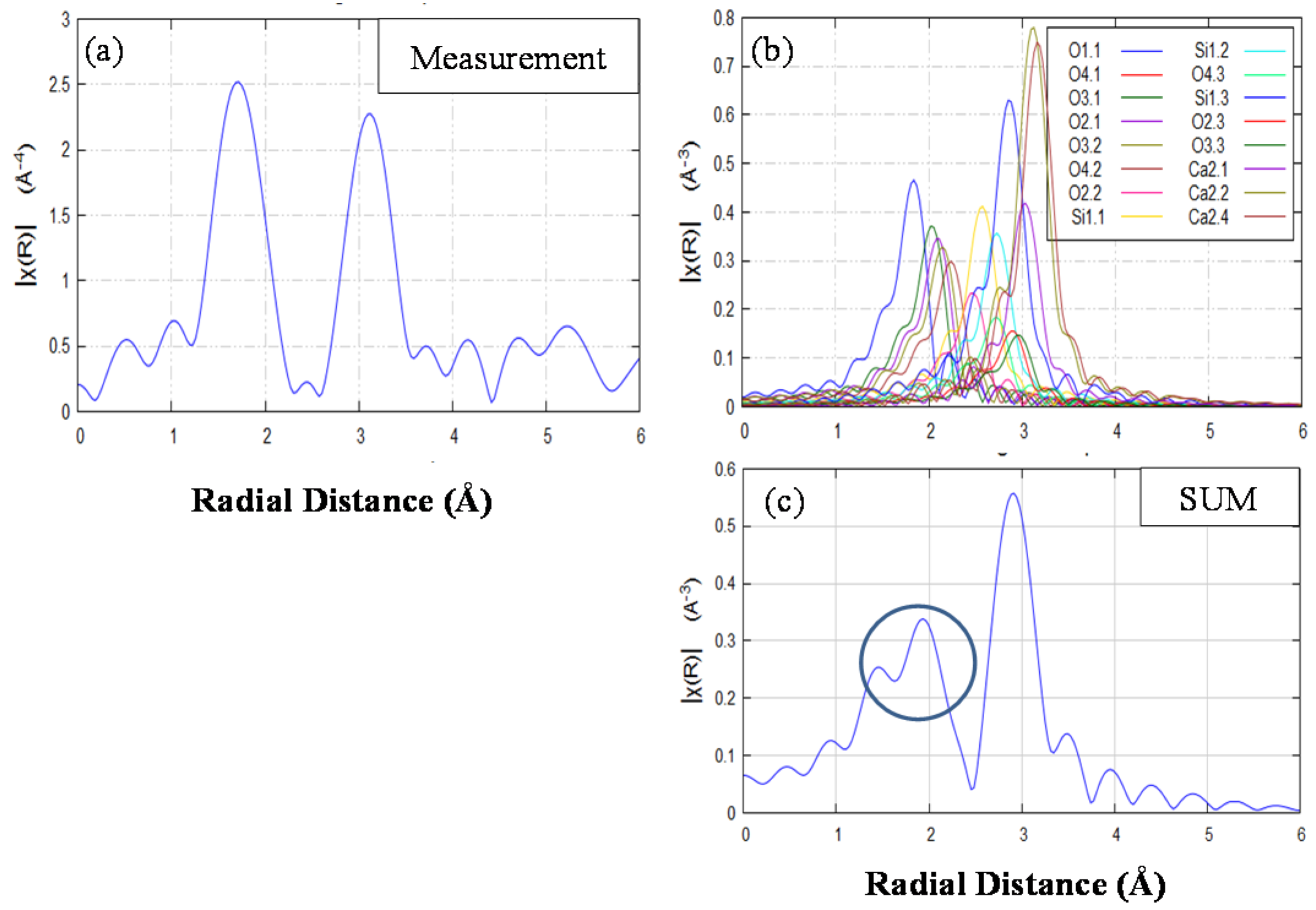

Figure 8. Radial structure function of (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphor annealed at 1473 K in (a). (b) Simulation spectra, in which the Eu ion is substituted in the Ca(1n) site in β-Ca2SiO4. (c) Calculated peaks as a sum of each peak shown in (b).
Figure 8. Radial structure function of (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphor annealed at 1473 K in (a). (b) Simulation spectra, in which the Eu ion is substituted in the Ca(1n) site in β-Ca2SiO4. (c) Calculated peaks as a sum of each peak shown in (b).
Materials 10 01000 g008

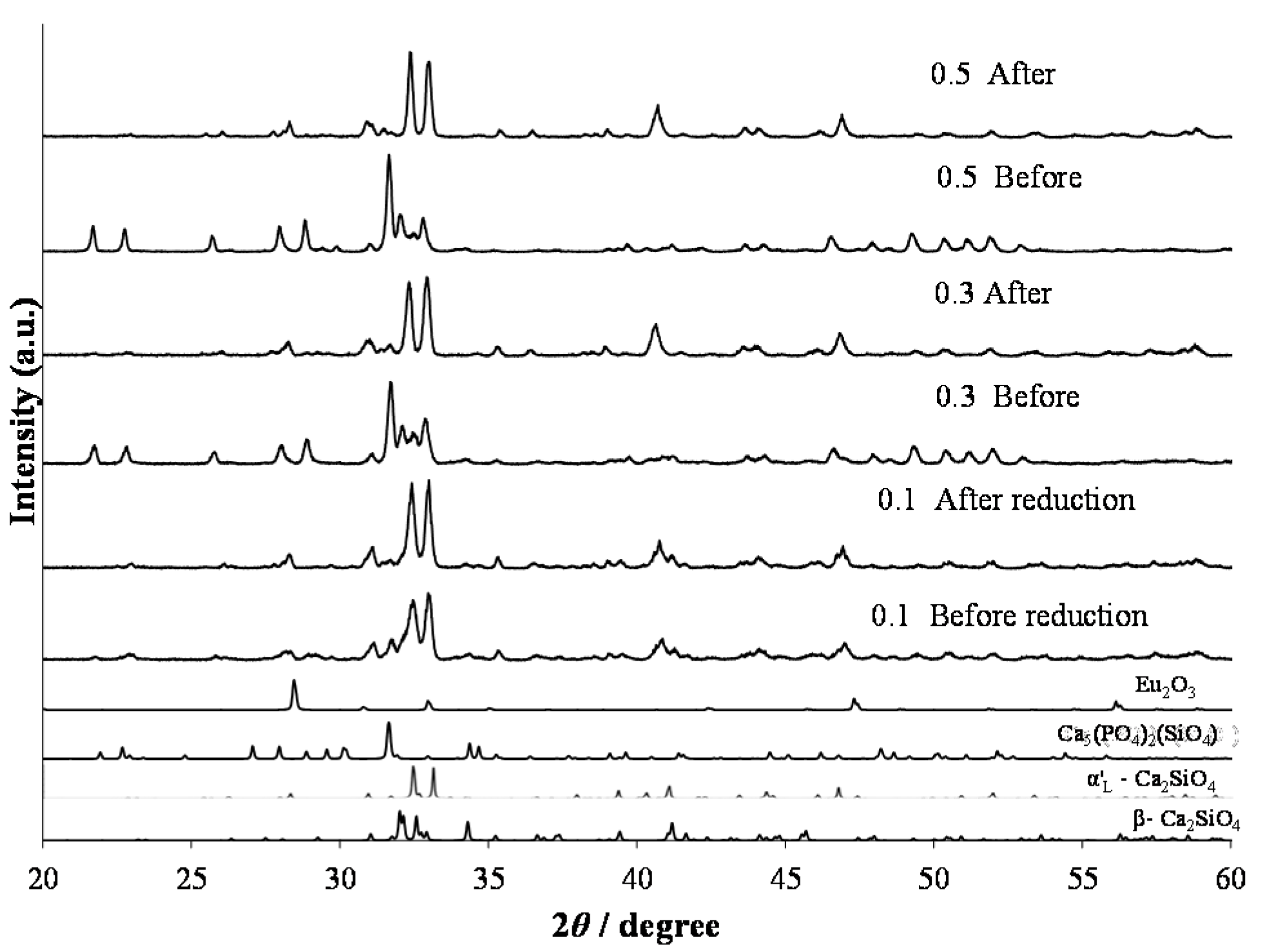

Figure 9. XRD patterns of (Ca1.97–yEu2+y0.03)(Si0.94P0.06)O4 phosphors with (y) = 0.1, 0.3, and 0.5 annealed at 1473 K and consequently reduced under a 97% Ar–3% H2 reductive atmosphere.
Figure 9. XRD patterns of (Ca1.97–yEu2+y0.03)(Si0.94P0.06)O4 phosphors with (y) = 0.1, 0.3, and 0.5 annealed at 1473 K and consequently reduced under a 97% Ar–3% H2 reductive atmosphere.
Materials 10 01000 g009

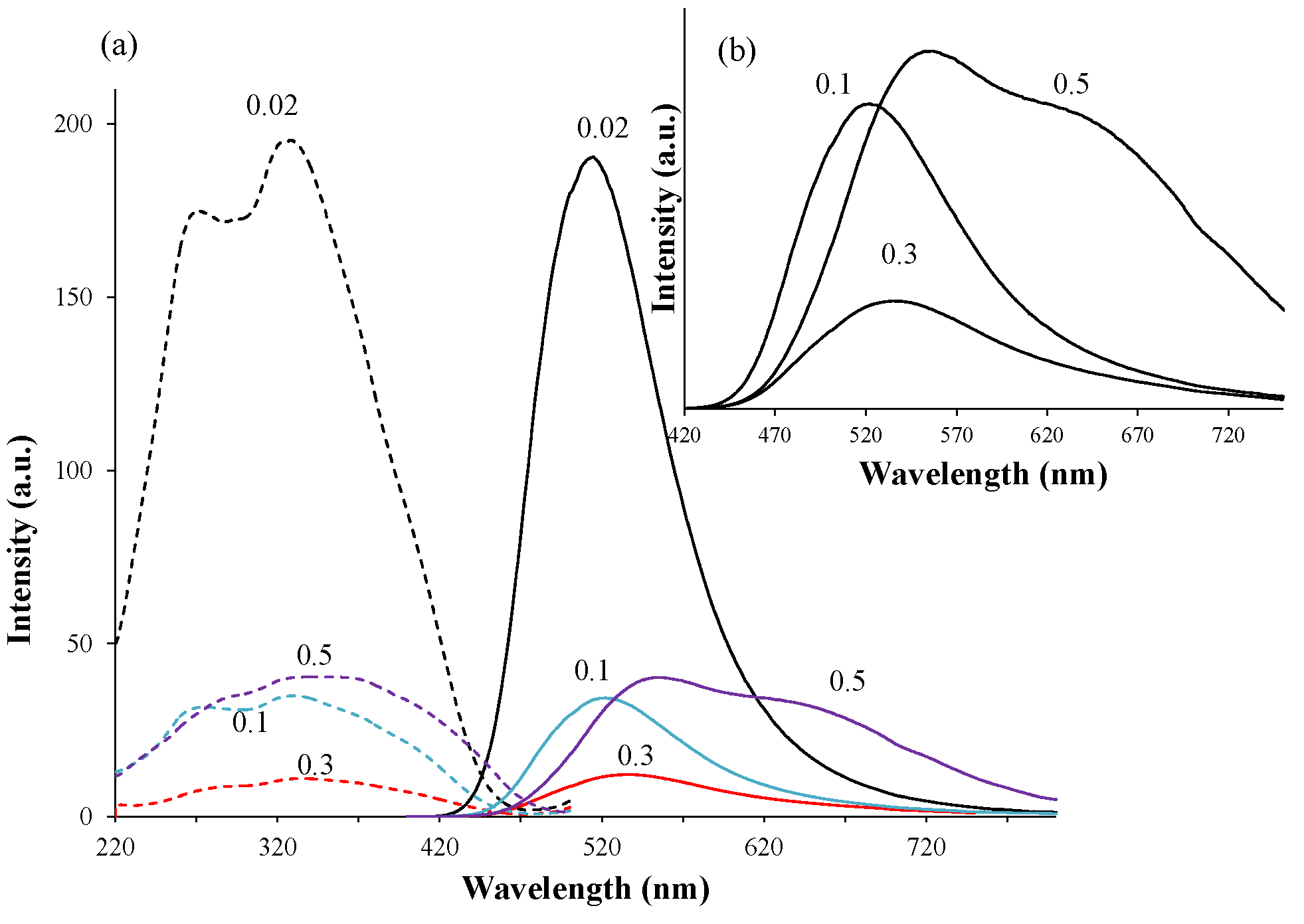

Figure 10. PL properties of (Ca1.97yEu2+y0.03)(Si0.94P0.06)O4 phosphors with (y) = 0.02, 0.1, 0.3, and 0.5. (b) is an enlarged part of the figure in (a).
Figure 10. PL properties of (Ca1.97yEu2+y0.03)(Si0.94P0.06)O4 phosphors with (y) = 0.02, 0.1, 0.3, and 0.5. (b) is an enlarged part of the figure in (a).
Materials 10 01000 g010
Table 1. Emission and excitation wavelengths of (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphors.
Table 1. Emission and excitation wavelengths of (Ca1.95Eu2+0.020.03)(Si0.94P0.06)O4 phosphors.
Annealing Temperature (K)λex (nm)λem (nm)
1373323512
1473324512
1573330509
1673322497
1773319490
