Synthesis and Characterization of WO3/Graphene Nanocomposites for Enhanced Photocatalytic Activities by One-Step In-Situ Hydrothermal Reaction

College of Materials Engineering, Shanghai University of Engineering Science, Shanghai 201620, China
*
Author to whom correspondence should be addressed.
Materials 2018, 11(1), 147; https://doi.org/10.3390/ma11010147
Submission received: 3 December 2017 / Revised: 28 December 2017 / Accepted: 12 January 2018 / Published: 17 January 2018

Abstract

:
Tungsten trioxide (WO3) nanorods are synthesized on the surface of graphene (GR) sheets by using a one-step in-situ hydrothermal method employing sodium tungstate (Na2WO4·2H2O) and graphene oxide (GO) as precursors. The resulting WO3/GR nanocomposites are characterized by X-ray diffraction, Raman spectroscopy, transmission electron microscopy, scanning electron microscopy and X-ray photoelectron spectroscopy. The results confirm that the interface between WO3 nanorod and graphene contains chemical bonds. The enhanced optical absorption properties are measured by UV-vis diffuse reflectance spectra. The photocatalytic activity of the WO3/GR nanocomposites under visible light is evaluated by the photodegradation of methylene blue, where the degradation rate of WO3/GR nanocomposites is shown to be double that of pure WO3. This is attributed to the synergistic effect of graphene and the WO3 nanorod, which greatly enhances the photocatalytic performance of the prepared sample, reduces the recombination of the photogenerated electron-hole pairs and increases the visible light absorption efficiency. Finally, the photocatalytic mechanism of the WO3/GR nanocomposites is presented. The synthesis of the prepared sample is convenient, direct and environmentally friendly. The study reports a highly efficient composite photocatalyst for the degradation of contaminants that can be applied to cleaning up the environment.

Graphical Abstract

1. Introduction

The use of semiconductor materials for the photocatalytic decomposition of organic pollutants in the gas or liquid states has aroused much interest from researchers [1,2,3]. Metal oxides, such as tungsten trioxide (WO3) and titanium dioxide (TiO2), and graphene are the most promising photocatalysts [4,5,6] owing to their high chemical stability, non-toxicity, and low cost.
WO3, with a low band gap, is an important n-type semiconductor [7,8]. It has been widely used in gas sensing [9,10,11], lithium-ion batteries [12,13], smart windows [14] and photocatalysis [15,16]. WO3 exhibits both a high response and a high photocatalytic efficiency upon visible light irradiation [17]. However, pure WO3, as a photocatalyst, is not always beneficial because of the limitation of the electron–hole recombination rate and oxygen storage issues. Therefore, the following methods have previously been presented [18,19,20,21,22,23,24,25]: (1) changing the morphology of WO3 and the particle size; (2) loading a noble metal, doping metal or non-metal in WO3; and (3) combining with semiconductors. Liu et al. [26] prepared heterojunction of WO3/g-C3N4 with well-defined morphology by in-situ liquid phase process, and start materials metal-free g-C3N4 was synthesized by a thermal polycondensation method. The sample was obtained by heating in Ar atmosphere at 400 °C for 3 h. Dinari et al. [27] studied tungsten trioxide/multi-walled carbon nanotube system (MWCNT/WO3) as a novel photocatalyst by solvothermal process. The MWCNT/WO3 hybrid nanostructures exhibited higher photocatalytic activity than pure WO3 or MWCNTs due to their higher absorption enhancement in visible light region. The combination of graphene (GR) and semiconductor nanostructures has attracted great interest.
GR is a carbonaceous material with a two-dimensional honeycomb structure containing sp2 hybridized orbitals [1,28]. GR-based semiconductor photocatalysts for applications in the environment and energy have attracted considerable interest. For the first time, Williams et al. [29] obtained graphene oxide/TiO2 composites by ultrasonically dispersing TiO2 nanoparticles and graphene oxide in ethanol, and proposed the rationality about graphene as an electron transfer medium in grapheme/TiO2 composite photocatalyst. Fan et al. [30] prepared ZnO-graphene composite by hydrothermal reaction route at 200 °C for 12 h. The materials exhibited higher photocatalytic efficiency than P25 and ZnO, which was due to resilience to photocorrosion effects when ZnO hybridized with graphene. The bonding of WO3 and graphene has been reported [31,32,33,34,35]. WO3/GR nanocomposites can be prepared by electrostatic self-assembly [36,37], electrochemical [38], hydrothermal [39] and solvothermal [40] routes. Guo et al. [15] prepared WO3@Graphene composites by using a simple sonochemical method, in which the average particle size of the WO3 was controlled at about 12 nm on the graphene sheets. The materials with optimized structures was twice and 1.8 times as much as that for pure WO3 (ca. 186 µmol·L−1) and mixed-WO3/Graphene (ca. 214 µmol·L−1) when used as photocatalyst for water splitting. Wang et al. [41] synthesized the composites of graphene-WO3 by in situ hydrothermal method using (NH4)5H5·[H2(WO4)6] H2O and GO as precursors. Toward the photocatalytic reduction of CO2 into hydrocarbon fuels under visible-light irradiation, they demonstrated that the graphene can elevate the conduction band of WO3 by X-ray photoelectron spectroscopy (XPS) valence band spectra. Azimirad et al. [42] also prepared three-dimensional graphene foam-WO3 (3D GF-WO3) nanocomposite by chemical vapor deposition (CVD) on a nickel foam skeleton. The 3D GF-WO3 composite material was applied in photocatalytic degradation of Rhodamine B dye which showed an excellent photocatalytic performance than pure WO3 due to faster transferring the photoexcited electrons. Prabhu et al. [43] reported the synthesis of reduced graphene oxide-WO3 (rGO-WO3) nanostructured catalysts by wet chemistry followed by thermal decomposition method. The efficient photocatalytic degradation of MB by the prepared catalysts was achieved due to high adsorption capacity of the rGO-WO3 nanostructures.
Although the above results have meant that WO3/GR nanocomposites have been applied in many fields, it has been confirmed that the gap structure and interfacial charge transfer of semiconducting materials changes owing to the introduction of graphene. This knowledge provides a theoretical basis for the combination of GR and WO3 to obtain an ideal photocatalyst. It has not been specified whether the combination of graphene and tungsten trioxide in the WO3/GR nanocomposites prepared by these methods are chemically or physically bonded. Chemically bonded WO3/GR is of critical importance for determining the properties of the composite materials.
Our general purpose is to obtain WO3/GR nanocomposites by a one-step in-situ hydrothermal synthesis using sodium tungstate and oxidized graphene as precursors. The present study aims to determine the influence of graphene oxide on the microstructure, morphology and photocatalytic activity of the composites. HRTEM-EDS (High-resolution transmission electron microscopy–energy dispersive X-ray spectroscopy) is used to reveal the bonding mechanism of WO3 and graphene. It is confirmed that atomic bonding exists between WO3 and graphene in the WO3/GR nanocomposites. The WO3/GR nanocomposites exhibit an excellent photocatalytic performance.

2. Materials and Methods

2.1. Materials

Sodium tungsten dihydrate (Na2WO4·2H2O), oxalic acid (H2C2O4) and anhydrous sodium sulfate (Na2SO4) were purchased from Sinopharm (Shanghai, China). A graphene oxide (GO) aqueous dispersion (2 mg/mL) was purchased from Nanjing Nano Technology Co., Ltd. (Nanjing, China). The other solvents and the chemicals were of analytical grade and used as received without further purification. Deionized-distilled water (DDW) was prepared and used exclusively in this study.

2.2. Synthesis of WO3/GR Nanocomposites

The WO3/GR nanocomposites were prepared by a one-step in-situ hydrothermal synthesis [44]. A flowchart for the WO3/GR nanocomposites preparation is shown in Scheme 1. Briefly, the stock GO dispersion (2 mg/mL) was pre-sonicated for 10 min and then the relevant GO dispersion (2 mL, 10 mL, and 20 mL) was dispersed in a certain amount of the deionized water, a total solution volume was 40 mL, in which the concentration of GO solution were 0.1 mg/mL, 0.5 mg/mL, and 1 mg/mL, respectively, then sonicated for 0.5 h at room temperature. Na2WO4·2H2O (0.5 g), H2C2O4 (1 g) and Na2SO4 (4 g) were added into the suspension and the resulting solution was stirred for 3 h at room temperature. With vigorous stirring, the pH of the solution was adjusted to 1.5 by adding 3M HCl, and then stirring was continued for 3 h. The solution was transferred to a Teflon-lined stainless-steel autoclave and kept at 180 °C for 24 h. The final mixture was filtered and washed (three times) with deionized water and absolute ethanol by cross-centrifugation. The residual liquid was placed in a dry oven at 60 °C for 5 h. A series of WO3/GR nanocomposites were prepared by varying the GO content. The samples were numbered as WO3/GR-x (x = 0.1, 0.5, and 1), where x represents the concentration of the aqueous solution of GO. Under the same experimental conditions, pure WO3 nanorods were prepared without GO for comparison with the obtained WO3/GR nanocomposites.

2.3. Characterizations of Materials

X-ray diffraction (XRD) was performed using an X’Pert PRO X-ray diffractometer (PANalytical B.V., Eindhoven, ZuidHolland, The Netherlands) with Cu Kα radiation (λ = 1.541 Å) in the 2θ range from 10° to 80° at a scan rate of 2°/min. Transmission electron microscopy (TEM) images of the WO3/GR nanocomposites were recorded using a FEI Titan Themis 200 TEM instrument (FEI, Hillsboro, OR, USA) operated at 200 kV equipped with an energy dispersive X-ray spectroscopy (EDS) detector (X-MaxN TSR, Oxford Instrument, Oxford, UK). Scanning electron microscopy (SEM) was conducted on a JSM-7500F (JEOL, Tokyo, Japan) microscope to examine the WO3/GR nanocomposites.
The chemical interactions and purity of the samples were characterized by Raman spectroscopy on a Raman spectrometer (Horiba Evolution, Paris, France), which was carried out at room temperature with a laser excitation source of 633 nm and a light spot size of 0.5 mm. X-ray photoelectron spectroscopy (XPS) was conducted on AXIS UltraDLD (Kratos, Kyoto, Japan) with an Mg Kα X-ray as the excitation source to determine the chemical information from the surface and interface of the sample. The optical absorption properties of the solid samples were characterized by UV-vis diffuse reflectance spectroscopy (DRS) on a UV-vis spectrophotometer (UV-3600, Shimadzu, Kyoto, Japan) with a sphere attachment and BaSO4 was used as the internal reflectance sample.

2.4. Evaluation of Photocatalytic Activity

The photocatalytic activity experiments on the prepared samples were studied by examining the photodegradation reaction of methylene blue (MB) as an organic pollutant. In a typical reaction, the photocatalyst (20 mg) was added to an MB solution (50 mL, 10 mg·L−1). The solution was magnetically stirred in the dark for 1 h to achieve adsorption equilibrium. The resulting solution was then irradiated directly with a 300 W PLS-SXE 300 xenon lamp (Beijing Perfect Light Technology Co., Ltd., Beijing, China) equipped with a λ < 400 nm cut-off filter. The purpose of the cut-off filter was to remove wavelengths below 400 nm to ensure that only visible light (420–700 nm) was irradiating the sample. The distance between the light source and the sample level is 20 cm, the irradiated surface is 3 cm × 3 cm. A sample (5 mL) of the solution was extracted from the mixture every 15 min and centrifuged to remove solids. The centrifuged liquid was poured into a cuvette and its absorbance was measured by an ultraviolet spectrophotometer (UV-1900, Haida Scientific Co., Ltd., Shanghai, China). The maximum absorbance of MB at the wavelength of 664 nm was selected to analyze the change in concentration as the MB solution was degraded. The photocatalytic activity of the samples under visible light irradiation was determined.

3. Results and Discussion

Figure 1 shows the XRD trace of WO3 and the WO3/GR nanocomposites doped with different amounts of GO. The XRD pattern of WO3 was composed of three strong lines and broad half peaks at the diffraction angles of 13.9°, 28.2° and 37.1°, which corresponded to the (100), (200) and (201) planes, respectively. This was consistent with the standard XRD pattern of hexagonal WO3. Hence, the sample contained hexagonal phase WO3. The sharpness of the main peaks indicated that the synthesized WO3 had a good degree of crystallinity.
The XRD patterns of the WO3/GR composites did not exhibit any special features compared with the XRD patterns of WO3. According to the literature [45,46,47], the characteristic peaks of graphene at 26° and 42° overlap with the WO3 peaks for the (101) and (300) planes. Typically, the characteristic peak of GO is at 11°. The absence of this peak confirmed that the GO had been reduced to graphene. As was mentioned above, it was again confirmed that hexagonal WO3 was successfully grown on graphene according to the XRD patterns. The presence of graphene could be further demonstrated by Raman measurements.
A selected region of the Raman spectra of GO is shown in Figure 2a. GO showed two peaks at approximately 1336 cm−1 and 1609 cm−1, the D-band and G-band, respectively, which was consistent with the results in the literature [48,49,50]. The G-band peak at around 1609 cm−1 is characteristic of a graphitic sheet corresponding to a well-defined sp2 carbon-type structure, which can be attributed to the doubly degenerate zone center E2g mode [51], whereas the D-band at approximately 1336 cm−1 can be attributed to the presence of defects or edges within the hexagonal graphite structure.
Raman spectroscopy further characterized the molecular structure of the WO3/GR nanocomposites, as shown in Figure 2b. Peaks at 248 cm−1, 327 cm−1, 761 cm−1, 813 cm−1 and 928 cm−1 were observed in the Raman spectra of pure WO3 and the WO3/GR-0.1 nanocomposite. Among them, the peaks centered at 248 cm−1 and 327 cm−1 were attributed to the O–W–O bending mode (δ (O–W–O)), while those at 668 cm−1, 761 cm−1 and 813 cm−1 were attributed to the stretching vibration of tungsten atoms and adjacent oxygen atoms (ν (O–W–O)). The peak at 928 cm−1 arose from the symmetric stretching mode of the terminal W=O bond [υs (W=O)], which was consistent with the literature [15,31,32,33,34]. Compared with pure WO3, the peak intensity of the WO3 in the WO3/GR-0.1 nanocomposite was significantly weakened and broadened owing to the strong bonds between WO3 and graphene rather than the physical bonding (which weakens the internal W–O bond) as discussed by O. Akhavan et al. [52]. Two characteristic peaks at 1331 cm−1 and 1592 cm−1 were observed in the Raman spectrum of the WO3/GR-0.1 nanocomposite. The existence of graphene in the composites was confirmed. The characteristic peak of graphene tended to migrate slightly to a lower frequency. The intensity ratio ID/IG between the band-D and band-G can be used to determine the extent of graphene material defects [15]. This value was calculated to be 1.27 in GO and 1.05 in the WO3/GR nanocomposites. The results indicated the absence of defects in the composites and many oxygen-containing functional groups were reduced during the hydrothermal process.
Figure 3a,b illustrates the microstructure of the WO3 nanorod. In the microstructures of the WO3/GR nanocomposites, WO3 nanorods were shown to be distributed on the surface of graphene at low magnification (Figure 3c,e,g) and high magnification (Figure 3d,f,h). A reunion phenomenon was observed for the WO3/GR-0.1 nanocomposite. At a high magnification, the graphene nanosheets were shown to have rough surfaces and curled edges. Similarly, agglomeration was still observed in the WO3/GR-0.5 nanocomposite. However, the amount of WO3 agglomeration significantly decreased with discoid WO3 at a higher magnification. The agglomeration of the WO3/GR-0.5 nanocomposite was not observed in the WO3/GR-1 nanocomposite. In the SEM images in Figure 3, the graphene was composed of a multi-GR sheets folded structure. It was concluded that the agglomeration of WO3 nanorods decreased with the increase of GO content. Therefore, the introduction of the appropriate amount of graphene can easily disperse the graphene sheets and inhibit the agglomeration of the WO3 nanorods, which increased the specific surface area and the active sites of the photocatalytic process and further improved the photocatalytic activity. An amount of WO3 nanorods was found to grow on the surface of graphene. This was further proven by the bright-field TEM images (Figure 4a) of the WO3/GR-0.1 nanocomposite, EDS curve (Figure 4b) through the WO3 nanorods and the EDS element mapping images of C, O and W (Figure 4d–f) in the selected area. As shown in the typical bright-field TEM image of the WO3/GR-0.1 nanocomposite (Figure 4c), the WO3 nanorods were fixed to the flocculated graphene. It was found that chemical bonds were formed between WO3 and the graphene sheets.
As a powerful surface analysis technique, XPS is often used to determine the surface elemental composition, valence states and molecular structure of as-prepared samples. Figure 5 shows the XPS results of pure WO3 and the WO3/GR-0.1 nanocomposite. The elements of C, O and W could be easily identified through the characteristic peaks of C1s, O1s and W4f. The survey spectra of pure WO3 (Figure 5a) and the WO3/GR-0.1 nanocomposite (Figure 5d) exhibited similar peak shapes; therefore, the sample needed narrower scanning. The high-resolution W4f spectrum for pure WO3 could be deconvoluted into two peaks at 35.0 eV and 37.1 eV, which were assigned to the W4f7/2 and W4f5/2 spin orbital splitting photoelectrons of the W6+ chemical state. O1s can be decomposed into two separate binding energies at 529.5 eV and 531.1 eV, corresponding to the surface lattice oxygen (Olatt) and surface adsorbed oxygen (Oads) [53], respectively (Figure 5b,c). In the WO3/GR-0.1 nanocomposites, the high-resolution spectrum of W4f are located at the binding energies of 36.4 eV and 38.4 eV, corresponding to the W4f7/2 and W4f5/2 peaks of the WO3 phase in the composite, respectively. Peak area ratio of these two peaks is obtained 0.75, which is in line with the 4f level theory of spin orbit splitting; its O1s XPS spectra can be deconvoluted into binding energy at 531 eV and 532.8 eV peaks, corresponding to the W–O bond and C–OH bond. In conclusion, the deconvolution signal of the binding energies of O1s and W4f in WO3/GR-0.1 composites is more intense and migrates to higher binding energy than pure WO3, it is probably due to the internal C, O and W elements of the interaction between the graphene and WO3, which is consistent with the results of Raman analysis. Figure 4 and Figure 5g is a high-resolution C1s spectrum of WO3/GR-0.1 nanocomposite; the three peaks are located at 284.6 eV, 286.3 eV and 287.9 eV binding energies, attributed to C–C, C–OH, C=O and C–O–C bonds, respectively.
The representative TEM-EDS of rGO, WO3 and the WO3/GR-0.1 nanocomposite, and the corresponding HRTEM (High-resolution transmission electron microscopy) images are shown in Figure 6. As shown in Figure 6a, rGO is a two-dimensional nanosheet with several crinkles. The d-spacing of the lattice plane (002)GR was approximately 0.33 nm. The typical bright-field TEM images (Figure 6b) demonstrated that WO3 presented as irregular nanorods. The irregular WO3 nanorods were assembled by radial multi-rods, among which the interstitial space could be observed if the content of WO3 was sufficiently large. The d-spacing of the lattice plane (001)WO3 was approximately 0.39 nm, which was in accordance with the (001)-spacing of h-WO3 crystals. The TEM image of WO3/GR nanocomposites is shown in Figure 6c, from which a hybrid nanoarchitecture with WO3 nanorods on the surface of graphene could be observed. The nanocomposites exhibited a clear interface between the WO3 nanorods and graphene nanosheets.
Figure 7 reveals the morphology of the WO3 nanorod and the WO3/GR nanocomposites. As shown in Figure 7a, it was clear that the characteristic WO3 nanorods were successfully synthesized through a one-step in-situ hydrothermal reaction. Taking the WO3/GR-0.1 nanocomposite as an example, a one-dimensional WO3 nanorod was spread on the surface of the two-dimensional graphene nanosheet. The HRTEM images of regions B and C (Figure 7b,c) show the interfaces of the WO3 nanorod and graphene nanosheet. The results indicated that an intimate interfacial contact between them was readily synthesized by such a simple hydrothermal reaction approach. The d-spacing of the lattice plane (001) near the interface in Figure 7b became smaller as the interface was approached. Some stacking faults and dislocations were also observed at the interface. The HRTEM image of region C (Figure 7c) shows the different lattice structures around the interface between WO3 and graphene. The d-spacing of these lattice planes was in the range of 2.13 Å to 2.26 Å. Figure 7d shows the standard lattice plane (001). The result means that the lattice structure inside WO3 was not affected by the graphene or the interfacial energy.
Figure 8 shows the UV-vis diffuse reflectance electronic spectra of pure WO3, the WO3/GR nanocomposites with different contents of GO and the effect of hv on the corresponding (αhv)1/2 for the as-prepared samples. Compared with the pure WO3 nanorods, the WO3/GR nanocomposites showed a stronger photoabsorbance in the visible region from λ = 400 to 800 nm. This arose from the introduction of graphene. The solar light harvesting could be ascribed to the formation of W–O–C bonds between the WO3 and graphene [54]. In addition, the absorption edges were at 440 nm, 420 nm, 400 nm, and 255 nm for the pure WO3 nanorods, and the WO3/GR-0.1, WO3/GR-0.5, and WO3/GR-1 nanocomposites, respectively. It was clear that the absorption edge shifted to shorter wavelength for the WO3/GR nanocomposites with the increase of GO content. According to the following formula for the semiconductor band gap, the band gap of the sample can be calculated:
( α h v K ) 1 / 2 =   h v Eg
where K = b × c, b is the thickness of the cuvette or film sample, and c is the concentration. K has no effect on Eg, α is the absorbance, hv is the energy of the exciton, and Eg is the band gap energy. Therefore, the band gap energies were 2.60, 2.25, 1.65 and 1.17 for pure WO3, and the WO3/GR-0.1, WO3/GR-0.5, and WO3/GR-1 nanocomposites, respectively.
As shown in Figure 9, the initial concentration of MB exhibited almost no changes in the catalyst-free and pure WO3 solutions, whereas a decrease in the solution containing WO3/GR nanocomposites arose from the introduction of graphene. Part of the dye molecule adsorbed onto the surface of the WO3/GR nanocomposites, which resulted in a decrease of the MB concentration after the adsorption equilibrium. This was also beneficial for enhancing the photocatalytic performance of the WO3/GR nanocomposites.
Figure 10 displays the curve of the normalized concentration (C/C0) of MB versus time under visible light, where C0 is the initial concentration of MB in solution, and C is the concentration of MB remaining in the solution at each illumination interval. After 70 min of illumination, the normalized concentrations of MB in solution were 92%, 59%, 46%, 26% and 17%, respectively, for the catalyst-free, pure WO3, and the WO3/G-0.1, WO3/G-0.5 and WO3/G-1 nanocomposites. Therefore, the WO3/GR composites exhibited a higher photocatalytic efficiency than pure WO3. With the increase of graphene oxide content, the photocatalytic efficiency of WO3/GR was also increased, which arose from the introduction of graphene. The introduction of graphene increased the optical absorption efficiency of the composite materials, which was consistent with the DRS results, and inhibited the recombination rate of photogenerated electron–hole pairs, which thus improved the photocatalytic efficiency. The maximum degradation rate was achieved by WO3/G-1 (83%), which was double that of pure WO3 (41%).
As mentioned above, some WO3-based and graphene-based composites had been prepared for the degradation of organic pollutants [26,27,42,43,55]. As shown in Table 1, their photocatalytic efficiency is usually 65–95% within 56–150 min. Compared with the previously reported composites used in the field of photocatalytic degradation of pollutants, WO3/GR prepared in this work shows a high photocatalytic efficiency within short time, which can be easily found in Table 1. In addition, the method of the composite is also simpler and more feasible.
Figure 11 illustrates the mechanism of the photocatalytic degradation of MB by the WO3/GR nanocomposites under visible light irradiation. In the solar spectrum, the energy distribution in the ultraviolet spectrum almost disappears (UV light below 0.29 m is almost all absorbed), and only approximately 3% remains. The infrared spectrum occupies 53%, while the visible spectrum accounts for 44%, which is nearly half of the solar energy. Under visible light irradiation, hv (vis) ≥ Eg. The electron in WO3 acquires enough energy to generate electron–hole pairs; consequently, the WO3 electron in the valence band is transferred into the conduction band of graphene. These electron–hole pairs undergo reduction-oxidation reactions, where the valence band hole is a good oxidant and the electron in the conduction band is a good reductant. Owing to the high carrier mobility of graphene (20,000 cm2 V−1 s−1) and its 2D conjugated structure, the introduction of graphene behaves as an electron acceptor. Therefore, the efficiency of the electronic separation is enhanced. The rate of recombination of the photogenerated electron–hole pairs is inhibited. This results in an improvement of the photocatalytic efficiency for the WO3/GR nanocomposites. The process can be written as:
WO 3 / graphene +   h v ( Vis irradiated ) e + WO 3 ( h + )
O 2 ( absorbate ) + e O 2
O 2 ( absorbate ) + 2 H 2 O + e H 2 O 2 + 2 OH
H 2 O 2 + e OH + OH *
WO 3 ( h + ) + OH WO 3 + OH *
WO 3 ( h + ) + H 2 O WO 3 + H + + OH *
OH * + MB CO 2 + H 2 O
O 2 + MB CO 2 + H 2 O

4. Conclusions

WO3/GR nanocomposites, which are visible light photocatalysts, were successfully synthesized by a one-step in-situ hydrothermal method. This method could directly reduce GO to graphene without any reductant, and this was accompanied by the attachment to WO3. The formation of WO3/GR composites was confirmed by SEM, TEM, EDS, Raman and XPS. The presence of graphene in the composites promoted the electron transfer and optical absorption properties. The results showed that the WO3/GR composites exhibited an enhanced photocatalysis efficiency in visible light, which was double that of pure WO3. In addition, the synthesis method of the graphene-based composite material can be extended to other functional material synthesis fields to realize promising applications in photocatalysis.

Acknowledgments

The research was financially supported by the National Natural Science Foundation of China (51475282). We thank Liwen Bianji, Edanz Group China (www.liwenbianji.cn/ac), for editing the English text of a draft of this manuscript.

Author Contributions

Peiquan Xu, Xiaoxiao Hu and Hongying Gong conceived and designed the experiments; Xiaoxiao Hu performed the experiments; Xiaoxiao Hu and Guotao Yin analyzed the data; Peiquan Xu and Xiaoxiao Hu wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xiang, Q.; Yu, J.; Jaroniec, M. Graphene-based semiconductor photocatalysts. Chem. Soc. Rev. 2012, 41, 782–796. [Google Scholar] [CrossRef] [PubMed]
  2. Lightcap, I.V.; Kosel, T.H.; Kamat, P.V. Anchoring semiconductor and metal nanoparticles on a two-dimensional catalyst mat. storing and shuttling electrons with reduced graphene oxide. Nano Lett. 2010, 10, 577–583. [Google Scholar] [CrossRef] [PubMed]
  3. Song, B.; Wang, T.T.; Sun, H.G.; Shao, Q.; Zhao, J.; Song, K.; Hao, L.; Wang, L.; Guo, Z. Two-step hydrothermally synthesized carbon nanodots/WO3 photocatalysts with enhanced photocatalytic performance. Dalton Trans. 2017, 46, 15769–15777. [Google Scholar] [CrossRef] [PubMed]
  4. Sun, M.; Fang, Y.; Wang, Y.; Sun, S.; He, J.; Yan, Z. Synthesis of Cu2O/graphene/rutile TiO2 nanorod ternary composites with enhanced photocatalytic activity. J. Alloys Compd. 2015, 650, 520–527. [Google Scholar] [CrossRef]
  5. Arutanti, O.; Nandiyanto, A.B.D.; Ogi, T.; Iskandar, F.; Kim, T.O.; Okuyama, K. Synthesis of composite WO3/TiO2 nanoparticles by flame-assisted spray pyrolysis and their photocatalytic activity. J. Alloys Compd. 2014, 591, 121–126. [Google Scholar] [CrossRef]
  6. Ramos-Delgado, N.A.; Hinojosa-Reyes, L.; Guzman-Mar, I.L.; Gracia-Pinilla, M.A.; Hernández-Ramírez, A. Synthesis by sol-gel of WO3/TiO2 for solar photocatalytic degradation of Malathion pesticide. Catal. Today 2013, 209, 35–40. [Google Scholar] [CrossRef]
  7. Huang, K.; Pan, Q.; Yang, F.; Ni, S.; Wei, X.; He, D. Controllable synthesis of hexagonal WO3 nanostructures and their application in lithium batteries. J. Phys. D Appl. Phys. 2008, 41, 155417. [Google Scholar] [CrossRef]
  8. Gui, Y.; Zhao, J.; Wang, H.; Tian, J.; Zhang, H. Microwave-assisted gas–liquid interfacial synthesis of WO3 precursor and nano-WO3 for gas-sensing application. J. Mater. Sci. Mater. Electron. 2016, 155, 4–7. [Google Scholar] [CrossRef]
  9. Shi, J.; Cheng, Z.; Gao, L.; Zhang, Y.; Xu, J.; Zhao, H. Facile synthesis of reduced graphene oxide/hexagonal WO3 nanosheets composites with enhanced H2S sensing properties. Sens. Actuators B Chem. 2016, 230, 736–745. [Google Scholar] [CrossRef]
  10. An, X.; Yu, J.C.; Wang, Y.; Hu, Y.; Yu, X.; Zhang, G. WO3 nanorods/graphene nanocomposites for high-efficiency visible-light-driven photocatalysis and NO2 gas sensing. J. Mater. Chem. 2012, 22, 8525–8531. [Google Scholar] [CrossRef]
  11. Chu, X.; Hu, T.; Gao, F.; Dong, Y.; Sun, W.; Bai, L. Gas sensing properties of graphene-WO3 composites prepared by hydrothermal method. Mater. Sci. Eng. B Solid-State Mater. Adv. Technol. 2015, 193, 97–104. [Google Scholar] [CrossRef]
  12. Gu, X.; Wu, F.; Lei, B.; Wang, J.; Chen, Z.; Xie, K.; Song, Y.; Sun, D.; Sun, L.; Zhou, H.; et al. Three-dimensional nitrogen-doped graphene frameworks anchored with bamboo-like tungsten oxide nanorods as high performance anode materials for lithium ion batteries. J. Power Sources 2016, 320, 231–238. [Google Scholar] [CrossRef]
  13. Yu, M.; Sun, H.; Sun, X.; Lu, F.; Hu, T.; Wang, G.; Qiu, H.; Lian, J. 3D WO3 nanowires/graphene nanocomposite with improved reversible capacity and cyclic stability for lithium ion batteries. Mater. Lett. 2013, 108, 29–32. [Google Scholar] [CrossRef]
  14. Ma, Y.; Zhao, M.; Cai, B.; Wang, W.; Ye, Z.; Huang, J. 3D graphene network@WO3 nanowire composites: A multifunctional colorimetric and electrochemical biosensing platform. Chem. Commun. 2014, 50, 11135–11138. [Google Scholar] [CrossRef] [PubMed]
  15. Guo, J.; Li, Y.; Zhu, S.; Chen, Z.; Liu, Q.; Zhang, D.; Moon, W.J.; Song, D.M. Synthesis of WO3@Graphene composite for enhanced photocatalytic oxygen evolution from water. RSC Adv. 2012, 2, 1356–1363. [Google Scholar] [CrossRef]
  16. Zhang, X.; Lu, X.; Shen, Y.; Han, J.; Yuan, L.; Gong, L.; Xu, Z.; Bai, X.; Wei, M.; Tong, Y.; et al. Three-dimensional WO3 nanostructures on carbon paper: Photoelectrochemical property and visible light driven photocatalysis. Chem. Commun. 2011, 47, 5804–5806. [Google Scholar] [CrossRef] [PubMed]
  17. Vamvasakis, I.; Georgaki, I.; Vernardou, D.; Kenanakis, G.; Katsarakis, N. Synthesis of WO3 catalytic powders: Evaluation of photocatalytic activity under NUV/visible light irradiation and alkaline reaction pH. J. Sol-Gel Sci. Technol. 2015, 76, 120–128. [Google Scholar] [CrossRef]
  18. Dong, P.; Yang, B.; Liu, C.; Xu, F.; Xi, X.; Hou, G.; Shao, R. Highly enhanced photocatalytic activity of WO3 thin films loaded with Pt-Ag bimetallic alloy nanoparticles. RSC Adv. 2017, 7, 947–956. [Google Scholar] [CrossRef]
  19. Nayak, A.K.; Das, A.K.; Pradhan, D. High Performance Solid-State Asymmetric Supercapacitor using Green Synthesized Graphene-WO3 Nanowires Nanocomposite. ACS Sustain. Chem. Eng. 2017, 5, 10128–10138. [Google Scholar] [CrossRef]
  20. Ma, B.; Huang, E.; Wu, G.; Dai, W.; Guan, N.; Li, L. Fabrication of WO2.72/RGO nano-composites for enhanced photocatalysis. RSC Adv. 2017, 7, 2606–2614. [Google Scholar] [CrossRef]
  21. Geng, X.; You, J.; Wang, J.; Zhang, C. Visible light assisted nitrogen dioxide sensing using tungsten oxide-Graphene oxide nanocomposite sensors. Mater. Chem. Phys. 2017, 191, 114–120. [Google Scholar] [CrossRef]
  22. Thiyagarajan, K.; Muralidharan, M.; Sivakumar, K. Defects Induced Magnetism in WO3 and Reduced Graphene Oxide-WO3 Nanocomposites. J. Supercond. Novel Magn. 2018, 31, 117–125. [Google Scholar] [CrossRef]
  23. Wong, C.P.P.; Lee, K.M.; Lal, C.W. Hydrothermal preparation of reduced graphene oxide/tungsten trioxide nanocomposites with enhanced electrochemical performance. J. Mater. Sci. Mater. Electron. 2017, 28, 14554–14567. [Google Scholar] [CrossRef]
  24. Khan, M.E.; Khan, M.M.; Cho, M.H. Fabrication of WO3 nanorods on graphene nanosheets for improved visible light-induced photocapacitive and photocatalytic performance. RSC Adv. 2016, 6, 20824–20833. [Google Scholar] [CrossRef]
  25. Won, J.M.; Son, M.Y.; Seo, J.H.; Kang, Y.C. Electrochemical properties of WO3-reduced graphene oxide composite powders prepared by one-pot spray pyrolysis process. J. Alloys Compd. 2016, 688, 647–653. [Google Scholar] [CrossRef]
  26. Liu, X.; Jin, A.; Jia, Y.; Xia, T.; Deng, C.; Zhu, M.; Chen, C.; Chen, X. Synergy of adsorption and visible-light photocatalytic degradation of methylene blue by a bifunctional Z-scheme heterojunction of WO3/g-C3N4. Appl. Surface Sci. 2017, 405, 359–371. [Google Scholar] [CrossRef]
  27. Dinari, M.; Momeni, M.M.; Ahangarpour, M. Efficient degradation of methylene blue dye over tungsten trioxide/multi-walled carbon nanotube system as a novel photocatalyst. Appl. Phys. A 2016, 122, 876. [Google Scholar] [CrossRef]
  28. Geim, A.K.; Novoselov, K.S. The rise of graphene. Nat. Mater. 2007, 6, 183–191. [Google Scholar] [CrossRef] [PubMed]
  29. Williams, G.; Seger, B.; Kamat, P.V. TiO2-graphene nanocomposites. UV-assisted photocatalytic reduction of graphene oxide. ACS Nano 2008, 2, 1487–1491. [Google Scholar] [CrossRef] [PubMed]
  30. Fan, H.; Zhao, X.; Yang, J.; Shan, X.; Yang, L.; Zhang, Y.; Li, X.; Gao, M. ZnO-graphene composite for photocatalytic degradation of methylene blue dye. Catal. Commun. 2012, 29, 29–34. [Google Scholar] [CrossRef]
  31. Jie, X.; Zeng, D.; Zhang, J.; Xu, K.; Wu, J.; Zhu, B.; Xie, C. Graphene-wrapped WO3 nanospheres with room-temperature NO2 sensing induced by interface charge transfer. Sens. Actuators B Chem. 2015, 220, 201–209. [Google Scholar] [CrossRef]
  32. Wu, H.; Xu, M.; Da, P.; Li, W.; Jia, D.; Zheng, G. WO3-reduced graphene oxide composites with enhanced charge transfer for photoelectrochemical conversion. Phys. Chem. Chem. Phys. 2013, 15, 16138–16142. [Google Scholar] [CrossRef] [PubMed]
  33. Choi, S.; Demadrille, F.R.; Grévin, B.; Jang, B.-H.; Lee, S.J.; Lee, J.H.; Tuller, H.L.; Kim, I. Fast Responding Exhaled-Breath Sensors Using WO3 Hemitubes Functionalized by Graphene-Based Electronic Sensitizers for Diagnosis of Diseases. ACS Appl. Mater. Interfaces 2014, 6, 9061–9070. [Google Scholar] [CrossRef] [PubMed]
  34. Li, W.; Da, P.; Zhang, Y.; Wang, Y.; Lin, X.; Gong, X.; Zheng, G. WO3 Nanoflakes for Enhanced Photoelectrochemical Conversion. ACS Nano 2014, 8, 11770–11777. [Google Scholar] [CrossRef] [PubMed]
  35. Fu, C.; Foo, C.; Lee, P.S. One-step facile electrochemical preparation of WO3/graphene nanocomposites with improved electrochromic properties. Electrochim. Acta 2014, 117, 139–144. [Google Scholar] [CrossRef]
  36. Kovtyukhova, N.I.; Ollivier, P.J.; Martin, B.R.; Mallouk, T.E.; Buzaneva, S.A.C.E.V.; Gorchinskiy, A.D. Layer-by-layer assembly of ultrathin composite films from micron-sized graphite oxide sheets and polycations. Chem. Mater. 1999, 11, 771–778. [Google Scholar] [CrossRef]
  37. Weng, B.; Wu, J.; Zhang, N.; Xu, Y. Observing the role of graphene in boosting the two-electron reduction of oxygen in graphene-WO3 nanorod photocatalysts. Langmuir 2014, 30, 5574–5584. [Google Scholar] [CrossRef] [PubMed]
  38. Zhao, Y.; Wei, X.; Wang, Y.; Luo, F. One-pot twelve tungsten phosphate acid assisted electrochemical synthesis of WO3-decorated graphene sheets for high-efficiency UV-light-driven photocatalysis. Chem. Phys. Lett. 2014, 607, 34–38. [Google Scholar] [CrossRef]
  39. Zhou, M.; Yan, J.; Cui, P. Synthesis and enhanced photocatalytic performance of WO3 nanorods@graphene nanocomposites. Mater. Lett. 2012, 89, 258–261. [Google Scholar] [CrossRef]
  40. Gui, Y.; Yuan, J.; Wang, W.; Zhao, J.; Tian, J.; Xie, B. Facile solvothermal synthesis and gas sensitivity of graphene/WO3 nanocomposites. Materials 2014, 7, 4587–4600. [Google Scholar] [CrossRef] [PubMed]
  41. Wang, P.; Bai, Y.; Luo, P.; Liu, J. Graphene-WO3 nanobelt composite: Elevated conduction band toward photocatalytic reduction of CO2 into hydrocarbon fuels. Catal. Commun. 2013, 38, 82–85. [Google Scholar] [CrossRef]
  42. Azimirad, R.; Safa, S. Preparation of three dimensional graphene foam WO3 nanocomposite with enhanced visible light photocatalytic activity. Mater. Chem. Phys. 2015, 162, 686–691. [Google Scholar] [CrossRef]
  43. Prabhu, S.; Manikumar, S.; Cindrella, L.; Kwon, O.J. Charge transfer and intrinsic electronic properties of rGO-WO3 nanostructures for efficient photoelectrochemical and photocatalytic applications. Mater. Sci. Semicond. Process. 2018, 74, 136–146. [Google Scholar] [CrossRef]
  44. Ahmed, B.; Ojha, A.K.; Hirsch, F.; Fischer, I.; Patrice, D.; Materny, A. Tailoring of enhanced interfacial polarization in WO3 nanorods grown over reduced graphene oxide synthesized by a one-step hydrothermal method. RSC Adv. 2017, 7, 985–996. [Google Scholar] [CrossRef]
  45. Bissessur, R.; Liu, P.K.Y.; Scully, S.F. Intercalation of polypyrrole into graphite oxide. Synth. Met. 2006, 156, 1023–1027. [Google Scholar] [CrossRef]
  46. Shang, S.; Gan, L.; Yuen, C.W.M.; Jiang, S.; Luo, N.M. The synthesis of graphene nanoribbon and its reinforcing effect on poly (vinyl alcohol). Compos. Part A 2015, 68, 149–154. [Google Scholar] [CrossRef]
  47. Cao, N.; Zhang, Y. Study of reduced graphene oxide preparation by hummers method and related characterization. J. Nanomater. 2015, 2015, 1–5. [Google Scholar] [CrossRef]
  48. Zeng, F.; Ren, Y.; Chen, L.; Yang, Y.; Li, Q.; Gu, G. Hierarchical sandwich-type tungsten trioxide nanoplatelets/graphene anode for high-performance lithium-ion batteries with long cycle life. Electrochim. Acta 2016, 190, 964–971. [Google Scholar] [CrossRef]
  49. Ferrari, A.C.; Meyer, J.C.; Scardaci, V.; Casiraghi, C.; Lazzeri, M.; Mauri, F.; Piscanec, S.; Jiang, D.; Novoselov, K.S.; Roth, S.; et al. Raman spectrum of graphene and graphene layers. Phys. Rev. Lett. 2006, 97, 187401. [Google Scholar] [CrossRef] [PubMed]
  50. Park, S.K.; Lee, H.J.; Lee, M.H.; Park, H.S. Hierarchically structured reduced graphene oxide/WO3 frameworks for an application into lithium ion battery anodes. Chem. Eng. J. 2015, 281, 724–729. [Google Scholar] [CrossRef]
  51. Tuninstra, F.; Koenic, J.L. Raman Spectrum of Graphite. J. Chem. Phys. 1970, 53, 1126–1130. [Google Scholar] [CrossRef]
  52. Akhavan, O.; Choobtashani, M.; Ghaderi, E. Protein Degradation and RNA Efflux of Viruses Photocatalyzed by Graphene-Tungsten Oxide Composite under Visible Light Irradiation. J. Phys. Chem. C 2012, 116, 9653–9659. [Google Scholar] [CrossRef]
  53. Zhang, S.; Li, H.; Yang, Z. Controllable synthesis of WO3 with different crystalline phases and its applications on methylene blue removal from aqueous solution. J. Alloys Compd. 2017, 722, 555–563. [Google Scholar] [CrossRef]
  54. Umukoro, E.H.; Peleyeju, M.G.; Ngila, J.C.; Arotiba, O.A. Towards wastewater treatment: Photo-assisted electrochemical degradation of 2-nitrophenol and orangeII dye at a tungsten trioxide-exfoliated graphite composite electrode. Chem. Eng. J. 2017, 317, 290–301. [Google Scholar] [CrossRef]
  55. Sun, M.; Li, W.; Sun, S.; He, J.; Zhang, Q.; Shi, Y. One-step in situ synthesis of grapheme-TiO2 nanorod hybrid composites with enhanced photocatalytic activity. Mater. Res. Bull. 2015, 61, 280–286. [Google Scholar] [CrossRef]

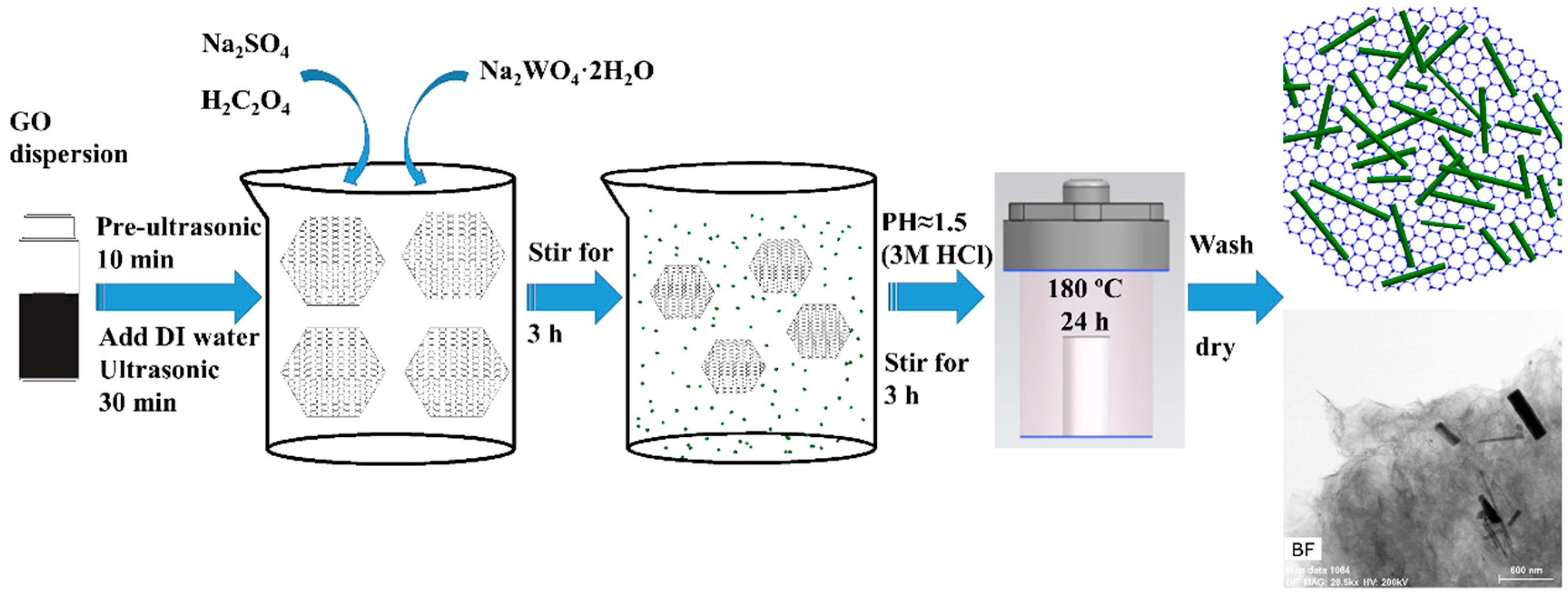

Scheme 1. Flowchart for the preparation of WO3/GR (graphene) nanocomposites.
Scheme 1. Flowchart for the preparation of WO3/GR (graphene) nanocomposites.
Materials 11 00147 sch001

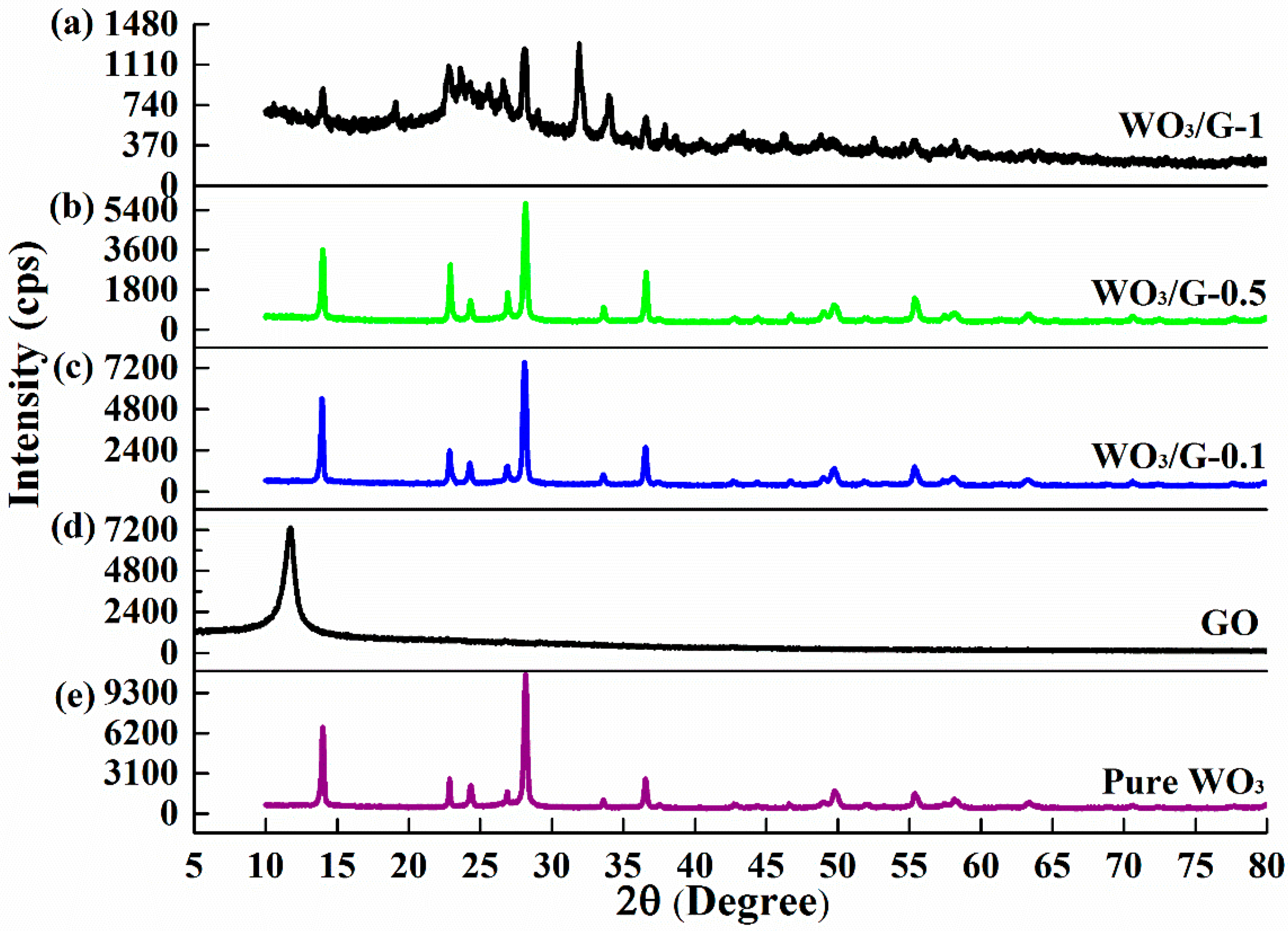

Figure 1. XRD patterns of pure WO3 and WO3/GR nanocomposites with different contents of GO. (a) WO3/G-1; (b) WO3/G-0.5; (c) WO3/G-0.1; (d) GO; (e) Pure WO3.
Figure 1. XRD patterns of pure WO3 and WO3/GR nanocomposites with different contents of GO. (a) WO3/G-1; (b) WO3/G-0.5; (c) WO3/G-0.1; (d) GO; (e) Pure WO3.
Materials 11 00147 g001

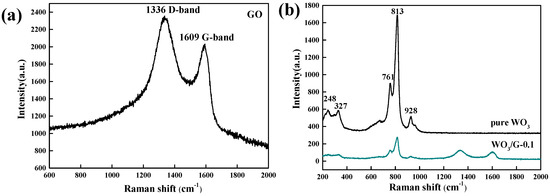

Figure 2. Raman spectra of: (a) GO; and (b) pure WO3 and WO3/GR-0.1 nanocomposite.
Figure 2. Raman spectra of: (a) GO; and (b) pure WO3 and WO3/GR-0.1 nanocomposite.
Materials 11 00147 g002
Figure 3. SEM images of: (a,b) WO3; (c,d) WO3/GR-0.1; (e,f) WO3/GR-0.5; and (g,h) WO3/GR-1.
Figure 3. SEM images of: (a,b) WO3; (c,d) WO3/GR-0.1; (e,f) WO3/GR-0.5; and (g,h) WO3/GR-1.
Materials 11 00147 g003

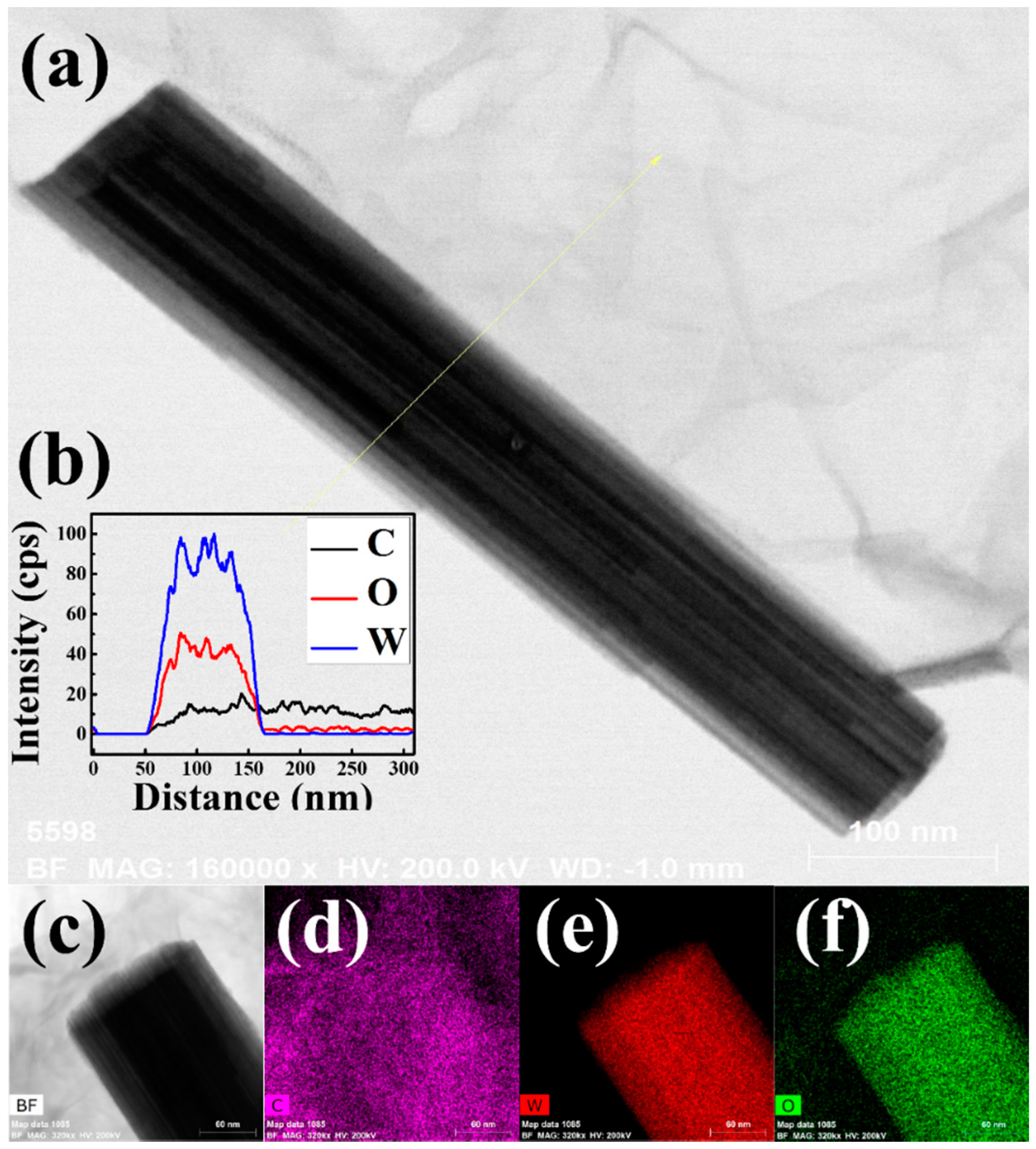

Figure 4. (a) Bright-field TEM images of WO3/GR-0.1 (the yellow area indicates the line-diffusion analysis position); and (b) EDS curves showing C, O and W elements in the direction of the arrow indicated in (a); (c) Bright-field TEM image of a select area; and (df) EDS element mapping images of C, O and W.
Figure 4. (a) Bright-field TEM images of WO3/GR-0.1 (the yellow area indicates the line-diffusion analysis position); and (b) EDS curves showing C, O and W elements in the direction of the arrow indicated in (a); (c) Bright-field TEM image of a select area; and (df) EDS element mapping images of C, O and W.
Materials 11 00147 g004

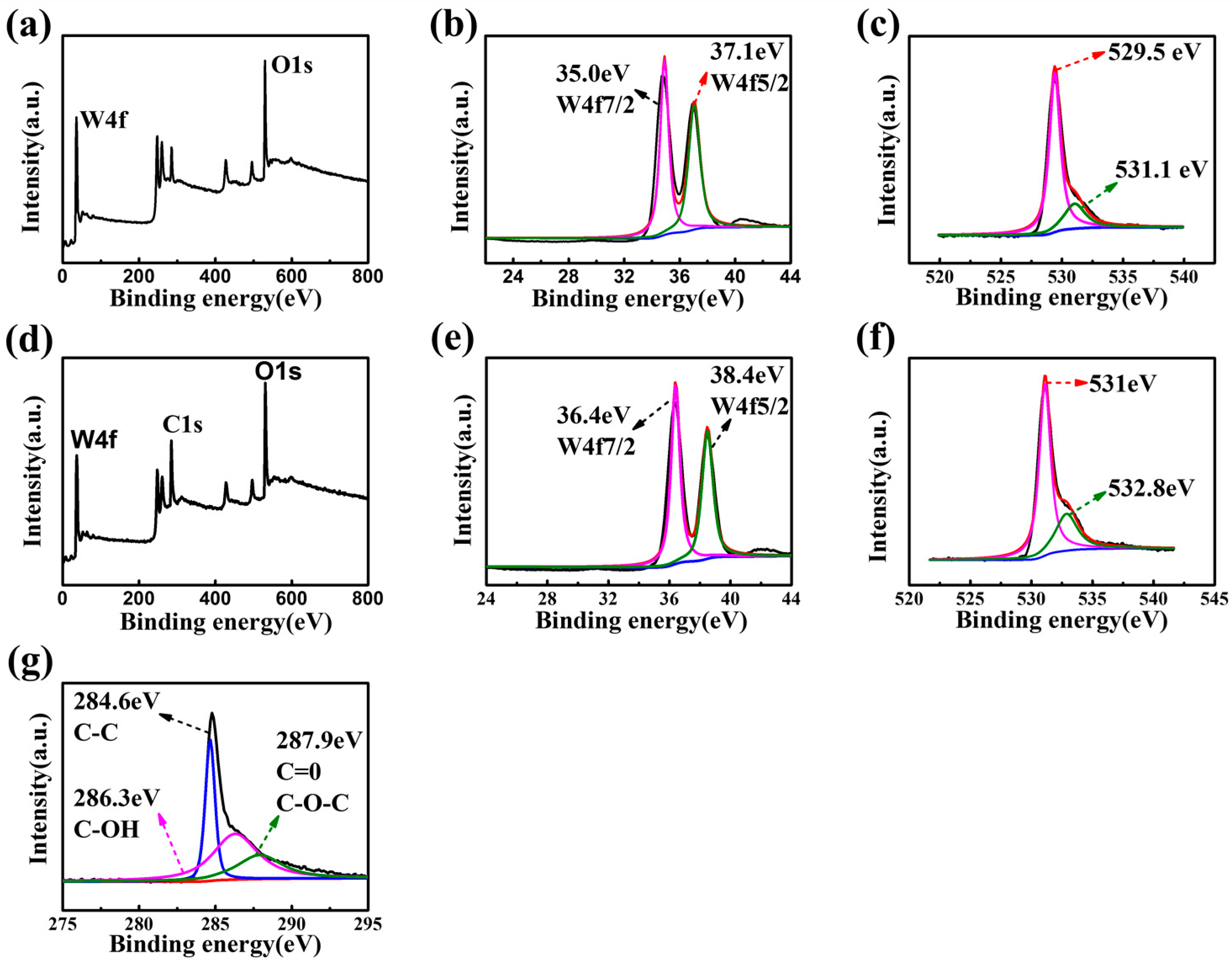

Figure 5. (a) The XPS full spectrum; and X-ray photoelectron spectra of: (b) W4f; and (c) O1s for pure WO3; (d) The XPS full spectrum; and X-ray photoelectron spectra of: (e) W4f; (f) O1s; and (g) C1s for the WO3/GR-0.1 nanocomposite.
Figure 5. (a) The XPS full spectrum; and X-ray photoelectron spectra of: (b) W4f; and (c) O1s for pure WO3; (d) The XPS full spectrum; and X-ray photoelectron spectra of: (e) W4f; (f) O1s; and (g) C1s for the WO3/GR-0.1 nanocomposite.
Materials 11 00147 g005

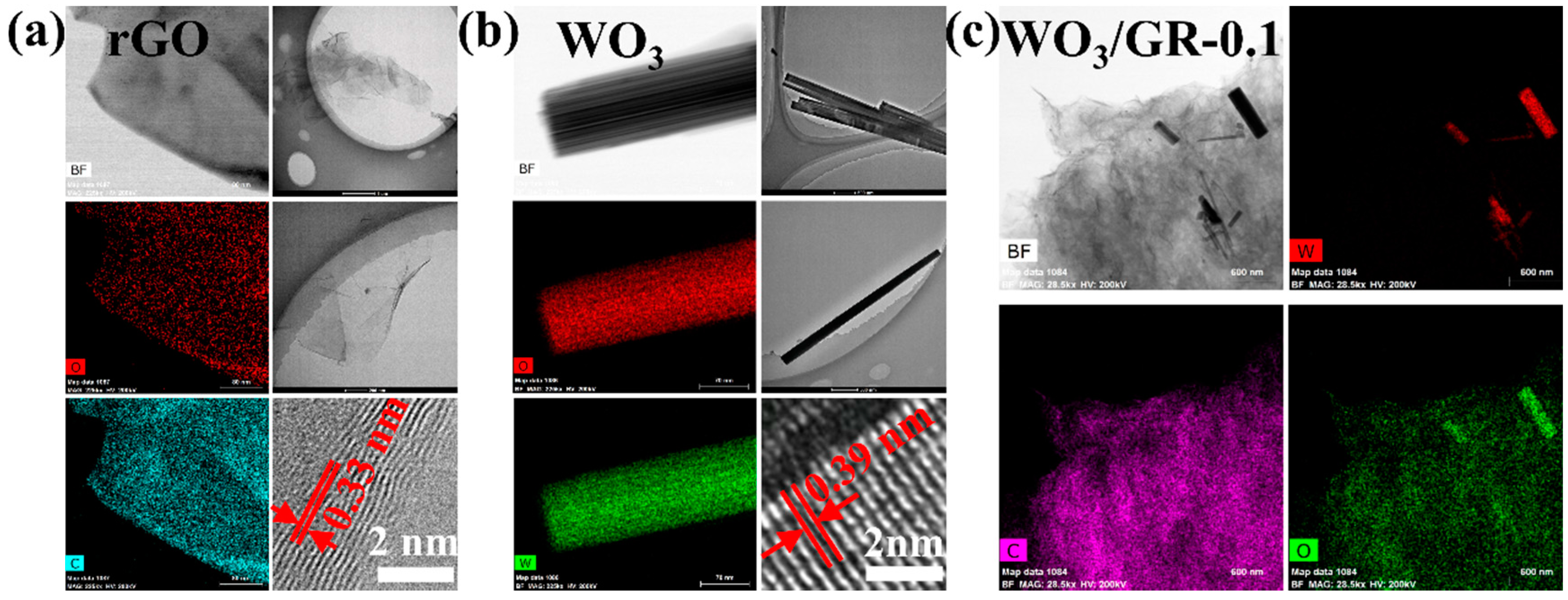

Figure 6. Bright-field TEM-EDS showing the microstructure and composition of: (a) rGO; (b) pure WO3; and (c) the WO3/GR-0.1 nanocomposite.
Figure 6. Bright-field TEM-EDS showing the microstructure and composition of: (a) rGO; (b) pure WO3; and (c) the WO3/GR-0.1 nanocomposite.
Materials 11 00147 g006
Figure 7. (a) Bright-field TEM images showing the WO3 nanorod on the graphene sheet in the WO3/GR-0.1 nanocomposite; HRTEM images of regions: (b) A; and (c) B showing the GR/WO3 interface; and (d) HRTEM image inside WO3 (region C in (a)).
Figure 7. (a) Bright-field TEM images showing the WO3 nanorod on the graphene sheet in the WO3/GR-0.1 nanocomposite; HRTEM images of regions: (b) A; and (c) B showing the GR/WO3 interface; and (d) HRTEM image inside WO3 (region C in (a)).
Materials 11 00147 g007

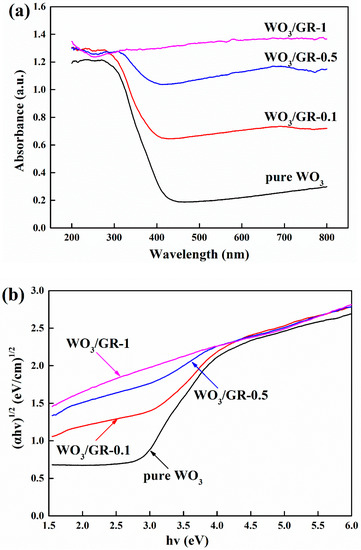

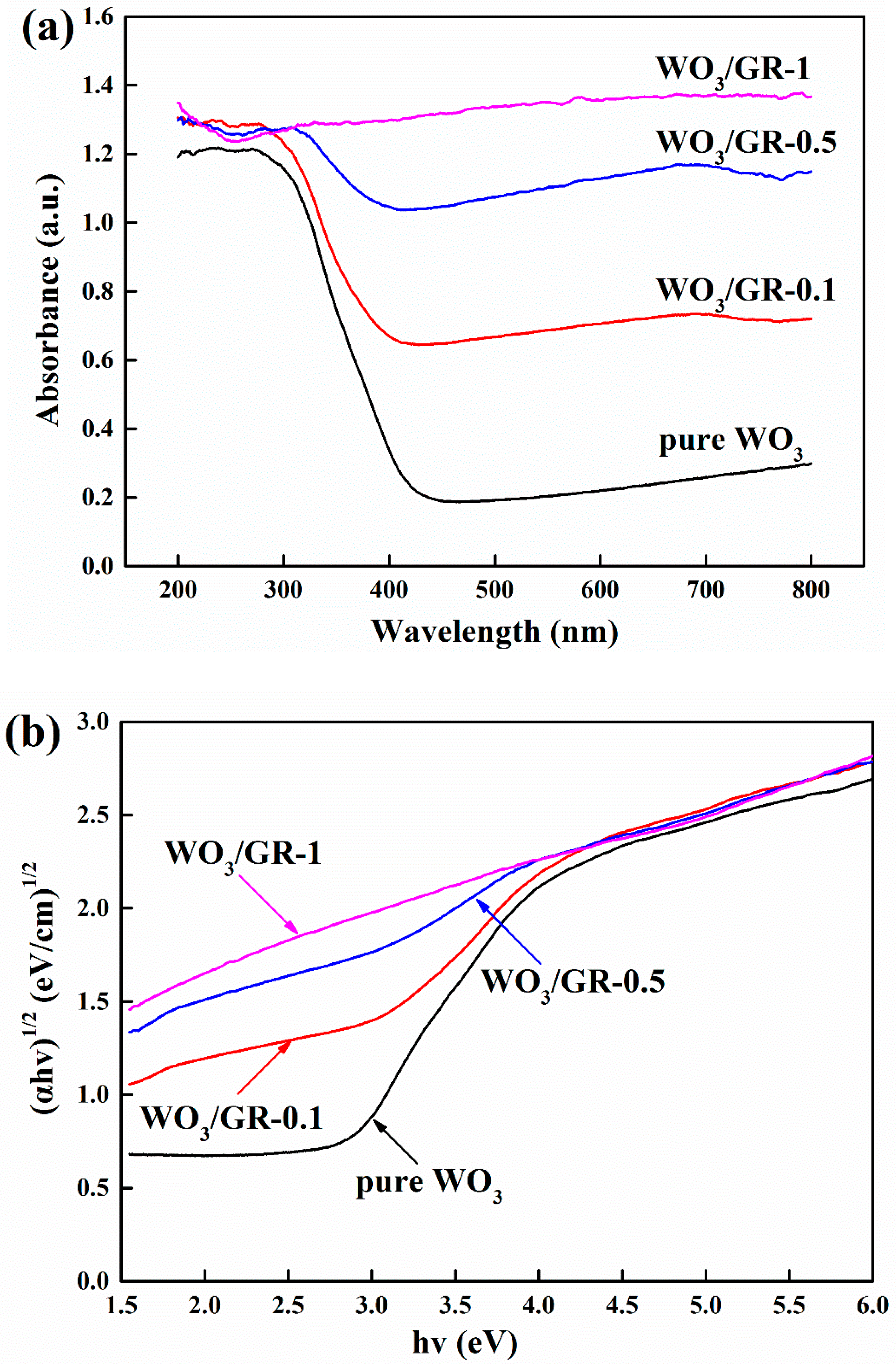

Figure 8. (a) UV–vis diffuse reflectance electronic spectra of pure WO3 and the WO3/GR nanocomposites; and (b) the relation curves of hv and corresponding (αhv)1/2 of the as-prepared samples.
Figure 8. (a) UV–vis diffuse reflectance electronic spectra of pure WO3 and the WO3/GR nanocomposites; and (b) the relation curves of hv and corresponding (αhv)1/2 of the as-prepared samples.
Materials 11 00147 g008

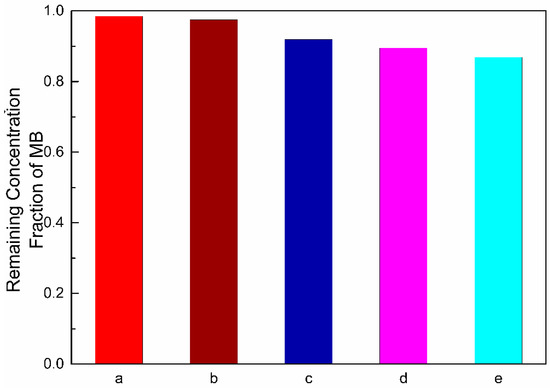

Figure 9. The remaining methylene blue (MB) in solution equilibrated with: (a) no catalyst; (b) pure WO3; (c) WO3/GR-0.1; (d) WO3/GR-0.5; and (e) WO3/GR-1 after stirring in the dark for 60 min.
Figure 9. The remaining methylene blue (MB) in solution equilibrated with: (a) no catalyst; (b) pure WO3; (c) WO3/GR-0.1; (d) WO3/GR-0.5; and (e) WO3/GR-1 after stirring in the dark for 60 min.
Materials 11 00147 g009

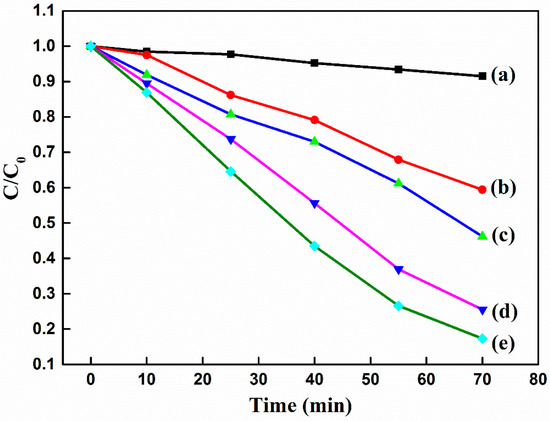

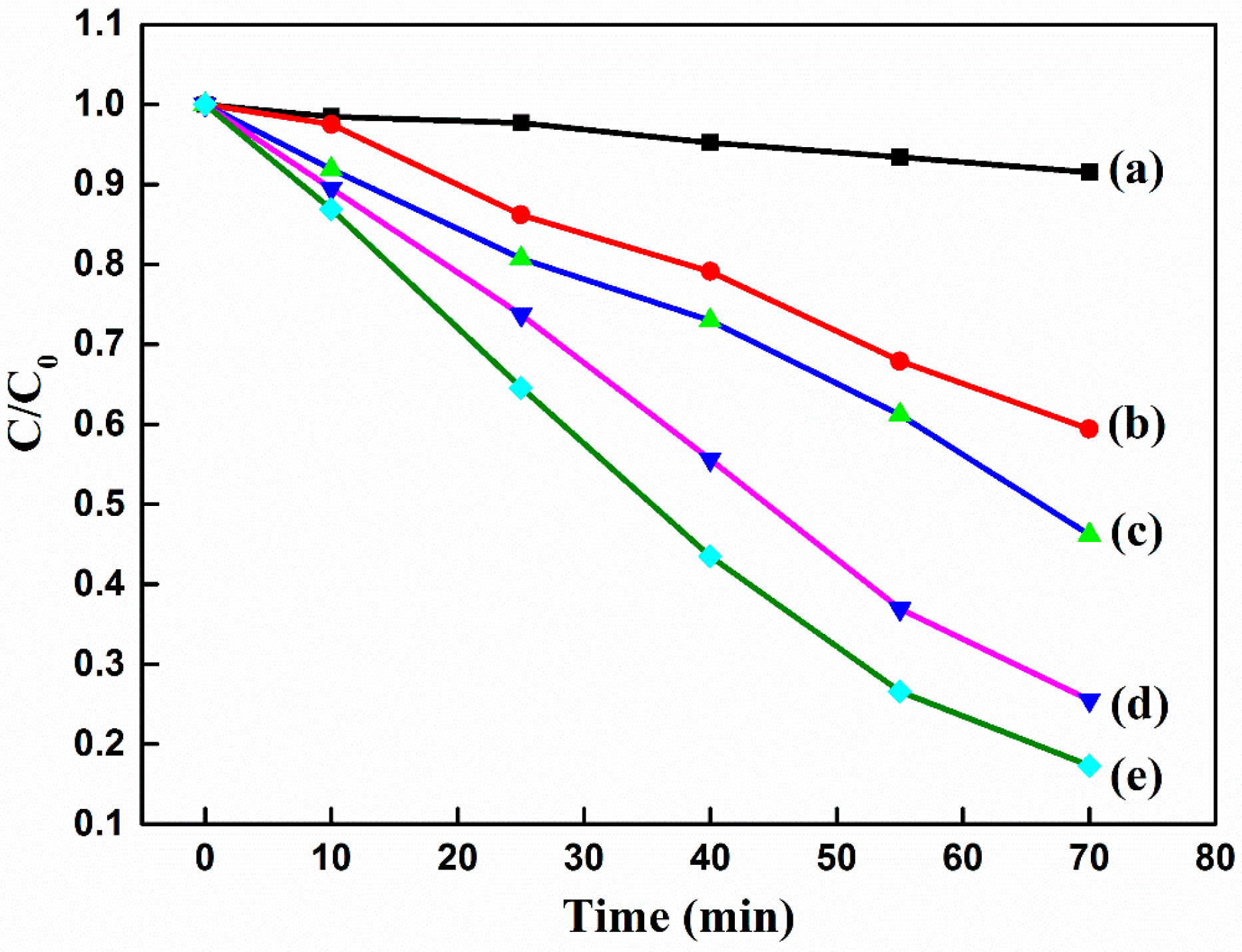

Figure 10. Photodegradation of MB under visible light: (a) no catalyst; (b) pure WO3; (c) WO3/GR-0.1; (d) WO3/GR-0.5; and (e) WO3/GR-1.
Figure 10. Photodegradation of MB under visible light: (a) no catalyst; (b) pure WO3; (c) WO3/GR-0.1; (d) WO3/GR-0.5; and (e) WO3/GR-1.
Materials 11 00147 g010

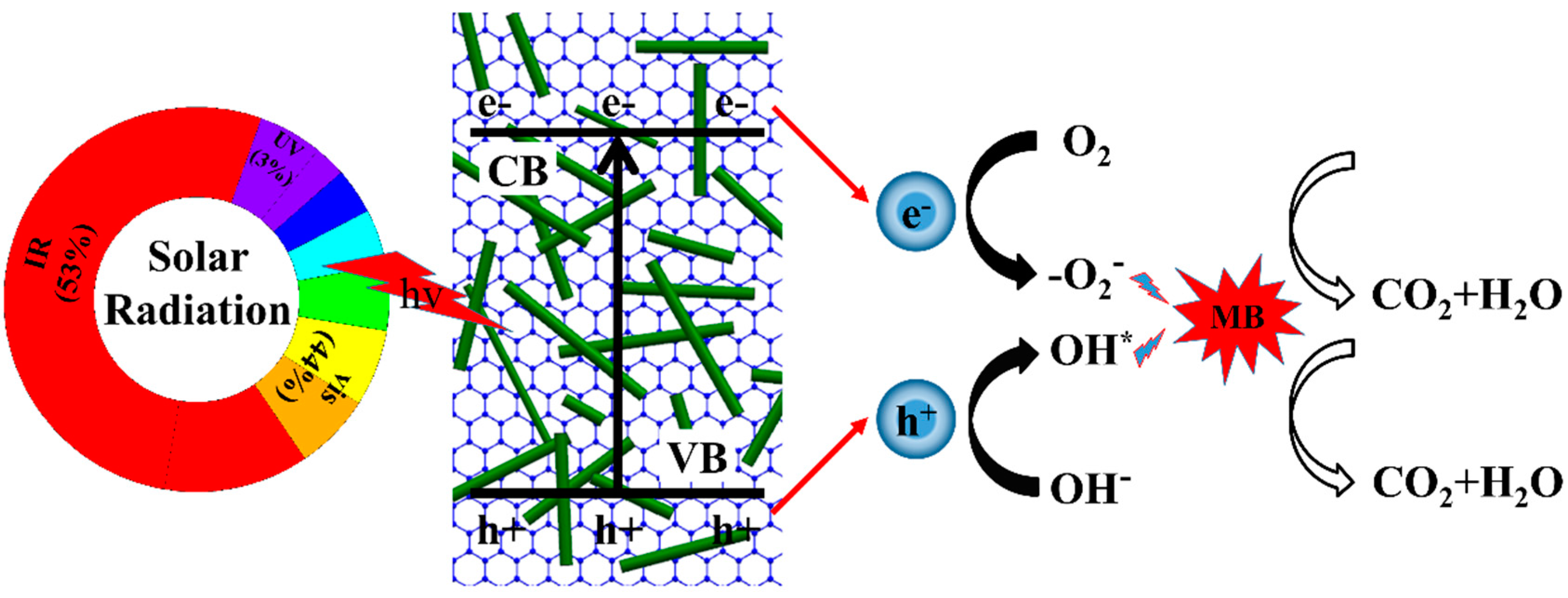

Figure 11. Schematic representation of photocatalytic degradation of methylene blue by WO3/GR nanocomposites under visible light illumination.
Figure 11. Schematic representation of photocatalytic degradation of methylene blue by WO3/GR nanocomposites under visible light illumination.
Materials 11 00147 g011
Table 1. Comparison of photocatalytic performance between this work and reported references.
Table 1. Comparison of photocatalytic performance between this work and reported references.
PhotocatalystMethods of SynthesisExperimental ConditionsPhotodecompositionPhotocatalytic EfficiencyReferences
WO3/GRone-step in-situ hydrothermal reactionPrecursor: Na2WO4·2H2O and GO
the structure-directing agent: H2C2O4 and Na2SO4
Time: 24 h
Temp:180 °C
Degradation of methylene blueDegradation percentage of 83% within 70 minThis work
3D graphene foam-WO3chemical vapor deposition(CVD) (two steps)Precursor: the nickel foam, CH4, tungsten wire
Time: >54 h
Temp: -
degradation of Rhodamine B dyeDegradation percentage of 85% within 140 min[42]
rGO-WO3wet chemistry and thermal decomposition methodPrecursor: GO and H2WO4Degradation of methylene blueDegradation percentage of 65% within 60 min[43]
WO3/g-C3N4in-situ liquid phase process and heat treatmentPrecursor: ammonium metatungstate hydrate and g-C3N4
the structure-directing agent: oxalic
acid-ethanol solution
Degradation of methylene blueDegradation percentage of 95% within 90 min[26]
WO3/NWCNTSolvothermal processPrecursor: acid-functionalized
MWCNTs and Na2WO4·2H2O
the structure-directing agent: HNO3
Degradation of methylene blueDegradation percentage of 75% within 150 min[27]
Graphene/TiO2hydrothermal methodPrecursor: GO and TiO2 (P25)
Time: 24 h
Temp:200 °C
Degradation of methylene blueDegradation percentage of 85% within 100 min[55]
ZnO-graphenehydrothermal methodPrecursor: GO and the commercial ZnO nanoparticles
Time: 12 h
Temp:200 °C
Degradation of methylene blueDegradation percentage of 72.1% within 56 min[30]
