Article

Microstructure and Corrosion Behavior of Composite Coating on Pure Mg Acquired by Sliding Friction Treatment and Micro-Arc Oxidation

1
College of Material Science and Engineering, Taiyuan University of Technology, Taiyuan 030024, China
2
Northwest Institute for Nonferrous Metal Research, Xi’an 710016, China
3
Department of Material Science and Engineering, Shaanxi University of Science & Technology, Xi’an 710021, China
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(7), 1232; https://doi.org/10.3390/ma11071232
Submission received: 6 June 2018 / Revised: 15 July 2018 / Accepted: 15 July 2018 / Published: 18 July 2018

Abstract

:
For the purpose of detecting the influence of grain structure of a Mg matrix on the microstructure and corrosion resistance of micro-arc oxidation (MAO) coating, prior to MAO processing, sliding friction treatment (SFT) was adopted to generate a fine-grained (FG) layer on coarse-grained (CG) pure Mg surface. It showed that the FG layer had superior corrosion resistance, as compared to the CG matrix, owing to the grain refinement; furthermore, it successfully survived after MAO treatment. Thus, an excellent FG-MAO coating was gained by combining SFT and MAO. The surface morphology and element composition of FG-MAO and CG-MAO samples did not show significant changes. However, the FG layer favorably facilitated the formation of an excellent MAO coating, which possessed a superior bonding property and greater thickness. Consequently, the modified FG-MAO sample possessed enhanced corrosion resistance, since a lower hydrogen evolution rate, a larger impedance modulus and a lower corrosion current were observed on the FG-MAO sample.

1. Introduction

Commercial pure Mg and its alloys show enormous application potential in automotive, aviation and electric component fields, because of such factors as low density and excellent machinability [1,2,3]. They are also current prospective implant materials in orthopedics because of favorable biocompatibility, and a similar elastic modulus to that of human bone tissue [4,5,6]. However, poor resistance to corrosion has become a critical factor that severely restricts any further application.
For decades, numerous surface coating methods have been explored on Mg to enhance the anti-corrosion property [7,8,9,10,11,12]. In these methods, micro-arc oxidation (MAO) is a promising technique that could generate a protective ceramic coating in a suitable electrolyte [10,12,13,14,15]. Unfortunately, some disadvantages exist in current MAO coatings, including high porosity and relatively poor adhesive strength, which restricts wider application. Traditional methods for improving MAO coatings mainly include adjusting MAO operating parameters (e.g., applied voltage, oxidation time, etc.), altering the concentration and composition of the electrolyte, as well as sealing the holes through post-treatment [2,14,16,17,18]. Actually, the microstructure of the Mg matrix is extremely important for improving the quality of MAO samples. Many researchers confirm that increasing the defects (e.g., grain boundary, vacancy and dislocation) density of the substrate helps to accelerate coating growth rate [10,19,20], and the structure of MAO coatings is substrate grains dependent. It has been recently confirmed in Al [21] and Ti [13] alloys that the MAO coatings formed above fine-grained substrate possessed excellent corrosion resistance, as the extensive structural defects existing in the fine-grained substrate are capable of increasing the preferable nucleation sites for MAO coating and thus promoting the formation of superior coating with higher homogeneity and compactness. Therefore, it could also be expected that a modified MAO coating with higher protective function would be acquired for the above Mg-based materials with refined grains.
Severe plastic deformation (SPD) is a common and efficient technology to refine grains in various metals. Formerly, we studied an alternative SPD method (sliding friction treatment (SFT) [22,23]) which obtains refined grains on Ti [24], Al [25,26], Cu [23], Ta [27] and Mg [28] sheets. Therefore, we took SFT as the pretreatment process for pure Mg, prior to the MAO treatment, in order to fabricate the special composite coatings composed of the fine-grained (FG) layer above the coarse-grained (CG) matrix and the surface MAO ceramic coating. This work mainly studied the impact of the FG structure on the microstructure and degradation resistance of the aforementioned MAO coatings, and the corresponding mechanism was analyzed as well.

2. Materials and Methods

2.1. Materials and SFT Processing

A 200 × 200 × 5 mm3 commercially coarse-grained (CG) pure Mg (0.01% Al-0.01% Mn-0.0097% Fe-0.01% Si-0.0054% Zn-0.0001% Cu-0.0016% Ni) plate annealed at 450 °C for 30 h was used for SFT processing. Prior to SFT, the surface of the sheet was abraded by 500, 1000 and 1200# SiC sandpapers, ultrasonically degreased in acetone and ethyl alcohol for 5 min respectively, then rinsed with deionized water and quickly dried in the air. The details of the SFT set-up and specific processing parameters of SFT are presented in [28].

2.2. MAO Coating Preparation

The protective coating was manufactured by MAO process on the CG and SFT Mg samples. For MAO treatment, samples with a dimension of 10 × 10 × 5 mm3 were sandpapered down to 5000#, rinsed with ethyl alcohol and deionized water. During the MAO procedure, a pure Mg sample served as the anode and a stainless steel electric tank acted as the cathode. The electrolyte was composed of 10 g/L Na2SiO3·9H2O, 1 g/L KOH and 8 g/L KF·2H2O in deionized water. The temperature of the electrolyte stayed at room temperature through use of a stirring and cooling device during the entire procedure. The voltage and the frequency were set at 500 V and 100 Hz. The oxidation time and duty cycle were 2 min and 20%, respectively. The sample was washed with deionized water and dried in the air after MAO. MAO coatings that formed on the CG and FG surfaces were defined as CG-MAO and FG-MAO, respectively.

2.3. Characterization of Microstructure and Morphology

The microstructures of the CG and SFT sample were observed with optical microscopy (OM) and scanning electron microscope (SEM, Gemini 500, (ZEISS, Oberkochen, Germany)), respectively. The phases and element composition of substrates and coatings were analyzed by X-ray diffraction (XRD, D8 ADVANCE, (Bruker, Karlsruhe, Germany)) and X-ray photoelectron spectroscopy (XPS, ESCACAB 250XI, (Thermo Fisher, Waltham, MA, USA)). The morphology observation and elemental analysis of coatings were carried out by scanning electron microscope, equipped with energy dispersive spectroscopy. Before SEM test, all samples were treated with gold sputtering.
The adhesion stabilities of CG-MAO and SFT-MAO coating were quantitatively evaluated using a WS-2005 scratch tester at room temperature. The load was linearly and continuously increased from 0 to 40 mN. The scratch length was 4 mm. A diamond with a diameter of 100 μm was drawn across the surface of the coatings at a speed of 0.04 mm/s. After scratch testing, the scratch morphology was examined with Zeiss Gemini 500 SEM.

2.4. Electrochemical Tests

The electrochemical workstation (IM6 Zahner-electrik Gmbh, (Zenniom, Kronach, Germany)) was adopted to study the corrosion behavior of samples by making use of potentiodynamic polarization (PDP) and electrochemical impedance spectroscopy (EIS) in simulated body fluid (SBF) electrolyte. During electrochemical tests, a saturated calomel electrode (SCE) and a platinum plate acted as reference electrode and assisting electrode, respectively. The samples serving as working electrode were embedded into epoxy resin with an area of 1 cm2 exposed to electrolyte. The SBF solution (pH: 7.42) was prepared using analytical reagent : 8.035 g/L NaCl, 0.355 g/L NaHCO3, 0.225 g/L KCl, 0.231 g/L K2HPO4·3H2O, 0.311 g/L MgCl2·6 H2O, 1.0 M HCl (39 mL), 0.292 g/L CaCl2, 0.072 g/L Na2SO4, 6.118 g/L Tris (hydroxymethyl ) aminomethane [11,29]. The temperature of SBF electrolyte was regulated at 37 °C. The EIS was tested from 105 Hz to 0.1 Hz with AC voltage signal of 10 mV after immersion in SBF electrolyte for 30 min. The equivalent circuit was used to fit experimental EIS data by ZSimpWin software. The PDP curve was operated at a sweep rate of 0.01 Vs−1 from −2.0 to 0 V. The Tafel extrapolation method was employed to determine corrosion parameters. The corrosion rate can be obtained by Faraday’s law [30], CR = K(icorr/ρ)EW, where the unit of corrosion rate is mm/year, K is a constant and its value is 3.27 × 10−3 mm·g/(μA·cm·y), ρ and EW are the density (g/cm3) and equivalent weight of matrix, respectively.

2.5. Immersion Experiment

The degradation property was also estimated by immersion experiment in SBF electrolyte on the basis of ASTM-G31-72. All samples were embedded in resin with an area of 1 cm2 exposed to SBF electrolyte under a glass funnel connected with a burette. The hydrogen evolution volume (HEV) from the samples was measured from the water level of burette to evaluate corrosion rate. The hydrogen evolution rate vH (HER) was obtained by the following Equation (1):
vH = V/(st)
where V and s are the hydrogen evolution volume (mL) and exposed area of samples (cm2), and t is immersion time (h).

3. Results

3.1. Microstructure of Fine-Grained Modified Surface

Figure 1a shows the optical microscope image of the cross-sectional SFT Mg sample. As can be seen, a 900 μm thick deformation layer is prepared on SFT sample surface where grain sizes are evidently refined. The average grain size of CG pure Mg is about 40 μm. Figure 1b presents an SEM image at the topmost part of the deformed layer. It is found that a great majority of grain sizes are between one and two microns. This FG structure fabricated on the CG Mg surface benefits from high strains in the SFT process [28,31].
The XRD graph of the CG and SFT sample is shown in Figure 1c. Mg is the main constituent for both the CG and SFT specimens. Further probing into the spectra of the diffraction (002) peak in the range of 33°–36° (Figure 1d), it is found that (002) peak becomes broadened, which is due to grain refinement induced by SFT treatment [32,33].

3.2. Microstructure Character of MAO Coating

Figure 2 presents surface morphologies and corresponding EDS spectrums of FG-MAO and CG-MAO coatings. The typical micro-pore structure is formed on the surfaces of both coatings. The number and size of pores, along with the composition, exhibit no significant difference between the two coatings.
Figure 3a,b show cross-section images of two kinds of coatings. It is clear that the average thickness of the FG-MAO coating is 23.05 μm, which is evidently thicker than that of the MAO coating (16.62 μm). It has been proved that refined grains with enhanced density of high-energy grain boundaries and other defects can significantly accelerate the chemical reaction rate [12,13]. This finding means that the SFT pretreatment can accelerate the element diffusion rate and coating formation rate.
The microstructure underneath the coating in FG-MAO sample was also examined by SEM in Figure 3c. The average grain size of the substrate after MAO is 1~2 μm. It reveals that the grain size variation caused by MAO processing is almost negligible, consistent with the results of Refs. [12,34]. They confirm that local high temperature caused by micro-arc discharge did not cause grain growth of the FG matrix next to the MAO coating. This is also the first direct evidence that the FG layer successfully survived after MAO processing.
Figure 4 presents the X-ray diffraction pattern of both coatings. The phases of two kinds of coatings mainly consist of Mg, Mg2SiO4, MgF2, MgSiO3 and MgO. The element of Mg stems from Mg substrate. The appearance of Mg2SiO4, MgF2 and MgSiO3 compounds demonstrates that the Si, F and O of the solution have participated in the chemical reaction of the MAO process and have been incorporated into the coatings successfully. The existence of MgO may be ascribed to the high temperature induced by plasma discharge during the MAO process. The phase compositions of two coated samples in the XRD patterns show no obvious difference, which indicates that the SFT technology has little impact on the phase compositions of the coatings.
Figure 5 presents the XPS and high-resolution spectra of CG-MAO and FG-MAO samples. The XPS survey spectra (Figure 5a) reveals that both coatings contain Mg, Si, O and F as the main elements. The binding energy value of these elements for both coatings is listed in Table 1. The binding energy of Mg1s peak is typical of magnesium in its oxidized form Mg2+ [35]. The binding energies of F1s peak at 685.17eV (CG-MAO coating) and 685.07 eV (FG-MAO coating) demonstrate the presence of MgF2 (685.4 eV) [36,37]. The Si2p peak at 102.07 eV (CG-MAO coating) and 102.27 eV (FG-MAO coating) are corresponding to MgSiO3 (102.3 eV) [38]. The XPS results are basically coincident with XRD.
Figure 6 shows the scratch appearance on both coatings. It is evident that serious delamination and peeling appear on the CG-MAO coating after the scratch test, as clearly visible debris can be observed inside the scratch groove. On the contrary, no evident peeling occurs on the FG-MAO coating surface along the entire scratch. Gu, et al. [34,39] have reported that the SPD-induced ultra-fine grained (UFG) layer on Ti and Al can offer tinier and denser discharge channels during MAO procedure and promote the formation of more compact coating. Similarly, we found that the SFT-induced FG layer on Mg can notably improve the adhesion performance between MAO coating and substrate.

3.3. Corrosion Behavior

3.3.1. Potentiodynamic Polarization

Figure 7 presents the PDP curve of CG, SFT, CG-MAO and FG-MAO samples exposed to SBF electrolyte. The corresponding corrosion parameters are summarized in Table 2. The degradation rate determined by Faraday’s law is listed in Table 3. The positive and negative potential relative to corrosion potential in curves represent the anode and cathode regions, corresponding to dissolution/passivation of the material and the hydrogen evolution, respectively [40,41]. The small peaks in curves for the CG and SFT sample indicate the transition between activation and passivation [40,42]. The corrosion tendency of materials can be predicted by corrosion potential (Ecorr), and the higher Ecorr value represents lower corrosion susceptibility [1,30]. The Ecorr (−1.255 ± 0.002 V) of FG-MAO coating is the highest in the midst of all samples, indicating FG-MAO coating is much more stable and has considerably less corrosion susceptibility. It is obvious that the Icorr (15.3 ± 3.2 μA/cm2) of the SFT sample is lower than that (31.6 ± 6.6 μA/cm2) of the CG sample. It is generally accepted that the corrosion current density is regarded as a vital index for estimating the kinetic of corrosion reactions [33]. Therefore, SFT pretreatment on the pure Mg sheet has a positive effect on corrosion resistance. This finding is also similar to the reports in Refs. [8,28] which highlighted enhanced corrosion resistance due to grain refinement. Besides, both CG and FG samples exhibit enhanced corrosion resistance after MAO, indicated by a more positive Ecorr and lower Icorr. Icorr value (0.35 ± 0.06 μA/cm2) of the FG-MAO sample, which is much lower compared to that of the CG-MAO sample. This result may be ascribed to the excellent adherence between the coating and substrate caused by refined grains produced by the SFT pretreatment. Among all samples, the Icorr of FG-MAO coating is two magnitudes lower than the FG sample and one order of magnitude lower than the CG-MAO coating. The corrosion rate of the FG-MAO sample is the lowest among all of the samples, which shows the comprehensive effect of grain refinement and the MAO process.

3.3.2. Electrochemical Impedance Spectroscopy

The EIS measurements are carried out to further study the corrosion behavior of the samples [38]. Figure 8 displays Nyquist and Bode plots of all samples in SBF. It is evident that FG-MAO sample shows the biggest capacitive arc suggesting the optimal corrosion resisting property among all samples. Generally, the impedance module in regions of low frequency is considered as an important index in estimating the corrosion resistance [21,43]. The higher impedance modulus represents superior corrosion resisting property. The impedance value of the SFT sample is relatively higher than that of the CG sample, which indicates that SFT pretreatment leads to a mild enhancement of corrosion resisting property. It is apparent that the impedance module in regions of low frequency increased by one magnitude after coating, indicating that the corrosion resistance is enhanced significantly by MAO treatment. Meanwhile, the FG-MAO coating exhibits the biggest impedance value, demonstrating that combining the SFT and MAO technology provides more effective resistance to corrosion. On the basis of the EIS characteristics, the equivalent circuit models were employed for fitting impedance data. Figure 9 displays two kinds of equivalent circuits corresponding to uncoated and coated samples. Rs is the solution resistance. Cdl and Rct represent electrochemical double layer capacitance and charge transfer resistance, respectively. CPEp and Rp stand for the capacitance and resistance of naturally formed passive films. CPEm and Rm correspond to the capacitance and resistance of the MAO coating. CPE is a kind of constant phase element, and its impedance values could be determined according to Equation (2):
ZCPE = 1/[Q(jω)n]
where j and ω correspond to imaginary unit and angular frequency, respectively. Q is a constant irrelative to frequency and n is exponential coefficient. Q equals capacitance and conductivity when n takes one and zero respectively. The EIS fitting parameters obtained from the equivalent circuits are listed in Table 4.
The Rct of CG sample is the lowest of all samples, implying that SFT and MAO can improve the charge transfer resistance value. For the two samples subjected to the MAO treatment, Rm of the FG-MAO sample is nearly twice as much as the CG-MAO sample, indicating that the former shows superior corrosion resistance and that SFT pretreatment is beneficial for improving the quality of MAO coating.

3.3.3. Immersion Tests

Figure 10 presents HEV and HER curves with increasing immersion time. It is clearly observed that the HEV and HER of samples in the SBF electrolyte for 230 h could be ranked as follows: the FG-MAO coating < the CG-MAO coating < the SFT sample < the CG sample. The result is consistent with electrochemical tests. This result indicates more effective corrosion resisting properties for the FG-MAO sample, over a long period of time.

3.3.4. Post-Corrosion Morphologies

Figure 11 shows post-corrosion SEM morphologies. The corrosion mechanisms of four kinds of samples are pitting corrosion. The formation of pitting results from the breakdown of passive films or MAO coatings on Mg or MAO sample surface under the effect of corrosive ions in the SBF electrolyte. As shown in Figure 11a,b, the CG sample presents severely localized corrosion morphology with huge corrosion pits on its surface, while the SFT sample exhibits a relatively smooth surface with only very slight pits. Also, the FG-MAO sample shows considerably lower levels of corrosion damage as compared to the CG-MAO coating. The comprehensive contribution from both SFT pretreatment and MAO process accounts for this favorable result.

4. Discussion

In this study, a composite coating composed of the fine-grained (FG) layer and MAO ceramic coating was acquired by SFT and MAO. After SFT pretreatment, a 900 μm thick deformation layer was prepared on pure Mg surface, in which the grain size was refined to the fine-grained level due to high strains in the SFT process. As shown in Figure 1, the phases of CG and SFT samples did not show any difference except for the broadened peak width caused by the effective grain refinement. The influence of SFT pretreatment on the corrosion resisting property of the Mg substrate was investigated as well. Based on electrochemical and immersion tests (Figure 7, Figure 8 and Figure 10), SFT Mg exhibits an obviously enhanced corrosion resistance, more so than that of the CG form, which is mainly ascribed to the grain refinement caused by SFT. FG with more grain boundaries helps to form a more dense protective oxide (MgO) film [12,21,44], which can usefully prevent Mg matrix against corrosive ions. The post-corrosion morphology of the FG sample with relatively smoother surface (Figure 11b) is the direct evidence to support this. Similar results are also discovered in lots of Mg treated by SPD techniques [10,21,45].
Furthermore, the influence of SFT-induced grain refinement on the microstructure and corrosion resisting property of MAO coating was studied as well. Results indicate SFT pretreatment helps to improve the quality and anti-corrosion property of MAO coating (Figure 6, Figure 7 and Figure 10).
It has been demonstrated that grain boundaries could serve as speedy diffusion channels for atoms and thus accelerating the chemical activity [31,34]. Thus, the driving power of MAO is improved for FG Mg from the point of view of thermodynamics. The results in Figure 3 and Figure 6 confirm that the SFT pretreatment promotes the formation the thicker coating with better bonding strength, which contribute to the significantly enhanced corrosion resistance and protect the Mg matrix from corrosion more effectively. Furthermore, this finding is similar to reports of Refs. [12,33,45]. Please note that the FG layer beneath the MAO coating should also have some effect in enhancing the overall degradation resistance of FG-MAO sample during the long period immersion. In case the external layer of MAO coating is penetrated by corrosive ions, a passive layer forms promptly in the damage area adjacent to FG layer, which could act as a partial compact layer of MAO coating and protect corrosive ions from penetrating into Mg matrix.
Results of electrochemical measurements clearly indicate that the FG-MAO sample possesses superior anti-corrosion property compared with CG-MAO sample. Specially, Icorr of FG-MAO coating is one magnitude lower. Meanwhile, Rm and Rct of FG-MAO coating are evidently higher, offering more effective resistance to corrosion. The lower hydrogen evolution rate for FG-MAO coating reveals that FG-MAO sample can effectively prevent corrosive ions infiltrating into the interior of coating. Post-corrosion morphologies (Figure 11) in the SBF solution also show that the CG-MAO sample suffers from severe damage, while the FG-MAO coating still remains integrated structure. In general, the anti-degradation property of MAO coating is determined from its chemical composition, pore density, thickness and the adherent performance between the coating and matrix. The typical micro-pore structure (Figure 2) is formed on the surfaces of both coatings, and the number and size of pores exhibit no significant difference between two coatings. Base on the results of XRD (Figure 4) and XPS (Figure 5), the chemical composition and contents of the main elements for CG-MAO and FG-MAO coatings also show unclear difference. However, the FG-MAO coating exhibits higher thickness (Figure 3) and better bonding performance (Figure 6) as compared to the CG-MAO coating, which should account for the considerably enhanced corrosion resistance that was observed.

5. Conclusions

(1)
A 900 μm thick deformation layer was manufactured on pure Mg surface by SFT technology. The grains existing in deformed layer were reduced to fine-grained level.
(2)
MAO coatings were obtained successfully on CG and SFT samples. The surface morphologies and element compositions of both coatings do not exhibit visible difference. The FG-MAO sample has higher thickness and better interface bonding, which can be ascribed to the fast chemical reaction rate during MAO processing induced by FG structure.
(3)
For all specimens, the FG-MAO sample shows the lowest corrosion rate, which means that SFT pretreatment is beneficial for improving the quality of MAO coating.

Author Contributions

W.H. and Y.Z. designed experiment process; H.C. and W.H. conducted experiments and data analysis; H.C. wrote this paper; All authors gave the final agreement.

Funding

This research was funded by National Natural Science Foundation of China (Grant Nos. 51701166 and 51701163), State Key Laboratory for Advanced Metals and Materials of China (2017-Z01), CAS “Light of West China” Program (XAB2017AW12), Scientific Research Program in Weiyang District of Xi’an (201820) and Innovation team in key areas of Shaanxi Province (2016KCT-30).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, J.; Lan, X.; Wang, C.; Zhang, Q. The Formation Mechanism and Corrosion Resistance of a Composite Phosphate Conversion Film on AM60 Alloy. Materials 2018, 11, 3. [Google Scholar] [CrossRef] [PubMed]
  2. Ma, W.; Liu, Y.; Wang, W.; Zhang, Y. Effects of electrolyte component in simulated body fluid on the corrosion behavior and mechanical integrity of magnesium. Corros. Sci. 2015, 98, 201–210. [Google Scholar] [CrossRef]
  3. Mordike, B.L.; Ebert, T. Magnesium: Properties—Applications—Potential. Mater. Sci. Eng. A 2001, 302, 37–45. [Google Scholar] [CrossRef]
  4. Witte, F.; Kaese, V.; Haferkamp, H.; Switzer, E.; Meyer-Lindenberg, A.; Wirth, C.J.; Windhagen, H. In vivo corrosion of four magnesium alloys and the associated bone response. Biomaterials 2005, 26, 3557–3563. [Google Scholar] [CrossRef] [PubMed]
  5. Xu, L.; Pan, F.; Yu, G.; Yang, L.; Zhang, E.; Yang, K. In vitro and in vivo evaluation of the surface bioactivity of a calcium phosphate coated magnesium alloy. Biomaterials 2009, 30, 1512–1523. [Google Scholar] [CrossRef] [PubMed]
  6. Zheng, Y.F.; Gu, X.N.; Xi, Y.L.; Chai, D.L. In vitro degradation and cytotoxicity of Mg/Ca composites produced by powder metallurgy. Acta Biomater. 2010, 6, 1783–1791. [Google Scholar] [CrossRef] [PubMed]
  7. Abbas, G.; Liu, Z.; Skeldon, P. Corrosion behaviour of laser-melted magnesium alloys. Appl. Surf. Sci. 2005, 247, 347–353. [Google Scholar] [CrossRef]
  8. Chen, L.; Gu, Y.; Liu, L.; Liu, S.; Hou, B.; Liu, Q.; Ding, H. Effect of ultrasonic cold forging technology as the pretreatment on the corrosion resistance of MAO Ca-P coating on AZ31B Mg alloy. J. Alloys Compd. 2015, 635, 278–288. [Google Scholar] [CrossRef]
  9. Cheng, W.; Tian, L.; Ma, S.; Bai, Y.; Wang, H. Influence of Equal Channel Angular Pressing Passes on the Microstructures and Tensile Properties of Mg-8Sn-6Zn-2Al Alloy. Materials 2017, 10, 708. [Google Scholar] [CrossRef] [PubMed]
  10. Gheytani, M.; Bagheri, H.R.; Masiha, H.R.; Aliofkhazraei, M.; Sabour Rouhaghdam, A.; Shahrabi, T. Effect of SMAT preprocessing on MAO fabricated nanocomposite coating. Surf. Eng. 2014, 30, 244–255. [Google Scholar] [CrossRef]
  11. Wang, Y.M.; Wang, F.H.; Xu, M.J.; Zhao, B.; Guo, L.X.; Ouyang, J.H. Microstructure and corrosion behavior of coated AZ91 alloy by microarc oxidation for biomedical application. Appl. Surf. Sci. 2009, 255, 9124–9131. [Google Scholar] [CrossRef]
  12. Xiong, Y.; Hu, Q.; Song, R.; Hu, X. LSP/MAO composite bio-coating on AZ80 magnesium alloy for biomedical application. Mater. Sci. Eng. C 2017, 75, 1299–1304. [Google Scholar] [CrossRef] [PubMed]
  13. Gu, Y.; Chen, L.; Yue, W.; Chen, P.; Chen, F.; Ning, C. Corrosion behavior and mechanism of MAO coated Ti6Al4V with a grain-fined surface layer. J. Alloys Compd. 2016, 664, 770–776. [Google Scholar] [CrossRef]
  14. Mu, W.; Han, Y. Study on Micro-Arc Oxidized Coatings on Magnesium in Three Different Electrolytes. Rare Met. Mater. Eng. 2010, 39, 1129–1134. [Google Scholar]
  15. Sankara Narayanan, T.S.N.; Park, I.S.; Lee, M.H. Strategies to improve the corrosion resistance of microarc oxidation (MAO) coated magnesium alloys for degradable implants: Prospects and challenges. Prog. Mater. Sci. 2014, 60, 1–71. [Google Scholar] [CrossRef]
  16. Duan, H.P.; Du, K.Q.; Yan, C.W.; Wang, F. Electrochemical corrosion behavior of composite coatings of sealed MAO film on magnesium alloy AZ91D. Electrochim. Acta 2006, 51, 2898–2908. [Google Scholar] [CrossRef]
  17. Hussein, R.O.; Zhang, P.; Nie, X.; Xia, Y.; Northwood, D.O. The effect of current mode and discharge type on the corrosion resistance of plasma electrolytic oxidation (PEO) coated magnesium alloy AJ62. Surf. Coat. Technol. 2011, 206, 1990–1997. [Google Scholar] [CrossRef] [Green Version]
  18. Sabaghi Joni, M.; Fattah-alhosseini, A. Effect of KOH concentration on the electrochemical behavior of coatings formed by pulsed DC micro-arc oxidation (MAO) on AZ31B Mg alloy. J. Alloys Compd. 2016, 661, 237–244. [Google Scholar] [CrossRef]
  19. Youssef, K.M.S.; Koch, C.C.; Fedkiw, P.S. Improved corrosion behavior of nanocrystalline zinc produced by pulse-current electrodeposition. Corros. Sci. 2004, 46, 51–64. [Google Scholar] [CrossRef]
  20. Zhang, X.Y.; Shi, M.H.; Li, C.; Liu, N.F.; Wei, Y.M. The influence of grain size on the corrosion resistance of nanocrystalline zirconium. Mater. Sci. Eng. A 2007, 448, 259–263. [Google Scholar] [CrossRef]
  21. Wen, L.; Wang, Y.; Zhou, Y.; Guo, L.; Ouyang, J.H. Microstructure and corrosion resistance of modified 2024 Al alloy using surface mechanical attrition treatment combined with microarc oxidation process. Corros. Sci. 2011, 53, 473–480. [Google Scholar] [CrossRef]
  22. Zhang, Y.S.; Niu, H.Z.; Zhang, L.C.; Bai, X.F.; Zhang, X.M.; Zhang, P.X. Grain coarsening behavior in a nanocrystalline copper subjected to sliding friction. Mater. Lett. 2014, 123, 261–264. [Google Scholar] [CrossRef]
  23. Zhang, Y.S.; Zhang, P.X.; Niu, H.Z.; Chen, C.; Wang, G.; Xiao, D.H.; Chen, X.H.; Yu, Z.T.; Yuan, S.B.; Bai, X.F. Surface nanocrystallization of Cu and Ta by sliding friction. Mater. Sci. Eng. A 2014, 607, 351–355. [Google Scholar] [CrossRef] [Green Version]
  24. Lu, J.W.; Zhang, Y.K.; Huo, W.T.; Zhang, W.; Zhao, Y.Q.; Zhang, Y.S. Electrochemical corrosion characteristics and biocompatibility of nanostructured titanium for implants. Appl. Surf. Sci. 2018, 434, 63–72. [Google Scholar] [CrossRef]
  25. Chen, Y.X.; Yang, Y.Q.; Feng, Z.Q.; Huang, B.; Luo, X.; Zhang, W. The depth-dependent gradient deformation bands in a sliding friction treated Al-Zn-Mg-Cu alloy. Mater. Charact. 2017, 132, 269–279. [Google Scholar] [CrossRef]
  26. Chen, Y.X.; Yang, Y.Q.; Feng, Z.Q.; Zhao, G.M.; Huang, B.; Luo, X.; Zhang, Y.S.; Zhang, W. Microstructure, microtexture and precipitation in the ultrafine-grained surface layer of an Al-Zn-Mg-Cu alloy processed by sliding friction treatment. Mater. Charact. 2017, 123, 189–197. [Google Scholar] [CrossRef]
  27. Zhang, Y.S.; Wei, Q.M.; Niu, H.Z.; Li, Y.S.; Chen, C.; Yu, Z.T.; Bai, X.F.; Zhang, P.X. Formation of nanocrystalline structure in tantalum by sliding friction treatment. Int. J. Refract. Met. Hard Mater. 2014, 45, 71–75. [Google Scholar] [CrossRef]
  28. Huo, W.T.; Zhang, W.; Lu, J.W.; Zhang, Y.S. Simultaneously enhanced strength and corrosion resistance of Mg–3Al–1Zn alloy sheets with nano-grained surface layer produced by sliding friction treatment. J. Alloys Compd. 2017, 720, 324–331. [Google Scholar] [CrossRef]
  29. Kokubo, T.; Takadama, H. How useful is SBF in predicting in vivo bone bioactivity? Biomaterials 2006, 27, 2907–2915. [Google Scholar] [CrossRef] [PubMed]
  30. Ezhilselvi, V.; Nithin, J.; Balaraju, J.N.; Subramanian, S. The influence of current density on the morphology and corrosion properties of MAO coatings on AZ31B magnesium alloy. Surf. Coat. Technol. 2016, 288, 221–229. [Google Scholar] [CrossRef]
  31. Alsaran, A.; Purcek, G.; Hacisalihoglu, I.; Vangolu, Y.; Bayrak, Ö.; Karaman, I.; Celik, A. Hydroxyapatite production on ultrafine-grained pure titanium by micro-arc oxidation and hydrothermal treatment. Surf. Coat. Technol. 2011, 205, S537–S542. [Google Scholar] [CrossRef]
  32. Liao, Y.; Cheng, G.J. Controlled precipitation by thermal engineered laser shock peening and its effect on dislocation pinning: Multiscale dislocation dynamics simulation and experiments. Acta Mater. 2013, 61, 1957–1967. [Google Scholar] [CrossRef]
  33. Zhang, Y.; You, J.; Lu, J.; Cui, C.; Jiang, Y.; Ren, X. Effects of laser shock processing on stress corrosion cracking susceptibility of AZ31B magnesium alloy. Surf. Coat. Technol. 2010, 204, 3947–3953. [Google Scholar] [CrossRef]
  34. Yao, Z.Q.; Ivanisenko, Y.; Diemant, T.; Caron, A.; Chuvilin, A.; Jiang, J.Z.; Valiev, R.Z.; Qi, M.; Fecht, H.J. Synthesis and properties of hydroxyapatite-containing porous titania coating on ultrafine-grained titanium by micro-arc oxidation. Acta Biomater. 2010, 6, 2816–2825. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, C.L.; Zhang, F.; Song, L.; Zeng, R.C.; Li, S.Q.; Han, E.H. Corrosion resistance of a superhydrophobic surface on micro-arc oxidation coated Mg-Li-Ca alloy. J. Alloys Compd. 2017, 728, 815–826. [Google Scholar] [CrossRef]
  36. Mao, L.; Shen, L.; Chen, J.; Wu, Y.; Kwak, M.; Lu, Y.; Xue, Q.; Pei, J.; Zhang, L.; Yuan, G.; Fan, R.; Ge, J.; Ding, W. Enhanced bioactivity of Mg-Nd-Zn-Zr alloy achieved with nanoscale MgF2 surface for vascular stent application. ACS Appl. Mater. Inter. 2015, 7, 5320–5330. [Google Scholar] [CrossRef] [PubMed]
  37. Li, Z.; Shizhao, S.; Chen, M.; Fahlman, B.D.; Debao, L.; Bi, H. In vitro and in vivo corrosion, mechanical properties and biocompatibility evaluation of MgF2-coated Mg-Zn-Zr alloy as cancellous screws. Mater. Sci. Eng. C 2017, 75, 1268–1280. [Google Scholar] [CrossRef] [PubMed]
  38. Pan, Y.; Chen, C.; Wang, D.; Huang, D. Dissolution and precipitation behaviors of silicon-containing ceramic coating on Mg-Zn-Ca alloy in simulated body fluid. Colloids and Surf. B Biointerfaces 2014, 122, 746–751. [Google Scholar] [CrossRef] [PubMed]
  39. Gu, Y.; Ma, H.; Yue, W.; Tian, B.; Chen, L.; Mao, D. Microstructure and corrosion model of MAO coating on nano grained AA2024 pretreated by ultrasonic cold forging technology. J. Alloys Compd. 2016, 681, 120–127. [Google Scholar] [CrossRef]
  40. Wang, R.; He, X.; Gao, Y.; Zhang, X.; Yao, X.; Tang, B. Antimicrobial property, cytocompatibility and corrosion resistance of Zn-doped ZrO2/TiO2 coatings on Ti6Al4V implants. Mater. Sci. Eng. C 2017, 75, 7–15. [Google Scholar] [CrossRef] [PubMed]
  41. Dou, J.; Gu, G.; Chen, C. Effects of calcium salts on microstructure and corrosion behavior of micro-arc oxidation coatings on Mg-2Zn-1Ca-0.8 Mn alloy. Mater. Lett. 2017, 196, 42–45. [Google Scholar] [CrossRef]
  42. Zeng, R.C.; Cui, L.Y.; Jiang, K.; Liu, R.; Zhao, B.D.; Zheng, Y.F. In Vitro Corrosion and Cytocompatibility of a Microarc Oxidation Coating and Poly(l-lactic acid) Composite Coating on Mg-1Li-1Ca Alloy for Orthopedic Implants. ACS Appl. Mater. Interfaces 2016, 8, 10014–10028. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, L.Q.; Zhou, J.S.; Liang, J.; Chen, J.M. Microstructure and corrosion behavior of plasma electrolytic oxidation coated magnesium alloy pre-treated by laser surface melting. Surf. Coat. Technol. 2012, 206, 3109–3115. [Google Scholar] [CrossRef]
  44. Afshari, V.; Dehghanian, C. Effects of grain size on the electrochemical corrosion behaviour of electrodeposited nanocrystalline Fe coatings in alkaline solution. Corros. Sci. 2009, 51, 1844–1849. [Google Scholar] [CrossRef]
  45. Jiang, J.; Zhou, Q.; Yu, J.; Ma, A.; Song, D.; Lu, F.; Zhang, L.; Yang, D.; Chen, J. Comparative analysis for corrosion resistance of micro-arc oxidation coatings on coarse-grained and ultra-fine grained AZ91D Mg alloy. Surf. Coat. Technol. 2013, 216, 259–266. [Google Scholar] [CrossRef]

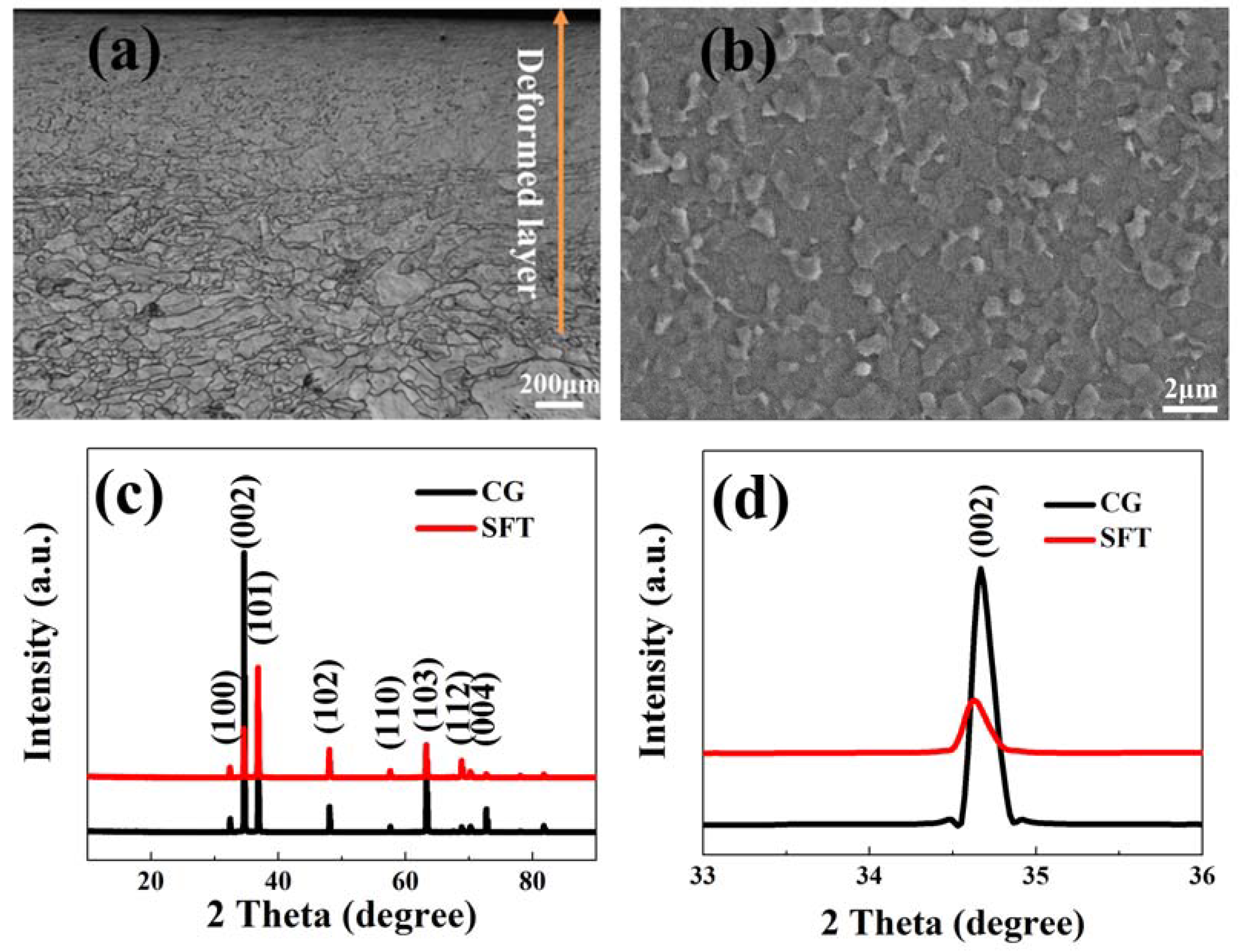

Figure 1. The cross-section (a) optical microscopy (OM) and (b) SEM picture of sliding friction treatment (SFT) sample; (c) XRD patterns of coarse-grained (CG) and SFT sample and (d) zoomed figure in the range of 33°–36°.
Figure 1. The cross-section (a) optical microscopy (OM) and (b) SEM picture of sliding friction treatment (SFT) sample; (c) XRD patterns of coarse-grained (CG) and SFT sample and (d) zoomed figure in the range of 33°–36°.
Materials 11 01232 g001

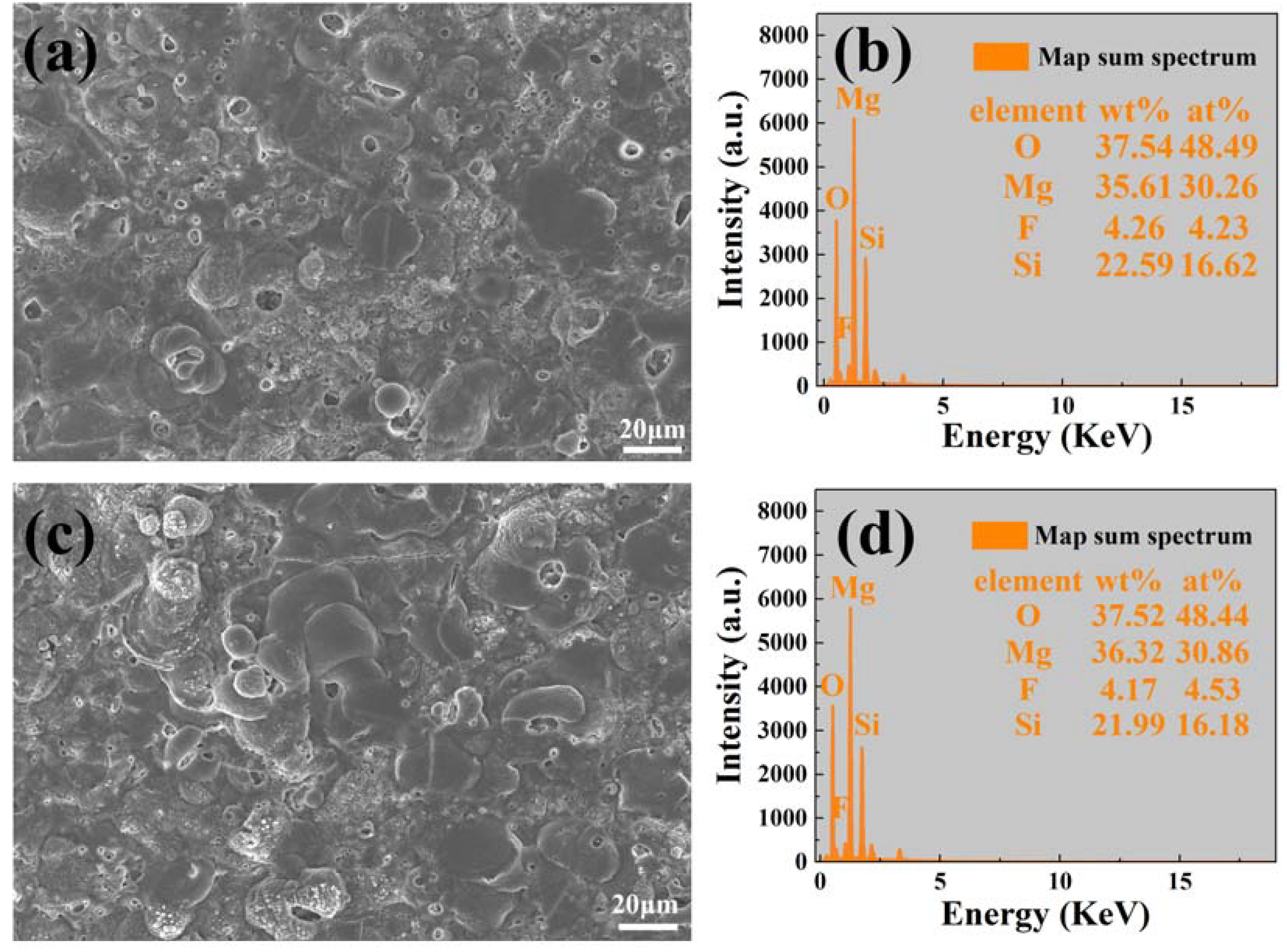

Figure 2. Surface morphology and EDS spectra of micro-arc oxidation (MAO) coatings: (a,b) coarse-grained micro-arc oxidation (CG-MAO); (c,d) fine-grained micro-arc oxidation (FG-MAO).
Figure 2. Surface morphology and EDS spectra of micro-arc oxidation (MAO) coatings: (a,b) coarse-grained micro-arc oxidation (CG-MAO); (c,d) fine-grained micro-arc oxidation (FG-MAO).
Materials 11 01232 g002

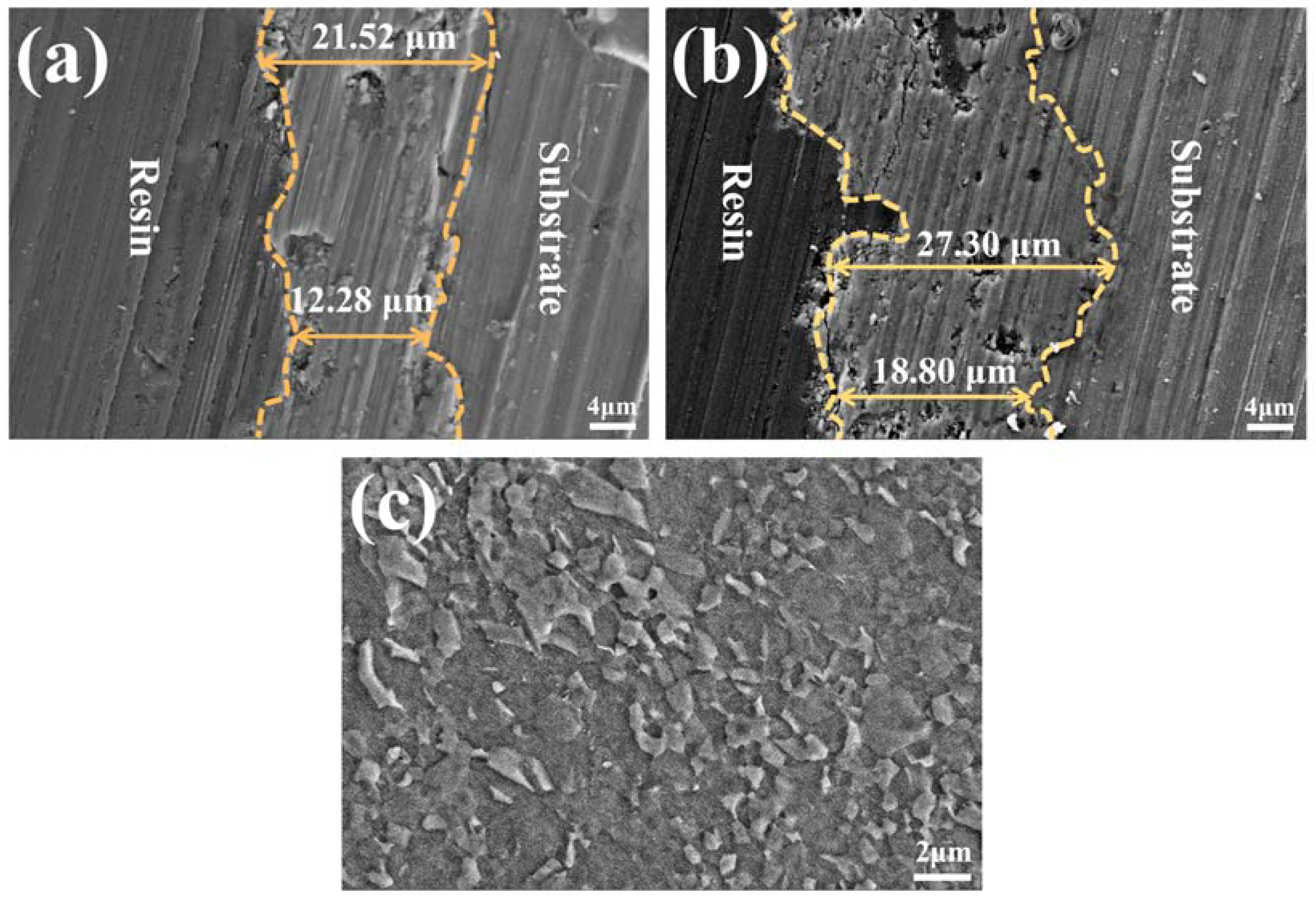

Figure 3. Cross-section SEM images of MAO coating: (a) CG-MAO and (b) FG-MAO; (c) SEM image underneath the coating in FG-MAO sample.
Figure 3. Cross-section SEM images of MAO coating: (a) CG-MAO and (b) FG-MAO; (c) SEM image underneath the coating in FG-MAO sample.
Materials 11 01232 g003
Figure 4. XRD graph of CG-MAO and FG-MAO sample prepared on pure Mg.
Figure 4. XRD graph of CG-MAO and FG-MAO sample prepared on pure Mg.
Materials 11 01232 g004

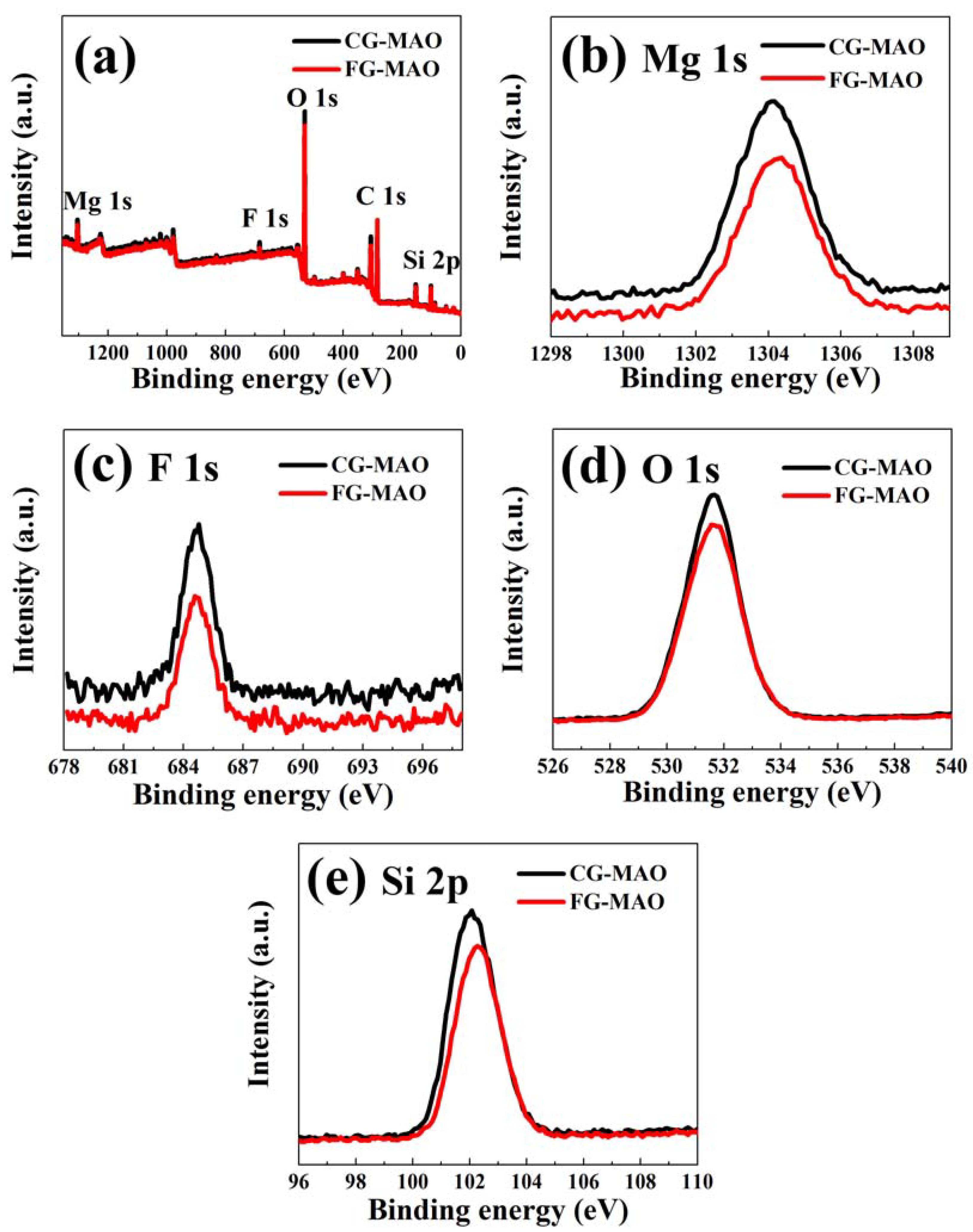

Figure 5. (a) X-ray photoelectron spectroscopy (XPS) survey spectra; (b) Mg 1s; (c) F 1s; (d) O 1s and (e) Si 2p high-resolution spectra for CG-MAO and FG-MAO samples.
Figure 5. (a) X-ray photoelectron spectroscopy (XPS) survey spectra; (b) Mg 1s; (c) F 1s; (d) O 1s and (e) Si 2p high-resolution spectra for CG-MAO and FG-MAO samples.
Materials 11 01232 g005

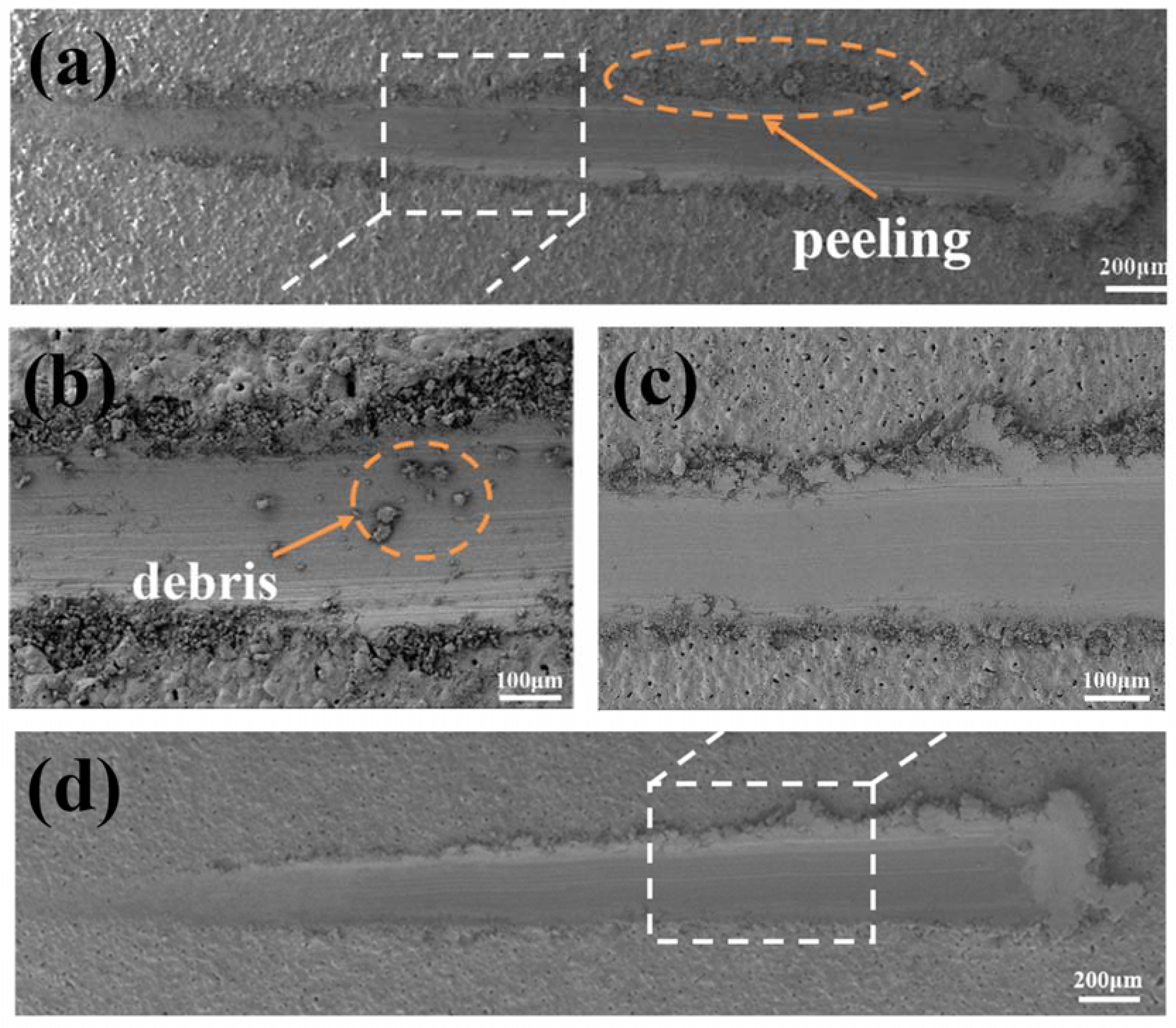

Figure 6. Scratch morphology of MAO samples: (a,b) CG-MAO and (c,d) FG-MAO.
Figure 6. Scratch morphology of MAO samples: (a,b) CG-MAO and (c,d) FG-MAO.
Materials 11 01232 g006

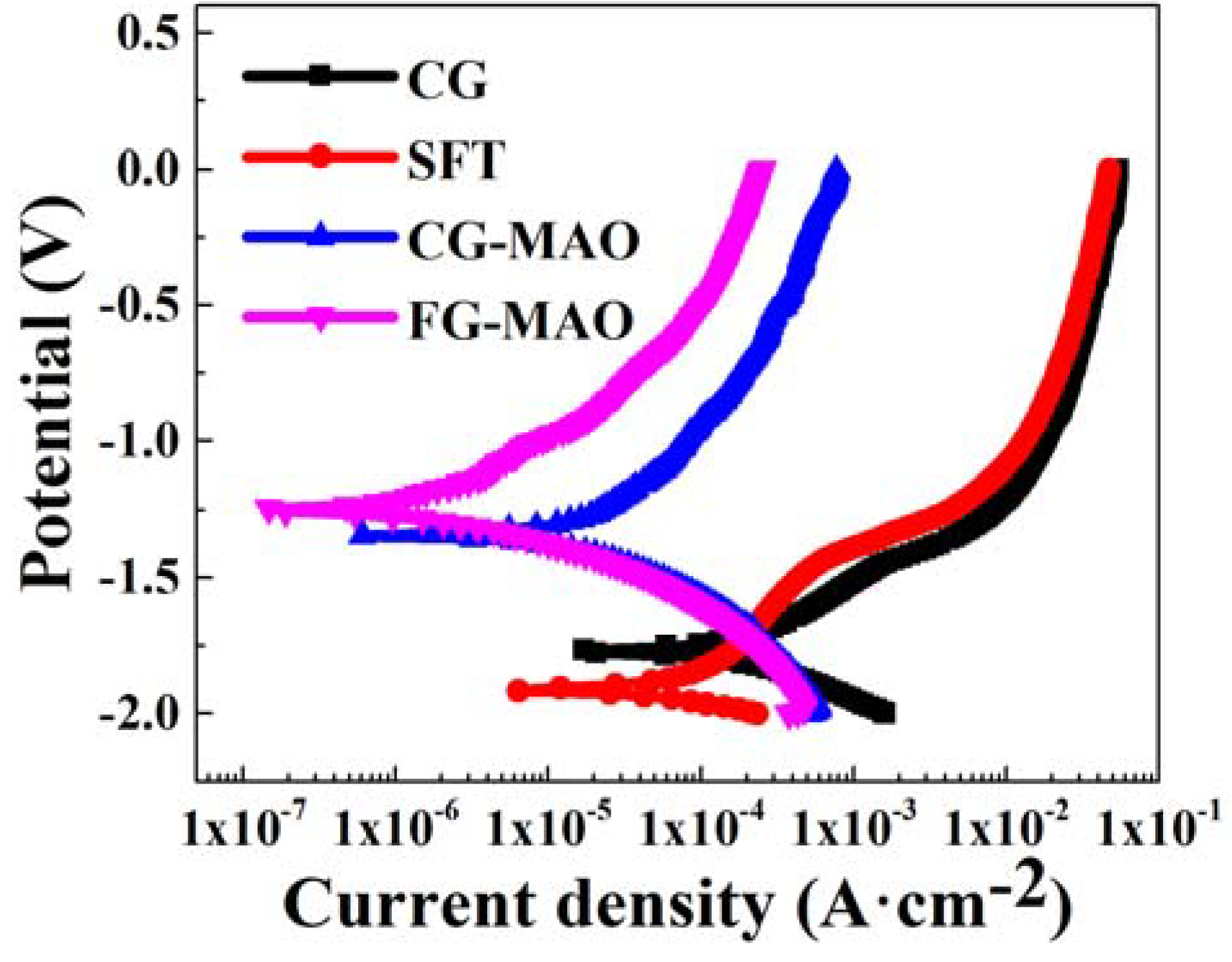

Figure 7. Potentiodynamic polarization curve of all samples immersed in simulated body fluid (SBF).
Figure 7. Potentiodynamic polarization curve of all samples immersed in simulated body fluid (SBF).
Materials 11 01232 g007

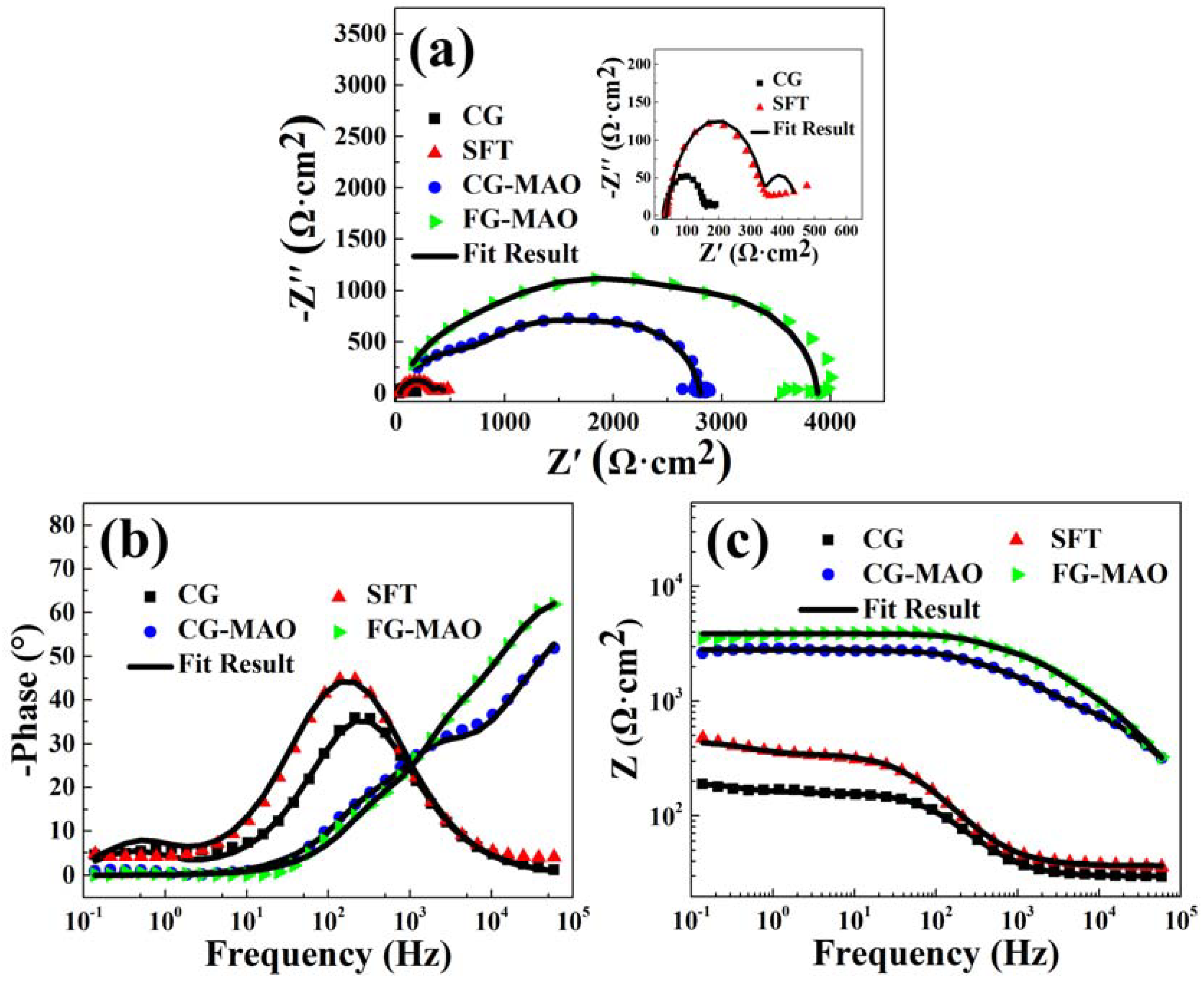

Figure 8. The electrochemical impedance spectroscopy (EIS) of all samples in SBF: (a) Nyquist plot; (b,c) Bode plots.
Figure 8. The electrochemical impedance spectroscopy (EIS) of all samples in SBF: (a) Nyquist plot; (b,c) Bode plots.
Materials 11 01232 g008

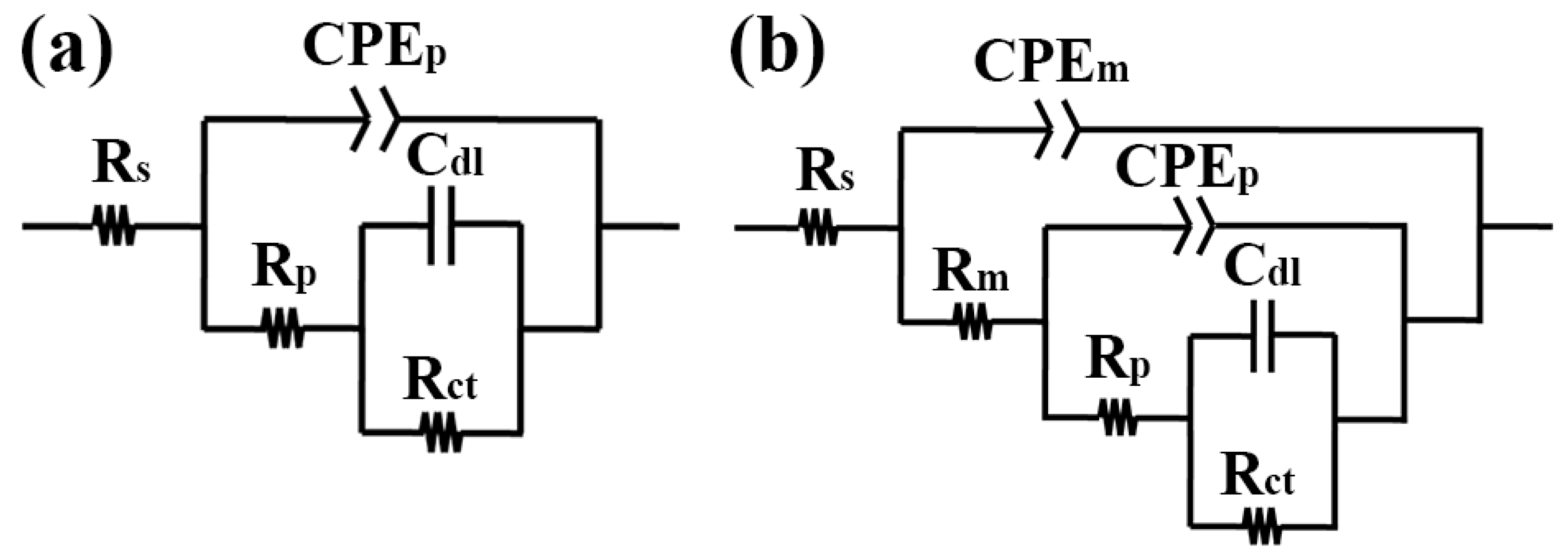

Figure 9. Equivalent circuits model for fitting EIS data of samples: (a) CG and SFT sample; (b) CG-MAO and FG-MAO coating.
Figure 9. Equivalent circuits model for fitting EIS data of samples: (a) CG and SFT sample; (b) CG-MAO and FG-MAO coating.
Materials 11 01232 g009

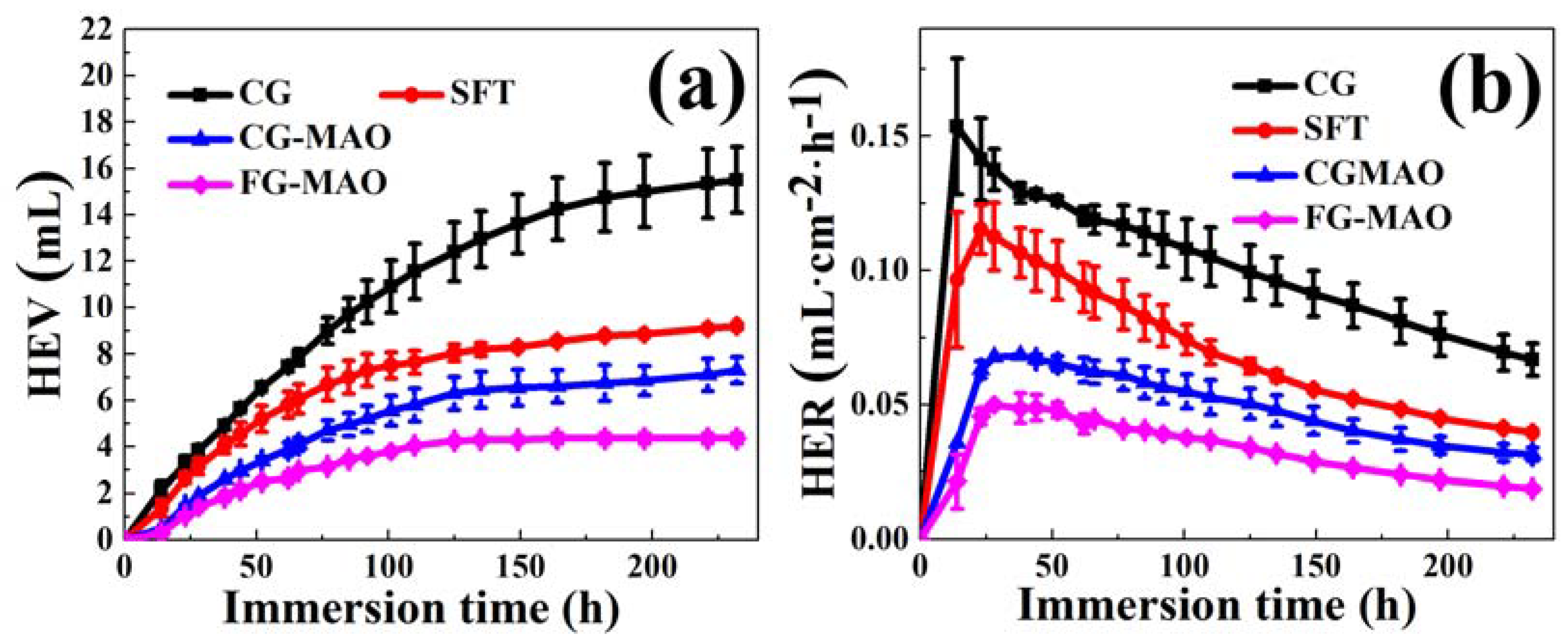

Figure 10. (a) Hydrogen evolution volume (HEV) and (b) hydrogen evolution rate (HER) curves of all samples immersed in SBF.
Figure 10. (a) Hydrogen evolution volume (HEV) and (b) hydrogen evolution rate (HER) curves of all samples immersed in SBF.
Materials 11 01232 g010

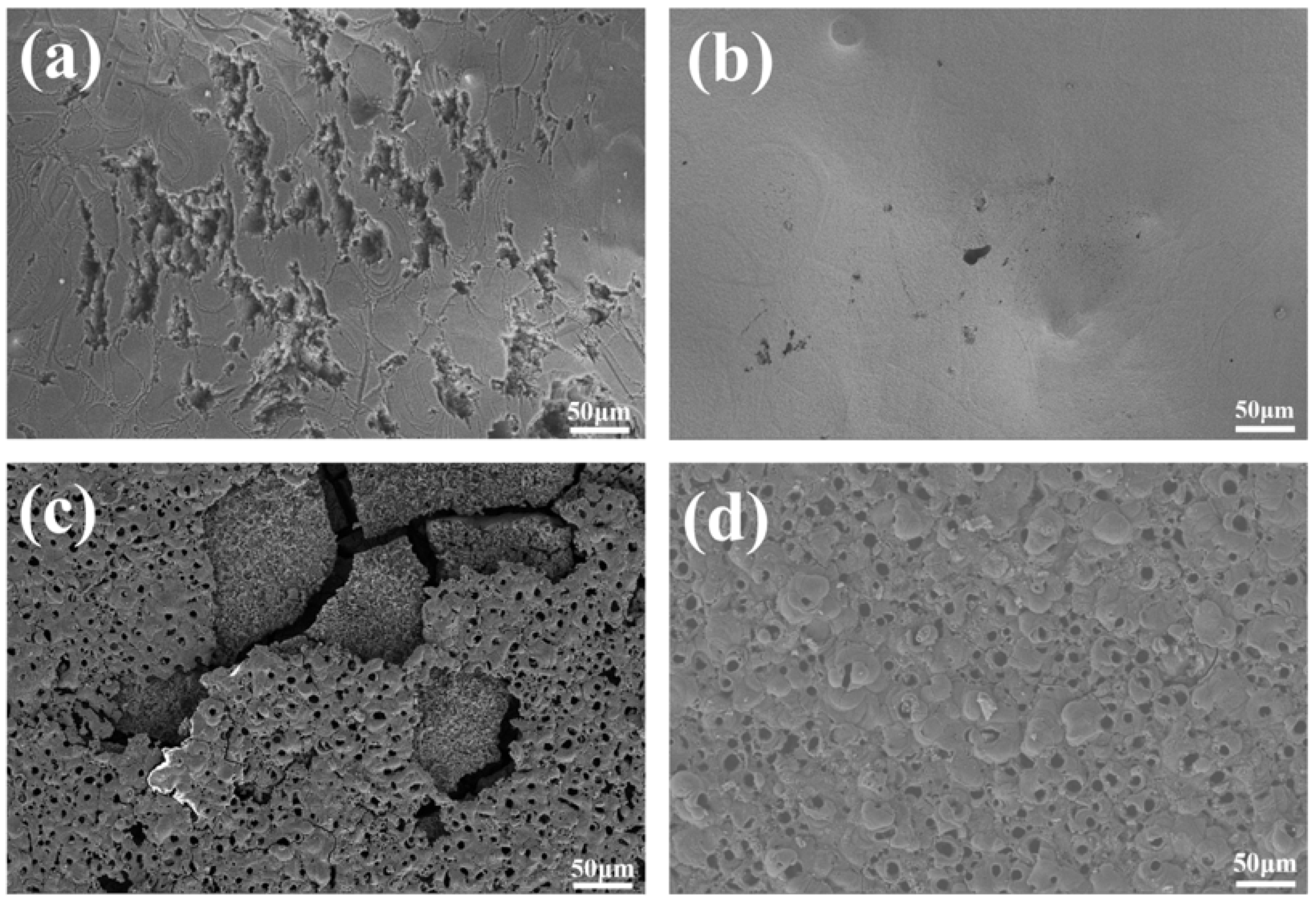

Figure 11. Post-corrosion morphologies of samples: (a) CG; (b) SFT; (c) CG-MAO; (d) FG-MAO.
Figure 11. Post-corrosion morphologies of samples: (a) CG; (b) SFT; (c) CG-MAO; (d) FG-MAO.
Materials 11 01232 g011
Table 1. The binding energy of main elements of CG-MAO coating and FG-MAO coating.
Table 1. The binding energy of main elements of CG-MAO coating and FG-MAO coating.
SampleBinding Energy (eV)
MgFOSi
CG-MAO 1304.07685.17531.67102.07
FG-MAO1304.37685.07531.87102.27
Table 2. Main electrochemical parameters of all samples immersed in SBF solution.
Table 2. Main electrochemical parameters of all samples immersed in SBF solution.
SampleEcorr (V vs. SCE)icorr (μA·cm−2)βc (mV·dec−1)βa (mV·dec−1)
CG−1.772 ± 0.00831.6 ± 6.653 ± 858 ± 12
SFT −1.916 ± 0.01215.3 ± 3.249 ± 1269 ± 16
CG-MAO −1.352 ± 0.0042.75 ± 0.3763 ± 1075 ± 9
FG-MAO−1.255 ± 0.0020.35 ± 0.0652 ± 799 ± 17
Table 3. The corrosion rate of samples calculated in accordance with Faraday’s law.
Table 3. The corrosion rate of samples calculated in accordance with Faraday’s law.
SampleCGSFTCG-MAOFG-MAO
CR (mm·year−1)0.71 ± 0.140.34 ± 0.0720.062 ± 0.0070.008 ± 0.001
Table 4. Fitting parameters for Nyquist plot of the samples in SBF solution.
Table 4. Fitting parameters for Nyquist plot of the samples in SBF solution.
SampleRs (Ω·cm2)Rm (Ω·cm2)CPEmRp (Ω·cm2)CPEpRct (Ω·cm2)Cdl (μF)
Q (Ω−1·cm−2·sn)nQ (Ω−1·cm−2·sn)n
CG2.98 ± 0.58131 ± 24(3.04 ± 0.38) × 10−50.82 ± 0.1130.78 ± 4.22139 ± 27
SFT3.67 ± 0.86315 ± 67(2.48 ± 0.24) × 10−50.85 ± 0.1493.52 ± 8.35401 ± 36
CG-MAO6.06 ± 1.231147 ± 102(1.63 ± 0.15) × 10−70.76 ± 0.101108 ± 122(1.43 ± 0.19) × 10−70.95 ± 0.18543.91 ± 42.88650 ± 43
FG-MAO3.05 ± 0.811906 ± 135(6.17 ± 0.72) × 1080.84 ± 0.181212 ± 109(5.23 ± 0.44) × 1080.98 ± 0.10736.95 ± 58.631300 ± 118
