Next Article in Journal
Carbon Nanotube Electron Emitter for X-ray Imaging
Previous Article in Journal
Impact of High Concentration Solutions on Hydraulic Properties of Geosynthetic Clay Liner Materials


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Time-Dependent Behavior of Reinforced Polymer Concrete Columns under Eccentric Axial Loading

Department of Civil Engineering, University of Salerno, Via Ponte Don Melillo 1, Fisciano (SA) 84084, Italy
*
Author to whom correspondence should be addressed.
Materials 2012, 5(11), 2342-2352; https://doi.org/10.3390/ma5112342
Submission received: 17 October 2012 / Revised: 9 November 2012 / Accepted: 14 November 2012 / Published: 16 November 2012

Abstract

:
Polymer concretes (PCs) represent a promising alternative to traditional cementitious materials in the field of new construction. In fact, PCs exhibit high compressive strength and ultimate compressive strain values, as well as good chemical resistance. Within the context of these benefits, this paper presents a study on the time-dependent behavior of polymer concrete columns reinforced with different bar types using a mechanical model recently developed by the authors. Balanced internal reinforcements are considered (i.e., two bars at both the top and bottom of the cross-section). The investigation highlights relevant stress and strain variations over time and, consequently, the emergence of a significant decrease in concrete’s stiffness and strength over time. Therefore, the results indicate that deferred effects due to viscous flow may significantly affect the reliability of reinforced polymer concrete elements over time.

1. Introduction

Due to their lightness and high structural performance, polymer-based materials have been widely utilized in recent years to strengthen existing construction that are subject to static and seismic loads. Their general mechanical features [1] and constructive details [2] have been investigated in previous studies.
However, their use is still limited within the field of new construction due to the necessity of investigating critical aspects of their performance, such as those related to their reliability over time.
Within this context, polymer concretes (PCs) are a useful design option, because their strength is at least twice that of usual Portland cement-based concrete, their ultimate compressive strain is higher than that of cementitious concretes and they possess good resistance to chemical agents [3,4,5,6,7,8].
From a chemical point of view, PCs are composed of natural aggregates (e.g., silica sand or gravel) bound together with a thermoset resin. Consequently, they are particularly suitable for marine construction, tunnels, prestressed concrete members, and seismic applications because their ultimate compressive strain values allow for high ductility levels.
On the other hand, due to their limited tensile strength, PCs must be reinforced with either steel or FRP bars (e.g., GFRP or CFRP rods, which have already been utilized in ordinary reinforced concrete members in new structures [9,10]).
From an environmental point of view, the dioxins and furans generated by the manufacture of organic polymers are extremely toxic and bio-cumulative. Such substances have hazardous effects on biodiversity, contaminating every level of the food chain [11]. However, more sustainable manufacturing of these polymers has been achieved using combustion fly-ash and slag [12] or recycled PET waste [13,14,15,16,17,18,19,20,21].
At service conditions, it is well known that polymer-based materials can be characterized by significant deferred behavior [22,23,24,25,26], and relevant stress migrations have therefore occurred because these materials have been combined with more traditional materials affected by lower-viscosity flows [27,28,29,30,31,32].
Therefore, the differences between the rheological properties of the constituent materials in polymer-reinforced concretes could cause a relevant increase of the stress state in the reinforcement over time that is accompanied by an increase in displacements.
These aspects must be studied in more detail because they could affect the reliability of structural members at service conditions.
The few experimental and theoretical analyses available in the literature on this topic have highlighted the relevance of PC creep behavior without contributing any final conclusions, due to the approximations that affect these studies.
It should also be noted that the existing scientific investigations on this subject have typically considered only axial load cases, while eccentric axial load cases still require further analysis.
This paper presents a study on the time-dependent behavior of a polymer concrete column reinforced with different bar types under eccentric axial loading. The investigation is based on a mechanical model recently proposed by the authors in [32].

2. Mechanical Model

The mechanical model adopted in this study schematises the viscous behavior of a polymer concrete beam reinforced with either steel or FRP bars under combined bending and axial loading [32].
To briefly describe the theoretical background presented in [32], the main hypotheses and equations are given below.
The basic assumptions of the model are as follows:
-
the generic plane cross-sections still lie within the plane after bending;
-
perfect adhesion exists between the polymer concrete and rods;
-
the external axial force, Next, and the bending moment, Mext, are constant over time;
-
there is no difference between the tensile and compressive stiffness/strength of a given material;
-
the behavior of the polymer concrete is linear-viscoelastic;
-
no cracks are present;
-
the behavior of the reinforcement bars is linear-elastic;
-
the internal reinforcing bars make no contribution to creep.
The following symbols are introduced in this paper:
-
G* indicates the centroid of the transformed cross-section, assumed as the origin of the x and y axes (Figure 1);
-
ε c and ε b denote the instantaneous values of the axial strain in the polymer concrete and the reinforcing bars, respectively, according to the following relationships (Figure 1):
{ ε c ( t , y )     = λ ( t ) + μ ( t ) y     = ε c e ( t , y )   + ε c v ( t , y ) ε b ( t , y b ) = λ ( t ) + μ ( t ) y b     = ε b e ( t , y b )
where
-
λ(t) and µ(t) are the axial strain at G* and the cross-sectional curvature, respectively;
-
y b is the ordinate of the centroid of the generic bars;
-
ε c e ( t , y ) and ε b e ( t , y b ) are the elastic polymer concrete and bar strains, respectively; and
-
ε c v ( t , y ) is the viscous contribution to the polymer concrete strain.

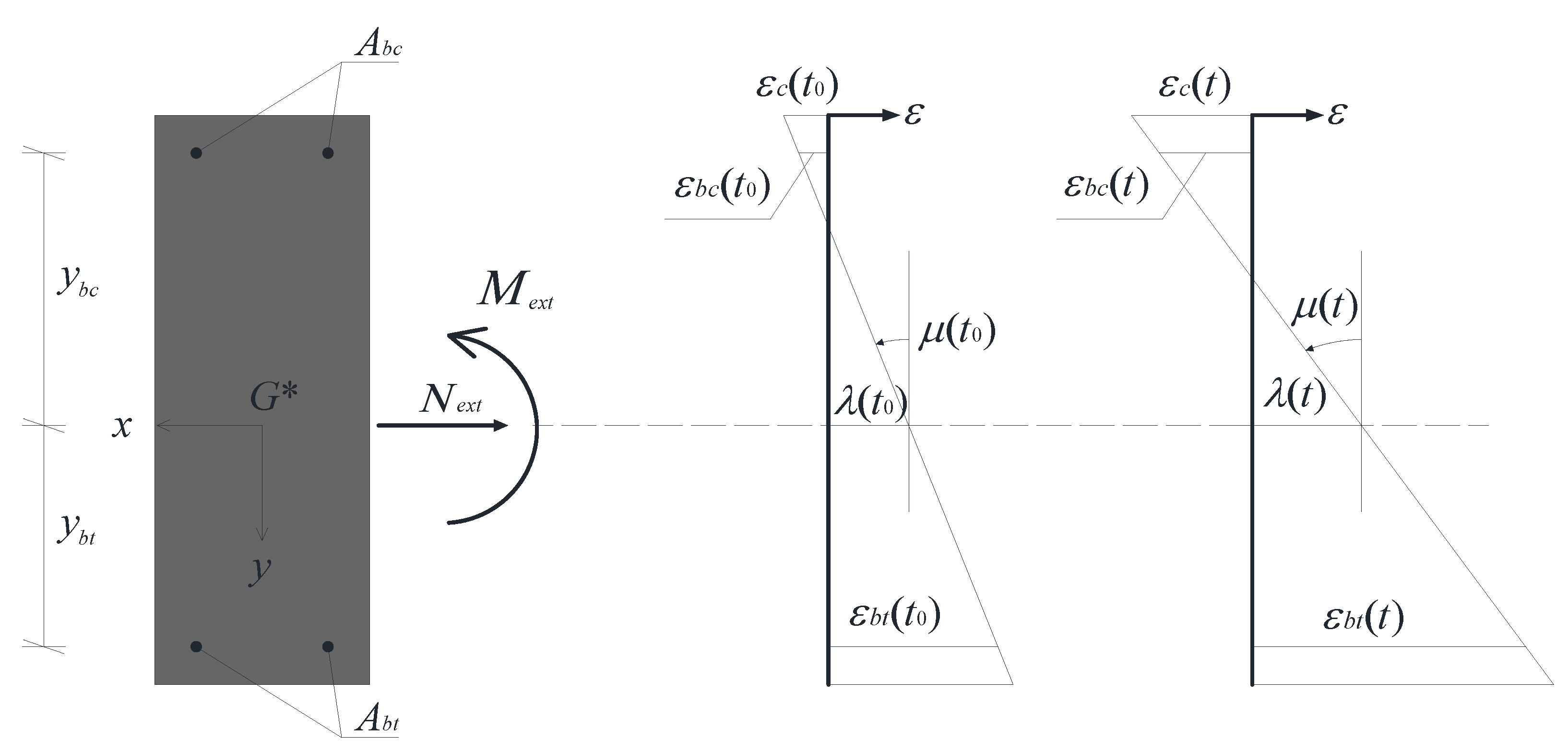

Figure 1. Instantaneous strain and curvature of the cross-section.
Figure 1. Instantaneous strain and curvature of the cross-section.
Materials 05 02342 g001
We also define the normal stresses in the polymer concrete, σc, in the top reinforcement bars, σbc, and in the bottom bars, σbt; the initial Young’s modulus of the polymer concrete, Ec, and the reinforcement bars, Eb; the polymer concrete area, Ac, the overall top reinforcement rod area, Abc, and the overall bottom reinforcement rod area, Abt.
From Equation (1), the following expressions describing the stresses in both the polymer concrete and the bars can be defined as:
{ σ c ( t , y )    = E c ε c e ( t , y )    = E c [ ( λ ( t ) + μ ( t ) y ) ε c v ( t , y ) ] σ b c ( t ) = E b ε b e ( t , y b c ) = E b [ ( λ ( t ) + μ ( t ) y b c ) ] σ b t ( t ) = E b ε b e ( t , y b t ) = E b [ ( λ ( t ) + μ ( t ) y b t ) ]
The equilibrium equations of the cross-section can be expressed as:
{ A c σ c ( t , y ) d A c + A b c σ b c ( t ) d A b c + A b t σ b t ( t ) d A b t = N e x t                    (translation) A c σ c ( t , y ) y d A c + A b c σ b c ( t ) y b c d A b c + A b t σ b t ( t ) y b t d A b t = M e x t       (rotation about the  x  axis)
Using Equation (2), Equation (3) can be written in simple algebra as follows:
{ E c A * λ ( t ) = E c A c ε c v ( t , y ) d A c + N e x t E c I * μ ( t ) = E c A c ε c v ( t , y ) y d A c + M e x t
where
-
A* = Ac + nbAbc + nbAbt is the area of the transformed section;
-
I* = Ic + nbIbc + nbIbt is the moment of inertia about the x axis of the transformed section;
-
nb = Eb/Ec;
-
Ic, Ibc and Ibt are the moments of inertia about the x axis of the polymer concrete, the top reinforcement bars and the bottom reinforcement bars, respectively.
The viscous deformation ε c v ( t , y ) can be expressed as:
ε c v ( t , y ) = t 0 t σ c ( τ , y ) E c f c ( τ , t ) d τ
with
- f c ( τ , t ) = E c Φ c ( τ , t ) τ - Φ c ( τ , t ) = 1 E c ( 1 + φ c ( τ , t ) ) (creep function) - φ c ( τ , t ) (creep coefficient)
By accounting for the relationship in Equation (5), Equation (3) becomes:
{ λ ( t ) = ( A c A * 1 ) t 0 t λ ( τ ) f c ( τ , t ) d τ + S c A * t 0 t μ ( τ ) f c ( τ , t ) d τ + N e x t E c A * ( 1 + t 0 t f c ( τ , t ) d τ ) μ ( t ) = ( I c I * 1 ) t 0 t μ ( τ ) f c ( τ , t ) d τ + S c I * t 0 t λ ( τ ) f c ( τ , t ) d τ + M e x t E c I * ( 1 + t 0 t f c ( τ , t ) d τ )
Equation (6) represents a coupled system of two Volterra integral equations for the unknowns λ(t) and µ(t), which are solved using the Laplace transformation technique:
{ L [ λ ( t ) ] = ( A c A * 1 ) L [ t 0 t λ ( τ ) f c ( τ , t ) d τ ] + S c A * L [ t 0 t μ ( τ ) f c ( τ , t ) d τ ] +                            + N e x t E c A * 1 s + N e x t E c A * L [ t 0 t f c ( τ , t ) d τ ] L [ μ ( t ) ] = ( I c I * 1 ) L [ t 0 t μ ( τ ) f c ( τ , t ) d τ ] + S c I * L [ t 0 t λ ( τ ) f c ( τ , t ) d τ ] +                            + M e x t E c I * 1 s + M e x t E c I * L [ t 0 t f ( τ , t ) d τ ]
Assuming t0 = 0, λ(t) = 0 and µ(t) = 0 for t < t0, and fc(τ,t) = 0 for t < τ, the convolution theorem allows for the rewriting of the relationships in Equation (7) into the following form as an algebraic equation system:
{ λ ( s ) = ( A f A * 1 ) λ ( s ) F ( s ) + S c A * μ ( s ) F ( s ) + N e x t E c A * 1 s + N e x t E c A * F ( s ) s μ ( s ) = ( I f I * 1 ) μ ( s ) F ( s ) + S c I * λ ( s ) F ( s ) + M e x t E c I * 1 s + M e x t E c I * F ( s ) s
where F(s), λ(s) and µ(s) represent the Laplace transforms of the functions fc(τ,t), λ(t) and µ(t), respectively.
The inverse Laplace transforms of λ(s) and µ(s) provide a solution to the viscous problem in the time domain.

3. Numerical Analysis

A numerical investigation of a polymer concrete column strengthened with several bar types is developed in this study. Only balanced internal reinforcements are accounted for and are composed of two bars at both the top and bottom of the cross-section.
Different rods are considered, the geometrical and mechanical properties of which, as certified by the manufacturer, are given in Table 1. The symbols Φb, Eb and fb denote the diameter, longitudinal Young’s modulus and strength of the bar, respectively.
Table 2 lists the ingredients of the polymer concrete under study, its longitudinal Young’s modulus, Ec, and its strength, fc. These properties correspond to those obtained experimentally for the GFA 45 polymer concrete in [12].
Table 1. Certified geometrical and mechanical properties of the reinforcement bars.
Table 1. Certified geometrical and mechanical properties of the reinforcement bars.
Bar IDMaterialΦb (mm)Eb (GPa)fb (MPa)
SISteel8210.00450.00
SIISteel10210.00450.00
SIIISteel12210.00450.00
SIVSteel16210.00450.00
CICFRP8115.002000.00
CIICFRP10115.002000.00
CIIICFRP12115.002000.00
CIVCFRP16115.002000.00
GIGFRP840.001000.00
GIIGFRP1040.001000.00
GIIIGFRP1240.001000.00
GIVGFRP1640.001000.00
Table 2. Composition and mechanical properties of the polymer concrete (type GFA 45 in [12]).
Table 2. Composition and mechanical properties of the polymer concrete (type GFA 45 in [12]).
Binder TypeMix Fraction (% of aggregate to polymer binder)Ec (GPa)fc (MPa)
Alkali sodium silicate-activated coal, combustion fly ash and slag23% Fine natural dune sand
29% 9 mm greywacke
18% 14 mm greywacke
10.0041.50
The geometry, boundary conditions and loads used in the analysis are shown in Figure 2. The creep behavior of the polymer concrete is simulated with the Bruger–Kelvin viscoelastic model (Figure 3).

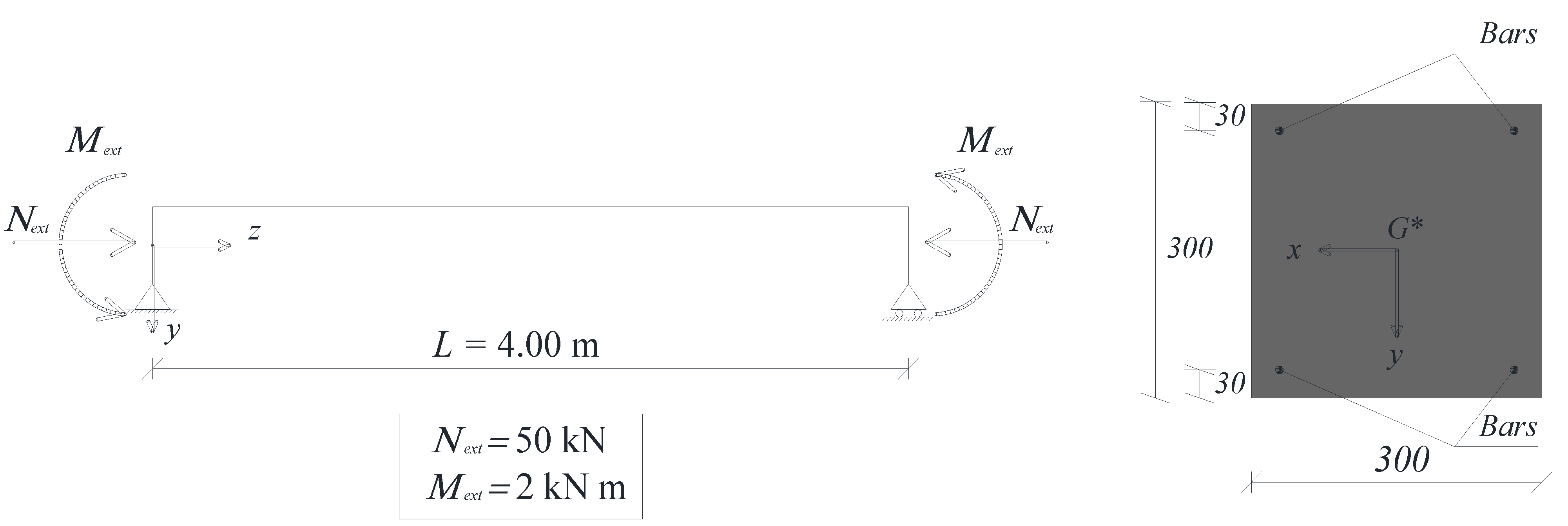

Figure 2. Reinforced polymer concrete beam (cross-sectional dimensions in mm).
Figure 2. Reinforced polymer concrete beam (cross-sectional dimensions in mm).
Materials 05 02342 g002
Figure 3. Bruger–Kelvin model.
Figure 3. Bruger–Kelvin model.
Materials 05 02342 g003
The viscous properties of the polymer concrete are evaluated from the experiments reported in [12]. To this end, the experimental data are fitted using the ordinary least-squares method, limiting the analysis to the secondary creep range due to its relevance when dealing with the service life of civil structures. The rheological parameters considered in the present study are listed in Table 3.
Table 3. Rheological properties of the polymer concrete (type GFA 45 in [12]).
Table 3. Rheological properties of the polymer concrete (type GFA 45 in [12]).
E1 (GPa)E2 (GPa)E3 (GPa)η1 (GPa d)η2 (GPa d)η3 (GPa d)
7.38005.47 × 10200
The analysis is carried out with reference to the beam’s end cross-section (i.e., at z = 4.00 m), accounting for the reinforcement types indicated in Table 1.
The flexural curvature, axial strain, normal stresses at the top fiber, σcs, and bottom fiber, σci, of the beam, and normal stresses in the top and bottom reinforcement bars are evaluated over time in Figure 4, Figure 5 and Figure 6.

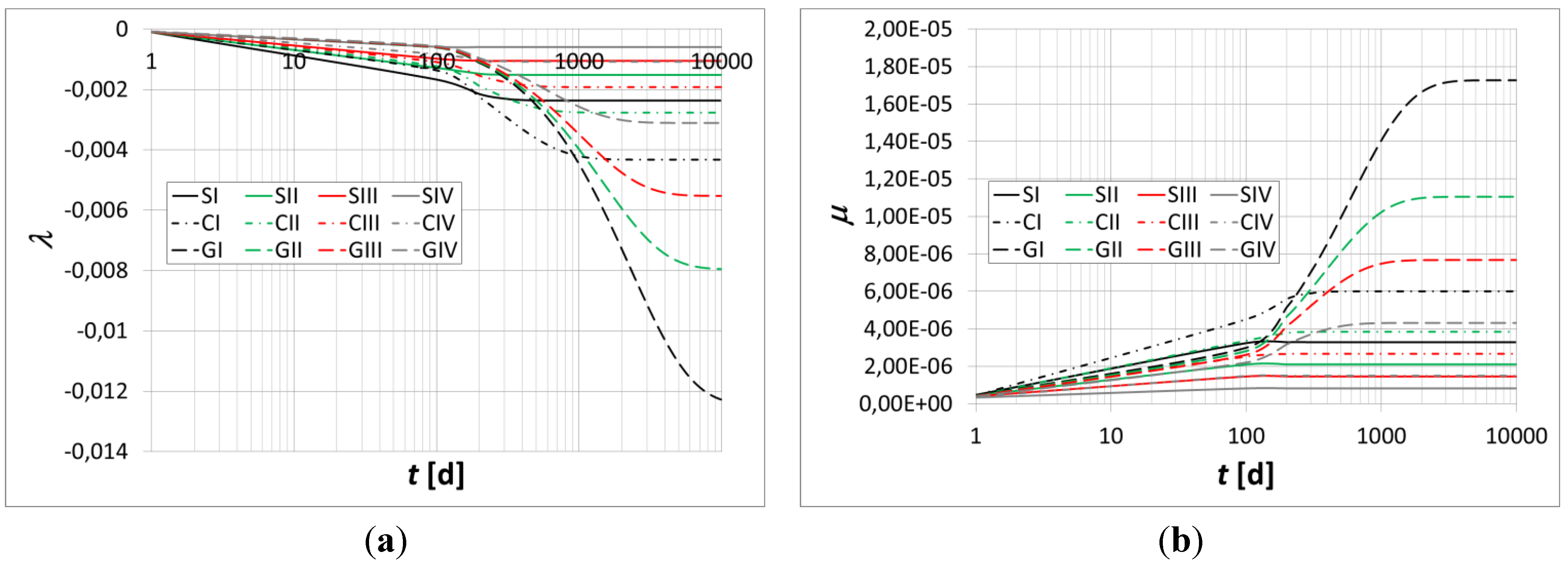

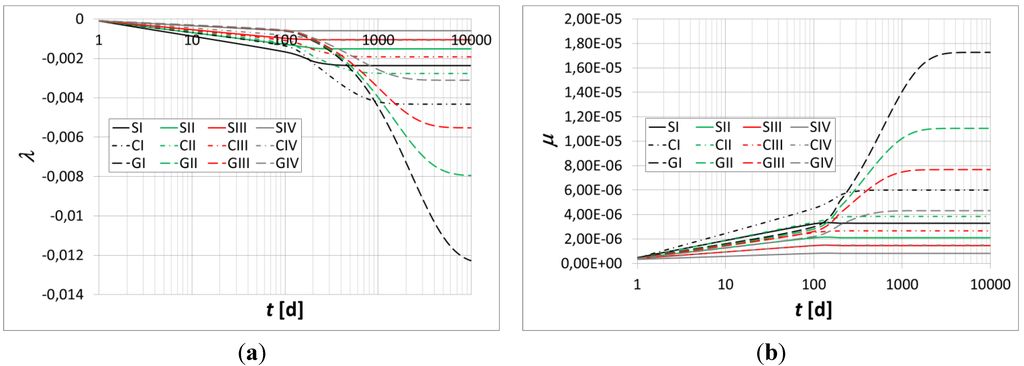

Figure 4. (a) Axial strain vs. time; (b) Curvature vs. time.
Figure 4. (a) Axial strain vs. time; (b) Curvature vs. time.
Materials 05 02342 g004

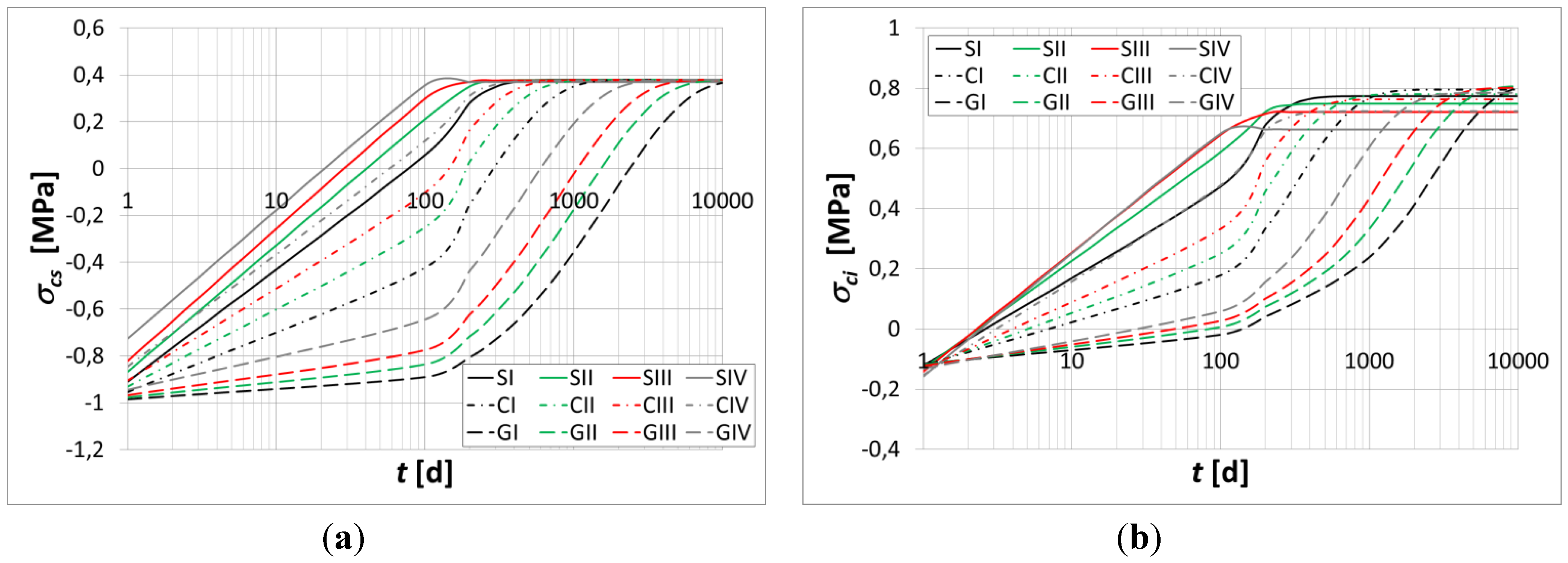

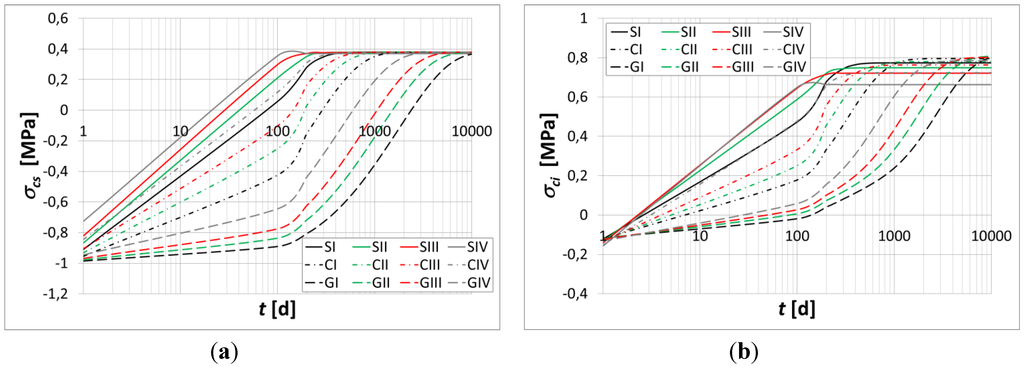

Figure 5. (a) Instantaneous stresses at the top fiber of the beam; (b) Instantaneous stresses at the bottom fiber of the beam.
Figure 5. (a) Instantaneous stresses at the top fiber of the beam; (b) Instantaneous stresses at the bottom fiber of the beam.
Materials 05 02342 g005

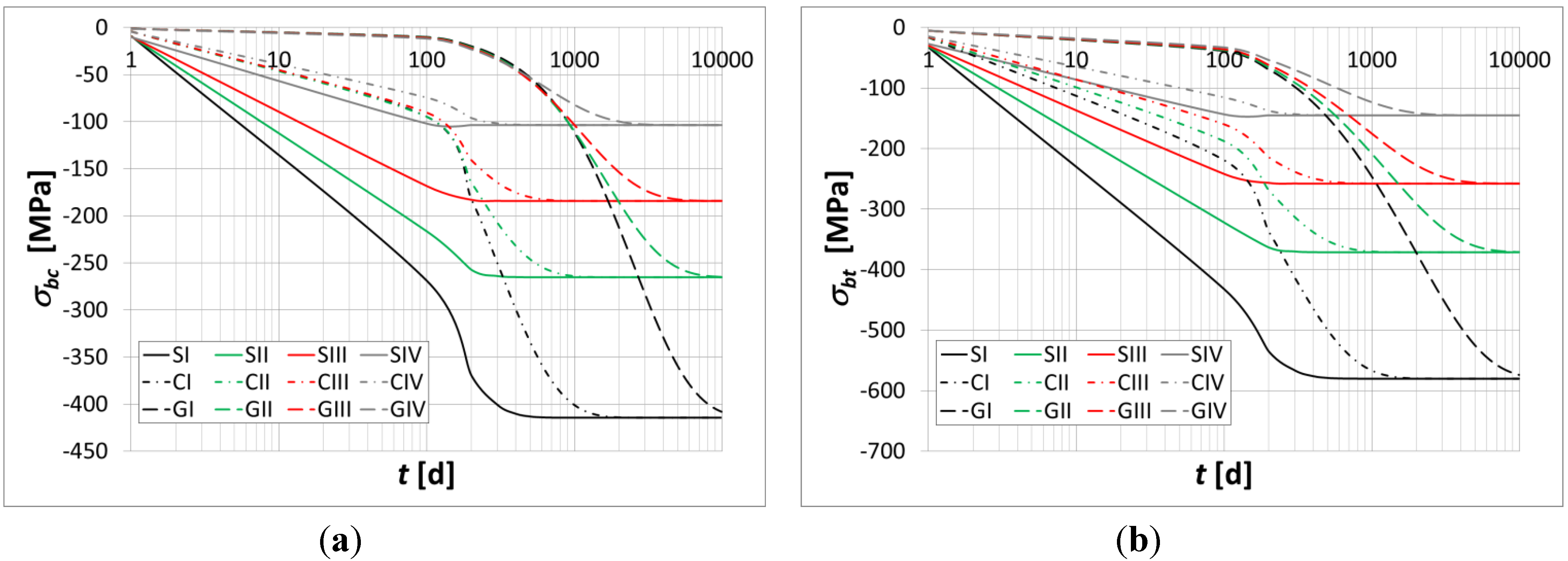

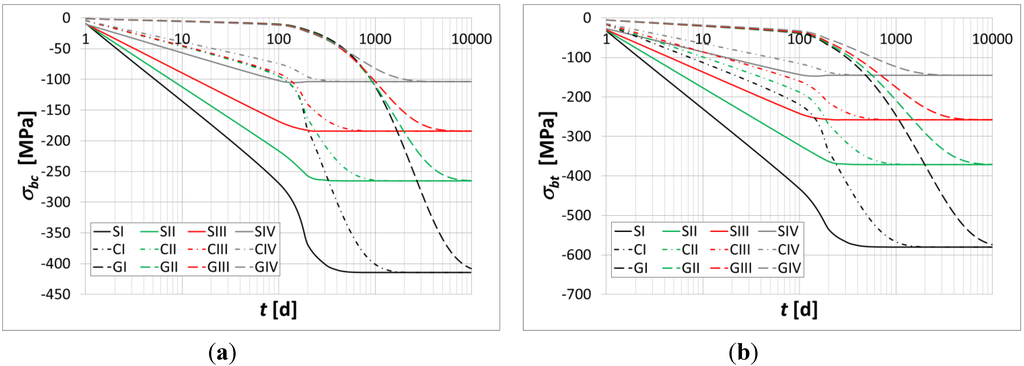

Figure 6. (a) Instantaneous stresses in the top reinforcement bars; (b) Instantaneous stresses in the bottom reinforcement bars.
Figure 6. (a) Instantaneous stresses in the top reinforcement bars; (b) Instantaneous stresses in the bottom reinforcement bars.
Materials 05 02342 g006
The main results are summarized in Table 4 and Table 5. In particular, the percentage variations in the axial strain, curvature and stresses in the constituent materials are evaluated at the time instant t = 10000 h.
It should be noted that the initial stresses in the polymer concrete are less than 40% of the corresponding failure strength. This requirement is pivotal to satisfying a basic assumption of the linear viscoelasticity theory.
Moreover, the results obtained show a substantial increase in the axial strain, curvature, and relevant stress migration from the concrete to the bars due to the relevance of the polymer concrete’s creep flow.
Table 4. Instantaneous stresses in the polymer concrete.
Table 4. Instantaneous stresses in the polymer concrete.
Bar IDσcs(0) (MPa)σcs(10000 d) (MPa)σcs/σcs(0) (%)σcs(0) (MPa)σcs(10000 d) (MPa)σcs/⎕σcs(0) (%)
SI−0.930.38−140.57−0.140.77−643.20
SII−0.900.38−141.90−0.160.75−579.62
SIII−0.870.38−143.39−0.170.72−524.66
SIV−0.790.38−146.65−0.190.66−441.15
CI−0.960.38−139.43−0.130.80−714.37
CII−0.940.38−140.21−0.140.78−663.48
CIII−0.920.38−141.13−0.150.76−614.35
CIV−0.870.38−143.27−0.170.72−528.72
GI−0.990.37−137.13−0.120.80−779.79
GII−0.980.38−138.64−0.120.1−764.35
GIII−0.970.38−139.10−0.130.80−737.21
GIV−0.950.38−139.98−0.140.78−677.76
Table 5. Instantaneous stresses in the reinforcement bars.
Table 5. Instantaneous stresses in the reinforcement bars.
Bar IDσcs(0) (MPa)σcs(10000 d) (MPa)σcs/σcs(0) (%)σcs(0) (MPa)σcs(10000 d) (MPa)σcs/σcs(0) (%)
SI−6.30−414.476473.95−24.34−580.252284.10
SII−6.54−265.263941.06−23.56−371.361476.37
SIII−6.82−184.212602.65−22.69−257.891036.53
SIV−7.23−103.621333.60−20.82−145.06596.60
CI−3.21−414.4712401.80−13.70−580.254134.80
CII−3.41−265.267676.02−13.44−371.362662.20
CIII−3.51−184.215141.24−13.15−257.891861.59
CIV−3.72−103.622684.02−12.47−145.061063.74
GI−1.11−408.4036703.60−4.88−574.1911674.90
GII−1.12−264.9323483.60−4.84−371.037561.91
GIII−1.14−184.2016066.90−4.80−257.885270.21
GIV−1.18−103.628705.11−4.70−145.062298.44

4. Conclusions

This paper presents an investigation on the long-term behavior of a polymer concrete column reinforced with several bar types. The analysis is carried out using the mechanical model proposed previously [32].
The numerical simulations highlight relevant stress migration from the polymer concrete toward the reinforcement bars in the analyzed beam.
A very relevant increase in the stresses within the top rods and those within the bottom rods is observed at the time instant t = 10000 h.
Moreover, a significant decrease in the top and bottom peak stresses of the polymer concrete and a substantial increase in the displacements of the beams’ long-term configurations are noted due to the high variation in their axial strain and flexural curvature.
The results also allow the following remarks to be made:
-
the stress variations over time within the reinforcement bars may lead to the failure of a structural member because the stresses in the rods approach the available strength (see the analysis concerning a beam reinforced with 8-mm steel bars), thus compromising the safety of the entire structure;
-
the long-term displacements of a structural member may produce, in hyperstatic frames, noticeable stress redistributions due to the continuity conditions, thus affecting the stress state in the entire structure;
-
better deferred behavior of a reinforced polymer concrete column can be expected as the Young’s modulus and overall area of the internal rebars increase.
Finally, the current study highlights that the stiffness and strength of beams made from reinforced polymer concrete can change considerably over time due to viscous phenomena. This situation requires an accurate evaluation over time of the stresses, deflections and cracks at the serviceability limit state, which is mandatory to assess the beams’ reliability over time.

References

  1. Ghobarah, A.; El-Amoury, T. Seismic rehabilitation of deficient exterior concrete frame joints. J. Compos. Constr. 2005, 9, 408–416. [Google Scholar] [CrossRef]
  2. Ascione, L.; Berardi, V.P. Anchorage device for FRP laminates in the strengthening of concrete structures close to beam-column joints. Compos. B Eng. 2011, 42, 1840–1850. [Google Scholar] [CrossRef]
  3. Aniskevich, K.; Khristova, Y. Effect of aging of the binder on the creep of polymer concrete. Mech. Compos. Mater. 1996, 32, 544–549. [Google Scholar] [CrossRef]
  4. Maksimov, R.; Jirgens, L.; Jansons, J.; Plume, E. Mechanical properties of polyester polymer-concrete. Mech. Compos. Mater. 1999, 35, 99–110. [Google Scholar] [CrossRef]
  5. Griffiths, R.; Ball, A. An assessment of the properties and degradation behaviour of glass-fibre-reinforced polyester polymer concrete. Compos. Sci. Technol. 2000, 60, 2747–2753. [Google Scholar] [CrossRef]
  6. Tavares, C.M.L.; Ribeiro, M.C.S.; Ferreira, A.J.M.; Guedes, R.M. Creep behaviour of FRP-reinforced polymer concrete. Compos. Struct. 2002, 57, 47–51. [Google Scholar] [CrossRef]
  7. Aniskevich, K.; Hristova, J.; Jansons, J. Physical aging of polymer concrete during creep. J. Appl. Polym. Sci. 2003, 89, 3427–3431. [Google Scholar] [CrossRef]
  8. Guedes, R.M.; Tavares, C.M.L.; Ferreira, A.J.M. Experimental and theoretical study of the creep behavior of GFRP-reinforced polymer concrete. Compos. Sci. Technol. 2004, 64, 1251–1259. [Google Scholar] [CrossRef]
  9. Alsayed, S.H.; Al-Salloum, Y.A.; Almusallam, T.H. Performance of glass fiber reinforced plastic bars as a reinforcing material for concrete structures. Compos. B Eng. 2000, 31, 555–567. [Google Scholar] [CrossRef]
  10. Ascione, L.; Mancusi, G.; Spadea, S. Flexural behaviour of concrete beams reinforced with GFRP Bars. Strain 2010, 46, 460–469. [Google Scholar] [CrossRef]
  11. Pacheco-Torgal, F.; Jalali, S. Toxicity of building materials: A key issue in sustainable construction. Int. J. Sustain. Eng. 2011, 4, 281–287. [Google Scholar] [CrossRef] [Green Version]
  12. Lee, N.P. Creep and Shrinkage of Inorganic Polymer Concrete; Branz Study Report SR175; Branz Ltd.: Judgeford, New Zeland, 2007. [Google Scholar]
  13. Rebeiz, K.; Fowler, D.; Paul, D. Mechanical properties of polymer concrete systems made with recycled plastic. ACI Mater. J. 1994, 91, 40–45. [Google Scholar]
  14. Rebeiz, K.; Serhal, S.; Fowler, D. Structural behaviour of polymer concrete beams using recycled plastics. J. Mater. Civil Eng. 1994, 6, 150–165. [Google Scholar] [CrossRef]
  15. Rebeiz, K. Precast use of polymer concrete using unsaturated polyester resin based on recycled PET waste. Constr. Build. Mater. 1994, 10, 215–220. [Google Scholar] [CrossRef]
  16. Rebeiz, K.; Yang, S.; David, W. Polymer mortar composites made with recycled plastics. ACI Mater. J. 1994, 91, 313–319. [Google Scholar]
  17. Rebeiz, K. Time temperature properties of polymer concrete using recycled PET. Cem. Concr. Compos. 1995, 17, 119–124. [Google Scholar] [CrossRef]
  18. Rebeiz, K.; Fowler, D. Flexural strength of reinforced polymer concrete made with recycled plastic waste. ACI Struct. J. 1996, 93, 524–530. [Google Scholar]
  19. Jo, B.; Seung-Kook, P.; Cheol-Hwan, K. Mechanical properties of polyester polymer concrete using recycled polyethylene terephthalate. ACI Struct. J. 2006, 103, 219–225. [Google Scholar]
  20. Jo, B.; Park, S.; Park, J. Mechanical properties of polymer concrete made with recycled PET and recycled concrete aggregates. Constr. Build. Mater. 2008, 22, 2281–2291. [Google Scholar] [CrossRef]
  21. Mahdi, F.; Abbas, H.; Khan, A. Strength characteristics of polymer mortar and concrete using different compositions of resins derived from post-consumer PET bottles. Constr. Build. Mater. 2010, 24, 25–36. [Google Scholar] [CrossRef]
  22. Maksimov, R.D.; Plume, E. Long-Term creep of hybrid aramid/glass fiber-reinforced plastics. Mech. Compos. Mater. 2001, 37, 271–280. [Google Scholar] [CrossRef]
  23. Petermann, J.; Schulte, K. The effects of creep and fatigue stress ratio on the long-term behavior of angle-ply CFRP. Compos. Struct. 2002, 57, 205–210. [Google Scholar] [CrossRef]
  24. Ascione, F.; Berardi, V.P.; Feo, L.; Giordano, A. An experimental study on the long-term behavior of CFRP pultruded laminates suitable to concrete structures rehabilitation. Compos. B Eng. 2008, 39, 1147–1150. [Google Scholar] [CrossRef]
  25. Ascione, L.; Berardi, V.P.; D’Aponte, A. A viscoelastic constitutive law for FRP materials. Int. J. Comput. Methods Eng. Sci. Mech. 2011, 12, 225–232. [Google Scholar] [CrossRef]
  26. Ascione, L.; Berardi, V.P.; D’Aponte, A. Creep phenomena in FRP materials. Mech. Res. Commun. 2012, 43, 15–21. [Google Scholar] [CrossRef]
  27. Arockiasamy, M.; Chidambaram, S.; Amer, A.; Shahawy, M. Time-dependent deformations of concrete beams reinforced with CFRP bars. Compos. B Eng. 2000, 31, 577–592. [Google Scholar] [CrossRef]
  28. Muller, M.; Toussaint, E.; Destrebecq, J.F.; Grédiac, M. Investigation into the time-dependent behaviour of reinforced concrete specimens strengthened with externally bonded CFRP-plates. Compos. B Eng. 2007, 38, 417–428. [Google Scholar] [CrossRef]
  29. Ascione, L.; Berardi, V.P.; D’Aponte, A. Long-term behavior of PC beams externally plated with prestressed FRP systems: A mechanical model. Compos. B Eng. 2011, 42, 1196–1201. [Google Scholar] [CrossRef]
  30. Mancusi, G.; Spadea, S.; Berardi, V.P. Experimental analysis on the time-dependent bonding of FRP laminates under sustained loads. Compos. B Eng. 2012. [Google Scholar] [CrossRef]
  31. Zhang, C.; Wang, J. Viscoelastic analysis of FRP strengthened reinforced concrete beams. Compos. Struct. 2011, 93, 3200–3208. [Google Scholar] [CrossRef]
  32. Berardi, V.P.; Mancusi, G. A mechanical model for predicting the long term behavior of reinforced polymer concretes. Mech. Res. Commun. 2012. submitted for publication. [Google Scholar]

Share and Cite

MDPI and ACS Style

Berardi, V.P.; Mancusi, G. Time-Dependent Behavior of Reinforced Polymer Concrete Columns under Eccentric Axial Loading. Materials 2012, 5, 2342-2352. https://doi.org/10.3390/ma5112342

AMA Style

Berardi VP, Mancusi G. Time-Dependent Behavior of Reinforced Polymer Concrete Columns under Eccentric Axial Loading. Materials. 2012; 5(11):2342-2352. https://doi.org/10.3390/ma5112342

Chicago/Turabian Style

Berardi, Valentino Paolo, and Geminiano Mancusi. 2012. "Time-Dependent Behavior of Reinforced Polymer Concrete Columns under Eccentric Axial Loading" Materials 5, no. 11: 2342-2352. https://doi.org/10.3390/ma5112342

Article Metrics

Back to TopTop
