Review

Solid-State NMR Spectroscopy of Metal–Organic Framework Compounds (MOFs)

1
Department of Chemistry and Food Chemistry, Bioanalytical Chemistry, Dresden University of Technology, Dresden 01062, Germany
2
Department of Chemistry and Food Chemistry, Inorganic Chemistry I, Dresden University of Technology, Dresden 01062, Germany
*
Author to whom correspondence should be addressed.
Materials 2012, 5(12), 2537-2572; https://doi.org/10.3390/ma5122537
Submission received: 10 October 2012 / Revised: 13 November 2012 / Accepted: 20 November 2012 / Published: 28 November 2012
(This article belongs to the Special Issue NMR in Materials Science)

Abstract

:
Nuclear Magnetic Resonance (NMR) spectroscopy is a well-established method for the investigation of various types of porous materials. During the past decade, metal–organic frameworks have attracted increasing research interest. Solid-state NMR spectroscopy has rapidly evolved into an important tool for the study of the structure, dynamics and flexibility of these materials, as well as for the characterization of host–guest interactions with adsorbed species such as xenon, carbon dioxide, water, and many others. The present review introduces and highlights recent developments in this rapidly growing field.

Graphical Abstract

1. Introduction

Nuclear Magnetic Resonance (NMR) spectroscopy is a well-established tool for the investigation of various types of porous materials. During the past decades, solid-state NMR spectroscopy has been successfully used for characterizing the structure of these materials as well as for studying so-called host–guest interactions with adsorbed species, e.g., xenon, carbon dioxide, and many others including in situ studies of catalytic reactions and diffusion processes (see, e.g., [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16]).
In addition to well-known compounds such as zeolites or activated carbon, an entirely new class of crystalline porous solids with interesting properties such as extraordinarily high specific surface area and gas storage capacity has been developed: metal–organic frameworks (MOFs, see, e.g., [17,18,19,20,21]). These materials are composed of an organic part, so-called linkers, interconnecting the inorganic secondary building units (SBUs) (see Figure 1). Generally, the SBUs include metal ions like Cu, Ni, Zn, or Co which are aggregated into M-O-C clusters by multidentate linker, such as carboxylate. In many MOFs, the metal clusters are discrete, i.e., the inorganic sublattice is zero-dimensional (0D) [21]. That means, the SBUs are not directly connected to each other—but via the organic linkers. However, the metal subunit can also be more complex: for example it can consist of inorganic chains leading to a 1D inorganic subnetwork, and subnetworks up to the dimensionality of inorganic subframeworks (3D) are also known [18,21].
The coordinative interactions between inorganic building units and linkers are relatively strong, i.e., of the order of 100 kJ/mol. Therefore, they result in rigid three-dimensional networks, which are often “open”, i.e., they exhibit micro- or mesopores filled with solvent molecules. The solvent can be removed—for example by thermal activation or supercritical drying—while maintaining the network structure of the MOF. In those cases, adsorption of molecules within the resulting pore system is possible. In contrast to the mostly rigid structures of traditional porous materials, some MOFs, e.g., Material Institut Lavoisier-53 (MIL-53, [22]), Dresden University of Technology-8 (DUT-8(Ni), or DUT-8(Co), [23,24]), exhibit a flexible network and show reversible structural transformations during the adsorption/desorption of several gases such as nitrogen, carbon dioxide, or xenon.
Figure 1. Schematic representation of the metal–organic frameworks (MOF lattice (here: DUT-8(Ni) [23]), consisting of organic linkers and inorganic secondary building units (SBUs). The MOF serves as a host structure for guests such as 129Xe within the void spaces. C: grey, H: white, N: blue, O: red, Ni: green, Xe: cyan.
Figure 1. Schematic representation of the metal–organic frameworks (MOF lattice (here: DUT-8(Ni) [23]), consisting of organic linkers and inorganic secondary building units (SBUs). The MOF serves as a host structure for guests such as 129Xe within the void spaces. C: grey, H: white, N: blue, O: red, Ni: green, Xe: cyan.
Materials 05 02537 g001
This interesting phenomenon is denoted as breathing (MIL-53) or gate-pressure effect (DUT-8(Ni)) and finds increasing interest [25]. After removal of solvent molecules from such flexible gate-pressure compounds, the network transforms to the narrow-pore (or closed) state. In the case of gate-pressure MOFs the pores are entirely inaccessible for the guest molecules at low pressure and the amount of adsorbed gas is almost zero. By higher pressure (so-called gate-opening pressure [26]) the adsorbed amount suddenly rises (see Figure 2). The structural changes of flexible MOFs are associated with a more or less pronounced hysteresis in adsorption/desorption isotherms, depending on the pressure and temperature. Several possible future applications of flexible MOFs can be envisioned in the field of gas storage, gas and solvent purification or catalysis. Due to unique magnetic, optical, and electronic properties, such as nonlinear optical characteristics [27], magnetic spin frustration [28], and magnetic coupling of paramagnetic metal centers [29], MOFs are assumed to be potentially useful for further applications, e.g., for molecular sensing [30] and optical purposes.

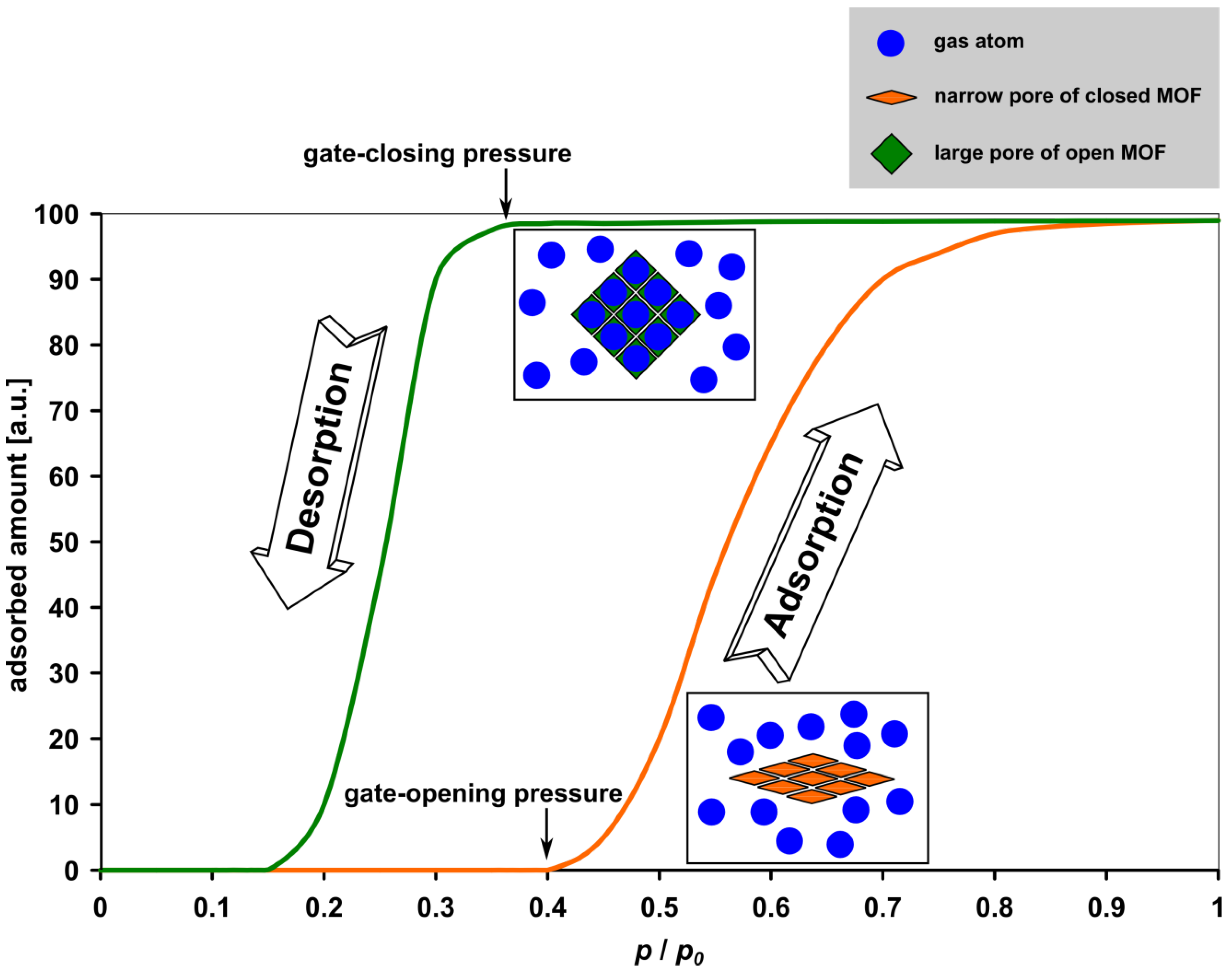

Figure 2. Schematic demonstrating the gate-pressure effect for isothermal adsorption.
Figure 2. Schematic demonstrating the gate-pressure effect for isothermal adsorption.
Materials 05 02537 g002
In order to study the structure and adsorption behavior of MOFs, single crystal or powder X-ray diffraction (XRD) in combination with adsorption measurements are commonly applied. Structural investigations of MOFs are, however, sometimes challenging. Traditionally, single crystal X-ray crystallographic methods are the preferred method for crystal structure determination. However, the absence of single crystals of sufficient size or quality, internal thermal motions, disorder, and other challenges (see below) limit the applicability of this method. In contrast to XRD, magnetic resonance spectroscopy locally probes the nuclear or electronic spins present in the sample, i.e., the local environment of each single atom. Therefore, magnetic resonance spectroscopy can be considered as complementary to XRD methods. Electron paramagnetic resonance spectroscopy (EPR [31]) and various NMR spectroscopic techniques including diffusion measurements using pulsed field gradient (PFG) NMR [32] as well as 129Xe NMR spectroscopy are very useful in combination with XRD. Therefore, increased efforts are made in order to combine powder X-ray diffraction, NMR crystallography [33,34], and molecular modeling [35]; an approach which is referred to as structure elucidation by combining magnetic resonance, computational modeling and diffraction (SMARTER, see, e.g., [36]). Thereby, the chemical shifts can be computed ab initio using pseudopotenials as implemented in the gauge-including projector augmented-wave (GIPAW [35]) approach.
Solid-state NMR is able to identify structural parameters and to detect dynamical effects. It is capable of revealing the presence of mobile substructures or molecules. Solid-state NMR experiments for the detection of thermal motions/exchange processes such as one-dimensional exchange spectroscopy by sideband alternation (ODESSA [37,38]) or dipolar centerband-only detection of exchange (CODEX [39,40])—which were previously designed for other materials—may also become useful also for MOFs. Note that the latter experiment is capable of detecting slow motions from milliseconds up to seconds. For the investigation of the framework itself, 1H and 13C NMR spectroscopy is often used [23,41]. In addition, other nuclei such as 27Al [42,43], 71Ga [44,45], 45Sc [46], and 67Zn [47] can be studied by magic-angle spinning (MAS) NMR spectroscopy in order to detect the environment of the central metal atom [48]. These topics will be discussed in Chapter 2.
Solid-state NMR spectroscopy is, furthermore, extremely helpful in characterizing the interactions between the framework and adsorbed species (host–guest interactions including structural changes) which will be the topic of Chapter 3. For example, 129Xe NMR spectroscopy of adsorbed xenon [49] is an excellent method for the study of porous materials because a variety of NMR parameters, in particular the 129Xe chemical shift, line width, chemical shift anisotropy, and longitudinal relaxation time T1 are influenced by structural parameters such as pore size, pore shape, composition of the pore walls, and dynamics. The adsorption of other molecules such as carbon dioxide and water can also be studied by NMR spectroscopic techniques.

2. Characterization of the MOF Lattice

Within the present chapter, we will discuss NMR spectroscopic methods for the characterization of the MOF structure. Important techniques, such as MAS [50,51], cross polarization (CP [52,53,54,55]), cross polarization with polarization inversion (CPPI [56]), attached proton test (APT [57]), and heteronuclear correlation spectroscopy (HETCOR [58]) will be briefly introduced in the context of metal–organic frameworks. Moreover, it should be noted that numerous well-known liquid-state NMR experiments have meanwhile found solid-state NMR-spectroscopic analogues. Examples are MAS-J-heteronuclear multi-quantum correlation (MAS-J-HMQC [59]), MAS-J-heteronuclear single quantum coherence (MAS-J-HSQC [60]), insensitive nuclei enhanced by polariazation transfer MAS (INEPT MAS [61]), and incredible natural abundance double quantum transfer MAS (INADEQUATE MAS [62]).
Solid-state NMR spectroscopy offers various possibilities in order to characterize the MOF lattice (see Figure 1) [63,64,65,66,67,68,69]. As already mentioned, the organic parts of the framework can be studied by solid-state 13C and 1H NMR spectroscopy. Often, the solid-state 13C NMR spectra of MOFs exhibit narrow signals, i.e., an excellent spectral resolution. This is demonstrated for the mesoporous MOF University of Michigan crystalline material-1 (UMCM-1) in Figure 3.

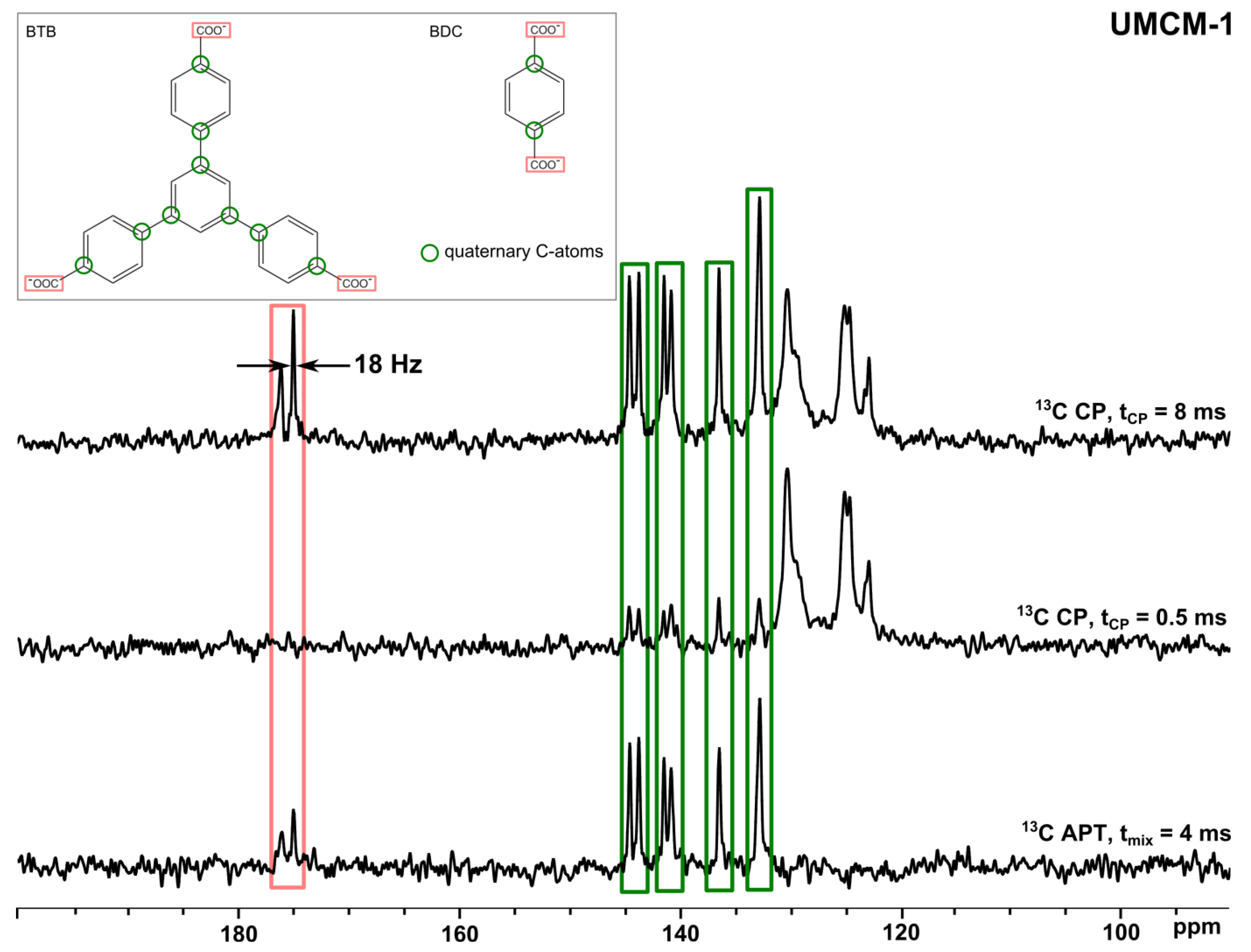

Figure 3. 13C{1H} CP MAS NMR spectra (upper and middle spectrum) and solid-state attached proton test (APT) spectrum (lower spectrum) of activated UMCM-1.
Figure 3. 13C{1H} CP MAS NMR spectra (upper and middle spectrum) and solid-state attached proton test (APT) spectrum (lower spectrum) of activated UMCM-1.
Materials 05 02537 g003
To obtain such narrow signals, line broadening has to be effectively suppressed. In non-paramagnetic solids, there are mainly four interactions leading to broadened lines [70,71,72]: The homo- and heteronuclear magnetic dipole-dipole interactions which act directly through space, the chemical shift anisotropy (CSA), and the electric quadrupole interactions for quadrupolar nuclei (I > 1/2) [73]. Hence, special techniques have to be used which suppress these line broadening interactions to get well-resolved spectra. The most popular method among these techniques is MAS, i.e., the spinning of the sample around an axis tilted by the magic angle (54.7°) with respect to the external magnetic field, B0 [50]. The spectra in Figure 3 are, for example, acquired using a 2.5 mm rotor filled with 3–4 mg of UMCM-1 under sample spinning at 16 kHz. 1H decoupling is routinely applied to suppress the influence of the strongly coupled 1H nuclei upon the 13C signals, typical decoupling sequences are two-pulse phase-modulated decoupling (TPPM) or small phase incremental alteration (SPINAL [74,75]). In the case of half-integer quadrupolar nuclei with I > 1/2 such as 27Al (I = 5/2 [42,43]), 67Zn (I = 5/2 [47]), 71Ga (I = 3/2 [44,45]), and 45Sc (I = 7/2 [46]) MAS does not result in complete removal of the line broadening electric quadrupole interaction due to residual second-order broadening [48,70,73,76]. Typical values for the quadrupolar frequency CQ and asymmetry parameter η observed in MOFs are given in Table 1. This broadening, however, scales with 1/B0, i.e., the resolution significantly increases in high magnetic fields. Furthermore, special experiments have been designed in order to overcome this problem [76]. The second order quadrupolar line broadening can be suppressed by manipulation of the corresponding spatial or spin components of the second-order quadrupolar Hamiltonian. In the former case, technically sophisticated experiments such as double rotation (DOR [77]) and dynamic angle spinning (DAS [78]) are performed. Multiple quantum MAS (MQMAS [79,80,81]) as well as satellite transition MAS (STMAS [82]) can be applied to influence the corresponding spin terms. The MQMAS experiment results in a two-dimensional spectrum with an isotropic (indirect) spectral dimension and a second spectral dimension containing isotropic contributions as well as the anisotropic line shape (see Equations 12a,b in [79]). The time-domain data can be acquired either in a two- or three-pulse experiment with a corresponding phase cycle [79] in order to select multiple quantum coherence during the evolution period. Note that the data processing requires a so-called shearing transformation apart from the two-dimensional Fourier transform [79]. The MQMAS experiment is meanwhile one of the most frequently applied techniques for the investigation of quadrupolar nuclei (see below). In 2007 Vosegaard and Massiot developed a method called “chemical shift-quadrupolar projection-reconstruction of one-dimensional spectra” (CQ-PRODI [83]). CQ-PRODI is based on the correlation of chemical shifts with the second-order quadrupolar line shapes from multiple spectra recorded at different B0 strengths, which allows the construction of high-resolution spectra.
Table 1. Examples for the quadrupolar parameters CQ and η as observed for several MOFs.
Table 1. Examples for the quadrupolar parameters CQ and η as observed for several MOFs.
NucleusMOF compound | C Q | /MHzηQReferences
27AlMIL-120(Al)8.1[67]
4.8[67]
67ZnZIF-76.20.95[47]
ZIF-8 (as-synthesized)1.10.81[47]
ZIF-142.80.86[47]
71GaMIL-96(Ga)4.80.00[44]
4.20.37[44]
3.10.52[44]
MIL-120(Ga)14.30.17[45]
9.40.37[45]
MIL-124(Ga)14.10.94[45]
Nuclei such as 13C, 15N, and 29Si with relatively small gyromagnetic ratios and of low natural abundance can be enhanced by cross polarization [52,53,54,55] which is based on the through-space heteronuclear dipole-dipole interaction with neighbouring nuclei, typically 1H (see Figure 3). The variation of the CP contact time helps in signal assignment: In the upper spectrum of Figure 3, the CP contact time was 8 ms, which is long enough to transfer polarization to practically all 13C atoms which are present. Hence, all signals are detected in this spectrum. In contrast, the middle spectrum has been acquired with a contact time of only 0.5 ms. This time is too short to polarize 13C atoms which are relatively distant from 1H atoms like quaternary C-atoms. Hence, the corresponding signals are more or less suppressed (see Figure 3, middle spectrum). In the case of the carboxylic groups, no signals are observable at all due to the large distance between these 13C-atoms and 1H nuclei. Another helpful tool to distinguish between different C-species is the acquisition of either CPPI [56] or solid-state APT [57] spectra (see Figure 3, lower spectrum). In APT spectra, the signals of quaternary C-atoms and CH2-groups are positive and the signals of CH-/CH3-groups are negative. However, the signals of quaternary C-atoms usually exhibit the highest intensities whereas the other signals are often weak or fully suppressed, as in Figure 3 (lower spectrum)
Note, that the metal centers—especially in case of paramagnetic species such as Ni, Co, or Cu—may strongly influence chemical shifts of neighboring nuclei such as 1H or 13C. DUT-8(Ni) exhibits a gate pressure effect, which is accompanied by a color change and changes in the magnetization. Figure 4 [24] shows that the Ni sites obviously result in unusually high chemical shifts of neighboring atoms.
Figure 4. Assignment of the signals to the carbon atoms present in resolvated DUT-8(Ni) (Reproduced with permission from [24], copyright 2012 the Royal Society of Chemistry).
Figure 4. Assignment of the signals to the carbon atoms present in resolvated DUT-8(Ni) (Reproduced with permission from [24], copyright 2012 the Royal Society of Chemistry).
Materials 05 02537 g004
If the NMR signals of the considered sample are intense enough—as in the case of DUT-8(Ni)—HETCOR spectra [58,84,85] can be measured. In such experiments, 1H and 13C atoms are correlated by polarization transfer, e.g., via the heteronuclear dipolar coupling. The HETCOR spectrum of DUT-8(Ni) is shown in Figure 5 [24]. Compared to the dissolved pure linker (dabco), the corresponding 13C signal is shifted by ca. 10 ppm to lower chemical shifts. In contrast, the 1H signal of the CH2 group of dabco is shifted by ca. 10 ppm to higher chemical shifts. These effects are likely due to the influence of the close Ni sites. Note, that the mixing time for the HETCOR spectrum shown in Figure 5 was only 200 µs. Therefore, the quaternary C-atoms of the linker (2,6-ndc, see Figure 4 [24]) are not observable in this spectrum. It should be noted that heteronuclear 1H-X correlation spectra (X = 13C, 15N, 29Si, 31P, ...) are often acquired under homonuclear decoupling during the 1H evolution period. The reason is the relatively large residual line width of 1H MAS NMR signals which is dominated by the homonuclear magnetic dipole-dipole interaction. The resulting line width contribution can be written as [86,87]:
Δ ν 1 / 2 MAS = 1 A ( Δ ν II ) 2 ν r
ΔνII is the homonuclear contribution to the static line width, i.e., the line width without MAS. The geometry-dependent factor A typically amounts to ca. 10–40 [86,87]. Complete suppression of the homonuclear magnetic dipole-dipole interaction in strongly coupled spin systems would require very fast sample spinning well beyond 100 kHz [86,88] which is not yet accessible. This is the reason why directly detected 1H MAS NMR spectra of such systems are often poorly resolved. Especially in multidimensional NMR experiments, frequency-switched or phase-modulated Lee-Goldburg decoupling (FSLG/PMLG [89,90,91,92]) or decoupling using mind-boggling optimisation (DUMBO [93,94]) are, therefore, usually applied to suppress the homonuclear magnetic dipole-dipole interaction.

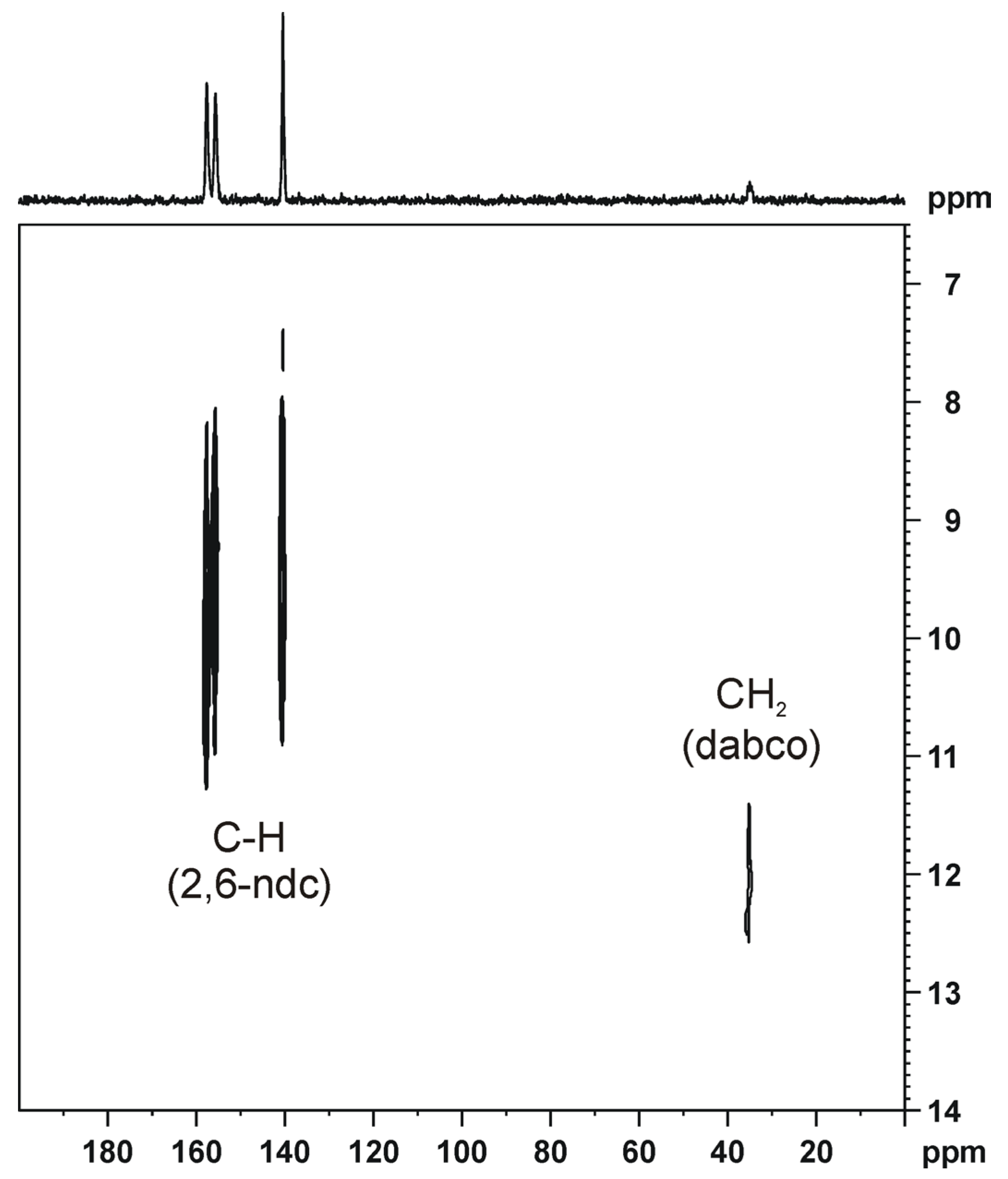

Figure 5. 13C{1H} HETCOR spectrum of resolvated DUT-8(Ni) (Reproduced with permission from [24], copyright 2012 the Royal Society of Chemistry). The spectrum was measured using FSLG decoupling during the 1H evolution period t1.
Figure 5. 13C{1H} HETCOR spectrum of resolvated DUT-8(Ni) (Reproduced with permission from [24], copyright 2012 the Royal Society of Chemistry). The spectrum was measured using FSLG decoupling during the 1H evolution period t1.
Materials 05 02537 g005
The structural transition of DUT-8(Ni) to the narrow-pore state results in pronounced signal shifts and line broadening in the 13C{1H} CP MAS NMR spectrum (see Figure 6).
Adsorbed molecules can also influence several NMR parameters of nuclei located on the MOF lattice, especially the chemical shifts, line widths, and longitudinal relaxation times. Furthermore, if the adsorbed molecules are sufficiently immobilized, i.e., if their interactions with the MOF lattice are strong enough, the signals of the adsorbed molecules are also observed in CP spectra. For example, the signal at 128 ppm in the upper spectrum of Figure 7 is due to benzene (C6H6).

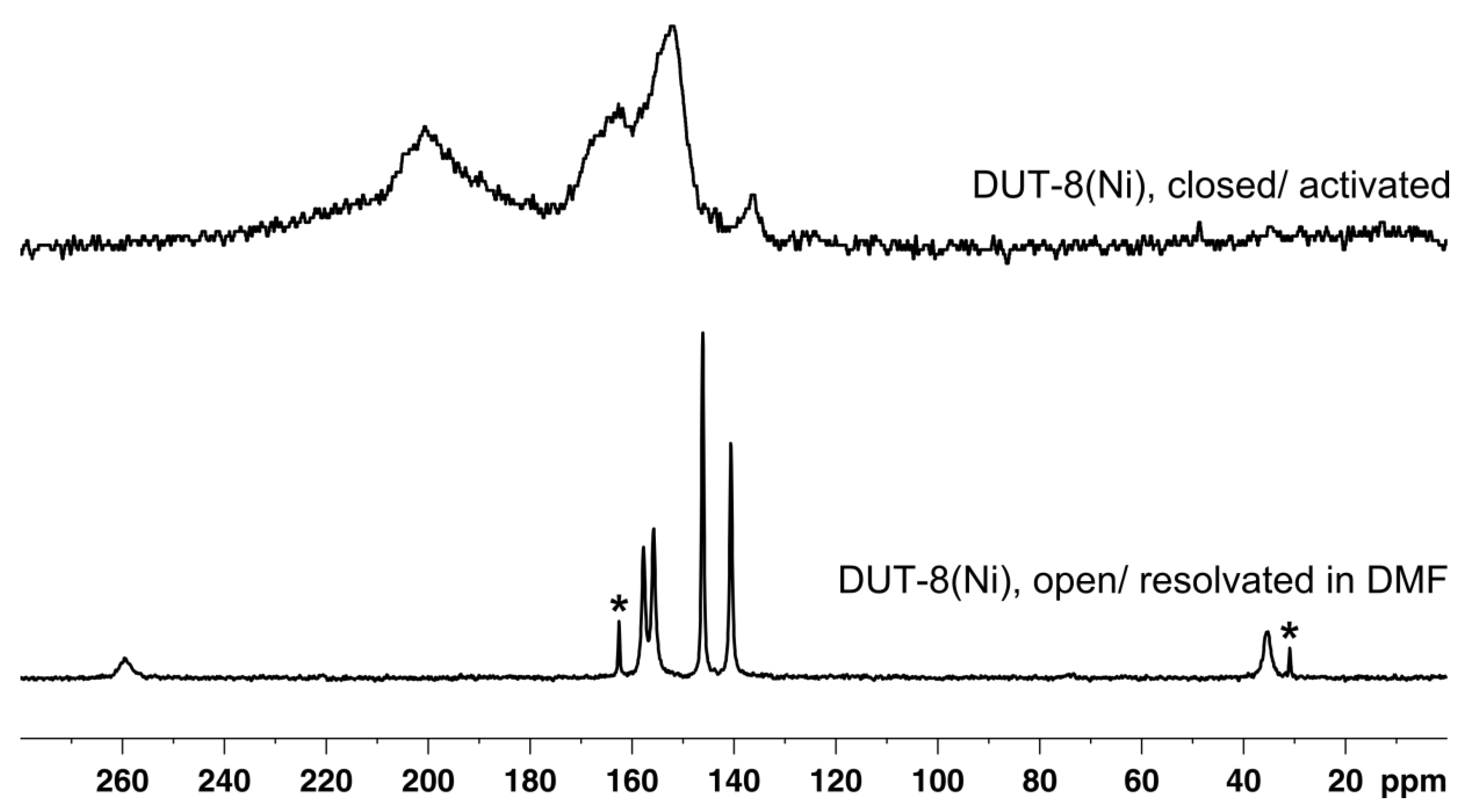

Figure 6. 13C{1H} CP MAS NMR spectra of DUT-8(Ni) in different states. In the closed state (upper spectrum), the lines are broadened and shifted, most likely due to the increasing paramagnetism of the Ni sites. Signals due to DMF are denoted by asterisks.
Figure 6. 13C{1H} CP MAS NMR spectra of DUT-8(Ni) in different states. In the closed state (upper spectrum), the lines are broadened and shifted, most likely due to the increasing paramagnetism of the Ni sites. Signals due to DMF are denoted by asterisks.
Materials 05 02537 g006

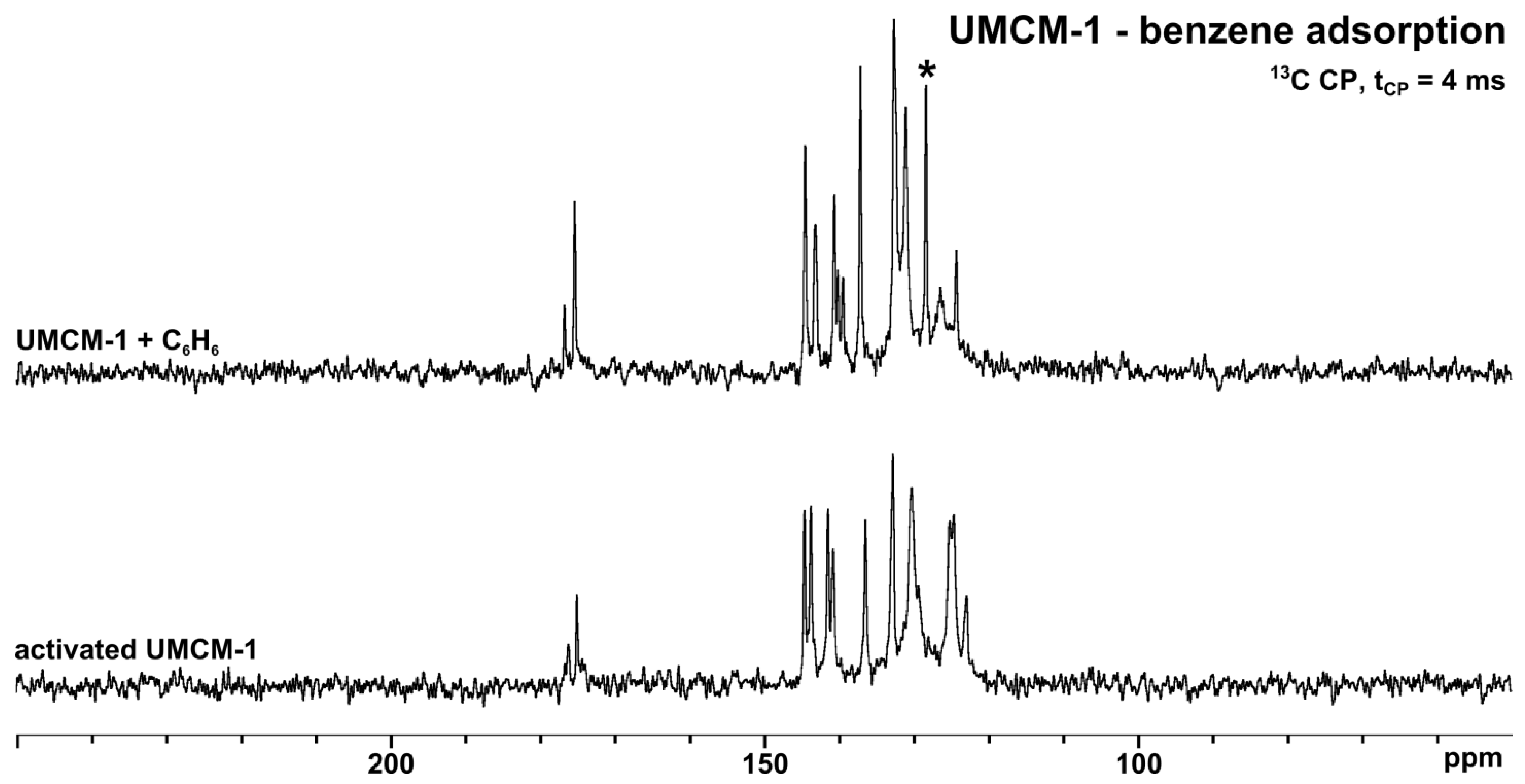

Figure 7. 13C{1H} CP MAS NMR spectra of activated and C6H6-loaded UMCM-1, respectively. The signal due to C6H6 is denoted by an asterisk.
Figure 7. 13C{1H} CP MAS NMR spectra of activated and C6H6-loaded UMCM-1, respectively. The signal due to C6H6 is denoted by an asterisk.
Materials 05 02537 g007
Solid-state NMR spectroscopy can also be applied to test the incorporation of the desired linkers or certain structural groups into the MOF lattice [95]. NMR spectroscopy was, furthermore, used to prove the space group derived from X-ray data [96]. The idea behind this is that the number of signals from one single atom is equal to the number of crystallographically non-equivalent positions for the given atom.
Shi et al. applied 31P and 23Na MAS NMR spectroscopy in combination with XRD measurements [97]. 23Na MAS NMR was used to quantify the amount of sodium ions which are present in the MOF channels, because the distinction between residual H2O molecules and sodium ions inside the MOF channels was complicated in standard XRD experiments. Two crystallographically non-equivalent Na+ sites with different occupation numbers have been observed. 23Na triple-quantum (3Q) MAS spectra [98] were acquired using the z-filtered three-pulse sequence (two hard pulses and one final soft pulse) [98]. The so-called soft-pulse-adding-mixing (SPAM [99]) through multiple coherence selection served for sensitivity enhancement [98]. The spectra delivered further structural information about the sodium ions as a function of the hydration degree. In the hydrated state, the sodium ions are disordered. In contrast, only one single state is observed in the dehydrated state. Furthermore, the quadrupolar coupling constant of 23Na significantly depends on the hydration state which is explained by the influence of the water content upon the mobility of Na+.
NMR spectroscopy is also able to help understanding the formation mechanisms of MOFs as demonstrated by Bajpe et al. [100]. The authors used liquid-state 17O, 31P and 183W NMR spectroscopic methods to deeply investigate the template-driven synthesis of Cu3(BTC)2 (Hong Kong University of Science and Technology-1, HKUST-1) using Keggin-type heteropolyacids as templates on the molecular scale [100].
Solid-state NMR spectroscopy is, furthermore, capable of delivering spatial information. Heteronuclear magnetic dipole-dipole interactions can be measured selectively by the so-called rotational echo double resonance (REDOR [101]) experiment. Re-introduction of homonuclear interactions can be obtained in rotational resonance experiments [102]. Meanwhile, various dipolar recoupling schemes have been designed in order to selectively exploit homonuclear as well as heteronuclear magnetic dipole-dipole interactions (see, for example [103,104,105,106] and references therein). Such techniques can, e.g., be used to determine the spatial proximity and orientation of the linkers relative to each other as well as with respect to adsorbed species (see below). Methods such as 1H-1H homonuclear dipolar recoupling back-to-back (BABA) and 1H–1H radio frequency dipolar recoupling (RFDR) were shown to be well suited for such purposes [63,107,108].
Post- or presynthetic functionalization of MOFs is a very promising area of MOF research [109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126]. Ahnfeldt et al. [125] made use of solid-state heteronuclear 1H–15N, 1H–13C, and homonuclear 1H–1H correlation spectroscopy in order to prove the methylation of NH2 groups in Christian-Albrechts-University-1 (CAU-1) derivatives. Pt nanoparticles were introduced in MOF-177 by loading with a volatile Pt precursor and subsequent reduction [126]. The success of the loading process, i.e., the incorporation of the organic Pt precursor as well as the integrity of the host lattice after the treatment could be monitored by 13C MAS NMR spectroscopy. Often, the functional groups attached to the linkers are disordered and/or exhibit a highly dynamical behaviour. Due to this effect, the functional groups—which are of special interest—cannot be localized in the structure by standard XRD techniques in such cases. To prove the functionalization by NMR spectroscopy, two different ways are described in the literature. The MOF can be dissolved and the functional groups become then observable ex situ by liquid-state NMR spectroscopy as described in [127,128,129,130,131]. On the other hand, the functional groups can be detected in situ by MAS NMR spectroscopy [42,132,133]. The advantage of the in situ method is its non-destructive character. Furthermore, information about the mobility of the functional groups is available from solid-state NMR measurements. In cases where the linkers are not fully functionalized and/or the functional groups are distributed statistically over the MOF lattice [134,135] like in MIXMOFs [136], NMR spectroscopic methods can deliver information about the degree of functionalization which helps to evaluate the efficiency of the applied postsynthetic functionalization techniques [42,109,128,130]. Recently, chiral UMCM-1 was synthesized by the pre-synthetic attachment of chiral auxiliaries to the linkers [137]. These chiral side groups are rather mobile and disordered in the unloaded MOF. However, the corresponding 13C NMR signals become clearly visible after loading the samples with a chiral shift agent (1-phenyl-2,2,2-trifluoroethanol, TFPE) due to the interaction between the side groups and TFPE molecules ([138], see Figure 8). Moreover, chiral discrimination becomes possible in analogy to the well-known liquid-state NMR spectroscopic methodology [139] because the chemical shift of several 13C nuclei located at the chiral side groups was found to depend on the enantiomeric form of the linkers and the shift agent by forming NMR-spectroscopically distinguishable diastereomeric complexes [138].
Figure 8. 13C CP MAS NMR spectra of iPr-ChirUMCM-1. Top (red): Sample loaded with (R)-TFPE. Middle (blue): Sample loaded with (S)-TFPE. Bottom (black): Unloaded sample. The structure of the modified BDC-linker (Chir-BDC) bearing the chiral side group is shown in the figure in order to define the carbon positions of the assigned signals. Stars denote signals due to TFPE (Reproduced with permission from [138], copyright 2012 the Royal Society of Chemistry.)
Figure 8. 13C CP MAS NMR spectra of iPr-ChirUMCM-1. Top (red): Sample loaded with (R)-TFPE. Middle (blue): Sample loaded with (S)-TFPE. Bottom (black): Unloaded sample. The structure of the modified BDC-linker (Chir-BDC) bearing the chiral side group is shown in the figure in order to define the carbon positions of the assigned signals. Stars denote signals due to TFPE (Reproduced with permission from [138], copyright 2012 the Royal Society of Chemistry.)
Materials 05 02537 g008
In addition to the characterization of the organic moieties in MOFs, solid-state NMR spectroscopy can also help to investigate the inorganic SBUs, i.e., metal ions or clusters. It is, for example, possible to distinguish between different structural variants of the metal centres [140]. Ravon et al. generated statistically distributed vacancies at the SBUs, i.e., they created SBUs without an organic linker at one or more coordination sites [141]. The goal of this procedure was the introduction of Brønsted acid sites for catalytic purposes—an approach which is generally used to form MOFs with coordinatively unsaturated sites (cus) [142,143]. NMR spectroscopy was then applied in order to prove the formation of such vacancies and to quantify their amount as a function of the synthesis parameters.
Solid-state NMR spectroscopy also serves to prove structural models of the SBU sublattice. The coordination environment can be detected using chemical shifts and/or quadrupolar coupling constants for metal atoms such as 27Al [107,108,144], 71Ga [44], 45Sc [46,132], and 6Li [145]. Furthermore, metal atoms outside the MOF lattice, i.e., located in the pores can be probed by MAS NMR. Other authors tried to insert lithium ions into the pores of anionic MOFs by means of cation exchange. 7Li NMR can then contribute to an understanding of the coordination state of the lithium ions, for example, as a function of the degree of solvation [146].
NMR spectroscopy can also be applied to study properties such as the proton conductivity [147,148,149] or other dynamical phenomena. The organic linkers in MOFs exhibit a relatively high mobility [150,151]. This internal or intrinsic dynamic has been studied using 2H NMR spectroscopy by several groups [132,152,153,154,155]. Such experiments enable the investigation of molecular dynamics proceeding at the microsecond timescale [132,153].
Finally, it should be noted that recent methodological developments, such as the improvement of hyperpolarization techniques, in particular dynamic nuclear polarization (DNP [156,157,158,159,160,161,162,163]) are likely to open completely new possibilities for solid-state NMR experiments on metal–organic frameworks. Dynamic nuclear polarization relies on the transfer of polarization from an electron spin to nuclear spins [156]. In the case of diamagnetic samples, doping with appropriate paramagnetic compounds is necessary [159]. Due to the inherently much higher magnetic moment of electrons, their spin polarization is correspondingly high and can, therefore, be used to enhance the nuclear spin polarization. This results in a significant sensitivity enhancement of the corresponding NMR spectra and is, meanwhile, feasible in high magnetic fields and under magic angle spinning conditions [157,160,161,162,163]. Recently, DNP has also been used to enhance the solid-state NMR signals in the MOF MIL-68 [163]. The sample was impregnated with an EtCl4 solution containing 16 mM of the exogenous biradical bTbK [159]. Signal enhancements of approximately one order of magnitude could be observed for the 13C{1H} CP MAS NMR spectra. This significant improvement corresponds to two orders of magnitude shorter acquisition times and is of special importance especially with respect to multidimensional experiments.

3. Solid-State NMR Spectroscopic Studies of Host–Guest Interactions

Apart from the structural characterization of the MOF lattice itself, adsorption processes and adsorption-induced structural changes, i.e., host–guest interactions are of special importance. Solid-state NMR spectroscopy is particularly well suited to study interactions between porous materials and adsorbed atoms/molecules. This is due to a number of advantageous properties:
(1)
NMR does not require any kind of long-range order;
(2)
NMR is capable of providing local structural information including distance measurements;
(3)
NMR allows determining the flexibility as well as adsorption-induced structural changes of the host;
(4)
NMR is capable of determining the mobility of the host lattice, i.e., the dynamics as well as the mobility of the adsorbed species.
The resulting possibilities of solid-state NMR spectroscopy with respect to host–guest interactions in MOFs will be highlighted and demonstrated in the present chapter on a number of selected examples.

3.1. Host–Guest Interactions in MOFs Studied by 129Xe NMR Spectroscopy

129Xe has been introduced as a probe into surface NMR spectroscopy by Ito and Fraissard [49,164]. Its use for surface NMR studies was further facilitated by the introduction of hyperpolarization techniques, especially spin-exchange optical pumping (SEOP [165,166,167,168]). Meanwhile, xenon has found numerous applications for the characterization of various types of porous materials (see, e.g., [169,170,171,172,173,174,175,176,177,178]). 129Xe NMR spectroscopy provides a variety of interesting parameters encoding information about the surface and pore systems under study. Such parameters are the chemical shift, the line width, the chemical shift anisotropy, and the longitudinal relaxation time T1. A first application of 129Xe NMR spectroscopy to MOFs has been reported in 2006 [179]. Subsequently, other authors made use of the favorable properties of 129Xe NMR in order to study MOFs [23,180,181,182,183].
Various parameters influence the 129Xe chemical shift of adsorbed xenon gas which can be written as follows [49,164]:
δ = δ 0 + δ S + δ Xe Xe + δ M
δ0: chemical shift of xenon gas (reference). δS: chemical shift due to interaction between xenon atoms and the walls of pores and cages. δM: shift contribution caused by paramagnetic sites.
δXe–Xe = ΔXe–Xe∙ρXe is the chemical shift contribution due to Xe–Xe interactions. ρXe denotes the density of xenon atoms and ΔXe–Xe is the slope of δXe–Xe. The possible influence of strongly adsorbing sites as well as of the electric field of cations is considered to be part of δS within the present paper. It was found for zeolites that δS increases if the void space in the pores, i.e., the pore size decreases [184]. Similar correlations can also be observed for silica-based materials in general [178].
For illustration of the major effects observed by 129Xe NMR on MOFs, the 129Xe NMR spectra of UMCM-1 [185] measured at room temperature as a function of pressure are shown in Figure 9. The spectra are referenced to the chemical shift of gaseous xenon extrapolated to zero pressure, which is set to δ0 = 0, the commonly used convention. The chemical shift of the gas phase signal depends almost linearly on the pressure in the considered pressure range up to ca. 20 bar. Since the xenon pressure is proportional to the density in good approximation for this pressure and temperature range, this observation is in agreement with previous publications predicting a linear interdependence between the chemical shift and the xenon density up to ca. 100 amagat [186,187]. One amagat is defined as the number density of gas atoms/molecules per unit volume of an ideal gas at 101.325 kPa and a temperature of 273.15 K.

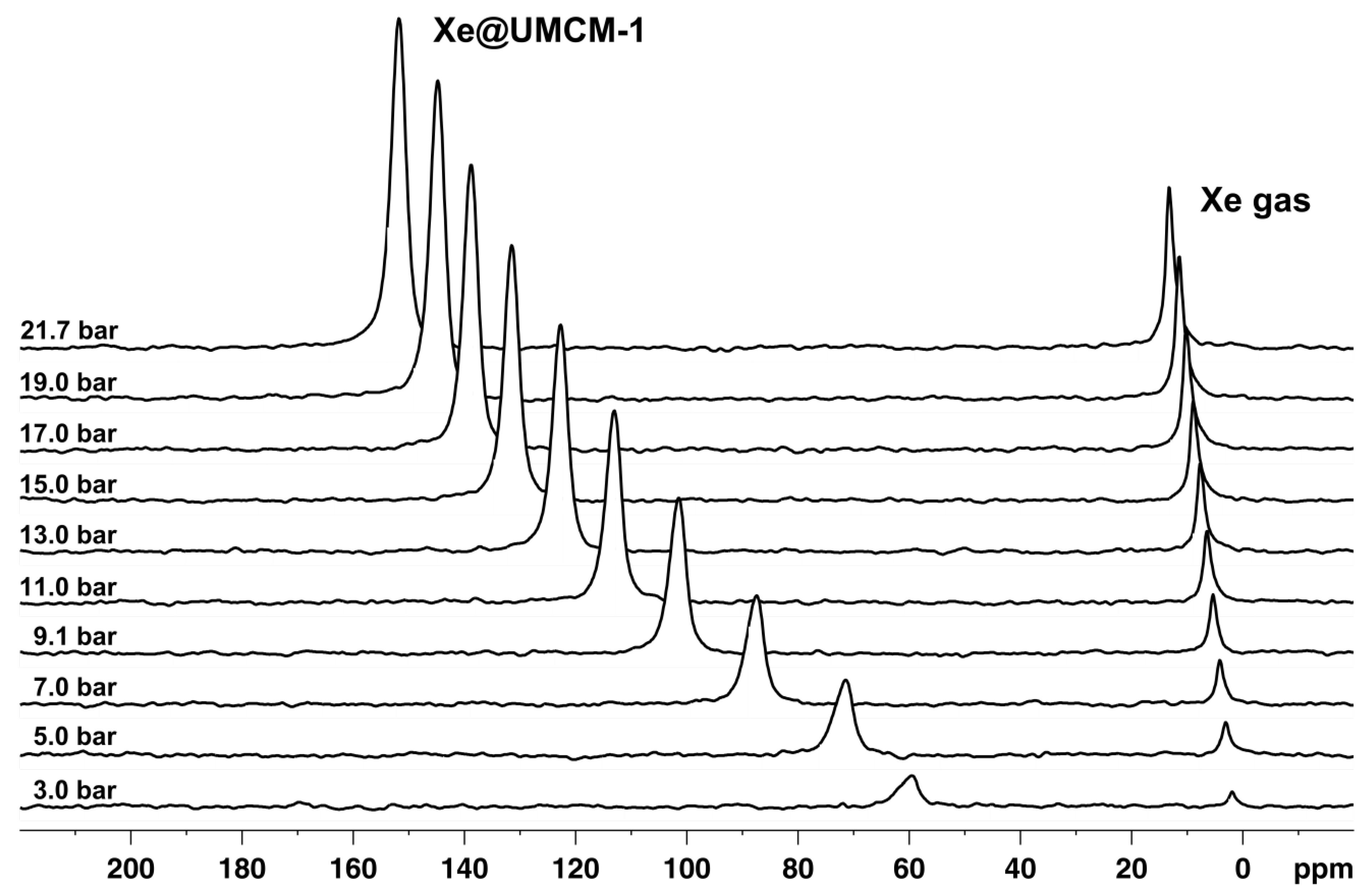

Figure 9. 129Xe NMR spectra of xenon adsorbed on UMCM-1 measured at room temperature (RT) for various pressures.
Figure 9. 129Xe NMR spectra of xenon adsorbed on UMCM-1 measured at room temperature (RT) for various pressures.
Materials 05 02537 g009
Furthermore, the signal due to xenon adsorbed in the pore system also grows and shifts because the xenon density ρXe inside the pore system increases with the xenon pressure (see Figure 9). In the case of UMCM-1, an almost linear interdependence between the chemical shift of adsorbed xenon and the applied pressure is observed up to ca. 12 bar at RT (see Figure 10a). Beyond, the slope of the curve decreases significantly. Since the signal intensity is a measure for the xenon concentration inside the (rigid) pore system of UMCM-1, the 129Xe NMR chemical shift of the adsorbed xenon should be linearly correlated with the signal intensity according to Equation (2). This is indeed observed (see Figure 10b) which confirms the validity of the equation δXe–Xe = ΔXe–Xe∙ρXe under the present experimental conditions. Extrapolation to zero signal intensity, i.e., zero xenon density yields an extrapolated value of δ(0) = 49 ± 3 ppm. If paramagnetic sites were present in UMCM-1, the paramagnetic shift δM would contribute to the latter value. Since UMCM-1 does not contain paramagnetic sites, δ(0) represents the xenon-lattice interaction contribution δS (see Equation (2)). It is, furthermore, interesting to note that UMCM-1 exhibits two different types of cavity which are both large enough to host xenon and should be accessible. However, only one signal due to adsorbed xenon is observed. Obviously, the xenon atoms can rapidly exchange between these two cavities. At higher xenon pressures, the signal is narrow and symmetric. However, the signal exhibits an increasingly pronounced anisotropy below ca. 5 bar xenon pressure (see Figure 11). This phenomenon is in general observed for xenon in anisotropic local environments and was first described by Springuel-Huet and Fraissard [188]. Much more pronounced anisotropies could be observed previously for the metal–organic framework MIL-53(Al) [182] and other materials with narrow-pore channels (see, e.g., [172,174]). Moreover, the exchange of xenon between the adsorbed state inside the UMCM-1 pore system and the gas phase surrounding the crystallites can be visualized by 2D exchange spectroscopy (EXSY, see Figure 12).

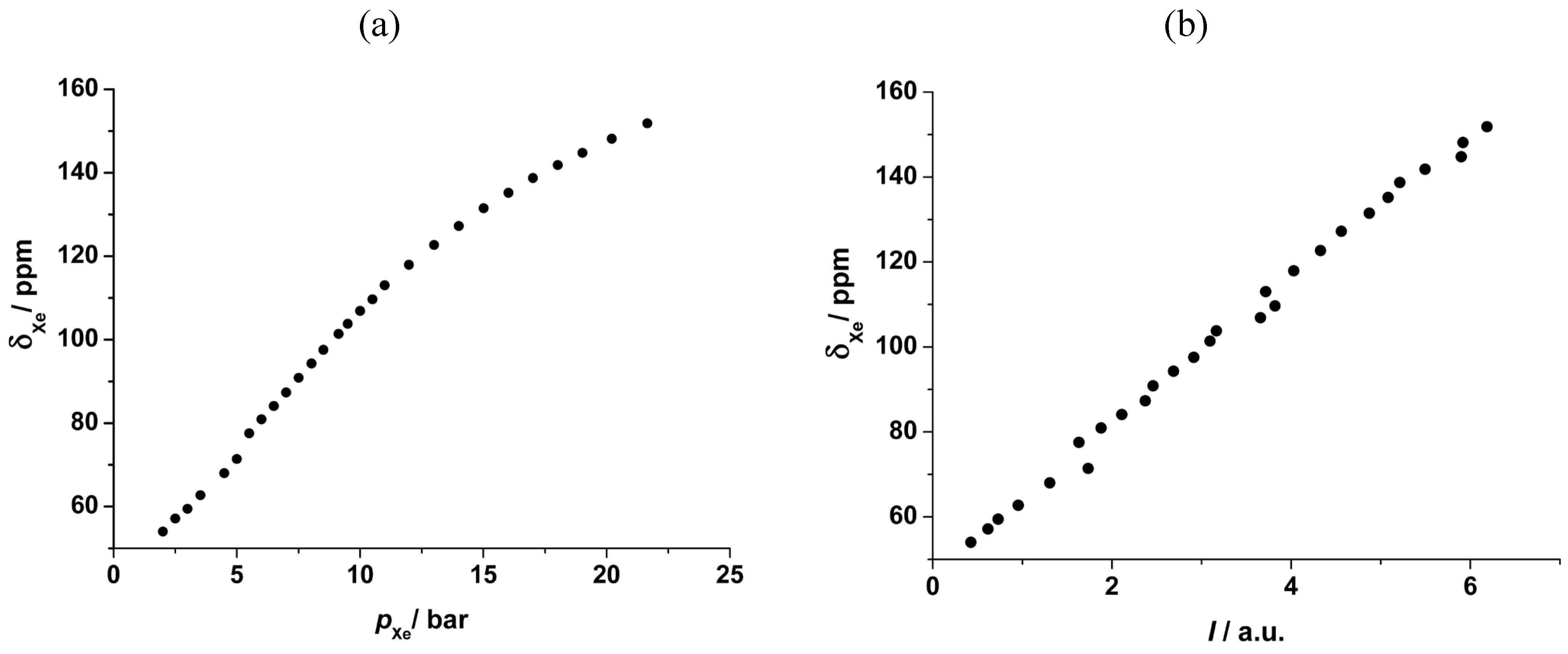

Figure 10. 129Xe NMR chemical shift of xenon adsorbed on UMCM-1 (see Figure 9) measured at RT as a function of pressure (a) and xenon signal intensity (b).
Figure 10. 129Xe NMR chemical shift of xenon adsorbed on UMCM-1 (see Figure 9) measured at RT as a function of pressure (a) and xenon signal intensity (b).
Materials 05 02537 g010
Figure 11. 129Xe NMR signals of Xe@UMCM-1 measured at RT and different pressures.
Figure 11. 129Xe NMR signals of Xe@UMCM-1 measured at RT and different pressures.
Materials 05 02537 g011

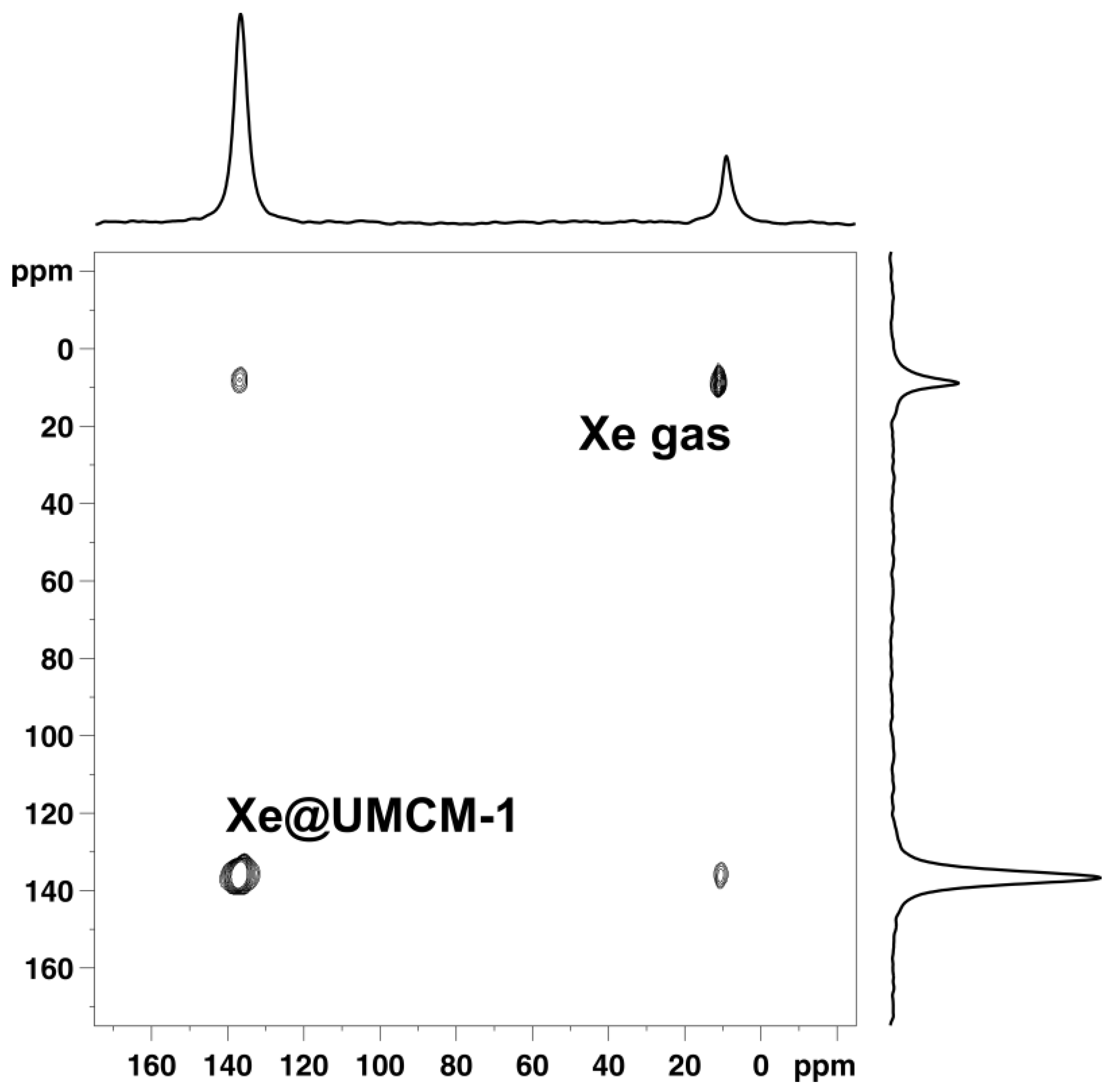

Figure 12. 2D 129Xe EXSY spectrum of Xe adsorbed on UMCM-1 measured at RT and 70 ms mixing time.
Figure 12. 2D 129Xe EXSY spectrum of Xe adsorbed on UMCM-1 measured at RT and 70 ms mixing time.
Materials 05 02537 g012
It should be noted that the effects demonstrated above for UMCM-1 are characteristic for porous materials with rigid pore systems. However, metal–organic frameworks can exhibit rather flexible pore systems (see, e.g., [189,190]). One way of studying the breathing transitions is by sensing the MOF lattice itself and its changes. Since the breathing transitions change the pores and/or their “entries” if the crystal structure of the MOF changes, these effects can also be explored in an indirect way by using probes like 129Xe sensing the inner surface of the pores as has been demonstrated for the metal–organic frameworks MIL-53 [182] and DUT-8 [24,183].
MIL-53 is capable of switching between a large-pore and a narrow-pore state depending on the external conditions. It exhibits an interesting temperature-pressure phase diagram [190]. At xenon partial pressures below 1.5 bar, MIL-53 adopts its large-pore state beyond room temperature and switches into the narrow-pore state at decreasing temperatures. Below a loading-dependent threshold temperature, however, it switches back into the large-pore state. In contrast, the large-pore state is always present at elevated pressures beyond ca. 1.5 bar. These transitions could be visualized by 129Xe NMR spectroscopy [182] because they are accompanied by corresponding changes of the isotropic chemical shift and chemical shift anisotropy of the 129Xe NMR signals. The narrow-pore state exhibits a considerably larger isotropic chemical shift and chemical shift anisotropy for 129Xe than the large-pore state.
DUT-8(Ni) is a MOF with a very pronounced gate-pressure effect. Below the temperature-dependent gate-opening pressure, DUT-8(Ni) was found to be entirely “closed” for xenon [183] provided the solvent was previously removed by solvent exchange with subsequent drying using supercritical CO2 [191]. Otherwise, the samples are in a narrow-pore state below the gate-opening pressure [23]. Supercritical CO2 extracted samples, however, do absolutely not allow xenon penetration into the material below the gate-opening pressure. At the gate-opening pressure, the framework suddenly opens and takes up high amounts of xenon as could be detected by high-pressure in situ 129Xe NMR spectroscopy (see Figure 13, [183]). Below the gate-opening pressure, only the gas phase signal is observed. Beyond the gate-opening pressure of ca. 12 bar at 237 K, a signal at ca. 227 ppm occurs. This chemical shift remains almost constant if the pressure is further increased. It amounts to 229 ppm at the highest applicable pressure. This shows that the xenon density ρXe inside the pore system remains practically constant during the pore opening process. The chemical shift of adsorbed xenon even exceeds that of liquid xenon (203 ppm at 237 K, see Figure 13). This is indicative for a high xenon density ρXe. Moreover, a paramagnetic contribution may further enhance the chemical shift. Molecular dynamics simulations were capable of reproducing these structural transitions only if van der Waals interactions were included explicitly into the calculations [183] in agreement with previous theoretical studies on MIL-53 [192,193,194,195]. This observation emphasizes the importance of van der Waals interactions for the characteristic adsorption-induced breathing transitions observed in numerous MOF compounds. It should be noted that the exchange of Ni by Cu, Zn, or Co completely changes the switching behavior of DUT-8 [24]. This observation illustrates that the type of metal center is of crucial importance for the breathing transitions.

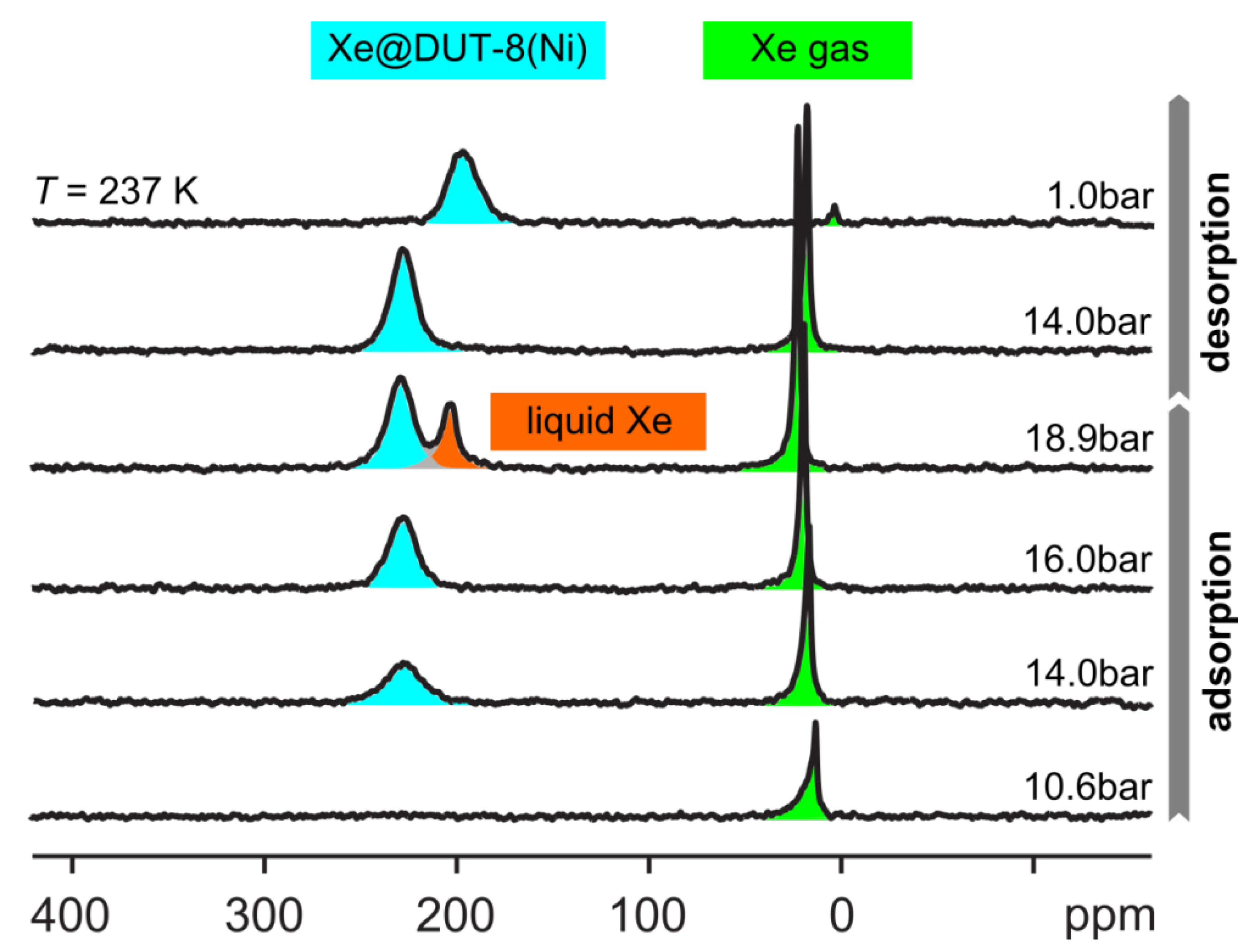

Figure 13. 129Xe NMR spectra of DUT-8(Ni) pressurized with various amounts of xenon, measured at 237 K. Note that the initially closed structure opens during the adsorption experiment at a gate-opening pressure of ca. 12 bar whereas it remains open during desorption down to 1 bar (hysteresis). Reprinted with permission from [183]. Copyright 2011 American Chemical Society.
Figure 13. 129Xe NMR spectra of DUT-8(Ni) pressurized with various amounts of xenon, measured at 237 K. Note that the initially closed structure opens during the adsorption experiment at a gate-opening pressure of ca. 12 bar whereas it remains open during desorption down to 1 bar (hysteresis). Reprinted with permission from [183]. Copyright 2011 American Chemical Society.
Materials 05 02537 g013

3.2. Adsorption of Other Guest Molecules on MOFs

The adsorption of gases such as CO2 and H2 on porous materials is of special importance. Gas separation, e.g., the separation of CO2 from industrial exhaust gases is a potentially important field of application for MOFs. Space-, weight-, and cost-efficient H2 storage is a yet unsolved problem with respect to the use of H2 as a fuel. MOFs are promising candidates for gas storage due to their huge internal surface area which strongly exceeds even the large internal surface of zeolites.
The adsorption of CO2 and other molecules on metal–organic framework compounds was studied theoretically, especially with respect to breathing effects on MIL-53 [193,194,195]. In analogy to the behaviour reported above for xenon, the adsorption/desorption of CO2 also causes structural transitions in MIL-53.
First 13C MAS NMR spectroscopic studies of CO2 adsorbed on zeolites were reported in 1974 by Stejskal et al. [196]. The isotropic 13C chemical shift of physisorbed 13CO2 is not very sensitive—in contrast to the very sensitive isotropic 129Xe chemical shift of xenon (Section 3.1). The signals of physisorbed CO2 in micropores are usually shifted by only a few ppm with respect to the gas phase signal which is usually observed at ca. 126 ppm (see, e.g., [197,198]). However, the pronounced anisotropy of the CO2 molecule results in a correspondingly high 13C NMR chemical shift anisotropy Δ = δδ|| of ca. 335 ppm [199,200]. In the case of spatially anisotropic or restricted motions of CO2 in the adsorbed state, the 13C NMR signals exhibit characteristic line shapes allowing conclusions about the motional state of the adsorbed molecules [197,198,201]. For example, the rotation axis of the CO2 molecules in the molecular frame can be determined [197,201]. Kong et al. [201] studied the interaction between CO2 and open Mg sites in Mg-MOF-74 giving rise to exceptional CO2 capture properties. Using enriched 13CO2 at low loadings (0.3–0.5 CO2/Mg), it was observed that the CO2 molecules perform uniaxial rotation around an axis tilted with respect to the symmetry axis of CO2. Line shape analysis of the 13C NMR spectra allowed measuring this tilt angle. Values in the interval between 56° and 69° were measured depending on the temperature.
These characteristic line shapes are also found in the high-pressure in situ 13C NMR spectra of CO2 adsorbed on the flexible gate-pressure MOF DUT-8(Ni) (see Figure 14).
Below the gate-opening pressure, only a signal at 126 ppm occurs which is due to gaseous CO2 in the inter-particle space. Beyond the gate-opening pressure, i.e., in the open state of the framework, a broad signal with the characteristic shape caused by chemical shift anisotropy occurs apart from the aforementioned signal due to gaseous CO2. Line shape analysis of the former signal reveals a chemical shift anisotropy Δav of 52 ppm. The significant deviation from the value of 335 ppm for immobilized CO2 is caused by motional narrowing. For axially symmetric molecules with axially symmetric chemical shift tensors, the tilt angle θ between the symmetry axis and the rotation axis of the molecule can be estimated using the equation:
Δ av = Δ ( 3 cos 2 θ 1 2 )
This equation predicts a tilt angle of 49° ± 2° for the molecules adsorbed in the flexible MOF DUT-8(Ni). That means, a certain degree of order is observed for all the CO2 molecules adsorbed inside DUT-8(Ni). The tendency of the framework to close the pores must be overcome by the adsorbed molecules as already described for xenon [183]. In the case of the non-spherical CO2 molecules, these interactions seemingly result in a certain degree of order for the adsorbed molecules inside the pores.

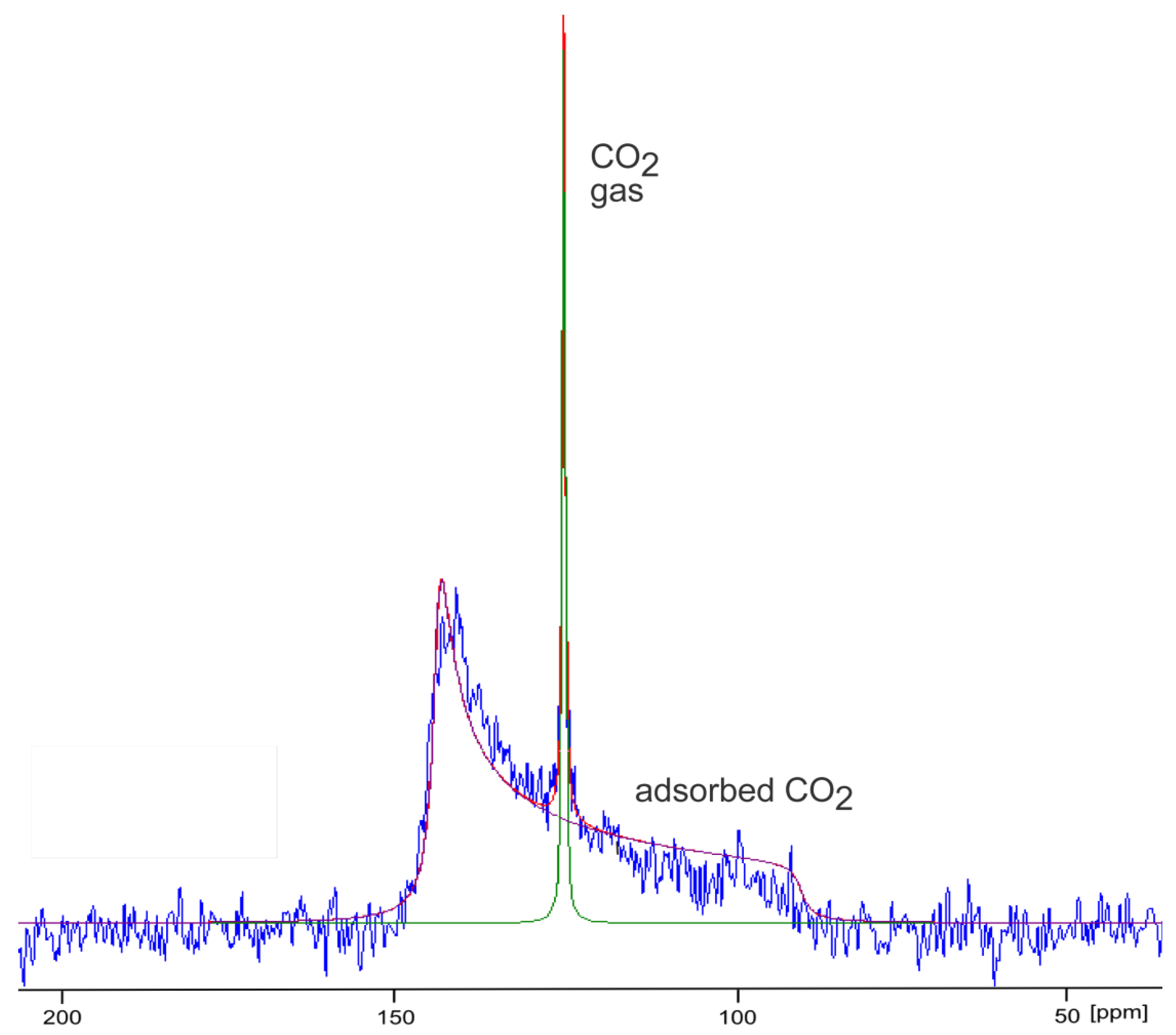

Figure 14. 13C NMR spectrum of DUT-8(Ni) pressurized with 9.5 bar carbon dioxide measured at 237 K. Note that the initially closed structure opens during the adsorption experiment at temperature-dependent gate-opening pressure (ca. 5 bar at 237 K) whereas it remains open during desorption down to 1 bar (hysteresis). (Blue: experimental spectrum, green: simulated gas phase signal, magenta: simulated signal of adsorbed CO2; red: Sum of the simulated signals.) The Figure has been prepared using DMFit [202].
Figure 14. 13C NMR spectrum of DUT-8(Ni) pressurized with 9.5 bar carbon dioxide measured at 237 K. Note that the initially closed structure opens during the adsorption experiment at temperature-dependent gate-opening pressure (ca. 5 bar at 237 K) whereas it remains open during desorption down to 1 bar (hysteresis). (Blue: experimental spectrum, green: simulated gas phase signal, magenta: simulated signal of adsorbed CO2; red: Sum of the simulated signals.) The Figure has been prepared using DMFit [202].
Materials 05 02537 g014
The interaction between CO2 and CD-MOF-2 was studied recently by Gassensmith et al. [203] 13C MAS NMR spectroscopy was capable of detecting reversible CO2-chemisorption in this MOF as could be monitored by the appearance of corresponding signals at 158 ppm.
Molecular hydrogen (H2) occurs in two co-existing forms, ortho-hydrogen (o-H2, nuclear spin I = 1) and para-hydrogen (p-H2, I = 0). That means, 1H NMR exclusively detects o-H2. The ortho/para ratio depends on the temperature and pressure. The relative amount of the NMR-active o-H2 is ca. 75% under standard conditions and decreases with decreasing temperature. Grzech et al. [204] have recently studied the adsorption of H2 on the metal–organic framework compound Cu3(BTC)2 and observed the irreversible chemisorption of 1.1 wt % H2 at temperatures between 323 K and 423 K at 2 bar H2 pressure. 1H NMR in combination with IR spectroscopy revealed that the BTC linkers became hydrogenated and were thus converted into their acidic form.
Diffusion of hydrocarbons in MOF-5 was studied by pulsed field gradient (PFG) NMR spectroscopy [32], a well-established technique for the measurement of intracrystalline self-diffusion in porous materials [12]. These studies suggest a superior, very fast diffusion of the studied hydrocarbons within the pores of MOF-5 as well as rapid exchange with the external gas. The latter observation agrees with the observed exchange of xenon between the adsorbed state and the surrounding gas at the time scale of tens of milliseconds (Section 3.1, Figure 12).
NMR spectroscopy is very sensitive with respect to subtle structural changes [140,205]. Thus, it can be used to investigate the reversibility of processes [97] and also to check decomposition processes and phase transitions [206]. Esken et al. investigated the very popular MOF-5 by means of 1H and 13C MAS NMR spectroscopy [207] after loading with metal–organic precursors and subsequent H2 treatment. The structural integrity after this treatment could be proven. Similar methods were successfully applied to other systems as well [208]. Especially in cases where amorphous phases are generated, NMR spectroscopy turned out to be very helpful [204,209,210].
Volkringer et al. characterized MIL-121 in both the as-synthesized and the activated form [63]. Information about spatial proximities and interactions of the linkers and guest molecules could be obtained from 1H-1H single quantum-double quantum (SQ-DQ), BABA, 1H-1H SQ-SQ RFDR, 27Al{1H} HETCOR, and 27Al MQMAS methods. The authors observed the formation of water clusters in the pores of activated MIL-121 during spontaneous rehydration. Interestingly, these clusters seem to hardly interact with the surrounding MOF lattice. The influence of water upon the Cu3(BTC)2 structure was studied in detail by 1H and 13C MAS NMR spectroscopy [211]. It turned out that this MOF decomposes rather quickly depending on the amount of adsorbed water.
MIL-53—which has already been discussed in the context of 129Xe NMR spectroscopy—also changes its structure during water adsorption. The structural changes present in the MIL-53 lattice could be directly probed by MAS NMR spectroscopy [189]. Another flexible MOF, the aforementioned gate-pressure MOF DUT-8(Ni) does not only change its crystal structure, but also its electronic structure during switching between the open and closed (or large pore and narrow pore) form [23,183]. This effect manifests itself in different colors of the two forms. The magnetization is also changed during pore opening/closing. The underlying electronic changes clearly manifest themselves in huge variations of the 13C{1H} CP MAS NMR signals, especially in the line widths and the chemical shifts as discussed above (see Figure 6). Adsorption-induced differences in NMR spectra are frequently used to obtain information about changes of the MOF lattice, for example about structural differences between the solvated and activated state [31,42,107,117,189,207,212]. Some MOF compounds, especially those containing amino acid linkers, can be regarded as simple model systems for proteins. Rabone et al. characterized a peptide-based, flexible MOF by means of XRD methods, MAS NMR spectroscopy, and molecular dynamics simulations [205].
Petersen et al. [213] investigated the uptake of ammonia vapour by the MOF Cu3(BTC)2 using 1H and 13C MAS NMR spectroscopy. It could be shown that the extensive ammonia sorption on this compound is accompanied by severe loss of porosity and structural decomposition, especially if water is present.
It should also be noted that the adsorption of methanol and acetonitrile resulted in significant structural changes of Cu-MOF (Cu(bpy)(H2O)2(BF4)2(bpy); bpy = 4,4'-bipyridine) which could be visualized by 11B MAS NMR spectroscopy in combination with EPR [31].

3.3. Practical Aspects

Finally, some practical aspects related to the special properties of MOFs should be briefly discussed.
The complete removal of solvent molecules from the samples deserves special attention in order to ensure defined conditions for NMR experiments on activated samples or on loaded samples, i.e., if host–guest interactions with other adsorbed species are investigated. Moreover, the structure of MOFs with flexible lattices can significantly be influenced by residual amounts of solvent molecules. Solvent extraction by processing in supercritical or liquid CO2 (“supercritical drying”) turned out to be very efficient in comparison with other established techniques such as thermal evacuation or solvent exchange [191].
Much attention is needed for the preparation of the NMR samples because MOFs may be very sensitive to air and/or moisture exposure. For example, the spectrum of UMCM-1 significantly changes even after very short (ca. 30 s) air exposure. It is, therefore, necessary to handle such samples at least under an inert atmosphere, e.g., in a glove box. Ideally, the samples can be sealed in glass ampoules even for MAS NMR experiments ([214,215], see below, Figure 15).

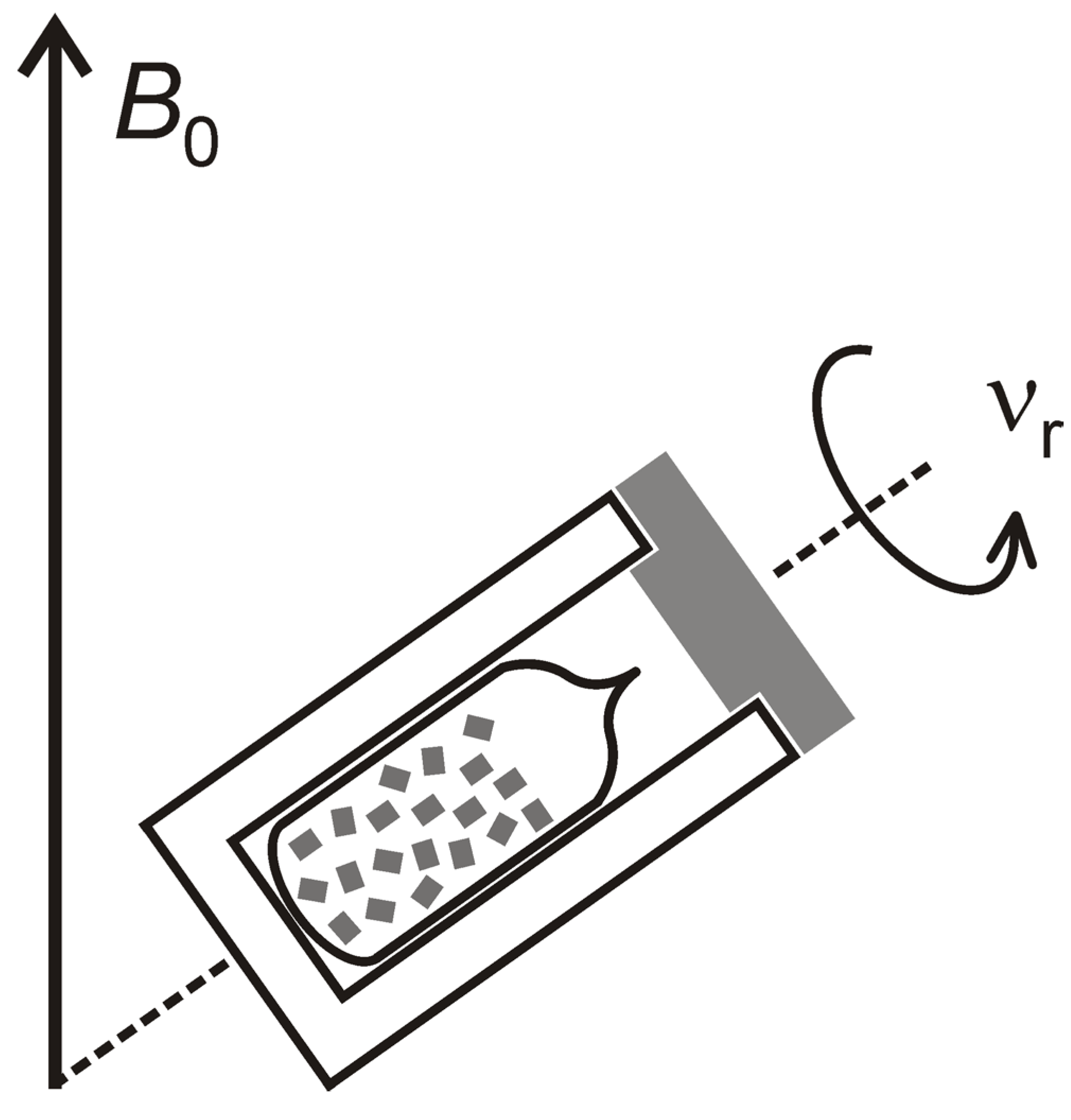

Figure 15. Schematic: MAS NMR of a sample sealed into a glass ampoule.
Figure 15. Schematic: MAS NMR of a sample sealed into a glass ampoule.
Materials 05 02537 g015
Solid-state NMR spectroscopic studies of host–guest interactions in porous materials usually require the use of sealed samples in order to ensure that the measurements are carried out under defined conditions. This is particularly necessary if the adsorbed species are gases which desorb readily or if molecules from the atmosphere (especially water molecules) are taken up by the material. Such species may compete with the adsorbed species or may even react with the MOF thus influencing the results of the measurements. If the samples need to be kept in sealed containers during the NMR measurements, two different cases must be considered, namely: (i) without MAS (Figure 16) and (ii) with MAS (Figure 15).
Figure 16. High-pressure apparatus for in situ NMR studies of gas adsorption. Reprinted with permission from [183]. Copyright 2011 American Chemical Society.
Figure 16. High-pressure apparatus for in situ NMR studies of gas adsorption. Reprinted with permission from [183]. Copyright 2011 American Chemical Society.
Materials 05 02537 g016
Without MAS, the samples may either be sealed in glass ampoules—provided the pressure is relatively low—or in special high-pressure tubes. Recently, an apparatus for in situ high-pressure NMR spectroscopy has been introduced which allows applying defined pressures of gases to solvent-free, i.e., dried, samples inside the magnet under controlled temperatures (see Figure 16, [183]).
With MAS, the samples have to be loaded with defined amounts of the desired gas and sealed in glass ampoules. Note that the ampoules must exhibit a sufficiently good cylindrical symmetry in order to allow sample spinning as is schematically shown in Figure 15 ([214,215]).

Acknowledgments

The authors wish to thank Marcus Blümel and Tobias Gensch for experimental assistance. Financial support from the Deutsche Forschungsgemeinschaft (SPP 1362, CHIRMOF consortium) is gratefully acknowledged.

References

  1. Pfeifer, H. NMR of solid surfaces. NMR Basic Princ. Prog. 1994, 31, 31–90. [Google Scholar]
  2. Brunner, E. Solid state NMR—A powerful tool for the investigation of surface hydroxyl groups in zeolites and their interactions with adsorbed probe molecules. J. Mol. Struct. 1995, 355, 61–85. [Google Scholar] [CrossRef]
  3. Ebener, M.; Francke, V.; Günther, H. Solid state 13C MAS NMR as a tool for the study of reactions between compounds adsorbed on porous materials. Fresen. J. Anal. Chem. 1997, 357, 505–507. [Google Scholar] [CrossRef]
  4. Watson, A.T.; Chang, C.T.P. Characterizing porous media with NMR methods. Prog. Nucl. Magn. Reson. Spectrosc. 1997, 31, 343–386. [Google Scholar] [CrossRef]
  5. Capuani, S.; Alesiani, M.; Branca, R.T.; Maraviglia, B. New openings for porous systems research from intermolecular double-quantum NMR. Solid State Nucl. Magn. Reson. 2004, 25, 153–159. [Google Scholar] [CrossRef] [PubMed]
  6. Hunger, M.; Brunner, E. NMR spectroscopy. Mol. Sieves 2004, 4, 201–293. [Google Scholar]
  7. Ashbrook, S.E.; Smith, M.E. Solid-state 17O NMR—An introduction to the background principles and applications to inorganic materials. Chem. Soc. Rev. 2006, 35, 718–735. [Google Scholar] [CrossRef] [PubMed]
  8. Buntkowsky, G.; Breitzke, H.; Adamczyk, A.; Roelofs, F.; Emmler, T.; Gedat, E.; Grünberg, B.; Xu, Y.; Limbach, H.-H.; Shenderovich, I.; Vyalikh, A.; Findenegg, G. Structural and dynamical properties of guest molecules confined in mesoporous silica materials revealed by NMR. Phys. Chem. Chem. Phys. 2007, 9, 4843–4853. [Google Scholar] [CrossRef] [PubMed]
  9. Bonhomme, C.; Coelho, C.; Baccile, N.; Gervais, C.; Azaïs, T.; Babonneau, F. Advanced solid state NMR techniques for the characterization of sol-gel-derived materials. Acc. Chem. Res. 2007, 40, 738–746. [Google Scholar] [CrossRef] [PubMed]
  10. Bakhmutov, V.I. Strategies for solid-state NMR studies of materials: From diamagnetic to paramagnetic porous solids. Chem. Rev. 2011, 111, 530–562. [Google Scholar] [CrossRef] [PubMed]
  11. Koller, H.; Weiss, M. Solid state NMR of porous materials: Zeolites and related materials. Top. Curr. Chem. 2012, 306, 189–227. [Google Scholar] [PubMed]
  12. Chmelik, C.; Kärger, J. In situ study on molecular diffusion phenomena in nanoporous catalytic solids. Chem. Soc. Rev. 2010, 39, 4864–4884. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, J.; Jiang, Y.; Marthala, V.R.; Hunger, M. Insight into the mechanisms of the ethylbenzene disproportionation: Transition state shape selectivity on zeolites. J. Am. Chem. Soc. 2008, 130, 12642–12644. [Google Scholar] [CrossRef] [PubMed]
  14. Ivanova, I.I.; Kolyagin, Y.G. Impact of in situ MAS NMR techniques to the understanding of the mechanisms of zeolite catalyzed reactions. Chem. Soc. Rev. 2010, 39, 5018–5050. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, W.; Xu, S.; Han, X.; Bao, X. In situ solid-state NMR for heterogeneous catalysis: A joint experimental and theoretical approach. Chem. Soc. Rev. 2012, 41, 192–210. [Google Scholar] [CrossRef] [PubMed]
  16. Blasco, T. Insights into reaction mechanisms in heterogeneous catalysis revealed by in situ NMR spectroscopy. Chem. Soc. Rev. 2010, 39, 4685–4702. [Google Scholar] [CrossRef] [PubMed]
  17. Eddaoudi, M.; Kim, J.; Rosi, N.; Vodak, D.; Wachter, J.; O’Keefe, M.; Yaghi, O. Systematic design of pore size and functionality in isoreticular MOFs and their application in methane storage. Science 2002, 295, 469–472. [Google Scholar] [CrossRef] [PubMed]
  18. Férey, G. Metal-organic frameworks: The young child of the porous solids family. Stud. Surf. Sci. Catal. 2007, 170, 66–84. [Google Scholar]
  19. Kaskel, S. Porous metal–organic frameworks. In Hanbook of Porous Solids; Schüth, F., Sing, K.S.W., Weitkamp, J., Eds.; Wiley-VCH: Weinheim, Germany, 2002; pp. 1190–1249. [Google Scholar]
  20. Kitagawa, S.; Kitaura, R.; Noro, S.-I. Functional porous coordination polymers. Angew. Chem. Int. Ed. 2004, 43, 2334–2375. [Google Scholar] [CrossRef]
  21. Férey, G. Hybrid porous solids: Past, present, future. Chem. Soc. Rev. 2008, 37, 191–214. [Google Scholar] [CrossRef] [PubMed]
  22. Serre, C.; Millange, F.; Thouvenot, C.; Noguès, M.; Marsolier, G.; Louër, D.; Férey, G. Very large breathing effect in the first nanoporous Chromium(III)-based solids: MIL-53 or CrIII(OH)·{O2C-C6H4-CO2}·{HO2C-C6H4-CO2H}x·H2Oy. J. Am. Chem. Soc. 2002, 124, 13519–13526. [Google Scholar] [CrossRef] [PubMed]
  23. Klein, N.; Herzog, C.; Sabo, M.; Senkovska, I.; Getzschmann, J.; Paasch, S.; Lohe, M.R.; Brunner, E.; Kaskel, S. Monitoring adsorption-induced switching by 129Xe NMR spectroscopy in a new metal–organic framework Ni2(2,6-ndc)2(dabco). Phys. Chem. Chem. Phys. 2010, 12, 11778–11784. [Google Scholar] [CrossRef] [PubMed]
  24. Klein, N.; Hoffmann, H.C.; Cadiau, A.; Getzschmann, J.; Lohe, M.R.; Paasch, S.; Heydenreich, T.; Adil, K.; Senkovska, I.; Brunner, E.; Kaskel, S. Structural flexibility and intrinsic dynamics in M2(2,6-ndc)2(dabco) (M = Ni, Co, Cu, Zn) metal–organic frameworks. J. Mater. Chem. 2012, 22, 10303–10312. [Google Scholar] [CrossRef]
  25. Henke, S.; Schneemann, A.; Wütscher, A.; Fischer, R.A. Directing the breathing behavior of pillared-layered metal–organic frameworks via a systematic library of functionalized linkers bearing flexible substituents. J. Am. Chem. Soc. 2012, 134, 9464–9474. [Google Scholar] [CrossRef] [PubMed]
  26. Li, D.; Kaneko, K. Hydrogen bond-regulated microporous nature of copper complex-assembled microcrystals. Chem. Phys. Lett. 2001, 335, 50–56. [Google Scholar] [CrossRef]
  27. Evans, O.R.; Lin, W. Crystal engineering of NLO materials based on metal–organic coordination networks. Acc. Chem. Res. 2002, 35, 511–522. [Google Scholar] [CrossRef] [PubMed]
  28. Srikanth, H.; Hajndl, R.; Moulton, B.; Zaworotko, M. Magnetic studies of crystal-engineered molecular nanostructures (invited). J. Appl. Phys. 2003, 93, 7089–7091. [Google Scholar] [CrossRef]
  29. Maspoch, D.; Ruiz-Molina, D.; Veciana, J. Magnetic nanoporous coordination polymers. J. Mater. Chem. 2004, 14, 2713–2723. [Google Scholar] [CrossRef]
  30. Halder, G.J.; Kepert, C.J.; Moubaraki, B.; Murray, K.S.; Cashion, J.D. Guest-dependent spin crossover in a nanoporous molecular framework material. Science 2002, 298, 1762–1765. [Google Scholar] [CrossRef] [PubMed]
  31. Jiang, Y.; Huang, J.; Kasumaj, B.; Jeschke, G.; Hunger, M.; Mallat, T.; Baiker, A. Adsorption-desorption induced structural changes of Cu-MOF evidenced by solid state NMR and EPR spectroscopy. J. Am. Chem. Soc. 2009, 131, 2058–2059. [Google Scholar] [CrossRef] [PubMed]
  32. Stallmach, F.; Gröger, S.; Künzel, V.; Kärger, J.; Yaghi, O.M.; Hesse, M.; Müller, U. NMR studies on the diffusion of hydrocarbons on the metal–organic framework material MOF-5. Angew. Chem. Int. Ed. 2006, 45, 2123–2126. [Google Scholar] [CrossRef]
  33. Harris, R.K.; Wasylishen, R.E.; Duer, M. NMR Crystallography, 1st ed.; Wiley: Hoboken, NJ. USA, 2009. [Google Scholar]
  34. Harris, R.K. NMR crystallography: The use of chemical shifts. Solid State Sci. 2004, 6, 1025–1037. [Google Scholar] [CrossRef]
  35. Pickard, C.J.; Mauri, F. All-electron magnetic response with pseudopotentials: NMR chemical shifts. Phys. Rev. B 2001, 63, 245101:1–245101:13. [Google Scholar] [CrossRef]
  36. Martineau, C.; Cadiau, A.; Bouchevreau, B.; Senker, J.; Taulelle, F.; Adil, K. SMARTER crystallography of the fluorinated inorganic–organic compound Zn3Al2F12∙[HAmTAZ]6. Dalton Trans. 2012, 41, 6232–6241. [Google Scholar] [CrossRef] [PubMed]
  37. Gerardy-Montouillout, V.V.; Malveau, C.; Tekely, P.; Olender, Z.; Luz, Z. ODESSA, a new 1D NMR exchange experiment for chemically equivalent nuclei in rotating solids. J. Magn. Reson. A 1996, 123, 7–15. [Google Scholar] [CrossRef] [PubMed]
  38. Reichert, D.; Zimmermann, H.; Tekely, P.; Poupko, R.; Luz, Z. Time-reverse ODESSA. A 1D exchange experiment for rotating solids with several groups of equivalent nuclei. J. Magn. Reson. 1997, 125, 245–258. [Google Scholar] [CrossRef]
  39. Krushelnitsky, A.; de Azevedo, E.; Linser, R.; Reif, B.; Saalwächter, K.; Reichert, D. Direct observation of millisecond to second motions in proteins by dipolar CODEX NMR spectroscopy. J. Am. Chem. Soc. 2009, 131, 12097–12099. [Google Scholar] [CrossRef] [PubMed]
  40. Li, W.; McDermott, A. Characterization of slow conformational dynamics in solids: Dipolar CODEX. J. Biomol. NMR 2009, 45, 227–232. [Google Scholar] [CrossRef] [PubMed]
  41. Loiseau, T.; Muguerra, H.; Férey, G.; Haouas, M.; Taulelle, F. Synthesis and structural characterization of a new open-framework zinc terephthalate Zn3(OH)2(bdc)2·2DEF, with infinite Zn–(µ3-OH)–Zn chains. J. Solid State Chem. 2005, 178, 621–628. [Google Scholar] [CrossRef]
  42. Jiang, Y.; Huang, J.; Marx, S.; Kleist, W.; Hunger, M.; Baiker, A. Effect of dehydration on the local structure of framework Aluminum atoms in mixed linker MIL-53(Al) materials studied by solid-state NMR spectroscopy. J. Phys. Chem. Lett. 2010, 1, 2886–2890. [Google Scholar] [CrossRef]
  43. Lieder, C.; Opelt, S.; Dyballa, M.; Henning, H.; Klemm, E.; Hunger, M. Adsorbate effect on AlO4(OH)2 centers in the metal–organic framework MIL-53 investigated by solid-state NMR spectroscopy. J. Phys. Chem. C 2010, 114, 16596–16602. [Google Scholar] [CrossRef]
  44. Volkringer, C.; Loiseau, T.; Férey, G.; Morais, C.M.; Taulelle, F.; Montouillout, V.; Massiot, D. Synthesis, crystal structure and 71Ga solid state NMR of a MOF-type gallium trimesate (MIL-96) with µ3-oxo bridged trinuclear units and a hexagonal 18-ring network. Microporous Mesoporous Mater. 2007, 105, 111–117. [Google Scholar] [CrossRef]
  45. Hajjar, R.; Volkringer, C.; Loiseau, T.; Guillou, N.; Marrot, J.; Férey, G.; Margiolaki, I.; Fink, G.; Morais, C.; Taulelle, F. 71Ga slow-CTMAS NMR and crystal structures of MOF-type gallium carboxylates with infinite edge-sharing octahedra chains (MIL-120 and MIL-124). Chem. Mater. 2011, 23, 39–47. [Google Scholar] [CrossRef]
  46. Mowat, J.P.S.; Miller, S.R.; Slawin, A.M.Z.; Seymour, V.R.; Ashbrook, S.E.; Wright, P.A. Synthesis, characterization and adsorption properties of microporous scandium carboxylates with rigid and flexible frameworks. Microporous Mesoporous Mater. 2011, 142, 322–333. [Google Scholar] [CrossRef]
  47. Sutrisno, A.; Terskikh, V.V.; Shi, Q.; Song, Z.; Dong, J.; Ding, S.Y.; Wang, W.; Provost, B.R.; Daff, T.D.; Woo, T.K.; Huang, Y. Characterization of Zn-containing metal–organic frameworks by solid-state 67Zn NMR spectroscopy and computational modeling. Chem. Eur. J. 2012, 18, 12251–12259. [Google Scholar] [CrossRef] [PubMed]
  48. Haouas, M.; Martineau, C.; Taulelle, F. Quadrupolar NMR of nanoporous materials. In NMR of Quadrupolar Nuclei in Solid Materials; Wasylishen, R.E., Ashbrook, S.E., Wimperis, S., Eds.; Wiley: Hoboken, NJ, USA, 2012; p. 371. [Google Scholar]
  49. Fraissard, J.; Ito, T. 129Xe NMR study of adsorbed xenon: A new method for studying zeolites and metal-zeolites. Zeolites 1988, 8, 350–361. [Google Scholar] [CrossRef]
  50. Andrew, E.R.; Bradbury, A.; Eades, R.G. Nuclear magnetic resonance spectra from a crystal rotated at high speed. Nature 1958, 182, 1659–1659. [Google Scholar] [CrossRef]
  51. Lowe, I.J. Free induction decays of rotating solids. Phys. Rev. Lett. 1959, 2, 285–287. [Google Scholar] [CrossRef]
  52. Pines, A.; Gibby, M.G.; Waugh, J.S. Proton-enhanced nuclear induction spectroscopy: A method for high resolution NMR of dilute spins in solids. J. Chem. Phys. 1972, 56, 1776–1777. [Google Scholar] [CrossRef]
  53. Pines, A.; Gibby, M.G.; Waugh, J.S. Proton-enhanced NMR of dilute spins in solids. J. Chem. Phys. 1973, 59, 569–590. [Google Scholar] [CrossRef]
  54. Metz, G.; Wu, X.; Smith, S.O. Ramped-amplitude cross polarization in magic-angle-spinning NMR. J. Magn. Reson. A 1994, 110, 219–227. [Google Scholar] [CrossRef]
  55. Hediger, S.; Meier, B.H.; Kurur, N.D.; Bodenhausen, G.; Ernst, R.R. NMR cross polarization by adiabatic passage through the Hartmann-Hahn condition (APHH). Chem. Phys. Lett. 1994, 223, 283–288. [Google Scholar] [CrossRef]
  56. Wu, X.; Zilm, K.W. Complete spectral editing in CPMAS NMR. J. Magn. Reson. 1993, 102, 205–213. [Google Scholar] [CrossRef]
  57. Lesage, A.; Steuernagel, S.; Emsley, L. Carbon-13 spectral editing in Solid-State NMR using heteronuclear scalar couplings. J. Am. Chem. Soc. 1998, 120, 7095–7100. [Google Scholar] [CrossRef]
  58. Caravatti, P.; Braunschweiler, L.; Ernst, R.R. Heteronuclear correlation spectroscopy in rotating solids. Chem. Phys. Lett. 1983, 100, 305–310. [Google Scholar] [CrossRef]
  59. Lesage, A.; Sakellariou, D.; Steuernagel, S.; Emsley, L. Carbon-proton chemical shift correlation in solid-state NMR by through-bond multiple-quantum spectroscopy. J. Am. Chem. Soc. 1998, 120, 13194–13201. [Google Scholar] [CrossRef]
  60. Lesage, A.; Emsley, L. Through-bond heteronuclear single-quantum correlation spectroscopy in solid-state NMR, and comparison to other through-bond and through-space experiments. J. Magn. Reson. 2001, 148, 449–454. [Google Scholar] [CrossRef] [PubMed]
  61. Elena, B.; Lesage, A.; Steuernagel, S.; Böckmann, A.; Emsley, L. Proton to carbon-13 INEPT in solid-state NMR spectroscopy. J. Am. Chem. Soc. 2005, 127, 17296–17302. [Google Scholar] [CrossRef] [PubMed]
  62. Lesage, A.; Bardet, M.; Emsley, L. Through-bond carbon-carbon connectivities in disordered solids by NMR. J. Am. Chem. Soc. 1999, 121, 10987–10993. [Google Scholar] [CrossRef]
  63. Volkringer, C.; Loiseau, T.; Guillou, N.; Férey, G.; Haouas, M.; Taulelle, F.; Elkaim, E.; Stock, N. High-throughput aided synthesis of the porous metal–organic framework-type Aluminum pyromellitate, MIL-121, with extra carboxylic acid functionalization. Inorg. Chem. 2010, 49, 9852–9862. [Google Scholar] [CrossRef] [PubMed]
  64. Cadiau, A.; Martineau, C.; Leblanc, M.; Maisonneuve, V.; Hémon-Ribaud, A.; Taulelle, F.; Adil, K. ZnAlF5·[TAZ]: An Al fluorinated MOF of MIL-53(Al) topology with cationic {Zn(1,2,4 triazole)}2+ linkers. J. Mater. Chem. 2011, 21, 3949–3951. [Google Scholar] [CrossRef]
  65. Loiseau, T.; Lecroq, L.; Volkringer, C.; Marrot, J.; Férey, G.; Haouas, M.; Taulelle, F.; Bourrelly, S.; Llewellyn, P.L.; Latroche, M. MIL-96, a porous Aluminum trimesate 3D structure constructed from a hexagonal network of 18-membered rings and μ3-Oxo-centered trinuclear units. J. Am. Chem. Soc. 2006, 128, 10223–10230. [Google Scholar] [CrossRef] [PubMed]
  66. Volkringer, C.; Popov, D.; Loiseau, T.; Guillou, N.; Férey, G.; Haouas, M.; Taulelle, F.; Mellot-Draznieks, C.; Burghammer, M.; Riekel, C. A microdiffraction set-up for nanoporous metal–organic-framework-type solids. Nat. Mater. 2007, 6, 760–764. [Google Scholar] [CrossRef] [PubMed]
  67. Volkringer, C.; Loiseau, T.; Haouas, M.; Taulelle, F.; Popov, D.; Burghammer, M.; Riekel, C.; Zlotea, C.; Cuevas, F.; Latroche, M.; Phanon, D.; Knöfelv, C.; Llewellyn, P.L.; Férey, G. Occurrence of uncommon infinite chains consisting of edge-sharing octahedra in a porous metal organic framework-type Aluminum pyromellitate Al4(OH)8[C10O8H2] (MIL-120): Synthesis, structure, and gas sorption properties. Chem. Mater. 2009, 21, 5783–5791. [Google Scholar] [CrossRef]
  68. Devic, T.; Wagner, V.; Guillou, N.; Vimont, A.; Haouas, M.; Pascolini, M.; Serre, C.; Marrot, J.; Daturi, M.; Taulelle, F.; Férey, G. Synthesis and characterization of a series of porous lanthanide tricarboxylates. Microporous Mesoporous Mater. 2011, 140, 25–33. [Google Scholar] [CrossRef]
  69. Biemmi, E.; Bein, T.; Stock, N. Synthesis and characterization of a new metal organic framework structure with a 2D porous system: (H2NEt2)2[Zn3(BDC)4]·3DEF. Solid State Sci. 2006, 8, 363–370. [Google Scholar] [CrossRef]
  70. Frydman, L. Spin-1/2 and beyond: A perspective in solid state NMR spectroscopy. Ann. Rev. Phys. Chem. 2001, 52, 463–498. [Google Scholar] [CrossRef]
  71. Jerschow, A. From nuclear structure to the quadrupolar NMR interaction and high-resolution spectroscopy. Prog. Nucl. Magn. Reson. Spectrosc. 2005, 46, 63–78. [Google Scholar] [CrossRef]
  72. Bai, S.; Wang, W.; Dybowski, C. Solid state NMR spectroscopy. Anal. Chem. 2010, 82, 4917–4924. [Google Scholar] [CrossRef] [PubMed]
  73. Mehring, M.; Weberruss, V.A. Object-Oriented Magnetic Resonance: Classes and Objects, Calculations And Computations, 1st ed.; Academic Press: New York, NY, USA, 2001. [Google Scholar]
  74. Bennett, A.E.; Rienstra, C.M.; Auger, M.; Lakshmi, K.V.; Griffin, R.G. Heteronuclear decoupling in rotating solids. J. Chem. Phys. 1995, 103, 6951–6958. [Google Scholar] [CrossRef]
  75. Fung, B.M.; Khitrin, A.K.; Ermolaev, K. An improved broadband decoupling sequence for liquid crystals and solids. J. Magn. Reson. 2000, 142, 97–101. [Google Scholar] [CrossRef] [PubMed]
  76. Fernandez, C.; Pruski, M. Probing quadrupolar nuclei by solid-state NMR spectroscopy: Recent advances. Top. Curr. Chem. 2012, 306, 119–188. [Google Scholar] [PubMed]
  77. Llor, A.; Virlet, J. Towards high-resolution NMR of more nuclei in solids: Sample spinning with time-despendent spinner axis angle. Chem. Phys. Lett. 1988, 152, 248–253. [Google Scholar] [CrossRef]
  78. Chmelka, B.F.; Mueller, K.T.; Pines, A.; Stebbins, J.; Wu, Y.; Zwanziger, J.W. Oxygen-17 NMR in solids by dynamic-angle spinning and double rotation. Nature 1989, 339, 42–43. [Google Scholar] [CrossRef]
  79. Medek, A.; Harwood, J.S.; Frydman, L. Multiple-quantum magic-angle spinning NMR: A new method for the study of quadrupolar nuclei in solids. J. Am. Chem. Soc. 1995, 117, 12779–12787. [Google Scholar] [CrossRef]
  80. Frydman, L.; Harwood, J.S. Isotropic spectra of half-integer quadrupolar spins from bidimensional magic-angle spinning NMR. J. Am. Chem. Soc. 1995, 117, 5367–5368. [Google Scholar] [CrossRef]
  81. Goldbourt, A.; Madhu, P.K. Multiple-quantum magic-angle spinning: High-resolution solid state NMR spectroscopy of half-integer quadrupolar nuclei. Monatsh. Chem. 2002, 133, 1497–1534. [Google Scholar] [CrossRef]
  82. Gan, Z. Isotropic NMR spectra of half-integer quadrupolar nuclei using satellite transitions and magic-angle spinning. J. Am. Chem. Soc. 2000, 122, 3242–3243. [Google Scholar] [CrossRef]
  83. Vosegaard, T.; Massiot, D. High-resolution two-dimensional NMR spectra of half-integer-spin quadrupolar nuclei from one-dimensional projections. Chem. Phys. Lett. 2007, 437, 120–125. [Google Scholar] [CrossRef]
  84. Chabanas, M.; Quadrelli, E.A.; Fenet, B.; Copéret, C.; Thivolle-Cazat, J.; Basset, J.-M.; Lesage, A.; Emsley, L. Molecular insight into surface organometallic chemistry through the combined use of 2D HETCOR solid-state NMR spectroscopy and silsesquioxane analogues. Angew. Chem. Int. Ed. 2001, 40, 4493–4496. [Google Scholar] [CrossRef]
  85. Azais, T.; Hartmeyer, G.; Quignard, S.; Laurent, G.; Babonneau, F. Solution state NMR techniques applied to solid state samples: Characterization of Benzoic acid confined in MCM-41. J. Phys. Chem. C 2010, 114, 8884–8891. [Google Scholar] [CrossRef]
  86. Brunner, E.; Freude, D.; Gerstein, B.C.; Pfeifer, H. Residual linewidths of NMR spectra of spin-1/2 systems under magic-angle spinning. J. Magn. Reson. 1990, 90, 90–99. [Google Scholar]
  87. Brunner, E. Limitations of resolution in the 1H magic-angle-spinning nuclear magnetic resonance spectroscopy of zeolites. J. Chem. Soc. Faraday Trans. 1990, 86, 3957–3960. [Google Scholar] [CrossRef]
  88. Samoson, A.; Tuherm, T.; Past, J.; Reinhold, A.; Anupõld, T.; Heinmaa, I. New horizons for magic angle spinning NMR. Top. Curr. Chem. 2004, 246, 15–31. [Google Scholar]
  89. Bielecki, A.; Kolbert, A.C.; Levitt, M.H. Frequency-switched pulse sequences: Homonuclear decoupling and dilute spin NMR in solids. Chem. Phys. Lett. 1989, 155, 341–346. [Google Scholar] [CrossRef]
  90. Vinogradov, E.; Madhu, P.K.; Vega, S. High-resolution proton solid-state NMR spectroscopy by phase-modulated Lee-Goldburg experiment. Chem. Phys. Lett. 1999, 314, 443–450. [Google Scholar] [CrossRef]
  91. Lesage, A.; Sakellariou, D.; Hediger, S.; Eléna, B.; Charmont, P.; Steuernagel, S.; Emsley, L. Experimental aspects of proton NMR spectroscopy in solids using phase-modulated homonuclear dipolar decoupling. J. Magn. Reson. 2003, 163, 105–113. [Google Scholar] [CrossRef] [PubMed]
  92. Halse, M.E.; Emsley, L. A common theory for phase-modulated homonuclear decoupling in solid-state NMR. Phys. Chem. Chem. Phys. 2012, 14, 9121–9130. [Google Scholar] [CrossRef] [PubMed]
  93. Sakellariou, D.; Lesage, A.; Hodgkinson, P.; Emsley, L. Homonuclear dipolar decoupling in solid-state NMR using continuous phase modulation. Chem. Phys. Lett. 2000, 319, 253–260. [Google Scholar] [CrossRef]
  94. Salager, E.; Stein, R.S.; Steuernagel, S.; Lesage, A.; Elena, B.; Emsley, L. Enhanced sensitivity in high-resolution 1H solid-state NMR spectroscopy with DUMBO dipolar decoupling under ultra-fast MAS. Chem. Phys. Lett. 2009, 469, 336–341. [Google Scholar] [CrossRef]
  95. Kirillov, A.M.; Wieczorek, S.W.; Lis, A.; Guedes da Silva, M.F.C.; Florek, M.; Król, J.; Staroniewicz, Z.; Smolénski, P.; Pombeiro, A.J.L. 1,3,5-Triaza-7-phosphaadamantane-7-oxide (PTA=O): New diamondoid building block for design of three-dimensional metal–organic frameworks. Cryst. Growth Des. 2011, 11, 2711–2716. [Google Scholar] [CrossRef]
  96. Volkringer, C.; Meddouri, M.; Loiseau, T.; Guillou, N.; Marrot, J.; Férey, G.; Haouas, M.; Taulelle, F.; Audebrand, N.; Latroche, M. The Kagomé Topology of the gallium and indium metal–organic framework types with a MIL-68 structure: Synthesis, XRD, solid-state NMR characterizations, and hydrogen adsorption. Inorg. Chem. 2008, 47, 11892–11901. [Google Scholar] [CrossRef] [PubMed]
  97. Shi, F.N.; Cunha-Silva, L.; Sá Ferreira, R.A.; Mafra, L.; Trindade, T.; Carlos, L.D.; Almeida Paz, F.A.; Rocha, J. Interconvertable modular framework and layered Lanthanide(III)-Etidronic acid coordination polymers. J. Am. Chem. Soc. 2008, 130, 150–167. [Google Scholar] [CrossRef] [PubMed]
  98. Malicki, N.; Mafra, L.; Quoineaud, A.-A.; Rocha, J.; Thibault-Starzyk, F.; Fernandez, C. Multiplex MQMAS NMR of quadrupolar nuclei. Solid State Nucl. Mag. 2005, 28, 13–21. [Google Scholar] [CrossRef]
  99. Gan, Z.; Kwak, H.-T. Enhancing MQMAS sensitivity using signals from multiple coherence transfer pathways. J. Magn. Reson. 2004, 168, 346–351. [Google Scholar] [CrossRef] [PubMed]
  100. Bajpe, S.R.; Kirschhock, C.E.A.; Aerts, A.; Breynaert, E.; Absillis, G.; Parac-Vogt, T.N.; Giebeler, L.; Martens, J.A. Direct observation of molecular-level template action leading to self-assembly of a porous framework. Chem. Eur. J. 2010, 16, 3926–3932. [Google Scholar] [CrossRef] [PubMed]
  101. Gullion, T.; Schaefer, J. Rotational-echo double-resonance NMR. J. Magn. Reson. 1989, 81, 196–200. [Google Scholar]
  102. Levitt, M.H.; Raleigh, D.P.; Creuzet, F.; Griffin, R.G. Theory and simulations of homonuclear spin pairs in rotating solids. J. Chem. Phys. 1990, 92, 6347–6364. [Google Scholar] [CrossRef]
  103. de Paëpe, G. Dipolar recoupling in magic angle spinning solid-state nuclear magnetic resonance. Ann. Rev. Phys. Chem. 2012, 63, 661–684. [Google Scholar] [CrossRef]
  104. Brouwer, D.H.; Darton, R.J.; Morris, R.E.; Levitt, M.H. A solid-state NMR method for solution of zeolite crystal structures. J. Am. Chem. Soc. 2005, 127, 10365–10360. [Google Scholar] [CrossRef] [PubMed]
  105. Brouwer, D.H.; Kristiansen, P.E.; Fyfe, C.A.; Levitt, M.H. Symmetry-based 29Si dipolar recoupling magic angle spinning NMR spectroscopy: A new method for investigating three-dimensional structures of zeolite frameworks. J. Am. Chem. Soc. 2005, 127, 542–543. [Google Scholar] [CrossRef] [PubMed]
  106. Kristiansen, P.E.; Mitchell, D.J.; Evans, J.N. Double-quantum dipolar recoupling at high magic-angle spinning rates. J. Magn. Reson. 2002, 157, 253–266. [Google Scholar] [CrossRef] [PubMed]
  107. Haouas, M.; Volkringer, C.; Loiseau, T.; Férey, G.; Taulelle, F. Monitoring the activation process of the giant pore MIL-100(Al) by solid state NMR. J. Phys. Chem. C 2011, 115, 17934–17944. [Google Scholar] [CrossRef]
  108. Volkringer, C.; Loiseau, T.; Guillou, N.; Férey, G.; Haouas, M.; Taulelle, F.; Audebrand, N.; Margiolaki, I.; Popov, D.; Burghammer, M.; Riekel, C. Structural transitions and flexibility during dehydration-rehydration process in the MOF-type Aluminum pyromellitate Al2(OH)2[C10O8H2] (MIL-118). Cryst. Growth Des. 2009, 9, 2927–2936. [Google Scholar] [CrossRef]
  109. Goesten, M.G.; Juan-Alcañiz, J.; Ramos-Fernandez, E.V.; Gupta, K.B.S.S.; Stavitski, E.; van Bekkum, H.; Gascon, J.; Kapteijn, F. Sulfation of metal–organic frameworks: Opportunities for acid catalysis and proton conductivity. J. Catal. 2011, 281, 177–187. [Google Scholar] [CrossRef]
  110. Rowsell, J.L.C.; Yaghi, O.M. Effects of functionalization, catenation, and variation of the metal oxide and organic linking units on the low-pressure hydrogen adsorption properties of metal–organic frameworks. J. Am. Chem. Soc. 2006, 128, 1304–1315. [Google Scholar] [CrossRef] [PubMed]
  111. Gadzikwa, T.; Lu, G.; Stern, C.L.; Wilson, S.R.; Hupp, J.T.; Nguyen, S.T. Covalent surface modification of a metal–organic framework: Selective surface engineering via CuI-catalyzed Huisgen cycloaddition. Chem. Commun. 2008, 5493–5495. [Google Scholar]
  112. Tanabe, K.K.; Wang, Z.; Cohen, S.M. Systematic functionalization of a metal–organic framework via a postsynthetic modification approach. J. Am. Chem. Soc. 2008, 130, 8508–8517. [Google Scholar] [CrossRef] [PubMed]
  113. Burrows, A.D.; Frost, C.G.; Mahon, M.F.; Richardson, C. Sulfur-tagged metal–organic frameworks and their post-synthetic oxidation. Chem. Commun. 2009, 4218–4220. [Google Scholar]
  114. Mavrandonakis, A.; Klontzas, E.; Tylianakis, E.; Froudakis, G.E. Enhancement of hydrogen adsorption in metal–organic frameworks by the incorporation of the sulfonate group and Li cations: A multiscale computational study. J. Am. Chem. Soc. 2009, 131, 13410–13414. [Google Scholar] [CrossRef] [PubMed]
  115. Ingleson, M.J.; Heck, R.; Gould, J.A.; Rosseinsky, M.J. Nitric oxide chemisorption in a postsynthetically modified metal–organic framework. Inorg. Chem. 2009, 48, 9986–9988. [Google Scholar] [CrossRef] [PubMed]
  116. Henke, S.; Schmid, R.; Grunwaldt, J.-D.; Fischer, R.A. Flexibility and sorption selectivity in rigid metal–organic frameworks: The impact of ether-functionalised linkers. Chem. Eur. J. 2010, 16, 14296–14306. [Google Scholar] [CrossRef] [PubMed]
  117. Savonnet, M.; Bazer-Bachi, D.; Bats, N.; Perez-Pellitero, J.; Jeanneau, E.; Lecocq, V.; Pinel, C.; Farrusseng, D. Generic postfunctionalization route from amino-derived metal–organic frameworks. J. Am. Chem. Soc. 2010, 132, 4518–4519. [Google Scholar] [CrossRef] [PubMed]
  118. Britt, D.; Lee, C.; Uribe-Romo, F.J.; Furukawa, H.; Yaghi, O.M. Ring-opening reactions within metal–organic frameworks. Inorg. Chem. 2010, 49, 6387–6389. [Google Scholar] [CrossRef] [PubMed]
  119. Yang, Q.; Wiersum, A.D.; Llewellyn, P.L.; Guillerm, V.; Serre, C.; Maurin, G. Functionalizing porous zirconium terephthalate UiO-66(Zr) for natural gas upgrading: A computational exploration. Chem. Commun. 2011, 47, 9603–9605. [Google Scholar] [CrossRef]
  120. Tanabe, K.K.; Cohen, S.M. Postsynthetic modification of metal–organic frameworks—A progress report. Chem. Soc. Rev. 2011, 40, 498–519. [Google Scholar] [CrossRef] [PubMed]
  121. Dröge, T.; Notzon, A.; Fröhlich, R.; Glorius, F. Palladium-catalyzed C-H Bond functionalization of a metal–organic framework (MOF): Mild, selective, and efficient. Chem. Eur. J. 2011, 17, 11974–11977. [Google Scholar] [CrossRef] [PubMed]
  122. Kim, M.; Cahill, J.F.; Su, Y.; Prather, K.A.; Cohen, S.M. Postsynthetic ligand exchange as a route to functionalization of “inert” metal–organic frameworks. Chem. Sci. 2012, 3, 126–130. [Google Scholar] [CrossRef]
  123. Halls, J.E.; Hernán-Gómez, A.; Burrows, A.D.; Marken, F. Metal-organic frameworks post-synthetically modified with ferrocenyl groups: Framework effects on redox processes and surface conduction. Dalton Trans. 2012, 41, 1475–1480. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  124. Savonnet, M.; Camarata, A.; Canivet, J.; Bazer-Bachi, D.; Bats, N.; Lecocq, V.; Pinel, C.; Farrusseng, D. Tailoring metal–organic framework catalysts by click chemistry. Dalton Trans. 2012, 41, 3945–3948. [Google Scholar] [CrossRef] [PubMed]
  125. Ahnfeldt, T.; Gunzelmann, D.; Wack, J.; Senker, J.; Stock, N. Controlled modification of the inorganic and organic bricks in an Al-based MOF by direct and post-synthetic synthesis routes. Cryst. Eng. Commun. 2012, 14, 4126–4136. [Google Scholar] [CrossRef]
  126. Proch, S.; Herrmannsdörfer, J.; Kempe, R.; Kern, C.; Jess, A.; Seyfarth, L.; Senker, J. Pt@MOF-177: Synthesis, room-temperature hydrogen storage and oxidation catalysis. Chem. Eur. J. 2008, 14, 8204–8212. [Google Scholar] [CrossRef] [PubMed]
  127. Wang, Z.; Cohen, S.M. Postsynthetic covalent modification of a neutral metal–organic framework. J. Am. Chem. Soc. 2007, 129, 12368–12369. [Google Scholar] [CrossRef] [PubMed]
  128. Roy, P.; Schaate, A.; Behrens, P.; Godt, A. Post-Synthetic Modification of Zr-Metal-Organic Frameworks through Cycloaddition Reactions. Chem. Eur. J. 2012, 18, 6979–6985. [Google Scholar] [CrossRef] [PubMed]
  129. Garibay, S.J.; Wang, Z.; Tanabe, K.K.; Cohen, S.M. Postsynthetic modification: A versatile approach toward multifunctional metal–organic frameworks. Inorg. Chem. 2009, 48, 7341–7349. [Google Scholar] [CrossRef] [PubMed]
  130. Wang, Z.; Tanabe, K.K.; Cohen, S.M. Accessing postsynthetic modification in a series of metal–organic frameworks and the influence of framework topology on reactivity. Inorg. Chem. 2009, 48, 296–306. [Google Scholar] [CrossRef] [PubMed]
  131. Garibay, S.J.; Wang, Z.; Cohen, S.M. Evaluation of heterogeneous metal–organic framework organocatalysts prepared by postsynthetic modification. Inorg. Chem. 2010, 49, 8086–8091. [Google Scholar] [CrossRef] [PubMed]
  132. Mowat, J.P.S.; Miller, S.R.; Griffin, J.M.; Seymour, V.R.; Ashbrook, S.E.; Thompson, S.P.; Fairen-Jimenez, D.; Banu, A.-M.; Düren, T.; Wright, P.A. Structural chemistry, monoclinic-to-orthorhombic phase transition, and CO2 adsorption behavior of the small pore scandium terephthalate, Sc2(O2CC6H4CO2)3, and its nitro- and amino-functionalized derivatives. Inorg. Chem. 2011, 50, 10844–10858. [Google Scholar] [CrossRef] [PubMed]
  133. Ahnfeldt, T.; Gunzelmann, D.; Loiseau, T.; Hirsemann, D.; Senker, J.; Férey, G.; Stock, N. Synthesis and modification of a functionalized 3D open-framework structure with MIL-53 topology. Inorg. Chem. 2009, 48, 3057–3064. [Google Scholar] [CrossRef] [PubMed]
  134. Bernt, S.; Feyand, M.; Modrow, A.; Wack, J.; Senker, J.; Stock, N. [Zn(C3H3N2)(C3H2N2–N=N–C6H5)], a mixed-linker ZIF containing a photoswitchable phenylazo group. Eur. J. Inorg. Chem. 2011, 5378–5383. [Google Scholar]
  135. Morris, W.; Doonan, C.J.; Yaghi, O.M. Postsynthetic modification of a metal–organic framework for stabilization of a hemiaminal and ammonia uptake. Inorg. Chem. 2011, 50, 6853–6855. [Google Scholar] [CrossRef] [PubMed]
  136. Marx, S.; Kleist, W.; Huang, J.; Maciejewski, M.; Baiker, A. Tuning functional sites and thermal stability of mixed-linker MOFs based on MIL-53(Al). Dalton Trans. 2010, 39, 3795–3798. [Google Scholar] [CrossRef] [PubMed]
  137. Padmanaban, W.; Müller, P.; Lieder, C.; Gedrich, K.; Grünker, R.; Bon, V.; Senkovska, I.; Baumgärtner, S.; Opelt, S.; Paasch, S.; Brunner, E.; Glorius, F.; Klemm, E.; Kaskel, S. Application of a chiral metal–organic framework in enantioselective separation. Chem. Commun. 2011, 47, 12089–12091. [Google Scholar] [CrossRef]
  138. Hoffmann, H.C.; Paasch, S.; Müller, P.; Senkovska, I.; Padmanaban, M.; Glorius, F.; Kaskel, S.; Brunner, E. Chiral recognition in metal–organic frameworks studied by solid-state NMR spectroscopy using chiral solvating agents. Chem. Commun. 2012, 48, 10484–10486. [Google Scholar] [CrossRef]
  139. Wenzel, T.J. Discrimination of Chiral Compounds Using NMR Spectroscopy; Wiley: Hoboken, NJ, USA, 2007. [Google Scholar]
  140. Haouas, M.; Volkringer, C.; Loiseau, T.; Férey, G.; Taulelle, F. The extra-framework sub-lattice of the metal–organic framework MIL-110: A solid-state NMR investigation. Chem. Eur. J. 2009, 15, 3139–3146. [Google Scholar] [CrossRef] [PubMed]
  141. Ravon, U.; Savonnet, M.; Aguado, S.; Domine, M.E.; Janneau, E.; Farrusseng, D. Engineering of coordination polymers for shape selective alkylation of large aromatics and the role of defects. Microporous Mesoporous Mater. 2010, 129, 319–329. [Google Scholar] [CrossRef]
  142. Grajciar, L.; Bludský, O.; Nachtigall, P. Water adsorption on coordinatively unsaturated sites in CuBTC MOF. J. Phys. Chem. Lett. 2010, 1, 3354–3359. [Google Scholar] [CrossRef]
  143. Hong, D.-Y.; Hwang, Y.K.; Serre, C.; Férey, G.; Chang, J.-S. Porous chromium terephthalate MIL-101 with coordinatively unsaturated sites: Surface functionalization, encapsulation, sorption and catalysis. Adv. Funct. Mater. 2009, 19, 1537–1552. [Google Scholar] [CrossRef]
  144. Volkringer, C.; Popov, D.; Loiseau, T.; Férey, G.; Burghammer, M.; Riekel, C.; Haouas, M.; Taulelle, F. Synthesis, single-crystal X-ray microdiffraction, and NMR characterizations of the giant pore metal–organic framework aluminum trimesate MIL-100. Chem. Mater. 2009, 21, 5695–5697. [Google Scholar] [CrossRef]
  145. Banerjee, D.; Kim, S.J.; Li, W.; Wu, H.; Li, J.; Borkowski, L.A.; Philips, B.L.; Parise, J.B. Synthesis and structural characterization of a 3-D lithium based metal–organic framework showing dynamic structural behavior. Cryst. Growth Des. 2010, 10, 2801–2805. [Google Scholar] [CrossRef]
  146. Yang, S.; Martin, G.S.B.; Titman, J.J.; Blake, A.J.; Allan, D.R.; Champness, N.R.; Schröder, M. Pore with gate: Enhancement of the isosteric heat of adsorption of dihydrogen via postsynthetic cation exchange in metal–organic frameworks. Inorg. Chem. 2011, 50, 9374–9384. [Google Scholar] [CrossRef] [PubMed]
  147. Hurd, J.A.; Vaidhyanathan, R.; Thangadurai, V.; Ratcliffe, C.I.; Moudrakovski, I.L.; Shimizu, G.K.H. Anhydrous proton conduction at 150 °C in a crystalline metal–organic framework. Nat. Chem. 2009, 1, 705–710. [Google Scholar] [CrossRef] [PubMed]
  148. Bureekaew, S.; Horike, S.; Higuchi, M.; Mizuno, M.; Kawamura, T.; Tanaka, D.; Yanai, N.; Kitagawa, S. One-dimensional imidazole aggregate in aluminium porous coordination polymers with high proton conductivity. Nat. Mater. 2009, 8, 831–836. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  149. Taylor, J.M.; Mah, R.K.; Moudrakovski, I.L.; Ratcliffe, C.I.; Vaidhyanathan, R.; Shimizu, G.K.H. Facile proton conduction via ordered water molecules in a phosphonate metal–organic framework. J. Am. Chem. Soc. 2010, 132, 14055–14057. [Google Scholar] [CrossRef] [PubMed]
  150. Gabuda, S.P.; Kozlova, S.G.; Samsonenko, D.G.; Dybtsev, D.N.; Fedin, V.P. Quantum rotations and chiral polarization of qubit prototype molecules in a highly porous metal–organic framework: 1H NMR T1 study. J. Phys. Chem. C 2011, 115, 20460–20465. [Google Scholar] [CrossRef]
  151. Morris, W.; Taylor, R.E.; Dybowski, C.; Yaghi, O.M.; Garcia-Garibay, M.A. Framework mobility in the metal–organic framework crystal IRMOF-3: Evidence for aromatic ring and amine rotation. J. Mol. Struct. 2011, 1004, 94–101. [Google Scholar] [CrossRef]
  152. Gonzalez, J.; Devi, R.N.; Tunstall, D.P.; Cox, P.A.; Wright, P.A. Deuterium NMR studies of framework and guest mobility in the metal–organic framework compound MOF-5, Zn4O(O2CC6H4CO2)3. Microporous Mesoporous Mater. 2005, 84, 97–104. [Google Scholar] [CrossRef]
  153. Horike, S.; Matsuda, R.; Tanaka, D.; Matsubara, S.; Mizuno, M.; Endo, K.; Kitagawa, S. Dynamic motion of building blocks in porous coordination polymers. Angew. Chem. Int. Ed. 2006, 45, 7226–7230. [Google Scholar] [CrossRef]
  154. Gould, S.L.; Tranchemontagne, D.; Yaghi, O.M.; Garcia-Garibay, M.A. Amphidynamic character of crystalline MOF-5: Rotational dynamics of terephthalate phenylenes in a free-volume, sterically unhindered environment. J. Am. Chem. Soc. 2008, 130, 3246–3247. [Google Scholar] [CrossRef] [PubMed]
  155. Kolokolov, D.I.; Jobic, H.; Stepanov, A.G.; Guillerm, V.; Devic, T.; Serre, C.; Férey, G. Dynamics of benzene rings in MIL-53(Cr) and MIL-47(V) frameworks studied by 2H NMR spectroscopy. Angew. Chem. Int. Ed. 2010, 49, 4791–4794. [Google Scholar] [CrossRef]
  156. Abragam, A.; Goldman, M. Principles of dynamic nuclear polarization. Rep. Prog. Phys. 1978, 41, 395–467. [Google Scholar] [CrossRef]
  157. Maly, T.; Debelouchina, G.T.; Bajaj, V.S.; Hu, K.-N.; Joo, C.-G.; Mak-Jurkauskas, M.L.; Sirigiri, J.R.; van der Wel, P.C.A.; Herzfeld, J.; Temkin, R.J.; Griffin, R.G. Dynamic nuclear polarization at high magnetic fields. J. Chem. Phys. 2008, 128, 052211. [Google Scholar] [CrossRef] [PubMed]
  158. Griesinger, C.; Bennati, M.; Vieth, H.M.; Luchinat, C.; Parigi, G.; Höfer, P.; Engelke, F.; Glaser, S.J.; Denysenkov, S.J.; Prisner, T.G. Dynamic nuclear polarization at high magnetic fields in liquids. Prog. Nucl. Magn. Reson. Spectrosc. 2012, 64, 4–28. [Google Scholar] [CrossRef] [PubMed]
  159. Matsuki, Y.; Maly, T.; Ouari, O.; Karoui, H.; Le Moigne, F.; Rizzato, E.; Lyubenova, S.; Herzfeld, J.; Prisner, T.; Tordo, P.; Griffin, R.G. Dynamic nuclear polarization with a rigid biradical. Angew. Chem. Int. Ed. 2009, 48, 4996–5000. [Google Scholar] [CrossRef]
  160. van der Wel, P.; Hu, K.-N.; Lewandowski, J.; Griffin, R. Dynamic nuclear polarization of amyloidogenic peptide nanocrystals: GNNQQNNY, a core segment of the yeast prion prion protein sup35p. J. Am. Chem. Soc. 2006, 128, 10840–10846. [Google Scholar] [CrossRef] [PubMed]
  161. Rosay, M.; Tometich, L.; Pawsey, S.; Bader, R.; Schauwecker, R.; Blank, M.; Borchard, P.M.; Cauffman, S.R.; Felch, K.L.; Weber, R.T.; Temkin, R.J.; Griffin, R.G.; Maas, W.E. Solid-state dynamic nuclear polarization at 263 GHz: Spectrometer design and experimental results. Phys. Chem. Chem. Phys. 2010, 12, 5850–5860. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  162. Renault, M.; Pawsey, S.; Bos, M.P.; Koers, E.J.; Nand, D.; Tommassen-van Boxtel, R.; Rosay, M.; Tommassen, J.; Maas, W.E.; Baldus, M. Solid-state NMR spectroscopy on cellular preparations enhanced by dynamic nuclear polarization. Angew. Chem. Int. Ed. 2012, 51, 2998–3001. [Google Scholar] [CrossRef]
  163. Rossini, A.J.; Zagdoun, A.; Lelli, M.; Canivet, J.; Aguado, S.; Ouari, O.; Tordo, P.; Rosay, M.; Maas, W.E.; Copéret, C.; Farrusseng, D.; Emsley, L.; Lesage, A. Dynamic nuclear polarization enhanced solid-state NMR spectroscopy of functionalized metal–organic frameworks. Angew. Chem. 2012, 124, 127–131. [Google Scholar] [CrossRef]
  164. Ito, T.; Fraissard, J. 129Xe NMR study of xenon adsorbed on Y zeolites. J. Chem. Phys. 1982, 76, 5225–5229. [Google Scholar] [CrossRef]
  165. Raftery, D.; Long, H.; Meersmann, T.; Grandinetti, P.J.; Reven, L.; Pines, A. High-field NMR of adsorbed xenon polarized by laser pumping. Phys. Rev. Lett. 1991, 66, 584–587. [Google Scholar] [CrossRef] [PubMed]
  166. Raftery, D.; MacNamara, E.; Fisher, G.; Rice, C.V.; Smith, J. Optical pumping and magic angle spinning: sensitivity and resolution enhancement for surface NMR obtained with laser-polarized xenon. J. Am. Chem. Soc. 1997, 119, 8746–8747. [Google Scholar] [CrossRef]
  167. Brunner, E.; Seydoux, R.; Haake, M.; Pines, A.; Reimer, J. Surface NMR using laser-polarized 129Xe under magic-angle spinning conditions. J. Magn. Reson. 1998, 130, 145–148. [Google Scholar] [CrossRef] [PubMed]
  168. Brunner, E. Enhancement of surface and biological NMR by laser-polarized xenon. Concept. Magn. Res. 1999, 11, 313–335. [Google Scholar] [CrossRef]
  169. Ripmeester, J.A.; Ratcliffe, C.I. On the application of 129Xe NMR to the study of microporous solids. J. Phys. Chem. 1990, 94, 7652–7656. [Google Scholar] [CrossRef]
  170. Springuel-Huet, M.-A.; Bonardet, J.L.; Gédéon, A.; Fraissard, J. 129Xe NMR for studying surface heterogeneity: Well-known facts and new findings. Langmuir 1997, 13, 1229–1236. [Google Scholar] [CrossRef]
  171. Ratcliffe, C.I. Xenon NMR. Annu. Rep. NMR Spectrosc. 1998, 36, 123–221. [Google Scholar]
  172. Moudrakovski, I.; Soldatov, D.V.; Ripmeester, J.A.; Sears, D.N.; Jameson, C.J. Xe NMR lineshapes in channels of peptide molecular crystals. PNAS 2004, 101, 17924–17929. [Google Scholar] [CrossRef] [PubMed]
  173. Raftery, D. Xenon NMR spectroscopy. Ann. Rep. NMR Spectrosc. 2006, 57, 205–270. [Google Scholar]
  174. Sozzani, P.; Comotti, A.; Simonutti, R.; Meersmann, T.; Logan, J.W.; Pines, A. A porous crystalline molecular solid explored by hyperpolarized xenon. Angew. Chem. Int. Ed. 2000, 39, 2695–2698. [Google Scholar] [CrossRef]
  175. Comotti, A.; Bracco, S.; Valsesia, P.; Ferretti, L.; Sozzani, P. 2D multinuclear NMR, hyperpolarized xenon and gas storage in organosilica nanochannels with crystalline order in the walls. J. Am. Chem. Soc. 2007, 129, 8565–8576. [Google Scholar] [CrossRef]
  176. Cheng, C.-Y.; Bowers, C.R. Direct observation of atoms entering and exiting L-Alanyl-L-valine nanotubes by hyperpolarized 129Xe NMR. J. Am. Chem. Soc. 2007, 129, 13997–14002. [Google Scholar] [CrossRef] [PubMed]
  177. Cheng, C.-Y.; Stamatatos, T.C.; Christou, G.; Bowers, C.R. Molecular wheels as nanoporous materials: Differing modes of gas diffusion through Ga10 and Ga18 wheels probed by hyperpolarized 129Xe NMR spectroscopy. J. Am. Chem. Soc. 2010, 132, 5387–5393. [Google Scholar] [CrossRef] [PubMed]
  178. Terskikh, V.V.; Moudrakovski, I.L.; Breeze, S.R.; Lang, S.; Ratcliffe, C.I.; Ripmeester, J.A.; Sayari, A. A general correlation for the 129Xe NMR chemical shift-pore size relationship in porous silica-based materials. Langmuir 2002, 18, 5653–5656. [Google Scholar] [CrossRef]
  179. Böhlmann, W.; Pöppl, A.; Sabo, M.; Kaskel, S. Characterization of the metal–organic framework compound Cu3(benzene 1,3,5-tricarboxylate)2 by means of 129Xe nuclear magnetic and electron paramagnetic resonance spectroscopy. J. Phys. Chem. B 2006, 110, 20177–20181. [Google Scholar] [CrossRef] [PubMed]
  180. Ueda, T.; Kurokawa, K.; Eguchi, T.; Kachi-Terajima, C.; Takamizawa, S. Local structure and xenon adsorption behavior of metal–organic framework system [M2(O2CPh)4(pyz)]n (M = Rh and Cu) as studied with use of single-crystal X-ray diffraction, adsorption isotherm, and xenon-129 NMR. J. Phys. Chem. C 2007, 111, 1524–1534. [Google Scholar] [CrossRef]
  181. Ooms, K.J.; Wasylishen, R.E. 129Xe NMR study of xenon in iso-reticular metal–organic frameworks. Microporous Mesoporous Mater. 2007, 103, 341–351. [Google Scholar] [CrossRef]
  182. Springuel-Huet, M.-A.; Nossov, A.; Adem, Z.; Guenneau, F.; Volkringer, C.; Loiseau, T.; Férey, G.; Gédéon, A. 129Xe NMR study of the framework flexibility of the porous hybrid MIL-53(Al). J. Am. Chem. Soc. 2010, 132, 11599–11607. [Google Scholar] [CrossRef] [PubMed]
  183. Hoffmann, H.C.; Assfour, B.; Epperlein, F.; Klein, N.; Paasch, S.; Senkovska, I.; Kaskel, S.; Seifert, G.; Brunner, E. High-pressure in Situ 129Xe NMR spectroscopy and computer simulations of breathing transitions in the metal–organic framework Ni2(2,6-ndc)2(dabco) (DUT-8(Ni)). J. Am. Chem. Soc. 2011, 133, 8681–8690. [Google Scholar] [CrossRef] [PubMed]
  184. Demarquay, J.; Fraissard, J. 129Xe NMR of xenon adsorbed on zeolites: Relationship between the chemical shift and the void space. Chem. Phys. Lett. 1987, 136, 314–318. [Google Scholar] [CrossRef]
  185. Koh, K.; Wong-Foy, A.G.; Matzger, A.J. A crystalline mesoporous coordination polymer with high microporosity. Angew. Chem. Int. Ed. 2008, 47, 677–680. [Google Scholar] [CrossRef]
  186. Jameson, A.K.; Jameson, C.; Gutowsky, H.S. Density dependence of 129Xe chemical shifts in mixtures of xenon and other gases. J. Chem. Phys. 1970, 53, 2310–2321. [Google Scholar] [CrossRef]
  187. Baumer, D.; Fink, A.; Brunner, E. Measurement of the 129Xe NMR chemical shift of supercritical xenon. Z. Phys. Chem. 2003, 217, 289–293. [Google Scholar] [CrossRef]
  188. Springuel-Huet, M.-A.; Fraissard, J. 129Xe NMR of xenon on the molecular sieves AlPO4–11 and SAPO-11: Chemical shift anisotropy related to the asymmetry of the adsorption zones. Chem. Phys. Lett. 1989, 154, 299–302. [Google Scholar] [CrossRef]
  189. Loiseau, T.; Serre, C.; Huguenard, C.; Fink, G.; Taulelle, F.; Henry, M.; Bataille, T.; Férey, G. A rationale for the large breathing of the porous aluminum terephthalate (MIL-53) upon hydration. Chem. Eur. J. 2004, 10, 1373–1382. [Google Scholar] [CrossRef] [PubMed]
  190. Boutin, A.; Springuel-Huet, M.-A.; Nossov, A.; Gédéon, A.; Loiseau, T.; Volkringer, C.; Férey, G.; Coudert, F.-X.; Fuchs, A.H. Breathing transitions in MIL-53(Al) metal–organic framework upon xenon adsorption. Angew. Chem. Int. Ed. 2009, 48, 8314–8317. [Google Scholar] [CrossRef]
  191. Nelson, A.P.; Farha, O.K.; Mulfort, K.L.; Hupp, J.T. Supercritical processing as a route to high internal surface areas and permanent microporosity in metal–organic framework materials. J. Am. Chem. Soc. 2009, 131, 458–460. [Google Scholar] [CrossRef] [PubMed]
  192. Walker, A.M.; Civalleri, B.; Slater, B.; Mellot-Draznieks, C.; Corà, F.; Zicovich-Wilson, C.M.; Román-Pérez, G.; Soler, J.M.; Gale, J.D. Flexibility in a metal–organic framework material controlled by weak dispersion forces: The bistability of MIL-53(Al). Angew. Chem. Int. Ed. 2010, 49, 7501–7503. [Google Scholar] [CrossRef]
  193. Salles, F.; Ghoufi, A.; Maurin, G.; Bell, R.G.; Mellot-Draznieks, C.; Férey, G. Molecular dynamics simulations of breathing MOFs: Structural transformations of MIL-53(Cr) upon thermal activation and CO2 adsorption. Angew. Chem. Int. Ed. 2008, 47, 8487–8491. [Google Scholar] [CrossRef]
  194. Coudert, F.-X.; Jeffroy, M.; Fuchs, A.H.; Boutin, A.; Mellot-Draznieks, C. Thermodynamics of guest-induced structural transitions in hybrid organic-inorganic frameworks. J. Am. Chem. Soc. 2008, 130, 14294–14302. [Google Scholar] [CrossRef] [PubMed]
  195. Coombes, D.S.; Corà, F.; Mellot-Draznieks, C.; Bell, R.G. Sorption-induced breathing in the flexible metal organic framework CrMIL-53: Force-field simulations and electronic structure analysis. J. Phys. Chem. C 2009, 113, 544–552. [Google Scholar] [CrossRef]
  196. Stejskal, E.O.; Schaefer, J.; Henis, J.M.S.; Tripodi, M.K. Magic-angle carbon-13 NMR study of CO2 adsorbed on some molecular sieves. J. Chem. Phys. 1974, 61, 2351–2356. [Google Scholar] [CrossRef]
  197. Omi, H.; Ueda, T.; Miyakubo, K.; Eguchi, T. Dynamics of CO2 molecules confined in the micropores of solids as studied by 13C NMR. Appl. Surf. Sci. 2005, 252, 660–667. [Google Scholar] [CrossRef]
  198. Pinto, M.L.; Mafra, L.; Guil, J.M.; Pires, J.; Rocha, J. Adsorption and activation of CO2 by amine-modified nanoporous materials studied by solid-state NMR and 13CO2 adsorption. Chem. Mater. 2011, 23, 1387–1395. [Google Scholar] [CrossRef]
  199. Beeler, A.J.; Orendt, A.M.; Grant, D.M.; Cutts, P.W.; Michl, J.; Zilm, K.W.; Downing, J.W.; Facelli, J.C.; Schindler, M.S.; Kutzelnigg, W. Low-temperature 13C magnetic resonance in solids. 3. Linear and pseudolinear molecules. J. Am. Chem. Soc. 1984, 106, 7672–7676. [Google Scholar] [CrossRef]
  200. Ripmeester, J.A.; Ratcliffe, C.I. The Diverse nature of dodecahedral cages in clathrate hydrates as revealed by 129Xe- and 13C-NMR spectroscopy: CO2 as a small-cage guest. Energy Fuels 1998, 12, 197–200. [Google Scholar] [CrossRef]
  201. Kong, X.; Scott, E.; Ding, W.; Mason, J.A.; Long, J.R.; Reimer, J.A. CO2 dynamics in a metal–organic framework with open metal sites. J. Am. Chem. Soc. 2012, 134, 14341–14344. [Google Scholar] [CrossRef] [PubMed]
  202. Massiot, D.; Fayon, F.; Capron, M.; King, I.; Le Calvé, S.; Alonso, B.; Durand, J.-O.; Bujoli, B.; Gan, Z.; Hoatson, G. Modelling one- and two-dimensional solid-state NMR spectra. Magn. Reson. Chem. 2002, 40, 70–76. [Google Scholar] [CrossRef]
  203. Gassensmith, J.J.; Furukawa, H.; Smaldone, R.A.; Forgan, R.S.; Botros, Y.Y.; Yaghi, O.M.; Stoddart, J.F. Strong and Reversible binding of carbon dioxide in a green metal–organic framework. J. Am. Chem. Soc. 2011, 133, 15312–15315. [Google Scholar] [CrossRef] [PubMed]
  204. Grzech, A.; Yang, J.; Dingemans, T.J.; Srinivasan, S.; Magusin, P.C.M.M.; Mulder, F.M. Irreversible high-temperature hydrogen interaction with the metal organic framework Cu3(BTC)2. J. Phys. Chem. C 2011, 115, 21521–21525. [Google Scholar] [CrossRef]
  205. Rabone, J.; Yue, Y.-F.; Chong, S.Y.; Stylianou, K.C.; Bacsa, J.; Bradshaw, D.; Darling, G.R.; Berry, N.G.; Khimyak, Y.Z.; Ganin, A.Y.; Wiper, P.; Claridge, J.B.; Rosseinsky, M.J. An adaptable peptide-based porous material. Science 2010, 329, 1053–1057. [Google Scholar] [CrossRef] [PubMed]
  206. García-Ricard, O.J.; Fu, R.; Hernández-Maldonado, A.J. Thermally induced changes in a porous coordination polymer {Cu2(pyrazine-2,3-dicarboxylate)2(4,4’-bipyridine)} studied via in Situ X-ray diffraction and 13C cross-polarization magic angle spinning nuclear magnetic resonance spectroscopy. J. Phys. Chem. C 2011, 115, 3595–3601. [Google Scholar] [CrossRef]
  207. Esken, D.; Zhang, X.; Lebedev, O.I.; Schröder, F.; Fischer, R.A. Pd@MOF-5: Limitations of gas-phase infiltration and solution impregnation of [Zn4O(bdc)3] (MOF-5) with metal–organic palladium precursors for loading with Pd nanoparticles. J. Mater. Chem. 2009, 19, 1314–1319. [Google Scholar] [CrossRef]
  208. Meilikhov, M.; Yusenko, K.; Fischer, R.A. Incorporation of metallocenes into the channel structured metal–organic frameworks MIL-53(Al) and MIL-47(V). Dalton Trans. 2010, 39, 10990–10999. [Google Scholar] [CrossRef] [PubMed]
  209. Su, C.-Y.; Goforth, A.M.; Smith, M.D.; Pellechia, P.J.; zur Loye, H.-C. exceptionally stable, hollow tubular metal–organic architectures: Synthesis, characterization, and solid-state transformation study. J. Am. Chem. Soc. 2004, 126, 3576–3586. [Google Scholar] [CrossRef] [PubMed]
  210. Besara, T.; Jain, P.; Dalal, N.S.; Kuhns, P.L.; Reyes, A.P.; Kroto, H.W.; Cheetham, A.K. Mechanism of the order-disorder phase transition, and glassy behavior in the metal–organic framework [(CH3)2NH2]Zn(HCOO)3. PNAS 2011, 108, 6828–6832. [Google Scholar] [CrossRef]
  211. Gul-E-Noor, F.; Jee, B.; Pöppl, A.; Hartmann, M.; Himsl, D.; Bertmer, M. Effects of varying water adsorption on a Cu3(BTC)2 metal–organic framework (MOF) as studied by 1H and 13C solid-state NMR spectroscopy. Phys. Chem. Chem. Phys. 2011, 13, 7783–7788. [Google Scholar] [CrossRef] [PubMed]
  212. Gabuda, S.P.; Kozlova, S.G.; Drebuschak, V.A.; Dybtsev, D.N.; Fedin, V.P. Dynamic Pseudo Jahn-Teller effect and the phase transition induced by absorption of molecules in metal–organic nanotube framework. J. Phys. Chem. C 2008, 112, 5074–5077. [Google Scholar] [CrossRef]
  213. Petersen, G.W.; Wagner, G.W.; Balboa, A.; Mahle, J.; Sewell, T.; Karwacki, C.J. Ammonia vapor removal by Cu3(BTC)2 and its characterization by MAS NMR. J. Phys. Chem. C 2009, 113, 13906–13917. [Google Scholar] [CrossRef]
  214. Freude, D.; Hunger, M.; Pfeifer, H. Study of Brønsted acidity of zeolites using high-resolution proton magnetic resonance with magic-angle spinning. Chem. Phys. Lett. 1982, 91, 307–310. [Google Scholar] [CrossRef]
  215. Pfeifer, H.; Freude, D.; Hunger, M. Nuclear magnetic resonance studies on the acidity of zeolites and related catalysts. Zeolites 1985, 5, 274–286. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Hoffmann, H.C.; Debowski, M.; Müller, P.; Paasch, S.; Senkovska, I.; Kaskel, S.; Brunner, E. Solid-State NMR Spectroscopy of Metal–Organic Framework Compounds (MOFs). Materials 2012, 5, 2537-2572. https://doi.org/10.3390/ma5122537

AMA Style

Hoffmann HC, Debowski M, Müller P, Paasch S, Senkovska I, Kaskel S, Brunner E. Solid-State NMR Spectroscopy of Metal–Organic Framework Compounds (MOFs). Materials. 2012; 5(12):2537-2572. https://doi.org/10.3390/ma5122537

Chicago/Turabian Style

Hoffmann, Herbert C., Marta Debowski, Philipp Müller, Silvia Paasch, Irena Senkovska, Stefan Kaskel, and Eike Brunner. 2012. "Solid-State NMR Spectroscopy of Metal–Organic Framework Compounds (MOFs)" Materials 5, no. 12: 2537-2572. https://doi.org/10.3390/ma5122537

Article Metrics

Back to TopTop
