Synthesis and Properties of Poly(Isothianaphthene Methine)s with Chiral Alkyl Chain

1
Institute of Materials Science, Graduate School of Pure and Applied Sciences, University of Tsukuba, Tsukuba, Ibaraki 305-8573, Japan
2
European Patent Office, Patentlaan 3-9, 2288 EE The Hague, The Netherlands
*
Author to whom correspondence should be addressed.
Materials 2012, 5(2), 317-326; https://doi.org/10.3390/ma5020317
Submission received: 29 December 2011 / Revised: 21 January 2012 / Accepted: 6 February 2012 / Published: 16 February 2012

Abstract

:
We synthesized poly(isothianaphthene methine)s with chiral alkyl chains in the substituent. Resultant polymers are soluble in THF and CHCl3. Structure of the polymers was characterized with FT-IR, FT-Raman, and UV-Vis-NIR optical absorption spectroscopy. They showed low-bandgap both in solution and in a form of film. Optical activity of the polymers was confirmed with optical rotatory dispersion. Doping effects on the polymer were also examined with UV-Vis-NIR spectroscopy and ESR measurement.

1. Introduction

In the search for new materials for plastic electronics, π-conjugated oligomers and polymers have received much recent interest. These materials are used in applications such as transistors [1,2,3], photovoltaic cells [4,5], molecular wires [6], electrochromic devices [7,8,9], and fluorescence sensors or imaging [10,11,12]. Chiral π-conjugated polymers show optical absorption and chiroptical activity in visible range [13]. Although natural materials such as cellulose and proteins show intense chiroptical activity in UV region (short wavelengths), they show no absorptions at the visible range. On the other hand, π-conjugated polymers have chromophore and show optical functionality in the visible region. The function of optical rotation in visible-near-infrared region can be useful as an optical isolator for optical fibers.
Furthermore, chiral π-conjugated polymers can show a helical structure. Helical structure is generally observed in natural polymers, such as DNA and starch. Synthesis of chiral π-conjugated polymers may lead to mimetic technology of natural polymers.
π-Conjugated polymers have been also studied as emission materials for application of 3D displays and backlights of liquid crystal displays [14]. Low-bandgap π-conjugated polymers have optical absorption at near-infrared region, and show good response to external stimulus [15,16,17]. A structure of poly(arylene methine)s is a candidate for low-bandgap polymers [18,19].
Isothianaphthene (benzo[c]thiophene) has attractive electric and optical properties [20,21,22,23]. Isothianaphthene is also well known as a monomer for low-bandgap polymers [24,25]. Polyisothianaphthene derivatives having functional groups such as long alkyl chains, liquid crystalline groups, and radicals were studied [26,27,28]. The isothianaphthene polymers could be materials for electrical and optical devices [29,30]. Combinations of polyisothianaphthene and poly(arylene methine) structures can afford improved characteristics. Additionally, introduction of chiral alkyl side chains for poly(arylene methine) can improve solubility, and provide a function of optical rotation at long wavelengths. Chiral π-stacking can be expected in the form of cast films. In this study, we report synthesis of poly(isothianaphthene methine)s with novel chiral alkyl chains and their optical, chiroptical, as well as doping effects.

2. Experimental Section

2.1. Technique

Chemicals were purchased from Tokyo Chemical Industry and Wako Pure Chemical Industries. 1,4-Dioxane was used after distillation and the other reagents were used as received. NMR spectra were obtained by using a JEOL JNM-ECS 400 spectrometer. The NMR were measured in chloroform-d (CDCl3) and listed in ppm from TMS as the internal standard. Specific optical rotation of chiral compounds was measured in THF with a JASCO P-1010 polarimeter. Fourier transform infrared spectra (FT-IR) of the polymers were taken with a JASCO FTIR 300 spectrometer by the KBr method. Fourier transform Raman (FT-Raman) spectra were obtained by using a Nicolet NXR FT-Raman spectrometer with 1,064 nm excitation wavelength. Ultraviolet-visible-near-infrared (UV-Vis-NIR) absorption spectroscopy measurements were carried out at room temperature by using a JASCO V-630 UV-Vis optical absorption spectrometer and a SHIMADZU UV-3100PC spectrometer with a quartz cell. Optical rotation dispersion (ORD) measurements were performed using a JASCO J-720 spectrometer with an ORDE-307W ORD unit. Molecular weights of the polymers were determined by gel permeation chromatography (GPC) using a JASCO HPLC 870-UV detector with THF as the solvent, with the instrument calibrated with polystyrene standards. ESR measurement of the solid polymer sample packed into a 5 mm quartz tube was carried out with a JEOL JES TE-200 spectrometer.

2.2. Monomer Synthesis

Isothianaphthene monomer, 1,3-bis(tert-butyldimethylsilyl)isothianaphthene (abbreviated as ITN-2TBSi) was synthesized in three steps, according to the previously reported method by Okuda et al. [31]. Benzaldehyde monomers with chiral side chains were synthesized by the Mitsunobu reaction, as shown in Scheme 1. The monomer ((−)-mono and (+)-mono2) having chiral alkyl group can be obtained in one step.

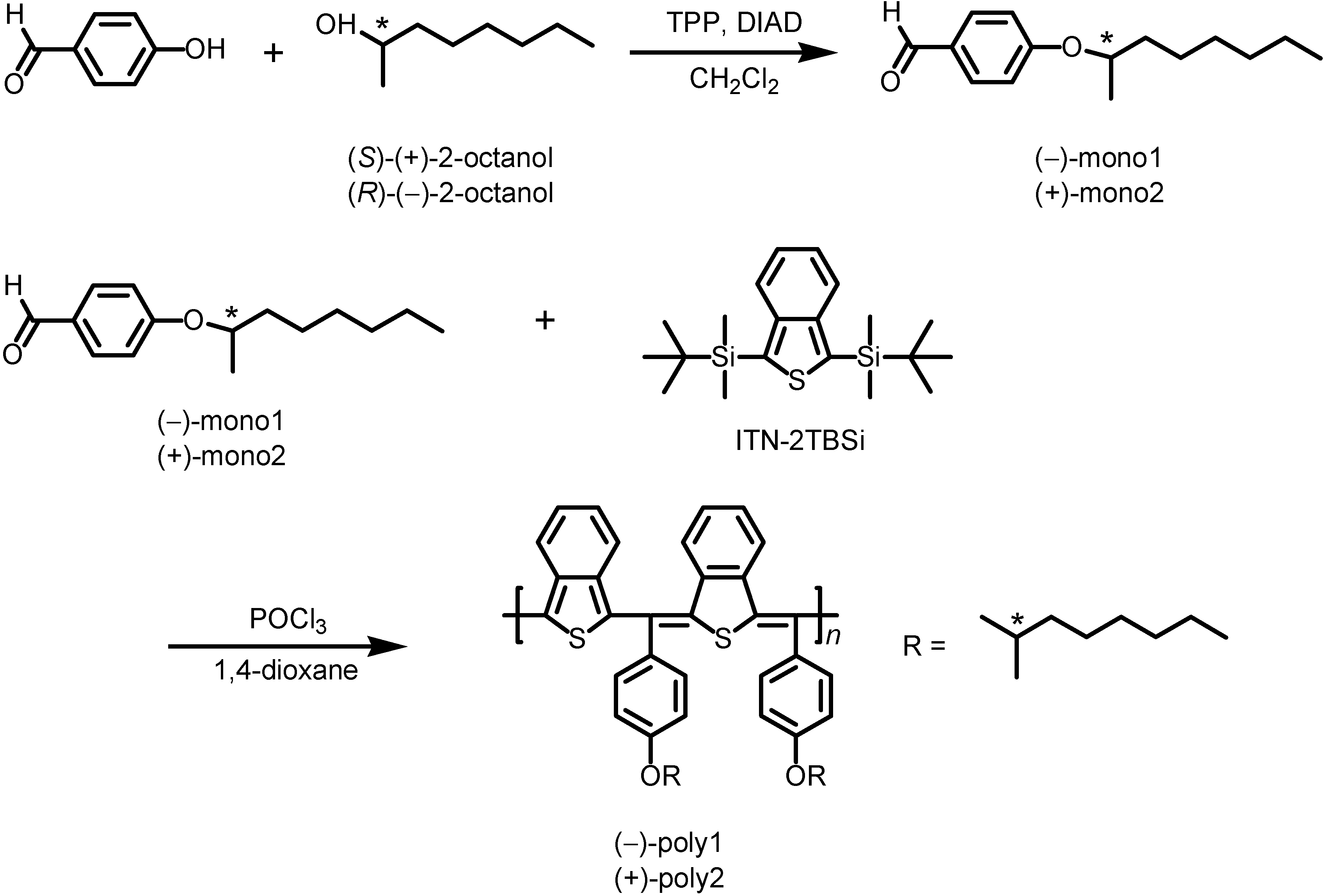

Scheme 1. Synthetic routes to poly(isothianaphthene methine)s with chiral side chains. DIAD = diisopropyl azodicarboxylate.
Scheme 1. Synthetic routes to poly(isothianaphthene methine)s with chiral side chains. DIAD = diisopropyl azodicarboxylate.
Materials 05 00317 g007
Reaction of a chiral alcohol with p-hydroxybenzaldehyde has been previously reported [32]. Triphenylphosphine (TPP) (2.79 g, 10.65 mmol) was added to a solution of p-hydroxybenzaldehyde (1.00 g, 8.18 mmol) and (S)-(+)-2-octanol (1.17 g, 9.02 mmol) in dichloromethane (16.00 mL). The mixture was cooled to 0 °C, then diisopropyl azodicarboxylate (DIAD) (40% in toluene, 5.17 mL, 9.82 mmol) was added dropwise. The reaction solution was stirred overnight at room temperature. The resultant mixture was subsequently extracted with dichloromethane, brine and water. The organic layer was dried over magnesium sulfate and filtered. The crude product was purified with column chromatography (silica gel, dichloromethane). Vacuum drying affords (–)-mono1 (Y = 50.7%). The (+)-mono2 was also obtained under the same conditions as synthesis of (–)-mono1 using (R)-(–)-2-octanol (Y = 48.7%).
(–)-Mono1: 1H NMR (400 MHz, CDCl3, δ from TMS): δ 9.85 (s, 1H), 7.80 (d, 2H, J = 8.8 Hz), 6.96 (d, 2H, J = 8.8 Hz), 4.47 (q, 1H, J = 6.0 Hz), 1.77–1.28 (m, 15H), 0.88 (t, 3H, J = 6.4 Hz). 13C NMR (100 MHz, CDCl3): δ 190.5, 163.4, 131.9, 129.4, 115.5, 74.2, 36.2, 31.7, 29.1, 25.3, 22.5, 19.5, 14.0. [α]20D = −1.39 deg∙cm2∙g–1 (THF).
(+)-Mono2: 1H NMR (400 MHz, CDCl3, δ from TMS): δ 9.86 (s, 1H), 7.81 (d, 2H, J = 8.8 Hz), 6.96 (d, 2H, J = 8.4 Hz), 4.48 (q, 1H, J = 5.6 Hz), 1.76–1.28 (m, 15H), 0.88 (t, 3H, J = 6.8 Hz). 13C NMR (100 MHz, CDCl3): δ 190.7, 163.5, 132.0, 129.5, 115.5, 74.3, 36.3, 31.7, 29.2, 25.4, 22.6, 19.6, 14.1. [α]20D = +1.31 deg∙cm2·g–1 (THF).

2.3. Polymer Synthesis

Poly(isothianaphthene methine)s were synthesized with polycondensation between the ITN monomer (ITN-2TBSi) and the benzaldehyde monomer ((−)-mono1 or (+)-mono2) under oxidative conditions. ITN having no protection group at the β-position can be polymerized under oxidative conditions solely. Therefore, tert-butyldimethylsilyl groups were introduced onto β-position of the ITN monomer for preventing from polymerization of the ITN solely in the appropriate condition.
A solution of ITN monomer (0.11 g, 0.30 mmol) and (–)-mono1 or (+)-mono2 (0.07 g, 0.30 mmol) in 1,4-dioxane (2.40 mL) was refluxed at 85 °C in the presence of phosphoryl chloride (0.60 mL) for 24 h. Then, the solution was poured into 100 mL of methanol and the precipitate was collected to obtain a dark indigotic blue solid followed by vacuum drying ((–)-poly1; Y = 23.8%, (+)-poly2; Y = 30.5%). The polymers were subsequently neutralized with an excess amount of triethylamine. The polymer (as prepared) was treated with excess amount of triethylamine for obtaining neutral (dedoping) state of the polymer followed by vacuum drying to remove residual triethylamine in the polymer.
The polymerization results are summarized in Table 1. The (–)-poly1 and (+)-poly2 were obtained in the yield of 23.8% and 30.5%, respectively. The yields is comparable to synthetic yield of poly(isothianaphthene methine) having hexyloxy side chains [33]. The number-average molecular weights (Mn) of both (–)-poly1 and (+)-poly2 were estimated to be 2650, the weight-average molecular weights (Mw) were 3030 and 3130, respectively, evaluated by GPC against a polystyrene standard. These molecular weights were slightly higher than that of poly(isothianaphthene methine)s bearing di-tert-butylphenol substituents [28].
Table 1. Polymerization and optical absorption spectra results.
Table 1. Polymerization and optical absorption spectra results.
PolymerMn [a]Mw [a]Mw/Mnλmax(solution) (nm)λmax(film) (nm)Eg[b] (eV)
(–)-poly1265030301.16026141.26
(+)-poly2265031301.26016121.26
[a] Polystyrene standard, THF as solvent; [b] Estimated from onsets of optical absorption spectra in solution.

3. Result and Discussion

3.1. FT-IR and FT-Raman Spectroscopy

The FT-IR absorption spectra of (–)-poly1 and (+)-poly2 are shown in Figure 1. Intense absorption bands corresponding to C–O–C as an ether stretching were observed at 1,245 cm–1 for (–)-poly1 and 1,244 cm–1 for (+)-poly2, respectively. The polymers show absorption bands at 1,602 cm–1 due to C=C vibrations of a quinonoid isothianaphthene unit [34].
Figure 2 shows FT-Raman spectra of (–)-poly1 and (+)-poly2. The Raman bands of (–)-poly1 were mainly observed at 1,465, 1,303, 991 and 449 cm–1. According to the FT-Raman spectroscopic studies for poly(isothianaphthene methine)s in the previous study, these Raman bands were associated with vibrations of benzenoid and quinonoid isothianaphthene units [28,34]. (+)-Poly2 also shows Raman bands at 1,460, 1,303, 989 and 447 cm–1. The results of FT-IR and FT-Raman spectroscopy indicated that (–)-poly1 and (+)-poly2 constructed poly(isothianaphthene methine) units.

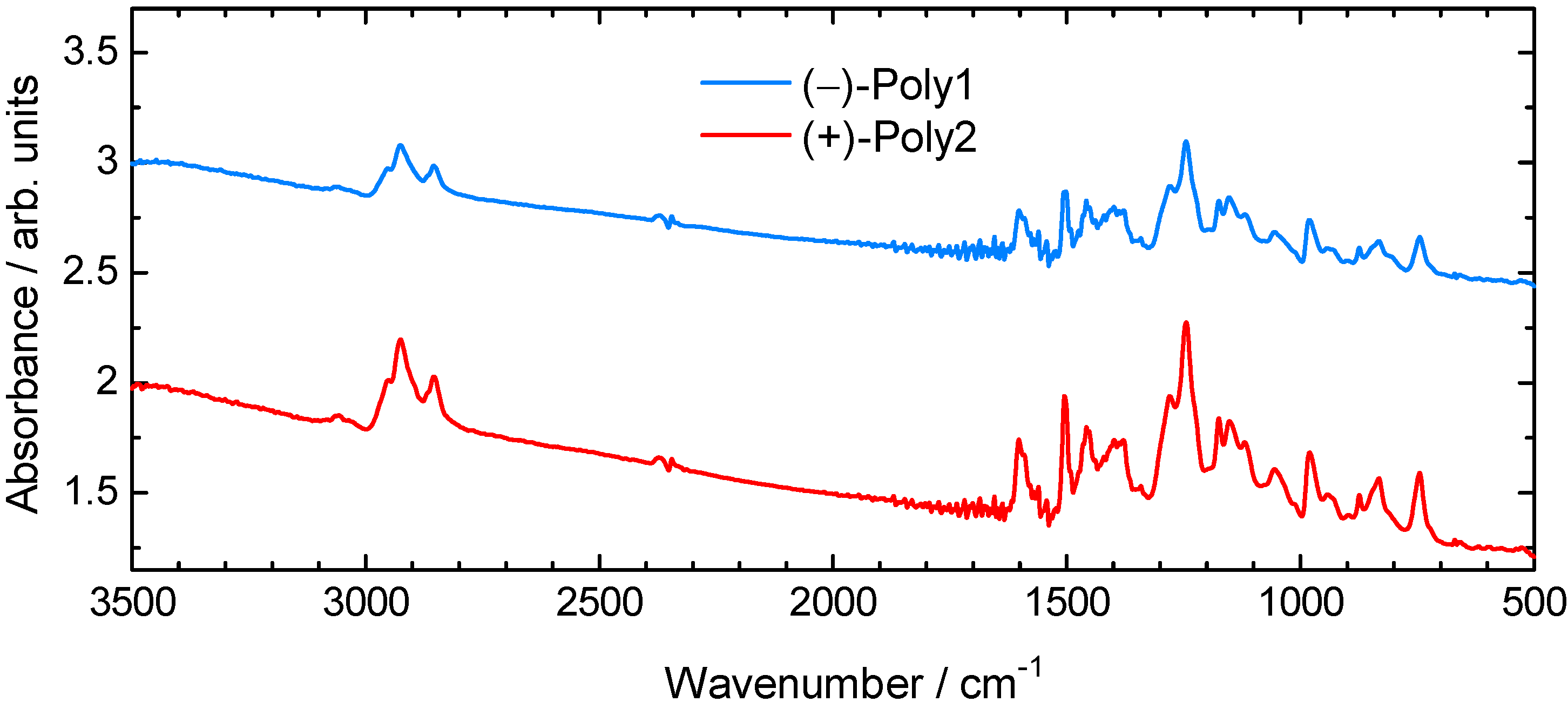

Figure 1. FT-IR spectra of (–)-poly1 and (+)-poly2.
Figure 1. FT-IR spectra of (–)-poly1 and (+)-poly2.
Materials 05 00317 g001

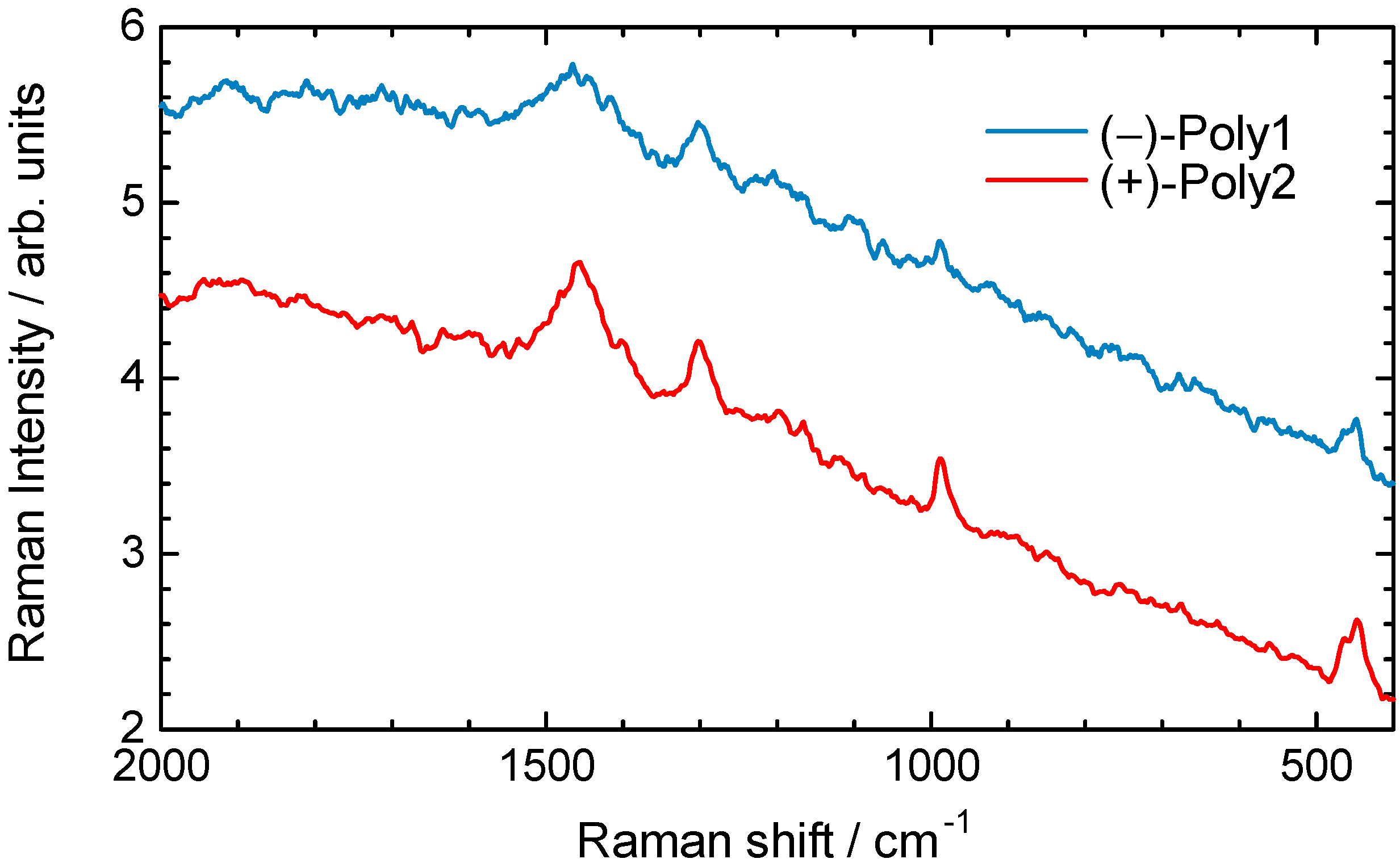

Figure 2. FT-Raman spectra of (–)-poly1 and (+)-poly2.
Figure 2. FT-Raman spectra of (–)-poly1 and (+)-poly2.
Materials 05 00317 g002

3.2. UV-Vis-NIR Absorption Spectroscopy

Figure 3 shows UV-vis-NIR absorption spectra of (–)-poly1 and (+)-poly2 in THF solution, and in the form of cast films. The polymers showed an absorption maximum (λmax) at around 600 nm in solution state. In comparison with the polymers in solution state, λmax of the polymer cast films on a quartz glass showed red shifts by 12 nm for (–)-poly1 and 11 nm for (+)-poly2. From the band-edge of the spectra of both polymers in THF solution, the bandgap (Eg) can be estimated to be 1.26 eV. λmax and Eg of the polymers are listed in Table 1.
Figure 4 shows UV-Vis-NIR absorption spectra of the polymers in THF solution with iodine doping. An absorption peak at around 600 nm attributed to π-π* transition of the conjugated main chain showed decrease with increasing iodine concentration. At the same time, an absorption peak at around 1,000 nm due to the doping band appeared for the polymers.

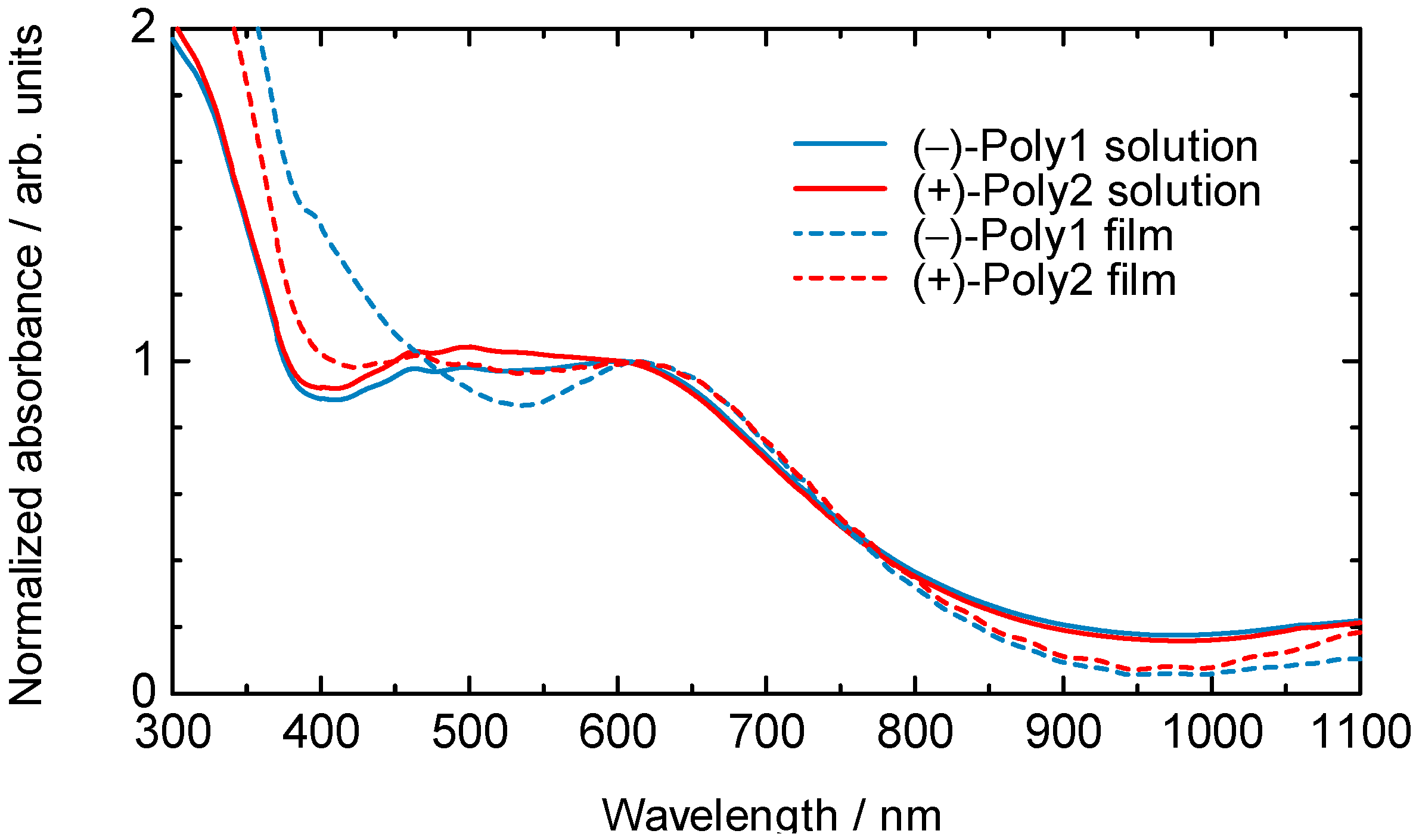

Figure 3. UV-Vis-NIR absorption spectra of (–)-poly1 and (+)-poly2 in solution (0.03 mM in THF) (solid line) and cast films (dashed line).
Figure 3. UV-Vis-NIR absorption spectra of (–)-poly1 and (+)-poly2 in solution (0.03 mM in THF) (solid line) and cast films (dashed line).
Materials 05 00317 g003

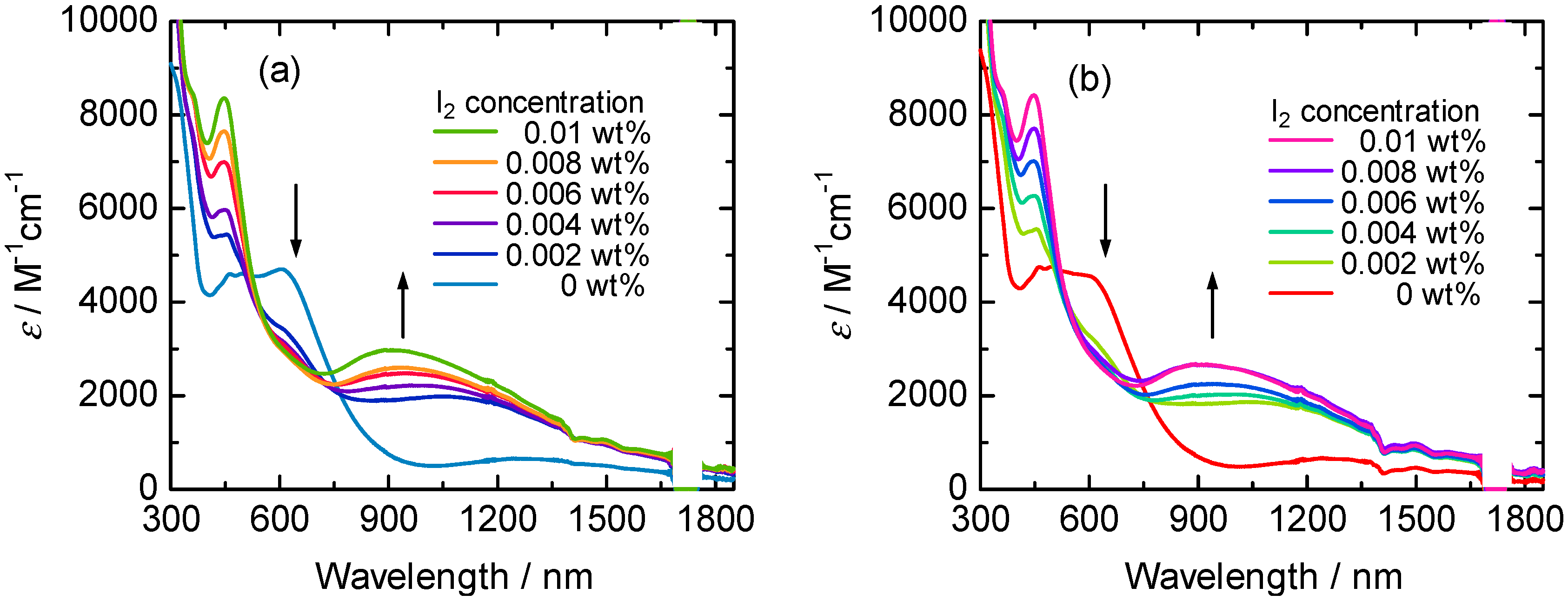

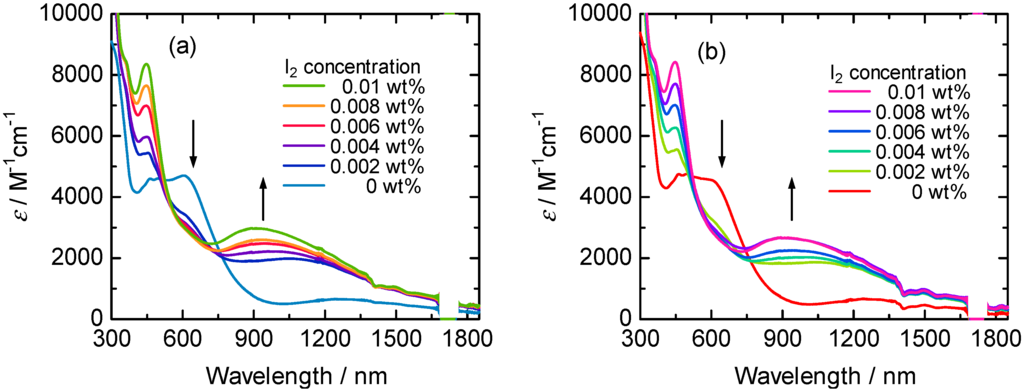

Figure 4. UV-Vis-NIR absorption spectra of (–)-poly1 (a) and (+)-poly2 (b) in THF solution with iodine doping.
Figure 4. UV-Vis-NIR absorption spectra of (–)-poly1 (a) and (+)-poly2 (b) in THF solution with iodine doping.
Materials 05 00317 g004

3.3. ORD Spectroscopy

Figure 5 shows ORD spectra of (–)-poly1 and (+)-poly2. Optical rotations at visible range were observed in the ORD spectra of the polymers. (–)-Poly1 polymerized from (–)-mono1 showed a negative optical rotation around 560 nm, and (–)-mono1 also showed a negative optical rotation at 589 nm. (+)-Poly2 gave the same sign of optical rotation as the monomer. These results indicate that the optical rotations at around 560 nm of the polymers are derived from the chiral side chains, suggesting that the sign of optical rotation of the polymers depends on chirality of the side chains.
In the previous research, other types of poly(isothianaphthene methine)s with chiral side chains were reported [26]. However, in this case, poly(isothianaphthene methine)s with a chiral side chain showed no chiroptical activity in visible range. Moreover, poly(isothianaphthene methine)s bearing ferroelectric liquid crystalline groups with chiral center in the terminal displayed no chiroptical activity in the visible range. This is due to the fact that the asymmetric center of the polymers in the side chain has distance from the main chains. In the present study, the asymmetric centers of (–)-poly1 and (+)-poly2 are directly connected to ether oxygen in the substituent, resulting the polymers show chiroptical activity in the visible range.

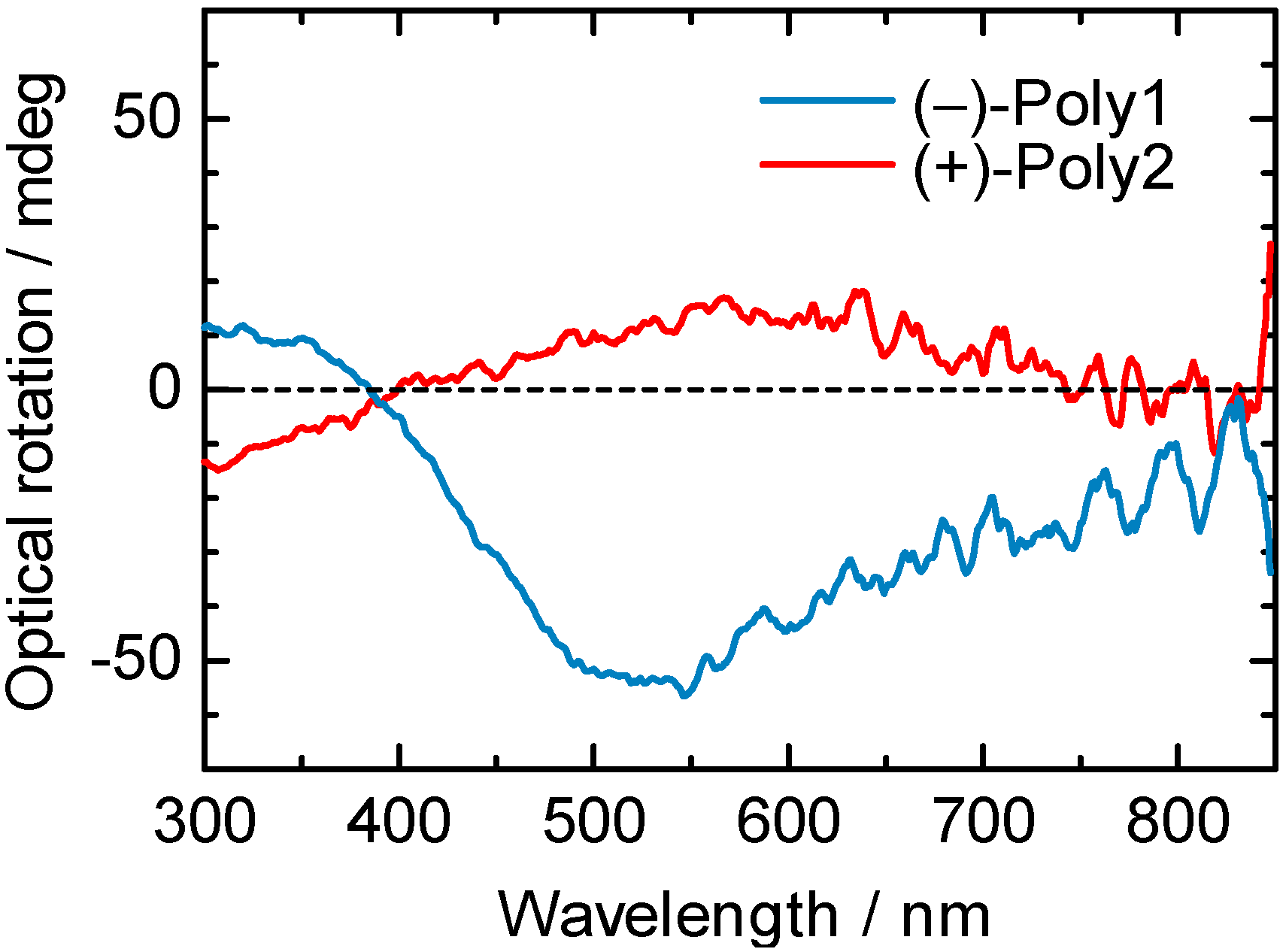

Figure 5. ORD spectra of (–)-poly1 and (+)-poly2 in cast films.
Figure 5. ORD spectra of (–)-poly1 and (+)-poly2 in cast films.
Materials 05 00317 g005

3.4. ESR Measurements

ESR measurements were carried out on a polymer bulk sample with vapor phase iodine doping. Figure 6 shows ESR spectra of (–)-poly1 with in-situ doping for 0–50 min. The ESR signal indicates that radical cations were generated along the polymer main chain. The generation of radical cations can enhance electrical conductivity of the polymer [25]. g-Value, intensity, and peak-width plots vs. the doping time of (–)-poly1 are shown in Figure 6b,c.
The signal intensity gradually increased with the doping time, indicating increase of spin concentration with doping time. However, g-value and peak width also increased with doping. Neugebauer et al. [34] reported occurrence of strong charge carrier localization with doping confirmed with IR spectroscopic and electrochemical analysis for PITN-methine. The increase of the peak width in the ESR measurements indicates that charge carriers (polarons (radical cations) and bipolarons (dications)) generated by the iodine doping may be localized.

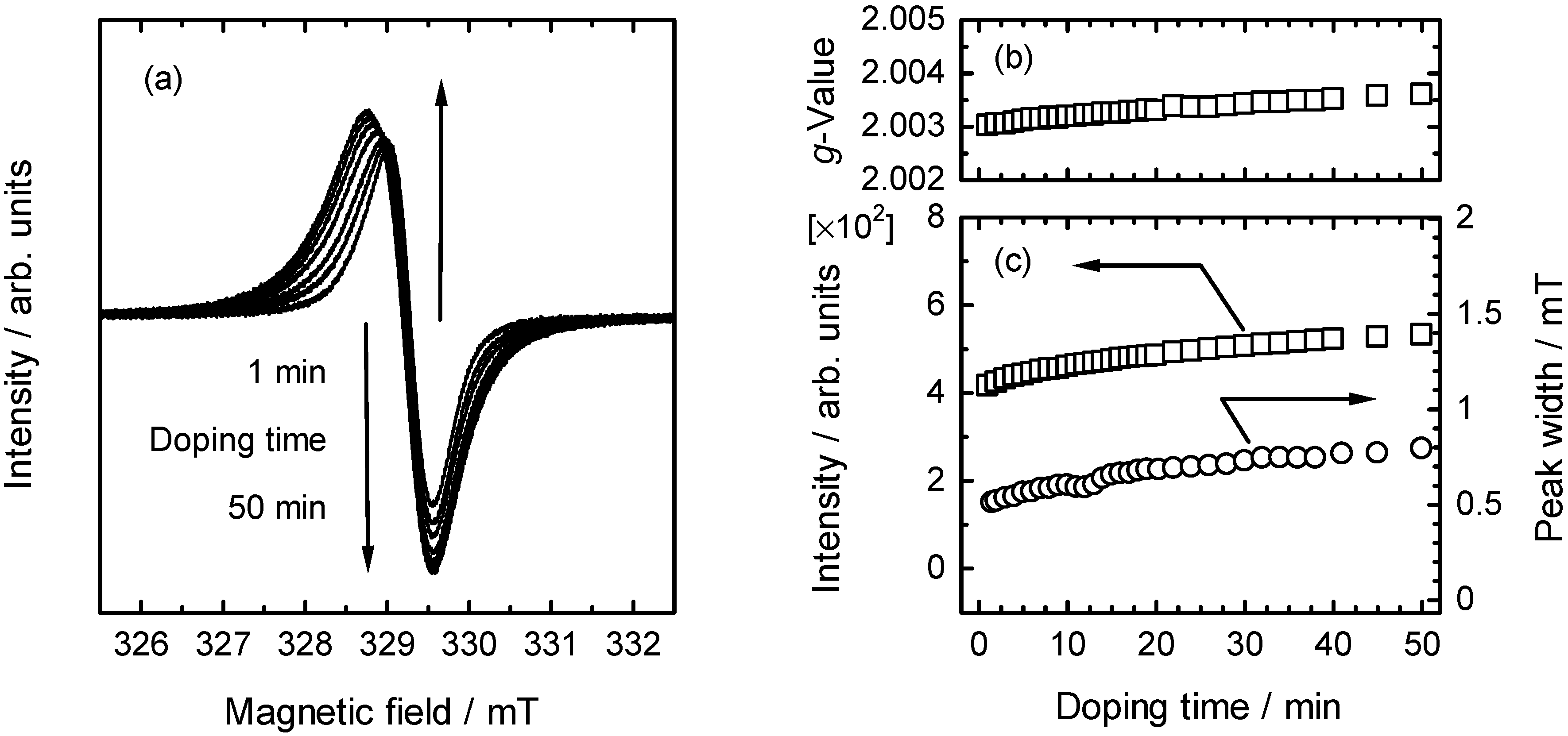

Figure 6. (a) ESR spectra of (–)-poly1 in bulk state with vapor phase iodine doping; (b) g-Value; (c) intensity, and peak width of (–)-poly1 with vapor phase iodine doping for 0–50 min.
Figure 6. (a) ESR spectra of (–)-poly1 in bulk state with vapor phase iodine doping; (b) g-Value; (c) intensity, and peak width of (–)-poly1 with vapor phase iodine doping for 0–50 min.
Materials 05 00317 g006

4. Conclusions

Chiral π-conjugated polymers can be an important issue in the field of materials science from the view point of comparing basic science to bio-polymers. Industrial applications are expected for opto-electronic organic materials.
We synthesized low-bandgap polymers with chiral side chains under oxidative conditions. An introduction of alkyl side chains allows solubility of (−)-poly1 and (+)-poly2 in organic solvents such as THF or CHCl3. Bandgap of the polymers is estimated to be 1.26 eV evaluated from optical absorption spectroscopy. Optical rotations of the polymers were identified in film state with ORD spectroscopy. Furthermore, the polymers showed complementary mirror-image optical rotations. This can be a first example of the synthesis of poly(isothianaphthene methine)s with chiral side chains showing chiroptical activity in the visible range. Doping and dedoping of an electron acceptor for the polymers may afford tuning of optical activity. The polymers may be applied for optical sensing devices by combining the function of optically active low-bandgap character with dopable properties.

Acknowledgments

We would like to thank the Chemical Analysis Division of Research Facility Center for Science and Technology, and the Glass Work Shop of the University of Tsukuba. We also thank Seiji Kojima (University of Tsukuba) for kindly providing Raman spectroscopy instrumentation.

References

  1. Hu, W.; Nakashima, H.; Furukawa, K.; Kashimura, Y.; Ajito, K.; Liu, Y.; Zhu, D.; Torimitsu, K. A self-assembled nano optical switch and transistor based on a rigid conjugated polymer, thioacetyl-end-functionalized poly(para-phenylene ethynylene). J. Am. Chem. Soc. 2005, 127, 2804–2805. [Google Scholar] [CrossRef] [PubMed]
  2. Nelson, T.L.; Young, T.M.; Liu, J.; Mishra, S.P.; Belot, J.A.; Balliet, C.L.; Javier, A.E.; Kowalewski, T.; McCullough, R.D. Transistor paint: High mobilities in small bandgap polymer semiconductor based on the strong acceptor, diketopyrrolopyrrole and strong donor, dithienopyrrole. Adv. Mater. 2010, 22, 4617–4621. [Google Scholar] [CrossRef] [PubMed]
  3. Ortiz, R.P.; Yan, H.; Facchetti, A.; Marks, T.J. Azine- and azole-functionalized oligo and polythiophene semiconductors for organic thin-film transistors. Materials 2010, 3, 1533–1558. [Google Scholar] [CrossRef]
  4. Skompska, M. Hybrid conjugated polymer/semiconductor photovoltaic cells. Synth. Met. 2010, 160, 1–15. [Google Scholar] [CrossRef]
  5. Zhou, H.; Yang, L.; Stuart, A.C.; Price, S.C.; Liu, S.; You, W. Development of fluorinated benzothiadiazole as a structural unit for a polymer solar cell of 7% efficiency. Angew. Chem. Int. Ed. 2011, 50, 2995–2998. [Google Scholar] [CrossRef]
  6. Søndergaard, R.; Krebs, F.C. The challenge of synthesizing oligomers for molecular wires. Polymers 2011, 3, 545–557. [Google Scholar] [CrossRef]
  7. Liou, G.S.; Yen, H.J.; Chiang, M.C. Near-infrared electrochromic poly(aryl ether)s based on isolated electroactive tetraphenyl-p-phenylenediamine moieties. J. Polym. Sci. Part A Polym. Chem. 2009, 47, 5378–5385. [Google Scholar] [CrossRef]
  8. Baran, D.; Balan, A.; Celebi, S.; Esteban, B.M.; Neugebauer, H.; Sariciftci, N.S.; Toppare, L. Processable multipurpose conjugated polymer for electrochromic and photovoltaic applications. Chem. Mater. 2010, 22, 2978–2987. [Google Scholar] [CrossRef]
  9. Koldemir, U.; Graham, K.R.; Salazar, D.H.; McCarley, T.D.; Reynolds, J.R. Electron rich APFO polymer with dual electrochromism and electroluminescence. J. Mater. Chem. 2011, 21, 6480–6482. [Google Scholar] [CrossRef]
  10. Smith, R.C.; Tennyson, A.G.; Lim, M.H.; Lippard, S.J. Conjugated polymer-based fluorescence turn-on sensor for nitric oxide. Org. Lett. 2005, 7, 3573–3575. [Google Scholar] [CrossRef] [PubMed]
  11. Balamurugan, A.; Reddy, M.L.P.; Jayakannan, M. Carboxylic-functionalized water soluble π-conjugated polymer: Highly selective and efficient chemosensor for mercury(II) ions. J. Polym. Sci. Part A 2009, 47, 5144–5157. [Google Scholar] [CrossRef]
  12. Wang, G.; Pu, K.Y.; Zhang, X.; Li, K.; Wang, L.; Cai, L.; Ding, D.; Lai, Y.H.; Liu, B. Star-shaped glycosylated conjugated oligomer for two-photon fluorescence imaging of live cells. Chem. Mater. 2011, 23, 4428–4434. [Google Scholar] [CrossRef]
  13. Langeveld-Voss, B.M.W.; Janssen, R.A.J.; Meijer, E.W. On the origin of optical activity in polythiophenes. J. Mol. Struct. 2000, 521, 285–301. [Google Scholar] [CrossRef]
  14. Watanabe, K.; Sakamoto, T.; Taguchi, M.; Fujiki, M.; Nakano, T. A chiral π-stacked vinyl polymer emitting white circularly polarized light. Chem. Commun. 2011, 47, 10996–10998. [Google Scholar] [CrossRef]
  15. Ajayaghosh, A.; Eldo, J. A novel approach toward low optical band gap polysquaraines. Org. Lett. 2001, 3, 2595–2598. [Google Scholar] [CrossRef] [PubMed]
  16. Mühlbacher, D.; Scharber, M.; Morana, M.; Zhu, Z.; Waller, D.; Gaudiana, R.; Brabec, C. High photovoltaic performance of a low-bandgap polymer. Adv. Mater. 2006, 18, 2884–2889. [Google Scholar] [CrossRef]
  17. Soci, C.; Hwang, I.W.; Moses, D.; Zhu, Z.; Waller, D.; Gaudiana, R.; Brabec, C.J.; Heeger, A.J. Photoconductivity of a low-bandgap conjugated polymer. Adv. Funct. Mater. 2007, 17, 632–636. [Google Scholar] [CrossRef]
  18. Jenekhe, S.A. A class of narrow-band-gap semiconducting polymers. Nature 1986, 322, 345–347. [Google Scholar] [CrossRef]
  19. Chen, W.C.; Jenekhe, S.A. Small-bandgap conducting polymers based on conjugated poly(heteroary1ene methines). 1. Precursor poly(heteroary1ene methylenes). Macromolecules 1995, 28, 454–464. [Google Scholar] [CrossRef]
  20. Vangeneugden, D.; Kiebooms, R.; Adriaensens, P.; Vanderzande, D.; Gelan, J.; Desmet, J.; Huyberechts, G. “Formal” copolymers based on 1,3-dithienylisothianaphthene derivatives: Promising materials for electronic devices. Acta Polym. 1998, 49, 687–692. [Google Scholar] [CrossRef]
  21. Kisselev, R.; Thelakkat, M. Synthesis of novel 1,3-bis(5-diarylaminothiophen-2-yl)isothianaphthenes. Chem. Commun. 2002, 14, 1530–1531. [Google Scholar] [CrossRef]
  22. Mohanakrishnan, A.K.; Kumar, N.S.; Amaladass, P. Synthesis and characterization of 9,9-dialkylfluorene capped benzo[c]thiophene/benzo[c]selenophene analogs as potential OLEDs. Tetrahedron Lett. 2008, 49, 4792–4795. [Google Scholar] [CrossRef]
  23. Salamonczyk, M.; Kovarova, A.; Svoboda, J.; Pociecha, D.; Gorecka, E. Switchable fluorescent liquid crystals. Appl. Phys. Lett. 2009, 95. [Google Scholar] [CrossRef] [PubMed]
  24. Kobayashi, M.; Colaneri, N.; Boysel, M.; Wudl, F.; Heeger, A.J. The electronic and electrochemical properties of poly(isothianaphthene). J. Chem. Phys. 1985, 82, 5717–5723. [Google Scholar] [CrossRef]
  25. Chandrasekhar, P.; Masulaitis, A.M.; Gumbs, R.W. Novel synthesis, spectroelectrochemical, electrochemical and chronovoltabsorptometric characterization of poly(isothianaphthene). Synth. Met. 1990, 36, 303–326. [Google Scholar] [CrossRef]
  26. Kiebooms, R.H.L.; Goto, H.; Akagi, K. Synthesis of a new class of low-band-gap polymers with liquid crystalline substituents. Macromolecules 2001, 34, 7989–7998. [Google Scholar] [CrossRef]
  27. Jung, Y.K.; Kim, H.; Park, J.H.; Lee, J.; Lee, S.K.; Lee, Y.S.; Shim, H.K. Alternating fluorene copolymers containing isothianaphthene derivatives: A study of their aggregation properties and small band gap. J. Polym. Sci. Part A 2008, 46, 3573–3590. [Google Scholar] [CrossRef]
  28. Innami, Y.; Kiebooms, R.H.L.; Koyano, T.; Ichinohe, M.; Ohkawa, S.; Kawabata, K.; Kawamatsu, M.; Matsuishi, K.; Goto, H. Synthesis of a low-bandgap polymer bearing side groups containing phenoxy radicals. J. Mater. Sci. 2011, 46, 6556–6562. [Google Scholar] [CrossRef] [Green Version]
  29. Kim, J.Y.; Qin, Y.; Stevens, D.M.; Kalihari, V.; Hillmyer, M.A.; Frisbie, C.D. High open-circuit voltage photovoltaic cells with a low bandgap copolymer of isothianaphthene, thiophene, and benzothiadiazole units. J. Phys. Chem. C 2009, 113, 21928–21936. [Google Scholar] [CrossRef]
  30. Yamamoto, T.; Usui, M.; Ootsuka, H.; Iijima, T.; Fukumoto, H.; Sakai, Y.; Aramaki, S.; Yamamoto, H.M.; Yagi, T.; Tajima, H.; et al. π-conjugated polymers consisting of isothianaphthene and dialkoxy-p-phenylene units: Synthesis, self-assembly, and chemical and physical properties. Macromol. Chem. Phys. 2010, 211, 2138–2147. [Google Scholar] [CrossRef]
  31. Okuda, Y.; Lakshmikantham, M.; Cava, M. A new route to 1,3-disubstituted benzo[c]thiophene. J. Org. Chem. 1991, 56, 6024–6026. [Google Scholar] [CrossRef]
  32. Wipf, P.; Graham, T.H. Photoactivated tungsten hexacarbonyl-catalyzed conversion of alkynols to glycals. J. Org. Chem. 2003, 68, 8798–8807. [Google Scholar] [CrossRef] [PubMed]
  33. Kiebooms, R.; Wudl, F. Synthesis and characterisation of poly(isothianaphthene methine). Synth. Met. 1999, 101, 40–43. [Google Scholar] [CrossRef]
  34. Neugebauer, H.; Kvarnström, C.; Brabec, C.; Sariciftci, N.S.; Kiebooms, R.; Wudl, F.; Luzzati, S. Infrared spectroelectrochemical investigations on the doping of soluble poly(isothianaphthene methine) (PIM). J. Chem. Phys. 1999, 110, 12108–12115. [Google Scholar] [CrossRef]
