Effect of Alkyl Chain Length on Carboxylic Acid SAMs on Ti-6Al-4V

by
Gavin A. Buckholtz
1 and
Ellen S. Gawalt
1,2,*
1
Department of Chemistry and Biochemistry, Duquesne University, 600 Forbes Avenue, Pittsburgh, PA 15282, USA
2
McGowan Institute for Regenerative Medicine, University of Pittsburgh, Pittsburgh, PA 15219, USA
*
Author to whom correspondence should be addressed.
Materials 2012, 5(7), 1206-1218; https://doi.org/10.3390/ma5071206
Submission received: 23 May 2012 / Revised: 29 June 2012 / Accepted: 6 July 2012 / Published: 9 July 2012
(This article belongs to the Special Issue Titanium Materials for Biomedical Application)
Browse Figures
Versions Notes

Abstract

:
The formation of methyl-terminated carboxylic acid self-assembled monolayers (SAMs) with even numbers of carbons, from eighteen to thirty, was investigated on the oxide surface of Ti-6Al-4V and component metal oxides. Modified surfaces were characterized using diffuse reflectance infrared Fourier transform spectroscopy (DRIFT), matrix assisted laser desorption ionization-time of flight mass spectrometry (MALDI-TOF MS) and contact angle analysis. Infrared spectroscopy indicated that using aerosol spray deposition techniques, stable, all-trans SAMs of octacosanoic (28 carbons) and triacontanoic (30 carbons) acids were formed on the alloy. Films were similarly formed on titanium and aluminum oxide. The surface of vanadium oxide exhibited limited reactivity. MALDI-TOF MS confirmed that formed films were monolayers, without multilayers or aggregates present. Water contact angles are indicative of the presence of hydrophobic methyl groups at the interface. This stable carboxylic acid SAM formation could be a useful alternative to phosphonic acid SAMs for corrosion and other applications.

1. Introduction

Titanium based alloys are widely used in engineering applications due to their high strength to weight ratio and corrosion resistance [1,2,3,4]. These mechanical characteristics have led to the widespread implementation of titanium alloys in applications ranging from biomedical devices to the aerospace industry [5,6,7,8]. Applications could be expanded if the properties of the oxide surface were changed through reaction with organic acid molecules to form self-assembled monolayers (SAMs) [6,9,10]. SAMs can be used to provide a chemically flexible interface. Changes to the chemistry of the interface include altered hydrophobicity, leading to improved corrosion resistance, and presentation of organic functional groups at the interface, which can be used in subsequent reactions resulting in immobilization of target compounds [11,12,13,14,15].
Prior work dealing with oxide surface modification of titanium alloys has focused mainly on the use of phosphonic acid molecules [10,16,17,18,19,20,21]. Phosphonic acid SAMs are well known and characterized, but the commercial availability of phosphonic acid molecules is limited compared to carboxylic acids, specifically pertaining to tail group functionality and various alkyl chain lengths [21,22,23,24]. There has been work studying the mechanism and kinetics of carboxylic acid film formation on TiO2 which has not yet been extrapolated to the alloy [25,26,27]. Therefore, developing routes for functionalizing Ti alloys with stable SAMs of carboxylic acid molecules, resulting in altered interfacial characteristics would be advantageous [28].
SAM formation and stability is a dynamic process that relies on interactions between the acid head group and the metal oxide surface, van der Waals interactions between chains and intermolecular forces between tail groups [24,29,30,31,32]. Limited surface reactivity or film stability may be able to be overcome by increasing other forces within the formed monolayer. These forces include van der Waals forces between adjacent alkyl chains, and tail group interactions, based on functionality, which may include hydrogen bonding or electrostatic forces [30,31,33].
In this study, carboxylic acid molecules with varying length carbon chains were examined for their ability to form all-trans alkyl chain monolayers on the oxide surface of Ti-6Al-4V, and component metal oxides, Ti, Al, and V. TLC aerosol spray deposition methods were used for SAM formation of octadecanoic (ODA), eicosanoic (ECA), docosanoic (DCA), tetracosanoic (TCA), hexacosanoic (HCA), octacosanoic (OCA) and triacontanoic (TAA) acids. Modified oxide surfaces were characterized by diffuse reflectance infrared Fourier transform spectroscopy (DRIFT), matrix assisted laser desorption ionization-time of flight mass spectrometry (MALDI-TOF MS) and contact angle analysis.

2. Results and Discussion

Self-assembled monolayer formation of carboxylic acids with even number chain lengths from 18–26 (ODA, ECA, DCA, TCA and HCA) was unsuccessful on the alloy. Several protocols for film formation were utilized with varied temperature and exposure time but these changes resulted in no film formation or disordered, incomplete surface coverage. An example protocol called for cooling the Ti-6Al-4V coupons on ice for an hour, followed by three cycles of TLC aerosol sprays using 1 mM acid solutions. Coupons were then heated in a 100 °C oven for 30 minutes, and the cycle was repeated three total times. Subsequent methods involved the same base protocol, but coupons were placed into a 120 °C oven, again resulting in no stable SAM formation. In subsequent protocols the exposure time was increased from three sprays to five sprays and the time in the oven between sprays was increased from 30 to 45 minutes. In separate protocols, the coupons were cooled using ice or dry ice and solution concentration was increased from 1 to 2 mM. However, these changes did not positively affect stable carboxylic acid SAM formation. Only changing the chain length to greater than 28 carbons (OCA and TAA) led to SAM formation on the alloy oxide using the initial protocol.
DRIFT spectroscopy was used to characterize the conformation of the alkyl chain and determine head group-oxide surface binding mode [23,33]. The positions of the methylene asymmetric and symmetric stretches are indicators of the order of the alkyl chains within the film [34,35,36,37]. An all-trans alkyl chain film will have methylene peaks with νCH2asymm < 2918 cm−1 and νCH2symm < 2850 cm−1, indicative of a crystalline organic solid [34,35,36,37]. Methylene peaks at wavenumbers greater than these indicate a liquid-like structure with gauche alkyl chain interactions [34,35]. The binding mode of the acid head group to the metal oxide surface is also examined through DRIFT [15,24,36]. Carboxylic acids have two potential binding modes, monodentate and bidentate. The binding mode is determined by comparing the head group region of the solid organic powder to that of the adhered molecules; changes between the spectra are indicative the binding mode.
Acids containing 26 or less carbons in the molecule were found to form films that are either unstable or defective in some manner on the alloy. (For a complete summary of film formations on all substrates see Supplemental Information). These results are consistent with previous work on carboxylic acids on TiO2 which demonstrated that carboxylic acids with 16 carbons form monolayers on TiO2 but that the alkyl chains contained gauche interactions [26]. Hexacosanoic (HCA, 26) and tetracosanoic acids (TCA, 24) resulted in stable films, methylene peaks at νCH2asymm = 2914 cm−1 and νCH2symm = 2847 cm−1, but with incomplete surface coverage for HCA (Figure 1a) [17,38,39,40]. Modification using eicosanoic (ECA, 20) and docosanoic acid (DCA, 22) resulted in incomplete surface coverage and gauche alkyl chain interactions on Ti-6Al-4V, where νCH2asymm = 2921 cm−1 and νCH2symm = 2850 cm−1 for ECA (Figure 1b) [17,38,39,40]. For octadecanoic acid (ODA, 18), no protocols yielded films which were persistent through solvent sonication. This result may be attributable to smaller amounts of stabilizing forces within the SAM. The organic molecules with less than 26 carbons have less van der Waals interactions between adjacent carbon chains within the film. In this work, a decrease in van der Waals forces led to limited film stability through solvent sonication or prevented the formation of an all-trans alkyl chain film following reaction at the oxide surface which is consistent with previous work [41,42,43].
Ordered SAMs of OCA and TAA were successfully formed on the oxide surface of Ti-6Al-4V and component metal oxides surfaces using aerosol spray deposition methods. Coupons were cooled on ice for one hour, and then sprayed with 1 mM acid solutions. Following sprays, coupons were immediately transferred into a 100 °C oven. This process was repeated for a total of three cycles. DRIFT analysis of the methylene region of the formed OCA film on Ti-6Al-4V revealed peaks attributable to νCH2asymm = 2913 cm−1 and νCH2symm = 2846 cm−1, which are indicative of an all-trans alkyl chain film (Figure 2a). Further analysis of the C-O region of the spectra indicates that the OCA is interacting with the surface in a bidentate mode (Figure 2b). The DRIFT spectra of the solid OCA contained peaks attributed to νC=O, νC-O, and νC-OH at 1710, 1470 and 1298 cm−1, respectively, while the spectra of the adhered acid showed peaks attributed to νCOO- at 1586, 1570 and 1550 cm−1 (Figure 2b). Analysis of the TAA film revealed similar results, with νCH2asymm = 2913 cm−1, νCH2symm = 2847 cm−1 and νCOO- at 1554 and 1550 cm−1 (Figure 2c,d). These DRIFT results indicate that TAA forms an all-trans alkyl chain film and the molecules are interacting with the surface in a bidentate mode. In each case the peaks are persistent through solvent rinse and sonication, indicating the film is stable and strongly adhered to the oxide surface.
Materials 05 01206 g001 1024

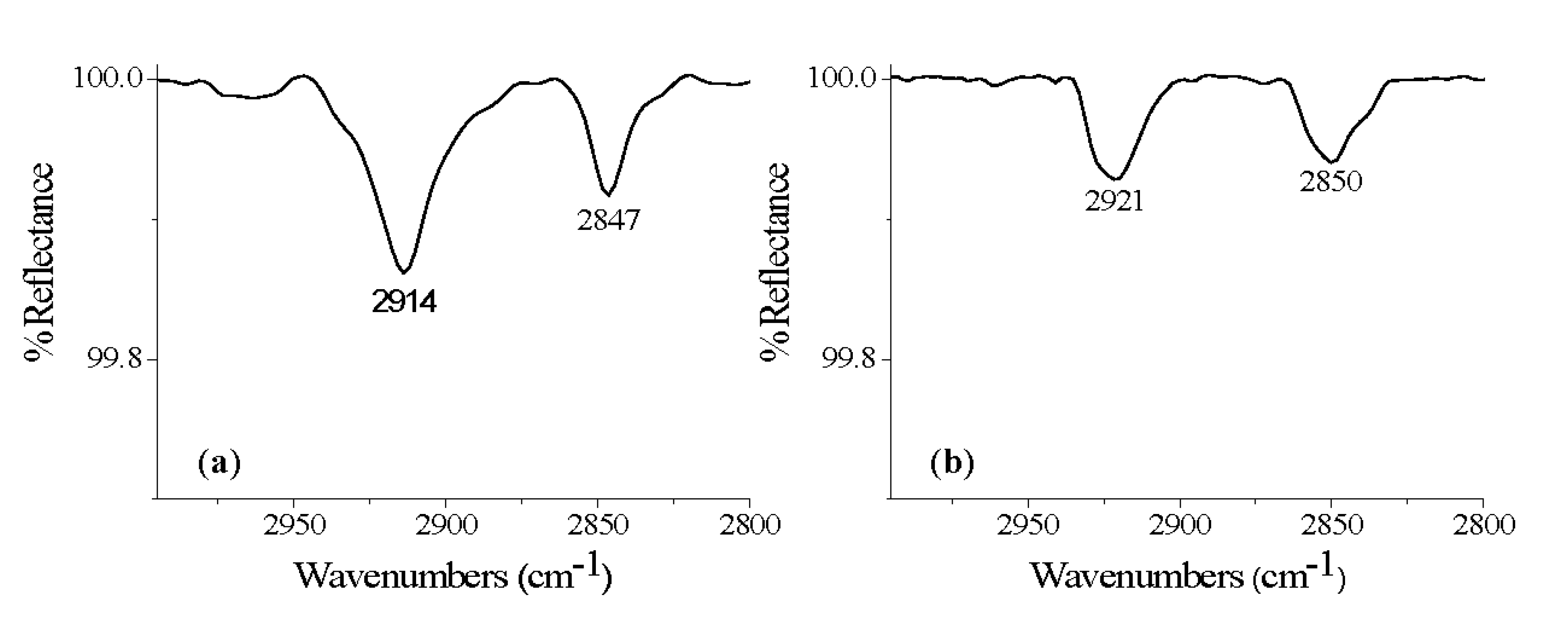

Figure 1. DRIFT spectra of methylene region of (a) hexacosanoic acid (HCA); and (b) eicosanoic acid (ECA) on Ti-6Al-4V, following sonication.
Figure 1. DRIFT spectra of methylene region of (a) hexacosanoic acid (HCA); and (b) eicosanoic acid (ECA) on Ti-6Al-4V, following sonication.
Materials 05 01206 g001
Materials 05 01206 g002 1024

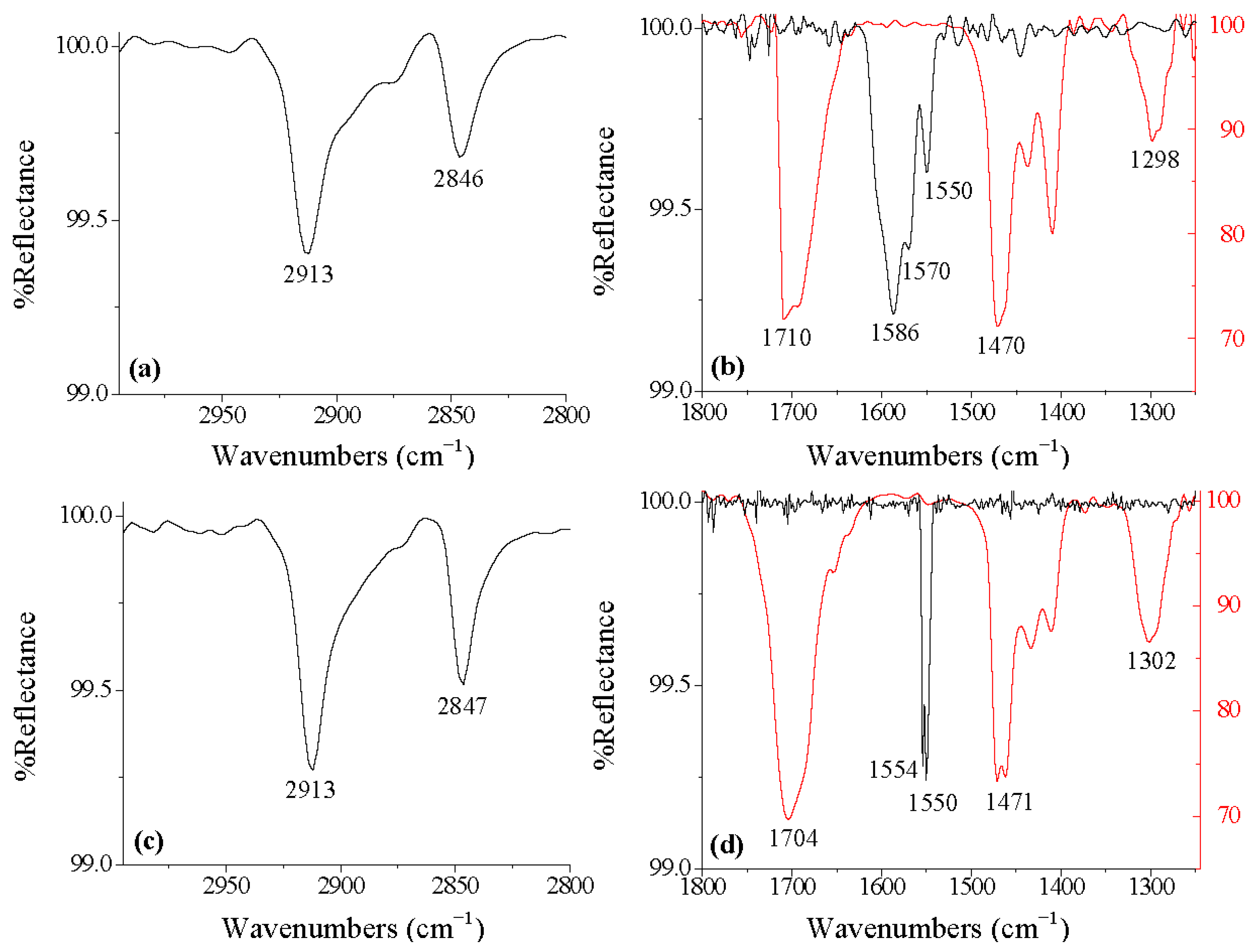

Figure 2. (a) DRIFT spectra of OCA methylene peaks; and (b) binding region after sonication; (c) DRIFT spectra of TAA methylene peaks; and (d) binding region after sonication. The solid acid powder is shown in red and the adhered acid is in black.
Figure 2. (a) DRIFT spectra of OCA methylene peaks; and (b) binding region after sonication; (c) DRIFT spectra of TAA methylene peaks; and (d) binding region after sonication. The solid acid powder is shown in red and the adhered acid is in black.
Materials 05 01206 g002
Component metal oxide surfaces, Ti, Al, and V oxide, were modified independently to compare their reactivity to the titanium alloy’s reactivity. Modification of titanium, aluminum and vanadium oxide was performed with OCA and TAA using the same protocol described for the titanium alloy. DRIFT was again utilized to qualitatively assess the presence and conformation of the alkyl chain and determine the acid head group-oxide surface binding mode as shown in Table 1. Titanium and aluminum oxide modification with OCA yielded similar results to the titanium alloy. Methylene stretches indicated the presence of an all-trans alkyl chain OCA film where the molecules are interacting with the surface in a bidentate mode. However, none of the attempts to modify vanadium oxide resulted in stable SAMs, as the OCA was removed during solvent sonication in all cases.
Titanium and aluminum oxide modification with TAA resulted in films that were similar to those on the titanium alloy. DRIFT analysis of the methylene stretches revealed the presence of an all-trans alkyl chain film with the molecules interacting with the surface in a bidentate mode. Vanadium oxide modification with TAA resulted in a stable film that had gauche alkyl chain interactions and therefore a disordered surface film.
Table
Table 1. Carboxylic Acid Modifications: Alkyl Chain Conformation and Binding Mode after Sonication.
Table 1. Carboxylic Acid Modifications: Alkyl Chain Conformation and Binding Mode after Sonication.
Organic acidCarbons in moleculeOxide surface-CH2- stretches (asymm, symm)Binding mode (-dentate)
ODA18Ti-6Al-4V--
ECA20Ti-6Al-4V2921, 2850-
DCA22Ti-6Al-4V2922, 2850-
TCA24Ti-6Al-4V2918, 2848-
HCA26Ti-6Al-4V2914, 2847-
OCA28Ti-6Al-4V2913, 2846Bi
--Ti2914, 2847Bi
--Al2914, 2848Bi
--V--
TAA30Ti-6Al-4V2913, 2847Bi
--Ti2912, 2847Bi
--Al2917, 2849Bi
--V2923, 2852Bi
Quantitative assessment of film thickness was carried out using MALDI-TOF MS to distinguish between mono- and multilayer coverage [44]. MALDI-TOF MS analysis of the OCA and TAA was performed using negative ionization mode. Prior to collecting mass spectra of modified coupons, spectra of all-trans retinoic acid matrix (Figure 3a) and solid acid powder (Figure 3b) were collected to ensure no matrix peaks would interfere with SAM analysis. It was clear from the spectra that no matrix interference was present and the location of the peaks corresponding to the acid monomer and dimer were determined (Figure 3b). The peaks relating to the monomer of [OCA-H]- and [TAA-H]- can be detected at 423.37 m/z and 451.44 m/z respectively. If the dimer peaks were present in the mass spectra, corresponding to [2 OCA-H]- at 847.78 m/z and [2 TAA-H]- at 903.92 m/z, it would indicate that the present film consists of a multilayer of molecules (Figure 3b). MALDI-TOF MS was carried out following each step of the SAM formation process, including deposition (Figure 3c), solvent rinse (Figure 3d) and solvent sonication (Figure 3e). Following deposition, MALDI-TOF MS indicated the presence of OCA multilayers by detection of both monomeric and dimeric peaks. The transition from multilayers to SAMs was seen following the solvent rinse and sonication procedures, where only the monomer of OCA was detected.
Materials 05 01206 g003 1024

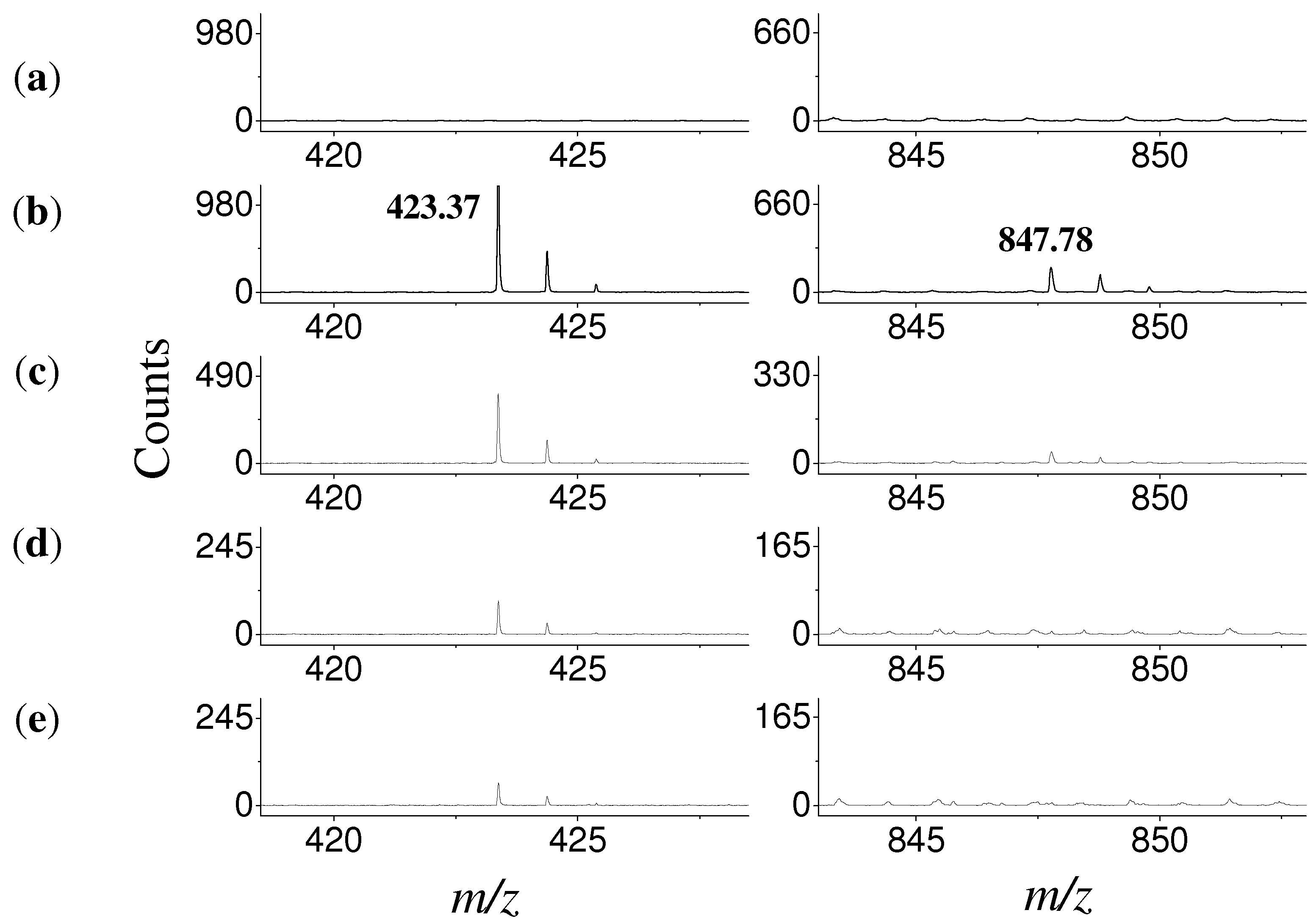

Figure 3. MALDI-TOF mass spectra of octacosanoic acid deposited onto Ti-6Al-4V following each step of SAM formation. The monomer region is shown in the left column and the dimer region in the right column. (a) All-trans retinoic acid matrix; (b) Solid octacosanoic acid; both the monomer (1168 counts) and the dimer (186 counts) can be detected via MALDI-TOF MS; (c) Octacosanoic acid film following aerosol spray deposition (monomer 391 counts; dimer 43 counts); (d) Octacosanoic acid SAM following solvent (THF) rinse (monomer 94 counts; dimer 0); (e) Octacosanoic acid SAM following solvent sonication (monomer 63 counts; dimer 0); Peaks detected in the dimer range of the mass spectra in (a), (d) and (e) are attributed to noise from the MALDI-TOF MS with peak heights < 2 counts.
Figure 3. MALDI-TOF mass spectra of octacosanoic acid deposited onto Ti-6Al-4V following each step of SAM formation. The monomer region is shown in the left column and the dimer region in the right column. (a) All-trans retinoic acid matrix; (b) Solid octacosanoic acid; both the monomer (1168 counts) and the dimer (186 counts) can be detected via MALDI-TOF MS; (c) Octacosanoic acid film following aerosol spray deposition (monomer 391 counts; dimer 43 counts); (d) Octacosanoic acid SAM following solvent (THF) rinse (monomer 94 counts; dimer 0); (e) Octacosanoic acid SAM following solvent sonication (monomer 63 counts; dimer 0); Peaks detected in the dimer range of the mass spectra in (a), (d) and (e) are attributed to noise from the MALDI-TOF MS with peak heights < 2 counts.
Materials 05 01206 g003
Upon determining SAMs to be present in an all-trans conformation, contact angle analysis of the coupons modified with the carboxylic acids was used to determine the wetting properties of the coupons. The formed SAMs were methyl terminated and therefore should exhibit increased hydrophobicity when compared to the unmodified, control Ti-6Al-4V coupons. Collected contact angle data showed that the formed OCA and TAA films presented a more hydrophobic interface when compared to the control Ti-6Al-4V. The contact angle for control Ti-6Al-4V was found to be 78° ± 2°, this value is comparable to previously reported contact angles of metal oxides [15,22,23]. The methyl-terminated OCA and TAA films had increased contact angles compared to the control of 106° ± 2° and 102° ± 1°, respectively; consistent with previously reported methyl-terminated SAMs on metal oxide surfaces [37,45,46].
Modification of the oxide surface of the titanium alloy, Ti-6Al-4V, resulted in the formation of stable self-assembled monolayers. Diffuse reflectance infrared Fourier transform spectroscopy indicated that octacosanoic and triacontanoic acid films were present in an all-trans confirmation and stable through solvent sonication. Component metal oxide modification resulted in all-trans SAM formation on titanium and aluminum oxide, whereas SAM formation was limited on vanadium oxide. Additionally, shorter chain carboxylic acids, with an even number of carbon atoms between octadecanoic and hexacosanoic acid, showed a limited ability to form stable films on the titanium alloy’s oxide surface. Matrix assisted laser desorption ionization-time of flight mass spectrometry and contact angle analysis further confirmed the formation of hydrophobic monolayer films on the alloy coupons.

3. Experimental

3.1. Materials

Octadecanoic acid (ODA, 95%), eicosanoic acid (ECA, 99%), docosanoic acid (DCA, 99%) and octacosanoic acid (OCA, 98%) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Tetracosanoic acid (TCA, 96%), hexacosanoic acid (HCA, 95%) and triacontanoic acid (TAA, 95%) were purchased from TCI America (Portland, OR, USA). All-trans retinoic acid (TRA, 98%), used in mass spectrometry analysis (MALDI-TOF MS), was purchased from Alfa Aesar (Ward Hill, MA, USA), and all reagents were used as received. Tetrahydrofuran (THF, Optima grade) was purchased from Fischer Scientific (Rockingham, NH, USA) and distilled over sodium and benzophenone before use. Titanium alloy (Ti-6Al-4V, 99.9%), titanium (Ti, 99.6%), and aluminum (Al, 99.0%) foils of 0.25 mm thickness were purchased from Goodfellow, Inc. (Delson, QC, Canada), and 0.25 mm thick vanadium (V, 99.7%) foil was purchased from Sigma-Aldrich (St. Louis, MO, USA). All foils were prepared by the protocol described in Section 3.2.

3.2. Coupon Preparation

Ti-6Al-4V, Ti, Al, and V foils are prepared by sanding with 150, 320, 400, and 600 grit sandpaper sequentially, then cutting the foils into 1 cm x 1 cm coupons. Sanding of coupons has previously been shown to result in surface elemental weight percentages that are different than bulk elemental weight percentages. A study on Ti-6Al-4V found that the average surface elemental weight percent exhibited was decreased for titanium (86 ± 6%) and vanadium (2 ± 1%) with an increased percent of aluminum (12 ± 2%) [47]. After sanding coupons are cleaned by rinse and sonication in acetone for 30 minutes, followed by immersion in boiling methanol for 15 minutes. This process removes residual metallic dust and organic residue from the metal oxide coupons. Clean coupons are stored at 100 °C until use.

3.3. SAM Formation Protocols

SAMs were formed using a TLC aerosol sprayer with nitrogen stream deposition technique, where the organic acid solutions, in dry THF, are sprayed onto the metal oxide coupons [24,44]. A series of increasingly aggressive protocols which varied by temperature, acid concentration, number of spray coatings and coupon drying conditions was attempted with each acid in an attempt to optimize SAM formation. Table 2 outlines the initial procedures used which produced no film formation for any of the acids. Protocols outlined in section 3.5 led to SAM formation. While the final conditions for successful SAM formation vary by chain length, each protocol was attempted for each chain length and varied as necessary.

3.4. Protocols Not Resulting in SAM Formation

Octadecanoic (18 Carbons) Acid

All of the protocols described herein were used with octadecanoic acid. However, no protocols resulted in film formation on any of the coupons.
For example protocols not resulting in SAM formation, please see Table 2.
Table
Table 2. Additional example protocols not resulting in SAM formation.
Table 2. Additional example protocols not resulting in SAM formation.
ProtocolOrganic acidMethod usedSolution conc. (mM)Cooling methodSpraysSolvent removalOven time (min)Oven temp. (°C)
1ODA-TAATLC Spray1Ice, 1 hr.3Oven30100
2ODA-HCATLC Spray1Ice, 1 hr.3Oven30120
3ODA-HCATLC Spray1Ice, 1 hr.5Oven45100
4ODA-HCATLC Spray1Ice, 1 hr.3Ambient30100
5ODA-HCATLC Spray1Ice, 1 hr.50.1 torr vac line30100
6ODA-HCASolution (50°C, 3hr)2Ice, 1 hr.-Oven-100

3.5. Protocols Resulting in SAM Formation

3.5.1. Eicosanoic (20 Carbons) Acid

Eicosanoic acid films were formed using a TLC spray deposition method. The coupons were first cooled on ice in a glass dish for one hour then sprayed with a 1 mM acid solution. Coupons were immediately transferred to a 100 °C oven for 45 minutes. Coupons were placed back on ice for 20 minutes and cooled before the next spray. This procedure was repeated an additional four times.

3.5.2. Docosanoic (22 Carbons) Acid

Docosanoic acid films were formed using a TLC aerosol spray deposition method. Ti-6Al-4V coupons were placed in a glass dish on ice for one hour. A 1 mM acid solution was sprayed onto the coupons, and solvent is removed at ambient conditions. After solvent removal coupons were placed into a 100 °C oven for 30 minutes. Once removed from the oven, coupons were cooled for 20 minutes. The procedure was repeated two additional times.

3.5.3. Tetracosanoic (24 Carbons) and Hexacosanoic (26 Carbons) Acids

Tetracosanoic and hexacosanoic films were formed using a solution deposition method. Cleaned coupons were cooled in a glass dish in an acetone/dry ice bath for 30 minutes. Following cooling the coupons were placed into a 2 mM solution of the respective organic acid for 15 minutes. Solvent was then evaporated at ambient conditions. Following solvent removal the coupons were stored in the 100 °C oven.

3.5.4. Octacosanoic (28 Carbons) and Triacontanoic (30 Carbons) Acids

Octacosanoic and triacontanoic acid films were formed using a TLC aerosol spray deposition method. Cleaned coupons were cooled in a glass dish on ice for one hour, and then a 1 mM acid solution was sprayed onto the coupons. Following the spraying, coupons were immediately transferred to the 100 °C oven. Coupons remained in the oven for 30 minutes. Following the 30 minutes, coupons were removed and placed back on ice for 20 minutes. This entire procedure was repeated two additional times, for three total cycles.

3.6. Infrared Spectroscopy

Diffuse reflectance infrared Fourier transform (DRIFT) spectroscopy was used to examine the alkyl chain methylene stretches, which confirm the presence of the organic acid molecule. A Nexus 470 Fourier transform infrared spectrometer with DRIFT attachment analyzes the carbon chain and acid head group regions of the adhered carboxylic acid molecules. All DRIFT analysis was performed under nitrogen purge for 256 scans at 4 cm−1 resolution.

3.7. Mass Spectrometry

Matrix-assisted laser desorption ionization-time of flight mass spectrometry (MALDI-TOF MS), using a 10 mg/mL all-trans retinoic acid (TRA) matrix solution in THF, was used to distinguish between monolayers and multilayers of molecules on the oxide surfaces [44]. An Agilent Technologies G1969A LC/MSD TOF mass spectrometry system with G1974A AP/MALDI ion source attachment in negative ionization mode was used. Mass spectra were collected for 2.0 minutes with N2 gas flow of 10 L/min at a temperature of 325 °C, a capillary voltage of 3,200 V, fragmentor voltage of 220 V and skimmer voltage of 50 V. MALDI-TOF MS samples were prepared using the dried-droplet method, where 1 μL of matrix solution is dropped onto the modified coupons and dried prior to analysis [44,48]. To obtain a representative mass spectrum of each modification, the laser was used for ablation of three spots on each coupon.

3.8. Contact Angle Analysis

Contact angle analysis was used to evaluate the wetting properties of the carboxylic acid SAMs formed on Ti-6Al-4V. In contact angle analysis, a Video Contact Angle (VCA) 2000 instrument measured the left and right advancing contact angles (θ) of 18 mΩ deionized water. A syringe deposited 1 μL of deionized water on the coupon for analysis. Contact angles were acquired in three different locations on three samples. A one way analysis of variance (ANOVA) with a Bonferroni post-hoc test with p < 0.05, was used to compare the contact angles for the control and modified coupons.

3.9. SAM Stability Assessment

Solvent rinse and sonication were performed in dry tetrahydrofuran for 15 and 20 minutes, respectively. Solvent rinse was carried out by coupon immersion at ambient conditions without external agitation. Sonication was done with a Branson Ultrasonic Cleaner, model 1510R-MT with 42 kHz and 70 watt output capability. Solvent rinse and sonication served to remove any physisorbed organic acid molecules as well as assessed acid molecule stability on the metal oxide surface.

4. Conclusions

Stable, all-trans alkyl chain monolayers of octacosanoic and triacontanoic acids, 28 and 30 carbons respectively, were formed on the oxide surface of the titanium alloy, Ti-6Al-4V, as well as on the component metal oxides of titanium and aluminum. DRIFT analysis confirmed that the formed films were all-trans and stable through solvent rinse and sonication. MALDI-TOF MS and contact angle analysis further confirmed that films were present as monolayers and the interfaces are hydrophobic. Carboxylic acids with even numbers of carbons in the alkyl chain between 18 and 26 were also used for film formation. However, disordered, unstable films resulted. These results are indicative of the importance of the role the van der Waals forces play in carboxylic acid film formation and stability on the titanium alloy and its component metal oxides.

Supplementary material

Supplementary File 1

Acknowledgments

We thank the National Institute of Health and National Institute of Arthritis and Musculoskeletal and Skin Diseases for financial support of the work. We also would like to thank Joel Gillespie (University of Pittsburgh) for use of the contact angle meter.

References

  1. Dong, H.; Bell, T. Enhanced wear resistance of titanium surfaces by a new thermal oxidation treatment. Wear 2000, 238, 131–137. [Google Scholar] [CrossRef]
  2. Guleryuz, H.; Cimenoglu, H. Oxidation of Ti-6Al-4V alloy. J. Alloys Compd. 2009, 472, 241–246. [Google Scholar] [CrossRef]
  3. Krishna, S.R.D.; Brama, Y.L.; Sun, Y. Thick rutile layer on titanium for tribological applications. Tribol. Int. 2007, 40, 329–334. [Google Scholar] [CrossRef]
  4. Su, Y.; Wang, L.; Luo, L.; Jiang, X.; Guo, J.; Fu, H. Deoxidation of titanium alloy using hydrogen. Int. J. Hydrog. Energy 2009, 34, 8958–8963. [Google Scholar] [CrossRef]
  5. Boyer, R.R. An overview on the use of titanium in the aerospace industry. Mater. Sci Eng. A 1996, 213, 103–114. [Google Scholar] [CrossRef]
  6. Liu, X.; Chu, P.K.; Ding, C. Surface modification of titanium, titanium alloys, and related materials for biomedical applications. Mater. Sci. Eng. R 2004, 47, 49–121. [Google Scholar] [CrossRef]
  7. Mitsuo, N. Mechanical biocompatibilities of titanium alloys for biomedical applications. J. Mech. Behav. Biomed. Mater. 2008, 1, 30–42. [Google Scholar] [CrossRef] [PubMed]
  8. Rack, H.J.; Qazi, J.I. Titanium alloys for biomedical applications. Mater. Sci. Eng. C 2006, 26, 1269–1277. [Google Scholar] [CrossRef]
  9. Arima, Y.; Iwata, H. Effect of wettability and surface functional groups on protein adsorption and cell adhesion using well-defined mixed self-assembled monolayers. Biomaterials 2007, 28, 3074–3082. [Google Scholar] [CrossRef] [PubMed]
  10. Mani, G.; Johnson, D.M.; Marton, D.; Feldman, M.D.; Patel, D.; Ayon, A.A.; Agrawal, C.M. Drug delivery from gold and titanium surfaces using self-assembled monolayers. Biomaterials 2008, 29, 4561–4573. [Google Scholar] [CrossRef] [PubMed]
  11. Wang, P.; Liang, C.; Huang, N. Studies on corrosion inhibition of copper by alkanethiol SAMs prepared in aqueous micellar solution. Mater. Corros. 2010, 61, 332–337. [Google Scholar] [CrossRef]
  12. Ishizaki, T.; Okido, M.; Masuda, Y.; Saito, N.; Sakamoto, M. Corrosion resistant performances of alkanoic and phosphonic acids derived self-assembled monolayers on magnesium alloy AZ31 by vapor-phase method. Langmuir 2011, 27, 6009–6017. [Google Scholar] [CrossRef] [PubMed]
  13. Alagta, A.; Felhösi, I.; Bertoti, I.; Kálmán, E. Corrosion protection properties of hydroxamic acid self-assembled monolayer on carbon steel. Corros. Sci. 2008, 50, 1644–1649. [Google Scholar] [CrossRef]
  14. Kruszewski, K.M.; Renk, E.R.; Gawalt, E.S. Self-assembly of organic acid molecules on the metal oxide surface of a cupronickel alloy. Thin Solid Films 2012, 520, 4326–4331. [Google Scholar] [CrossRef]
  15. Kruszewski, K.M.; Gawalt, E.S. Perfluorocarbon thin films and polymer brushes on stainless steel 316 L for the control of interfacial properties. Langmuir 2011, 27, 8120–8125. [Google Scholar] [CrossRef] [PubMed]
  16. Adden, N.; Gamble, L.J.; Castner, D.G.; Hoffmann, A.; Gross, G.; Menzel, H. Phosphonic acid monolayers for binding of bioactive molecules to titanium surfaces. Langmuir 2006, 22, 8197–8204. [Google Scholar] [CrossRef] [PubMed]
  17. Gao, W.; Dickinson, L.; Grozinger, C.; Morin, F.G.; Reven, L. Self-assembled monolayers of alkylphosphonic acids on metal oxides. Langmuir 1996, 12, 6429–6435. [Google Scholar] [CrossRef]
  18. Kanta, A.; Sedev, R.; Ralston, J. The formation and stability of self-assembled monolayers of octadecylphosphonic acid on titania. Colloid Surf. A 2006, 291, 51–58. [Google Scholar] [CrossRef]
  19. Schwartz, J.; Avaltroni, M.J.; Danahy, M.P.; Silverman, B.M.; Hanson, E.L.; Schwarzbauer, J.E.; Midwood, K.S.; Gawalt, E.S. Cell attachment and spreading on metal implant materials. Mater. Sci. Eng. C 2003, 23, 395–400. [Google Scholar] [CrossRef]
  20. Silverman, B.M.; Wieghaus, K.A.; Schwartz, J. Comparative properties of siloxane vs. phosphonate monolayers on a key titanium alloy. Langmuir 2004, 21, 225–228. [Google Scholar] [CrossRef]
  21. Zorn, G.; Gotman, I.; Gutmanas, E.Y.; Adadi, R.; Salitra, G.; Sukenik, C.N. Surface modification of Ti45Nb alloy with an alkylphosphonic acid self-assembled monolayer. Chem. Mater. 2005, 17, 4218–4226. [Google Scholar] [CrossRef]
  22. Quiñones, R.; Raman, A.; Gawalt, E.S. Functionalization of nickel oxide using alkylphosphonic acid self-assembled monolayers. Thin Solid Films 2008, 516, 8774–8781. [Google Scholar] [CrossRef]
  23. Raman, A.; Dubey, M.; Gouzman, I.; Gawalt, E.S. Formation of self-assembled monolayers of alkylphosphonic acid on the native oxide surface of SS316L. Langmuir 2006, 22, 6469–6472. [Google Scholar] [CrossRef] [PubMed]
  24. Raman, A.; Quiñones, R.; Barriger, L.; Eastman, R.; Parsi, A.; Gawalt, E.S. Understanding organic film behavior on alloy and metal oxides. Langmuir 2010, 26, 1747–1754. [Google Scholar] [CrossRef] [PubMed]
  25. Moser, J.; Punchihewa, S.; Infelta, P.; Gratzel, M. Surface complexation of colloidal semiconductors strongly enhances interfacial electron-transer rates. Langmuir 1991, 7, 3012–3018. [Google Scholar] [CrossRef]
  26. Mann, J.R.; Nevins, J.S.; Soja, G.R.; Wells, D.D.; Levy, S.C.; Marsh, D.A.; Watson, D.F. Influence of solvation and the structure of adsorbates on the kinetics and mechanism of dimerization-induced compositional changes of mixed monolayers on TiO2. Langmuir 2009, 25, 12217–12228. [Google Scholar] [CrossRef] [PubMed]
  27. Uetsuka, H.; Sasahara, A.; Yamakata, A.; Onishi, H. Microscopic identifiaction of a bimolecular reaction intermediate. J. Phys. Chem. B 2002, 11549–11552. [Google Scholar] [CrossRef]
  28. Aronoff, Y.G.; Chen, B.; Lu, G.; Seto, C.; Schwartz, J.; Bernasek, S.L. Stabilization of self-assembled monolayers of carboxylic acids on native oxides of metals. J. Am. Chem. Soc. 1997, 119, 259–262. [Google Scholar] [CrossRef]
  29. Badia, A.; Lennox, R.B.; Reven, L. A dynamic view of self-assembled monolayers. Acc. Chem. Res. 2000, 33, 475–481. [Google Scholar] [CrossRef] [PubMed]
  30. Cooper, E.; Leggett, G.J. Influence of tail-group hydrogen bonding on the stabilities of self-assembled monolayers of alkylthiols on gold. Langmuir 1999, 15, 1024–1032. [Google Scholar] [CrossRef]
  31. Tao, Y.T. Structural comparison of self-assembled monolayers of n-alkanoic acids on the surfaces of silver, copper, and aluminum. J. Am. Chem. Soc. 1993, 115, 4350–4358. [Google Scholar] [CrossRef]
  32. Ulman, A. Formation and structure of self-assembled monolayers. Chem. Rev. 1996, 96, 1533–1554. [Google Scholar] [CrossRef] [PubMed]
  33. Gawalt, E.S.; Avaltroni, M.J.; Koch, N.; Schwartz, J. Self-assembly and bonding of alkanephosphonic acids on the native oxide surface of titanium. Langmuir 2001, 17, 5736–5738. [Google Scholar] [CrossRef]
  34. D’Andre, S.C.; Fadeev, A.Y. Covalent surface modification of calcium hydroxyapatite using n-alkyl- and n-fluoroalkylphosphonic acids. Langmuir 2003, 19, 7904–7910. [Google Scholar] [CrossRef]
  35. Fiurasek, P.; Reven, L. Phosphonic and sulfonic acid-functionalized gold nanoparticles: A solid-state NMR study. Langmuir 2007, 23, 2857–2866. [Google Scholar] [CrossRef] [PubMed]
  36. Liu, Y.; Yu, Z.; Zhou, S.; Wu, L. Self-assembled monolayers on magnesium alloy surfaces from carboxylate ions. Appl. Surf. Sci. 2006, 252, 3818–3827. [Google Scholar] [CrossRef]
  37. Shustak, G.; Domb, A.J.; Mandler, D. Preparation and characterization of n-alkanoic acid self-assembled monolayers adsorbed on 316L stainless steel. Langmuir 2004, 20, 7499–7506. [Google Scholar] [CrossRef] [PubMed]
  38. Pan, S.; Castner, D.G.; Ratner, B.D. Multitechnique surface characterization of derivatization efficiencies for hydroxyl-terminated self-assembled monolayers. Langmuir 1998, 14, 3545–3550. [Google Scholar] [CrossRef]
  39. Allara, D.L.; Nuzzo, R.G. Spontaneously organized molecular assemblies. 2. Quantitative infrared spectroscopic determination of equilibrium structures of solution-adsorbed n-alkanoic acids on an oxidized aluminum surface. Langmuir 1985, 1, 52–66. [Google Scholar] [CrossRef]
  40. Snyder, R.G.; Strauss, H.L.; Elliger, C.A. Carbon-hydrogen stretching modes and the structure of n-alkyl chains. 1. Long, disordered chains. J. Phys. Chem. 1982, 86, 5145–5150. [Google Scholar] [CrossRef]
  41. Allara, D.L.; Nuzzo, R.G. Spontaneously organized molecular assemblies. 1. Formation, dynamics, and physical properties of n-alkanoic acids adsorbed from solution on an oxidized aluminum surface. Langmuir 1985, 1, 45–52. [Google Scholar] [CrossRef]
  42. Ito, E.; Konno, K.; Noh, J.; Kanai, K.; Ouchi, Y.; Seki, K.; Hara, M. Chain length dependence of adsorption structure of COOH-terminated alkanethiol SAMs on Au(111). Appl. Surf. Sci. 2005, 244, 584–587. [Google Scholar] [CrossRef]
  43. Spori, D.M.; Venkataraman, N.V.; Tosatti, S.G.P.; Durmaz, F.; Spencer, N.D.; Zürcher, S. Influence of alkyl chain length on phosphate self-assembled monolayers. Langmuir 2007, 23, 8053–8060. [Google Scholar] [CrossRef] [PubMed]
  44. Quiñones, R.; Raman, A.; Gawalt, E.S. An approach to differentiating between multi- and monolayers using MALDI-TOF MS. Surf. Interface Anal. 2007, 39, 593–600. [Google Scholar] [CrossRef]
  45. Ploux, L.; Beckendorff, S.; Nardin, M.; Neunlist, S. Quantitative and morphological analysis of biofilm formation on self-assembled monolayers. Colloid Surf. B 2007, 57, 174–181. [Google Scholar] [CrossRef]
  46. Raman, A.; Gawalt, E.S. Self-assembled monolayers of alkanoic acids on the native oxide surface of SS316L by solution deposition. Langmuir 2007, 23, 2284–2288. [Google Scholar] [CrossRef]
  47. Sittig, C.; Textor, M.; Spencer, N.D.; Wieland, M.; Vallotton, P.H. Surface characterization of implant materials. J. Mater. Sci. Mater. Med. 1999, 10, 35–46. [Google Scholar] [CrossRef] [PubMed]
  48. Quiñones, R.; Gawalt, E.S. Study of the formation of self-assembled monolayers on nitinol. Langmuir 2007, 23, 10123–10130. [Google Scholar] [CrossRef]
