Article

Aqueous ZrO2 and YSZ Colloidal Systems through Microwave Assisted Hydrothermal Synthesis

1
Department of Inorganic and Physical Chemistry, Ghent University, Krijgslaan 281 S3, B-9000 Ghent, Belgium
2
Department of Organic Chemistry, Ghent University, Krijgslaan 281 S4, B-9000 Ghent, Belgium
*
Author to whom correspondence should be addressed.
Materials 2013, 6(9), 4082-4095; https://doi.org/10.3390/ma6094082
Submission received: 9 July 2013 / Revised: 4 September 2013 / Accepted: 10 September 2013 / Published: 16 September 2013

Abstract

:
In this paper, the formation of ZrO2 and yttria-stabilised-zirconia (YSZ) aqueous colloidal systems via microwave assisted hydrothermal synthesis is studied. Microwave synthesis allows a fast screening of the influence of different parameters such as time and temperature. The temperature varied from 140 °C up to 180 °C and the used reaction time varied from 5 min up to 1 h. The synthesised zirconia nanoparticles have a particle size of 50 nm confirmed by TEM. A 1H NMR (nuclear magnetic resonance) study helped to understand the stabilization mechanism of the synthesised particles. By the addition of ytrrium ions into the zirconia colloidal solution, YSZ could be formed via an additional thermal treatment. Hereby, the samples are heated up to 400 °C for 1 h. YSZ colloidal solutions are synthesised by making use of complexing agents such as nitrilotriacetic acid, ethylenediaminetetraacetic acid and citric acid to control the hydrolysis and condensation of both ions to avoid non-stoichiometric phases. The ratio of Zr/Y in the particles is quantified by XRF. The amorphous structure of those particles necessitates an additional thermal treatment up to 600 °C during 1 h in order to obtain crystalline YSZ.

Graphical Abstract

1. Introduction

Recently, ceramic nanostructured materials gained more and more interest because of the possibility to tune the material properties such as the band gap according to the particle size. Furthermore, the nanosized grains may reduce the sinter temperature. Colloidal precursors make it possible to reduce the processing temperature of thin films because the final sintering step can be avoided or can be performed at reduced temperature [1,2,3,4]. These colloidal solutions are very promising towards green chemistry and energy efficient processing of thin films. Especially, the deposition of crystalline ceramic thin films on polymers or other temperature sensitive substrates via chemical solution deposition will open a novel branch of applications in the near future. The synthesis of crystalline TiO2 thin films via precursors containing TiO2 particles at temperatures below 300 °C has already been achieved and proves the possibility of low temperature synthesis of ceramics [5,6,7].
In this paper, the synthesis of colloidal YSZ solutions is explored. Pure zirconia undergoes several phase transformations when heated or cooled [8]. At room temperature, a monoclinic crystal structure is obtained. A phase transformation from monoclinic to tetragonal crystal structure occurs at 1170 °C and at 2370 °C the tetragonal phase transforms into a cubic crystal structure. Stabilisation of the cubic structure at room temperature guarantees good mechanical, thermal and electrical properties [9,10]. This is possible by doping ZrO2 with MgO, Y2O3 or CaO [11,12]. When 8 mol% Y2O3 is integrated in ZrO2 (8YSZ), the cubic crystal structure can be maintained at room temperature till melting point [9]. Due to the very low thermal conductivity (2.2 W/(m·K) at 800 °C) 8YSZ can also be used as a thermal barrier coating [13]. Next to the low thermal conductivity, 8YSZ is an excellent oxygen ion conductor at high temperatures. Hereby 8YSZ can act as an electrolyte layer in solid oxide fuel cells. Unfortunately, high temperatures (1200 °C or more) are required to obtain dense YSZ thin films [14,15,16]. High temperatures and long sinter processes are energy consuming and can introduce interactions with the support membrane, which is unfavourable for high quality electrolytes [9,17]. The synthesis of stable ZrO2 and YSZ nanoparticles in aqueous solutions that can be deposited as a thin film in a further stage by dip-coating [16], spin-coating [18], or even ink-jet printing [19] is the focus of this paper. This approach can lead to a reduction in sinter temperature and improvement in the homogeneity of the synthesised electrolytes. Synthesizing a ZrO2 colloidal solution is the first step towards the synthesis of YSZ nanoparticles. According to Okubo et al. [4], there are two ways to obtain YSZ ceramics starting from colloidal solutions: (1) When the interparticle approach is applied, the surface of the zirconia nanoparticles is modified with yttrium ions. Due to the short diffusion path of yttrium (in this case the zirconia particles are up to 15 nm) it is expected to synthesise the mixed oxide at low temperatures; (2) an alternative approach is the intraparticle route. During synthesis of these nanoparticles, yttrium as well as zirconium will undergo hydrolysis and condensation reactions. Finally, YSZ particles will be formed. As zirconium ions are very sensitive for hydrolysis, the formation of YSZ nanoparticles can be impeded by non-stoichiometric reactions, resulting in secondary phases or single metal oxides [4,20]. These secondary phases can be avoided by the addition of coordinating ligands. The ligands interact with the metal ions and form zirconium and yttrium complexes that prevent the synthesis of non-stoichiometric compounds.
The nanoparticles will be synthesised in a more environmental friendly manner. Water is favoured as solvent and lower reaction temperatures and shorter reactions times are addressed to reduce the energy consumption [21]. Compared to conventional methods such as hydrothermal treatments and hot-injections reactions, microwave assisted synthesis has several benefits. The more efficient heating mechanism of microwave irradiation allows lower synthesis temperatures and/or shorter reaction times accompanied by higher yields [22,23,24]. Also, homogenous heating is obtained without suffering from thermal gradient effects. This is beneficial towards industrial production of high quality nanomaterials. The modern microwave equipment allows a fast screening of several parameters due to the shorter reaction times [22,25].

2. Results and Discussion

2.1. Synthesis of ZrO2 Particles

The synthesis of a ZrO2 colloidal solution is the first step towards the formation of YSZ ceramics via the interparticle route. As described in the experimental section, zirconium oxynitrate is selected as precursor. When it’s dissolved in water, a cyclic tetramer is formed, [Zr4(OH)8(OH2)16]8+, in which Zr atoms are eightfold coordinated by four OH– groups and four water molecules [26]. The tetramer complexes play an important role in the formation of ZrO2 nanoparticles, by heating the aqueous solution, the tetramer complexes will deprotonate as shown in Equation (1) [27]:
[Zr4(OH)8(OH2)16]8+ ↔ [Zr4(OH)(8 + x)(OH2)(16 − x)](8 − x)+ + x H+
As illustrated by Matsui et al. [27], the deprotonated tetramer starts to polymerise and when supersaturation of these polymeric species occurs, nuclei are formed. Finally, agglomeration occurs and secondary particles are formed consisting out of several primary particles.
Microwave hydrothermal treatment of solution A at different reaction temperatures and times resulted in ZrO2 suspensions with a variety of particle sizes (Table 1.). Synthesis at temperatures above 160 °C resulted in precipitation. These precipitates could also be found in synthesis procedures that took longer than 5 min at 160 °C. Several washing steps are introduced to purify the synthesised colloidal systems for further characterisation.
Table 1. Overview of microwave treated solution A where the temperature and duration of the synthesis are represented in function of the particle size and crystallinity.
Table 1. Overview of microwave treated solution A where the temperature and duration of the synthesis are represented in function of the particle size and crystallinity.
Temperature (°C)Duration (min)Particles size [a] (nm)CrystallinePresent phaseCrystallite size (nm)
140537No
1406047YesMonoclinic ZrO23.13 ± 0.11
150545YesMonoclinic ZrO22.64 ± 0.11
1503052YesMonoclinic ZrO23.37 ± 0.10
160550YesMonoclinic ZrO23.35 ± 0.10
[a] Secondary particle size is measured by DLS (dynamic light scattering).
As illustrated in Figure 1, TEM and DLS measurements of a sample synthesized at 150 °C for 30 min agree about the particles size considering that TEM measurements show the real particle size while DLS measures the hydrodynamic radius of the particles, the synthesized particles meet the expectations of Matsui et al. [27]. The primary particles aggregate and form secondary particles of 50 nm diameter. The primary particles are rod shaped while the secondary structures have irregular shapes.

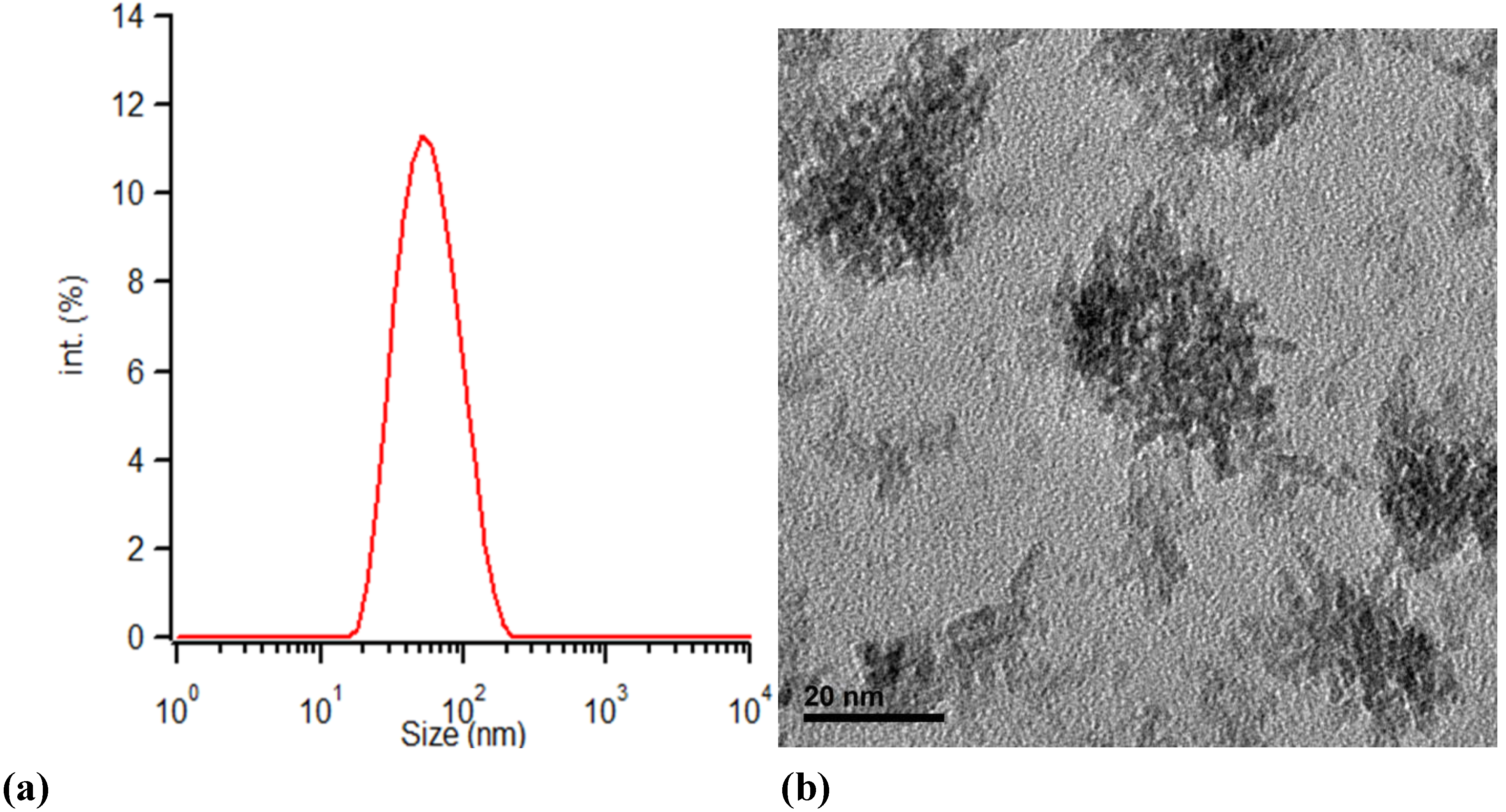

Figure 1. (a) The particle size of ZrO2 particles synthesized by microwave treatment of solution A at 150 °C for 30 min measured by DLS; and (b) TEM micrograph of the solution A treated for 30 min at 150 °C.
Figure 1. (a) The particle size of ZrO2 particles synthesized by microwave treatment of solution A at 150 °C for 30 min measured by DLS; and (b) TEM micrograph of the solution A treated for 30 min at 150 °C.
Materials 06 04082 g001
X-ray diffraction patterns are taken from purified particles which are precipitated and dried for 12 hours at 60 °C. The observed reflections show the presence of Baddeleyite (monoclinic ZrO2), pdf card # 36-0420. As shown in Figure 2, the crystallinity of the ZrO2 particles is influenced by two parameters, i.e., the temperature and reaction time. The crystallinity of the particles increases with longer synthesis times. At fixed reaction time, for example at 5 min, a temperature influence is visible. Higher temperatures favour the formation of crystalline material. The crystallite size is calculated by a simple Rietveld refinement with the help of TOPAS-Academic, V4.1 software [28]. It is noticed that the crystallite size shows the same trend the crystallinity. Longer reaction times or higher reaction temperatures result in larger crystallite sizes. This can be attributed to higher growth rates of the crystallites at higher temperatures or more time given to the system to grow.
Figure 2. XRD patterns of precipitated particles derived from microwave treated solution A at (a) 160 °C for 5 min; (b) 150 °C for 30 min; (c) 150° C for 5 min; (d) 140 °C for 60 min; and (e) 140 °C for 5 min.
Figure 2. XRD patterns of precipitated particles derived from microwave treated solution A at (a) 160 °C for 5 min; (b) 150 °C for 30 min; (c) 150° C for 5 min; (d) 140 °C for 60 min; and (e) 140 °C for 5 min.
Materials 06 04082 g002
The stabilization of these particles is also investigated. After synthesis the zeta potential has a value of 25 mV that indicates electrostatic stabilization. 1D proton NMR confirmed this hypothesis. After purification PEG1000 was found neither in the solution nor on the particles. Despite the absence of ligands in the colloidal solution, the ZrO2 suspension remains stable [29]. As the pH level of this suspension is around 0.9, thus very acidic and not suited for industrial applications, an attempt was made to raise the pH. Higher pH levels make a less corrosive solution and more suited for the ink jet printing system. Precipitation is observed when the pH level is raised by the addition of a base. The formation of the precipitation could be avoided by addition of complexing ligands such as citric acid (CA) before the pH level is raised up to 7. In this case, a stable solution is obtained. Ethanolamine (EA) is used to adjust the pH level because it is a high boiling alkaline component that is harder to evaporate than ammonium hydroxide, which is often used in chemical solution methods. 1H NMR spectroscopy was used to investigate the presence of organic ligands in the dispersion and their possible interaction with the ZrO2 particles, using recently established methods for semi-conductor colloidal quantum dots [30]. The presence of CA and EA even after washing steps is easily confirmed by noting the presence of their fingerprint in the 1D 1H NMR spectrum (Figure 3). The signals at 3.7 and 3.05 ppm can be assigned to each of the methylene groups in EA and appear markedly broadened, a sign of interaction with the surface of a larger particle. The resonances around 2.6 ppm, with sharper lines and scalar coupling fine structure characteristic for small non interacting molecules, are assigned to CA. These appear on top of a broader background that could be attributed to bound CA, in slow or no chemical exchange with the particle surface [31]. Other, equally sharp signals are attributed to ethyl acetate (Figure 3). The 2D NOESY (Nuclear Overhauser Enhancement Spectroscopy) spectrum (Figure 4) displays both strong negative and weak positive NOE (Nuclear Overhauser Enhancement) cross peaks as a result of cross-relaxation by dipolar interaction between proton spins that occur close (<5 A) to one-another in space. As has been discussed in more detail elsewhere [30,31], the fast reorientational dynamics of small molecules in solution causes the slow development of weak and positive NOE cross-peaks. On the other hand, the much slower reorientational dynamics of large molecules in solution results in rapid development of strong and negative NOE cross-peaks. Since the reorientation dynamics of ligands that are bound to the nanoparticle surface will be dominated by the large nanoparticle, strong and negative NOE cross-peaks are expected for any ligand that spends time interacting with the particle surface [30]. Translating this to the case at hand, the following can be concluded. The small positive NOEs visible between the methyl and methylene resonance in the ethylgroup of ethyl acetate indicate that this molecule is free in solution at all times. Between the two EA methylene 1H resonances however, large negative NOEs are visible, indicating that EA does interact with the nanoparticle surface and acts as ligand. The occurrence of two sets of signals for CA, one low intensity and broadened and one sharper resonances, suggests CA occurs in two separately visible states. As the resonances of each species are insufficiently spaced, the nature of the NOE contacts cannot be established here. This notwithstanding it appears some CA is also interacting with the surface. Thus EA and most probably also CA contribute to the stabilisation of the dispersion thereby preventing the precipitation from occurring at neutral pH levels.

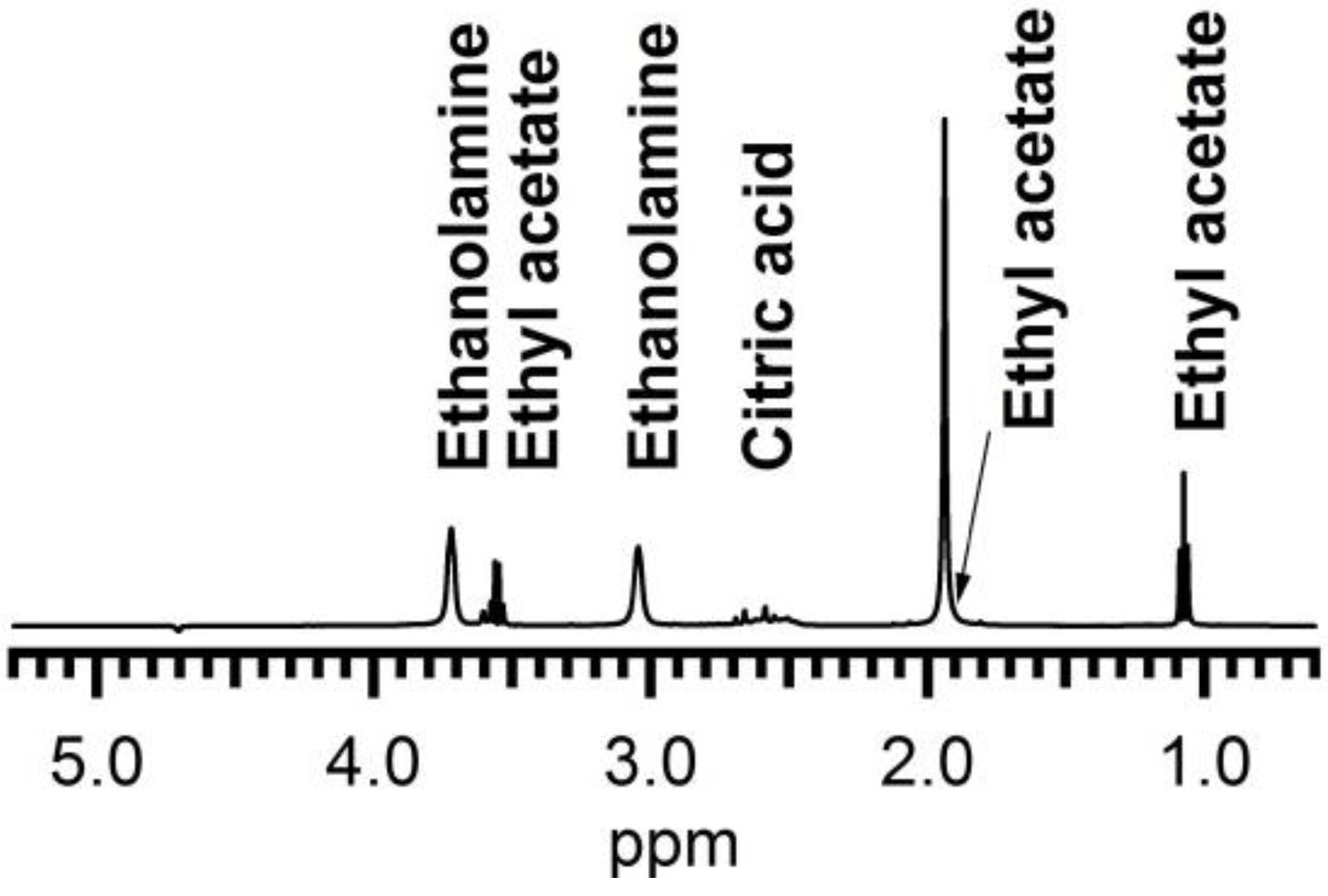

Figure 3. 1D proton NMR spectrum of solution A after microwave treatment, purification and the addition of CA and EA.
Figure 3. 1D proton NMR spectrum of solution A after microwave treatment, purification and the addition of CA and EA.
Materials 06 04082 g003

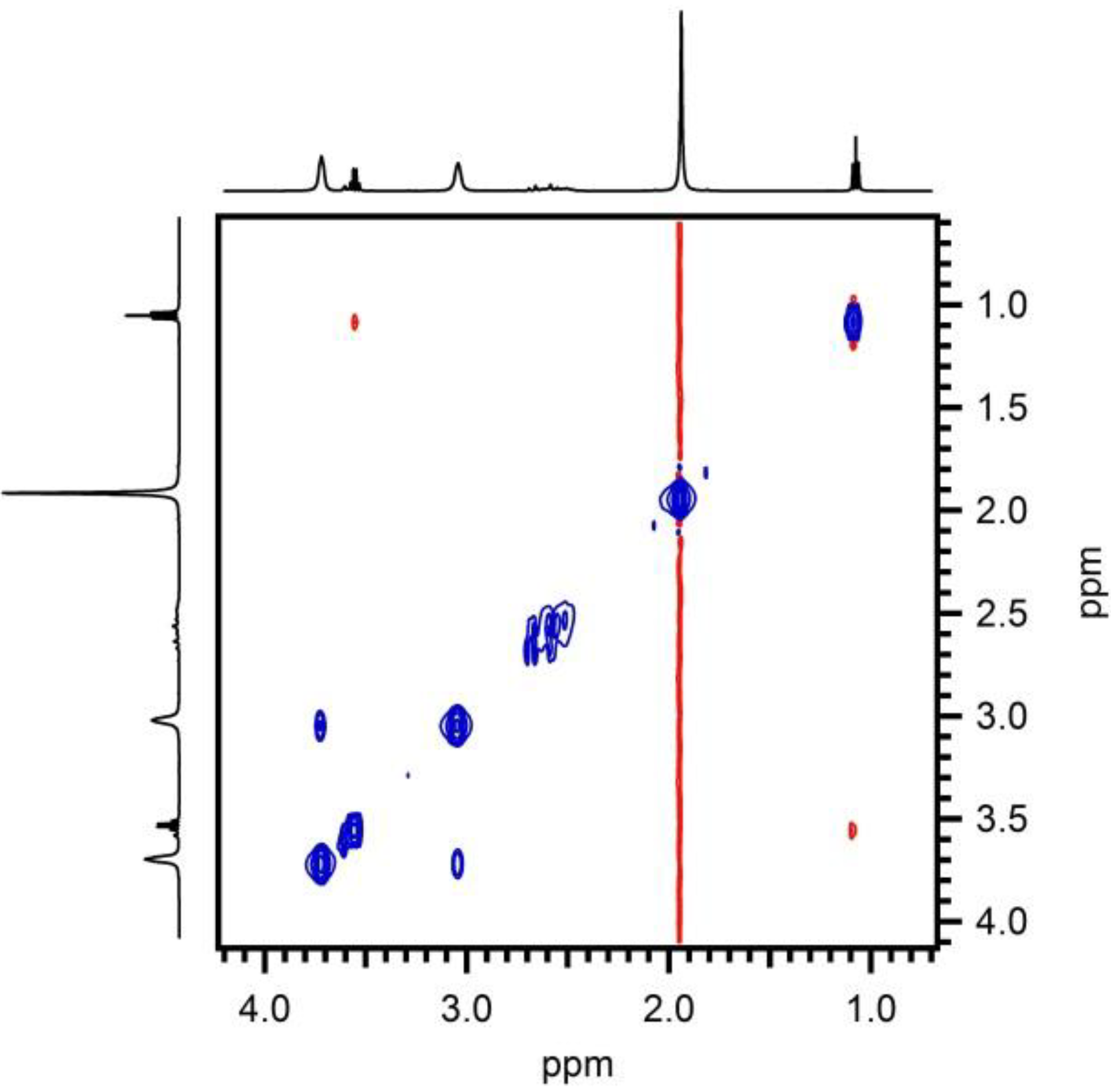

Figure 4. 2D NOESY spectrum of solution A microwave treated at 150 °C during 30 min after purification and the addition of CA and EA. Positive and negative NOE cross-peaks appear in red and blue and are attributed to their respective species.
Figure 4. 2D NOESY spectrum of solution A microwave treated at 150 °C during 30 min after purification and the addition of CA and EA. Positive and negative NOE cross-peaks appear in red and blue and are attributed to their respective species.
Materials 06 04082 g004

2.2. Interparticle Route towards YSZ

When the interparticle route is followed Y(NO3)3·xH2O should be added at the ZrO2 suspension in the correct stoichiometric conditions. The exact yttrium concentration after addition is checked by XRF. In this case, 16 mol% of yttrium nitrate is added to synthesize 8YSZ at the end. A thermal treatment of this solution gives rise to diffusion of Y into the ZrO2 particles resulting in 8YSZ. The conversion from monoclinic ZrO2 to cubic YSZ is monitored by XRD taken after each annealing step (Figure 5). Monoclinic zirconia is already observed before calcination. After calcination of the suspension at 300 °C for 1 hour, a slight change in crystal structure is noticed, indicating that a mixture of monoclinic ZrO2 and cubic YSZ is obtained. This demonstrates the start of a phase transformation from the monoclinic to cubic crystal structure. Samples calcined at 400 °C during 1 hour only show the presence of 8YSZ. Gibson et al. [32] addressed the fact that the difference between nanosized cubic YSZ and tetragonal YSZ is hard to distinguish. Therefore, additional XRD measurements are performed. Because the crystallinity is too low, no reflections are observed in the 2θ region of 72 to 75. Therefore samples are mixed with a 10 wt% internal standard (ZnO). Software is used to perform Rietveld refinement (Topas Academic). The fit includes ZnO, tetragonal and cubic YSZ. The calculated plot with a goodness of fit of 1.18 matches cubic 8YSZ mixed with internal standard fits the experimental data (Figure 6). No secondary phases such as tetragonal YSZ, Y2O3 or monoclinic ZrO2 are detected in the diffraction pattern. This gives proof that the diffusion of dopants into 50 nm colloidal systems is possible and the interparticle route is a good alternative to obtain mixed or doped ceramic oxides at reduced temperatures.
Figure 5. The influence of the temperature on the diffusion of Y into ZrO2 nanoparticles shown by XRD measurements (a) treated at 400 °C for 1 h; (b) treated at 300 °C for 1 h; and (c) as-synthesised, M marks the diffraction peaks of monoclinic ZrO2; and C the diffraction peaks of YSZ.
Figure 5. The influence of the temperature on the diffusion of Y into ZrO2 nanoparticles shown by XRD measurements (a) treated at 400 °C for 1 h; (b) treated at 300 °C for 1 h; and (c) as-synthesised, M marks the diffraction peaks of monoclinic ZrO2; and C the diffraction peaks of YSZ.
Materials 06 04082 g005
Figure 6. Rietveld refinement of the sample treated at 400 °C for 1 h with (a) the experimental data, sample inclusive internal standard; and (b) the calculated diffractogram.
Figure 6. Rietveld refinement of the sample treated at 400 °C for 1 h with (a) the experimental data, sample inclusive internal standard; and (b) the calculated diffractogram.
Materials 06 04082 g006

2.3. Intraparticle Route towards YSZ

As mentioned before, zirconium ions are very sensitive to hydrolysis compared to yttrium ions. The hydrolysis of zirconium even occurs in strongly acidic solutions and the formation of polynuclear species takes the upper hand. Due to the extremely low solubility of these species (<10−8 M), even at low pH ranges, precipitation will appear [20]. Introducing chelating ligands can be a possible solution to lower the hydrolysis rate of the zirconium ions. The ligands can form complexes with both zirconium and yttrium ions. This will lower the amount of free ions in the solution. Hereby, hydrolysis of yttrium and zirconium can be controlled and tuned. Several ligands such as CA, nitrilotriacetic acid (NTA) and ethylene diaminetetraacetic acid (EDTA) were tested. Only the citric acid precursor (solution B) exposed the presence of the correct stoichiometric Y/Zr ratio after microwave treatment and several washing steps. The stoichiometry was determined by XRF measurements. The NTA precursors (solution C) were microwave treated for five to 10 min at 110 °C. Large precipitates were observed but no YSZ was formed. When EDTA precursors (solution D) were microwave treated for 60 min at 180 °C a stable colloidal solution is obtained, however, the quantity of reacted yttrium could not be controlled. XRF measurements showed a large variety in amount of yttrium present in the YSZ particles. The amount of yttrium inside the synthesised particles fluctuates from 0 to 6 mol%, which makes it hard to synthesise 8YSZ nanoparticles in a controlled manner.
Solution B at pH 7 is microwave treated during 10 min at 180 °C. After purification and washing, the hydrodynamic radius of the particles is determined by DLS (Figure 7) and polydispersive behaviour is observed. One distribution shows particles with an average hydrodynamic radius of 5 nm while the other distribution shows larger particles, which can be explained by aggregation of the smaller particles. However, a volumetric distribution shows monodisperse behaviour due to the correlation between the observed intensities and the particle volumes (Figure 8). The size distribution is reported by relative intensities. To convert the monitored intensity distribution to a volumetric distribution, the volume of a sphere should be taken into account. This makes the intensity proportional to the cube of the particle diameter. Hereby, we can conclude that the amount of agglomerates is limited and most of the particles have an average hydrodynamic radius of 5 nm.
Figure 7. Hydrodynamic radius of solution B microwave treated at 180 °C for 10 min determined by DLS measurements.
Figure 7. Hydrodynamic radius of solution B microwave treated at 180 °C for 10 min determined by DLS measurements.
Materials 06 04082 g007

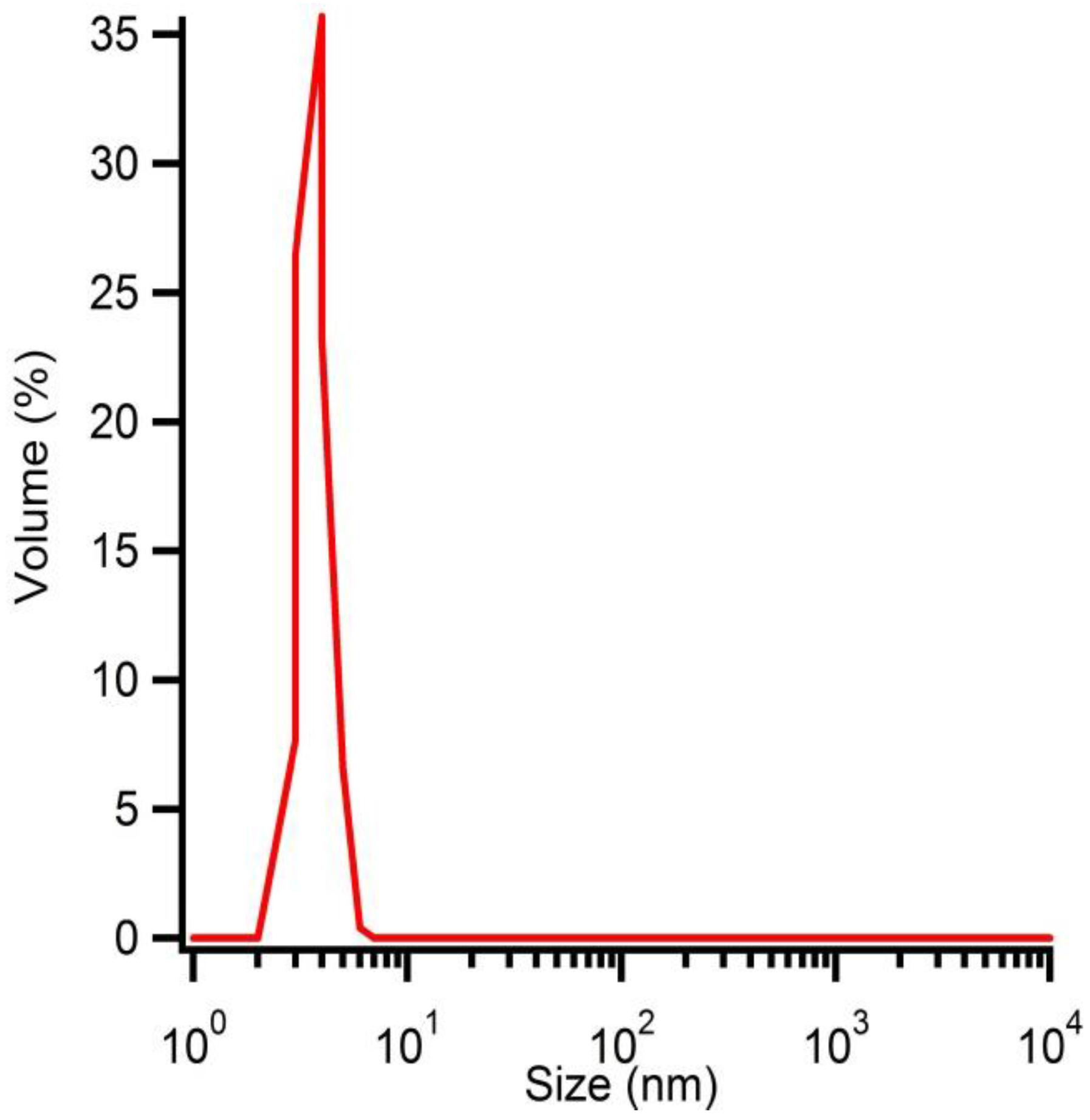

Figure 8. Hydrodynamic radius of solution B microwave treated at 180 °C for 10 min determined by DLS measurements represented as a function of volume distribution.
Figure 8. Hydrodynamic radius of solution B microwave treated at 180 °C for 10 min determined by DLS measurements represented as a function of volume distribution.
Materials 06 04082 g008
The as-synthesised YSZ particles don’t show any form of crystallinity. An additional thermal treatment transforms this colloidal solution into crystalline powders or thin films. As shown in Figure 9, cubic YSZ is formed at 600 °C. All peaks can be assigned to the cubic phase of 8YSZ, pdf card # 30–1468. Also, in this case Rietveld refinement is performed on the sample which is thermal treated at 600 °C (Figure 10). The fit of the calculated data matches the experimental (goodness of fit 1.21) and the formation of cubic 8YSZ is proven.
Figure 9. The influence of thermal processing on the crystallinity of the YSZ nanoparticles shown by XRD measurements (a) treated at 600 °C for 1 h; (b) treated at 400 °C for 1 h; and (c) as-synthesised.
Figure 9. The influence of thermal processing on the crystallinity of the YSZ nanoparticles shown by XRD measurements (a) treated at 600 °C for 1 h; (b) treated at 400 °C for 1 h; and (c) as-synthesised.
Materials 06 04082 g009
Figure 10. Rietveld refinement of the sample treated at 600 °C with (a) the experimental data, sample inclusive internal standard; and (b) the calculated diffractogram.
Figure 10. Rietveld refinement of the sample treated at 600 °C with (a) the experimental data, sample inclusive internal standard; and (b) the calculated diffractogram.
Materials 06 04082 g010
The crystallisation temperature of the amorphous particles via the intraparticle route is 200 °C higher than the interparticle approach which makes this a more energy consuming process. When stable crystalline YSZ nanoparticles in aqueous solution could be obtained, the intraparticle approach would be preferred to synthesise thin films. The interparticle route is accompanied by an additional phase transformation as pure zirconia particles are formed in the first step of the process. These monoclinic particles will change to a cubic crystal structure after the interdiffusion of yttrium ions. This phase transformation is associated with a change in crystal lattice dimensions. During thin film processing, a phase transformation is often associated with stresses and cracks [33,34]. Though, the intraparticle route can avoid the diffusion step of the yttrium ions into the zirconia matrix, the obtained amorphous YSZ particles need a higher post-thermal treatment. The intraparticle approach can be most promising if the crystallinity of the YSZ particles could be improved.

3. Experimental Section

The microwave assisted synthesis of the aqueous ZrO2 precursor starts by dissolving ZrO(NO3)2•xH2O (Sigma Aldrich, St. Louis, MO, USA) in deionised water (0.05 µS/cm at 25 °C). When a clear solution is obtained, 2.5 wt% of PEG 1000 (Alfa Aesar, Ward Hill, MA, USA) is added and a final concentration of 0.33 mol/L Zr4+ ions at pH 0.9 is obtained (solution A). Two millilitre of the precursor is treated by a microwave assisted hydrothermal treatment (10 mL glass microwave tube—CEM discover microwave device operating at 2.45 GHz) at different temperatures and reaction times. The suspensions are purified by addition of a non-solvent mixture of ethyl acetate (Carl Roth, Karlsruhe, Germany) and ethanol (Carl Roth). The addition of citric acid (Carl Roth) and ethanolamine (Sigma Aldrich) made it possible to restabilise the ZrO2 nanoparticles in water at a neutral pH level after the purification procedure.
For the formation of 8YSZ colloidal systems an adapted precursor solution is needed. By dissolving ZrO(NO3)2·xH2O (Sigma Aldrich), Y(NO3)3·xH2O (Sigma Aldrich) and citric acid (Carl Roth) in deionised water (0.05 µS/cm at 25 °C) this mixed precursor is obtained (ratio metal ions: citric acid is 1:1). The pH is controlled by addition of ethanolamine (Sigma Aldrich) and/or formic acid (Carl Roth). Finally, the precursor (solution B) contains 0.33 mol/L of Zr4+ ions. The microwave treatment converts this precursor into a colloidal system. solution C and D are prepared via similar recipe.
The particle sizes and particle size distributions are examined by dynamic light scattering (Zetasizer Nano ZS, Malvern Instruments, Worcestershire, UK) & TEM (Jeol JEM Cs-corrected 2200FS, Peabody, MA, USA, operating at 200 kV). Specimens for TEM studies were prepared by adding a drop of purified aqueous sol onto a 300 mesh holey carbon grid. The X-ray diffraction set-up (Thermo Scientific ARL X' tradiffractometer, Waltham, MA, USA, Cu Kα = 1.5405 Å) is used to determine the crystallinity and crystal phases. The samples are measured in a θ–2θ geometry using a 0.02° stepsize and 1 s step couting time. When necessary the internal standard approach was selected to determine the exact crystalline phase. The samples are mixed with 10 wt% ZnO (internal standard) and side loaded to a special sample holder to reduce preferential orientation effects. TOPAS-Academic V4.1 software was used to perform Rietveld refinement [28]. X-ray fluorescence (Rigaku NEX CG, Tokyo, Japan) is applied to analyze the amounts of yttrium and zirconium in the YSZ samples. NMR experiments such as 1D proton and 2D NOESY (Bruker 500 MHz AVANCE III, Billerica, MA, USA) were performed to identify the presence of coordinating ligands fixed to the particle surface. Towards the NMR measurements, the aqueous sols are mixed with 5 v% D2O and measurements are performed using pulse sequences from the standard Bruker library. For both the 1D proton and 2D NOESY, the water signal was suppressed using excitation sculpting. The 2D NOESY was measured using a 300 ms mixing time.

4. Conclusions

Via the interparticle route YSZ nanoparticles are obtained. The microwave treated citric acid precursors resulted in amorphous YSZ nanoparticles of 5 nm. Larger aggregates were also formed; with an average size of 200 nm. These amorphous particles are transformed to crystallinie YSZ particles through a thermal treatment at 600 °C during 1 hour. Further research is needed to obtain crystalline YSZ particles without an additional calcination step. In this study, lower fabrications temperatures can be addressed via the interparticle route. It allows the synthesis of YSZ powders at 400 °C. Therefore, aqueous colloidal solutions of monoclinic zirconia nanoparticles are synthesised by microwave treatments at 140–160 °C during 5–60 min. The polymerisation of the tetrameric zirconium species result in the formation of secondary particles with an average size of 30–50 nm. The addition of ethanolamine and citric acid after synthesis helps to stabilise the colloids formed at neutral pH levels instead of 0.9. A 1H NMR study resulted in the confirmation that both ligands interact with the particle surfaces and contribute to the stabilisation of the particles. Both ligands contribute to the steric stabilisation of the colloids at neutral pH levels. Finally, crystalline 8YSZ is obtained when 16 mol% of yttrium nitrate hydrate is added to the colloidal solution. A mild thermal process converts the monoclinic zirconia into cubic YSZ.

Conflicts of Interest

The authors declare no conflict of interest.

Acknowledgments

The authors want to thank Johan Van der Eycken (Department of Organic Chemistry–Ghent University) for use of the microwave equipment, Zeger Hens (Department of Inorganic and Physical Chemistry–Ghent University) for the use of the XRF set-up, Glenn Pollefeyt (Department of Inorganic and Physical Chemistry–Ghent University) for TEM measurements, Tom Planckaert and Koen Vandaele (Department of Inorganic and Physical Chemistry –Ghent University) for the XRD measurements and Bart Lucas (Faculty of Pharmaceutical Sciences–Ghent University) for the use of the zetasizer. The NMR equipment was funded through a grant from the Hercules Foundation (AUGE/09/006).

References

  1. Brus, L. Eectronic wave-functions in semiconductor clusters—Experiment and theory. J. Phys. Chem. 1986, 90, 2555–2560. [Google Scholar]
  2. Hofmann, H. Ceramic particles and layers for functional application. J. Eur. Ceram. Soc. 2009, 29, 1235–1243. [Google Scholar] [CrossRef]
  3. Kumar, K.N.P.; Keizer, K.; Burggraaf, A.J.; Okubo, T.; Nagamoto, H.; Morooka, S. Densification of nanostructured titania assisted by a phase-transformation. Nature 1992, 358, 48–51. [Google Scholar] [CrossRef]
  4. Okubo, T.; Nagamoto, H. Low-temperature preparation of nanostructured zirconia and YSZ by sol-gel processing. J. Mater. Sci. 1995, 30, 749–757. [Google Scholar] [CrossRef]
  5. Arin, M.; Lommens, P.; Hopkins, S.C.; Pollefeyt, G.; Van der Eycken, J.; Ricart, S.; Granados, X.; Glowacki, B.A.; Van Driessche, I. Deposition of photocatalytically active TiO2 films by inkjet printing of TiO2 nanoparticle suspensions obtained from microwave-assisted hydrothermal synthesis. Nanotechnology 2012, 23. [Google Scholar] [CrossRef]
  6. Gil, M.C.; Van Driessche, I.; Van Gils, S.; Lommens, P.; Castelein, P.; de Buysser, K. High-throughput analysis for preparation, processing and analysis of TiO2 coatings on steel by chemical solution deposition. J. Alloys Comp. 2012, 540, 170–178. [Google Scholar] [CrossRef]
  7. Gressel-Michel, E.; Chaumont, D.; Stuerga, D. From a microwave flash-synthesized TiO2 colloidal suspension to TiO2 thin films. J. Colloid Interf. Sci. 2005, 285, 674–679. [Google Scholar] [CrossRef]
  8. Witz, G.; Shklover, V.; Steurer, W.; Bachegowda, S.; Bossmann, H.P. Phase evolution in yttria-stabilized zirconia thermal barrier coatings studied by rietveld refinement of X-ray powder diffraction patterns. J. Am. Ceram. Soc. 2007, 90, 2935–2940. [Google Scholar] [CrossRef]
  9. Ormerod, R.M. Solid oxide fuel cells. Chem. Soc. Rev. 2003, 32, 17–28. [Google Scholar] [CrossRef] [PubMed]
  10. Lee, J.S.; Matsubara, T.; Sei, T.; Tsuchiya, T. Preparation and properties of YO3-doped ZrO2 thin films by the sol-gel process. J. Mater. Sci. 1997, 32, 5249–5256. [Google Scholar] [CrossRef]
  11. Pawlewicz, W.T.; Hays, D.D. Microstructure control for sputter-deposited ZrO2, ZrO2·CaO and ZrO2·Y2O3. Thin Solid Films 1982, 94, 31–45. [Google Scholar] [CrossRef]
  12. Tcheliebou, F.; Boulouz, M.; Boyer, A. Electrical behaviour of thin ZrO2 films containing some ceramic oxides. Mater. Sci. Eng. B 1996, 38, 90–95. [Google Scholar] [CrossRef]
  13. Schlichting, K.W.; Padture, N.P.; Klemens, P.G. Thermal conductivity of dense and porous yttria-stabilized zirconia. J. Mater. Sci. 2001, 36, 3003–3010. [Google Scholar] [CrossRef]
  14. Inyu, P.; Jungmin, A.; Jongmo, I.; Jinyi, C.; Dongwook, S. Influence of rheological characteristics of YSZ suspension on the morphology of YSZ films deposited by electrostatic spray deposition. Ceram. Int. 2012, 38, S481–S484. [Google Scholar] [CrossRef]
  15. Lenormand, P.; Caravaca, D.; Laberty-Robert, C.; Ansart, F. Thick films of YSZ electrolytes by dip-coating process. J. Eur. Ceram. Soc. 2005, 25, 2643–2646. [Google Scholar] [CrossRef] [Green Version]
  16. Kim, S.D.; Hyun, S.H.; Moon, J.; Kim, J.H.; Song, R.H. Fabrication and characterization of anode-supported electrolyte thin films for intermediate temperature solid oxide fuel cells. J. Power Sources 2005, 139, 67–72. [Google Scholar] [CrossRef]
  17. Minh, N.Q. Solid oxide fuel cell technology-features and applications. Solid State Ion. 2004, 174, 271–277. [Google Scholar] [CrossRef]
  18. Xu, X.Y.; Xia, C.R.; Huang, S.G.; Peng, D.K. YSZ thin films deposited by spin-coating for IT-SOFCs. Ceram. Int. 2005, 31, 1061–1064. [Google Scholar] [CrossRef]
  19. Van Driessche, I.; Hopkins, S.; Lommens, P.; Granados, X.; Andreouli, D.; Glowacki, B.; Arabatzis, I.M.; Arin, M.; Ricart, S.; Fasaki, I.; et al. Efficient and environmentally friendly nk-jet printing of ceramic thin films. Nanosci. Nanotechnol. Lett. 2013, 5, 466–474. [Google Scholar]
  20. Ekberg, C.; Kallvenius, G.; Albinsson, Y.; Brown, P.L. Studies on the hydrolytic behavior of zirconium (IV). J. Solut. Chem. 2004, 33, 47–79. [Google Scholar] [CrossRef]
  21. Dufour, F.; Cassaignon, S.; Durupthy, O.; Colbeau-Justin, C.; Chaneac, C. Do TiO2 nanoparticles really taste better when cooked in a microwave oven? Eur. J. Inorg. Chem. 2012, 2707–2715. [Google Scholar]
  22. Gerbec, J.A.; Magana, D.; Washington, A.; Strouse, G.F. Microwave-enhanced reaction rates for nanoparticle synthesis. J. Am. Chem. Soc. 2005, 127, 15791–15800. [Google Scholar] [CrossRef] [PubMed]
  23. Galema, S.A. Microwave chemistry. Chem. Soc. Rev. 1997, 26, 233–238. [Google Scholar] [CrossRef]
  24. Baghbanzadeh, M.; Carbone, L.; Cozzoli, P.D.; Kappe, C.O. Microwave-assisted synthesis of colloidal inorganic nanocrystals. Angew. Chem. Int. Ed. 2011, 50, 11312–11359. [Google Scholar] [CrossRef]
  25. Hu, X.L.; Gong, J.M.; Zhang, L.Z.; Yu, J.C. Continuous size tuning of monodisperse ZnO colloidal nanocrystal clusters by a microwave-polyol process and their application for humidity sensing. Adv. Mater. 2008, 20, 4845–4850. [Google Scholar] [CrossRef]
  26. Livage, J. Sol-gel synthesis of heterogeneous catalysts from aqueous solutions. Catal. Today 1998, 41, 3–19. [Google Scholar] [CrossRef]
  27. Matsui, K.; Ohgai, M. Formation mechanism of hydrous zirconia particles produced by the hydrolysis of ZrOCl2 solutions: III. Kinetics study for the nucleation and crystal-growth processes of primary particles. J. Am. Ceram. Soc. 2001, 84, 2303–2312. [Google Scholar] [CrossRef]
  28. Coelho, A. TOPAS-Academic; Version 4.1; Coelho Software: Brisbane, Austrilia, 2007. [Google Scholar]
  29. Vernieuwe, K.; Lommens, P.; Van den Broeck, F.; Martins, J.C.; Van Driessche, I. Microwave synthesis of ZrO2-YSZ particles from aqueous precursor solutions. In MRS Spring Meeting, San Francisco, CA, USA, 9–13 April 2012; Materials Research Society: Warrendale, PA, USA, 2012. [Google Scholar] [CrossRef] [Green Version]
  30. Fritzinger, B.; Moreels, I.; Lommens, P.; Koole, R.; Hens, Z.; Martins, J.C. In situ observation of rapid ligand exchange in colloidal nanocrystal suspensions using transfer NOE nuclear magnetic resonance spectroscopy. J. Am. Chem. Soc. 2009, 131, 3024–3032. [Google Scholar] [CrossRef] [PubMed]
  31. Hens, Z.; Martins, J.C. A solution NMR toolbox for characterizing the surface chemistry of colloidal nanocrystals. Chem. Mater. 2013, 25, 1211–1221. [Google Scholar] [CrossRef]
  32. Gibson, I.R.; Irvine, J.T.S. Qualitative X-ray diffraction analysis of metastable tetragonal (t') zirconia. J. Am. Ceram. Soc. 2001, 84, 615–618. [Google Scholar] [CrossRef]
  33. Kuwabara, A.; Tohei, T.; Yamamoto, T.; Tanaka, I. Ab initio lattice dynamics and phase transformations of ZrO2. Phys. Rev. B 2005, 71. [Google Scholar] [CrossRef]
  34. Zhao, X.Y.; Vanderbilt, D. Phonons and lattice dielectric properties of zirconia. Phys. Rev. B 2002, 65. [Google Scholar] [CrossRef]
