Self-Assembled M2L4 Nanocapsules: Synthesis, Structure and Host-Guest Recognition Toward Square Planar Metal Complexes †

1
Sorbonne Universités, UPMC Univ Paris 06, Université Pierre et Marie Curie, Institut Parisien de Chimie Moléculaire (IPCM) UMR 8232, 4 place Jussieu, 75252 Paris cedex 05, France
2
CNRS, Centre National de la Recherche Scientifique, Institut Parisien de Chimie Moléculaire (IPCM) UMR 8232, 4 place Jussieu, 75252 Paris cedex 05, France
3
NMR Services of Ecole Nationale Supérieure de Chimie de Paris, Institut de Recherche de Chimie Paris (IRCP) UMR 8247, Chimie-ParisTech, 11 rue Pierre et Marie Curie, 75231 Paris Cedex 05, France
*
Author to whom correspondence should be addressed.
Dedicated to Dr. Michel Gruselle on the occasion of his 69th birthday.
Materials 2014, 7(1), 287-301; https://doi.org/10.3390/ma7010287
Submission received: 1 October 2013 / Revised: 28 November 2013 / Accepted: 17 December 2013 / Published: 9 January 2014
(This article belongs to the Special Issue Supramolecular Cage Complexes)

Abstract

: Metallosupramolecular cages of the general formulas [M2(L)4][X]4 can be self-assembled in good yields, where M = Pd, X = NO3, L = L1 (1a); M = Pd, X = OTf, L = L1 (1b); M = Pt, X = OTf, L = L1 (2); M = Pd, X = OTf, L = L2 (3); L1 = 1,3-bis(pyridin-3-ylethynyl)-5-methoxybenzene; and L2 = 2,6-(pyridin-3-ylethynyl)-4-methoxyaniline, respectively. These cages have been fully characterized using 1H, 13C NMR, elemental analysis, IR spectroscopy, and electrospray mass spectrometry. Additionally the molecular structure of [Pd2(L1)4][OTf]4 (1b) was confirmed using single crystal X-ray diffraction. The capacity of central cavities of M2L4 cages to accommodate square planar metal complexes was investigated. In particular, the tetracationic cage [Pd2(L2)4][OTf]4 (3) was found to encapsulate the anionic metal complex [PtCl4]2− through electrostatic interactions and also via hydrogen bonding with the amino groups of the bridging ligand displayed by this nanocage.

1. Introduction

Since the discovery of crown ether, cryptands, and cavitands, prodigious progress in the host-guest chemistry field have been accomplished. For example, during the past few decades, there has been an increasing effort concerning the rational design of new functional metal organic materials, such as discrete coordination cages. These architectures generate tunable shape and size cavities, which offer potential applications as containers for storage, recognition, delivery, or catalysis [119]. Recently, it was shown that these hosts are capable of encapsulating inorganic catalysts, larger substrates, and even small peptide sequences [20,21]. Classically, water-soluble polyhedra are effective hosts for aromatic organic guests by hydrophobic effect [12,2123]. In the same way, negatively charged cages can accommodate cationic organic or complex molecules [2427]. However, it should be noted that examples reported of positively charged inorganic receptors capable of encapsulating organometallic complexes are limited [2833]. The molecular recognition property towards the guest relies on the establishment of weak, simultaneous, and selective interactions. Fujita and co-workers reported, for example, metal-metal d-d interaction through the discrete stacking of square planar complexes within a M4L6 coordination cage [30]. Clever and coworker described the ability of a M2L4 cage to bind bis(anionic)guest compounds or to form a discrete stack of platinum complexes of the Magnus’ salt type [3132]. Moreover Crowley and coworkers recently published the preparation of a dipalladium(II) cage complex using 2,6-bis(pyridin-3-ylethynyl)pyridine ligand, capable of binding two molecules of cis-platin within its cavity [33]. A strong hydrogen-bonding interaction between the amine ligands of the cis-platin guest and a central pyridine moiety of the cage was observed.

In this area, our group has developed the use of semi-rigid bidentate ligand to construct a variety of appealing structures, such as coordination polymers, metallomacrocycles, and cages [3439]. For example, we have established the synthesis of some metallocryptands and metallocryptates M2L3, based on Cp*Rh(III) and Cp*Ir(III), as well discrete self-assembled M2L4 capsules, based on Co(II) and Cu(II), that are capable of encapsulating weakly coordinated anions such as BF4 and PF6 [3440]. These anions play a pivotal role as template director to construct such metallocages during the self-assembly process. Molecular recognition takes place via hydrogen bonding—anion or on metal—anion weak interactions and therefore the preparation of these architectures is limited to only weakly coordinating anions. Thus, our efforts were then devoted to prepare related metallocages but with a highly rigid ligand, such as the 1,3-bis(pyridin-3-ylethynyl)-5-methoxybenzene L1, the latter is more coordinating to the metal ions and recently we have demonstrated that such a ligand leads successfully to the formation of coordination polymers [41]. More recently, we described the synthesis of a novel angular tetradentate rigid ligand, which allowed the preparation of meso-helicates with large nonocavities. Pursuing our research in this field, herein, we report the preparation and structural characterization of new tetragonal metal (II) cages of type [M2(L)4][X]4 (13), M = Pd, X = NO3, L = L1 (1a); M = Pd, X = OTf, L = L1 (1b); M = Pt, X = OTf, L = L1 (2); M = Pd, X = OTf, L = L2 (3) using the rigid assembling bidentate ligands 1,3-bis(pyridin-3-ylethynyl)-5-methoxybenzene (L1) and 2,6-(pyridin-3-ylethynyl)-4-methoxyaniline (L2). The solution behavior as well as the capacity of these metallocages to host square planar organometallic complexes are presented and discussed.

2. Results and Discussion

2.1. Synthesis and Characterization

The bidentate assembling ligands 1,3-bis(pyridin-3-ylethynyl)-5-methoxybenzene L1 and 2,6-(pyridin-3-ylethynyl)-4-methoxyaniline L2 are obtained from our previously described procedure using a Pd/Cu catalyzed Sonogashira cross-coupling reaction [41]. The advantage of these ligands reside in its rigidity and the presence of two ethynylpyridine units to strongly coordinate two metal centers and generate discrete metallocages with cavities instead of polymers assemblies. Treatment of two equivalents of L1 with Pd(NO3)2·xH2O in a solution of Dimethyl Sulfoxide (DMSO) at room temperature for 30 min and followed by reaction work-up provided a white microcrystalline precipitate in 69% yield which was characterized as [Pd2(L1)4][NO3]4 (1a) (Scheme 1). However, this metallocage is only soluble in DMSO. The solubility properties of such supramolecular architectures being highly dependent on counteranions, we decided therefore to prepare the analogous cage associated to triflate anions. In a similar way, the supramolecular cage [Pd2(L1)4][OTf]4 (1b) was obtained by addition of L1 to an acetonitrile solution of freshly prepared [Pd(CH3CN)4][OTf]2. Moreover, the methodology was extended to platinum which allowed the preparation of metallocage [Pt2(L1)4][OTf]4 (2) in 84% yield. In addition, using the functionalized ligand L2, the metallocage [Pd2(L2)4][OTf]4 (3) was isolated and characterized as its triflate salt. The later complexes were isolated pure and analyzed elementally and displayed better solubility in some common organic solvent, such as acetonitrile and acetone. The infrared spectrum of these four M2L4 species showed the presence of the alkyne –C≡C– stretching bands at the range of 2218–2221 cm−1 for 12 and 2205 cm−1 for 3, higher than that observed for the free ligand at 2210 and 2200 cm−1 for, respectively, L1 and L2. Furthermore, a large band attributed to the counter anion (nitrate or triflate) was visible at 1314 cm−1 or at the range of 1223–1255 cm−1 for the metallocage(s) 1a and 1b3, respectively.

Moreover, these molecular capsules appeared to be stable both in the solid state and in solution the integrity of the cages is maintained. For example, the electrospray mass spectrum of [Pd2(L1)4][OTf]4 (1b) clearly indicates the formation of [PdL4] species in association with varying numbers of triflate counterions (Figure 1). The 1H NMR spectrum of [M2L4][X]4 cages were recorded either in DMSO-d6 or CD3CN. Upon cage formation with Pd(II) or Pt(II) salts, the spectroscopic data were consistent with the higher symmetry of the assemblies. Furthermore, the formation of the cages induced a downfield shift in the NMR spectrum relative to the free ligand, particularly for Hj, Hk owing to their proximity to the metal center (see Figure 2).

Several attempts have been performed to obtain suitable crystals of 13 for an X-ray diffraction study. Unfortunately, crystals of sufficient quality could not be obtained for 1a, 2, and 3; however, crystals of cage [Pd2(L1)4][OTf]4 (1b) were grown by vapor diffusion of diethyl ether into a solution of the complex in CH3CN (vide infra).

2.1.1. X-ray Molecular Structure of [Pd2(L1)4][OTf]4 (1b)

The metallocage 1b crystallized in the triclinic space group P-1. The structure shows the formation of a [Pd2L4] tetragonal cage where each Pd adopts a square planar geometry (Figure 3). The structure shows also that the four rigid bidentate ligands L1 are chelating to two metal centers, thus that each Pd(II) metal center is bound by pyridine of four different bridging ligand L1 (Figure 3a). The Pd–N bond distances lie in the range of 2.023(4) Å to 2.025(4) Å in accord to those reported in the literature for palladium complexes with pyridyl ligands reported by Hooley and others [17,3033,42]. The Pd–Pd distance is 11.826(1) Å and the average distance between two facing phenyl rings is nearly 11 Å. We also note the presence of π-π interactions (3.333 Å to 3.508 Å) between two individual M2L4 complexes via the central arene and the acetylene groups of bridging ligand L1 to form a 1D supramolecular chain constituted of 3D capsules. (Figure 3b) Further, solvent molecules and one disordered triflate are present inside the cage cavity, which does not show any interaction with the framework of the nanocage. Then we looked at their solution behavior in order to probe whether the encapsulated triflate anion inside the cavity exchanges with the free ones. Thus a VT 19F-NMR study was undertaken.

2.1.2. Variable Temperature 19F-NMR Study on [Pd2(L1)4][OTf]4 (1b) and [Pd2(L2)4][OTf]4 (3)

Thus, we first studied the solution behavior of [Pd2(L1)4][OTf]4 (1b) by VT 19F NMR in the range from −20 °C to 30 °C. Due to technical limitation we were unable to achieve lower temperature. The 19F-NMR spectra recorded in CD3CN showed the presence of only one signal at −78.3 ppm suggesting a fast exchange between the encapsulated and the free anions in the range of temperature of study. However, for the metallocage [Pd2(L2)4][OTf]4 (3) displaying amino groups in the assembling ligand L2, the 19F-NMR spectra recorded in CD3CN in the above range of temperatures showed that initially the singlet at −78.8 pm broadens upon lowering the temperature and at −20 °C the spectrum displayed a signal at −79.9 ppm and a broad peak centered at −76.4 ppm that we tentatively attribute it to the encapsulated triflate anion (see Figure 4). These data suggest that in metallocage 3, the encapsulated and free anions are exchanging but at a slower rate compared to that of [Pd2(L1)4][OTf]4 (1b). We feel that, the different behavior of 3 might be attributed to the presence hydrogen bonding interactions between encapsulated triflate and the endohedral amine groups of ligand L2 pointing towards the interior of the cavity, which holds the anion more strongly than in other metallocages with ligand L1 that does not contain any amino groups. These results prompted us to investigate the host-guest properties of these capsules and more particularly towards square planar complexes.

2.2. Host-Guest Chemistry

We reasoned that the host-guest recognition is originated from the electrostatic interactions between the anionic guest and the positively charged assembly, furthermore, the presence of amino groups in the bridging ligand should strengthen such interaction, as shown by the 19F-NMR study described in the previous section. Due to solubility limitation, the host-guest studies were carried out in DMSO-d6 solution.

No changes were observed in the 1H NMR spectra upon addition of whether Pd(acac)2 or cis-platin to a solution of cages 13, suggesting that no host-guest binding had occurred with neutral complexes. Despite this unsuccessful results, we investigated other metal complexes but with anionic charge. Thus, when one equivalent of [PtCl4][n-Bu4N]2 was added to a DMSO solution of cage [Pd2(L1)4][OTf]4 (1b), the 1H NMR spectrum allowed us to identify the formation of a new product relative to the starting material 1b suggesting partial formation of the host-guest [[PtCl4] ⊂ Pd2(L1)4][OTf]2 complex (Figure 5). Further addition of excess of PtCl42− to the reaction mixture did not achieve full incorporation of one equivalent of the guest as expected, but led to the decomposition of the host-guest supramolecular assembly.

Thus, we then investigated the behavior of the metallocage [Pd2(L2)4][OTf]4 (3), where the assembling ligand L2 contains endohedral amino groups. Addition of one equivalent of [PtCl4][n-Bu4N]2 to 3 produced immediate significant peak shifts in the 1H-NMR spectrum relative to the starting material, which suggested the exclusive formation of the host-guest complex [[PtCl4] ⊂ Pd2(L2)4][OTf]2 (4) (Figure 5). The incorporation of the negatively charged guest inside the cage 3 resulted in a characteristic downfield shift for the inward pointing hydrogen of the amino groups of the metallocage 4. Furthermore, the signals attributed to hydrogens Hk, Hj, on either side of the coordinating nitrogen moved from 9.47 and 9.23 ppm in metallocage [Pd2(L2)4][OTf]4 (3) to 9.37 and 9.77 ppm in [[PtCl4]⊂Pd2(L2)4][OTf]2 (4). In addition, as mentioned previously, the downfield shift assigned to the protons of amino groups pointing into the center of the cavity, suggested a strong interaction between NH2 and the anionic guest. On the other hand, no changes in the 1H NMR spectrum of 4 occurred when leaving the solution to stand over a long period of time, suggesting that this host-guest system is kinetically and thermodynamically stable.

To confirm the formation of the host-guest system [[PtCl4] ⊂ Pd2(L2)4][OTf]2 (4), the reaction was repeated in CH3CN, and a pale orange precipitate was then isolated and characterized by 1H NMR as [[PtCl4] ⊂ Pd2(L2)4][OTf]2 (4). Moreover, the existence of assembly 4 in solution was corroborated by electrospray mass spectroscopy. The +2 charge state of the [PtCl4] ⊂ [Pd2(L2)4] fragment appears at m/z = 925.3 and was verified by comparison of the observed and theoretical isotopic patterns (Figure 6). Unfortunately, all our attempts to obtain crystals of sufficient quality of [[PtCl4] ⊂ Pd2(L2)4][OTf]2 (4) for an X-ray structural determination were unsuccessful.

All over these results are highly important to the area of host-guest chemistry of metallocages as they suggest the necessity to have two complementary effects; namely electrostatic interactions and endohedral hydrogen functionality in the metallocage, which operate in synergy for a successful encapsulation of the kinetically labile metal complex [PtCl4]2−.

3. Experimental Section

3.1. General Information and Materials

All solvents used were reagent grade or better. Commercially available reagents were used as received. L1, L2 and [Pd(CH3CN)4][OTf]2 were prepared according to published methods [41,43]. All experimental manipulations were carried out under argon using Schlenk techniques. IR spectra were recorded on a Bruker Tensor 27 (Bruker Corp., Rheinstetten, Germany) equipped with a Harrick ATR. Elemental analyses were performed by the microanalytical laboratory of Institut de Chimie des Substances Naturelles, Gif-sur Yvette. Positive ESI mass spectra were obtained using a triple quadrupole mass spectrometer (Quattro II Micromass, Waters, UK). Automatic data acquisition was processed using the software Masslynx V4.0. NMR experiments were carried out on a Bruker Avance II 300 MHz or Bruker Avance III HD 400 MHz spectrometer operating at 300 K with chemical shifts references to residual solvent peaks. Chemical shifts are reported as parts per million (ppm) and coupling constant (J) in hertz (Hz). Standard abbreviations indicating multiplicity were used as follows: m = multiplet; t = triplet; d = doublet; s = singlet and b = broad.

3.2. Synthesis

Synthesis of metallocage [Pd2(L1)4][NO3]4 (1a): Ligand L1 (31.2 mg, 0.1 mmol) was added to a solution of Pd(NO3)2·xH2O (87 mg, 0.05 mmol) in DMSO (2 mL). The brown solution was stirred at room temperature 30 min. Hexane and acetone were added (ratio 1:2) to obtain a white-off solid. The solid was collected by filtration and dried under vacuum: 31 mg of white-off solid (69%) characterized as [Pd4(L1)4][NO3]4 1a; IR (ATR): (ν, cm−1) ν(C≡C)= 2218, ν(N–O)= 1302 cm−1; 1H NMR (300 MHz, DMSO-d6): δ 9.73 (m, 2H, Hk), 9.37 (d, J = 6 Hz, 2H, Hj), 8.25 (dd, J = 3, 9 Hz, 2H, Hh), 7.81 (t, J = 6 Hz, 2H, Hj), 7.52 (s, 1H, Hd), 7.28 (s, 2H, Hb), 3.81 (s, 3H, OMe); 13C NMR (75 MHz, DMSO-d6): δ 162.1, 159.4, 150.1, 153.1, 145.6, 122.9, 122.1, 105.6, 98.7, 93.7, 84.9, 55.7; Anal. calcd for [Pd2(L1)4]·[NO3]4·5DMSO: C 53.94, H 4.14, N 8.03; Found: C 51.39, H 4.04, N 8.14.

Synthesis of metallocage [Pd2(L1)4]OTf]4 (1b): Ligand L1 (36.2 mg, 0.116 mmol) was added to a solution of [Pd(CH3CN)4]OTf]2 (33 mg, 0.058 mmol) in CH3CN (15 mL). The yellow solution was stirred at room temperature 30 min, during which time the solution initially yellow turns orange. The solvent was removed under vacuum. Hexane (10 mL) was then added. The solids were collected by filtration from the n-hexane solution, washed with CH2Cl2 (5 mL), diethylether (3 × 5 mL), and dried under vacuum: 40 mg of white-off solid (67%) This supramolecular cage was recrystallized from CH3CN/Et2O to afford quantitatively yellow crystals and was characterized as [OTf⊂(Pd2(L1)4][OTf]3 1b; IR (ATR): (ν, cm−1). ν(C≡C) = 2221, ν(OTf) = 1223 cm−1, 1H NMR (400 MHz, CD3CN): δ 9.47 (d, J = 1.8 Hz, 2H, Hk), 9.11 (dd, J = 5.9, 1.3 Hz, 2H, Hj), 8.05 (ddd, J = 8.1, 1.8, 1.3 Hz, 2H, Hh), 7.61 (dd, J = 8.1, 5.9 Hz, 2H, Hi), 7.56 (t, J = 1.4 Hz, 1H, Hd), 7.23 (d, J = 1.4 Hz, 2H, Hb), 3.81 (s, 3H, OMe); 13C NMR (100 MHz, CD3CN: δ 160.9 (Ca), 154.1 (Ck), 151.0 (Cj), 143.8 (Ch), 128.4 (Ci), 127.7 (Cd), 124.7 (Cg), 124.2 (Cc), 119.9 (Cb), 94.9 (Ce), 85.1 (Cf), 56.5 (COMe); ES-MS (m/z): [Pd2(L1)4]4+: 363.60; found: 363.8, [Pd2(L1)4(CF3SO3)]3+: 534.70; found: 534.5, [Pd2(2)4(CF3SO3)2]2+: 876.20; found: 875.6; Anal. calcd for [Pd2(L1)4.[OTf]4.CH2Cl2: C 50.55, H 3.10, N 5.07; Found: C 50.50, H 3.15, N 5.15.

Synthesis of metallocage [Pt2(L1)4][OTf]4 (2): AgOTf (29.1 mg, 0.113 mmol) was added to a acetonitrile solution of [Pt(COD)Cl2. The solution was stirred in the dark at room temperature for 10 h, during which time a white precipitate of AgCl formed. The filtrate was transferred to a schlenk via cannula. An acetonitrile solution of ligand L1 (35.4 mg, 0.113 mmol) was then added via cannula to the solution containing [Pt(CH3CN)4][OTf]2. The solution was let to stir at room temperature 3 h, during which time the solution turns pale yellow. The solvent was removed under vacuum. Hexane (10 mL) was then added. The solids were collected by filtration from the n-hexane solution, washed with CH2Cl2 (5 mL), diethylether (3 × 5 mL) and dried under vacuum: 53 mg of pale yellow solid (84%) characterized as [Pt2(L1)4][OTf]4 2; IR (ATR): (ν, cm−1) ν(C≡C)= 2220, ν(OTf)= 1255 cm−1, 1H NMR (300 MHz, DMSO-d6): δ 8.82 (m, 2H, Hk), 8.60 (m, 2H, Hj), 7.96 (m, 2H, Hh), 7.50 (m, 2H, Hi), 7.37 (s, 1H, Hd), 7.18 (s, 2H, Hb), 3.83 (s, 3H, OMe); 13C NMR (75 MHz, DMSO-d6): δ 154.6, 152.3, 144.0, 135.2, 133.2, 127.5, 122.4, 122.2, 94.2, 85.4, 54.9; Anal. calcd for [Pt2(L1)4][OTf]4: C 48.43, H 3.14, N 7.70; Found: C 47.97, H 3.21, N 7.30.

Synthesis of metallocage [Pd2(L2)4][OTf]4 (3): Ligand L2 (100 mg, 0.30 mmol) was added to a solution of Pd(CH3CN)4][OTf]2 (87 mg, 0.15 mmol) in CH3CN (15 mL). The yellow solution was stirred at room temperature 30 min, during which time the solution initially yellow turns orange. The solvent was removed under vacuum. Hexane (10 mL) was then added. The solids were collected by filtration from the n-hexane solution, washed with CH2Cl2 (5mL), diethylether (3 × 5 mL) and dried under vacuum: 147 mg of orange solid (93%). This supramolecular cage was recrystallized from CH3CN/Et2O to afford quantitatively yellow crystals and was characterized as [Pd2(L2)4][OTf]4 3; IR (ATR): (ν, cm−1) ν(C≡C) = 2205, ν(OTf) = 1236 cm−1; 1H NMR (400 MHz, DMSO-d6): δ 9.46 (d, J = 5.8 Hz, 2H, Hj), 9.23 (s, 2H, Hk), 8.26 (d, J = 8.0 Hz, 2H, Hh), 7.86 (dd, J = 8.0, 5.8 Hz, 2H, Hi), 7.07 (s, 1H, Hb), 5.78 (bs, 2H, NH2), 3.67 (s, 3H, OMe); 13C NMR (100 MHz, DMSO-d6): δ 152.8 (Ck), 150.2 (Cj), 150.1 (Ca), 145.7 (Cd), 142.6 (Ch), 127.6 (Ci), 123.1 (Cg), 119.9 (Cb), 106.2 (Cc), 92.7 (Ce), 90.2 (Cf), 55.8 (C-OMe); ES-MS (m/z): [Pd2(L2)4]4+: 78.07; found: 378.5, [Pd2(L2)4(CF3SO3)]3+:553.75; found: 554.7, [Pd2(L2)4(CF3SO3)2]2+: 05.10; found: 906.3, [Pd2(L2)4(CF3SO3)3]+: 1961.12; found: 1961.10; Anal. calcd for [C88H60F12N12O16Pd2S4]·4H2O: C 48.43, H 3.14, N 7.70; Found: C 47.97, H 3.21, N 7.30.

Synthesis of metallocage [[PtCl4] ⊂ Pd2(L2)4][OTf]2 (4): [PtCl4][n-Bu4N]2 (57.5 mg, 0.07 mmol) was added to a solution of [Pd2(L2)4][OTf]4(3) (147 mg, 0.07 mmol) in CH3CN (5 mL). The solution was stirred at room temperature for 30 min, during which time an orange precipitate formed. The solids were collected by filtration, washed with diethylether (3 × 5 mL), and dried under vacuum: 147 mg of orange solid (93%); This supramolecular cage was characterized as [[Pt(NO2)4] ⊂ Pd2(2)4][OTf]2 4:1H NMR (300 MHz, DMSO-d6): δ 9.77 (m, 2H, Hk), 9.37 (d, J = 6 Hz, 2H, Hj), 8.22 (d, J = 8.1 Hz, 2H, Hh), 7.83 (dd, J = 6, 8.1 Hz, 2H, Hi), 7.07 (s, 1H, Hb), 6.08 (bs, 2H, NH2), 3.69 (s, 3H, OMe); ES-MS (m/z): [[PtCl4] ⊂ Pd2(L2)4]4+: 925.3; found: 925.1.

3.3. NMR Titration Data

For a typical titration experiment, a 6.6 mM solution of cage (3.3 × 10−3 mmol) in DMSO-d6 (0.5 mL) was treated with 3.3×10−2 M solution of [PtCl4][n-Bu4N]2 (13.6 mg, 1.66 × 10−2 mmol, in 0.5 mL) guest, freshly prepared in DMSO-d6 (0.1 mL), followed by an equilibrium time of 5 min prior to the NMR measurement.

3.4. X-Ray Crystal Structure Determination of Metallocage (1b)

X-ray crystal structure determination of metallocage (1b): Data was collected on a Bruker Kappa-APEXII. Unit-cell parameters determination, data collection strategy and integration were carried out with the Bruker APEX2 suite of programs. Multi-scan absorption correction was applied [44]. The structure was solved using SIR92 [45] and refined anisotropically by full-matrix least-squares methods using SHELXL-2013 [46]. Crystallographic data (excluding structure factors) for this structure was deposited at the Cambridge Crystallographic Data Centre with the number CCDC 972857. This data can be obtained, free of charge, from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk.

Crystal data for (1b). Yellow crystal, C84H56N8O4Pd2, 4(CF3O3S), 5(C2H3N), 2(CH4O), triclinic, P-1, a = 12.6470(7) Å, b = 13.1997(7) Å, c = 17.9323(9) Å, α = 94.961(2)°, β = 98.899(2)°, γ = 106.745(2)°, V= 2804.81 Å3, Z = 1, T = 200(1) K, μ = 0.483 mm−1, 32424 reflections measured, 11364 independent (Rint = 0.0326), 8896 observed [I > 2σ(I)], 746 parameters, final R indices R1 [I > 2σ(I)] = 0.0578 and wR2 (all data) = 0.1823, GOF(on F2) = 1.076, max/min residual electron density 1.370/−0.817.

4. Conclusions

In this paper, we have reported the self-assembly of a family of metallocage of the general formulae [M2(L)4][X]4 (13) in high yield with rigid bidentate ligands L1 and L2, based on a diethynylpyridine unit. These nanocapsules possess internal cavities and can be utilized to encapsulate guest molecules. We have indeed demonstrated that cage 3 can efficiently bind one square planar metal [PtCl4][NBu4]2 complex within its cavity. In addition to the purely electrostatic interactions between the dicationic cage and the dianionic guest PtCl42−, this host-guest interaction is also strengthened by the presence of hydrogen bonding between the amino groups of ligand L2, which pointed inward of the cavity and the guest. To our knowledge, this is a rare example displaying the encapsulation of a metal-complex within a nanocage. Our results are highly important for the field of host-guest interactions and namely to the study of chemical transformation by metal complexes within confined spaces.

Acknowledgments

We thank CNRS, Centre National de la Recherche Scientifique and UPMC, Université Pierre et Marie Curie for supporting this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Smulders, M.M.J.; Riddell, I.A.; Browne, C.; Nitschke, J.R. Building on architectural principles for three-dimensional metallosupramolecular construction. Chem. Soc. Rev 2013, 42, 1728–1754. [Google Scholar]
  2. Young, N.J.; Hay, B.P. Structural design principles for self-assembled coordination polygons and polyhedral. Chem. Commun 2013, 49, 1354–1379. [Google Scholar]
  3. Freudenreich, J.; Dalvit, C.; Süss-Fink, G.; Therrien, B. Encapsulation of photosensitizers in hexa- and octanuclear organometallic cages: Synthesis and characterization of carceplex and host–guest systems in solution. Organometallics 2013, 32, 3018–3033. [Google Scholar]
  4. Amouri, H.; Desmarets, C.; Moussa, J. Confined nanospaces in metallocages: Guest molecules, weakly encapsulated anions, and catalyst sequestration. Chem. Rev 2012, 112, 2015–2041. [Google Scholar]
  5. Ajami, D.; Rebek, J. Reversibly expanded encapsulation complexes. Top. Curr. Chem 2012, 319, 57–78. [Google Scholar]
  6. Dong, Z.; Luo, Q.; Liu, J. Artificial enzymes based on supramolecular scaffolds. Chem. Soc. Rev 2012, 41, 7890–7908. [Google Scholar]
  7. Takezawa, H.; Murase, T.; Fujita, M. Temporary and permanent trapping of the metastable twisted conformer of an overcrowded chromic alkene via encapsulation. J. Am. Chem. Soc 2012, 134, 17420–17423. [Google Scholar]
  8. Kopilevich, S.; Gil, A.; Garcia-Ratés, M.; Bonet-Ávalos, J.; Bo, C.; Müller, A.; Weinstock, I.A. Catalysis in a porous molecular capsule: Activation by regulated access to sixty metal centers spanning a truncated icosahedron. J. Am. Chem. Soc 2012, 134, 13082–13088. [Google Scholar]
  9. Pitto-Barry, A.; Zava, O.; Dyson, P.J.; Deschenaux, R.; Therrien, B. Enhancement of cytotoxicity by combining pyrenyl-dendrimers and arene ruthenium metallacages. Inorg. Chem 2012, 51, 7119–7124. [Google Scholar]
  10. Bivaud, S.; Balandier, J.-Y.; Chas, M.; Allain, M.; Goeb, S.; Sallé, M. A metal-directed self-assembled electroactive cage with bis(pyrrolo)tetrathiafulvalene (BPTTF) side walls. J. Am. Chem. Soc 2012, 134, 11968–11970. [Google Scholar]
  11. Murase, T.; Nishijima, Y.; Fujita, M. Cage-catalyzed Knoevenagel condensation under neutral conditions in water. J. Am. Chem. Soc 2012, 134, 162–164. [Google Scholar]
  12. Laughera, Z.; Gibbs, B.C. Water-soluble, self-assembling container molecules: An update. Chem. Soc. Rev 2011, 40, 363–386. [Google Scholar]
  13. Chakrabarty, R.; Mukherjee, P.S.; Stang, P.J. Supramolecular coordination: Self-assembly of finite two- and three-dimensional ensembles. Chem. Rev 2011, 111, 6810–6918. [Google Scholar]
  14. Wiester, M.; Ulmann, P.A.; Mirkin, C. Enzyme mimics based upon supramolecular coordination chemistry. Angew. Chem. Int. Ed 2011, 50, 114–137. [Google Scholar]
  15. Scott, S.O.; Gavey, E.L.; Lind, S.J.; Gordon, K.C.; Crowley, J.D. Self-assembled palladium(II) “click” cages: Synthesis, structural modification and stability. Dalton Trans 2011, 40, 12117–12124. [Google Scholar]
  16. Mirtschin, S.; Slabon-Turski, R.; Scopelliti, S.; Velders, A.H.; Severin, K. A coordination cage with an adaptable cavity size. J. Am. Chem. Soc 2010, 132, 14004–14005. [Google Scholar]
  17. Liao, P.; Langloss, B.W.; Johnson, A.M.; Knudsen, E.R.; Tham, F.S.; Julian, R.R.; Hooley, R.J. Two-componant control of guest binding in a self-assembled cage molecule. Chem. Commun 2010, 46, 4932–4934. [Google Scholar]
  18. Ward, M.D. Polynuclear coordination cages. Chem. Comm 2009, 2009, 4487–4489. [Google Scholar]
  19. Pluth, M.D.; Bergman, R.G.; Raymond, K.N. Proton-mediated chemistry and catalysis in a self-assembled supramolecular host. Acc. Chem. Res 2009, 42, 1650–1659. [Google Scholar]
  20. Saalfrank, R.W.; Maid, H.; Scheurer, A. Supramolecular coordination chemistry: The synergistic effect of serendipity and rational design. Angew. Chem. Int. Ed 2008, 47, 8794–8824. [Google Scholar]
  21. Yoshizawa, M.; Klosterman, J.K.; Fujita, M. Functional molecular flasks: New properties and reactions within discrete, self-assembled hosts. Angew. Chem. Int. Ed 2009, 48, 3418–3438. [Google Scholar]
  22. Murase, T.; Fujita, M. Pericyclic reactions in an aqueous molecular flask. Chem. Rec 2010, 10, 342–347. [Google Scholar]
  23. Pluth, M.D.; Bergman, R.G.; Raymond, K.N. Encapsulation of protonated diamines in a water-soluble, chiral, supramolecular assembly allows for measurement of hydrogen-bond breaking followed by nitrogen inversion/rotation. J. Am. Chem. Soc 2008, 130, 6362–6366. [Google Scholar]
  24. Brumaghim, J.L.; Michels, M.; Pagliero, D.; Raymond, K.N. Encapsulation and stabilization of reactive aromatic diazonium ions and the tropylium ion within a supramolecular host. Eur. J. Org. Chem 2004, 2004, 5115–5118. [Google Scholar]
  25. Tarac, T.N.; Scherer, M.; Raymond, K.N. Host within a host: Encapsulation of alkali ion–crown ether complexes into a [Ga4L6]12− supramolecular cluster. Angew. Chem. Int. Ed 2000, 39, 1239–1242. [Google Scholar]
  26. Tarac, T.N.; Clauder, D.L.; Raymond, K.N. Selective encapsulation of aqueous cationic guests into a supramolecular tetrahedral [M4L6]12− anionic host. J. Am. Chem. Soc 1998, 120, 8003–8004. [Google Scholar]
  27. Clauder, D.L.; Powers, R.E.; Parac, T.N.; Raymond, K.N. The self-assembly of a predesigned tetrahedral M4L6 supramolecular cluster. Angew. Chem. Int. Ed 1998, 37, 1840–1843. [Google Scholar]
  28. Ono, K.; Yoshizawa, M.; Kato, T.; Fujita, M. Three-metal-center spin interactions through the intercalation of metal azaporphines and porphines into an organic pillared coordination box. Chem. Commun 2008, 2328–2830. [Google Scholar]
  29. Ono, K.; Yoshizawa, M.; Akita, M.; Kato, T.; Tsunobuchi, Y.; Ohkoshi, S.; Fujita, M. Spin crossover by encapsulation. J. Am. Chem. Soc 2009, 131, 2782–2783. [Google Scholar]
  30. Yoshizawa, M.; Ono, K.; Kumazawa, K.; Kato, T.; Fujita, M. Metal−metal d−d interaction through the discrete stacking of mononuclear M(II) complexes (M = Pt, Pd, and Cu) within an organic-pillared coordination cage. J. Am. Chem. Soc 2005, 127, 10800–10801. [Google Scholar]
  31. Clever, G.H.; Kawamura, W.; Tashiro, S.; Shiro, M.; Shionoya, M. Stacked platinum complexes of the magnus’ salt type inside a coordination cage. Angew. Chem. Int. Ed 2012, 51, 2606–2609. [Google Scholar]
  32. Clever, G.H.; Kawamura, W.; Shionoya, M. Encapsulation versus aggregation of metal-organic cages controlled by guest size variation. Inorg. Chem 2011, 50, 4689–4691. [Google Scholar]
  33. Lewis, J.E.M.; Gavey, E.L; Cameron, S.A.; Crowley, J.D. Stimuli-responsive Pd2L4 metallosupramolecular cages: Towards targeted cisplatin drug delivery. Chem. Sci 2012, 3, 778–784. [Google Scholar]
  34. Amouri, H.; Rager, M.N.; Cagnol, F.; Vaissermann, J. Rational design and X-ray molecular structure of the first irido-cryptand and encapsulation of a tetrafluoroborate anion. Angew. Chem. Int. Ed 2001, 40, 3636–3638. [Google Scholar]
  35. Desmarets, C.; Poli, F.; Le Goff, X.F.; Muller, K.; Amouri, H. A unique type of a dicolbalt cage templated by a weakly coordinated hexafluorophosphate anion: Design, structure and solid-state NMR investigations. Dalton Trans 2009, 10429–10432. [Google Scholar]
  36. Desmarets, C.; Policar, C.; Chamoreau, L.M.; Amouri, H. Design, self-assembly and molecular structures of 3D copper(II) capsules templated by BF4 guest anions. Eur. J. Inorg. Chem 2009, 2009, 4396–4400. [Google Scholar]
  37. Amouri, H.; Desmarets, C.; Bettoschi, A.; Rager, M.N.; Boubekeur, K.; Rabu, P.; Drillon, M. Supramolecular cobalt cages and coordination polymers templated by anion guest: Self-assembly, structures, and magnetic properties. Chem. Eur. J 2007, 13, 5401–5407. [Google Scholar]
  38. Amouri, H.; Mimassi, L.; Rager, M.N.; Mann, B.E.; Guyard-Duhayon, C.; Raehm, L. Host-guest interactions: Design strategy and structure of an unusual coblat cage that encapsulates a tetrafluoroborate anion. Angew. Chem. Int. Ed 2005, 44, 4543–4546. [Google Scholar]
  39. Raehm, L.; Mimassi, L.; Guyard-Duhayon, C.; Amouri, H.; Rager, M.N. Crucial role of counteranion on the templation of metallomacrocycles and a 3D network: Synthesis, characterization and structural analysis. Inorg. Chem 2003, 42, 5654–5659. [Google Scholar]
  40. Mimassi, L.; Guyard-Duhayon, C.; Raehm, L.; Amouri, H. Serendipity and rational design of one-dimensional doubly stranded chains with nanometric cavities based on AgI coordination chemistry. Eur. J. Inorg. Chem 2002, 2002, 2453–2459. [Google Scholar]
  41. Desmarets, C.; Azcarate, I.; Gontard, G.; Amouri, H. A rigid angular bidentate ligand for the design of a new class of coordination polymers based on silver(I) salts—Influence of the anion on coordination assemblies. Eur. J. Inorg. Chem 2011, 2001, 4558–4563. [Google Scholar]
  42. Blanco, V.; Abella, D.; Pia, E.; Platas-Iglesias, C; Peinador, C.; Quintela, J.M. Regioselective catenation of dinuclear palladium and platinium metallocycles promoted by π-π interactions. Inorg. Chem 2009, 48, 4098–4107. [Google Scholar]
  43. Drent, E.; Van Broekhoven, J.A.M.; Doyle, M.J. Efficient palladium catalysts for the copolymerization of carbon monoxide with olefins to produce perfectly alterning polyketones. J. Organomet. Chem 1991, 417, 235–251. [Google Scholar]
  44. Blessing, R.H. An empirical correction for absorption anisotropy. Acta Cryst 1995, A51, 33–38. [Google Scholar]
  45. Altomare, A.; Cascarano, G.; Giacovazzo, C.; Guagliardi, A. Completion and refinement of crystal structures with SIR92. J. Appl. Cryst 1993, 26, 343–350. [Google Scholar]
  46. Sheldrick, G.M. A short history of SHELX. Acta Cryst 2008, 64, 112–122. [Google Scholar]

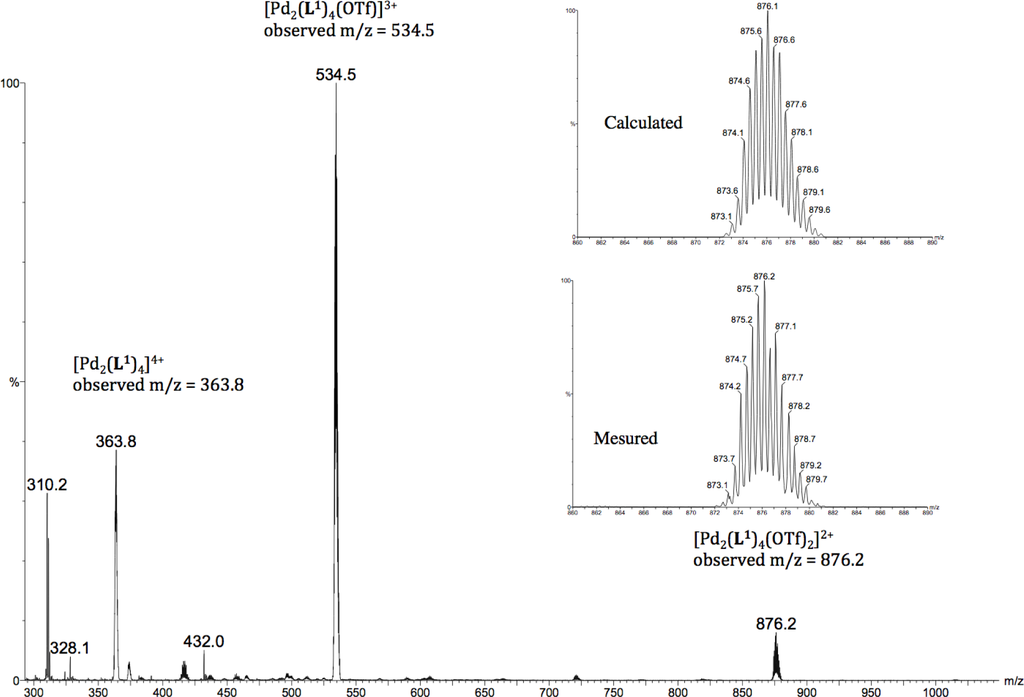

Figure 1. Partial ESI-MS spectrum illustrating the sequence of peaks corresponding to the intact metallocage 1b associated with different numbers of triflate anions. Experimental and theoretical isotope distribution of [Pd2(L1)4 + 2(OTf)]+.
Figure 1. Partial ESI-MS spectrum illustrating the sequence of peaks corresponding to the intact metallocage 1b associated with different numbers of triflate anions. Experimental and theoretical isotope distribution of [Pd2(L1)4 + 2(OTf)]+.
Materials 07 00287f1 1024
Figure 2. 1H NMR spectra for (a) ligand L1 in CD3CN; (b) metallocage [Pd2(L1)4][NO3]4 (1a) in DMSO-d6; (c) metallocage [Pd2(L1)4][OTf]4 (1b) in CD3CN; (d) metallocage [Pt2(L1)4][OTf]4 (2) in CD3CN and (e) metallocage [Pd2(L2)4][OTf]4 (3) in CD3CN.
Figure 2. 1H NMR spectra for (a) ligand L1 in CD3CN; (b) metallocage [Pd2(L1)4][NO3]4 (1a) in DMSO-d6; (c) metallocage [Pd2(L1)4][OTf]4 (1b) in CD3CN; (d) metallocage [Pt2(L1)4][OTf]4 (2) in CD3CN and (e) metallocage [Pd2(L2)4][OTf]4 (3) in CD3CN.
Materials 07 00287f2 1024
Figure 3. X-ray crystal structure of [Pd2(L1)4][OTf]4 1b (a) view of the cationic part of 1b with one triflate anion within the cavity. (C gray, O red, N blue, Pd violet; H atoms are omitted for clarity). Selected bond lengths (Å) and angles (°): Pd1–Pd1 11.826 (1), Pd–N1 2.025 (4), Pd1–N2 2.024 (4), Pd1–N3 2.025 (4), Pd1–N4 2.023 (4), N1–Pd1–N3 179.01 (15), N2–Pd1–N4 179.65 (15) and (b) 1D chain of metallocapsules 1b generated by π-π contacts among individual units.
Figure 3. X-ray crystal structure of [Pd2(L1)4][OTf]4 1b (a) view of the cationic part of 1b with one triflate anion within the cavity. (C gray, O red, N blue, Pd violet; H atoms are omitted for clarity). Selected bond lengths (Å) and angles (°): Pd1–Pd1 11.826 (1), Pd–N1 2.025 (4), Pd1–N2 2.024 (4), Pd1–N3 2.025 (4), Pd1–N4 2.023 (4), N1–Pd1–N3 179.01 (15), N2–Pd1–N4 179.65 (15) and (b) 1D chain of metallocapsules 1b generated by π-π contacts among individual units.
Materials 07 00287f3 1024

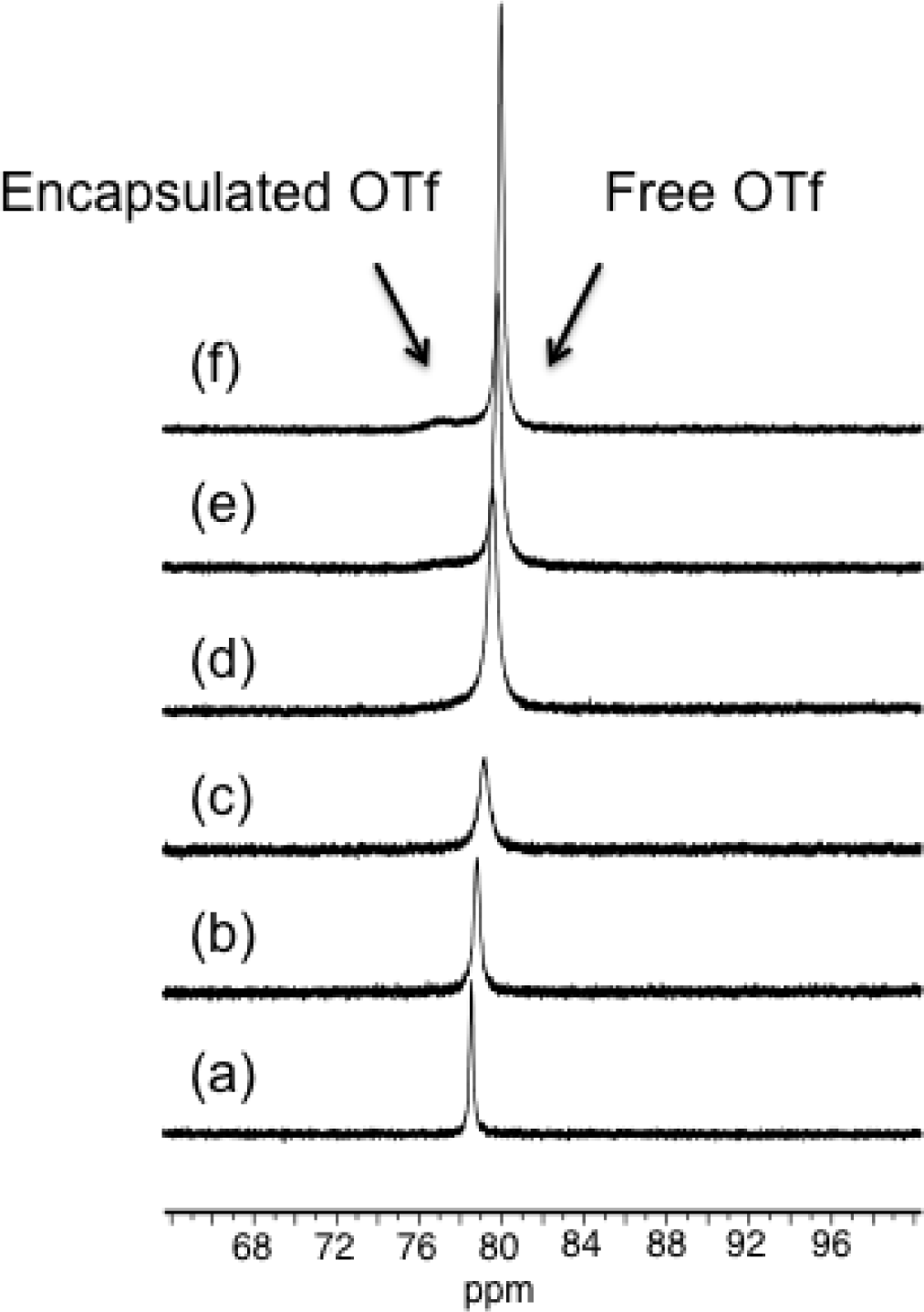

Figure 4. 19F NMR sprecta of [Pd2(L2)4][OTf]4 (3) cage in CD3CN (3.4 mol in 0.5 mL) at variable temperature. (a) 25 °C; (b) 10 °C; (c) 0 °C; (d) −10 °C; (e) −15 °C and (f) −20 °C.
Figure 4. 19F NMR sprecta of [Pd2(L2)4][OTf]4 (3) cage in CD3CN (3.4 mol in 0.5 mL) at variable temperature. (a) 25 °C; (b) 10 °C; (c) 0 °C; (d) −10 °C; (e) −15 °C and (f) −20 °C.
Materials 07 00287f4 1024
Figure 5. 1H NMR titration of [PtCl4][n-Bu4N]2 inside the metallocages [Pd2(L1)4][OTf]4 (1b) and [Pd2(L2)4][OTf]4 3 in DMSO-d6. (a) Cage 1b; (b) addition of one equivalent of guest; (c) cage 3 and (d) addition of one equivalent of guest.
Figure 5. 1H NMR titration of [PtCl4][n-Bu4N]2 inside the metallocages [Pd2(L1)4][OTf]4 (1b) and [Pd2(L2)4][OTf]4 3 in DMSO-d6. (a) Cage 1b; (b) addition of one equivalent of guest; (c) cage 3 and (d) addition of one equivalent of guest.
Materials 07 00287f5 1024

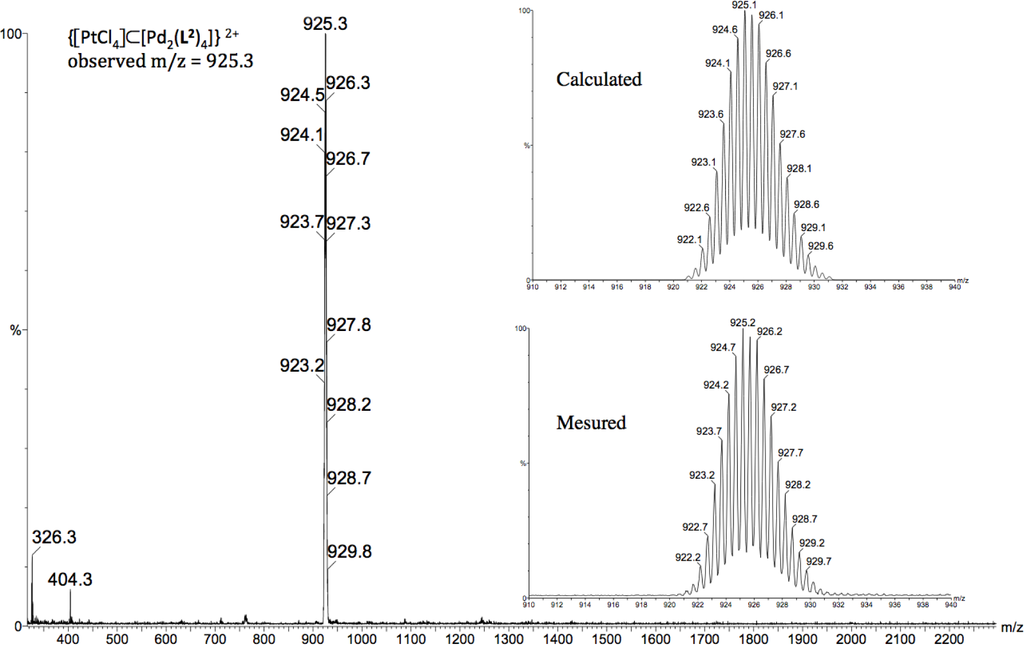

Figure 6. Calculated and observed isotope pattern for the intact metallocage [[PtCl4] ⊂ Pd2(L2)4][OTf]2 (4).
Figure 6. Calculated and observed isotope pattern for the intact metallocage [[PtCl4] ⊂ Pd2(L2)4][OTf]2 (4).
Materials 07 00287f6 1024

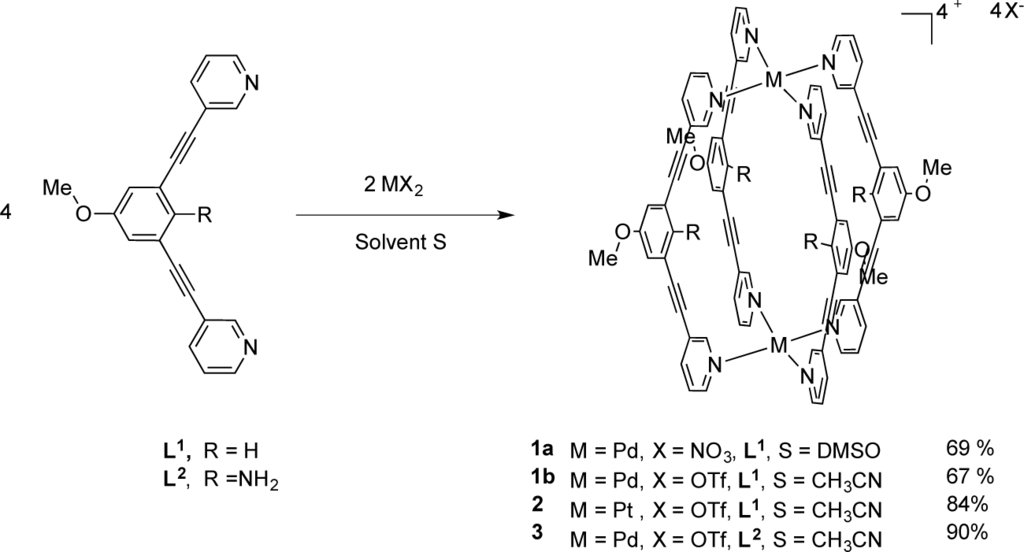

Scheme 1. Synthesis of metallosupramolecular cages of type [M2(L)4][X]4.
Scheme 1. Synthesis of metallosupramolecular cages of type [M2(L)4][X]4.
Materials 07 00287f7 1024
