Organic-Inorganic Hybrid Polymers as Adsorbents for Removal of Heavy Metal Ions from Solutions: A Review

Abstract

Over the past decades, organic-inorganic hybrid polymers have been applied in different fields, including the adsorption of pollutants from wastewater and solid-state separations. In this review, firstly, these compounds are classified. These compounds are prepared by sol-gel method, self-assembly process (mesopores), assembling of nanobuilding blocks (e.g., layered or core-shell compounds) and as interpenetrating networks and hierarchically structures. Lastly, the adsorption characteristics of heavy metals of these materials, including different kinds of functional groups, selectivity of them for heavy metals, effect of pH and synthesis conditions on adsorption capacity, are studied.

1. Introduction

A wide variety of toxic inorganic and organic chemicals are discharged into the environment as industrial wastes, causing serious water, air, and soil pollution. Water pollution caused by toxic heavy metal ions has become a serious environmental problem. Heavy metals (such as Pt, Pd, Ag, Cu, Cd, Pb, Hg, Ni, Co, Zn, etc.) are natural constituents of the earth crust and present in the environment as a result of weathering and erosion of parent rocks [1]. In addition to natural sources, they are introduced in ecosystems through wastewaters originating from anthropogenic sources such as chemical manufacturing, metal finishing, welding, alloys manufacturing, painting, mining, extractive metallurgy, plating, tannery and battery industry and using metal-containing fertilizers and pesticides [2].

These toxic metal ions, even at low concentrations, have deteriorated water resources and drinking water and easily accumulated in the human body throughout the food chain, causing a variety of diseases and disorders [3]. So, it is necessary to remove these metal ions from industrial effluents for their subsequent safe disposal.

The removal of heavy metal ions from wastewaters has been a subject of extensive industrial research. At the same time, some of them (e.g., Pt and Au) are precious and can be recycled and reused for extensive applications [4,5]. The recovery of heavy or valuable metals from water or wastewaters can often result in considerable cost savings and have both ecological and economic benefits.

Different methods, such as precipitation [6], solvent extraction [7] chemical and electrochemical techniques [8], ion-exchange methods [9] ultrafiltration [10] and reverse osmosis [11,12], flotation [13] and coagulation [14] have been developed for the removal of toxic metal ions from industrial effluents and wastewaters. However, most of these processes are unacceptable, owing to the disposal of sludge, their high cost, low efficiency and inapplicability to a wide range of pollutants [15].

Adsorption is a well-known separation method and recognized as one of efficient and economic methods for water decontamination applications. In addition, owing to the reversible nature of most adsorption processes, the adsorbents can be regenerated by suitable desorption processes for multiple uses [16], and many desorption processes are of low maintenance cost, high efficiency, and ease of operation [17].

However, the major problem in this field is to select novel types of adsorbents. A number of adsorbents such as activated carbon [18], zeolites [19,20], clays [21,22] and agricultural residues [23–25] have been used for the removal of heavy metal ions. However, the major disadvantages of these adsorbents are their low adsorption capacities, their relatively weak interactions with metallic ions and difficulties of separation and regeneration of some of them from water. Ion-exchange resins can remove metal ions substantially; however, they have low selectivities and show a high degree of swelling combined with poor mechanical stability [26].

To overcome these limitations, more recently, promising organic-inorganic hybrid polymers have been used for the removal of toxic species from wastewater [27–35]. In these compounds, the functional variation of organic materials is combined with advantages of a thermally stable and robust inorganic substrate, resulting in strong binding affinities toward selected metal ions and relatively high metal ion adsorption capacities. Functionalized hybrid polymeric materials as adsorbent are regarded as one of the most effective techniques because metal ions can be chemically bonded by the organic-inorganic polymer hybrids. These kinds of materials often present the best properties of each of its components in a synergic way and have high performances of physical, chemical and mechanical properties [36].

Organic-inorganic hybrid polymeric materials are currently intensely studied [37] for their efficient applications. The intrinsic multifunctional character of these materials makes them potentially useful in multiple fields. Different forms of organic-inorganic hybrids have been intensively studied due to their interesting properties resulting in a number of applications such as electroanalytical applications [38], their extensive applications as membranes for ultra-and nanofiltration [39,40], superhydrophobic surfaces [41,42], highly transparent films [43,44], pH sensitive composites [45], solar cells [46,47], electrolyte [48], molecular shuttles [49], semiconductors [50], gas separation [51,52], catalysts [53], biosensors [54], drug delivery systems [55], coatings for corrosion protection [56], adsorbents of toxic compounds [27–35], Fire retardant polymers [57], biomaterials for osteo-reconstructive surgery [58], materials for telecommunications or information displays [59], etc.

This review describes classifications and synthesis methods of organic-inorganic hybrid polymers and particular attention will be focused on application of them for the adsorption of heavy metals from water as well as their performances and mechanisms.

2. Classification and Synthesis of Organic-Inorganic Hybrid Polymers

Organic-inorganic hybrid polymers are classes of materials whose structure includes both organic and inorganic units that interact with each other at the molecular level. These materials are divided into two classes on the basis of interaction between organic and inorganic components. In class I, organic and inorganic are embedded and there are weak interactions, such as hydrogen bonding, van der Waals, π–π or weak electrostatic interactions between them and in class II, these two components are bonded together through strong covalent or coordinative bonds [37]. Organic-inorganic hybrid polymers are obtained through (1) sol-gel process; (2) self-assembly process; (3) assembling or dispersion of nanobuilding blocks; (4) hierarchical structures [37] and interpenetrating networks [60].

2.1. Sol-Gel Process

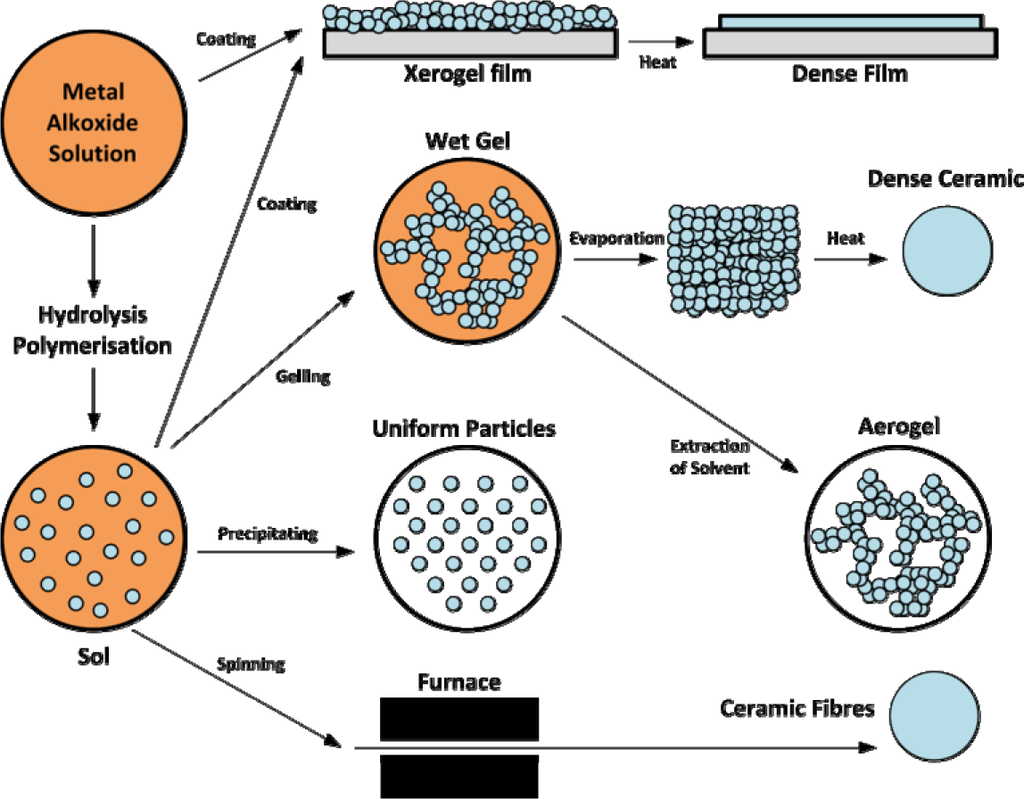

In 1846, Ebelmanl and Graham reported that the hydrolysis of tetraethylorthosilicate (TEOS), under acidic conditions produced SiO₂ in the form of fibres [61,62]. In 1950s, Brady et al. [63] produced a number of phenylsilsesquioxane-alkylsilsesquioxane copolymers that were the first successful commercial organic-inorganic hybrid polymers. The sol-gel process is a cheap and low-temperature method for producing transparent and homogenous solid materials with high purity from small molecules and for controlling the chemical composition of products. Compounds produced by the sol-gel process have many applications in superhydrophobic surfaces [41] (shown in Scheme 1), electrolyte [48], biosensors [54], corrosion protection [56], etc.

This process is carried out in water and organic solvents and its precursors are usually metal halides [64] (in organic solvents) and metal alkoxides such as Si(OR)₄, SiR′(OR)₃, Ti(OR)₄, etc. [41,65–67] (Scheme 1). As seen in Scheme 2 [68], these materials are subject to a series of hydrolysis (or non-hydrolytic process in organic solvents) and condensation reactions that through nucleophilic substitution mechanisms result in sol formation. Sol is a colloidal solution in which individual particles interact weakly with each other and due to cross-linking reactions, converts into an integrated network (wet gel). This structure with further drying processes converts to gel.

In spite of silicon alkoxides, hydrolysis reactions of other metal alkoxides in water are too fast. The hydrolysis reaction of silicon alkoxides, is typically acid- or base-catalyzed [69]. As reported [70], silica networks formed under acid-catalyzed conditions are dense and those of formed in the presence of base are porous and loose.

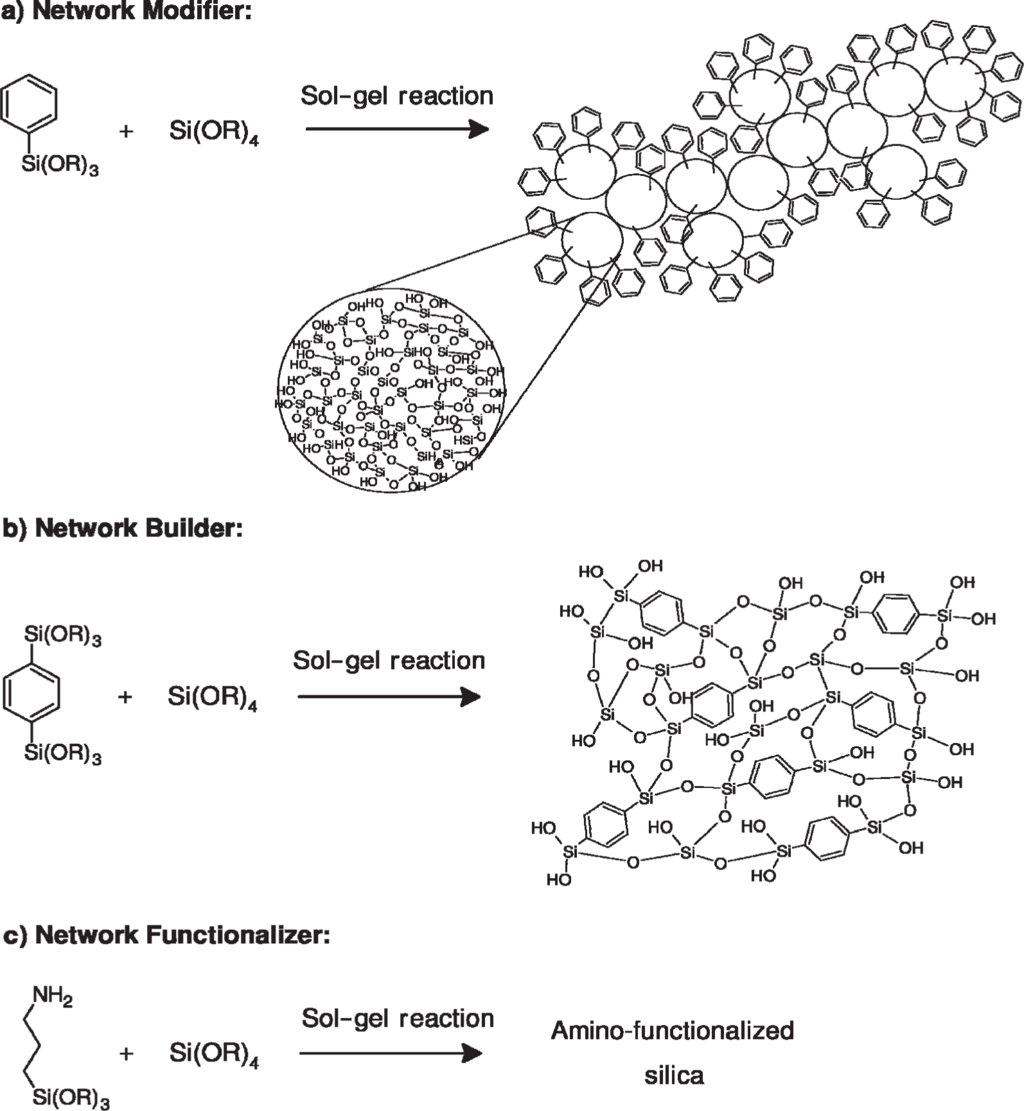

A suitable way for modifications of properties of materials obtained from this method is the introduction of organic groups (R) into their structure [71]. For example, the Si–C bond does not hydrolyze in most sol-gel processes and organic groups can be incorporated covalently into the network of inorganic gel using silsesquioxanes [(R–SiO_1.5)_n (n = even number)], such as R′(OR)₂Si–R–Si(OR)₃ compounds or derivatives of tetrafunctional silicon alkoxide [organically modified silicates (ORMOSILs)], such as TEOS, R′Si(OR)₃, etc. [71]. If an organic group remains stable and does not hydrolyze during sol-gel processes (e.g., alkyl groups) it is defined as a network modifier. On the other hand, if it can react with another monomers or with itself (e.g., –CH=CH₂) it is named as a network builder. Moreover, if it is a reactive functional group, such as –NH₂, it is specified as a network functionalizer [72] (Scheme 3). These materials belong to class II interactions of organic-inorganic hybrid polymers.

Another example of using sol-gel processes is the synthesis of microporous zeolites (or molecular sieves). These materials are framework aluminosilicate and have a three-dimensional structure with high internal surface area and an ordered crystalline structure [73]. Zeolites with high silica contents are synthesized in the presence of bulky organic alkylammonium cations known as structure-directing agents or templates [74].

Synthetic zeolites are microporous (diameter of their pores < 2 nm) and have many applications such as membranes, catalysts, catalyst supports, gas storage, etc. [73]. In recent years, great efforts have been made on the direct preparation of hybrid organic-inorganic zeolites [75,76]. The incorporation of organic moieties within the pores or in the framework of microporous zeolites has developed their catalytic activity [77], molecular sieving property [78] and adsorption capacity [79].

2.2. Self-Assembly Process

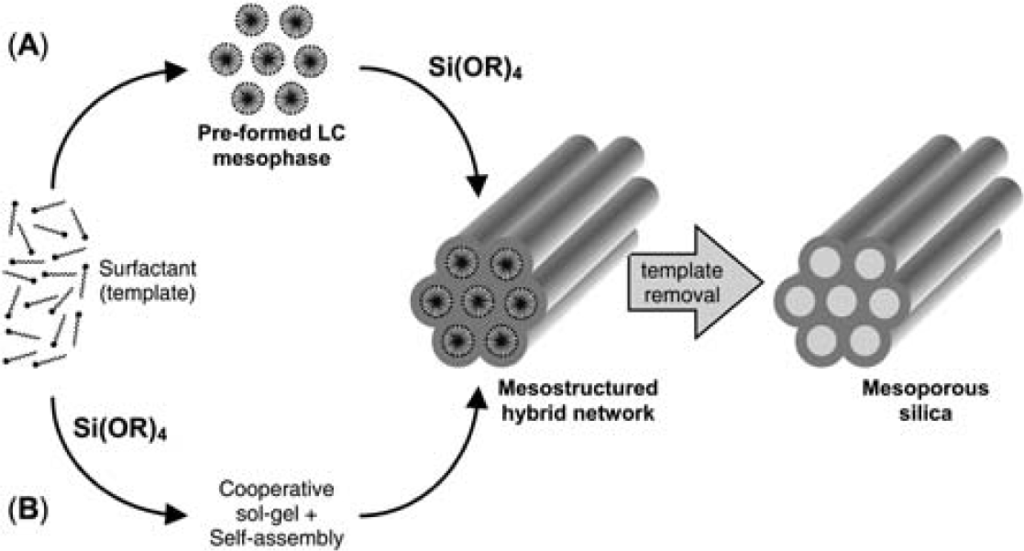

In 1992, researchers of Mobil Oil Company discovered a new type of mesoporous silicas, so-called M41S [80,81]. M41S family includes hexagonal MCM–41, cubic MCM–48, and lamellar MCM–50 [82] (Figure 1). MCM is an abbreviation of “Mobil Crystalline Materials”.

Notwithstanding their amorphorous pore walls, these organic-inorganic hybrid compounds exhibit a long-range ordered array of uniform and controllable mesopores with sizes ranging between 2–10 nm [82]. Mesostructure compounds have high specific surface areas (greater than 1000 m²/g) [82] and the pore size of these materials enables them to adsorb much larger molecules than is possible for zeolites. These compounds are used for catalysis [83], gas adsorption [84], etc. M41S type compounds were synthesized using a silica source (e.g., TEOS) in the presence of long-chain alkyltrimethylammonium halide surfactants as templates or structure-directing agents [80]. These compounds formed through a base-catalysed hydrolytic sol-gel process. Mesostructures can be synthesized using different ionic or non-ionic surfactants or water-soluble polymers as templates [85,86]. Other types of ordered mesoporous silicas are Santa Barbara Amorphous (SBA) (e.g., SBA–15 [87]), Michigan State University (MSU) (e.g., MSU–2 [88]), folded sheets mechanism (FSM) (e.g., FSM–16 [89]), etc., respectively.

In recent years, attempts of scientists resulted in syntheses of non-silica mesoporous metal oxides such as TiO₂, ZrO₂, Al₂O₃, Nb₂O₅, SnO₂, mixed oxides such as SiAlO_3.5, SiTiO₄, carbon nanocage, mesoporous carbon nitride, etc. [90]. The formation of mesoporous materials is depicted schematically in Figure 2, based on “liquid crystal templating” mechanism [91]. Through route (a) at surfactant concentrations above its critical micelle concentration (CMC), the self-assembly of precursor molecules on the space between micellar rods of lyotropic liquid crystal phase and creates walls between them. Through route (b) at surfactant concentrations below CMC, the mesostructure is formed as a cooperative self-assembly of the precursor and surfactant molecules [82,91].

To prevent phase separation, there should be attractive interactions between inorganic precursors and template molecules. Depending on reaction conditions, such as pH and chemicals, e.g., inorganic precursors and templates, six routes have been suggested for syntheses of ordered mesoporous compounds [92]. These routes include (a) S⁺I⁻; (b) S⁺X⁻I⁺; (c) S⁻M⁺I⁻; (d) S⁻I⁺; (e) S⁰I⁰ or N⁰I⁰ and (f) S⁰(XI)⁰ where S is the surfactant, I is the inorganic phase and X⁻ is a mediator anionic species (usually a halide), M⁺ is a mediator cation, S⁰ is a neutral amine and N⁰ is a long-chain non-ionic template. Interactions between the charged inorganic phase and the head group of surfactants in routes (a–d) are mainly electrostatic forces; while those between neutral inorganic species and non-electrolyte template molecules are hydrogen bonds in routes (e) and (f) [92,93] (Figure 3). It is necessary to say that the inorganic precursor is neutral at its isoelectric point (e.g., at pH~2 for silica [94]) and has negative and positive electric charge at pH above and below this point, respectively.

In recent years, mesoporous silicas have been used as supports for preparations of organic-inorganic hybrid polymers and have many applications in lasers [95], drug delivery [96], pollutant adsorption [36], etc. In these compounds, different organic functional groups are located on the robust, thermally stable and porous inorganic substrate.

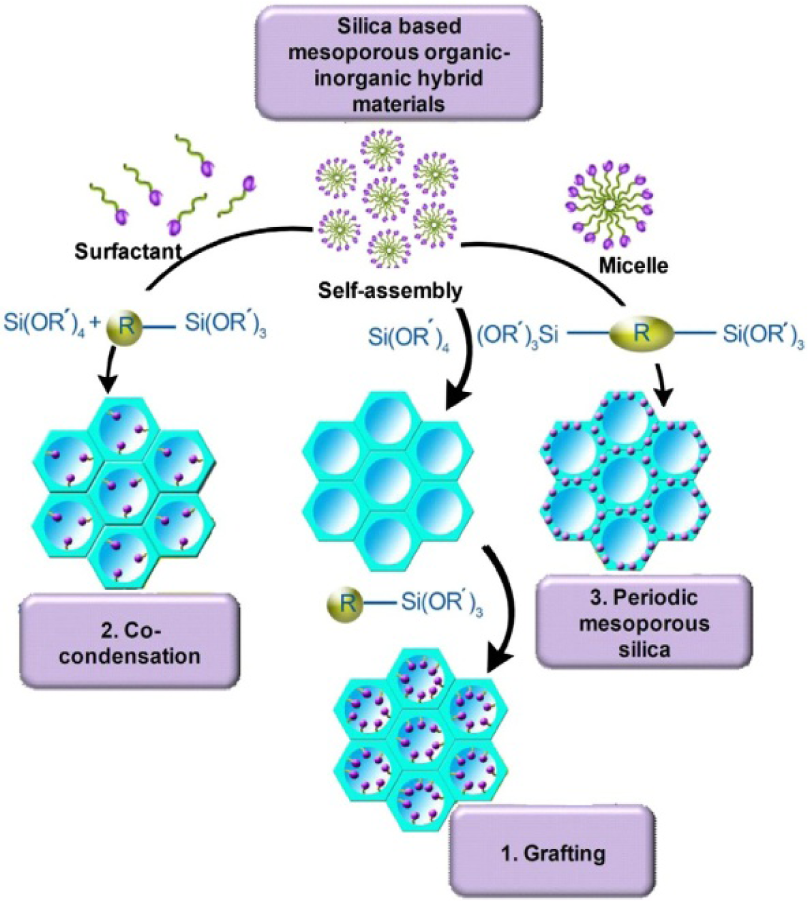

As illustrated in Figure 4, these organosilica compounds are prepared through (a) grafting or post-synthetic functionalisation; (b) co-condensation or one-pot synthesis and (c) synthesis of periodic mesoporous organosilicas (PMOs) [93,97,98]. In grafting processes, an organosilica is synthesized through condensation reaction between Si–OH groups of the pore walls of mesoporous silica and appropriate reagents such as, chlorosilanes (e.g., ClSiR₃), alkoxyorganosilanes [e.g., RSi(OR′)₃] etc. In the co-condensation method, an organosilica compound is prepared in one step through co-condensation reactions of tetraalkoxysilanes (e.g., TEOS) and an appropriate reagent (e.g., terminal trialkoxyorganosilanes) in the presence of a template. Syntheses of PMOs are carried out through the hydrolysis and condensation of bridged organosilane precursors of the type (R′O)₃ Si–R–Si(OR′)₃ in the presence of a structure-directing agent. In this method, R organic group are incorporated uniformly and periodically in the pore walls of resulted organosilica [93,98].

2.3. Assembling or Dispersion of Nanobuilding Blocks (NBBs)

The interest in nanoscale materials originates from this fact that their properties are a function of their size, composition, and structural order. Here, a series of compounds called as nanobuilding blocks (NBBs) are used for preparing organic-inorganic hybrid polymers. NBBs are capped with polymerizable ligands or connected through organic spacers, e.g., telechelic molecules or functional dendrimers [37]. These compounds maintain their integrity and fulfill certain (chemical or physical) functions in the final material. NBBs are classified as (1) clusters; (2) organically in situ- or post-functionalized nanoparticles; (3) layered compounds and (4) core-shell nanocompounds [37,99].

2.3.1. Clusters

Metallic clusters (e.g., polyoxometalates) are an ensemble of bound atoms and contain a group of two or more metal atoms that bind together by direct Metal-Metal bonding. Clusters are connected either (1) by the polymerization of their ligands (e.g., allyl) and are called cross-linked clusters or (2) by coordinative bonds between coordinating groups of organic ligands (called as a linker or spacer) to each metal center (called as a connector) of clusters [100,101]. In the latter case, a linker is a bi-, tri- or tetradentate organic ligand (e.g., 1,4-benzenedicarboxylate) with an organic spacer between coordinating groups [102]. For example, a one-dimensional polymer is built when a metal cluster links to just one coordinating group of two bidentate organic linkers and through them links to other metal clusters. Coordination of more than two coordinating groups to each metal center, optionally through tri- or tetradentate linkers, results in two- or three-dimensional polymers [100]. The three-dimensional polymers are called metal-organic frameworks (MOFs) and their metal centers are bridged in three dimensions (Supporting information Figure S1). MOFs along with cross-linked clusters are major types of cluster-based organic-inorganic hybrid polymers [103,104].

2.3.2. Organically in Situ- or Post-Functionalized Nanoparticles

In this method reactive organic groups are bound to the surface of inorganic moiety by strong ionic or covalent interactions. These organic groups are either grafted to preformed nanoparticles (called as post-functionalization) [105] or are incorporated during the synthesis of nanoparticles (called as in-situ-functionalization) [106]. This method is used for metal oxides (e.g., TiO₂ [107]), chalcogenides (e.g., CdSe [108]), metallic nanoparticles (e.g., Au [109]) and polyoxometalates (e.g., γ-[SiW₁₀O₃₆]⁸⁻ [110]), etc.

2.3.3. Layered Compounds

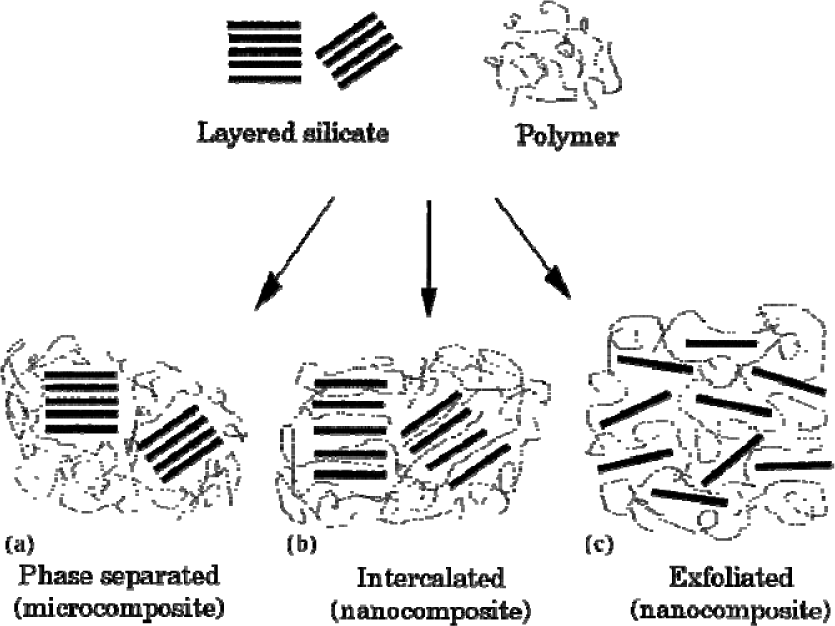

To improve the physical properties of polymers, inorganic compounds physically are dispersed in them (as fillers) in various forms such as platelets, spheres, fibers, etc. If the size of discrete inorganic components is in the range of 1–100 nm, the resulted organic-inorganic compound is called a nanocomposite [111]. Organic-inorganic hybrid nanocomposites are either as interpenetrating networks which will be explained in Section 2.4 [99] or layered inorganic components embedded into the organic matrix.

Layered compounds are regular stacks of two-dimensional inorganic constituent. These compounds such as clay, are used as fillers in organic-inorganic hybrid composites. Some examples of nanocomposites are polyaniline-montmorillonite [112], polyaniline–V₂O₅ [113], polyvinyl alcohol-layered double hydroxide (LDH) [114], poly-N-vinyl carbazole-graphene oxide [115], etc. These compounds are incorporated in organic polymers as (a) a phase-separated structure in which the polymer can not intercalate within the inorganic layers and the inorganic component is dispersed as aggregates or particles within the polymer matrix; (b) an intercalated structure in which one or more polymer chains are inserted into the galleries (space between layers) of inorganic components and subsequently increase the interlayer spacing and (c) an exfoliated structure in which the insertion of polymer chains between inorganic sheets delaminates the layered compound [116] (Figure 5). Polymers can be intercalated to layered compounds by (1) solution; (2) melting polymers and (3) in situ polymerization of intercalated monomers [99]. However, some compounds (e.g., EDTA and malate) intercalate layer compounds [117,118] are purly nanocomposites and not organic-inorganic hybrid polymers.

2.3.4. Core-Shell Nanocomposites

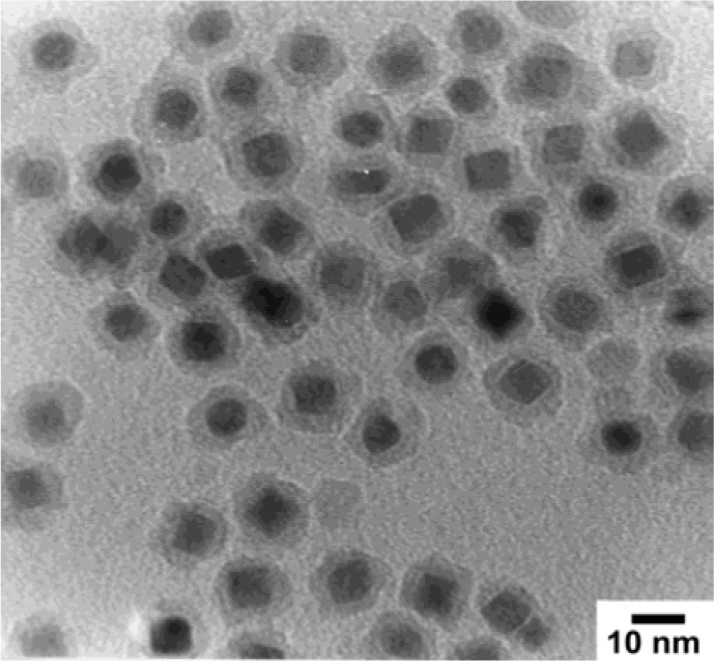

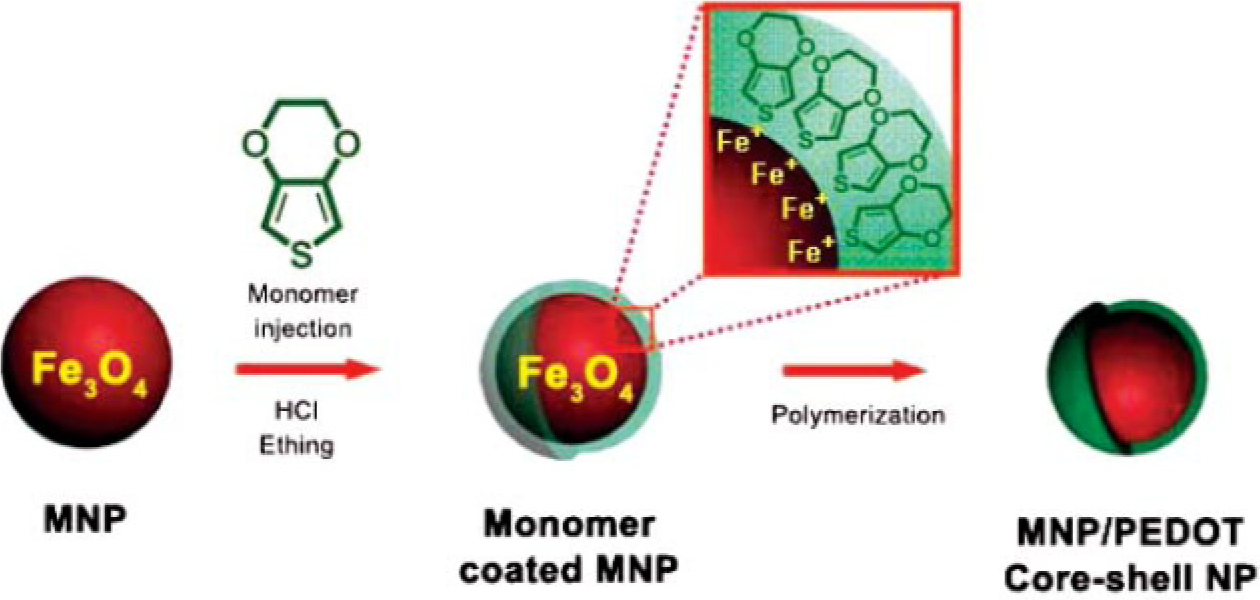

Core-shell nanocomposites (CSNs) consist of a core region covered by a shell domain (Figure 6). A series of CSNs are polymer-coated inorganic compounds [119–121]. The encapsulation of an inorganic particles in a polymer shell are carried out through (1) the adsorption of monomers on the surface of inorganic moiety followed by their polymerization in the adsorbed layer [122,123] and (2) interaction of inorganic particle with preformed polymer as in situ growing inorganic components in a polymer matrix [124]. CSNs are also shown as core@shell. Some kinds of CSNs are completely inorganic in nature (e.g., CdS@TiO₂ [125]).

2.3.5. Hierarchical Structures

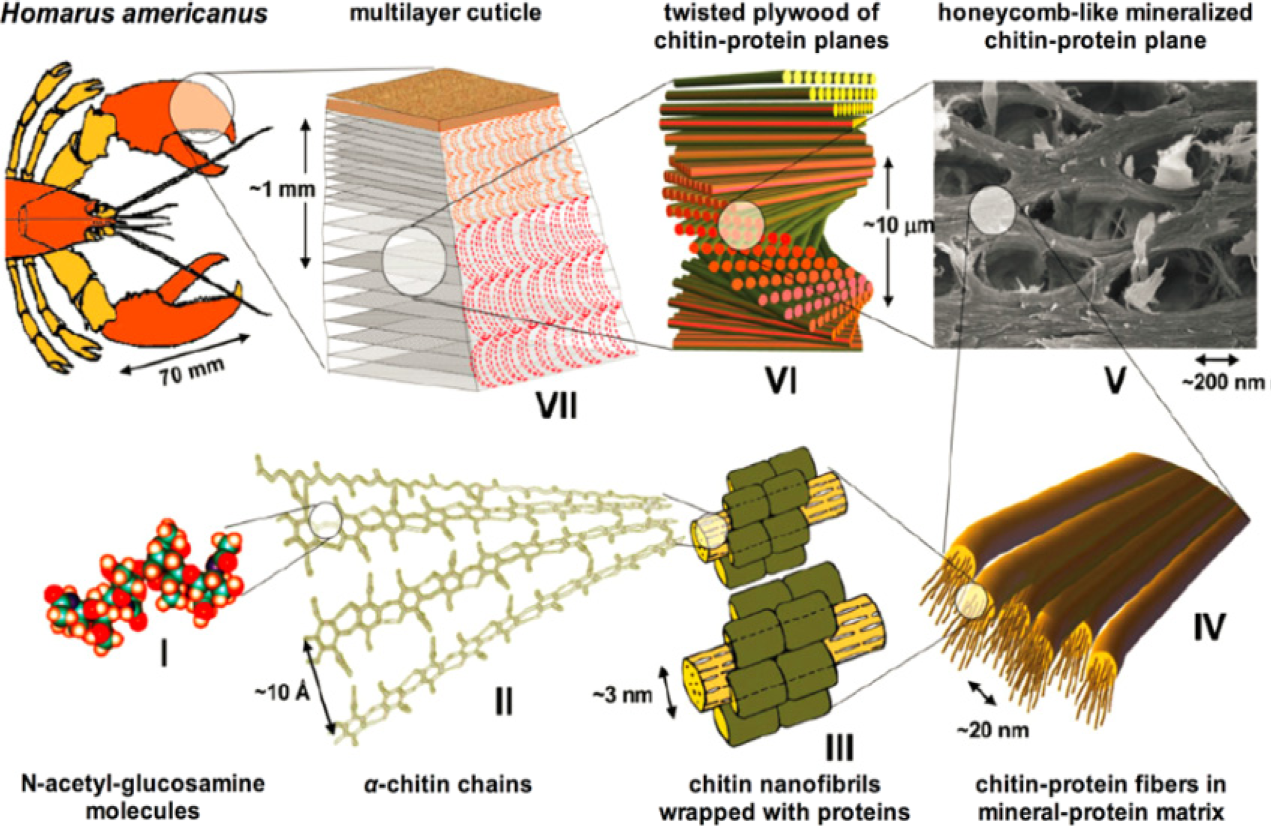

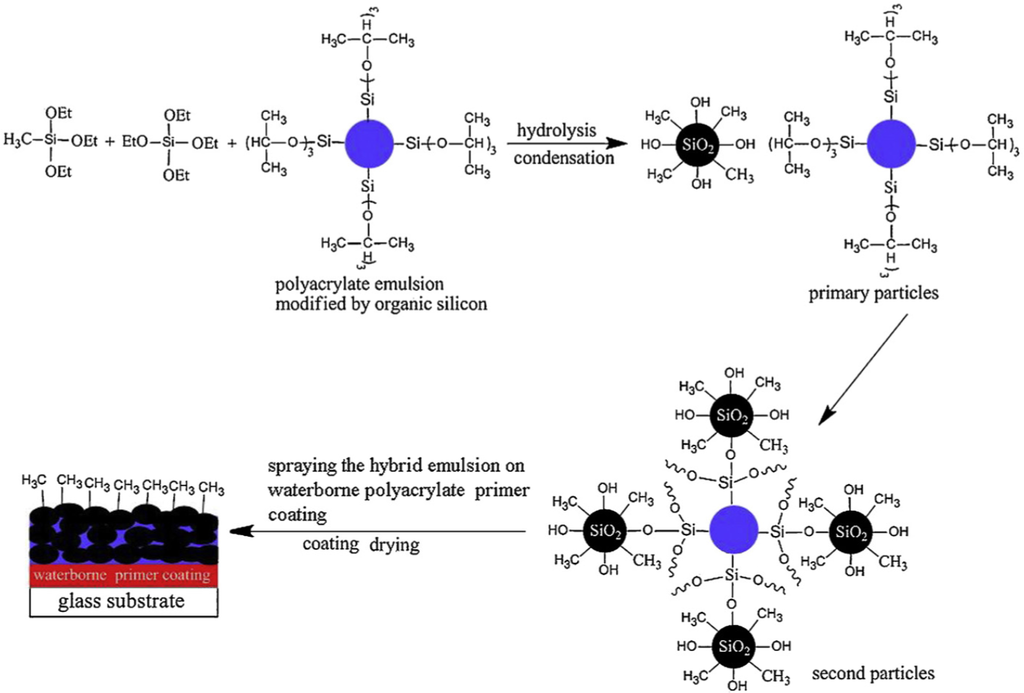

A hierarchy is a feature of self-assembly, where primary building blocks associate into more complex structures which are integrated into the next size level in the hierarchy. Self-assembly is emerging as an elegant, “bottom-up” method for the construction of nanostructured materials and is distinct from the template-directed assembly [126]. The feature of an integrated chemical, biological, etc. system is the assembly of components into a specific architecture that performs a certain function. Many examples of hierarchical structural designs are seen in nature and are characteristic of many self-assembling biological structures (e.g., lobster cuticle [127] and tendon [128]) (Figure 7).

Also, the hierarchy has resulted in the discovery of versatile nanoparticles with many applications [129], synthetic bone implant materials [130], mesostructured solid electrolytes [131], TiO₂–graphene composite [132], etc. For example, the incorporation of interconnected macropores in mesoporous films of TiO₂–graphene composite (Supporting information Figure S2) augments the capacity of composite film for adsorption and photodegrading organic molecules and can be used for the treatment of waters.

2.4. Interpenetrating Networks (IPNs)

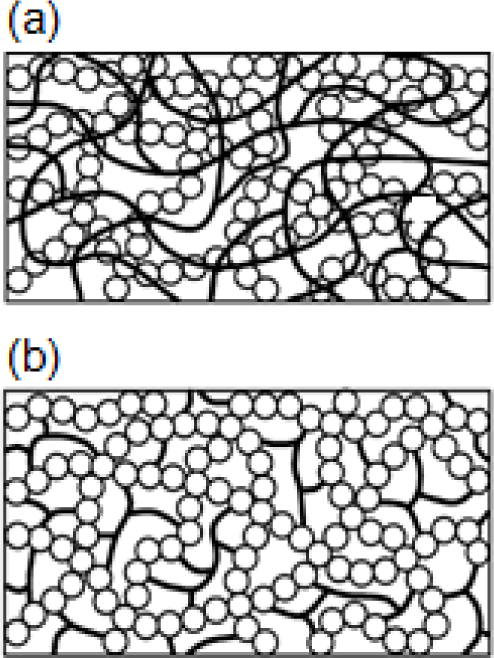

IPNs comprise organic and inorganic networks that are microscopically phase-separated. However, they seem uniform macroscopically and there are weak interactions between moieties of IPNs (class I interactions). These components are partially interlaced and, upon separating IPNs, chemical bonds are broken. IPNs are synthesized by (1) the formation of a secondary network in a primary one (a sequential two-step process); (2) the simultaneous formation of two networks and (3) IPN components connect to each other through covalent bonds in which the compound is named a dual organic-inorganic hybrid polymer (class II interactions) [99] (Figure 8). In the first method, IPNs are prepared by polymerization in a sol-gel network [133] or sol-gel process in the presence of preformed polymer [134]. In the third case, either bifunctional precursors are used or a preformed inorganic or organic polymer are functionalized by the required functional groups for the formation of other types of networks [135].

But, when three-dimensional frameworks such as zeolites or mesoporous silicates, are used as inorganic components and polymer is formed without crosslinking, the polymer chains could be partially or completely removed from the product. In this case, the composite is called pseudo-interpenetrating polymer network (PIPN) [136,137].

At the end of this section, it is noteworthy that the inclusion of metals in organic-inorganic hybrid polymers occurs at the molecular scale and the incorporation of metal complexes and metallic ions in polymers by coordination interactions does not produce organic-inorganic hybrid polymers [99]. For example, metal-centered polymers [138] and products of coordination of metallic ions to the polymer backbone [139] and polymerization of metal-coordinated monomers [140] are called metal-containing polymers [99].

3. Removal of Heavy Metals by Organic-Inorganic Hybrid Polymers

Based on the classifications of these kinds of compounds in the previous section, by analysis some comprehensive references, we study their synthesis methods, structure and mechanisms of heavy metal adsorption from water or wastewater.

3.1. Adsorption of Heavy Metals Using Materials Synthesized from Sol-Gel Method

As extensive researches have been done on producing silica-based compounds by the sol-gel method, these kinds of materials are discussed here. These compounds can be synthesized either directly through polymerization reaction of their precursors [141] or grafting appropriate functional groups on parent materials formed from sol-gel method such as silica gel and some examples [142–167] are given in

Table 1. Chemicals used for synthesizing adsorbents by sol-gel method, adsorbed heavy metals, maximum adsorption capacity, pH and temperature for adsorption of heavy metals from waters.

Chemicals (interacting group)	Heavy metal [qmax, pH and t (°C)]	Isotherm	Reference
Pyromellitic acid dianhydride/phenylaminomethyl trimethoxysilane (–COOH)	Pb2+ (7.16 mmol/g, 5, room)	Langmuir	[142]
Pyromellitic acid dianhydride/phenylaminomethyl trimethoxysilane (–COOH)	Cu2+ (0.28 mmol/g, 4, room)	Langmuir	[143]
	Pb2+ (1.56 mmol/g, 5, room)	Langmuir
3-Thiocyanatopropyltriethoxysilane/TEOS (–SH)	Cd2+ (87.7 mg/g, 5, 25)	Langmuir	[144]
3-[2-(2-Aminoethylamino)ethylamino]propyl-trimethoxysilane (Cd2+– imprinted hybrid sorbent) (–NH2)	Cd2+ (77.2 mg/g, 6, 25)	Langmuir	[145]
Cd2+-imprinted mercapto-functionalized silica gel (–SH)	Cd2+ (83.89 mg/g, 6, 27)	Experimental	[146]
Non-imprinted mercapto-functionalized silica gel (–SH)	Cd2+ (35.91 mg/g, 6, 27)	Experimental	–
Fe3+-imprinted cyanato-functionalized silica gel (–C≡N)	Fe3+ (35.6 mg/g, 3, 20)	Experimental	[147]
3-Glycidyloxypropyltrimethoxysilane/potassium tert-butoxide/titanium isopropoxide (oxygen atoms of adsorbent)	Pb2+ (181.2 mg/g, 5.5, room)	Langmuir	[148]
	Cu2+ (44.64 mg/g, 5.5, room)	Langmuir
	Cd2+ (35.84 mg/g, 5.5, room)	Langmuir
Zr(OCH2CH2CH3)4/3-mercapto-1-propanesulfonic acid (–SH)	Pb2+ (0.36 mmol/g, neutral, room)	Experimental	[149]
	Hg2+ (0.87 mmol/g, neutral, room)	Experimental
Ti(OCH2CH2CH3)4/3-mercapto-1-propanesulfonic acid (–SH)	Pb2+ (1.24 mmol/g, neutral, room)	Experimental	–
	Hg2+ (1.41 mmol/g, neutral, room)	Experimental
7-Amine-4-aza-heptyltrimethoxisilane/TEOS (amine group)	Pb2+ (36.64 mg/g, neutral, room)	Langmuir	[150]
10-Amine-4-aza-decyltrimethoxisilane/TEOS (amine group)	Pb2+ (30.27 mg/g, neutral, room)	Langmuir	–
3-Chloropropyltrimethoxysilane/TEOS (nitrogen center of sorbent)	Ni2+ (0.47 mmol/g, 4.5, room)	Langmuir	[151]
3-Aminopropyl triethoxysilane/TEOS (–NH2)	Pb2+ (45.45 mg/g, 6, 25)	Langmuir	[152]
	Cu2+ (35.71 mg/g, 6, 25)	Langmuir	–
3-Chloropropyltrimethoxysilane/TEOS (nitrogen center of sorbent)	Mn2+ (0.35 mmol/g, 4.5, room)	Langmuir	–
Amino-terminated dendrimer-like PAMAM polymer/silica gel (amino content 1.91 mmol/g) (–NH– and –NH2)	Cu2+ (78.7 mg/g, ethanolic, 25)	Langmuir	[153]
2-Aminoethyl-3-aminopropyltrimethoxysilane/poly(dimethyl siloxane) (–NH/NH2)	Cu2+ (1.2 mmol/g, ethanolic, 25)	Langmuir	[154]
	Ni2+ (0.37 mmol/g, ethanolic, 25)
	Fe3+ (1.3 mmol/g, ethanolic, 25)
Bis[3-(triethoxysilyl)propyl]disulfide/TEOS (–S–S–)	Cd2+ (26.8 mg/g, 6, 25)	Langmuir	[155]
	Pb2+ (56.7 mg/g, 6, 25)	Langmuir
	Cu2+ (13.3 mg/g, 6, 25)	Langmuir
	Salen(NEt2)2/silica gel (–OH and –N(C2H5)2)	Cu2+ (4.36 mg/g, 11, room)		Langmuir	[156]
Mn2+ (2.34 mg/g, 11, room)		Langmuir
Pb2+ (10.06 mg/g, 11, rom)		Langmuir
Zn2+ (11.3 mg/g, 11, room)	Langmuir
2-Acrylamido-2-methylpropanesulfonic acid/silica gel (–OH, –NH– and –SO3H)	Cu2+ ( 0.66 mmol/g, ethanolic, 25)	Langmuir	[157]
Amino-terminated dendrimer-like polyamidoamine polymer/silica gel (–NH2)	Pd2+ (0.7 mmol/g, neutral, room)	Experimental	[158]
	Pt4+ (0.41 mmol/g, neutral, room)	Experimental
	Au3+ (0.12 mmol/g, neutral, room)	Experimental
Polyethylene glycol/3-mercaptopropyl trimethoxysilane (–SH)	Cu2+ (0.4 mmol/g, 4, 40)	Langmuir	[159]
Polyvinilalcohol/3-(2-aminoethylamino)propyl trimethoxysilane (–NH/NH2)	Pb2+ (67.6 mg/g, 5, 30)	Langmuir	[160]
Activated alumina/3-mercaptopropyl trimethoxysilane (–SH)	As(III) (9.28 mg/g, 7, room)	Experimental	[161]
N-[3-(trimethoxysilyl)propyl]-ethylenediamine/TEOS (–NH2)	Pt2+ (139 mg/g, 3.05, 25)	Langmuir–Freundlich	[162]
Escherichia coli/TEOS (immobilized E. coli cells)	Cd2+ (79.9 mg/g, 5.7–6.2, 25)	Langmuir	[163]
N,N-(dipropylcarbamothioyl)thiophene-2-carboxamide/TEOS (–S–, C=O and amine groups)	Cd2+ (3.89 mg/g, 7, 30)	Langmuir	[164]
SiNSSH/TEOS (via sulfur or nitrogen atoms of sorbent)	Hg2+ (8.52 mmol/, neutral, 25)	Langmuir	[165]
	Pb2+ (1.90 mmol/g, neutral, 25)	Langmuir
	Cu2+ (1.66 mmol/g, neutral, 25)	Langmuir
	Ni2+ (1.44 mmol/g, neutral, 25)	Langmuir
	Co2+ (1.26 mmol/g, neutral, 25)	Langmuir
3-Aminopropyltriethoxysilane/TEOS (–NH2)	Ni2+ (31.29 mg/g, 4.5, 25)	Langmuir	[166]
	Cd2+ (40.73 mg/g, 4.5, 25)	Langmuir
	Pb2+ (96.79 mg/g, 4.5, 25)	Langmuir
3-Chloropropyltrimethoxysilane/aniline/TEOS (–NH–)	Co2+ (0.32 mmol/g, 4.5, 25)	Experimental	[167]
	Zn2+ (0.34 mmol/g, 4.5, 25)	Experimental
	Cd2+ (0.12 mmol/g, 4.5, 25)	Experimental

.

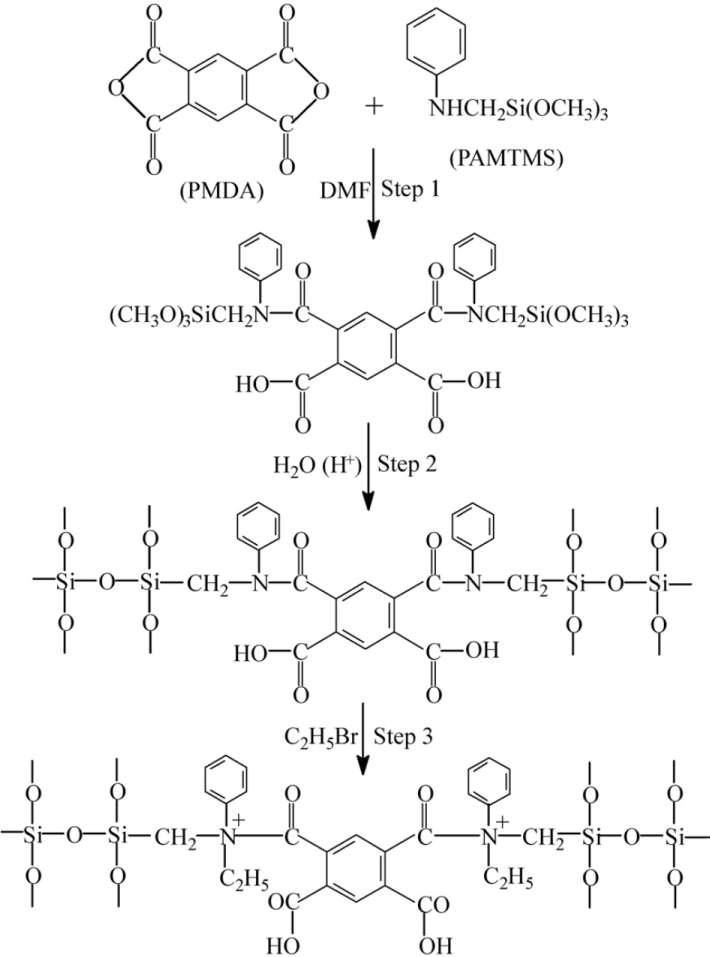

Zwitterionic hybrid polymers [142,143] were synthesized on the basis of ring-opening polymerization of pyromellitic acid dianhydride (PMDA) (a network builder) and phenylaminomethyl trimethoxysilane (PAMTMS), followed by the amination (Scheme 4).

Ionic groups of opposite charges on the polymer chain (quaternary amines and carboxylic groups) allowed their electrostatic interactions with heavy metals. TGA analysis showed a higher PDMA content of prepared samples, increased their thermal degradation temperature [143].

Kinetics experiments showed about 80% of Pb²⁺ and Cu²⁺ ions were adsorbed after approximately 3 h. Kinetics and thermodynamics measurements of Cu²⁺ and Pb²⁺ were carried out at pH = 4 and 5, respectively in which these metal ions exist mainly as their free forms.

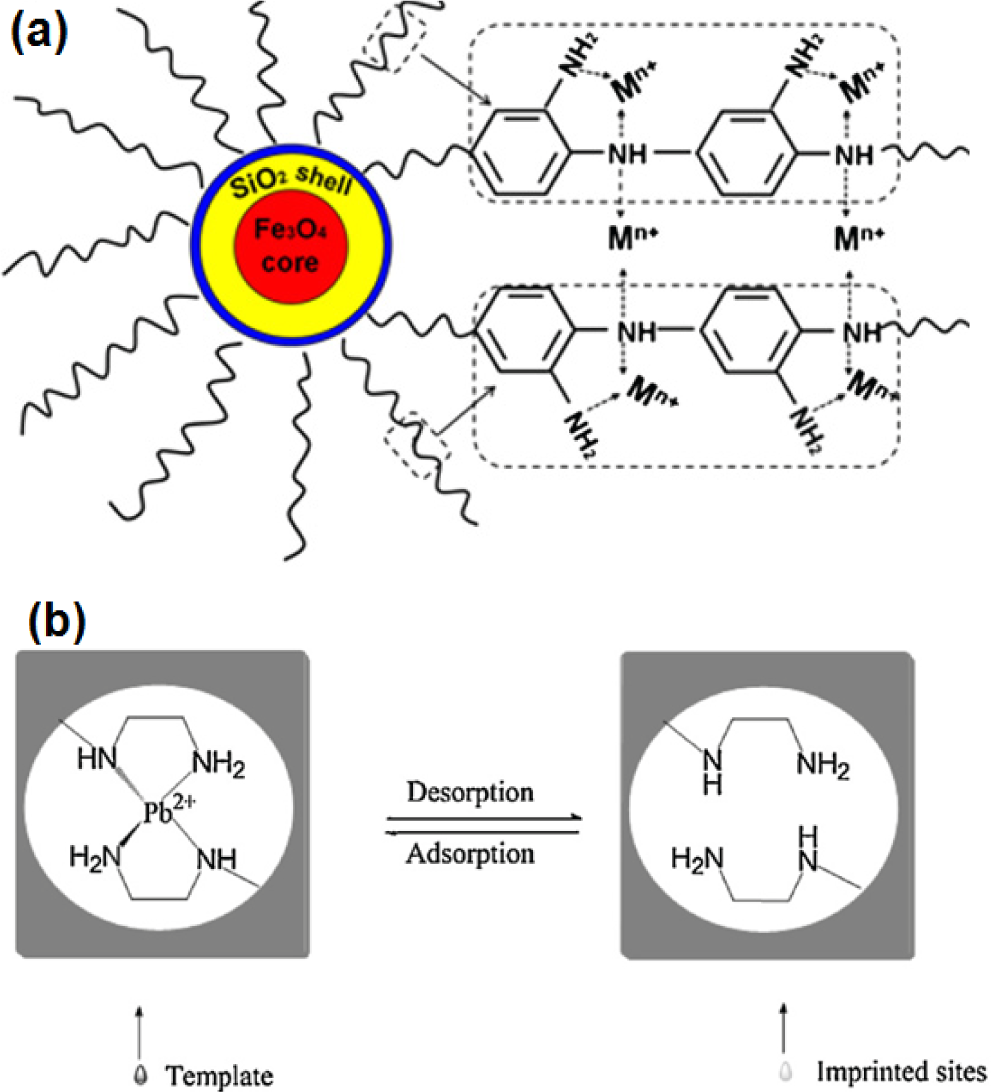

Some researchers prepared imprinted ionic polymers (IIPs) for adsorption of metal ions [144–147]. IIPs were prepared by either the functionalization of a support surface (e.g., silica gel) using an organic chelating group and subsequently imprinted with metal ions as a template or by the co-condensation of monomers containing functional groups (in the presence of metal ions) and then co-condensation of them by sol-gel processes and finally releasing metal ion from the prepared compound. For example, thiocyanato- [144] and amino-functionalized [145] monomers were used to synthesize Cd²⁺-imprinted polymers. These compounds showed high adsorption capacity and high selectivity toward templating ions.

SEM images of Cd²⁺-imprinted and non-imprinted amino-functionalized hybrid polymers show that the former exhibits the porous feature [145]. The amino-functionalized Cd²⁺-imprinted adsorbent [145] had rough surface and smaller size and thus larger surface area (152 m²/g), compared to its non-imprinted form (101 m²/g). Optimum pHs for the adsorption of Cd²⁺ were in the range of 4–8 where adsorption sites were deporotonated and Cd²⁺ ions were not hydroxilated. Kinetics experiments showed that the saturation of these sites was after about 20 min. The q_max (maximum adsorption capacity) value for the adsorption of Cd²⁺ on adsorbent was 77.2 mg/g. An IIP synthesized using mercapto-functionalized monomers [146] was applied for the separation of Cd²⁺ from Ni²⁺, Cu²⁺ and Zn²⁺ that have similar ionic radii. The relative selective factor values of Cd²⁺/Ni²⁺, Cd²⁺/Cu²⁺ and Cd²⁺/Zn²⁺ (imprinted relative to non-imprinted) were 41.687, 65.617 and 66.937, respectively. The q_max values for the adsorption of Cd²⁺ on Cd²⁺-imprinted and non-imprinted adsorbents were 83.89 and 35.91mg/g, respectively which were due to larger surface area of Cd²⁺-imprinted adsorbent and its selectivity toward Cd²⁺.

For a Fe³⁺-imprinted adsorbent [147] prepared by grafting silica gel with cyanato functional groups, the q_max, optimum pH, and the time for the equilibrium binding of Fe³⁺ on the Fe³⁺-imprinted adsorbent were 35.6 mg/g, 3 and 20 min, respectively. The selective coefficient values of Fe³⁺/Co²⁺, Fe³⁺/Pb²⁺, Fe³⁺/Cd²⁺ and Fe³⁺/Ni²⁺ of the Fe³⁺-imprinted adsorbent were 11.95, 50.71, 16.96 and 8.56 times greater than those of a non-imprinted adsorbent, respectively. Due to the high affinity of these functional groups for Fe³⁺ and Cd²⁺, the adsorption rate in these kinds of adsorbents is rapid. As reported by a number of authors [144−147], they washed the used imprinted adsorbents with 3 M HCl and reused the regenerated adsorbent repeatedly without significant loss of adsorption capacity.

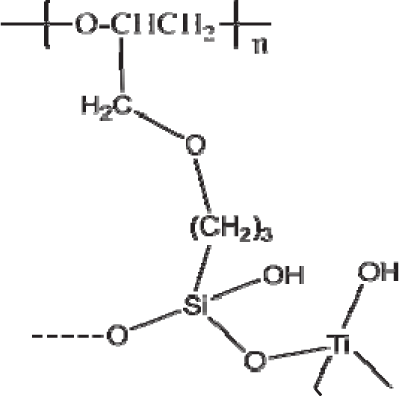

Some researchers are interested in synthesizing silicon and metal containing compounds [148,149] which one of them is poly-GPTS/Ti(O)OH [148]. Poly-GPTS is prepared from the hydrolysis of 3-glycidyloxypropyltrimethoxysilane (GPTS) and poly-GPTS/Ti(O)OH from the hydrolysis of poly-GPTS and titanium isopropoxide, respecyively (Scheme 5).

According to the kinetics experiments, the adsorption equilibrium was attained after about 10 min. Their experiments showed that at pH ≈ 5.5, Pb²⁺, Cu²⁺ and Cd²⁺ interact with oxygen atoms of –OH groups of these adsorbents. Authors believed that due to stronger interactions between metal ions and –OH groups of poly-GPTS/Ti(O)OH, the q_max values for the adsorption of Pb²⁺, Cu²⁺ and Cd²⁺ on poly-GPTS/Ti(O)OH (199, 42.79 and 39.41 mg/g, respectively) were bigger than those of poly-GPTS.

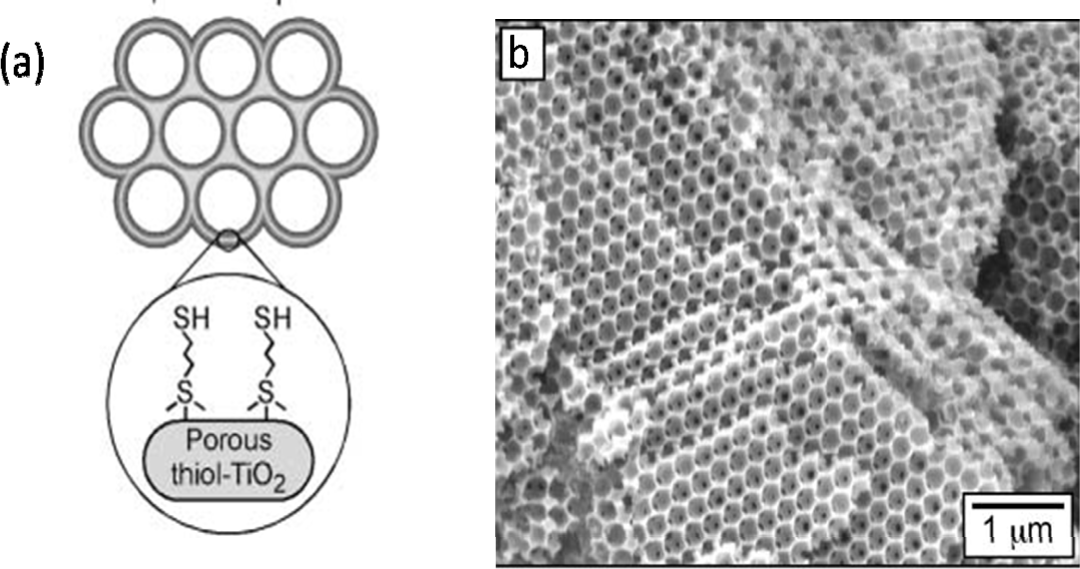

Another example of metal containing compounds is a series of macroporous thiol-functionalized titania and zirconia frameworks with propyl-siloxane, ethyl-sulfonate and propyl-sulfonate linkages [149] (Figure 9). The q_max values for the adsorption of Pb²⁺ and Hg²⁺ were in the ranges of 0.27–0.82 and 0.33–1.41 mmol/g, respectively.

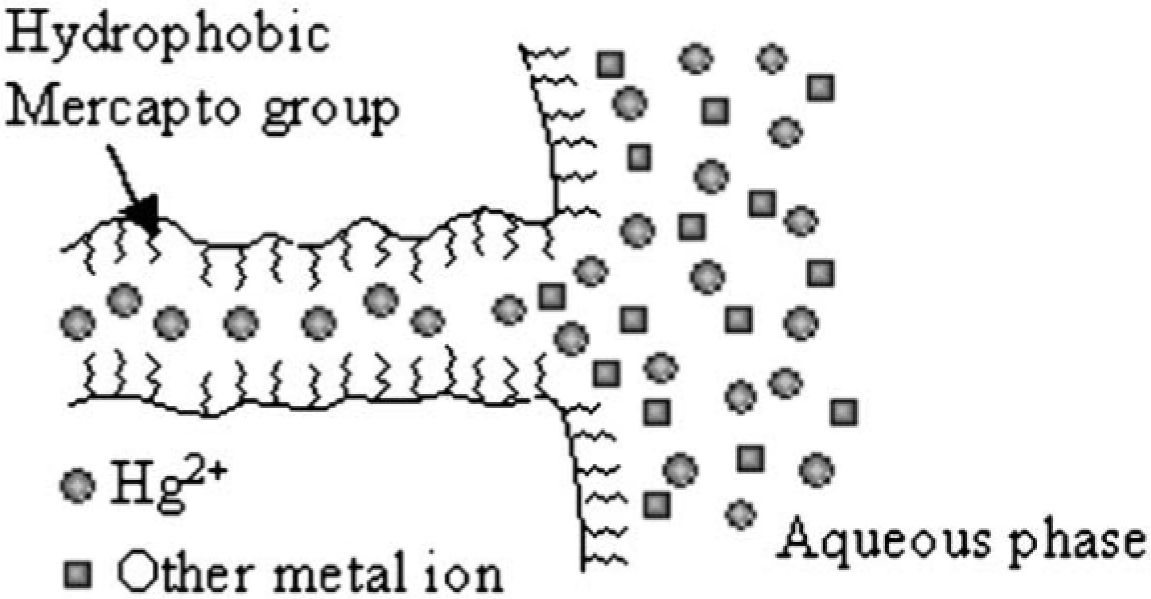

The ratio of adsorbed moles of Hg²⁺ and Pb²⁺ per mole of –SH groups (or their adsorption efficiency) were in the ranges of 0.19–0.82 and 0.21–0.72, respectively. This showed that the inner surface of these compounds were not completely accessible for these metal ions and had a smaller q_max value for Pb²⁺ compared to that of Poly-GPTS.

Xerogels [150,151] and aerogels [152] have been used for the adsorption of heavy metals [150,151]. Lima et al. [150] used mesoporous 7-amine-4-azahepthylsilica and 10-amine-4-azadecylsilica xerogels (abbreviated as AAH–Si and AAD–Si, respectively) for the adsorption of Pb²⁺ on which silica gels were functionalized with –(CH₂)₃–NH–(CH₂)₃–NH₂ and –(CH₂)₃–NH–(CH₂)₆–NH₂ groups, respectively. AAH–Si and AAD–Si interacted with Pb²⁺ through their amine groups and q_max values for the adsorption of Pb²⁺ on AAH–Si and AAD–Si were 36.64 and 30.27 mg/g, respectively and the equilibrium time of process was about 120 min. The higher adsorption capacity of AAH–Si over AAD–Si was due to the ability of AAH–Si to form a stable six-member ring with Pb²⁺ whereas AAD–Si was expected to form a nine-member ring that shows a transannular strain. In another work, an aniline-functionalized silica xerogel [151] was used for adsorption of Ni²⁺ and Mn²⁺ at pH 4–5. The adsorption equilibrium was achieved after about 20 and 30 min for Ni²⁺ and Mn²⁺, respectively. The enthalpies of adsorption, obtained from calorimetric measurements, showed that weak interactions occur between xerogel and metal ions. It implied that the steric hindrance of phenyl group limits the accessibility of amine groups towards metal ions. Similar to above-mentioned xerogels, an amino propyl-modified aerogel used for adsorption of Pb²⁺ and Cd²⁺ [152]. However, in spite of xerogels, the equilibrium time was 24 h.

Some efforts were done for the separation of metal ions from ethanol [153,154]. Qu et al. [153] investigated it through functionalization of silica gel using a series of amino-terminated dendrimer-like polyamidoamine (PAMAM) polymers. This process was endothermic and the Cu²⁺ adsorption capacities of these compounds with different amino contents were in the range of 9.8–78.7 mg/g. Kinetic experiments showed its adsorption equilibrium time was about 10 h. Pissetti et al. [154] synthesized an ethylenediamine-modified poly(dimethylsiloxane) elastomeric network (Pen) for the adsorption of Cu²⁺, Fe³⁺ and Ni²⁺ from ethanol. In these compounds, the ethylenediamine functional groups were located at the nodes of the networks constituted by silsesquioxane clusters. The nodes of the polymeric network were constituted of clusters rich in CSi(OSi)₃ units. The interacting groups of this polymer were amine groups too (Supporting information Figure S3). Also, characteristics of a number of adsorbents [155–167] prepared by sol-gel method, have been given in Table 1.

3.2. Adsorption of Heavy Metals on Organically-Functionalized Mesoporous Compounds

In this section, adsorption capacities and operation conditions of silica-based mesopores are studied. As referred in Section 2.2, these compounds are synthesized through grafting, co-condensation or in situ grafting of mesopores and by synthesis of periodic mesoporous silicas. Details of a number of examples [168–198] are given in

Table 2. Adsorbed heavy metals, maximum adsorption capacity, pH and temperature for adsorption of heavy metals by mesoporous compounds.

Adsorbent (interacting group)	Heavy metal (qmax, pH and t (°C))	Isotherm	Reference
SBA-16 modified with n-propyl-salicylaldimine (–NH2)	Cu2+ (58 mg/g, 4, room)	Experimental	[168]
	Co2+ (16 mg/g, 4, room)	Experimental
SBA-16 modified with n-propyl-salicylaldimine and salicylaldehyde (–N=)	Cu2+ (15.2 mg/g, 4, room)	Experimental	–
	Co2+ (4.5 mg/g, 4, room)	Experimental
SiO2 modified with n-propyl-salicylaldimine (–NH2)	Cu2+ (45.2 mg/g, 4, room)	Experimental	–
	Co2+ (11.2 mg/g, 4, room)	Experimental
SiO2 modified with n-propyl-salicylaldimine and salicylaldehyde (–N=)	Cu2+ (10.2 mg/g, 4, room)	Experimental	–
	Co2+ (3.6 mg/g, 4, room)	Experimental
3-Aminopropyl-functionalized MCM-41 (ammonium group)	Arsenate (64.4 mg/g, 3–4,room)	Experimental	[169]
	Chromate (52.9 mg/g, 7–8,room)	Experimental
3-Aminopropyl-functionalized SBA-1 (ammonium group)	Arsenate (94.2 mg/g, 3–4,room)	Experimental	–
	Chromate (132.7 mg/g, 7–8,room)	Experimental
H2N–(CH2)2–NH–(CH2)3–functionalized SBA-15 (–NH2 and –NH–)	Cu2+ (0.83 mmol/g, neutral, 25)	Langmuir	[170]
3-Aminopropyl-functionalized SBA–15–N–C–H (–NH2)	Cu2+ (0.39 mmol/g, neutral, 25)	Langmuir	–
3-Aminopropyl-functionalized SBA–15–N–E (–NH2)	Cu2+ (0.35 mmol/g, neutral, 25)	Langmuir	–
3-Aminopropyl-functionalized SBA–15–N–C (–NH2)	Cu2+ (0.24 mmol/g, neutral, 25)	Langmuir	–
3-(2-Aminoethylamino) propyltrimethoxysilane modified ordered mesoporous silica	As(V) (10.3 mg/g, 7, room)	Experimental	[171]

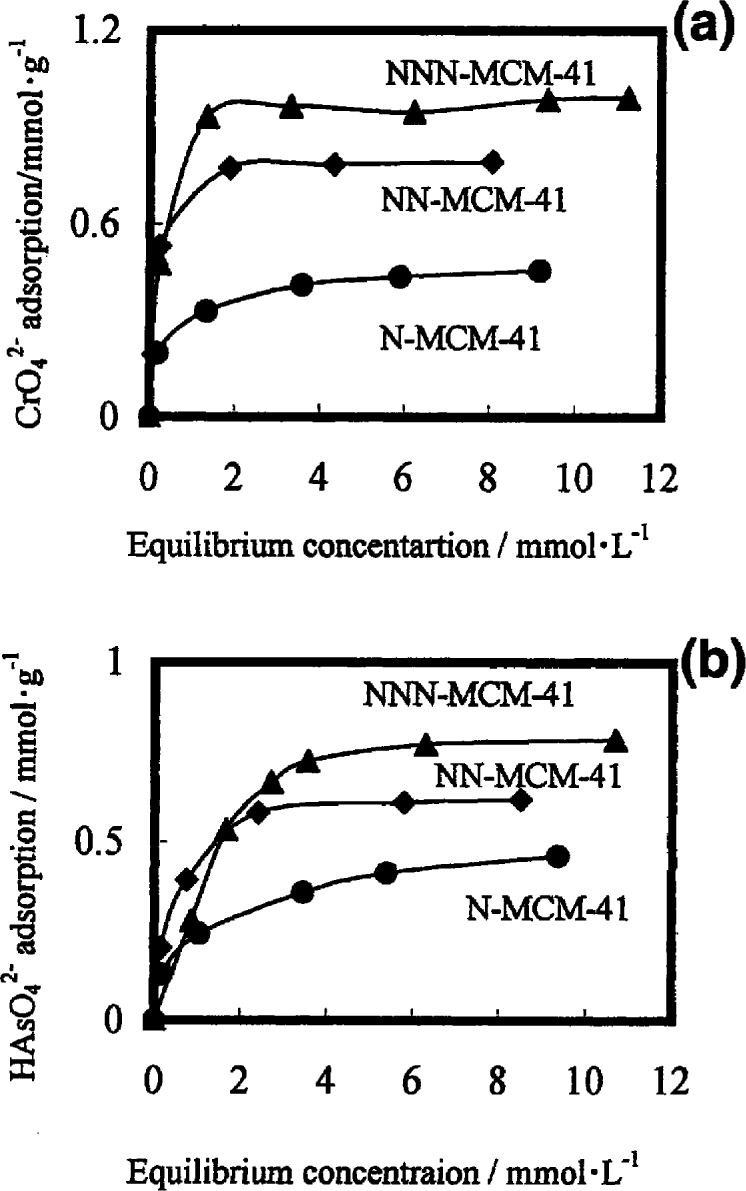

N-propyl aniline-functionalized MCM-41 (–NH–)	Arsenate (0.85 mmol/g, 4.2, room)	Experimental	[172]
	Hg2+ (0.92 mmol/g, 3.5, room)	Experimental
	Pb2+ (0.78 mmol/g, 5.8, room)	Experimental
H2N–functionalized SBA-15 (–NH2)	Cu2+ (1.28 mg/g, neutral, room)	Experimental	[173]
	Pb2+ (1.31 mg/g, neutral, room)	Experimental
	Cd2+ (1.35 mg/g, neutral, room)	Experimental
Imidazole-functionalized SBA-15 (N atoms of imidazole)	Pd2+ (0.091 mmol/g, 4, room)	Experimental	[174]
	Pt2+ (0.091 mmol/g, 4, room)	Experimental
SBA-15 modified with 3-aminopropyl-triethoxysilane and salicylaldehyde (–N= and –O− groups)	Cu2+ (46 mg/g, 4.8, room)	Experimental	[175]
	Ni2+ (22 mg/g, 4.8, room)	Experimental
	Co2+ (19 mg/g, 4.8, room)	Experimental
	Zn2+ (26 mg/g, 4.8, room)	Experimental
Amino-functionalized mesoporous silica (–NH2 and –OH)	Ni2+ (2.48 mmol/g, 8.5, 25)	Sips	[176]
2-Mercaptopyrimidine-functionalized SBA-15 (N and S atoms)	Cd2+ (0.99 mmol/g, 6, 25)	Experimental	[177]
3-Aminopropyl-functionalized MCM-41 (–NH2)	Au3+ (0.4 mmol/g, 2.5, room)	Experimental	[178]
NH(propyl)-functionalized MCM-41 (–NH–)	Au3+ (0.33 mmol/g, 2.5, room)	Experimental	–
N(propyl)2-functionalized MCM-41 (N atom of amine group)	Au3+ (0.2 mmol/g, 2.5, room)	Experimental	–
Chemically modified MCM-41 (–NH– and –NH2)	Hg2+ (0.7 mmol/g, 5, 25)	Langmuir	[179]
3-Aminopropyl-functionalized MCM-41 (–NH2)	Ag+ (0.62 mmol/g, 5, 22)	Experimental	[180]
	Cu2+ (0.84 mmol/g, 5, 22)	Experimental
3-Mercaptopropyl-functionalized MCM-41 (–SH)	Ag+ (0.97 mmol/g, 5, 22)	Experimental	–
	Cu2+ (0.02 mmol/g, 5, 22)	Experimental
3-Mercaptopropyl-functionalized SBA-16 (–SH)	Cu2+ (36.42 mg/g, 5.5, 25)	Langmuir	[181]
3-Aminopropyl-modified SBA-15 (–NH2)	Cu2+ (73.5 mg/g, 6.3, 25)	Langmuir	[182]
SBB or N-((trimethoxysilyl)propyl)-N,N,N-tri-n-butylammonium chloride-functionalized SBA-15 (quaternary ammonium)	ReO4− (1.85 mmol/g, 6.4, room)	Experimental	[183]
3-Aminopropyl and 3-mercaptopropyl bi-functionalized mesoporous silica (–SH)	Hg2+ (1.51 mmol/g, neutral, room)	Experimental	[184]
Meso-structured silica modified with 3-mercaptopropyltrimethoxy silane and 9-(chloromethyl)anthracene (–SH)	Pb2+ (13.96 mg/g, neutral, 25)	Experimental	[185]
	Cu2+ (12.56 mg/g, neutral, 25)	Experimental
	Hg2+ (12.09 mg/g, neutral, 25)	Experimental
	Zn2+ (3.69 mg/g, neutral, 25)	Experimental
3-Mercaptopropyl-functionalized SBA-15 (–SH)	Hg2+ (2.88 mmol/g, 4.5, 20)	Langmuir	[186]
Ordered mesoporous silica modified with 2,5-dimercapto-1,3,4-thiadiazole (–SH)	Hg2+ (1.7 g/g, neutral, room)	Experimental	[187]
1-Benzoyl-3-propylthiourea-functionalized MCM-41 (=N, =O, –NH– and –NH2 groups)	Hg2+ (1 g/g, neutral, room)	Experimental	[188]
Disulfide-bridged periodical mesoporous organosilica (–S–S–)	Hg2+ (716 mg/g, 2, room)	Experimental	[189]
3-Mercaptopropyl-functionalized MCM-41 (–SH)	Hg2+ (0.59 mmol/g, neutral, room)	Experimental	[36]
3-Mercaptopropyl-functionalized HMS (–SH)	Hg2+ (1.5 mmol/g, neutral, room)	Experimental	–
Mesoporous thioether-functionalized polyvinylpyrrolidone (PVP)/SiO2 composite (–S–)	Hg2+ (4.26 mmol/g, 2, room)	Experimental	[190]
Disulfide-functionalized SBA-1 (–SH)	Hg2+ (849 mg/g, 2, room)	Experimental	[191]
3-(((5-ethoxybenzenethiol)imino)methyl)-salicylic acid immobilized onto mesoporous silica (–N= and –SH groups)	Pd2+ (164.2 mg/g, 3, room)	Langmuir	[192]
3-(3-(Methoxycarbonyl)benzylidene) hydrazinyl)benzoic acid immobilized onto mesoporous silica (C=O and –N=NH–)	Cu2+ (145.98 mg/g, 7, room)	Langmuir	[193]
3-(2-Aminoethylamino)propyl-functionalized mesoporous silica (–NH– and –NH2)	Cu2+ (0.107 mmol/g, 3, room)	Experimental	[194]
3-Aminopropyl-functionalized MCM-41 (–NH2)	Cd2+ (0.71 mmol/g, 5, 22)	Experimental	[195]
	Ni2+ (0.69 mmol/g, 5, 22)	Experimental
Diamino-functionalized MCM-41	Co2+ (0.69 mmol/g, neutral, 25)	Experimental	[196]
	Ni2+ (0.52 mmol/g, neutral, 25)	Experimental
Diamino-functionalized MCM-48	Co2+ (1 mmol/g, neutral, 25)	Experimental	–
	Ni2+ (0.86 mmol/g, neutral, 25)	Experimental
Aminopropyl grafted SBA-15 modified with EDTA (–NH– and –COO−)	Pb2+ (273.2 mg/g, 5, 25)	Langmuir	[197]
CONH2-functionalized SBA-15 (CONH2 group)	Cu2+ (1.4 mmol/g, 5, 298)	Langmuir	[198]

. One characteristic of mesoporous compounds is their high surface area. For example, it was shown that [168] when under similar conditions SBA–16 mesoporous compound was used or preparation of organic-inorganic hybrid compounds, its q_max values for adsorption of Cu²⁺ and Co²⁺ were higher than those of adsorbent prepared by silica gel.

Another factor affecting the adsorption capacity of an adsorbent is the density of its functional groups [169,170]. Yoshitale et al. [169] studied and compared effects of functional group density on the adsorption of chromate and arsenate oxyanions and other heavy metals. The H₂N–(CH₂)₃–, H₂N–(CH₂)₂–NH–(CH₂)₃– and H₂N–(CH₂)₂–NH–(CH₂)₂–NH–(CH₂)₃– groups were grafted on the surface of MCM–41and SBA–1 to prepare their mono-, di- and triamino-functionalized derivatives, respectively [169]. These amino groups are abbreviated as N–, NN– and NNN–, respectively. They showed that the pore size and the surface area of these compounds decrease with the increase of their amine density and similar results have been reported for mono-, di- and triamino-functionalized SBA–15 [170]. Experimental results implied that the interaction between the amine groups and oxyanions was ionic and all amine groups can involve in the adsorption process. Thus, q_max values for the adsorption of CrO₄⁻ and HAsO₄²⁻ increase from mono- to triamino-functionalized derivatives of both MCM–41 and SBA–1 (Figure 10) [169]. As reported [169,171,172], amino groups under acidic conditions had much higher q_max for the adsorption of arsenate. At the adsorption saturation, the stoichiometries of oxyanions to N atoms were 0.5 for all adsorbents derived from SBA–1, whereas they were 0.25–0.35 for MCM–41 derivatives [169]. This was due to, on SBA–1, all amino heads were randomly distributed and acted as adsorption sites but, on MCM–41, they formed domains on MCM–41.

Arencibia et al. [170] compared effect of synthesis condition on the adsorption of a number of metallic ions by monoamino-functionalized SBA–15 prepared by calcination, extraction and further hydration of calcined silica. They showed that q_max values of these adsorbents for Ni²⁺, Cu²⁺, Zn²⁺, Cd²⁺ and Pb²⁺ were different from each other and there was no relation between the pore size and surface area of mesopores with their q_max values for the adsorption of metallic ions from solutions. Also, different functional groups on SBA–15 can adsorb different metal cations [173–177].

In some works, amino-functionalized MCM–41 mesopores were used for adsorption of heavy metal cations [178–180]. Yeoung et al. [178] studied the steric hindrance effect on the adsorption of Au³⁺, Cu²⁺ and Ni²⁺ on NH₂CH₂CH₂CH₂–, CH₃CH₂CH₂NHCH₂CH₂CH₂– and (CH₃CH₂CH₂)₂NCH₂CH₂CH₂–functionalized MCM–41 which their abbreviated names are NH₂–MCM–41, NHR–MCM–41 and NR₂–MCM–41, respectively. The results showed that only Au³⁺ (from the mixture of these ions) was selectively adsorbed on these compounds, resulted from interactions of Au³⁺ ions with lone pair electrons of N atom of amine groups. They observed that the adsorption capacity of Au³⁺ decreased from NH₂–MCM–41 to NR₂–MCM–41 which was due to the increase in steric hindrance of these spacious groups on the lone-pair electrons of N atoms. Authors showed that Au³⁺ was adsorbed on NH₂–MCM–41 with the amine loading ratios higher than 0.6 mmol/g. This was because, at low amine loading ratios (<0.6), strong H-bonding between silanol and amine groups prevented interactions of amine groups with Au³⁺ ions whereas at the amine loading ratio higher than 0.6 amine groups formed patches of amino-derived areas and this destroys H-bonding between silanol and amine groups which was revealed at the peak shifting of around 1300 cm⁻¹ in the FT-IR spectra (Figure 11). The used NH₂–MCM–41 was washed by 5 M HCl and all the adsorbed gold ions were recovered and the regenerated adsorbent retained its adsorption capacity after repeating usages.

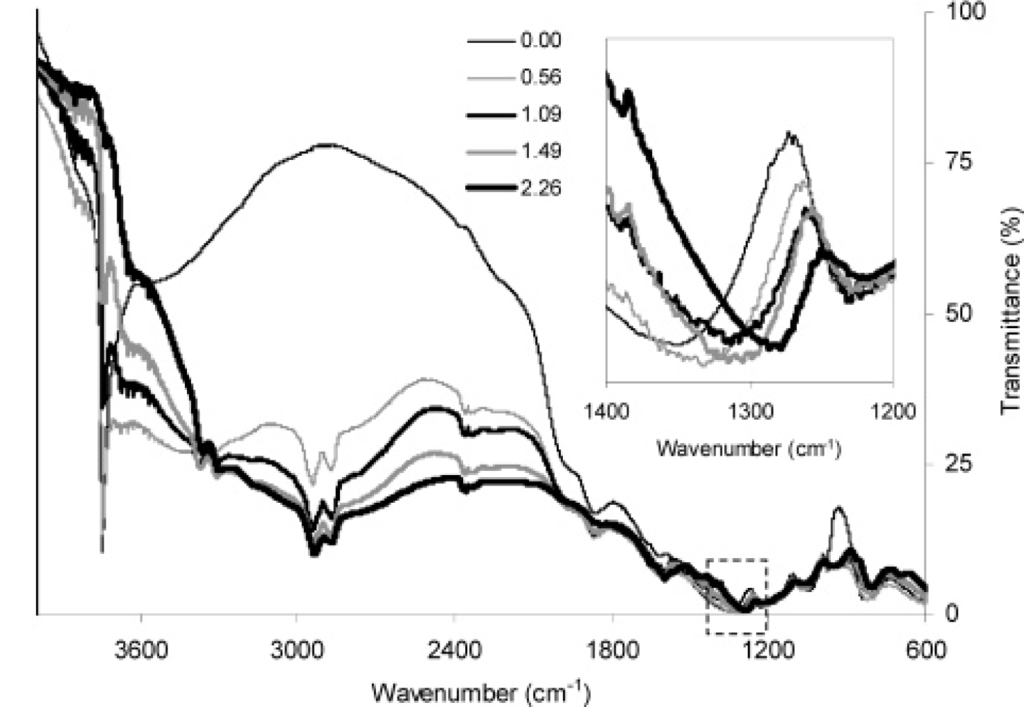

In another work, researchers changed contents of functional groups and used different ratios of 3-mercaptopropyl triethoxysilane (TMMPS) and TEOS to synthesize thiol-functionalized SBA–16 (SH–SBA–16) samples [181]. With the increase in the sulfur content of samples, –SH groups on the surface partially blocked the adsorption of nitrogen molecules and decrease their surface areas and pore sizes and the adsorption capacity of SH–SBA–16 samples increases. The used SH–SBA–16 sample for the adsorption of Cu²⁺ was recovered by 1 M HCl and after the seventh stripping cycle, its adsorption capacity was 90.5% of its initial value.

The adsorption of Cu²⁺ on aminopropyl-substituted SBA–15 (SBA–15–N) and a temperature-aged sample (SBA–15–N–T) was studied by Soler–Illia et al. [182]. It was observed that upon the addition of functional groups, the surface area of SBA–15–N and SBA–15–N–T decrease compared to SBA–15. Experiments showed that the q_max value for the adsorption of Cu²⁺ on SBA–15–N was bigger than that of SBA–15–N–T which was due to the rearrangement of inorganic network in SBA–15–N–T. Due to the thermal treatment of SBA–15–N intensive H-bond interactions between its amino groups and the surface silanols disrupted and this improved the accessibility of amino groups on the pore surface.

Dai et al. [183] studied effect of hydrophobicity of functional groups on their adsorption capacity. HMS, SBA–15 and PME (PMO material bridged with ethylene groups) functionalized with N-((trimethoxysilyl)propyl)-N,N,N-tri-n-butylammonium (TSPBC) and N-((trimethoxysilyl)propyl)-N,N,N-trimethylammonium (TSPMC) ions were used for the adsorption of hydrophobic ReO₄⁻ ions [183]. The results showed that TSPBC-functionalized HMS, SBA–15 and PME had bigger q_max values for the adsorption of ReO₄⁻ than those functionalized with TSPMC. This was due to the higher hydrophobic character of butyl groups compared to methyl groups that enhanced the adsorption of ReO₄⁻ ions. When a cationic surfactant (here CTAC) was used for synthesizing mesopores (called as MEB sample), its chloride ions attached to the protonated silanol groups and anion-exchange sites and hindered the adsorption of ReO₄⁻ ions. To avoid high chloride content in these mesopores, authors used TSPBC and a neutral surfactant (rather than CTAC) to synthesize mesoporous compound (called as NMEB) that increased greatly its q_max for the adsorption of ReO₄⁻ ions compared to MEB. In another work, a bifunctional HMS, prepared by mercaptopropyl and aminopropyl groups, was used for the adsorption of Hg²⁺, Cu²⁺ and Cd²⁺ [184]. Heavy Metal ions were adsorbed by –SH heads of mercaptopropyl groups. Due to higher affinity between –SH group and different mechanisms of its adsorption, the Hg²⁺ adsorption and its adsorption selectivity increased greatly compared to Cu²⁺ and Cd²⁺ (Figure 12). Hg²⁺ can be adsorbed on the inner surface of pores whereas Cu²⁺ and Cd²⁺ were adsorbed on the outer surface of adsorbent or near the pore openings. As reported [36,180,185–187], −SH groups of organically-functionalized mesopores have a great q_max for adsorption of Hg²⁺. An example of a compound with two functional groups is 1-benzoyl-3-propylthiourea-functionalized MCM–41 (MCM–41 BTU) which was synthesized through a two-step modification process [188] to better control removal of Hg²⁺ and to prevent unnecessary pore blocking. In the first step they prepared 3-aminopropyl-MCM–41 (MCM–41 NH₂) and in the second step, they prepared MCM–41 BTU using MCM–41 NH₂. Their surface area and pore size were decreased as in order as MCM–41 > MCM–41 NH₂ > MCM–41 BTU.

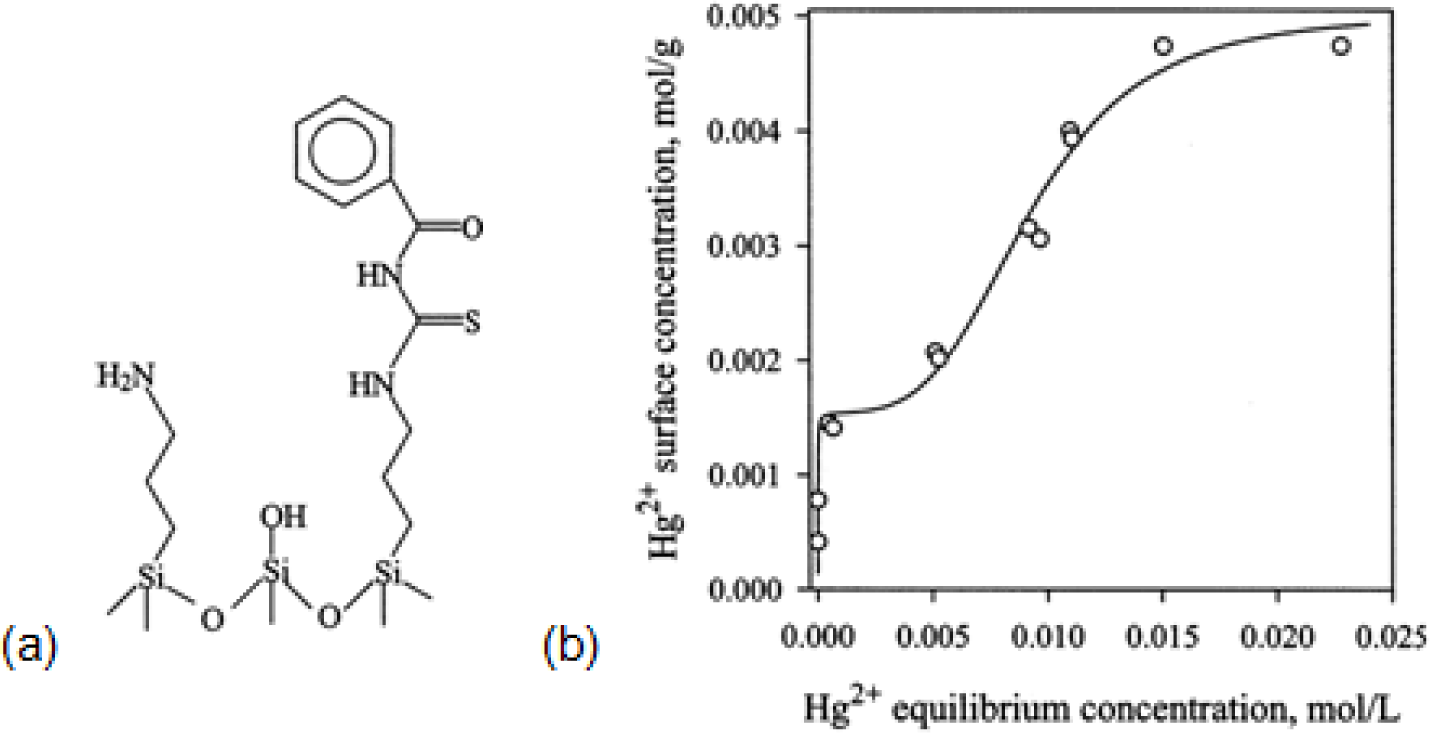

The concentration of 1-benzoyl-3-propylthiourea and (unreacted) aminopropyl groups on the surface of MCM–41 BTU were 1.5 and 0.65 mmol/g, respectively (Figure 13). The adsorption isotherm of Hg²⁺ on MCM–41 BTU had two regions (Figure 13). In the first region, Hg²⁺ strongly were adsorbed on 3-aminopropyl residuals (K₁ = 1.41 × 10⁵ M⁻¹ and q_max = 1.55 mmol/g) and then in the second region the ions were adsorbed on the 1-benzoyl-3-propylthiourea residuals (K₂ = 1.08 × 10² M⁻¹ and q_max = 3.48 mmol/g).

Zhao et al. [189] synthesized a number of two-dimensional disulfide-bridged periodical mesoporous organosilicas (PMO) with high sulfide contents for the adsorption of Hg²⁺. They used bis(triethoxysilylpropyl) disulfide (BTSPDS) and TEOS as precursors Zn(NO₃)₂ in a number of syntheses. XRD patterns demonstrate that in the presence of Zn²⁺ highly ordered hexagonal disulfide-bridged PMO composites were obtained. Eventually, Zn²⁺ ions were etched off in a strong acid. XRD patterns of the Zn²⁺ treated compounds showed their high hydrothermal stability which was enhanced with the increase in their BTSPDS/TEOS ratios. Hg²⁺ ions interacted with sulfur atoms of –S–S– bridges of adsorbents. Adsorption capacities of these compounds for Hg²⁺, similar to those of tetrasulfide-functionalized polyvinylpyrrolidone (PVP)/SiO₂ composite mesopores [190] or disulfide-functionalized SBA–1 [191], were high and increased in their BTSPDS content [189]. This shows that double sulfide functioalized mesopores are emerging candidates for adsorption of Hg²⁺.

Also, other kinds of mesoporous compounds with various functional groups were used for adsorption of heavy metals [192–198]. Yeung et al. [195] increased selectivity of an aminopropyl-grafted MCM–41 (NH₂–MCM–41) for the adsorption of Ni²⁺ and Cd²⁺ through chelation of these ions. The isoelectric point of NH₂–MCM–41 was 3.2. Below this pH, the adsorbent did not adsorb Ni²⁺ and Cd²⁺ and at pH = 5, its q_max values of Cd²⁺ and Ni²⁺ were 0.71 and 0.69 mmol/g, respectively. In binary mixtures of Ni²⁺ and Cd²⁺ at pH > 3.2, the q_max values of NH₂–MCM–41 for Ni²⁺ and Cd²⁺ were 0.60 and 0.16 mmol/g, respectively. The authors tuned the selectivity of adsorbent by an appropriate chelate, EDTA. EDTA selectively bound to Ni²⁺ (as NiEDTA²⁻ complex) and changed its adsorption selectivity toward Cd²⁺. Authors tried to separate these ions by adding EDTA and adjusting the pH of solution. At pH = 2, only Ni²⁺ ions (as NiEDTA²⁻) were adsorbed by –NH₃⁺ headgroups in mesopores and, at pH = 5, only Cd²⁺ ions were adsorbed by –NH₂ groups of adsorbent (Supporting information Figure S4).

The H₂N(CH₂)₂NH(CH₂)₃–functionalized MCM–41 and MCM–48 (abbreviated as NN–MCM–41 and NN–MCM–48) [196] were used for the adsorption of Fe³⁺, Cu²⁺, Co²⁺ and Ni²⁺. Then, the authors applied the used mesopores for the adsorption of arsenate. The Fe³⁺, Cu²⁺ and Co²⁺ ions bound to ethylenediamine (en) headgroups of mesoperes as Fe(en)₂, Cu(en)₂ and Co(en) whereas Ni²⁺ interacted with surface silanol groups. The adsorption capacities of NN–MCM–48 for these metal ions were much larger than those of NN–MCM–41. Also, it was shown that Cl⁻ and SO₄²⁻ anions inhibited arsenate adsorption on these kinds of adsorbents by different extents.

3.3. Adsorption of Heavy Metals on Composites of Layered Compounds with Organic Polymers

As pointed in Section 2.3.3, these kinds of compounds are prepared as phase separated, intercalated and exfoliated structures [118]. Here, we study a number of works carried out regarding their abilities for the adsorption of heavy metals. Some examples [199–232] are summarized in

Table 3. Adsorbed heavy metals, maximum adsorption capacity, pH and temperature for adsorption of heavy metals by organic polymer/layered compound hybrids.

Adsorbent (interacting group)	Heavy metal (qmax, pH and t (°C))	Isotherm	Reference

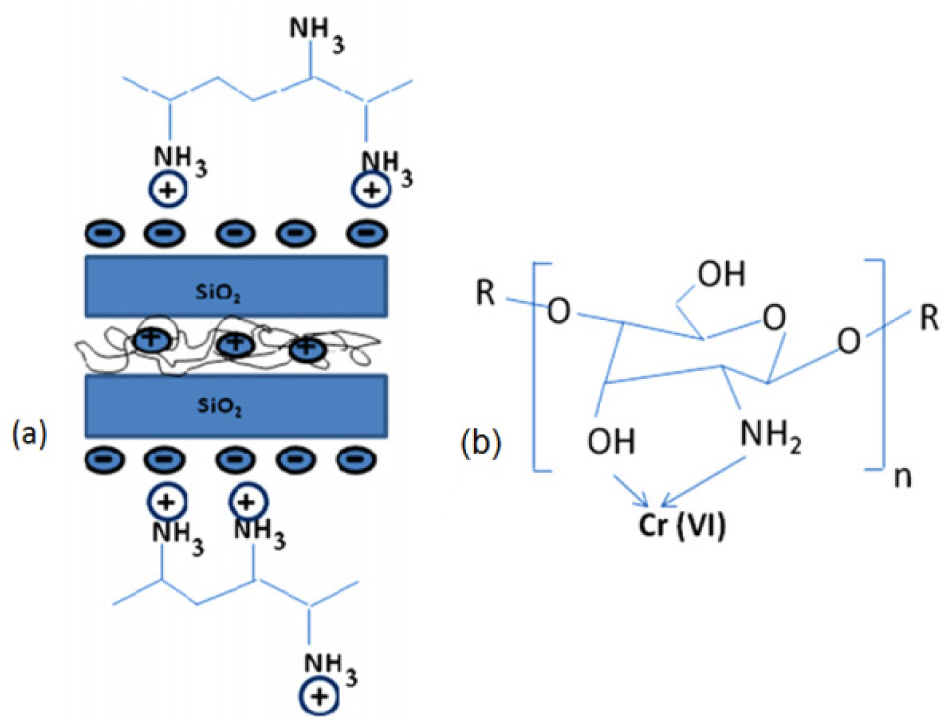

Chitosan/cloisite 10 A (protonated –NH2)	Cr(VI) (357.14 mg/g, 3, 35)	Langmuir	[199]
Chitosan/bentonite (ion exchange property of bentonite and –OH and –NH2 groups of chitosan)	Pb2+ (15 mg/g, 4, 25)	Langmuir	[200]
	Cu2+ (12.6 mg/g, 4, 25)	Langmuir
	Ni2+ (6.1 mg/g, 4, 25)	Langmuir
Chitosan/perlite (protonated –NH2)	Cr(VI) (153.8 mg/g, 4, 25)	Experimental	[201]
Chitosan/perlite (–NH2 and –OH)	Cu2+ (196.08 mg/g, 5, room)	Langmuir	[202]
	Ni2+ (114.95 mg/g, 5, room)	Langmuir
Chitosan/perlite (–NH2)	Cd2+ (178.6 mg/g, 6, 25)	Experimental	[203]
Chitosan/perlite (–NH2 and –OH)	Cu2+ (1.59 mmol/g, 4.5, 25)	Langmuir	[204]
Chitosan/clinoptilolite (–NH2)	Cu2+ (11.32 mmol/g, 5, 25)	Langmuir	[205]
	Co2+ (7.94 mmol/g, 5, 25)	Langmuir
	Ni2+ (4.21 mmol/g, 5, 25)	Langmuir
Chitosan/alumina (protonated amino groups)	Cr(VI) (9.71 mg/g, 4, 40)	Langmuir	[206]
Chitosan/alumina (protonated –NH2)	Cr(VI) (153.85 mg/g, 4, 25)	Langmuir	[207]
Chitosan/montmorillonite (protonated –NH2)	Cr(VI) (40.65 mg/g, 4, 35)	Langmuir	[208]
Chitosan/montmorillonite (protonated –NH2 group of chitosan)	Selenate (18.4 mg/g, 4, room)	Langmuir	[209]
Chitosan/calcium alginate (–NH2 and –OH)	Ni2+ (222.2 mg/g, 5, room)	Langmuir	[210]
Cellulose/hydroxyapatite (ion exchange property of hydroxyapatite)	Pb2+ (16.32 mg/g, neutral, 25)	Langmuir	[211]
Chitosan/bentonite (–NH2)	Cu2+ (9.85 mg/g, 4, 25)	Langmuir	[212]
Epichlorohydrin-crosslinked chitosan/bentonite (–NH2)	Cu2+ (11.75 mg/g, 4, 25)	Langmuir	–
Ethylene glycol diglycidyl ether-crosslinked chitosan/bentonite (–NH2)	Cu2+ (10.52 mg/g, 4, 25)	Langmuir	–
Glutaraldehyde-crosslinked chitosan/bentonite (–NH2)	Cu2+ (4.17 mg/g, 4, 25)	Langmuir	–
Chitosan-g-poly(acrylic acid)/attapulgite/sodium humate (–COO−, –COOH, –NH2 and –O−)	Pb2+ (809.5 mg/g, 5.5, 35)	Langmuir	[213]
Chitosan-g-poly(acrylic acid)/attapulgite (–COO−)	Cu2+ (303.03 mg/g, 5.5, 30)	Langmuir	[214]
Chitosan-g-poly(acrylic acid)/attapulgite (–COOH, –NH2 and –OH)	Hg2+ (785.2 mg/g, 5, 30)	Langmuir	[215]
Poly(methacrylic acid) grafted chitosan/bentonite (–COOH)	U(VI) (117.2 mg/g, 5.5, 30)	Langmuir	[216]
Poly-methacrylic acid grafted chitosan/bentonite (amino and hydroxyl groups of chitosan)	Hg2+ (125 mg/g, 6, room)	Langmuir	[217]
	Pb2+ (111 mg/g, 6, room)	Langmuir
	Cd2+ (83 mg/g, 6, room)	Langmuir
Chitosan-g-poly(acrylic acid)/vermiculite (–COOH, –NH2 and –OH)	Pb2+ (3.08 mmol/g, neutral, 30)	Langmuir	[218]
	Cd2+ (2.94 mmol/g, neutral, 30)	Langmuir
Humic acid-immobilized-amine modified polyacrylamide/bentonite (–COOH)	Cu2+ (106.2 mg/g, 5, 30)	Langmuir	[219]
	Zn2+ (96.1 mg/g, 9, 30)	Langmuir
	Co2+ (52.9 mg/g, 8, 30)	Langmuir
Polyethylenimine800/magnetite-montmorillonite (protonated –NH2)	Cr(VI) (8.77 mg/g, 3, 25)	Langmuir	[220]
Polyacrylic acid crossliked by N,N′-methylenebisacrylamide/montmorillonite (–CONH– and –COOH)	Ni2+ (270.3 mg/g, neutral, 25)	Langmuir	[221]

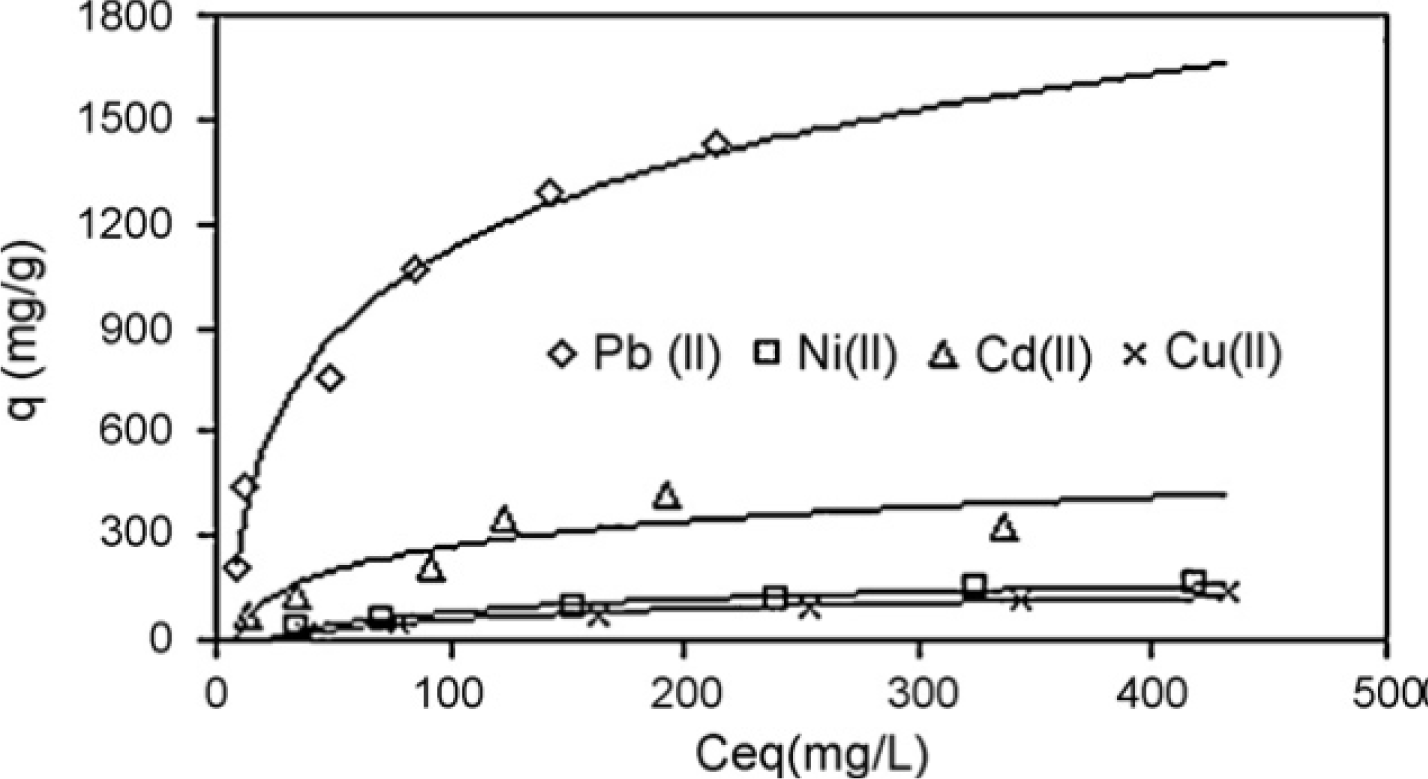

	Pb2+ (1666.7 mg/g, neutral, 25)	Langmuir
Poly[N-(4-vinylbenzyl)-N-methyl-D-glucamine]/montmorillonite (protonated tertiary amine)	As(V) (72.26 mg/g, 6, 30)	Langmuir	[222]
	As(V) (72.99 mg/g, 6, 40)	Langmuir
	As(V) (82.64 mg/g, 6, 50)	Langmuir
Polyacrylamide/bentonite (–NH2)	Cu2+ (32.81 mg/g, 6.2, 20)	Langmuir	[223]
Polyacrylamide-bentonite composite (negatively charged sites of bentonite)	Pb2+ (0.16 mmol/g, 4.5–5, room)	Langmuir	[224]
Phytic acid-modified polyacrylamide-bentonite composite (negatively charged sites of bentonite)	Pb2+ (0.18 mmol/g, 4.5–5, room)	Langmuir	–
Polyaniline/attapulgite (–NH– and –N=)	Hg2+ (909.1 mg/g, 6, 25)	Langmuir	[225]
Polyacrylamide/attapulgite (–NH2)	Hg2+ (192.5 mg/g, 4.4, 30)	Langmuir	[226]
Polyvinyl alcohol/attapulgite (–OH)	Pb2+ (169.5 mg/g, 5, 30)	Langmuir	[227]
Acrylamide-2-acrylamido-sodium 2-methylpropane sulfonate copolymer/clay (–SO3−)	Cu2+ (1.07 mmol/g, 4.5, 25)	Experimental	[228]
	Cd2+ (1.28 mmol/g, 4.5, 25)	Experimental
	Pb2+ (1.03 mmol/g, 4.5, 25)	Experimental
Poly(methoxyethyl)acrylamide/clay (–NH–)	Pb2+ (0.385 mmol/g, 5, 30)	Langmuir	[229]
3-Aminopropyltriethoxysilane/sepiolite (–NH2)	Fe2+ (0.44 mmol/g, 3, 25)	Langmuir	[230]
	Cu2+ (0.14 mmol/g, 4, 25)	Langmuir
Triethoxy-3-(2-imidazolin-1-yl)propylsilane/sepiolite (negatively charged sites of sepiolite and N atoms of imidazolin)	Mn2+ (0.085 mmol/g, 4, 25)	Langmuir	[231]
	Cu2+ (0.13 mmol/g, 4, 25)	Langmuir
	Fe3+ (0.05 mmol/g, 2.5, 25)	Langmuir
	Zn2+ (0.035 mmol/g, 4, 25)	Langmuir
	Co2+ (0.28 mmol/g, 4, 25)	Langmuir
	Cd2+ (0.09 mmol/g, 4, 25)	Langmuir
Iodine-modified chitosan/bentonite (I2 and I−)	Gas-phase Hg0 at 110 °C	Experimental	[232]

.

Chitosan is a natural polycationic biopolymer that can chelate with heavy metals by its amino and hydroxyl groups and its nanocomposites with clays and zeolites are used for adsorption of heavy metals. However, it has a low surface area, with weak chemical and mechanical properties. Thus, physical and chemical modifications are necessary to overcome these limitations. On the other hand, the clay has a lamellar structure with negatively charged surface that interacts with polycationic chitosan. There is high possibility that one or both surfaces of the clay layers can be modified by chitosan. Chitosan-functionalized closite 10A [199], bentonite [200], perlite [201–204], clinoptilolite [205], alumina [206,207], montmerilonite [208,209] and calciul alginate [210] were used for the adsorption of heavy metals from water. In these compounds, functional groups of chitosan (–NH₂ and –OH) interact with heavy metals. In spite of cellulose/hydyoxyapatite in which negative sites of hydroxylapatite are interacting sites of nanocomposite [211]. XRD showed the interlayer spacing of chitosan-functionalized bilayer compounds increases, which showed a complete [199] or partial exfoliated [209] surface morphology. Electrostatic interaction between chitosan and negatively-charged surface of layer compounds such as closite A [199], perlite [203,204] and, alumina [206,207] resulted in the formation of nanocomposites. As an example for the adsorption of heavy metals by these kinds of compounds, authors studied the adsorption of Cr(VI) polyanions by closite 10 A/chitosan nanocomposite (CCN) (Figure 14) [199]. The TEM image demonstrated the formation of exfoliated surface morphology. The zeta potential of CCN surface at pH below eight was positive because the amine groups of chitosan were protonated at pH below eight and Cr(VI) ions existed as Cr₂O₇²⁻, CrO₄²⁻ and HCrO₄⁻ polyanions at pH range of 2–6. Thus, The optimum pH for the adsorption process was found to be 3. Similarly, nanocomposites of chitosan with perlite [201], alumina [206,207], montmorillonite [208], with Cr(VI) oxyanion or chitosan-clay with selenate [209] occurs via their protonated amino groups. As reported [200,202–205,210] chitosan-layered nanocomposites interaction with metal cations occurs through –OH and –NH₂ groups of chitosan. The q_max values of these adsorbents completely depend on the used layered compounds, Table 3. The used CCN was regenerated by washing with 0.01 N H₂SO₄ and, after four cycles, its adsorption capacity was 78.47% of its initial value [199].

In another work, Wan et al. [212] used chitosan/bentonite and crosslinked chitosan immobilized on bentonite as adsorbent for Cu²⁺. Crosslinking agents are used to amend mechanical and chemical properties of the adsorbents.

Some researchers prepared nanocomposites using a natural carbohydrate (e.g., chitosan), a polymer and a layered compound [213–219]. Wang et al. [213] increased the number of compounds for synthesizing hybrid polymer and prepared chitosan-g-poly(acrylic acid)/attapulgite/sodium humate composite hydrogels for the adsorption of Pb²⁺. In this adsorbent, –NH₂ groups of chitosan (CSA), –COOH and –COO⁻ groups of polyacrylic acid (PAA), –COO⁻ and Ph–CO⁻ groups of sodium humate (SH) and Si–OH groups of attapulgite (APT) adsorbed Pb²⁺ ions. Depending on the used quantity of the above constituents, the adsorption capacity of hybrid polymer for Pb²⁺ was in the range of 702.35 to 843.86 mg/g.

Chitosan-g-poly(acrylic acid)/attapulgite (CTS–g–PAA/APT) composites were used for the fast adsorption of Cu²⁺ [214]. Results showed that attapulgite (APT) really reacted with the CTS–g–PAA polymer (Supporting information Figure S5). Adsorption experiments were carried out at pH = 5.5. It was fast and more than 90% of Cu²⁺ was adsorbed after about 15 min. FTIR spectra of CTS–g–PAA/APT compound before and after the adsorption of Cu²⁺ showed that –NH₂, –OH groups of chitosan and –COOH groups of PAA in the composites interacted with Cu²⁺. This compound had a high q_max (785.2 mg/g) for the adsorption of Hg²⁺ [215], as well.

Poly(methacrylic acid)-grafted chitosan/bentonite (CTS–g–PMAA/Bent) composite (Supporting information Figure S6) was synthesized for the adsorption of U(VI) [216]. They used N,N’-methylenebisacrylamide as a crosslinking agent. XRD patterns showed that bentonite was exfoliated during the formation of composite. The adsorption process was carried out at pH = 5.5 in which the CTS–g–PMAA/Bent surface charge was negative and UO₂(OH)⁺ was the predominant species. XPS spectra showed that –COO⁻ groups of composite interacted with UO₂²⁺. Similarly, methacrylic acid grafted chitosan/bentonite [217], Chitosan-g-poly(acrylic acid)/vermiculite [218] and humic acid-immobilized-amine modified polyacrylamide immobilized on bentonite [219] were used for the adsorbtion of a number of heavy metal cations.

In another groups of organically-functioalized layered compounds, synthetic polymers were used as organic moiety. Fe₃O₄ nanoparticles coated with polyethylenimine (PEI) polymer were intercalated between sodium rich montmorillonite (MMT) layers [220] under acidic conditions (pH = 2) and used it as a magnetic sorbent for the adsorption of Cr(VI). At pH = 2, amine groups of PEI were protonated and intercalated between MMT platelets by cationic exchange (Scheme 6). Two different molecular weights of PEI were investigated (x = 800 or 25,000 g/mol). The TEM images of Fe₃O₄–PEIx–MMT compound showed MMT existed as individual exfoliated platelets and intercalation tactoids composed by a few sheets (Figure 15).

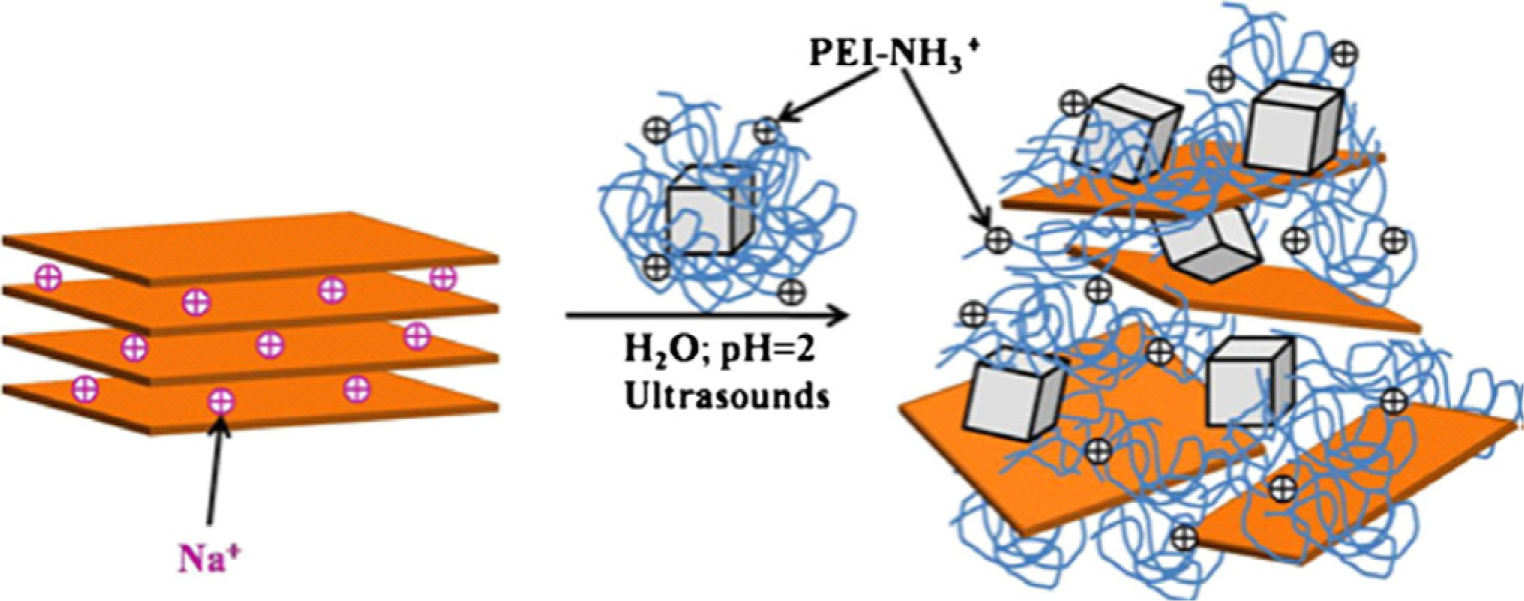

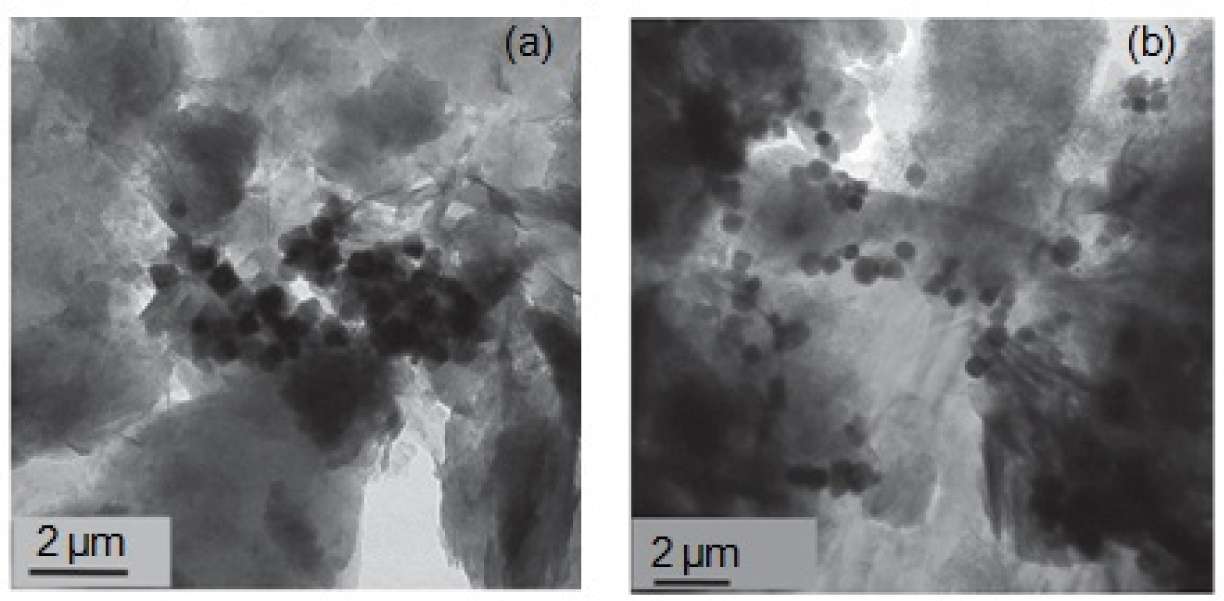

A better dispersion of magnetites was obtained in Fe₃O₄–PEI2500–MMT. The pH of zero point of charge of magnetite was 8.3 and the amine groups of PEI were protonated at pH below 10.4 and adsorbed Cr(VI) polyanions (CrO₄²⁻, HCrO₄⁻ and Cr₂O₇²⁻) through electrostatic interactions. In pH lower than 2, Cr(VI) ions were mainly as H₂CrO₄ and the adsorption decreased. Experiments showed that they can be used for a wide pH range and the optimum pH for the adsorption process was 6. The q_max values of Fe₃O₄–PEI800–MMT and Fe₃O₄–PEI25000–MMT compounds were 8.77 and 7.69 mg/g, respectively.

A novel superabsorbent composite was synthesized by copolymerization reaction of partially neutralized acrylic acid (AA) on bentonite micropowder using N,N′-methylenebisacrylamide as a crosslinker [221]. The superabsorbent composite (SAC) was characterized by Fourier transform infrared spectroscopy (FTIR), thermogravimetric analysis (TGA) and scanning electron microscopy (SEM). The q_max values for adsorption of Pb²⁺, Ni²⁺, Cd²⁺ were 1666.67, 270.27, 416.67 and 222.22 mg/g respectively, Scheme 7.

Organic-modified montmorillonite coated by N-(4-vinylbenzyl)-N-methyl-D-glucamine polymer was studied in the presence of a crosslinking reagent for the adsorption of arsenate [222]. XRD patterns showed that the intercalation process was not complete. Also, TEM images confirmed the dispersion of montmorillonite within matrix. Adsorption experiments were carried out at pH = 6 and As(V) polyanions (as H₂AsO₄⁻) interacted with ammonium groups of adsorbent and its q_max was 72.99 mg/g.

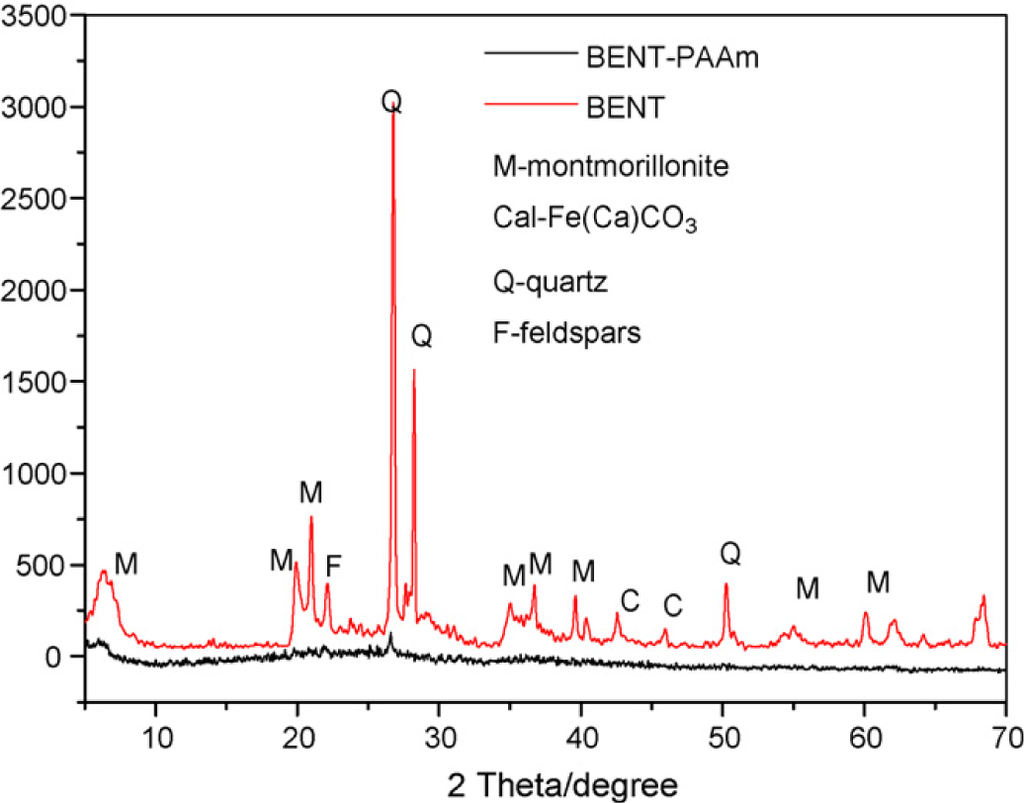

Bentonite (BENT) embedded in polyacrylamide (PAAm) composite was used [223] for the removal of Cu²⁺ from water. XRD patterns of BENT and BENT–PAAm (Figure 16) shows that acrylamide polymerization destroyed BENT structure and resulted in the crystal confusion. Results showed that the optimum pH for the adsorption of Cu²⁺ was 6.2. Increasing pH, increased the negatively charged or deprotonated amines and SiOH groups of BENT–PAAm and also increased the hydrolysis of Cu(II).

Below pH = 6.5, Cu(II) is mainly as Cu²⁺ (Supporting information Figure S7). In pHs of 5 and 6.2, q_max values of BENT–PAAm were bigger than those of BENT which was due to the presence of amine groups of PAAm. On the other hand, it was reported that negatively charged sites of bentonite in BENT–PAAm composite adsorbed Pb²⁺ [224]. In this compound, polyacrylamide chains just increase thermal and mechanical stabilities of the nanocomposite and its q_max for the adsorption of Pb²⁺ is less than that of pure bentonite.

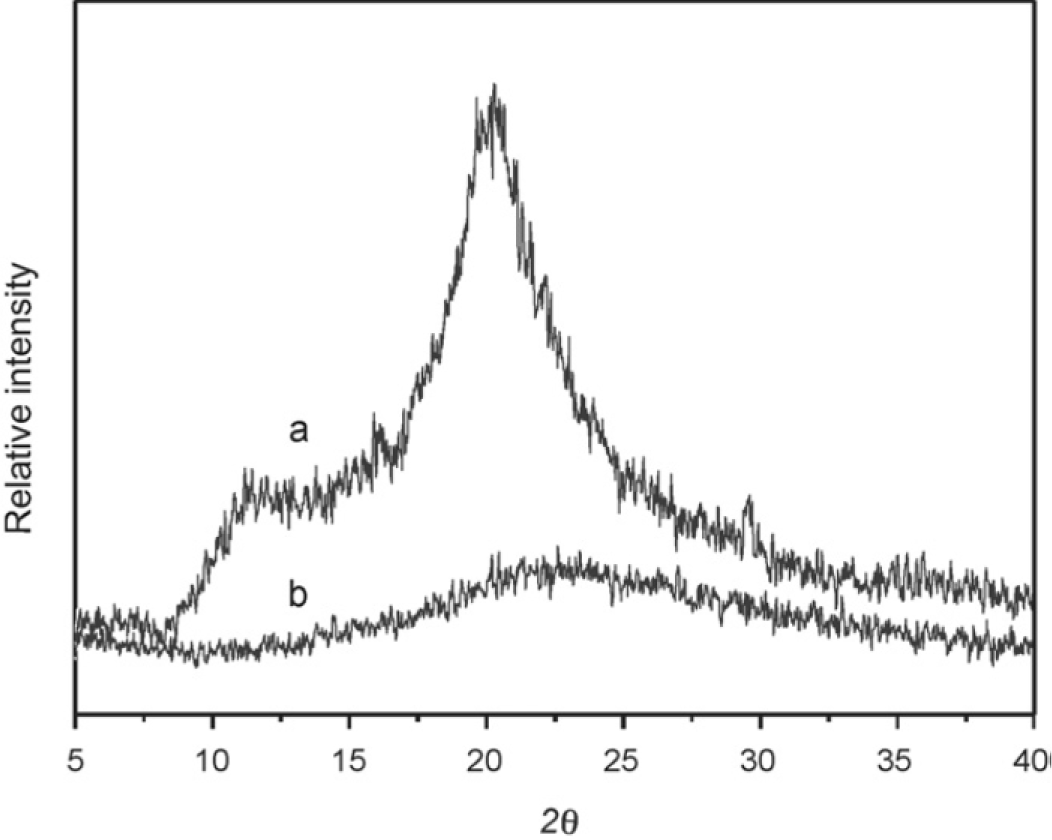

Polyaniline/attapulgite (PANI/ATP) composite was used achieving a high adsorption of mercury [225]. X-ray photoelectron spectroscopy showed that after the adsorption of Hg²⁺ on PANI/ATP, its amine (–NH–) content reduced from 6.97 to 4.55 atom% and its imine (–NH⁺–) content also diminished from 4.54 to 0.96 atom%. This showed that Hg²⁺ was adsorbed on both amine and imine functional groups. The optimum pH for the adsorption process was 6 and its q_max values at ionic strengths of 0.01, 0.1 and 1M were 909.1, 813.1 and 781.3 mg/g, respectively. As reported before [226], polyacrylamide/attapulgite adsorbed Hg²⁺ via its –NH₂ functional groups and its q_max value was 192.5 mg/g. It was observed that Cl⁻ decreased drastically its adsorption capacity of Hg²⁺ via forming HgCl₄²⁻ compound. The adsorption capacity of PANI/ATP was preserved at 93% by the fifth cycle. Also, as seen in Table 3, –OH, –SO₃⁻ and –NH– groups of organic moiety in polyvinyl alcohol/attapulgite [227], acrylamide-2-acrylamido-sodium 2-methylpropane sulfonate/clay [228] and poly(methoxyethyl)acrylamide/clay [229], respectively had a relatively high affinity for adsorption of Pb²⁺.

3.4. Adsorption of Heavy Metals on Organic-Inorganic Core-Shell Nanocomposites (CSNs)

CSNs have different applications and were studied briefly in Section 2.3.4. Here, we discuss the role of these compounds in the adsorption of metal ions. A number of examples [233–252] have been given in

Table 4. Adsorbed heavy metals, maximum adsorption capacity, pH and temperature for adsorption of heavy metals by organic-inorganic core/shell and hierarchically structured nanocomposites.

Adsorbent (interacting group)	Heavy metal (qmax, pH and t (°C))	Isotherm	Reference
Core/shell nanocomposites
SiO2/salicyclic acid functionalized polystyrene (O atom of –COOH and N atom of –N=N–)	Cu2+ (1.29 mmol/g, 5, room)	Langmuir	[233]
	Ag+ (1.85 mmol/g, 5, room)	Langmuir
	Au3+ (1.61 mmol/g, 2.7, room)	Langmuir
SiO2/amino functionalized polystyrene (–NH2)	Cu2+ (0.17 mmol/g, neutral, room)	Experimental	[234]
	Ag+ (0.47 mmol/g, neutral, room)	Experimental
	Au3+ (0.59 mmol/g, neutral, room)	Experimental
SiO2/imidazole-functionalized polystyrene (–N=N– and imidazole)	Au3+ (1.7 mmol/g, 2.7, room)	Langmuir	[235]
SiO2/aniline formaldehyde condensate (–NH2)	Cu2+ (76.33 mg/g, 5.4–5.7, room)	Langmuir	[236]
SiO2/polyacrylamide (–NH2)	Hg2+ (26.5 mg/g, acidic, 40)	Experimental	[237]
SiO2/Chetoceros sp microalgae	Pb2+ (0.19 mmol/g, 5, 27)	Langmuir	[238]
SiO2/chitosan imprinted by sucrose (amino groups)	Cu2+ (3.2 mg/g, 6, 25)	Langmuir	[239]
SiO2/chitosan imprinted by polyethylene glycol 4000 (amino groups)	Cu2+ (9.1 mg/g, 6, 25)	Langmuir	–
SiO2/chitosan imprinted by sucrose and polyethylene glycol 4000 (amino groups)	Cu2+ (10.5 mg/g, 6, 25)	Langmuir	–
SiO2/Cd2+-imprinted chitosan (amino groups)	Cd2+ (1.14 mmol/g, 6, room)	Experimental	[240]
SiO2/chitosan (amino groups)	Cd2+ (0.58 mmol/g, 6, room)	–	–
SiO2/chitosan (–NH2 and –OH)	Cu2+ (0.2 mmol/g, 5.5, 25)	Experimental	[241]
SiO2/chitosan (amino groups)	Ni2+ (182 mg/g, 7, 25)	Langmuir	[242]
SiO2(CO2H)/chitosan (amino groups)	Ni2+ (210 mg/g, 7, 25)	Langmuir	–
Fe3O4/poly(3,4-ethylenedioxythiophene) (–O–)	Ag+ (27.96 mmol/g, neutral, room)	Experimental	[243]
	Hg2+ (16.02 mmol/g, neutral, room)	Experimental
	Pb2+ (14.99 mmol/g, neutral, room)	Experimental
γ-Fe2O3/polyrhodanine (oxygen, nitrogen and sulfur atoms of polyrhodanine)	Hg2+ (179 mg/g, 4, 25)	Langmuir	[244]
Fe3O4 nanoparticle/chitosan (amino groups)	Cu2+ (21.5 mg/g, 5, 27)	Langmuir	[245]
Fe3O4 nanoparticle/chitosan (amino groups)	Au3+ (59.52 mg/g, 2, 25)	Langmuir	[246]
Fe3O4 nanoparticle/thiol-functionalized mesoporous microsphere (–SH)	Hg2+ (185.19 mg/g, 5, 20)	Langmuir	[247]
	Pb2+ (114.7 mg/g, 5, 20)	Langmuir
Chitosan/zerovalent iron nanoparticles (complexation between Fe and Arsenic)	As3+ (94 mg/g, 7, 25)	Langmuir	[248]
	Arsenate (119 mg/g, 7, 25)	Langmuir
Polystyrene/nano-Fe3O4 (Fe3O4)	Arsenate (139.3 mg/g, 6, 25)	Langmuir	[249]
Nanosized hydrous MnO2/porous polystyrene cation exchanger resin (–SO3−, –Mn(OH) and –Mn(OH)2 groups)	Cd2+ (1.96 mmol/g, 4.7, 25)	Langmuir	[250]
	Zn2+ (1.67 mmol/g, 4.7, 25)	Langmuir
Fe3O4/SiO2/poly(1,2-diaminobenzene) (–NH2, –NH– and –N=)	As3+ (84.5 mg/g, 6, 25)	Langmuir	[251]
	Cr3+ (77 mg/g, 5.3, 25)	Langmuir
	Cu2+ (65 mg/g, 6, 25)	Langmuir
SiO2/Fe3O4/ion-imprinted polymer (–NH –CH2 –CH2 –NH2)	Pb2+ (19.61 mg/g, 7.5, room)	Langmuir	[252]
SiO2/Fe3O4/non-imprinted polymer (–NH –CH2 –CH2 –NH2)	Pb2+ (6.57 mg/g, 7.5, room)	Experimental	–
Polyaniline nanorods on graphene oxide nanosheets (amine group)	Cr(VI) (1149.4 mg/g, 3, 25)	Langmuir	[253]
Silica/polystyrene (–SH)	Cu2+ (11.33 mg/g, 5, 15)	Langmuir	[254]
CaCO3-pepsin (CaCO3 and adsorption occurs through formation of PbCO3 and CuCO3)	Pb2+ (1167 mg/g, neutral, room)	Experimental	[255]
	Cu2+ (611 mg/g, neutral, room)	Experimental
CaCO3-maltose (CaCO3 and adsorption occurs through formation of PbCO3, CuCO3, NiCO3 and CdCO3)	Pb2+ (3242.48 mg/g, 7, 25)	Langmuir	[256]
	Cd2+ (487.8 mg/g, 7, 25)	Langmuir
	Cu2+ (628.93 mg/g, 7, 25)	Langmuir
	Ni2+ (769.23 mg/g, 7, 25)	Langmuir

.

Silica gel is a commonly used supporting material in inorganic-organic hybrid materials due to its environmental and economic factors and high thermal and mechanical stabilities [233–241]. Polystyrene diazo-coupled with salicyclic acid [233] (SG–PS–azo–SA) and encapsulated silica gel by polystyrene containing amino groups (SG–PS–NH₂) [234] (Scheme 8) were used for the removal of a number of heavy metals.

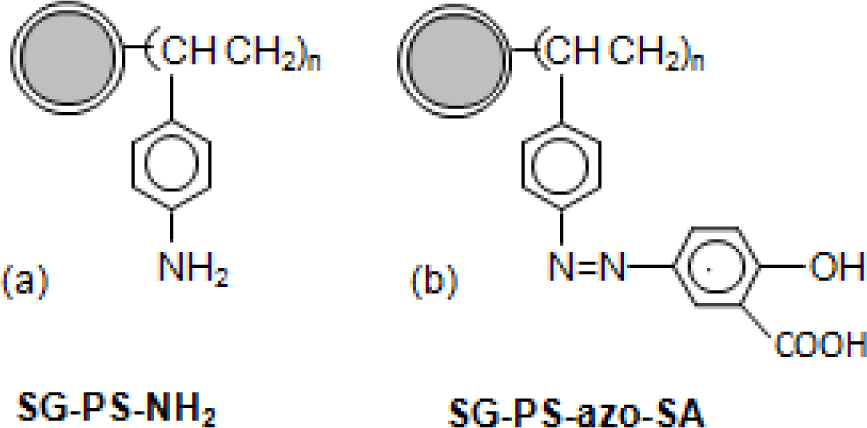

Thermogravimetric analysis of SG–PS–NH₂ and SG–PS–azo–SA showed that the respective organic layer had a high thermal stability. Also, the values of BET surface area, pore volume and pore size decreased greatly from silica gel to SG–PS–NH₂ to SG–PS–azo–SA. SEM images of silica gel, SG–PS–NH₂ and SG–PS–azo–SA indicated that the spherical shape and sizes of these three samples were similar (Supporting information Figure S8), proving that the microspheres of silica gel had good mechanical stability during the process of reaction. The q_max values of SG–PS–NH₂ for Cu²⁺, Ag⁺ and Au³⁺ were 0.17, 0.47 and 0.59 mmol/g [234] and those of SG–PS–azo–SA were 1.29, 1.85 and 1.61 mmol/g, respectively [233]. Amine groups of SG–PS–NH₂ and –N=N– and salicyclic acid groups of SG–PS–azo–SA are their interacting groups.

On the other hand, adsorption capacities of organic functional groups change considerably depending on the nature of inorganic moiety. For example, q_max value of polyacrylamide in SiO₂/polyacrylamide [237] for Hg²⁺ was much less than that of polyacrylamide/attapulgite [226].

Some authors have used natural carbohydrate and biomass as shell of their adsorbents. Immobilization of biomass (Chetoceros sp microalgae) on a SiO₂ core resulted in an adsorbent for adsorption of Pb²⁺ [238]. Chitosan-grafted silica gel imprinted by sucrose and polyethylene glycol 4000 (PEG 4000) was used for the adsorption of Cu²⁺ [239]. This method has been used for direct preparation of porous sorbent with low mass transfer resistance, available functional ligand and excellent mechanical resistance [240]. Sucrose and PEG 4000 interacted with chitosan via hydrogen bonds and extraction of them, by breakage of H-bonds, resulted in a porous structure. The optimum pH for the adsorption of Cu²⁺ on this adsorbent was 6. At this pH, copper was mostly as Cu²⁺ form and most of amine groups of chitosan (its interacting group) were as –NH₂. TG/DSC analyses showed that the thermal stability of grafted chitosan was higher than pure chitosan (Supporting information Figure S9). The XRD patterns show no peak for crystallization regions of chitosan in non-supported hybrid material compared to those of pure chitosan which might be ascribed to the demolition of its crystallinity (Figure 17). The q_max values of Cu²⁺ adsorption for the adsorbent imprinted with sucrose and PEG 4000, PEG 4000, sucrose and non-imprinted adsorbent [241] were 10.5, 9.1, 3.2 and 0.2 mmol/g, respectively.

The used adsorbent was washed by 0.1 M HCl and the capacity of the regenerated sorbent through five cycles was detected to be 94% of the fresh one and equilibration time in the case of sucrose and PEG 4000 was 25 min. Also, q_max value of SiO₂(CO₂H)/chitosan for adsorption of Ni²⁺ was higher than that of SiO₂/chitosan [241] which shows effect of support on the adsorption property of adsorbent [242]. Another material that was used frequently in core-shell nanocomposites was Fe₃O₄ magnetic nanoparticle [243–248]. These kinds of compounds can be separated with the help of an external magnetic force. In a number of works, organic polymers were used as shell for Fe₃O₄ core [243,244]. Jang et al. [243] encapsulated Fe₃O₄ by poly(3,4-ethylenedioxythiophene) (PEDOT) and used the produced compound (Fe₃O₄–PEDOT) for the removal of metal ions (Scheme 9). PEDOT has an excellent environmental stability and can interact with positively charged metal ions through its sulfur atom. The PEDOT shell has a lower surface energy than the core of magnetic nanoparticles, thus Fe₃O₄–PEDOT nanoparticles show amended stability and dispersibility in aqueous solutions, compared to pristine Fe₃O₄ nanoparticles. Adsorption experiments showed that adsorption capacities of Fe₃O₄–PEDOT nanoparticles were: Ag⁺ > Hg²⁺ > Pb²⁺. It was regenerated by acid treatment and the recovered adsorbent by ten cycles showed no loss in its adsorption capacity.

Chitosan-bound Fe₃O₄ magnetic nanoparticle has been used for the adsorption of Cu²⁺ and Au(III) ions [245,246]. TEM images showed that Fe₃O₄ and chitosan-bound Fe₃O₄ nanoparticles had a similar particle size of 13.5 nm and were monodisperse [245]. This revealed the reaction between Fe₃O₄ and chitosan occured only on the surface of Fe₃O₄. Also, XRD patterns showed that the binding of chitosan to the surface of Fe₃O₄ did not result in the phase change of Fe₃O₄. Experiments showed that the pH of isoelectric point of chitosan-bound Fe₃O₄ nanoparticles was 5.9 and the optimum pH for the adsorption of Cu²⁺ ions was in the range of 2–5 [245] and that of Au(III) negatively-charged complex was 2 [246]. The q_max values for Cu²⁺ and Au(III) were 21.5 [245] and 59.52 mg/g [246], respectively. In a different study, Tao et al. [247] used thiol-functionalized magnetic mesoporous microsphere (TMMM) for adsorption of Hg²⁺ and Pb²⁺. The Fe₃O₄ nanoparticles were used as a core and coated with two silica layers, a tightly crossed silica thin layer and a mesoporous silica shell. The thiol moiety had a strong affinity towards these metal ions. The porous structure of the silica shell brought large surface area and provided the opportunity to graft organic moiety for adsorption of metal ions. q_max value of Hg²⁺ was 185.19 mg/g at 20 °C and decreased in the presence of Ca²⁺, Mg²⁺ and Na⁺ ions.

In some works, organic moieties (chitosan [248] and polystyrene [249]) were used as core. Polystyrene-supported Fe₃O₄ nanoparticles (PS–Fe₃O₄ NPs) was used for the adsorption of arsenate oxyanion [249]. Zeta potential measurements showed the polystyrene (PS) latex was negatively charged in a wide pH range and Fe₃O₄ nanoparticles were positively charged in acidic or neutral solutions. This was the driving force for the acervation of Fe₃O₄ nanoparticles on PS and the formation of PS-Fe₃O₄ NPs. At pH of 6, As(V) was as HAsO₄²⁻ and PS–Fe₃O₄ NPs had the maximum adsorption capacity for its adsorption. TEM images showed that the diameter of fresh Fe₃O₄ spherical beads (due to aggregation) were in the range of 350–400 nm, but there was not observed coalescence between PS–Fe₃O₄ NPs. Due to these, the q_max value for the adsorption of arsenate on PS–Fe₃O₄ was 139.3 mg/g whereas that of Fe₃O₄ was 78.4 mg/g. The used PS-Fe₃O₄ NP was recovered by 0.1 M NaOH and its recycling efficiency after the sixth cycle was 89.6%.

Lv et al. [250] synthesized nanosized hydrous MnO₂ encapsulated within porous polystyrene cation exchanger as adsorbent for heavy metals. The –SO₃⁻ groups of polymeric matrix and –MnOH and –Mn(OH)₂ groups of MnO₂ interacted with Zn²⁺ and Cd²⁺. In the presence of Ca²⁺, due to its electrostatic interaction with –SO₃⁻ groups, q_max values of nanocomposite for adsorption with Zn²⁺ and Cd²⁺ were decreased greatly.

Some researchers have used two inorganic compounds (e.g., SiO₂ and Fe₃O₄) as the core [251,252]. Firstly, they prepared Fe₃O₄ on which a layer of SiO₂ was synthesized, and then carried out the polymerization on the surface of SiO₂. Song et al. [251] synthesized Fe₃O₄–SiO₂–poly(1,2-diaminobenzene) sub-micron particle (FSP) for the removal of Cr(III), As(III) and Cu(II). Zhang et al. [252] used 3-(2-aminoethylamino)propyltrimethoxysilane (AAPTS) as the functional monomer and Pb²⁺ as the template to prepare an ion-imprinted polymer (Fe₃O₄@SiO₂@IIP) for the separation of Pb²⁺ ion from water (Scheme 10).

XRD patterns showed that peaks of Fe₃O₄ of the core-shell compounds were similar to those of naked Fe₃O₄ nanoparticles and the surface modification of Fe₃O₄ did not result in its phase change. In both adsorbents, amine groups interacted with metal ions. Experiments using Fe₃O₄@SiO₂@IIP at pH = 7.5 showed that in the presence of Cu²⁺, Zn²⁺, Cd²⁺ and Hg²⁺, the relative selectivity factor values of Pb²⁺/Cu²⁺, Pb²⁺/Zn²⁺, Pb²⁺/Cd²⁺ and Pb²⁺/Hg²⁺ were 7.41, 6.76, 3.75 and 6.39, respectively [252]. However, when authors used a non-imprinted polymer to synthesize this core-shell polymer (Fe₃O₄@SiO₂@NIP), values of the above-mentioned relative selectivity factor were about 1 and this adsorbent was not selective toward Pb²⁺.

As we saw in this section, synthesing core-shell nanocomposites does not result in the phase change of its inorganic moiety. In some cases, more than one inorganic compound was used as the core. Functional groups of the shell have a major role in the adsorption of heavy metal ions and core-shell nanocomposites had good mechanical stability and organic moiety of these compounds had higher thermal stability than that of its pure form.

3.5. Adsorption of Heavy Metals on Organic-Inorganic Hierarchically Structured Materials

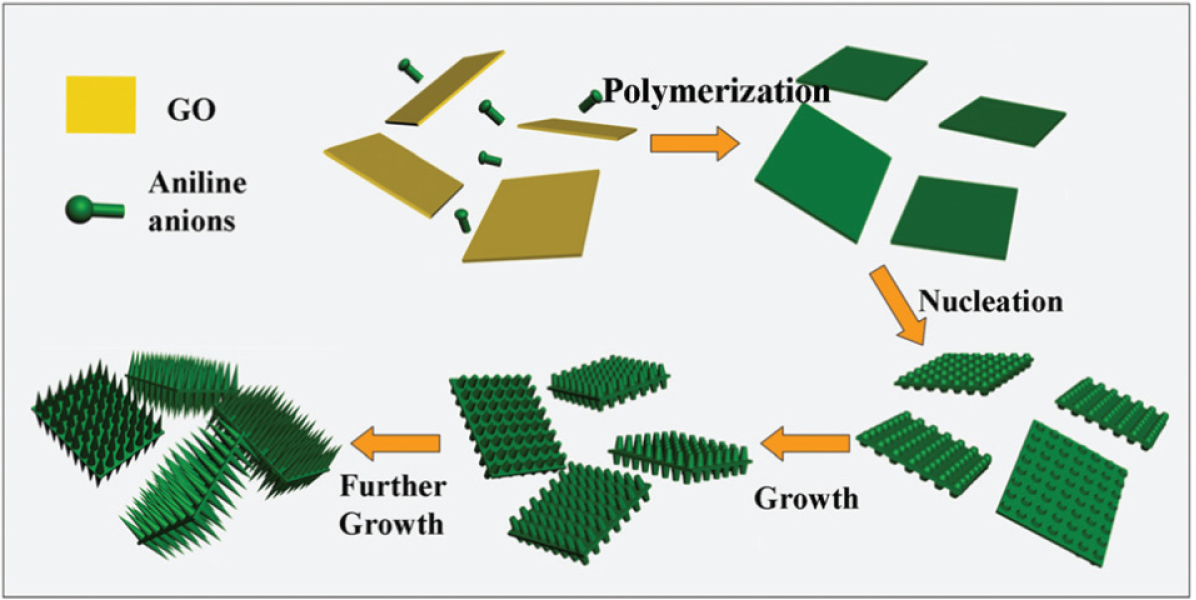

Hierarchically structured compounds were explained briefly in Section 2.3.5. Li et al. [253] synthesized a hierarchical nanocomposite by the polymerization of aniline arrays on the surface of grapheme oxide nanosheets and used it as a superadsorbent for the adsorption of Cr(VI) oxyanion from water (Figure 18 and Table 4). Aniline monomers (ANI) were adsorbed on the surface of graphene oxide (GO) through electrostatic interactions with its reactive oxygen-containing functional groups and further the polymerization of ANIs resulted in the formation of aligned polyaniline (PANI) nanorods on the surface of GO (PANI/GO).

XRD patterns showed that the interplanar distance of GO nanosheets was 0.88 nm (as agglomerated) and PANI/GO demonstrated characteristic peaks of PANI (Supporting information Figure S10). These evidence proved that GO and PANI/GO were as agglomerated and separated nanosheets, respectively. Adsorption experiments were carried out at pH = 2 in which Cr(VI) adapting the form of HCrO₄⁻ interacted with the protonated nitrogen atoms of PANI in pure PANI and PANI/GO. Pure PANI was simply aggregated and its surface area was smaller than PANI/GO and the q_max values of PANI and PANI/GO were 490.2 and 1149.4 mg/g, respectively.

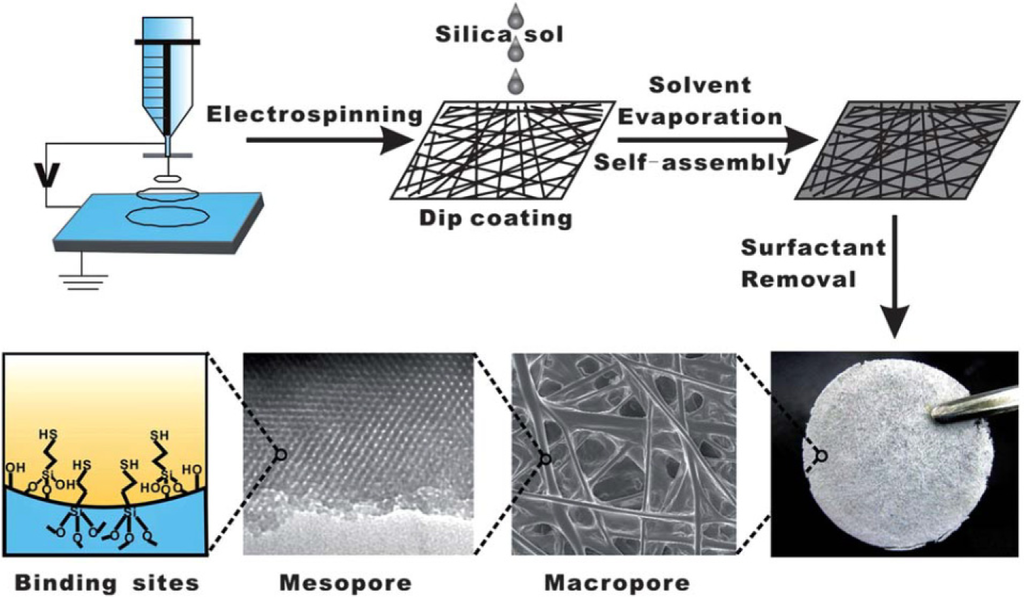

In a novel work, Li et al. [254] fabricated polystyrene (PS) nanofibrous mats by an electrospinning method and used as a skeleton for thiol-functionalized mesoporous silica compound (Figure 19 and Table 4). In this hierarchical structure the PS nanofibers had macroporous structures (diameters of 3–10 μm) and were randomly distributed in the membrane (Supporting information Figure S11). The optimum pH for the adsorption of Cu²⁺ was about 5 and its q_max value was 11.33 mg/g. Cu²⁺ ions were adsorbed by –SH groups within mesopores. The amount of thiol groups in the adsorbent was 0.32 mmol/g and the adsorption efficiency (Cu²⁺/SH molar ratio) of adsorbent was about 80%. After the recovery of adsorbent by 0.5 M HCl, its adsorption capacity of Cu²⁺ was basically maintained after five cycles.

In another different works with hierarchical structure compounds, Ma et al. synthesized CaCO₃–pepsin [255] and CaCO₃–maltose [256] and used them as adsorbents. Here, structure and adsorption characteristics of CaCO₃–pepsin [255] are studied (Figure 20). Pepsin is an enzyme which is made up of 327 amino acids. SEM images showed that CaCO₃–pepsin consisted of a large number of tetrahedral micro-aggregates that were composed of smaller tetrahedral building nano-blocks (Supporting information Figure S12).

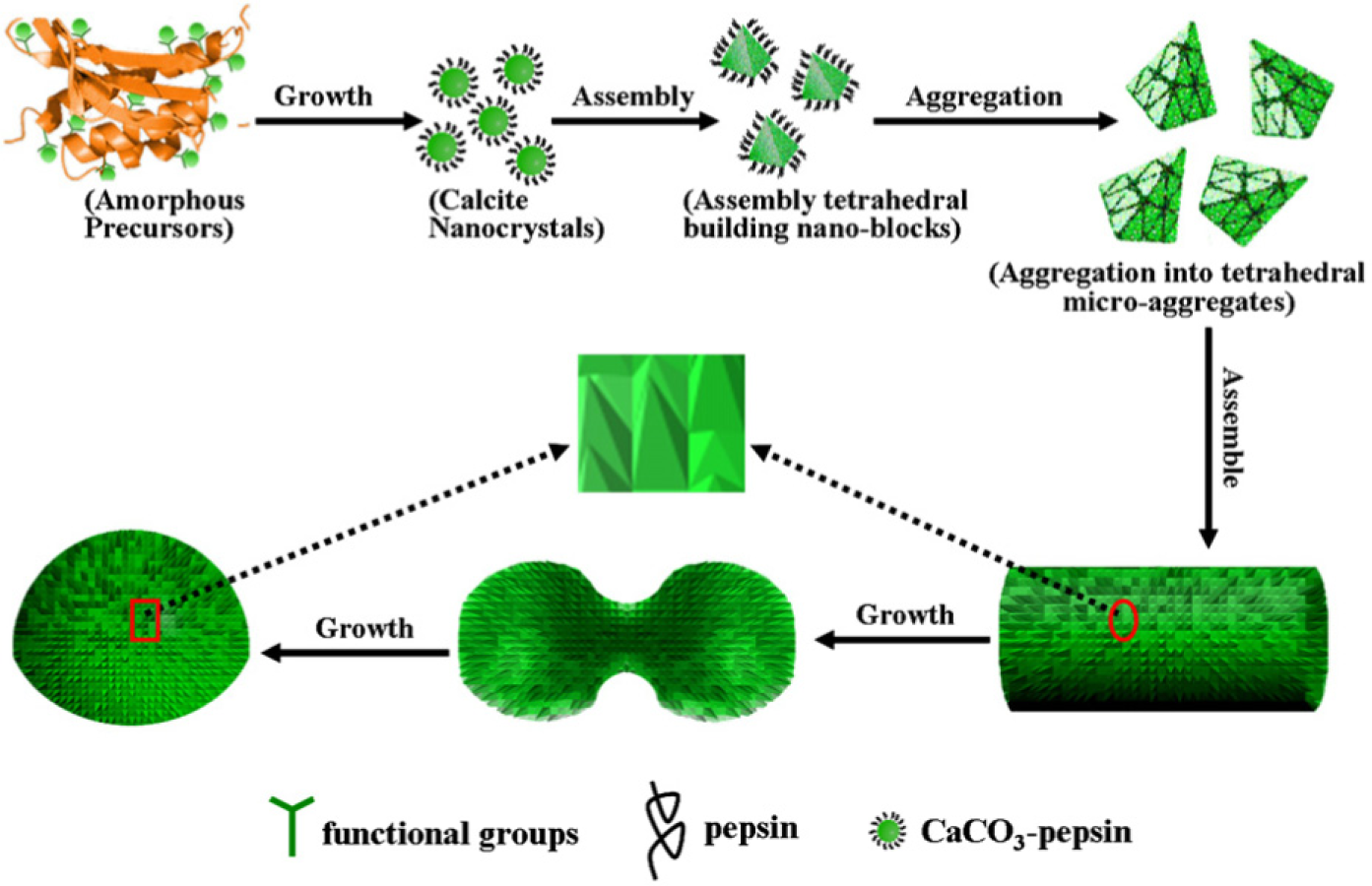

XRD, SEM and IR results showed that CaCO₃ and pepsin interacted through both coordination of Ca²⁺ and pepsin and interactions between the surface of CaCO₃ nanocrystals and –OH and –CO groups of pepsin.

Adsorption experiments were carried out in neutral pH and the adsorption capacity of CaCO₃–pepsin for Pb²⁺ and Cu²⁺ were 1167 and 611 mg/g, respectively and the removal of Pb²⁺ was very rapid (about 20 min). Solubility product of PbCO₃ and CuCO₃ are less than CaCO₃ and thus Cu²⁺ and Pb²⁺ precipitate as their carbonates.

On the other hand, adsorption capacities of CaCO₃–maltose [256], another hierarchical structure superadsorbent, for Pb²⁺, Ni²⁺, Cu²⁺ and Cd²⁺ (as metal carbonate) were 3242.48, 769.23, 628.93 and 487.8 mg/g, respectively whereas adsorption capacity of CaCO₃ for Pb²⁺ is 62.5 mg/g and this showed clearly synergic effects between organic and inorganic moieties in these compounds. As we saw, the organic-inorganic hierarchically structured compounds are superadsorbent.

3.6. Characteristics of Organic-Inorganic Hybrid Polymers

To study Sections 3.1–3.5, the characteristics of different kinds of organic-inorganic hybrid polymers were as follows: (1) Some functional groups of these adsorbents are –SH, –COOH, amines and –S–S–, –OH, –SO₃⁻ and ion exchange sites of hybrid polymer; (2) adsorption processes mostly obey the Langmuir isotherm that shows the adsorption is monolayer and there is a uniform distribution of sites on the surface of adsorbents; (3) the adsorption capacity of each certain organic functional group changes depending on its content [181,214], the used organic compound, inorganic support [166,195], crosslinking agent [212], aggregation of nanoparticles [253] and the used synthesis method [182,189]; (4) in some cases, organic compounds are used only for increasing thermal and mechanical stability of adsorbents and without adsorbing heavy metal ions [224]; (5) mesoprous compounds, due to their porous structures have a rather higher adsorption capacities compared to those of organically-functionalized layered, core-shell compounds and products of sol-gel method; (6) heavy metals as cations and oxyanions are adsorbed via electrostatic interactions and the increase in the hydrophobicity of functional groups of adsorbent (e.g., –N(C₂H₅)₂ [156] or from –NH₂ to –NH(propyl) to –N(propyl)₂ [178]) decreases their adsorption capacity for metal cations and increases their q_max values (e.g., from trimethylammonium to tri-n-butylammonium functional groups) for the adsorption of some hydrophobic oxyanions [183]; (7) In the most cases, for example [141–147,216,221,225,241,243,249,252], the used adsorbents are recovered by acid treatment and in the cases that acid dissolves the adsorbent [199], they have used another washing solutions; (8) some ions may react with metallic ions, e.g., Cl⁻ with Hg²⁺ [226], and inhibit their adsorption; (9) some ions, e.g., Cl⁻ [183], SO₄²⁻ [196] or metallic cations [252], may react with functional groups of hybrid adsorbents and decrease their adsorption capacity for heavy metal ions; (10) steric hindrance on functional group decreases its adsorption capacity [151]; (11) in most cases, adsorption capacities of organic-inorganic hybrid polymers are bigger than those of their organic or inorganic constituents; (12) most of heavy metals were adsorbed in the pH range 4–7. With the increase in alkalinity of solution, heavy metal ions convert to metal hydroxides and this decreases their affinity for interaction with binding sites of adsorbents [224] and in highly acidic solutions, H⁺ ions compete with metal ions for adsorption on the adsorbent surface [212]; (13) increasing the content of functional groups increases the adsorption capacity of these kinds of hybrid polymers although it decreases their pore size and surface area [153,169,170]; and (14) adsorption capacities of hierarchically structure compounds are much greater than the other kinds of discussed organic-inorganic hybrid polymers and in the future they can be used as superadsorbents for the adsorption of heavy metals.

4. Conclusions and Outlook

Organic-inorganic hybrid polymers are obtained through sol-gel processes, self-assembly processes, assembling or dispersion of nanobuilding blocks, hierarchical structures and interpenetrating networks. In these compounds, the functional variation of organic materials combines with the benefits of a sturdy and thermally stable inorganic substrate. These materials have strong binding affinities toward selected metal ions (as cations or oxyanions) and relatively high metal ion adsorption capacities and can be used for wastewater treatment and solid-state separation of heavy metals. They are modified by suitable functional groups for high efficiency adsorption of heavy metal ions under the used experimental conditions. Techniques such as XRD and SEM show that in hybrid polymers, the structure of organic and inorganic moieties change and synergy effects between them increase their adsorption capacities, compared to their individual pristine organic or inorganic moieties. Heavy metal selective adsorbents can be prepared by methods such as cation-IIP. Although adsorbents similar to activated carbon are used routinely for their low cost and high adsorption capacity, different combinations of organic and inorganic moieties provide us a large number of selections of hybrid adsorbents that can be used under different experimental conditions, are reusable and can be prepared for selective adsorption of heavy metals and in some cases act as superadsorbents. For synthesis of these compounds, environmentally friendly compounds such as chitosan, humic acid, cellulose and bentonite are used and their partial leaching during adsorption processes has no negative impact on the environment.

Supporting Information

materials-07-00673-s001.docx
